One for All: Neural Joint Modeling of Entities and Events

The previous work for event extraction has mainly focused on the predictions for event triggers and argument roles, treating entity mentions as being provided by human annotators. This is unrealistic as entity mentions are usually predicted by some existing toolkits whose errors might be propagated to the event trigger and argument role recognition. Few of the recent work has addressed this problem by jointly predicting entity mentions, event triggers and arguments. However, such work is limited to using discrete engineering features to represent contextual information for the individual tasks and their interactions. In this work, we propose a novel model to jointly perform predictions for entity mentions, event triggers and arguments based on the shared hidden representations from deep learning. The experiments demonstrate the benefits of the proposed method, leading to the state-of-the-art performance for event extraction.

READ FULL TEXT VIEW PDF

page 1

page 2

page 3

page 4

07/01/2021

Capturing Event Argument Interaction via A Bi-Directional Entity-Level Recurrent Decoder

Capturing interactions among event arguments is an essential step toward...
04/14/2021

Evaluation of Unsupervised Entity and Event Salience Estimation

Salience Estimation aims to predict term importance in documents. Due to...
02/20/2018

Implicit Argument Prediction with Event Knowledge

Implicit arguments are not syntactically connected to their predicates, ...
03/11/2021

On Improving Deep Learning Trace Analysis with System Call Arguments

Kernel traces are sequences of low-level events comprising a name and mu...
10/26/2020

Graph Transformer Networks with Syntactic and Semantic Structures for Event Argument Extraction

The goal of Event Argument Extraction (EAE) is to find the role of each ...
10/28/2022

Bi-Directional Iterative Prompt-Tuning for Event Argument Extraction

Recently, prompt-tuning has attracted growing interests in event argumen...
10/24/2020

Paired Representation Learning for Event and Entity Coreference

Co-reference of Events and of Entities are commonly formulated as binary...

Introduction

An important problem of information extraction in natural language processing (NLP) is event extraction (EE): understanding how events are presented in text and developing techniques to recognize such events. We follow the definition of events in the annotation guideline designed for the ACE 2005 dataset

111https://www.ldc.upenn.edu/collaborations/past-projects/ace: an event is triggered by some words in the sentence with which several entities are associated to play different roles in the event.

EE is a challenging problem as it is a composition of three subtasks corresponding to different aspects of the event definition. In particular, the first subtask concerns the extraction of entity mentions appearing in the sentences (Entity Mention Detection - EMD) while the second subtask needs to identify the event trigger words (Event Detection - ED). Finally, in the third subtask, the relationships between the detected entity mentions and trigger words in the sentences should be recognized to reflect the roles of the entity mentions in the events (Argument Role Prediction - ARP). We call the three subtasks ordered by “EMD ED ARP” the EE pipeline for convenience. For instance, consider the following sentence taken from the ACE 2005 dataset:

Another a-10 warthog was hit today.

In this sentence, an EMD system needs to recognize “a-10 warthog” as an entity mention of type “VEHICLE” and “today” as a time expression. For ED, the systems should be able to realize that “hit” is a trigger word for an event of type “Attack”. Finally, for ARP, the systems are supposed to identify “a-10 warthog” as playing the “Target” role in the “Attack” event and “today” as the event’s time.

A large portion of the prior work on EE has taken a simplified approach that only focuses on one or two specific subtasks, either assuming the manual/golden annotation for the other subtasks or simply ignoring them (i.e, the pipelined approach) [Li et al.2013, Chen et al.2015, Nguyen et al.2016a]. One of the major issues with this approach is the error propagation in which the error from the earlier subtask is inherited and magnified in the later subtasks, causing the poor performance of those later subtasks [Li et al.2013]. In addition, the pipelined approach for EE does not have any mechanisms to capture the dependencies and interactions among the three subtasks so the later subtasks in the pipeline can interfere with and improve the decision process for the earlier subtasks. The earlier subtasks, on the other hand, can only communicate with the later subtasks via the discrete outputs, and fail to pass deeper information to the later stages to potentially improve the overall performance. Consider an EE system where EMD is done separately from ED and ARP as an example. In this system, the EMD module would work on its own and the ED and ARP modules have no way to correct the mistake made earlier by the EMD module. At the same time, it is very usual that the EMD module can only provide the ED and ARP modules with the boundary and types of the detected entity mentions. Such deeper information as the hidden contextual representations or the more fine-grained semantic classification of the entity mentions cannot be passed to or affect the ED and ARP modules. This would cause the inefficiency to use the information among the subtasks and result in the poor performance for EE.

It is thus appealing to design a single system to simultaneously model the three EE subtasks to avoid the aforementioned issues of the pipelined approach. However, due to the complexity in modeling, there has been only few works in the literature to study this joint modeling approach for EE. The major prior works in this direction for the ACE 2005 dataset involve [Li et al.2014b], [Judea and Strube2016] and [Yang and Mitchell2016]. Although these studies address the issues associated with the separate approach to some extent, they share the same limitation in which binary features (i.e, lexical words, dependency paths, etc.) are the main tools to capture the context for the individual subtasks and the dependencies/interactions among them. The major issue of those binary features is the inability to generalize over unseen words/features (due to the hard matches of binary features) and the limited expressiveness to encode the effective hidden structures for EE [Nguyen et al.2016a]. Specifically, such binary representations cannot take advantages of the deep learning (DL) models with the shared hidden representations across different stages, a useful mechanism to enable the communications among the subtasks for EE demonstrated in [Nguyen et al.2016a].

In order to overcome the issues of such prior works for EE, in this paper, we propose a single deep learning model to jointly solve the three subtasks EMD, ED and ARP of EE. In particular, we employ a bidirectional recurrent neural network (RNN) to induce the shared hidden representations for the words in the sentence, over which the predictions for all the three subtasks EMD, ED and ARP are made. On the one hand, the bidirectional RNN helps to induce effective underlying structures via real-valued representations for the EE subtasks and mitigate the issue of hard matches for binary features. On the other hand, the shared hidden representations for the three subtasks enable the knowledge sharing across the subtasks so the hidden dependencies/interactions of the subtasks can be exploited to improve the EE performance.

We conduct extensive experiments to evaluate the effectiveness of the proposed model. The experiments demonstrate the benefits of joint modeling with deep learning for the three subtasks of EE over the traditional baselines, yielding the state-of-the-art performance on the long-standing and widely-used dataset ACE 2005. To the best of our knowledge, this is the first work to jointly model EMD, ED and ARP with deep learning.

Related Work

The early work on EE has mainly focused on the pipelined approach that performs the subtasks for EE separately and heavily relies on feature engineering to extract a diversity of features [Grishman et al.2005, Ahn2006, Ji and Grishman2008, Gupta and Ji2009, Patwardhan and Riloff2009, Liao and Grishman2010, Liao and Grishman2011, Hong et al.2011, McClosky et al.2011, Huang and Riloff2012, Miwa et al.2014, Li et al.2015]. Some recent work has developed joint inference models for ED and ARP to address the error propagation issue in the pipelined approach. Those work exploits different structured prediction methods, including Markov Logic Networks [Riedel et al.2009, Poon and Vanderwende2010, Venugopal et al.2014]

, Structured Perceptron

[Li et al.2013, Li et al.2014b, Judea and Strube2016] and Dual Decomposition [Riedel et al.2009, Riedel and McCallum2011a, Riedel and McCallum2011b]. The closest work to ours is [Yang and Mitchell2016] that attempts to jointly model EMD, ED and ARP for EE. However, this work needs to find entity mentions and event trigger candidate separately. It also does not employ shared hidden feature representations as we do in this work with DL.

Deep learning has been shown to be very successful for EE recently. Most of the early work in this direction has also followed the pipelined approach [Nguyen and Grishman2015b, Chen et al.2015, Nguyen and Grishman2016d, Chen et al.2017, Liu et al.2017, Nguyen and Grishman2018a, Liu et al.2018, Huang et al.2018, Lu and Nguyen2018] while some work on joint inference for EE has also been introduced [Nguyen et al.2016a, Sha et al.2018]. However, these studies are limited to the joint modeling of ED and ARP only.

Model

We propose a joint model for the three subtasks of EE (i.e, EMD, ED and ARP) at the sentence level. Let be a sentence with as the number of words/tokens and as the -th token. In order to solve the EMD problem, we cast it as a sequence labeling problem that attempts to assign a label for every word in . The result is a label sequence for that can be used to reveal the boundary of the entity mentions and their entity types in the sentence. We apply the BIO annotation schema to generate the BIO labels for the words in the sentences222Following [Yang and Mitchell2016], we consider values and time expressions as two additional entity types for prediction in the ACE 2005 dataset..

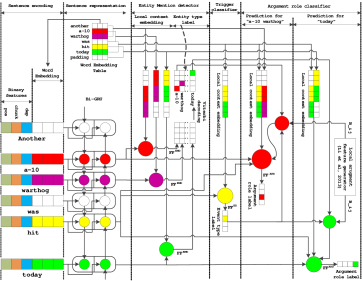

Figure 1: The joint EE model for the three subtasks with the input sentence “Another a-10 warthog was hit today” with local context window . Red and violet correspond to the beginning and last tokens of the entity mention “a-10 warthog” while green corresponds to the time “today”. The trigger candidate “hit” at the current token is associated with yellow.

Regarding the ED task for triggers, we follow the prior works [Li et al.2013, Nguyen et al.2016a, Sha et al.2018] to assume event triggers to be only single words/tokens in the sentences. This essentially leads to a word classification problem for every word in the sentences in which we need to predict an event type for ( can be “Other” to indicate the word is not triggering any event of interest). The sequence of event type labels for the words in is denoted by .

Finally, for event arguments, we need to recognize the entity mentions that are arguments for the event mentions appearing in . However, as the event mentions and triggers are not provided in advanced in our setting, we essentially need to predict the argument role label for every pair of entity mention candidates and trigger candidates in the sentence. We choose the indexes of the beginning tokens of the entity mentions as the single anchors for the entity mentions. This translates into an argument role label matrix to encode the argument information of the events in . In this square matrix, is set to “Other” if any of the following conditions is satisfied: (i) , (ii) is not a trigger word for any events in , and (iii) is not the beginning token of any entity mentions in . Otherwise, if all the conditions are not satisfied, will be the argument role label that the entity mention with the beginning token has in the event mention associated with the trigger word . For convenience, we denote as the -th row in the matrix . Given this encoding schema, the goal of the ARP module in our model is to predict the labels for the elements of using the context specific to the tokens and .

The overall architecture of the joint model for EE in this work involves five components : i.e, sentence encoding, sentence representation, entity mention detector, trigger classifier and argument role classifier. These components are chained in an order as demonstrated in Figure

1 (from left to right). The first two steps help to transform the input sentence into a hidden representation while the last three steps consume this hidden representation to make predictions for the three subtasks EMD, ED and ARP of EE.

Sentence Encoding

In the first component of sentence encoding, every word

is transformed into a vector

using the concatenation of the following vectors:

1. The pre-trained word embedding of [Mikolov et al.2013a]. We update the pre-trained word embeddings during the training process.

2. The binary vectors to capture the POS, chunk, and dependency information for in [Nguyen et al.2016a]. In particular, we first run a POS tagger, chunker and dependency parser over the input sentence . The results are then used to collect the POS tag, chunking tag (with the BIO annotation schema) and the surrounding dependency relations in the parse tree for . Finally, we create one-hot vectors to represent the POS tag and chunking tag for as well as a binary vector to indicate which dependency relations surround in the dependency tree.

Sentence Representation

After the sentence encoding step, the input sentence becomes a sequence of vectors . In the sentence representation component, the sequence of vectors is fed into a bidirectional recurrent neural network [Hochreiter and Schmidhuber1997, Cho et al.2014] to generate the hidden vector sequence for every word in the

. We employ the Gated Recurrent Units (GRU)

[Cho et al.2014] to implement the RNN model in this work. It has been shown that the hidden vector sequence encodes rich contextual information of the whole sentence in each of the hidden vector for EE [Nguyen et al.2016a]. It is important to note that we utilize as the shared representation to make the predictions for all the following components for EMD, ED and ARP. This enables the communications and facilitates the knowledge transfer among the three subtasks.

In order to decode for EE, our goal is to predict the label variables in , and

jointly. Formally, this amounts to estimating the joint probability

for the input sentence . In this work, we decompose this probability as follows to guide our design of the model architecture:

where denote the -th row in the argument role label matrix and , .

Based on this decomposition, we would first predict the entity type label for every word in the sentence (i.e, computing for EMD) in the entity mention detector component. Afterward, the sentence is scanned from left to right for which the probability is estimated at the step/word for trigger and argument predictions (i.e, in the last two components trigger classifier and argument role classifier of the overall architecture). We describe how those probabilities are computed using the hidden vectors and the word embeddings in the following. Note that the modeling of enables the use of the information from and to reveal the inter-dependencies among the multiple events appearing in the input sentence to better predict and .

Throughout this paper, we will refer to “the local context of a token in ” as the concatenation vector of the word embeddings of the words in a window of in , i.e:

where zero vectors are padded if the index is out of range.

Entity Mention Detector

For entity mention prediction, the probability can be decomposed into:

where .

In this work, for each word , we estimate where

is a feed-forward neural network followed by a softmax layer to transform the feature representation

for

in EMD into a probability distribution over the possible entity type labels for

. The feature representation is, in turn, computed by concatenating the hidden vector and the local context for : .

Note that in the representation for , we do not use any information about the entity type prediction made for as we find it not effective for our joint model from the development experiments. However, this might cause the orphan label issue (i.e, the I (inside) label for an entity type is not preceded by the B (beginning) label of the corresponding entity type). We prevent this issue by generating a transition score matrix between the entity type labels that penalizes any transitions to an I label but not from the corresponding B label. The Viterbi decoding algorithm is then employed to find the best predicted entity label sequence for based on the scores () and the generated transition matrix [Ma and Hovy2016, He et al.2017].

Trigger and Argument Prediction

Once the entity type label for every word in has been decided, we continue with the predictions of event triggers and arguments in the trigger classifier and argument role classifier components. As mentioned above, this step is done sequentially over the sentence from left to right. At the current word/step , we attempt to compute the probability that is decomposed into:

where .

In this product, the term is to predict the event type that the current word is triggering. Note that this can output the “Other” type to indicate that the current word is not an event trigger. The term , on the other hand, predict the role that the entity mention with the beginning token of plays in the event mention associated with (i.e, the current event mention). Note that is only meaningful if is a trigger word and is the beginning token of some entity mention in the sentence. In other cases, we can simply skip the computation for . During the training phase, we use the golden entity mentions to decide which tokens start an entity mention while in the evaluation phase, the predicted entity type labels in the previous step is used for this purpose.

In order to produce , we compute the feature representation for the current word feed it into a feed-forward neural network with softmax , resulting in a probability distributions over the possible event types: . Similar to EMD, we also compute the representation by: .

A greedy decoder is applied to decide the predicted event type for the current word: .

Regarding the argument role distribution , we also compute it with the feed-forward network and the feature representation : . However, in this case is computed as:

(1)

where is the function that converts a label into an one-hot vector to represent the label. Note that during the training process, and would be set to the golden labels from the training data. is the binary vector to indicate the event types and argument roles that appear before step in . Finally, is the binary vector inherited from [Li et al.2013, Nguyen et al.2016a] to capture the discrete structures/features for argument prediction between the tokens and in the sentence (i.e, the shortest dependency paths, the context words etc.). Note that different from the prior work [Li et al.2013, Nguyen et al.2016a], does not contain any features related to the entity types or subtypes of the entity mentions as these features are not available to us at the beginning. We instead resort to the predicted entity type as demonstrated in Equation 1. We also apply the greedy strategy to predict the argument role in this case: . This completes the description of our joint model for EE.

Training

We train the joint model by optimizing the negative log-likelihood function . In order to encourage the loss terms for EMD, ED and ARP to converge at the same time, we penalize these terms differently in

, leading to the following loss function in this work:

where , and are the hyper-parameters. We use the SGD algorithm to optimize the parameters with mini-batches and the Adadelta update rules [Zeiler2012]. The gradients are computed with back-propagation while the parameters are rescaled if their Frobenius norms exceed a hyper-parameter.

Experiments

Dataset, Parameters, and Resources

We evaluate the proposed model on the ACE 2005 dataset. In order to ensure a fair comparison, we use the same data split with the prior work on this dataset [Li et al.2013, Nguyen et al.2016a, Nguyen et al.2016b, Yang and Mitchell2016, Sha et al.2018] in which 40 newswire documents are used for the test set, 30 other documents are reserved for the development set, and the remaining 529 documents form the training set. We utilize the Stanford CoreNLP to do the pre-processing for the sentences (i.e, POS tagging, chunking and dependency parsing). The pre-trained word embeddings are obtained from [Nguyen et al.2016a].

Model Event Trigger Event Trigger Event Argument Argument Role
Identification Classification Identification Classification
P R F P R F P R F P R F
StagedMaxent 73.9 66.5 70.0 70.4 63.3 66.7 75.7 20.2 31.9 71.2 19.0 30.0
Pipelined-Feature 76.6 58.7 66.5 74.0 56.7 64.2 74.6 25.5 38.0 68.8 23.5 35.0
Pipelined-Deep-Learning 72.7 65.9 69.1 70.4 63.9 67.0 61.7 42.1 50.1 46.0 31.4 37.4
Joint-Feature-Sentence 76.9 63.8 69.7 74.7 62.0 67.7 72.4 37.2 49.2 69.9 35.9 47.4
Joint-Feature-Document† 77.6 65.4 71.0 75.1 63.3 68.7 73.7 38.5 50.6 70.6 36.9 48.4
NP-Candidate-Deep-Learning - - - - - 69.6 - - 57.2 - - 50.1
Joint3EE 70.5 74.5 72.5 68.0 71.8 69.8 59.9 59.8 59.9 52.1 52.1 52.1
Table 1: Performance on the ACE 2005 test set. The comparison between Joint3EE and Pipelined-Deep-Learning is significant with . “†” designates the systems with document level information.

Regarding the hyper-parameters, the word embeddings have the dimension of 300; the number of hidden units in the encoding RNNs is 300; and the window for local context is 2. We use the feed-forward neural networks with one hidden layer of 600 hidden units for , and . The mini-batch size is 50 while the Frobenius norm for the parameters norms is 3. These values give us best the results on the development set. For the penalty coefficients in the objective function, the best values we obtained from the development data is . We also implement dropouts on the input word embeddings and the hidden vectors of the feed-forward networks with a rate of 0.5 (tuned on the development set). Finally, the same correctness criteria with the previous work [Nguyen et al.2016a, Yang and Mitchell2016, Sha et al.2018] is applied when we evaluate the predicted results.

Comparing to the State of the Art for Trigger and Argument Predictions

In order to evaluate the effectiveness of the proposed model for event trigger and argument predictions, we compare the proposed model (called Joint3EE) with the following baselines:

1. StagedMaxent: This is a feature-based pipelined baseline presented in [Yang and Mitchell2016] (i.e, performing the three subtasks separately). The EMD subtask is solved by a CRF tagger. All the three subtasks are based on feature engineering.

2. Pipelined-Feature: This is the feature-based EE system that uses the same CRF tagger as StagedMaxent’s to annotate entity mentions. The results are passed to the joint model for ED and ARP in [Li et al.2013]. Similar to the CRF tagger, this joint model also employs complicated feature engineering. This baseline is reported in [Yang and Mitchell2016] and functions as the state-of-the-art pipelined model for EE using feature engineering.

3. Pipelined-Deep-Learning: This baseline also first extracts entity mentions and then uses the outputs in a joint model for ED and ARP (pipelined). However, the EMD model and the joint model for ED and ARP are based on deep learning in this case. In particular, the EMD model for this baseline is inherited from the EMD component of this work while the joint model for ED and ARP is provided by [Nguyen et al.2016a]. The performance of the EMD model when it is trained independently for EMD is shown in Table 2 (i.e, EMD-Pipelined-DL).

4. Joint-Feature-Sentence: This is the joint inference system that models the three subtasks of EE in a single model proposed in [Yang and Mitchell2016]. This model only considers the structures within a single event.

5. Joint-Feature-Document: This system is similar to Joint-Feature-Sentence except that it goes beyond the sentence level and exploits the event-event dependencies at the document level [Yang and Mitchell2016]. This is the state-of-the-art joint model for EE using feature engineering.

6. NP-Candidate-Deep-Learning [Sha et al.2018]: This method uses the existing tools to extract noun phrases and treat them as the argument candidates for the events. It is then followed by a dependency bridge recurrent neural network with argument interaction modeling to jointly perform ED and ARP for event extraction. This method currently has the best reported performance on ED and ARP for EE among the methods that do not assume golden entity mentions with the ACE 2005 dataset. The EMD task is not considered in this method.

Table 1 reports the performance of the systems in terms of precisions (P), recalls (R) and F1 scores (F). The first observation is that the performance of the joint deep learning model for ED and ARP in [Nguyen et al.2016a] with predicted entity mentions (i.e, Pipelined-Deep-Learning with 67.0% and 37.4% for trigger and argument role classification respectively) is much worse than that with perfect entity mentions in [Nguyen et al.2016a] (i.e, 69.3% and 55.4% for trigger and argument role classification respectively). This is consistent with the significant performance drop of the joint feature-based model for ED and ARP (reported in [Li et al.2013]) when entity mentions are predicted. Such pieces of evidence along with the significantly better performance of the fully joint models for EE (i.e, Joint-Feature-Document and Joint3EE) over the pipelined models (i.e, StagedMaxEnt, Pipelined-Feature and Pipelined-Deep-Learning) in Table 1 demonstrate the need to jointly perform EMD with ED and ARP to improve the EE performance. We also see that Pipelined-Deep-Learning outperforms Pipelined-Feature and Joint3EE is significantly better than Joint-Feature-Document with respect to all the F1 scores in Table 1. These facts testify to the benefits of deep learning over the feature-based models for EE no matter which approach we take (i.e, pipelined or joint inference). Finally, comparing Joint3EE and the current state-of-the-art model NP-Candidate-Deep-Learning, we see that Joint3EE is superior to NP-Candidate-Deep-Learning on both trigger and argument prediction. The improvement is significant on event argument identification and argument role classification (an improvement of 2.7% for event argument identification and 2.0% for argument role classification on the absolute F1 scores), clearly demonstrating the effectiveness of the proposed deep learning method to jointly model the three subtasks for EE.

Performance of EMD

This section evaluates the EMD performance of the proposed joint model (called EMD-Joint3EE). The following baselines are chosen for comparison:

1. EMD-CRF: This is the performance of the CRF tagger for EMD used in the pipelined models StagedMaxent and Pipelined-Feature. It is implemented in [Yang and Mitchell2016].

2. EMD-Pipelined-DL: This is the performance of the deep learning EMD module used in Pipelined-Deep-Learning that resembles the EMD component of the proposed model Joint3EE, but is trained separately from ED and ARP.

3. EMD-Joint-Feature: This corresponds to the EMD module in Joint-Feature-Document [Yang and Mitchell2016] that is trained jointly with ED and ARP in a single model based on feature engineering. It is currently the state-of-the-art EMD performance in the setting for EE.

Model P R F
EMD-CRF 85.5 73.5 79.1
EMD-Pipelined-DL 80.6 80.3 80.4
EMD-Joint-Feature 82.4 79.2 80.7
EMD-Joint3EE 82.0 80.4 81.2
Table 2: Entity Mention Detection Performance

Table 2 shows the performance of the models. First, we can see from the table that the performance of the proposed model EMD-Joint3EE is better than that of EMD-Pipelined-DL. The performance improvement is 0.8% on the absolute F1 score and significant with . Second, we also see that EMD-Joint3EE outperforms the current state-of-the-art joint model EMD-Joint-Feature with an improvement of 0.5% on the F1 score. Such evidence confirms the benefits of jointly modeling EMD with ED and ARP via deep learning to improve the overall performance.

An intriguing observation is that the performance difference for EMD between Pipelined-Deep-Learning and Joint3EE is moderate (i.e, 0.8% in Table 2) while that difference for ARP is substantial (i.e, 13.9% in Table 1). Among several reasons, Pipelined-Deep-Learning employs the joint model for ED and ARP in [Nguyen et al.2016a] that relies on the discrete features only available to the manually annotated entity mentions such as the entity subtypes for the entity mentions (i.e, “Crime”, “Job-Title” and “Numeric” for values). As demonstrated in Table 3, such information is very helpful for ARP. However, it is not available in our setting of predicted entity mentions (i.e, only the boundaries and the entity types are predicted), causing the poor ARP performance of Pipelined-Deep-Learning.

Model P R F
[Nguyen et al.2016a] 54.2 56.7 55.4
Without Entity Subtype 46.2 48.8 47.5
Table 3: Performance on argument role classification of the joint model in [Nguyen et al.2016a] (using perfect entity mentions). The absence of the entity subtype information reduces the F1 score of the joint model in [Nguyen et al.2016a] by 7.9%.

For the Joint3EE model, although such discrete fine-grained information also does not exist explicitly, the shared hidden vectors across subtasks can learn to encode that information implicitly, thereby compensating the lack of information and improving the ARP performance.

The Effect of External Features

There are two main sources of external features employed in Joint3EE, i.e, the binary vectors for POS, chunking and dependency parsing information in the sentence encoding, and the binary features for argument role prediction in Equation 1. This section evaluates the effect of such features on the model performance to see how far we can reach an end-to-end model for joint EE with deep learning. Table 4 presents the performance of the proposed model when such features are excluded from the model (i.e, resulting in an end-to-end model for EE (called “End-to-end-DL”) that does not use any external hand-designed features from the NLP toolkits. We also include the performance of the state-of-the-art models (i.e, Joint-Feature-Document [Yang and Mitchell2016] and NP-Candidate-Deep-Learning [Sha et al.2018]) that employ predicted entity mentions for EE to facilitate the comparison.

Feature Entity Trigger Argument
Joint3EE 81.2 69.8 52.1
End-to-end-DL 79.5 68.7 50.3
Joint-Feature-Document 80.7 68.7 48.4
NP-Candidate-Deep-Learning - 69.6 50.1
Table 4: F1 scores on classification for entity mentions (EMD), event triggers (ED) and arguments (ARP).

The first observation is that the external features are useful for the joint model Joint3EE as eliminating such features downgrades the performance over all the subtasks EMD, ED and ARP (i.e. comparing joint3E and End-to-end-DL). However, the performance reduction due to this feature removal is not dramatic and the performance of the End-to-end-DL system is still comparable with that of the current state-of-the-art models Joint-Feature-Document and NP-Candidate-Deep-Learning. In particular, End-to-end-DL is only 1.2% worse than Joint-Feature-Document on EMD and 0.9% worse than NP-Candidate-Deep-Learning on ED. Regarding ARP, End-to-end-DL even significantly outperforms Joint-Feature-Document with 1.9% performance improvement. These are remarkable facts given that End-to-end-DL does not use any external and manually-generated features while Joint-Feature-Document and NP-Candidate-Deep-Learning extensively rely on such external features to perform well (e.g, dependency parsing, NP chunking, gazetteers etc.). We consider this as a strong promise toward a state-of-the-art end-to-end system for EE for which the joint model in this work can be used as a good starting point.

Error Analysis

MISSED INCORRECT
Label Percent Label Percent
Attack 16.1% End-Position 18.2%
Transfer -
Ownership
12.5% Attack 17.5%
Transport 12.5% Transport 17.5%
Total 41.1% Total 53.2%
Table 5: Top three event types for trigger errors.

In order to analyze the operation of Joint3EE with respect to ED, we notice from Table 1 that the trigger classification performance (i.e, 69.8%) is quite close the trigger identification performance (i.e, 72.5%). This suggests that the main source of errors for event triggers comes from the failure to identify the trigger words. To this end, we examine the outputs of Joint3EE on the test set to determine the contributions of each event type to the trigger identification errors. Two types of errors arise in this case: (i) missing an event trigger in the test set (called MISSED), and (ii) incorrectly detecting an event trigger (called INCORRECT). Table 5 shows the top three event types appearing in these two types of errors and their corresponding percents over the total numbers of errors. These top three event types account for 41.1% of the MISSED errors and 53.2% of the INCORRECT errors. Attack and Transport are the types that are present frequently in both types of errors. A closer look at the errors reveals that the “MISSED” errors mostly correspond to the trigger words not appearing in the training data, such as the word “intifada” (of type Attack) in the following sentence:

…had freedom of movement with cars and weapons since the start of the intifada” …

The INCORRECT errors, on the other hand, belong to the confusable context that requires better modeling of the context. For instance, the word “fire” in the following sentence can be easily misinterpreted as an Attack event trigger by the models (due to its context with the word “car”):

…also take over GE’s US car and fire insurance operations, the reports said.

Regarding the argument prediction, we find that a large number of arguments (i.e, 209 arguments) are identified correctly, but cannot be classified properly by Joint3EE (i.e, Table 1). Among those 209 arguments, there are 50 cases (23.9%) that Joint3EE detects with the correct argument role, but assigns incorrect event types. The remaining 159 arguments (76.1%) are associated with incorrect roles for which only 24 arguments (15.1%) also have incorrect entity types. Consequently, the major problem for the incorrect argument classification is due to the confusion of the model on the different roles of arguments. The most frequent role confusions are between Place vs Destination, Origin vs Destination, and Seller vs Buyer. The distinction between these pairs of roles would also require better mechanisms/network architectures to model the input context.

Conclusion

We present a novel deep learning method for EE. Our model features the joint modeling of EMD, ED and ARP with the shared hidden representations across the three subtasks to enable the communications among them. We achieve the state-of-the-art performance for EE with predicted entity mentions. In the future, we plan to improve the end-to-end model so EE can be solved from just the raw sentences and the word embeddings.

References

  • [Ahn2006] David Ahn. The stages of event extraction. In Proceedings of the Workshop on Annotating and Reasoning about Time and Events, 2006.
  • [Chen et al.2015] Yubo Chen, Liheng Xu, Kang Liu, Daojian Zeng, and Jun Zhao.

    Event extraction via dynamic multi-pooling convolutional neural networks.

    In ACL-IJCNLP, 2015.
  • [Chen et al.2017] Yubo Chen, Shulin Liu, Xiang Zhang, Kang Liu, and Jun Zhao. Automatically labeled data generation for large scale event extraction. In ACL, 2017.
  • [Cho et al.2014] Kyunghyun Cho, Bart van Merrienboer, Caglar Gulcehre, Dzmitry Bahdanau, Fethi Bougares, Holger Schwenk, and Yoshua Bengio. Learning phrase representations using rnn encoder–decoder for statistical machine translation. In EMNLP, 2014.
  • [Grishman et al.2005] Ralph Grishman, David Westbrook, and Adam Meyers. Nyu’s english ace 2005 system description. In ACE 2005 Evaluation Workshop, 2005.
  • [Gupta and Ji2009] Prashant Gupta and Heng Ji. Predicting unknown time arguments based on cross-event propagation. In ACL-IJCNLP, 2009.
  • [He et al.2017] Luheng He, Kenton Lee, Mike Lewis, and Luke Zettlemoyer. Deep semantic role labeling: What works and what’s next. In ACL, 2017.
  • [Hochreiter and Schmidhuber1997] Sepp Hochreiter and Jurgen Schmidhuber. Long short-term memory. In Neural Computation, 1997.
  • [Hong et al.2011] Yu Hong, Jianfeng Zhang, Bin Ma, Jianmin Yao, Guodong Zhou, and Qiaoming Zhu. Using cross-entity inference to improve event extraction. In ACL, 2011.
  • [Huang and Riloff2012] Ruihong Huang and Ellen Riloff. Modeling textual cohesion for event extraction. In AAAI, 2012.
  • [Huang et al.2018] Lifu Huang, Heng Ji, Kyunghyun Cho, and Clare R. Voss. Zero-shot transfer learning for event extraction. In arXiv preprint arXiv:1707.01066, 2018.
  • [Ji and Grishman2008] Heng Ji and Ralph Grishman. Refining event extraction through cross-document inference. In ACL, 2008.
  • [Judea and Strube2016] Alex Judea and Michael Strube. Incremental global event extraction. In COLING, 2016.
  • [Li et al.2013] Qi Li, Heng Ji, and Liang Huang. Joint event extraction via structured prediction with global features. In ACL, 2013.
  • [Li et al.2014b] Qi Li, Heng Ji, Yu Hong, and Sujian Li. Constructing information networks using one single model. In EMNLP, 2014b.
  • [Li et al.2015] Xiang Li, Thien Huu Nguyen, Kai Cao, and Ralph Grishman. Improving event detection with abstract meaning representation. In Proceedings of ACL-IJCNLP Workshop on Computing News Storylines (CNewS), 2015.
  • [Liao and Grishman2010] Shasha Liao and Ralph Grishman. Using document level cross-event inference to improve event extraction. In ACL, 2010.
  • [Liao and Grishman2011] Shasha Liao and Ralph Grishman. Acquiring topic features to improve event extraction: in pre-selected and balanced collections. In RANLP, 2011.
  • [Liu et al.2017] Shulin Liu, Yubo Chen, Kang Liu, and Jun Zhao. Exploiting argument information to improve event detection via supervised attention mechanisms. In ACL, 2017.
  • [Liu et al.2018] Jian Liu, Yubo Chen, Kang Liu, and Jun Zhao. Event detection via gated multilingual attention mechanism. In AAAI, 2018.
  • [Lu and Nguyen2018] Weiyi Lu and Thien Huu Nguyen. Similar but not the same: Word sense disambiguation improves event detection via neural representation matching. In EMNLP, 2018.
  • [Ma and Hovy2016] Xuezhe Ma and Eduard Hovy. End-to-end sequence labeling via bi-directional lstm-cnns-crf. In ACL, 2016.
  • [McClosky et al.2011] David McClosky, Mihai Surdeanu, and Christopher Manning. Event extraction as dependency parsing. In BioNLP Shared Task Workshop, 2011.
  • [Mikolov et al.2013a] Tomas Mikolov, Kai Chen, Greg Corrado, and Jeffrey Dean. Efficient estimation of word representations in vector space. In ICLR, 2013a.
  • [Miwa et al.2014] Makoto Miwa, Paul Thompson, Ioannis Korkontzelos, and Sophia Ananiadou. Comparable study of event extraction in newswire and biomedical domains. In COLING, 2014.
  • [Nguyen and Grishman2015b] Thien Huu Nguyen and Ralph Grishman. Event detection and domain adaptation with convolutional neural networks. In ACL-IJCNLP, 2015b.
  • [Nguyen and Grishman2016d] Thien Huu Nguyen and Ralph Grishman. Modeling skip-grams for event detection with convolutional neural networks. In EMNLP, 2016d.
  • [Nguyen and Grishman2018a] Thien Huu Nguyen and Ralph Grishman. Graph convolutional networks with argument-aware pooling for event detection. In AAAI, 2018a.
  • [Nguyen et al.2016a] Thien Huu Nguyen, Kyunghyun Cho, and Ralph Grishman. Joint event extraction via recurrent neural networks. In NAACL, 2016a.
  • [Nguyen et al.2016b] Thien Huu Nguyen, Lisheng Fu, Kyunghyun Cho, and Ralph Grishman. A two-stage approach for extending event detection to new types via neural networks. In Proceedings of the 1st ACL Workshop on Representation Learning for NLP (RepL4NLP), 2016b.
  • [Patwardhan and Riloff2009] Siddharth Patwardhan and Ellen Riloff. A unified model of phrasal and sentential evidence for information extraction. In EMNLP, 2009.
  • [Poon and Vanderwende2010] Hoifung Poon and Lucy Vanderwende. Joint inference for knowledge extraction from biomedical literature. In NAACL-HLT, 2010.
  • [Riedel and McCallum2011a] Sebastian Riedel and Andrew McCallum. Fast and robust joint models for biomedical event extraction. In EMNLP, 2011a.
  • [Riedel and McCallum2011b] Sebastian Riedel and Andrew McCallum. Robust biomedical event extraction with dual decomposition and minimal domain adaptation. In BioNLP Shared Task 2011 Workshop, 2011b.
  • [Riedel et al.2009] Sebastian Riedel, Hong-Woo Chun, Toshihisa Takagi, and Jun’ichi Tsujii. A markov logic approach to bio-molecular event extraction. In BioNLP 2009 Workshop, 2009.
  • [Sha et al.2018] Lei Sha, Feng Qian, Baobao Chang, and Zhifang Sui.

    Jointly extracting event triggers and arguments by dependency-bridge rnn and tensor-based argument interaction.

    In AAAI, 2018.
  • [Venugopal et al.2014] Deepak Venugopal, Chen Chen, Vibhav Gogate, and Vincent Ng. Relieving the computational bottleneck: Joint inference for event extraction with high-dimensional features. In EMNLP, 2014.
  • [Yang and Mitchell2016] Bishan Yang and Tom M. Mitchell. Joint extraction of events and entities within a document context. In NAACL-HLT, 2016.
  • [Zeiler2012] Matthew D. Zeiler. Adadelta: An adaptive learning rate method. In CoRR, abs/1212.5701, 2012.
