On the Role of Receptive Field in Unsupervised Sim-to-Real Image Translation

01/25/2020 ∙ by Nikita Jaipuria, et al. ∙ Ford Motor Company Stanford University 12

Generative Adversarial Networks (GANs) are now widely used for photo-realistic image synthesis. In applications where a simulated image needs to be translated into a realistic image (sim-to-real), GANs trained on unpaired data from the two domains are susceptible to failure in semantic content retention as the image is translated from one domain to the other. This failure mode is more pronounced in cases where the real data lacks content diversity, resulting in a content mismatch between the two domains - a situation often encountered in real-world deployment. In this paper, we investigate the role of the discriminator's receptive field in GANs for unsupervised image-to-image translation with mismatched data, and study its effect on semantic content retention. Experiments with the discriminator architecture of a state-of-the-art coupled Variational Auto-Encoder (VAE) - GAN model on diverse, mismatched datasets show that the discriminator receptive field is directly correlated with semantic content discrepancy of the generated image.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 2

page 4

page 5

page 6

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Advanced Driver Assistance Systems (ADAS) and self-driving cars utilize Deep Neural Networks (DNNs) for a variety of perception tasks. The main bottleneck in training and validating DNNs is the collection and annotation of large quantities of diverse data. As an alternative, gaming-engine based simulations can quickly generate large quantities of diverse synthetic data with accurate ground truth. However, models trained on synthetic data often fail to generalize to the real-world because of lack of realism in synthetic data.

Prior works on GANs Goodfellow et al. [2014] and VAEs Kingma and Welling [2013] have shown promising results in photo-realistic image synthesis, in both supervised and unsupervised settings. In the unsupervised setting, the training data consists of unpaired images in the simulated and real domains. Here, unpaired refers to the: (i) absence of one-to-one correspondence between the simulated and real images used for training; and (ii) absence of any form of annotation, such as semantic segmentation masks or edge masks. We are also interested in the unsupervised setting, since it is less restrictive in terms of training data requirements. Additionally, we assume lack of content diversity in the real training data, which causes a content mismatch between the two datasets. For instance, consider an object detection task on trailer images where the real dataset has images of trailer type A and the simulated dataset has images of other trailer types to add diversity in trailer types to the full dataset. While such a problem setting is more challenging, it is also more practical, intentional and often encountered in real-world deployments.

In the unsupervised setting, prior works such as Unsupervised Image-to-Image Translation (UNIT) Liu et al. [2017], combine the VAE reconstruction error, the adversarial GAN loss, cycle consistency constraints Zhu et al. [2017] and perceptual losses Johnson et al. [2016] to show promising results. However, when such unsupervised methods are applied to datasets that are heavily mismatched in terms of semantic content, these constraints are not enough to ensure retention of low-level scene semantics. Fig. 0(a) and Fig. 0(b) show sim-to-real results with UNIT trained on unpaired simulated and real trailer images. Here all simulated images are of trailers with A-frame couplers, while all real images are of trailers with straight couplers. Note that while high level content is preserved during sim-to-real translation from Fig. 0(a) to Fig. 0(b), lower-level details, such as, trailer coupler shape (A-frame vs. straight), structure (number of vertical bars) and sun position, are not preserved. This renders ground truth labels from simulation unusable in any downstream perception task.

We argue that these discrepancies are due to the large content mismatch between the simulated and real datasets. GANs simultaneously train adversarial networks – a generator (G) and a discriminator (D) – that compete to generate realistic imagery and distinguish between synthetic and real imagery, respectively. Since all the real images that D sees during training have trailers with straight couplers, G quickly converges to a point where it starts replacing A-frame couplers with straight couplers. To address this issue, we introduce a simple yet surprisingly powerful notion - what if we reduce the receptive field of D such that it can only see parts of, but never the full trailer coupler? Fig. 0(c) shows sim-to-real results with a modified UNIT architecture, where the original D (with a receptive field of ) is replaced with a modified D (with a receptive field of ). Observe the improved retention in trailer coupler shape, number of vertical bars on trailer and sun position. This is primarily because the modified D penalizes structure at the scale of image patches that are much smaller than the size of the trailer coupler itself. The rest of the paper describes experimentation with the network architecture of D, which establish the hypothesis that a reduction in D’s receptive field is directly correlated to improved semantic content retention during sim-to-real translation with GANs.

(a) Input Simulated Image
(b) Sim-to-real with UNIT ()
(c) Sim-to-real with Model 4 ()
Figure 1: The effect of reducing D’s receptive field on unsupervised sim-to-real translation with mismatched data: (a) Simulated image of an A-frame trailer (left) and its Holistically-nested Edge Detections (HED) (right); (b) Sim-to-real translation on (a) with UNIT (left) and its HED (right). Note the shift in position of sun (orange), change in trailer coupler shape from A-frame to straight (yellow) and change in number of vertical bars on trailer (green); (c) Sim-to-real translation on (a) with modified UNIT, where the original D was replaced with one with a reduced receptive field (left) and its HED (right). Note the improved semantic content retention between (a) and (c) as compared to that between (a) and (b).
Model Discriminator Architecture Receptive Field UNIT 1 2 3 4 5 6 7 8
Figure 2: List of UNIT and its modifications. and denote 2D convolutional layers with kernel sizes of

and strides of

respectively.

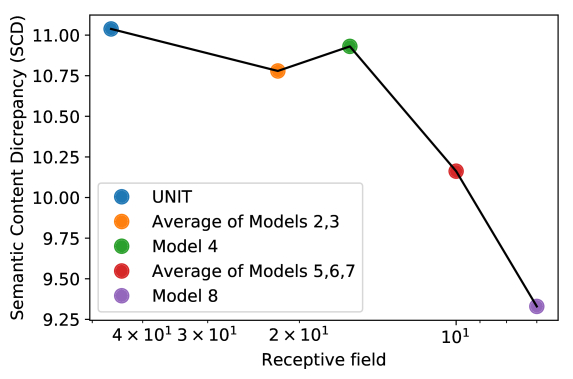

Figure 3: Plot of SCD vs. receptive field. SCD values for models with the same receptive field are averaged.
