On the Feasibility of Automated Issue Type Prediction

03/11/2020 ∙ by Steffen Herbold, et al. ∙ The University of Göttingen 0

Context: Issue tracking systems are used to track and describe tasks in the development process, e.g., requested feature improvements or reported bugs. However, past research has shown that the reported issue types often do not match the description of the issue. Objective: We want to understand the overall maturity of the state of the art of issue type prediction with the goal to predict if issues are bugs and evaluate if we can improve existing models by incorporating manually specified knowledge about issues. Method: We train different models for the title and description of the issue to account for the difference in structure between these fields, e.g., the length. Moreover, we manually detect issues whose description contains a null pointer exception, as these are strong indicators that issues are bugs. Results: Our approach performs best overall, but not significantly different from an approach from the literature based on the fastText classifier from Facebook AI Research. The small improvements in prediction performance are due to structural information about the issues we used. We found that using information about the content of issues in form of null pointer exceptions is not useful. We demonstrate the usefulness of issue type prediction through the example of labelling bugfixing commits. Conclusions: Issue type prediction works well and can be a useful tool if the use case allows either for a certain amount of missed bug reports or the prediction of too many issues as bug is acceptable.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

The tracking of tasks and issues is a common part of modern software engineering, e.g., through dedicated systems like Jira and Bugzilla, or integrated into other other systems like GitHub Issues. Developers and sometimes users of software file issues, e.g., to describe bugs, request improvements, organize work, or ask for feedback. This manifests in different types into which the issues are classified. However, past research has shown that the issue types are often not correct with respect to the content (Antoniol2008; Herzig2013; Herbold2020).

Wrong types of issues can have different kinds of negative consequences, depending on the use of the issue tracking system. We distinguish between two important use cases, that are negatively affected by misclassifications. First, the types of issues are important for measuring the progress of projects and project planing. For example, projects may define a quality gate that specifies that all issues of type bug with a major priority must be resolved prior to a release. If a feature request is misclassified as bug this may hold up a release. Second, there are many Mining Software Repositories (MSR) approaches that rely on issue types, especially the issue type bug, e.g., for bug localization (e.g., Marcus2004; Lukins2008; Rao2011; Mills2018) or the labeling of commits as defective with the SZZ algorithm (Sliwerski2005) and the subsequent use of these labels, e.g., for defect prediction (e.g., Hall2012; Hosseini2017; Herbold2018) or the creation of fine-grained data (e.g., Just2014). Mislabelled issues threaten the validity of the research and would also degenerate the performance of approaches based on this data that are implemented in tools and used by practitioners. Thus, mislabeled issues may have direct negative consequences on development processes as well as indirect consequences due to the downstream use of possibly noisy data. Studies by Herzig2013 and Herbold2020 have independently and on different data shown that on average about 40% issues are mislabelled, and most mislabels are issues wrongly classified as BUG.

There are several ways on how to deal with mislabels. For example, the mislabels could be ignored and in case of invalid blockers manually corrected by developers. Anecdotal evidence suggests that this is common in the current state of practice. Only mislabels that directly impact the development, e.g., because they are blockers, are manually corrected by developers. With this approach the impact of mislabels on the software development processes is reduced, but the mislabels may still negatively affect processes, e.g., because the amount of bugs is overestimated or because the focus is inadvertently on the addition of features instead of bug fixing. MSR would also still be affected by the mislabels, unless manual validation of the data is done, which is very time consuming (Herzig2013; Herbold2020).

Researchers suggested an alternative through the automated classification of issue types by analyzing the issue titles and descriptions with unsupervised machine learning based on clustering the issues

(limsettho2014automatic; limsettho2014automatic; hammad2018automatic; chawla2018automated) and supervised machine learning that create classification models (Antoniol2008; Pingclasai2013; limsettho2014comparing; chawla2015automated; zhou2016combining; Terdchanakul2017; Pandey2018; qin2018classifying; zolkeply2019classifying; otoom2019automated; kallis2019ticket). There are two possible use cases for such automated classification models. First, they could be integrated into the issue tracking system and provide recommendations to the reporter of the issue. This way, mislabeled data in the issue tracking system could potentially be prevented, which would be the ideal solution. The alternative is to leave the data in the issue tracking unchanged, but use machine learning as part of software repository mining pipelines to correct mislabeled issues. In this case, the status quo of software development would remain the same, but the validity of MSR research results and the quality of MSR tools based on the issue types would be improved.

Within this article, we want to investigate if machine learning models for the prediction of issue types can be improved by incorporating a-priori knowledge about the problem through predefined rules. For example, null pointer exceptions are almost always associated with bugs. Thus, we investigate if separating issues that report null pointers from those that do not contain null pointers improves the outcome. Moreover, current issue type prediction approaches ignore that the title and description of issues are structurally different and simply concatenate the field for the learning. However, the title is usually shorter than the description which may lead to information from the description suppressing information from the title. We investigate if we can improve issue type prediction by accounting for this structural difference by treating the title and description separately. Additionally, we investigate if mislabels in the training data are really problematic or if they do not negatively affect the decisions made by classification models. To this aim, we compare how the training with large amounts of data that contains mislabels performs in comparison to training with a smaller amount of data that was manually validated. Finally, we address the question how mature machine learning based issue type correction is and evaluate how our proposed approach, as well as the approaches from the literature, perform in two scenarios: 1) the classification of all issues regardless of their type and 2) the classification of only issues that are reported as bug. The first scenario evaluates how good the approaches would work in recommendation systems where a label must be suggested for every incoming issue. The second scenario evaluates how good the approaches would work to correct data for MSR. We only consider the correction of issues of type bug, because both Herzig2013 and Herbold2020 found that mislabels mostly affect issues of type bug. Moreover, many MSR approaches are interested in identifying bugs.

Thus, the research questions we address in the article are the following.

  • RQ1: Can manually specified logical rules derived from knowledge about issues be used to improve issue type classification?

  • RQ2: Does training data have to be manually validated or can a large amount of unvalidated data also lead to good classification models?

  • RQ3: How good are issue type classification models at recognizing bug issues and are the results useful for practical applications?

We provide the following contributions to the state of the art through the study of these research questions.

  • We determined that the difference in the structure of the issue title and description may be used to slightly enhance prediction models by training separate predictors for the title and the description of issues.

  • We found that rules that determine supposedly easy subsets of data based on null pointers do not help to improve the quality of issue type prediction models aimed at identifying bugs.

  • We were successfully able to use unvalidated data to train issue type prediction models that perform well on manually validated test data.

  • We showed that issue type prediction is a useful tool for researchers interested in improving the detection of bugfixing commits. The quality of the prediction models also indicate that issue type prediction may be useful for other purposes, e.g., as recommendation system.

  • We provide open source implementations of the state of the art of automated issue type prediction as a Python package.

The remainder of this paper is structured as follows. We describe the terminology we use in this paper and the problems we are analyzing in Section 2, followed by a summary of the related work on issue type prediction in Section 3. Afterwards, we discuss our proposed improvements to the state of the art in the sections 4 and 5. We present the design and results of our empirical study of issue type prediction in Section 6 and further discuss our findings in Section 7. Finally, we discuss the treats to the validity of our work in Section 8 before we conclude in Section 9.

2 Terminology and Problem Description

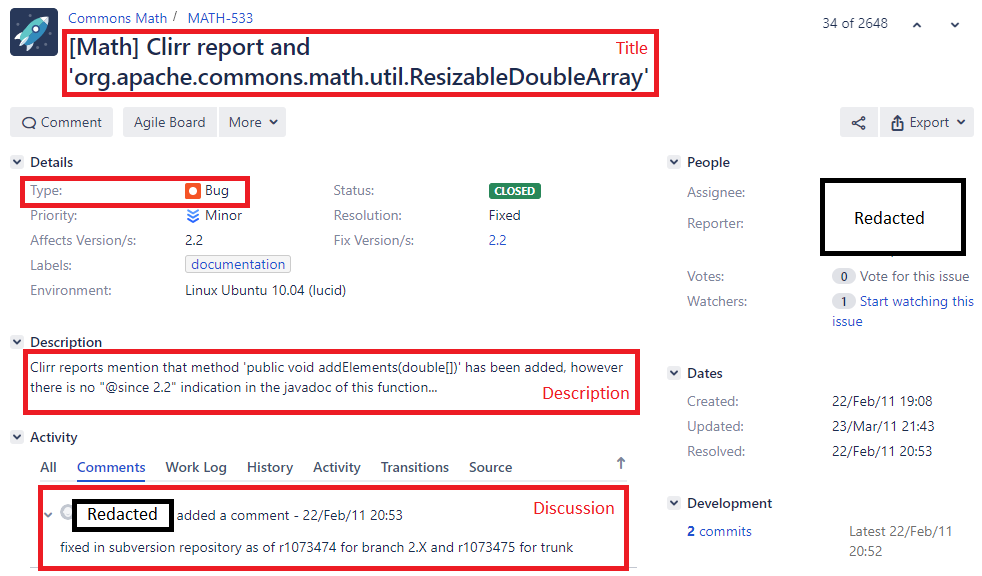

Figure 1: Example of a Jira Issue from the Apache Commons Math project. Names were redacted due to data privacy concerns.

Before we proceed with the details of the related work and our approach, we want to establish a common terminology and describe the underlying problem. Figure 1 shows a screenshot of the issue MATH-533 from the Jira issue tracking system of the Apache Software Foundation. Depending on the development process and the project, issues can either be reported by anyone or just by a restricted group of users, e.g., developers, or users with paid maintenance contracts. In open source projects, it is common that everybody can report issues. Each issue contains several fields with information. For our work, the title, description, type, and discussion are relevant. The title contains a (very) brief textual summary of the issue, the description contains a longer textual description that should provide all relevant details. The reporter of an issue specifies the type and the title, although they may be edited later. The reporter of an issue also specifies the type, e.g., bug, improvement, documentation change or similar. The concrete types that are available are usually configurable and may be project dependent. However, the type bug exists almost universally.111At least we have never seen an issue tracking system for software projects without this type. Once the issue is reported, others can comment on the issue and, e.g., discuss potential solutions or request additional information. While the above example is for the Jira issue tracking system, similar fields can be found in other issue trackers as well, e.g., Bugzilla, Github Issues, and Gitlab Issues.

We speak of mislabeled issues, when the issue type does not match the description of the problem. Herzig2013 created a schema that can be used to identify the type of issues as either bug (e.g., crashes), request for improvements (e.g., update of a dependency), feature requests (e.g., support for a new communication protocol), refactoring (non-semantic change to the internal structure), documentation (change of the documentation), or other (e.g., changes to the build system or to the licenses). Herbold2020 used a similar schema, but merged the categories request for improvements, feature request, and refactoring into a single category called improvement and added the category tests (changes to tests). Figure 1 shows an example for a mislabel. The reported problem is a missing Javadoc tag, i.e., the issue should be of type documentation. However, the issue is reported as bug instead.

Since both Herzig2013 and Herbold2020 found that the main source of mislabels are issues that are reported as bug, even though they do not constitute bugs, but rather improvements of potentially sub optimal situations, we restrict our problem from a general prediction system for any type of issue to a prediction system for bugs. This is in line with the prior related work, with the exception of Antoniol2008 and kallis2019ticket, who considered additional classes. Thus, we have a binary classification problem, with the label true for issues that describe bugs, and false for issues that do not describe bugs. Formally, the prediction model is a function , where is the space of all issues. In practice, not all information from the issue used, but instead, e.g., only the title and/or description. Depending on the scenarios we describe in the following, the information available to the prediction system may be limited.

There are several way such a recommendation system can be used, which we describe in Figure 2. The Scenario 1 is just the status quo, i.e., a user creates an issue and selects the type. In Scenario 2, no changes are made to the actual issue tracking system. Instead, researchers use a prediction system as part of a MSR pipeline to predict issue types and, thereby, correct mislabels. In this scenario, all information from the issue tracking system is available, including changes made to the issue description, comments, and potentially even the source code change related to the issue resolution. The third and fourth scenario show how a prediction system can be integrated into an issue tracker, without taking control from the users. In Scenario 3, the prediction system gives active feedback to the users, i.e., the users decide on a label on their own and in case the prediction system detects a potential mistake, the users are asked to either confirm or change their decision. Ideally, the issue tracking system would show additional information to the user, e.g., the reason why the system thinks should be of a different type. Scenario 4 acts passively by prescribing different default values in the issue system, depending on the prediction. The rationale behind Scenario 4 is that Herzig2013 found that Bugzilla’s default issue type of BUG led to more mislabels, because this was never changed by users. In Scenario 3 and Scenario 4 the information available to the prediction system is limited to the information users provide upon reporting the issue, i.e., subsequent changes or discussions may not be used. A variant of Scenario 4 would be a fully automated approach, where the label is directly assigned and the users do not have to confirm the label but would have to actively modify it afterwards. This is the approach implemented in the Ticket Tagger by kallis2019ticket.

Another aspect in which the scenarios differ is to which issues the prediction model is applied, depending on the goal. For example, a lot of research is interested specifically in bugs. Herzig2013 and Herbold2020 both found that almost all bugs are classified by users as type bug, i.e., there are only very few bugs that are classified otherwise in the system. To simplify the problem, one could therefore build a prediction model where are only issues which users labeled as bug. Working with such a subset may improve the prediction model for this subset, because the problem space is restricted and the model can be more specific. However, such a model would only work in Scenario 2, i.e., for use by researchers only, or Scenario 3, in case the goal is just to prevent mislabeled bugs. Scenario 4 requires a choice for all issues and would, therefore, not work with the model.

Figure 2: Overview of the scenarios how prediction systems for bug issues can be used.

3 Related Work

That classifications of issue types have a large impact on, e.g., defect prediction research was first shown by Herzig2013. They manually validated 7,401 issue types of five projects and provided an analysis of the impact of misclassifications. They found that every third issue that is labeled as defect in the issue tracking systems is not a defect. This introduces a large bias in defect prediction models, as 39% of files are wrongly classified as defective due to the misclassified issues that are linked to changes in the version control system. Herbold2020 independently confirmed the results by Herzig2013 and demonstrated how this and other issues negatively impact defect prediction data. However, while both Herzig2013 and Herbold2020 study the impact of mislabels of defect prediction, any software repository mining research that studies defects suffers from similar consequences, e.g., bug localization (e.g., Marcus2004; Lukins2008; Rao2011; Mills2018). In the literature, there are several approaches that try to address the issue of mislabels in issue systems through machine learning. These approaches can be divided into unsupervised approaches and supervised approaches.

3.1 Unsupervised Approaches

The unsupervised approaches work on clustering the issues into groups and then identifying for each group their likely label. For example limsettho2014automatic; limsettho2016unsupervised use Xmeans and EM clustering, chawla2018automated use Fuzzy C Means clustering and hammad2018automatic

use agglomerative hierarchical clustering. However, the inherent problem of these unsupervised approaches is that they do not allow for an automated identification of the label for each cluster, i.e., the type of issue per cluster. As a consequence, these approaches are unsuited for the creation of automated recommendation systems or the use as automated heuristics to improve data and not discussed further in this article.

3.2 Supervised Approaches

The supervised approaches directly build classification models that predict the type of the issues. To the best of our knowledge, the first approach in this category was published by Antoniol2008. Their approach uses the descriptions of the issues as input, which are preprocessed by tokenization, splitting of camel case characters and stemming. Afterwards, a Term Frequency Matrix (TFM) is built including the raw term frequencies for each issue and each term. The TFM is not directly used to describe the features used as input for the classification algorithm. Instead, Antoniol2008 first use symmetrical uncertainty attribute selection to identify relevant features. For the classification, they propose to use Naïve Bayes (NB), Logistic Regression (LR), or Alternating Decision Trees (ADT).

The TFM is also used by other researchers to describe the features. chawla2015automated propose to use fuzzy logic based the TFM on the issue title. The fuzzy logic classifier is structurally similar to a NB classifier, but uses a slightly different scoring function. Pandey2018 propose to use the TFM of the issue titles as input for NB, Support Vector Machine (SVM), or LR classifiers. otoom2019automated propose to use a variant of the TFM with a fixed word set. They use a list of 15 keywords related to non-bug issues (e.g., enhancement, improvement, refactoring) and calculate the term frequencies for them based on the title and description of the issue. This reduced TFM is then used as an input for NB, SVM, or Random Forest (RF). zolkeply2019classifying propose to not use TFM frequencies, but simply the occurrence of one of 60 keywords as binary features and use these to train a Classification Association Rule Mining (CARM). Terdchanakul2017 propose to go beyond the TFM and instead use the Inverse Document Frequency (IDF

) of n-grams for the title and descriptions of the issues as input for either

LR or RF as classifier.

zhou2016combining propose an approach that combines the TFM from the issue title with structured information about the issue, e.g., the priority and the severity. The titles are classified into the categories high (can be clearly classified as bug), low (can be clearly classified as non-bug), and middle (hard to decide) and they use the TFM to train a NB classifier for these categories. The outcome of the NB is then combined with the structural information as features used to train a Bayesian Network (BN) for the binary classification into bug or not a bug.

There are also approaches that do not rely on the TFM. Pingclasai2013 published an approach based on topic modeling via the Latent Dirichlet Allocation (LDA). Their approach uses the title, description, and discussion of the issues, preprocesses them, and calculates the topic-membership vectors via LDA as features. Pingclasai2013 propose to use either Decision Trees (DT), NB, or LR) as classification algorithm. limsettho2014comparing propose a similar approach to derive features via topic-modeling. They propose to use LDA or Hierarchical Dirichlet Process (HDP) on the title, description, and discussion of the issues to calculate the topic-membership vectors as features. For the classification, they propose to use ADT, NB, or LR. In their case study, they have shown that LDA is superior to HDP. We note that the approaches by Pingclasai2013 and limsettho2014automatic both cannot be used for recommendation systems, because the discussion is not available at the time of reporting the issue. qin2018classifying propose to use word embeddings of the title and description of the issue as features and use these to train a Long Short-Term Memory (LSTM).

kallis2019ticket created the tool Ticket Tagger that can be directly integrated into GitHub as a recommendation system for issue type classification. The Ticket Tagger uses the fastText fasttext

algorithm, which uses the text as input and internally calculates a feature representation that is based on n-grams, but not of the words, but of the letters within the words. These feature are used to train a neural network for the text classification.

The above approaches all rely on fairly common text processing pipelines to define features, i.e., the TFM, n-grams, IDF, topic modeling or word embeddings to derive numerical features from the textual data as input for various classifiers. In general, our proposed approach is in line with the related work, i.e., we also either rely on a standard text processing pipeline based on the TFM and IDF as input for common classification models or use the fastText algorithm which directly combines the different aspects. The approaches by otoom2019automated and zolkeply2019classifying try to incorporate manually specified knowledge into the learning process through curated keyword lists. Our approach to incorporate knowledge is a bit different, because we rather rely on rules that specify different training data sets and do not restrict the feature space.

4 Approach

Within this section, we describe our approach for issue type prediction that allows us to use simple rules to incorporate knowledge about the structure of issues and the issues types in the learning process in order to study RQ1.

4.1 Title and Description

We noticed that in the related work, researchers used the title and description together, i.e., as a single document in which the title and description are just concatenated. From our point of view, this ignores the properties of the fields, most notably the length of the descriptions. The title field is more succinct, there are almost never duplicate words, i.e., word counts will almost always be zero or one. Due to the short length, the terms in title are often very specific. The description on the other hand is more verbose, and may even contain lengthy code fragments or stack traces. Therefore, many terms occur multiple times and the occurrence of terms is less specific. As a result, merging of the title and description field may lead to suppressing information from the title in favor of information from the description, just due to the overall lengths of the fields. This loss of information due to the structure of the features is undesirable.

We propose a very simple solution to this problem, i.e., the training of different prediction models for title and description. The results of both models can then be combined into a single result. Specifically, we suggest that classifiers that provide scores, e.g., probabilities for classes are used and the mean value of the scores is then used as prediction. Thus, we have two classifiers

and that both predict values in and our overall probability that the issue is a bug is . This generic approach works with any classifier, and could, also be extended with a third classifier for the discussion of the issues.

4.2 Easy subsets

An important aspect we noted during our manual validation of bugs for our prior work (Herbold2020) was that not all bugs are equal, because some rules from Herzig2013 are pretty clear. The most obvious example is that almost anything related to an unwanted null pointer exception is a bug. Therefore, we wanted to know if we can enhance the machine learning models by giving them the advantage of knowing that something is related to a null pointer. We used the same approach as above. We decided to train one classifier for all issues that mention the terms ”NullPointerException”, ”NPE”, or ”NullPointer” in the title or description, and a second classifier for all other issues. Together with the separate classifiers for title and description, we now have four classifiers, i.e., one classifier for the title of null pointer issues, one classifier for the description of null pointer issues, one classifier for the title of the other issues, and one classifier for the description of the other issues. We do not just use the average of these four classifiers. Instead, the prediction model checks if an issue mentions a null pointer and then uses either the classifiers for null pointer issues or for the other issues.

4.3 Classification Model

So far, we only described that we want to train different classifiers to incorporate knowledge about issues into the learning process. However, we have not yet discussed the classifiers we propose. We consider two approaches that are both in line with the current state of the art in issue type prediction (see Section 3).

The first approach is a simple text processing pipeline as can be found in online tutorials on text mining222e.g., https://www.hackerearth.com/de/practice/machine-learning/advanced-techniques/text-mining-feature-engineering-r/tutorial/
https://scikit-learn.org/stable/tutorial/text_analytics/working_with_text_data.html
and is similar to the TFM based approaches from the literature. As features, we use the TF-IDF of the terms in the documents. This approach is related to the TFM but uses the IDF as scaling factor. The IDF is based on the number of issues in which a term occurs, i.e.,

(1)

where is the number of issues and is the number of issues in which the term occurs. The TF-IDF of a term in an issue is computed as

(2)

where is the term frequency of in . The idea behind using TF-IDF instead of just TF is that terms that occur in many documents may be less informative and are, therefore, down-scaled by the IDF. We use the TF-IDF of the terms in the issues as features for our first approach and use multinomial NB and RF as classification models.

Our second approach is even simpler, taking pattern from kallis2019ticket. We just use the fastText algorithm (fasttext) that supposedly does state of the art text mining on its own, and just takes the data as is. The idea behind this is that we just rely on the expertise of one of the most prominent text mining teams, instead of defining any own text processing pipeline. We apply the fastText algorithm once with the same parameters as were used by kallis2019ticket and once with an automated parameter tuning that was recently made available for fastText333https://ai.facebook.com/blog/fasttext-blog-post-open-source-in-brief/. The automated parameter tuning does not perform a grid search, but instead uses a guided randomized strategy for the hyper parameter optimization. A fixed amount of time is used to bound this search. We found that 90 seconds was sufficient for our data, but other data sets may require longer time. In the following, we refer to fastText as FT and the autotuned fastText as FTA.

Please note that we do not consider any deep learning based text mining techniques (e.g., BERT by

Devlin2018) for the creation of a classifier, because we believe that we do not have enough (validated) data to train a deep neural network. We actually have empirical evidence for this, as the only deep neural network we used in our experiments degenerates into a trivial model (see Section 6, Qin2018-LSTM).

4.4 Putting it all Together

From the different combinations of rules and classifiers, we get ten different classification models for our approach that we want to evaluate, which we summarize in Figure 3. First, we have Basic-RF and Basic-NB, which train classifiers on the merged title and description, i.e., a basic text processing approach without any additional knowledge about the issues provided by us.444Basic-FT is omitted, because this is the same as the work by kallis2019ticket and, therefore, already covered by the literature and in our experiments in Section 6.

This baselines allows us to estimate if our rules actually have a positive effect over not using any rules. Next, we have RF, NB, FT, and FTA which train different classifiers for the title and description as described in Section

4.1. Finally, we extend this with separate classifiers for null pointers and have the models RF+NPE, NB+NPE, FT+NPE, and FTA+NPE.

Figure 3: Caption

5 Unvalidated Data

A critical issue with any machine learning approach is the amount of data is available for the training. The validated data about the issue types that accounts for mislabels is limited, i.e., there are only the data sets by Herzig2013 and Herbold2020. Combined, they contain validated data about roughly 15,000 bugs. While this may be sufficient to train a good issue prediction model with machine learning, the likelihood of getting a good model that generalizes to many issues increases with more data. However, it is unrealistic that vast amounts of manually labelled data become available, because of the large amount of manual effort involved. The alternative is to use data that was not manually labelled, but instead use the user classification for the training. In this case, all issues from more or less any issue tracker can be used as training data. Thus, the amount of data available is huge. However, the problem is that the resulting models may not be very good, because the training data contains mislabels that were not manually corrected. This is the same as noise in the training data. While this may be a problem, it depends on where the mislabels are, and also on how much data there is that is correctly labelled.

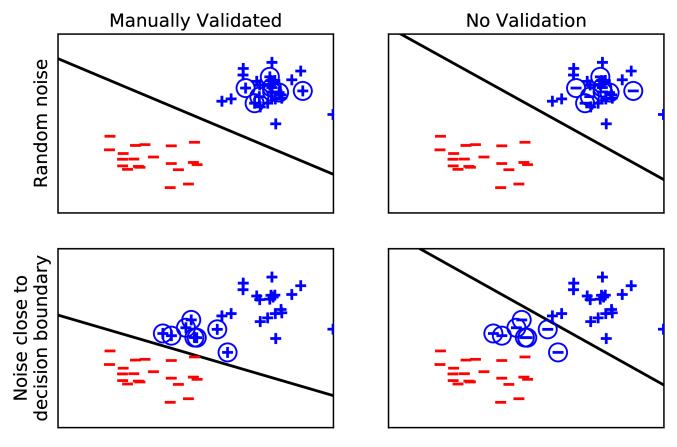

Figure 4: Example for the possible effect of mislabels in the training data on prediction models. The color indicates the correct labels, i.e., red for bugs and blue for other issues. The marker indicates the label in the training data, - for bugs, + for other issues. Circled instances are manually corrected on the left side and mislabels on the right side. The line indicates the decision boundary of the classifier. Everything below the line is predicted as a bug, everything above the line is predicted as not a bug.

Figure 4 shows an example that demonstrates why training with unvalidated data may work and why it may fail. The first column shows data that was manually corrected, the second column shows data that was not corrected and contains mislabels. In the first row, the mislabels are random, i.e., random issues that are not a bug are mislabeled as bugs. In this case, there is almost no effect on the training, as long as there are more correctly labelled instances than noisy instances. Even better, the prediction model will even predict the noisy instances correctly, i.e., the prediction would actually be better than the labels of the training data. Thus, noise as in the first example can be ignored for training the classifier. This is line with learning theory, e.g., established by Kearns1998 who demonstrated with the statistical query model that learning in the presence of noise is possible, if the noise is randomly distributed. In the second row, the mislabels are not random, but close to the decision boundary, i.e., the issues that are most similar to bugs are mislabeled as bugs. In this case, the decision boundary is affected by the noise and would be moved to the top-right of the area without manual validation. Consequently, the trained model would still mislabel all instances that are mislabeled in the training data. In this case, the noise would lead to a performance degradation of the training and cannot be ignored.

Our hope is that mislabeled issues are mostly of the first kind, i.e., randomly distributed honest mistakes. In this case, a classifier trained with larger amounts of unlabeled data should perform similar or possibly even better than a classifier trained with a smaller amount of validated data.

6 Experiments

We now describe the experiments we conducted to analyze issue type prediction. The experiments are based on the Python library icb555https://github.com/smartshark/icb that we created as part of our work. icb provides implementations for the complete state of the art of supervised issue type prediction (Section 3.2) with the exceptions described in Section 6.2. The additional code to conduct our experiments is provided as a replication package666https://hdl.handle.net/21.11101/0000-0007-DFED-4
Replication package will be moved to Zenodo and cited with a DOI in case of acceptance.
.

6.1 Data

We use four data sets to conduct our experiments. Table 1 lists statistics about the data sets. First, we use the data by Herzig2013. This data contains manually validated data for 7,297 issues from five projects. Three projects used Jira as issue tracker (httpcomponents-client, jackrabbit, lucene-solr), the other two used Bugzilla as issue tracker (rhino, tomcat). The data shared by Herzig2013 only contains the issue IDs and the correct labels. We collected the issue titles, descriptions, and discussions for these issues with SmartSHARK (Trautsch2018; Trautsch2020). The primary purpose of the data by Herzig2013 in our experiments is the use as test data. Therefore, we refer to this data set in the following as TEST.

Second, we use the data by Herbold2020. This data contains manually validated data for all 11,154 bugs of 38 projects. Issues that are not bugs were not manually validated. However, Herbold2020 confirmed the result by Herzig2013 using sampling that only about 1% of issues that are not labeled as bugs are actually bugs. Consequently, Herbold2020 decided to ignore this small amount of noise, which we also do in this article, i.e., we assume that everything that is not labeled as bug in the data by Herbold2020 is not a bug. The primary purpose of the data by Herbold2020 in our experiments is the use in a leave-one-project-out cross-validation experiment. Therefore, we refer to this data as CV in the following.

The third data set was collected by Ortu2015. This data set contains 701,002 Jira issues of 1,238 projects. However, no manual validation of the issue types is available for the data by Ortu2015. We drop all issues that have no description and all issues of projects that are also included in the data by Herzig2013 or Herbold2020. This leaves us with 607,636 issues of 1,198 projects. Since we use this data to evaluate the impact of not validating data, we refer to this data as UNVALIDATED in the following.

We use two variants of the data by Herzig2013 and Herbold2020: 1) only the issues that were labelled as bug in the issue tracker; and 2) all issues regardless of their type. Our rationale for this are the different possible use cases for issue type prediction, we outlined in Section 2. Using these different sets, we evaluate how good issue type prediction works in different circumstances. With the first variant, we evaluate how good the issue type prediction models work for the correction of mislabeled bugs either as recommendation system or by researchers. With the second variant we evaluate how good the models are as general recommendation systems. We refer to these variants as TEST, CV,TEST, and CV. We note that such a distinction is only possible with data that was manually validated, hence, there is no such distinction for the UNVALIDATED data.

Finally, we also use data about validated bugfixing commits. The data we are using also comes from Herbold2020, who in addition to the validation of issue types also validated the links between commits and issues. They found that the main source of mislabels for bug fixing commits are mislabeled issue types, i.e., bugs that are not actually bugs. We use the validated links and validated bug fix labels from Herbold2020. Since the projects are the same as for the CV data, we list the data about the number of bug fixing commits per project in Table 1 together with the CV data, but refer to this data in the following as BUGFIXES.

Issues Bugfixing Commits
All Dev. Bugs Val. Bugs No Val. Val.
httpcomponents-client 744 468 304 - -
jackrabbit 2344 1198 925 - -
lucene-solr 2399 1023 688 - -
rhino 584 500 302 - -
tomcat 1226 1077 672 - -
TEST Total 7297 4266 2891 - -
ant-ivy 1168 544 425 708 568
archiva 1121 504 296 940 543
calcite 1432 830 393 923 427
cayenne 1714 543 379 1272 850
commons-bcel 127 58 36 85 49
commons-beanutils 276 88 51 118 59
commons-codec 183 67 32 137 59
commons-collections 425 122 49 180 88
commons-compress 376 182 124 291 206
commons-configuration 482 193 139 340 243
commons-dbcp 296 131 71 191 106
commons-digester 97 26 17 38 26
commons-io 428 133 75 216 129
commons-jcs 133 72 53 104 72
commons-jexl 233 87 58 239 161
commons-lang 1074 342 159 521 242
commons-math 1170 430 242 721 396
commons-net 377 183 135 235 176
commons-scxml 234 71 47 123 67
commons-validator 265 78 59 101 73
commons-vfs 414 161 92 195 113
deltaspike 915 279 134 490 217
eagle 851 230 125 248 130
giraph 955 318 129 360 141
gora 472 112 56 208 99
jspwiki 682 288 180 370 233
knox 1125 532 214 860 348
kylin 2022 698 464 1971 1264
lens 945 332 192 497 276
mahout 1669 499 241 710 328
manifoldcf 1396 641 310 1340 671
nutch 2001 641 356 976 549
opennlp 1015 208 102 353 144
parquet-mr 746 176 81 241 120
santuario-java 203 85 52 144 95
systemml 1452 395 241 583 304
tika 1915 633 370 1118 670
wss4j 533 242 154 392 244
CV Total 30922 11154 6333 18539 10486
UNVALIDATED Total 607636 346621 - - -
Table 1: Statistics about the data we used, i.e., the number of issues in the projects (All), the number of issues that developers labeled as bug (Dev. Bugs), the number of issues that are validated as bugs (Val. Bugs), the number of bugfixing commits without issue type validation (No Val.) and the number of bugfixing commits with issue type validation (Val.). The statistics for the BUGFIXES data set are shown in the last two columns of the CV data.

6.2 Baselines

Within our experiments, we not only evaluate our own approach which we discussed in Section 4, but also compare our work to several baselines. First, we use a trivial baseline which assumes that all issues are bugs. Second, we use the approaches from the literature as comparison. We implemented the approaches as they were described and refer to them by the family name of the first author, year of publication, and acronym for the classifier. The approaches from the literature we considere are (in alphabetatical order) Kallis2019-FT by kallis2019ticket, Pandey2018-LR and Pandey2018-NB by Pandey2018, Qin2018-LSTM by qin2018classifying, Otoom2019-SVC, Otoom2019-NB, and Otoom2019-RF by otoom2019automated, Pingclasai2013-LR andPingclasai2013-NB by Pingclasai2013, Limsettho2014-LR andLimsettho2014-NB by limsettho2014comparing, and Terdchanakul2017-LR and Terdchanakul2017-RF by Terdchanakul2017.

We note that this is, unfortunately, a subset of the related work discussed in Section 3. We omitted all unsupervised approaches, because they require manual interaction to determine the issue type for the determined clusters. The other supervised approaches were omitted due to different reasons. Antoniol2008

perform feature selection based on a

TFM by pair-wise comparisons of all features. In comparison to Antoniol2008, we used data sets with more issues which increased the number of distinct terms in the TFM. As a result, the quadratic growth of the runtime complexity required for the proposed feature selection did not terminate, even after waiting several days. zhou2016combining could not be used, because their approach is based on different assumptions on the training data, i.e., that issues are manually classified using only the title, but with different certainties. This data can only be generated by manual validation and is not available in any of the data sets we use. zolkeply2019classifying could not be replicated because the authors do not state which 60 keywords they used in their approach.

6.3 Performance metrics

We take pattern from the literature (e.g. Antoniol2008; chawla2015automated; Terdchanakul2017; Pandey2018; qin2018classifying; kallis2019ticket) and base our evaluation on the recall, precision, and F1 score, which are defined as

where are true positives, i.e., bugs that are classified as bugs, true negatives, i.e., non bugs classified as non bugs, bugs not classified as bugs and non bugs classified as bugs. The recall measures the percentage of bugs that are correctly identified as bugs. Thus, a high recall means that the model correctly finds most bugs. The precision measures the percentage of bugs among all predictions of bugs. Thus, a high precision means that there is strong likelihood that issues that are predicted as bugs are actually bugs. The F1 score

is the harmonic mean of

recall and precision. Thus, a high F1 score means that the model is good at both predicting all bugs correctly and at not polluting the predicted bugs with two many other issues.

6.4 Methodology

Figure 5 summarizes our general methodology for the experiments, which consists of four phases. In Phase 1, we conduct a leave-one-project-out cross validation experiment with the CV data. This means that we use each project once as test data and train with all other projects. We determine the recall, precision, and F1 score for all ten models we propose in Section 4.4 as well as all baselines this way for both the CV and the CV data. In case there are multiple variants, e.g., our ten approaches or different classifiers proposed for a baseline, we select the one that has the best overall mean value on the CV and the CV data combined. This way, we get a single model for each baseline, as well as for our approach, that we determined works best on the CV data. We then follow the guidelines from Demsar2006

for the comparison of multiple classifiers. Since the data is almost always normal, except for trivial models that almost always yield 0 as performance value, we report the mean value, standard deviation, and the confidence interval of the mean value of the results. The confidence interval with a confidence level of

for normally distributed samples is calculated as

(3)

where the is the standard deviation, the sample size, and the percentile of the t-distribution with degrees of freedom. However, the variances are not equal, i.e., the assumption of homoscedacity is not fulfilled. Therefore, we use the Friedman test (Friedman1940) with the post-hoc Nemenyi test (Nemenyi1963) to evaluate significant differences between the issue prediction approaches. The Friedman test is an omnibus test that determines if there is any difference in the central tendency of a group of paired samples with equal group sizes. If the outcome of the Friedman test is significant, the Nemenyi test evaluates which differences between approaches are significant based on the critical distance, which is defined as

(4)

where is the number of approaches that are compared, is the number of distinct values for each approach, i.e., in our case the number of projects in a data set, and is the percentile of the studentized range distribution for groups and infinite degrees of freedom. Two approaches are significantly different, if the difference in the mean ranking between the performance of the approaches is greater than the critical distance. We use Cohen’s  (Cohen1988) which is defined as

(5)

to report the effect sizes in comparison to the best performing approach. Table 2 shows the magnitude of the effect sizes for Cohen’s . We will use the results from the first phase to evaluate RQ1, i.e., to see if our rules improved the issue type prediction. Moreover, the performance values will be used as indicators for RQ3.

Magnitude
Negligible
Small
Medium
Large
Table 2: Magnitude of effect sizes of Cohen’s .

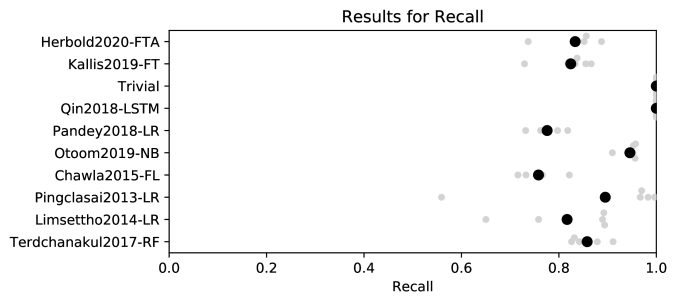

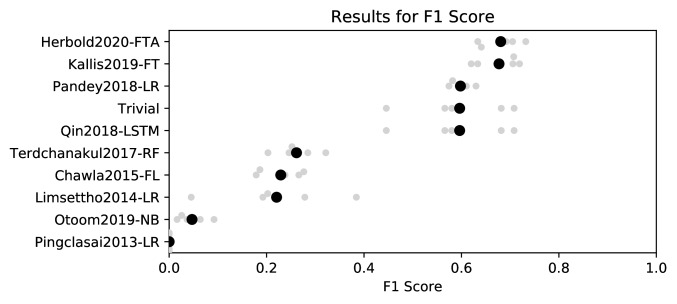

In Phase 2, we use the CV data as training to train a single model for the best performing approaches from Phase 1. This classifier is then applied to the TEST data. We report the mean value and standard deviation of the results. However, we do not conduct any statistical tests, because there are only five projects in the TEST data, which is insufficient for a statistical analysis. Through the results of Phase 2 we will try to confirm if the results from Phase 1 hold on unseen data. Moreover, we get insights into the reliability of the manually validated data, since different teams of researchers validated the CV and the TEST data. In case the performance is stable, we have a good indication that our estimated performance from Phase 1 generalizes. This is especially important, because Phase 2 is biased in favor of the state of the art, while Phase 1 is biased in favor of our approach. The reason for this is that most approaches from the state of the art were developed and tuned on the TEST data, while our approach was developed and tuned on the CV data. Therefore, the evaluation on the TEST data also serves as counter evaluation to ensure that the results are not biased due to the data that was used for the development and tuning of an approach, as stable results across the data sets would indicate that this is not the case. Thus, the results from Phase 2 are used to further evaluate RQ3 and to increase the validity of our results.

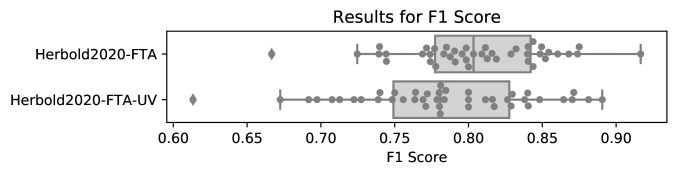

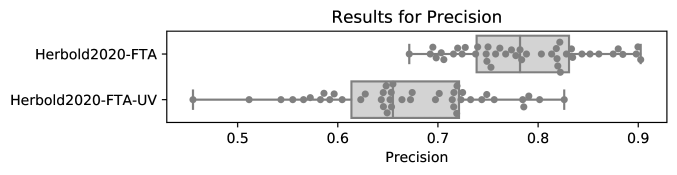

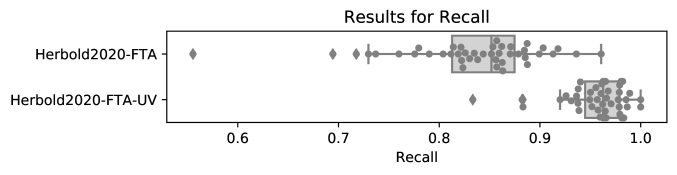

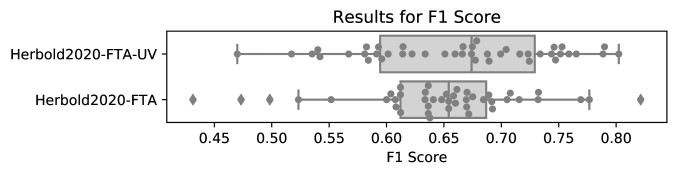

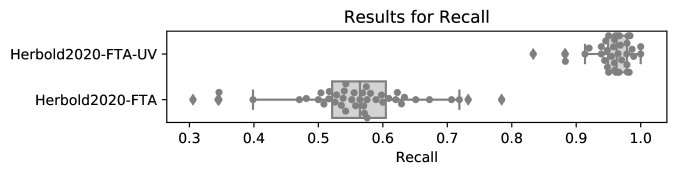

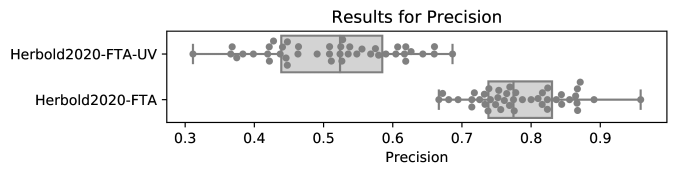

In Phase 3, we evaluate the use of unvalidated data for the training, i.e., data about issues where the labels were not manually validated by researchers. For this, we compare the results of the best approach from Phase 1 and Phase 2 with the same approach, but trained with the UNVALIDATED data. Through this, we analyze RQ2 to see if we really require validated data or if unvalidated data works as well. Because the data is normal, we use the paired t-test to test if the differences between results in the

F1 score are significant and Cohen’s to calculate the effect size. Moreover, we consider how the recall and precision are affected by the unvalidated data, to better understand how training with the UNVALIDATED data affects the results.

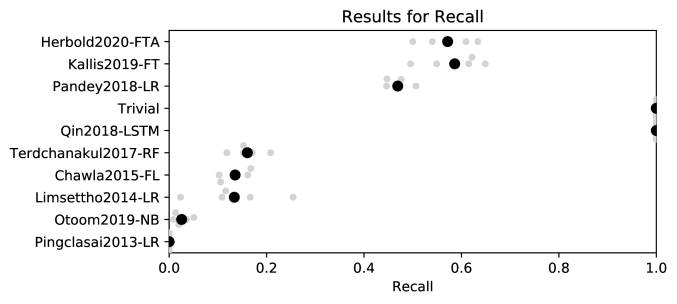

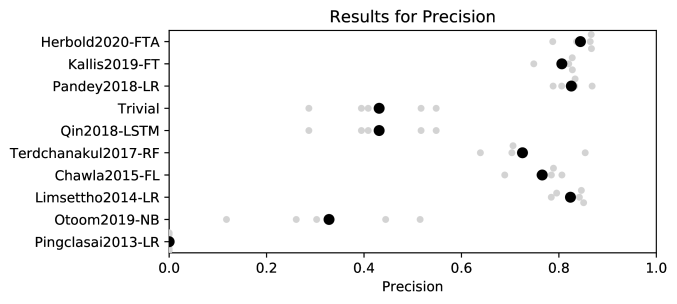

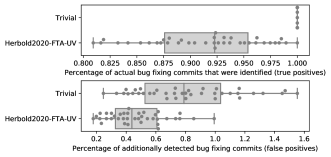

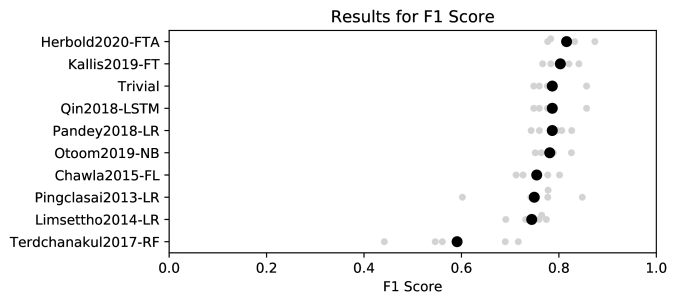

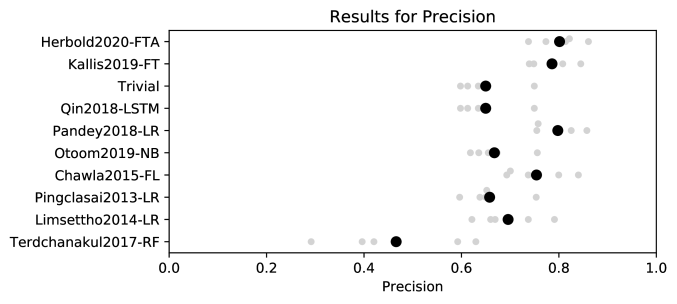

Finally, we apply the approach we deem best suited in Phase 4 to a relevant problem of the Scenario 2 for issue type prediction discussed in Section 2. Concretely, we analyze if issue type prediction can be used to improve the identification of bugfixing commits. Herbold2020 found that mislabelled issues are the main source for the wrong identification of bugfixing commits. Therefore, an accurate issue type prediction model would be very helpful for any software repository mining tasks that relies on bugfixing commits. To evaluate the impact of the issue type prediction on the identification of bug fixing commits, we use two metrics. First, the percentage of actual bug fixing commits, that are found if issue type prediction is used (true positives). This is basically the same as the recall of bugfixing commits. Second, the percentage of additional bugfixing commits that are found in additionally in relation to the actual number of bug fixing commits. This is indirectly related to the precision, because such additional commits are the result of false positive prediction.

For our experiments, we conduct many statistical tests. We use Bonferroni correction (Dunn1961) to account for false positive due to the repeated tests and have an overall significance level of 0.05, resp. confidence level of 0.95 for the confidence intervals. We use a significance level of for the Shapiro-Wilk tests for normality (Shapiro1965), because we perform nine tests for normality for the best performing approaches for both all issues and only bugs in both Phase 1 and four additional tests for normality in Phase 3. We conduct two Bartlett tests for homoscedacity (Bartlett1937) in Phase 1 with a significance level of . We conduct four tests for the significance of differences between classifiers with a significance level of , i.e., two Friedman tests in Phase 1 and two paired t-tests in Phase 3. Moreover, we calculate the confidence intervals for all results in Phase 1 and Phase 3, i.e., 25 results for both CV and CV and four results for Phase 3. Hence, we use a confidence level of for these confidence intervals.

Figure 5: Overview of the experiment methodology. The training and evaluation in all phases is conducted with all issues and with only bug issues.

6.5 Results

6.5.1 Results for Phase 1

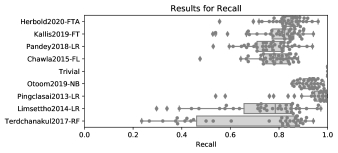

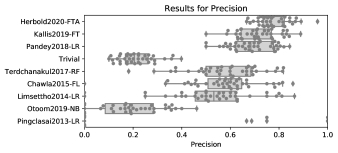

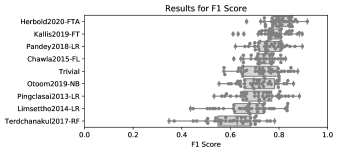

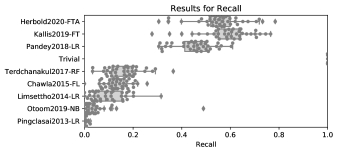

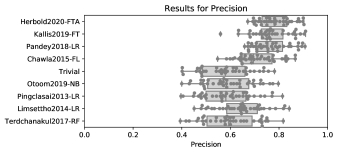

Figure 6 and Figure 7 show the the results for the first phase of the experiment on the CV and CV data, respectively. We observe that while there is a strong variance in the F1 score using the CV data with values between 0.0 (Limsettho2014-NB) and 0.643 (Herbold2020-FTA), the results on the CV data are more stable with values between 0.610 (Terdchanakul2017-RF) and 0.809 (Herbold2020-RF). The strong performance on CV includes the Trival approach, i.e., simply predicted everything as bug is already relatively hard to beat, because the recall is perfect and the precision is at about 60%.77760% is roughly the amount of bugs within the data This finding is different for the CV, because here the class level imbalance is the other way around and the precision drops to roughly 20%. In general, we observe that the F1 score with the CV data is lower than with CV.

This also shows in the results for the different variants we proposed in Section 4.4, were we observe big difference with the CV data and only relatively small differences with the CV data. On the CV data, the strongest driver of the differences is the choice of the classifier. The models using FTA perform best, followed by FT classifier which has a slightly worse performance. The drop between FT and RF is steep, NB performs worse and predicts only few bugs. Using distinct classifiers for the title and description improves the performance slightly. However, additional classifiers for null pointers lead to slightly worse results. Thus, we find that Herbold2020-FTA with separate classifiers for title and descriptions performs best for CV, even though the difference to the other variants with FTA/FT is small. On the CV, the F1 score of all models that use different separate classifiers for title and description is within the interval . Thus, we find that overall, Herbold2020-FTA performs best among the approaches discussed in Section 4.4.

For the related work that suggested multiple classifiers, our observations are similar. The differences on the CV data are small, the performance on the CV data is always worse and, in many cases, very bad with only very few bugs predicted. Of the approaches from the related work, only Kallis2019-FT and Pandey2018-LR achieve an F1 score of over 0.5 on CV. We also note that the approach Qin2018-LSTM degenerated into a trivial model that predicts everything as bug. Consequently, we exclude Qin2018-LSTM from our subsequent statistical analysis, because we would, otherwise, have the same model twice.

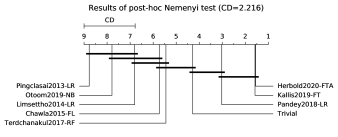

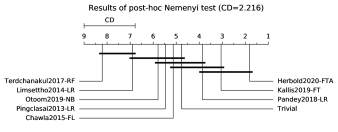

We reject the null hypothesis of the Friedman test that there are no significant differences between the approaches on the CV

data (). The post-hoc Nemenyi test found that while our Herbold2020-FTA approach has the best mean ranking, the difference is not significant in comparison to Kallis2019-FT and Pandey2018-LR. The difference in F1 score between our Herbold2020-FTA and Kallis2019-FT is almost non-existent. Thus, the advantage of automatically tuning the FT classifier and the usage of different classifiers for title and description is very small. The magnitude of the (non-significant) effect size between Herbold2020-FTA and Kallis2019-FT is negligible with . However, there is a difference between the recall and precision of Herbold2020-FTA and Kallis2019-FT. Herbold2020-FTA has a higher precision, while Kallis2019-FT has a higher recall. While not significant, the difference between Pandey2018-LR on the one hand and Herbold2020-FTA and Kallis2019-FT on the other hand is larger, both in the mean value and also in the (non-significant) effect size which has a large magnitude with . All other models from the state of the art are significantly different from Herbold2020-FTA and Kallis2019-FT with a large effect size of at least . We note that Pandey2018-LR is not significantly different from the trivial model. Moreover, we observe that all other approaches are all equal to or worse than trivially predicting everything as bug in the mean F1 score, because of a low recall. Pinglasai2013-LR, Otoom2019-NB, and Limsettho2014-LR are even significantly worse than the trivial model.

We reject the null hypothesis of the Friedman test that there are no significant differences between the approaches on the CV data (). The post-hoc Nemenyi test found that our Herbold2020-FTA has the best best mean ranking, but the diffference is not significant in comparison to Kallis2019-FT and Pandey2018-LR. However, in comparison to the CV data, there is some gap between Herbold2020-FTA and Kallis2019-FT both in the mean F1 score and the magnitude of the effect size would be medium with if it where significant. Moreover, Herbold2020-FTA yields a slightly better performance in both recall and precision, i.e., there is no trade-off between Herbold2020-FTA and Kallis2019-FT between recall and precision. The gap between Herbold2020-FTA and Panday2018-LR is similar to the gap on the CV of effect and the effect size would be large with . All other approaches from the state of the art are significantly worse than Herbold2020-FTA with a large effect size of at least . We note that Kallis2019-FT and Pandey2018-LR are not significantly different from the trivial model. Same as for the CV data, we find that all other approaches have a worse mean ranking than the trivial approach, even though Chawla2015-FL has a slightly higher mean value than the trivial model. However, only Terdchanakul2017-RF is significantly worse the the trivial model.

When we consider the results on CV and CV together, the approaches Herbold2020-FTA, Kallis2019-FT and Pandey2018-LR are consistently ranked first, with their mean ranks in that order. The differences between these three approaches are not significant. However, we note that there is a considerable gap in the mean ranks reported on the CD diagrams between Herbold2020-FTA and Kallis2019-FT on the hand, and Pandey2018-LR on the other hand. This gap also shows in the mean F1 score, which is lower on both the CV and CV data. In fact, Pandey2018-LR almost always ranks worse on than both Herbold2020-FTA and Kallis2019-FT. Thus, we believe that the reason that Pandey2018-LR is not significantly different from Herbold2020-FTA and Kallis2019-FT is our limited sample size of 38 projects, which leads to a critical distance of 2.216 for the Nemenyi test. Thus, even if Herbold2020-FTA would always have the best score, Kallis2019-FT would always have the second best score , and Pandey2018-LR would always have the third best score, the difference would still not be significant. The reason for this is that we have not enough data, given that we are not just comparing these three populations, but a total of nine approaches at the same time. Therefore, we predict that with more data Herbold2020-FTA and Kallis2019-FT would significantly outperform Pandey2018-LR, but do not have the data to substantiate our claim.

Given this prediction, we conclude from Phase 1 that Facebook AI Research did a very good job on the design of FT that outperforms other classification algorithms, but that the automated tuning may not always yield better results, e.g., because there is not enough data. Similarly, different classifiers for title and description may improve the results of FT, but not significantly.

We also note that approaches that use NB as classifier perform a lot worse on the CV data than on the CV data. We believe this may be because the models are not actually learning a good scoring function, but rather relatively randomly guessing the number of bugs based on the a-priori probability of the class in the training data. This should work reasonably well in the CV data because of the class level imbalance in favor of bug issues, but should fail in case of the CV data because the chance of correctly hitting bugs when roughly 20% of the issues are randomly predicted is relatively low.

mean sd CI
Herbold2020-FTA 0.643 0.077 [0.598, 0.689] 0.000
Herbold2020-FTA+R 0.639 0.073 [0.596, 0.681] 0.064
Herbold2020-FT 0.627 0.072 [0.585, 0.669] 0.218
Herbold2020-FT+R 0.619 0.072 [0.577, 0.661] 0.326
Herbold2020-RF 0.313 0.092 [0.260, 0.367] 3.896
Herbold2020-RF+R 0.307 0.077 [0.262, 0.352] 4.356
Herbold2020-Basic-RF 0.222 0.104 [0.161, 0.283] 4.606
Herbold2020-NB+R 0.169 0.060 [0.134, 0.204] 6.861
Herbold2020-Basic-NB 0.017 0.029 [0.000, 0.033] 10.759
Herbold2020-NB 0.015 0.018 [0.005, 0.026] 11.205
Kallis2019-FT 0.638 0.074 [0.594, 0.681] 0.073
Pandey2018-LR 0.541 0.070 [0.500, 0.582] 1.387
Pandey2018-NB 0.503 0.111 [0.439, 0.568] 1.469
Qin2018-LSTM 0.349 0.096 [0.293, 0.405] 3.370
Trivial 0.349 0.096 [0.293, 0.405] 3.370
Chawla2015-FL 0.208 0.070 [0.168, 0.249] 5.913
Limsettho2014-LR 0.154 0.100 [0.096, 0.212] 5.490
Limsettho2014-NB 0.000 0.001 [0.000, 0.001] 11.777
Terdchanakul2017-RF 0.248 0.088 [0.196, 0.299] 4.775
Terdchanakul2017-LR 0.076 0.068 [0.037, 0.116] 7.796
Otoom2019-NB 0.059 0.077 [0.013, 0.104] 7.561
Otoom2019-RF 0.010 0.024 [0.000, 0.024] 11.070
Otoom2019-SVC 0.003 0.010 [0.000, 0.008] 11.638
Pingclasai2013-LR 0.003 0.009 [0.000, 0.009] 11.636
Pingclasai2013-NB 0.004 0.011 [0.000, 0.010] 11.599
Figure 6: Results of leave-one-project-out cross validation with the CV data. The bold-faced approaches where the best for a publication and are used in the statistical analysis.
mean sd CI
Herbold2020-RF 0.809 0.051 [0.779, 0.839] -0.082
Herbold2020-FTA 0.805 0.049 [0.776, 0.834] 0.000
Herbold2020-FT 0.803 0.050 [0.774, 0.832] 0.041
Herbold2020-RF+R 0.803 0.046 [0.776, 0.830] 0.044
Herbold2020-FT+R 0.801 0.046 [0.774, 0.828] 0.088
Herbold2020-FTA+R 0.802 0.048 [0.774, 0.830] 0.057
Herbold2020-NB+R 0.799 0.067 [0.760, 0.839] 0.098
Herbold2020-NB 0.790 0.066 [0.751, 0.829] 0.252
Herbold2020-Basic-NB 0.767 0.083 [0.718, 0.816] 0.563
Herbold2020-Basic-RF 0.776 0.056 [0.743, 0.809] 0.546
Kallis2019-FT 0.777 0.062 [0.740, 0.814] 0.503
Pandey2018-LR 0.760 0.058 [0.726, 0.794] 0.839
Pandey2018-NB 0.765 0.069 [0.725, 0.806] 0.667
Pandey2018-NB 0.765 0.069 [0.725, 0.806] 0.667
Qin2018-LSTM 0.729 0.083 [0.681, 0.778] 1.115
Trivial 0.729 0.083 [0.681, 0.778] 1.115
Otoom2019-SVC 0.722 0.074 [0.678, 0.765] 1.324
Otoom2019-NB 0.718 0.075 [0.674, 0.762] 1.382
Otoom2019-RF 0.718 0.071 [0.676, 0.760] 1.429
Pingclasai2013-LR 0.715 0.085 [0.665, 0.765] 1.297
Pingclasai2013-NB 0.671 0.131 [0.594, 0.748] 1.361
Limsettho2014-LR 0.670 0.103 [0.610, 0.731] 1.671
Limsettho2014-NB 0.734 0.078 [0.688, 0.780] 1.090
Terdchanakul2017-LR 0.728 0.082 [0.680, 0.777] 1.136
Terdchanakul2017-RF 0.610 0.103 [0.550, 0.671] 2.425
Figure 7: Results of leave-one-project-out cross validation with the CV data. The bold-faced approaches where the best for a publication and are used in the statistical analysis.

6.5.2 Results of Phase 2

Figures 8 and 9 show the results for the second phase of the experiment, i.e., training with the CV, resp. CV data and testing with the TEST, resp. TEST data. The results are consistent with our results from Phase 1. Herbold2020-FTA and Kallis2019-FT perform best on both data sets, there is almost no difference on the TEST data and a slightly better F1 score for Herbold2020-FTA on the TEST data. The mean F1 score of both approaches is within the confidence interval of the results from Phase 1. In general, we find that even though we just have five projects in the TEST data and the data was independently labelled from the CV data, that the F1 score of 12 out of 18 approaches is within the CI, in the other six cases (three on TEST and TEST each) the values on the TEST data are only slightly higher than the upper bound of the confidence interval on the CV data. This slight improvement of approaches on the TEST data can be explained by the fact that these approaches were developed on the TEST data, which should give them an advantage in comparison to the CV data. Overall, these results are a strong indicator that our findings from Phase 1 generalize to a broader population of projects.

http- jack- lucene- rhino tomcat mean std
comp. rabbit solr
Herbold2020-FTA 0.692 0.732 0.634 0.705 0.641 0.681 0.038
Kallis2019-FT 0.706 0.707 0.620 0.719 0.633 0.677 0.042
Pandey2018-LR 0.630 0.610 0.574 0.582 0.594 0.598 0.020
Qin2018-LSTM 0.580 0.566 0.446 0.682 0.708 0.596 0.093
Terdchanakul2017-RF 0.203 0.285 0.252 0.246 0.321 0.261 0.040
Chawla2015-FL 0.276 0.238 0.266 0.179 0.186 0.229 0.040
Limsettho2014-LR 0.192 0.278 0.045 0.202 0.384 0.221 0.111
Otoom2019-NB 0.037 0.064 0.016 0.026 0.092 0.047 0.028
Pingclasai2013-LR 0.000 0.000 0.000 0.000 0.000 0.000 0.000
Figure 8: Results of training with the CV and testing with the TEST data.
http- jack- lucene- rhino tomcat mean std
comp. rabbit solr
Herbold2020-FTA 0.832 0.874 0.777 0.813 0.783 0.816 0.035
Kallis2019-FT 0.821 0.841 0.767 0.803 0.783 0.803 0.026
Qin2018-LSTM 0.776 0.857 0.791 0.748 0.760 0.786 0.038
Pandey2018-LR 0.806 0.826 0.797 0.760 0.743 0.786 0.031
Otoom2019-NB 0.776 0.826 0.789 0.764 0.751 0.781 0.025
Chawla2015-FL 0.777 0.801 0.756 0.712 0.726 0.755 0.033
Pingclasai2013-LR 0.778 0.848 0.777 0.742 0.602 0.750 0.081
Limsettho2014-LR 0.765 0.774 0.691 0.732 0.759 0.744 0.030
Terdchanakul2017-RF 0.561 0.546 0.442 0.690 0.717 0.591 0.101
Figure 9: Results of training with the CV and testing with the TEST data.

6.5.3 Results of Phase 3

Figures 10 and 11 show the results of the training with the UNVALIDATED data in comparison to the results of Phase 1 and Phase 2 combined. The training with UNVALIDATED data actually outperforms the training with validated data in case all issues are performed if we consider the mean F1 score. However, we fail to reject the null hypothesis of the paired t-test that there is no difference (). Therefore, we conclude that training without manual validation is not significantly different for the identification of bugs among all issues in terms of F1 score. Regardless, the recall and precision show that while the F1 score is not affected, the way this F1 score is achieved is very different between validated and unvalidated data. The Herbold2020-FTA-UV has a very large recall nearly always over 0.9, but a relatively low precision with values between 0.3 and 0.7. Thus, the strong F1 score is achieved by predicting nearly all bugs at the cost of a mediocre precision. With the validated data, this is the opposite. The recall is much lower and between 0.3 and 0.8, but the precision is higher with values between 0.65 and 1.0.

If we apply the classifier trained on the UNVALIDATED data to only the bugs, the F1 score is still similar, but slightly worse than training with validated data. We reject the null hypothesis of the paired t-test that there is no difference () and find that the effect size of this difference is small (). In terms of recall and precision the differences between training with and without validation are similar. However, the precision of training without validation is increased to values between 0.45 and 0.85 and the recall of training with validation is increased to 0.45 to 0.95. Overall, our results show that training with unvalidated data is an option, especially if recall is more important than precision.

mean sd CI
Herbold2020-FTA-UV 0.662 0.083 [0.615, 0.709] 0.000
Herbold2020-FTA 0.648 0.075 [0.606, 0.690] 0.179
Figure 10: Comparison of the results from Phase 1 and Phase 2 with training with the UNVALIDATED data and testing with CV and TEST.
mean sd CI
Herbold2020-FTA 0.806 0.048 [0.779, 0.833] 0.000
Herbold2020-FTA-UV 0.783 0.060 [0.749, 0.817] 0.435
Figure 11: Comparison of the results from Phase 1 and Phase 2 with training with the UNVALIDATED data and testing with CV and TEST.

6.5.4 Results for Phase 4

For Phase 4, we decided to use the Herbold2020-FTA-UV approach, even though Herbold2020-FTA performed slightly better if only bugs are considered. Our reason for this is that we have a defect prediction use case in mind, where false negatives would mean that bugs are missed. Consequently, we value recall higher than precision, which means that Herbold2020-FTA-UV is preferable over Herbold2020-FTA. Figure 12 shows how the labeling of bugfixing commits is changed by using issue type prediction in comparison to trivially assuming that the developer classification is correct without validation. With the trivial approach, all actual bugfixing commits are identified. This is a property of the data, since the manual validation only reduces the amount of bug fixes. The issue type prediction with Herbold2020-FTA-UV finds on average 91.3% of the bugfixing commits, the worst case in our data is is that only 80.9% of the bugfixing commits are identified. When we consider the false positive bugfixing commits, we see that the issue type prediction has a strong positive impact. The mean percentage of additional bugfixing commits is at 47%, in comparison to 81% with the trivial approach. Thus, the amount of additional bugfixing commits, that are actually, e.g., feature additions, is greatly reduced by using the issue type prediction. While the resulting data still contains mislabels, the amount of mislabels is reduced. However, even with the reduction there is still much noise left, i.e., about one third of bugfixing commits the data would still be mislabels. Hence, for the use case of the creation of defect prediction data, issue type prediction could potentially replace manual validation for the creation of training data, but we suggest to rely on manual validation for the creation of test data.

Figure 12: Impact on using Herbold2020-FTA-UV for the labeling of bugfixing commits.

7 Discussion

We now discuss the answers to our research questions and how our results relate to findings from the literature.

7.1 Answers to Research Questions

RQ1: Can manually specified logical rules derived from knowledge about issues be used to improve issue type classification?

On the one hand, our results show a small improvement in the performance of issue type prediction due to the use of two classifiers, i.e., because of the structural information about the difference between title and description that we incorporate in the learning process. On the other hand, the knowledge about null pointers we integrated to the learning process did not have a positive effect. For us, this indicates two things. First, if we can help the model to better understand the structure of the data, e.g., by accounting for the separate fields, this can have a positive effect, even though the improvement is likely small. Other aspects that could be considered here would be parsing of structural information that is available in the issue, e.g., HTML or Markdown syntax, to enable a better pre-processing of the data. Second, defining logical rules that mimic (parts of) the guidelines for labeling issues by Herzig2013 does not seem helpful. It seems like the classifiers can infer these rules, or at least similar rules themselves and the definition of hard coded rules may actually inhibit the learning process, because they either restrict the solution space or the available data unnecessarily. In summary, we answer RQ1 as follows.

Answer to RQ1: Rules that describe the general structure of issues may improve issue type classification. Rules that describe specific issue types and interfere with the classification should be avoided.

RQ2: Does training data have to be manually validated or can large amount of unvalidated data also lead to good classification models?

Our results show that training with unvalidated data leads to a comparable mean performance than training with validated data. However, we also find that there are strong differences in how this performance is achieved. Our results provide a strong indication that manual validation leads to models with a better precision, i.e., fewer false positive predictions of bugs. On the other hand, large amounts of unvalidated data achieve only a mediocre precision that is counterbalanced by a very high recall, i.e., few bugs that are missed. Thus, the choice whether to use unvalidated data or validated data should be done with the use case of the issue type prediction in mind. For example, for defect prediction research few false negatives are important, i.e., unvalidated data is better. If a sample of bugfixing commits should be manually validated line by line to create data like Defects4J (Just2014), few false negatives are more important and training with validated data would be preferable. In summary, we answer RQ2 as follows.

Answer to RQ2: Unvalidated data is useful, if the goal is to miss as few bugs as possible. If there should be few false positive, validated data should be used for training.

RQ3: How good are issue type classification models at recognizing bug issues?

According to our results, users of issue type prediction can expect a F1 score of about 0.65 if applied to all issues and of 0.80 if applied to only bugs. Depending on the use case, one can either use validated or unvalidated data and thereby, get usable models for the prediction of bug issues both with few false positives or few false negatives. However, our results also show the limitations of the current state of the art of issue type prediction. Models that perform universally well with both few false positives and few false negatives are not possible within the current state of the art and the available data. We believe that this could only change, if massive amounts of validated data would be available, i.e., not in the order of as is currently the case, but rather in the order of at least or more. However, given that Herzig2013 and Herbold2020 report that the manual issue type classification is very time consuming, it may be problematic to achieve this. In summary, we answer RQ3 as follows.

Answer to RQ3: Issue type classification models are good at recognizing bugs, in case the use case allows for either some false positives or some false negatives. Current models cannot minimize both false positives and false negatives.

7.2 Comparison with the Literature

An important part of our work was the replication of the existing approaches from the literature and the evaluation of their performance on independent data and, in general, for more than the usually used five projects by Herzig2013. The literature generally reported very good results with performance values higher than the best results we observed in our study. We could not replicate this but are aware of several reasons for the differences between our work and the literature. Most importantly, we used more data. Thus, if an approach randomly works on two or three projects, but fails otherwise, this would be detected by our work, but not necessarily by the smaller case studies in the related work. Also, we used a different case study setup. We clearly separated the training and test data, to avoid any kind of information leakage, e.g., because timing aspects were not considered while doing cross-validation. When we looked at the literature, all prior publications performed some sort of train/test split within the projects, sometimes with accounting for the timing (Terdchanakul2017; otoom2019automated; Pingclasai2013), but sometimes not (limsettho2014comparing; chawla2015automated; qin2018classifying). In addition to the possible information leakage, this kind of train/test splits reduced the amount of test data to at most 20% of all the data of a project. Thus, the related work not only used fewer projects, but also less data of these projects for testing. Finally, most of the literature did not even use all five projects from Herzig2013, but subsets of this data, further reducing the evidence available for drawing conclusions. Interestingly, the best performing approach from the literature was never evaluated on validated data kallis2019ticket. However, the authors used 30,000 unvalidated issues for the performance estimation, i.e., more evidence than the other approaches from the state of the art.

In conclusion, we saw that the literature on this topic was not reliable so far and hope that our work not only sheds light on how well issue type prediction actually works, but also serves as guideline for future studies on this topic.

8 Threats to Validity

There are several threats to the validity of our work, which we report following the classification by Wohlin2012.

8.1 Construct Validity

The design of experiments may not be suitable to analyze our research question. The biggest threat is to the analysis of RQ1, because we only evaluated the impact of two manually designed rules and only in the single way of using different classifiers. Other manual knowledge or other ways to incorporate this knowledge into the learning process may lead to different results. Moreover, the results of all three research questions are impacted by our choice of F1 score, recall, and precision as performance metrics. While these metrics are well accepted in the state of the art and reasonable for the use case, other metrics, especially metrics that would consider different costs for different kinds of misclassification, may lead to different results. Regarding the statistical methods, the biggest threat is that we did not perform statistical tests for the selection of the best classifier per publication, but simply took the one with the best mean value. Thus, other classifiers from the same publication might not be statistically significantly different. Unfortunately, performing additional tests was not reasonably possible, because if we would have done one statistical test per publication, we would have a very small significance level for the subsequent tests where we compare publications due to the Bonferroni correction. If we would just have applied the Nemenyi post-hoc test to all 25 approaches, we would have found much fewer significant difference, because the critical distance increases linearly with the number of approaches, i.e., our tests would not have been very powerful. Therefore, doing a selection just with the mean values was the only viable option with the amount of data we have available.

8.2 Internal Validity

Our interpretation that the Pandey2018-LR is actually worse thanHerbold2020-FTA and Kallis2019-FT is only conjectured from the properties of the statistical tests, but not directly supported by the statistical analysis. Moreover, our conclusions regarding the differences between the models trained with unvalidated and validate data may also be wrong. The unvalidated data contains more issues, i.e., the size of the data set could also be responsible for the differences in recall and precision. We believe that the difference in recall may be due to the size and decrease with more validated data, but cannot reasonably determine this without more validated data. However, we believe that the differences in precision this is unlikely to go away, because this would mean a performance degradation due to more validated data, which is unlikely.

8.3 External Validity

The manually validated data was mostly for Java projects of the Apache Software Foundation that use Jira as issue tracker. Only two projects used Bugzilla and one project was from the Mozilla Foundation. The unvalidated data we used was from a diverse range of software projects written in different languages and owned by different organizations, but also limited to Jira as issue tracker. Therefore, it is unclear how well our results generalize beyond Apache projects, the Java programming language, and the Jira issue tracker. However, the good results with the unvalidated data indicate that generalization to different organizations and programming languages is likely. Generalization to other issue trackers is also likely, because we do not observe a difference between the two Bugzilla projects and the Jira projects in our results. Moreover, the results from Phase 2 of our experiments show that our observations hold on two data sets, i.e., at least generalize to some degree.

8.4 Reliability

There are no threats to the reliability of our research, other than the threats to the reliability of the prior research by Herzig2013 and Herbold2020, i.e., the reliability of the manually validated data that we used. However, we note that the work by Herbold2020 is a successful independent conceptual replication of the work by Herzig2013.

9 Conclusion

Issue tracking systems play a central role in the organization of modern software development. Issues that are raised guide the development process and describe, e.g., requested features or reported bugs. Each issue has a type that is assigned by the reporter of the issue and only seldom changed afterwards. From prior research, we know that the issue type does often not match with the content of the issue, e.g., because feature requests are incorrectly labelled as bug. Within this article, we analyzed the state of the art of automated issue type prediction with machine learning and focused on the prediction of whether an issue describes a bug or not. We analyzed if we can improve issue type prediction with rules that account for structural information or rules about whether an issue is a bug and found that accounting for the structure of issues may slightly improve predictions. Moreover, we determined that data that contains mislabeled issues may still leads to good prediction models regardless, especially with respect to their ability to correctly identify all bugs. In comparison, training with manually validated data that does not contain mislabels leads to classifiers with a similar performance, but with fewer non bug issues predicted as bug at the cost of missing more bugs. Overall, the performance of the prediction models is promising and indicates that issue type prediction is likely suitable for practical use within tools and to improve data for research. We demonstrated this with a practical example that shows how the identification of bug fixing commits can be improved.

The knowledge about issue type prediction is still limited, especially regarding the use as recommendation system. Therefore, we believe that future work should investigate how tools such as the issue type prediction tool by kallis2019ticket are received by developers and how they can best be integrated into existing issue tracking systems. We believe that such studies should combine quantitative and qualitative aspects, e.g., to quantitatively analyze how often developers agree with predicted labels and qualitatively analyze the feedback of developers through interviews and questionnaires. Moreover, we believe that more validated data is the only reasonable way to overcome the problem that one must choose between models with high recall and models with high precision. A collaboration by many researchers with the research turk approach (Herbold2020b) could help to overcome the issue of the large manual effort and be suitable for the creation of a larger data set.

Acknowledgments

This work is partially funded by DFG Grant 402774445.

References
