On the Evolution of U.S. Temperature Dynamics

07/15/2019
by   Francis X. Diebold, et al.
University of Pennsylvania
0

Climate change is a multidimensional shift. While much research has documented rising mean temperature levels, we also examine range-based measures of daily temperature volatility. Specifically, using data for select U.S. cities over the past half-century, we compare the evolving time series dynamics of the average temperature level, AVG, and the diurnal temperature range, DTR (the difference between the daily maximum and minimum temperatures at a given location). We characterize trend and seasonality in these two series using linear models with time-varying coefficients. These straightforward yet flexible approximations provide evidence of evolving DTR seasonality, stable AVG seasonality, and conditionally Gaussian but heteroskedastic innovations for both DTR and AVG.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 5

09/23/2021

Quantile based modelling of diurnal temperature range with the five-parameter lambda distribution

Diurnal temperature range is an important variable in climate science th...
05/18/2018

Modeling trend in temperature volatility using generalized LASSO

In this paper, we present methodology for estimating trends in spatio-te...
06/23/2021

Changepoint Detection: An Analysis of the Central England Temperature Series

This paper presents a statistical analysis of structural changes in the ...
01/13/2018

Parametrizations, weights, and optimal prediction: Part 1

We consider the problem of the annual mean temperature prediction. The y...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Climate change can be defined as the variation in the joint probability distribution describing the state of the atmosphere, oceans, and fresh water including ice

(Hsiang and Kopp, 2018). These are complex, multidimensional physical systems, and the various features of climate change have been described using a diverse set of summary statistics. One of the most important aspects of climate change is the evolving distribution of temperature, and many subsidiary indicators have been used to measure this variation, including, for example, mean temperature, temperature range, hot and cold spell duration, frost days, growing season length, ice days, heating and cooling degree days, and start of spring dates (Masson-Delmotte et al., 2018; Reidmiller et al., 2018). Of course, the level of temperature – the central tendency of the distribution – has attracted the most attention, in particular, regarding the upward trend in the average daily temperature (AVG). In contrast, less attention has been given to temperature volatility, which can be measured by the diurnal temperature range (DTR), which is the difference between the daily maximum temperature (MAX) and minimum temperature (MIN) at a given location.

Similar to changes in temperature averages, changes in temperature ranges and variability can also have important effects on environmental and human health (Davy et al., 2017). For example, the incidence of temperature extremes such as heat waves depends critically on how the whole distribution of temperature is shifting – including both the central tendency and variability. Of course, such temperature extremes can have notable adverse effects on society and the economy. Temperature variability can stress workers and lower labor productivity, but it can also have direct effects on output. A salient example is agriculture, whose output is a function of capital, labor, and weather inputs.111Wigglesworth (2019) finds an important role of DTR in a panel study of U.S. state-level agricultural production over and above standard covariates like capital, labor, and AVG. Indeed, the very viability of certain agricultural sub-industries, notably wine or maple syrup production, is crucially dependent on temperature ranges. For example, Robinson (2006) notes that


Diurnal temperature variation is of particular importance in viticulture. Wine regions situated in areas of high altitude experience the most dramatic swing in temperature variation during the course of a day. In grapes, this variation has the effect of producing high acid and high sugar content as the grapes’ exposure to sunlight increases the ripening qualities while the sudden drop in temperature at night preserves the balance of natural acids in the grape.  (p. 691)

To better understand the full nature of the changing distribution of temperature, we examine DTR in select cities in the United States over the past half-century, quantifying both conditional-mean and conditional-variance dynamics. Our contribution is importantly methodological as we characterize the trend and seasonality in DTR using linear models that are easy to interpret but also quite adept at accounting for variation in the temperature distribution. We allow for time-varying coefficients, which provide a straightforward yet flexible approximation to more general nonlinear effects. Although our focus is on DTR, we also provide a parallel analysis for AVG, which allows valuable interpretive context and contrast. Our work reveals an

evolving DTR conditional mean seasonal pattern, in contrast to the fixed AVG conditional mean seasonal pattern. In addition, our work reveals clear seasonality in conditional variance dynamics, both for DTR and AVG, although the evidence is weaker as to their evolution.

The previous research literature that examined DTR struggled for some time to develop firm conclusions about the dynamics of temperature variability. Even the direction of the trend in DTR has been somewhat contentious (Alexander and Perkins, 2013). Recent work has established that the downward trend in DTR in many locations reflects a more rapid warming of MIN than MAX – generally the result of nighttime lows rising faster than daytime highs (Davy et al., 2017). However, this differential trending of MIN and MAX, or “diurnal asymmetry,” is not geographically uniform because of variation in vegetation, cloud cover, and other factors (Jackson and Forster, 2010; Sun and Pinker, 2014). Along with this trend in temperature variability, seasonal variation in DTR has also been considered by a few authors, including Ruschy et al. (1991) and Durre and Wallace (2001), who describe a lower temperature range in winter than at other times. Qu et al. (2014) also provide some evidence that the seasonality of DTR in the United States may be changing over time. To capture as much variation as possible in the distribution of DTR – including trend and seasonal – we use linear time series models with time-varying coefficients to provide simple yet powerful representations.

We proceed as follows. In section 2, we provide an introductory analysis for a representative city, Philadelphia. Then, in section 3, we broaden the analysis to include fifteen geographically dispersed U.S. cities, characterizing both conditional-mean and conditional-variance dynamics. We conclude in section 4.

2 Philadelphia

We introduce and illustrate our approach by studying temperature data measured at the Philadelphia airport (PHL) in a step-by-step fashion. We present most results graphically, while regression results on which these graphs are based appear in Appendix A.222EViews code is available at https://www.sas.upenn.edu/~fdiebold/papers/paper122/DTRcode.txt. The underlying data are the daily MAX and MIN measured in degrees Fahrenheit, obtained from the U.S. National Ocean and Atmospheric Administration’s Global Historical Climate Network database (GHCN-daily).333The data are available at https://www.ncdc.noaa.gov/ghcn-daily-description. For details, see Menne et al. (2012) and Jaffres (2019). Our sample period is from 01/01/1960 to 12/31/2017, which covers the period of almost all recent climate change.

2.1 Distributions

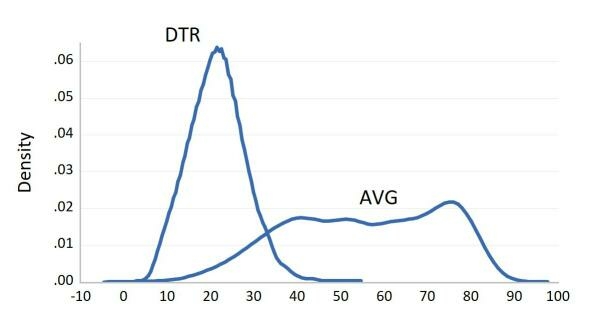

Notes to figure: We show kernel density estimates for daily AVG and DTR, 1960-2017.

Figure 1: Estimated Densities, AVG and DTR, Philadelphia

The daily MAX and MIN are informative of both the central tendency and variability of the daily continuous-time temperature record. In particular, the daily average temperature, AVG=(MAX+MIN)/2, is a natural measure of central tendency, and the daily temperature range, DTR=MAX-MIN, is a natural measure of volatility or variability. DTR is not only a natural and intuitive estimator of daily volatility, but it is also highly efficient statistically. The “daily range” has a long and distinguished tradition of use in econometrics due to its good properties in estimating underlying quadratic variation from discretely-sampled data (Alizadeh et al., 2002). AVG has been studied and modeled extensively (Raftery et al., 2017), and DTR much less so.

In Figure 1, we show kernel estimates of the unconditional densities of AVG and DTR. The bimodal shape of the AVG density reflects the strong seasonality in AVG. The “winter mode” is around 40F, and the “summer mode” is around 75F. The AVG density contrasts sharply with the unimodal approximately-symmetric density of DTR, which is centered around 19F and much less dispersed.

2.2 Trend

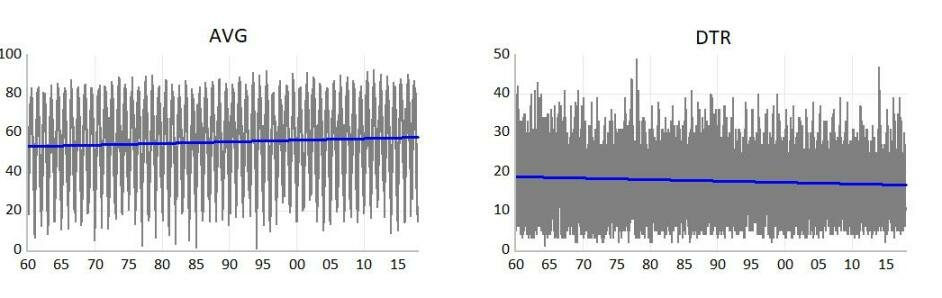

Notes to figure: We show time series of daily AVG and DTR (gray) together with estimated linear trends (blue), 1960-2017. The vertical axes are scaled differently in the two panels, and they are in degrees Fahrenheit.

Figure 2: Data and Estimated Trends, AVG and DTR, Philadelphia

In Figure 2, we display time series plots of the entire data sample of AVG and DTR with fitted linear trends superimposed. The regression is

(1)

where is AVG or DTR, is a constant, and is a time trend (that is, and ). Here and throughout, we use Newey and West (1987)

heteroskedasticity and autocorrelation consistent (HAC) standard errors to assess statistical significance.

The AVG trend slopes upward and is statistically significant, which is consistent with the overall global warming during this period. The steepness of this trend is surprising, as the AVG trend grows by nearly five degrees Fahrenheit over the course of the 57-year 1960-2017 sample. This increment is a bit more than twice as much as the average global increase over the same period (Rudebusch, 2019). The faster upward trend in the Philadelphia airport average temperature likely reflects two key factors: (1) average temperatures in growing cities tend to rise more quickly due to an increasing urban heat island effect and (2) average land temperatures generally grow more quickly than the global average, which includes ocean areas that are slow to warm.

As for Philadelphia temperature variability, DTR also has a significant trend, and it slopes downward, dropping by more than two degrees over the course of the sample – a diurnal asymmetry. The downward DTR trend arises from different trends in the underlying MAX and MIN. Both trend upward, but MIN is on a steeper incline as evening temperatures warm more quickly. Hence, the spread between MAX and MIN tends to shrink, and DTR decreases over time. As noted by Dai et al. (1999), Davy et al. (2017), and Vinnarasi et al. (2017), such a downward trend is not found at all locations; however, the relatively muted upward trend in MAX can generally be ascribed to increased cloud cover, soil moisture, and precipitation, which lead to decreased surface solar radiation and increased daytime surface evaporative cooling.

The overall picture, then, involves not only an upward trend in AVG, but also a gradual tightening of daily fluctuations around that trend. Warming is not only happening, but progressively less volatility as well. As a result, the increases in heat are becoming harder to avoid at night, with potentially adverse consequences that likely fall disproportionately on the poor and vulnerable.

2.3 Fixed Seasonality

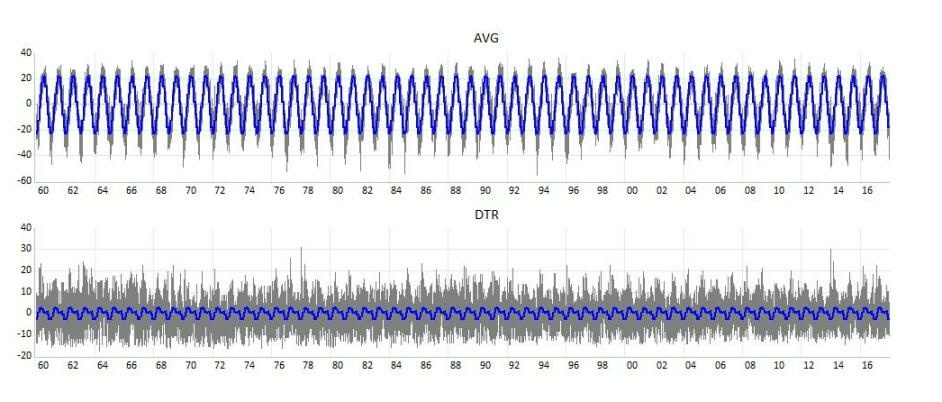

Notes to figure: We show time series of daily linearly de-trended AVG and DTR (gray) together with estimated fixed seasonals (blue) from regressions of daily linearly de-trended data on 12 monthly seasonal dummies, 1960-2017. The vertical and horizontal axes are scaled identically in the top and bottom panels. The vertical axes are in degrees Fahrenheit.

Figure 3: De-Trended Data and Estimated Fixed Seasonals, AVG and DTR, Philadelphia

In Figure 3, we show the actual and fitted values from regressions of de-trended AVG and DTR on 12 monthly seasonal dummies,

(2)

where is de-trended AVG or DTR – the residuals from regression (1) – and if day is in month , and 0 otherwise.444There is of course no need for an intercept, which would be completely redundant and hence cause perfect multicollinearity. This model is effectively an intercept regression for deviations from trend, allowing for a different intercept each month.

As shown in the top panel of Figure 3, AVG displays pronounced seasonality. The seasonality is highly significant and is responsible for a large amount AVG variation. The of the seasonal AVG regression (2) is .81. As with the upward trend in AVG, strong seasonality in deviations of AVG from its trend is hardly surprising – it’s cold in the winter and hot in the summer.

There is also significant seasonality in DTR, as shown in the bottom panel of Figure 3. The DTR seasonality was hard to detect visually in the time series plot of Figure 2, because it is buried in much more noise than that of AVG. The of the seasonal DTR regression (2) is only .07.

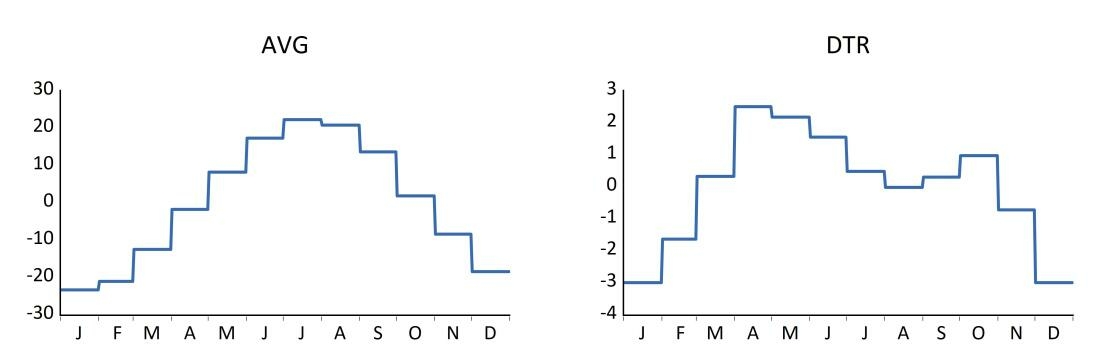

Notes to figure: We show estimated fixed twelve-month seasonal patterns for AVG and DTR, based on regressions of daily linearly de-trended data on 12 monthly seasonal dummies, 1960-2017. The vertical axes are scaled differently in the left and right panels, and they are in degrees Fahrenheit.

Figure 4: Estimated Fixed Twelve-Month Seasonal Patterns, AVG and DTR, Philadelphia

In Figure 4, we show the estimated monthly seasonal factors for AVG (left panel) and DTR (right panel). They are simply the 12 estimated coefficients on the 12 monthly dummies in the seasonal regression (2). The seasonal pattern for AVG is as expected – smooth and unimodal, high in the summer and low in the winter, achieving its maximum in July and its minimum in January. In contrast, the seasonal pattern for DTR is clearly bi-modal, with one mode in April-May and one in October. DTR’s two annual peaks (spring and fall) and two annual troughs (winter and summer) contrast sharply with AVG’s single annual peak (summer) and single annual trough (winter). This “twin-peaks” or “M-shaped” DTR pattern is common across many U.S. cites. Moreover, as we shall show, in many locations, the DTR seasonal pattern has evolved noticeably over time with climate change.

2.4 Evolving Seasonality

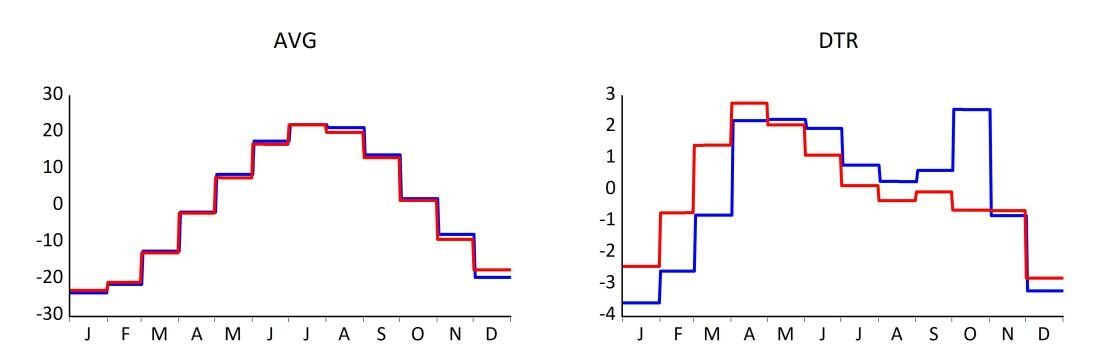

Notes to figure: We show the estimated twelve-month seasonal patterns of AVG and DTR, based on regressions of daily linearly de-trended data on 12 monthly seasonal dummies, and those same dummies interacted with time, 1960-2017. 1960 is blue, and 2017 is red. The vertical axes are scaled differently in the left and right panels, and they are in degrees Fahrenheit.

Figure 5: Estimated Evolving Twelve-Month Seasonal Patterns, DTR and AVG, Philadelphia, 1960 vs. 2017

The AVG and DTR trends documented thus far are trends in level. More subtle are trends in seasonality – that is, trends in the tent-shaped AVG seasonal pattern and the M-shaped DTR seasonal pattern. In that case, the seasonal patterns shown in Figure 4, estimated over the full sample 1960-2017, would be the sample averages that would not capture the evolution of the distribution over time.

We now explore the possibility of evolving seasonality by allowing for trends in the seasonal factors. Mechanically, this involves regressing de-trended AVG or DTR not only on 12 monthly dummies, but also those same 12 dummies interacted with time,

(3)

where is de-trended AVG or DTR, if day is in month and 0 otherwise, and . Regression (3) can capture linearly-trending seasonal deviations from a linear trend. Effectively, it allows for a different intercept each month, with those intercepts themselves potentially trending at different rates. In the special case where all interaction coefficients are zero, it collapses to fixed seasonal deviations from linear trend, as explored in section 2.3.

For AVG, there are no gains from estimating the more flexible seasonal specification (3). The interaction terms are universally insignificantly different from zero, clearly indicating no change over time in the AVG seasonal pattern. In the left panel of Figure 5, we show the estimated seasonal factors for AVG for the first year (1960) and last year (2017) of our sample. This range provides the maximum contrast, but the two seasonal patterns are nevertheless essentially identical.

The results for DTR, however, are very different. Unlike the AVG seasonal, which does not evolve, the DTR seasonal changes significantly over time. The January-through-March DTR interaction coefficients are significantly positive, indicating that the winter DTR low is increasing. In addition, all May-through-October interaction coefficients are negative, and the October coefficient is large and highly significantly negative. This corresponds to progressively lower DTR highs in Octobers, so that the fall DTR peak is gradually vanishing. Both effects (higher winter DTR lows, and lower fall DTR highs) are visually apparent in the right panel of Figure 5, in which we contrast the estimated DTR M-shaped seasonal pattern in the first year (1960) and last year (2017) of our sample.

3 Fifteen Cities

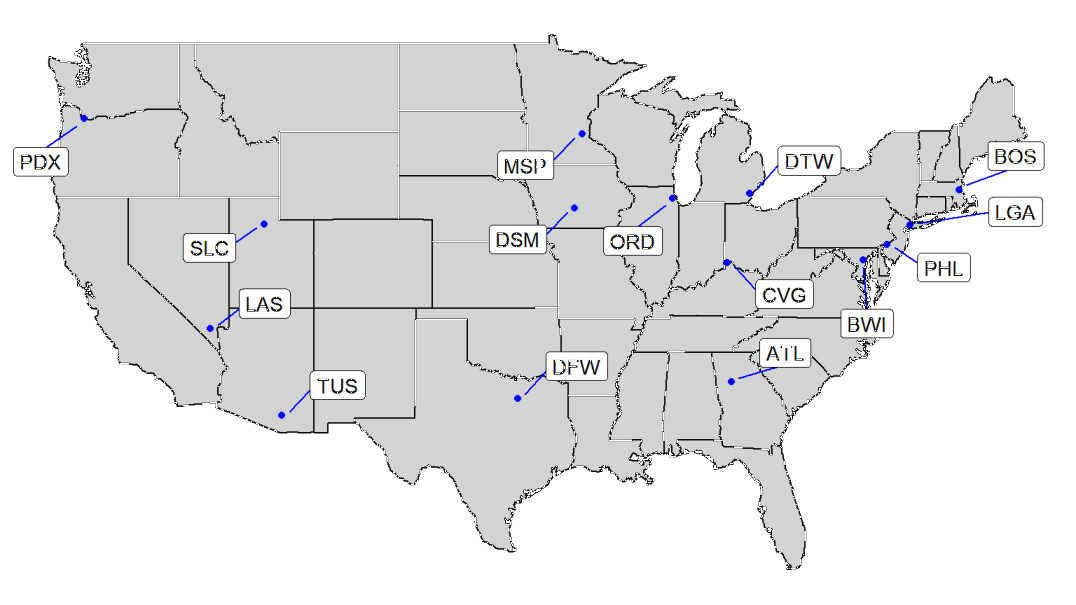

Note to figure: We show the fifteen cities for which we study AVG and DTR, by airport code.

Figure 6: Fifteen Cities

We now expand our analysis to include data from the airports of the fifteen U.S. cities shown in Figure 6. As with the Philadelphia case study in section 2, we obtain the underlying daily MAX and MIN data, from which we construct daily AVG and DTR, from the U.S. National Ocean and Atmospheric Administration’s GHCN-daily, https://www.ncdc.noaa.gov/ghcn-daily-description. Our sample period is 01/01/1960-12/31/2017.555

There were a (very) few missing observations, in which case we interpolated using an average of the immediately previous and subsequent days’ values, rounded to the nearest integer. The missing observations are: BWI max: 1/7/04, min: 1/6/04, DSM max: 9/15/96, min: 9/15/96, and TUS max: 5/10/10, 8/18/17, 8/19/17, min: 5/11/10, 8/18/17, 8/19/17.

We choose these city weather reporting stations because all of them have had temperature derivatives traded on the Chicago Merchantile Exchange (CME). Consideration of such CME cities is of interest for several reasons. First, these locations cover a diverse set of climates, so they can provide a check of the robustness of our Philadelphia results. Second, they are urban locations that represent large numbers of people and a sizable share of economic activity – one reason that their CME contracts are traded. Finally, the valuations of weather derivatives traded in financial markets depend on the evolution of the stochastic structure of temperature dynamics, which is precisely the focus of our modeling efforts and so naturally paired with the CME cities.

The full set of historically-traded cities includes: Atlanta, ATL; Boston, BOS; Baltimore Washington, BWI; Chicago, ORD; Cincinnati, CVG; Dallas Fort Worth, DFW; Des Moines, DSM; Detroit, DTW; Houston, IAH; Kansas City, MCI; Las Vegas, LAS; Minneapolis St Paul, MSP; New York, LGA; Portland, PDX; Philadelphia, PHL; Sacramento, SAC; Salt Lake City, SLC, and Tuscon, TUS.666See ftp://ftp.cmegroup.com/weather/usa/temperature/historical/daily. We exclude Houston, Kansas City, and Sacramento, however, due to large amounts of missing data, leaving fifteen cities. Presently eight cities are traded (Atlanta, Chicago, Cincinnati, Dallas, Las Vegas, Minneapolis, New York, and Sacramento), and all but Sacramento are in our fifteen.777See https://www.cmegroup.com/trading/weather/temperature-based-indexes.html.

In addition to expanding our analysis to include more cities, we also employ a more sophisticated modeling approach that jointly captures trend, seasonality, and serial correlation, and we implement it for both conditional-mean and conditional-variance dynamics. Our approach builds on Campbell and Diebold (2005), but with several important differences. We study the variability as well as the central tendency of temperature, explore time-varying seasonality, and consider more cities and a longer data sample.

3.1 Conditional Mean Dynamics

(1) (2) (3) (4) (5) (6) (7)
ATL 4.36 0.00 0.00 0.00 0.76 0.90
BOS 2.06 0.00 0.00 0.73 0.67 0.89
BWI 2.25 0.00 0.00 0.80 0.71 0.90
CVG 2.53 0.04 0.00 0.94 0.74 0.89
DFW 3.44 0.00 0.00 0.55 0.72 0.89
DSM 3.93 0.00 0.00 0.17 0.76 0.91
DTW 4.09 0.00 0.00 0.99 0.74 0.91
LAS 6.05 0.00 0.00 0.41 0.82 0.96
LGA 4.03 0.00 0.00 0.97 0.71 0.91
MSP 4.72 0.00 0.00 0.18 0.77 0.93
ORD 2.86 0.00 0.00 0.78 0.74 0.90
PDX 2.55 0.00 0.00 0.26 0.76 0.90
PHL 4.78 0.00 0.00 0.95 0.72 0.91
SLC 3.92 0.00 0.00 0.67 0.77 0.93
TUS 4.89 0.00 0.00 0.33 0.79 0.93
Median 3.93 0.00 0.00 0.67 0.74 0.91

Notes to table: All results are based on daily data, 1960-2017. Column 1 reports measurement station by airport code. Column 2 reports the estimated trend movement over the entire 57-year sample in degrees Fahrenheit, using a simple regression on linear trend. The remaining columns report results from the conditional-mean regression (4). is the robust -value for a Wald test of no trend (all coefficients on TIME and interactions are 0), is the robust -value for a Wald test of no seasonality (all coefficients on ’s and interactions are 0), and is the robust -value for Wald a test of no trend in seasonality (all coefficients on interactions are 0). is the estimated autoregressive coefficient, and is the coefficient of determination. Asterisks denote significance at the one percent level. See text for details.

Table 1: AVG, Conditional Mean Dynamics, Fifteen Cities
(1) (2) (3) (4) (5) (6) (7)
ATL -1.65 0.00 0.00 0.14 0.38 0.18
BOS -0.48 0.00 0.00 0.00 0.25 0.10
BWI -0.43 0.34 0.00 0.50 0.38 0.19
CVG -1.31 0.00 0.00 0.04 0.32 0.17
DFW -1.31 0.00 0.00 0.64 0.40 0.17
DSM -0.51 0.00 0.00 0.03 0.32 0.15
DTW -2.88 0.00 0.00 0.00 0.33 0.27
LAS -7.02 0.00 0.00 0.13 0.46 0.37
LGA 0.03 0.00 0.00 0.00 0.23 0.14
MSP -3.07 0.00 0.00 0.00 0.31 0.18
ORD -2.03 0.00 0.00 0.00 0.30 0.20
PDX -1.68 0.00 0.00 0.63 0.50 0.45
PHL -2.13 0.00 0.00 0.00 0.34 0.19
SLC -4.21 0.00 0.00 0.00 0.44 0.47
TUS 0.48 0.05 0.00 0.03 0.51 0.35
Median -1.65 0.00 0.00 0.03 0.34 0.19

Notes to table: See Table 1.

Table 2: DTR, Conditional Mean Dynamics, Fifteen Cities

We view the sequential approach employed in section 2 – fitting a trend and then characterizing seasonality in the de-trended data – as intuitive and transparent. We now consolidate and extend various aspects of that approach, to arrive at a simple yet powerful joint model. Regarding consolidation, we move from a multi-step sequential conditional mean modeling approach to a single-step joint approach with a single conditional mean estimation. Regarding extension, we now include an autoregressive lag in the model. The single autoregressive lag facilitates simple assessment of the strength of serial correlation in the deviations from the trend/seasonal, and it also provides potentially valuable pre-whitening for HAC covariance matrix estimation, as emphasized in Andrews and Monahan (1992).

We proceed by regressing AVG or DTR on an intercept and 11 monthly seasonal dummies to capture seasonal intercept variation (we drop July, so the included constant captures July and all estimated seasonal effects are relative to July), a linear trend and 11 seasonal dummies interacted with it to capture seasonal trend slope variation (we drop the July interaction), and a first-order autoregressive lag:888We continue to use HAC standard errors despite the inclusion of a first-order autoregressive lag, both because we view the autoregressive lag as a simple pre-whitening strategy rather than a definitive model of serial correlation, and to maintain robustness to heteroskedasticity in temperature shocks.

(4)

where is AVG or DTR, , denotes a 1-day lag, and if day is in month and 0 otherwise. The joint model (4) allows for different intercepts each month, with the different intercepts potentially trending linearly at different rates, and for serially correlated deviations from the trend/seasonal.999We have explored – and generally confirmed – the robustness of our results by comparing them to those obtained from a more flexible model with quadratic terms as well as assessing the structural stability of regressions. We summarize the estimation results in Tables 1 and 2, in which we show the weather station identifier (airport code) in column 1, and various aspects of the estimation results in subsequent columns.101010Detailed regression results for all cities are in the online Appendix LABEL:online ( https://www.sas.upenn.edu/~fdiebold/papers/paper122/OnlineAppendix.pdf, and underlying EViews code is at https://www.sas.upenn.edu/~fdiebold/papers/paper122/DTRcode.txt.

3.1.1 Trend

As shown in column 2 of Table 1, the estimated AVG trend movements over the full sample are large and positive in each city. They are also all highly statistically significant (column 3), with a median

-value of 0.00 for Wald tests of the null hypothesis of no trend. These

-values are denoted , where “” stands for “no trend”, which corresponds to zero coefficients on TIME and all TIME interactions in regression (4) (in which case it collapses to seasonal intercepts with serial correlation). The median estimated trend movement is 3.38F, greater than the consensus estimate of the increase in the mean global temperature over the same period, as U.S. airports have warmed more quickly than the global average.

Similarly, in column 2 of Table 2, we report the estimated full-sample trend movements for DTR. All but one are negative, and most are significant at the one percent level. The median estimated trend movement is -1.45F, with a median -value, , of 0.00 for the no-trend null hypothesis (column 3). Interestingly, LAS, which has the largest upward AVG trend, also has the largest downward DTR trend.

3.1.2 Seasonality

In column 4 of Tables 1 and 2, we report -values for Wald tests of the hypothesis of no AVG and DTR seasonality, respectively. These -values are denoted , where “” stands for “no seasonality”, which corresponds to zero coefficients on all included seasonal dummies and dummy interactions in regression (4) (in which case it collapses to linear trend with serial correlation). There is of course strong evidence of seasonality in AVG with all ’s equal to 0.00. Less well known is the similarly strong seasonality in DTR with all ’s again equal to 0.00.

In column 5 of Tables 1 and 2, we report -values for Wald tests of the hypothesis of no evolving (i.e., trending) AVG and DTR seasonality, respectively. These -values are denoted , where “” stands for “no trending seasonality”, which corresponds to zero coefficients on all seasonal dummy interactions in regression (4) (in which case it collapses to linear trend and fixed seasonal dummies with serial correlation). The results are striking. There is no evidence for evolving seasonality in AVG; the median AVG is 0.67. In contrast, there is strong evidence of evolving seasonality in DTR; the median DTR is 0.03.

3.1.3 Serial Correlation

Estimated AVG and DTR serial correlation coefficients appear in column 6 of Tables 1 and 2, respectively. All are positive and significant at the one percent level. Their magnitudes, however, are very different. All those for AVG are around 0.75, whereas all those for DTR are around 0.35.

It is interesting to note that, although the signal in both AVG and DTR is clearly driven by trend, seasonal, and cyclical components, the AVG signal is burried in much less noise. As shown in column 7 of Tables 1 and 2, respectively, all AVG regression values are around 0.9, whereas all those for DTR are around 0.2.

3.2 Conditional Variance Dynamics

(1) (2) (3) (4) (5) (6) (7)
ATL -0.29 0.23 0.00 0.34 0.07 0.11
BOS -0.01 0.02 0.00 0.02 0.07 0.04
BWI -0.03 0.44 0.00 0.54 0.05 0.06
CVG -0.43 0.00 0.00 0.52 0.04 0.10
DFW -0.11 0.82 0.00 0.77 0.09 0.11
DSM -0.34 0.00 0.00 0.25 0.05 0.08
DTW -0.53 0.00 0.00 0.07 0.05 0.05
LAS -0.61 0.46 0.00 0.39 0.09 0.03
LGA -0.04 0.36 0.00 0.52 0.06 0.05
MSP -0.79 0.00 0.00 0.00 0.04 0.08
ORD -0.79 0.00 0.00 0.40 0.04 0.05
PDX -0.03 0.38 0.00 0.30 0.10 0.02
PHL -0.25 0.00 0.00 0.29 0.05 0.06
SLC -0.14 0.05 0.00 0.04 0.08 0.02
TUS 0.02 0.03 0.00 0.03 0.03 0.04
Median -0.25 0.03 0.00 0.30 0.05 0.05

Notes to table: All results are based on daily data, 1960-2017. Column 1 reports measurement station by airport code. Column 2 reports the estimated trend movement over the entire 57-year sample in degrees Fahrenheit, using a regression of absolute residuals from conditional-mean regression (4) on linear trend. (We use absolute rather than squared residuals for the column 2 regression to keep the units in degress Fahrenheit.) The remaining columns report results from the conditional-variance regression (5). is the robust -value for a Wald test of no trend (all coefficients on TIME and interactions are 0), is the robust -value for a Wald test of no seasonality (all coefficients on ’s and interactions are 0), and is the robust -value for Wald a test of no trend in seasonality (all coefficients on interactions are 0). is the estimated autoregressive coefficient, and is the coefficient of determination. Asterisks denote significance at the one percent level. See text for details.

Table 3: AVG, Conditional Variance Dynamics, Fifteen Cities
(1) (2) (3) (4) (5) (6) (7)
ATL -0.86 0.00 0.00 0.00 0.01 0.10
BOS -0.28 0.13 0.00 0.65 0.07 0.03
BWI -0.32 0.31 0.00 0.90 0.04 0.04
CVG -0.64 0.00 0.00 0.72 0.03 0.05
DFW -0.44 0.12 0.00 0.91 0.03 0.11
DSM -0.50 0.01 0.00 0.87 0.01 0.06
DTW -1.14 0.00 0.00 0.00 0.05 0.03
LAS -1.23 0.00 0.00 0.00 0.04 0.04
LGA -0.47 0.00 0.00 0.14 0.06 0.03
MSP -1.44 0.00 0.00 0.26 0.04 0.03
ORD -1.05 0.00 0.00 0.02 0.04 0.03
PDX -0.79 0.00 0.00 0.01 0.00 0.05
PHL -0.89 0.00 0.00 0.02 0.07 0.05
SLC -0.77 0.00 0.00 0.02 0.05 0.02
TUS 0.21 0.15 0.00 0.63 0.01 0.04
Median -0.77 0.00 0.00 0.14 0.04 0.04

Notes to table: See Table 3.

Table 4: DTR, Conditional Variance Dynamics, Fifteen Cities

To allow for residual heteroskedasticity, we proceed exactly as in the conditional mean regression, whether for AVG or DTR, except that the left-hand-side variable is now a squared residual from the conditional mean regression:

(5)

The key point is that residual signs don’t matter in the conditional-variance regression (5), because the residuals are squared. Instead the regression explains the squared variation in the residuals, which is their volatility, or more precisely (in conditional expectation) their conditional variance. The conditional-variance regression results appear in Tables 3 and 4, which are in precisely the same format as our earlier conditional-mean Tables 1 and 2.

Interestingly, AVG and DTR conditional variance dynamics display the same component structure as did the conditional mean dynamics, although the patterns of trend and seasonality differ. The trend patterns are similarly downward for both AVG and DTR. The seasonal patterns are similarly high in the winter for both AVG and DTR. The conditional variance trend and seasonal effects tend to be significant, but the conditional variance regressions are noisy, with ’s around 0.05.

3.3 Shock Distributions

(1) (2) (3) (4) (5)
AVG DTR
ATL -0.68 3.74 -0.32 3.19
BOS 0.06 2.96 0.43 3.23
BWI -0.13 3.15 -0.09 2.92
CVG -0.31 3.23 0 2.86
DFW -0.64 4.10 -0.08 3.25
DSM -0.18 3.17 0.13 2.96
DTW -0.07 3.14 0.09 2.98
LAS -0.76 4.51 -0.44 3.07
LGA -0.14 3.02 0.43 3.55
MSP -0.12 3.17 0.22 3.00
ORD -0.13 3.24 0.16 2.90
PDX 0.04 3.14 0.11 2.80
PHL -0.20 3.09 -0.06 3.02
SLC -0.50 3.77 -0.28 2.98
TUS -0.69 4.16 -0.53 3.37
Median -0.18 3.17 0.00 3.00

Notes to table: We show sample skewness and kurtosis of residuals from the conditional-mean regression (

4) divided by square roots of fitted values from the conditional-variance regression (5). See text for details.

Table 5: Skewness and Kurtosis, Standardized Residuals, Fifteen Cities

Armed with estimates of residual conditional standard deviations (the square roots of the fitted values from regression (

5)), we can examine the densities of standardized residuals, that is the densities of the ultimate underlying AVG and DTR shocks. We show their skewness and kurtosis in Table 5. For each station, skewness is approximately 0 and kurtosis is approximately 3, corresponding to conditional normality. Indeed for DTR the median skewness and kurtosis are 0.00 and 3.00, respectively.

4 Concluding Remarks

Climate change is one of the most consequential and pressing issues of our time. We have focused on DTR as an important summary statistic for characterizing climate change. We have provided new stochastic time series representations of DTR that can capture in particular its evolving seasonality. Throughout we have also provided parallel contrasting results for AVG. Indeed the results in Tables 1-5 provide a detailed summary of both DTR and AVG stochastic structure.

Our results may prove useful for assessing and improving structural climate models. In previous research, Braganza et al. (2010), Zhou et al. (2010), Lewis and Karoly (2013), and Rader et al. (2018) show that DTR is a useful metric to help assess the accuracy and degree of fit of global climate models. They generally found that these models persistently underestimated the trend in DTR, which was likely related to deficiencies in modeling water vapor and cloud cover processes. Our new results on the evolving seasonality of DTR may provide an additional, more refined, benchmark for such evaluations.

Our results may also prove useful for assessing financial market efficiency, that is, for assessing whether the temperature forecasts embedded in financial asset prices accurately reflect temperature’s underlying dynamics. Schlenker and Taylor (2019) address this issue focusing on AVG, and it may be of interest to extend their analysis to incorporate our more complete model of AVG dynamics, or to consider a multivariate modeling of AVG and DTR extending the univariate approach undertaken in this paper.

References

  • (1)
  • Alexander and Perkins (2013) Alexander, L. and S. Perkins (2013), “Debate Heating up Over Changes in Climate Variability,” Environmental Research Letters,  8, 041001.
  • Alizadeh et al. (2002) Alizadeh, S., M. Brandt, and F.X. Diebold (2002), “Range-Based Estimation of Stochastic Volatility Models,” Journal of Finance,  57, 1047–1092.
  • Andrews and Monahan (1992) Andrews, D.W.K. and J.C. Monahan (1992), “An Improved Heteroskedasticity and Autocorrelation Consistent Covariance Matrix Estimator,” Econometrica,  60, 953–966.
  • Braganza et al. (2010) Braganza, K., D.J. Karoly, and J.M Arblaster (2010), “Diurnal Temperature Range as an Index of Global Climate Change During the Twentieth Century,” Geophysical Research Letters,  31, l13217, doi:10.1029/2004GL019998.
  • Campbell and Diebold (2005) Campbell, S.D. and F.X. Diebold (2005), “Weather Forecasting for Weather Derivatives,” Journal of the American Statistical Association,  100, 6–16.
  • Dai et al. (1999) Dai, A., K.E. Trenberth, and T.R. Karl (1999), “Effects of Clouds, Soil Moisture, Precipitation, and Water Vapor on Diurnal Temperature Range,” Journal of Climate,  12, 2451–2473.
  • Davy et al. (2017) Davy, R., I. Esau, A. Chernokulsky, S. Outten, and S. Zilitinkevich (2017), “Diurnal Asymmetry to the Observed Global Warming,” International Journal of Climatology,  37, 79–93.
  • Durre and Wallace (2001) Durre, I. and J.M. Wallace (2001), “The Warm Season Dip in Diurnal Temperature Range over the Eastern United States,” Journal of Climate,  14, 354–360.
  • Hsiang and Kopp (2018) Hsiang, S. and R.E. Kopp (2018), “An Economist’s Guide to Climate Change Science,” Journal of Economic Perspectives,  32, 3–32.
  • Jackson and Forster (2010) Jackson, L.S. and P.M. Forster (2010), “An Empirical Study of Geographic and Seasonal Variations in Diurnal Temperature Range,” Journal of Climate,  23, 3205–3221.
  • Jaffres (2019) Jaffres, J.B.D. (2019), “GHCN-Daily: A Treasure Trove of Climate Data Awaiting Discovery,” Computers and Geosciences,  122, 35–44.
  • Lewis and Karoly (2013) Lewis, S.C. and D.J. Karoly (2013), “Evaluation of Historical Diurnal Temperature Range Trends in CMIP5 Models,” Journal of Climate,  26, 9077–9089.
  • Masson-Delmotte et al. (2018) Masson-Delmotte, V., P. Zhai, H.O. Pörtner, D. Roberts, J. Skea, P.R. Shukla, A. Pirani, C. Moufouma-Okia, C. Péan, R. Pidcock, S. Connors, J.B.R. Matthews, Y. Chen, X. Zhou, M.I. Gomis, E. Lonnoy, T. Maycock, M. Tignor, and T. Waterfield (eds.) (2018), IPCC, 2018: Global Warming of 1.5 Degrees C. An IPCC Special Report on the Impacts of Global Warming of 1.5 Degrees C Above Pre-Industrial Levels and Related Global Greenhouse Gas Emission Pathways, in the Context of Strengthening the Global Response to the Threat of Climate Change, Sustainable Development, and Efforts to Eradicate Poverty, http://www.ipcc.ch/report/sr15/.
  • Menne et al. (2012) Menne, M.J., I. Durre, R.S. Vose, B.E. Gleason, and T.G. Houston (2012), “An Overview of the Global Historical Climatology Network Daily Database,” Journal of Atmospheric and Oceanic Technology,  29, 897–910.
  • Newey and West (1987) Newey, W.K. and K.D. West (1987), “A Simple, Positive Semi-definite, Heteroskedasticity and Autocorrelation Consistent Covariance Matrix,” Econometrica,  55, 703–708.
  • Qu et al. (2014) Qu, M., J. Wan, and X. Hao (2014), “Analysis of Diurnal Air Temperature Range Change in the Continental United States,” Weather and Climate Extremes,  4, 86–95.
  • Rader et al. (2018) Rader, J., K.B. Karnauskas, and J.Y. Luo (2018), “Diurnal Temperature Variability: an Observations-Climate Model Intercomparison,” Unpublished Manuscript.
  • Raftery et al. (2017) Raftery, A. E., A. Zimmer, D. M. W. Frierson, R. Startz, and P. Liu (2017), “Less Than 2C Warming by 2100 Unlikely,” Nature Climate Change,  7, 637–641.
  • Reidmiller et al. (2018) Reidmiller, D.R., C.W. Avery, D.R. Easterling, K.E. Kunkel, K.L.M. Lewis, T.K. Maycock, and B.C. Stewart (eds.) (2018), USGCRP, 2018: Impacts, Risks, and Adaptation in the United States: Fourth National Climate Assessment, Volume II, U.S. Global Change Research Program, Washington, DC, USA. doi: 10.7930/NCA4.2018, https://nca2018.globalchange.gov/chapter/front-matter-guide.
  • Robinson (2006) Robinson, J. (2006), The Oxford Companion to Wine, Third Edition, Oxford University Press.
  • Rudebusch (2019) Rudebusch, G.D. (2019), “Climate Change and the Federal Reserve,” FRBSF Economic Letter.
  • Ruschy et al. (1991) Ruschy, D.L., D.G. Baker, and R.H. Skaggs (1991), “Seasonal Variation in Daily Temperature Ranges,” Journal of Climate,  4, 1211–1216.
  • Sun and Pinker (2014) Sun, D. and R. Pinker (2014), “Factors Contributing to the Spatial Variability of Satellite Estimates of Diurnal Temperature Range in the United States,” IEEE Geoscience and Remote Sensing Letters,  11, 1524–1528.
  • Vinnarasi et al. (2017) Vinnarasi, R., C.T. Dhanya, A. Chakravorty, and A. AghaKouchak (2017), “Unravelling Diurnal Asymmetry of Surface Temperature in Different Climate Zones,” Nature.com Scientific Reports, Volume 7, Article 7350, https://www.nature.com/articles/s41598-017-07627-5.
  • Wigglesworth (2019) Wigglesworth, D.S. (2019), “Crop Production and Climate Change: The Importance of Temperature Variability,” Unpublished Thesis, University of Pennsylvania.
  • Zhou et al. (2010) Zhou, L., R.E. Dickinson, A. Dai, and P. Dirmeyer (2010), “Detection and Attribution of Anthropogenic Forcing to Diurnal Temperature Range Changes from 1950 to 1999: Comparing Multi-model Simulations with Observations,” Climate Dynamics,  35, 1289–1307.

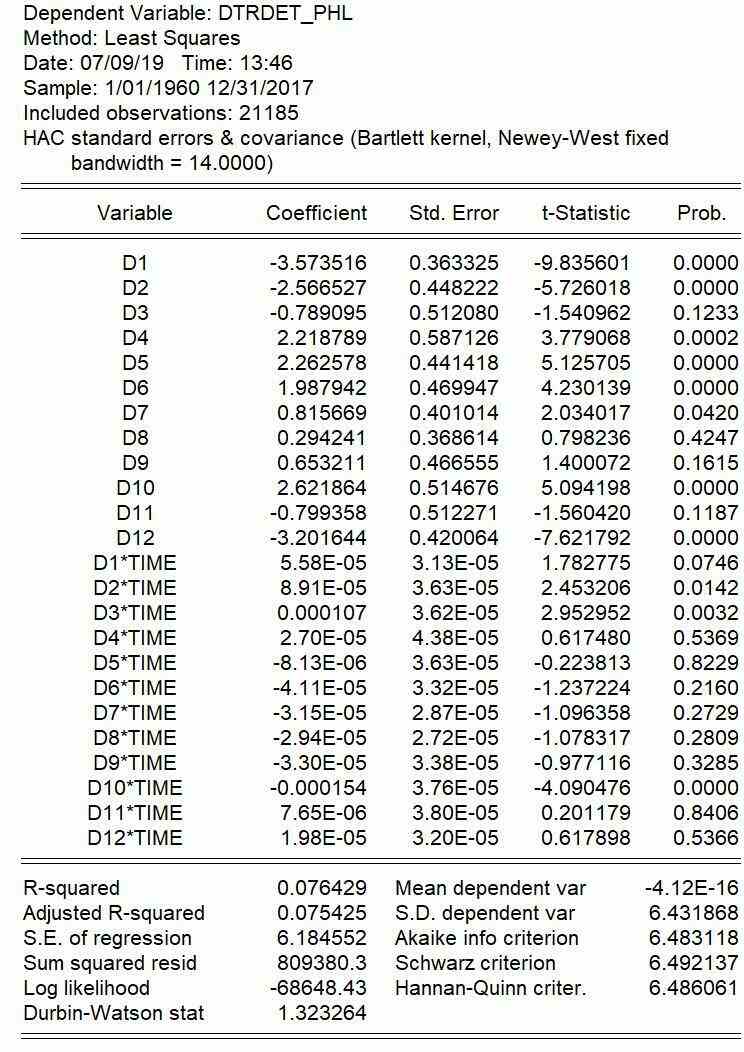

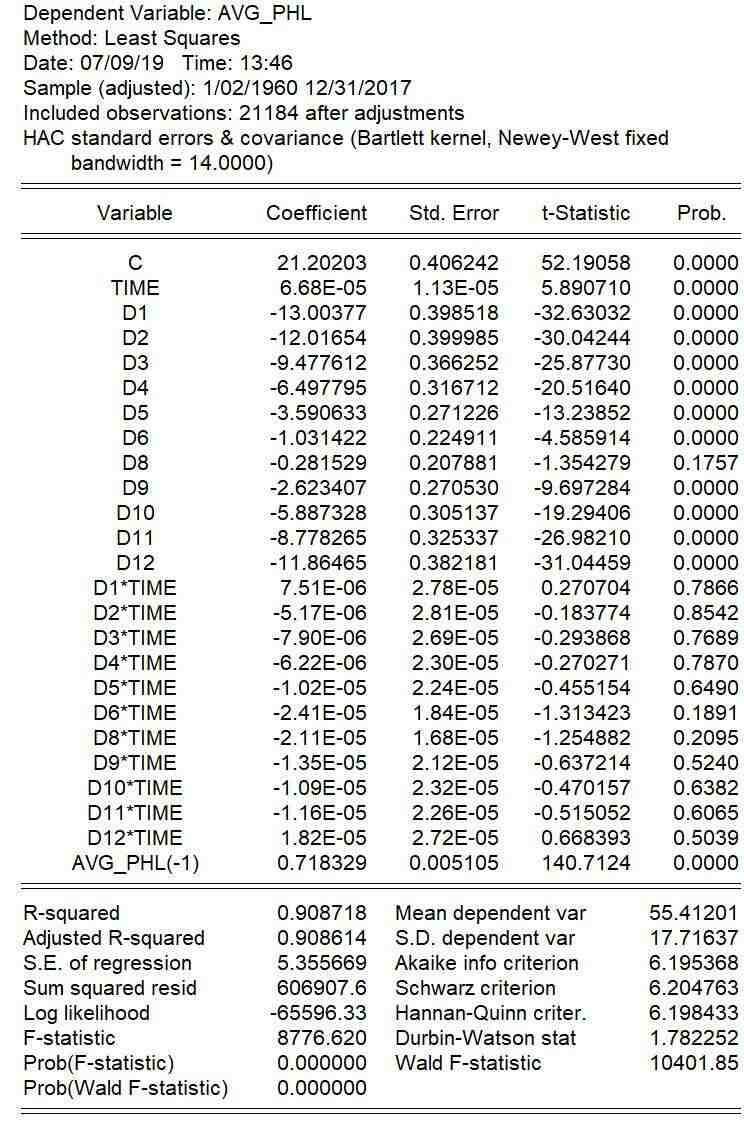

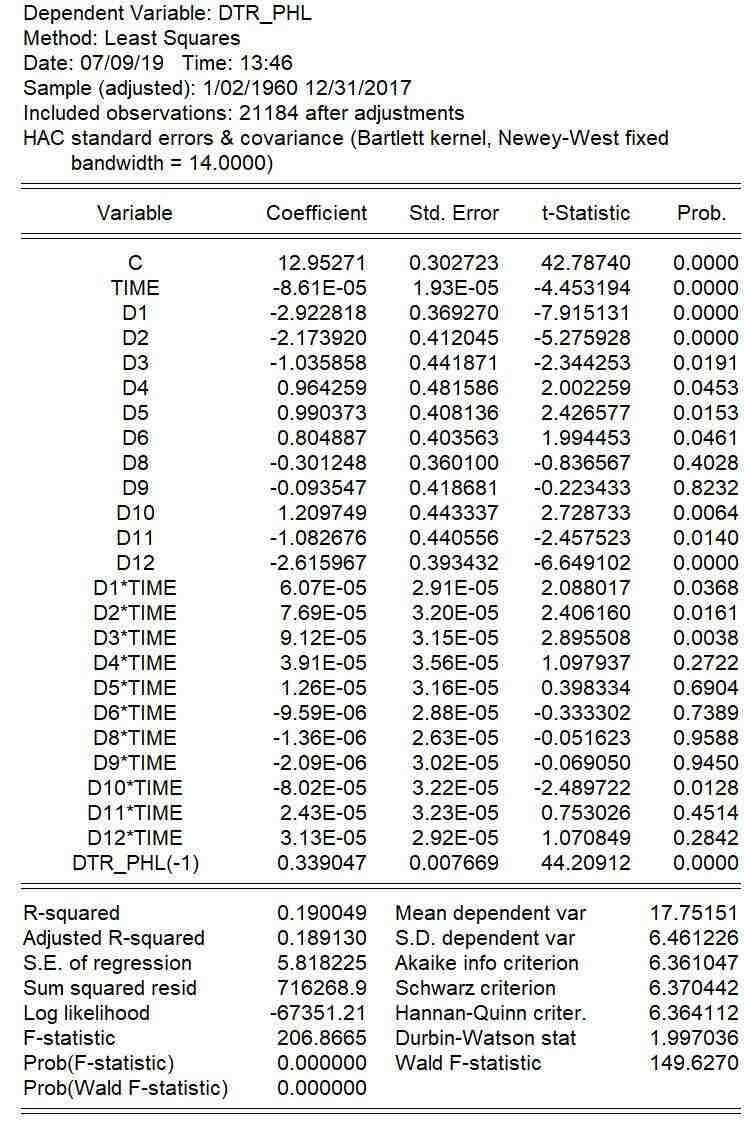

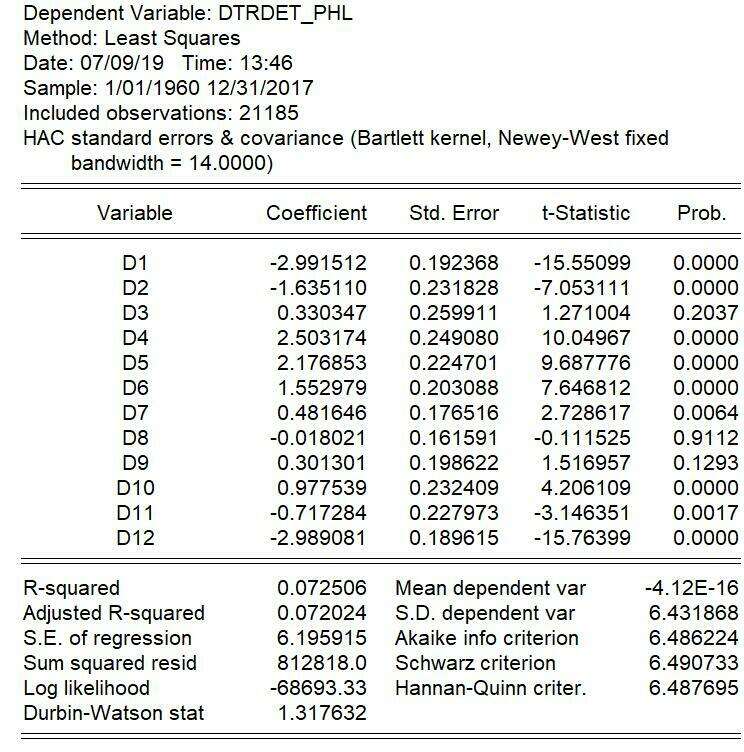

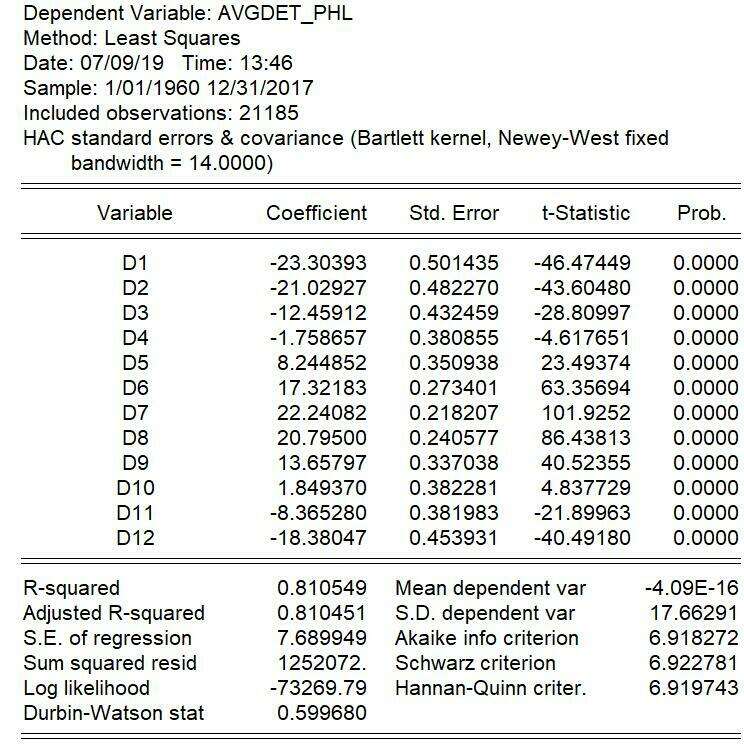

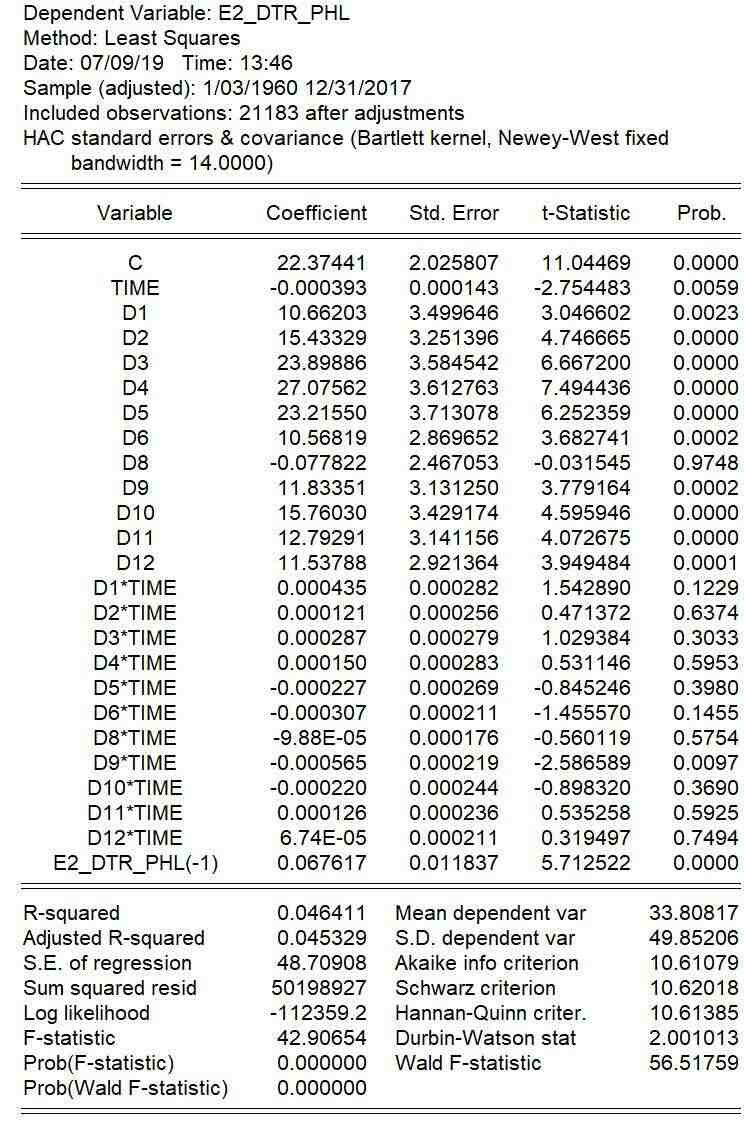

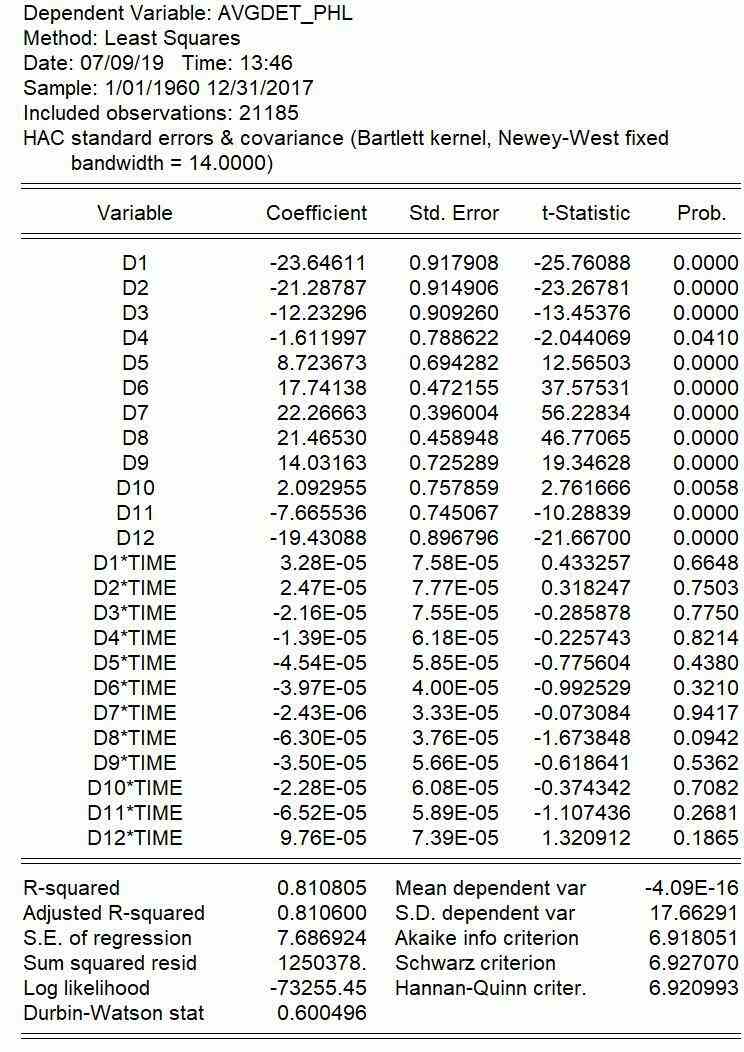

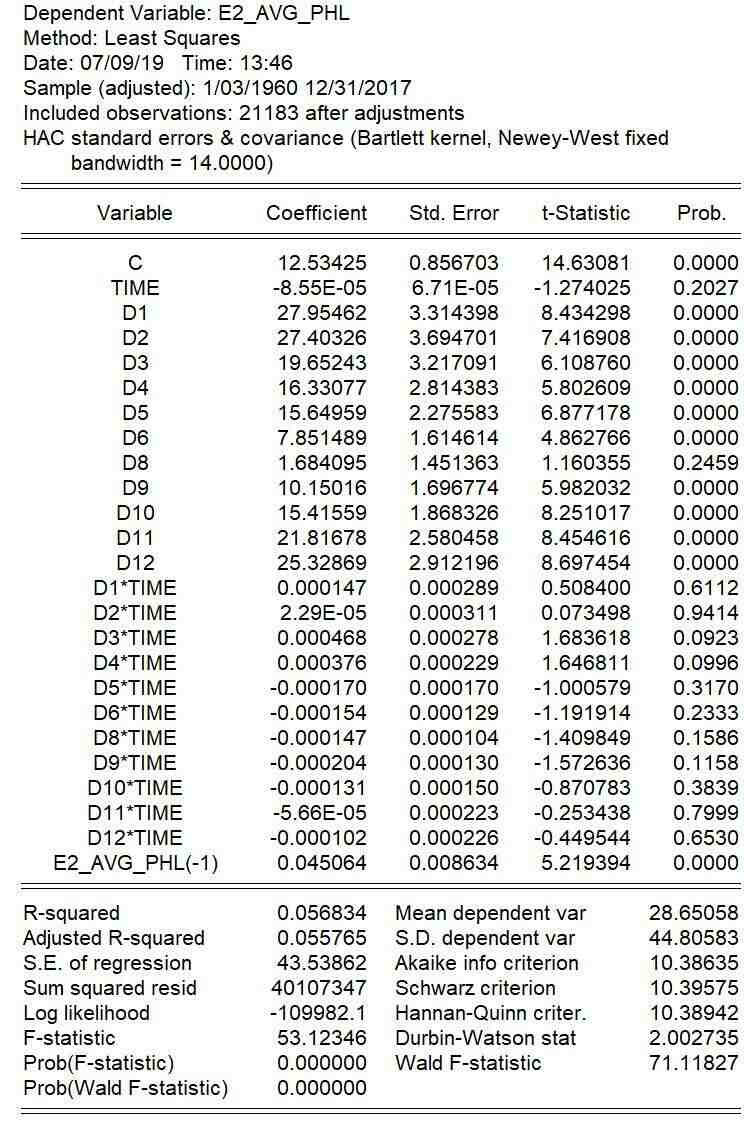

Appendix A Sequential and Joint Regression Results for Philadelphia

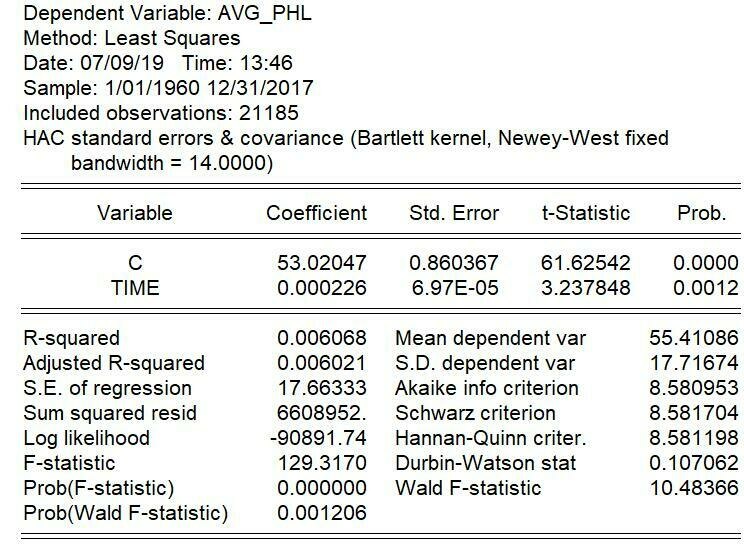

Figure A1: PHL Trend Regression, AVG

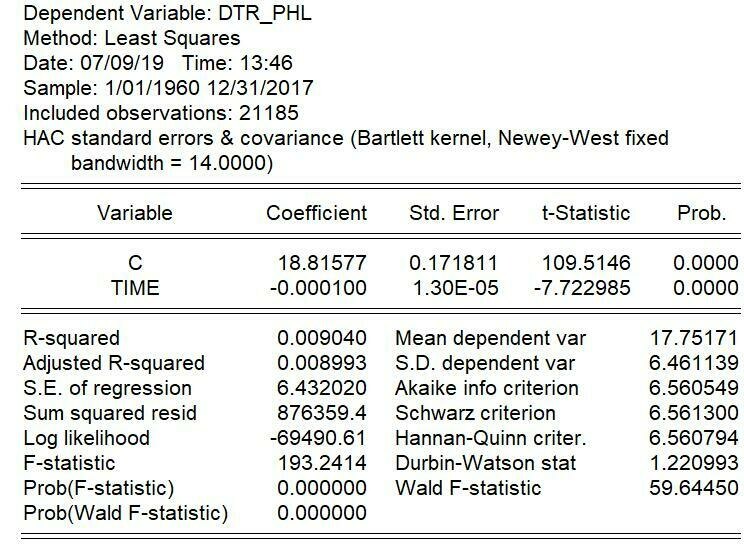

Figure A2: PHL Trend Regression, DTR

Notes: The regression is based on de-trended data. See text for details.

Figure A3: PHL Fixed Seasonal Regression, AVG

The regression is based on de-trended data. See text for details.

Figure A4: PHL Fixed Seasonal Regression, DTR

The regression is based on de-trended data. See text for details.

Figure A5: PHL Evolving Seasonal Regression, AVG

The regression is based on de-trended data. See text for details.

Figure A6: PHL Evolving Seasonal Regression, DTR
Figure A7: PHL Joint Conditional Mean Regression, AVG
Figure A8: PHL Joint Conditional Mean Regression, DTR
Figure A9: PHL Joint Conditional Variance Regression, AVG
Figure A10: PHL Joint Conditional Variance Regression, DTR
