The use of deep learning models in software applications and systems has experienced significant growth in the last few years. For mobile applications, it is commonplace for these systems to make use of powerful servers that host and execute such models. However, there have been significant efforts[1, 2, 3, 4] in creating systems that can run entirely on a mobile device, which are more reliable and have lower latency than their server-based counterparts. Such systems must be equally accurate, while also being extremely efficient in order to avoid consuming the limited memory and computational resources available.
In this paper, we approach creating a compact representation of neural network (NN) models by means of a simple quantization scheme that transforms the parameters in the model from their 32-bit floating point representation into a lower-precision as 8-bit integers. Aside from the memory reduction resulting in more efficient access and caching of values, the 8-bit representation allows us to take advantage of single instruction, multiple data (SIMD) optimized hardware instructions for integer arithmetic [5, 6], which are now ubiquitous in mobile devices and graphical processing units. Thus, by performing the bulk of the operations in integer form we significantly speed up neural network inference relative to a pure floating point implementation, reducing latency, and power consumption.
We focus on improving embedded automatic speech recognition system (ASR) performance following our previous work , which uses a long short term memory (LSTM) based acoustic model. The acoustic model represents a core component that significantly impacts final recognition accuracy, and consumes most of the computational resources available to the system. Thus, there is a significant reward in using more compact representations, that are also fast to execute, as long as they do not introduce significant loss in accuracy. While we focus on LSTM based acoustic modelling, the techniques presented can be applied to other deep learning models and to other domains, e.g., the text-to-speech system described in  uses the quantization scheme proposed in this paper.
In Section 2, we review previous work on techniques for compressing neural networks via parameter quantization. In section 3 we describe our proposed quantization scheme, applied during inference and training. We describe our experimental setup in Section 4, and examine the effectiveness of proposed techniques in Sections 5 and 6. Finally, we conclude with a discussion of our findings in Section 7.
2 Related work
Neural network quantization, as well as its application during training, have been explored as a way to represent parameters and execute inference more efficiently and with minimal accuracy loss. The analysis of the effects of quantization on feed-forward deep neural networks has been a field of research for many years [8, 9, 10]. It has established that it is indeed possible to reduce the resolution of the trained weights from their original 32-bits without significantly affecting the network’s inference capabilities. For example, Dündar et al. , found that a minimal resolution of 10 bits was necessary. In this paper we propose the use of a simple uniform linear quantizer to an 8-bit resolution as in .
More recently, however, there has been growing interest in incorporating quantization into the training procedure to account for the noise caused by the lower resolution and precision in inference computations. Previous work has explored reducing the resolution even further , up to single bit representations [12, 13, 14, 15, 16, 17]
, and extending the types of topologies from fully-connected to convolutional neural networks (CNNs)[11, 15, 16, 18].
in that we use backpropagation with stochastic gradient descent (SGD) that performs forward passes using quantized parameters, but utilize high precision values for adjusting them. Unlike the previously mentioned work that focuses on reducing resolution, we target a higher 8-bit resolution since we seek to eliminate loss in system accuracy. Also, unlike[12, 14] we do not require additional pre-training in order to initialize quantized training. Our training scheme is applied to LSTM layers, and has also been successfully used with CNN layers (though we do not report results in this paper). Finally, we investigate the effects of quantization in relation to parameter reduction, including the linear recurrent projection layer introduced into the LSTM architecture by Sak et al. .
3 Quantization Scheme
Given floating point values, our goal is to represent them as 8-bit integers. Generally speaking we could use either a uniform or a non-uniform quantizer, or even an optimal quantizer for a given value distribution . However, with simplicity and performance in mind, and validated by previous work in the area
, we settled on a uniform linear quantizer that assumes a uniform distribution of the values within a given range. As a result we do not need a decompression step at inference time.
Quantizing. Given a set of float values , and a desired scale (e.g. we use 255 for 8-bits), we compute a factor that produces a scaled version of the original: . To maximize the use of we determine the range of values we want to quantize, i.e., squeeze into the new scale . Thus, the quantization factor can be expressed as , and the quantized values as .
Recovery. A quantized value can be recovered (i.e. transformed back into its approximate high-precision value) by performing the inverse of the quantization operation, which implies computing a recovery factor . The recovered value is then expressed as .
Quantization error and bias. Quantization is a lossy process, with two sources of error. The first is the difference between the input value and its quantized-then-recovered value (precision loss). The second is the result of discrepancies in quantization-recovery operations that introduce a bias in the computed value (bias error)
. Of the two sources of error, the precision loss is theoretically and practically unavoidable but, on average, has a smaller impact on what the original data represents (e.g. the difference in the variances ofand is very small ). The bias, however, is theoretically avoidable by paying close attention to how the quantized values are manipulated, thus avoiding the introduction of inconsistencies. The latter is very important since bias problems have a big impact on the quantization error. Consequently we pay particular attention in eliminating bias error in Section 3.1.
3.1 Quantized inference
The approach we follow during neural network inference is to treat each layer independently, receiving and producing floating point values: inputs get quantized on-the-fly, while network parameters offline. Internally, layers operate on 8-bit integers for the matrix multiplications (typically the most computationally intensive operations), and their product is recovered to floating point, as depicted in Figure 1
. This simplifies the implementation of complex activation functions, and allows mixing integer layers with float layers, if desired.
Multiplication of quantized values. In order to perform most of the multiplication, , in the 8-bit domain (though using 32-bit accumulators), we must first apply the offset, , such that , where . We then apply the recovery factor on the result, which for the multiplication of two independently quantized values and , is the inverse product of their quantization factors and :
Integer multiplication: effects on quantization and recovery. In eq. (1), each factor is of integer type. This means in the formulation: 1) is already an integer; 2) is a float that will be rounded to an integer, and thus introduce an error: .
This requires that quantization be performed in a way that is consistent with this formulation in order to avoid introducing bias error. Thus we introduce a rounding operation :
Thus precision errors in the quantization and multiplication are consistent and cancel each other. This also means that recovery needs to be consistent with eq. (2):
Efficient implementation. The proposed quantization scheme benefits from the reduced memory bandwidth of accessing 8-bit values, and enables squeezing more values into any fast cache available, thus reducing power consumption and access time. Furthermore, it allows better use of optimized SIMD instructions by fitting in more values per operation, which offers a performance advantage over their floating point counterparts. The overhead of the quantization and recovery operations is typically negligible, and also parallelizable via SIMD. We do not cover any specific implementation since whereas the previous benefits are generally applicable, the details hinge on the targeted hardware, and that is beyond the scope of this paper. However, in our previous work  we recorded a significant speed up over unquantized floating point inference.
Logically, our scheme can be applied at a given level of granularity, subdividing groups of values into sub-groups for better precision. This means parameter matrices at different NN layers can be quantized independently, or even further broken down into individually quantized sub-matrices. We set the granularity at the level of the weight matrices (e.g. the parameters associated with individual gates in an LSTM). This results in a relatively small loss in final inference accuracy (see Table 1).
3.2 Quantization aware training
In order to minimize the loss from the quantization scheme described in Section 3.1, we make it part of the training process, under the principle that quantization noise must be considered when computing the model’s overall error, and thus gradients . We maintain the full-precision (floating point) version of the parameters, but perform the forward pass in quantized form as described in 3.1, thus mimicking what occurs during inference at run-time. The backward pass remains in full-precision form, so that the gradient is also computed in full-precision but is based on the error from the quantized forward pass. Thus the gradient is used to update the full-precision parameters, which then in turn get re-quantized to start a new forward pass. Unlike other approaches , we do not directly add the quantization component during the backward pass since it is expected that the weights contribute in the same proportions regardless of whether they are quantized or not. Moreover, we do not want to introduce the accuracy error of the quantized operation when computing the gradients. See Algorithm 1.
|System (Params.)||WER (%) on Clean Eval Set||WER (%) on Noisy Eval Set|
|(2.9M)||13.6||14.3 (5.1%)||13.5 (-0.7%)||13.6 (0.0%)||26.3||28.2 (7.2%)||26.5 (0.8%)||26.5 (0.8%)|
|(3.7M)||12.5||13.1 (4.8%)||12.6 (0.8%)||12.7 (1.6%)||24.6||26.6 (8.1%)||24.8 (0.8%)||25.0 (1.6%)|
|(5.0M)||12.1||12.5 (3.3%)||12.3 (1.7%)||12.3 (1.7%)||23.2||25.0 (7.8%)||23.7 (2.2%)||23.8 (2.6%)|
|(6.3M)||11.4||11.7 (2.6%)||11.5 (0.9%)||11.7 (2.6%)||22.3||23.5 (5.4%)||22.6 (1.3%)||22.7 (1.8%)|
|(7.7M)||11.7||12.0 (2.6%)||11.7 (0.0%)||11.7 (0.0%)||22.6||23.6 (4.4%)||22.6 (0.0%)||22.7 (0.4%)|
|(9.7M)||10.9||11.1 (1.8%)||11.2 (2.8%)||11.1 (1.8%)||20.9||21.7 (3.8%)||21.4 (2.4%)||21.5 (2.9%)|
|(2.7M)||11.6||12.1 (4.3%)||11.8 (1.7%)||11.9 (2.6%)||22.6||23.8 (5.3%)||23.1 (2.2%)||23.3 (3.1%)|
|(4.8M)||10.6||10.8 (1.9%)||10.6 (0.0%)||10.7 (0.9%)||20.5||21.4 (4.4%)||20.6 (0.5%)||20.7 (1.0%)|
|(6.8M)||10.3||10.5 (1.9%)||10.5 (1.9%)||10.6 (2.9%)||19.8||20.3 (2.5%)||20 (1.0%)||20.4 (3.0%)|
|(8.9M)||10.3||10.5 (1.9%)||10.3 (0.0%)||10.5 (1.9%)||19.6||20.2 (3.1%)||19.8 (1.0%)||19.9 (1.5%)|
|Avg. Relative Loss||-||3.0%||0.9%||1.6%||-||5.2%||1.2%||1.9%|
condition where models are trained and evaluated using floating point arithmetic.
4 Experimental Setup
The focus of our experiments is to determine the impact of quantization in the context of building small, efficient acoustic models on an open-ended large-vocabulary speech recognition task. Following our previous work [2, 23]
, all models are trained to optimize the connectionist temporal classification (CTC) loss function, followed by sequence discriminative training to optimize the state-level minimum Bayes risk (sMBR) criterion .
We evaluate architectures which vary along two main dimensions: the total number of parameters in the model, and whether the architecture uses projection layers  or not. We train RNN-based acoustic models with 4 or 5 layers of LSTM cells; the number of LSTM cells, , is kept the same in all of the layers. We use in our experiments for a total of 6 configurations. In addition, we train models with 5 layers of 500 LSTM cells, but insert a projection layer of units after each of the 5 LSTM layers to reduce the rank of the recurrent and inter-layer weight matrices . In this work, unlike our previous work , we keep the size of the projection layers the same across all layers. We consider , thus adding 4 more configurations.
We utilize the same frontend as our previous work : standard 40-dimensional log mel-filterbank energies over the 8kHz range, computed every 10ms on 25ms windows of input speech. Following , we stack features together from 8 consecutive frames (7 frames of right context) and only present every third stacked frame as input to the network. In addition to stabilizing CTC training, this reduces computation since the network is only evaluated once every 30ms. In order to minimize the delay between the acoustics and the output labels produced by the network, we constrain the set of CTC alignments to be within 100ms of the locations determined by a forced-alignment . Our decoding setup is identical to that presented in our previous work [2, 23]. Following
, we generate a much smaller first-pass language model (LM) (69.5K n-grams; mostly unigrams) which is composed with the lexicon transducer to generate the decoder graph; models are re-scored on-the-fly with a larger 5-gram LM. Our systems are trained on anonymized hand-transcribed utterances extracted from Google voice-search (3M utterances) and dictation (1M utterances) traffic. To improve robustness, we create ‘multi-style’ training data by synthetically distorting the utterances, simulating the effect of background noise and reverberation. 20 distorted utterances are created for each input utterance; noise samples used in this process are extracted from environmental recordings of everyday events and Youtube videos. Results are reported on a set of 13.3K hand-transcribed anonymized utterances (135K words) extracted from Google traffic from an open-ended dictation domain. We also report results on a ‘noisy’ version of the evaluation set, created synthetically using a noise distribution with similar characteristics as the one used to train the model.
In pilot experiments, we found that quantization aware CTC training did not produce models with a better word error rate (WER) performance than ‘standard’ float trained models. Therefore, in all of our experiments we use float CTC training, and then apply quantization aware sMBR training.
5.1 CTC Training of LSTM AMs with Projection Layers
As reported in our previous work , we find that training LSTMs to optimize the CTC criterion is somewhat unstable for models with projection layers. One solution to this problem, which we proposed in
, is to first train an ‘uncompressed’ model without any projection layers. This model is used to initialize the projection layer matrices through a truncated singular value decomposition (SVD) of the recurrent weight matrices. While this stabilizes the training process, and has the benefit of providing a principled procedure for setting the number of nodes in each of the projection layers, it has the drawback that it requires a two-stage training process that increases overall training time. Therefore, in the present work, we propose an alternative strategy that stabilizes CTC training without requiring an expensive two-stage training process, yet results in better convergence. As a representative example, in Figure2, we plot CI-phoneme label error rates (LERs) for the model with 200 projection nodes in each layer , on a held-out development set. In all cases, we use an exponentially decaying global learning rate (LR): , where is the total training time ( and in our experiments). The SVD-based initialization  appears as ‘SVD initialization’ in the figure.
The most straightforward technique to stabilize training is to set the initial global learning rate as high as possible while avoiding divergence (, in our experiments; ‘Low LR’ in Figure 2). Although this stabilizes training, this leads to extremely slow convergence since the learning rate is many orders of magnitude smaller, and significantly worse LER than the SVD-based initialization.

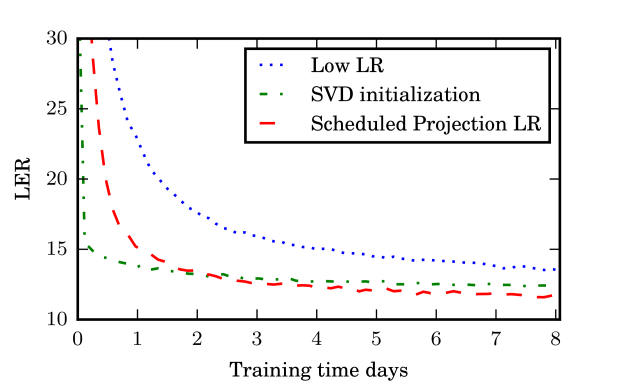

As an alternative, we propose using a lower learning rate for parameters in the projection layer, by defining a separate projection learning rate multiplier which multiplies the global learning rate (i.e., the effective learning rate for projection layer parameters is ). We find that we can stabilize training by using a lower effective learning rate for the projection layer parameters relative to the rest of the system by using an exponentially increasing projection learning rate multiplier that gradually scales the effective learning rate multipler towards the global learning rate (‘Scheduled Projection LR’ in Figure 2): ( and in our experiments). Note that, , and thus the same effective learning rate is used for all parameters for . As can be seen in Figure 2, although the SVD-based initialization outperforms using a single low global learning rate, the scheduled projection learning rate schedule results in the fastest convergence, while avoiding the need for the two-stage training required by the SVD-based initialization. Therefore, we employ the projection learning rate schedule for CTC training of models with projection layers.
5.2 Quantization aware sMBR Training of AMs
Once models have been trained under the CTC criterion, we sequence-train them to optimize the sMBR criterion. In order to mitigate the instability encountered during sMBR training of models with projection layers, we find that it is sufficient to use a constant learning rate multiplier for projection layer nodes: (we set, and the global LR parameter, , in our experiments).
We report results separately for ‘clean’ and ‘noisy’ evaluation conditions in Table 1. Our baseline models are trained using ‘standard’ floating-point arithmetic during forward and backward passes through the network. We evaluate the float-trained baseline models with quantization applied only after training (‘mismatch’ in Table 1), and with floating-point precision, i.e., without quantization (‘match’ in Table 1
). The latter allows measuring the loss introduced by quantization, and represents a ceiling WER performance on our task. We examine the impact of the proposed quantization aware training using two schemes during training time: quantizing all layers except for the final softmax layer (‘quant’ in Table 1), or quantizing all layers in the network (‘quant-all’ in Table 1). In both cases evaluation occurs in quantized form, as in ‘mismatch’.
Comparing performance obtained in the match and mismatch configurations in Table 1, we observe that the relative loss in accuracy due to quantization is greater on the noisy evaluation set (up to 8.1%) than in the clean evaluation set (up to 5.1%). In general, the loss due to quantization is inversely proportional to the number of parameters in the model. It is also interesting to compare WER performance obtained using the two kinds of model architectures examined in this work. We note that models which employ projection layers appear to outperform similarly sized models without projection layers (cf., compared to models with 4 or 5 layers of 400 cells ( or )). Models with projection layers appear to suffer less degradation in performance after quantization, thus making them desirable for resource-constrained speech recognition tasks [2, 23].
The proposed quantization aware training scheme significantly improves performance relative to the ‘mismatch’ condition; in some cases the proposed technique recovers all of the loss due to quantization (cf., clean set for and ). Quantization aware training results in gains on both evaluation sets, with larger gains obtained on the noisy set. We note that quantizing all layers, except for the final softmax layer (‘quant’) appears to be slightly superior to quantizing all layers during training (‘quant-all’). When comparing the relative loss in performance due to quantization, averaged across all of the model architectures, quantization aware training recovers 2.1% of the loss on the clean evaluation set, and 4% of the loss on the noisy evaluation set.
We propose a simple and computationally efficient quantization scheme for training and execution of deep learning models. It allows us to reduce the resolution of weights in neural networks from 32-bit floating point values to 8-bit integers, thus enabling fast inference by means of optimized hardware operations and reduced memory bandwidth. We also utilize the quantization scheme during training to recover the accuracy loss caused by quantization noise during inference. In experimental evaluations we find that our quantization scheme, when applied only after training, results in moderate loss in recognition quality. We also present how such loss is almost completely eliminated by quantization aware training.
