I Introduction
Global average temperatures are rising dramatically (2016 being the warmest year ever recorded [1]), causing a noticeable increase in natural disasters and environmental issues [2]. Thus it is imperative to investigate approaches that reduce greenhouse gas emissions and slow down climate change. Instead of burning fossil fuels to satisfy our energy needs, humans should make use of renewable energy resources such as solar and wind, which have a smaller carbon footprint. In order to guarantee a stable power grid, demand and generation have to be balanced at all times. This makes the integration of renewable resources a challenging task due to their intermittent nature. The advent of the smart grid, a technologically advanced power grid, is a possible solution to this problem. It combines the legacy power grid with a communication layer, effectively connecting all the grid participants. Through this additional infrastructure energy consumption can be managed.
More specifically, in this research, the functionality to exchange data between individual households is being used to schedule energy storage installations such that the grid stability is guaranteed even though a considerable amount of demand is served from solar power generation facilities. A key element to achieve a high selfconsumption rate of solar energy, i.e. the ratio between the consumed solar energy to the actual demand, is the utilisation of energy storage. Various research studies are concerned with energy storage management [3, 4, 5, 6, 7, 8].
Luthander et al. [6] present a case study of 21 Swedish households with a focus on comparing individuallyowned batteries to a centralised storage solution. In order to reach a certain level of selfconsumption the centralised storage capacity is considerably smaller than the aggregated capacity of individuallyowned batteries. The study in [7] is concerned with optimising the usage of a given photovoltaicbattery system. It investigates a number of different optimisation objectives and shows how these affect the eventual charging patterns of a household for two exemplary days. In contrast to their approach, Reference [8] makes use of a gametheoretic approach in which households schedule their individuallyowned batteries with the goal to minimise their respective electricity bills. They perform simulations over the period of an entire year to allow for statistical analysis of the results.
One interesting question is: What is the optimal capacity of a battery? [9, 10, 11]. Reference [11] focuses on the influence of different tariff schemes on the optimal battery size, whereas [10] develops a decisionmaking tool which supports users that are investing in photovoltaic and battery systems. Recently, Huang et al. [9] developed an algorithm to determine the optimal size of a battery with respect to the achievable selfconsumption. This research builds on their approach and develops a deeper understanding of the relation between demand and generation patterns, and the optimal battery capacity.
The main contributions of this research are as follows:

Based on seasonal and yearly simulations of households with real consumption and generation data, this research provides an indepth insight on how optimal sizing of batteries depends not only on aggregated statistics but also on the specific temporal patterns that characterise individual households.

Two different battery scheduling algorithms are compared in terms of three metrics: (i) Selfconsumption of solar energy, (ii) Peaktoaverage ratio of the aggregated load as an indicator for grid stability, and (iii) Potential cost reductions due to the introduction of electricity storage systems.

This research compares the optimal sizing for a centralised storage facility with individuallyowned batteries and analyses their effect on the same metrics as mentioned above.
This paper is organised as follows. In Section II, the neighbourhood model is presented. This includes a brief summary of the models for the storage and generation systems, general definitions of demand and load, as well as the role of the utility company. Furthermore, the underlying battery scheduling game is explained. Section III introduces the dataset and simulation parameters before summarising, analysing, and discussing the results. The paper is concluded in Section IV.
Ii System Model and Scheduling Objectives
In this section, the model for the community and its participants is briefly summarised. For a more detailed description of the setup the reader is kindly referred to [8].
Iia Neighbourhood
Consider a neighbourhood of households that is modeled as a set . Each of the households is equipped with a smart meter, an individuallyowned battery, and a photovoltaic (PV) system that converts solar energy into electricity. The smart meters have the capability to measure consumption and generation data over equidistant time intervals . A day is split into intervals. Furthermore, the smart meters are able to exchange data through wireless communications.
IiB Households
A detailed battery model is employed. It includes the charging and discharging efficiency () of the storage device, selfdischarging at a rate of in case the battery is idle, and also limits on how much can be charged or discharged () during a particular interval . Furthermore, the conversion efficiency of the DC/AC power electronics converter is considered. The main equations characterising the battery model are as follows, more details are presented in [8]:
(1a)
(1b)
(1c)
(1d)
(1e)
where SOC is the stateofcharge of the battery, and are the charging and discharging amount in interval , respectively, and and give the lower and upper bound of the SOC.
Each household is equipped with a solar PV system for local consumption. The PV systems vary in size according to the dataset described in Section IIIA. The solar energy generated locally is always taken into account before making a scheduling decision for a specific interval . This means that if available, the energy from the PV system is used to fulfil the demand of a household. Furthermore, if the solar PV generation exceeds the demand it is stored in the local battery (if possible). Note that charging the battery from the solar PV system does not require DC/AC conversion, whereas it needs to be converted to AC before it is being used to fulfil demand.
Therefore, the netdemand of a household at time interval can be written as
(2)
Then the load on the electricity grid, i.e. the amount of electricity that is provided by the utility company, can be written as
(3)
IiC Utility Company
All the community households are supplied by one network distribution company, which incentivises each household individually to reduce their energy consumption during peak hours. A billing strategy which calculates a unit energy price per interval based on the aggregated load of all customers is given by
(4)
where is the aggregated load of all users at interval and , are constants. As a consequence the energy bill for a particular day of an individual household can be calculated as:
(5)
IiD Game Scheduling and SelfConsumption Constraint
The batteries of the households are scheduled based on a dynamic game which is played between the individual households. The objective of the players/households is to minimise their individual electricity bill (5). They act rationally and in a selfish manner. In the following section, two approaches are differentiated. The first approach is identical to the one proposed by [8] and will be called “GameTheoretic Scheduling” (GTS). The game is played for an upcoming day based on forecasts for demand and generation.
The second approach indroduces an additional constraint to the GTS. Whenever the renewable PV generated energy is expected to be higher than the demand for an upcoming interval, charging the battery from the grid is prohibited. The idea behind this is to maximise the selfconsumption rate of the PV system. This approach will be referred to as “GameTheoretic Scheduling with Constraint” (GTSWC).
Iii Simulations with the Ausgrid Dataset
In this section, the Ausgrid dataset and further simulation details are presented. Then the evaluation metrics are defined. Eventually, the simulation results are analysed and discussed.
Iiia Data, Simulation Details, and Metrics
For all the following simulations the realworld “Ausgrid” dataset [12] is being used. This dataset has been collected half hourly, i.e. intervals, from 300 individual homes in the Ausgrid’s electricity network (New South Wales, Australia) over three years (20102013). All of the homes are equipped with solar PV systems between 1.05 kWp and 9.99 kWp. The period between July 2010 and June 2011 has been split into four seasons as shown in Tab. I.
season  period

winter
spring
summer
autumn
This is done such that each individual season spans exactly 90 days. A clean version of the Ausgrid dataset, which contains households is considered in this research. Please refer to [13, Chapter 2] and [14] for a thorough analysis of the complete dataset. The consumption and generation data are used as an input to the dayahead scheduling mechanism described in Section IID. This means they are treated as forecasted data and throughout this study no forecasting errors are considered.
The optimal battery size for each household is determined following a process reported by Huang et al. [9]. As there are two scheduling approaches (GTS and GTSWC), this is done twice for each season and also independently for an entire year resulting in lists of optimal battery capacities for each household. After that one run for each approach and season in which the households are equipped with their individually determined optimal battery size has been performed. For comparison of the outcomes, the following three metrics are being used: (i) The percentage increase in selfconsumption by the introduction of the battery, (ii) The cost reduction due to the introduction of the battery according to the billing function shown in Section IIC, and (iii) The peaktoaverage ratio (PAR) of the aggregated load of all the households, i.e.
(6)
IiiB Optimal Battery Sizing Results and Discussion
In order to determine the optimal battery size, the process described in [9] has been followed. To do so, simulations are performed with different battery sizes for each household (per season and yearly) using both scheduling approaches. Battery capacities are in the range between 1.0 kWh and 27.0 kWh. The upper limit would equal an installation of two Tesla Powerwall2 batteries [15]. For each set of parameters, the ‘effectiveness’ of the electricity storage is computed. The effectiveness is defined by the notion of how much the selfconsumption of a household is increased per kWh of installed capacity:
(7)

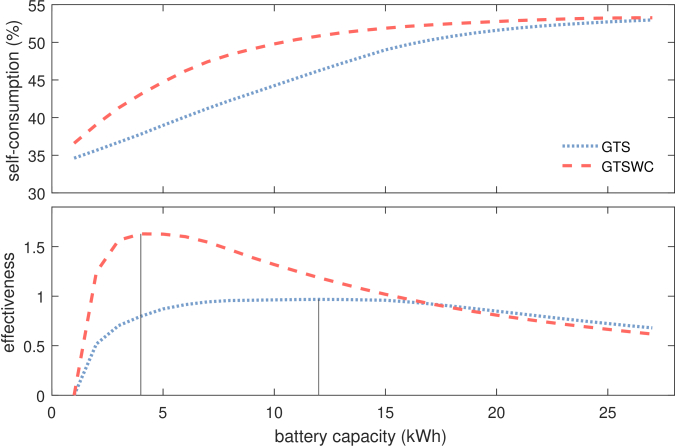

where is the selfconsumption achieved by utilising storage of size kWh. The maximum of this effectiveness is the sought after optimal battery size. An example for these steps is shown in Fig. 1 for a randomly selected house and season.

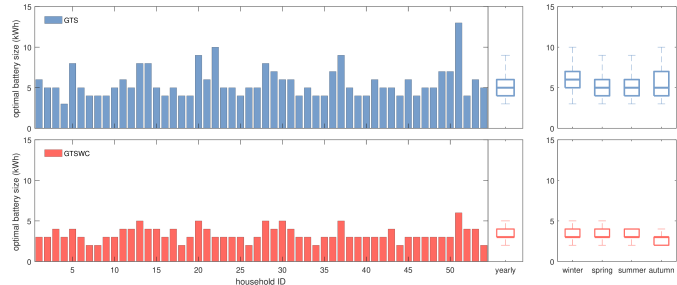

The optimal battery size for each player over the course of an entire year for the two approaches (gametheoretic scheduling with and without selfconsumption constraint, cf. Section IID) is shown in Fig. 2. Furthermore, Fig. 2 also reports the average results per season over all the 54 investigated households.
Overall, the optimal size for the GTSWC scenario does not exceed the GTS optimal battery size for any player and season. Houshold 4 shows the smallest difference between the two scenarios. All the capacities are the same except for summer where they differ by 1 kWh. The largest difference between the optimal battery size as determined for the two approaches of a particular season is found in household 14 (summer). Here the difference is 8 kWh (cf. Fig. 1). The largest difference between the optimal battery size for two seasons and the same approach is seen in household 52 (winter: 11 kWh, summer: 3 kWh). In Section IIIC, these households are investigated in particular to understand how their battery usage patterns lead to the respective results.
IiiB1 SelfConsumption
The solar PV selfconsumption rate of a household is defined as the ratio between the solar energy being used and its demand. This includes a direct part which is consumed immediately and an indirect part used to charge the battery when the PV system generation exceeds the local demand. In the following, the increase in selfconsumption due to the introduction of an optimally sized battery for both the GTS and GTSWC scenario is analysed. The seasonal results for the selfconsumption can be found in Fig. 3. Explicit improvements are reported in Tab. II.
winter  spring  summer  autumn  yearly

GTS
GTSWC

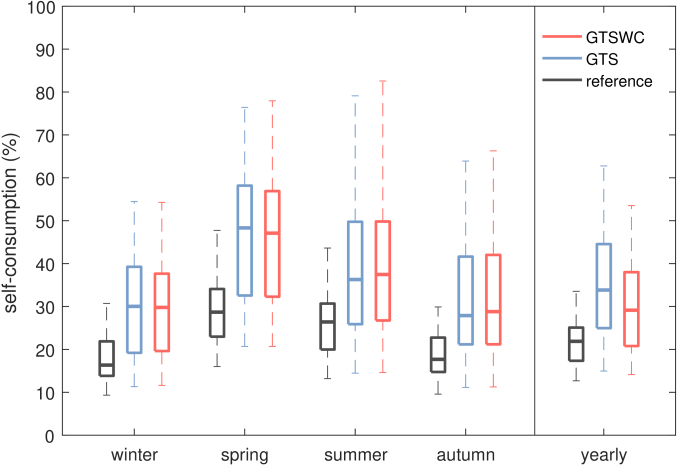

It becomes clear that even with different optimal battery sizes for the GTS and GTSWC approach the median improvement in selfconsumption is similar. The result was to be expected as the additional constraint in GTSWC is particularly designed to place further emphasis on the increase of selfconsumption. The spread around the median selfconsumption approximately doubles when comparing the results with the reference case in which no batteries are present. This is due to the fact that some households benefit more than others from the introduction of a battery. There are many factors that play a role for this such as the aggregated solar production, the aggregated demand, and also the temporal patterns of production and demand. For example: Household 14 improves its selfconsumption by during the summer, while household 26 (with similar aggregated consumption and PV peak production) improves its selfconsumption by . Household 13, which has less aggregated demand than the two houses mentioned before and higher aggregated solar production, improves its selfconsumption by . A more detailed analysis of these households and how these differences are related to their demand patterns will be analysed in Section IIIC. In general^{1}^{1}1Explicit results for this statement are not shown due to lack of space., households that gain considerably at GTS also do so at GTSWC and vice versa. The average absolute difference of the selfconsumption improvements between GTS and GTSWC for each household individually is .
IiiB2 PAR values
The peaktoaverage ratio (PAR) of the aggregated load (6) is an indicator for the stability of the grid [16]. A value close to 1.0, i.e. a flat load profile, is preferred by a utility company as this allows them to save investment costs for fastramping energy production installations. PAR values are calculated for a period of one day. A statistical analysis for the 90 days that comprise each season is shown in Fig. 4.

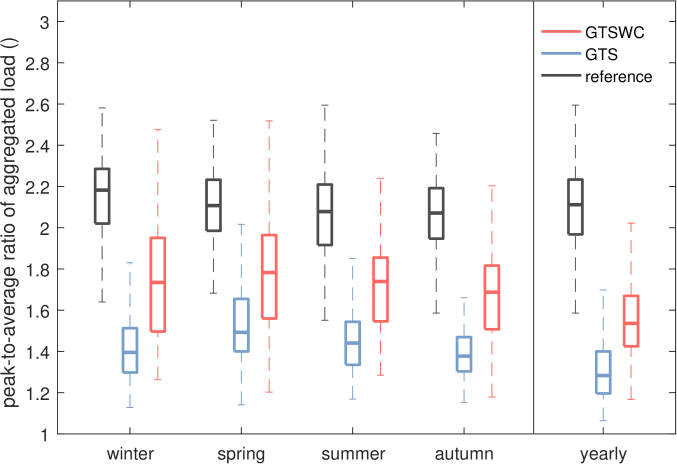

Overall, considerable improvements of the PAR value are achieved. The GTS approach leads to better PAR reductions than the GTSWC approach in both the median values and also the smaller spread around these.
IiiB3 Cost Reduction

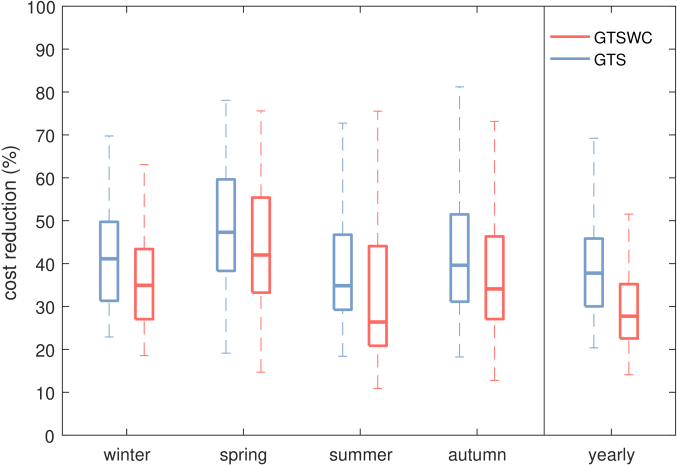

As seen in Section IIC, the cost function (4) depends on the aggregated load. Thus the price per unit of electricity changes for each half hour interval. When calculating the overall bill for each household with and without battery, it can be observed that it is decreasing in both approaches. The relative cost reduction of the electricity bill due to the introduction of an optimally sized battery is shown in Fig. 5.
Overall, the introduction of energy storage leads to a considerable amount of savings from the electricity bill in both cases (GTS and GTSWC). The increase of selfconsumption can directly be translated in a decrease of energy requested from the grid which in turn decreases the bill. As seen in the previous section (cf. Section IIIB1), the achieved improvements in selfconsumption are similar for the two approaches. This means this fact alone cannot explain the higher savings from GTS compared to GTSWC. The second factor that plays a role is the more effective PAR reduction observed for the GTS approach (cf. Section IIIB2). Due to the quadratic relation between the aggregated load and the price per unit of electricity, consumption during peak times is billed highly. The spread around the median values for both approaches is similar.
IiiC Analysis of Battery Usage Patterns
While the aggregated demand of a household and the size of their installed solar panel can give a rough estimate for the optimal battery size, it remains important to look at the actual demand and generation patterns. In Section

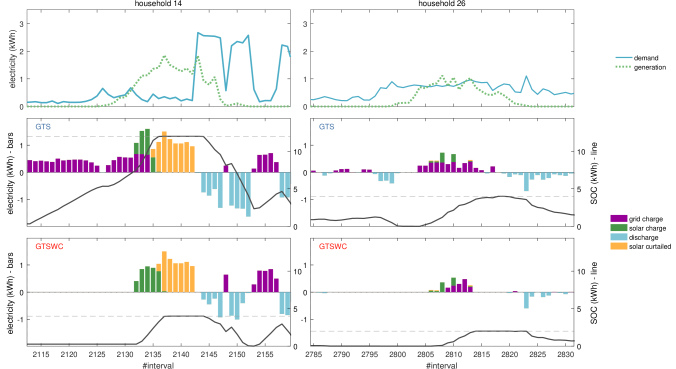

IIIB1 it was visible that two households with similar aggregated demand and peak PV output benefited differently from their storage installation. In order to understand this difference, Fig. 6 shows the demand and generation profile for a randomly chosen day together with the detailed battery usage for these two households.The demand of household 14 is low during the time when solar is available and peaks shortly afterwards, whereas the demand of household 26 is rather evenly distributed throughout the day. Household 26 is a prime example of a user that has a high percentage of noncurtailed solar energy even without a battery installation and cannot gain much through the utilisation of storage. Consequently, the optimal battery sizing algorithm determines a belowaverage optimal storage capacity for this household. In contrast to this, the battery of household 14 is optimally sized at an aboveaverage capacity. Without storage a lot of the solar energy is curtailed due to the lack of demand at the particular time of generation. Since there is a peak in demand in the later hours, the selfconsumption can be increased due to the storage capability.
The lefthand plots in Fig. 6 also give insight into the differences between the GTS and GTSWC approach. During the fist half of the day, the GTS algorithm charges the battery from the grid, whereas the GTSWC anticipates the solar generation and thus restricts charging from the grid. The first two peaks in demand (cf. between interval 2144 and 2152) can then be met by previously saved electricity. In anticipation of another peak in demand at the end of the day, both algorithms charge the battery and are able to flatten the load curve considerably. It becomes clear that because no more solar production is to be expected during this time there are no constraints on charging the battery from the grid and both algorithms behave similarly.

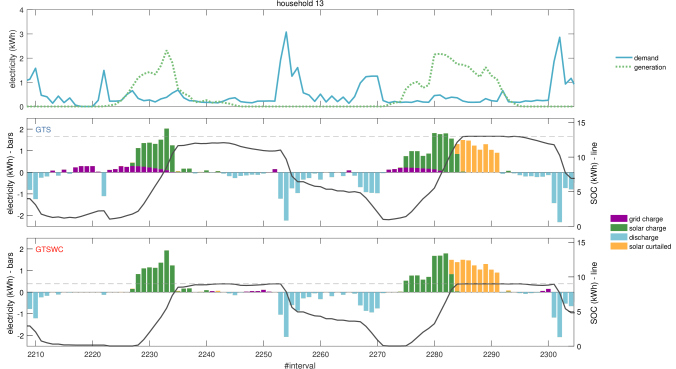

Fig. 7 shows the demand and generation pattern together with the battery usage for two consecutive days of household 13. This household was chosen as it has the highest benefit during this particular season from installing an optimal battery size. A similar profile for the demand and generation as seen for household 14 in Fig. 6 can be observed. The even higher improvement in selfconsumption for this case stem from the more pronounced asynchronisation between solar generation and actual demand. Also, this household is equipped with a bigger solar panel.

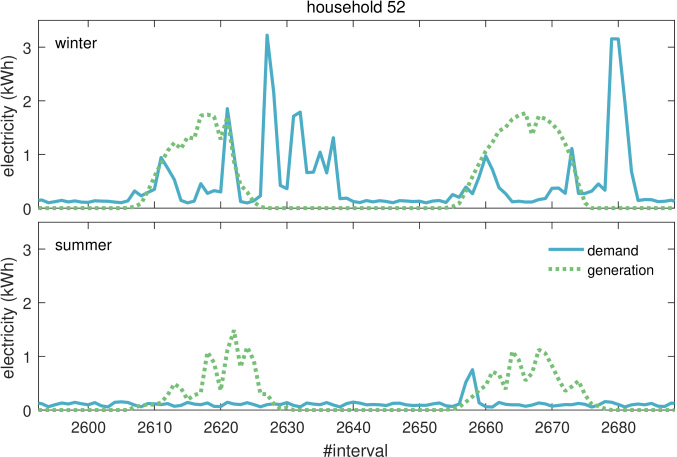

This section is concluded by analysing the demand and generation profile (Fig. 8) for the household that showed the biggest difference in optimal battery size between two seasons, i.e. household 52. For winter 2010 the optimal capacity is determined to be 11 kWh while in summer 2011 it is 3 kWh.
IiiD Centralised vs. Decentralised Storage Systems
In all the previous simulations, each household was in possession of an individual battery of different size. Within this section, a scenario that has a single battery to serve the community is investigated. For a reasonable comparison, the efficiency of the battery and the DC/AC power electronics converter equal the values used before.
Furthermore, the maximal charging and discharging rates were scaled up by the number of households. Firstly, fullyear simulations with battery sizes varying between 10 kWh and 370 kWh were performed. Following the optimal sizing procedure by [9], the optimal battery capacity for both the GTS and GTSWC approach were calculated to be 270 kWh and 90 kWh, respectively. For these optimal sizes, the selfconsumption, the peaktoaverage ratio (PAR) of the aggregated load of all households, and the cost reduction according to the pricing function (5) are analysed. The results are shown together with the respective results from yearly simulations of individuallyowned batteries in Fig. 9.
The centralised optimal battery sizes are approximately and smaller than the aggregated capacities of the decentralised batteries for the GTS and GTSWC approach, respectively. This is in agreement with a previous study reported by Luthander et al. [6]. In Section IIIC, it was shown that in case of asynchronous demand and generation profiles, a large battery is most beneficial, while in the opposite case a small battery is sufficient. When looking at the centralised battery, note that it is scheduled according to the aggregated demand and generation of all the households. An averaging effect for the demand profiles occurs, which makes the asynchronous case less likely and eventually leads to a smaller optimal storage capacity. The PV selfconsumption reaches a comparable level to the decentralised simulations. Compared to the median selfconsumption of all the households, a scenario with a centralised battery improves the selfconsumption by approximately for both the GTS and GTSWC approach. When analysing the daily PAR values, it becomes clear that the community batteries perform worse both in terms of the achieved median values and also the spread around it. From the utility companies’ perspective this is a unfavourable result. Their most desirable objective is to reduce the PAR value as it guarantees grid stability and financial benefits in the long run.

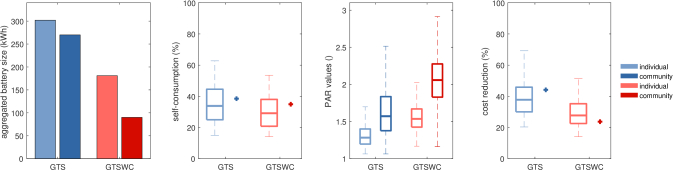

The rightmost panel in Fig. 9 shows the results for the cost reduction for both approaches comparing the centralised and decentralised neighbourhoods. For the GTS approach the centralised community achieves an approximately higher cost reduction, while for the GTSWC approach the cost reduction is reduced by approximately compared to the median cost reduction of all the households with individuallyowned batteries. Both results for the centralised battery are within the interquartile range of the respective analysis for the decentralised system.
Iv Conclusions
In this paper, a community of households that take part in a demandside management scheme is analysed. The focus was to gain deeper understanding of optimal battery sizing. Both the characteristics that lead to the optimal battery size determination as well as the effect this optimal size has on solar photovoltaic (PV) selfconsumption ratio, grid stability/security, and cost reductions for the users has been investigated. A key insight is that the temporal patterns of consumption and generation impact the battery sizing critically. This means battery sizing which is soley based on aggregated data might lead to unfavourable results. Households which benefit most from installing a energy storage system are those where the peakproduction and peakconsumption is asynchronous, i.e. during different intervals of the day.
Furthermore, two different approaches for the demandside management scheme were compared. Gametheoretic scheduling (GTS) is based on the ideas presented in [8]. Here the main objective of the individual households is to minimise their electricity bills. The second approach introduced an additional constraint to the GTS which puts PV selfconsumption before the minimisation of the costs. As a result it lead to considerably smaller optimal battery sizes. The drawback of the more constrained approach are the larger peaktoaverage ratio of the aggregated load, i.e. higher costs for the utility company to guarantee stability of the grid. In terms of costs a tradeoff is achieved: On the one hand, the initial investments are smaller for GTSWC due to the smaller battery sizes. On the other hand, the cost reduction off the electricity bill are less beneficial.
The final part of the paper compared individuallyowned batteries with a scenario that includes a utility sized centralised storage system. The optimal battery size determined for the centralised system is smaller due to less pronounced asynchrony of the aggregated demand to the solar PV production.
