Offshore Wind Farm Layout Optimization Using Adapted Genetic Algorithm: A different perspective

03/27/2014 ∙ by Feng Liu, et al. ∙ Virginia Commonwealth University 0

In this paper we study the problem of optimal layout of an offshore wind farm to minimize the wake effect impacts. Considering the specific requirements of concerned offshore wind farm, we propose an adaptive genetic algorithm (AGA) which introduces location swaps to replace random crossovers in conventional GAs. That way the total number of turbines in the resulting layout will be effectively kept to the initially specified value. We experiment the proposed AGA method on three cases with free wind speed of 12 m/s, 20 m/s, and a typical offshore wind distribution setting respectively. Numerical results verify the effectiveness of our proposed algorithm which achieves a much faster convergence compared to conventional GA algorithms.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 12

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

I Introduction

As the costing of wind generation declines, combined with the uncertainties of fossil fuel price and the incentives by the governmental efforts to reduce the greenhouse effects and to address other environmental concerns, more and more wind farms all over the world are being constructed or to be granted by their respective governments. Wind energy is an established source of renewable energy and can complement fossil fuel derived energy in some way, especially in this era when manufacture technologies make wind turbines function more reliably and endurably.

Important data showcase that the installed wind energy capacity reached 196,630 MW on worldwide while claiming an increase of 37,642MW in the single year of 2010 [1]. Of all the interesting topics regarding the wind energy investments like increasing reliability and efficiency of wind turbines, optimizing the maintenance, assembly and installation of offshore and onshore turbines and their substructures, and improving the design and layout of wind farms, the wind farm layout design is one of the most important because the most profitable design has to be found out in order to gain optimal output of the wind farm given certain amount of investment. An unsophisticated design will decrease the wind power capture and increase the maintenance cost. Because of the presence of the wake effect, the total output of the wind farm is not just a simple summation of each wind turbine’s rated power. In fact,it is often less than the sum of each wind turbine. As a result, wind farm layout design could be defined as a Wind Farm Layout Optimization Problem (WFLOP) which aims at achieving higher aggregate efficiency of converting wind energy to electricity.

According to Claus Madsen from ABB company, “80% of the population (in United states) live along the shore line, 80% of the energy from unshore wind is in the middle of the country, get the energy from the middle of the country to the shore lines is a big challenge very expensive. That’s why offshore wind located near the shore line is the right technology. This fact is also true for China, who became number one in total installed capacity and accounts for more than 50 % of the world market for new wind turbines in 2010, and the rest of the world. By 2010, 80 per cent of people will live within 60 miles of the coast [2]. Further more, offshore wind conditions are favorable compared to wind farms on land, with stronger and steadier wind speeds. All the aforementioned facts spur the research as well of the development of offshore wind farms. In this paper, we will not consider the electrical cable layout, the installation and maintenance of the offshore wind farm, the optimal layout of the wind turbines is the main focus of this paper.

As early as 1994, Mosetti et al first presented the wind farm layout optimization problem using genetic algorithm [3]. Later Grady et al studied the same problem with more individuals in a generation and evolve more 3000 generations to get the optimal result [4]. In recent years, Eroglu and Seckiner discussed about the WFLOP using the particle filtering approach [5], in which three different cases are optimized using the particle filtering approach, and the result can compete with ant colony and evolutionary strategy algorithms. Emani and Pirooz studied the same problem using genetic algorithms [6], and some improvement is achieved by taking into consideration of comparative weights of the cost of the whole wind farm each year and the yearly energy output. Bilbao and Elba [7] used the simulating annealing method to achieve the maximum of the wind farm output. Perez et al use mathematical programming techniques to study the offshore wind farm layout problem [8], and test their proposed procedure using German offshore wind farm Alpha Ventus.

However, most, if not all, of the genetic algorithms in the references use crossover operation, which is a way to heuristically search the optimal solution, rather than trying to make the the individual’s fitness value increase on purpose. What’s more the crossover operation doesn’t have a physical meaning behind it in our wind farm optimization problem. What’s more, the traditional evolution algorithm usually converges to a local optimum. Although the inclusion of chaos in the genetic algorithm cannot fully solve the problem, it can improve the computation efficiency and avoid the local minimum by introducing more randomness in the algorithm

[9]. By extracting energy from the wind, a turbine creates a cone (wake) of slower and more turbulent air behind it. The wake model has been studied by several authors in the fluid-aerodynamic field. In this paper, we use Jensen wake model to compute the wind speed reduction in the far wake case. In this paper, we propose a new method called Adaptive Genetric Algorithm (AGA) to solve the concerend offshore WFLOP which has special requirements of total rated output power. Three cases are experimented to demonstrate the performance of our algorithm.

Ii Problem formulation

In this section, we first present the wake model, then give the detailed implementation of the proposed adaptive genetic algorithm for WFLOP. When the wind direction is changed degree from the reference direction clockwise, the cartesian axis should also rotate degree and the new coordinates can be calculated using

(1)

where is the original coordinates of the a wind turbine. For notation simplicity, we use to represent when no confusion occurs.

Ii-a Wake model

As a wind turbine acts to withdraw momentum from the wind, it captures part of the kinetic energy in the wind stream and leaves behind it a wake with the wind speed reduced. The electric energy output of another turbine operating inside this wake will therefore be affected. The assumption of wake model in this paper is the same with Mosetti et al [3]. Here, a simplified wake decay model developed by N. O. Jensen [10] is employed, as it offers a best balance between positive and negative prediction errors.

For a turbine , the wind speed before turbine can be calculated by

(2)

where is the free wind speed and the velocity deficiency of the turbine .

(3)

where is the velocity deficiency of the turbine incurred by the wake of the turbine . is the set that contains all the turbines which have wake impact on the turbine and can be defined as . is defined by

(4)

where is the thrust coefficient of the turbine , is the rotor area of the turbine , is the intersection area between the wake of turbine and , is the decay factor that can be calculated using . Here, is the turbine height, is the surface roughness coefficient.

In order to calculate the intersection area , we define as the radius of the wake incurred by turbine just before the turbine , is the rotor radius of turbine and as the horizontal distance between turbine and , which is the projection of the distance of and on a line that is perpendicular to the wind direction. The intersection area is calculated by the following formula,

(5)

When satisfies , it means the center of the rotor circle is outside of the wake of turbine with a wake radius to be . The intersection area can be calculated using the following formula. For notation simplicity, denote , , Let , , , , . Then . Similarly, when is satisfied, the intersection area can be calculated similarly. Let , and , , , ,

Ii-B Optimization of the wind farm layout

This section discusses how to determine the total number of wind turbines in a wind farm given specific condtions as follow. The concerned layout problem of wind turbines in the offshore wind farm is based on the settings of the recent project in Virginia Beach granted to Dominion Virginia Power in October 2013. With a nameplate capacity of 2,000 megawatts (MW), it will be the world’s largest offshore wind farm. All the wind turbines will be erected on nearly 113,00 acre offshore area, which is about a 20km by 20 km square. As can be seen from statistics [11], there exists a trend to favor high-power wind turbines in large offshore wind farms, as is illustrated in Fig.1 given by NREL.

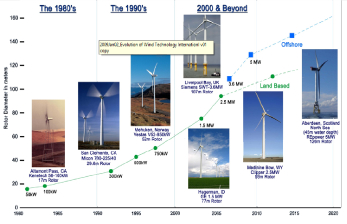

Fig. 1: Evolution of commercial wind technology (NREL)
