OCTen: Online Compression-based Tensor Decomposition

07/03/2018 ∙ by Ekta Gujral, et al. ∙ University of California, Riverside 0

Tensor decompositions are powerful tools for large data analytics as they jointly model multiple aspects of data into one framework and enable the discovery of the latent structures and higher-order correlations within the data. One of the most widely studied and used decompositions, especially in data mining and machine learning, is the Canonical Polyadic or CP decomposition. However, today's datasets are not static and these datasets often dynamically growing and changing with time. To operate on such large data, we present OCTen the first ever compression-based online parallel implementation for the CP decomposition. We conduct an extensive empirical analysis of the algorithms in terms of fitness, memory used and CPU time, and in order to demonstrate the compression and scalability of the method, we apply OCTen to big tensor data. Indicatively, OCTen performs on-par or better than state-of-the-art online and online methods in terms of decomposition accuracy and efficiency, while saving up to 40-200



There are no comments yet.


page 9

page 11

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

A Tensor is a multi-way array of elements that represents higher-order or multi-aspect data. In recent years, tensor decompositions have gained increasing popularity in big data analytics [18]

. In higher-order structure, tensor decomposition are capable of finding complex patterns and higher-order correlations within the data. Corresponding to matrix factorization tools like SVD (Singular Value Decomposition), there exist generalizations for the tensor domain, with the most widely used being CANDECOMP/PARAFAC or CP

[8] which extracts interpretable factors from tensor data, and Tucker decomposition [24]

, which is known for estimating the joint subspaces of tensor data. In this work we focus only on the CP decomposition, which is extremely effective in exploratory knowledge discovery on multi-aspect data. In the era of information explosion, data is generated or modified in large volume. In such environments, data may be added or removed from any of the dimensions with high velocity. When using tensors to represent this dynamically changing data, an instance of the problem is that of a “streaming”, “incremental”, or “online” tensors

111Notice that the literature (and thereby this paper) uses the above terms as well as “dynamic” interchangeably.. Considering an example of time evolving social network interactions, where a large number of users interact with each other every second (Facebook users update information and Twitter users send tweets every single minute222http://mashable.com/2012/06/22/data-created-every-minute/); every such snapshot of interactions is a new incoming slice(s) to the tensor on its “time” mode, which is seen as a streaming update. Additionally, the tensor may be growing in all of its n-modes, especially in complex and evolving environments such as online social networks. In this paper, our goal is, given an already computed CP decomposition, to track the CP decomposition of an online tensor, as it receives streaming updates, 1) efficiently, being much faster than re-computing the entire decomposition from scratch after every update, and utilizing small amount of memory, and 2) accurately, incurring an approximation error that is as close as possible to the decomposition of the full tensor. For exposition purposes, we focus on the time-evolving/streaming scenario, where a three-mode tensor grows on the third (“time”) mode, however, our work extends to cases where more than one modes is online.

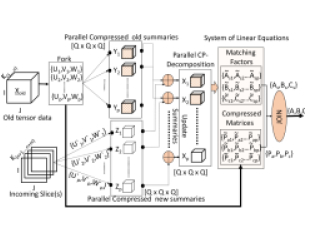

Figure 1: OCTen framework. Compressed tensor summaries and are obtained by applying randomly generated compression matrices and to and or incoming slice(s) respectively. The updated summaries are computed by = . Each is independently decomposed in parallel. The update step anchors all compression and factor matrices to a single reference i.e. and , and solves a linear equation for the overall A, B, and C.

As the volume and velocity of data grow, the need for time- and space-efficient online tensor decomposition is imperative. There already exists a modest amount of prior work in online tensor decomposition both for Tucker [2, 23] and CP [15, 27].However, most of the existing online methods [2, 27, 15] , model the data in the full space, which can become very memory taxing as the size of the data grows. There exist memory efficient tensor decompositions, indicatively MET for Tucker [12] and PARACOMP [21] for CP, neither of which are able to handle online tensors. In this paper, we fill that gap.

Online tensor decomposition is a challenging task due to the following reasons. First, maintaining high-accuracy (competitive to decomposing the full tensor) using significantly fewer computations and memory than the full decomposition calls for innovative and, ideally, sub-linear approaches. Second, operating on the full ambient space of data, as the tensor is being updated online, leads to super-linear increase in time and space complexity, rendering such approaches hard to scale, and calling for efficient methods that work on memory spaces which are significantly smaller than the original ambient data dimensions. Third, in many real settings, more than one modes of the tensor may receive streaming updates at different points in time, and devising a flexible algorithm that can handle such updates seamlessly is a challenge. To handle the above challenges, in this paper, we propose to explore how to decompose online or incremental tensors based on CP decomposition. We specifically study: (1) How to make parallel update method based on CP decomposition for online tensors? (2) How to identify latent component effectively and accurately after decomposition? Answering the above questions, we propose OCTen (Online Compression-based Tensor Decomposition) framework. Our contributions are summarized as follows:

  • Novel Parallel Algorithm We introduce OCTen, a novel compression-based algorithm for online tensor decomposotion that admits an efficient parallel implementation. We do not limit to 3-mode tensors, our algorithm can easily handle higher-order tensor decompositions.

  • Correctness guarantees By virtue of using random compression, OCTen can guarantee the identifiability of the underlying CP decomposition in the presence of streaming updates.

  • Extensive Evaluation Through experimental evaluation on various datasets, we show that OCTen provides stable decompositions (with quality on par with state-of-the-art), while offering up to 40-250 % memory space savings.

Reproducibility: We make our Matlab implementation publicly available at link 333http://www.cs.ucr.edu/~egujr001/ucr/madlab/src/OCTen.zip. Furthermore, all the small size datasets we use for evaluation are publicly available on same link.

2 Preliminaries

Tensor : A tensor is a higher order generalization of a matrix. An -mode tensor is essentially indexed by variables. In particular, regular matrix with two variables i.e. and is 2-mode tensor, whereas data cube ( , and ) is viewed as a 3-mode tensor . The number of modes is also called ”order”. Table 1 contains the symbols used throughout the paper. For the purposes of background explanation, we refer the reader to [18] for the definitions of Khatri-Rao and Kronecker products which are not necessary for understanding the basic derivation of our framework.

Symbols Definition

Tensor, Matrix, Column vector, Scalar

Set of Real Numbers
Outer product
Frobenius norm, norm
Kronecker product[18]
Khatri-Rao product[18]
Table 1: Table of symbols and their description

Canonical Polyadic Decomposition: One of the most popular and extensively used tensor decompositions is the Canonical Polyadic (CP) or CANDECOMP/ PARAFAC decomposition [5, 8, 3] referred as CP decomposition. Given a N-mode tensor of dimension , its CP decomposition can be written as , where and R represents the number of latent factors or upper bound rank on tensor . Henceforth, the 3-mode tensor of size can be represented as a sum of rank-one tensors: where . The unfold n-mode tensor can be written as khari-rao product of its modes as . We refer the interested reader to several well-known surveys that provide more details on tensor decompositions and its applications [11, 18].

3 Problem Formulation

In many real-world applications, data grow dynamically and may do so in many modes. For example, given a dynamic tensor in a movie-based recommendation system, organized as users movie rating hours, the number of registered users, movies watched or rated, and hours may all increase over time. Another example is network monitoring sensor data where tons of information like source and target IP address, users, ports etc., is collected every second. This nature of data gives rise to update existing decompositions on the fly or online and we call it incremental decomposition. In such conditions, the update needs to process the new data very quickly, which makes non-incremental methods to fall short because they need to recompute the decomposition for the full dataset. The problem that we solve is the following:

[linecolor=red!60!black,backgroundcolor=gray!20,linewidth=2pt, topline=false,rightline=false, leftline=false]

Given (a) an existing set of summaries {}, which approximate tensor of size { } at time t , (b) new incoming batch of slice(s) in form of tensor of size {}, find updates of ( , …, , ) incrementally to approximate tensor of dimension {} and rank R, where after appending new slice or tensor to mode.

4 OCTen Framework

As we mention in the previous section, to the best of our knowledge, there is no algorithm in the literature that is able to efficiently compress and incrementally update the CP decomposition in the presence of incoming tensor slices. However, there exists a method for static data [21]. Since this method considers the tensor in its entirety, it cannot handle streaming data and as the data size grows its efficiency may degrade. In this section, we introduce OCTen, a new method for parallel incremental decomposition designed with two main goals in mind: G1: Compression, speed , simplicity, and parallelization; and G2: correctness in recovering compressed partial results for incoming data, under suitable conditions. The algorithmic framework we propose is shown in Figure 1 and is described below:

We assume that we have a pre-existing set of summaries of the before the update. Summaries are in the form of compressed tensors of dimension [].

These are generated by multiplying random compression matrices {

} that are independently obtain from an absolutely continuous uniform distribution with respect to the Lebesgue measure, with tensor’s corresponding mode i.e.

is multiplied with -mode and so on; see Figure 1 and Section 4.2 for its role in correct identification of factors. The compression matrices are generated for each incoming batch or slice. For simplicity of description, we assume that we are receiving updated slice(s) on the third mode. We, further, assume that the updates come in batches of new slices, which, in turn, ensures that we see a mature-enough update to the tensor, which contains useful structure. Trivially, however, OCTen can operate on singleton batches and for modes also.

In the following, is the tensor prior to the update and is the batch of incoming slice(s). Considering and , we can write space and time complexity in terms of and . Given an incoming batch, OCTen performs the following steps:

4.1 Parallel Compression and Decomposition

When handling large tensors that are unable to fit in main memory, we may compress the tensor to a smaller tensor that somehow apprehends most of the systematic variation in . Keeping this in mind, for incoming slice(s) , during the parallel compression step, we first need to create ’’ parallel triplets of random compression matrices (uniformly distributed) {} of . Thus, each worker (i.e. Matlab parpool) is responsible for creating and storing these triplets of size and . These matrices share at least ’shared’ amount of column(s) among each other. Mathematically, we can describe it as follows:


where u, v and w are shared and have dimensions of and .

For compression matrices, we choose to assign each worker create a single row of each of the matrices to reduce the burden of creating an entire batch of {} of . We see that each worker is sufficient to hold these matrices in main memory. Now, we created compressed tensor replica or summaries by multiplying each triplets of compression matrices and ;see Figure 1. is 3-mode tensor of size . Since is considerably smaller than [I ,J, K], we use of memory on each worker.

For , we already have replicas obtained from each triplets of compression matrices {}and ;see Figure 1. In general, the compression comprises N-mode products which leads to overall complexity of for dense tensor , if the first mode is compressed first, followed by the second, and then the third mode and so on. We choose to keep of same order as well non-temporal dimensions are of same order in our algorithm, so time complexity of parallel compression step for N-mode data is for each worker. The summaries are always dense, because first mode product with tensor is dense, hence remaining mode products are unable to exploit sparsity.

After appropriately computing summaries for incoming slices, we need to update the old summaries which were generated from previous data. We don’t save entire , and instead we save the compressed summaries i.e. only. Each worker reads its segment and process update in parallel as given below.


where is the number of slices of incoming tensor and is the slice number for the compressed tensor. Further, for the decomposition step, we processed ’summaries on different workers, each one fitting the decomposition to the respective compressed tensor created by the compression step. We assume that the updated compressed tensor fits in the main memory, and performs in-memory computation. We denote compressed tensor decompositions as as discussed above. The data for each parallel worker can be uniquely decomposed, i.e. is unique up to scaling and column permutation. Furthermore, parallel compression and decomposition is able to achieve Goal G1.

4.2 Factor match for identifiability

According to Kruskal [9], the CP decomposition is unique (under mild conditions) up to permutation and scaling of the components i.e. and factor matrices. Consider an 3-mode tensor of dimension , and of rank . If rank


then rank 1 factors of tensor can be uniquely computable[9, 10]. Kronecker product[4] property is described as . Now combining Kruskal’s uniqueness and Kronecker product property, we can obtain correct identifiable factors from summaries if


where Kruskal-rank of , denoted as , is the maximum such that any columns of are linearly independent;see [21]. Hence, upon factorization of 3-mode into components, we obtain where is shared among summaries decompositions , is a permutation matrix, and is a diagonal scaling matrix obtained from CP decomposition. To match factor matrices after decomposition step, we first normalize the shared columns of factor matrices and to unit norm . Next, for each column of , we find the most similar column of , and store the correspondence. Finally, we can describe factor matrices as :


where and are matrices of dimension and respectively and N is number of dimensions of tensor. For 3-mode tensor, and for 4-mode tensor, and so on. Even though for 3-mode tensor, and do not increase their number of rows over time, the incoming slices may contribute valuable new estimates to the already estimated factors.Thus, we update all factor matrices in the same way. This is able to partially achieve Goal G2.

4.3 Update results

Final step is to remove all the singleton dimensions from the sets of compression matrices {} and stack them together. A singleton dimension of tensor or matrix is any dimension for which size of matrix or tensor with given dimensions becomes one. Consider the 5-by-1-by-5 array A. After removing its singleton dimension, the array A become 5-by-5. Now, we can write compression matrices as:


where and are matrices of dimension and respectively. The updated factor matrices (,, and ) for 3-mode tensor (i.e. ) can be obtained by :


where and are matrices of dimension and respectively. Hence, we achieve Goal G2.

Finally, by putting everything together, we obtain the general version of our OCTen for 3-mode tensor, as presented in Algorithm 1 in supplementary material. The matlab implementation for method is available at . The higher order version of OCTen is also given in supplementary materials. We refer the interested reader to supplementary material that provide more details on OCTen and its applications.

Complexity Analysis: As discussed previously, compression step’s time and space complexity is and respectively. Identifiability and update can be calculated in . Hence, time complexity is considered as . Overall, as S is larger than any other factors, the time complexity of OCTen can be written as . In terms of space consumption, OCTen is quite efficient since only the compressed matrices, previous factor matrices and summaries need to be stored. Hence, the total cost of space is .

5 Empirical Analysis

We design experiments to answer the following questions: (Q1) How much memory OCTen required for updating incoming data? (Q2) How fast and accurately are updates in OCTen compared to incremental algorithms? (Q3) How does the running time of OCTen increase as tensor data grow (in time mode)? (Q4) What is the influence of parameters on OCTen? (Q5) How OCTen used in real-world scenarios?

For our all experiments, we used Intel(R) Xeon(R), CPU E5-2680 v3 @ 2.50GHz machine with 48 CPU cores and 378GB RAM.

5.1 Evaluation Measures

We evaluate OCTen and the baselines using three criteria: fitness, processor memory used, and wall-clock time. These measures provide a quantitative way to compare the performance of our method. More specifically, Fitness measures the effectiveness of approximated tensor and defined as :

higher the value, better the approximation. Here is original tensor and is drawn tensor from OCTen.

CPU time (sec): indicates the average running time for processing all slices for given tensor, measured in seconds, is used to validate the time efficiency of an algorithm.

Process Memory used (MBytes): indicates the average memory required to process each slices for given tensor, is used to validate the space efficiency of an algorithm.

5.2 Baselines

In this experiment, four baselines have been selected as the competitors to evaluate the performance. OnlineCP[27]: It is online CP decomposition method, where the latent factors are updated when there are new data. SambaTen[7]: Sampling-based Batch Incremental Tensor Decomposition algorithm is the most recent and state-of-the-art method in online computation of canonical parafac and perform all computations in the reduced summary space. RLST[15]: Recursive Least Squares Tracking (RLST) is another online approach in which recursive updates are computed to minimize the Mean Squared Error (MSE) on incoming slice. ParaComp[21]: an implementation of non-incremental parallel compression based tensor decomposition method. The model is based on parallel processing of randomly compressed and reduced size replicas of the data. Here, we simply re-compute decomposition after every update.

5.3 Experimental Setup

The specifications of each synthetic dataset are given in Table 2

. We generate tensors of dimension I = J = K with increasing I and other modes, and added gaussian distributed noise. Those tensors are created from a known set of randomly (uniformly distributed) generated factors with known rank

, so that we have full control over the ground truth of the full decomposition. For real datasets , we use AUTOTEN [17] to find rank of tensor. We dynamically calculate the size of incoming batch or incoming slice(s) for our all experiments to fit the data into 10% of memory of machine. Remaining machine CPU memory is used for computations for algorithm. We use 20 parallel workers for every experiment.

Table 2: Table of Datasets analyzed
I=J=K NNZ Batch size p Q shared Noise ()
50 5 20 30 5 (0.1, 0.2)
100 10 30 35 10 (0.2, 0.2)
500 50 40 30 6 (0.5, 0.6)
1000 20 50 40 10 (0.4, 0.2)
5000 10 90 70 25 (0.5, 0.6)
10000 10 110 100 20 (0.2, 0.7)
50000 4 140 150 30 (0.6, 0.9)

Note that all comparisons were carried out over 10 iterations each, and each number reported is an average with a standard deviation attached to it. Here, we only care about the relative comparison among baseline algorithms and it is not mandatory to have the best rank decomposition for every dataset. In case of method-specific parameters, for ParaComp algorithm, the settings are chosen to give best performance. For OnlineCP, we choose the batchsize which gives best performance in terms of approximation fitness. For fairness, we also compare against the parameter configuration for

OCTen that yielded the best performance. Also, during processing, for all methods we remove unnecessary variable from baselines to fairly compare with our methods.

5.4 Results

5.4.1 [Q1 & Q2] Memory efficient, Fast and Accurate

For all datasets we compute Fitness(%),CPU time (seconds) and Memory(MB) space required. For OCTen, OnlineCP, ParaComp,Sambaten and RLST we use 10% of the time-stamp data in each dataset as existing old tensor data. The results for qualitative measure for data is shown in Figure 2. For each of tensor data ,the best performance is shown in bold. All state-of-art methods address the issue very well. Compared with OnlineCP, ParaComp,Sambaten and RLST, OCTen give comparable fitness and reduce the mean CPU running time by up to 2x times for big tensor data. For all datasets, PARACOMP’s accuracy (fitness) is better than all methods. But it is able to handle upto size only. For small size datasets, OnlineCP’s efficiency is better than all methods. For large size dataset, OCTen outperforms the baseline methods w.r.t fitness, average running time (improved 2x-4x) and memory required to process the updates. It significantly saved 40-200% of memory as compared to Online CP, Sambaten and RLST as shown in Figure 2. It saved 40-80% memory space compared to Paracomp. Hence, OCTen is comparable to state-of-art methods for small dataset and outperformed them for large dataset. These results answer Q1 & Q2 as the OCTen have comparable qualitative measures to other methods.

Figure 2: (a,b) Experimental results for speed and accuracy of approximation of incoming slices. We see that OCTen gives comparable accuracy and speed to baseline.(c) Results for memory required to process the incoming slices. The OCTen remarkably save the memory as compared to baseline methods.This answers our Q1 and Q2.

5.4.2 [Q3] Scalability Evaluation

To evaluate the scalability of our method, firstly, a tensor of small slice size () but longer time dimension () is created. Its first 10% timestamps of data is used for and each method’s running time for processing batch of 10 data slices at each time stamp measured.

Figure 3: CPU time (in seconds) and Memory (MB) used for processing slices to tensor incrementing in its time mode. The time and space consumption increases quasi-linearly. The mean fitness is 90% for all experiments

As can be seen from Figure 3, increasing length of temporal mode increases time consumption quasi-linearly. However the slope is different for various non-temporal mode data sizes. In terms of memory consumption, OCTen also behaves linearly. This is expected behaviour because with increase in temporal mode, the parameters i.e. and Q also grows. Once again, our proposed method illustrates that it can efficiently process large sized temporal data. This answers our Q3.

5.4.3 [Q4] Parameter Sensitivity

We extensively evaluate sensitivity of number of compressed cubes required ’’ , size of compressed cubes and number of shared columns required for OCTen. we fixed batch size to for all datasets ,where is time dimension of tensor . As discussed in section 4, it is possible to identify unique decomposition . In addition, if we have


for parallel workers, decomposition is almost definitely identifiable with column permutation and scaling. We keep this in mind and evaluate the OCTen as follows.

(a) Sensitivity of p :The number of compressed cubes play an important role in OCTen. We performed experiments to evaluate the impact of changing the number of cubes i.e. with fixed values of other parameters for different size of tensors. We see in figure 4 that increasing number of cubes result in increase of Fitness of approximated tensor and CPU Time and Memory (MB) is super-linearly increased. Consider the case of , from above condition, we need . We can see from Figure 4, the condition holds true.

Figure 4: OCTen Fitness, CPU Time (sec) and memory used vs. Number of compressed tensors ’’ on different datasets. With large ’’, high fitness is achieved.
Figure 5: OCTen Fitness, CPU Time (sec) and memory used vs. size of compressed tensors ’Q’ on different datasets.
Figure 6: OCTen fitness vs. shared columns of compressed tensors ’’ on different datasets. It is observed that parameter ’’ has negligible effect on CPU time (sec) and memory used(MB).

(b) Sensitivity of Q: To evaluate the impact of Q , we fixed other parameters i.e. ’’ and ’’. We can see that with higher values of the ’Q’, Fitness is improved as shown in Figure 5. Also It is observed that when equation 8 satisfy, fitness become saturated. Higher the size of compressed cubes, more memory is required to store them.

(c) Sensitivity of shared : To evaluate the impact of ’shared’ , we fixed other parameters i.e. ’’ and ’Q’.We observed that this parameter does not have impact on CPU Time (sec) and Memory space(MB). The best fitness is found when as shown in figure 6. Fitness decreases when because the new compressed cubes completely loses its own structure when joined to old compressed cubes. To retain both old and new structure we choose to keep parameter for all experiments.

In sum, these observations demonstrate that: 1) a suitable number of cubes and its size i.e. on compressed tensor could improve the fitness and result in better tensor decomposition, and 2) For identifiability ’p’ must satisfy the condition, , to achieve better fitness, lower CPU Time (seconds) and low memory space (MB). This result answers Q4.

5.4.4 [Q5] Effectiveness on real world dataset

To evaluate effectiveness of our method on real world networks, we use the Foursquare-NYC sequential temporal dataset [26] and American College Football Network (ACFN) [20] (analysis provided in supplementry material). Foursquare-NYC dataset includes long-term ( 10 months) check-in data in New York city collected from Foursquare from 12 April 2012 to 16 February 2013. The tensor data is structured as [user (1k), Point of Interest (40k), time (310 days)] and each element in the tensor represents the total time spent by user for that visit. Our aim is to find next top@5 places to visit in NYC per user. We decompose the tensor data into batches of 7 days and using rank = estimated by AutoTen [17]. For evaluation, we reconstruct the complete tensor from factor matrices and mask the known POIs in the tensor and then rank the locations for each user. Since we do not have human supplied relevance rankings for this dataset, we choose to visualize the most significant factor (locations) using maps provided by Google. If the top ranked places are with-in 5 miles radius of user’s previous places visited, then we consider the decomposition is effective. In the Figure 7(a), the five red markers corresponds to the five highest values of the factor. These locations correspond to well-known area in NYC : Brooklyn Bridge , Square garden , Theater District and Museum of Art. The high density of activities (green points) verifies their popularity. Figure 7(b,c) shows the top@5 results for users #192 and user #902, the red marker shows the next locations to visit and yellow marker shows the previous visited locations. More interestingly, we can see that user #192 visited coffee shops and restaurants most of the time food, top@5 ranked locations are also either restaurants or food & drink shops. Similarity, user #902, most visited places are Fitness center, top@5 ranked locations are park, playground and Stadium. Both case studies shows the effectiveness of the decomposition and confirms that the OCTen can be used for various types of data analysis and this answers Q5.

Figure 7: (a)OCTen’s five highest values of the factor are represented as red markers. (b,c) Visualization of the top@5 POIs of the user#192 and user#902 obtained from reconstructed tensor using factor matrices. The yellow markers are user’s previous visited POIs and red markers are recommended POIs.

6 Related Work

In this section, we provide review of the work related to our algorithm. At large, incremental tensor methods in the literature can be categorized into two main categories as described below:

Tensor Decomposition: Phan el at. [19] had purposed a theoretic method namely GridTF to large-scale tensors decomposition based on CP’s basic mathematical theory to get sub-tensors and join the output of all decompositions to achieve final factor matrices. Sidiropoulos el at.[15], proposed algorithm that focus on CP decomposition namely RLST (Recursive Least Squares Tracking), which recursively update the factors by minimizing the mean squared error. In 2014, Sidiropoulos el at. [21] , proposed a parallel algorithm for low-rank tensor decomposition that is suitable for large tensors. The Zhou, el at. [27] describes an online CP decomposition method, where the latent components are updated for incoming data. The most related work to ours was proposed by [7] which is sampling-based batch incremental tensor decomposition algorithm. These state-of-the-art techniques focus on only fast computation but not effective memory usage. Besides CP decomposition, tucker decomposition methods[23, 16] were also introduced. Some of these methods were not only able to handle data increasing in one-mode, but also have solution for multiple-mode updates using methods such as incremental SVD [6]. Latest line of work is introduced in [2] i.e TuckerMPI to find inherent low-dimensional multi-linear structure, achieving high compression ratios. Tucker is mostly focused on recovering subspaces of the tensor, rather than latent factors, whereas our focus is on the CP decomposition which is more suitable for exploratory analysis.

Tensor Completion

: Another field of study is tensor completion, where real-world large-scale datasets are considered incomplete. In literature, wide range of methods have been proposed based on online tensor imputation

[13] and tensor completion with auxiliary information[14, 1]. The most recent method in this line of work is by Qingquan el at.[22], who proposed a low-rank tensor completion with general multi-aspect streaming patterns, based on block partitioning of the tensor. However, these approaches cannot be directly applied when new batches of data arrived. This provides us a good starting reference for further research.

7 Conclusions

In this work, we focus on online tensor decomposition problem and proposed a novel compression based OCTen framework. The proposed framework effectively identify the low rank latent factors of compressed replicas of incoming slice(s) to achieve online tensor decompositions. To further enhance the capability, we also tailor our general framework towards higher-order online tensors. Through experiments, we empirically validate its effectiveness and accuracy and we demonstrate its memory efficiency and scalability by outperforming state-of-the-art approaches (40-200 % better). Regardless, future work will focus on investigating different tensor decomposition methods and incorporating various tensor mining methods into our framework.


  • [1] E. Acar, T. G. Kolda, and D. M. Dunlavy. All-at-once optimization for coupled matrix and tensor factorizations. arXiv preprint arXiv:1105.3422, 2011.
  • [2] W. Austin, G. Ballard, and T. G. Kolda. Parallel tensor compression for large-scale scientific data. In PDPS, 2016 IEEE Int., pages 912–922. IEEE, 2016.
  • [3] B. W. Bader, T. G. Kolda, et al. Matlab tensor toolbox version 2.6, available online, february 2015, 2015.
  • [4] J. Brewer. Kronecker products and matrix calculus in system theory. IEEE Transactions on circuits and systems, 25(9):772–781, 1978.
  • [5] J. D. Carroll and J.-J. Chang. Analysis of individual differences in multidimensional scaling via an n-way generalization of “eckart-young” decomposition. Psychometrika, 35(3):283–319, 1970.
  • [6] H. Fanaee-T and J. Gama. Multi-aspect-streaming tensor analysis. Knowledge-Based Systems, 89:332–345, 2015.
  • [7] E. Gujral, R. Pasricha, and E. E. Papalexakis. Sambaten: Sampling-based batch incremental tensor decomposition. arXiv preprint arXiv:1709.00668, 2017.
  • [8] R. Harshman. Foundations of the parafac procedure: Models and conditions for an” explanatory” multimodal factor analysis. 1970.
  • [9] R. A. Harshman. Determination and proof of minimum uniqueness conditions for parafac1. UCLA Working Papers in phonetics, 22(111-117):3, 1972.
  • [10] T. Jiang and N. D. Sidiropoulos. Kruskal’s permutation lemma and the identification of candecomp/parafac and bilinear models with constant modulus constraints. IEEE Transactions on Signal Processing, 52(9):2625–2636, 2004.
  • [11] T. Kolda and B. Bader. Tensor decompositions and applications. SIAM review, 51(3), 2009.
  • [12] T. G. Kolda and J. Sun. Scalable tensor decompositions for multi-aspect data mining. In Data Mining, 2008. ICDM’08. Eighth IEEE International Conference on, pages 363–372. IEEE, 2008.
  • [13] G. B. Mardani, Gonzalo. Subspace learning and imputation for streaming big data matrices and tensors. IEEE Signal Processing, 2015.
  • [14] A. Narita, K. Hayashi, R. Tomioka, and H. Kashima. Tensor factorization using auxiliary information. In European Conf. on MLKDD. Springer, 2011.
  • [15] D. Nion and N. D. Sidiropoulos. Adaptive algorithms to track the parafac decomposition of a third-order tensor. IEEE Transactions on Signal Processing, 57(6):2299–2310, 2009.
  • [16] S. Papadimitriou, J. Sun, and C. Faloutsos. Streaming pattern discovery in multiple time-series. In Proc.of 31st Int. Conf. on VLDB. VLDB Endowment, 2005.
  • [17] E. E. Papalexakis. Automatic unsupervised tensor mining with quality assessment. In SDM. SIAM, 2016.
  • [18] E. E. Papalexakis, C. Faloutsos, and N. D. Sidiropoulos. Tensors for data mining and data fusion: Models, applications, and scalable algorithms. TIST, 2016.
  • [19] A. H. Phan and A. Cichocki. Parafac algorithms for large-scale problems. Neurocomputing, 74(11):1970–1984, 2011.
  • [20] F. Sheikholeslami, B. Baingana, G. B. Giannakis, and N. D. Sidiropoulos. Egonet tensor decomposition for community identification. In GlobalSIP, 2016.
  • [21] N. Sidiropoulos, Evangelos E. Papalexakis, and C. Faloutsos. Parallel randomly compressed cubes. IEEE Signal Processing Magazine, 2014.
  • [22] Q. Song, H. G. Xiao Huang, J. Caverlee, and X. Hu. Multi-aspect streaming tensor completion. In KDD. ACM, 2017.
  • [23] J. Sun, D. Tao, S. Papadimitriou, P. S. Yu, and C. Faloutsos. Incremental tensor analysis:theory and applications. ACM Trans. Knowl. Discov. Data, Oct. 2008.
  • [24] L. Tucker. Some mathematical notes on three-mode factor analysis. Psychometrika, 31(3):279–311, 1966.
  • [25] X. Wang and C. Navasca. Low-rank approximation of tensors via sparse optimization. Numerical Linear Algebra with Applications, 25(2), 2018.
  • [26] D. Yang, D. Zhang, V. W. Zheng, and Z. Yu. Modeling user activity preference by leveraging user spatial temporal characteristics in lbsns. IEEE Transactions on Systems, Man, and Cybernetics: Systems, 45(1):129–142, 2015.
  • [27] S. Zhou, N. Vinh, J. Bailey, Y. Jia, and I. Davidson. Accelerating online cp decompositions for higher order tensors. In 22nd ACM SIGKDD. ACM, 2016.

8 Supplementary Materials

8.1 Extending to Higher-Order Tensors

We now show how our approach is extended to higher-order cases. Consider N-mode tensor . The factor matrices are for CP decomposition with mode as new incoming data. A new tensor is added to to form new tensor of where . In addition, sets of compression matrices for old data are {} and for new data it is {} for p number of summaries.

Each compression matrices are converted into compressed cubes i.e. for compressed cube is of dimension and same follows for . The updated summaries are computed using s.t. . After CP decomposition of , factor matrices and random compressed matrices are stacked as :


Finally, the update rule of each non-temporal mode and temporal mode is :


8.2 Necessary characteristics for uniqueness

As we mention above, OCTen is able to identify the solution of the online CP decomposition, as long as the parallel CP decompositions on the compressed tensors are also identifiable. Empirically, we observe that if the decomposition of a given data that has exact or near-trilinear structure (or multilinear in the general case), i.e. obeying the low-rank CP model with some additive noise, OCTen is able to successfully, accurately, and using much fewer resources than state-of-the-art, track the online decomposition. On the other hand, when given data that do not have a low trilinear rank, the results were of lower quality. This observation is of potential interest in exploratory analysis, where we do not know 1) the (low) rank of the data, and 2) whether the data have low rank to begin with (we note that this is an extremely hard problem, out of the scope of this paper, but we refer the interested reader to previous studies [25, 17] for an overview). If OCTen provides a good approximation, this indirectly signifies that the data have appropriate trilinear structure, thus CP is a fitting tool for analysis. If, however, the results are poor, this may indicate that we need to reconsider the particular rank used, or even analyzing the data using CP in the first place. We reserve further investigations of what this observation implies for future work.

0:  ,summary , R,p,Q, shared S. 10:  Factor matrices of size , and . while new slice(s) coming do 2          ,  ,      ,   ,           for  to  do               end for 3          ; ; 4 end while   return  ()
Algorithm 1 OCTen for incremental 3-mode tensor decomposition

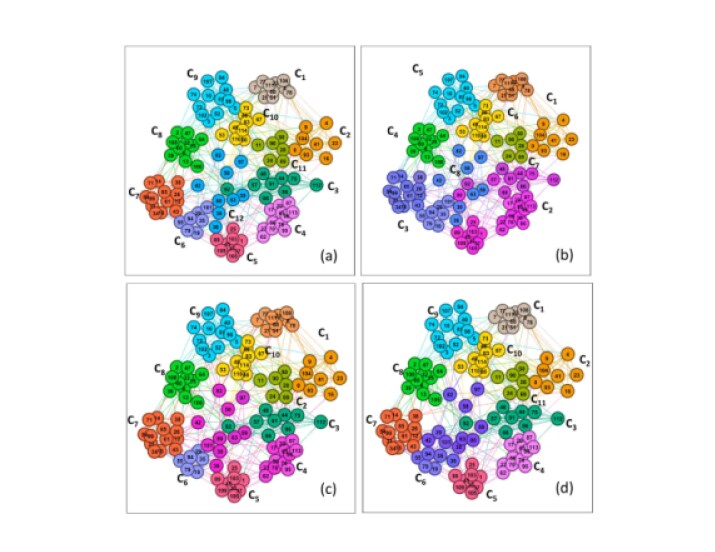

Figure 8: Visualization of the ground truth communities vs. the identified communities using OCTen on American College Football Network (ACFN), which has 12 observed players communities i.e. . (a): Represents the visualization of the network colored with ground truth communities. (b): Shows the visualization of the network colored with predicted communities at time , where is total time stamps. (c): Shows the visualization of the network colored with predicted communities at time . (d): Shows the visualization of the network colored with predicted communities at time . We see that reconstructed views using OCTen helps to identify the communities changing over time.

8.3 OCTen at work

We construct the ACFN tensor data with the player-player interaction to a 115 x 115 grid, and considering the time as the third dimension of the tensor. Therefore, each element in the tensor is an integer value that represents the number of interactions between players at a specific moment of time. Our aim is to find the players communities (ground truth communities = 12) changed over time in football dataset. In order to evaluate the effectiveness of our method on football dataset, we compare the ground-truth communities against the communities found by the our method. Figure

8 shows a visualization of the football network over time, with nodes colored according to the observed communities. American football leagues are tightly-knit communities because of very limited matches played across communities. Since these communities generally do not overlap, we perform hard clustering. We find that communities are volatile and players belongs to community #12 (from subfigure (a)) are highly dynamic in forming groups. We observe that OCTen is able to find relevant communities and also shows the ability to capture the changes in forming those communities in temporal networks.
