Observability-aware Self-Calibration of Visual and Inertial Sensors for Ego-Motion Estimation

01/22/2019 ∙ by Thomas Schneider, et al. ∙ ETH Zurich 0

External effects such as shocks and temperature variations affect the calibration of visual-inertial sensor systems and thus they cannot fully rely on factory calibrations. Re-calibrations performed on short user-collected datasets might yield poor performance since the observability of certain parameters is highly dependent on the motion. Additionally, on resource-constrained systems (e.g mobile phones), full-batch approaches over longer sessions quickly become prohibitively expensive. In this paper, we approach the self-calibration problem by introducing information theoretic metrics to assess the information content of trajectory segments, thus allowing to select the most informative parts from a dataset for calibration purposes. With this approach, we are able to build compact calibration datasets either: (a) by selecting segments from a long session with limited exciting motion or (b) from multiple short sessions where a single sessions does not necessarily excite all modes sufficiently. Real-world experiments in four different environments show that the proposed method achieves comparable performance to a batch calibration approach, yet, at a constant computational complexity which is independent of the duration of the session.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

I Introduction

In this work, we present a sensor self-calibration method for visual-inertial ego-motion estimation frameworks i.e. systems that fuse visual information from one or multiple cameras with an inertial measurement unit (IMU) to track the pose (position and orientation) of the sensors over time. Over the last years, visual-inertial tracking has become an increasingly popular method and is being deployed into a big variety of products including AR/VR headsets, mobile devices, and robotic platforms. Large-scale projects, such as Microsoft’s HoloLens, make these complex systems available as part of mass-consumer devices operated by non-experts over the entire life-span of the product. This transition from the traditional lab environment to the consumer market poses new technical challenges to keep the calibration of the sensors up-to-date.

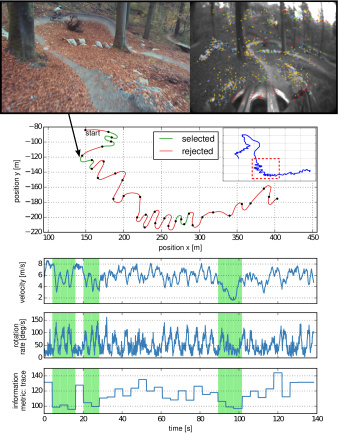

Fig. 1: Dataset recorded while riding down Mount Uetliberg on a mountain-bike with a Tango Tablet strapped to the rider’s head. This trajectory is a good example of the varying amount of information within different segments of a visual-inertial dataset. Our method identifies the most informative segments in a background process alongside an existing visual-inertial motion estimation framework. Consequently, we sparsify the dataset to ensure an efficient calibration of the camera and IMU model parameters. The illustration highlights the most informative segments which are sufficient for a reliable calibration.1
1Figures in this paper are best viewed in color.

Traditionally, visual-inertial sensors are calibrated in a laborious manual process by an expert often using specialized tools and external markers such as checkerboard patterns (e.g. [1]). Aside from a lack of equipment, the lack of knowledge on how to properly excite all modes usually renders these methods infeasible for consumers as specific motion is required to obtain a consistent calibration. However, it can be used at the factory to provide an initial calibration for the device. Due to varying conditions (e.g. temperature, shocks, etc.) such calibrations degrade over time and periodic re-calibrations become necessary. A straightforward approach to this problem would be to run a calibration over a long dataset, hoping it is rich enough to excite all modes of the system. Yet, the large computational requirement of such a batch method might render this approach infeasible on constrained platforms without careful data selection.

This work exploits that information is usually not distributed uniformly along the trajectory of most visual-inertial datasets, as illustrated in Fig. 1 for a mountain-bike dataset. trajectory segments with higher excitation provide more information for sensor calibration whereas segments with weak excitation can lead to a non-consistent or even wrong calibration. Consequently, we propose a calibration architecture that evaluates the information content of trajectory segments in a background process alongside an existing visual-inertial estimation framework. A database maintains the most informative segments that have been observed either in a single-session or over multiple sessions to accumulate relevant calibration data over time. Subsequently, the collected segments are used to update the calibration parameters using a segment-based calibration formulation.

By only including the most informative portion of the trajectory, we are able to reduce the size of the calibration dataset considerably. Further, we can collect exciting motion in a background process assuming such motion occurs eventually and thus take the burden from the users to perform them consciously (which might be hard for non-experts). With this approach we can automate the traditional tedious calibration task and perform a re-calibration without any user intervention e.g. while playing an AR/VR video game or while navigating a car through the city. Additionally, our method facilitates the use of more advanced sensor models (e.g. IMU intrinsics) with potentially weakly observable modes that require specific motion for a consistent calibration.

This article is an extension of our previous work [2] where we presented the following:

  • an efficient information-theoretic metric to identify informative segments for calibration,

  • a segment-based self-calibration method for the intrinsic and extrinsic parameters of a visual-inertial system, and

  • evaluations of the calibration parameter repeatability showing comparable performance to a batch approach.

In this work, we extend with the following contributions:

  • a comprehensive review of the state-of-the-art on visual and inertial sensor calibration,

  • a study of three different metrics for the selection of informative segments,

  • an evaluation of the motion estimation accuracy on motion-capture ground-truth, and

  • a comparison against an extended Kalman filter (EKF) approach that jointly estimates motion and calibration parameters.

Ii Literature Review

Over the past two decades, visual-inertial state estimation has been studied extensively by the research community and many methods and frameworks have been presented. For example, the work of Leutenegger et al. [3] fuses the information of both sensor modalities in a fixed-lag-smoother estimation framework and demonstrates metric pose tracking with an accuracy in the sub-percent range of distance traveled. Many applications on resource-constrained platforms, such as mobile phones, however, use filtering-based approaches which offer pose tracking with similar accuracy at a lower computational cost. An early method of this form is the one from Mourikis and Roumeliotis [4], and more recently also from Bloesch et al. [5], that directly minimizes a photometric error on image patches instead of a geometric re-projection error on point-features. Newer frameworks e.g. from Qin et al. [6] or Schneider et al. [7] also incorporate online localization/loop-closures to further reduce the drift or in certain cases even eliminate it completely.

All these methods require an accurate and up-to-date calibration of all sensor models to achieve good estimation performance. For this reason, a multitude of methods have been developed to calibrate models for the camera, IMU and relative pose between the two sensors. An overview of early methods that calibrate each model independently can be found in [8, 9, 10]. In the remaining of this section we, first, provide an overview of the state of the art in self-calibration of visual-inertial sensor systems and, second, discuss the most relevant observability-aware calibration approaches. And finally, we review methods that perform information-theoretic data selection for calibration purposes; which are most related to our approach.

Ii-a Marker-based Calibration

The work on self-calibration of visual and inertial sensors is still limited and therefore, we first discuss approaches that rely on external markers such as checkerboard patterns. An approach based on an EKF is presented in [11] that uses a checkerboard pattern as a reference to jointly estimate the relative pose between an IMU and a camera with the pose, velocity, and biases. Zachariah and Jansson [12] additionally estimate the scale error and misalignment of the inertial axis using a sigma-point Kalman filter.

A parametric method is proposed in [13] describing a batch estimator in continuous-time that represents the pose and bias trajectories using B-splines. Krebs [14] extends this work by compensating additional sensing errors in the IMU model; namely measurement scale, axis misalignment, cross-axis sensitivity, the effect of linear accelerations on gyroscope measurements and the orientation between the gyroscope and the accelerometer. A similar model is calibrated by Nikolic et al. [15] where they make use of a non-parametric batch formulation and thus avoid the selection of a basis function for the pose and bias trajectories which might depend on the dynamics of the motion (e.g. over the knot density). The non-parametric and parametric formulation are compared in real-world experiments with the conclusion that the accuracy and precision of both methods are similar [15].

Ii-B Marker-less Calibration

In contrast to target-based, self-calibration methods solely rely on natural features to calibrate the sensor models without the need for external markers such as checkerboards. Early work of this from was presented by Kelly and Sukhatme [16] and uses an unscented Kalman filter to jointly estimate pose, bias, velocity, IMU-to-camera relative pose and also the local scene structure. Their real-world experiments demonstrate that the relative pose between a camera and an IMU can be accurately estimated with similar quality to target-based methods. The work of Patron-Perez et al. [17] additionally calibrates the camera intrinsics and uses a continuous-time formulation with a B-splines parameterization. Li et al. [18] go one step further and also include the following calibration parameters into the (non-parametric) EKF-based estimator: time offset between camera and IMU, scale errors and axis misalignment of all inertial axis, linear acceleration effect on the gyroscope measurements (g-sensitivity), camera intrinsics including lens distortion and the rolling-shutter line-delay. A simulation study and real-world experiments indicate that all these quantities can indeed be estimated online solely-based on natural features [18].

Ii-C Observability of Model Parameters

All of the discussed calibration methods so far, both target-based and self-calibration methods, rely on sufficient excitation of all sensor models to yield an accurate calibration. Mirzaei and Roumeliotis [11] formally prove that the IMU-to-camera extrinsics are observable in a target-based calibration setting where the observability only depends on sufficient rotational motion. The analysis of Kelly and Sukhatme [16] shows that the IMU-to-camera extrinsics remains observable also for a self-calibration formulation. Further, Li and Mourikis [19] derive the necessary condition for the identifiability of a constant time offset between the IMU and camera measurements.

So far, no observability analysis has been performed for the full joint self-calibration problem that includes the intrinsics of the IMU and camera and also the relative pose between the two sensors. Our experience, however, indicates that ‘rich’ exciting motion is required to render all parameters observable and usually such calibration datasets are collected by expert intuition. Often, this knowledge is missing when simultaneous localization and mapping (SLAM) systems are deployed to consumer-market products. For this reason, the (re-)calibration dataset collection process must be automated for true life-long autonomy.

Ii-D Active Observability-aware Calibration

Active calibration methods automate the dataset collection by planning and executing trajectories which ensure the observability of the calibration parameters wrt. a specified metric. An early work in this direction for target-based camera calibration is [20]. They present an interactive method that suggests the next view of the target that should be captured such that the quality of the model improves incrementally.

Another active calibration method is presented by Bähnemann et al. [21] to plan informative trajectories using a sampling-based planner to calibrate Micro Aerial Vehicle (MAV) models. The informativeness of a candidate trajectory segment within the planner is approximated by the determinant of the covariance of the calibration parameters which is propagated using an EKF. In a similar setting, Hausman et al. [22] plan informative trajectories to calibrate the model of an Unmanned Aerial Vehicle (UAV) using the local observability Gramian as an information measure. An extension to this work is presented by Preiss et al. [23] where they additionally consider free-space information and dynamic constraints of the vehicle within the planner. The condition number of the Expanded Empirical Local Observability Gramian (E2LOG) is proposed as an information metric. The columns of E2

LOG are scaled using empirical data to balance the contribution of multiple states. A simulation study shows that the method outperforms random motion and also the well-known heuristic, such as the figure-8 or star motion pattern. Further, the study indicates that trajectories minimizing the E

2LOG perform slightly better compared to the minimization of the trace of the covariance matrix but in general yield comparable performance.

Ii-E Passive Observability-aware Calibration – Calibration on Informative Segments

In contrast to the class of active calibration methods, passive methods cannot influence the motion and instead identify and collect informative trajectory segments to build a complete calibration dataset over time. The framework of Maye et al. [24] selects a set of the most informative segments using an information gain measure to consequently perform a calibration on the selected data. A truncated-QR solver is used to limit updates to the observable subspace. The generality of this method makes it suitable for a wide range of problems. Unfortunately, the expensive information metric and optimization algorithm prevent its use on resource-constrained platforms. Similarly, Keivan and Sibley [25] maintain a database of the most informative images to calibrate the intrinsic parameters of a camera but use a more efficient entropy-based information metric for the selection. Nobre et al. [26] extend the same framework to calibrate multiple sensors and more recently Nobre et al. [27] also include the relative pose between an IMU and a camera.

In our work, we take a similar approach to [24, 25] but also consider inertial measurements and consequently collect informative segments instead of images. In contrast to the general method of [24], we use an approximation for the visual-inertial use-case and neglect any cross-terms between segments when evaluating their information content. This approximation increases the efficiency at the cost that no loop-closure constraints can be considered. Compared to [27], we assume the calibration parameters to be constant over a single session but additionally calibrate the intrinsic parameters of the IMU using a model similar to [14, 28].

Iii Visual and Inertial System

The visual-inertial sensor system considered in this work consists of a global-shutter camera and an IMU. For better readability, the formulation is presented only for a single camera, however, the method has been tested for multiple cameras as well. All sensors are assumed to be rigidly attached to the sensor system. The IMU itself consists of a 3-axis accelerometer and a 3-axis gyroscope. In this work, we assume an accurate temporal synchronization of the IMU

and camera measurements and exclude the estimation of the clock offset and skew. However, online estimation of these clock parameters is feasible as shown in

[19].

The following subsections introduce the sensor models for the camera and IMU. An overview of all model parameters is shown in Table I and all relevant coordinate frames of the visual and inertial system in Fig. 2.

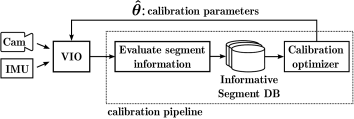

Fig. 2: Coordinate frames of the visual-inertial sensor system: The camera, 3-DoF gyroscope and 3-DoF accelerometer are all rigidly attached to the sensor system. The frame denotes the frame of the camera where points along the optical axis, left-to-right and top-down as seen from the image plane. The 6-DoF transformation matrix (extrinsic calibration) relates the IMU (which is defined to coincide with the frame of the gyroscope) to the frame of the camera . Since the translation between the gyroscope and the accelerometer is typically close to zero for single-chip MEMS sensors, we only rotate the accelerometer frame w.r.t. to the gyroscopes frame by the rotation matrix . The frame denotes a gravity aligned () inertial frame and is used to express the estimated pose of the sensor system and the position of the estimated landmarks .
Parameter Symbol Dim. Unit
Camera
  focal length px
  principal point px
  distortion -
IMU
  axis misalignment (gyro, accel.) , , -
  axis scale (gyro, accel.) , , -
  rotation w.r.t.  -
Extrinsics
  translation w.r.t.  m
  rotation w.r.t.  -
TABLE I: Model parameters of the visual-inertial sensor system.

Iii-a Notation and Definitions

A transformation matrix

takes a vector

expressed in the frame of reference into the coordinates of the frame and can be further partitioned into a rotation matrix and a translation vector as follows:

(1)

The unit quaternion represents the rotation corresponding to as defined in [29]. The operator is defined to transform a vector in from to the frame of reference as according to Eq. (1).

Iii-B Camera Model

A function models the perspective projection and lens distortion effects of the camera. It maps the -th 3d landmark onto the image plane of the camera to yield the 2d image point as:

(2)

where denotes the model parameters of the perspective projection function (which we want to calibrate).

In our evaluation setup, we use high-field-of-view cameras as they typically yield more accurate motion estimates [30]. As a consequence the camera records a heavily distorted image of the world. To account for these effects, we augment the pinhole camera model with the field-of-view (FOV) distortion model [31] to obtain the following perspective projection function:

(3)

where denotes the focal length, the principal point and the 2d projection of a 3d landmark in normalized image coordinates as:

(4)

The function models the (symmetric) distortion effects as a function of the radial distance to the optical center as:

(5)

with being the single parameter of the FOV distortion model.

The measurement model for landmark observations expressed in the global frame (see Fig. 2) can be written as:

(6)

where denotes the projection of the landmark onto the image plane of the keyframe , the pose of the sensor system, the relative pose of the camera w.r.t. the IMU and

a white Gaussian noise process with zero mean and standard deviation

as . The full calibration state of the camera model can be summarized as:

where the camera-IMU relative pose is split into its rotation part and its translation part , is the focal length, the principal point and the distortion parameter of the lens distortion model.

Iii-C Inertial Model

The IMU considered in this work consists of a (low-cost) MEMS 3-axis accelerometer and a 3-axis gyroscope. As in the work of [28, 14, 15], we include the alignment of the non-orthogonal sensing axis and a correction of the measurement scale into our sensor model. Further, we assume the translation between the accelerometer and gyroscope to be small (single-chip IMU) and only model a rotation between the two sensors (as shown in Fig. 2).

Considering these effects, we can write the model for the gyroscope measurements as:

(7)

where denotes the true angular velocity of the system, a correction matrix accounting for the scale and misalignment of the individual sensor axis (see Eq. (15)), is a random walk process as:

(8)

with the zero-mean white noise Gaussian processes being defined as

(9)
(10)

Similarly, the specific force measurements of the accelerometer are modeled as:

(11)

where is the true acceleration of the sensor system w.r.t. to the inertial frame , the relative orientation between the gyroscope and accelerometer frame, the orientation of the IMU w.r.t. the inertial frame , is a correction matrix for the scale and misalignment (see Eq. (15)), the gravity acceleration expressed in the inertial frame . The bias process is defined as a random walk process as:

(12)

with the zero-mean white noise Gaussian processes being defined as:

(13)
(14)

The noise characteristics of the IMU are assumed to have been identified beforehand at nominal operating conditions e.g. using the method described in [32]. The correction matrix and accounting for the scale and misalignment errors is defined identically for the gyroscope and accelerometer and is partitioned as:

(15)

where denotes the collection of all misalignment and all scale factors as:

(16)

The full calibration state of the inertial model can then be summarized as:

(17)

where describes the rotation of gyroscope frame w.r.t. to the accelerometer frame (with the IMU frame being defined as the gyroscope frame ).

Iv Visual-Inertial Self-Calibration

In this section, we formulate the self-calibration problem for visual and inertial sensor systems using the sensor models introduced in the previous section. The derived maximum-likelihood (ML) estimator makes use of all images and inertial measurements within the dataset to yield a full-batch solution. The motion of the sensor system and the (sparse) scene structure are jointly estimated with the model parameters to achieve self-calibration without the need for a known calibration target (e.g. a chessboard pattern). The batch estimator will serve as a base to introduce the segment-based calibration which only considers the most informative segments of a trajectory (see Section V).

Iv-a System State and Measurements

The self-calibration formulation jointly estimates all keyframe states , all point landmarks , the calibration parameters of the camera and the IMU with the keyframe state being defined as:

(18)

where and define the pose of the sensor system at timestep , the velocity of the system and the bias of the gyroscope and accelerometer.

To simplify further notations, we collect all states of the problem in the following vectors:

(19)

where is the total number of keyframes and the number of landmarks. Additionally, the vector stacks all estimated states as:

(20)

Further, we define the collection to contain all IMU measurements and all 2d landmark observations of the camera as:

(21)

where is the set of all accelerometer and gyroscope measurements between the keyframes and and the 2d measurement of the -th landmark seen from the -th keyframe and and denote the number of keyframes and landmarks respectively.

Iv-B State Initialization using VIO

A vision front-end tracks sparse point features between consecutive images and rejects potential outliers based on geometrical consistency using a perspective-n-point algorithm in a RANSAC scheme. The resulting feature tracks and the

IMU measurements are processed by an EKF which is loosely based on the formulation of [4, 18] but with various extension to increase robustness and accuracy. The filter recursively estimates all keyframe states and landmark positions . The calibration states are not estimated by this filter except for the camera-to-IMU relative pose (camera extrinsics). However, for the initialization of the calibration problem, we only use the keyframe states (pose, velocity, biases) and the most recent estimate of the camera-to-IMU extrinsics. The landmark states are initialized by triangulation using the poses estimated by the EKF filter.

It is important to note that the filter needs sufficiently good calibration parameters in order to run properly and provide accurate initial estimates. In our experience, it is sufficient for most single-chip IMUs to initialize their intrinsic calibration to a nominal value (unit scale, no misalignment). However, a complete self-calibration may be difficult if no priors are available for the camera intrinsics. In this case, a specialized calibration method should be used beforehand e.g. [1, 33].

Iv-C ML-based Self-Calibration Problem

We use the framework of ML estimation to jointly infer the state of all keyframes , landmarks and calibration parameters using all available measurements of the IMU and the 2d measurements of the point landmarks extracted from the camera images.

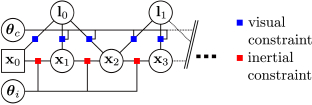

Fig. 3: Batch calibration problem shown in factor-graph representation: the problem contains keyframe states (pose, velocity, gyroscope and accelerometer biases), the calibration states for the IMU and the camera and the landmarks . Two types of factor are used: (red) inertial constraints based on the integrated IMU measurements; (blue) landmark reprojection factors modeling the feature observations (measurements of a landmark projection) observed by the camera. Additionally, the unconstrained directions of the first keyframe state, namely the global position and the rotation around the gravity vector (z-axis of frame ) are fixed to zero (denoted by the square).

A factor graph representation of the visual-inertial self-calibration formulation is shown in Fig. 3. The problem contains two types of factor: the visual factor models the projection of the landmark onto the image plane of the keyframe and the inertial factor forms a differential constraint between two consecutive keyframe states and (pose, velocity, bias). The ML estimate is obtained by a maximization of the corresponding likelihood function . When assuming Gaussian noise for all sensor models (see Section III), the ML solution can be approximated by solving the (non-linear) least-squares problem with the following objective function :

(22)

where denotes the number of keyframes, the set of landmarks off from keyframe , the reprojection error of the -th point landmark of observed from the -th keyframe and denotes the inertial constraint error between two consecutive keyframe states and as a function of integrated IMU measurements. The terms and denote the inverse of the error covariance matrices: keypoint measurement and the integrated IMU measurement covariance respectively. The reprojection error is defined as:

(23)

where is the 2d measurement of the projection of the landmark into camera and its prediction as defined in Eq. (6). The inertial error is obtained by integrating the continuous equations of motion using the sensor models described in Section III-C and is based on the method described in [18]. The non-linear objective function is minimized using numerical optimization methods. In our implementation, we use the Levenberg-Marquardt implementation of the Ceres framework [34].

V Self-Calibration using Informative Motion Segments

In this section, we propose a method to identify informative segments in a calibration dataset and a modified formulation for estimating calibration parameters based on a set of segments. First, the method can be used to sparsify a dataset and consequently reduce the complexity of the optimization problem. And second, a complete calibration dataset can be built over time by accumulating informative segments from multiple sessions, thus enabling the calibration of even weakly observable parameters by collecting exciting motion that occurs eventually. It is important to note that the proposed method is presented on the use-case of visual-inertial calibration but it can be applied to arbitrary calibration problems.

Fig. 4: High-level overview of the modules and data flows of the proposed method: (1) motion estimates from VIO are used to identify informative motion segments, (2) the most informative segments are maintained in a database for later calibration and (3) an ML-based calibration is triggered once enough data has been collected to update the sensor calibration.

V-a Architecture

A high-level overview of the modules and data-flows is shown in Fig. 4. The proposed method is intended to be run in parallel to an existing visual-inertial motion estimation system. The VIO implementation used in this work is described in Section IV-B but it is important to note that the method is not tied to a particular motion estimation framework. The keyframe and landmarks states estimated by the VIO module are partitioned into segments. In a next step, the information content of each segment w.r.t. the calibration parameters is evaluated using an efficient information theoretic metric. A database maintains the most informative segments of the trajectory and a calibration is triggered once enough data has been collected. This algorithm is summarized in Alg. 1 and explained in more details in the following sections.

Input: Initial calibration:
Output: Updated calibration:
Loop
        // Initialize motion segments of size N from VIO output.

        repeat
               = WaitForNewSensorData()
               , RunVIO(, ) // Section IV-B
               ,
       until ;
        EvaluateSegmentInformation() // Section V-B
        UpdateDatabase(, ) // Section V-C
        if EnoughSegmentsInDatabase() then
               GetAllSegmentsFromDatabase()
               RunOptimization() // Section V-D
               return
        end if

EndLoop
Algorithm 1 Self-calibration on informative motion segments.

V-B Evaluating Information Content of Segments

The continuous stream of keyframe (pose, velocity, bias) and landmark states , estimated by the VIO, is partitioned into motion segments. The -th segment is made up by the consecutive keyframes and the set of landmarks observed from this segment.

We propose to use information metrics that only consider the constraints within each segment to evaluate the information content w.r.t. the calibration parameters . Using such an information metric which is independent of all other segments makes its evaluation very efficient at the cost of neglecting cross-terms coming from other segments such as loop-closure constraints. However, the neglected constraints can be re-introduced and considered during the calibration. Thus, this assumption only affects the selection of informative segments and potentially leads to a conservative estimate of the actual information but should not bias the calibration results.

To quantify the information content of the -th segment , we recover the marginal covariance of the calibration parameters given all the constraints within the segment. For this, we first approximate the covariance over all segment states using the Fisher Information Matrix as:

(24)

The matrix represents the stacked Jacobians of all error terms and the stacked error covariances corresponding to the errors terms as:

(25)

where denotes the collection of all states within the segment and the number of errors terms within the segment . Further, the state ordering is chosen such that the rightmost columns of correspond to the states of the calibration parameters .

A rank-revealing QR decomposition is used to obtain

with being the Cholesky decomposition of the error covariance matrix. The Eq. (24) can then be rewritten as

(26)

As is an upper-triangular matrix, we can obtain the marginal covariance efficiently by back-substitution.

In a next step, we normalize the marginal covariance to account for different scales of the calibration parameters with:

(27)

where is the expected standard deviation that has been obtained empirically from a set of segments from various datasets. It is important to note, that depends on the sensor setup (e.g. focal length, dimensions, etc.) and should either be re-evaluated for each setup or a normalization based on nominal calibration parameters should be performed.

We can now define different information metrics based on the normalized marginal covariance . These metrics will be used to compare segments based on their information content w.r.t. the calibration parameters . They are defined such that a lower value corresponds to more information. In this work, we will investigate the three most common information-theoretic metrics from optimal design theory:

V-B1 A-Optimality

This criterion seeks to minimize the trace of the covariance matrix which results in a minimization of the mean variance of the calibration parameters. The corresponding information metric is defined as:

(28)

V-B2 D-Optimality

Minimizes the determinant of the covariance matrix which results in a maximization of the differential Shannon information of the calibration parameters.

(29)

It is interesting to note that this criterion is equivalent to the minimization of the differential entropy

which for Gaussian distributions is defined as:

(30)

where

is the normalized normal distribution of

and the dimension of this distribution.

V-B3 E-Optimality

This design seeks to minimize the maximal eigenvalue of the covariance matrix with the metric being defined as:

(31)

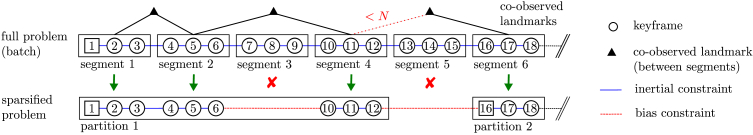

Fig. 5: The segment calibration problem only includes the most informative segments of the motion trajectory (keyframes) estimated by the VIO (upper graph). A constraint on the bias evolution is introduced where non-informative segments have been removed (red cross) while the pose and velocity remain unconstrained. Additionally, the segments are partitioned such that each partition co-observes less than landmarks of other partitions. Consequently, the unobservable modes of each partition, namely the rotation around gravity and the global position, are held constant during the optimization for exactly one keyframe of the partition (marked with a square).

V-C Collection of Informative Segments

We want to maximize the information contained within a fixed-sized budget of segments. For this reason, we maintain a database with a maximum capacity of segments retaining only the most informative segments of the trajectory. The information metric will be used to decide which segments are retained and which are rejected such that the sum over the information metric of all segments in the database is minimized. Such a decision scheme will ensure that the accumulated information on the calibration parameter is increasing over time while the number of segments remains constant. Therefore, an upper bound on the calibration problem complexity can be guaranteed. However, it is important to note that the sum of information metrics is only a conservative approximation of the total information content for two reasons: First, the information metric is only a scalar and therefore no directional information is available. Second, the information metrics neglect any cross-terms to other segments and thus underestimates the true information.

V-D Segment Calibration Problem

The segment-based calibration differs from the batch estimator introduced in Section IV in that it only contains the most informative segments of a (multi-session) dataset. The removal of trajectory segments from the original problem leads to two main challenges.

First, the time difference between two (temporally neighboring) keyframes could become arbitrarily large when non-informative keyframes have been removed in-between. An illustration of such a dataset with a temporal gap due to the keyframe removal is shown in Fig. 5 (between keyframe 6/10 and 12/16). In this case, we only constrain the bias evolution between the two neighboring keyframes using a random walk model described in Section III-C and no constraints are introduced for the remaining keyframe states (pose, velocity).

Second, the removal of non-informative trajectory segments often creates partitions of keyframes that are neither constrained to other partitions through (sufficient) shared landmark observations nor through inertial constraints. Each of these partitions can be seen as a (nearly) independent calibration problem that only shares the calibration states with other partitions. Assuming non-degenerate motion and sufficient visual constraints, each of these partitions contains the 2 structurally unobservable modes of the visual-inertial optimization problem namely the rotation around the gravity vector (yaw in global frame) and the global position. These modes are eliminated from the optimization by keeping them constant for exactly one keyframe in each of the partitions to achieve efficient convergence of the iterative solvers.

We identify the partitions based on the co-visibility of landmarks and the connectivity through inertial constraints. An overview of the algorithm is shown in Alg. 2. In a first step, all segments that are direct temporal neighbors, and thus connected through inertial constraints, are joined into larger segments (e.g. segment 1 and 2). In a next step, we use a union-find data structure to iteratively partition the joined segments into disjoint sets (partitions) such that the number of co-observed landmarks between the partitions lies below a certain threshold. At this point, all keyframes within a partition are either constrained through inertial measurements or through sufficient landmark co-observations w.r.t. each other. It is important to note that degenerate landmark configurations are still possible using such a heuristic metric. However, an error will only influence the convergence rate of the incremental optimization but should not bias the calibration results.

Input: Set of motion segments
Input: Max. co-observed landmarks between partitions
Result: Set of motion segment partitions
;
foreach  do
        ;

        foreach  do
               if CountSharedLandmarks (, )  then
                      ;

               end if

        end foreach
        MergePartitions();

        ;

end foreach
Algorithm 2 Partitioning segments on landmark co-visibility

Vi Experimental Setup

This section introduces the experiments, datasets, and hardware used to evaluate the proposed method. The results are discussed in the next section.

Vi-a Single-/Multi Session Database

We evaluate the proposed method using two different strategies to maintain informative segments in the database. Each strategy is investigated using a set of multi-session datasets and discussed along a suitable use-case:

Vi-A1 Single-session Database: Observability-aware Sparsification of Calibration Datasets

Each session starts with an empty segment database and the most informative segments from this single session are kept. After each session, a segment-based calibration is performed using all the segments in the database and the calibration parameters are updated for use in the next session. This strategy can be seen as an observability-aware sparsification method for calibration datasets. It is well suited for infrequent and long sessions (e.g. navigation use-case with lots of still phases) where batch calibration over the entire dataset would be too expensive and data selection is necessary.

Vi-A2 Multi-session Database: Accumulation of Information over Time

The multi-session strategy does not reset the database between sessions and the most informative segments are collected from multiple consecutive sessions. In contrast to the single-session strategy, it is particularly suited for frequent and short sessions; for example in an AR/VR use-case where a user performs many short session over a short period of time. It accumulates information from multiple sessions and thus enables the calibration of weakly observable modes which might not be sufficiently excited in a single session.

Fig. 6: The Google Tango tablet used for the dataset collection is equipped with markers for external pose tracking by a Vicon motion-capture system. The tablet contains a sensor suite specifically designed for motion tracking including a high field-of-view camera and a single-chip MEMS IMU.
avg. length avg. linear /
dataset duration angular vel. description
AR/VR use-case:
  office room 23.8 m 0.20 m/s well-lit, good
    (5 sessions) 117.3 s 20.3 deg/s texture
  class room 37.4 m 0.29 m/s well-lit, open space,
    (5 sessions) 122.9 s 29.62 deg/s good texture
Navigation use-case:
  parking garage 168.4 m 0.57 m/s dark, low-texture
    (3 sessions) 305.0 s 20.51 deg/s walls, open space
  office building 164.8 m 0.55 m/s well-lit, good
    (3 sessions) 295.6 s 23.12 deg/s texture, corridors
Evaluation datasets:
  Vicon room 59.7 m 0.49 m/s motion-capture data,
    (15 sessions) 114.1 s 42.95 deg/s well-lit
TABLE II: Datasets used for the evaluation. All datasets have been recorded using a Google Tango tablet as shown in Fig. 6.
(a) AR/VR: office room
(b) AR/VR: class room
(c) NAV: parking garage
(d) NAV: office building
Fig. 7: The four different environments in which the calibration datasets have been recorded. The images were taken by the motion tracking camera of the Tango tablet.

Vi-B Datasets and Hardware

All datasets were recorded using a Google Tango tablet as shown in Fig. 6. This device uses a high-field-of-view global shutter camera (10 Hz) and a single-chip MEMS IMU (100 Hz). The measurements of both sensors are time-stamped in hardware on a single clock for an accurate synchronization. Additionally, the sensor rig is equipped with markers for external tracking by a Vicon motion capture system. All datasets were recorded on the same device, in a short period of time and while trying to keep the environmental factors constant (e.g. temperature) to minimize potential variations of the calibration parameters across the datasets and sessions.

We have collected datasets representative for each of the two use-cases introduced in the previous section in different environments (office, class room, and garage). These datasets consist of multiple sessions that will be used to obtain a calibration using the proposed method. Right after recording the calibration datasets, we have collected a batch of evaluation datasets with motion capture ground-truth. These datasets are used to evaluate the motion estimation accuracy that can be achieved using the obtained calibration parameters. An overview of all datasets and their characteristics is shown in Table II and Fig. 7.

While recording the calibration datasets, we tried to achieve the following characteristics representative for the two use-cases:

Vi-B1 AR/VR use-case

We collected datasets that mimic an AR/VR use-case to evaluate whether we can accumulate information from multiple-sessions (multi-session database strategy). Characteristic of this use-case, the datasets consists of multiple short sessions restricted to a small indoor space (single room), containing mostly fast rotations, only slow and minor translation and stationary phases. Two datasets have been recorded in a class and office room each containing sessions that are min long.

Vi-B2 Navigation use-case

In contrast to the AR/VR use-case, the navigation sessions contain mostly translation over an area of multiple rooms and only slow rotations but also contain stationary and rotation-only phases. Datasets have been recorded in two locations: garage and office - each contains sessions with a duration of min. These datasets will be used to evaluate the observability-aware sparsification (single-session database strategy).

Vi-C Evaluation Method

For performance evaluation, we calibrate the sensor models on each session of the dataset in temporal order where we use the calibration parameters obtained from the previous session as initial values. The first session uses a nominal calibration consisting of a relative pose between camera and IMU from CAD values, nominal values for the IMU intrinsics (unit scale factors, no axis misalignment) and camera intrinsics.

This calibration scheme is performed for all datasets and for both of the database strategies to obtain a set of calibration parameters for each session. The quality of the obtained calibration parameters is then evaluated using the following methods:

Vi-C1 Motion estimation performance

As the main objective of our work is to calibrate the sensor system for ego-motion estimation, we use the accuracy of the motion estimation (based on our calibrations) as the main evaluation metric. We run all

evaluation datasets for each set of calibration parameters and evaluate the accuracy of the estimated trajectory against the ground-truth from the motion-capture system.

The motion estimation error is obtained by first performing a spatio-temporal alignment of the estimated and the ground-truth trajectory. Second, a relative pose error is computed at each time-step between the two trajectories. To compare different runs, we use the root-mean-square error (RMSE) calculated over all the relative pose errors.

Vi-C2 Parameter repeatability

We only evaluate the parameter repeatability over different calibrations of the same device as no ground-truth for the calibration parameters is available. We have recorded all dataset close in time while keeping the environmental conditions (e.g. temperature) similar and avoiding any shocks to minimize potential variations of the calibration parameters between the datasets.

Vii Results and Discussion

In this section, we discuss the results of our experiments (Section VI) along the following questions:

  • Section VII-A: How accurate are motion estimates based on calibrations derived only from informative segments? How does it compare to the non-sparsified (batch) calibration?

  • Section VII-B: Does the sparsified calibration yield similar calibration parameters to the (full) batch problem?

  • Section VII-D: Can we accumulate informative segments from multiple sessions and perform a calibration where the individual session would not provide enough excitation for a reliable calibration?

  • Section VII-E: How does the proposed method compare against an EKF approach that jointly estimates motion and calibration parameters?

  • Section VII-C: How do the three different information metrics compare? Can we outperform random selection of segments?

  • Section VII-F: What segments are being selected as informative? What are their properties?

  • Section VII-G: How do we select the number of segments to retain in the database?

RMSE on VIO trajectory vs. motion capture ground-truth (translation [cm] / rotation [deg])
initial no sparsification sparsified (8 segments, each 4 seconds)
calibration (batch) E-optimality D-optimality A-optimality random joint EKF
AR/VR: office room 13.07 9.10 cm 1.50 0.89 cm 1.62 0.60 cm 1.76 0.59 cm 1.79 0.62 cm 3.99 2.49 cm 1.86 1.17 cm
1.18 0.60 deg 0.47 0.26 deg 0.34 0.12 deg 0.37 0.13 deg 0.35 0.13 deg 0.64 0.34 deg 0.49 0.27 deg
AR/VR: class room 13.09 9.13 cm 1.41 1.07 cm 1.79 0.75 cm 1.28 0.54 cm 1.42 0.57 cm 5.45 5.81 cm 2.44 1.71 cm
1.17 0.59 deg 0.46 0.25 deg 0.35 0.12 deg 0.34 0.12 deg 0.35 0.12 deg 0.77 0.54 deg 0.52 0.32 deg
NAV: parking garage 13.09 9.13 cm 4.66 34.73 cm 1.65 0.56 cm 2.14 1.03 cm 1.59 0.59 cm 4.97 3.56 cm 3.04 1.81 cm
1.17 0.59 deg 0.57 0.62 deg 0.31 0.11 deg 0.38 0.14 deg 0.31 0.11 deg 0.73 0.43 deg 0.55 0.29 deg
NAV: office building 13.13 9.17 cm 1.86 1.17 cm 1.68 0.62 cm 1.39 0.49 cm 1.26 0.45 cm 2.32 1.18 cm 2.56 1.60 cm
1.16 0.57 deg 0.51 0.27 deg 0.41 0.14 deg 0.34 0.12 deg 0.35 0.12 deg 0.50 0.27 deg 0.60 0.35 deg
TABLE III: Comparison of the motion estimation accuracy evaluated on VIO estimates when run with different calibration strategies. The errors are shown for calibrations obtained from a sparsified problem ( segments, seconds each) for three different information metrics and random selection as a baseline. For reference, the errors are given for the batch calibration (no sparsification), the initial calibration and a related EKF-based approach that uses the same VIO estimator but jointly estimates the calibration, the motion and scene structure (similar to [18]). All values show the median and standard deviation of the RMSE over all evaluation datasets using the calibration under investigation.

Vii-a Motion Estimation Performance using the Observability-aware Sparsification (Single-session Database)

In this experiment, we use a database of segments ( seconds each) which leads to a reduction of the sessions size by around % in the AR/VR use-case and % in the navigation use-case. To evaluate the observability-aware sparsification, we select the most informative segments for all sessions of a dataset independently. A segment-based calibration is then run over the selected segments to obtain an updated set of calibration parameters for each session. Finally, the VIO motion estimation accuracy is evaluated for each calibration on all of the evaluation datasets as described in Section VI-C1. The resulting statistics of the RMSE are shown in Table III for each dataset. The mean of rotation states corresponds to the rotation angle of the averaged quaternion as described in [35] and the standard deviation is derived from rotation angles between the samples and the averaged quaternion. For comparison, the same evaluations have been performed for the initial and batch calibration (no sparsification).

The calibrations obtained with the sparsified dataset yield very similar motion estimation performance when compared to full batch calibrations. This indicates that the proposed method can indeed sparsify the calibration problem while retaining the relevant portion of the dataset and still provide a calibration with motion estimation performance close to the non-sparsified problem. It is interesting to note, that the sparsification to a fixed number of segments keeps the calibration problem complexity bounded while the complexity of the batch problem is (potentially) unbounded when used on large datasets with redundant and non-informative sections.

Vii-B Repeatability of Estimated Calibration Parameter

As we have no ground-truth for the calibration parameters, we can only evaluate their repeatability across multiple calibrations of the same device. The statistics over all calibration parameters obtained with all sessions of the class room datasets are shown in Table IV. We used the same sparsification parameters as in Section VII-A ( segments, each seconds).

The experiments show that the deviation between the full-batch and sparsified solution remain insignificant in mean and standard deviation even though % of the trajectory has been removed. This is a good indication that the sparsified calibration problem is a good approximation to the complete problem.

parameter proposed method batch joint EKF
(sparsified) (complete dataset) (complete dataset)
[px] 255.79   0.60 256.30   0.22 -
255.68   0.67 256.31   0.27 -
[px] 313.63   0.67 313.19   0.63 -
241.62   1.17 243.16   0.18 -
[-] 0.9203   0.0009 0.9208   0.0008 -
[-] -2.82e-03   1.32e-03 -2.11e-03   2.27e-04 2.39e-03   2.06e-03
4.33e-03   4.83e-03 4.02e-03   2.70e-04 7.71e-03   3.08e-03
-1.21e-03   5.18e-04 -1.54e-03   4.18e-04 2.61e-03   3.90e-03
[-] -9.70e-03   1.50e-02 -1.85e-02   3.07e-03 -1.64e-02   6.54e-03
-1.16e-02   1.17e-02 -1.65e-02   1.19e-03 -1.24e-02   5.59e-03
-1.95e-02   7.38e-03 -1.86e-02   1.48e-03 -1.34e-02   2.43e-03
[-] -3.22e-04   1.69e-03 7.36e-04   6.56e-04 1.03e-03   8.78e-04
2.37e-03   1.95e-03 3.96e-04   2.30e-04 -7.36e-04   1.32e-03
-6.78e-04   1.60e-03 -4.95e-05   1.17e-03 -9.82e-04   1.77e-03
[deg] 1.897   0.428 1.504   0.010 1.368   0.150
[-] 2.11e-02   1.11e-02 1.35e-02   1.54e-03 1.68e-02   5.05e-03
-3.68e-02   1.11e-02 -2.78e-02   2.59e-03 -2.76e-02   6.78e-03
-7.93e-03   9.30e-03 -3.19e-03   1.21e-03 -7.92e-04   2.99e-03
[m] 1.06e-03   4.01e-03 4.93e-03   2.33e-03 5.43e-03   3.68e-03
4.62e-03   1.86e-02 7.05e-04   2.17e-03 4.09e-04   2.85e-03
-1.48e-02   1.12e-02 -6.09e-03   4.08e-03 -1.19e-02   6.77e-03
[deg] 1.174   0.133 1.065   0.071 0.753   0.069
TABLE IV: Mean and standard deviation of the estimated calibration parameters for the sparsified calibration problem (8 segments, 4 seconds), the batch solution and the final estimate of the joint EKF run on the complete dataset. The statistics have been derived from the calibrations obtained on all session of the AR/VR use-case dataset. The joint EKF only estimates the IMU intrinsics and the camera-IMU relative pose, therefore no values are given for the camera intrinsics.

Vii-C Comparison of Information Metrics

In Section V-B, we have proposed three different information metrics to compare trajectory segments for their information w.r.t. to the calibration parameters. The same evaluation performed for the sparsification use-case (Section VII-A) has been repeated for each of the proposed metrics and, as a baseline, also for calibrations based on randomly selected segments. The motion estimation errors based on these calibration is reported in Table III.

The motion estimation error is around - times larger when randomly selecting the same amount of data indicating that the proposed metrics successfully identify informative segments for calibration. It is important to note, that this comparison heavily depends on the ratio of informative / non-informative motion in the dataset and therefore this error might be larger when there is less excitation in a given dataset. In general, all three metrics show comparable performance, however, the A-optimality criteria performed slightly better on the navigation and the D-optimality on the AR/VR use-case.

Vii-D Accumulation of Information over Time: Single- vs Multi-session Database

In this section, we evaluate whether the proposed method can accumulate informative segments from multiple consecutive sessions to obtain a better and more consistent calibration than the individual session would yield. This is especially important in scenarios where a single session often would not provide enough excitation for a reliable calibration. The evaluations were performed on the AR/VR use-case datasets which consist of multiple short sessions. We use the A-optimality criteria to select the most informative segments of each sessions and maintain them in the database ( segments, seconds). In contrast to the sparsification use-case from Section VII-A, the database is not reset between the sessions. In other words, the database will collect the most informative segments from the first up to the current session. After each session, a calibration is triggered using all segments of the database. These calibrations are then used to evaluate the motion estimation error on all evaluation datasets. The results are shown in Fig. 8 for the class room dataset.

The evaluation shows that the motion estimation error decreases as the number of sessions increases (from which informative segments have been selected). Further, the motion estimation error is smaller when compared to calibrations based on the most informative segments from individual sessions. After around sessions the estimation performance is close to what would be achieved using a batch calibration. This indicates that the proposed method can accumulate information from multiple sessions while the number of segments in the database remains constant. It can therefore provide a reliable calibration when a single session would not provide enough excitation.

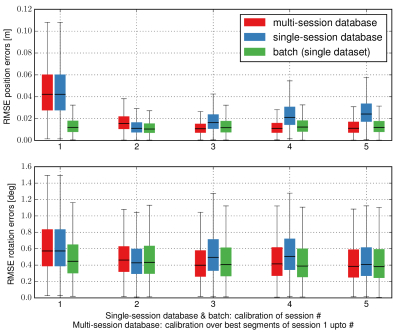

Fig. 8: Comparing the VIO motion estimation RMSE for calibrations obtained with two different database strategies. A fixed number of the most informative segments ( segments each seconds) have been collected either: (a) incrementally over all datasets (multi-session: Section VI-A2), or (b) only from a single dataset (single-session: Section VI-A1). The motion estimation errors have been evaluated for all obtained calibrations based on these segments. For example, the calibration of session (x=3) and method (a), in red, is based on the most informative segments from the sessions - and for method (b), in blue, on the most informative segments from session alone. The batch solution (green) uses all segments of a single dataset.

Vii-E Comparison vs. joint Ekf

In this section, we compare the proposed method against an EKF filter that jointly estimates the motion, scene structure and the calibration parameters (similar to [18]). In our implementation, we only estimate the IMU intrinsics and the relative pose between the camera and IMU. The camera intrinsics are not estimated and set to parameters obtained with a batch calibration on the same dataset.

We evaluated the motion estimation errors on all datasets and report the results in Table III. The resulting calibration parameters are compared to the proposed method and batch solution in Table IV. The evaluations show a position error that is up to times larger compared to calibrations obtained with the proposed method or a batch calibration. When looking at the state evolution of e.g. the misalignment factors, as shown in Fig. 9 for one of the datasets, it can be seen that it converges roughly to the batch estimate but does not remain stable over time. We see this as an indication that the local scope of the EKF is not able to infer weakly observable states properly and thus a segment-based (sliding-window) approach is beneficial in providing a stable and consistent solution over time.

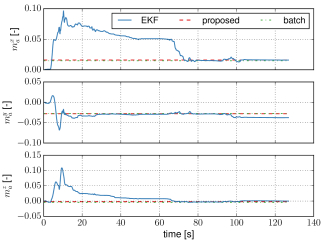

Fig. 9: Misalignment of the gyroscope axis estimated by the EKF on one of the sessions in the class room dataset. The EKF jointly estimate the motion, structure and calibration parameters in a single filter. For comparison, the estimates obtained with the proposed method and the batch estimator are shown.

Vii-F Selected Informative Segments

In this section, we investigate the motion that is being selected as informative by the proposed method. Fig. 10 shows the most informative segments that have been selected in one of the session of the navigation use-case. We only show the first minute of the session as otherwise the trajectory would start to overlap. It can be seen that the information metric correlates with changes in linear and rotational velocity and therefore mostly segments containing turns have been selected while straight segments have been found to be less informative. This experiment seems to confirm the intuition that segments with larger accelerations and rotational velocities are more informative for calibration.

Fig. 10: The most informative segments identified using the A-optimality criteria in one of the sessions of the navigation use-case (a lower value indicates more information). The metric correlates with changes in the linear and rotational velocity and therefore mostly segments during turns have been selected whereas the straight segments were found to be less informative.

Vii-G Influence of Database Size on the Calibration Quality

In this experiment, we investigate the effect of the database size on the calibration quality to find the minimum amount of data required for a reliable calibration. We sparsify all sessions of all datasets repeatably to retain to of the most informative segments. A segment-based calibration is then run on each of the sparsified datasets and the motion estimation error is evaluated on all evaluation datasets. The segment duration was chosen as seconds from geometrical considerations such that segments span a sufficiently large distance for landmark triangulation with the assumption that the system moves at a steady walking speed. The median of the RMSE over all evaluation datasets is shown in Fig. 11.

The motion estimation error seems to stabilize when using more than segments. Based on these experiments, we have selected a database size of segments as a reasonable trade-off between calibration complexity and quality and used this value for all the evaluations in this work. It is important to note, that the amount of data required for a reliable calibration depends on the sensor models, the expected motion and the environment and a re-evaluation might become necessary if these parameters change. In future work, we plan to investigate methods to determine the information content of the database directly to avoid a selection of this parameter.

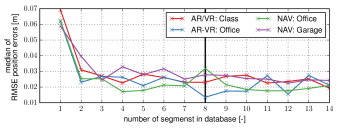

Fig. 11: Median of the motion estimation error for different levels of calibration datasets sparsification. The error seems to stabilize when using more than segments and we found that segments provides a reasonable trade-off between complexity and quality.

Vii-H Run-time

Table V reports the measured run-times of the proposed method and the batch calibration for the experiments of Section VII-A. Both optimizations use the same number of steps and the same initial conditions.

It is important to note, that the complexity and thus run-time of the batch method is unbounded when the duration of the sessions increase. The run-time of the proposed method, however, remains constant as we only include a constant amount of informative data. This property makes the proposed method well-suited for systems performing long sessions.

proposed
method
batch
joint
EKF
VIO (each image) 0.003 s - 0.003 s
Data selection (each segment) 0.156 s - -
Calibration (each dataset) 12.050 s 27.028 s -
TABLE V: Evaluation of the run-time for the proposed method, batch estimator and joint-EKF obtained while running the experiments of Section VII-A. The run-time of the batch calibration is unbounded as the calibration dataset increase. The run-time of the proposed method, however, only depends on the number of collected informative segments and therefore has an upper bound.

Viii Conclusion

We have proposed an efficient self-calibration method for visual and inertial sensors which runs in parallel to an existing motion estimation framework. In a background process, an information-theoretic metric is used to quantify the information content of motion segments and a fixed number of the most informative are maintained in a database. Once enough data has been collected, a segment-based calibration is triggered to update the calibration parameters. With this method, we are able to collect exciting motion in a background process and provide reliable calibration with the assumption that such motion occurs eventually - making this method well-suited for consumer devices where the users often do not know how to excite the system properly.

An evaluation on motion capture ground-truth shows that the calibrations obtained with the proposed method achieve comparable motion estimation performance to full batch calibrations. However, we can limit the computational complexity by only considering the most informative part of a dataset and thus enable calibration even on long sessions and resource-constrained platforms where a full-batch calibration would be unfeasible. Further, our evaluations show that we can not only sparsify single-session datasets but also accumulate information from multiple sessions and thus perform reliable calibrations when a single-session would not provide enough excitation. The comparison of three information metrics indicates that A-optimality could be selected for navigation purposes while D-optimality looks like a good compromise for AR/VR applications.

In future work, we would like to investigate methods to dynamically determine the segment boundaries instead of using a fixed segment length and also account for temporal variations in the calibration parameters by detecting and removing outdated segments from a database.

Acknowledgements

We would like to thank Konstantine Tsotsos, Michael Burri and Igor Gilitschenski for the valuable discussions and inputs. This work was partially funded by Google’s Project Tango.

References

  • Rehder et al. [2016] J. Rehder, J. Nikolic, T. Schneider, T. Hinzmann, and R. Siegwart, “Extending kalibr: Calibrating the extrinsics of multiple imus and of individual axes,” in IEEE International Conference on Robotics and Automation (ICRA), 2016, pp. 4304–4311.
  • Schneider et al. [2017] T. Schneider, M. Li, M. Burri, J. Nieto, R. Siegwart, and I. Gilitschenski, “Visual-inertial self-calibration on informative motion segments,” in IEEE International Conference on Robotics and Automation (ICRA), 2017, pp. 6487–6494.
  • Leutenegger et al. [2015] S. Leutenegger, S. Lynen, M. Bosse, R. Siegwart, and P. Furgale, “Keyframe-based visual–inertial odometry using nonlinear optimization,” The International Journal of Robotics Research, vol. 34, no. 3, pp. 314–334, 2015.
  • Mourikis and Roumeliotis [2007] A. I. Mourikis and S. I. Roumeliotis, “A multi-state constraint kalman filter for vision-aided inertial navigation,” in Proceedings 2007 IEEE International Conference on Robotics and Automation, 2007, pp. 3565–3572.
  • Bloesch et al. [2015] M. Bloesch, S. Omari, M. Hutter, and R. Siegwart, “Robust visual inertial odometry using a direct ekf-based approach,” in Intelligent Robots and Systems (IROS), 2015 IEEE/RSJ International Conference on.   IEEE, 2015, pp. 298–304.
  • Qin et al. [2018] T. Qin, P. Li, and S. Shen, “Vins-mono: A robust and versatile monocular visual-inertial state estimator,” IEEE Transactions on Robotics, vol. 34, no. 4, pp. 1004–1020, 2018.
  • Schneider et al. [2018] T. Schneider, M. T. Dymczyk, M. Fehr, K. Egger, S. Lynen, I. Gilitschenski, and R. Siegwart, “maplab: An open framework for research in visual-inertial mapping and localization,” IEEE Robotics and Automation Letters, 2018.
  • Hartley and Zisserman [2003] R. Hartley and A. Zisserman,

    Multiple view geometry in computer vision

    .   Cambridge university press, 2003.
  • Alves et al. [2003] J. Alves, J. Lobo, and J. Dias, “Camera-inertial sensor modelling and alignment for visual navigation,” Machine Intelligence and Robotic Control, vol. 5, no. 3, pp. 103–112, 2003.
  • Lobo and Dias [2007] J. Lobo and J. Dias, “Relative pose calibration between visual and inertial sensors,” The International Journal of Robotics Research, vol. 26, no. 6, pp. 561–575, 2007.
  • Mirzaei and Roumeliotis [2008] F. M. Mirzaei and S. I. Roumeliotis, “A kalman filter-based algorithm for imu-camera calibration: Observability analysis and performance evaluation,” IEEE Transactions on Robotics, vol. 24, no. 5, pp. 1143–1156, 2008.
  • Zachariah and Jansson [2010] D. Zachariah and M. Jansson, “Joint calibration of an inertial measurement unit and coordinate transformation parameters using a monocular camera,” in International Conference on Indoor Positioning and Indoor Navigation (IPIN), 2010, pp. 1–7.
  • Furgale et al. [2013] P. Furgale, J. Rehder, and R. Siegwart, “Unified temporal and spatial calibration for multi-sensor systems,” in International Conference on Intelligent Robots and Systems (IROS).   IEEE, 2013, pp. 1280–1286.
  • Krebs [2012] C. Krebs, “Generic imu-camera calibration algorithm: Influence of imu-axis on each other,” Autonomous Systems Lab, ETH Zurich, Tech. Rep, 2012.
  • Nikolic et al. [2016] J. Nikolic, M. Burri, I. Gilitschenski, J. Nieto, and R. Siegwart, “Non-parametric extrinsic and intrinsic calibration of visual-inertial sensor systems,” IEEE Sensors Journal, vol. 16, no. 13, pp. 5433–5443, 2016.
  • Kelly and Sukhatme [2011] J. Kelly and G. S. Sukhatme, “Visual-inertial sensor fusion: Localization, mapping and sensor-to-sensor self-calibration,” The International Journal of Robotics Research, vol. 30, no. 1, pp. 56–79, 2011.
  • Patron-Perez et al. [2015] A. Patron-Perez, S. Lovegrove, and G. Sibley, “A spline-based trajectory representation for sensor fusion and rolling shutter cameras,” International Journal of Computer Vision, vol. 113, no. 3, pp. 208–219, 2015.
  • Li et al. [2014] M. Li, H. Yu, X. Zheng, and A. I. Mourikis, “High-fidelity sensor modeling and self-calibration in vision-aided inertial navigation,” in IEEE International Conference on Robotics and Automation (ICRA), 2014, pp. 409–416.
  • Li and Mourikis [2014] M. Li and A. I. Mourikis, “Online temporal calibration for camera–imu systems: Theory and algorithms,” The International Journal of Robotics Research, vol. 33, no. 7, pp. 947–964, 2014.
  • Richardson et al. [2013] A. Richardson, J. Strom, and E. Olson, “Aprilcal: Assisted and repeatable camera calibration,” in IEEE International Conference on Intelligent Robots and Systems (IROS), 2013, pp. 1814–1821.
  • Bähnemann et al. [2017] R. Bähnemann, M. Burri, E. Galceran, R. Siegwart, and J. Nieto, “Sampling-based motion planning for active multirotor system identification,” in IEEE International Conference on Robotics and Automation (ICRA), 2017, pp. 3931–3938.
  • Hausman et al. [2017] K. Hausman, J. Preiss, G. S. Sukhatme, and S. Weiss, “Observability-aware trajectory optimization for self-calibration with application to uavs,” IEEE Robotics and Automation Letters, 2017.
  • Preiss et al. [2017] J. A. Preiss, K. Hausman, G. S. Sukhatme, and S. Weiss, “Trajectory optimization for self-calibration and navigation,” in Robotics: Science and Systems (RSS), 2017.
  • Maye et al. [2013] J. Maye, P. Furgale, and R. Siegwart, “Self-supervised calibration for robotic systems,” in IEEE Intelligent Vehicles Symposium (IV), 2013, pp. 473–480.
  • Keivan and Sibley [2014] N. Keivan and G. Sibley, “Constant-time monocular self-calibration,” in International Conference on Robotics and Biomimetics (ROBIO), 2014, pp. 1590–1595.
  • Nobre et al. [2016] F. Nobre, C. R. Heckman, and G. T. Sibley, “Multi-sensor slam with online self-calibration and change detection,” in International Symposium on Experimental Robotics.   Springer, 2016, pp. 764–774.
  • Nobre et al. [2017] F. Nobre, M. Kasper, and C. Heckman, “Drift-correcting self-calibration for visual-inertial slam,” in IEEE International Conference on Robotics and Automation (ICRA), 2017, pp. 6525–6532.
  • Li and Mourikis [2013] M. Li and A. I. Mourikis, “High-precision, consistent EKF-based visual–inertial odometry,” The International Journal of Robotics Research, vol. 32, no. 6, pp. 690–711, 2013.
  • Trawny and Roumeliotis [2005] N. Trawny and S. I. Roumeliotis, “Indirect kalman filter for 3d attitude estimation,” University of Minnesota, Dept. of Comp. Sci. & Eng., Tech. Rep, vol. 2, 2005.
  • Zhang et al. [2016] Z. Zhang, H. Rebecq, C. Forster, and D. Scaramuzza, “Benefit of large field-of-view cameras for visual odometry,” in IEEE International Conference on Robotics and Automation (ICRA), 2016, pp. 801–808.
  • Devernay and Faugeras [2001] F. Devernay and O. Faugeras, “Straight lines have to be straight,” Machine vision and applications, vol. 13, no. 1, pp. 14–24, 2001.
  • Woodman [2007] O. J. Woodman, “An introduction to inertial navigation,” University of Cambridge, Computer Laboratory, Tech. Rep. UCAM-CL-TR-696, Aug. 2007. [Online]. Available: https://www.cl.cam.ac.uk/techreports/UCAM-CL-TR-696.pdf
  • Zhang [2000] Z. Zhang, “A flexible new technique for camera calibration,” TPAMI, vol. 22, no. 11, pp. 1330–1334, 2000.
  • [34] S. Agarwal, K. Mierle, and Others, “Ceres solver,” http://ceres-solver.org.
  • Markley et al. [2007] F. L. Markley, Y. Cheng, J. L. Crassidis, and Y. Oshman, “Averaging quaternions,” Journal of Guidance, Control, and Dynamics, vol. 30, no. 4, pp. 1193–1197, 2007.
