Imitation learning (IL) holds the promise of learning skills or behaviors directly from expert demonstrations, effectively reducing the need for costly and dangerous environment interaction Hussein et al. (2017); Schaal and others (1997)
. Its simplest and effective form is behavioral cloning (BC), which learns a policy by solving a supervised learning problem over state-action pairs from expert demonstrations. While being simple, BC has been successful in a wide range of tasksBansal et al. (2019); Bojarski et al. (2016); Mahler and Goldberg (2017); Muller et al. (2006) with careful designs. However, it has been recently evidenced that BC often suffers from the causal confusion problem, where the policy relies on nuisance variables strongly correlated with expert actions, instead of the true causes Codevilla et al. (2019); de Haan et al. (2019); Wen et al. (2020).
For example, when we train a BC policy on the Atari Pong environment (see Figure (a)a), we observe that a policy relies on nuisance variables in images (i.e., scores) for predicting expert actions, instead of learning the underlying fundamental rule of the environment that experts would have used for making decisions. In particular, Table (c)c shows that the policy trained using images with scores struggles to generalize to images with scores masked out (see Figure (b)b). However, the policy trained with masked images could generalize to original images with scores, which shows that it successfully learned the rule of the environment. This implies that learning the policy that can identify the true cause of expert actions is important for stable performance at deployment time, where nuisance correlates usually do not hold as in expert demonstrations.
In order to address this causal confusion problem, one can consider causal discovery approaches to deduce the cause-effect relationships from observational data Le et al. (2016); Spirtes et al. (2000). However, it is difficult to apply these approaches to domains with high-dimensional inputs, as (i) causal discovery from observational data is impossible in general without certain conditions111de Haan et al. (2019) showed that causal discovery methods that depend on faithfulness condition Pearl (2009) are not applicable to imitation learning setup, as the condition does not hold in environments with nuisance correlates. Pearl (2009)
, and (ii) these domains usually do not satisfy the assumption that inputs are structured into random variables connected by a causal graph, e.g., objects in imagesLopez-Paz et al. (2017); Schölkopf (2019). To address these limitations, de Haan et al. (2019) recently proposed a method that learns a policy on top of disentangled representations from a -VAE encoder Higgins et al. (2017) with random masking, and infers an optimal causal mask during the environment interaction by querying interactive experts Ross et al. (2011) or environment returns. However, given that environment interaction could be dangerous and incur additional costs, we argue that it is important to develop a method for learning the policy robust to causal confusion problem without such a costly environment interaction.
In this paper, we present OREO: Object-aware REgularizatiOn, a new regularization technique that addresses the causal confusion problem in imitation learning without environment interaction. The key idea of our method is to regularize a policy to attend uniformly to all semantic objects in images, in order to prevent the policy from exploiting nuisance correlates for predicting expert actions. To this end, we propose to extract semantic objects from raw images by utilizing vector-quantized variational autoencoder (VQ-VAE) Oord et al. (2017). In our experiments, we discover that the units of a feature map corresponding to the objects with similar semantics, e.g., backgrounds, scores, and characters, are mapped into the same or similar discrete codes (see Figure 6). Based upon this observation, we propose to regularize the policy by randomly dropping units that share the same discrete code together throughout training. Namely, our method randomly masks out semantically similar objects, which allows object-aware regularization of the policy.
We highlight the main contributions of this paper below:
We present OREO, a simple and effective regularization method for addressing the causal confusion problem, and support the effectiveness of OREO with extensive experiments.
We show that OREO significantly improves the performance of behavioral cloning on confounded Atari environments Bellemare et al. (2013); de Haan et al. (2019), outperforming various other regularization methods DeVries and Taylor (2017); Ghiasi et al. (2018); Yarats et al. (2021); Srivastava et al. (2014) and causality-based methods de Haan et al. (2019); Shen et al. (2018).
2 Related work
Imitation learning (IL) aims to solve complex tasks where learning a policy from scratch is difficult or even impossible, by learning useful skills or behaviors from expert demonstrations Aytar et al. (2018); Hester et al. (2018); Le et al. (2017); Pathak et al. (2018); Pohlen et al. (2018); Pomerleau (1989); Ye and Alterovitz (2017). There are two main approaches for IL: inverse reinforcement learning (IRL) methods that find a cost function under which the expert is uniquely optimal Brantley et al. (2020); Ho and Ermon (2016); Ng et al. (2000); Russell (1998); Ziebart et al. (2008), and behavioral cloning methods that formulate the IL problem as a supervised learning problem that predicts expert actions from states Bain and Sammut (1996); Bansal et al. (2019); Bojarski et al. (2016); Mahler and Goldberg (2017); Muller et al. (2006); Pomerleau (1989). Our work employs behavioral cloning as it exhibits the benefit of avoiding costly and dangerous environment interaction, which is crucial for applying imitation learning to real-world scenarios.
Distributional shift and the causal confusion problem.
Despite its simplicity, BC is known to suffer from the distributional shift, where the state distribution induced by a policy gets different from the training distribution on which the policy was trained. Several approaches have been proposed for learning the policy robust to distributional shift, including interactive IL methods that query experts Ross and Bagnell (2014); Ross et al. (2011); Sun et al. (2017), and regularization techniques Bansal et al. (2019); Bojarski et al. (2016). Recently, it has been evidenced that distributional shift leads to the causal confusion problem Bansal et al. (2019); de Haan et al. (2019); Wen et al. (2020) where a policy exploits the nuisance correlates in states for predicting expert actions. To address this problem, Bansal et al. (2019) proposed to randomly drop previous samples from a sequence of samples, and Wen et al. (2020) proposed an adversarial training scheme of removing information related to previous actions. The work closest to ours is de Haan et al. (2019), which learns a policy with randomly masked disentangled representations and infers the best mask through during environment interaction. Our approach differs in that we regularize the policy to be robust to the causal confusion problem, without any environment interaction.
Causal discovery from observational data.
Causal discovery aims to discover causal relations among variables by utilizing observational data Pearl (2009). Most prior approaches assume that inputs are structured as disentangled variables Bengio et al. (2020); Goyal et al. (2019); Le et al. (2016); Parascandolo et al. (2018); Spirtes et al. (2000); Shen et al. (2018), which often does not hold in domains with high-dimensional inputs, i.e., images. While Lopez-Paz et al. (2017) demonstrated the possibility of observational causal discovery from high-dimensional images, combining causal models and representation learning in such domains still remains an open problem Schölkopf (2019). Hence, we instead explore the approach of regularizing a policy that operates on high-dimensional states.
We consider the standard imitation learning (IL) framework where an agent learns to solve a target task from expert demonstrations. Specifically, IL is typically defined in the context of a discrete-time Markov decision process (MDP)Sutton and Barto (2018) without an explicitly-defined reward function, which is defined as a tuple . Here, is the state space, is the action space, is the transition dynamics, is the initial state distribution, and is the discount factor. The goal of IL is to learn a policy , mapping from states to actions, using a set of expert demonstrations . In our problem setup, an agent cannot interact with the environment, hence it should learn the policy by using only expert demonstrations.
Behavioral cloning. Behavioral cloning (BC) reduces an imitation learning problem to the supervised learning problem of training a policy that imitates expert actions. Specifically, we introduce a policy that maps a state to an action , and a convolutional encoder that maps a state to a low-dimensional feature map. Then and are learned by minimizing the negative log-likelihood of expert actions from demonstrations as follows:
where is modeled as a multinomial distribution over actions to handle discrete action spaces.
Vector quantized variational autoencoder.
The VQ-VAE Oord et al. (2017) model consists of an encoder that compresses images into discrete latent representations, and a decoder that reconstructs images from these discrete representations. Both encoder and decoder share a codebook of prototype vectors which are also learned throughout training. Formally, given a state , the encoder encodes into a feature map that consists of a series of latent vectors . Then is quantized to discrete representations based on the distance of latent vectors to the prototype vectors in the codebook as follows:
where is the set . Then the decoder learns to reconstruct from discrete representations . The VQ-VAE is trained by minimizing the following objective:
where the operator refers to a stop-gradient operator, is a reconstruction loss for learning representations useful for reconstructing images, is a codebook loss to bring codebook representations closer to corresponding encoder outputs , and is a commitment loss weighted by to prevent encoder outputs from fluctuating frequently between different representations.
3.2 OREO: Object-aware regularization for behavioral cloning

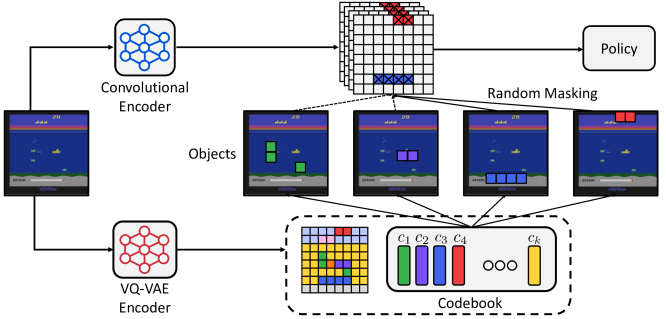

In this section, we present OREO: Object-aware REgularizatiOn that regularizes a policy in an object-aware manner to address the causal confusion problem. Our main idea is to encourage the policy to uniformly attend to all semantic objects in images, in order to prevent the policy from exploiting nuisance variables strongly correlated with expert actions. To this end, we introduce a two-stage approach: we first train a VQ-VAE model that encodes images into discrete codes, then learn the policy with our regularization scheme of randomly dropping units that share the same discrete codes (see Figure 5 and Algorithm 1 for the overview and pseudocode of OREO, respectively).
Extracting semantic objects.
To regularize a policy in an object-aware manner, we propose to utilize discrete representations from a VQ-VAE model trained by optimizing the objective in (3) with images from expert demonstrations . Our motivation comes from the observation that the units of a feature map corresponding to similar objects are mapped into similar discrete codes (see Figure 6). Then, in order to extract semantic objects from images and utilize them for regularizing the policy, we propose to randomly drop the units of a feature map that share the same discrete code together throughout training. Formally, for each state , we sample binary random variables ,, where is the drop probability. Then, we construct a mask by utilizing the discrete representations in (2) as follows:

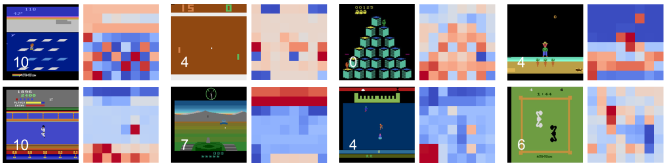

By considering units of a feature map with the same discrete code, we remark that our method can effectively extract semantic objects from high-dimensional images.
Behavioral cloning with OREO.
Now we propose to utilize our object-aware masking scheme for the regularization of a policy. To this end, we first initialize a convolutional encoder with the parameters of a VQ-VAE encoder . We empirically find that employing as our backbone encoder for instead of a fixed encoder is more effective, as it allows an encoder to learn useful information for predicting actions. Then, we train the policy by minimizing the following objective:
where denotes elementwise product, and the mask is shared across all channels in a feature map . Here, our intuition is that our object-aware regularization scheme should be useful for enforcing the policy not to exploit specific objects strongly correlated with expert actions, as the policy should utilize all semantic objects throughout training. Additionally, following Srivastava et al. (2014), we scale the masked features by a factor of during the training to ensure the scale of the expected output with masked features to match the scale of outputs at test time.
In this section, we designed our experiments to answer the following questions:
How does OREO compare to other regularization schemes that randomly drop units from a feature map Ghiasi et al. (2018); Srivastava et al. (2014), data augmentation schemes DeVries and Taylor (2017); Yarats et al. (2021), and causality-based methods de Haan et al. (2019); Shen et al. (2018) (see Table 1)?
Can OREO improve BC using various sizes of expert demonstrations (see Figure 16)?
Can OREO also address the causal confusion problem when inputs are high-dimensional, complex real-world images (see Table 3)?
Environments and datasets.
We evaluate OREO on 27 Atari environments Bellemare et al. (2013), which are selected by following prior works de Haan et al. (2019); Srinivas et al. (2020). Following de Haan et al. (2019), we consider confounded Atari environments, where images are augmented with previous actions (see Figure 10). We utilize a single frame as an input to a policy, to focus on the causal confusion problem from nuisance correlates in the current state222 We refer to Wen et al. (2020) for the discussion on the causal confusion problem from stacking states. While we mainly focus on the single frame setup, OREO is also effective on multiple frame setup (see Appendix F).
. In our experiments, we report two evaluation metrics: average score from environments and human-normalized score (HNS :=), following Mnih et al. (2015). For expert demonstrations, we utilize DQN Replay dataset Agarwal et al. (2020). As this dataset consists of 50M transitions of each environment collected during the training of a DQN agent Mnih et al. (2015), we use the last trajectories as expert demonstrations. We preprocess input images to grayscale images of , by utilizing Dopamine library Castro et al. (2018). We provide more details in Appendix B.
Performance of policies trained on various confounded Atari environments without environment interaction. OREO achieves the best score on 15 out of 27 environments, and the best median and mean human-normalized score (HNS) over all environments. The results for each environment report the mean of returns averaged over eight runs. We provide standard deviations in AppendixI. CCIL denotes the results without environment interaction.
We use a single Nvidia P100 GPU and 8 CPU cores for each training run. The training time for OREO is hours on the dataset of size , compared to
hours for BC, which is because OREO additionally trains a VQ-VAE model. As for hyperparameter selection, we use the default hyperparameters from previous or similar worksOord et al. (2017); Srivastava et al. (2014), i.e., a drop probability of , a codebook size of , and a commitment cost of . We use the same hyperparameters across all environments. We report the results over runs unless specified. Source code and more details on implementation are available in Appendix A and B, respectively.
We consider BC as the most basic baseline method. To evaluate the effectiveness of our object-aware regularization scheme, we compare to regularization techniques that drop the randomly sampled units (i.e., Dropout Srivastava et al. (2014)) or randomly sampled blocks (i.e., DropBlock Ghiasi et al. (2018)) from the feature map of a convolutional encoder. We also compare to data augmentation schemes, i.e., Cutout DeVries and Taylor (2017) that randomly masks out a square patch from images, and RandomShift Yarats et al. (2021) that randomly shifts pixels of images for regularization. We also consider the method of de Haan et al. (2019) that learns a policy on top of disentangled representations from a -VAE Higgins et al. (2017)
(i.e., CCIL), and an observational causal inference method that estimates the causal contribution of each variable by confounder balancing (i.e., CRLRShen et al. (2018)). We provide the details for baselines in Appendix B and H.
Table 1 shows the performance of various methods that learn a policy without environment interaction. OREO significantly improves the performance of BC in most environments, outperforming other regularization techniques. In particular, OREO achieves the mean HNS of 105.6%, while the second-best method, i.e., DropBlock, achieves 91.7%. This demonstrates that our object-aware regularization scheme is indeed effective for addressing the causal confusion problem (see Figure 17 for qualitative experimental results). We found that CCIL without environment interaction does not exhibit strong performance in most environments, possibly due to the difficulty of learning disentangled representations from high-dimensional images Locatello et al. (2019). We also provide experimental results for CCIL with environment interaction in Appendix D, where the performance slightly improves but overall trends are similar. We observe that CRLR underperforms in most environments, which shows the difficulty of causal inference from high-dimensional images. We emphasize that OREO also outperforms other baselines in original Atari environments, which implies that our method is also effective for addressing the causal confusion that naturally occurs (see Figure 4). We provide experimental results for the original setup in Appendix C.
Comparison with inverse reinforcement learning methods.
To demonstrate that OREO can exhibit strong performance without environment interaction, we compare our method to inverse reinforcement learning (IRL) methods that first learn a reward function using expert demonstrations, and train a policy with environment interaction using learned reward function. Specifically, we consider GAIL Ho and Ermon (2016), a method that learns reward function by discriminating expert states from on-policy states during environment interaction; and DRIL Brantley et al. (2020), one of the strongest IRL methods that utilizes the disagreement between ensemble policies as a reward function. As shown in Figure 11, we observe that OREO exhibits superior performance to GAIL and DRIL on most confounded Atari environments, which are trained with 20M environment steps following the setup in Brantley et al. (2020). While IRL methods might outperform OREO asymptotically with more environment interaction, this result demonstrates that OREO indeed allows for achieving strong performance without interaction. We also found that GAIL exhibits almost zero performance in most environments, which is similar to the observation of previous works that GAIL suffers in environments with high-dimensional image inputs Brantley et al. (2020); de Haan et al. (2019); Reddy et al. (2020). We remark that OREO can also be applied to IRL methods (see Appendix E for relevant experimental results of DRIL + OREO on confounded Atari environments).
Why is regularization necessary in confounded environments?
A simple and widely used approach to address the overfitting problem in supervised learning is a model selection with a validation dataset. To see how this works in our setup, we first introduce a validation dataset consisting of expert demonstrations on confounded Pong environment, and visualize the scores and validation accuracies measured by a policy learned with BC in Figure (a)a. We observe that this simple scheme is not helpful for confounded Atari environments, i.e., validation accuracy is not aligned with the score at test time, because the distribution of the validation dataset could be significantly different from the distribution induced by a learned policy. As the evaluation of the policy in environments during training could be dangerous or even impossible, this result implies that regularizing the policy is necessary for successful imitation learning in confounded environments.
Effects of hyperparameters.
We investigate the effect of two major hyperparameters, i.e., for the drop probability in (4), and for the codebook size in (2). Figure (b)b shows that the performance improves as increases, which implies that more strong regularization is effective for addressing the causal confusion problem on confounded Atari environments. Figure (c)c shows that too small or large codebook size could be harmful to the performance. We remark that our experiments used default hyperparameters and for reporting the results, so the performance of OREO could be further improved with more tuning.
Effects of expert demonstration size.

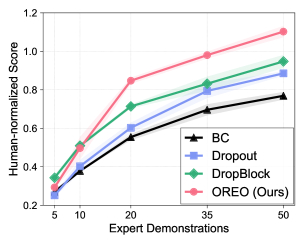

To investigate the effectiveness of OREO with various sizes of expert demonstrations, we evaluate the performance of OREO with a varying number of expert demonstrations . Specifically, we report the mean HNS over 8 confounded Atari environments, which are randomly selected due to the high computation cost of running experiments for all environments. As shown in Figure 16, OREO consistently improves the performance of BC across a wide range of dataset sizes. As for the comparison with other baselines, OREO achieves superior performance to Dropout and DropBlock except for the extreme case of , which is because learning a VQ-VAE model with a limited number of data could be unstable. We also observe that DropBlock and OREO consistently outperform Dropout, which supports our intuition that dropping individual units from a feature map is not sufficient for effective regularization to address the causal confusion problem.
|Environment||BC||VQ-VAE + BC||VQ-VAE + Dropout||VQ-VAE + DropBlock||OREO|
|BankHeist||442.1 20.7||358.8 25.8||491.1 28.9||488.0 49.7||493.9 17.6|
|Enduro||241.4 28.4||154.6 10.7||57.1 12.6||111.2 16.4||522.8 29.1|
|KungFuMaster||15074.8 275.5||11055.1 867.2||13323.0 1390.0||14861.1 1561.5||18065.6 1411.5|
|Pong||3.2 0.7||3.6 1.8||10.4 0.8||13.6 0.3||14.2 0.4|
|PrivateEye||2681.8 270.2||2255.8 569.5||390.2 300.9||746.8 527.8||3124.9 349.6|
|RoadRunner||18381.5 1519.9||5783.2 403.6||6633.8 716.8||7771.1 843.6||24644.2 2235.1|
|Seaquest||454.4 53.5||344.9 35.2||325.6 28.2||396.6 36.8||753.1 63.6|
|UpNDown||4221.1 214.5||2676.9 268.9||3310.8 536.2||4073.9 760.9||4577.9 307.6|
Contribution of a separate convolutional encoder.
In order to verify the effect of introducing an additional convolutional encoder instead of learning a policy on top of the fixed VQ-VAE encoder in (5), we provide the experimental results that evaluate VQ-VAE + BC, where a BC policy is learned on top of fixed VQ-VAE representations in Table 2. We first observe that the performance of VQ-VAE + BC performs worse than vanilla BC, which is because fixed VQ-VAE representations learned by reconstruction objective (3) do not contain fine-grained features required for imitating expert actions. Instead, one can see that OREO significantly improves the performance of BC and outperforms all baselines based on fixed VQ-VAE representations, achieving the mean HNS of 100.1% compared to 53.0% of VQ-VAE + DropBlock. This shows that OREO is not the naïve combination of VQ-VAE and BC, but a carefully designed method to exploit the discrete codes from VQ-VAE for object-aware regularization to address the causal confusion problem.
How does OREO improve the performance of BC?

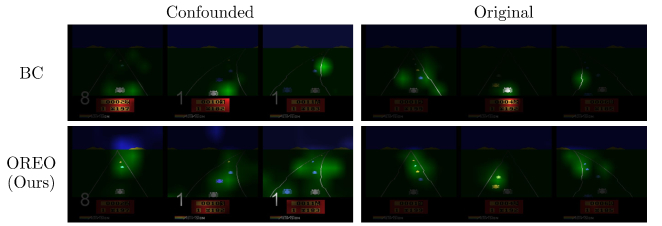

To understand how OREO improves the performance of BC, we visualize spatial attention maps from the last convolutional layer of a policy encoder in Figure 17. Specifically, following prior works Laskin et al. (2020); Zagoruyko and Komodakis (2017), we compute a spatial attention map by averaging the absolute values of a feature map along the channel dimension. We then apply 2-dimensional spatial softmax and multiply the upscaled attention map with images for visualization. We observe that the activations from the encoder trained with OREO are capturing all important objects of the environment (e.g., car that an agent controls and approaching cars), while the activations from BC are missing information of approaching cars by only focusing on the small region around a car and a scoreboard. This shows that our regularization scheme that encourages a policy to uniformly attend to all semantic objects allows for learning the policy that attends to important objects.
Effectiveness on real-world applications.
To further demonstrate the effectiveness of OREO on real-world applications where inputs are high-dimensional, complex images, we additionally consider a self-driving CARLA environment Dosovitskiy et al. (2017). Specifically, we train a conditional imitation learning policy Codevilla et al. (2018) using 150 expert demonstrations from the dataset Tai et al. (2019) consisting of real-world images under a weather condition of daytime. Table 3 shows the average success rate of OREO and baseline methods on four CARLA benchmark tasks, i.e., Straight, One turn, Navigation, and Navigation with dynamics obstacles, where each task consists of 25 different navigation routes. The results show that OREO improves the performance of BC and outperforms other regularization methods, which implies that our object-aware regularization can also be effective on more complex real-world applications.
|Straight||75.0 1.7||82.0 8.3||74.0 3.5||87.0 4.4|
|One turn||43.0 9.1||59.0 3.3||53.0 5.2||70.0 7.2|
|Navigation||16.9 7.6||30.4 10.7||21.7 9.2||35.7 10.2|
|Navigation w/ dynamic obstacles||18.0 4.5||26.0 6.0||19.0 5.2||30.0 4.5|
In this paper, we present OREO, a simple regularization method to address the causal confusion problem in imitation learning. OREO regularizes a policy in an object-aware manner, by randomly dropping the units of a feature map that share the same discrete codes from a VQ-VAE model. Our experimental results demonstrate that OREO improves the performance of behavioral cloning without costly environment interaction, which is crucial for safe and successful imitation learning.
One limitation of our method is that it is only designed to regularize a policy when inputs are images, and not applicable to state-based environments. However, we still believe that OREO can be a practical solution to the causal confusion problem in various image-based applications, e.g., video games Mnih et al. (2015), self-driving Bojarski et al. (2016), and robotic manipulation Kober and Peters (2011). Another limitation is that we do not deduce the cause-effect relations for addressing the causal confusion problem, but instead regularize the policy to prevent it from exploiting nuisance correlates. However, given that it is an open problem to infer the structured disentangled variables and discover the causal relations among the variables Schölkopf (2019), we believe encouraging the policy to attend to all semantic objects is a reasonable and promising direction for addressing this problem.
Potential negative impacts.
Real-world applications of behavioral cloning, e.g., autonomous driving Bansal et al. (2019), require a large amount of data that often contain sensitive information, therefore raising privacy concerns. As our method is built upon a variational autoencoder, it could be exposed to privacy violation attacks that infer training data information, such as model inversion Zhang et al. (2020), and membership inference Hayes et al. (2017). For example, the facial information of pedestrians may be reconstructed via membership inference attack. To address this vulnerability to privacy violation attacks, a differentially private variational autoencoder would be required for real applications. In addition, pre-training VQ-VAE requires additional computing resources, which might lead to the increased energy cost for learning imitation learning policies. Also, a behavioral cloning policy will imitate whatever demonstrations one specifies. If some bad actions are included in expert demonstrations, the policy would perform dangerous actions to users. For these reasons, in addition to developing algorithms for better performance, it is also important to consider safe adaptation.
This work was supported by Microsoft and Institute of Information & communications Technology Planning & Evaluation (IITP) grant funded by the Korea government(MSIT) (No.2019-0-00075, Artificial Intelligence Graduate School Program(KAIST)). We would like to thank Kimin Lee, Sangwoo Mo, Seonghyeon Park, Sihyun Yu, and anonymous reviewers for providing helpful feedbacks and suggestions in improving our paper.
An optimistic perspective on offline reinforcement learning.
International Conference on Machine Learning, Cited by: §B.1, §4.
- Playing hard exploration games by watching youtube. In Advances in Neural Information Processing Systems, Cited by: §2.
- A framework for behavioural cloning. In Machine Intelligence 15, Cited by: §2.
- ChauffeurNet: learning to drive by imitating the best and synthesizing the worst. In Proceedings of Robotics: Science and Systems, Cited by: Appendix F, §1, §2, §2, §5.
- The arcade learning environment: an evaluation platform for general agents. Journal of Artificial Intelligence Research 47, pp. 253–279. Cited by: §B.1, item , §4.
- A meta-transfer objective for learning to disentangle causal mechanisms. In International Conference on Learning Representations, Cited by: §2.
- End to end learning for self-driving cars. arXiv preprint arXiv:1604.07316. Cited by: §1, §2, §2, §5.
- Disagreement-regularized imitation learning. In International Conference on Learning Representations, Cited by: 2nd item, §B.1, Figure 21, Appendix E, item , §2, 2nd item, §4.
- Dopamine: a research framework for deep reinforcement learning. arXiv preprint arXiv:1812.06110. Cited by: §B.1, §4.
- End-to-end driving via conditional imitation learning. In IEEE International Conference on Robotics and Automation (ICRA), pp. 4693–4700. Cited by: §4.
Exploring the limitations of behavior cloning for autonomous driving.
Proceedings of the IEEE/CVF International Conference on Computer Vision, Cited by: §1.
- Causal confusion in imitation learning. In Advances in Neural Information Processing Systems, Cited by: 6th item, §B.1, item , §1, §1, §2, Figure 6, 1st item, §4, §4, §4, footnote 1.
Improved regularization of convolutional neural networks with cutout. arXiv preprint arXiv:1708.04552. Cited by: 4th item, item , 1st item, §4.
- CARLA: an open urban driving simulator. In Conference on robot learning, pp. 1–16. Cited by: §4.
- Dropblock: a regularization method for convolutional networks. In Advances in Neural Information Processing Systems, Cited by: 3rd item, item , 1st item, §4.
- Recurrent independent mechanisms. arXiv preprint arXiv:1909.10893. Cited by: §2.
- Logan: membership inference attacks against generative models. In Proceedings on Privacy Enhancing Technologies, Cited by: §5.
- Deep q-learning from demonstrations. In Proceedings of the AAAI Conference on Artificial Intelligence, Cited by: §2.
- Beta-vae: learning basic visual concepts with a constrained variational framework. In International Conference on Learning Representations, Cited by: 6th item, §1, §4.
- Generative adversarial imitation learning. In Advances in Neural Information Processing Systems, Cited by: 1st item, §B.1, item , §2, 2nd item, §4.
- Imitation learning: a survey of learning methods. ACM Computing Surveys (CSUR) 50 (2), pp. 1–35. Cited by: §1.
- Drop-bottleneck: learning discrete compressed representation for noise-robust exploration. In International Conference on Learning Representations, Cited by: Appendix G.
- Policy search for motor primitives in robotics. Machine learning 84 (1-2), pp. 171–203. Cited by: §5.
- Reinforcement learning with augmented data. In Advances in Neural Information Processing Systems, Cited by: §4.
- Coordinated multi-agent imitation learning. In International Conference on Machine Learning, Cited by: §2.
- A fast pc algorithm for high dimensional causal discovery with multi-core pcs. IEEE/ACM Transactions on Computational Biology and Bioinformatics 16 (5), pp. 1483–1495. Cited by: §1, §2.
An intriguing failing of convolutional neural networks and the coordconv solution. In Advances in Neural Information Processing Systems, Cited by: 6th item.
Challenging common assumptions in the unsupervised learning of disentangled representations. In International Conference on Machine Learning, Cited by: Appendix D, §4.
Discovering causal signals in images.
Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Cited by: §1, §2.
- Visualizing data using t-sne. Journal of Machine Learning Research 9 (Nov), pp. 2579–2605. Cited by: Figure 6.
- Learning deep policies for robot bin picking by simulating robust grasping sequences. In Conference on Robot Learning, Cited by: §1, §2.
- Human-level control through deep reinforcement learning. Nature 518 (7540), pp. 529–533. Cited by: §4, §5.
- Off-road obstacle avoidance through end-to-end learning. In Advances in Neural Information Processing Systems, Cited by: §1, §2.
- Algorithms for inverse reinforcement learning.. In International Conference on Machine Learning, Cited by: §2.
- Neural discrete representation learning. In Advances in Neural Information Processing Systems, Cited by: §1, §3.1, §4.
- Learning independent causal mechanisms. In International Conference on Machine Learning, Cited by: §2.
- Zero-shot visual imitation. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition Workshops, Cited by: §2.
- Causality. Cambridge University Press. Cited by: §1, §2, footnote 1.
- Observe and look further: achieving consistent performance on atari. arXiv preprint arXiv:1805.11593. Cited by: §2.
- Alvinn: an autonomous land vehicle in a neural network. In Advances in Neural Information Processing Systems, Cited by: §2.
- Sqil: imitation learning via reinforcement learning with sparse rewards. In International Conference on Learning Representations, Cited by: §4.
- Reinforcement and imitation learning via interactive no-regret learning. In Advances in Neural Information Processing Systems, Cited by: §2.
- A reduction of imitation learning and structured prediction to no-regret online learning. In International Conference on Artificial Intelligence and Statistics, Cited by: §1, §2.
Learning agents for uncertain environments.
Annual Conference on Computational Learning Theory, Cited by: §2.
- Learning from demonstration. In Advances in Neural Information Processing Systems, Cited by: §1.
- Causality for machine learning. arXiv preprint arXiv:1911.10500. Cited by: §1, §2, §5.
- Causally regularized learning with agnostic data selection bias. In ACM international conference on Multimedia, Cited by: Appendix H, item , §2, 1st item, §4.
- Causation, prediction, and search. MIT Press. Cited by: §1, §2.
- Curl: contrastive unsupervised representations for reinforcement learning. In International Conference on Machine Learning, Cited by: §4.
- Dropout: a simple way to prevent neural networks from overfitting. The Journal of Machine Learning Research 15 (1), pp. 1929–1958. Cited by: 2nd item, item , §3.2, 1st item, §4, §4.
- Deeply aggrevated: differentiable imitation learning for sequential prediction. In International Conference on Machine Learning, Cited by: §2.
- Reinforcement learning: an introduction. MIT Press. Cited by: §3.1.
- Visual-based autonomous driving deployment from a stochastic and uncertainty-aware perspective. In IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), pp. 2622–2628. Cited by: §4.
- Fighting copycat agents in behavioral cloning from observation histories. In Advances in Neural Information Processing Systems, Cited by: Appendix F, §1, §2, footnote 2.
- Image augmentation is all you need: regularizing deep reinforcement learning from pixels. In International Conference on Learning Representations, Cited by: 5th item, item , 1st item, §4.
- Guided motion planning. In Robotics Research, pp. 291–307. Cited by: §2.
- Paying more attention to attention: improving the performance of convolutional neural networks via attention transfer. In International Conference on Learning Representations, Cited by: §4.
- The secret revealer: generative model-inversion attacks against deep neural networks. In Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition, Cited by: §5.
- Maximum entropy inverse reinforcement learning. In Proceedings of the AAAI Conference on Artificial Intelligence, Cited by: §2.
Appendix A Source codes
Source codes for reproducing our experimental results are available at https://github.com/alinlab/oreo.
Appendix B Details on Atari experiments
b.1 Experimental setup
Environments and datasets.
We utilize DQN Replay dataset333https://research.google/tools/datasets/dqn-replay Agarwal et al. (2020) for expert demonstrations on 27 Atari environments Bellemare et al. (2013). To encourage the size of the dataset to be consistent across multiple environments, we use the number of expert demonstrations . We provide the size of a dataset for each environment in Table 4. We process input images to grayscale images of , by utilizing Dopamine library444https://github.com/google/dopamine Castro et al. (2018). Following de Haan et al. (2019), we consider confounded Atari environments, where images are augmented with previous actions (see Figure 10). We provide source codes for loading images from the dataset, preprocessing images, and augmenting numbers to the images in Section A. For experiments with selected environments in Figure 16, we randomly chose 8 confounded Atari environments, i.e., BankHeist, Enduro, KungFuMaster, Pong, PrivateEye, RoadRunner, Seaquest, and UpNDown, due to the high computational cost of considering all environments.
(a) For all experimental results without environment interaction, we train a policy for 1000 epochs without early stopping based on validation accuracy (see Figure(a)a for how early stopping is not effective in our setup), and report the final performance of the trained policy. Specifically, we average the scores over 100 episodes evaluated on confounded environments for each random seed. (b) For all experimental results with inverse reinforcement learning methods that require environment interaction (i.e., GAIL Ho and Ermon (2016) and DRIL Brantley et al. (2020)), we evaluate a policy over 10 episodes every 1M environment step during the training.
b.2 Implementation details
Implementation details for OREO.
VQ-VAE training. We use the publicly available implementation of VQ-VAE555https://github.com/zalandoresearch/pytorch-vq-vae modified to make it work with images of size
. Specifically, The encoder consists of four convolutional layers, three with stride 2 and kernel sizeand one with stride 1 and kernel size , followed by 2 residual
blocks (implemented as ReLU,Conv, ReLU, conv), all having 256 hidden units. The decoder similarly has 2 residual blocks, followed by four transposed convolution layers, one with stride 1 and kernel size , and three with stride 2 and kernel size . For training, we train a VQ-VAE model for 1000 epochs with a batch size of 1024. We use Adam optimizer with the learning rate of 3e-4. As for the hyperparameters of VQ-VAE, we use a codebook size of , and a commitment cost of , following the original implementation.
Behavioral cloning with OREO. For efficient implementation of OREO, we first compute quantized discrete codes of all images in datasets with pre-trained VQ-VAE, instead of processing every image through VQ-VAE encoder during the training. Then we utilize stored discrete codes for obtaining random masks for training a policy. We find that generating multiple random masks for each image and aggregating the loss computed with each mask marginally improves the performance, by providing more diverse features to the policy. In our experiments, we generate 5 random masks during training. We train a policy for 1000 epochs with the batch size of 1024, and use Adam optimizer with the learning rate of 3e-4.
Implementation details for regularization and causality-based methods.
Behavioral cloning. We train a BC policy by optimizing the objective in (1) using states and actions from expert demonstrations. Note that other regularization baselines are based on BC.
Dropout. Dropout Srivastava et al. (2014) is a regularization technique that drops units of a feature map from a convolutional encoder. Specifically, for all units of a feature map, Dropout samples binary random variables from a Bernoulli distribution with probability , and apply the randomly sampled masks throughout training. We use nn.Dropout
from PyTorch666https://pytorch.org library with .
DropBlock. DropBlock Ghiasi et al. (2018) is a regularization technique that drops units in a contiguous region of a feature map, i.e., blocks, with the default hyperparameters of and the block size of . We use the publicly available implementation of DropBlock777https://github.com/miguelvr/dropblock for our experiments. Following this original implementation, we linearly increase from to the target value during training.
RandomShift. RandomShift Yarats et al. (2021) is a regularization technique that shifts
images by randomly sampled pixels. Specifically, it pads each side of an image by 4 pixels with boundary pixels and performs random crop of size. We implemented RandomShift by following the publicly available implementation999https://github.com/denisyarats/drq from the authors.
CCIL. CCIL (named after Causal Confusion in Imitation Learning; de Haan et al. (2019)) is an interventional causal discovery method that first (i) learns disentangled representations from -VAE Higgins et al. (2017) and (ii) infers the causal graph during environment interaction. As publicly available implementation101010https://github.com/pimdh/causal-confusion only contains source code that works on the low-dimensional MountainCar environment, we faithfully reproduce the method and report the results. Specifically, we employ CoordConv111111https://github.com/walsvid/CoordConv Liu et al. (2018) for both the encoder and decoder architectures of -VAE. We find that prediction accuracy of a policy trained using a fixed -VAE does not improve over chance level accuracy, possibly because a reconstruction task is not sufficient for learning representations that capture the information required for predicting actions. Hence, we additionally introduce an action prediction task when training a -VAE, which we find crucial for improving the accuracy over chance level accuracy.
CRLR. As CRLR requires inputs to be binary values, we develop and compare to the categorical version of CRLR that works on top of VQ-VAE discrete codes (see Appendix H).
Implementation details for inverse reinforcement learning methods.
For all inverse reinforcement learning (IRL) methods, we use the publicly available implementation (https://github.com/xkianteb/dril) for reporting the results, with additional modification to original source code to train and evaluate a policy on confounded Atari environments.
GAIL. GAIL Ho and Ermon (2016) is an IRL method that learns a discriminator network that distinguishes expert states from states visited by the current policy, and utilizes the negative output of the discriminator as a reward signal for learning RL agents during environment interaction.
DRIL. DRIL Brantley et al. (2020)
is an IRL method that learns an ensemble of behavioral cloning policies and utilizes the disagreement (i.e., variance) between the predictions of ensemble policies as a cost signal (the negative of reward signal) for learning RL agents during environment interaction.
Appendix C Comparative evaluation on original Atari environments
Table 5 shows the performance of various methods which do not use environment interaction, on original Atari environments. We observe that OREO significantly improves behavioral cloning, also outperforming baseline methods. In particular, OREO achieves the mean HNS of 114.9%, while the second-best method, i.e., DropBlock, achieves 99.0%. This demonstrates that our object-aware regularization scheme is also effective for addressing the causal confusion that naturally occurs in the dataset (see Figure 4).
Appendix D CCIL with environment interaction

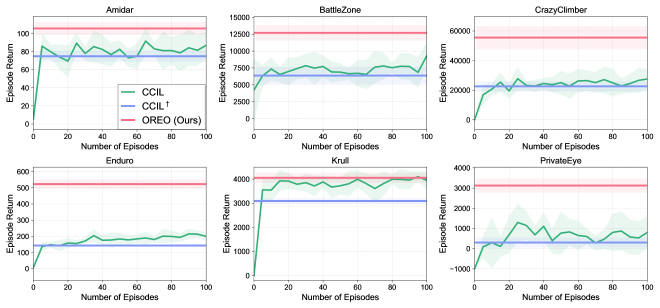

In this section, we compare CCIL with environment interaction, which employs targeted intervention during environment interaction. Specifically, CCIL infers a causal mask over disentangled latent variables from -VAE, by utilizing the returns from environments. As shown in Figure 18, the performance of CCIL improves during environment interaction of 100 episodes, but OREO still exhibits superior performance to CCIL on most confounded Atari environments. This again demonstrates the difficulty of learning disentangled representations from high-dimensional images Locatello et al. (2019).
Appendix E Applying OREO to inverse reinforcement learning

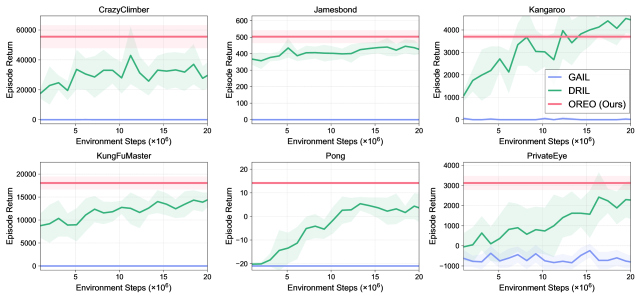

We investigate the possibility of applying OREO to other IL methods. While there could be various approaches to utilize the proposed approach for utilizing our regularization scheme for IL, we consider a straightforward application of OREO to a state-of-the-art IL method, i.e., DRIL Brantley et al. (2020). Specifically, we apply OREO to the components of DRIL which involves behavioral cloning, i.e., initializing a BC policy and computing rewards with an ensemble of BC policies. In Figure 21, we observe that DRIL + OREO improves the sample-efficiency of DRIL since OREO enables us to learn high-quality BC policies that also result in high-quality reward signals which boosts sample-efficiency. We remark that these results show that IRL methods can also suffer from the causal confusion problem, and a proper regularization scheme can improve the performance by addressing the confusion problem.
Appendix F OREO with a sequence of observations
A natural extension of OREO is to apply our regularization scheme to address the causal confusion problem from a sequence of observations Bansal et al. (2019); Wen et al. (2020). By extracting semantic objects with the same discrete code from consecutive images and dropping the codes from all images, OREO can regularize the policy consistently over multiple images. In this section, we investigate the effectiveness of OREO on such setup by providing additional experimental results on confounded environments where inputs are four stacked observations. Specifically, we mask the features that correspond to the same discrete codes from each observation, and utilize the aggregated masked features for policy learning. In Table 6, we observe that OREO significantly improves the performance of BC, which shows that OREO can also be effective on this setup by regularizing the policy consistently over multiple frames.
|BankHeist||448.6 17.8||477.6 36.4||466.2 17.5||538.8 13.9|
|Enduro||167.8 31.7||253.1 21.1||172.6 18.4||426.0 18.1|
|KungFuMaster||13523.5 831.7||15041.0 1011.8||14859.2 1242.6||18375.2 1055.3|
|Pong||4.8 0.9||8.2 0.2||9.5 0.4||12.2 0.4|
|PrivateEye||2349.4 253.1||2173.8 168.3||2611.4 476.8||2580.7 484.2|
|RoadRunner||15189.5 1829.0||16574.0 2799.3||16901.0 1790.1||18726.2 876.5|
|Seaquest||353.4 11.8||351.4 28.6||315.3 17.7||393.2 19.7|
|UpNDown||4075.5 165.6||4306.6 216.9||4448.9 450.5||5193.7 513.5|
Appendix G Comparison with DropBottleneck
In this section, we compare OREO with DropBottleneck (DB; Kim et al. (2021)), which is a dropout-based method that drops features from input variable redundant for predicting target variable . While this method was successfully applied to remove the dynamics-irrelevant information such as noises by setting input variable and target variable to two consecutive states, we remark that removing task-irrelevant information cannot be an effective recipe for addressing the causal confusion problem. This is because the causal confusion comes from the difficulty of identifying the true cause of expert actions when both confounders and the causes are strongly correlated with expert actions, i.e., they are both task-relevant information. To support this, we provide experimental results where we jointly optimize DB objective when training a BC policy, i.e., setting the target variable to expert actions (denoted as DB (Y=action)) in Table 7. In addition, following the original setup in Kim et al. (2021), we also provide experimental results where input and target variables are consecutive two states (denoted as DB (Y=state)) in Table 8. We observe that DB (Y=action) shows comparable performance to OREO in some environments (e.g., CrazyClimber), but OREO still significantly outperforms the suggested baseline in most environments (e.g., Alien, KungFuMaster, and Pong). DB (Y=state) performs no better than BC in most environments except for CrazyClimber. These results show that removing dynamics-irrelevant information might not be enough for addressing the causal confusion problem.
Appendix H A categorical version of CRLR
In this section, we provide a categorical version of Causally Regularized Logistic Regression (CRLRShen et al. (2018)) method. We first formulate the problem setup and briefly introduce some background on CRLR. Given the training data , where represents the features and represents labels, the causal classification task targets to jointly identify the causal contribution
for all features and learn a classifierbased on . As we have no prior knowledge of the causal structure, a reasonable way to adapt causal inference into the classification task is to regard each feature as a treated variable, and all the remaining features as confounding variables, i.e., confounders. To safely estimate the causal contribution of a given feature , one has to remove the confounding bias induced by the different distributions of confounders between the treated and control groups. CRLR finds optimal sample weights to balance the distribution of the treated and control group for any treated variable, under an assumption of binary features. To this end, CRLR learns those sample weights by minimizing a causal regularizer as follows:
where is the sample weight for , and denotes
. The original version of CRLR is built upon the binary features, however, it can be naturally extended to a categorical version, by computing the confounder balancing term for any pair of categorical variables. We convert given categorical features
to one-hot encoded binary features, i.e., where is an one-hot encoded version of each feature . We denote as confounding variables of these one-hot features. Then, a categorical version of the causal regularizer is computed as follows:
where , are categorical variables from the set . To apply CRLR on high-dimensional images, we adapt this categorical version on top of VQ-VAE discrete codes. The implementation details of the VQ-VAE are same as OREO (see Appendix B.2). Given a state-action pair , a VQ-VAE encoder represents the state into code indices (see Section 3.1). The one-hot encoded version of the code indices are denoted as , similarly to above. Then, a policy and sample weights are jointly trained by minimizing a weighted behavioral cloning objective and the proposed regularizer:
where is a loss weight for the regularizer. We update and iteratively until the objective converges, using the gradient descent optimizer.
Appendix I Extended experimental results on confounded Atari environments
|Alien||954.1 83.9||1003.8 53.6||926.4 70.5||973.3 50.1||806.5 78.1||820.0 51.3||82.5 30.3||1056.2 61.6|
|Amidar||95.8 8.9||89.4 16.4||110.1 20.9||118.7 14.0||98.0 14.5||74.9 6.0||12.0 0.0||105.7 7.2|
|Assault||793.8 32.6||820.4 20.8||815.0 20.3||687.6 10.3||828.9 17.9||683.3 20.1||0.0 0.0||840.9 27.8|
|Asterix||292.2 168.4||313.8 115.3||345.4 207.7||212.4 83.2||135.5 85.4||643.2 8.8||650.0 0.0||180.8 65.2|
|BankHeist||442.1 20.7||485.7 19.7||508.4 14.2||486.1 14.2||367.2 17.7||653.5 31.3||0.0 0.0||493.9 17.6|
|BattleZone||11921.2 802.4||12457.5 427.7||12025.0 1425.9||11107.5 809.2||9180.0 592.3||6370.0 1227.5||1468.8 1512.6||12700.0 1162.5|
|Boxing||18.8 3.7||20.3 2.9||32.2 6.4||20.5 3.8||38.3 5.2||34.8 3.4||-43.0 0.0||36.4 5.0|
|Breakout||5.7 0.5||5.4 0.8||4.8 1.9||1.0 1.7||2.0 1.9||0.5 0.3||0.0 0.0||4.2 1.6|
|ChopperCommand||874.2 82.7||921.4 90.1||919.4 87.1||1016.1 169.0||936.4 125.6||760.6 58.7||1077.2 9.1||977.4 150.2|
|CrazyClimber||45372.9 5508.9||39501.6 6499.3||38345.6 7190.8||44523.2 8465.5||41924.0 7237.5||22616.8 3282.4||112.5 92.7||55523.4 7722.2|
|DemonAttack||157.2 12.5||180.5 21.5||167.8 12.2||173.1 11.3||241.8 32.7||171.3 17.3||0.0 0.0||224.5 45.4|
|Enduro||241.4 28.4||250.4 38.0||341.8 38.8||119.6 6.2||316.4 34.9||143.1 6.4||3.9 9.0||522.8 29.1|
|Freeway||32.3 0.1||32.4 0.2||32.7 0.1||32.5 0.2||33.0 0.1||33.1 0.1||21.4 0.1||32.7 0.2|
|Frostbite||116.3 21.1||124.5 26.7||128.2 35.6||139.4 19.5||121.6 16.4||53.3 30.7||80.0 0.0||129.9 12.8|
|Gopher||1713.9 182.5||1819.1 95.6||1818.2 150.3||1481.0 118.3||1995.0 189.1||1404.5 154.8||0.0 0.0||2515.0 157.7|
|Hero||11923.1 599.9||14109.7 894.1||14711.4 1119.9||14896.6 890.9||12816.0 988.2||6567.8 943.1||346.2 916.1||15219.8 873.8|
|Jamesbond||419.0 31.8||451.0 14.0||473.8 44.5||381.8 22.4||428.4 13.8||387.2 12.3||0.0 0.0||502.8 39.3|
|Kangaroo||2781.5 338.9||2912.9 266.5||3217.1 191.7||2824.0 200.8||1923.9 268.5||1670.5 153.4||122.8 215.4||3700.2 126.0|
|Krull||3634.3 70.6||3892.1 61.1||3832.1 281.0||3656.4 100.6||3788.7 216.3||3090.8 112.0||0.1 0.1||4051.6 211.4|
|KungFuMaster||15074.8 275.5||14452.1 865.4||15753.0 1265.2||11405.6 729.2||13389.9 624.3||13394.9 1261.9||0.0 0.0||18065.6 1411.5|
|MsPacman||1432.9 274.0||1733.1 273.2||1446.4 288.1||1711.0 184.6||1223.5 259.2||1084.2 199.1||105.3 60.5||1898.4 229.8|
|Pong||3.2 0.7||10.2 1.3||11.5 1.3||6.8 1.2||-0.1 2.2||-2.7 1.1||-21.0 0.0||14.2 0.4|
|PrivateEye||2681.8 270.2||2599.1 393.0||2720.6 427.4||2670.6 359.1||3969.2 452.1||305.3 247.5||-1000.0 0.0||3124.9 349.6|
|Qbert||5438.4 855.3||6469.0 760.3||6140.3 616.5||5748.6 655.5||3921.4 540.4||5138.0 437.9||125.0 0.0||6966.4 443.5|
|RoadRunner||18381.5 1519.9||21470.9 2274.4||22265.4 3168.3||12417.1 1307.8||16210.0 1193.1||11834.1 1936.3||1022.9 262.0||24644.2 2235.1|
|Seaquest||454.4 53.5||471.3 43.4||486.8 40.6||330.1 37.9||1016.8 100.5||271.2 11.5||172.5 19.8||753.1 63.6|
|UpNDown||4221.1 214.5||4147.1 426.2||4789.2 201.0||4159.6 585.5||3880.2 316.7||2631.1 224.0||20.0 0.0||4577.9 307.6|
Appendix J Extended experimental results on original Atari environments
|Alien||986.5 54.4||1117.2 58.8||1094.8 73.7||1104.4 139.5||863.5 68.0||1050.4 62.4||100.0 0.0||1222.2 95.4|
|Amidar||90.8 7.7||81.6 8.2||113.5 12.9||125.0 7.7||78.2 9.2||78.6 3.1||12.0 0.0||130.5 16.8|
|Assault||816.8 25.0||901.1 22.6||829.9 23.7||694.1 9.5||848.7 17.0||755.5 9.9||0.0 0.0||905.2 24.2|
|Asterix||249.0 142.5||176.6 91.4||252.2 139.9||195.0 28.5||99.1 56.6||314.1 7.9||592.5 148.4||212.5 108.5|
|BankHeist||399.0 22.9||476.6 24.6||471.2 17.8||442.5 20.6||354.8 18.1||606.1 31.7||0.0 0.0||448.4 13.4|
|BattleZone||10933.8 642.0||11621.2 714.0||12067.5 1269.0||10641.2 328.5||8748.8 745.8||11191.2 709.5||5615.0 4482.6||11703.8 862.6|
|Boxing||21.8 4.6||25.7 4.1||32.1 5.0||21.2 3.4||35.8 4.3||34.2 2.9||-43.0 0.0||39.9 2.2|
|Breakout||6.4 0.5||2.9 2.5||6.0 0.9||3.1 2.4||4.4 2.4||2.1 2.0||0.0 0.0||5.4 1.0|
|ChopperCommand||1163.0 129.7||1162.0 51.9||1161.8 64.2||1183.9 56.4||1026.2 83.0||1027.2 78.2||1070.2 10.9||1282.9 81.1|
|CrazyClimber||54142.2 10143.4||54965.4 6305.6||55854.0 7056.0||47456.4 8129.0||60465.9 9050.9||39015.2 2266.3||885.5 864.8||69380.1 8907.6|
|DemonAttack||238.8 21.6||359.3 47.3||225.6 26.1||217.8 20.1||294.8 42.3||194.6 9.3||22.7 41.1||0.0 0.0|
|Enduro||226.2 24.6||304.6 31.4||359.1 38.0||132.9 4.7||282.2 27.4||182.8 6.2||0.8 1.2||514.4 38.1|
|Freeway||32.3 0.3||32.6 0.2||32.6 0.3||32.8 0.2||33.0 0.3||33.1 0.2||21.4 0.1||32.9 0.1|
|Frostbite||153.6 20.6||149.2 15.1||165.7 19.7||135.2 20.1||133.2 33.1||96.7 13.3||78.1 3.4||152.7 23.8|
|Gopher||1874.4 185.8||2220.4 156.2||2040.5 140.2||1588.2 106.1||1456.2 114.2||1301.9 219.5||0.0 0.0||2903.9 146.6|
|Hero||15100.4 774.6||15994.4 737.5||17058.6 419.4||15971.8 239.4||14867.2 904.5||17487.6 813.5||0.0 0.0||16370.3 501.4|
|Jamesbond||447.6 33.2||492.3 30.4||481.9 24.6||418.9 15.2||452.1 15.6||460.4 12.5||0.0 0.0||527.9 20.7|
|Kangaroo||3162.8 209.3||2860.4 175.1||3638.6 312.6||3242.6 124.2||2202.1 313.5||2938.1 391.6||0.0 0.0||3602.9 189.6|
|Krull||4447.9 91.5||4764.7 112.3||4526.5 113.7||4270.6 130.6||4611.6 144.9||4247.1 140.0||0.0 0.0||4633.6 114.9|
|KungFuMaster||12900.6 884.3||14994.5 1100.4||14819.0 806.0||9956.9 803.3||11698.0 1330.0||12876.9 912.2||0.0 0.0||16955.5 1144.2|
|MsPacman||1921.9 174.1||2022.6 202.8||2151.7 178.5||1949.7 176.1||1046.3 220.0||1160.6 144.1||70.0 0.0||2263.8 165.3|
|Pong||3.7 1.6||10.0 0.8||11.6 0.6||7.8 1.2||0.8 2.1||-19.8 0.4||-21.0 0.0||12.5 0.7|
|PrivateEye||3035.4 482.8||3396.3 205.9||3057.6 447.0||3092.2 305.9||3578.9 222.9||1016.4 286.8||-1000.0 0.0||3162.6 282.3|
|Qbert||5925.4 693.9||6363.1 539.9||5904.3 911.5||6174.8 585.8||4100.1 672.1||5056.3 456.9||125.0 0.0||5763.4 493.4|
|RoadRunner||18010.1 731.1||20137.8 1590.2||22522.5 1749.1||12698.9 1272.2||15615.4 712.1||18985.2 2105.5||1528.6 496.5||27303.9 2326.7|
|Seaquest||527.5 61.2||644.4 104.2||622.3 79.3||376.6 35.0||948.0 95.5||402.4 29.3||169.8 54.6||921.0 64.9|
|UpNDown||3782.1 245.7||3504.3 197.1||3886.4 257.1||3675.9 255.0||3500.4 246.8||3062.3 110.3||20.0 0.0||4186.8 312.0|
