1 Introduction
As cloud providers push for resource consolidation and disaggregation [16], we see a shift in distributed computing towards greater elasticity. One such example is the advent of serverless computing (e.g., AWS Lambda, Google Cloud Functions, Azure Functions) which provides users with instant access to large compute capability without the overhead of managing a complex cluster deployment. While serverless platforms were originally intended for eventdriven, stateless functions, and come with corresponding constraints (e.g., small memory and short runtime limits per invocation), recent work has exploited them for other applications like parallel data analysis [25] and distributed video encoding [15]. These workloads are a natural fit for serverless computing as they are either embarrassingly parallel or use simple communication patterns across functions. Exactly how complex the communication patterns and workloads can be and still efficiently fit in a stateless framework remains an active research question.
Linear algebra operations are at the core of many dataintensive applications.
Their wide applicability covers both traditional scientific computing problems such as weather simulation, genome assembly, and fluid dynamics, as well as emerging computing workloads, including distributed optimization [32], robust control [40] and computational imaging [22]. As the data sizes for these problems continue to grow, we see increasing demand for running linear algebra computations at large scale.
Unfortunately, running largescale distributed linear algebra remains challenging for many scientists and data analysts due to accessibility, provisioning, and cluster management constraints. Traditionally, such linear algebra workloads are run on managed high performance computing (HPC) clusters, access to which is often behind walls of paperwork and long job wait queues. To lower the bar for access, providers such as Amazon Web Services (AWS), Google, and Microsoft Azure now provide HPC clusters in the cloud [5, 19, 6]. While the HPCinthecloud model looks promising, it adds extra configuration complexity, since users have to choose from a complex array of configuration options including cluster size, machine types, and storage types [41].
This extends to many existing systems that run largescale linear algebra on data parallel systems [34, 21, 12] and that are deployed on a cluster of virtual machines (VMs). This complexity is further exacerbated by the fact that many linear algebra workloads have large dynamic range in memory and computation requirements over the course of their execution. For example, performing Cholesky decomposition [7]—one of the most popular methods for solving systems of linear equations—on a large matrix generates computation phases with oscillating parallelism and decreasing working set size (Figure 1). Provisioning a cluster of any static size will either slow down the job or leave the cluster underutilized.
Our key insight is that, for many linear algebra operations, regardless of their complex structure, computation time often dominates communication for large problem sizes, e.g., compute and communication for Cholesky decomposition. Thus, with appropriate blocking and pipelining, we find that it is possible to use highbandwidth but highlatency distributed storage as a substitute for largescale distributed memory.
Based on this idea, we design numpywren, a system for linear algebra on serverless architectures. numpywren runs computations as stateless functions while storing intermediate state in a distributed object store. numpywren executes programs written using LAmbdaPACK, a high level DSL we designed that makes it easy to express stateoftheart communication avoiding linear algebra algorithms [2] with finegrained parallelism. Importantly, operating on large matrices at fine granularity can lead to very large task graphs (16M nodes for a matrix with 1M rows and columns, even with a relatively coarse block size of 4K), and the lack of a dedicated driver in the serverles setting would mean each worker would need a copy of the task graph to reason about the dependencies in the program. We address this by using ideas from the literature of loop optimization and show that the LAmbdaPACK runtime can scale to large matrix sizes while generating programs of constant size.
Our evaluation shows that for a number of important linear algebra operations (e.g., Cholesky decomposition, matrix multiply, SVD) numpywren can rival the performance of highly optimized distributed linear algebra libraries running on a dedicated cluster.
We also show that in these favorable cases numpywren is more flexible and can consume fewer CPUhours, while being faulttolerant. Compared to faulttolerant data parallel systems like Dask, we find that numpywren is up to 320% faster and can scale to larger problem sizes. We also show that with LAmbdaPACK we can implicitly represent structured task graphs with millions of nodes in as little as 2 KB.
However, for all algorithms stateless function execution imposes large communication overhead. Most distributed linear algebra algorithms heavily exploit locality where an instance with cores can share a single copy of the data. In serverless systems, every a function has a single core and as these functions could be execute on any machine, we need to send copies of the data to reach
cores. These limitations affect our performance for certain algorithms, such as QR decomposition. We discuss these limitations and potential solutions in Sec
5.In summary we make the following contributions:

We provide the first concrete evidence that certain large scale linear algebra algorithms can be efficiently executed using purely stateless functions and disaggregated storage.

We design LAmbdaPACK, a domain specific language for linear algebra algorithms that captures fine grained dependencies and can express state of the art communication avoiding linear algebra algorithms in a succinct and readable manner.

We show that numpywren can scale to run Cholesky decomposition on a 1Mx1M matrix, and is within 36% of the completion time of ScaLAPACK running on dedicated instances, and can be tuned to use 33% fewer CPUhours.
2 Background
2.1 Serverless Landscape
In the serverless computing model, cloud providers offer the ability to execute functions on demand, hiding cluster configuration and management overheads from end users. In addition to the usability benefits, this model also improves efficiency: the cloud provider can multiplex resources at a much finer granularity than what is possible with traditional cluster computing, and the user is not charged for idle resources. However, in order to efficiently manage resources, cloud providers place limits on the use of each resource. We next discuss how these constraints affect the design of our system.
Computation. Computation resources offered in serverless platforms are typically restricted to a single CPU core and a short window of computation. For example AWS Lambda provides 300 seconds of compute on a single AVX/AVX2 core with access to up to 3 GB of memory and 512 MB of disk storage. Users can execute a number of parallel functions, and, as one would expect, the aggregate compute performance of these executions scales almost linearly.
The linear scalability in function execution is only useful for embarrassingly parallel computations when there is no communication between the individual workers. Unfortunately, as individual workers are transient and as their startup times could be staggered, a traditional MPIlike model of peertopeer communication will not work in this environment. This encourages us to leverage storage, which can be used as an indirect communication channel between workers.
Storage. Cloud providers offer a number of storage options ranging from keyvalue stores to relational databases. Some services are not purely elastic in the sense that they require resources to be provisioned beforehand. However distributed object storage systems like Amazon S3 or Google Cloud Storage offer unbounded storage where users are only charged for the amount of data stored. From the study done in [25] we see that AWS Lambda function invocations can read and write to Amazon S3 at 250 GB/s. Having access to such high bandwidth means that we can potentially store intermediate state during computation in a distributed object store. However such object stores typically have high latency (10ms) to access any key meaning we need to design our system to perform coarsegrained access. Finally, the cost of data storage in an object storage system is often orders of magnitude lower when compared to instance memory. For example on Amazon S3 the price of data storage is $0.03 per TBhour; in contrast the cheapest large memory instances are priced at $6 per TBhour. This means that using a storage system could be cheaper if the access pattern does not require instance memory.
PubSub. In addition to storage services, cloud providers also offer publishsubscribe services like Amazon SQS or Google Task Queue. These services typically do not support high data bandwidths but can be used for “control plane” state like a task queue that is shared between all serverless function invocations. Providers often offer consistency guarantees for these services, and most services guarantee at least once delivery.
2.2 Linear Algebra Algorithms
Given the motivating applications, in this work, we broadly focus on the case of largescale dense linear algebra. Algorithms in this regime have a rich literature of parallel communicationavoiding algorithms and existing high performance implementations [2, 7, 8, 17].
To motivate the design decisions in the subsequent sections we briefly review the communication and computation patterns of a core subroutine in solving a linear system, Cholesky factorization.
Case study:
Cholesky factorization is one of the most popular algorithms for solving linear equations, and it is widely used in applications such as matrix inversion, partial differential equations, and Monte Carlo simulations. To illustrate the use of Cholesky decomposition, consider the problem of solving a linear equation
, where A is a symmetric positive definite matrix. One can first perform a Cholesky decomposition of into two triangular matrices (), then solve two relatively simpler equations of ( via forward substitution) and ( via back substitution) to obtain the solution . From this process, we can see that the decomposition is the most expensive step.CommunicationAvoiding Cholesky [7] is a wellstudied routine to compute a Cholesky decomposition. The algorithm divides the matrix into blocks and derives a computation order that minimizes total data transfer. We pick this routine not only because it is one of the most performant, but also because it showcases the structure of computation found in many linear algebra algorithms.
The pseudocode for communicationavoiding Cholesky decomposition is shown in Algorithm 1. At each step of the outer loop (), the algorithm first computes Cholesky decomposition of a single block (Fig. 2(a)). This result is used to update the “panel” consisting of the column blocks below (Fig. 2(b)). Finally all blocks to the right of column are updated by indexing the panel according to their respective positions (Fig. 2(c)). This process is repeated by moving down the diagonal (Fig. 2(d)).

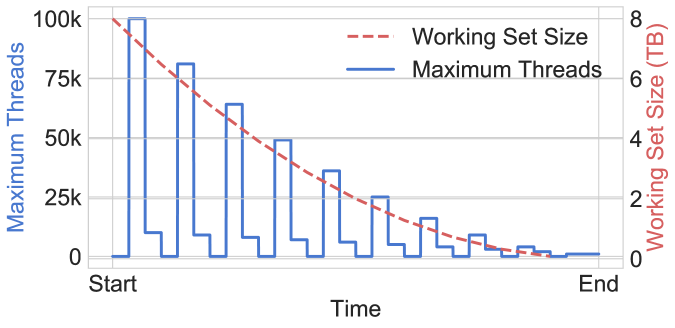

We make two key observations from analyzing the computational structure of Algorithm 1. First, we see that the algorithm exhibits dynamic parallelism during execution. The outer loop consists of three distinct steps with different amounts of parallelism, from , to , where is the enclosing submatrix size at each step. In addition, as decreases at each iteration, overall parallelism available for each iteration decreases from to as shown in Figure 1. Our second observation is that the algorithm has finegrained dependencies between the three steps, both within an iteration and across iterations. For example, in step 3 can be computed as long as and are available (line 8). Similarly, the next iteration can start as soon as is updated. Such finegrained dependencies are hard to exploit in single program multiple data (SPMD) or bulk synchronous parallel (BSP) systems such as MapReduce or Apache Spark, where global synchronous barriers are enforced between steps.
2.3 numpywren Overview
We design numpywren to target linear algebra workloads that have execution patterns similar to Cholesky decomposition described above. Our goal is to adapt to the amount of parallelism when available and we approach this by decomposing programs into finegrained execution units that can be run in parallel. To achieve this at scale in a stateless setting, we propose performing dependency analysis in a decentralized fashion. We distribute a global dependency graph describing the control flow of the program to every worker. Each worker then locally reasons about its down stream dependencies based on its current position in the global task graph. In the next two sections we will describe LAmbdaPACK the DSL that allows for compact representations of these global dependency graphs, and the numpywren execution engine that runs the distributed program.
3 Programming Model
In this section we present an overview of LAmbdaPACK, our domain specific language for specifying parallel linear algebra algorithms. Classical algorithms for high performance linear algebra are difficult to map directly to a serverless environment as they rely heavily on peertopeer communication and exploit locality of data and computation – luxuries absent in a serverless computing cluster. Furthermore, most existing implementations of linear algebra algorithms like ScalaPACK are explicitly designed for stateful HPC clusters.
We thus design LAmbdaPACK to adapt ideas from recent advances in the numerical linear algebra community on expressing algorithms as directed acyclic graph (DAG) based computation [1, 13]. Particularly LAmbdaPACK borrows techniques from Dague [14] a DAG execution framework aimed at HPC environments, though we differ in our analysis methods and target computational platform. We design LAmbdaPACK to allow users to succinctly express tiled linear algebra algorithms. These routines express their computations as operations on matrix tiles, small submatrices that can fit in local memory. The main distinction between tiled algorithms and the classical algorithms found in libraries like ScaLAPACK is that the algorithm itself is agnostic to machine layout, connectivity, etc., and only defines a computational graph on the block indices of the matrices. This uniform, machine independent abstraction for defining complex algorithms allows us to adapt most standard linear algebra routines to a stateless execution engine.
3.1 Language Design
LAmbdaPACK programs are simple imperative routines which produce and consume tiled matrices.
These programs can perform basic arithmetic and logical operations on scalar values.
They cannot directly read or write matrix values;
instead, all substantive computation is performed by calling native kernels on matrix tiles.
Matrix tiles are referenced by index, and the primary role of the LAmbdaPACK program is to
sequence kernel calls, and to compute the tile indices for each.
LAmbdaPACK programs include simple for loops and if statements, but there is no recursion, only a single level of function calls, from the LAmbdaPACK routine to kernels.
Each matrix tile index can be written to only once, a common design principle in many functional languages ^{1}^{1}1Arbitrary programs can be easily translated into this static single assignment form, but we have found it natural to program directly in this style.
Capturing index expressions as symbolic objects in this program is key to the dependence analysis we perform.
These simple primitives are powerful enough to concisely implement algorithms such as Tall Skinny QR (TSQR), LU, Cholesky, and Singular Value decompositions.
A description of LAmbdaPACK is shown in Figure 3,
and examples of concrete LAmbdaPACK implementations of Cholesky and TSQR are shown in Figures 4 and 5.
3.2 Program Analysis
There are no parallel primitives present in LAmbdaPACK, but rather the LAmbdaPACK runtime deduces the underlying dependency graph by statically analyzing the program. In order to execute a program in parallel, we construct a DAG of kernel calls from the dependency structure induced by the program. Naively converting the program into an executable graph will lead to a DAG explosion as the size of the data structure required to represent the program will scale with the size of the input data, which can lead to intractable compilation times. Most linear algebra algorithms of interest are , and even fast symbolic enumeration of operations at runtime as used by systems like MadLINQ [34] can lead to intractable compute times and overheads for large problems.
In contrast, we borrow and extend techniques from the loop optimization community to convert a LAmbdaPACK program into an implicit directed acyclic graph.
We represent each node in the program’s DAG as a tuple of (line_number, loop_indices)
. With this information any statement in the program’s iteration space can be executed.
The challenge now lies in deducing the downstream dependencies given a particular node in the DAG.
Our approach is to handle dependency analysis at at runtime: whenever a storage location is being written to, we determine expressions in (all lines, all loop indices) that read from the same storage location.
We solve the problem of determining downstream dependencies for a particular node by modeling the constraints as a system of equations.
We assume that the number of lines in a single linear algebra algorithm will be necessarily small.
However, the iteration space of the program can often be far too large to enumerate directly (as mentioned above, this is often as large as ).
Fortunately the pattern of data accesses in linear algebra algorithms is highly structured.
Particularly when arrays are indexed solely by affine functions of loop variables—that is functions of the form , where is a loop variable and and are constants known at compile time—standard techniques from loop optimization can be employed to efficiently find the dependencies of a particular node. These techniques often involve solving a small system of integervalued linear equations, where the number of variables in the system depends on the number of nested loop variables in the program.
Example of linear analysis.
Consider the Cholesky program in Figure 4. If at runtime a worker is executing line 7 of the program with , and , to find the downstream dependencies, the analyzer will scan each of the 7 lines of the program and calculate whether there exists a valid set of loop indices such that can be read from at that point in the program. If so then the tuple of (line_number
, loop_indices
) defines the downstream dependency of such task, and becomes a child of the current task. All index expressions in this program contain only affine indices, thus each system can be solved exactly. In this case the only child is the node (2, ). Note that this procedure only depends on the size of the program and not the size of the data being processed.
Nonlinearites and Reductions.
Certain common algorithmic patterns—particularly reductions—involve nonlinear loop bounds and array indices.
Unlike traditional compilers, since all our analysis occurs at runtime, all loop boundaries have been determined. Thus we can solve the system of linear and nonlinear equations by first solving the linear equations and using that solution to solve the remaining nonlinear equations.
Example of nonlinear analysis.
Consider the TSQR program in Figure 5. Suppose at runtime a worker is executing line 6 with and , then we want to solve for the loop variable assignments for
(line 7). In this case one of the expressions contains a nonlinear term involving and and thus we cannot solve for both variables directly. However we can solve for easily and obtain the value 1.
We then plug in the resulting value into the nonlinear expression to get a linear equation only involving .
Then we can solve for and arrive at the solution (6, ). We note that the for loop structures defined by Figure 5 define a tree reduction with branching factor of 2.
Using this approach we can capture the nonlinear array indices induced by tree reductions in algorithms such as TallSkinny QR (TSQR), Communication Avoiding QR (CAQR), Tournament Pivoting LU (TSLU), and Bidiagonal Factorization (BDFAC).
The full pseudo code for our analysis algorithm can be found in Algorithm 2.
Implementation.
To allow for accessibility and ease of development we embed our language in Python. Since most LAmbdaPACK call into optimized BLAS and LAPACK kernels, the performance penalty of using a high level interpreted language is small.
4 System Design
We next present the system architecture of numpywren. We begin by introducing the high level components in numpywren and trace the execution flow for a computation. Following that we describe techniques to achieve fault tolerance and mitigate stragglers. Finally we discuss the dynamic optimizations that are enabled by our design.
To fully leverage the elasticity and easeofmanagement of the cloud, we build numpywren entirely upon existing cloud services while ensuring that we can achieve the performance and faulttolerance goals for high performance computing workloads. Our system design consists of five major components that are independently scalable: a runtime state store, a task queue, a lightweight global task scheduler, a serverless compute runtime, and a distributed object store. Figure 6 illustrates the components of our system.
The execution proceeds in the following steps:
1. Task Enqueue: The client process enqueues the first task that needs to be executed into the task queue. The task queue is a publishsubscribe style queue that contains all the nodes in the DAG whose input dependencies have been met and are ready to execute.
2. Executor Provisioning: The length of the task queue is monitored by a provisioner that manages compute resources to match the dynamic parallelism during execution. After the first task is enqueued, the provisioner launches an executor. The exact number of stateless workers that are provisioned depends on the autoscaling policy and we discuss the policy used in Section 4.2. As the provisioner’s role is only lightweight it can also be executed periodically as a “serverless” cloud function.
3. Task Execution: Executors manage executing and scheduling numpywren tasks. Once an executor is ready, it polls the task queue to fetch the highest priority task available and executes the instructions encoded in the task. Most tasks involve reading input from and writing output to the object store, and executing BLAS/LAPACK functions. The object store is assumed to be a distributed, persistent storage system that supports readafterwrite consistency for individual keys. Using a persistent object store with a single static assignment language is helpful in designing our fault tolerance protocol. Executors self terminate when they near the runtime limit imposed by many serverless systems (300s for AWS Lambda). The provisioner is then left in charge of launching new workers if necessary. As long as we choose the coarsness of tasks such that many tasks can be successfully completed in the allocated time interval, we do not see too large of a performance penalty for timely worker termination. Our fault tolerance protocol keeps running programs in a valid state even if workers exceed the runtime limit and are killed midexecution by the cloud provider.
4. Runtime State Update: Once the task execution is complete and the output has been persisted, the executor updates the task status in the runtime state store. The runtime state store tracks the control state of the entire execution and needs to support fast, atomic updates for each task. If a completed task has children that are “ready” to be executed the executor adds the child tasks to the task queue. The atomicity of the state store guarantees every child will be scheduled. We would like to emphasize that we only need transactional semantics within the runtime state store, we do not need the runtime state store and the child task enqueuing to occur atomically. We discuss this further in Section 4.1. This process of using executors to perform scheduling results in efficient, decentralized, fine grained scheduling of tasks.
4.1 Fault Tolerance
Fault tolerance in numpywren is much simpler to achieve due to the disaggregation of compute and storage. Because all writes to the object store are made durable, no recomputation is needed after a task is finished. Thus fault tolerance in numpywren is reduced to the problem of recovering failed tasks, in contrast to many systems where all uncheckpointed tasks have to be reexecuted [34]. There are many ways to detect and rerun failed tasks. In numpywren we do this via a simple lease mechanism [20], which allows the system to track task status without a scheduler periodically communicating with executors.
Task Lease: In numpywren, all the pending and executable tasks are stored in a task queue. We maintain a invariant that a task can only be deleted from the queue once it is completed (i.e., the runtime state store has been updated and the output persisted to the object store). When a task is fetched by a worker, the worker obtains a lease on the task. For the duration of the lease, the task is marked invisible to prevent other workers from fetching the same task. As the lease length is often set to a value that is smaller than task execution time, e.g., 10 seconds, a worker also is responsible for renewing the lease and keeping a task invisible when executing the task.
Failure Detection and Recovery: During normal operation, the worker will renew lease of the task using a background thread until the task is completed. If the task completes, the worker deletes the task from the queue. If the worker fails, it can no longer renew the lease and the task will become visible to any available workers. Thus, failure detection happens through lease expiration and recovery latency is determined by lease length.
Straggler Mitigation: The lease mechanism also enables straggler mitigation by default. If a worker stalls or is slow, it can fail to renew a lease before it expires. In this case, a task can be executed by multiple workers. The runtime limit imposed by serverless system act as a global limit for the amount of times a worker can renew their lease, after which the worker will terminate and the task will be handed to a different worker. Because all tasks are idempotent, this has no effect on the correctness, and can speed up execution. numpywren does not require a task queue to have strong guarantees such as exactlyonce, inorder delivery, as long as the queue can deliver each task at least once. Such weak “atleast once delivery” guarantee is provided by most queue services.
4.2 Optimizations
We next describe optimizations that improve performance by fully utilizing resources of a worker.
Pipelining:
Every LAmbdaPACK instruction block has three execution phases: read, compute and write. To improve CPU utilization and I/O efficiency, we allow a worker to fetch multiple tasks and run them in parallel. The number of parallel tasks is called pipeline width. Ideally, with a singlecore worker, we can have at most three tasks running in parallel, each doing read, compute and write respectively. With an appropriately chosen block size, we get best utilization when these three phases take approximately same time. We find pipelining to greatly improve overall utilization, and reduce endtoend completion time when resources are constrained.
Auto Scaling:
In contrast to the traditional serverless computing model where each new task is assigned a new container, task scheduling and worker management is decoupled in numpywren. This decoupling allows autoscaling of computing resources for a better costperformance tradeoff. Historically many autoscaling policies have been explored [37]
. In numpywren, we adopt a simple autoscaling heuristic and find it achieves good utilization while keeping job completion time low.
For scaling up, numpywren’s autoscaling framework tracks the number of pending tasks and periodically increases the number of running workers to match the pending tasks with a scaling factor . For instance, let , when there are pending tasks, running workers, we launch another workers. If pipeline width is not 1, numpywren also factors in pipeline width. For scaling down, numpywren uses an expiration policy where each worker shuts down itself if no task has been found for the last seconds. At equilibrium, the number of running workers is times the number of pending tasks. All of the autoscaling logic is handled by the “provisioner” in Figure 6.
Algorithm





SVD  57,919  77,828  1.33x
QR  3,486  25,108  7.19x
GEMM  2,010  2,670  1.33x
Cholesky  2,417  3,100  1.28x
5 Evaluation
We evaluate numpywren on 4 linear algebra algorithms Matrix Multiply (GEMM), QR Decomposition (QR) , Singular Value Decomposition (SVD) ^{2}^{2}2Only the reduction to banded form is done in parallel for the SVD and Cholesky Decomposition (Cholesky). All of the algorithms have computational complexity of but differ in their data access patterns. For all four algorithms we compare to ScalaPACK, an industrial strength Fortran library designed for high performance, distributed dense linear algebra. We then break down the underlying communication overheads imposed by the serverless computing model. We also do a detailed analysis of the scalability and fault tolerance of our system using the Cholesky decomposition. We compare our performance to Dask [36], a pythonbased faulttolerant library that supports distributed linear algebra. Finally, we evaluate optimizations in numpywren and how they affect performance and adaptability.
Algorithm





SVD  8.6e6  2.1e7  2.4x
QR  3.8e6  1.3e6  0.31x
GEMM  1.9e6  1.4e6  0.74x
Cholesky  3.4e5  4.3e5  1.26x
5.1 Setup
Implementation. Our implementation of numpywren is around 6000 lines of Python code and we build on the Amazon Web Service (AWS) platform. For our runtime state store we use Redis, a keyvalue store offered by ElasticCache. Though ElasticCache is a provisioned (not “serverless”) service we find that using a single instance suffices for all our workloads. We used Amazon’s simple queue service (SQS) for the task queue, Lambda for function execution, and S3 for object storage.
We run ScaLAPACK and Dask on c4.8xlarge
^{3}^{3}360 GB of memory, 18 Physical Cores, 10 GBit network link instances.
To obtain a fair comparison with ScaLAPACK and Dask, when comparing to other frameworks we run numpywren on a “emulated” Lambda environment on the same EC2 instances used for other systems ^{4}^{4}4After imposing all the constraints enforced by AWS Lambda in this emulated environment (memory, disk, runtime limits), we found no performance difference between real Lambda and our emulation.. We chose the number of instances for each problem size by finding the minimum number of instances such that ScaLAPACK could complete the algorithm successfully.
5.2 System Comparisons
We first present endtoend comparison of numpywren to ScaLAPACK on four widely used dense linear algebra methods in Table 1. We compare ScaLAPACK to numpywren when operating on square matrices of size .
In table 1 we see that the constraints imposed by the serverless environment lead to a performance penalty between 1.3x to 7x in terms of wall clock time. The difference in the runtime of QR is particularly large, we note that this is primarily due to the high communication penalty our system incurs due to the constraints imposed by the serverless environment.
In Figure 7 we compare the number of bytes read over the network by a single machine for two algorithms: GEMM and QR decomposition. We see that the amount of bytes read by numpywren is always greater than ScaLAPACK. This is a direct consequence of each task being stateless, thus all its arguments must be read from a remote object store. Moreover we see that for QR decomposition and GEMM, ScaLAPACK reads 15x and 6x less data respectively than numpywren. We discuss future work to address this in Section 7.
In Table 2 we compute the total amount of coreseconds used by numpywren and ScaLAPACK. For ScaLAPACK the coreseconds is the total amount of cores multiplied by the wall clock runtime. For numpywren we calculate how many cores were actively working on tasks at any given point in time during computation to calculate the total coreseconds. For algorithms such as SVD and Cholesky that have variable parallelism, while our wall clock time is comparable (within a factor of 2), we find that numpywren uses 1.26x to 2.5x less resources. However for algorithms that have a fixed amount of parallelism such as GEMM, the excess communication performed by numpywren leads to a higher resource consumption.
5.3 Scalability
We next look at scalability of numpywren and use the Cholesky decomposition study performance and utilization as we scale. For ScaLAPACK and Dask, we start with 2 instances for the smallest problem size. We scale the number of instances by 4x for a 2x increase in matrix dimension to ensure that the problem fits in cluster memory. Figure 7(a) shows the completion time when running Cholesky decomposition on each framework, as we increase the problem size. Similar to numpywren, ScaLAPACK has a configurable block size that affects the coarseness of local computation. We report completion time for two different block sizes (4K and 512) for ScaLAPACK in Figure 7(a). We use a block size of 4K for numpywren. To get an idea of the communication overheads, we also plot a lower bound on completion time based on the clockrate of the CPUs used.
From the figure we see that numpywren is 10 to 15% slower than ScaLAPACK4K and 36% slower than ScaLAPACK512. Compared to ScaLAPACK4K, we perform more communication due to the stateless nature of our execution. ScaLAPACK512 on the other hand has 64x more parallelism but correspondingly the blocks are only 2MB in size and the small block size does not affect the MPI transfers. While numpywren is 50% slower than Dask at smaller problem sizes, this is because ask execution happens on one machine for small problems avoiding communication. However on large problem sizes, Dask spends a majority of its time serializing and deserializing data and fails to complete execution for the 512k and 1M matrix sizes.
Weak Scaling. In Figure 7(c) we focus on the weakscaling behavior of numpywren. Cholesky decomposition has an algorithmic complexity of and a maximum parallelism of , so we increase our core count quadratically from 57 to 1800 as we scale the problem from 65k to 512k. We expect our ideal curve (shown by the green line in Figure 7(c)) to be a diagonal line. We see that our performance tracks the ideal behavior quite well despite the extra communication overheads incurred.
Utilization. We next look at how resource utilization varies with scale. We compare aggregate corehours in Figure 7(b) for different problem sizes. In this experiment we configured all three frameworks, ScaLAPACK, Dask and numpywren to minimize total resources consumed. We note that for ScaLAPACK and Dask this is often the minimum number of machines needed to fit the problem in memory. Compared to ScaLAPACK512 we find that numpywren uses % to % lower core hours. Disaggregated storage allows numpywren to have the flexibility to run with 4x less cores but increases completion time by 3x. In contrast to numpywren, cluster computation frameworks need a minimum resource allocation to fit the problem in memory, thus such a performance/resource consumption tradeoff is not possible on Dask or ScaLAPACK.
N







65k  3.56  0.019  4k  0.6  0.027
128k  4.02  0.027  32k  4.6  0.027
256k  12.57  0.065  256k  36.3  0.027
512k  49.0  0.15  2M  286  0.027
1M  450  0.44  16M  2270  0.027
5.4 Optimizations and Adaptability
We next evaluate optimizations in numpywren (Section 4) and how those affect performance and adapatbility.
Pipelining Benefits.
We measured the benefits of pipelining using Cholesky decomposition of a matrix of size .
We see that pipelining drastically improves the resource utilization profile as shown in Figure 8(a). The average flop rate on a 180 core cluster is 40% higher with pipelining enabled.
Fault Recovery.
We next measure performance of numpywren under intermittent failures of the cloud functions. Failures can be common in this setting as cloud functions can get preempted or slow down due to contention.
In the experiment in Figure 8(b) we start with 180 workers and after 150 seconds, we inject failures in 80% of the workers.
The disaggregation of resources and the fine grained computation performed by our execution engine leads to a performance penalty
linear in the amount of workers that fail. Using the autoscaling technique discussed in 4.2, Figure 8(b) also shows that we can replenish the worker pool to the original size in 20 seconds. We find there is an extra 20 second delay before the computation picks back up due the the startup communication cost of reading program arguments from the object store.
Autoscaling.
Figure 9(b) shows our autoscaling policy in action. We ran the first 5000 instructions of a 256k Cholesky solve on AWS Lambda with (as mentioned in subsection 4.2) and pipeline width = 1. We see that numpywren adapts to the dynamic parallelism of the workload.
Another important question is how to set the parameters, i.e., scaling factor and . We use simple heuristics and empirical experiments to decide these two parameters and leave more rigorous investigation for future work. We set , which is the average startup latency of a worker. For , we want to make sure that when a new worker (started during scaling up) becomes ready, the task queue should not be completely empty, so the worker can be utilized. Figure 9(c) shows the tradeoff between costvscompletion time as we vary . From the figure we see that as decreases we waste fewer resources but the completion time becomes worse. At higher values of the job finishes faster but costs more. Finally we see that there are a range of values of (1/4, 1/3, 1/2, 1) that balance the cost and execution time. Outside of the range, either there are always tasks in the queue, or overlyaggressive scaling spawns workers that do not execute any tasks. As described in Section 4.2, the balanced range is determined by worker startup latency, task graph, execution time and pipeline width.
DAG Compression.
In Table 3 we measure the LAmbdaPACK’s ability to express large program graphs with constant space, and moreover that we can compile such programs quickly. This is crucial for efficient execution since memory is scarce in the serverless environment, and distributing a large program DAG to each worker can dramatically affect performance. We see that as matrix sizes grow to 1Mx1M the DAG takes over 2 GB of memory LAmbdaPACK lowers this to 2 KB making it feasible to execute on large matrices.
Blocksize
A parameter that is of interest in performance tuning of distributed linear algebra algorithms is the block size which defines the coarseness of computation. We evaluate the effect of block size on completion time in Figure 9(a). We run the same workload (a Cholesky decomposition) at two levels of parallelism, 180 cores and 1800 cores. We see that in the 180 core case, larger block size leads to significantly faster completion time as each task performs more computation and can hide communication overheads. With higher parallelism, we see that the largest block size is slowest as it has the least opportunity to exploit the parallelism available. However, we also see that the smallest block size (2048) is affected by latency overheads in both regimes.
6 Related Work
Distributed Linear Algebra Libraries Building distributed systems for linear algebra has long been an active area of research. Initially, this was studied in the context of High Performance Computing (HPC), where frameworks like ScaLAPACK [10], DPLASMA [13] and Elemental [33] run on a multicore, sharedmemory architecture with high performance network interconnect. However, ondemand access to a HPC cluster can be difficult. While one can run ScaLAPACK or DPLASMA in the cloud, it is undesirable due to their lack of fault tolerance. On the other hand, with the wide adoption of MapReduce or BSPstyle data analytics in the cloud, a number of systems have implemented linear algebra libraries [12, 28, 26, 21, 38]. However, the BSPstyle programming API is illsuited for expressing the finegrained dependencies in linear algebra algorithms, and imposing global synchronous barriers often greatly slows down a job. Thus not surprisingly, none of these systems [12, 28, 26, 21] have an efficient implementation of distributed Cholesky decomposition that can compare with numpywren or ScaLAPACK. The only dataflowbased system that supports fine grained dependencies is MadLINQ [34]. numpywren differs from MadLINQ in that it is designed for a serverless architecture and achieves recomputationfree failure (since the previously computed blocks will remain in the object store) recovery by leveraging resource disaggregation, compared to MadLINQ where lost blocks need to be recomputed during recovery. SystemML [12] takes a similar approach to LAmbdaPACK in providing a high level framework for numerical computation, however they target a BSP backend and focus on machine learning algorithms as opposed to linear algebra primitives.
Serverless Frameworks: The paradigm shift to serverless computing has brought new innovations to many traditional applications. One predominant example is SQL processing, which is now offered in a serverless mode by many cloud providers [9, 3, 18, 35]. Serverless general computing platforms (OpenLambda [23], AWS Lambda, Google Cloud Functions, Azure Functions, etc.) have led to new computing frameworks [4, 15, 25]. Even a complex analytics system such as Apache Spark has been ported to run on AWS Lambda [39]. However, none of the previous frameworks deal with complex communication patterns across stateless workers. numpywren is, to our knowledge, the first largescale linear algebra library that runs on a serverless architecture.
Autoscaling and Fault Tolerance Efforts that add fault tolerance to ScaLAPACK has so far demonstrated to incur significant performance overhead [11]. For almost all BSP and dataflow systems[30, 24, 29], recomputation is required to restore stateful workers or datasets that have not been checkpointed. MadLINQ [34] also uses dependency tracking to minimize recomputation for its pipelined execution. In contrast, numpywren uses a serverless computing model where fault tolerance only requires reexecuting failed tasks and no recomputation is required. numpywren’s failure detection is also different and we use a leasebased mechanism. The problem of autoscaling cluster size to fit dynamic workload demand has been both studied [27] and deployed by many cloud vendors. However, due to the relatively high startup latency of virtual machines, its costsaving capacity has been limited. numpywren exploits the elasticity of serverless computing to achieve better costperformance tradeoff.
7 Discussion and Future Work
Collective Communication and Colocation. One of the main drawbacks of the serverless model is the high communication needed due to the lack of locality and efficient broadcast primitives. One way to alleviate this would be to have coarser serverless executions (e.g., 8 cores instead of 1) that process larger portions of the input data. Colocation of lambdas could also achieve similar effects if the colocated lambdas could efficiently share data with each other. Finally, developing services that provide efficient collective communication primitives like broadcast will also help address this problem.
Higherlevel libraries. The high level interface in numpywren paves way for easy algorithm design and we believe modern convex optimization solvers such as CVXOPT can use numpywren to scale to much larger problems. Akin to Numba [31] we are also working on automatically translating numpy
code directly into LAmbdaPACK instructions than can be executed in parallel.
In conclusion, we have presented numpywren, a distributed system for executing largescale dense linear algebra programs via stateless function executions. We show that the serverless computing model can be used for computationally intensive programs with complex communication routines while providing easeofuse and seamless fault tolerance, through analysis of the intermediate LAmbdaPACK language. Furthermore, the elasticity provided by serverless computing allows our system to dynamically adapt to the inherent parallelism of common linear algebra algorithms. As datacenters continue their push towards disaggregation, platforms like numpywren open up a fruitful area of research for applications that have long been dominated by traditional HPC.
