1 Introduction

Numerical modelling of crack initiation, propagation and branching under dynamic loading is still an open problem. The tracking of arbitrary paths and their propagation are modelled by different grid-based or mesh-free numerical techniques. The grid-based method such as Finite Element Method (FEM) or mesh-free methods such as Smooth Particle Hydrodynamics (SPH) cannot model crack discontinuity in their standard form. Each of these methods needs some special treatment to model the crack discontinuity.

FEM is used to model crack path and its propagation by element deletion or kill method beissel1998element , borvik2001numerical or by adaptive re-meshing de1999elastoplastic , martha1993arbitrary , marusich1995modelling , schollmann2003development . In the element deletion or kill technique beissel1998element borvik2001numerical , an element is assumed to fail once the stress, strain or damage values exceed a predefined value to model arbitrary cracks. The edges of the failed meshes act as the new crack surfaces. The main problem in element deletion or kill algorithms is the numerical instabilities arise due to excessive mesh distortion. This may lead to unreal element volume and error in the numerical computation borvik2002perforation . Though FEM coupled with automatic and adaptive re-meshing is used for modelling of arbitrary crack propagation de1999elastoplastic , martha1993arbitrary , marusich1995modelling , schollmann2003development , this technique is not quite useful for tracking multiple cracks. The method of re-meshing is also complicated as multiple field variables require internal mapping between different meshes during re-meshing.

The crack growth is also simulated through the element edges using the inter-element separation techniques camacho1996computational , xu1994numerical , ortiz1999finite , zhou2004dynamic . The crack path always propagates through the element edges or boundaries. Hence, the element size and shape are important parameters for tracking the crack path correctly. The effect of mesh size in computation is reduced in Embedded Finite Element Method (EFEM) dvorkin1990finite oliver2000discrete . The EFEM is capable of tracking arbitrary crack propagation without any re-meshing. In this method an enrichment is introduced at the element level mosler2004embedded linder2007finite . Belytschko and his group belytschko1999elastic , moes2002extended , belytschko2003dynamic developed the extended finite element method (XFEM) for modelling of arbitrary crack propagation. They utilise the partition of unity melenk1996partition for local enrichment. In XFEM, only the surrounding elements of a crack and the crack propagation path (known a priori) are enriched and the crack propagated through these enriched elements (not only through the element boundaries). Though these element based methods can model evolving cracks and track their paths, the requirement of re-meshing or local enrichments makes these numerically and computationally intensive. Moreover, these methods may not be so effective for multiple cracks, crack interaction or excessive deformations. In this context, mesh-free methods are more suitable.

Different types of mesh-free/particle methods are introduced over the years. Belytschko and his colleagues belytschko1996dynamic , lu1995element , belytschko1995element , belytschko1995crack

developed the Element-Free Galerkin (FFG) method for static and dynamic crack propagation. As the method is mesh-free, there is no re-meshing. In their works, they used moving least square interpolants as test and trial functions. Rabczuk and Belytschko

rabczuk2004cracking rabczuk2007three proposed another cracking particle method for modelling of crack path and its evolution. They introduce discontinuous enrichments, and the crack is modelled by particle splitting. As the cohesive traction at a particle reduces to zero, the particle is assumed to be cracked and split into two particles. Later, another version of cracking particle is proposed rabczuk2010simple without any enrichment. However, this still requires particle splitting. The need for discontinuous enrichments or particle splitting or visibility criteria organ1996continuous for crack path tracking makes these methods computationally intensive.

Another particle method, SPH is truly a mesh-free method MonaghanGingold83 , introduced for astronomical problems. This is extended to fluid problems and later on solids Libersky93 . In SPH, the computational domain is discretised into a set of particles. At any time instant, a particle interacts with its neighbour particles within its influence domain (known as the neighbourhood) through a kernel function. The bell-shaped kernel function ensures that the level of interaction with the nearest neighbour particles is higher than the particles close to the neighbourhood boundary. The particles have no interaction with particles outside its influence domain which is fixed by the smoothing length of the kernel function. If a particle moves out of the neighbourhood of a particle, their interaction ceases. The kernel function is independent of material properties. Naturally, it is unable to compute the damage state of different particles. But, this does not pose any problem in astronomical or fluid problems as there is no concept of damage. However, for solid continua, it poses significant difficulty as large deformation may often lead to damage/failure. If a particle which moves out of the influence domain of another particle is considered to be damaged, the damage variable will be a function of the smoothing length/radius of the kernel function. As the smoothing length/radius of the kernel function increases, the influence domain of a particle increases. A particle has to move further to get out of the influence domain of another particle. Hence, the damage state of a particle will change if the kernel radius increases or decreases for material under the same loading conditions. This may lead to non-physical behaviour in the numerical computation.

In this context, a ‘pseudo-spring’ strategy in the SPH framework is developed chakraborty2013pseudo for crack modelling. Springs connect all the particles in the computational domain. The springs are termed as ‘pseudo-spring’ as these do not provide any extra stiffness to the system but only define the level of interaction between particles based on the damage state. The interaction of particles is not the same as the standard SPH. Here, particles only interact through standard kernel function with its immediate neighbours (from initial configuration). This framework does not require any crack enrichment, particle splitting or tracking of crack paths. When a certain parameter of a pseudo-spring is more than a predefined critical value, the spring is considered to be damaged, and the interaction ceases between the connected particles. Moreover, it is assumed that the crack has passed through that particle pair. For partially damage pseudo-springs, the level of interaction is decreased accordingly. In this framework, the crack path can be tracked automatically by the damaged pseudo-springs. The simplicity of the SPH is preserved in the computation. This method is successfully used to simulated impact induced damages shaw2015beyond , chakraborty2014crack , chakraborty2015prognosis , chakraborty2017computational , islam2017computational .

In this work, this pseudo-spring analogy in SPH framework is used to simulate the crack initiation, propagation and branching in two and three dimensions. The propagation of cracks, the deviation of crack paths under different conditions and generation of multiple crack branches are simulated. The effects of tensile loading amplitude in crack branching are discussed. The generation of arbitrary crack surfaces under dynamic loading in three dimensions is modelled. The propagation of cracks under impact loading in three dimensions is also demonstrated. The ability of the pseudo-spring SPH to simulate the crack initiation, propagation and branching under dynamic loading in two and three-dimensional space is demonstrated via numerical examples. The computed crack speeds, their paths and crack surfaces are compared with experimental and numerical results available in the literature.

The paper is organised as follows: The necessary steps of pseudo-spring SPH framework and the boundary condition are discussed in Section 2. Numerical examples of two and three-dimensional crack initiation, propagation and branching under dynamic loading are discussed in Section 3. Some conclusions are drawn in Section 4.

2 Computational framework : Pseudo-Spring Sph

A set of particles represents the computational domain in SPH. Here, the basics of SPH and the ‘pseudo-spring’ analogy incorporated in the framework are discussed briefly. A more detailed description of standard SPH and the ‘pseudo-spring’ framework can be found in Libersky93 , liu2003smoothed , liu2006restoring , liu2010smoothed , chakraborty2013pseudo , chakraborty2017computational , islam2017computational , and references therein. In SPH, a particle interacts with its surrounding neighbourhood particles through a kernel function. The mass, momentum and energy equations and their approximated particle forms are

(1)
(2)
(3)
(4)
(5)
(6)

where, denotes the particle of interest, denotes its neighbour particles within its influence radius and is the set of total number of neighbour particles within its influence domain. The density of the material is represented by , is the velocity component. represents the Cauchy stress components. is the specific internal energy. , are the indices for coordinate axes. The time derivative is in moving Lagrangian frame and . is the symmetric form of the kernel gradient correction computed as islam2018consistency . The kernel gradient correction is calculated as ChenBeraunCarney99

(7)

where,

(8)

The kernel gradient is represented as . is the smoothing length of the kernel function. Here, the following cubic B-spline kernel is used.

(9)

where, and in 2D and 3D respectively.

represents the normalised position vector as

.

The artificial viscosity shown in Equation 10 is utilised in the current computation to remove any unphysical oscillation present near any jump or shock MonaghanGingold83 .

(10)

The intensity of the artificial viscosity is determined using , . and . The sound speed through the medium is computed as , denotes the Young’s modulus, , , and . The artificial/Monaghan pressure monaghan2000sph as shown in Equation 11 is used to remove the tensile instability.

(11)

where, is a controlling parameter taken as for tension and for compression. The hydrostatic pressure is denoted by . and are the current particle spacing and the average particle spacing in the reference configuration. is 4 monaghan2000sph .

The pressure is calculated from the linear equation of compressibility (Equation of State).

(12)

where, , and are the bulk modulus, Poisson’s ratio and initial mass density of the material respectively. The Cauchy stress components are calculated from the deviatoric stress components and hydrostatic pressure as . The rate of change in deviatoric stress components is calculated by Jaumann rate as,

(13)

where, represents the shear modulus and the components of strain rate (

) and spin tensor (

) are computed as,

(14)
(15)

Von-Mises yield function is used to account for the effects of metal plasticity. and are the yield stress of the material and the second invariant of deviatoric stress tensor respectively. The Wilkins criterion is used for return mapping of the yield surfaces and

. The plastic strain increment, effective plastic strain increment and accumulation of plastic work density are estimated as

(16)
(17)
(18)

The standard predictor-corrector method Monaghan89 is used to update the discretised Equations 2, 4, 6 and the stable time step for integration is determined from CFL (Courant-Fredrich-Levy) condition as, where, CFL number is 0.3, is elastic wave velocity, is smoothing length and is velocity of the respective particles.

2.1 Pseudo-Spring analogy for crack

The pseudo-spring model for crack propagation is discussed in details in chakraborty2013pseudo , chakraborty2017computational , islam2017computational . Here, a quick review of the algorithm is provided. In SPH, the particles interact with each other through the kernel function. However, the kernel function does not have any material property as shown in Equation 10. Hence, the initiation of crack and its growth cannot be modelled through it directly. A particle influences all the particles in its neighbourhood and the level of interaction between any particle pair decreases as their intermediate distance increases. As the material deforms, a particle may move out of another particle’s influence/neighbour domain, and the interaction between the particles stops. However, this cannot be considered as material damage/failure as different values of smoothing length would lead to different types of material response as discussed in chakraborty2017computational . Therefore, the ‘pseudo-spring’ analogy is used to incorporate the effects of material damage and fracture in the kernel function.

Here, a particle does not interact with all the particles found in its neighbourhood. The interaction of a particle is restricted to its immediate neighbourhood only as shown in Figure 1. All the particles are connected to its modified neighbourhood through a set of springs. These springs define the level of interaction between particles and most importantly these do not provide any extra stiffness to the system. Hence, the term ‘pseudo’ is used. At the start of the computation, the material is undamaged and the springs ensure complete interaction between connecting particles. However, as the material undergoes deformations, the damage accumulates in the springs. When the accumulated damage is more than a predefined value, it is assumed that the springs break. This leads to no interaction between connecting particles and propagation of crack path. This analogy does not require any particle splitting ren2010meshfree . The concept is illustrated in Figure 1 and 2.

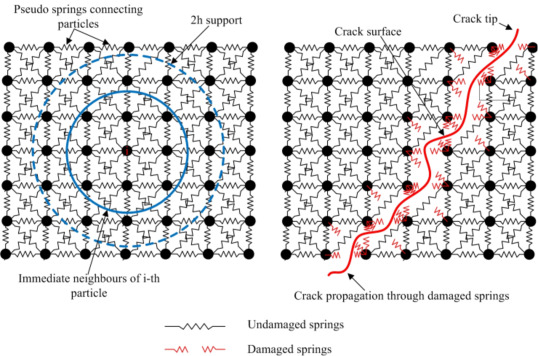

Figure 1: Pseudo-springs network on immediate neighbours and crack propagation through damaged springs

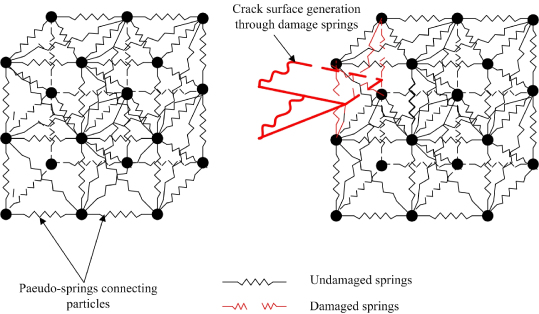

Figure 2: Crack propagation through Pseudo-spring networks in three dimension

The analogy is incorporated in the framework in the following way. A interaction factor between a connecting pair of particles is defined as and is the accumulated damage in the spring between the particle pair. At the start of the computation, there is no material damage. Hence, the damage index and this leads to the interaction factor implying complete interaction between particle pairs. However, as the damage accumulates in the springs, the interaction factor decreases i.e. or partial interaction. When the damage index i.e. the interaction factor or no interaction (leading to formation of crack surface). is computed as , where and are the damage parameters at the and particles respectively.

, and are the set of immediate neighbouring particles that interact with the particle, the set of particles which are connected to the particle through damaged and undamaged springs at a given time instant respectively. The interaction between particles and in a damaged configuration is reduced by modifying the corresponding derivative of the kernel function as . Figure 3 shows the typical modified kernel in 2D for different damage states i.e.,- (no damage), (partial damage) and (open crack).

(a) Kernel:
(b) Kernel:
(c) Kernel:
(d) Derivative:
(e) Derivative:
(f) Derivative:
Figure 3: Modification of kernel in 2D based on damage state chakraborty2017computational , islam2017computational

Finally the modified forms of the discrete conservation equations 2, 4 and 6 become,

(19)
(20)
(21)

2.2 Stress boundary condition

A stress boundary condition for SPH is developed in the context of solid continua in douillet2016development . The boundary condition can be applied with or without ghost/dummy particles. The modified form of the momentum equation to account for the applied stress is shown in Equation 22.

(22)

Here, is the stress component applied to the boundary particles.

3 Numerical simulation

3.1 Two dimensional numerical examples

In this section, the crack initiation, propagation and branching in solids under dynamic loading are simulated for two-dimensional geometry. These phenomena are simulated using the Pseudo-Spring SPH. First, the crack branching of a pre-notched plate under dynamic axial loading is studied, and the effect of the loading amplitude is also investigated here. The computed crack speeds, their paths, and crack surfaces are compared with experimental and numerical results available in the literature. The crack path from a notch in a plate with a circular hole is also modelled.

3.1.1 Crack branching

A major advantage of the pseudo spring analogy compared to other crack tracking approaches is that it can also capture complex crack path evolutions without requiring any special treatment. In this section, the crack branching phenomenon in a brittle material is modelled. Towards this, a rectangular glass plate of 100 mm length and 40 mm width is considered. A pre-existing notch of 50 mm length is located symmetrically as shown in Figure 4. The plate is under tensile loading ( = 1 MPa) at the boundaries along the length of the plate. The material parameters used for the present computation are from song2008comparative ; agwai2011predicting . The material and SPH parameters used for the current simulations are given in Table 1. The damage parameter in the pseudo-springs is obtained as below.

(23)

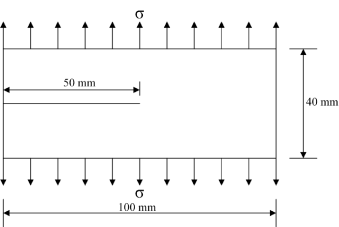

Figure 4: Setup of pre-notched glass plate under tensile loading
Material Proerties Discretization Artificial Viscosity
Parameter
() (GPa) (mm) (mm)
Value 2450 32 0.2 0.000509 0.125 0.250 1.0 1.0
Table 1: Parameters for pre-notched plate under tensile loading

In the experiment ramulu1985mechanics , it is observed that initially the crack propagates in a self-propagating mode and after few microseconds, the branching takes place as shown in Figure 5. The predicted crack paths (crack initiation, propagation and branching) as obtained via the present simulations are shown in Figure 6. The crack propagation initiates around 10 s and propagates in a straight line up to 27 s. The initiation of branching of crack is observed at 28 s. The crack propagates in two symmetrical branches and reaches the plate boundary at 62 s.

Figure 5: Crack propagation and branching : Experimental observatuion (ramulu1985mechanics, )
(a) Time = 0 s
(b) Time = 28 s
(c) Time = 50 s
(d) Time = 62 s
Figure 6: Crack path evoluation over time in pre-notched plate under tensile loading of = 1 MPa
(a)
(b)
(c)
(d)
Figure 7: Comparison of final crack path under tensile loading of = 1 MPa: (a) rabczuk2007meshfree (b) song2008comparative (c) braun2014new and (d) Present

The crack branching problem is studied in xu1994numerical ; belytschko2003dynamic ; rabczuk2004cracking ; agwai2011predicting ; braun2014new . The final crack path obtained from the present simulation is compared with other numerical predictions available in the literature as shown in Figure 7. The crack propagation speed over time is compared with different techniques. The present results compare reasonably well with the results obtained in agwai2011predicting using peridynamics, song2008comparative using XFEM-CZM, and song2009cracking using XFEM-CNM. The crack propagation speed increases after the crack initiation and decreases after the crack branching. All the predicted phenomena of the crack branching problem can be captured using the present pseudo-spring SPH framework, and the present predictions are comparable with the experimental and other numerical observations.

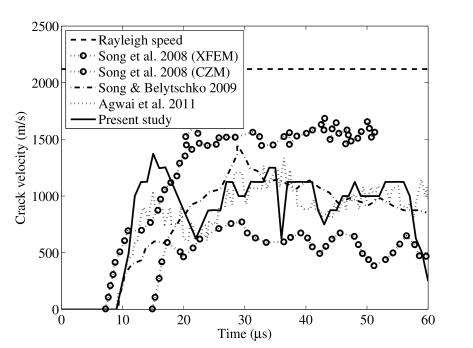

Figure 8: Comparison of crack speed over time
3.1.1.1 Effect of load intensity


Next, the effect of different tensile loading () intensities on branching behaviour is explored. values of 0.3, 1.1, 1.2, 2.0 and 4.0 MPa are considered for the simulations. All the other parameters are kept unchanged. It can be observed that the branching phenomenon depends on the loading () intensity. For, = 0.3 MPa loading, no branching is observed, and the crack propagates in a straight line as shown in Figure 9.

(a) Time = 60 s
(b) Time = 135 s
Figure 9: Crack path evoluation over time in pre-notched plate under tensile loading of = 0.3 MPa

But the branching can be observed for all the other load intensities. The crack branching starts around 15 s for = 1.1 MPa (Figure 10), 14 s for = 1.2 MPa (Figure 11), 9 s for = 2.0 MPa and 6 s for = 4.0 MPa (Figure 12). As the loading amplitude () is increased, the point where crack branching takes place, moves closer to the initial pre-notch position. The increase in loading amplitudes also results in secondary crack branches in the glass plates. No secondary crack branch is observed for = 1.1 MPa but the secondary branches are found for = 1.2, 2.0 and 4.0 MPa. The number of secondary branches also increases with the increase in loading amplitudes. These observations are consistent with zhou2016numerical .

(a) Time = 15 s
(b) Time = 50 s
Figure 10: Crack path evoluation over time in pre-notched plate under tensile loading of = 1.1 MPa
(a) Time = 14 s
(b) Time = 50 s
Figure 11: Crack path evoluation over time in pre-notched plate under tensile loading of = 1.2 MPa
(a) = 2.0 MPa at time = 40 s
(b) = 4.0 MPa at time = 25 s
Figure 12: Crack path evoluation over time in pre-notched plate under different magnitude of tensile loading

Crack branching or splitting of cracks into multiple paths are one of the features of brittle fracture. The brittle materials undergoing fracture have a process zone (ravi1984experimental, ) and the microcracks in this zone undergo nucleation, growth, and coalescence. These lead to crack path instabilities (ravi1997role, ). The crack branching occurs possibly due to the interaction between the reflected wave from the boundaries and the crack tip (waves generated due to crack propagation) or due to the pile-up of waves in the process zone (bobaru2015cracks, ). This leads to the multiple branches of crack paths for the higher amplitude of boundary stress.

3.1.2 Pre-notched plate with a circular hole

In this section, the present framework is applied to model the crack path for a plate with a mm notch and an off-centre circular hole under tensile loading as shown in Figure 13. One end of the plate is clamped, and another end is under uniform tensile stress . This numerical study aims to simulate the crack propagation originating from the pre-existing notch and to track the changes in crack path due to the presence of the off-centre circular hole. The problem is studied in rashid1998arbitrary by the arbitrary local mesh replacement method (a finite element based strategy). Tabiei and Wu tabiei2003development used DYNA3D and Kosteski et al. kosteski2012crack used truss-like discrete element method to model the crack paths. Dipasquale et al. dipasquale2014crack used adaptive grid refinement in 2D peridynamics to track the crack paths. Here, the present framework is used to track the crack paths. The material and SPH parameters for the simulation are given in Table 2. The damage parameter is obtained at any particle from Equation 23.

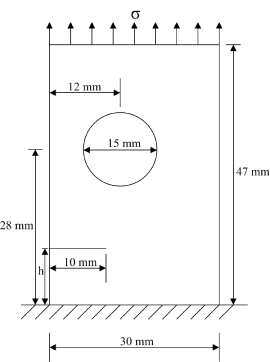

Figure 13: Setup of pre-notched plate with a cirular hole under tensile loading
Material Proerties Discretization Artificial Viscosity
Parameter
() (GPa) (mm) (mm)
Value 2700 71.4 0.25 0.00483 0.1 0.15 1.0 1.0
Table 2: Parameters for pre-notched plate with a circular hole under tensile stress

Three different notch locations from the fixed support, named as case I ( mm), case II ( mm) and case III ( mm) (ni2017peridynamic, ) are considered. Figure 14 shows the crack evolution for case I. The crack path does not interact with the circular hole, and the crack propagates from the notch to the other end without going near the circular hole.

(a) Predicted crack path by kosteski2012crack
(b) Predicted crack path by ni2017peridynamic
(c) Predicted crack path by present framework
Figure 14: Comparision of crack path for notch distance 5 from support (case I)
(a) Predicted crack path by kosteski2012crack
(b) Predicted crack path by ni2017peridynamic
(c) Predicted crack path by present framework
Figure 15: Comparision of crack path for notch distance 10 from support (case II)
(a) Predicted crack path by kosteski2012crack
(b) Predicted crack path by ni2017peridynamic
(c) Predicted crack path by present framework
Figure 16: Comparision of crack path for notch distance 15 from support (case III)

The crack propagation for case II (notch distance 10 mm) and case III (notch distance 15 mm) are given in Figure 15 and 16 respectively. The crack path deviation from the off-centre circular hole depends on the notch location. As the distance from the support increases, the deviation of the crack path from the circular hole decreases. This deviation is largest for the case I (notch distance 5 mm). The crack path interacts with the circular hole for case III. The predicted crack paths for all the three cases are consistent with the observations in kosteski2012crack ; ni2017peridynamic as shown in the Figure 14, 15 and 16.

3.2 Three dimensional numerical examples

Numerical modelling of arbitrary propagation and interaction of cracks in three dimension (3-D) is a challenging exercise. Crack propagation in 3-D is much more difficult to capture than the same in 2-D, and it poses a real test for a computational framework to demonstrate its efficacy. This motivated the extension of the present computational framework in 3-D. Herein, the pseudo spring SPH is explored to model arbitrary crack propagation in the 3-D solid continuum. Towards this end, a few example problems are considered. The first example is the formation of a helical crack in cylindrical chalk subjected to torsional loading at both ends. The Kalthoff-Winkler experiment and the failure of Taylor bullet are also modelled. The predicted fracture surfaces are found to be in good agreement with the experimental results available in the literature.

3.2.1 Cylindrical chalk under torsion

In this section, the failure of a cylindrical chalk bar under torsional loading is modelled. The diagram of the set-up and loading on the chalk specimen are shown in Figure 17. The specimen has a length of 100 mm and a diameter of 8 mm. The torsional loading is generated by applying a velocity field of = 28.3 m/s in the tangential direction to the chalk bar as shown in Figure 17. The distribution of the velocity field is given as

(24)
Figure 17: Diagram of chalk under torsion

The velocity field is applied for a length of 20 mm each at both ends of the specimen. The application of the velocity field is such that it generates a twisting behaviour in the chalk. This has the similar effect of the traction field applied in the tangential direction of the chalk creating torsional loading (bordas2008three, ; rabczuk2010three, ). The material properties and other computational parameters are given in Table 3.

Material Proerties Discretization Artificial Viscosity
Parameter
() (GPa) (MPa) (mm) (mm)
Value 1150 2 0.18 15 0.4 0.52 1.0 1.0
Table 3: Parameters for the chalk under torsional loading

The maximum principal stress criterion is used for modelling of the failure. The springs are considered to fail completely when the maximum principal stress exceeds value. The failure can happen anywhere and results in an arbitrary crack surface as shown in Figure 18. The present fracture surfaces are found to be helical. These surfaces are consistent with the crack surface obtained in bordas2008three ; rabczuk2010three for the similar problem using the extended element-free Galerkin (XEFG) method.

(a) Crack surface by bordas2008three
(b) Predicted crack surface by bordas2008three
(c) Present prediction
(d) Present prediction
Figure 18: A three dimensional chalk under torsion with helical crack surface

3.2.2 Kalthoff-Winkler experiment

As the second example, the Kalthoff-Winkler experiment (kalthoff1988failure, ) is considered. A cylindrical projectile impacts a plate with two edge notches as shown in Figure 19. Numerical simulations of similar problems are performed in rabczuk2007meshfree ; rabczuk2010simple ; braun2014new ; kosteski2012crack ; zhou2016numerical ; chakraborty2013pseudo . At a low-velocity impact, the plate undergoes brittle failure, and crack propagates at an angle 70 to the notch direction. The material and SPH parameters are given in Table 4. The impact velocity is taken as 16.5 m/s.

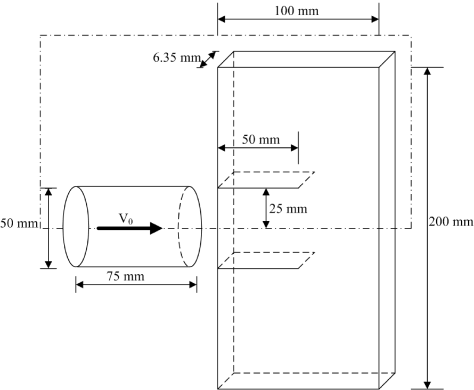

Figure 19: Set up for Kalthoff-Winkler experiment
Material Proerties Discretization Artificial Viscosity
Parameter
() (GPa) (mm) (mm)
Value 8000 190 0.3 0.0044 0.8 1.04 1.0 1.0
Table 4: Parameters for Klathoff-Winkler experiment simulation

In the present numerical simulation, half of the projectile-target system is considered due to the symmetry and accordingly a symmetric boundary condition is applied. The Rankine’s criteria or critical stretch between particles is used as the failure (chakraborty2013pseudo, ; braun2014new, ) criterion. The critical stretch at any time instant is calculated as

(25)

When the calculated stretch () at any time instant exceeds the critical stretch () value, the material is assumed to be fully damaged. The crack pattern using the current framework is shown in Figure 20 and 21. The crack path from the present simulation is found to be approximately 75 which is close to the observed crack path through experiment. A second crack path is found in the numerical results. This is not found in the experimental observation. However, a similar type of second crack path was reported in belytschko2003dynamic ; zhou2016numerical ; kosteski2012crack ; dipasquale2014crack . This crack path originates possibly due to the reflection of the wave from the boundary or due to improper estimation of material parameters.

(a)
(b)
(c)
(d)
Figure 20: Damage contour in the crack path for Kalthoff-Winkler experiment
(a)
(b)
(c)
(d)
Figure 21: Crack propagation for Kalthoff-Winkler experiment

3.2.3 Taylor bullet impact

A flat-ended cylindrical projectile of length 30 mm and diameter 6 mm is moving towards a rigid wall as shown in Figure 22. The failure of the projectile is modelled in this section. The bullet is made of Weldox 460E steel. The Johnson-Cook material and damage models are used. The material and damage parameters may be found in islam2017computational . The SPH parameters are given in Table 5. Initial impact velocity of the projectile is 600 m/s, and initial particle distribution is shown in Figure 23. The petalling fracture mode for the projectile is simulated in teng2005numericalt . The present framework also predicts petalling fracture mode as shown in Figure 24.

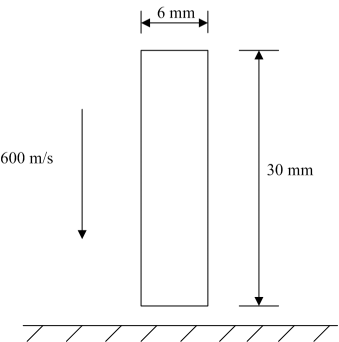

Figure 22: Cylindrical projectile impacting rigid surface
Inter-Particle Smoothing Time-step Artificial Viscosity
Spacing (p) Length (h) (t) Parameters ()
0.3 mm 0.6 mm s (1.0,1.0)
Table 5: Computational parameters used for Taylor bullet impact
Figure 23: Initial particle distribution of the projectile
(a) Prediction by teng2005numericalt
(b) Prediction by teng2005numericalt
(c) Present prediction
(d) Present prediction
(e) Present prediction
(f) Present prediction
(g) Present prediction
Figure 24: Petalling fracture mode for cylindrical projectile

4 Closure

Numerical modelling of crack initiation, propagation and branching is always a challenging task. Towards this, several attempts are made, but not all are efficient. The element-based methods can simulate the arbitrary cracks but have their own set of disadvantages namely intensive computation for local enrichment, re-meshing, element deletion etc. The mesh-free methods also require enrichments or particle splitting.

In this work, the SPH along with the ‘pseudo-spring’ analogy is used to model arbitrary crack propagation. The ‘pseudo-spring’ analogy provides a way to model discontinuity in solid continua without any enrichment, particle splitting or crack path tracking. The particles are connected by springs which do not provide any extra stiffness to the system but reduce the level of interaction between particles based on the damage state of the springs. The interaction of particles is only with the immediate neighbours. If a spring fails completely, the interaction between connecting particles ceases. This implies the passing of crack paths through the spring and generation of a new surface. This framework also preserves the simplicity of SPH.

The model is used to study two and three-dimensional problems. First, A pre-notched plate under tensile loading is studied. Initially, the crack propagates in a straight line and then splits into two branches. Both the crack branches propagate until the end of the plate. The crack speed and its path are in good agreement with the experimental and other numerical results from the literature. It is observed that the crack propagates in a straight line without any branches for low-intensity load. However, the crack splits into branches for higher load intensity. If loading intensity is further increased, multiple branches and sub-branches can be observed. Next, a notched plate with a circular hole under tensile load is considered. The position of the notch is changed and the crack path propagation is studied. The propagation of crack path and their interaction with the circular hole are found to be in good agreement with the results from the literature. The computational framework is also used to model arbitrary crack paths and surfaces in three dimensions. The fracture of a chalk bar under torsion is considered. The numerically obtained crack surface is similar to the experimental and numerical results. The Kalthoff-Winkler experiment and the Taylor impact test are also simulated for brittle fracture and the crack paths are found to be comparable to the experimental and numerical results. The ‘pseudo-spring’ SPH is found to be very efficient for the present simulations of crack initiation, propagation and branching without any special treatment. In three dimensional problem, the arbitrary crack surface can also be traced without much difficulty. The methods seem to be very good in tacking discontinuity and easy to implement. It is anticipated that the pseudo-spring analogy has the potential to constitute an efficient computational tool for modelling more complex fracture problems in both 2D and 3D continua.

Acknowledgement

The authors would like to acknowledge the Defence Research and Development Organization (DRDO), India for their support of this work.

References

  • (1) S. Beissel, G. Johnson, C. Popelar, An element-failure algorithm for dynamic crack propagation in general directions, Engineering Fracture Mechanics 61 (3) (1998) 407–425.
  • (2) T. Børvik, O. Hopperstad, T. Berstad, M. Langseth, Numerical simulation of plugging failure in ballistic penetration, International Journal of Solids and Structures 38 (34) (2001) 6241–6264.
  • (3) A. De-Andrés, J. Pérez, M. Ortiz, Elastoplastic finite element analysis of three-dimensional fatigue crack growth in aluminum shafts subjected to axial loading, International Journal of Solids and Structures 36 (15) (1999) 2231–2258.
  • (4) L. F. Martha, P. A. Wawrzynek, A. R. Ingraffea, Arbitrary crack representation using solid modeling, Engineering with Computers 9 (2) (1993) 63–82.
  • (5) T. Marusich, M. Ortiz, Modelling and simulation of high-speed machining, International Journal for Numerical Methods in Engineering 38 (21) (1995) 3675–3694.
  • (6) M. Schöllmann, M. Fulland, H. Richard, Development of a new software for adaptive crack growth simulations in 3d structures, Engineering Fracture Mechanics 70 (2) (2003) 249–268.
  • (7) T. Børvik, O. Hopperstad, T. Berstad, M. Langseth, Perforation of 12mm thick steel plates by 20mm diameter projectiles with flat, hemispherical and conical noses: part ii: numerical simulations, International Journal of Impact Engineering 27 (1) (2002) 37–64.
  • (8) G. T. Camacho, M. Ortiz, Computational modelling of impact damage in brittle materials, International Journal of Solids and Structures 33 (20-22) (1996) 2899–2938.
  • (9) X.-P. Xu, A. Needleman, Numerical simulations of fast crack growth in brittle solids, Journal of the Mechanics and Physics of Solids 42 (9) (1994) 1397–1434.
  • (10) M. Ortiz, A. Pandolfi, Finite-deformation irreversible cohesive elements for three-dimensional crack-propagation analysis, International Journal for Numerical Methods in Engineering 44 (9) (1999) 1267–1282.
  • (11) F. Zhou, J.-F. Molinari, Dynamic crack propagation with cohesive elements: a methodology to address mesh dependency, International Journal for Numerical Methods in Engineering 59 (1) (2004) 1–24.
  • (12) E. N. Dvorkin, A. M. Cuitiño, G. Gioia, Finite elements with displacement interpolated embedded localization lines insensitive to mesh size and distortions, International Journal for Numerical Methods in Engineering 30 (3) (1990) 541–564.
  • (13) J. Oliver, On the discrete constitutive models induced by strong discontinuity kinematics and continuum constitutive equations, International Journal of Solids and Structures 37 (48) (2000) 7207–7229.
  • (14) J. Mosler, G. Meschke, Embedded crack vs. smeared crack models: a comparison of elementwise discontinuous crack path approaches with emphasis on mesh bias, Computer Methods in Applied Mechanics and Engineering 193 (30) (2004) 3351–3375.
  • (15) C. Linder, F. Armero, Finite elements with embedded strong discontinuities for the modeling of failure in solids, International Journal for Numerical Methods in Engineering 72 (12) (2007) 1391–1433.
  • (16) T. Belytschko, T. Black, Elastic crack growth in finite elements with minimal remeshing, International Journal for Numerical Methods in Engineering 45 (5) (1999) 601–620.
  • (17) N. Moës, T. Belytschko, Extended finite element method for cohesive crack growth, Engineering Fracture Mechanics 69 (7) (2002) 813–833.
  • (18) T. Belytschko, H. Chen, J. Xu, G. Zi, Dynamic crack propagation based on loss of hyperbolicity and a new discontinuous enrichment, International Journal for Numerical Methods in Engineering 58 (12) (2003) 1873–1905.
  • (19) J. M. Melenk, I. Babuška, The partition of unity finite element method: basic theory and applications, Computer Methods in Applied Mechanics and Engineering 139 (1-4) (1996) 289–314.
  • (20) T. Belytschko, M. Tabbara, Dynamic fracture using element-free galerkin methods, International Journal for Numerical Methods in Engineering 39 (6) (1996) 923–938.
  • (21) Y. Lu, T. Belytschko, M. Tabbara, Element-free galerkin method for wave propagation and dynamic fracture, Computer Methods in Applied Mechanics and Engineering 126 (1-2) (1995) 131–153.
  • (22) T. Belytschko, Y. Lu, L. Gu, M. Tabbara, Element-free galerkin methods for static and dynamic fracture, International Journal of Solids and Structures 32 (17-18) (1995) 2547–2570.
  • (23) T. Belytschko, Y. Lu, L. Gu, Crack propagation by element-free galerkin methods, Engineering Fracture Mechanics 51 (2) (1995) 295–315.
  • (24) T. Rabczuk, T. Belytschko, Cracking particles: a simplified meshfree method for arbitrary evolving cracks, International Journal for Numerical Methods in Engineering 61 (13) (2004) 2316–2343.
  • (25) T. Rabczuk, T. Belytschko, A three-dimensional large deformation meshfree method for arbitrary evolving cracks, Computer Methods in Applied Mechanics and Engineering 196 (29) (2007) 2777–2799.
  • (26) T. Rabczuk, G. Zi, S. Bordas, H. Nguyen-Xuan, A simple and robust three-dimensional cracking-particle method without enrichment, Computer Methods in Applied Mechanics and Engineering 199 (37) (2010) 2437–2455.
  • (27) D. Organ, M. Fleming, T. Terry, T. Belytschko, Continuous meshless approximations for nonconvex bodies by diffraction and transparency, Computational Mechanics 18 (3) (1996) 225–235.
  • (28) J. J. Monaghan, R. A. Gingold, Shock simulation by the particle method SPH, Journal of Computational Physics 52 (2) (1983) 374–389.
  • (29) L. D. Libersky, A. G. Petschek, T. C. Carney, J. R. Hipp, F. A. Allahdadi, High strain lagrangian hydrodynamics: A three-dimensional SPH code for dynamic material response, Journal of Computational Physics 109 (1993) 67–75.
  • (30) S. Chakraborty, A. Shaw, A pseudo-spring based fracture model for SPH simulation of impact dynamics, International Journal of Impact Engineering 58 (2013) 84–95.
  • (31) A. Shaw, S. Reid, D. Roy, S. Chakraborty, Beyond classical dynamic structural plasticity using mesh-free modelling techniques, International Journal of Impact Engineering 75 (2015) 268–278.
  • (32) S. Chakraborty, A. Shaw, Crack propagation in bi-material system via pseudo-spring smoothed particle hydrodynamics, International Journal for Computational Methods in Engineering Science and Mechanics 15 (3) (2014) 294–301.
  • (33) S. Chakraborty, A. Shaw, Prognosis for ballistic sensitivity of pre-notch in metallic beam through mesh-less computation reflecting material damage, International Journal of Solids and Structures 67 (2015) 192–204.
  • (34) S. Chakraborty, M. R. I. Islam, A. Shaw, L. Ramachandra, S. Reid, A computational framework for modelling impact induced damage in ceramic and ceramic-metal composite structures, Composite Structures 164 (2017) 263–276.
  • (35) M. R. I. Islam, S. Chakraborty, A. Shaw, S. Reid, A computational model for failure of ductile material under impact, International Journal of Impact Engineering 108 (2017) 334–347.
  • (36) G.-R. Liu, M. B. Liu, Smoothed particle hydrodynamics: a meshfree particle method, World Scientific, 2003.
  • (37) M. B. Liu, G. R. Liu, Restoring particle consistency in smoothed particle hydrodynamics, Applied Numerical Mathematics 56 (1) (2006) 19–36.
  • (38) M. B. Liu, G. R. Liu, Smoothed particle hydrodynamics SPH: an overview and recent developments, Archives of Computational Methods in Engineering 17 (1) (2010) 25–76.
  • (39) M. R. I. Islam, S. Chakraborty, A. Shaw, On consistency and energy conservation in smoothed particle hydrodynamics, International Journal for Numerical Methods in Engineering 116 (9) (2018) 601–632.
  • (40) J. K. Chen, J. E. Beraun, T. C. Carney, A corrective smoothed particle method for boundary value problems in heat conduction, International Journal for Numerical Methods in Engineering 46 (2) (1999) 231–252.
  • (41) J. J. Monaghan, SPH without a tensile instability, Journal of Computational Physics 159 (2) (2000) 290–311.
  • (42) J. J. Monaghan, On the problem of penetration in particle methods, Journal of Computational Physics 82 (1) (1989) 1–15.
  • (43) B. Ren, S. Li, Meshfree simulations of plugging failures in high-speed impacts, Computers & Structures 88 (15) (2010) 909–923.
  • (44) T. Douillet-Grellier, R. Pramanik, K. Pan, A. Albaiz, B. D. Jones, J. R. Williams, Development of stress boundary conditions in smoothed particle hydrodynamics (sph) for the modeling of solids deformation, Computational Particle Mechanics (2016) 1–21.
  • (45) J.-H. Song, H. Wang, T. Belytschko, A comparative study on finite element methods for dynamic fracture, Computational Mechanics 42 (2) (2008) 239–250.
  • (46) A. Agwai, I. Guven, E. Madenci, Predicting crack propagation with peridynamics: a comparative study, International Journal of Fracture 171 (1) (2011) 65–78.
  • (47) M. Ramulu, A. Kobayashi, Mechanics of crack curving and branching—a dynamic fracture analysis, International Journal of Fracture 27 (3) (1985) 187–201.
  • (48) T. Rabczuk, G. Zi, A meshfree method based on the local partition of unity for cohesive cracks, Computational Mechanics 39 (6) (2007) 743–760.
  • (49) M. Braun, J. Fernández-Sáez, A new 2d discrete model applied to dynamic crack propagation in brittle materials, International Journal of Solids and Structures 51 (21) (2014) 3787–3797.
  • (50) J.-H. Song, T. Belytschko, Cracking node method for dynamic fracture with finite elements, International Journal for Numerical Methods in Engineering 77 (3) (2009) 360–385.
  • (51) X. Zhou, Y. Wang, Q. Qian, Numerical simulation of crack curving and branching in brittle materials under dynamic loads using the extended non-ordinary state-based peridynamics, European Journal of Mechanics-A/Solids 60 (2016) 277–299.
  • (52) K. Ravi-Chandar, W. Knauss, An experimental investigation into dynamic fracture: Iii. on steady-state crack propagation and crack branching, International Journal of Fracture 26 (2) (1984) 141–154.
  • (53) K. Ravi-Chandar, B. Yang, On the role of microcracks in the dynamic fracture of brittle materials, Journal of the Mechanics and Physics of Solids 45 (4) (1997) 535–563.
  • (54) F. Bobaru, G. Zhang, Why do cracks branch? a peridynamic investigation of dynamic brittle fracture, International Journal of Fracture 196 (1-2) (2015) 59–98.
  • (55) M. Rashid, The arbitrary local mesh replacement method: an alternative to remeshing for crack propagation analysis, Computer Methods in Applied Mechanics and Engineering 154 (1-2) (1998) 133–150.
  • (56) A. Tabiei, J. Wu, Development of the dyna3d simulation code with automated fracture procedure for brick elements, International Journal for Numerical Methods in Engineering 57 (14) (2003) 1979–2006.
  • (57) L. Kosteski, R. B. D’Ambra, I. Iturrioz, Crack propagation in elastic solids using the truss-like discrete element method, International Journal of Fracture 174 (2) (2012) 139–161.
  • (58) D. Dipasquale, M. Zaccariotto, U. Galvanetto, Crack propagation with adaptive grid refinement in 2d peridynamics, International Journal of Fracture 190 (1-2) (2014) 1–22.
  • (59) T. Ni, Q.-z. Zhu, L.-Y. Zhao, P.-F. Li, Peridynamic simulation of fracture in quasi brittle solids using irregular finite element mesh, Engineering Fracture Mechanics.
  • (60) S. Bordas, T. Rabczuk, G. Zi, Three-dimensional crack initiation, propagation, branching and junction in non-linear materials by an extended meshfree method without asymptotic enrichment, Engineering Fracture Mechanics 75 (5) (2008) 943–960.
  • (61) T. Rabczuk, S. Bordas, G. Zi, On three-dimensional modelling of crack growth using partition of unity methods, Computers & Structures 88 (23) (2010) 1391–1411.
  • (62) J. Kalthoff, S. Winkler, Failure mode transition at high rates of shear loading, DGM Informationsgesellschaft mbH, Impact Loading and Dynamic Behavior of Materials 1 (1988) 185–195.
  • (63) X. Teng, T. Wierzbicki, S. Hiermaier, I. Rohr, Numerical prediction of fracture in the taylor test, International Journal of Solids and Structures 42 (9-10) (2005) 2929–2948.
