The number of detected gravitational wave events is rapidly increasing abbott2019gwtc ; nitz20191 ; zackay2019highly ; nitz20202 ; venumadhav2020new ; abbott20211gwtc ; abbott20212gwtc . Consequently, datasets of inferred properties such as mass, spin, and redshift have become feasible, the most recent being produced from GWTC-3 abbott20212gwtc . At this point, there is sufficient data for population-level analyses kovetz2017black ; fishbach2018does ; wysocki2019reconstructing ; roulet2019constraints ; smith2020inferring ; galaudage2020gravitational ; kapadia2020self ; kimball2020black ; roulet2020binary ; tiwari2021vamana ; abbott2021population ; abbott2021population3 . Many previous methods assume a simplistic phenomenological shape of the distribution such as a power law. However, as indicated in tiwari2021vamana , it is crucial that the proposed model class can accurately represent the data; otherwise, the reconstruction may miss essential population-level properties and correlations. An imposed phenomenological shape can suffer from human-induced bias, leading to potentially incorrect conclusions. In addition, the detection rate increases steeply with improved detector sensitivity, and it will be difficult to extract all the information from growing datasets. tiwari2021vamana move away from this approach by proposing a mixture model of weighted Gaussians (and a power law) that is expected to be capable of modeling a variety of complex distributions.
In this work, we continue this direction, but use normalizing flows tabak2010density ; rezende2015variational ; papamakarios2021normalizing as our model class. The main advantage is that normalizing flows have successfully been able to represent complex data distributions in previous works and can be fit to such distributions in a straightforward manner. We thus rid ourselves almost entirely of the (potentially biased) constraints put previously on the inference models.
Summarizing, we show that:
In the Hierarchical Bayesian Analysis (HBA) framework (a Bayesian graphical model used in the gravitational wave community), a normalizing flow can, despite having access to minimal and noisy data, recover structure in the data that agrees with either ground truth or robust results from previous studies. Further, it can reveal patterns that are easily missed by custom phenomenological modeling.
Using a prior over the free parameters of the normalizing flow, we can get a posterior predictive distribution that generates interpretable confidence intervals.
Let be a gravitational wave time series and be an observed dataset of such events. We understand the physical implication of an event
through a vector of associated parameters. For binary mergers, these parameters include both masses, the redshift, and effective spin. Parameter inference for individual events comes with a lot of uncertainty due to measurement noise intrinsic to the underlying time series. Further, these posterior distributions can have a non-trivial shape. This is exemplified in fig. 1 and fig. 2
, where we show on the left the density estimates ofassociated with for every
. It is clear that heuristics such as taking the mean of the samples of the posterior distributions and fitting the population model to those is not sufficient. Therefore, the gravitational wave community has resorted toHierarchical Bayesian Analysis (HBA) mandel2019extracting ; gaebel2019digging ; vitale2022inferring , a Bayesian graphical model (see appendix A) for population-level inference. By taking into account measurement uncertainty, HBA distills the posterior samples into a single population model, which can be seen as a form of deconvolution bovy2011extreme . In this way, despite huge uncertainties in the parameters of individual events, we can still draw scientifically sound downstream conclusions about important characteristics of the Universe.
2.1 Hierarchical Bayesian Analysis
We are interested in obtaining a population model for after observing . First, we introduce a model parameter with a fixed prior distribution . For a fully specified generative model, we further need to introduce distributions and , . We are interested in the posterior distribution
and the posterior predictive distribution
which expresses the probability of observing a new event with parametersgiven the (old) observations while taking into account the uncertainty in .
While we usually do not have access to the marginal we can make use of a (usually physics-informed prior) distribution , and then receive samples from the conditional , where . I.e., we assume that we have access to samples from the individual posterior distributions. As such, our dataset is where for every event we have samples from . We are first interested in maximizing an approximate posterior using :
2.2 Normalizing Flows
So far, we have not discussed how we parameterize . To facilitate increasingly larger datasets and to be able to model higher-dimensional distributions, the goal of this research is to explore more flexible and scalable models. As such, we propose normalizing flows (tabak2010density, ; rezende2015variational, ; papamakarios2021normalizing, , appendix C) as a suitable model class. Normalizing flows transform a density using a chain of a smooth, invertible mappings such that which constructs an arbitrarily complex density. We parameterize each using a set of weights , and construct a log-likelihood which we can optimize for using, e.g., stochastic gradient descent. In this work, we use planar flows rezende2015variational and block neural autoregressive flows de2020block , as we experimentally found that they are sufficiently flexible while not using too many parameters. Furthermore, we found that the resulting distributions are smooth, which makes them physically more plausible and allows for better automated discovery of interpretable models wong2022automated .
3.1 Illustrative Examples
In an illustrative example, we use a mixture of Gaussians as the ground truth marginal distribution over . The observable distribution is a Gaussian with mean , from which we draw . Using a uniform prior , we obtain posterior draws for all events using rejection sampling. Due to the noninvertible forward model, the posteriors are bimodal and noisy. Since the true underlying population distribution and the posteriors are nontrivial, standard techniques will not be effective here. Still, the normalizing flow can, using the Hierarchical Bayesian Analysis framework, convert the noisy posterior draws shown in fig. 1 (left) into a faithful population model as shown in fig. 1 (right). Further, we perform a more realistic (though less clearly visualizable) experiment with synthetic data in section D.2 where we sample data from previously suggested gravitational wave population models (e.g., by abbott2021population3 ) and recover the proposed distributions.
3.2 GWTC-3: Primary Mass Marginal
In our experiments on the GWTC-3 catalog, we consider four gravitional wave parameters: (primary mass), (secondary mass), (redshift) and (effective inspiral spin). I.e., and . Note that the number of recorded gravitational wave events is currently rather small (). Still, we show that we can retrieve structure from the data that agrees with previous studies. After getting by maximizing eq. 2, we obtain, using Hamiltonian Monte Carlo neal2011mcmc , samples , starting the chain at . Next, we obtain the posterior predictive distribution by the approximation . We show the resulting observed population posterior predictive marginal in fig. 2.
Note, again, that we did not impose any strong restrictions on the model class; this result was fully recovered from just the data. Overall, we see (apart from selection bias effects mandel2019extracting ) similarity with, e.g., the Power Law + Peak and Multi-Peak model of abbott2021population ; abbott2021population3 . Specifically, we observe distinct peaks around , , and . Finally, we also reassuringly observe that the uncertainty contracts or expands in the parts where we expect it to. I.e., it expands at regions where we do not have many observations, and contracts in the regions where we do (e.g., around the high-mass modes).
3.3 GWTC-3: Observed Population Distribution

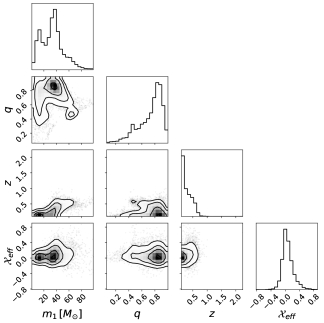

We display the marginal joint distributions infig. 3. Here, we define as the ratio of secondary to primary mass of the binary. Note this figure shows the observed population results. This is especially noticeable in the redshift marginal , which is heavily biased towards low-redshift events. Further, we expect more lower primary mass events . and are expected to be less affected by not including the selection function. To draw conclusions about the true population, one should include selection bias effects. Optimization was highly unstable when including the selection function in the objective. Hence, including selection bias effects was left for future investigation. Also, is expected to peak at , with an infinitely steep cutoff at . We did not observe this due to the smoothness of the flow. Future work could look into reparameterizations to enable this behavior.
We can tentatively draw a few conclusions from the observed population figure. Interestingly, it suggests that and do not simply correlate through a power law. Instead, the distribution shows an inverted V shape. The redshift to mass correlations seem plausible and consistent. The effective spin marginal also aligns with previous literature. In mckernan2022ligo is was noted that does not correlate positively with , which is also confirmed here.
We parameterized the population model in the Hierarchical Bayesian Analysis framework with a normalizing flow. In illustrative experiments, we confirmed that the model can retrieve the actual population density under nontrivial posterior samples. On gravitational wave data from GWTC-3, we considered primary mass, secondary mass, redshift, and effective spin and recovered an observed population model that agrees with robust previous phenomenological modeling results despite the dataset being small and highly noisy. This paves the way for less constrained, tractable, and flexible population-level inference in noisy settings, especially once more higher-dimensional data become available, allowing for automated discovery of structure in the data.
5 Broader Impact
This research proposed to combine normalizing flows with the HBA framework. The current work found an application to gravitational wave event data, but in principle, the method can be implemented in many fields of science. While this work purely aims to aid scientific discovery, the approach can also be used in non-scientific settings dealing with noisy observations, which can pose privacy-related issues depending on the data type and source. As such, we encourage more data privacy awareness and establishing data protection policies.
This work was largely performed as part of the machine learning summer program of the Flatiron Institute. We would like to thank the scientific software development community, without whom this work would not be possiblehunter2007matplotlib ; van2011numpy ; pedregosa2011scikit ; bingham2019pyro ; paszke2019pytorch ; virtanen2020scipy ; cobb2020scaling ; waskom2021seaborn .
