"None of the Above":Measure Uncertainty in Dialog Response Retrieval

04/04/2020 ∙ by Yulan Feng, et al. ∙ Carnegie Mellon University 0

This paper discusses the importance of uncovering uncertainty in end-to-end dialog tasks, and presents our experimental results on uncertainty classification on the Ubuntu Dialog Corpus. We show that, instead of retraining models for this specific purpose, the original retrieval model's underlying confidence concerning the best prediction can be captured with trivial additional computation.



There are no comments yet.


page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Modelling uncertainty is a widely researched problem in dialog. Stochastic models like deep Q-networks Tegho et al. (2017), Gaussian processes Gašić and Young (2014)

, and partially observable Markov decision process

Roy et al. (2000)

are often used in spoken dialog systems to optimize dialog management by explicitly estimating uncertainties in policy assignments.

However, these approaches are either computationally intensive Gal and Ghahramani (2015) or require significant work on refining policy representations Gašić and Young (2014). Moreover, most current uncertainty studies in dialog focus on the dialog management component. End-to-end (E2E) dialog retrieval models jointly encode a dialog and a candidate response (Wu et al., 2016; Zhou et al., 2018), assuming that there is always a ground truth present in the candidate set. This is clearly not the case in production. Larson et al. (2019)

recently showed that classifiers that perform well on in-scope intent classification for task-oriented dialog systems struggle to identify out-of-scope queries. The response selection task in the most recent Dialog System Technology Challenge

Lasecki (2019) also explicitly mentions that “none of the proposed utterances is a good candidate” should be a valid option.

The goal of this paper is to set a new direction for future task-oriented dialog system research: while retrieving the best candidate is crucial, it should be equally important to identify when the “correct response” (a.k.a ground truth) is not present in the candidate set. In this paper, we measure the E2E retrieval model’s capability to capture uncertainty by inserting an additional “none of the above” (NOTA) candidate into the proposed response set at inference time. This is motivated by the design of student performance assessment.

Having NOTA be a candidate is a common practice of test creators when designing multiple-choice questions, both as correct answers and as distractors. How the use of NOTA affects the difficulty and discrimination of a question is widely discussed in the psychology and education fields Gross (1994); Pachai et al. (2015). For assessment purposes, a common finding is that using NOTA as the correct response increases question difficulty, and equally lures high- and low-performing students toward distractors Pachai et al. (2015).

The contributions of this paper include: (1) discovering that it is crucial to learn the relationship amongst the candidates as a set instead of looking at point-wise matching to solve the NOTA detection task. As a result, our proposed LogReg approach consistently achieves the best performance compared to a number of strong baselines. (2) extensive experiments show that the raw output score (logits

) is more informative in terms of representing model confidence than normalized probabilities after the Softmax layer.

2 Methods

2.1 Ubuntu Dataset

All of the experiments herein use the Ubuntu Lowe et al. (2015) Dialog Corpus, which contains multi-turn, goal-oriented chat logs on the Ubuntu forum. For next utterance retrieval purposes, we use the training data version that was preprocessed by Mehri and Eskenazi (2019), where all negative training samples (500,127) were removed, and, for each context, 9 distractor responses were randomly chosen from the dataset to form the candidate response set, together with the ground truth response. For the uncertainty task, we use a special token _NOTA to represent the “none of the above” choice, as in multiple choice questions. More details on this NOTA setup can be found in section 3.1 and 3.2. The modified training dataset has 499,873 dialog contexts, each has 10 candidate responses. The validation and test sets remain unchanged, with 19,561 validation samples and 18,921 test samples.

2.2 Dual LSTM Encoder

The LSTM dual encoder model consists of two single-layer, uni-directional encoders, one to encode the embedding () of the context and one to encode the embedding () of the response. The output function is computed as a dot product of the two, . This model architecture has already been shown to perform well for the Ubuntu dataset Lowe et al. (2015); Kadlec et al. (2015). We carry out experiments with the following variants of the vanilla model for training:


This is the most common training method for next utterance ranking on the Ubuntu corpus. With training data prepared in the format of [CONTEXT] [RESPONSE] [LABEL], the model performs binary classification on each sample, predicting whether a given response is the ground truth. The binary cross entropy between the label and

following a sigmoid layer is used as the loss function .


As the validation and test datasets are both in the format of [CONTEXT] [RESPONSE]*x, where x is usually 10, we train the selection model in the same way. For this model, following a softmax layer, the loss is calculated by the negative log likelihood function:



Gal and Ghahramani (2015)

found that dropout layers can be used in neural networks as a Bayesian approximation to the Gaussian process, and thus have the ability of representing model uncertainty in deep learning. Inspired by this work, we add a dropout layer after each encoder’s hidden layer at training time. At inference, we have the dropout layer activated and pass each sample through

times, and then make the final prediction by taking a majority vote among the

predictions. Unlike the other models, the NOTA binary classification decision is not based on the output score itself, but rather is calculated on the score variance of each response.

3 Experiments

3.1 Direct Prediction

For the direct prediction experiment, we randomly choose of the response sets and replace the ground truth responses with _NOTA (we label this subset as isNOTA). For the other samples, we replace the first distractor with _NOTA (we label this subset as notNOTA). By using this setup, we ensure that a _NOTA is always present in the candidate set. Although making decisions based on logits (Directlogits) or probability (DirectProb) yields the same argmax prediction, we collect both output scores for the following LogReg model (details in Section 3.3). Concretely, the final output of a direct prediction model is:


3.2 Threshold

Another common approach towards returning NOTA is to reject a candidate utterance based on confidence score thresholds. Therefore, in the threshold experiments, with the same preprocessed data as in Section 3.1, we remove all “_NOTA” tokens at the inference model’s batch preparation stage, leaving 9 candidates, leaving of response sets (the isNOTA set) with no ground truth present. After the model outputs scores for each candidate response, with the predefined threshold, it further decides whether to accept the prediction with the highest score as the final response it will give, or to reject the prediction and give _NOTA instead. We investigate the performance of setting the threshold based on probability (ThresholdProb) and logits (ThresholdLogits) respectively. Concretely, the final output is given by:


3.3 Logistic Regression

We feed the output scores of LSTM models for all candidate answers as input features to the Logistic Regression (

LogReg) model consisting of a single linear layer and a logistic output layer. Separate LogReg models are trained for different numbers of candidates. The probability output indicates whether the previous model’s prediction is ground truth, or just the best-scoring distractor. Since LogReg can see output scores from all candidate responses, it is trained to model the relationship amongst all the candidates, making it categorically different from the binary estimation mentioned in Section 3.1 and 3.2. Note that at inference time, LogReg works essentially as a threshold method. The final output is determined by:


3.4 Metric Design

Dialog retrieval tasks often use recall out of k () as a key metric, measuring out of candidates how often is the answer in top-k. In this paper, we are focusing on the top-1 accuracy ( for short) with a candidate set size of , where . The recall metric is modified for uncertainty measurement purposes, and is further extended to calculate the _NOTA accuracy out of (), and F1 scores for each class (). Let and be the two parts of data that correspond to samples that are notNOTA and NOTA respectively, the above metrics are computed by:


The positive class in is the isNOTA class, and the positive class in is the notNOTA class,

3.5 More Candidates

In real world problems, retrieval response sets usually have many more than 10 candidates. Therefore, the selection and binary models are further tested on a bigger reconstructed test set. For each context, we randomly select 90 more distractors from other samples’ candidate responses, producing a candidate response set of size 100 for each context.

4 Results and Analysis

width=0.5 Average F1 Selection Model (original data) Direct Predict 56.12 61.48 52.82 67.46 60.14 +LogReg (Logits) 55.98 87.81 86.96 88.56 87.76 +LogReg (Softmax) 50.94 74.30 74.46 74.15 74.31 Logits Threshold (=0.5) 50.10 64.28 62.84 65.61 64.22 +LogReg 62.81 80.45 80.49 80.42 80.45 Softmax Threshold (=0.55) 48.76 60.10 59.69 60.50 60.09 +LogReg 63.64 78.50 80.17 76.52 78.34 Selection Model (_NOTA) Direct Predict 55.43 63.07 54.28 69.03 61.66 +LogReg (Logits) 40.66 78.19 78.80 77.53 78.16 +LogReg (Softmax) 51.63 77.94 78.21 77.67 77.94 Logits Threshold (=2.0) 48.44 61.32 57.75 64.32 61.03 +LogReg 60.73 79.22 79.11 79.33 79.22 Softmax Thtrshold (=0.5) 48.18 59.06 57.32 60.67 59.00 +LogReg 61.08 78.01 79.75 75.94 77.84 Binary Model Direct Predict 35.73 61.72 63.54 59.72 61.63 +LogReg (Logits) 35.64 94.08 93.72 94.40 94.06 +LogReg (Softmax) 25.42 85.06 85.41 84.69 85.05 Logits Threshold (=1.0) 41.64 61.50 57.77 64.62 61.20 +LogReg 51.58 77.15 76.74 77.55 77.14 Softmax Threshold (=0.4) 39.70 54.96 51.83 57.70 54.77 +LogReg 52.00 74.40 76.43 71.99 74.21 Dropout Model Direct Predict 28.57 50.13 1.48 66.61 34.05 +LogReg (Logits) 19.21 66.89 61.87 70.74 66.30 +LogReg (Softmax) 21.73 50.49 56.37 42.79 49.58 Logits Variance Threshold (=0.1) 13.73 51.89 57.15 45.15 51.15 +LogReg 20.87 56.13 40.18 65.37 52.78 Softmax Variance Threshold (=0.001) 22.22 50.03 38.98 57.69 48.33 +LogReg 23.84 57.21 60.87 52.81 56.84

Table 1: Results on 10 candidates. represents recall, represents binary NOTA classification accuracy, represents the F1 score on the NOTA class, and represents the F1 score on the ground-truth-present class. Average F1 is the average of and .

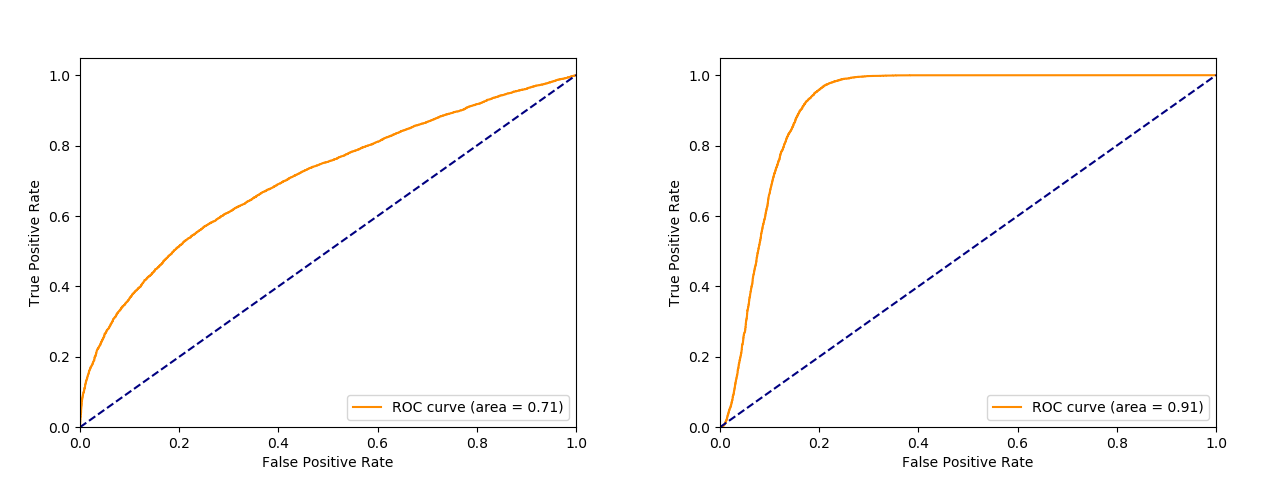

Figure 1: Plots of ROC curves. Left plot represents LSTM direct prediction logits results, and right plot represents LogReg results with logits input.

Table 1

summarizes the experimental results. Due to space limitations, the table only displays results on 10 candidates. Complete results on other numbers of candidates, which have similar performance patterns as 10, are found in the appendix. The thresholds and hyperparameters are tuned on the validation set according to the highest average F1 score. For the selection model, in addition to the original dataset, we also train the model on a modified training dataset, containing

_NOTA choices as in inference datasets, with the same set of hyperparameters. As expected, since there are now fewer real distractor responses, training including _NOTA

improves the model’s NOTA classification performance but sacrifices recall scores, which is not desirable. In all the models, regardless of the training dataset used and the model architecture, adding a logistic regression on top of the LSTM output significantly improves the average F1 scores. Specifically, the highest F1 scores are always achieved with logits scores as LogReg input features. These results show that, though setting a threshold is a common heuristic to balance true and false acceptance rates

Larson et al. (2019), its NOTA prediction performance is not comparable to the LogReg approach, even after an exhaustive grid-search of best thresholds. This finding is also matched by receiver operating characteristic (ROC) curves on the validation set (Figure 1), which shows the areas under curve (AUC) are boosted from 0.71 to 0.91 with the additional LogReg model.

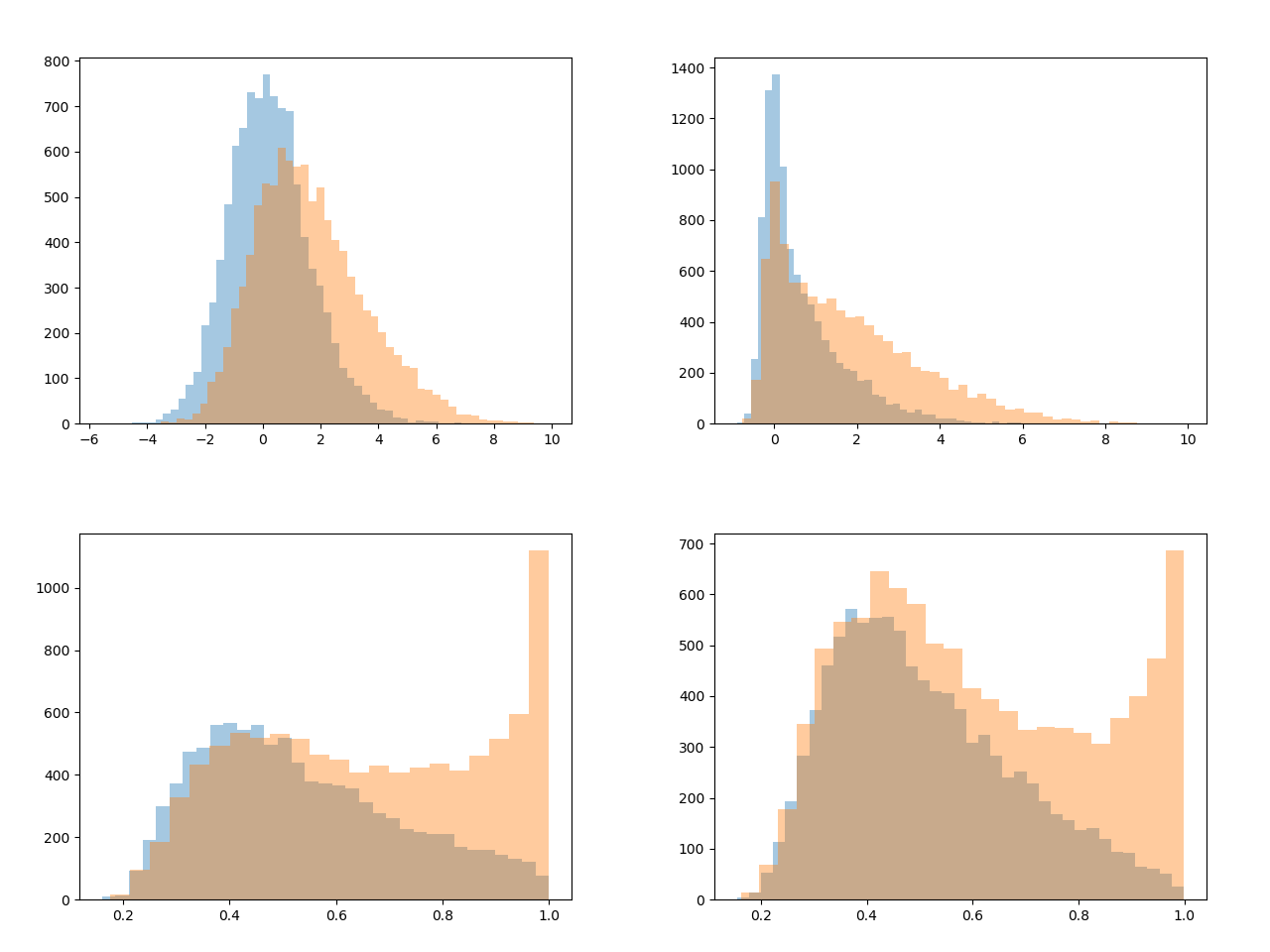

Figure 2: Distribution of max scores as predicted by the original selection model, with scores (logits or probability) on the x-axis, and number of samples on the y-axis. Blue plot represents the isNOTA subset, and orange plot represents the notNOTA. Top left, top right, bottom left, and bottom right represent plots for ThresholdLogits,Directlogits, ThresholdProb, and DirectProb respectively

With the selection model trained on the original dataset, Figure 2 shows the model’s distribution of max scores on the validation set. We see that there are clear differences between isNOTA’ and notNOTA’s best score distributions. This is an encouraging observation, because it suggests that current retrieval models can already distinguish good versus bad responses to some extent. Note that as the _NOTA token is not included in training, for direct predictions tasks the _NOTA token is encoded as an UNK token at inference time. The tails of the isNOTA plot in both the DirectLogits and DirectProb graphs suggest that the model will, very rarely, pick the unknown token as the best response.

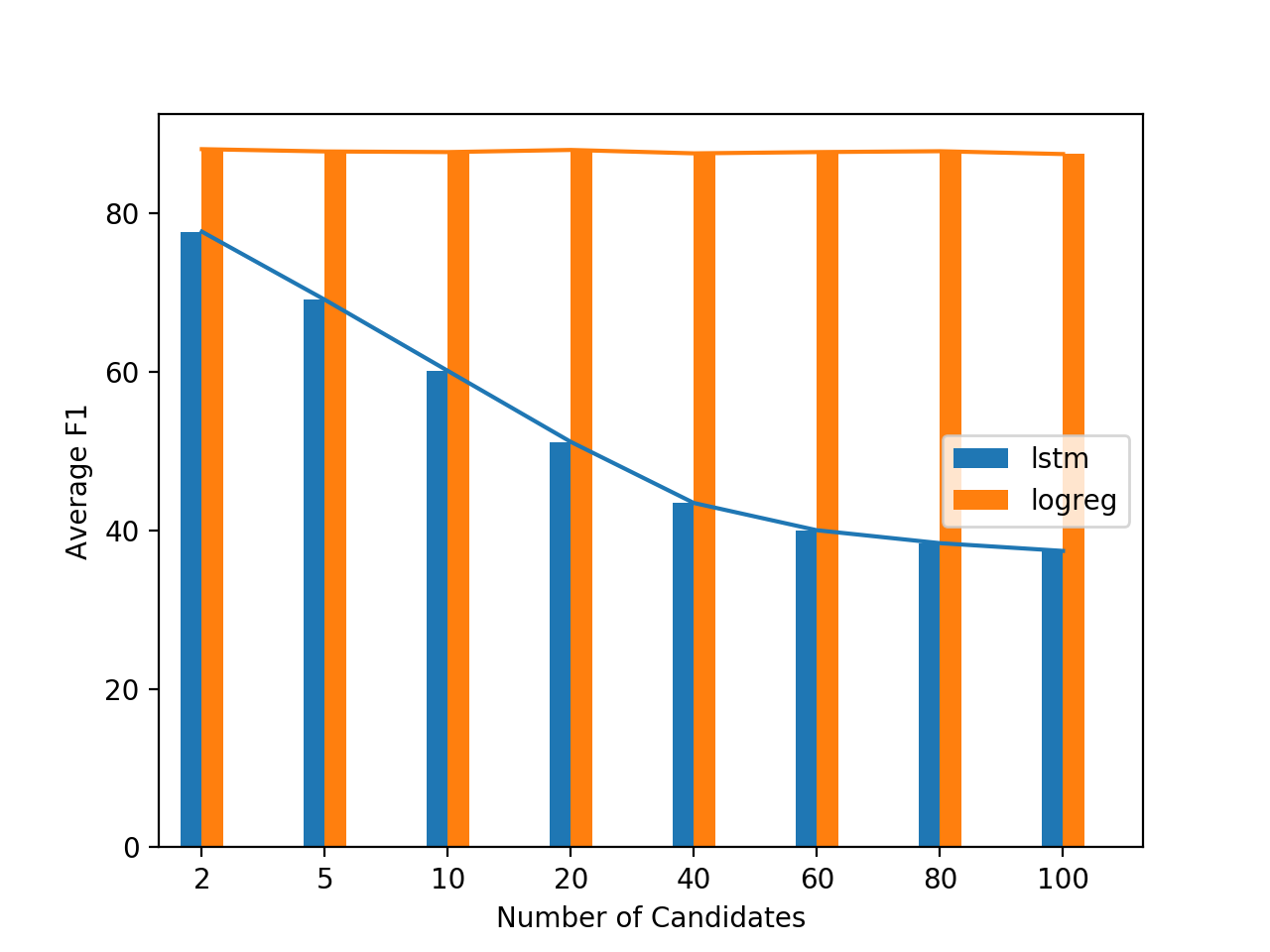

Figure 3: Average F1 scores with different numbers of response candidates, where LSTM model stays the same, and LogReg is separately trained for each number setting. The left blue bars represent LSTM direct prediction, and the right orange bars represent LogReg results with logits input.

Figure 3 shows the average F1 scores trend with the original selection model on the test set. The plot shows the trend that with more distractors, the LSTM model struggles to determine the presence of ground truth, while the LogReg model performs consistently well. The complete results on this extended test set can be found in the Appendix.

We have started preliminary sequence-classification experiments with Transformer-based models by concatenating context and response pairs. However, due to the intensive technical jargon in Ubuntu corpus, BERT and RoBERTa performed poorly on this task, even with further fine-tuning of the language model. We will further analyze to accordingly improve on this type of approach in future work.

5 Conclusions

We created a new NOTA task on the Ubuntu Dialog Corpus, and we have proposed to solve this problem by learning the response set representation with a binary classification model. By releasing our processed dataset upon publication, we hope that it will be used to benchmark future dialog system uncertainty research.


  • Y. Gal and Z. Ghahramani (2015) Dropout as a bayesian approximation: representing model uncertainty in deep learning. External Links: 1506.02142 Cited by: §1, §2.2.
  • M. Gašić and S. Young (2014) Gaussian processes for pomdp-based dialogue manager optimization. IEEE/ACM Transactions on Audio, Speech, and Language Processing 22 (1), pp. 28–40. External Links: Document, ISSN 2329-9304 Cited by: §1, §1.
  • L. J. Gross (1994) Logical versus empirical guidelines for writing test items: the case of ”none of the above”. Evaluation & the Health Professions 17 (1), pp. 123–126. External Links: Document, Link, https://doi.org/10.1177/016327879401700108 Cited by: §1.
  • R. Kadlec, M. Schmid, and J. Kleindienst (2015) Improved deep learning baselines for ubuntu corpus dialogs. External Links: 1510.03753 Cited by: §2.2.
  • D. Kingma and J. Ba (2014) Adam: a method for stochastic optimization. International Conference on Learning Representations, pp. . Cited by: §A.1.
  • S. Larson, A. Mahendran, J. J. Peper, C. Clarke, A. Lee, P. Hill, J. K. Kummerfeld, K. Leach, M. A. Laurenzano, L. Tang, and J. Mars (2019) An evaluation dataset for intent classification and out-of-scope prediction. External Links: 1909.02027 Cited by: §1, §4.
  • W. S. Lasecki (2019) DSTC7 task 1: noetic end-to-end response selection. In 7th Edition of the Dialog System Technology Challenges at AAAI 2019, External Links: Link Cited by: §1.
  • R. Lowe, N. Pow, I. Serban, and J. Pineau (2015) The Ubuntu dialogue corpus: a large dataset for research in unstructured multi-turn dialogue systems. In Proceedings of the 16th Annual Meeting of the Special Interest Group on Discourse and Dialogue, Prague, Czech Republic, pp. 285–294. External Links: Link, Document Cited by: §2.1, §2.2.
  • S. Mehri and M. Eskenazi (2019) Multi-granularity representations of dialog. External Links: 1908.09890 Cited by: §2.1.
  • M. Pachai, D. DiBattista, and J. Kim (2015) A systematic assessment of ‘none of the above’ on multiple choice tests in a first year psychology classroom. Canadian Journal for the Scholarship of Teaching and Learning 6, pp. 1–17. External Links: Document Cited by: §1.
  • N. Roy, J. Pineau, and S. Thrun (2000) Spoken dialogue management using probabilistic reasoning. In Proceedings of the 38th Annual Meeting on Association for Computational Linguistics, ACL ’00, Stroudsburg, PA, USA, pp. 93–100. External Links: Link, Document Cited by: §1.
  • C. Tegho, P. Budzianowski, and M. Gašić (2017) Uncertainty estimates for efficient neural network-based dialogue policy optimisation. External Links: 1711.11486 Cited by: §1.
  • Y. Wu, W. Wu, C. Xing, M. Zhou, and Z. Li (2016) Sequential matching network: a new architecture for multi-turn response selection in retrieval-based chatbots. arXiv preprint arXiv:1612.01627. Cited by: §1.
  • X. Zhou, L. Li, D. Dong, Y. Liu, Y. Chen, W. X. Zhao, D. Yu, and H. Wu (2018) Multi-turn response selection for chatbots with deep attention matching network. In Proceedings of the 56th Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers), pp. 1118–1127. Cited by: §1.

Appendix A Appendices

a.1 Experimental Setup


For the LSTM models, unless otherwise specified, the word embeddings are initialized randomly with a dimension of 300, and the hidden size is 512. The vocabulary is constructed of the 10000 most common words in the training dataset, plus the _UNK and _PAD special tokens. We use the Adam algorithm Kingma and Ba (2014)

for optimization with a learning rate of 0.005. The gradients are clipped to 5.0. With a batch size of 128, we train the model for 20 epochs, and select the best checkout based on its performance on the validation set. In the dropout model, we use a dropout probability of



For the logistic regression model, we train on the validation set’s LSTM outputs with the same hyperparameter (where applicable to LogReg) setup as in corresponding LSTM model.

a.2 More Plots

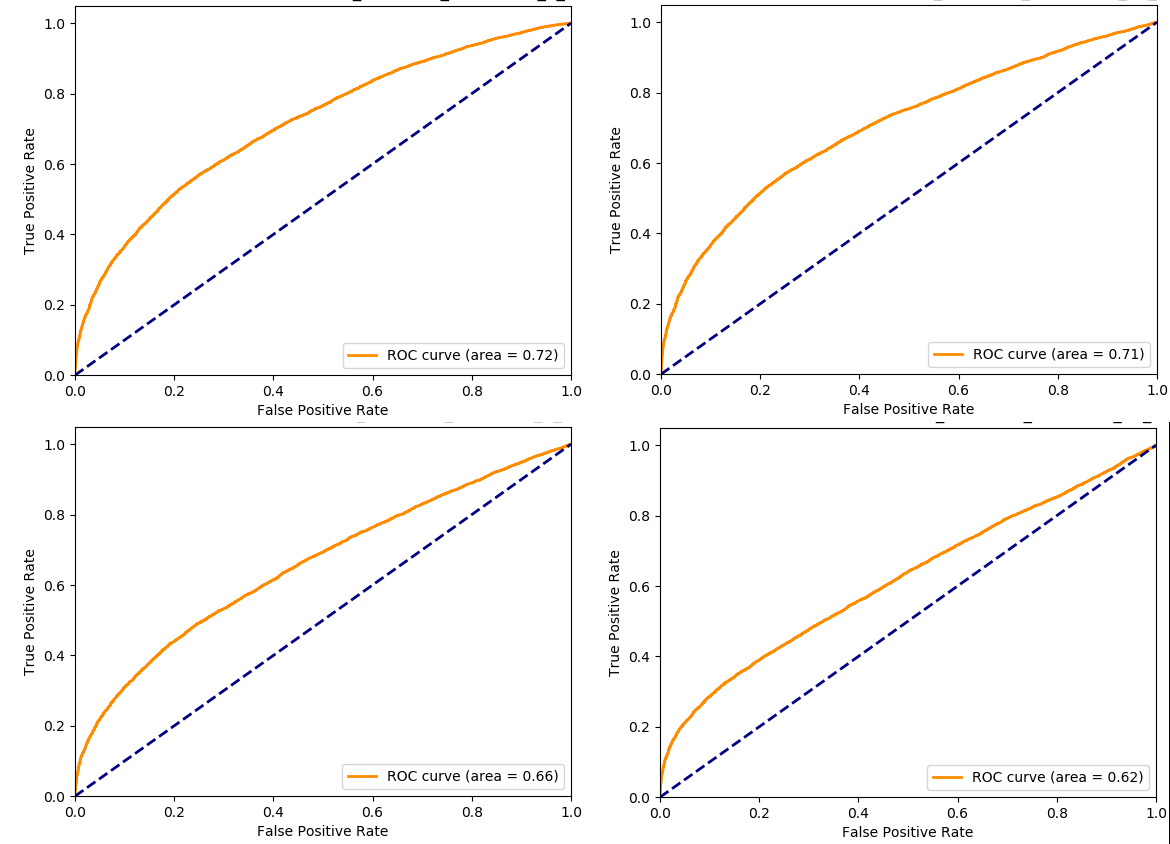

Figure 4: Merged ROC curves for LSTM outputs with the original selection model. Top left, top right, bottom left, and bottom right represent plots for ThresholdLogits,Directlogits, ThresholdProb, and DirectProb respectively

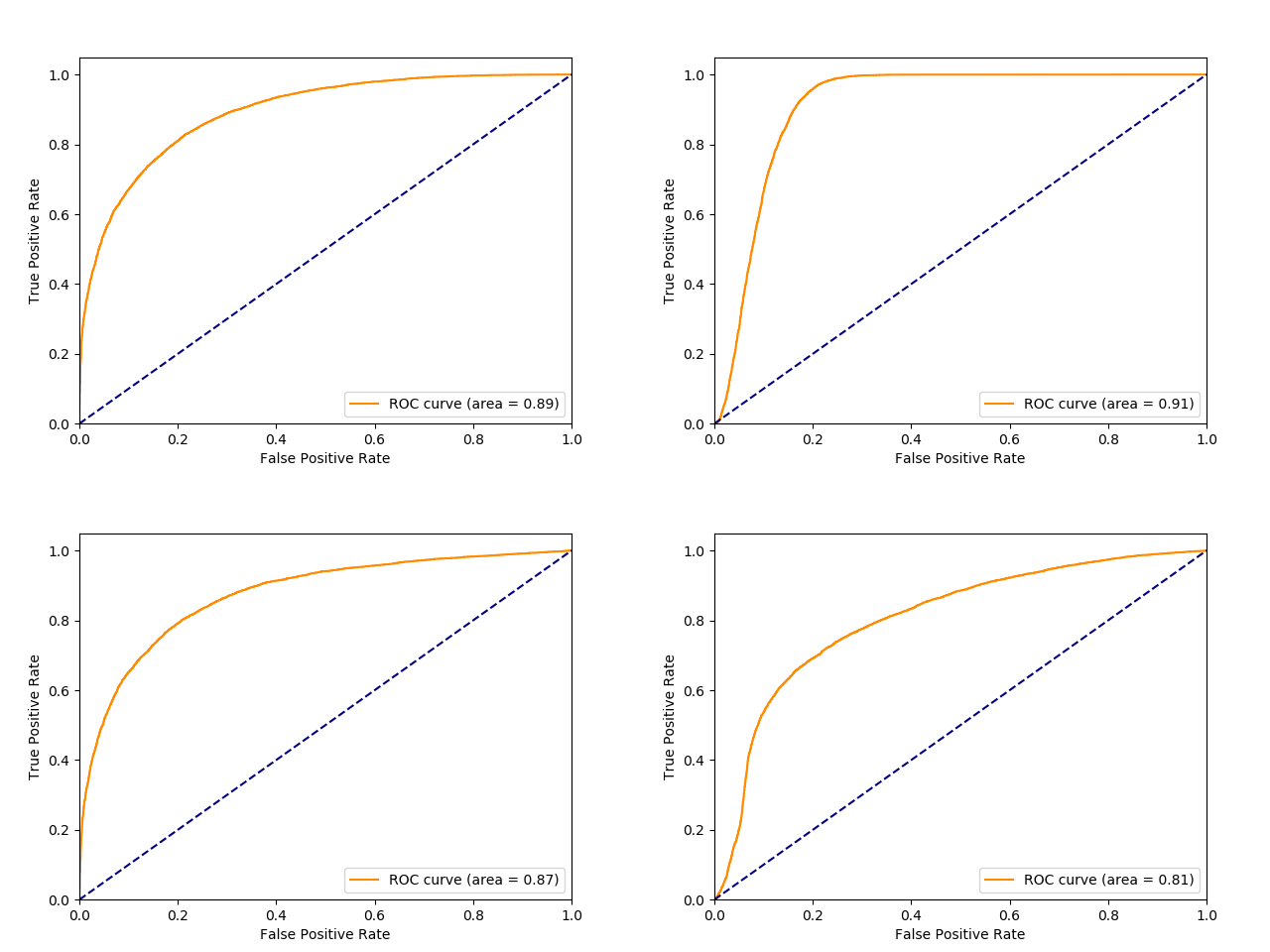

Figure 5: ROC curves for LogReg outputs with the original selection model’s output logits as input features.Top left, top right, bottom left, and bottom right represent plots for ThresholdLogits,Directlogits, ThresholdProb, and DirectProb respectively

Figure 4 shows the ROC curves for predicting NOTA directly with the LSTM. AOC for using logits is higher than using softmax probability. Figure 5 shows ROC for predicting NOTA with LogReg, in the same order as 4, where a separate LogReg model is trained for each score setting.

a.3 Complete Results

width=0.5 50% NOTA Test Results On More Distractors (%) #Candidates R N N F1 G F1 Average F1 Direct Predict 2 66.77 78.00 80.22 75.21 77.72 5 62.14 69.17 67.86 70.38 69.12 10 56.04 61.48 52.82 67.46 60.14 20 48.09 55.81 36.11 66.22 51.17 40 39.79 52.46 20.90 66.02 43.46 60 34.96 51.20 14.12 65.92 40.02 80 31.50 50.84 10.70 66.09 38.39 100 29.10 50.59 8.69 66.13 37.41 +LogReg 2 66.72 88.19 87.26 88.99 88.13 5 62.07 87.90 87.01 88.67 87.84 10 55.98 87.81 86.96 88.56 87.76 20 48.07 88.08 87.27 88.79 88.03 40 39.78 87.64 86.89 88.30 87.60 60 34.95 87.80 87.07 88.46 87.76 80 31.49 87.92 87.11 88.63 87.87 100 29.10 87.55 86.84 88.18 87.51

Table 2: Results for 2,5,10,20,40,60,80,100 candidate responses with the original selection model

width= 50% NOTA Test Results (%) R@10 R@2 N@10 N@2 N F1@10 N F1@2 G F1@10 G F1@2 Average F1 Selection model trained with original data Direct Predict 56.12 66.77 61.48 78.00 52.82 80.22 67.46 75.21 68.93 +Logistic Regression on Top of Logits 55.98 66.72 87.81 88.19 86.96 87.26 88.56 88.99 87.94 +Logistic Regression on Top of Softmax 50.94 51.93 74.30 74.33 74.46 74.38 74.15 74.29 74.32 Logits Threshold (=0.5) 50.10 55.72 64.28 73.25 62.84 76.73 65.61 68.56 68.43 +Logistic Regression on Top 62.81 77.70 80.45 79.95 80.49 79.92 80.42 79.99 80.20 Softmax Threshold (=0.55) 48.76 48.76 60.10 70.67 59.69 75.63 60.50 63.17 64.74 +Logistic Regression on Top 63.64 69.47 78.50 78.54 80.17 80.20 76.52 76.57 78.36 Selection model trained with data containing _NOTA Direct Predict 55.43 65.03 63.07 78.37 54.28 80.91 69.03 75.04 69.81 +Logistic Regression on Top of Logits 40.66 47.90 78.19 77.45 78.80 78.02 77.53 76.85 77.80 +Logistic Regression on Top of Softmax 51.63 53.90 77.94 78.00 78.21 78.15 77.67 77.85 77.97 Logits Threshold (=2.0) 48.44 55.99 61.32 71.31 57.75 74.35 64.32 67.46 65.97 +Logistic Regression on Top 60.73 76.12 79.22 78.03 79.11 77.85 79.33 78.21 78.62 Softmax Thtrshold (=0.5) 48.18 48.18 59.06 70.16 57.32 75.19 60.67 62.56 63.94 +Logistic Regression on Top 61.08 68.45 78.01 78.00 79.75 79.74 75.94 75.93 77.84 Pairwise Model Direct Predict 35.73 40.91 61.72 68.25 63.54 75.07 59.72 56.30 63.66 +LogReg on Top of Logits 35.64 40.73 94.08 94.14 93.72 93.79 94.40 94.46 94.09 +LogReg on Top of Softmax 25.42 27.14 85.06 85.02 85.41 85.34 84.69 84.67 85.03 Logits Threshold (=1.0) 41.64 48.57 61.50 70.01 57.77 74.36 64.62 63.88 65.16 +LogReg on Top 51.58 73.33 77.15 77.27 76.74 76.88 77.55 77.64 77.20 Softmax Threshold (=0.4) 39.70 40.05 54.96 65.90 51.83 72.30 57.70 55.66 59.37 +LogReg on Top 52.00 63.79 74.40 74.33 76.43 76.41 71.99 71.85 74.17 Dropout Model Direct Predict 28.57 93.47 50.13 62.42 1.48 45.50 66.61 71.32 46.23 +LogReg on Top of Logits 19.21 77.20 66.89 66.72 61.87 61.59 70.74 70.65 66.21 +LogReg on Top of Softmax 21.73 29.37 50.49 54.83 56.37 63.73 42.79 40.15 50.76 Logits Variance Threshold (=0.1) 13.73 22.11 51.89 50.27 57.15 59.13 45.15 36.51 49.48 +LogReg on Top 20.87 60.78 56.13 55.86 40.18 39.29 65.37 65.32 52.54 Softmax Variance Threshold (=0.001) 22.22 36.75 50.03 54.56 38.98 57.64 57.69 50.99 51.32 +LogReg on Top 23.84 26.07 57.21 56.79 60.87 66.47 52.81 39.23 54.85

Table 3: and represent metrics on 10 and 2 candidates respectively. represents recall, represents binary NOTA classification accuracy, represents the F1 score on the NOTA class, and represents the F1 score on the ground-truth-present class. Average F1 is obtained on the 4 F1 scores.

Table 2 shows the original selection model’s performance on different sizes of candidate response sets. The direct predict model is run as it does not need further tuning. Threshold approach, especially with softmax probability as threshold, will need separate rounds of tuning on the threshold. Table 3 shows the complete results for all models on the test set, both for 2 candidates and for 10 candidates. Here, the average F1 is averaged on all 4 F1 scores. For each model architecture, the best performing setting for each metric is in bold.
