Semantic parsing aims to map natural language questions to the logical forms of their underlying meanings, which can be regarded as programs and executed to yield answers, aka denotations
. In the past few years, neural network based semantic parsers have achieved promising performances, however, their success is limited to the setting with rich supervision, which is costly to obtain. There have been recent attempts at low-resource semantic parsing, including data augmentation methods which are learned from a small number of annotated examples , and methods for adapting to unseen domains while only being trained on annotated examples in other domains.
This work investigates neural semantic parsing in a low-resource setting, in which case we only have our prior knowledge about a limited number of simple mapping rules, including a small amount of domain-independent word-level matching tables if necessary, but have no access to either annotated programs or execution results. Our key idea is to use these rules to collect modest question-programs pairs as the starting point, and then leverage automatically generated examples to improve the accuracy and generality of the model. This presents three challenges including how to generate examples in an efficient way, how to measure the quality of generated examples which might contain errors and noise, and how to train a semantic parser that makes robust predictions for examples covered by rules and generalizes well to uncovered examples.
We address the aforementioned challenges with a framework consisting of three key components. The first
component is a data generator. It includes a neural semantic parsing model, which maps a natural language question to a program, and a neural question generation model, which maps a program to a natural language question. We learn these two models in a back-translation paradigm using pseudo parallel examples, inspired by its big success on unsupervised neural machine translation[14, 8]. The second component is a quality controller, which is used for filtering out noise and errors contained in the pseudo data. We construct a phrase table with frequent mapping patterns, therefore noise and errors with low frequency can be filtered out. A similar idea has been worked as posterior regularization in neural machine translation [17, 13]. The third component is a meta learner. Instead of transferring a model pretrained with examples covered by rules to the generated examples, we leverage model-agnostic meta-learning , an elegant meta-learning algorithm which has been successfully applied to a wide range of tasks including few-shot learning and adaptive control. We regard different data sources as different tasks, and use outputs of the quality controller for stable training.
, and subject-predicate pairs over a large-scale knowledge graph
. The program for SQL queries for single-turn questions and subject-predicate pairs over knowledge graph is simple while the program for SQL queries for multi-turn questions have top-tier complexity among currently proposed tasks. Results show that our approach yields large improvements over rule-based systems, and incorporating different strategies incrementally improves the overall performance. On WikiSQL, our best performing system achieves execution accuracy of 72.7%, comparable to a strong system learned from denotations with an accuracy of 74.8%.
We focus on the task of executive semantic parsing. The goal is to map a natural language question/utterance to a logical form/program , which can be executed over a world to obtain the correct answer .
We consider three tasks. The first task is single-turn table-based semantic parsing, in which case is a self-contained question, is a SQL query in the form of “SELECT agg col WHERE col = val AND …”, and is a web table consisting of multiple rows and columns. We use WikiSQL  as the testbed for this task. The second task is multi-turn table-based semantic parsing. Compared to the first task, could be a follow-up question, the meaning of which depends on the conversation history. Accordingly, in this task supports additional operations that copy previous turn to the current turn. We use SequentialQA  for evaluation. In the third task, we change to a large-scale knowledge-graph (i.e. Freebase) and consider knowledge-based question answering for single-turn questions. We use SimpleQuestions  as the testbed, where the is in the form of a simple -calculus like , and the generation of is equivalent to the prediction of the predicate and the subject entity.
We study the problem in a low-resource setting. In the training process, we don’t have annotated logical forms or execution results . Instead, we have a collection of natural language questions for the task, a limited number of simple mapping rules based on our prior knowledge about the task, and may also have a small amount of domain-independent word-level matching tables if necessary. These rules are not perfect, with low coverage, and can even be incorrect for some situations. For instance, when predicting a SQL command in the first task, we have a prior knowledge that (1) WHERE values potentially have co-occurring words with table cells; (2) the words “more” and “greater” tend to be mapped to WHERE operator “”; (3) within a WHERE clause, header and cell should be in the same column; and (4) the word “average” tends to be mapped to aggregator “avg”. Similarly, when predicting a -calculus in the third task, the entity name might be present in the question, and among all the predicates connected to the entity, the predicate with maximum number of co-occurred words might be correct. We would like to study to what extent our model can achieve if we use rules as the starting point.
We describe our approach for low-resource neural semantic parsing in this section.
We propose to train a neural semantic parser using back-translation and meta-learning. The learning process is summarized in Algorithm 1. We describe the three components in this section, namely back-translation, quality control, and meta-learning.
Following the back-translation paradigm [14, 8], we have a semantic parser, which maps a natural language question to a logical form , and a question generator, which maps to . The semantic parser works for the primary task, and the question generator mainly works for generating pseudo datapoints. We start the training process by applying the rule to a set of natural language questions . The resulting dataset is considered as the training data to initialize both the semantic parser and the question generator. Afterwards, both models are improved following the back-translation protocol that target sequences should follow the real data distribution, yet source sequences can be generated with noises. This is based on the consideration that in an encoder-decoder model, the decoder is more sensitive to the data distribution than the encoder. We use datapoints from both models to train the semantic parser because a logical form is structural which follows a grammar, whose distribution is similar to the ground truth.
Directly using generated datapoints as supervised training data is not desirable because those generated datapoints contain noises or errors. To address this, we follow the application of posterior regularization in neural machine translation , and implement a dictionary-based discriminator which is used to measure the quality of a pseudo data. The basic idea is that although these generated datapoints are not perfect, the frequent patterns of the mapping between a phrase in to a token in are helpful in filtering out noise in the generated data with low frequency . There are multiple ways to collect the phrase table information, such as using statistical phrase-level alignment algorithms like Giza++ or directly counting the co-occurrence of any question word and logical form token. We use the latter one in this work. Further details are described in the appendix.

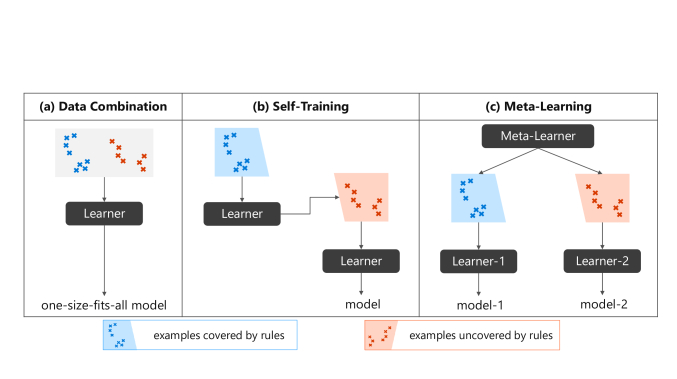

A simple way to update the semantic parser is to merge the datapoints in hand and train a one-size-fits-all model . However, this will hurt model’s stability on examples covered by rules, and examples of the same task may vary widely . Dealing with different types of examples requires the model to possess different abilities. For example, tackling examples uncovered by rules in WikiSQL requires the model to have the additional ability to map a column name to a totally different utterance, such as “country” to “nation”. Another simple solution is self-training . One can train a model with examples covered by rules, and use the model as a teacher to make predictions on examples uncovered by rules and update the model on these predictions. However, self-training is somewhat tautological because the model is learned to make predictions which it already can produce.
We learn the semantic parser with meta-learning, regarding learning from examples covered by rules or uncovered by rules as two (pseudo) tasks. Compared to the aforementioned strategies, the advantage of exploring meta-learning here is two-fold. First, we learn a specific model for each task, which provides guarantees about its stability on examples covered by rules. In the test phase, we can use the rule to detect which task an example belongs to, and use the corresponding task-specific model to make predictions. When dealing with examples covered by rules, we can either directly use rules to make predictions or use the updated model, depending on the accuracy of the learned model on the examples covered by rules on development set. Second, latent patterns of examples may vary widely in terms of whether or not they are covered by rules. Meta-learning is more desirable in this situation because it learns the model’s ability to learn, improving model’s versatility rather than mapping the latent patterns learned from datapoints in one distribution to datapoints in another distribution by force. Figure 1 is an illustration of data combination, self-training, and meta-learning.
|Methods||Supervision||Rule Covered||Rule Uncovered||Overall|
|dong18coarsetofine dong18coarsetofine||logical form||-||-||78.5%|
|shi2018incsql shi2018incsql||logical form||-||-||87.1%|
|Base (full supervision)||logical form||85.0%||71.7%||82.3%|
|Base (trained on rule-covered data)||rule||75.9%||48.4%||70.3%|
|Base + Self Training||rule||75.6%||49.3%||70.3%|
|Base + Question Generation||rule||77.7%||51.9%||72.5%|
|Base + BT||rule||77.6%||51.6%||72.3%|
|Base + BT + QC||rule||77.8%||52.1%||72.6%|
|Base + BT + QC + MAML||rule||77.9%||52.1%||72.7%|
Meta-learning includes two optimizations: the learner that learns new tasks, and the meta-learner that trains the learner. In this work, the meta-learner is optimized by finding a good initialization that is highly adaptable. Specifically, we use model-agnostic meta-learning, MAML , a powerful meta-learning algorithm with desirable properties including introducing no additional parameters and making no assumptions of the form of the model. In MAML, task-specific parameter is initialized by
, and updated using gradient decent based on the loss functionof task . In this work, the loss functions of two tasks are the same. The updated parameter is then used to calculate the model’s performance across tasks to update the parameter . In this work, following the practical suggestions given by antoniou2019train antoniou2019train, we update in the inner-loop and regard the outputs of the quality controller as the input of both tasks.
If we only have examples covered by rules, such as those used in the initialization phase, meta-learning learns to learn a good initial parameter that is evaluated by its usefulness on the examples from the same distribution. In the training phase, datapoints from both tasks are generated, and meta-learning learns to learn an initialization parameter which can be quickly and efficiently adapted to examples from both tasks.
We conduct experiments on three tasks to test our approach, including generating SQL (or SQL-like) queries for both single-turn and multi-turn questions over web tables [18, 7], and predicting subject-predicate pairs over a knowledge graph . We describe task definition, base models, experiments settings and empirical results for each task, respectively.
Table-Based Semantic Parsing
Task and Dataset
Given a natural language and a table with columns and rows as the input, the task is to output a SQL query , which could be executed on table to yield the correct answer of . We conduct experiments on WikiSQL
, which provides 87,726 annotated question-SQL pairs over 26,375 web tables. In this work, we do not use either SQL queries or answers in the training process. We use execution accuracy as the evaluation metric, which measures the percentage of generated SQL queries that result in the correct answer.
|SQL Token||NL Word|
|how many, total number|
|more, greater, higher, taller, longer, older, larger, after|
|less, smaller, lower, fewer, nearer, shorter, before|
We describe our rules for WikiSQL here. We first detect WHERE values, which exactly match to table cells. After that, if a cell appears at more than one column, we choose the column name with more overlapped words with the question, with a constraint that the number of co-occurred words is larger than 1. By default, a WHERE operator is , except for the case that surrounding words of a value contain keywords for and . Then, we deal with the SELECT column, which has the largest number of co-occurred words and cannot be same with any WHERE column. By default, the SELECT AGG is NONE, except for matching to any keywords in Table 2. The coverage of our rule on training set is 78.4%, with execution accuracy of 77.9%.
|Methods||Supervision||Rule Covered||Rule Uncovered||Overall|
|Base (full supervision)||logical form||81.8%||67.6%||72.4%|
|Base (trained on rule-covered data)||rule||74.2%||34.8%||48.0%|
|Base + Self Training||rule||74.4%||46.5%||55.9%|
|Base + Question Generation||rule||73.9%||42.1%||52.8%|
|Base + BT||rule||75.5%||47.7%||57.1%|
|Base + BT + QC||rule||75.3%||48.6%||57.6%|
|Base + BT + QC + MAML||rule||76.8%||48.6%||58.1%|
We implement a neural network modular approach as the base model, which includes different modules to predict different SQL constituents. This approach is based on the understanding of the SQL grammar in WikiSQL, namely “SELECT $agg $column WHERE $column $op $value (AND $column $op $value)*”, where tokens starting with “$” are the slots to be predicted . In practice, modular approaches typically achieve higher accuracy than end-to-end learning approach. Specifically, at the first step we implement a sequential labeling module to detect WHERE values and link them to table cells. Advantages of starting from WHERE values include that WHERE values are less ambiguous compared to other slots, and that the number of WHERE clauses can be naturally detected. After that, for each WHERE value, we use the preceding and following contexts in the question to predict its WHERE column and the WHERE operator through two unidirectional LSTM. Column attention
is used for predicting a particular column. Similar LSTM-based classifiers are used to predict SELECT column and SELECT aggregator.
According to whether the training data can be processed by our rules, we divide it into two parts: rule covered part and rule uncovered part. For the rule covered part we could get rule covered training data using our rules. For the rule uncovered part we could also get training data using the trained Base model we have, we refer to these data as self-inference training data. Furthermore, we could get more training data by back translation, we refer to these data as question-generation training data. For all the settings, the Base Model is initialized with rule covered training data. In Base + Self Training Method, we finetune the Base model with self-inference training data. In Base + Question Generation Method, we use question-generation training data to finetune our model. In Base + BT Method, we use both self-inference and question-generation data to finetune our model. In Base + BT + QC, we add our quality controller. In Base + BT + QC + MAML, we further add meta-learning.
Results and Analysis
Results are given in Table 1. We can see that back-translation, quality control and MAML incrementally improves the accuracy. Question generation is better than self-training here because the logical form in WikiSQL is relatively simple, so the distribution of the sampled logical forms is similar to the original one. In the back-translation setting, generated examples come from both self-training and the question generation model. The model performs better than rules on rule-covered examples, and improves the accuracy on uncovered examples. Figure 2 shows the learning curves of the COLUMN prediction model with or without using MAML. The model using MAML has a better starting point during training, which reflects the effectiveness of the pre-trained parameter.
Knowledge-Based Question Answering
We test our approach on question answering over another genre of environment: knowledge graph consisting of subject-relation-object triples.
Task and Dataset
Given a natural language question and a knowledge graph, the task aims to correctly answer the question with evidences from the knowledge graph. We do our study on SimpleQuestions , which includes 108,442 simple questions, each of which is accompanied by a subject-relation-object triple. Questions are constructed in a way that subject and relation are mentioned in the question, and that object is the answer. The task requires predicting the entityId and the relation involved in the question.
Our rule for KBQA is simple without using a curated mapping dictionary. First, we detect an entity from the question using strict string matching, with the constraint that only one entity from the KB has the same surface string and that the question contains only one entity. After that, we get the connected relations of the detected entity, and assign the relation as the one with maximum number of co-occurred words. The coverage of our rule on training set is 16.0%, with an accuracy of 97.3% for relation prediction.
|Methods||Supervision||Rule Covered||Rule Uncovered||Overall|
|Base (full supervision)||denotation||50.6%||33.5%||45.9%|
|Base (trained on rule-covered data)||rule||43.7%||9.3%||34.3%|
|Base + Self Training||rule||42.3%||10.7%||33.7%|
|Base + Question Generation||rule||34.7%||9.1%||27.7%|
|Base + BT||rule||39.2%||10.1%||31.3%|
|Base + BT + QC||rule||41.0%||10.1%||32.6%|
|Base + BT + QC + MAML||rule||41.2%||9.7%||32.7%|
|Base + BT (w/o QG) + MAML||rule||43.7%||11.3%||34.6%|
We follow petrochuk18simpleqsolved petrochuk18simpleqsolved, and implement a KBQA pipeline consisting of three modules in this work. At the first step, we use a sequence labeling model, i.e. LSTM-CRF, to detect entity mention words in the question. After that, we use an entity linking model with BM25 built on Elasticsearch. Top-K ranked similar entities are retrieved as candidate list. Then, we get all the relations connected to entities in the candidate list as candidate relations, and use a relation prediction model, which is based on Match-LSTM , to predict the relation. Finally, from all the entities connected to the predicted relation, we choose the one with highest BM25 score as the predicted entity. We use FB2M as the KB, which includes about 2 million triples.
The settings are the same as those described in table-based semantic parsing.
|SQL Token||NL Word|
|no less than, greater or equal, at least|
|no more than, less or equal, at most|
|of those, which ones, which one|
|do not, does not, did not, have not, has not, had not, was not, were not, is not, are not, not have, not has|
Results and Analysis
Results are given in Table 3, which are consistent with the numbers in WikiSQL. Using back-translation, quality control and MAML incrementally improves the accuracy, and our approach generalizes well to rule-uncovered examples.
Conversational Table-Based Semantic Parsing
We consider the task of conversational table-based semantic parsing in this part. Compared to single-turn table-based semantic parsing as described in subsection Table-Based Semantic Parsing
, the meaning of a natural language may also depends on questions of past turns, which is the common ellipsis and co-reference phenomena in conversational agents.
Task and Dataset
Given a natural language question at the current turn, a web table, and previous turn questions in a conversation as the input, the task aims to generate a program (i.e. logical form), which can be executed on the table to obtain the correct answer of the current turn question.
We conduct experiments on SequentialQA  which is derived from the WikiTableQuestions dataset. It contains 6,066 question sequences covering 17,553 question-answer pairs. Each sequence includes 2.9 natural language questions on average. Different from WikiSQL which provides the correct logical form for each question, SequentialQA only annotates the correct answer. This dataset is also harder than the previous two, since it requires complex, highly compositional logical forms to get the answer. Existing approaches are evaluated by question answering accuracy, which measures whether the predicted answer is correct or not.
The pipeline of rules in SequentialQA is similar to that of WikiSQL. Compared to the grammar of WikiSQL, the grammar of SequentialQA has additional actions including copying the previous-turn logical form, no greater than, no more than, and negation. Table 5 shows the additional word-level mapping table used in SequentialQA. The coverage of our rule on training set is 75.5%, with an accuracy of 38.5%.
We implement a modular approach on top of a grammar of derivation rules (actions) as the base model. Similar to iyyer-yih-chang:2017:Long iyyer-yih-chang:2017:Long, our grammar consists of predefined actions used for predicting SELECT column, WHERE column, WHERE operator, WHERE value, and determining whether it is required to copy the entire action sequence of the previous turn questions. After encoding a question and previous turn questions into vectors, we first use a controller module to predict an action sequence consisting of slots, and then use specific modules to predict the argument of each slot. Similar to iyyer-yih-chang:2017:Long iyyer-yih-chang:2017:Long, we use a recurrent structure as the backbone of each module and use the softmax layer for making prediction.
The settings are the same as those described in table-based semantic parsing.
Results and Analysis
From Table 4, we can see that question generation does not work well on this task. This is because the difficulty in generating sequential questions and complex target logical forms. Applying MAML to examples not coming from question generation performs best. We leave contextual question generation as a future work.
Semantic parsing aims to transform a natural language utterance to a program/logical form, which is executable on an environment, or a world, to obtain the result. There are a variety of semantic parsing tasks with different types of environments (including large-scale knowledge base , web table , image, 3D environment, etc.), and different types of programs (such as -calculus, dependency-based compositional semantics, SQL query , Bash command, source code, etc.). The majority of existing works study the problem in a supervised or weak-supervised setting, in which case either annotated programs or execution results are available during training. Earlier works on unsupervised semantic parsing do not ground to an environment such a KB or a web table . goldwasser2011confidence goldwasser2011confidence align words to predicates, then do compositions and self training by iteratively adding self-annotated examples. krishnamurthy2012weakly krishnamurthy2012weakly identify relation instances from KB and produce parses that syntactically agree with the dependency parses. reddy2014large reddy2014large parse sentences with CCG, and map results to ungrounded and grounded graph by regarding semantic parsing as graph matching. There are recent attempts at combining a limited number of supervised datapoints and artificially generated programs  with generative models.
More recently, cheng2018building cheng2018building share the same motivation with this work that learns semantic parser from templates. We differ from them in two aspects. First, we only need domain-general rules but they also require domain-specific lexicon containing mapping from natural language expressions to database predicates/entities. Second, our method innovates the coupling of back-translation and model-agnostic meta-learning.
Meta-learning, also known as learning to learn, is one of the potential techniques for enabling an artificial agent to mimic a human’s ability in using past experience to quickly adapt to unseen situations. Existing approaches largely fall into two categories. In the first category, neural network models are trained to learn from datapoints that are passed in. Different neural architectures including LSTM, convolution, or memory-augmented ones have been explored. Methods in this category either use additional datapoints as a part of the input to predict the label for the new example, or optimizes the meta-learning based on the performance of the updated parameter of the learner . The second category aims to learn a metric space, where examples with the same class are close with each other. Notable works include Matching Networks and Prototypical Networks, both of which are tested on low-resource image classification. Matching networks use attention mechanisms to use the similarity between datapoints to predict the label of a test example. Prototypical Networks approach considers the representation of each class, which is obtained by averaging representation of examples belonging to that class. We use MAML , which has been recently used in low-resource multilingual neural machine translation and sequence-to-SQL generation  in supervised settings.
Back-translation is introduced for improving neural machine translation (NMT) by injecting monolingual data , and is the key contributor to drive the recent success on unsupervised NMT . The training process involves a generative source-to-target translator and a generative target-to-source translator . Because generative models are sensitive to the target distribution while tolerant to the noises from input, target sequences typically come from the real distribution during NMT training. Namely, examples generated by are used to train , and examples generated by are used to train . In semantic parsing, we do not regard sampled programs as noisy because they follow a certain grammar which can be guaranteed to be correctly executed.
Conclusion and Future Directions
We present an approach to learn neural semantic parser from simple domain-independent rules, instead of annotated logical forms or denotations. Our approach starts from examples covered by rules, which are used to initialize a semantic parser and a question generator in a back-translation paradigm. Generated examples are measured and filtered based on statistic analysis, and then used with model-agnostic meta-learning, which guarantees model’s accuracy and stability on rule-covered examples, and acquires the versatility to generalize well on rule-uncovered examples. We conduct experiments on three datasets for table-based and knowledge-based question answering tasks. Results show that incorporating different strategies incrementally improves the performance. Our best model on WikiSQL achieves comparable accuracy to the system learned from denotation. In the future, we plan to focus on more complex logical forms.
-  (2019) Learning to generalize from sparse and underspecified rewards. CoRR abs/1902.07198. Cited by: Introduction.
-  (2013) Semantic parsing on freebase from question-answer pairs.. In EMNLP, pp. 6. Cited by: Introduction, Semantic Parsing.
-  (2015) Large-scale simple question answering with memory networks. CoRR abs/1506.02075. External Links: Cited by: Introduction, Problem Statement, Task and Dataset, Experiment.
-  (2017) Model-agnostic meta-learning for fast adaptation of deep networks. ICML. Cited by: Introduction, Meta-Learning, Meta-Learning.
Question generation from sql queries improves neural semantic parsing.
Proceedings of the 2018 Conference on Empirical Methods in Natural Language Processing, pp. 1597–1607. External Links: Cited by: Introduction, Meta-Learning, Semantic Parsing.
-  (2018) Natural language to structured query generation via meta-learning. In NAACL-HLT, Cited by: Meta-Learning, Meta-Learning.
-  (2017-07) Search-based neural structured learning for sequential question answering. In Proceedings of the 55th Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers), Vancouver, Canada, pp. 1821–1831. External Links: Cited by: Introduction, Problem Statement, Task and Dataset, Experiment.
-  (2018) Phrase-based & neural unsupervised machine translation. In EMNLP, Cited by: Introduction, Back-Translation, Back-Translation.
Neural symbolic machines: learning semantic parsers on freebase with weak supervision. In Proceedings of the 55th Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers), Vancouver, Canada, pp. 23–33. External Links: Cited by: Introduction.
-  (2006) Effective self-training for parsing. In HLT-NAACL, Cited by: Meta-Learning.
-  (2015) Compositional semantic parsing on semi-structured tables. In ACL, Cited by: Task and Dataset, Semantic Parsing.
-  (2009) Unsupervised semantic parsing. In Proceedings of the 2009 Conference on Empirical Methods in Natural Language Processing: Volume 1-Volume 1, pp. 1–10. Cited by: Semantic Parsing.
-  (2019) Unsupervised neural machine translation with smt as posterior regularization. AAAI. Cited by: Introduction, Quality Controller.
-  (2016) Improving neural machine translation models with monolingual data. In Proceedings of the 54th Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers), pp. 86–96. External Links: Cited by: Introduction, Back-Translation, Back-Translation.
-  (2016) Machine comprehension using match-lstm and answer pointer. CoRR abs/1608.07905. External Links: Cited by: Base Model.
SQLNet: generating structured queries from natural language without reinforcement learning. arXiv preprint arXiv:1711.04436. Cited by: Base Model.
-  (2017) Prior knowledge integration for neural machine translation using posterior regularization. In Proceedings of the 55th Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers), pp. 1514–1523. External Links: Cited by: Introduction, Quality Controller.
-  (2017) Seq2SQL: generating structured queries from natural language using reinforcement learning. arXiv preprint arXiv:1709.00103. Cited by: Introduction, Problem Statement, Task and Dataset, Experiment, Semantic Parsing.
