Neural Population Coding for Effective Temporal Classification

09/12/2019 ∙ by Zihan Pan, et al. ∙ 0

Neural encoding plays an important role in faithfully describing the temporally rich patterns, whose instances include human speech and environmental sounds. For tasks that involve classifying such spatio-temporal patterns with the Spiking Neural Networks (SNNs), how these patterns are encoded directly influence the difficulty of the task. In this paper, we compare several existing temporal and population coding schemes and evaluate them on both speech (TIDIGITS) and sound (RWCP) datasets. We show that, with population neural codings, the encoded patterns are linearly separable using the Support Vector Machine (SVM). We note that the population neural codings effectively project the temporal information onto the spatial domain, thus improving linear separability in the spatial dimension, achieving an accuracy of 95% and 100% for TIDIGITS and RWCP datasets classified using the SVM, respectively. This observation suggests that an effective neural coding scheme greatly simplifies the classification problem such that a simple linear classifier would suffice. The above datasets are then classified using the Tempotron, an SNN-based classifier. SNN classification results agree with the SVM findings that population neural codings help to improve classification accuracy. Hence, other than the learning algorithm, effective neural encoding is just as important as an SNN designed to recognize spatio-temporal patterns. It is an often neglected but powerful abstraction that deserves further study.



There are no comments yet.


page 1

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

I Introduction

The information is transmitted and exchanged using action potentials or spikes in the human brain. As such, biologically realistic spiking neural networks (SNN) have been proposed in the field of computational neuroscience to study the working principles of neural circuits and brain regions[1]. Recently, the algorithmic power offered by deep artificial neural networks and low-power, highly parallel computation demonstrated by the human brain has attracted growing research attention on such biologically plausible computing models[2][3][4].

Fundamentally, the spiking neuron receives incoming spikes from its afferent neurons via dendrites; generates an action potential (or spike) and delivers to post-synaptic neurons when its membrane potential exceeds the firing threshold

[5]. The rich neuronal dynamic endows spiking neurons with the capability of using precise spike timing and phase for sparse coding and efficient computation. Several studies in neuroscience suggest that the low latency in our visual and auditory systems can be attributed to the precise timing of these action potentials [6][7][8][9]. Hence, in this paper, we primarily focus our study on temporal neural codes based on precise spike timing, as opposed to rate coding that has a higher latency [10].

The SNN models have been successfully applied for many pattern recognition tasks, instances include image classification

[11], automatic speech recognition (ASR) [12, 13, 14, 15] and environmental sound classification [16, 17, 18]

. For auditory classification tasks, the time domain signals are usually pre-processed and converted into spatial-temporal spectrograms using Short-Time Fourier Transform (STFT). To further process these spectrograms with the SNN, a proper neural encoding scheme is required to convert real-valued input signals into spike patterns. For this purpose, many biologically inspired coding schemes have been proposed and studied, including latency, phase and threshold coding


Currently, most research works fail to consider the SNN learning system as a whole; while focusing on the learning algorithms used for the back-end SNN classifier, without giving sufficient attention to the encoding front-end. For example, in [17] [19] simple latency code is exploited; [20] uses phase coding; [21][22] demonstrate the learning capacity of the algorithms by Poisson random patterns; population of latency codings is used in [16]. They have achieved satisfying results, however, there are not sufficient reasons and discussion on the choices of neural encodings. Besides, we note, how inputs are encoded, could potentially simplify or complicate the learning task. Thus in this work, we look into the important research question: what is a good neural encoding scheme that allows an SNN to solve the speech recognition or sound classification tasks effectively? Here, given the several neural coding schemes available, we study which of these coding schemes may actually facilitate pattern recognition with an SNN classifier.

Motivated by the above, we make several contributions in this work: 1) we carry out a comparative study over the most commonly used neural encoding schemes: latency code, phase code, population-latency code, population-phase code and threshold code; 2) the biological plausibility of these encoding schemes are discussed; 3) we evaluate the efficacy of these coding schemes for the temporal pattern classification tasks and 4) lastly, we find that population code projects sparse spatial-temporal spike patterns onto extended spatial dimension such that they could be easily classified even with a linear classifier. Such spatially separated features could be easily learned by a simple SNN classifier.

The rest of the paper is organized as follows: Section II. and Section III. present and review two classes of neural coding schemes: the temporal neural code of a single neuron and a population of neurons, respectively. Section IV. evaluates the efficacy of these coding schemes for both speech and sound recognition tasks. Section V. further discusses the characteristics of these neural coding schemes and we conclude the paper in Section VI.

Ii Neural temporal codes

The neural temporal codes record the dynamics of the external stimuli using the precise spike timing, as opposed to the average firing rate. Two commonly used such codes are the latency and phase code, which we will discuss in this section. These temporal codes may be applied to a single neuron or a population of neurons. Specifically, for the single neuron code, one neuron is used to encode a signal stream of stimulus (e.g., auditory stimulus from a single cochlear neuron). In contrast, for the population code, multiple neurons are utilized to encode a single stream.

Ii-a Latency Code

Latency code, found for the first time in the human retina ganglion cells [23], has challenged the common understanding of human vision. It was previously believed that the average firing rate of neurons is the main underlying coding mechanism for visual stimuli. The latency code has also been found in animal auditory systems. One notable example is the bat auditory system, whereby echoes are encoded with precise timing for echolocation. It was shown that the latency code in auditory nerves represents both the monaural and binaural intensity cues induced by a head-related transfer function in the peripheral system [24]. The latency code has been exploited extensively for pattern recognition tasks, including both vision [25] and auditory tasks [12] [13].

For latency code, the main assumption is that the encoding neuron will fire only once within each encoding time window. As we are only concerned about the latency of the first spike event, all subsequent spikes, if any, are ignored. Suppose we have a stream of stimuli, sampled and normalized as discrete time series at a sampling rate of samples per second. Here, refers to the signal intensity of time window and the value is normalized within . The corresponding latency encoded spike train in seconds is defined as:


As demonstrated in Figure 1, each spike timing encodes the intensity of the sensory stimulus that sampled within the particular time window .

Figure 1: Latency coding: six different stimulus intensity levels (e.g., luminance in vision or sound pressure in audition, as shown using the horizontal blue bars on the left) are encoded in the latency of six different spikes of each encoding neuron, within a fixed encoding window. Each row represents one encoding neuron, and the red arrows indicate the spike timing. A more intense stimulus will generate an earlier spike. Furthermore, if the stimulus is too weak to trigger a spike, no spike will occur.

Ii-B Phase Code

The transmission of sensory information within neural system should be robust to noise and the phase code has been introduced to improve the noise robustness [26]. The phase code relies on two basic assumptions: firstly, the spike times are phase-locked with the sub-threshold membrane potential oscillations (SMO) [27]; and secondly, the SMOs are synchronous with neighboring neurons [28]. That is, SMOs share same frequencies while with a phase gradient among each other. Such phase gradients have been shown to exist in the visual cortex of the turtle [29]. Evidence for such phase-locking has also been observed in the human brains. For instance, during exploration of the surrounding environments [30] and processing of sensory inputs [31], the high coherence among action potentials have been identified at the gamma (40-60 Hz) and theta (3-8 Hz) cycles. In auditory perception, cortical oscillations have also been observed [32] [33].

As illustrated in Figure 2, each encoding neuron has its own SMO (blue sinusoidal waves), which is phase-locked to the neighboring neurons with a constant phase shift. The preliminary spike timing is determined following latency code (grey dashed arrow) for each sampled stimuli, and then a spike is generated at the nearest peak of the sub-threshold membrane potential (red solid arrow). This process is defined as follows,


where the function determines the nearest peak to the on the sub-threshold membrane potential. Here, denotes the preliminary spike timing as in Equation. (1) and denotes the phase-encoded spike timing of the sample.

Figure 2: Phase coding: based on the latency code in Figure 1, spike timing on individual encoding neuron is synchronized with its sub-threshold membrane potential oscillation (SMO), which is shifted and phase-locked with the SMO of other neurons. Spike timing is set at the nearest peak of the SMO. Grey arrows are the latency coded spikes, as per Figure 1; red arrows are the actual phase-coded spikes.

Iii Neural population codes

While the above section on neural temporal codes describes coding schemes at the single neuron level, these coding schemes may, in general, be applied to a population of neurons. In this section, we describe how temporal code may be extended to population code, whereby multiple neurons are involved in encoding one signal stream of stimuli. In addition, we present the threshold code, a coding scheme unique to the population code.

Iii-a Population Latency/Phase Code

It has been shown in both our visual and auditory systems, an external stimulus is perceived by a population of neurons; the receptive field of each neuron determines the part of the stimulus it is sensitive to [34] [35]. For example, in the visual cortex, each ganglion cell has its own receptive field, which defines the area of the visual field it is most responsive to [36]. Similarly, in the auditory system, a population of neurons encode a vast range of sound levels with remarkable accuracies; in each frequency sub-band, a union of receptive fields from multiple neurons will cover the full audible range [37].

To implement the latency and phase code as described in Section 2 on a population of neurons, we extend the notion of the receptive field as described above to a population of neurons. In such a population, each neuron has an overlapped while distinct receptive field that as a whole covers the input range as shown in Figure 3. In this example, the latency encoded (Figure 1) or phase encoded (Figure 2) spike falls within the Gaussian receptive fields of six encoding neurons. These encoding neurons will emit a spike at the timing as determined by the y-axis value of the intersection points. The Gaussian receptive field was first introduced in [38] to encode the continuous input variables to spike time. It addresses the limited temporal precision and neuronal variability problems of temporal code by distributing each input variable over multiple neurons.

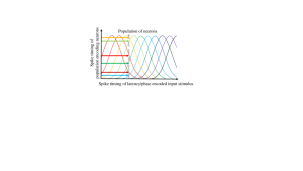

Figure 3: Population latency/phase coding: An input stimulus is being encoded by ten neurons. The x-axis refers to spike timing of the latency or phase coded input stimulus with each encoding neuron sensitive to only a certain range in this time window (as shown by the Gaussian receptive fields). The dashed grey arrow indicates the spike generated using the latency or phase code based on the stimulus value. The horizontal colored arrows indicate the neurons that encode the stimulus using the population code, with their respective spike timing determined by where the grey arrow (spike timing of input stimulus) intersects with their respective receptive fields.

Iii-B Threshold Code

Information from the environment is almost always continuous, and time-varying. For example, spoken words in speech are continuous in time and may vary from tens to hundreds of milliseconds; even the duration of the same word may vary. Even visual perception of objects is continuous with duration of their appearance varying according to the relative motion of the object and the observer.

From these observations, it is noted that the key to encode these stimuli in neuronal representation is in tracking the changes of the stimulus [39]. Such an idea provides us with a new doctrine of neural encoding: can we just encode a finite number of events, as and when key features critical for perception and cognition occur [40] [41]?

Inspired by this idea, the threshold code is proposed as a unique coding scheme that encodes the trajectory of a time-varying signal [42]. To encode such a signal, the selectivity of a population of neurons are defined by having their unique firing thresholds set to the corresponding intensity values of the signal. Given a set of intensity values (and hence firing thresholds), the population of neurons is twice as many, as they can be divided into neurons encoding for threshold crossing from beneath (onset neurons) and those for threshold crossing from above (offset neurons), as shown in Figure 4. In Figure 4 (a), the black curve represents a continuous and slow-varying stimulus, for instance, an acoustic signal from one sub-band cochlear filter. The ten dashed black horizontal lines represent the intensity values which also correspond to the thresholds of the encoding neurons. Red and blue dots refer to onset and offset crossing events respectively. Figure 4 (b) shows the encoded spike patterns (arrows are spike events), with the same color scheme to denote onset and offset neurons, a total of twenty encoding neurons.

Figure 4: Threshold coding: a snippet of the stimulus (a) and the corresponding twenty encoding neurons (b) that encode the stimulus using ten unique threshold values. The threshold-crossing events are encoded using spikes of neurons with the corresponding thresholds(red refers to onset, blue refers to offset).

Iv Experiments

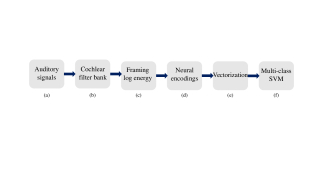

Figure 5: Illustration of steps taken in the experiment. The auditory signals (a) (speech or sounds) are decomposed into multiple channels by the cochlear filter bank in (b) and framed into a spectrogram in (c); the parallel streams of sub-band signal frames are encoded into spike patterns by the different coding schemes in (d). The spatio-temporal spike patterns may then be further vectorized into 1-dimensional vectors in (e), that are then classified by an SVM in (f).

In this section, we investigate how different encoding schemes affect recognition accuracies using a linear SVM classifier. Acoustic signals are good candidates for the experiments, as they are continuous (hence also dynamic), while the spatial dimension refers to the encoding neurons and not object positions in a video, for instance, making it more amenable to recognition using simple classifiers. Compared with static image datasets, they are more similar to real-world stimuli.

Our study is based on two commonly used acoustic datasets: TIDIGITS [43] and RWCP [44]. TIDIGITS is a spoken digit dataset that includes 2,464 training and 2,486 testing utterances, in which each utterance is an isolated spoken digit (‘0’-‘9’,‘oh’) that spoken by people with different accents. The RWCP is an environmental sound dataset with randomly selected 200 training and 200 testing samples. Each sample contains a sound such as ‘bell’, ‘phone’, ‘ring’, etc. This dataset is relatively small, but offers a different real-world scenario, as natural environmental sounds cover a much wider frequency range than human speech.

Iv-a Experiment set-up

Iv-A1 Spectral features and neural encodings

Figure 5 illustrates the steps taken in the experiment. Figure 5 (a), (b) and (c) extract the spectral features of the acoustic signals, as discussed in [12]

. The speech or sound waveform passes through a constant-Q cochlear filter bank with 20 channels. The 20-channel outputs from the filter bank are further framed (with 20ms window size and 10ms stride) and transformed into log energy, emulating the function of auditory hair-cells

[45]. The output of (c) is a two-dimensional spectrogram, as shown in Figure 6(a), with 20 rows representing the 20 frequency bins and the number of columns corresponding to the number of time bins used to encode the signal. The spectrograms are further encoded into spike patterns as shown in Figure 6(b), using the encoding schemes discussed in Section 3. In this case, we use threshold coding scheme to generate the spike trains.

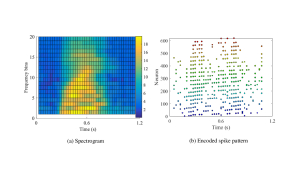

Figure 6: (a) is a spectrogram, a typical output at stage (c) of Figure 5. Each block represents the spectral energy detected within each sensory window of the hair cells; (b) is an encoded spike pattern using the threshold code (Section 3B), a typical output at stage (d) of Figure 5. Each dot represents a spike event, with different colors denoting different frequency channels.

Iv-A2 Vectorization

As a linear classifier such as the SVM (Figure 5 (f)) works with only spatial data, the output of Figure 5 (d), a 2-D spatio-temporal spike pattern is further vectorized into a 1-D vector, as in Figure 5 (e). We propose two vectorization techniques:

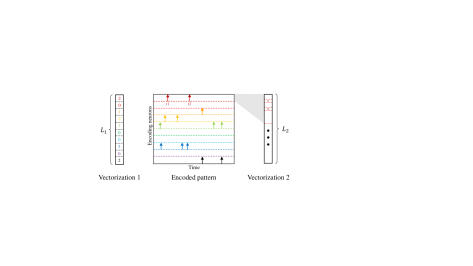

Figure 7: The two-dimensional spatio-temporal spike pattern is converted into a one-dimensional vector using two different approaches. Vectorization 1: the spike train of each encoding neuron is represented by the average firing rate, hence retaining only the spatial information. Vectorization 2: the two-dimensional spike pattern is reshaped into a one-dimensional vector, whereby each value represents the spike timing within each encoding window, hence retaining both spatial and temporal information.
  1. We average the number of spikes for each encoding neuron along the time dimension, using the time-averaged spike rates to represent the output of each encoding neuron, effectively generating an output vector of length , equal to the number of neurons. Hence only spatial information is preserved, while temporal information is collapsed. In practice, the duration of each sound pattern is scaled to the mean duration, and the spike counts are used in place of time-averaged spike rates. ‘Vectorize 1’ of Figure 7 illustrates such a vectorization scheme.

  2. We first organize the two-dimension spike patterns into number of time bins by number of encoding neurons. For a given time bin that contains a spike, it is assigned the value of the spike timing; and 0 if there is no spike. This matrix is then row-wise reshaped into a vector, as illustrated by ‘Vectorize 2’ of Figure 7. The length of ‘Vectorize 2’ is . By such a reshaping, both spatial and temporal information is preserved.

Iv-A3 Classification using SVM

After vectorization (Figure 7), the one-dimensional spike patterns are fed into the multi-class SVM. Being a linear classifier, it is useful to assess which neural coding schemes are more effective in projecting spatio-temporal patterns into higher spatial dimensions, and in the process, improve the linear separability of the underlying dataset. The SVM is implemented in the MATLAB ClassificationECOC class, which uses linear SVM classifiers and adopts a one-against-all strategy for an -class pattern recognition task.

Iv-A4 Classification using SNN

To further evaluate the effectiveness of these spike encoding schemes, we directly feed the spike patterns into an SNN and trained with the Tempotron learning rule [46]. The Tempotron is a temporal learning rule that learns to fire spikes for patterns from the desired class, while remaining silent for patterns from other classes. In our experiments, the number of spiking neurons is equal to the number of sound classes and the one-against-all strategy has been adopted for classification[16].

Iv-B Results

Vectorization 1 Vectorization 2
Neural codings Vector length Train Acc of V1 Test Acc of V1 Vector length Train Acc of V2 Test Acc of V2
Latency coding 20 24.4 20.2 1640 100.0 93.7
Phase coding 20 23.1 20.6 1640 100.0 92.4
Population latency coding 200 100.0 92.7 16400 100.0 92.8
Population phase coding 200 100.0 89.8 16400 100.0 91.8
Threshold coding 620 100.0 95.2 50840 100.0 83.4
Table I: SVM Classification accuracies (%) of different neural codings for the TIDIGITS speech dataset
Vectorization 1 Vectorization 2
Neural codings Vector length Train Acc of V1 Test Acc of V1 Vector length Train Acc of V2 Test Acc of V2
Latency coding 20 49.0 48.5 1480 100.0 100.0
Phase coding 20 50.5 48.0 1480 100.0 100.0
Population latency coding 200 100.0 100.0 14800 100.0 100.0
Population phase coding 200 100.0 100.0 14800 100.0 100.0
Threshold coding 620 100.0 99.5 45880 100.0 99.0
Table II: SVM Classification accuracies (%) of different neural codings for the RWCP environmental sound dataset
Neural codings Vector length Train Acc Test Acc Vector length Train Acc Test Acc
Latency coding 20 9.09 9.09 20 10.0 10.0
Population latency coding 200 54.7 49.9 200 100.0 99.0
Threshold coding 620 98.5 94.9 620 100 99.5
Table III: SNN classification accuracies (%) of different neural codings on the RWCP and TIDIGITS datasets

The training and testing accuracies using the SVM classifier are obtained for the TIDIGITS and RWCP datasets, as shown in Table I and Table II, respectively. From these results, we observe that:

  1. For the single neuron temporal coding schemes, when temporal information is collapsed with vectorization approach 1, the latency and phase codes have the lowest classification accuracies. While with the vectorization approach 2, whereby the temporal information is preserved, classification accuracies increase to a level above 90% for both datasets. This result implies that both spatial and temporal information is necessary for such temporally rich patterns.

  2. For the population temporal neuron coding schemes, both population latency and phase codes achieve very high accuracies with both vectorization approaches. This result suggests that with the high redundancy afforded by the population codes, for some datasets, the temporal information is not as critical or even not necessary for good classification accuracies. Also, even if the time information is available, it may not be necessary to preserve their precise timing.

  3. For the threshold code, which has a sparse representation of the encoded stimulus, it achieves the highest testing accuracy for vectorization approach 1. However, the testing accuracy for vectorization approach 2 is lower than the other coding schemes, which may be due to their large number of encoding neurons (the largest among all, at ), hence generating the longest vectors among all. The 100% training accuracy suggest good linear separability in the training set, but the SVM has been overfitted during training, given the much lower testing accuracy.

  4. For the population coding schemes, training accuracies obtained are 100% for both datasets, using vectorization approach 1. This implies that the training data is linearly separable. While this cannot be generalized to the testing datasets, it nonetheless shows that the population coding schemes have been successful in encoding the spatio-temporal datasets into a spatially linearly separable form.

The classification accuracies for the SNN Tempotron learning rule are shown in table III

. The single neuron temporal code (i.e., latency code) achieves an accuracy of 9.09% and 10.0% respectively for the TIDIGITS and RWCP datasets, which are chance probabilities. It is not surprising that the SNN cannot capture the dynamics of the latency encoded patterns as the latency coding scheme encodes each stimulus value in an encoding time window into a spike, generating as many spikes as there are time windows for all input patterns. The numbers of spikes generated are hence the same for all inputs. The Tempotron is then required to learn to classify based on the minute time differences within each time window (due to the latency code). The presence of these time windows is also not known to the SNN, which makes this a very challenging task. For the population latency coded TIDIGITS, the training and testing accuracies increase dramatically, though they are still some way short of those obtained using the SVM. The population latency code improves accuracy by amplifying these minute time differences in the single neuron latency code in the spatial domain by recruiting different populations of encoding neurons with different receptive fields. The threshold coding scheme gives the best accuracies for TIDIGITS, which is only slightly below those obtained using the SVM. The threshold code effectively recruits different sequences of encoding neurons for different time-varying signals which also greatly simplifies the task for the Tempotron. SNN classification on RWCP encoded using the population coding schemes is as good as those done using the SVM. Improved linear separability of population coded spatio-temporal datasets is hence shown to improve classification results obtained using a Tempotron.

V Discussion

While the RWCP is a smaller dataset than the TIDIGITS, results from experiments performed on it are in agreement with those of TIDIGITS. Hence, going back to the original question: what is an effective neural coding scheme for temporal pattern classification tasks such that the task is made easier for the downstream classifier? To answer this question, we refer to the two categories of temporal neural codes: single neuron code and population code.

For the single neuron code (Section 2), using vectorization approach 1, the information available with limited spatial dimension (from 20 encoding neurons) is not sufficiently discriminative for a linear classifier. While the 100% accuracy, obtained using vectorization approach 2, merely goes to show that if we are able to preserve all spatio-temporal information with extended spatial dimension, the dataset is still linearly separable. Encoding the pixel values of the spectrogram into a spike using the single neuron code, without indicating the boundaries of the encoding time window, is challenging for a spike neural network to classify. This furthers highlights the relevance of the population code.

For the population code (Section 3), both vectorization approaches achieve high training and testing accuracies. This essentially shows that the population codes have encoded sufficient spatial-temporal information in the extended spatial dimension, and with improved sparsity of spikes been generated as shown in Table IV. The average spike rates per individual neuron in the population codes are much lower than those of the single neuron codes. Notably, the threshold code has the lowest spike rates, for all neurons and also on average (per individual neuron). With the highest coding efficiency, in terms of the average spike rate, the threshold code is ideal for pattern recognition. However, comparing with the other population codes (population latency and phase code), it has lower fidelity, hence, it may not be a good candidate for spike decoding or reconstruction of the original input signal. The low average spike rates generate a sparse pattern which is easier for pattern recognition and also improves energy efficiency in a neuromorphic hardware implementation, where a significant amount of energies is consumed for spike generation and transmission.

Neural codings for all neurons per individual neuron

Latency coding
19,000 950
Phase coding 19,000 950
Population latency coding 56,810 284
Population phase coding 57.940 290
Threshold coding 7,818 12
Table IV: Average spike rates (spikes/s) of different neural codings

From the application point of view, our findings and discussion above could offer a direction on how to choose the neural coding strategies when facing a temporal dynamic pattern recognition task, particularly the speech recognition task. We find that the temporal learning based SNNs are more capable of extracting sparse spatial information from multiple afferents than the dense temporal information from a single afferent. Since the single neuron codes (latency coding, phase coding) cannot preserve sufficient information in spatial dimensions, thus they are not suitable for SNN-based pattern recognition tasks. On the other hand, the population codes (population latency/phase codings, threshold codings) are capable of project the temporal information into spatial dimension (multiple spike trains), they are better candidates for such tasks. Moreover, if we want to design novel strategies of neural codings, the population codings should be a more promising direction.

Our findings are based on utterances of the isolated spoken digit. While it demonstrates certain qualities of the population code (in particular the threshold code) that makes it easier for pattern recognition, it would require a further extension of our experiments to understand whether the results can be generalized to the case of continuous speech, of which the boundaries between words are not clear.

Vi Conclusion

We present and study two types of neural coding schemes: the single neuron codes (latency code and phase code) and the population codes (population latency/phase code, and threshold code). Their biological plausibility and possible applications are reviewed and discussed. To evaluate their coding efficacy, a linear classifier, the multi-class SVM is applied to two datasets, namely TIDIGITS and RWCP, encoded using the above schemes. We propose two vectorization approaches to vectorize 2-D spatial-temporal spike patterns. The first approach obtains the time-averaged spike rates for the encoding neurons; while the second maintains all spatial-temporal information. From the experiments, single neuron codes do not contain sufficient information in the spatial dimension for the recognition tasks; while the population codes contain sufficient information in the spatial dimension so as to obtain good classification accuracies, for both the SVM and an SNN-based classifier. The projection of spatial-temporal information onto the spatial dimension using a population code is an intriguing finding that deserves further study. Such a mechanism has a biological basis and showing that such an encoding scheme makes a dataset linearly separable is only the beginning.

Vii Acknowledgments

This research is supported by Programmatic grant no. A1687b0033 from the Singapore Government’s Research, In- novation and Enterprise 2020 plan (Advanced Manufacturing and Engineering domain)


  • [1] Peter Dayan, Laurence F Abbott, and L Abbott. Theoretical neuroscience: computational and mathematical modeling of neural systems. 2001.
  • [2] Michael Pfeiffer and Thomas Pfeil. Deep learning with spiking neurons: Opportunities & challenges. Frontiers in Neuroscience, 12:774, 2018.
  • [3] Malu Zhang, Hong Qu, Ammar Belatreche, Yi Chen, and Zhang Yi.

    A highly effective and robust membrane potential-driven supervised learning method for spiking neurons.

    IEEE transactions on neural networks and learning systems, (99):1–15, 2018.
  • [4] Malu Zhang, Hong Qu, Jianping Li, Ammar Belatreche, Xiurui Xie, and Zhi Zeng. Feedforward computational model for pattern recognition with spiking neurons. International Journal of Robotics and Automation, 33:206–5044, 2018.
  • [5] Wulfram Gerstner and Werner M Kistler. Spiking neuron models: Single neurons, populations, plasticity. Cambridge university press, 2002.
  • [6] Daniel A Butts, Chong Weng, Jianzhong Jin, Chun-I Yeh, Nicholas A Lesica, Jose-Manuel Alonso, and Garrett B Stanley. Temporal precision in the neural code and the timescales of natural vision. Nature, 449(7158):92–95, 2007.
  • [7] Sébastien M Crouzet, Holle Kirchner, and Simon J Thorpe.

    Fast saccades toward faces: face detection in just 100 ms.

    Journal of vision, 10(4):16–16, 2010.
  • [8] CE Carr and M Konishi. A circuit for detection of interaural time differences in the brain stem of the barn owl. Journal of Neuroscience, 10(10):3227–3246, 1990.
  • [9] Simon Thorpe, Arnaud Delorme, and Rufin Van Rullen. Spike-based strategies for rapid processing. Neural networks, 14(6-7):715–725, 2001.
  • [10] Romain Brette. Philosophy of the spike: rate-based vs. spike-based theories of the brain. Frontiers in systems neuroscience, 9:151, 2015.
  • [11] Amirhossein Tavanaei, Masoud Ghodrati, Saeed Reza Kheradpisheh, Timothée Masquelier, and Anthony Maida. Deep learning in spiking neural networks. Neural Networks, 2018.
  • [12] Zihan Pan, Haizhou Li, Jibin Wu, and Yansong Chua. An event-based cochlear filter temporal encoding scheme for speech signals. In 2018 International Joint Conference on Neural Networks (IJCNN), pages 1–8. IEEE, 2018.
  • [13] Jibin Wu, Yansong Chua, and Haizhou Li. A biologically plausible speech recognition framework based on spiking neural networks. In 2018 International Joint Conference on Neural Networks (IJCNN), pages 1–8. IEEE, 2018.
  • [14] Amirhossein Tavanaei and Anthony S Maida. A spiking network that learns to extract spike signatures from speech signals. Neurocomputing, 240:191–199, 2017.
  • [15] Yong Zhang, Peng Li, Yingyezhe Jin, and Yoonsuck Choe. A digital liquid state machine with biologically inspired learning and its application to speech recognition. IEEE transactions on neural networks and learning systems, 26(11):2635–2649, 2015.
  • [16] Jibin Wu, Yansong Chua, Malu Zhang, Haizhou Li, and Kay Chen Tan. A spiking neural network framework for robust sound classification. Frontiers in neuroscience, 12, 2018.
  • [17] Jonathan Dennis, Qiang Yu, Huajin Tang, Huy Dat Tran, and Haizhou Li. Temporal coding of local spectrogram features for robust sound recognition. In 2013 IEEE International Conference on Acoustics, Speech and Signal Processing, pages 803–807, May 2013.
  • [18] Rong Xiao, Huajin Tang, Pengjie Gu, and Xiaoliang Xu. Spike-based encoding and learning of spectrum features for robust sound recognition. Neurocomputing, 313:65–73, 2018.
  • [19] Rong Xiao, Rui Yan, Huajin Tang, and Kay Chen Tan. A spiking neural network model for sound recognition. In International Conference on Cognitive Systems and Signal Processing, pages 584–594. Springer, 2016.
  • [20] Stéphane Loiselle, Jean Rouat, Daniel Pressnitzer, and Simon Thorpe. Exploration of rank order coding with spiking neural networks for speech recognition. In Neural Networks, 2005. IJCNN’05. Proceedings. 2005 IEEE International Joint Conference on, volume 4, pages 2076–2080. IEEE, 2005.
  • [21] Malu Zhang, Hong Qu, Xiurui Xie, and Jürgen Kurths. Supervised learning in spiking neural networks with noise-threshold. Neurocomputing, 219:333–349, 2017.
  • [22] Malu Zhang, Hong Qu, Ammar Belatreche, and Xiurui Xie. Empd: An efficient membrane potential driven supervised learning algorithm for spiking neurons. IEEE Transactions on Cognitive and Developmental Systems, 10(2):151–162, 2018.
  • [23] Tim Gollisch and Markus Meister. Rapid neural coding in the retina with relative spike latencies. science, 319(5866):1108–1111, 2008.
  • [24] Bertrand Fontaine and Herbert Peremans. Bat echolocation processing using first-spike latency coding. Neural Networks, 22(10):1372–1382, 2009.
  • [25] Qiang Yu, Huajin Tang, Kay Chen Tan, and Haizhou Li. Rapid feedforward computation by temporal encoding and learning with spiking neurons. IEEE transactions on neural networks and learning systems, 24(10):1539–1552, 2013.
  • [26] Zoltan Nadasdy. Information encoding and reconstruction from the phase of action potentials. Frontiers in systems neuroscience, 3:6, 2009.
  • [27] Rodolfo R Llinas, Anthony A Grace, and Yosef Yarom. In vitro neurons in mammalian cortical layer 4 exhibit intrinsic oscillatory activity in the 10-to 50-hz frequency range. Proceedings of the National Academy of Sciences, 88(3):897–901, 1991.
  • [28] Andrea Benucci, Robert A Frazor, and Matteo Carandini. Standing waves and traveling waves distinguish two circuits in visual cortex. Neuron, 55(1):103–117, 2007.
  • [29] James C Prechtl, Theodore H Bullock, and David Kleinfeld. Direct evidence for local oscillatory current sources and intracortical phase gradients in turtle visual cortex. Proceedings of the National Academy of Sciences, 97(2):877–882, 2000.
  • [30] James J Chrobak and Gyorgy Buzsáki. High-frequency oscillations in the output networks of the hippocampal–entorhinal axis of the freely behaving rat. Journal of neuroscience, 16(9):3056–3066, 1996.
  • [31] David Robbe, Sean M Montgomery, Alexander Thome, Pavel E Rueda-Orozco, Bruce L McNaughton, and György Buzsaki. Cannabinoids reveal importance of spike timing coordination in hippocampal function. Nature neuroscience, 9(12):1526, 2006.
  • [32] Anne-Lise Giraud and David Poeppel. Cortical oscillations and speech processing: emerging computational principles and operations. Nature neuroscience, 15(4):511, 2012.
  • [33] Luc H Arnal and Anne-Lise Giraud. Cortical oscillations and sensory predictions. Trends in cognitive sciences, 16(7):390–398, 2012.
  • [34] Christian W Eurich and Stefan D Wilke. Multidimensional encoding strategy of spiking neurons. Neural Computation, 12(7):1519–1529, 2000.
  • [35] Herman P Snippe. Parameter extraction from population codes: A critical assessment. Neural Computation, 8(3):511–529, 1996.
  • [36] Charles D Gilbert and Torsten N Wiesel. Receptive field dynamics in adult primary visual cortex. Nature, 356(6365):150, 1992.
  • [37] Isabel Dean, Nicol S Harper, and David McAlpine. Neural population coding of sound level adapts to stimulus statistics. Nature neuroscience, 8(12):1684, 2005.
  • [38] Sander M Bohte, Joost N Kok, and Han La Poutre.

    Error-backpropagation in temporally encoded networks of spiking neurons.

    Neurocomputing, 48(1-4):17–37, 2002.
  • [39] JJ Hopfield. Transforming neural computations and representing time. Proceedings of the National Academy of Sciences, 93(26):15440–15444, 1996.
  • [40] John J Hopfield and Carlos D Brody.

    What is a moment? transient synchrony as a collective mechanism for spatiotemporal integration.

    Proceedings of the National Academy of Sciences, 98(3):1282–1287, 2001.
  • [41] JJ Hopfield. Encoding for computation: recognizing brief dynamical patterns by exploiting effects of weak rhythms on action-potential timing. Proceedings of the National Academy of Sciences, 101(16):6255–6260, 2004.
  • [42] Robert Gütig and Haim Sompolinsky. Time-warp–invariant neuronal processing. PLoS biology, 7(7):e1000141, 2009.
  • [43] R Gary Leonard and George Doddington. Tidigits speech corpus. Texas Instruments, Inc, 1993.
  • [44] Satoshi Nakamura, Kazuo Hiyane, Futoshi Asano, Takanobu Nishiura, and Takeshi Yamada.

    Acoustical sound database in real environments for sound scene understanding and hands-free speech recognition.

    In LREC, 2000.
  • [45] Ulrich Müller. Cadherins and mechanotransduction by hair cells. Current opinion in cell biology, 20(5):557–566, 2008.
  • [46] Robert Gütig and Haim Sompolinsky. The tempotron: a neuron that learns spike timing–based decisions. Nature neuroscience, 9(3):420–428, 2006.
