A long-standing goal of NLP is to build systems capable of reasoning about the information present in text. One important form of reasoning for Question Answering (QA) models is the ability to aggregate information from multiple mentions of entities. We call this coreference-based reasoning since multiple pieces of information, which may lie across sentence, paragraph or document boundaries, are tied together with the help of referring expressions which denote the same real-world entity. Figure 1 shows examples.
QA models which directly read text to answer questions (commonly known as Reading Comprehension systems) (Hermann et al., 2015; Seo et al., 2017a), typically consist of RNN layers. RNN layers have a bias towards sequential recency (Dyer, 2017), i.e. a tendency to favor short-term dependencies. Attention mechanisms alleviate part of the issue, but empirical studies suggest RNNs with attention also have difficulty modeling long-term dependencies (Daniluk et al., 2017). We conjecture that when training data is scarce, and inductive biases play an important role, RNN-based models would have trouble with coreference-based reasoning.
|Context: […] mary got the football there […] mary went to the bedroom […] mary travelled to the hallway […]|
|Question: where was the football before the hallway ?|
|Context: Louis-Philippe Fiset […] was a local physician and politician in the Mauricie area […] is located in the Mauricie region of Quebec, Canada […]|
|Question: country of citizenship – louis-philippe fiset ?|
At the same time, systems for coreference resolution have seen a gradual increase in accuracy over the years (Durrett and Klein, 2013; Wiseman et al., 2016; Lee et al., 2017). Hence, in this work we use the annotations produced by such systems to adapt a standard RNN layer by introducing a bias towards coreferent recency
. Specifically, given an input sequence and coreference clusters extracted from an external system, we introduce a term in the update equations for Gated Recurrent Units (GRU)(Cho et al., 2014) which depends on the hidden state of the coreferent antecedent of the current token (if it exists). This way hidden states are propagated along coreference chains and the original sequence in parallel.
We compare our Coref-GRU layer with the regular GRU layer by incorporating it in a recent model for reading comprehension. On synthetic data specifically constructed to test coreference-based reasoning (Weston et al., 2015), C-GRUs lead to a large improvement over regular GRUs. We show that the structural bias introduced and coreference signals are both important to reach high performance in this case. On a more realistic dataset (Welbl et al., 2017), with noisy coreference annotations, we see small but significant improvements over a state-of-the-art baseline. As we reduce the training data, the gains become larger. Lastly, we apply the same model to a broad-context language modeling task (Paperno et al., 2016), where coreference resolution is an important factor, and show improved performance over state-of-the-art.
2 Related Work
Entity-based models. Ji et al. (2017) presented a generative model for jointly predicting the next word in the text and its gold-standard coreference annotation. The difference in our work is that we look at the task of reading comprehension, and also work in the more practical setting of system extracted coreferences. EntNets (Henaff et al., 2016) also maintain dynamic memory slots for entities, but do not use coreference signals and instead update all memories after reading each sentence, which leads to poor performance in the low-data regime (c.f. Table 1). Yang et al. (2017)
model references in text as explicit latent variables, but limit their work to text generation.Kobayashi et al. (2016) used a pooling operation to aggregate entity information across multiple mentions. Wang et al. (2017) also noted the importance of reference resolution for reading comprehension, and we compare our model to their one-hot pointer reader.
Syntactic-recency. Recent work has used syntax, in the form of dependency trees, to replace the sequential recency bias in RNNs with a syntactic recency bias (Tai et al., 2015; Swayamdipta, 2017; Qian et al., 2017; Chen et al., 2017). However, syntax only looks at dependencies within sentence boundaries, whereas our focus here is on longer ranges. Our resulting layer is structurally similar to GraphLSTMs (Peng et al., 2017), with an additional attention mechanism over the graph edges. However, while Peng et al. (2017) found that using coreference did not lead to any gains for the task of relation extraction, here we show that it has a positive impact on the reading comprehension task. Self-Attention (Vaswani et al., 2017) models are becoming popular for modeling long-term dependencies, and may also benefit from coreference information to bias the learning of those dependencies. Here we focus on recurrent layers and leave such an analysis to future work.
Part of this work was described in an unpublished preprint (Dhingra et al., 2017b). The current paper extends that version and focuses exclusively on coreference relations. We also report results on the WikiHop dataset, including the performance of the model in the low-data regime.

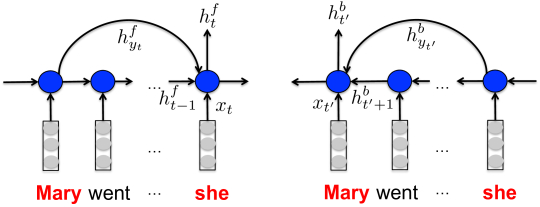

Coref-GRU (C-GRU) Layer. Suppose we are given an input sequence
along with their word vectorsand annotations for the most recent coreferent antecedent for each token , where and denotes the null antecedent (for tokens not belonging to any cluster). We assume all tokens belonging to a mention in a cluster belong to that cluster, and there are clusters in total. Our recurrent layer is adapted from GRU cells (Cho et al., 2014), but similar extensions can be derived for other recurrent cells as well. The update equations in a GRU all take the same basic form given by:
The bias for sequential recency comes from the second term . In this work we add another term to introduce a bias towards coreferent recency instead:
where is the hidden state of the coreferent antecedent of (with ), and are non-linear functions applied to the hidden states coming from the sequential antecedent and the coreferent antecedent, respectively, and is a scalar weight which decides the relative importance of the two terms based on the current input (so that, for example, pronouns may assign a higher weight for the coreference state). When , is set to 1, otherwise it is computed using a key-based addressing scheme (Miller et al., 2016), as , where is a trainable key vector. In this work we use simple slicing functions , and which decompose the hidden states into a sequential and a coreferent component, respectively. Figure 2 (left) shows an illustration of the layer, and the full update equations are given in Appendix A.
Connection to Memory Networks. We can also view the model as a memory network (Sukhbaatar et al., 2015) with a memory state at each time step which is a matrix. The rows of this memory matrix correspond to the state of each coreference cluster at time step . The main difference between Coref-GRUs and a typical memory network such as EntNets (Henaff et al., 2016) lies in the fact that we use coreference annotations to read and write from the memory rather than let model learn how to access the memory. With Coref-GRUs, only the content of the memories needs to be learned. As we shall see in Section 4, this turns out to be a useful bias in the low-data regime.
Bidirectional C-GRU. To extend to the bidirectional case, a second layer is fed the same sequence in the reverse direction, and now denotes the immediately descendent coreferent token from . Outputs from the two layers are then concatenated to form the bi-directional output (see Figure 2).
Complexity. The resulting layer has the same time-complexity as that of a regular GRU layer. The memory complexity increases since we have to keep track of the hidden states for each coreference cluster in the input. If there are clusters and is the batch size, the resulting complexity is by . This scales linearly with the input size , however we leave exploration of more efficient architectures to future work.
Reading comprehension architecture. All tasks we look at involve tuples of the form , where the goal is to find the answer from candidates to question with passage as context. We use the Gated-Attention (GA) reader (Dhingra et al., 2017a) as a base architecture, which computes representations of the passage by passing it through multiple bidirectional GRU layers with an attention mechanism in between layers. We compare the original GA architecture (GA w/ GRU) with one where the bidirectional GRU layers are replaced with bidirectional C-GRU layers (GA w/ C-GRU). Performance is reported in terms of the accuracy of detecting the correct answer from , and all models are trained using cross-entropy loss. When comparing two models we ensure the number of parameters are the same in each. Other implementation details are listed in Appendix B.
4 Experiments & Results
|EntNets (Henaff et al., 2016)||–||0.704||15|
|QRN (Seo et al., 2017b)||–||0.901||7|
|GA w/ GRU||0.764||0.810||10|
|GA w/ GRU + 1-hot||0.766||0.808||9|
|GA w/ C-GRU||0.870||0.886||5|
BAbi AI tasks. Our first set of experiments are on the 1K training version of the synthetic bAbi AI tasks (Weston et al., 2015). The passages and questions in this dataset are generated using templates, removing many complexities inherent in natural language, but it still provides a useful testbed for us since some tasks are specifically constructed to test the coreference-based reasoning we tackle here. Experiments on more natural data are described below.
Table 1 shows a comparison of EntNets (Henaff et al., 2016), QRNs (Seo et al., 2017b) (the best published results on bAbi-1K), and our models. We also include the results for a single layer version of GA Reader (which we denote simply as Bi-GRU or Bi-C-GRU when using coreference) to enable fair comparison with EntNets. In each case we see clear improvements of using C-GRU layers over GRU layers. Interestingly, EntNets, which have performance when trained with examples only reach performance with 1K training examples. The Bi-C-GRU model significantly improves on this baseline, which shows that, with less data, coreference annotations can provide a useful bias for a memory network on how to read and write memories.
A break-down of task-wise performance is given in Appendix C. Comparing C-GRU to the GRU based method, we find that the main gains are on tasks 2 (two supporting facts), 3 (three supporting facts) and 16 (basic induction). All these tasks require aggregation of information across sentences to derive the answer. Comparing to the QRN baseline, we found that C-GRU was significantly worse on task 15 (basic deduction). On closer examination we found that this was because our simplistic coreference module which matches tokens exactly was not able to resolve “mice” to “mouses” and “cats” to “cat”. On the other hand, C-GRU was significantly better than QRN on task 16 (basic induction).
Expected probability of correct answer () on Validation set as training progresses on Wikihop dataset for 1K, 5K and the full training datasets.
We also include a baseline which uses coreference features as 1-hot vectors appended to the input word vectors (GA w/ GRU + 1-hot). This provides the model with information about the coreference clusters, but does not improve performance, suggesting that the regular GRU is unable to track the given coreference information across long distances to solve the task. On the other hand, in Figure 3 (left) we show how the performance of GA w/ C-GRU varies as we remove gold-standard mentions from coreference clusters, or if we replace them with random mentions (GA w/ random-GRU). In both cases there is a sharp drop in performance, showing that specifically using coreference for connecting mentions is important.
|GA w/ GRU||0.307||0.332||0.287||0.263||–|
|GA w/ C-GRU||0.355||0.370||0.354||0.330||–|
|GA w/ GRU||0.382||0.385||0.390||0.336||–|
|GA w/ C-GRU||0.452||0.454||0.460||0.401||–|
|GA w/ GRU||0.606||0.615||0.604||0.549||–|
|GA w/ C-GRU||0.614||0.616||0.614||0.560||0.593|
Wikihop dataset. Next we apply our model to the Wikihop dataset (Welbl et al., 2017), which is specifically constructed to test multi-hop reading comprehension across documents. Each instance in this dataset consists of a collection of passages , and a query of the form where is an entity and is a relation. The task is to find the tail entity from a set of provided candidates . As preprocessing we concatenate all documents in a random order, and extract coreference annotations from the Berkeley Entity Resolution system (Durrett and Klein, 2013) which gets about F1 score on the CoNLL 2011 test set. We only keep the coreference clusters which contain at least one candidate from or an entity which co-occurs with the head entity . We report results in Table 2 when using the full training set, as well as when using a reduced training set of sizes 1K and 5K, to test the model under a low-data regime. In Figure 3 we also show the training curves of on the validation set.
We see higher performance for the C-GRU model in the low data regime, and better generalization throughout the training curve for all three settings. This supports our conjecture that the GRU layer has difficulty learning the kind of coreference-based reasoning required in this dataset, and that the bias towards coreferent recency helps with that. However, perhaps surprisingly, given enough data both models perform comparably. This could either indicate that the baseline learns the required reasoning patterns when given enough data, or, that the bias towards corefence-based reasoning hurts performance for some other types of questions. Indeed, there are questions which are answered correctly by the baseline but not by C-GRU, however, we did not find any consistent patterns among these in our analyses. Lastly, we note that both models vastly outperform the best reported result of BiDAf from (Welbl et al., 2017)111The official leaderboard at http://qangaroo.cs.ucl.ac.uk/leaderboard.html shows two models with better performance than reported here (as of April 2018). Since we were unable to find publications for these models we omit them here.. We believe this is because the GA models select answers from the list of candidatees, whereas BiDAF ignores those candidates.
|Chu et al. (2017)||0.4900||–|
|GA w/ GRU||0.5398||0.6677|
|GA w/ GRU + 1-hot||0.5338||0.6603|
|GA w/ C-GRU||0.5569||0.6888|
LAMBADA dataset. Our last set of experiments is on the broad-context language modeling task of LAMBADA dataset (Paperno et al., 2016). This dataset consists of passages 4-5 sentences long, where the last word needs to be predicted. Interestingly, though, the passages are filtered such that human volunteers were able to predict the missing token given the full passage, but not given only the last sentence. Hence, predicting these tokens involves a broader understanding of the whole passage. Analysis of the questions (Chu et al., 2017) suggests that around 20% of the questions need coreference understanding to answer correctly. Hence, we apply our model which uses coreference information for this task.
We use the same setup as Chu et al. (2017) which formulated the problem as a reading comprehension one by treating the last sentence as query, and the remaining passage as context to extract the answer from. In this manner only of the questions are answerable, but the performance increases substantially compared to pure language modeling based approaches. For this dataset we used Stanford CoreNLP to extract coreferences (Clark and Manning, 2015), which achieved F1 on the CoNLL test set. Table 3 shows a comparison of the GA w/ GRU baseline and GA w/ C-GRU models. We see a significant gain in performance when using the layer with coreference bias. Furthermore, the 1-hot baseline which uses the same coreference information, but with sequential recency bias fails to improve over the regular GRU layer. While the improvement for C-GRU is small, it is significant, and we note that questions in this dataset involve several different types of reasoning out of which we only tackle one specific kind. The proposed GA w/ C-GRU layer sets a new state-of-the-art on this dataset.
We present a recurrent layer with a bias towards coreferent recency, with the goal of tackling reading comprehension problems which require aggregating information from multiple mentions of the same entity. Our experiments show that when combined with a powerful reading architecture, the layer provides a useful inductive bias for solving problems of this kind. In future work, we aim to apply this model to other problems where long-term dependencies at the document level are important. Noise in the coreference annotations has a detrimental effect on the performance (Figure 3), hence we also aim to explore joint models which learn to do coreference resolution and reading together.
This work was supported by NSF under grants CCF-1414030 and IIS-1250956 and by grants from Google.
Chen et al. (2017)
Huadong Chen, Shujian Huang, David Chiang, and Jiajun Chen. 2017.
Improved neural machine translation with a syntax-aware encoder and decoder.ACL.
- Cho et al. (2014) Kyunghyun Cho, Bart Van Merriënboer, Caglar Gulcehre, Dzmitry Bahdanau, Fethi Bougares, Holger Schwenk, and Yoshua Bengio. 2014. Learning phrase representations using rnn encoder-decoder for statistical machine translation. arXiv preprint arXiv:1406.1078.
- Chu et al. (2017) Zewei Chu, Hai Wang, Kevin Gimpel, and David McAllester. 2017. Broad context language modeling as reading comprehension. EACL.
Clark and Manning (2015)
Kevin Clark and Christopher D Manning. 2015.
Entity-centric coreference resolution with model stacking.
Proceedings of the 53rd Annual Meeting of the Association for Computational Linguistics and the 7th International Joint Conference on Natural Language Processing (Volume 1: Long Papers), volume 1, pages 1405–1415.
- Daniluk et al. (2017) Michał Daniluk, Tim Rocktäschel, Johannes Welbl, and Sebastian Riedel. 2017. Frustratingly short attention spans in neural language modeling. ICLR.
- Dhingra et al. (2017a) Bhuwan Dhingra, Hanxiao Liu, Zhilin Yang, William W Cohen, and Ruslan Salakhutdinov. 2017a. Gated-attention readers for text comprehension. ACL.
- Dhingra et al. (2017b) Bhuwan Dhingra, Zhilin Yang, William W Cohen, and Ruslan Salakhutdinov. 2017b. Linguistic knowledge as memory for recurrent neural networks. arXiv preprint arXiv:1703.02620.
- Durrett and Klein (2013) Greg Durrett and Dan Klein. 2013. Easy victories and uphill battles in coreference resolution. In EMNLP, pages 1971–1982.
- Dyer (2017) Chris Dyer. 2017. Should neural network architecture reflect linguistic structure? CoNLL Keynote.
- Henaff et al. (2016) Mikael Henaff, Jason Weston, Arthur Szlam, Antoine Bordes, and Yann LeCun. 2016. Tracking the world state with recurrent entity networks. arXiv preprint arXiv:1612.03969.
- Hermann et al. (2015) Karl Moritz Hermann, Tomas Kocisky, Edward Grefenstette, Lasse Espeholt, Will Kay, Mustafa Suleyman, and Phil Blunsom. 2015. Teaching machines to read and comprehend. In Advances in Neural Information Processing Systems, pages 1693–1701.
- Ji et al. (2017) Yangfeng Ji, Chenhao Tan, Sebastian Martschat, Yejin Choi, and Noah A Smith. 2017. Dynamic entity representations in neural language models. EMNLP.
Kobayashi et al. (2016)
Sosuke Kobayashi, Ran Tian, Naoaki Okazaki, and Kentaro Inui. 2016.
Dynamic entity representation with max-pooling improves machine reading.In Proceedings of the 2016 Conference of the North American Chapter of the Association for Computational Linguistics: Human Language Technologies, pages 850–855.
- Lee et al. (2017) Kenton Lee, Luheng He, Mike Lewis, and Luke Zettlemoyer. 2017. End-to-end neural coreference resolution. EMNLP.
- Miller et al. (2016) Alexander Miller, Adam Fisch, Jesse Dodge, Amir-Hossein Karimi, Antoine Bordes, and Jason Weston. 2016. Key-value memory networks for directly reading documents. arXiv preprint arXiv:1606.03126.
- Paperno et al. (2016) Denis Paperno, Germán Kruszewski, Angeliki Lazaridou, Quan Ngoc Pham, Raffaella Bernardi, Sandro Pezzelle, Marco Baroni, Gemma Boleda, and Raquel Fernández. 2016. The lambada dataset: Word prediction requiring a broad discourse context. ACL.
- Peng et al. (2017) Nanyun Peng, Hoifung Poon, Chris Quirk, Kristina Toutanova, and Wen-tau Yih. 2017. Cross-sentence n-ary relation extraction with graph lstms. Transactions of the Association for Computational Linguistics, 5:101–115.
- Pennington et al. (2014) Jeffrey Pennington, Richard Socher, and Christopher D. Manning. 2014. Glove: Global vectors for word representation. In Empirical Methods in Natural Language Processing (EMNLP), pages 1532–1543.
- Qian et al. (2017) Feng Qian, Lei Sha, Baobao Chang, Lu-chen Liu, and Ming Zhang. 2017. Syntax aware lstm model for chinese semantic role labeling. arXiv preprint arXiv:1704.00405.
- Seo et al. (2017a) Minjoon Seo, Aniruddha Kembhavi, Ali Farhadi, and Hannaneh Hajishirzi. 2017a. Bidirectional attention flow for machine comprehension. ICLR.
- Seo et al. (2017b) Minjoon Seo, Sewon Min, Ali Farhadi, and Hannaneh Hajishirzi. 2017b. Query-reduction networks for question answering. ICLR.
- Sukhbaatar et al. (2015) Sainbayar Sukhbaatar, Jason Weston, Rob Fergus, et al. 2015. End-to-end memory networks. In Advances in neural information processing systems, pages 2440–2448.
- Swayamdipta (2017) Swabha Swayamdipta. 2017. Learning Algorithms for Broad-Coverage Semantic Parsing. Ph.D. thesis, Carnegie Mellon University Pittsburgh, PA.
Tai et al. (2015)
Kai Sheng Tai, Richard Socher, and Christopher D Manning. 2015.
Improved semantic representations from tree-structured long short-term memory networks.ACL.
- Vaswani et al. (2017) Ashish Vaswani, Noam Shazeer, Niki Parmar, Jakob Uszkoreit, Llion Jones, Aidan N Gomez, Lukasz Kaiser, and Illia Polosukhin. 2017. Attention is all you need. NIPS.
- Wang et al. (2017) Hai Wang, Takeshi Onishi, Kevin Gimpel, and David McAllester. 2017. Emergent logical structure in vector representations of neural readers. 2nd Workshop on Representation Learning for NLP, ACL.
- Weissenborn et al. (2017) Dirk Weissenborn, Georg Wiese, and Laura Seiffe. 2017. Fastqa: A simple and efficient neural architecture for question answering. CoNLL.
- Welbl et al. (2017) Johannes Welbl, Pontus Stenetorp, and Sebastian Riedel. 2017. Constructing datasets for multi-hop reading comprehension across documents. arXiv preprint arXiv:1710.06481.
- Weston et al. (2015) Jason Weston, Antoine Bordes, Sumit Chopra, Alexander M Rush, Bart van Merriënboer, Armand Joulin, and Tomas Mikolov. 2015. Towards ai-complete question answering: A set of prerequisite toy tasks. arXiv preprint arXiv:1502.05698.
- Wiseman et al. (2016) Sam Wiseman, Alexander M Rush, and Stuart M Shieber. 2016. Learning global features for coreference resolution. NAACL.
- Yang et al. (2017) Zichao Yang, Phil Blunsom, Chris Dyer, and Wang Ling. 2017. Reference-aware language models. EMNLP.
Appendix A C-GRU update equations
For simplicity, we introduce the variable which concatenates () the sequential and coreferent hidden states:
Then the update equations are given by:
The attention parameter is given by:
where and are trainable key vectors.
Appendix B Implementation details
layers with the GA architecture. We keep the same hyperparameter settings when using GRU or C-GRU layers, which we describe here.
For the bAbi dataset, we use a hidden state size of , batch size of , and learning rate which is halved after every updates. We also use dropout with rate at the output of each layer. The maximum number of coreference clusters across all tasks was . Half of the tasks in this dataset are extractive, meaning the answer is present in the passage, whereas the other half are classification tasks, where the answer is in a list of candidates which may not be in the passage. For the extractive tasks, we use the attention sum layer as described in the GA Reader paper (Dhingra et al., 2017a)
. For the classification tasks we replace this with a softmax layer for predicting one of the classes.
For the Wikihop dataset, we use a hidden state size of , batch size , and learning rate of which was halved every updates. The maximum number of coreference clusters was set to for this dataset. We used dropout of in between the intermediate layers, and initialized word embeddings with Glove (Pennington et al., 2014). We also used character embeddings, which were concatenated with the word embeddings, of size . These were output from a CNN layer with filters each of width . Following (Weissenborn et al., 2017), we also appended a feature to the word embeddings in the passage which indicated if the token appeared in the query or not.
For the LAMBADA dataset, we use a hidden state size of , batch size of , and learning rate of which was halved every epochs. Word vectors were initialized with Glove, and dropout of was applied after intermediate layers. The maximum number of coreference clusters in this dataset was .
Appendix C Task-wise bAbi performance
|1: Single Supporting Fact||1.000||0.997||1.000|
|2: Two Supporting Facts||0.993||0.345||0.990|
|3: Three Supporting Facts||0.943||0.558||0.982|
|4: Two Argument Relations||1.000||1.000||1.000|
|5: Three Argument Relations||0.989||0.989||0.993|
|8: Lists / Sets||0.944||0.947||0.964|
|9: Simple Negation||1.000||0.991||0.990|
|10: Indefinite Knowledge||1.000||0.992||0.986|
|11: Basic Coreference||1.000||0.995||0.996|
|13: Compound Coreference||1.000||0.998||0.993|
|14: Time Reasoning||0.992||0.895||0.849|
|15: Basic Deduction||1.000||0.521||0.470|
|16: Basic Induction||0.470||0.488||0.999|
|17: Positional Reasoning||0.656||0.580||0.574|
|18: Size Reasoning||0.921||0.908||0.896|
|19: Path Finding||0.213||0.095||0.099|
|20: Agent’s Motivation||0.998||0.998||1.000|
