1 Introduction
When handling broad or open domains, machine translation systems usually have to handle a large vocabulary as their inputs and outputs. This is particularly a problem in neural machine translation (NMT) models Sutskever et al. (2014), such as the attentionbased models Bahdanau et al. (2014); Luong et al. (2015) shown in Figure 1
. In these models, the output layer is required to generate a specific word from an internal vector, and a large vocabulary size tends to require a large amount of computation to predict each of the candidate word probabilities.
Because this is a significant problem for neural language and translation models, there are a number of methods proposed to resolve this problem, which we detail in Section 2.2. However, none of these previous methods simultaneously satisfies the following desiderata, all of which, we argue, are desirable for practical use in NMT systems:
 Memory efficiency:

The method should not require large memory to store the parameters and calculated vectors to maintain scalability in resourceconstrained environments.
 Time efficiency:

The method should be able to train the parameters efficiently, and possible to perform decoding efficiently with choosing the candidate words from the full probability distribution. In particular, the method should be performed fast on general CPUs to suppress physical costs of computational resources for actual production systems.
 Compatibility with parallel computation:

It should be easy for the method to be minibatched and optimized to run efficiently on GPUs, which are essential for training large NMT models.
In this paper, we propose a method that satisfies all of these conditions: requires significantly less memory, fast, and is easy to implement minibatched on GPUs. The method works by not predicting a softmax over the entire output vocabulary, but instead by encoding each vocabulary word as a vector of binary variables, then independently predicting the bits of this binary representation. In order to represent a vocabulary size of
, the binary representation need only be at least bits long, and thus the amount of computation and size of parameters required to select an output word is only in the size of the vocabulary , a great reduction from the standard linear increase of seen in the original softmax.While this idea is simple and intuitive, we found that it alone was not enough to achieve competitive accuracy with real NMT models. Thus we make two improvements: First, we propose a hybrid model, where the high frequency words are predicted by a standard softmax, and low frequency words are predicted by the proposed binary codes separately. Second, we propose the use of convolutional error correcting codes with Viterbi decoding Viterbi (1967), which add redundancy to the binary representation, and even in the face of localized mistakes in the calculation of the representation, are able to recover the correct word.
In experiments on two translation tasks, we find that the proposed hybrid method with error correction is able to achieve results that are competitive with standard softmaxbased models while reducing the output layer to a fraction of its original size.
2 Problem Description and Prior Work
2.1 Formulation and Standard Softmax

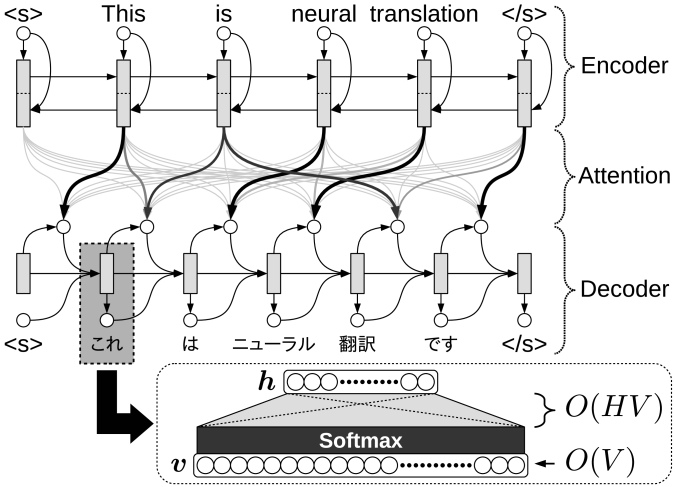

Most of current NMT models use onehot representations to represent the words in the output vocabulary – each word is represented by a unique sparse vector , in which only one element at the position corresponding to the word ID is 1, while others are 0. represents the vocabulary size of the target language. NMT models optimize network parameters by treating the onehot representation as the true probability distribution, and minimizing the cross entropy between it and the softmax probability :
(1)
(2)
(3)
(4)
where represents the sum of all elements in , represents the th element of , and are trainable parameters and is the total size of hidden layers directly connected to the output layer.
2.2 Prior Work on Suppressing Complexity of NMT Models
Several previous works have proposed methods to reduce computation in the output layer. The hierarchical softmax Morin and Bengio (2005) predicts each word based on binary decision and reduces computation time to . However, this method still requires space for the parameters, and requires calculation much more complicated than the standard softmax, particularly at test time.
The differentiated softmax Chen et al. (2016) divides words into clusters, and predicts words using separate part of the hidden layer for each word clusters. This method make the conversion matrix of the output layer sparser than a fullyconnected softmax, and can reduce time/space computation amount by ignoring zero part of the matrix. However, this method restricts the usage of hidden layer, and the size of the matrix is still in proportion to .
Samplingbased approximations Mnih and Teh (2012); Mikolov et al. (2013) to the denominator of the softmax have also been proposed to reduce calculation at training. However, these methods are basically not able to be applied at test time, still require heavy computation like the standard softmax.
3 Binary Code Prediction Models
3.1 Representing Words using Bit Arrays

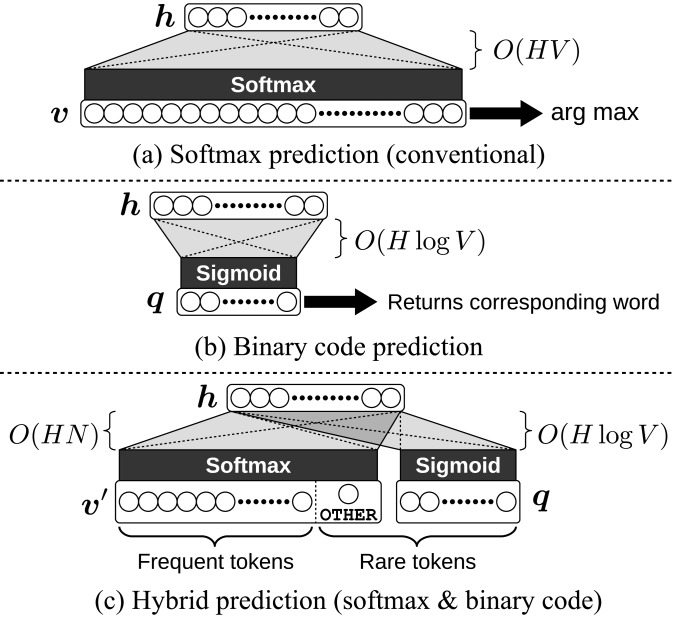

Figure 2(a) shows the conventional softmax prediction, and Figure 2(b) shows the binary code prediction model proposed in this study. Unlike the conventional softmax, the proposed method predicts each output word indirectly using dense bit arrays that correspond to each word. Let be the target bit array obtained for word , where each is an independent binary function given , and is the number of bits in whole array. For convenience, we introduce some constraints on . First, a word is mapped to only one bit array . Second, all unique words can be discriminated by , i.e., all bit arrays satisfy that:^{1}^{1}1We designed this injective condition using the function to ignore taskspecific sensitivities between different word surfaces (e.g. cases, ligatures, etc.).
(5)
Third, multiple bit arrays can be mapped to the same word as described in Section 3.5. By considering second constraint, we can also constrain , because should have at least unique representations to distinguish each word. The output layer of the network independently predicts probability values using the current hidden values
(6)
(7)
where and are trainable parameters. When we assume that each is the probability that “the th bit becomes 1,” the joint probability of generating word can be represented as:
(8)
where . We can easily obtain the maximumprobability bit array from by simply assuming the th bit is 1 if , or 0 otherwise. However, this calculation may generate invalid bit arrays which do not correspond to actual words according to the mapping between words and bit arrays. For now, we simply assume that (unknown) when such bit arrays are obtained, and discuss alternatives later in Section 3.5.
The constraints described here are very general requirements for bit arrays, which still allows us to choose between a wide variety of mapping functions. However, designing the most appropriate mapping method for NMT models is not a trivial problem. In this study, we use a simple mapping method described in Algorithm 1, which was empirically effective in preliminary experiments.^{2}^{2}2Other methods examined included random codes, Huffman codes Huffman (1952) and Brown clustering Brown et al. (1992)
with zeropadding to adjust code lengths, and some original allocation methods based on the word2vec embeddings
Mikolov et al. (2013). Here, is the set of target words including 3 extra markers: UNK, BOS (beginofsentence), and EOS (endofsentence), and is the rank of the word according to their frequencies in the training corpus. Algorithm 1 is one of the minimal mapping methods (i.e., satisfying ), and generated bit arrays have the characteristics that their higher bits roughly represents the frequency of corresponding words (e.g., if is frequently appeared in the training corpus, higher bits in tend to become 0).3.2 Loss Functions
For learning correct binary representations, we can use any loss functions that is (sub)differentiable and satisfies a constraint that:
(9)
where is the minimum value of the loss function which typically does not affect the gradient descent methods. For example, the squareddistance:
(10)
or the crossentropy:
(11)
are candidates for the loss function. We also examined both loss functions in the preliminary experiments, and in this paper, we only used the squareddistance function (Equation (10)), because this function achieved higher translation accuracies than Equation (11).^{3}^{3}3In terms of learning probabilistic models, we should remind that using Eq. (10) is an approximation of Eq. (11). The output bit scores trained by Eq. (10) do not represent actual word perplexities, and this characteristics imposes some practical problems when comparing multiple hypotheses (e.g., reranking, beam search, etc.). We could ignore this problem in this paper because we only evaluated the onebest results in experiments.
3.3 Efficiency of the Binary Code Prediction
The computational complexity for the parameters and is . This is equal to when using a minimal mapping method like that shown in Algorithm 1, and is significantly smaller than when using standard softmax prediction. For example, if we chose and use Algorithm 1’s mapping method, then and total amount of computation in the output layer could be suppressed to 1/4096 of its original size.
On a different note, the binary code prediction model proposed in this study shares some ideas with the hierarchical softmax Morin and Bengio (2005) approach. Actually, when we used a binarytree based mapping function for , our model can be interpreted as the hierarchical softmax with two strong constraints for guaranteeing independence between all bits: all nodes in the same level of the hierarchy share their parameters, and all levels of the hierarchy are predicted independently of each other. By these constraints, all bits in can be calculated in parallel. This is particularly important because it makes the model conducive to being calculated on parallel computation backends such as GPUs.
However, the binary code prediction model also introduces problems of robustness due to these strong constraints. As the experimental results show, the simplest prediction model which directly maps words into bit arrays seriously decreases translation quality. In Sections 3.4 and 3.5, we introduce two additional techniques to prevent reductions of translation quality and improve robustness of the binary code prediction model.
3.4 Hybrid Softmax/Binary Model
According to the Zipf’s law Zipf (1949), the distribution of word appearances in an actual corpus is biased to a small subset of the vocabulary. As a result, the proposed model mostly learns characteristics for frequent words and cannot obtain enough opportunities to learn for rare words. To alleviate this problem, we introduce a hybrid model using both softmax prediction and binary code prediction as shown in Figure 2(c). In this model, the output layer calculates a standard softmax for the most frequent words and an OTHER
marker which indicates all rare words. When the softmax layer predicts
OTHER, then the binary code layer is used to predict the representation of rare words. In this case, the actual probability of generating a particular word can be separated into two equations according to the frequency of words:(12)
(13)
(14)
(15)
where and are trainable parameters, and assumes that the value corresponds to the rank of frequency of each word. We also define the loss function for the hybrid model using both softmax and binary code losses:
(16)
(17)
(18)
where and are hyperparameters to determine strength of both softmax/binary code losses. These also can be adjusted according to the training data, but in this study, we only used for simplicity.
The computational complexity of the hybrid model is , which is larger than the original binary code model . However, can be chosen as because the softmax prediction is only required for a few frequent words. As a result, we can control the actual computation for the hybrid model to be much smaller than the standard softmax complexity ,
The idea of separated prediction of frequent words and rare words comes from the differentiated softmax Chen et al. (2016) approach. However, our output layer can be configured as a fullyconnected network, unlike the differentiated softmax, because the actual size of the output layer is still small after applying the hybrid model.
3.5 Applying Errorcorrecting Codes
The 2 methods proposed in previous sections impose constraints for all bits in
, and the value of each bit must be estimated correctly for the correct word to be chosen. As a result, these models may generate incorrect words due to even a single bit error. This problem is the result of dense mapping between words and bit arrays, and can be avoided by creating

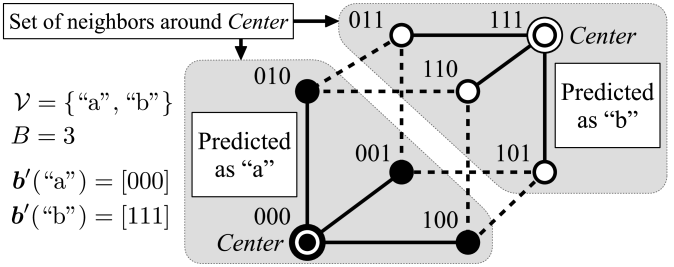

redundancy in the bit array. Figure 3 shows a simple example of how this idea works when discriminating 2 words using 3 bits. In this case, the actual words are obtained by estimating the nearest centroid bit array according to the Hamming distance between each centroid and the predicted bit array. This approach can predict correct words as long as the predicted bit arrays are in the set of neighbors for the correct centroid (gray regions in the Figure 3), i.e., up to a 1bit error in the predicted bits can be corrected. This ability to be robust to errors is a central idea behind errorcorrecting codes Shannon (1948). In general, an errorcorrecting code has the ability to correct up to bit errors when all centroids differ bits from each other Golay (1949). is known as the free distance determined by the design of errorcorrecting codes. Errorcorrecting codes have been examined in some previous work on multiclass classification tasks, and have reported advantages from the raw classification Dietterich and Bakiri (1995); Klautau et al. (2003); Liu (2006); Kouzani and Nasireding (2009); Kouzani (2010); Ferng and Lin (2011, 2013). In this study, we applied an errorcorrecting algorithm to the bit array obtained from Algorithm 1 to improve robustness of the output layer in an NMT system. A challenge in this study is trying a large classification (#classes 10,000) with errorcorrection, unlike previous studies focused on solving comparatively small tasks (#classes 100). And this study also tries to solve a generation task unlike previous studies. As shown in the experiments, we found that this approach is highly effective in these tasks.Figure 4 (a) and (b) illustrate the training and generation processes for the model with errorcorrecting codes. In the training, we first convert the original bit arrays to a center bit array in the space of errorcorrecting code: , where is the number of bits in the errorcorrecting code. The NMT model learns its parameters based on the loss between predicted probabilities and . Note that typical errorcorrecting codes satisfy , and this characteristic efficiently suppresses the increase of actual computation cost in the output layer due to the application of the errorcorrecting code. In the generation of actual words, the decoding method of the errorcorrecting code converts the redundant predicted bits into a dense representation , and uses as the bits to restore the word, as is done in the method described in the previous sections.
It should be noted that the method for performing error correction directly affects the quality of the whole NMT model. For example, the mapping shown in Figure 3 has only 3 bits and it is clear that these bits represent exactly the same information as each other. In this case, all bits can be estimated using exactly the same parameters, and we can not expect that we will benefit significantly from applying this redundant representation. Therefore, we need to choose an error correction method in which the characteristics of original bits should be distributed in various positions of the resulting bit arrays so that errors in bits are not highly correlated with eachother. In addition, it is desirable that the decoding method of the applied errorcorrecting code can directly utilize the probabilities of each bit, because generated by the network will be a continuous probabilities between zero and one.
In this study, we applied convolutional codes Viterbi (1967) to convert between original and redundant bits. Convolutional codes perform a set of bitwise convolutions between original bits and weight bits (which are hyperparameters). They are wellsuited to our setting here because they distribute the information of original bits in different places in the resulting bits, work robustly for random bit errors, and can be decoded using bit probabilities directly.
Algorithm 2 describes the particular convolutional code that we applied in this study, with two convolution weights [1001111] and [1101101] as fixed hyperparameters.^{4}^{4}4We also examined many configurations of convolutional codes which have different robustness and computation costs, and finally chose this one. Where and . On the other hand, there are various algorithms to decode convolutional codes with the same format which are based on different criteria. In this study, we use the decoding method described in Algorithm 3, where represents the concatenation of vectors and . This method is based on the Viterbi algorithm Viterbi (1967) and estimates original bits by directly using probability of redundant bits. Although Algorithm 3 looks complicated, this algorithm can be performed efficiently on CPUs at test time, and is not necessary at training time when we are simply performing calculation of Equation (6). Algorithm 2 increases the number of bits from into , but does not restrict the actual value of .
4 Experiments
4.1 Experimental Settings
We examined the performance of the proposed methods on two EnglishJapanese bidirectional translation tasks which have different translation difficulties: ASPEC Nakazawa et al. (2016) and BTEC Takezawa (1999). Table 1 describes details of two corpora. To prepare inputs for training, we used tokenizer.perl in Moses Koehn et al. (2007) and KyTea Neubig et al. (2011) for English/Japanese tokenizations respectively, applied lowercase.perl from Moses, and replaced outofvocabulary words such that into the UNK marker.
We implemented each NMT model using C++ in the DyNet framework Neubig et al. (2017) and trained/tested on 1 GPU (GeForce GTX TITAN X). Each test is also performed on CPUs to compare its processing time. We used a bidirectional RNNbased encoder applied in bahdanau14, unidirectional decoder with the same style of Luong et al. (2015), and the concat
global attention model also proposed in luong15. Each recurrent unit is constructed using a 1layer LSTM (input/forget/output gates and nonpeepholes)
Gers et al. (2000) with 30% dropout Srivastava et al. (2014) for the input/output vectors of the LSTMs. All word embeddings, recurrent states and modelspecific hidden states are designed with 512dimentional vectors. Only output layers and loss functions are replaced, and other network architectures are identical for the conventional/proposed models. We used the Adam optimizer Kingma and Ba (2014) with fixed hyperparameters , and minibatches with 64 sentences sorted according to their sequence lengths. For evaluating the quality of each model, we calculated caseinsensitive BLEU Papineni et al. (2002) every 1000 minibatches. Table 2 lists summaries of all methods we examined in experiments.Name  ASPEC  BTEC
Languages  En Ja
#sentences  Train  2.00 M  465. k
Dev  1,790  510
Test  1,812  508
Vocabulary size  65536  25000
4.2 Results and Discussion
Corpus  Method  BLEU %  Ratio of #params  Time (EnJa) [ms]
EnJa  JaEn  All  Train  Test: GPU / CPU
ASPEC  Softmax  31.13  21.14  —  65536  33.6 M  1/1  1  1026.  121.6 / 2539.
Binary  13.78  6.953  16  16  8.21 k  1/4.10 k  0.698  711.2  73.08 / 122.3
Hybrid512  22.81  13.95  16  528  271. k  1/124.  0.700  843.6  81.28 / 127.5
Hybrid2048  27.73  16.92  16  2064  1.06 M  1/31.8  0.707  837.1  82.28 / 159.3
BinaryEC  25.95  18.02  44  44  22.6 k  1/1.49 k  0.698  712.0  78.75 / 164.0
Hybrid512EC  29.07  18.66  44  556  285. k  1/118.  0.700  850.3  80.30 / 180.2
Hybrid2048EC  30.05  19.66  44  2092  1.07 M  1/31.4  0.707  851.6  77.83 / 201.3
BTEC  Softmax  47.72  45.22  —  25000  12.8 M  1/1  1  325.0  34.35 / 323.3
Binary  31.83  31.90  15  15  7.70 k  1/1.67 k  0.738  250.7  27.98 / 54.62
Hybrid512  44.23  43.50  15  527  270. k  1/47.4  0.743  300.7  28.83 / 66.13
Hybrid2048  46.13  45.76  15  2063  1.06 M  1/12.1  0.759  307.7  28.25 / 67.40
BinaryEC  44.48  41.21  42  42  21.5 k  1/595.  0.738  255.6  28.02 / 69.76
Hybrid512EC  47.20  46.52  42  554  284. k  1/45.1  0.744  307.8  28.44 / 56.98
Hybrid2048EC  48.17  46.58  42  2090  1.07 M  1/12.0  0.760  311.0  28.47 / 69.44
Table 3 shows the BLEU on the test set (bold and italic faces indicate the best and second places in each task), number of bits (or ) for the binary code, actual size of the output layer , number of parameters in the output layer , as well as the ratio of or amount of whole parameters compared with Softmax, and averaged processing time at training (per minibatch on GPUs) and test (per sentence on GPUs/CPUs), respectively. Figure 5(a) and 5(b) shows training curves up to 180,000 epochs about some EnglishJapanese settings. To relax instabilities of translation qualities while training (as shown in Figure 5(a) and 5(b)), each BLEU in Table 3 is calculated by averaging actual test BLEU of 5 consecutive results around the epoch that has the highest dev BLEU.
First, we can see that each proposed method largely suppresses the actual size of the output layer from ten to one thousand times compared with the standard softmax. By looking at the total number of parameters, we can see that the proposed models require only 70% of the actual memory, and the proposed model reduces the total number of parameters for the output layers to a practically negligible level. Note that most of remaining parameters are used for the embedding lookup at the input layer in both encoder/decoder. These still occupy memory, where represents the size of each embedding layer and usually . These are not targets to be reduced in this study because these values rarely are accessed at test time because we only need to access them for input words, and do not need them to always be in the physical memory. It might be possible to apply a similar binary representation as that of output layers to the input layers as well, then express the word embedding by multiplying this binary vector by a word embedding matrix. This is one potential avenue of future work.
Taking a look at the BLEU for the simple Binary method, we can see that it is far lower than other models for all tasks. This is expected, as described in Section 3, because using raw bit arrays causes many oneoff estimation errors at the output layer due to the lack of robustness of the output representation. In contrast, HybridN and BinaryEC models clearly improve BLEU from Binary, and they approach that of Softmax. This demonstrates that these two methods effectively improve the robustness of binary code prediction models. Especially, BinaryEC generally achieves higher quality than Hybrid512 despite the fact that it suppress the number of parameters by about 1/10. These results show that introducing redundancy to target bit arrays is more effective than incremental prediction. In addition, the HybridNEC model achieves the highest BLEU in all proposed methods, and in particular, comparative or higher BLEU than Softmax in BTEC. This behavior clearly demonstrates that these two methods are orthogonal, and combining them together can be effective. We hypothesize that the lower quality of Softmax in BTEC is caused by an overfitting due to the large number of parameters required in the softmax prediction.
The proposed methods also improve actual computation time in both training and test. In particular on CPU, where the computation speed is directly affected by the size of the output layer, the proposed methods translate significantly faster than Softmax by x5 to x20. In addition, we can also see that applying errorcorrecting code is also effictive with respect to the decoding speed.
Figure 6 shows the tradeoff between the translation quality and the size of softmax layers in the hybrid prediction model (Figure 2(c)) without errorcorrection. According to the model definition in Section 3.4, the softmax prediction and raw binary code prediction can be assumed to be the upper/lowerbound of the hybrid prediction model. The curves in Figure 6 move between Softmax and Binary models, and this behavior intuitively explains the characteristics of the hybrid prediction. In addition, we can see that the BLEU score in BTEC quickly improves, and saturates at in contrast to the ASPEC model, which is still improving at . We presume that the shape of curves in Figure 6 is also affected by the difficulty of the corpus, i.e., when we train the hybrid model for easy datasets (e.g., BTEC is easier than ASPEC), it is enough to use a small softmax layer (e.g. ).
5 Conclusion
In this study, we proposed neural machine translation models which indirectly predict output words via binary codes, and two model improvements: a hybrid prediction model using both softmax and binary codes, and introducing errorcorrecting codes to introduce robustness of binary code prediction. Experiments show that the proposed model can achieve comparative translation qualities to standard softmax prediction, while significantly suppressing the amount of parameters in the output layer, and improving calculation speeds while training and especially testing.
One interesting avenue of future work is to automatically learn encodings and error correcting codes that are wellsuited for the type of binary code prediction we are performing here. In Algorithms 2 and 3
we use convolutions that were determined heuristically, and it is likely that learning these along with the model could result in improved accuracy or better compression capability.
Acknowledgments
Part of this work was supported by JSPS KAKENHI Grant Numbers JP16H05873 and JP17H00747, and GrantinAid for JSPS Fellows Grant Number 15J10649.
References
 Bahdanau et al. (2014) Dzmitry Bahdanau, Kyunghyun Cho, and Yoshua Bengio. 2014. Neural machine translation by jointly learning to align and translate. arXiv preprint arXiv:1409.0473 .

Brown et al. (1992)
Peter F Brown, Peter V Desouza, Robert L Mercer, Vincent J Della Pietra, and
Jenifer C Lai. 1992.
Classbased ngram models of natural language.
Computational linguistics 18(4):467–479.  Chen et al. (2016) Wenlin Chen, David Grangier, and Michael Auli. 2016. Strategies for training large vocabulary neural language models. In Proceedings of the 54th Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers). Association for Computational Linguistics, Berlin, Germany, pages 1975–1985.

Chitnis and DeNero (2015)
Rohan Chitnis and John DeNero. 2015.
Variablelength word encodings for neural translation models.
In
Proceedings of the 2015 Conference on Empirical Methods in Natural Language Processing
. Association for Computational Linguistics, Lisbon, Portugal, pages 2088–2093.
Dietterich and Bakiri (1995)
Thomas G. Dietterich and Ghulum Bakiri. 1995.
Solving multiclass learning problems via errorcorrecting output
codes.
Journal of Artificial Intelligence Research
2:263–286.
Ferng and Lin (2011)
ChunSung Ferng and HsuanTien Lin. 2011.
Multilabel classification with errorcorrecting codes.
Journal of Machine Learning Research
20:281–295.
Ferng and Lin (2013)
ChunSung Ferng and HsuanTien Lin. 2013.
Multilabel classification using errorcorrecting codes of hard or
soft bits.
IEEE transactions on neural networks and learning systems
24(11):1888–1900.  Gers et al. (2000) Felix A Gers, Jürgen Schmidhuber, and Fred Cummins. 2000. Learning to forget: Continual prediction with LSTM. Neural computation 12(10):2451–2471.
 Golay (1949) Marcel J. E. Golay. 1949. Notes on digital coding. Proceedings of the Institute of Radio Engineers 37:657.
 Huffman (1952) David A. Huffman. 1952. A method for the construction of minimumredundancy codes. Proceedings of the Institute of Radio Engineers 40(9):1098–1101.
 Kingma and Ba (2014) Diederik Kingma and Jimmy Ba. 2014. Adam: A method for stochastic optimization. arXiv preprint arXiv:1412.6980 .

Klautau et al. (2003)
Aldebaro Klautau, Nikola Jevtić, and Alon Orlitsky. 2003.
On nearestneighbor errorcorrecting output codes with application to allpairs multiclass support vector machines.
Journal of Machine Learning Research 4(April):1–15.  Koehn et al. (2007) Philipp Koehn, Hieu Hoang, Alexandra Birch, Chris CallisonBurch, Marcello Federico, Nicola Bertoldi, Brooke Cowan, Wade Shen, Christine Moran, Richard Zens, Chris Dyer, Ondrej Bojar, Alexandra Constantin, and Evan Herbst. 2007. Moses: Open source toolkit for statistical machine translation. In Proceedings of the 45th Annual Meeting of the Association for Computational Linguistics Companion Volume Proceedings of the Demo and Poster Sessions. Association for Computational Linguistics, Prague, Czech Republic, pages 177–180.
 Kouzani (2010) Abbas Z Kouzani. 2010. Multilabel classification using error correction codes. In International Symposium on Intelligence Computation and Applications. Springer, pages 444–454.

Kouzani and Nasireding (2009)
Abbas Z Kouzani and Gulisong Nasireding. 2009.
Multilabel classification by bch code and random forests.
International journal of recent trends in engineering 2(1):113–116.  L’Hostis et al. (2016) Gurvan L’Hostis, David Grangier, and Michael Auli. 2016. Vocabulary selection strategies for neural machine translation. arXiv preprint arXiv:1610.00072 .
 Ling et al. (2015) Wang Ling, Isabel Trancoso, Chris Dyer, and Alan W Black. 2015. Characterbased neural machine translation. arXiv preprint arXiv:1511.04586 .
 Liu (2006) Yang Liu. 2006. Using svm and errorcorrecting codes for multiclass dialog act classification in meeting corpus. In INTERSPEECH.
 Luong et al. (2015) Thang Luong, Hieu Pham, and Christopher D. Manning. 2015. Effective approaches to attentionbased neural machine translation. In Proceedings of the 2015 Conference on Empirical Methods in Natural Language Processing. Association for Computational Linguistics, Lisbon, Portugal, pages 1412–1421.
 Mi et al. (2016) Haitao Mi, Zhiguo Wang, and Abe Ittycheriah. 2016. Vocabulary manipulation for neural machine translation. In Proceedings of the 54th Annual Meeting of the Association for Computational Linguistics (Volume 2: Short Papers). Association for Computational Linguistics, Berlin, Germany, pages 124–129.
 Mikolov et al. (2013) Tomas Mikolov, Ilya Sutskever, Kai Chen, Greg S Corrado, and Jeff Dean. 2013. Distributed representations of words and phrases and their compositionality. In Advances in neural information processing systems. pages 3111–3119.
 Mnih and Teh (2012) Andriy Mnih and Yee Whye Teh. 2012. A fast and simple algorithm for training neural probabilistic language models. In Proceedings of the 29th International Conference on Machine Learning.
 Morin and Bengio (2005) Frederic Morin and Yoshua Bengio. 2005. Hierarchical probabilistic neural network language model. In Proceedings of Tenth International Workshop on Artificial Intelligence and Statistics. volume 5, pages 246–252.
 Nakazawa et al. (2016) Toshiaki Nakazawa, Manabu Yaguchi, Kiyotaka Uchimoto, Masao Utiyama, Eiichiro Sumita, Sadao Kurohashi, and Hitoshi Isahara. 2016. Aspec: Asian scientific paper excerpt corpus. In Proceedings of the Ninth International Conference on Language Resources and Evaluation (LREC 2016). European Language Resources Association (ELRA), Portorož, Slovenia, pages 2204–2208.
 Neubig et al. (2017) Graham Neubig, Chris Dyer, Yoav Goldberg, Austin Matthews, Waleed Ammar, Antonios Anastasopoulos, Miguel Ballesteros, David Chiang, Daniel Clothiaux, Trevor Cohn, Kevin Duh, Manaal Faruqui, Cynthia Gan, Dan Garrette, Yangfeng Ji, Lingpeng Kong, Adhiguna Kuncoro, Gaurav Kumar, Chaitanya Malaviya, Paul Michel, Yusuke Oda, Matthew Richardson, Naomi Saphra, Swabha Swayamdipta, and Pengcheng Yin. 2017. Dynet: The dynamic neural network toolkit. arXiv preprint arXiv:1701.03980 .
 Neubig et al. (2011) Graham Neubig, Yosuke Nakata, and Shinsuke Mori. 2011. Pointwise prediction for robust, adaptable japanese morphological analysis. In Proceedings of the 49th Annual Meeting of the Association for Computational Linguistics: Human Language Technologies. Association for Computational Linguistics, Portland, Oregon, USA, pages 529–533.
 Papineni et al. (2002) Kishore Papineni, Salim Roukos, Todd Ward, and WeiJing Zhu. 2002. Bleu: a method for automatic evaluation of machine translation. In Proceedings of 40th Annual Meeting of the Association for Computational Linguistics. Association for Computational Linguistics, Philadelphia, Pennsylvania, USA, pages 311–318.
 Sennrich et al. (2016) Rico Sennrich, Barry Haddow, and Alexandra Birch. 2016. Neural machine translation of rare words with subword units. In Proceedings of the 54th Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers). Association for Computational Linguistics, Berlin, Germany, pages 1715–1725.
 Shannon (1948) Claude E. Shannon. 1948. A mathematical theory of communication. Bell System Technical Journal 27(3):379–423.
 Srivastava et al. (2014) Nitish Srivastava, Geoffrey E Hinton, Alex Krizhevsky, Ilya Sutskever, and Ruslan Salakhutdinov. 2014. Dropout: a simple way to prevent neural networks from overfitting. Journal of Machine Learning Research 15(1):1929–1958.
 Sutskever et al. (2014) Ilya Sutskever, Oriol Vinyals, and Quoc V Le. 2014. Sequence to sequence learning with neural networks. In Advances in neural information processing systems. pages 3104–3112.
 Takezawa (1999) Toshiyuki Takezawa. 1999. Building a bilingual travel conversation database for speech translation research. In Proc. of the 2nd international workshop on EastAsian resources and evaluation conference on language resources and evaluation. pages 17–20.
 Viterbi (1967) Andrew Viterbi. 1967. Error bounds for convolutional codes and an asymptotically optimum decoding algorithm. IEEE transactions on Information Theory 13(2):260–269.
 Zipf (1949) George. K. Zipf. 1949. Human behavior and the principle of least effort.. AddisonWesley Press.
