1 Introduction
Learningbased methods hold the promise of solving hard nonlinear control problems in robotics. Most existing work focuses on learning control functions represented as neural networks through repeated interactions of an unknown environment in the framework of deep reinforcement learning, with notable success. However, there are still wellknown issues that impede the immediate use of these methods in practical control applications, including sample complexity, interpretability, and safety
Amodei et al. (2016). Our work investigates a different direction: Can learning methods be valuable even in the most classical setting of nonlinear control design? We focus on the challenging problem of designing feedback controllers for stabilizing nonlinear dynamical systems with provable guarantee. This problem captures the core difficulty of underactuated robotics Tedrake (2019). We demonstrate that neural networks and deep learning can find provably stable controllers in a direct way and tackle the full nonlinearity of the systems, and significantly outperform existing methods based on linear or polynomial approximations such as linearquadratic regulators (LQR)
Kwakernaak (1972) and sumofsquares (SOS) and semidefinite programming (SDP) Parrilo (2000). The results show the promise of neural networks and deep learning in improving the solutions of many challenging problems in nonlinear control.The prevalent way of stabilizing nonlinear dynamical systems is to linearize the system dynamics around an equilibrium, and formulate LQR problems to minimize deviation from the equilibrium. LQR methods compute a linear feedback control policy, with stability guarantee within a small neighborhood where linear approximation is accurate. However, the dependence on linearization produces extremely conservative systems, and it explains why agile robot locomotion is hard Tedrake (2019). To control nonlinear systems outside their linearizable regions, we need to rely on Lyapunov methods Haddad and Chellaboina (2008). Following the intuition that a dynamical system stabilizes when its energy decreases over time, Lyapunov methods construct a scalar field that can force stabilization. These fields are highly nonlinear and the need for function approximations has long been recognized Haddad and Chellaboina (2008). Many existing approaches rely on polynomial approximations of the dynamics and the search of sumofsquares polynomials as Lyapunov functions through semidefinite programming (SDP) Parrilo (2000). A rich theory has been developed around the approach, but in practice the polynomial approximations pose much restriction on the systems and the Lyapunov landscape. Moreover, wellknown numerical sensitivity issues in SDP Löfberg (2009) make it very hard to find solutions that fully satisfy the Lyapunov conditions. In contrast, we exploit the expressive power of neural networks, the convenience of gradient descent for learning, and the completeness of nonlinear constraint solving methods to provide full guarantee of Lyapunov conditions. We show that the combination of these techniques produces control designs that can stabilize various nonlinear systems with verified regions of attraction that are much larger than what can be obtained by existing control methods.
We propose an algorithmic framework for learning control functions and neural network Lyapunov functions for nonlinear systems without any local approximation of their dynamics. The framework consists of a learner and a falsifier. The learner uses stochastic gradient descent to find parameters in both a control function and a neural Lyapunov function, by iteratively minimizing the
Lyapunov risk which measures the violation of the Lyapunov conditions. The falsifier takes a control function and Lyapunov function from the learner, and searches for counterexamplestate vectors that violate the Lyapunov conditions. The counterexamples are added to the training set for the next iteration of learning, generating an effective curriculum. The falsifier uses deltacomplete constraint solving
Gao et al. (2012), which guarantees that when no violation is found, the Lyapunov conditions are guaranteed to hold for all states in the verified domain. In this framework, the learner and falsifier are given tasks that are difficult in different ways and can not be achieved by the other side. Moreover, we show that the framework provides the flexibility for finetuning the control performance by directly enlarging the region of attraction on demand, by adding regulator terms in the learning cost.We experimented with several challenging nonlinear control problems in robotics, such as drone landing, wheeled vehicle path following, and nlink planar robot balancingLiu and Xin (2015). We are able to find new control policies that produce certified region of attractions that are significantly larger than what can be established previously. We provide a detailed analysis of the performance comparison between the proposed methods and the LQR/SOS/SDP methods.
Related Work. The recent work of Richards et. al. Richards et al. (2018) has also proposed and shown the effectiveness of using neural networks to learn safety certificates in a Lyapunov framework, but our goals and approaches are different. Richards et. al. focus on discretetime polynomial systems and the use of neural networks to learn the region of attraction of a given controller. The Lyapunov conditions are validated in relaxed forms through sampling. Special design of the neural architecture is required to compensate the lack of complete checking over all states. In comparison, we focus on learning the control and the Lyapunov function together with provable guarantee of stability in larger regions of attraction. Our approach directly handles nonpolynomial continuous dynamical systems, does not assume control functions are given other than an initialization, and uses generic feedforward network representations without manual design. Our approach successfully works on many more nonlinear systems, and find new control functions that enlarge regions of attraction obtainable from standard control methods. Related learningbased approaches for finding Lyapunov functions include Berkenkamp et al. (2016, 2017); Chow et al. (2018); Rasmussen and Williams (2006). There is strong evidence that linear control functions are all we need for solving highly nonlinear control problems through reinforcement learning as well Mania et al. (2018), suggesting convergence of different learning approaches. In the control and robotics community, similar learnerfalsifier frameworks have been proposed by Ravanbakhsh and Sankaranarayanan (2019); Kapinski et al. (2014) without using neural network representations. The common assumption is the Lyapunov functions are highdegree polynomials. In these methods, an explicit control function and Lyapunov function can not be learned together because of the bilinear optimization problems that they generate. Our approach significantly simplifies the algorithms in this direction and has worked reliably on much harder control problems compared to existing methods. Several theoretical results on asymptotic Lyapunov stability Ahmadi et al. (2011); Ahmadi (2012); Ahmadi and Parrilo (2013); Ahmadi and Jungers (2015) show that some very simple dynamical systems do not admit a polynomial Lyapunov function of any degree, despite being globally asymptotically stable. Such results further motivates the use of neural networks as a more suitable function approximator. A large body of work in control uses SOS representations and SDP optimization in the search for Lyapunov functions Henrion and Garulli (2005); Parrilo (2000); Chesi and Henrion (2009); JarvisWloszek et al. (2003); Majumdar and Tedrake (2017). However, scalability and numerical sensitivity issues have been the main challenge in practice. As is well known, the number of semidefinite programs from SOS decomposition grows quickly for low degree polynomials Parrilo (2000).
2 Preliminaries
We consider the problem of designing control functions to stablize a dynamical system at an equilibrium point. We make extensive use of the following results from Lyapunov stability theory.
Definition 1 (Controlled Dynamical Systems).
An dimensional controlled dynamical system is
(1)
where is a Lipschitzcontinuous vector field, and is an open set with that defines the state space of the system. Each is a state vector. The feedback control is defined by a continuous function , used as a component in the full dynamics .
Definition 2 (Asymptotic Stability).
We say that system of is stable at the origin if for any , there exists such that if then for all . The system is asymptotically stable at the origin if it is stable and also for all .
Definition 3 (Lie Derivatives).
The Lie derivative of a continuously differentiable scalar function over a vector field is defined as
It measures the rate of change of along the direction of the system dynamics.
Proposition 1 (Lyapunov Functions for Asymptotic Stability).
Consider a controlled system with equilibrium at the origin, i.e., . Suppose there exists a continuously differentiable function that satisfies the following conditions:
(2)
Then, the system is asymptotically stable at the origin and is called a Lyapunov function.
LinearQuadratic Regulators (LQR) is a widelyadpoted optimal control strategy. LQR controllers are guaranteed to work within a small neighborhood around the stationary point where the dynamics can be approximated as linear systems. A detailed description can be found in Kwakernaak (1972).
3 Learning to Stabilize with Neural Lyapunov Functions
We now describe how to learn both a control function and a neural Lyapunov function together, so that the Lyapunov conditions can be rigorously verified to ensure stability of the system. We provide pseudocode of the algorithm in Algorithm 1.
3.1 Control and Lyapunov Function Learning
We design the hypothesis class of candidate Lyapunov functions to be multilayered feedforward networks with activation functions. It is important to note that unlike most other deep learning applications, we can not use nonsmooth networks, such as with ReLU activations. This is because we will need to analytically determine whether the Lyapunov conditions hold for these neural networks, which requires the existence of their Lie derivatives.
For a neural network Lyapunov function, its input is any state vector of the system in Definition (1) and the output is a scalar value. We write to denote the parameter vector for a Lyapunov function candidate . For notational convenience, we write to denote both the control function and the parameters that define the function. The learning process updates both the and parameters to improve the likelihood of satisfying the Lyapunov conditions, which we formulate as a cost function named the Lyapunov risk. The Lyapunov risk measures the degree of violation of the following Lyapunov conditions, as shown in Proposition (1). First, the value of is positive; Second, the value of the Lie derivative is negative; Third, the value of is zero. Conceptually, the overall Lyapunov control design problem is about minimizing the minimax cost of the form
The difficulty in control design problems is that the violation of the Lyapunov conditions can not just be estimated, but needs to be fully guaranteed over all states in
. Thus, we need to rely on global search with complete guarantee for the inner maximization part, which we delegate to the falsifier explained in Section 3.2. For the learning step, we define the following Lyapunov risk function.Definition 4 (Lyapunov Risk).
Consider a candidate Lyapunov function for a controlled dynamical system from Definition 1. The Lyapunov risk is a defined by the following function
(3)
where
is a random variable over the state space of the system with a distribution
. In practice, we work with the Monte Carlo estimate named the empirical Lyapunov risk by drawing samples:(4)
where are samples of the state vectors sampled according to .
It is clear that the empirical Lyapunov risk is an unbiased estimator of the Lyapunov risk function. It is clear that
is an unbiased estimator of .Note that is positive semidefinite, and any that corresponds to a true Lyapunov function satisfies =0. Thus, Lyapunov functions define global minimizers of the Lyapunov risk function.
Proposition 2.
Let be a Lyapunov function for dynamical system where is the control parameters. Then is a global minimizer for and .
Note that both and are highly nonlinear (even though is almost always linear in practice), and thus generates a highly complex landscape. Surprisingly, multilayer feedforward networks and stochastic gradient descent can quickly produce generalizable Lyapunov functions with nice geometric properties, as we report in detail in the experiments. In Figure 1 (b), we show an example of how the Lyapunov risk is minimized over iterations on the inverted pendulum example.
Initialization and improvement of control performance over LQR.
Because of the local nature of stochastic gradient descent, it is hard to learn good control functions through random initialization of control parameters. Instead, the parameters in the control function are initialized to the LQR solution, obtained for the linearized dynamics in a small neighborhood around the stationary point. On the other hand, the initialization of the neural network Lyapunov functions can be completely random. We observe that the final learned controller often delivers significantly better control solutions than the initalization from LQR. Figure 1(a) shows how the learned control reduces oscillation of the system behavior in the 2link planar robot balancing example and achieve more stable control.
3.2 Falsification and Counterexample Generation
For each control and Lyapunov function pair that the learner obtains, the falsifier’s task is to find states that violate the Lyapunov conditions in Proposition 1. We formulate the negations of the Lyapunov conditions as a nonlinear constraint solving problem over real numbers. These falsification constraints are defined as follows.
Definition 5 (Lyapunov Falsification Constraints).
Let be a candidate Lyapunov function for a dynamical system defined by defined in state space . Let be a small constant parameter that bounds the tolerable numerical error. The Lyapunov falsification constraint is the following firstorder logic formula over real numbers:
where is bounded in the state space of the system. The numerical error parameter is explicitly introduced for controlling numerical sensitivity near the origin. Here is orders of magnitude smaller than the range of the state variables, i.e., .
Remark 1.
The numerical error parameter allows us to avoid pathological problems in numerical algorithms such as arithmetic underflow. Values inside this tiny ball correspond to disturbances that are physically insignificant. This parameter is important for eliminating from our framework the numerical sensitivity issues commonly observed in SOS/SDP methods. Also note the ball does not affect properties of the Lyapunov level sets and regions of attraction outside it (i.e., ).
The falsifier computes solutions of the falsification constraint . Solving the constraints requires global minimization of a highly nonconvex functions (involving Lie derivatives of the neural network Lyapunov function), and it is a computationally expensive task (NPhard). We rely on recent progress in nonlinear constraint solving in SMT solvers such as dReal Gao et al. (2012), which has been used for similar control design problems Kapinski et al. (2014) that do not involve neural networks.
Example 1.
Consider a candidate Lyapunov function and dynamics and . The falsification constraint is of the following form
which is a nonlinear nonpolynomial disjunctive constraint system. The actual examples used in our experiments all use larger twolayer networks and much more complex dynamics.
To completely certify the Lyapunov conditions, the constraint solving step for can never fail to report solutions if there is any. This requirement is rigorously proved for algorithms in SMT solvers such as dReal Gao et al. (2013), as a property called deltacompleteness Gao et al. (2012).
Definition 6 (DeltaComplete Algorithms).
Let be a class of quantifierfree firstorder constraints. Let be a fixed constant. We say an algorithm is complete for , if for any , always returns one of the following answers correctly: does not have a solution (unsatisfiable), or there is a solution that satisfies . Here, is defined as a small syntactic variation of the original constraint (precise definitions are in Gao et al. (2012)).
In other words, if a deltacomplete algorithm concludes that a formula is unsatisfiable, then it is guaranteed to not have any solution. In our context, this is exactly what we need for ensuring that the Lyapunov condition holds over all state vectors. If is determined to be satisfiable, we obtain counterexamples that are added to the training set for the learner. Note that the counterexamples are simply state vectors without labels, and their Lyapunov risk will be determined by the learner, not the falsifier. Thus, although it is possible to have spurious counterexamples due to the error, they are used as extra samples and do not harm correctness of the end result. In all, when deltacomplete algorithms in dReal return that the falsification constraints are unsatisfiable, we conclude that the Lyapunov conditions are satisfied by the candidate Lyapunov and control functions. Figure 1(c) shows a sequence of counterexamples found by the falsifier to improve the learned results.
Remark 2.
When solving with complete constraint solving algorithms, we use to reduce the number of spurious counterexamples. Following deltacompleteness, the choice of does not affect the guarantee for the validation of the Lyapunov conditions.
3.3 Tuning Region of Attraction

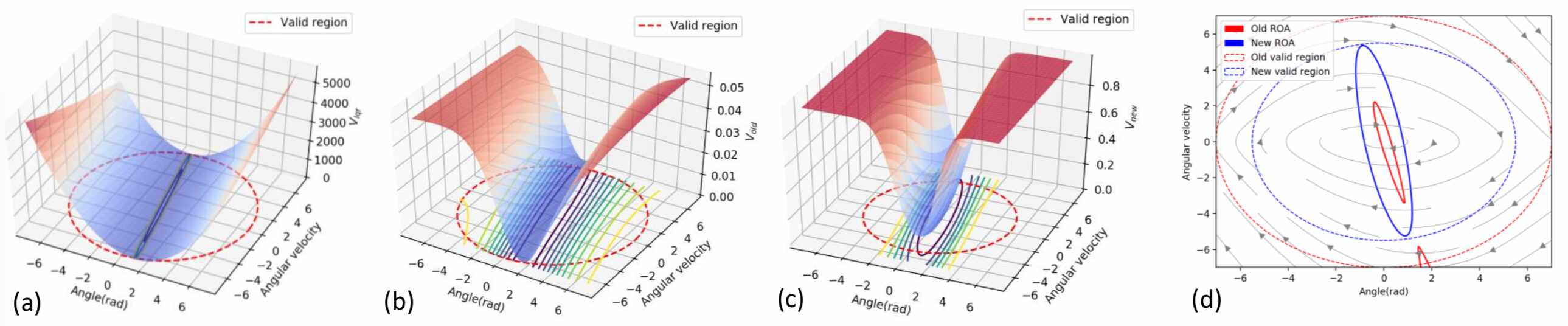

An important feature of the proposed learning framework is that we can adjust the cost functions to learn control and Lyapunov functions favoring various additional properties. In fact, the most practically important performance metric for a stabilizing controller is its region of attraction (ROA). An ROA defines a forward invariant set that is guaranteed to contain all possible trajectories of the system, and thus can conclusively prove safety properties. Note that the Lyapunov conditions themselves do not directly ensure safety, because the system can deviate arbitrarily far before coming back to the stable equilibrium. Formally, the ROA of an asymptotically stable system is defined as:
Definition 7 (Region of Attraction).
Let define a system asymptotically stable at the origin with Lyapunov function for domain . A region of attraction is a subset of that contains the origin and guarantees that the system never leaves . Any level set of completely contained in defines an ROA. That is, for , if , then is an ROA for the system.
To maximize the ROA produced by a pair of Lyapunov function and control function, we add a cost term to the Lyapunov risk that regulates how quickly the Lyapunov function value increases with respect to the radius of the level sets, by using following Definition 4. Here is tunable parameter. We observe that the regulator can have major effect on the performance of the learned control functions. Figure 2 illustrates such an example, showing how different control functions are obtained by regulating the Lyapunov risk to achieve larger ROA.
4 Experiments
We demonstrate that the proposed methods find provably stable control and Lyapunov functions on various nonlinear robot control problems. In all the examples, we use a learning rate of for the learner, an value of and value of for the falsifier, and reverify the result with smaller in Table 1. We emphasize that the choices of these parameters do not affect the stability guarantees on the final design of the control and Lyapunov functions. We show that the region of attraction is enlarged by 300% to 600% compared to LQR results in these examples. Full details of the results and system dynamics are provided in the Appendix. Note that for the Caltech ducted fan and nlink balancing examples, we numerically relaxed the conditions slightly when the learning has converged, so that the SMT solver dReal does not run into numerical issues. More details on the effect of such relaxation can be found in the paper website Chang et al. (2019).
Benchmarks  Learning time  falsification time  # samples  # iterations
Inverted Pendulum  25.5  0.6  500  430  0.04
Path Following  36.3  0.2  500  610  0.01
Caltech Ducted Fan  1455.16  50.84  1000  3000  0.01
2Link Balancing  6000  458.27  1000  4000  0.01
Inverted pendulum.

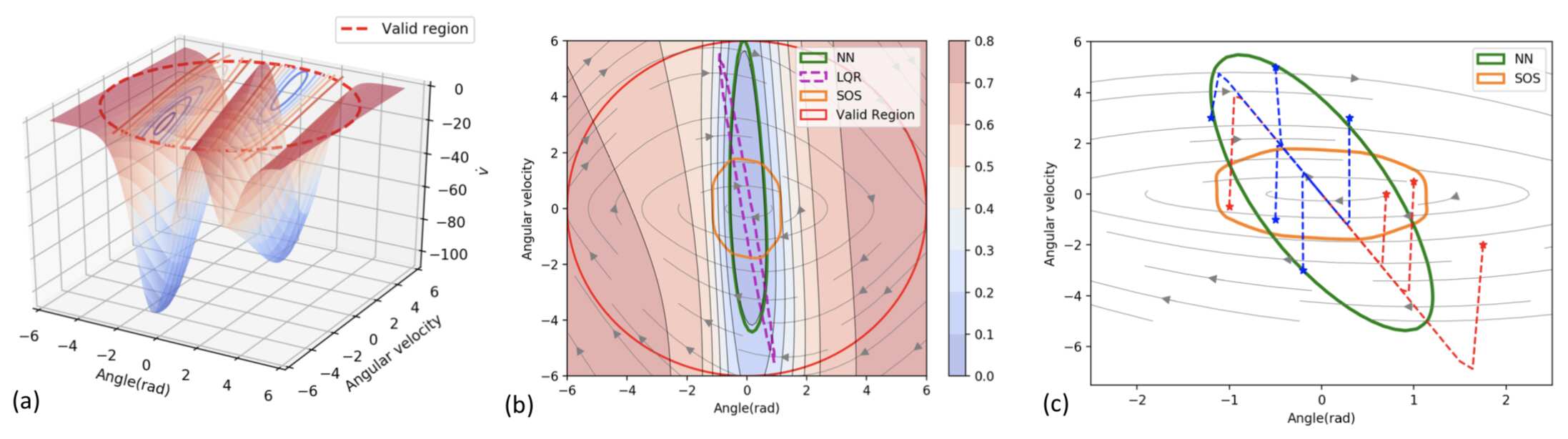

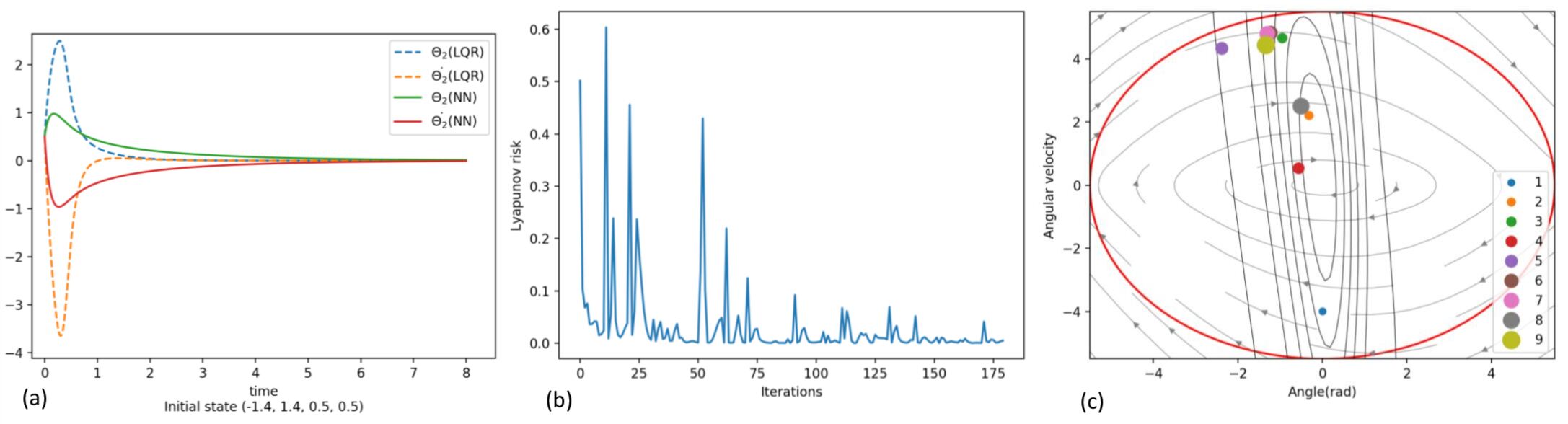

The inverted pendulum is a standard nonlinear control problem for testing different control methods. This system has two state variables, the angular position , angular velocity and one control input . Our learning procedure finds a neural Lyapunov function that is proved to be valid within the domain . In contrast, the ROA found by SOS/SDP techniques is an ellipse with large diameter of and short diameter of . Using LQR control on the linearized dynamics, we obtain an ellipse with large diameter of and short diameter of . We observe that among all the examples in our experiments, this is the only one where the SOS Lyapunov function has passed the complete check by the constraint solver, so that we can compare to it. The Lyapunov function obtained by LQR gives a larger ROA if we ignore the linearization error. The different regions of attractions are shown in Figure 3. These values are consistent with the approximate maximum region of attraction reported in Richards et al. (2018). In particular, Figure 3 (c) shows that the SOS function does not define a big enough ROA, as many trajectories escape its region.

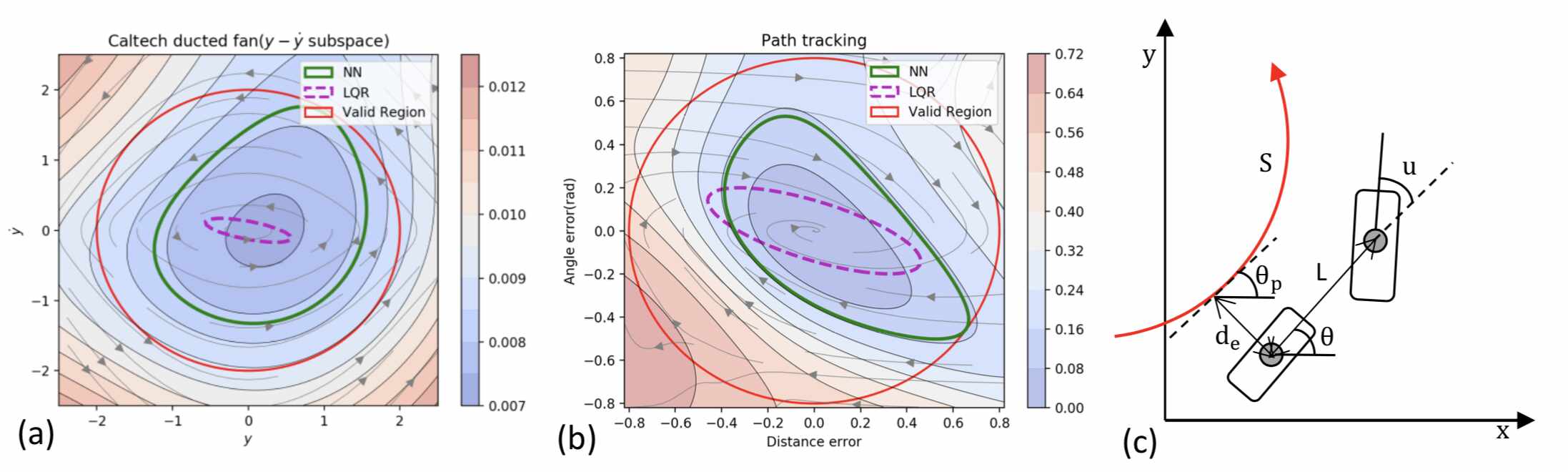

Caltech ducted fan in hover mode. The system describes the motion of a landing aircraft in hover mode with two forces and . The state variables , , denote the position and orientation of the centre of the fan. There are six state variables . The dynamics, neural Lyapunov function with two layers of activation functions, and the control policy are given in the Appendix. In Figure 4, we show that the ROA is significantly larger than what can be obtained from LQR.
Wheeled vehicle path following.
We consider the path tracking control using kinematic bicycle model (see Figure 4). We take the angle error and the distance error as state variables. Assume a target path is a unit circle, then we obtain the Lyapunov function within .

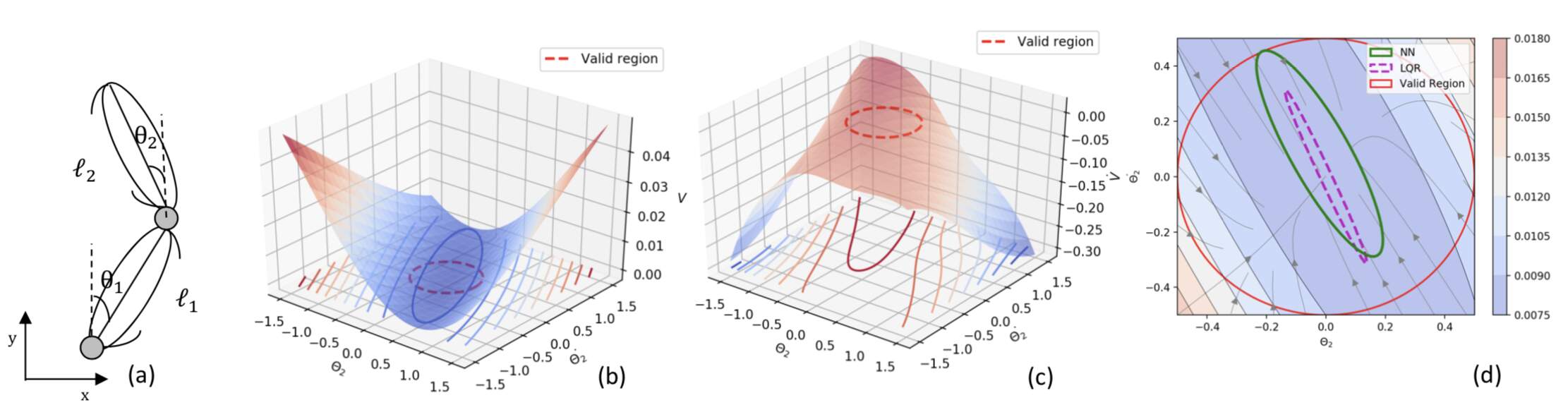

NLink Planar Robot Balancing.
The link pendulum system has control inputs and state variables , representing the link angles and angle velocities. Each link has mass and length
, and the moments of inertia
are computed from the link pivots, where . We find a neural Lyapunov function for the 2link pendulum system within . In Figure 5, we show the shape of the neural Lyapunov functions on two of the dimensions, and the ROA that the control design achieves. We also provide a video of the control on the 3link model.5 Conclusion
We proposed new methods to learn control policies and neural network Lyapunov functions for highly nonlinear systems with provable guarantee of stability. The approach significantly simplifies the process of nonlinear control design, provides endtoend provable correctness guarantee, and can obtain much larger regions of attraction compared to existing control methods. We show experiments on challenging nonlinear problems central to various nonlinear control problems. The proposed methods demonstrate clear advantage over existing methods. We envision that neural networks and deep learning will lead to better solutions to core problems in robot control design.
