Neural Logic Machines

by   Honghua Dong, et al.
Tsinghua University
ByteDance Inc.

We propose the Neural Logic Machine (NLM), a neural-symbolic architecture for both inductive learning and logic reasoning. NLMs exploit the power of both neural networks---as function approximators, and logic programming---as a symbolic processor for objects with properties, relations, logic connectives, and quantifiers. After being trained on small-scale tasks (such as sorting short arrays), NLMs can recover lifted rules, and generalize to large-scale tasks (such as sorting longer arrays). In our experiments, NLMs achieve perfect generalization in a number of tasks, from relational reasoning tasks on the family tree and general graphs, to decision making tasks including sorting arrays, finding shortest paths, and playing the blocks world. Most of these tasks are hard to accomplish for neural networks or inductive logic programming alone.


page 1

page 2

page 3

page 4


Neuro-Symbolic Inductive Logic Programming with Logical Neural Networks

Recent work on neuro-symbolic inductive logic programming has led to pro...

Relational Neural Machines

Deep learning has been shown to achieve impressive results in several ta...

Differentiable Inductive Logic Programming in High-Dimensional Space

Synthesizing large logic programs through Inductive Logic Programming (I...

Learning Explanatory Rules from Noisy Data

Artificial Neural Networks are powerful function approximators capable o...

Deriving sorting algorithms via abductive logic program transformation

Logic program transformation by the unfold/fold method ad- vocates the w...

Learning Algorithms via Neural Logic Networks

We propose a novel learning paradigm for Deep Neural Networks (DNN) by u...

Proceedings 36th International Conference on Logic Programming (Technical Communications)

Since the first conference held in Marseille in 1982, ICLP has been the ...

1 Introduction

Deep learning has achieved great success in various applications such as speech recognition (Hinton et al., 2012), image classification (Krizhevsky et al., 2012; He et al., 2016), machine translation (Sutskever et al., 2014; Bahdanau et al., 2015; Wu et al., 2016; Vaswani et al., 2017), and game playing (Mnih et al., 2015; Silver et al., 2017). Starting from Fodor & Pylyshyn (1988), however, there has been a debate over the problem of systematicity (such as understanding recursive systems) in connectionist models (Fodor & McLaughlin, 1990; Hadley, 1994; Jansen & Watter, 2012).

Logic systems can naturally process symbolic rules in language understanding and reasoning. Inductive logic programming (ILP) (Muggleton, 1991, 1996; Friedman et al., 1999)

has been developed for learning logic rules from examples. Roughly speaking, given a collection of positive and negative examples, ILP systems learn a set of rules (with uncertainty) that entails all of the positive examples but none of the negative examples. Combining both symbols and probabilities, many problems arose from high-level cognitive abilities, such as systematicity, can be naturally resolved. However, due to an exponentially large searching space of the compositional rules, it is difficult for ILP to scale beyond small-sized rule sets

(Dantsin et al., 2001; Lin et al., 2014; Evans & Grefenstette, 2018).

To make the discussion concrete, let us consider the classic blocks world problem (Nilsson, 1982; Gupta & Nau, 1992). As shown in Figure 1, we are given a set of blocks on the ground. We can move a block and place it on the top of another block or the ground, as long as is moveable and is placeable. We call this operation . A block is said to be moveable or placeable if there are no other blocks on it. The ground is always placeable, implying that we can place all blocks on the ground. Given an initial configuration of blocks world, our goal is to transform it into a target configuration by taking a sequence of Move operations.

Although the blocks world problem may appear simple at first glance, four major challenges exist in building a learning system to automatically accomplish this task: -0.5em0em

  1. The learning system should recover a set of lifted rules (i.e., rules that apply to objects uniformly instead of being tied with specific ones) and generalize to blocks worlds which contain more blocks than those encountered during training. To get an intuition on this, we refer the readers who are not familiar with the blocks world domain to the task of learning to sort arrays (e.g., Vinyals et al., 2015)

    , where recurrent neural networks fail to generalize to arrays which are even just slightly longer than those for training.

  2. The learning system should deal with high-order relational data and quantifiers, which goes beyond the scope of typical graph-structured neural networks (Kipf & Welling, 2017). For example, to apply the transitivity rule of a relation , i.e. , we need to jointly inspect three objects .

  3. The learning system should scale up w.r.t. the complexity of the rules.222For a concrete example in the blocks world domain, please refer to Appendix E. Existing logic-driven approaches such as traditional ILP methods suffer an exponential computational complexity w.r.t. the number of logic rules to be learned (Dantsin et al., 2001; Lin et al., 2014; Evans & Grefenstette, 2018).

  4. The learning system should recover rules based on a minimal set of learning priors. In contrast, traditional ILP methods usually require hand-coded and task-specific rule templates to restrict the size of searching spaces (Evans & Grefenstette, 2018).

In this paper, we propose Neural Logic Machines (NLMs) to address the aforementioned challenges. In a nutshell, NLMs offer a neural-symbolic architecture which realizes Horn clauses (Horn, 1951) in first-order logic (FOL). The key intuition behind NLMs is that logic operations such as logical ANDs and ORs can be efficiently approximated by neural networks, and the wiring among neural modules can realize the logic quantifiers.

True if is on True if is the ground True if there is no block on

Figure 1: (Left) A graphical illustration of the blocks world. Given an initial and a target worlds, the agent is required to move blocks to transform the initial configuration to the target one. (Right) A set of sentences used throughout the paper to define the blocks world.

The rest of the paper is organized as follows. We first revisit some useful definitions in symbolic logic systems and define our neural implementation of a rule induction system in Section 2. As a supplementary, we refer interested readers to Appendix A for implementation details. In Section 3 we evaluate the effectiveness of NLM on a broad set of tasks ranging from relational reasoning to decision making. We discuss related works in Section 4, and conclude the paper in Section 5.

2 Neural Logic Machines (NLM)

The NLM is a neural realization of logic machines (under the Closed-World Assumption333 Given a set of base predicates, grounded on a set of objects (the premises), NLMs sequentially apply first-order rules to draw conclusions, such as a property about an object. For example, in the blocks world, based on premises and of object , NLMs can infer whether is moveable.

Internally, NLMs use tensors to represent logic predicates. This is done by grounding the predicate as

True or False over a fixed set of objects. Based on the tensor representation, rules are implemented as neural operators that can be applied over the premise tensors and generate conclusion tensors. Such neural operators are probabilistic, lifted, and able to handle relational data with various orders (i.e., operating on predicates with different arities).

2.1 Logic Predicates as Tensors

We adopt a probabilistic tensor representation for logic predicates. Suppose we have a set of objects . A predicate , of arity , can be grounded on the object set (informally, we call it -grounding), resulting in a tensor of shape , where the value of each entry of the tensor represents whether is True under the grounding that . Here, we restrict that the grounded objects of all ’s are mutually exclusive, i.e., for all pairs of indices and . This restriction does not limit the generality of the representation, as the “missing” entries can be represented by the -grounding of other predicates with a smaller arity. For example, for a binary predicate , the grounded values of the can be represented by the -grounding of a unary predicate .

We extend this representation to a collection of predicates of the same arity. Let be the number of predicates of arity . We stack the -grounding tensors of all predicates as a tensor of shape , where the last dimension corresponds to the predicates. Intuitively, a group of unary predicates grounded on objects can be represented by a tensor of shape , describing a group of “properties of objects”, while a -shaped tensor for binary predicates describes a group of “pairwise relations between objects”. In practice, we set a maximum arity for the predicates of interest, called the breadth of the NLM.

In addition, NLMs take a probabilistic view of predicates. Each entry in -grounding tensors takes value from , which can be interpreted as the probability being True. All premises, conclusions, and intermediate results in NLMs are represented by such probabilistic tensors. As a side note, we impose the restriction that all arguments in the predicates can only be variables or objects (i.e., constants) but not function symbols, which follows the setting of Datalog (Maier & Warren, 1988).

2.2 Logic Rules as Neural Operators

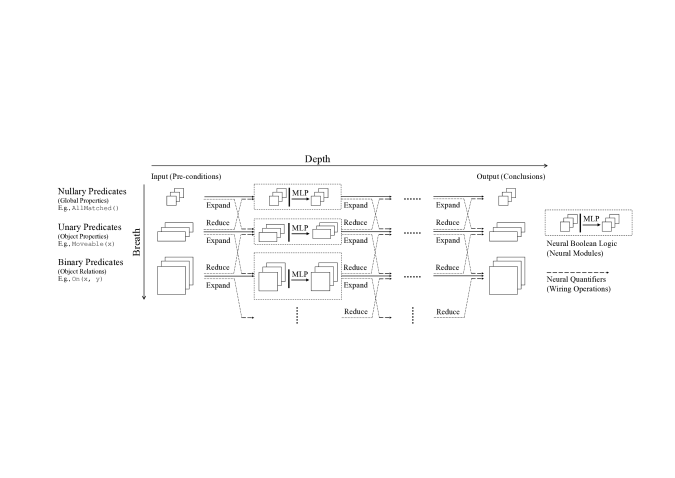

Figure 2: An illustration of Neural Logic Machines (NLM). During forward propagation, NLM takes object properties and relations as input, performs sequential logic deduction, and outputs conclusive properties or relations of the objects. Implementation details can be found in Section 2.3.

Our goal is to build a neural architecture to learn rules that are both lifted and able to handle relational data with multiple arities. We present different modules of our neural operators by making analogies to a set of essential meta-rules in symbolic logic systems. Specifically, we discuss our neural implementation of (1) boolean logic rules, as lifted rules containing boolean operations (AND, OR, NOT) over a set of predicates; and (2) quantifications, which bridge predicates with different arities by logic quantifiers ( and ).

Next, we combine these neural units to compose NLMs. Figure 2 illustrates the overall multi-layer, multi-group architecture of an NLM. An NLM has layers of depth (horizontally), and each layer has computation units (vertically). These units operate on the tensor representations of predicates whose arities range from , respectively. NLMs take input tensors of predicates (premises), perform layer-by-layer computations, and output tensors as conclusions.

As the number of layers increases, higher levels of abstraction can be formed. For example, the output of the first layer may represent , while a deeper layer may output more complicated predicate like . Thus, forward propagation in NLMs can be interpreted as a sequence of rule applications. We further show that NLMs can efficiently realize a partial set of Horn clauses.

We start from the neural boolean logic rules and the neural quantifiers.

Boolean logic. We use the following symbolic meta-rule for boolean logic:


where expression can be any boolean expressions consisting of predicates over all variables and is the conclusive predicate. For example, the rule can be instantiated from this meta-rule.

Denote as the set of predicates appeared in expression. By definition, all ’s have the same arity and can be stacked as a tensor of shape . In Eq. 1, for a specific grounding of the conclusive predicate , it is conditioned grounding values with the same subset of objects, of arbitrary permutation as the arguments to all input predicates . For example, consider a specific ternary predicate . For three different objects , the grounding is conditioned on , (all permutations of the parameters) for all (all input predicates).

Our neural implementation of boolean logic rules is a lifted neural module that uniformly applies to any grounding entries in the output tensor . It has a operation transforming the tensor representation of

, followed by a multi-layer perceptron (MLP). Given the tensor representation of

, for each , the operation creates new tensors as , …, by permuting all axes that index objects, with all possible permutations. We stack all to form a -shaped tensor. An MLP uniformly applies to all object indices:



is the sigmoid nonlinearity,

is the trainable network parameters. For all sets of mutually exclusive indexes , the same MLP is applied. Thus, the size of is independent of the number of objects . This property is analogous to the implicit unification property of Horn clauses: the rule implicitly means, .

Quantification. We introduce two types of meta-rules for quantification, namely expansion and reduction. Let be a predicate, and we have

(Expansion) (3)

where . The expansion operation constructs a new predicate from , by introducing a new variable . For example, consider the following rule

This rule does not fit the meta-rule in Eq. 1 as some predicates on the RHS only take a subset of variables as inputs. However, it can be described by using the expansion and the boolean logic meta-rules jointly.

 1. ; (from Eq. 3)  2. ; (from Eq. 3)  3. . (from Eq. 1)

The expansion meta-rule (Eq. 3) for a set of -ary predicates, represented by a -shaped tensor, introduces a new and distinct variable . Our neural implementation repeats each predicate (their tensor representation) for times, and stacks in a new dimension. Thus the output shape is .

The other meta-rule is for reduction:

(Reduction) (4)

where the quantifier can also be replaced by . The reduction operation reduces a variable in a predicate via the quantifier. As an example, the rule to deduce the moveability of objects,

can be expressed using meta-rules as follows:

 1. ; (from Eq. 4)  2. . (from Eq. 1)

The reduction meta-rule (Eq. 4) for a set of -ary predicates, represented by a -shaped tensor, eliminates the variable via quantifiers. For (or ), our neural implementation takes the maximum (or minimum) element along the dimension of , and stacks the two resulting tensors. Therefore, the output shape becomes .

2.3 Neural Logic Machines

NLMs realize symbolic logic rules in a multi-layer multi-group architecture, illustrated in Figure 2. An NLM has layers, and each layer has computation units as groups. Between layers, we use intra-group computation ( Eq. 1). The predicates at each layer are grouped by their arities, and inside each group, we use inter-group computation (Eq. 3 and  4).

We define as the outputs of layer , where is the output corresponding to the -ary unit at layer . For convenience, we denote as the -grounding tensors for NLM’s base predicates (the premises), and at the last layer as the conclusions. The overall computation is performed layer-by-layer, from layer to layer . All computation units at layer work simultaneously, taking as inputs and generating .

Let us consider a specific group at layer , and we show how to calculate .

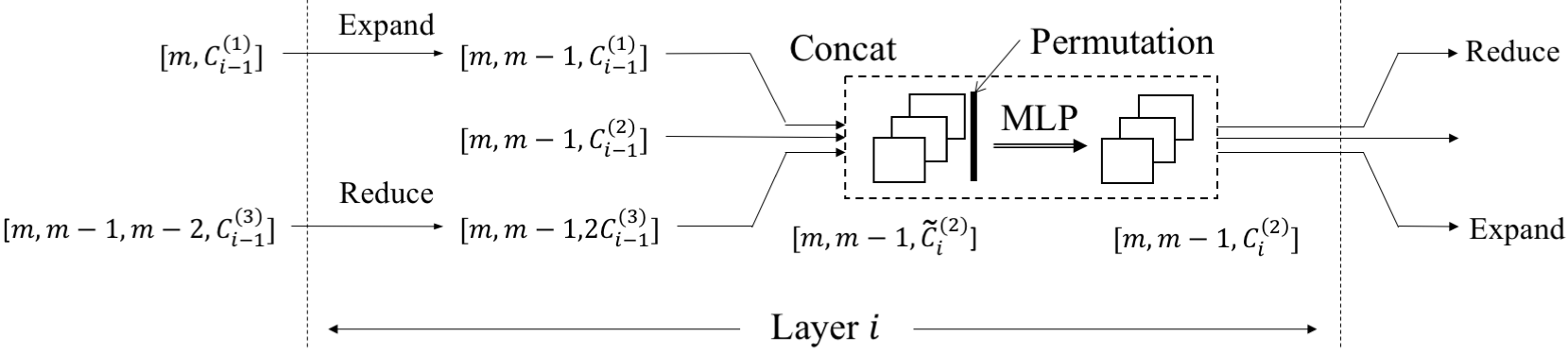

Figure 3: An illustration of the computational block inside NLM for binary predicates at layer . denotes the number of output predicates of group at layer . denotes the shape of the tensor.

Inter-group computation. As shown in Figures 2 and 3, we connect tensors from the previous layer in vertically neighboring groups (i.e. , and ), and aligns their shapes by expansion (Eq. 3) or reduction (Eq. 4) to form an intermediate tensor :


Nonexistent terms are ignored (e.g. when or ). Note that from the previous layer, have shapes , , , respectively. After the concatenation, the resulting tensor is of shape , where the number of new predicates is , and the comes from the two quantifiers ( and ).

The inter-group computation essentially aligns predicates of neighboring arities. Relational representations of different orders get combined together through the neural quantification.

Intra-group computation. The intra-group computation is implemented as the neural boolean logic in Eq. 1. It take the intermediate tensor as input, permutes and generates the output tensor :


where is the sigmoid nonlinearity and denotes trainable parameters. We apply function to tensors in individually, and get

tensors. We set the number of output neurons to be

, thus the shape of output tensor is .

Example. For concreteness, in Figure 3, consider group 2 (binary predicates) at layer . The module begins with the inter-group computation. It first collects the output of vertically consecutive groups (unary, binary and ternary) from the previous layer , where their shapes are shown in the figure. Then it uses expansion/reduction to compose the intermediate tensor containing predicates. For each object pair , the output -grounding tensor of predicates is computed by intra-group computation , and the output shape is . The corresponds to the Permute operation, while the is shared among all pairs of objects .

Remark. It can be verified that NLMs can realize the forward chaining of a partial set of Horn clauses. In NLMs, we consider only finite cases. Thus, there should not exist cyclic references of predicates among rules. The extension to support cyclic references is left as a future work. See the proof in Appendix D. Thus, given the training dataset containing pairs of (premises, conclusions), NLMs can induce lifted rules that entail the conclusions and generalize w.r.t. the number of objects during testing.

2.4 Expressiveness and Computational Complexity

The expressive power of NLM depends on multiple factors: -0.5em0em

  1. The depth of NLM (i.e., number of layers) restricts the maximum number of deduction steps.

  2. The breadth of NLM (i.e., the maximum number of variables in all predicates considered) limits the arity of relations among objects. Practically, most (intermediate) predicates are binary or ternary and we set depending on the task (typically 2 or 3, see Table 3 in Appendix B.)

  3. The number of output predicates used at each layer ( in Figure 3). Let , and this number is often small in our experiments (e.g., 8 or 16).

  4. In Eq. 2, the expressive power of MLP (number of hidden layers and number of hidden neurons) restricts the complexity of the boolean logic to be represented. In our experiments, we usually prefer shallow networks (e.g., 0 or 1 hidden layer) with a small number of neurons (e.g., 8 or 16). This can be viewed as a low-dimension regularization on the logic complexity and encourages the learned rule to be simple.

The computational complexity of NLM’s forward or backward propagation is where is the number of objects. The network has parameters. Assuming is a small constant, the computational complexity of NLM is quadratic in the number of allowed predicates.

3 Experiments

In this section, we show that NLM can solve a broad set of tasks, ranging from relational reasoning to decision making. Furthermore, we show that NLM trained using small-sized instances can generalize to large-sized instances. In the experiments, Softmax-Cross-Entropy loss is used for supervised learning tasks, and REINFORCE

(Williams, 1992)

is used for reinforcement learning tasks.

Due to space limitation, interested readers are referred to Appendix A for details of training (including curriculum learning) in the decision making tasks, and Appendix B

for more implementation details (such as residual connections

(He et al., 2016)), hyper-parameters, and model selection criterion.

3.1 Baselines

We consider two baselines as representatives of the connectionist and symbolicist: Memory Networks (MemNN) (Sukhbaatar et al., 2015) and Differentiable Inductive Logic Programming (ILP) (Evans & Grefenstette, 2018), a state-of-the-art ILP framework. We also make comparisons with other models such as Differentiable Neural Computer (DNC) (Graves et al., 2016) and graph neural networks (Li et al., 2016) whenever eligible.

For MemNN, in order to handle an arbitrary number of inputs (properties, relations), we adopt the method from Graves et al. (2016). Specifically, each object is assigned with a unique identifier (a binary integer ranging from 0 to 255), as its “name”. The memory of MemNN is now a set of “pre-conditions”. For unary predicates, the memory slot contains a tuple for each x, and for binary predicates , the memory slot contains a tuple , for each pair of . Both and are length-vectors , where is the number of input predicates. We number each input predicate with an integer . If object has a property , then ; otherwise, . If a pair of objects have relation , then ; otherwise, . We extract the key and value for MemNN’s to lookup on the given pre-conditions with 2-layer multi-layer perceptrons (MLP). MemNN relies on iterative queries to the memory to perform relational reasoning. Note that MemNN takes a sequential representation of the multi-relational data.

For ILP, the grounding of all base predicates is used as the input to the system.

3.2 Family tree reasoning

The family tree is a benchmark for inductive logic programming, where the machine is given a family tree containing members. The family tree is represented by the following relations (predicates): IsSon, IsDaughter, IsFather and IsMother. The goal of the task is to reason out other properties of family members or relations between them. Our results are summarized in Table 1.

Family Tree MemNN ILP NLM (Ours)
HasFather 99.9% / 99.9% 59.8% / 65.2% 100% 100% 100% 100%
HasSister 86.3% / 85.5% 59.8% / 66.4% 100% 100% 100% 100%
IsGrandparent 96.5% / 84.7% 97.7% / 63.7% 100% 100% 100% 100%
IsUncle 96.3% / 85.8% 96.0% / 64.0% 100% 100% 100% 100%
IsMGUncle 99.7% / 98.4% 98.4% / 81.7% 100% 100% 100% 100%
Graph MemNN ILP NLM (Ours)
AdjacentToRed 95.2% / 94.6% 93.1% / 91.9% 100% 100% 100% 100%
-Connectivity 92.3% / 90.5% 81.3% / 88.0% 100% 100% 100% 100%
-Connectivity 67.6% / 58.8% 43.9% / 67.9% 100% 100% 100% 100%
-OutDegree 99.8% / 99.7% 78.6% / 81.2% 100% 100% 100% 100%
-OutDegree 81.4% / 61.8% 96.7% / 87.7% N/A N/A 100% 100%
Table 1: Comparison among MemNN, ILP and the proposed NLM in family tree and graph reasoning, where is the size of the testing family trees or graphs. Both ILP and NLM outperform the neural baseline and achieve perfect accuracy (100%) on test set. Note N/A mark means that ILP cannot scale up in -OutDegree.

For MemNN, we treat the problem of relation prediction as a question answering task. For example, to determine whether member has a father in the family tree, we input

to MemNN as the question. MemNN then performs multiple queries to the memory and updates its hidden state. The finishing hidden state is used to classify whether

. For relations (binary predicates), the corresponding MemNN takes the concatenated embedding of and as the question.

For ILP, we take the grounded probability of the “target” predicate as the output; for an NLM with layers, we take the corresponding group of output predicates at the last layer (for property prediction, we use tensor to represent unary predicates, while for relation prediction we use tensor to represent binary predicates) and classify the property or relation with a linear layer.

All models are trained on instances of size and tested on instances of size and (size is defined as the number of family members). The models are trained with fully supervised learning (labels are available for all objects or pairs of objects). During the testing phase, the accuracy is evaluated (and averaged) on all objects (for properties such as HasFather) or pairs of objects (for relations such as IsUncle). MGUncle is defined as one’s maternal great uncle, which is also used by Differentiable Neural Computer (DNC) (Graves et al., 2016). We report the performance of MemNN in the format of Micro / Macro accuracy. We also try our best to replicate the setting used by Graves et al. (2016), and as a comparison, in the task of “finding” the MGUncle instead of “classifying”, DNC reaches the accuracy of .

3.3 General graph reasoning

We further extend the Family tree to general graphs and report the reasoning performance in Table 1.

We treat each node in the graph as an object (symbol). The (undirected) graph is fed into the model in the form of a “HasEdge” relation between nodes (which is an adjacent matrix). Besides, an extra property color represented by one-hot vectors is defined for every node. A node has the property of AdjacentToRed if it is adjacent to a red node by an outgoing edge. -Connectivity is a relation between two nodes in the graph, which is true if two nodes are connected by a path with length at most . A node has property -OutDegree if its out-degree is exactly . The N/A result of ILP  in the -OutDegree task comes from its memory restriction (Evans & Grefenstette, 2018), where 3-ary intentional predicate is required. As an example, a human-written logic rule for -OutDegree can be where , , and are distinct nodes in the graph.

All models are trained on instances of size 10 and tested on instances of size 10 and 50 (size is defined as the number of nodes in the graph).

3.4 Blocks World

We also test NLM’s capability of decision making in the classic blocks world domain (Nilsson, 1982; Gupta & Nau, 1992)

by slightly extending the model to fit the formulation of Markov Decision Process (MDP) in reinforcement learning.

Shown in Figure 1, an instance of the blocks world environment contains two worlds: the initial world and the target world, each containing the ground and blocks. The task is to take actions in the operating world and make its configuration the same as the target world. The agent receives positive rewards only when it accomplishes the task and the sparse reward setting brings significant hardness. Each object (blocks or ground) can be represented by four properties: world_id, object_id, coordinate_x, coordinate_y. The ground has a fixed coordinate . The input is the result of the numeral comparison among all pairs of objects (may come from different worlds). For example, in -coordinate, the comparison produces three relations for each object pair : (whether is to the left of , or ), and .

The only operation is Move, which moves object onto the object in the operating world if is movable and is placeable. If the operation is invalid, it will have no effect; otherwise, the action takes effect and the state represented as coordinates will change accordingly. In our setting, an object is movable iff it is not the ground and there are no blocks on it, i.e. . Object is placeable iff it is the ground or there are no blocks on it.

To avoid the ambiguity of the -coordinates while putting blocks onto the ground, we set the coordinate of block to be when it is placed onto the ground. The action space is where is the number of blocks in the world and comes from the “ground”. For both MemNN and NLM, we apply a shared MLP on the output relational predicates of each pair of objects and compute an action score . The probability for is (by taking a Softmax). The results are summarized in Table 2. For more discussion on the confidence bounds of the experiments, please refer to Appendix B.6.

Task MemNN NLM (Ours)
BlocksWorld 0% / N/A 0% / N/A 100% / 12 100% / 84
Sorting 100% / 22 90% / 986.6 100% / 8 100% / 45
Path 45% / 13.3 12% / 42.7 100% / 4 100% / 4
Table 2: Comparison between MemNN and the proposed NLM in the blocks world, sorting integers, and finding shortest paths, where is the number of blocks in the blocks world environment or the size of the arrays/graphs in sorting/path environment. Both models are trained on instance size and tested on . The performance is evaluated by two metrics and separated by “”: the probability of completing the task during the test, and the average Moves used by the agents when they complete the task. There is no result for ILP since it fails to scale up. MemNN fails to complete the blocks world within the maximum Moves.

3.5 General algorithms

We further show NLM’s ability to excel at algorithmic tasks, such as Sorting and Path. We view an algorithm as a sequence of primitive actions and cast as a reinforcement learning problem.

Sorting. We first consider the problem of sorting integers. Given a length- array of integers, the algorithm needs to iterative swap elements to sort the array in ascending order. We treat each slot in the array as an object, and input their index relations (whether ) and numeral relations (whether ) to NLM or MemNN. The action space is indicating the pair of integers to be swapped. Table 2 summarizes the learning performance.

As the comparisons between all pairs of elements in the array are given to the agent, sorting the array within the maximum number of swaps is an easy task. A trivial solution is to randomly swap an inversion444 in the array at each step.

Beyond being able to generalize to arrays of arbitrary length, with different hyper-parameters and random seeds, the learned algorithms can be interpreted as Selection-Sort, Bubble-Sort, etc. We include videos demonstrating some learned algorithms in our website.555

Path finding. We also test the performance of finding a path (single-source single-target path) in a given graph as a sequential decision-making problem in reinforcement learning environment. Given an undirected graph represented by its adjacency matrix as relations, the algorithm needs to find a path from a start node (with property ) to the target node (with property ). To restrict the number of deduction steps, we set the maximum distance between and to be 5 during the training and set the distance between and to be 4 during the testing, which replicates the setting of Graves et al. (2016). Table 2 summarizes the result.

Path task here can be seen as an extension of bAbI task 19 (path finding) (Weston et al., 2015) with symbolic representation. As a comparison with graph neural networks, Li et al. (2016) achieved 99% accuracy on the bAbI task 19. Contrastively, we formulate the shortest path task as a more challenging reinforcement learning (decision-making) task rather than a supervised learning (prediction) task as in Graves et al. (2016). Specifically, the agent iteratively chooses the next node along the path. At the next step, the starting node will become (at each step, the agent will move to ). As a comparison, in Graves et al. (2016), Differentiable Neural Computer (DNC) finds the shortest path with probability in a similar setting.

4 Related works and discussions

ILP and relational reasoning. Inductive logic programming (ILP) (Muggleton, 1991, 1996; Friedman et al., 1999) is a paradigm for learning logic rules derived from a limited set of rule templates from examples. Being a powerful way of reasoning over discrete symbols, it is successfully applied to various language-related problems, and has been integrated into modern learning frameworks (Kersting et al., 2000; Richardson & Domingos, 2006; Kimmig et al., 2012). Recently, Evans & Grefenstette (2018) introduces a differentiable implementation of ILP which works with connectionist models such as CNNs. Sharing a similar spirit, Rocktäschel & Riedel (2017) introduces an end-to-end differentiable logic proving system for knowledge base (KB) reasoning. A major challenge of these approaches is to scale up to a large number of complex rules. Searching a rule as complex as our ShouldMove example in Appendix E from scratch is beyond the scope of most systems that use weighted symbolic rules generated from templates.

As shown in Section 2.4, both computational complexity and parameter size of the NLM grow polynomially w.r.t. the number of allowed predicates (in contrast to the exponential dependence in ILP (Evans & Grefenstette, 2018)), but factorially w.r.t. the breadth (max arity, same as ILP). Therefore, our method can deal with more complex tasks such as the blocks world which requires using a large number of intermediate predicates, while ILP fails to search in such a large space.

Our paper also differs from existing approaches on using neural networks to augment symbolic rule induction (Lippi & Frasconi, 2009; Manhaeve et al., 2018). Specifically, we have no rule designed by humans as the input or the knowledge base for the model. NLMs are general neural architectures for learning lifted rules from only input-output pairs.

Our work is also related to symbolic relational reasoning, which has a wide application in processing discrete data structures such as knowledge graphs and social graphs

(Zhu et al., 2014; Kipf & Welling, 2017; Zeng et al., 2017; Yang et al., 2017). Most symbolic relational reasoning approaches (e.g., Yang et al., 2017; Rocktäschel & Riedel, 2017) are developed for KB reasoning, in which the predicates on both sides of a rule is known in the KB. Otherwise, the complexity grows exponentially in the number of used rules for a conclusion, which is the case in the blocks world. Moreover, Yang et al. (2017) considers rues of the form , which is not for general reasoning. The key of Rocktäschel & Riedel (2017) and Campero et al. (2018) is to learn subsymbolic embeddings of entities and predicates for efficient KB completion, which differs from our focus. While NLMs can scale up to complex rules, the number of objects/entities or relations should be bounded as a small value (e.g., ), since all predicates are represented as tensors. This is, to some extent, in contrast with the systems developed for knowledge base reasoning. We leave the scalability of NLMs to large entity sets as future works.

Besides, modular networks (Andreas et al., 2016, 2017; Mascharka et al., 2018) are proposed for the reasoning over subsymbolic data such as images and natural language question answering. Santoro et al. (2017) implements a visual reasoning system based on “virtual” objects brought by receptive fields in CNNs. Wu et al. (2017) tackles the problem of deriving structured representation from raw pixel-level inputs. Dai et al. (2018) combines structured visual representation and theorem proving.

Graph neural networks and relational inductive bias. Graph convolution networks (GCNs) (Bruna et al., 2014; Li et al., 2016; Defferrard et al., 2016; Kipf & Welling, 2017) is a family of neural architectures working on graphs. As a representative, Gilmer et al. (2017) proposes a message passing modeling for unifying various graph neural networks and graph convolution networks. GCNs achieved great success in tasks with intrinsic relational structures. However, most of the GCNs operate on pre-defined graphs with only nodes and binary connections. This restricts the expressive power of models in general-purpose reasoning tasks (Li et al., 2016).

In contrast, this work removes such restrictions and introduces a neural architecture to capture lifted rules defined on any set of objects. Quantitative results support the effectiveness of the proposed model in a broad set of tasks ranging from relational reasoning to modeling general algorithms (as decision-making process). Moreover, being fully differentiable, NLMs can be plugged into existing convolutional or recurrent neural architectures for logic reasoning.

Relational decision making. Logic-driven decision making is also related to Relational RL (Van Otterlo, 2009), which models the environment as a collection of objects and their relations. State transition and policies are both defined over objects and their interactions. Examples include OO-MDP (Diuk et al., 2008; Kansky et al., 2017), symbolic models for learning in interactive domains (Pasula et al., 2007), structured task definition by object-oriented instructions (Denil et al., 2017), and structured policy learning (Garnelo et al., 2016). General planning methods solve these tasks via planning based on rules (Hu & De Giacomo, 2011; Srivastava et al., 2011; Jiménez et al., 2019). The goal of our paper is to introduce a neural architecture which learns lifted rules and handle relational data with multiple orders. We leave its application in other RL and planning tasks as future work.

Neural abstraction machines and program induction.Neural Turing Machine (NTM) (Graves et al., 2014, 2016) enables general-purpose neural problem solving such as sorting by introducing an external memory that mimics the execution of Turing Machine. Neural program induction and synthesis (Neelakantan et al., 2016; Reed & De Freitas, 2016; Kaiser & Sutskever, 2016; Parisotto et al., 2017; Devlin et al., 2017; Bunel et al., 2018; Sun et al., 2018) are recently introduced to solve problems by synthesizing computer programs with neural augmentations. Some works tackle the issue of the systematical generalization by introducing extra supervision (Cai et al., 2017). In Chen et al. (2018), more complex programs such as language parsing are studied. However, the neural programming and program induction approaches are usually hard to optimize in an end-to-end manner, and often require strong supervisions (such as ground-truth programs).

5 Conclusions and Discussions

In this paper, we propose a novel neural-symbolic architecture called Neural Logic Machines (NLMs) which can conduct first-order logic deduction. Our model is fully differentiable, and can be trained in an end-to-end fashion. Empirical evaluations show that our method is able to learn the underlying logical rules from small-scale tasks, and generalize to large-scale tasks.

The promising results open the door for several research directions. First, the maximum depth of the NLMs is a hyperparameter to be specified for individual problems. Future works may investigate how to extend the model, so that it can adaptively select the right depth for the problem at hand. Second, it is interesting to extend NLMs to handle vector inputs with real-valued components. Currently, NLM requires symbolic input that may not be easily available in applications like health care where many inputs (

e.g., blood pressure) are real numbers. Third, training NLMs remains nontrivial, and techniques like curriculum learning have to be used. It is important to find an effective yet simpler alternative to optimize NLMs. Last but not least, unlike ILP methods that learn a set of rules in an explainable format, the learned rules of NLMs are implicitly encoded as weights of the neural networks. Extracting human-readable rules from NLMs would be a meaningful future direction.


We thank Rishabh Singh, Thomas Walsh, the area chair, and anonymous reviewers for their insightful comments.


  • Andreas et al. (2016) Jacob Andreas, Marcus Rohrbach, Trevor Darrell, and Dan Klein. Neural module networks. In CVPR, 2016.
  • Andreas et al. (2017) Jacob Andreas, Dan Klein, and Sergey Levine. Modular multitask reinforcement learning with policy sketches. In ICML, 2017.
  • Bahdanau et al. (2015) Dzmitry Bahdanau, Kyunghyun Cho, and Yoshua Bengio. Neural machine translation by jointly learning to align and translate. In ICLR, 2015.
  • Bengio et al. (2009) Yoshua Bengio, Jérôme Louradour, Ronan Collobert, and Jason Weston. Curriculum learning. In ICML, 2009.
  • Bruna et al. (2014) Joan Bruna, Wojciech Zaremba, Arthur Szlam, and Yann LeCun. Spectral networks and locally connected networks on graphs. In ICLR, 2014.
  • Bunel et al. (2018) Rudy R Bunel, Matthew Hausknecht, Jacob Devlin, Rishabh Singh, and Pushmeet Kohli. Leveraging grammar and reinforcement learning for neural program synthesis. In ICLR, 2018.
  • Cai et al. (2017) Jonathon Cai, Richard Shin, and Dawn Song. Making neural programming architectures generalize via recursion. In ICLR, 2017.
  • Campero et al. (2018) Andres Campero, Aldo Pareja, Tim Klinger, Josh Tenenbaum, and Sebastian Riedel. Logical rule induction and theory learning using neural theorem proving. arXiv:1809.02193, 2018.
  • Chen et al. (2018) Xinyun Chen, Chang Liu, and Dawn Song. Towards synthesizing complex programs from input-output examples. In ICLR, 2018.
  • Dai et al. (2018) Wang-Zhou Dai, Qiu-Ling Xu, Yang Yu, and Zhi-Hua Zhou. Tunneling neural perception and logic reasoning through abductive learning. arXiv:1802.01173, 2018.
  • Dantsin et al. (2001) Evgeny Dantsin, Thomas Eiter, Georg Gottlob, and Andrei Voronkov. Complexity and expressive power of logic programming. ACM CSUR, 33:374–425, 2001.
  • Defferrard et al. (2016) Michaël Defferrard, Xavier Bresson, and Pierre Vandergheynst. Convolutional neural networks on graphs with fast localized spectral filtering. In NIPS, 2016.
  • Denil et al. (2017) Misha Denil, Sergio Gómez Colmenarejo, Serkan Cabi, David Saxton, and Nando de Freitas. Programmable agents. arXiv:1706.06383, 2017.
  • Devlin et al. (2017) Jacob Devlin, Jonathan Uesato, Surya Bhupatiraju, Rishabh Singh, Abdel-rahman Mohamed, and Pushmeet Kohli. Robustfill: Neural program learning under noisy i/o. In ICML, 2017.
  • Diuk et al. (2008) Carlos Diuk, Andre Cohen, and Michael L Littman. An object-oriented representation for efficient reinforcement learning. In ICML, 2008.
  • Evans & Grefenstette (2018) Richard Evans and Edward Grefenstette. Learning explanatory rules from noisy data. JAIR, 61:1–64, 2018.
  • Fodor & McLaughlin (1990) Jerry Fodor and Brian P McLaughlin. Connectionism and the problem of systematicity: Why smolensky’s solution doesn’t work. Cognition, 35(2):183–204, 1990.
  • Fodor & Pylyshyn (1988) Jerry A Fodor and Zenon W Pylyshyn. Connectionism and cognitive architecture: A critical analysis. Cognition, 28(1-2):3–71, 1988.
  • Friedman et al. (1999) Nir Friedman, Lise Getoor, Daphne Koller, and Avi Pfeffer. Learning probabilistic relational models. In IJCAI, 1999.
  • Garnelo et al. (2016) Marta Garnelo, Kai Arulkumaran, and Murray Shanahan. Towards deep symbolic reinforcement learning. arXiv:1609.05518, 2016.
  • Gilmer et al. (2017) Justin Gilmer, Samuel S Schoenholz, Patrick F Riley, Oriol Vinyals, and George E Dahl. Neural message passing for quantum chemistry. In ICML, 2017.
  • Graves et al. (2014) Alex Graves, Greg Wayne, and Ivo Danihelka. Neural turing machines. arXiv:1410.5401, 2014.
  • Graves et al. (2016) Alex Graves, Greg Wayne, Malcolm Reynolds, Tim Harley, Ivo Danihelka, Agnieszka Grabska-Barwińska, Sergio Gómez Colmenarejo, Edward Grefenstette, Tiago Ramalho, John Agapiou, et al. Hybrid computing using a neural network with dynamic external memory. Nature, 538(7626):471, 2016.
  • Gupta & Nau (1992) Naresh Gupta and Dana S Nau. On the complexity of blocks-world planning. Artif. Intell., 56(2-3):223–254, 1992.
  • Hadley (1994) Robert F Hadley. Systematicity in connectionist language learning. Mind Lang., 9(3):273–287, 1994.
  • He et al. (2016) Kaiming He, Xiangyu Zhang, Shaoqing Ren, and Jian Sun. Deep residual learning for image recognition. In CVPR, 2016.
  • Hinton et al. (2012) Geoffrey Hinton, Li Deng, Dong Yu, George E Dahl, Abdel-rahman Mohamed, Navdeep Jaitly, Andrew Senior, Vincent Vanhoucke, Patrick Nguyen, Tara N Sainath, et al. Deep neural networks for acoustic modeling in speech recognition: The shared views of four research groups. Signal Process., 29(6):82–97, 2012.
  • Horn (1951) Alfred Horn. On sentences which are true of direct unions of algebras. J. Symbolic Logic, 16(1):14–21, 1951.
  • Hu & De Giacomo (2011) Yuxiao Hu and Giuseppe De Giacomo. Generalized planning: Synthesizing plans that work for multiple environments. In IJCAI, 2011.
  • Huang et al. (2017) Gao Huang, Zhuang Liu, Laurens van der Maaten, and Kilian Q Weinberger. Densely connected convolutional networks. In CVPR, 2017.
  • Jansen & Watter (2012) Peter A Jansen and Scott Watter. Strong systematicity through sensorimotor conceptual grounding: an unsupervised, developmental approach to connectionist sentence processing. Connect. Sci., 24(1):25–55, 2012.
  • Jiménez et al. (2019) Sergio Jiménez, Javier Segovia-Aguas, and Anders Jonsson. A review of generalized planning.

    The Knowledge Engineering Review

    , 34, 2019.
  • Kaiser & Sutskever (2016) Łukasz Kaiser and Ilya Sutskever. Neural gpus learn algorithms. In ICLR, 2016.
  • Kansky et al. (2017) Ken Kansky, Tom Silver, David A Mély, Mohamed Eldawy, Miguel Lázaro-Gredilla, Xinghua Lou, Nimrod Dorfman, Szymon Sidor, Scott Phoenix, and Dileep George. Schema networks: Zero-shot transfer with a generative causal model of intuitive physics. In ICML, 2017.
  • Kersting et al. (2000) Kristian Kersting, Luc De Raedt, and Stefan Kramer. Interpreting bayesian logic programs. In AAAI-2000 Workshop on Learning Statistical Models from Relational Data, 2000.
  • Kimmig et al. (2012) Angelika Kimmig, Stephen Bach, Matthias Broecheler, Bert Huang, and Lise Getoor. A short introduction to probabilistic soft logic. In NIPS Workshop on Probabilistic Programming: Foundations and Applications, 2012.
  • Kingma & Ba (2015) Diederik P Kingma and Jimmy Ba. Adam: A method for stochastic optimization. In ICLR, 2015.
  • Kipf & Welling (2017) Thomas N Kipf and Max Welling. Semi-supervised classification with graph convolutional networks. In ICLR, 2017.
  • Krizhevsky et al. (2012) Alex Krizhevsky, Ilya Sutskever, and Geoffrey E Hinton. Imagenet classification with deep convolutional neural networks. In NIPS, 2012.
  • LeCun et al. (1998) Yann LeCun, Léon Bottou, Yoshua Bengio, and Patrick Haffner. Gradient-based learning applied to document recognition. Proc. IEEE, 86(11):2278–2324, 1998.
  • Li et al. (2016) Yujia Li, Daniel Tarlow, Marc Brockschmidt, and Richard Zemel. Gated graph sequence neural networks. In ICLR, 2016.
  • Lin et al. (2014) Dianhuan Lin, Eyal Dechter, Kevin Ellis, Joshua B Tenenbaum, and Stephen H Muggleton. Bias reformulation for one-shot function induction. In ECAI, 2014.
  • Lippi & Frasconi (2009) Marco Lippi and Paolo Frasconi. Prediction of protein -residue contacts by markov logic networks with grounding-specific weights. Bioinformatics, 25(18):2326–2333, 2009.
  • Maier & Warren (1988) David Maier and David S. Warren. Computing with Logic: Logic Programming with Prolog. Benjamin-Cummings Publishing Co., Inc., Redwood City, CA, USA, 1988.
  • Manhaeve et al. (2018) Robin Manhaeve, Sebastijan Dumancic, Angelika Kimmig, Thomas Demeester, and Luc De Raedt. Deepproblog: Neural probabilistic logic programming. In NeurIPS, 2018.
  • Mascharka et al. (2018) David Mascharka, Philip Tran, Ryan Soklaski, and Arjun Majumdar. Transparency by design: Closing the gap between performance and interpretability in visual reasoning. In CVPR, 2018.
  • Mnih et al. (2015) Volodymyr Mnih, Koray Kavukcuoglu, David Silver, Andrei A. Rusu, Joel Veness, Marc G. Bellemare, Alex Graves, Martin Riedmiller, Andreas K. Fidjeland, Georg Ostrovski, Stig Petersen, Charles Beattie, Amir Sadik, Ioannis Antonoglou, Helen King, Dharshan Kumaran, Daan Wierstra, Shane Legg, and Demis Hassabis. Human-level control through deep reinforcement learning. Nature, 518(7540):529–533, 02 2015.
  • Mnih et al. (2016) Volodymyr Mnih, Adria Puigdomenech Badia, Mehdi Mirza, Alex Graves, Timothy Lillicrap, Tim Harley, David Silver, and Koray Kavukcuoglu. Asynchronous methods for deep reinforcement learning. In ICML, 2016.
  • Muggleton (1991) Stephen Muggleton. Inductive logic programming. New Gener. Comput., 8(4):295–318, 1991.
  • Muggleton (1996) Stephen Muggleton. Stochastic logic programs. Advances in Inductive Logic Programming, 32:254–264, 1996.
  • Neelakantan et al. (2016) Arvind Neelakantan, Quoc V Le, and Ilya Sutskever. Neural programmer: Inducing latent programs with gradient descent. In ICLR, 2016.
  • Nilsson (1982) Nils J Nilsson.

    Principles of Artificial Intelligence

    Springer Science & Business Media, 1982.
  • Parisotto et al. (2017) Emilio Parisotto, Abdel-rahman Mohamed, Rishabh Singh, Lihong Li, Dengyong Zhou, and Pushmeet Kohli. Neuro-symbolic program synthesis. In ICLR, 2017.
  • Pasula et al. (2007) Hanna M Pasula, Luke S Zettlemoyer, and Leslie Pack Kaelbling. Learning symbolic models of stochastic domains. JAIR, 29:309–352, 2007.
  • Reed & De Freitas (2016) Scott Reed and Nando De Freitas. Neural programmer-interpreters. In ICLR, 2016.
  • Richardson & Domingos (2006) Matthew Richardson and Pedro Domingos. Markov logic networks. Mach. Learn., 62(1-2):107–136, 2006.
  • Rocktäschel & Riedel (2017) Tim Rocktäschel and Sebastian Riedel. End-to-end differentiable proving. In NIPS, 2017.
  • Santoro et al. (2017) Adam Santoro, David Raposo, David G Barrett, Mateusz Malinowski, Razvan Pascanu, Peter Battaglia, and Tim Lillicrap. A simple neural network module for relational reasoning. In NIPS, 2017.
  • Silver et al. (2017) David Silver, Julian Schrittwieser, Karen Simonyan, Ioannis Antonoglou, Aja Huang, Arthur Guez, Thomas Hubert, Lucas Baker, Matthew Lai, Adrian Bolton, et al. Mastering the game of go without human knowledge. Nature, 550(7676):354, 2017.
  • Srivastava et al. (2011) Siddharth Srivastava, Neil Immerman, and Shlomo Zilberstein. A new representation and associated algorithms for generalized planning. Artif. Intell., 175(2):615–647, 2011.
  • Sukhbaatar et al. (2015) Sainbayar Sukhbaatar, arthur szlam, Jason Weston, and Rob Fergus. End-to-end memory networks. In NIPS, 2015.
  • Sun et al. (2018) Shao-Hua Sun, Hyeonwoo Noh, Sriram Somasundaram, and Joseph Lim. Neural program synthesis from diverse demonstration videos. In ICML, 2018.
  • Sutskever et al. (2014) Ilya Sutskever, Oriol Vinyals, and Quoc V Le. Sequence to sequence learning with neural networks. In NIPS, 2014.
  • Sutton & Barto (1998) Richard S Sutton and Andrew G Barto. Reinforcement learning: An introduction, volume 1. MIT press Cambridge, 1998.
  • Van Otterlo (2009) Martijn Van Otterlo. The Logic of Adaptive Behavior. IOS Press, 2009.
  • Vaswani et al. (2017) Ashish Vaswani, Noam Shazeer, Niki Parmar, Jakob Uszkoreit, Llion Jones, Aidan N Gomez, Łukasz Kaiser, and Illia Polosukhin. Attention is all you need. In NIPS, 2017.
  • Vinyals et al. (2015) Oriol Vinyals, Meire Fortunato, and Navdeep Jaitly. Pointer networks. In NIPS, 2015.
  • Weston et al. (2015) Jason Weston, Antoine Bordes, Sumit Chopra, Alexander M Rush, Bart van Merriënboer, Armand Joulin, and Tomas Mikolov. Towards ai-complete question answering: A set of prerequisite toy tasks. arXiv:1502.05698, 2015.
  • Williams (1992) Ronald J. Williams. Simple statistical gradient-following algorithms for connectionist reinforcement learning. Machine Learning, 8:229–256, 1992.
  • Williams & Peng (1991) Ronald J Williams and Jing Peng. Function optimization using connectionist reinforcement learning algorithms. Connect. Sci., 3(3):241–268, 1991.
  • Wu et al. (2017) Jiajun Wu, Joshua B Tenenbaum, and Pushmeet Kohli. Neural scene de-rendering. In CVPR, 2017.
  • Wu et al. (2016) Yonghui Wu, Mike Schuster, Zhifeng Chen, Quoc V Le, Mohammad Norouzi, Wolfgang Macherey, Maxim Krikun, Yuan Cao, Qin Gao, Klaus Macherey, et al. Google’s neural machine translation system: Bridging the gap between human and machine translation. arXiv:1609.08144, 2016.
  • Yang et al. (2017) Fan Yang, Zhilin Yang, and William W Cohen. Differentiable learning of logical rules for knowledge base reasoning. In NIPS, 2017.
  • Zeng et al. (2017) Wenyuan Zeng, Yankai Lin, Zhiyuan Liu, and Maosong Sun. Incorporating relation paths in neural relation extraction. In EMNLP, 2017.
  • Zhu et al. (2014) Yuke Zhu, Alireza Fathi, and Li Fei-Fei. Reasoning about Object Affordances in a Knowledge Base Representation. In ECCV, 2014.

Appendix A Training Method and Curriculum Learning

In this section, we provide hyper-parameter details of our training method and introduce the exam-guided curriculum learning used for reinforcement learning tasks. We also provide details of the data generation method.

a.1 Training method

We optimize both NLM and MemNN with Adam (Kingma & Ba (2015)) and use a learning rate of .

For all supervised learning tasks (i.e. family tree and general graph tasks), we use Softmax-Cross-Entropy as loss function and a training batch size of


For reinforcement learning tasks (i.e. the blocks world, sorting and shortest path tasks), we use REINFORCE algorithm (Sutton & Barto (1998)) for optimization. Each training batch is composed of a single episode of play. Similar to A3C (Mnih et al. (2016)), we add policy entropy term in the objective function (proposed by Williams & Peng (1991)) to help exploration. The update function for parameters of policy is

where is the entropy function, and are the state and action at time , is the discounted reward starting from time . The hyper-parameter is set according to different environments and learning stages depending on the demand of exploration.

In all environments, the agent receives a reward of value when it completes the task within a limited number of steps (which is related to the number of objects). To encourage the agent to use as few moves as possible, we give a reward of for each move. The reward discount factor is for all tasks.

Task Range
Train Epoch
Sorting [4, 10] 0.01 0.5 5 200 200
Path [3, 12] 0.1 0.5 40 600 3000
Blocks World [2, 12] 0.2 0.6 50 1000 3000
Table 3: Hyper-parameters for reinforcement learning tasks. The meaning of the hyper-parameters could be found in Section A.1 and Section A.2. For the Path environment, the step limit is set to the actual distance between the starting point and the targeting point, to encourage the agents to find the shortest path.

a.2 Curriculum learning guided by exams and fails

Function train(model , lessons ):
       for  do
             for  do
                   , , evaluate(, );
                    // Take the exam and collect samples.
                   if accuracy >  then
                          // Enter the next lesson if pass the exam.
                  for  do
                         balanced sampling from and ;
                         Optimize with ;
Algorithm 1 Curriculum learning guided by exams and fails

Inspired by the education system of humans, we employ an exam-guided curriculum learning (Bengio et al., 2009)

approach for training Neural Logic Machines. We heuristically label each training instances with its complexity. Training instances are grouped by their complexity (as

lessons). For example, in the game of BlocksWorld, we consider the number of blocks in a game instance as its complexity. During the training, we present the training instances to the model from lessons with increasing difficulty. We periodically test models’ performance (as exams) on novel instances of the same complexity as the ones in its current lesson. The well-performed model (whose accuracy reaches a certain threshold) will pass the exam and advance to a harder lesson (of more complex training instances). The exam-guided curriculum learning exploits the previously gained knowledge to ease the learning of more complex instances. Moreover, the performance on the final exam reaches above a threshold indicates the graduation of models.

In our experiments, each lesson contains training instances of the same number of objects. For example, the first lesson in the blocks world contains all possible instances consisting of 2 blocks (in each world). The instances of the second lesson contain 3 blocks in each world. And in the last lesson (totally 11 lessons) there are 12 blocks in each world. We report the range of the curriculum in Table 3 for three RL tasks.

Another essential ingredient for the efficient training of NLMs is to record models’ failure cases. Specifically, we keep track of two sets of training instances: positive and negative (meaning the agent achieves the task or not). For each presented instance of the exam, it is recollected into positive or negative sets depending on whether the agent achieves the task or not. All training samples are sampled from the positive set with probability and from the negative set with probability . This balanced sampling strategy prevents models from getting stuck at sub-optimal solutions. Algorithm  1 illustrates the pseudo-code of the curriculum learning guided by exams and fails.

The evaluation process (“exam”) randomly samples examples from 3 recent lessons. The agent goes through these examples and gets the success rate (the ratio of achieving the task) as its performance, which is used to decide whether the agent passes the exam by comparing to a lesson-depend threshold. As we want a perfect model, the threshold for passing the last lesson (the “final exam”) is 100%. We linearly decrease the threshold by 0.5% for each former lessons, to prevent over-fitting(e.g., the threshold of the first lesson in the blocks world is 95%). After the “exam”, the examples are collected into positive and negative pools according to the outcome (success or not). During the training, we use balanced sampling for choosing training instances from positive and negative pools with probability from positive. The hyper-parameters , the number of epochs, the number of episodes in each training epoch and the number of episodes in one evaluation are shown in Table 3 for three RL tasks.

Appendix B Implementation details and hyper-parameters

This section provides more implementation details for the model and experiments, and summarizes the hyper-parameters used in experiments for our NLM and the baseline algorithm MemNN.

b.1 Residual connection.

Analog to the residual link in (He et al., 2016; Huang et al., 2017), we add residual connections to our model. Specifically, for each layer illustrated in Figure 2, the base predicates (inputs) are concatenated to the conclusive predicates (outputs) group-wisely. That is, input unary predicates are concatenated to the deduced unary predicates while input binary predicates are concatenated to the conclusive binary predicates.

b.2 Hyper-parameters for NLM

Table 4 shows hyper-parameters used by NLM for different tasks. For all MLPs inside NLMs, we use no hidden layer, and the hidden dimension (i.e., the number of intermediate predicates) of each layer is set to 8 across all our experiments. In supervised learning tasks, a model is called “graduated” if its training loss is below a threshold depending on the task (usually 1e-6). In reinforcement learning tasks, an agent is called “graduated” if it can pass the final exam, i.e., get 100% success rate on the evaluation process of the last lesson.

We note that in the randomly generated cases, the number of maternal great uncle (IsMGUncle) relation is relatively small. This makes the learning of this relation hard and results in a graduation ratio of only 20%. If we increase the maximum number of people in training examples to 30, the graduation ratio will grow to 50%.

Tasks Depth Breath Res. Grad. Num. Examples/Episodes
HasFather 4 3 × 100% 50,000 examples
HasSister 4 3 × 100% 50,000 examples
IsGrandparent 4 3 × 100% 100,000 examples
IsUncle 4 3 × 90% 100,000 examples
IsMGUncle 4 3 × 20% 200,000 examples
AdajacentToRed 4 3 × 90% 100,000 examples
-Connectivity 4 3 × 100% 50,000 examples
-Connectivity 8 3 60% 50,000 examples
-OutDegree 4 3 × 100% 50,000 examples
-OutDegree 5 4 100% 100,000 examples
Sorting 3 2 100% 1,000 episodes
Path 5 3 60% 24,000 episodes
BlocksWorld 7 2 40% 50,000 episodes
Table 4: Hyper-parameters for Neural Logic Machines. The definition of depth and breadth are illustrated in Figure 2. “Res.” refers to the use of residual links. “Grad.” refers to the ratio of successful graduation in 10 runs with different random seeds, which partially indicates the difficulty of the task. “Num. Examples/Episodes” means the maximum number of examples/episodes used to train the model in supervised learning and reinforcement learning cases.

b.3 Hyper-parameters for MemNN

We set the number of iters/episodes used for baseline algorithms to be same as NLM. For the memory networks, each pre-condition in the memory is embedded into a key space and a value space. The dimensions of the spaces are 16 and 32 respectively. The hidden size of the LSTM in MemNN is 64. The number of queries is set to be 4 across all tasks (except that the Sorting task uses 1 query only). Empirically, we search for the optimal hyper-parameters but find that they have little effect on the performance.

b.4 Data generation

We use random generation to generate training and testing data. more details and specific parameters used to generate the data could be found in our open source code.

In family tree tasks, we mimic the process of families growing using a timeline. For each newly created person, we randomly sample the gender and parents (could be none, indicating not included in the family tree) of the person. We also maintain lists of singles of each gender, and randomly pick two from each list to be married (each time when a person was created). We randomly permute the order of people.

In general graph tasks (include Path), We adopt the generation method from Graves et al. (2016), which samples nodes on a unit square, and the out-degree of each node is sampled. Then each node connects to nearest nodes on the unit square. In undirected graph cases, all generated edges are regarded as undirected edges.

In Sorting, we randomly generate permutations to be sorted in ascending order.

In Blocks World, We maintain a list of placeable objects (the ground included). Each newly created block places on one randomly selected placeable object. Then we randomly shuffle the of the blocks.

b.5 Blocks World

In the blocks world environment, to better aid the reinforcement learning process, we train the agent on an auxiliary task, which is to predict the validity or effect of the actions. This task is trained by supervised learning using cross-entropy loss. The overall loss is a summation of cross-entropy loss (with a weight of ) and the REINFORCE loss.

We did not choose the Move to be taken directly based on the relational predicates at the last layer of NLM. Instead, we manually concatenate the object representation from the current and the target configuration, which share the same object ID. Then for each pair of objects, their relational representation is constructed by the concatenation of their own object representation. An extra fully-connected layer is applied to the relational representation, followed by a Softmax layer over all pairs of objects. We choose an action based on the Softmax score.

b.6 Accuracy discussion

We cannot directly prove the accuracy of NLM by looking at the induced rules as in traditional ILP systems. Alternatively, we take an empirical way to estimate its accuracy by sampling testing examples. Throughout the experiments section, all accuracy statistics are reported in 1000 random generated data.

To show the confidence of this result, we test a specific trained model of Blocks World task with 100,000 samples. We get no fail cases in the testing. According to the multiplicative form of Chernoff Bound 666, We are 99.7% confident that the accuracy is at least 99.98%.

Appendix C Neural Logic Machines (NLM) extensions

Reasoning over noisy input: integration with neural perception.   Recall that NLM is fully differentiable. Besides taking logic pre-conditions (binary values) as input, the input properties or relations can be derived from other neural architectures (e.g., CNNs). As a preliminary example, we replace the input properties of nodes with images from the MNIST dataset. A convolutional neural network (CNN) is applied to the input extracting multiple features for future reasoning. CNN and NLM can be optimized jointly. This enables reasoning over noisy input.

We modify the AdjacentToRed task in general graph reasoning to AdjacentToNumber0. In detail, each node has a visual input from the MNIST dataset indicating its number. We say if and only if a node is adjacent to another node with number 0. We use LeNet LeCun et al. (1998) to extract visual features for recognizing the number of each node. The output of LeNet for each node is a vector of length 10, with sigmoid activation.

We follow the train-test split from the original MNIST dataset. The joint model is trained on 100,000 training examples () and gets 99.4% accuracy on 1000 testing examples (). Note that the LeNet modules are optimized jointly with the reasoning about AdjacentToNumber0.

Appendix D Realization of Horn Clause

In this section, we show that NLM can realize a partial set of Horn clauses (Horn, 1951) in first-order logic (FOL), up to the limit of the NLM’s depth and breadth. In NLMs, we consider only finite cases. Thus, there should not exist cyclic references of predicates among rules. The extension to support cyclic references is left as a future work. Throughout the proof, we always assume the depth, breadth and number of predicates of NLM are flexible and large enough to realize the demanding rules.

Here, we only prove the realization of a definite clause, i.e., a Horn clause with exactly one positive literal and a non-zero number of negative literals in FOL 777As for other types of Horn clauses: facts are realized as the tensor representations of predicates, while we implicitly views the output of NLMs as the goal clauses.. It can be written in the implication form is (variables as arguments are implicitly universally quantified), where is called the head predicate and are called body predicates. We group the variables appearing in the rule into three subsets: (1) variables that only appear in the head predicate, (2) variables that appear in the body predicates, and (3) variables that appear in both head and body predicates.

Consider as an example a chain-like rule: . We rewrite the rule by classifying the variables:

That is, we move all variables that ony appear in body predicates to the right-hand side, and extract out all variables that only appear in the head predicate. We show how we can compositionally combines the computation units in NLMs to realize this rule, in the following 4 steps:

  1. We first align the arity of the body predicates to include all variables that appear in at least one of the body predicates (including variables of set 2 and set 3). This could be done by a sequence of Expand operations (Eq. 3). In this example, we will create helper predicates to make the right-hand side of the rule as

    where and .

  2. We use neural boolean logic (Eq. 1) to realize the boolean formula inside all quantification symbols. Moreover, we use the Permute operation to transpose the tensor representation so that all variables being quantified on the right-hand side appear as the last several variables in the derived predicate . Overall, we will derive another helper predicates,

  3. We use the Reduce operation to add quantifiers to the right-hand side (i.e., to the predicate). We will get:

  4. Finally, we use the Expand operation (Eq. 3] to add variables that only appear in the head predicate to the derived predicate:

    Note that, all variables appeared in the head predicate are implicitly universally quantified. This is consistent with our setting, since all rules in NLMs are lifted.

Overall, a symbolic rule written as a Horn clause can be realized by NLMs as a computation flow which starts from multiple expansions followed by a neural boolean rule and multiple reductions, and ends with a set of expansions.

Next, we show that the forward propagation of NLMs realizes the forward chaining of a set of Horn clauses. Following the notation in Evans & Grefenstette (2018), the forward chaining starts from a set of initial facts, which are essentially the grounding of base predicates. The forward chaining process sequentially applies rules over the fact set, and concludes new facts. In NLM, we represent facts as the -grounding of predicates.

If we consider a set of rules that does not have recursive references, all rules can be sorted in an topological order . We only allow references of from , where . Without loss of generality, we assume that the grounding of is of interest. Given the topologically resolved set of rules , we build a set of NLMs where each NLM realizes a specific rule . By stacking the NLMs sequentially, we can conclude . As a side note, for multiple rules referring to the same head predicate , they implicitly indicate the logical disjunction () of the rules. We can rename these head predicates as , and use an extra NLM to implement the logical disjunction of all ’s.

Appendix E Sample Blocks World Rules

This example shows a complex reasoning in the seemingly simple Blocks World domain, which can be solved by our NLMs but requires great efforts of create manual rules by human experts in contrast.

Suppose we are interested in knowing whether a block should be moved in order to reach the target configuration. Here, a block should be moved if (1) it is moveable; and (2) there is at least one block below it that does not match the target configuration. Call the desired predicate “ShouldMove(x)”.

Input Relations.

(Specified in the last paragraph of Section 3.4) SameWorldID, SmallerWorldID, LargerWorldID; SameID, SmallerID, LargerID; Left, SameX, Right, Below, SameY, Above. The relations are given on all pairs of objects across both worlds.

Here is one way to produce the desired predicate by defining several helper predicates, designed by “human experts”:

  1. IsGround(x) y Above(y, x)

  2. SameXAbove(x, y) SameWorldID(x, y) SameX(x, y) Above(x, y)

  3. Clear(x) y SameXAbove(y, x)

  4. Moveable(x) Clear(x) IsGround(x)

  5. InitialWorld(x) y SmallerWorldID(y, x)

  6. Match(x, y) SameWorldID(x, y) SameID(x, y) SameX(x, y) SameY(x, y)

  7. Matched(x) y Match(x, y)

  8. HaveUnmatchedBelow(x) y SameXAbove(x, y) Matched(y)

  9. ShouldMove(x) InitialWorld(x) Moveable(x) HaveUnmatchedBelow(x)

We can also write the logic forms in one line: ShouldMove(x) ( y SmallerWorldID(y, x)) ( y (SameWorldID(y, x) SameX(y, x) Above(y, x))) ( y Above(y, x)) (( y SameWorldID(x, y) SameX(x, y) Above(x, y)) ( z SameWorldID(y, z) SameID(y, z) SameX(y, z) SameY(y, z)) ).

Note that this is only a part of logic rules needed to complete the Blocks World challenge. The learner also needs to figure out where should the block be moved onto. The proposed NLM can learn policies that solve the Blocks World from the sparse reward signal indicating only whether the agent has finished the game. More importantly, the learned policy generalizes well to larger instances (consisting more blocks).

Appendix F Implement NLM in TensorFlow

The following python code contains a minimal implementation for one Neural Logic Machines layer with breadth equals 3 in TensorFlow. The neural_logic_layer_breath3 is the main function. The syntax is highlighted and is best viewed in color.
[breaklines, frame=lines, framesep=2mm, xleftmargin=5pt, linenos]
