Neural Coreference Resolution with Deep Biaffine Attention by Joint Mention Detection and Mention Clustering

by   Rui Zhang, et al.
Yale University

Coreference resolution aims to identify in a text all mentions that refer to the same real-world entity. The state-of-the-art end-to-end neural coreference model considers all text spans in a document as potential mentions and learns to link an antecedent for each possible mention. In this paper, we propose to improve the end-to-end coreference resolution system by (1) using a biaffine attention model to get antecedent scores for each possible mention, and (2) jointly optimizing the mention detection accuracy and the mention clustering log-likelihood given the mention cluster labels. Our model achieves the state-of-the-art performance on the CoNLL-2012 Shared Task English test set.


page 1

page 2

page 3

page 4


Cross-document Coreference Resolution over Predicted Mentions

Coreference resolution has been mostly investigated within a single docu...

The Referential Reader: A Recurrent Entity Network for Anaphora Resolution

We present a new architecture for storing and accessing entity mentions ...

End-to-end Neural Coreference Resolution

We introduce the first end-to-end coreference resolution model and show ...

Are Eliminated Spans Useless for Coreference Resolution? Not at all

Various neural-based methods have been proposed so far for joint mention...

Triad-based Neural Network for Coreference Resolution

We propose a triad-based neural network system that generates affinity s...

Revealing the Myth of Higher-Order Inference in Coreference Resolution

This paper analyzes the impact of higher-order inference (HOI) on the ta...

Revisiting Memory-Efficient Incremental Coreference Resolution

We explore the task of coreference resolution under fixed memory by exte...

1 Introduction

End-to-end coreference resolution is the task of identifying and grouping mentions in a text such that all mentions in a cluster refer to the same entity. An example is given below Björkelund and Kuhn (2014) where mentions for two entities are labeled in two clusters:

[Drug Emporium Inc.] said [Gary Wilber] was named CEO of [this drugstore chain]. [He] succeeds his father, Philip T. Wilber, who founded [the company] and remains chairman. Robert E. Lyons III, who headed the [company]’s Philadelphia region, was appointed president and chief operating officer, succeeding [Gary Wilber].

Many traditional coreference systems, either rule-based Haghighi and Klein (2009); Lee et al. (2011) or learning-based Bengtson and Roth (2008); Fernandes et al. (2012); Durrett and Klein (2013); Björkelund and Kuhn (2014)

, usually solve the problem in two separate stages: (1) a mention detector to propose entity mentions from the text, and (2) a coreference resolver to cluster proposed mentions. At both stages, they rely heavily on complicated, fine-grained, conjoined features via heuristics. This pipeline approach can cause cascading errors, and in addition, since both stages rely on a syntactic parser and complicated hand-craft features, it is difficult to generalize to new data sets and languages.

Very recently, lee2017end proposed the first state-of-the-art end-to-end neural coreference resolution system. They consider all text spans as potential mentions and therefore eliminate the need of carefully hand-engineered mention detection systems. In addition, thanks to the representation power of pre-trained word embeddings and deep neural networks, the model only uses a minimal set of hand-engineered features (speaker ID, document genre, span distance, span width).

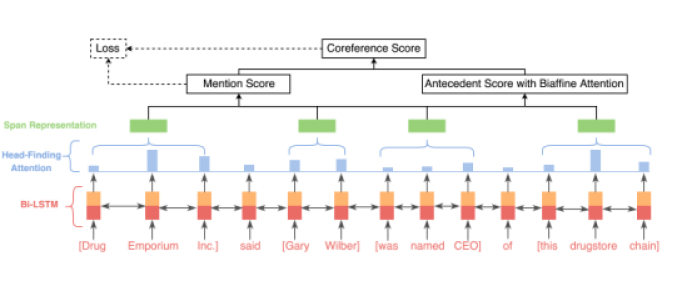

Figure 1: Model architecture. We consider all text spans up to 10-word length as possible mentions. For brevity, we only show three candidate antecedent spans (“Drug Emporium Inc.”, “Gary Wilber”, “was named CEO”) for the current span “this drugstore chain”.

The core of the end-to-end neural coreference resolver is the scoring function to compute the mention scores for all possible spans and the antecedent scores for a pair of spans. Furthermore, one major challenge of coreference resolution is that most mentions in the document are singleton or non-anaphoric, i.e., not coreferent with any previous mention Wiseman et al. (2015). Since the data set only have annotations for mention clusters, the end-to-end coreference resolution system needs to detect mentions, detect anaphoricity, and perform coreference linking. Therefore, research questions still remain on good designs of the scoring architecture and the learning strategy for both mention detection and antecedent scoring given only the gold cluster labels.

To this end, we propose to use a biaffine attention model instead of pure feed forward networks to compute antecedent scores. Furthermore, instead of training only to maximize the marginal likelihood of gold antecedent spans, we jointly optimize the mention detection accuracy and the mention clustering log-likelihood given the mention cluster labels. We optimize mention detection loss explicitly to extract mentions and also perform anaphoricity detection.

We evaluate our model on the CoNLL-2012 English data set and achieve new state-of-the-art performances of 67.8% F1 score using a single model and 69.2% F1 score using a 5-model ensemble.

2 Task Formulation

In end-to-end coreference resolution, the input is a document with words, and the output is a set of mention clusters each of which refers to the same entity. A possible span

is an N-gram within a single sentence. We consider all possible spans up to a predefined maximum width. To impose an ordering, spans are sorted by the start position

and then by the end position . For each span the system needs to assign an antecedent from all preceding spans or a dummy antecedent : . If a span is a true antecedent of the span , then we have and . The dummy antecedent represents two possibilities: (1) the span is not an entity mention, or (2) the span is an entity mention but not coreferent with any previous span. Finally, the system groups mentions according to coreference links to form the mention clusters.

3 Model

Figure 1 illustrates our model. We adopt the same span representation approach as in lee2017end using bidirectional LSTMs and a head-finding attention. Thereafter, a feed forward network produces scores for spans being entity mentions. For antecedent scoring, we propose a biaffine attention model Dozat and Manning (2017)

to produce distributions of possible antecedents. Our training data only provides gold mention cluster labels. To make best use of this information, we propose to jointly optimize the mention scoring and antecedent scoring in our loss function.

Span Representation Suppose the current sentence of length is , we use to denote the concatenation of fixed pretrained word embeddings and CNN character embeddings dos Santos and Zadrozny (2014) for word . Bidirectional LSTMs Hochreiter and Schmidhuber (1997) recurrently encode each :


Then, the head-finding attention computes a score distribution over different words in a span :



is a feed forward network outputting a vector.

P R F1 P R F1 P R F1 Avg. F1
Our work (5-model ensemble) 82.1 73.6 77.6 73.1 62.0 67.1 67.5 59.0 62.9 69.2
lee2017end (5-model ensemble) 81.2 73.6 77.2 72.3 61.7 66.6 65.2 60.2 62.6 68.8
Our work (single model) 79.4 73.8 76.5 69.0 62.3 65.5 64.9 58.3 61.4 67.8
lee2017end (single model) 78.4 73.4 75.8 68.6 61.8 65.0 62.7 59.0 60.8 67.2
clark2016deep 79.2 70.4 74.6 69.9 58.0 63.4 63.5 55.5 59.2 65.7
clark2016improving 79.9 69.3 74.2 71.0 56.5 63.0 63.8 54.3 58.7 65.3
wiseman2016learning 77.5 69.8 73.4 66.8 57.0 61.5 62.1 53.9 57.7 64.2
wiseman2015learning 76.2 69.3 72.6 66.2 55.8 60.5 59.4 54.9 57.1 63.4
fernandes2014latent 75.9 65.8 70.5 77.7 65.8 71.2 43.2 55.0 48.4 63.4
clark2015entity 76.1 69.4 72.6 65.6 56.0 60.4 59.4 53.0 56.0 63.0
martschat2015latent 76.7 68.1 72.2 66.1 54.2 59.6 59.5 52.3 55.7 62.5
durrett2014joint 72.6 69.9 71.2 61.2 56.4 58.7 56.2 54.2 55.2 61.7
bjorkelund2014learning 74.3 67.5 70.7 62.7 55.0 58.6 59.4 52.3 55.6 61.6
durrett2013easy 72.9 65.9 69.2 63.6 52.5 57.5 54.3 54.4 54.3 60.3
Table 1: Experimental results on the CoNLL-2012 Englisth test set. The F1 improvements are statistical significant with under the paired bootstrap resample test Koehn (2004) compared with lee2017end.

Effective span representations encode both contextual information and internal structure of spans. Therefore, we concatenate different vectors, including a feature vector for the span size, to produce the span representation for :


Mention Scoring The span representation is input to a feed forward network which measures if it is an entity mention using a score :


Since we consider all possible spans, the number of spans is and the number of span pairs is . Due to computation efficiency, we prune candidate spans during both inference and training. We keep spans with highest mention scores.
Biaffine Attention Antecedent Scoring Consider the current span and its previous spans (), we propose to use a biaffine attention model to produce scores :


and reduce span representation dimensions and only keep information relevant to coreference decisions. Compared with the traditional approach in lee2017end, biaffine attention directly models both the compatibility of and by and the prior likelihood of having an antecedent by .
Inference The final coreference score for span and span consists of three terms: (1) if is a mention, (2) if is a mention, (3) if is an antecedent for . Furthermore, for dummy antecedent , we fix the final score to be 0:


During inference, the model only creates a link if the highest antecedent score is positive.
Joint Mention Detection and Mention Cluster During training, only mention cluster labels are available rather than antecedent links. Therefore, lee2017end train the model end-to-end by maximizing the following marginal log-likelihood where are gold antecedents for :


However, the initial pruning is completely random and the mention scoring model only receives distant supervision if we only optimize the above mention cluster performance. This makes learning slow and ineffective especially for mention detection. Based on this observation, we propose to directly optimize mention detection:


where , if and only if is in one of the gold mention clusters. Our final loss combines mention detection and clustering:

where is the number of all possible spans, is the number of unpruned spans, and controls weights of two terms.

4 Experiments

Data Set and Evaluation We evaluate our model on the CoNLL-2012 Shared Task English data Pradhan et al. (2012) which is based on the OntoNotes corpus Hovy et al. (2006). It contains 2,802/343/348 train/development/test documents in different genres.

We use three standard metrics: MUC Vilain et al. (1995), B Bagga and Baldwin (1998), and CEAF Luo (2005). We report Precision, Recall, F1 for each metric and the average F1 as the final CoNLL score.
Implementation Details

For fair comparisons, we follow the same hyperparameters as in lee2017end. We consider all spans up to 10 words and up to 250 antecedents.

is used for span pruning. We use fixed concatenations of 300-dimension GloVe Pennington et al. (2014) embeddings and 50-dimension embeddings from turian2010word. Character CNNs use 8-dimension learned embeddings and 50 kernels for each window size in {3,4,5}. LSTMs have hidden size 200, and each

has two hidden layers with 150 units and ReLU

Nair and Hinton (2010) activations. We include (speaker ID, document genre, span distance, span width) features as 20-dimensional learned embeddings. Word and character embeddings use 0.5 dropout. All hidden layers and feature embeddings use 0.2 dropout. The batch size is 1 document. Based on the results on the development set, works best from . Model is trained with ADAM optimizer Kingma and Ba (2015) and converges in around 200K updates, which is faster than that of lee2017end.

Avg. F1
Our model (single) 67.8
without mention detection loss 67.5
without biaffine attention 67.4
lee2017end 67.3
Table 2: Ablation study on the development set.
Figure 2: Mention detection subtask on development set. We plot accuracy and frequency breakdown by span widths.

Overall Performance In Table 1, we compare our model with previous state-of-the-art systems. We obtain the best results in all F1 metrics. Our single model achieves 67.8% F1 and our 5-model ensemble achieves 69.2% F1. In particular, compared with lee2017end, our improvement mainly results from the precision scores. This indicates that the mention detection loss does produce better mention scores and the biaffine attention more effectively determines if two spans are coreferent.
Ablation Study To understand the effect of different proposed components, we perform ablation study on the development set. As shown in Table 2, removing the mention detection loss term or the biaffine attention decreases 0.3/0.4 final F1 score, but still higher than the baseline. This shows that both components have contributions and when they work together the total gain is even higher.
Mention Detection Subtask To further understand our model, we perform a mention detection subtask where spans with mention scores higher than 0 are considered as mentions. We show the mention detection accuracy breakdown by span widths in Figure 2. Our model indeed performs better thanks to the mention detection loss. The advantage is even clearer for longer spans which consist of 5 or more words.

In addition, it is important to note that our model can detect mentions that do not exist in the training data. While moosavi2017lexical observe that there is a large overlap between the gold mentions of the training and dev (test) sets, we find that our model can correctly detect 1048 mentions which are not detected by lee2017end, consisting of 386 mentions existing in training data and 662 mentions not existing in training data. From those 662 mentions, some examples are (1) a suicide murder (2) Hong Kong Island (3) a US Airforce jet carrying robotic undersea vehicles (4) the investigation into who was behind the apparent suicide attack. This shows that our mention loss helps detection by generalizing to new mentions in test data rather than memorizing the existing mentions in training data.

5 Related Work

As summarized by ng2010supervised, learning-based coreference models can be categorized into three types: (1) Mention-pair models train binary classifiers to determine if a pair of mentions are coreferent

Soon et al. (2001); Ng and Cardie (2002); Bengtson and Roth (2008). (2) Mention-ranking models explicitly rank all previous candidate mentions for the current mention and select a single highest scoring antecedent for each anaphoric mention Denis and Baldridge (2007b); Wiseman et al. (2015); Clark and Manning (2016a); Lee et al. (2017). (3) Entity-mention models learn classifiers to determine whether the current mention is coreferent with a preceding, partially-formed mention cluster Clark and Manning (2015); Wiseman et al. (2016); Clark and Manning (2016b).

In addition, we also note latent-antecedent models Fernandes et al. (2012); Björkelund and Kuhn (2014); Martschat and Strube (2015). fernandes2012latent introduce coreference trees to represent mention clusters and learn to extract the maximum scoring tree in the graph of mentions.

Recently, several neural coreference resolution systems have achieved impressive gains Wiseman et al. (2015, 2016); Clark and Manning (2016b, a)

. They utilize distributed representations of mention pairs or mention clusters to dramatically reduce the number of hand-crafted features. For example, wiseman2015learning propose the first neural coreference resolution system by training a deep feed-forward neural network for mention ranking. However, these models still employ the two-stage pipeline and require a syntactic parser or a separate designed hand-engineered mention detector.

Finally, we also note the relevant work on joint mention detection and coreference resolution. daume2005large propose to model both mention detection and coreference of the Entity Detection and Tracking task simultaneously. denis2007joint propose to use integer linear programming framework to model anaphoricity and coreference as a joint task.

6 Conclusion

In this paper, we propose to use a biaffine attention model to jointly optimize mention detection and mention clustering in the end-to-end neural coreference resolver. Our model achieves the state-of-the-art performance on the CoNLL-2012 Shared Task in English.


We thank Kenton Lee and three anonymous reviewers for their helpful discussion and feedback.


  • Bagga and Baldwin (1998) Amit Bagga and Breck Baldwin. 1998. Algorithms for scoring coreference chains. In The first international conference on language resources and evaluation workshop on linguistics coreference.
  • Bengtson and Roth (2008) Eric Bengtson and Dan Roth. 2008. Understanding the value of features for coreference resolution. In EMNLP.
  • Björkelund and Kuhn (2014) Anders Björkelund and Jonas Kuhn. 2014.

    Learning structured perceptrons for coreference resolution with latent antecedents and non-local features.

    In ACL.
  • Clark and Manning (2015) Kevin Clark and Christopher D. Manning. 2015. Entity-centric coreference resolution with model stacking. In ACL.
  • Clark and Manning (2016a) Kevin Clark and Christopher D. Manning. 2016a.

    Deep reinforcement learning for mention-ranking coreference models.

    In EMNLP.
  • Clark and Manning (2016b) Kevin Clark and Christopher D. Manning. 2016b. Improving coreference resolution by learning entity-level distributed representations. In ACL.
  • Daumé III and Marcu (2005) Hal Daumé III and Daniel Marcu. 2005. A large-scale exploration of effective global features for a joint entity detection and tracking model. In

    Proceedings of Human Language Technology Conference and Conference on Empirical Methods in Natural Language Processing

  • Denis and Baldridge (2007a) Pascal Denis and Jason Baldridge. 2007a. Joint determination of anaphoricity and coreference resolution using integer programming. In NAACL.
  • Denis and Baldridge (2007b) Pascal Denis and Jason Baldridge. 2007b. A ranking approach to pronoun resolution. In IJCAI.
  • Dozat and Manning (2017) Timothy Dozat and Christopher D Manning. 2017. Deep biaffine attention for neural dependency parsing. In ICLR.
  • Durrett and Klein (2013) Greg Durrett and Dan Klein. 2013. Easy victories and uphill battles in coreference resolution. In EMNLP.
  • Durrett and Klein (2014) Greg Durrett and Dan Klein. 2014. A joint model for entity analysis: Coreference, typing, and linking. Transactions of the Association for Computational Linguistics, 2:477–490.
  • Fernandes et al. (2012) Eraldo Rezende Fernandes, Cícero Nogueira Dos Santos, and Ruy Luiz Milidiú. 2012. Latent structure perceptron with feature induction for unrestricted coreference resolution. In Joint Conference on EMNLP and CoNLL-Shared Task.
  • Fernandes et al. (2014) Eraldo Rezende Fernandes, Cícero Nogueira dos Santos, and Ruy Luiz Milidiú. 2014. Latent trees for coreference resolution. Computational Linguistics.
  • Haghighi and Klein (2009) Aria Haghighi and Dan Klein. 2009. Simple coreference resolution with rich syntactic and semantic features. In EMNLP.
  • Hochreiter and Schmidhuber (1997) Sepp Hochreiter and Jürgen Schmidhuber. 1997. Long short-term memory. Neural computation, 9(8):1735–1780.
  • Hovy et al. (2006) Eduard Hovy, Mitchell Marcus, Martha Palmer, Lance Ramshaw, and Ralph Weischedel. 2006. Ontonotes: the 90% solution. In NAACL.
  • Kingma and Ba (2015) Diederik Kingma and Jimmy Ba. 2015. Adam: A method for stochastic optimization. In ICLR.
  • Koehn (2004) Philipp Koehn. 2004. Statistical significance tests for machine translation evaluation. In EMNLP.
  • Lee et al. (2011) Heeyoung Lee, Yves Peirsman, Angel Chang, Nathanael Chambers, Mihai Surdeanu, and Dan Jurafsky. 2011. Stanford’s multi-pass sieve coreference resolution system at the conll-2011 shared task. In Proceedings of the fifteenth conference on computational natural language learning: Shared task, pages 28–34.
  • Lee et al. (2017) Kenton Lee, Luheng He, Mike Lewis, and Luke Zettlemoyer. 2017. End-to-end neural coreference resolution. In EMNLP.
  • Luo (2005) Xiaoqiang Luo. 2005. On coreference resolution performance metrics. In EMNLP.
  • Martschat and Strube (2015) Sebastian Martschat and Michael Strube. 2015. Latent structures for coreference resolution. Transactions of the Association for Computational Linguistics, 3:405–418.
  • Moosavi and Strube (2017) Nafise Sadat Moosavi and Michael Strube. 2017. Lexical features in coreference resolution: To be used with caution. In ACL.
  • Nair and Hinton (2010) Vinod Nair and Geoffrey E Hinton. 2010. Rectified linear units improve restricted boltzmann machines. In ICML.
  • Ng (2010) Vincent Ng. 2010. Supervised noun phrase coreference research: The first fifteen years. In ACL.
  • Ng and Cardie (2002) Vincent Ng and Claire Cardie. 2002.

    Improving machine learning approaches to coreference resolution.

    In ACL.
  • Pennington et al. (2014) Jeffrey Pennington, Richard Socher, and Christopher D. Manning. 2014. Glove: Global vectors for word representation. In EMNLP.
  • Pradhan et al. (2012) Sameer Pradhan, Alessandro Moschitti, Nianwen Xue, Olga Uryupina, and Yuchen Zhang. 2012. Conll-2012 shared task: Modeling multilingual unrestricted coreference in ontonotes. In Joint Conference on EMNLP and CoNLL-Shared Task.
  • dos Santos and Zadrozny (2014) Cícero Nogueira dos Santos and Bianca Zadrozny. 2014. Learning character-level representations for part-of-speech tagging. In Proceedings of the 31st International Conference on Machine Learning (ICML), JMLR: W&CP volume 32.
  • Soon et al. (2001) Wee Meng Soon, Hwee Tou Ng, and Daniel Chung Yong Lim. 2001. A machine learning approach to coreference resolution of noun phrases. Computational linguistics, 27(4):521–544.
  • Turian et al. (2010) Joseph Turian, Lev Ratinov, and Yoshua Bengio. 2010.

    Word representations: a simple and general method for semi-supervised learning.

    In ACL.
  • Vilain et al. (1995) Marc Vilain, John Burger, John Aberdeen, Dennis Connolly, and Lynette Hirschman. 1995. A model-theoretic coreference scoring scheme. In Proceedings of the 6th conference on Message understanding.
  • Wiseman et al. (2016) Sam Wiseman, Alexander M Rush, and Stuart M Shieber. 2016. Learning global features for coreference resolution. In NAACL.
  • Wiseman et al. (2015) Sam Joshua Wiseman, Alexander Matthew Rush, Stuart Merrill Shieber, and Jason Weston. 2015. Learning anaphoricity and antecedent ranking features for coreference resolution. In ACL.
