NAT: Noise-Aware Training for Robust Neural Sequence Labeling

05/14/2020 ∙ by Marcin Namysl, et al. ∙ 0

Sequence labeling systems should perform reliably not only under ideal conditions but also with corrupted inputs - as these systems often process user-generated text or follow an error-prone upstream component. To this end, we formulate the noisy sequence labeling problem, where the input may undergo an unknown noising process and propose two Noise-Aware Training (NAT) objectives that improve robustness of sequence labeling performed on perturbed input: Our data augmentation method trains a neural model using a mixture of clean and noisy samples, whereas our stability training algorithm encourages the model to create a noise-invariant latent representation. We employ a vanilla noise model at training time. For evaluation, we use both the original data and its variants perturbed with real OCR errors and misspellings. Extensive experiments on English and German named entity recognition benchmarks confirmed that NAT consistently improved robustness of popular sequence labeling models, preserving accuracy on the original input. We make our code and data publicly available for the research community.



There are no comments yet.


page 7

page 8

page 17

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Sequence labeling systems are generally trained on clean text, although in real-world scenarios, they often follow an error-prone upstream component, such as Optical Character Recognition (OCR; Neudecker, 2016

) or Automatic Speech Recognition (ASR;

Parada et al., 2011). Sequence labeling is also often performed on user-generated text, which may contain spelling mistakes or typos (Derczynski et al., 2013). Errors introduced in an upstream task are propagated downstream, diminishing the performance of the end-to-end system (Alex and Burns, 2014). While humans can easily cope with typos, misspellings, and the complete omission of letters when reading (Rawlinson, 2007)

, most Natural Language Processing (NLP) systems fail when processing corrupted or noisy text

(Belinkov and Bisk, 2018). Although this problem is not new to NLP, only a few works addressed it explicitly (Piktus et al., 2019; Karpukhin et al., 2019). Other methods must rely on the noise that occurs naturally in the training data.

Figure 1: An example of a labeling error on a slightly perturbed sentence. Our noise-aware methods correctly predicted the location (LOC) label for the first word, as opposed to the standard approach, which misclassified it as an organization (ORG). We complement the example with a high-level idea of our noise-aware training, where the original sentence and its noisy variant are passed together through the system. The final loss is computed based on both sets of features, which improves robustness to the input perturbations.

In this work, we are concerned with the performance difference of sequence labeling performed on clean and noisy input. Is it possible to narrow the gap between these two domains and design an approach that is transferable to different noise distributions at test time?

Inspired by recent research in computer vision

(Zheng et al., 2016)

, Neural Machine Translation (NMT;

Cheng et al., 2018), and ASR (Sperber et al., 2017), we propose two Noise-Aware Training (NAT) objectives that improve the accuracy of sequence labeling performed on noisy input without reducing efficiency on the original data. creftypecap 1 illustrates the problem and our approach. Our contributions are as follows:

  • We formulate a noisy sequence labeling problem, where the input undergoes an unknown noising process (§2.2

    ), and we introduce a model to estimate the real error distribution (§

    3.1). Moreover, we simulate real noisy input with a novel noise induction procedure (§3.2).

  • We propose a data augmentation algorithm (§3.3) that directly induces noise in the input data to perform training of the neural model using a mixture of noisy and clean samples.

  • We implement a stability training method (Zheng et al., 2016), adapted to the sequence labeling scenario, which explicitly addresses the noisy input data problem by encouraging the model to produce a noise-invariant latent representation (§3.4).

  • We evaluate our methods on real OCR errors and misspellings against state-of-the-art baseline models (Peters et al., 2018; Akbik et al., 2018; Devlin et al., 2019) and demonstrate the effectiveness of our approach (§4).

  • To support future research in this area and to make our experiments reproducible, we make our code and data publicly available111The code and the data were included as supplementary material and will be released online after the anonymity period..

2 Problem Definition

2.1 Neural Sequence Labeling

creftypecap 2 presents a typical architecture for the neural sequence labeling problem. We will refer to the sequence labeling system as , abbreviated as 222We drop the parameter for brevity in the remaining of the paper. Nonetheless, we still assume that all components of and all expressions derived from it also depend on ., where is a tokenized input sentence of length , and represents all learnable parameters of the system. takes

as input and outputs the probability distribution over the class labels

as well as the final sequence of labels . Either a softmax model (Chiu and Nichols, 2016) or a Conditional Random Field (CRF; Lample et al., 2016) can be used to model the output distribution over the class labels

from the logits

, i.e., non-normalized predictions, and to output the final sequence of labels . As a labeled entity can span several consecutive tokens within a sentence, special tagging schemes are often employed for decoding, e.g., BIOES, where the Beginning, Inside, Outside, End-of-entity and Single-tag-entity sub-tags are also distinguished (Ratinov and Roth, 2009). This method introduces strong dependencies between subsequent labels, which are modeled explicitly by a CRF (Lafferty et al., 2001) that produces the most likely sequence of labels.

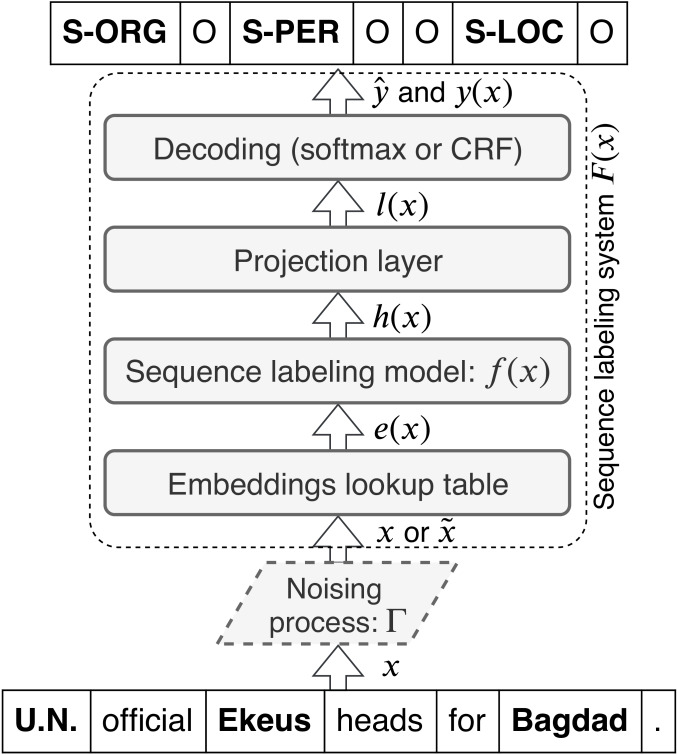

Figure 2: Neural sequence labeling architecture. In the standard scenario (§2.1), the original sentence is fed as input to the sequence labeling system . Token embeddings are retrieved from the corresponding look-up table and fed to the sequence labeling model

, which outputs latent feature vectors

. The latent vectors are then projected to the class logits , which are used as input to the decoding model (softmax or CRF) that outputs the distribution over the class labels and the final sequence of labels . In a real-world scenario (§2.2), the input sentence undergoes an unknown noising process , and the perturbed sentence is fed to .

2.2 Noisy Neural Sequence Labeling

Similar to human readers, sequence labeling should perform reliably both in ideal and sub-optimal conditions. Unfortunately, this is rarely the case. User-generated text is a rich source of informal language containing misspellings, typos, or scrambled words (Derczynski et al., 2013). Noise can also be introduced in an upstream task, like OCR (Alex and Burns, 2014) or ASR (Chen et al., 2017), causing the errors to be propagated downstream. To include the noise present on the source side of , we can modify its definition accordingly (creftypecap 2). Let us assume that the input sentence is additionally subjected to some unknown noising process , where is the original -th token, and is its distorted equivalent. Let be the vocabulary of tokens and be a set of all finite character sequences over an alphabet . is known as the noisy channel matrix (Brill and Moore, 2000) and can be constructed by estimating the probability of each distorted token given the intended token for every and .

2.3 Named Entity Recognition

We study the effectiveness of state-of-the-art Named Entity Recognition (NER) systems in handling imperfect input data. NER can be considered as a special case of the sequence labeling problem, where the goal is to locate all named entity mentions in unstructured text and to classify them into pre-defined categories, e.g., person names, organizations, and locations

(Tjong Kim Sang and De Meulder, 2003). NER systems are often trained on the clean text. Consequently, they exhibit degraded performance in real-world scenarios where the transcriptions are produced by the previous upstream component, such as OCR or ASR (§2.2), which results in a detrimental mismatch between the training and the test conditions. Our goal is to improve the robustness of sequence labeling performed on data from noisy sources, without deteriorating performance on the original data. We assume that the source sequence of tokens may contain errors. However, the noising process is generally label-preserving, i.e., the level of noise is not significant enough to affect the corresponding labels333Moreover, a human reader should be able to infer the correct label from the token and its context. We assume that this corresponds to a character error rate of .. It follows that the noisy token inherits the ground-truth label from the underlying original token .

3 Noise-Aware Training

3.1 Noise Model

To model the noise, we use the character-level noisy channel matrix , which we will refer to as the

character confusion matrix


Natural noise

We can estimate the natural error distribution by calculating the alignments between the pairs of noisy and clean sentences using the Levenshtein distance metric (Levenshtein, 1966), where is a corpus of paired noisy and manually corrected sentences (§2.2). The allowed edit operations include insertions, deletions, and substitutions of characters. We can model insertions and deletions by introducing an additional symbol into the character confusion matrix. The probability of insertion and deletion can then be formulated as and , where is a character to be inserted or deleted, respectively.

Synthetic noise

is usually laborious to obtain. Moreover, the exact modeling of noise might be impractical, and it is often difficult to accurately estimate the exact noise distribution to be encountered at test time. Such distributions may depend on, e.g., the OCR engine used to digitize the documents. Therefore, we keep the estimated natural error distribution for evaluation and use a simplified synthetic error model for training. We assume that all types of edit operations are equally likely:

where and are the original and the perturbed characters, respectively. Moreover, and are uniform over the set of allowed insertion and substitution candidates, respectively. We use the hyper-parameter to control the amount of noise to be induced with this method444We describe the details of our vanilla error model along with the examples of confusion matrices in the appendix..

3.2 Noise Induction

Ideally, we would use the noisy sentences annotated with named entity labels for training our sequence labeling models. Unfortunately, such data is scarce. On the other hand, labeled clean text corpora are widely available (Tjong Kim Sang and De Meulder, 2003; Benikova et al., 2014). Hence, we propose to use the standard NER corpora and to induce noise into the input tokens during training synthetically. In contrast to the image domain, which is continuous, the text domain is discrete, and we cannot directly apply continuous perturbations for written language. Although some works applied distortions at the level of embeddings (Miyato et al., 2017; Yasunaga et al., 2018; Bekoulis et al., 2018), we do not have a good intuition how it changes the meaning of the underlying textual input. Instead, we apply our noise induction procedure to generate distorted copies of the input. For every input sentence , we independently perturb each token , where is the length of , with the following procedure (creftypecap 3):

  1. [label=(0)]

  2. We insert the symbol before the first and after every character of to get an extended token .

  3. For every character of , we sample the replacement character from the corresponding probability distribution , which can be obtained by taking a row of the character confusion matrix that corresponds to . As a result, we get a noisy version of the extended input token .

  4. We remove all symbols from and collapse the remaining characters to obtain a noisy token .

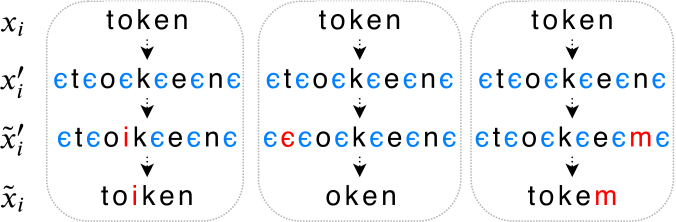

Figure 3: Illustration of our noise induction procedure. Three examples correspond to insertion, deletion, and substitution errors. , , , and are the original, extended, extended noisy, and noisy tokens, respectively.

3.3 Data Augmentation Method

We can improve robustness to noise at test time by introducing various forms of artificial noise during training. We distinct regularization methods like dropout (Srivastava et al., 2014) and task-specific data augmentation that transforms the data to resemble noisy input. The latter technique was successfully applied in other domains, including computer vision (Krizhevsky et al., 2012) and speech recognition (Sperber et al., 2017). During training, we artificially induce noise into the original sentences using the algorithm described in §3.2 and train our models using a mixture of clean and noisy sentences. Let be the standard training objective for the sequence labeling problem, where is the input sentence, is the corresponding ground-truth sequence of labels, and represents the parameters of

. We define our composite loss function as follows:

where is the perturbed sentence, and is a weight of the noisy loss component. is a weighted sum of standard losses calculated using clean and noisy sentences. Intuitively, the model that would optimize should be more robust to imperfect input data, retaining the ability to perform well on clean input. creftypecap 3(a) presents a schematic visualization of our data augmentation approach.

3.4 Stability Training Method

Zheng et al. (2016)

pointed out the output instability issues of deep neural networks. They proposed a training method to stabilize deep networks against small input perturbations and applied it to the tasks of near-duplicate image detection, similar-image ranking, and image classification. Inspired by their idea, we adapt the stability training method to the natural language scenario. Our goal is to stabilize the outputs

of a sequence labeling system against small input perturbations, which can be thought of as flattening in a close neighborhood of any input sentence . When a perturbed copy is close to , then should also be close to . Given the standard training objective , the original input sentence , its perturbed copy and the sequence of ground-truth labels , we can define the stability training objective as follows:

where encourages the similarity of the model outputs for both and , is a task-specific feature distance measure, and balances the strength of the similarity objective. Let and be the discrete probability distributions obtained by calculating the softmax function over the logits for and , respectively:

We model as Kullback–Leibler divergence (), which measures the correspondence between the likelihood of the original and the perturbed input:

where , are the token, and the class label indices, respectively. creftypecap 3(b) summarizes the main idea of our stability training method.

(a) Data augmentation training objective .
(b) Stability training objective .
Figure 4: Schema of our auxiliary training objectives. , are the original and the perturbed inputs, respectively, that are fed to the sequence labeling system . represents a noising process. and are the output distributions over the entity classes for and , respectively. is the standard training objective. combines computed on both outputs from . fuses calculated on the original input with the similarity objective .

A critical difference between the data augmentation and the stability training method is that the latter does not use noisy samples for the original task, but only for the stability objective555Both objectives could be combined and used together. However, our goal is to study their impact on robustness separately, and we leave further exploration to future work.

. Furthermore, both methods need perturbed copies of the input samples, which results in longer training time but could be ameliorated by fine-tuning the existing model for a few epochs

666We did not explore this setting in this paper, leaving such optimization to future work..

4 Evaluation

4.1 Experiment Setup

Model architecture

We used a BiLSTM-CRF architecture (Huang et al., 2015)

with a single Bidirectional Long-Short Term Memory (BiLSTM) layer and

hidden units in both directions for in all experiments. We considered four different text representations , which were used to achieve state-of-the-art results on the studied data set and should also be able to handle misspelled text and out-of-vocabulary (OOV) tokens:

  • FLAIR (Akbik et al., 2018) learns a Bidirectional Language Model (BiLM) using an LSTM network to represent any sequence of characters. We used settings recommended by the authors and combined FLAIR with GloVe (Pennington et al., 2014; FLAIR + GloVe) for English and Wikipedia FastText embeddings (Bojanowski et al., 2017FLAIR + Wiki) for German.

  • BERT (Devlin et al., 2019) employs a Transformer encoder to learn a BiLM from large unlabeled text corpora and sub-word units to represent textual tokens. We use the BERTBASE model in our experiments.

  • ELMo (Peters et al., 2018) utilizes a linear combination of hidden state vectors derived from a BiLSTM word language model trained on a large text corpus.

  • Glove/Wiki + Char is a combination of pre-trained word embeddings (GloVe for English and Wikipedia FastText for German) and randomly initialized character embeddings (Lample et al., 2016).


We trained the sequence labeling model and the final CRF decoding layer on top of the pre-trained embedding vectors , which were fixed during training, except for the character embeddings (creftypecap 2). We used a mixture of the original data and its perturbed copies generated from the synthetic noise distribution (§3.1) with our noise induction procedure (§3.2). We kept most of the hyper-parameters consistent with Akbik et al. (2018)777We list the detailed hyper-parameters in the appendix.. We trained our models for at most epochs and used early stopping based on the development set performance, measured as an average F1 score of clean and noisy samples. Furthermore, we used the development sets of each benchmark data set for validation only and not for training.

Performance measures

We measured the entity-level micro average F1 score on the test set to compare the results of different models. We evaluated on both the original and the perturbed data using various natural error distributions. We induced OCR errors based on the character confusion matrix 3.2) that was gathered on a large document corpus (Namysl and Konya, 2019) using the Tesseract OCR engine (Smith, 2007). Moreover, we employed two sets of misspellings released by Belinkov and Bisk (2018) and Piktus et al. (2019). Following the authors, we replaced every original token with the corresponding misspelled variant, sampling uniformly among available replacement candidates. We present the estimated error rates of text that is produced with these noise induction procedures in LABEL:tab:error-rates

in the appendix. As the evaluation with noisy data leads to some variance in the final scores, we repeated all experiments five times and reported mean and standard deviation.


We implemented our models using the FLAIR framework (Akbik et al., 2019)888We used FLAIR v0.4.2.. We extended their sequence labeling model by integrating our auxiliary training objectives (§3.3, §3.4). Nonetheless, our approach is universal and can be implemented in any other sequence labeling framework.

4.2 Sequence Labeling on Noisy Data

To validate our approach, we trained the baseline models with and without our auxiliary loss objectives (§3.3, §3.4)999We experimented with a pre-processing step that used a spell checking module, but it did not provide any benefits and even decreased accuracy on the original data. Therefore we did not consider it a viable solution for this problem.. We used the CoNLL 2003 (Tjong Kim Sang and De Meulder, 2003) and the GermEval 2014 (Benikova et al., 2014) data sets in this setup101010We present data set statistics and sample outputs from our system in the appendix.. The baselines utilized GloVe vectors coupled with FLAIR and character embeddings (FLAIR + GloVe, GloVe + Char), BERT, and ELMo embeddings for English. For German, we employed Wikipedia FastText vectors paired with FLAIR and character embeddings (FLAIR + Wiki, Wiki + Char)111111This choice was motivated by the availability of pre-trained embedding models in the FLAIR framework.. We used a label-preserving training setup (, ).

Data set Model Train loss Original data OCR errors Misspellings Misspellings
English CoNLL 2003 FLAIR + GloVe 92.05 76.440.45 75.090.48 87.570.10
92.56 (+0.51) 84.790.23 (+8.35) 83.570.43 (+8.48) 90.500.08 (+2.93)
91.99 (-0.06) 84.390.37 (+7.95) 82.430.23 (+7.34) 90.190.14 (+2.62)
BERT 90.91 68.230.39 65.650.31 85.070.15
90.84 (-0.07) 79.340.32 (+11.11) 75.440.28 (+9.79) 86.210.24 (+1.14)
90.95 (+0.04) 78.220.17 (+9.99) 73.460.34 (+7.81) 86.520.12 (+1.45)
ELMo 92.16 72.900.50 70.990.17 88.590.19
91.85 (-0.31) 84.090.18 (+11.19) 82.330.40 (+11.34) 89.500.16 (+0.91)
91.78 (-0.38) 83.860.11 (+10.96) 81.470.29 (+10.48) 89.490.15 (+0.90)
GloVe + Char 90.26 71.150.51 70.910.39 87.140.07
90.83 (+0.57) 81.090.47 (+9.94) 79.470.24 (+8.56) 88.820.06 (+1.68)
90.21 (-0.05) 80.330.29 (+9.18) 78.070.23 (+7.16) 88.470.13 (+1.33)
German CoNLL 2003 FLAIR + Wiki 86.13 66.930.49 78.060.13 80.720.23
86.46 (+0.33) 75.900.63 (+8.97) 83.230.14 (+5.17) 84.010.27 (+3.29)
86.33 (+0.20) 75.080.29 (+8.15) 82.600.21 (+4.54) 84.120.26 (+3.40)
Wiki + Char 82.20 59.150.76 75.270.31 71.450.15
82.62 (+0.42) 67.670.75 (+8.52) 78.480.24 (+3.21) 79.140.31 (+7.69)
82.18 (-0.02) 67.720.63 (+8.57) 77.590.12 (+2.32) 79.330.39 (+7.88)
Germ-Eval 2014 FLAIR + Wiki 85.05 58.640.51 67.960.23 68.640.28
84.84 (-0.21) 72.020.24 (+13.38) 78.590.11 (+10.63) 81.550.12 (+12.91)
84.43 (-0.62) 70.150.27 (+11.51) 75.670.16 (+7.71) 79.310.32 (+10.67)
Wiki + Char 80.32 52.480.31 61.990.35 54.860.15
80.68 (+0.36) 63.740.31 (+11.26) 70.830.09 (+8.84) 75.660.11 (+20.80)
80.00 (-0.32) 62.290.35 (+9.81) 68.230.23 (+6.24) 72.400.29 (+17.54)
Table 1: Evaluation results on the CoNLL 2003 and the GermEval 2014 test sets. We report results on the original data, as well as on its noisy copies with OCR errors and two types of misspellings released by Belinkov and Bisk (2018) and Piktus et al. (2019). is the standard training objective. and are the data augmentation and the stability objectives, respectively. We report mean F1 scores with standard deviations from five experiments and mean differences against the standard objective (in parentheses).

creftypecap 1 presents the results of this experiment121212We did not replicate the exact results from the original papers because we did not use development sets for training, and our approach is feature-based, as we did not fine-tune embeddings on the target task. . We found that our auxiliary training objectives boosted accuracy on noisy input data for all baseline models and both languages. At the same time, they preserved accuracy for the original input. The data augmentation objective seemed to perform slightly better than the stability objective. However, the chosen hyper-parameter values were rather arbitrary, as our goal was to prove the utility and the flexibility of both objectives.

4.3 Sensitivity Analysis

We evaluated the impact of our hyper-parameters on the sequence labeling accuracy using the English CoNLL 2003 data set. We trained multiple models with different amounts of noise and different weighting factors . We chose the FLAIR + GloVe model as our baseline because it achieved the best results in the preliminary analysis (§4.2) and showed good performance, which enabled us to perform extensive experiments.

(a) Data augmentation objective (original test data).
(b) Stability training objective (original test data).
(c) Data augmentation objective (tested on OCR errors)
(d) Stability training objective (tested on OCR errors)
Figure 5: Sensitivity analysis performed on the English CoNLL 2003 test set (§4.3). Each figure presents the results of models trained using one of our auxiliary training objectives on either original data or its variant perturbed with OCR errors. The bar marked as ”OCR” represents a model trained using the OCR noise distribution. Other bars correspond to models trained using synthetic noise distribution and different hyper-parameters (, ).

creftypecap 5 summarizes the results of the sensitivity experiment. The models trained with our auxiliary objectives mostly preserved or even improved accuracy on the original data compared to the baseline model (). Moreover, they significantly outperformed the baseline on data perturbed with natural noise. The best accuracy was achieved for from to , which roughly corresponds to the label-preserving noise range. Similar to Heigold et al. (2018) and Cheng et al. (2019), we conclude that a non-zero noise level induced during training always yields improvements on noisy input data when compared with the models trained exclusively on clean data. The best choice of was in the range from to . exhibited lower performance on the original data. Moreover, the models trained on the real error distribution demonstrated at most slightly better performance, which indicates that the exact noise distribution does not necessarily have to be known at training time131313Nevertheless, the aspect of mimicking an empirical noise distribution requires more thoughtful analysis, and therefore we leave to future work..

4.4 Error Analysis

To quantify improvements provided by our approach, we measured sequence labeling accuracy on the subsets of data with different levels of perturbation, i.e., we divided input tokens based on edit distance to their clean counterparts. Moreover, we partitioned the data by named entity class to assess the impact of noise on recognition of different entity types. For this experiment, we used both the test and the development parts of the English CoNLL 2003 data set and induced OCR errors with our noising procedure. creftypecap 6 presents the results for the baseline and the proposed methods. It can be seen that our approach achieved significant error reduction across all perturbation levels and all entity types. Moreover, by narrowing down the analysis to perturbed tokens, we discovered that the baseline model was particularly sensitive to noisy tokens from the LOC and the MISC categories. Our approach considerably reduced this negative effect. Furthermore, as the stability training worked slightly better on the LOC class and the data augmentation was more accurate on the ORG type, we argue that both methods could be combined to enhance overall sequence labeling accuracy further. Note that even if the particular token was not perturbed, its context could be noisy, which would explain the fact that our approach provided improvements even for tokens without perturbations.

(a) Divided by the edit distance value.
(b) Divided by the entity class (clean tokens).
(c) Divided by the entity class (perturbed tokens).
Figure 6: Error analysis results on the English CoNLL 2003 data set with OCR noise. We presented the results of the FLAIR + GloVe model trained with the standard and the proposed objectives. The data was divided into the subsets based on the edit distance of a token to its original counterpart and its named entity class. The latter group was further partitioned into the clean and the perturbed tokens. The error rate is the percentage of tokens with misrecognized entity class labels.

(Related Work)

5 Related Work

Improving robustness has been receiving increasing attention in the NLP community. The most relevant research was conducted in the NMT domain.

Noise-additive data augmentation

A natural strategy to improve robustness to noise is to augment the training data with samples perturbed using a similar noise model. Heigold et al. (2018) demonstrated that the noisy input substantially degrades the accuracy of models trained on clean data. They used word scrambling, as well as character flips and swaps as their noise model, and achieved the best results under matched training and test noise conditions. Belinkov and Bisk (2018) reported significant degradation in the performance of NMT systems on noisy input. They built a look-up table of possible lexical replacements from Wikipedia edit histories and used it as a natural source of the noise. Robustness to noise was only achieved by training with the same distribution—at the expense of performance degradation on other types of noise. In contrast, our method performed well on natural noise at test time by using a simplified synthetic noise model during training. Karpukhin et al. (2019) pointed out that existing NMT approaches are very sensitive to spelling mistakes and proposed to augment training samples with random character deletions, insertions, substitutions, and swaps. They showed improved robustness to natural noise, represented by frequent corrections in Wikipedia edit logs, without diminishing performance on the original data. However, not every word in the vocabulary has a corresponding misspelling. Therefore, even when noise is applied at the maximum rate, only a subset of tokens is perturbed (20-50%, depending on the language). In contrast, we used a confusion matrix, which is better suited to model statistical error distribution and can be applied to all tokens, not only those present in the corresponding look-up tables.

Robust representations

Another method to improve robustness is to design a representation that is less sensitive to noisy input. Zheng et al. (2016) presented a general method to stabilize model predictions against small input distortions. Cheng et al. (2018) continued their work and developed the adversarial stability training method for NMT by adding a discriminator term to the objective function. They combined data augmentation and stability objectives, while we evaluated both methods separately and provided evaluation results on natural noise distribution. Piktus et al. (2019) learned representation that embeds misspelled words close to their correct variants. Their Misspelling Oblivious Embeddings (MOE) model jointly optimizes two loss functions, each of which iterates over a separate data set (a corpus of text and a set of misspelling/correction pairs) during training. In contrast, our method does not depend on any additional resources and uses a simplified error distribution during training.

Adversarial learning

Adversarial attacks seek to mislead the neural models by feeding them with adversarial examples Szegedy et al. (2014). In a white-box attack scenario Goodfellow et al. (2015); Ebrahimi et al. (2018) we assume that the attacker has access to the model parameters, in contrast to the black-box scenario Alzantot et al. (2018); Gao et al. (2018), where the attacker can only sample model predictions on given examples. Adversarial training Miyato et al. (2017); Yasunaga et al. (2018), on the other hand, aims to improve the robustness of the neural models by utilizing adversarial examples during training.

The impact of noisy input data

In the context of ASR, Parada et al. (2011) observed that named entities are often OOV tokens, and therefore they cause more recognition errors. In the document processing field, Alex and Burns (2014) studied NER performed on several digitized historical text collections and showed that OCR errors have a significant impact on the accuracy of the downstream task. Namysl and Konya (2019) examined the efficiency of modern OCR engines and showed that although the OCR technology was more advanced than several years ago when many historical archives were digitized Kim and Cassidy (2015); Neudecker (2016), the most widely used engines still had difficulties with non-standard or lower quality input.

Spelling- and post-OCR correction.

A natural method of handling erroneous text is to correct it before feeding it to the downstream task. Most popular post-correction techniques include correction candidates ranking (Fivez et al., 2017; Flor et al., 2019), noisy channel modeling (Brill and Moore, 2000; Duan and Hsu, 2011), voting (Wemhoener et al., 2013), sequence to sequence models Afli et al. (2016); Schmaltz et al. (2017) and hybrid systems Schulz and Kuhn (2017). In this paper, we have taken a different approach and attempted to make our models robust without relying on prior error correction, which, in case of OCR errors, is still far from being solved Chiron et al. (2017); Rigaud et al. (2019).

6 Conclusions

In this paper, we investigated the difference in accuracy between sequence labeling performed on clean and noisy text (§2.3). We formulated the noisy sequence labeling problem (§2.2) and introduced a model that can be used to estimate the real noise distribution (§3.1). We developed the noise induction procedure that simulates the real noisy input (§3.2). We proposed two noise-aware training methods that boost sequence labeling accuracy on the perturbed text: Our data augmentation approach uses a mixture of clean and noisy examples during training to make the model resistant to erroneous input (§3.3). Our stability training algorithm encourages output similarity for the original and the perturbed input, which helps the model to build a noise invariant latent representation (§3.4). Our experiments confirmed that NAT consistently improved efficiency of popular sequence labeling models on data perturbed with different error distributions, preserving accuracy on the original input (§4). Moreover, we avoided expensive re-training of embeddings on noisy data sources by employing existing text representations. We conclude that NAT makes existing models applicable beyond the idealized scenarios. It may support an automatic correction method that uses recognized entity types to narrow the list of feasible correction candidates. Another application is data anonymization (Mamede et al., 2016). Future work will involve improvements in the proposed noise model to study the importance of fidelity to real-world error patterns. Moreover, we plan to evaluate NAT on other real noise distributions (e.g., from ASR) and other sequence labeling tasks to support our claims further.


We would like to thank the reviewers for the time they invested in evaluating our paper and for their insightful remarks and valuable suggestions.
