Automatic music tagging is a multi-label classification task to predict the music tags corresponding to the audio contents. Tagging music with themes (action, documentary) and mood (sad, upbeat) can be useful in music discovery and recommendation. MediaEval 2019: Emotion and Theme Recognition in Music Using Jamendo
aims to improve the machine learning algorithms to automatically recognize the emotions and themes conveyed in a music recording(Bogdanov et al., 2019a). This task involves the prediction of moods and themes conveyed by a music track, given the raw audio on the autotagging-moodtheme subset of the MTG-Jamendo dataset (Bogdanov et al., 2019b). The overview paper (Bogdanov et al., 2019a) describes the task in more detail, and also introduces us to a baseline solution based on VGG-ish features. In this paper, we describe our Fourth place submission on PR-AUC-macro Leaderboard 111https://multimediaeval.github.io/2019-Emotion-and-Theme-Recognition-in-Music-Task/results which improves the results significantly on the baseline solution.
2. Related Work
Conventionally feature extraction from audio relied on signal processing to compute relevant features from time or frequency domain representation. As an alternative to these solutions, architectures based on Convolutional Neural Networks(CNN)(Choi et al., 2016) have become more popular recently following their success in CV, speech processing. Extensions to CNNs have also been proposed to capture the long term temporal information in the form of CRNN (Choi et al., 2016). Recently (Won et al., 2019)
has shown that self-attention applied to music tagging captures temporal information. This architecture was based on the transformer architecture which was very successful in Natural Language Processing (NLP)(Vaswani et al., 2017). In this paper, we propose two methods MobileNetV2 and MobileNetV2 with self-attention which are based mainly on these two previous works (Adapa, 2019; Won et al., 2019).
We used the pre-computed Mel-spectrograms made available by the organizers of the challenge222https://github.com/MTG/mtg-jamendo-dataset. No additional pre-processing steps were undertaken other than the normalization of the input Mel-spectrogram features.
As image-based data augmentation techniques have been shown to be effective in audio tagging (Adapa, 2019; Baikulov, 2019), we used transformations such as Random crop and Random Scale. Additionally, we also employed SpecAugment and Mixup. SpecAugment(Park et al., 2019) proposed initially for speech recognition, masks blocks of frequency channels or time steps of a log Mel-spectrogram. Mixup (Zhang et al., 2017) samples two training examples randomly and linearly mixes them (both the feature space and the labels).
We propose two methods: MobilenetV2 architecture, and MobileNetV2 architecture combined with a self-attention block to capture long term temporal characteristics. We describe both of these methods in detail below.
It has been shown previously that using pre-trained ImageNet models helps in the case of audio tagging(Adapa, 2019; Lasseck, 2018). Hence, we employed MobileNetV2 (Sandler et al., 2018)
for the current task. Since Mel-spectrograms are single channel, the input data is transformed into a three-channel tensor by passing it through two convolution layers. This tensor is then sent to the MobileNetV2 unit. As the number of labels is different here, the linear layer at the very end is replaced. No other modifications were performed to the original MobileNetV2 architecture.
3.2. MobileNetV2 with Self-attention
The architecture described in sub-section 3.1 might not be able to capture the long-term temporal characteristics. The dataset consists of tracks with varying lengths with a majority longer than 200s. Self-attention has been shown to capture long-range temporal characteristics in the context of music tagging (Won et al., 2019). Hence self-attention mechanism can be helpful in the current task. In this section, we describe our extended MobileNetV2 architecture with self-attention.
The architecture consists of 2 main blocks: modified MobileNetV2 (identical to the architecture described in (Adapa, 2019)) to capture freq-time characteristics, and the self-attention block to capture long term temporal characteristics.
Similar to the transformer model (Vaswani et al., 2017), multi-head self-attention with positional encoding was implemented for the current architecture. Since our task consists only of classification we use only the encoder part of it similar to BERT (Devlin et al., 2018). Our implementation is based on the architecture described in (Won et al., 2019). We use 4 attention heads and 2 attention layers. The input sequence length is 16 and has embedding size of 256.
The control flow within this architecture is as follows:
Input is a Mel-spectrogram tensor of length 4096 (number of bands being 96). This input is divided length-wise into 16 segments, with each segment’s length being 256.
Each of the 16 slices is sent through the modified MobileNetV2 block to extract the features.
The feature maps are then fed into the Self-attention block. At the end of this block, two dense layers are put to use to generate the predictions.
Additionally, the feature maps from the MobileNetV2 block are also used to generate predictions. With each segment, we have a set of predictions. All the sixteen predictions are averaged to obtain the final prediction.
As described above, the architecture generates two predictions: one solely using the MobileNetV2, and the other using the MobileNetV2 and the Self-attention blocks. While training, combined loss from both the predictions are used for back-propagation.
4. Training and results
We made two submissions under the team name AMLAG333https://github.com/sainathadapa/mediaeval-2019-moodtheme-detection, one each using the two architectures described in sections 3.1 and 3.2
. Both the submissions employ the same Mel-spectrogram inputs and Binary Cross-entropy loss as the optimization metric. PyTorch(Paszke et al., 2017) was used for training the model in both cases.

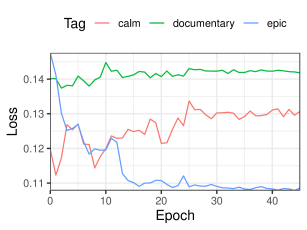

with a learning rate of 1e-3 was utilized for optimization. Whenever the overall loss on the validation set stopped improving for five epochs, the learning rate was reduced by a factor of 10. For this training we use input Mel-spectrogram of length 6590, padding is used to make all the inputs of constant length. We observed that not all classes benefited from being trained together (see Figure1). Hence, following the approach taken in (Caruana, 1998), early stopping was done separately for each class based on the loss value for that particular class. Additionally, an attempt was made to find subsets of classes that train well together, but ultimately the overall performance had been lower than when all the classes were jointly trained. This is one avenue for future research with this dataset.
To prepare submission 2, we use input Mel-spectrogram of length 4096, padding is used to make all the inputs of constant length. We train the model for 120 epochs while utilizing Adam as the initial optimizer. We then employ an optimization technique proposed in (Keskar and Socher, 2017; Won et al., 2019)2013)) after 60 epochs for better generalization of the model. Early stopping was done jointly for all classes based on the macro-averaged AUC-ROC on the validation set.
We present the results for both the submissions in Table 1. Also, results from the baseline approach that uses VGG-ish architecture are shown for comparison purposes. In all the metrics, the MobileNetV2 with a self-attention block exhibits an improvement over solely using the MobileNetV2. With respect to the baseline model, submission 2
proved to be an improvement over all but the micro-averaged F-score and Precision metrics. On the task leaderboard, our model achieved 4th position in case of PR-AUC-macro, and 5th position in case of F-score-macro.
5. Other approaches
Some of the approaches that we have tried, but haven’t observed better performance are listed below:
A dense layer architecture that uses OpenL3 embeddings (Cramer et al., 2019)
A dense layer architecture that uses the pre-computed statistical features from Essentia using the feature extractor for AcousticBrainz. This data was made available by the organizers, along with the raw audio and Mel-spectrogram data.
CNN architecture that directly uses the raw audio representation, as described in (Kim et al., 2019)
- Adapa (2019) Sainath Adapa. 2019. Urban Sound Tagging using Convolutional Neural Networks. (2019). arXiv:cs.SD/1909.12699
- Baikulov (2019) Ruslan Baikulov. 2019. Argus solution Freesound Audio Tagging 2019. (2019). https://github.com/lRomul/argus-freesound Accessed: 2019-10-01.
- Bogdanov et al. (2019a) Dmitry Bogdanov, Alastair Porter, Philip Tovstogan, and Minz Won. 2019a. MediaEval 2019: Emotion and Theme Recognition in Music Using Jamendo. In 2019 Working Notes Proceedings of the MediaEval Workshop, MediaEval 2019. 1–3.
- Bogdanov et al. (2019b) Dmitry Bogdanov, Minz Won, Philip Tovstogan, Alastair Porter, and Xavier Serra. 2019b. The MTG-Jamendo Dataset for Automatic Music Tagging. In Machine Learning for Music Discovery Workshop, International Conference on Machine Learning (ICML 2019). Long Beach, CA, United States. http://hdl.handle.net/10230/42015
- Caruana (1998) Rich Caruana. 1998. A dozen tricks with multitask learning. In Neural networks: tricks of the trade. Springer, 165–191.
- Choi et al. (2016) Keunwoo Choi, George Fazekas, and Mark Sandler. 2016. Automatic tagging using deep convolutional neural networks. arXiv e-prints, Article arXiv:1606.00298 (Jun 2016), arXiv:1606.00298 pages. arXiv:cs.SD/1606.00298
- Choi et al. (2016) Keunwoo Choi, György Fazekas, Mark B. Sandler, and Kyunghyun Cho. 2016. Convolutional Recurrent Neural Networks for Music Classification. CoRR abs/1609.04243 (2016). arXiv:1609.04243 http://arxiv.org/abs/1609.04243
- Cramer et al. (2019) Jason Cramer, Ho-Hsiang Wu, Justin Salamon, and Juan Pablo Bello. 2019. Look, Listen, and Learn More: Design Choices for Deep Audio Embeddings. In ICASSP 2019-2019 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP). IEEE, 3852–3856.
- Devlin et al. (2018) Jacob Devlin, Ming-Wei Chang, Kenton Lee, and Kristina Toutanova. 2018. BERT: Pre-training of Deep Bidirectional Transformers for Language Understanding. arXiv e-prints, Article arXiv:1810.04805 (Oct 2018), arXiv:1810.04805 pages. arXiv:cs.CL/1810.04805
- Keskar and Socher (2017) Nitish Shirish Keskar and Richard Socher. 2017. Improving Generalization Performance by Switching from Adam to SGD. CoRR abs/1712.07628 (2017). arXiv:1712.07628 http://arxiv.org/abs/1712.07628
- Kim et al. (2019) Taejun Kim, Jongpil Lee, and Juhan Nam. 2019. Comparison and Analysis of SampleCNN Architectures for Audio Classification. IEEE Journal of Selected Topics in Signal Processing 13, 2 (2019), 285–297.
- Kingma and Ba (2014) Diederik P Kingma and Jimmy Ba. 2014. Adam: A method for stochastic optimization. arXiv preprint arXiv:1412.6980 (2014).
- Lasseck (2018) Mario Lasseck. 2018. Acoustic Bird Detection With Deep Convolutional Neural Networks. In Proceedings of the Detection and Classification of Acoustic Scenes and Events 2018 Workshop. Tampere University of Technology.
- Park et al. (2019) Daniel S Park, William Chan, Yu Zhang, Chung-Cheng Chiu, Barret Zoph, Ekin D Cubuk, and Quoc V Le. 2019. Specaugment: A simple data augmentation method for automatic speech recognition. arXiv preprint arXiv:1904.08779 (2019).
- Paszke et al. (2017) Adam Paszke, Sam Gross, Soumith Chintala, Gregory Chanan, Edward Yang, Zachary DeVito, Zeming Lin, Alban Desmaison, Luca Antiga, and Adam Lerer. 2017. Automatic differentiation in pytorch. (2017).
- Reddi et al. (2019) Sashank J Reddi, Satyen Kale, and Sanjiv Kumar. 2019. On the convergence of adam and beyond. arXiv preprint arXiv:1904.09237 (2019).
- Sandler et al. (2018) Mark Sandler, Andrew Howard, Menglong Zhu, Andrey Zhmoginov, and Liang-Chieh Chen. 2018. Mobilenetv2: Inverted residuals and linear bottlenecks. In . 4510–4520.
Sutskever et al. (2013)
Ilya Sutskever, James
Martens, George Dahl, and Geoffrey
On the importance of initialization and momentum in deep learning. InInternational conference on machine learning. 1139–1147.
- Vaswani et al. (2017) Ashish Vaswani, Noam Shazeer, Niki Parmar, Jakob Uszkoreit, Llion Jones, Aidan N. Gomez, Lukasz Kaiser, and Illia Polosukhin. 2017. Attention Is All You Need. arXiv e-prints, Article arXiv:1706.03762 (Jun 2017), arXiv:1706.03762 pages. arXiv:cs.CL/1706.03762
- Won et al. (2019) Minz Won, Sanghyuk Chun, and Xavier Serra. 2019. Toward Interpretable Music Tagging with Self-Attention. arXiv e-prints, Article arXiv:1906.04972 (Jun 2019), arXiv:1906.04972 pages. arXiv:cs.SD/1906.04972
- Xie et al. (2017) Saining Xie, Ross Girshick, Piotr Dollár, Zhuowen Tu, and Kaiming He. 2017. Aggregated residual transformations for deep neural networks. In Proceedings of the IEEE conference on computer vision and pattern recognition. 1492–1500.
- Zhang et al. (2017) Hongyi Zhang, Moustapha Cisse, Yann N Dauphin, and David Lopez-Paz. 2017. mixup: Beyond empirical risk minimization. arXiv preprint arXiv:1710.09412 (2017).
