1 Introduction
Largescale image retrieval techniques have been developing and improving greatly for more than a decade. Many of the current stateoftheart approaches
[21, 6, 11] are based on the bagofwords (BOW) approach originally proposed by Sivic and Zisserman [27]. Another popular image representation arises from aggregating local descriptors like Fisher kernel [24] and Vector of Locally Aggregated Descriptors (VLAD) [13].The BOW vectors are high dimensional (up to 64 million dimensions in [20]), so, due to the high memory and computational requirements, search is limited to a several million images on a single machine. There are more scalable approaches that tackle this problem by generating compact image representations [28, 24, 13]
, where the image is described by a short vector that can be additionally compressed into compact codes using binarization
[28, 30], product quantization [12], or recently proposed additive quantization techniques [3]. In this paper we propose and experimentally evaluate simple techniques that additionally boost retrieval performance, but at the same time preserve low memory and computational costs.Short vector image representations are often generated using the principal component analysis (PCA)
[4] technique to perform the dimensionality reduction over highdimensional vectors. Jegou and Chum [8] study the effects of PCA on BOW representations. They show that both steps of PCA procedure, i.e., centering and selection of decorrelated (orthogonal) basis minimizing the dimensionality reduction error, improve retieval performance. Centering (mean subtraction) of BOW vectors provides a boost in performance by adding a higher value to the negative evidence: given two BOW vectors, a visual word jointly missing in both vectors provides useful information for the similarity measure [8]. Additionnaly, they advocate the joint dimensionality reduction with multiple vocabularies to reduce the quantization artifacts underlying BOW and VLAD. These vocabularies are created by using different initializations for the kmeans algorithm, which may produce relatively highly correlated vocabularies.In this paper, we propose to reduce the redundancy of the joint vocabulary representation (before the joint dimensionality reduction) by varying parameters of the local feature descriptors prior to the kmeans quantization. In particular, we propose: (i) different sizes of measurement regions for local description, (ii) different powerlaw normalizations of local feature descriptors, and (iii) different linear projections (PCA learned) to reduce the dimensionality of local descriptors. In this way, created vocabularies will be more complementary and joint dimensionality reduction of concatenated BOW vectors originating from several vocabularies will carry more information. Even though the proposed approaches are simple, we show that they provide significant boosts to retrieval performance with no memory or computational overhead at the query time.
Related work.
This paper can be seen as an extension of [8], details of which are given later in Section 2.3. A number of papers report results with short descriptors obtained by PCA dimensionality reduction. In [14] and [24], aggregated descriptors (VLAD and Fisher vector respectively) are used followed by PCA to produce low dimensional image descriptors. In a paper about VLAD [2], authors propose a method for adaptation of the vocabulary built on an independent dataset (adapt) and intranormalization (innorm) method that normalizes all VLAD components independently, which suppresses the burstiness effect [10]. In [15], a ‘democratic’ weighted aggregation method for burstiness supression is introduced.
In this paper, we compare results of all the aforementioned methods using low dimensional descriptors .
The rest of the paper is organized as follows: Section 2 gives a brief overview of several methods: bagofwords(BOW), efficient PCA dimensionality reduction of high dimensional vectors, and baseline retrieval with multiple vocabularies. Used datasets and evaluation protocols are established in Section 3. Section 4 introduces novel methods for joint dimensionality reduction of multiple vocabularies and presents extensive experimental evaluations. Main conclusions are given in Section 5.
2 Background and baseline
This section gives a short overview of the background of bagofwords based image retrieval and the method used in [8]. Key steps and ideas are discussed in higher detail to help understanding of the paper.
2.1 Bagofwords (BOW) image representation
First efficient image retrieval based on BOW image representation was proposed by Sivic and Zisserman [27]. They use local descriptors extracted in an image in order to construct a highdimensional global descriptor. This procedure follows four basic steps:

For each image in the dataset, regions of interest are detected [18, 17] and described by an invariant descriptor which is dimensional. In this work we use the multiscale HessianAffine [23] and MSER [17] detectors, followed by SIFT [16] or RootSIFT [1] descriptors. The rotation of the descriptor is either determined by the detected dominant orientation [16], or by the gravity vector assumption [23]. The descriptors are extracted from different sizes of measurement regions [17], as described in detail in Section 4.

Descriptors extracted from the training (independent) dataset (see Section 3) are clustered into clusters using the kmeans algorithm, which creates a visual vocabulary.

For each image in the dataset, a histogram of occurrences of visual words is computed. Different weighting schemes can be used, the most popular is inverse document frequency (idf), which generates a dimensional BOW vector ().

All resulting vectors are normalized, as suggested in [27], producing final global image representations used for searching.
2.2 Efficient PCA of high dimensional vectors
In most of the cases BOW image representations have very high number of dimensions ( can take values up to 64 million [20]). In these cases the standard PCA method (reducing to ) computing the full covariance matrix is not efficient. The dual gram method (see Paragraph 12.1.4 in [4]) can be used to learn the first eigenvectors and eigenvalues. Instead of computing the covariance matrix , the dual gram method computes the matrix , where is a set of vectors used for learning, and is the number of vectors in the set . Eigenvalue decomposition is performed using the Arnoldi algorithm, which iteratively computes the desired eigenvectors corresponding to the largest eigenvalues. This method is more efficient than the standard covariance matrix method if the number of vectors of the training set is smaller than the number of vector dimensions , which is usually the case in the BOW approach.
Jegou and Chum [8] analyze the effects of PCA dimensionality reduction on the BOW and VLAD vectors. They show that even though PCA successfully deals with the problem of negative evidence (higher importance of jointly missing visual words in compared BOW vectors), it ignores the problem of cooccurrences (cooccurences lead to overcount some visual patterns when comparing two image vector representation, see [5]
). In order to tackle the aforementioned problem, they propose performing a whitening operation, similar to the one done in independent component analysis
[7] (implicitly performed by the Mahalanobis distance), jointly with the PCA. In our experiments we will use dimensionality reduction from to components, as done in [8]:
Every image vector is postprocessed using powerlaw normalization [24]: , with as a fixed constant. Vector is normalized after processing. It has been shown [14] that this simple procedure reduces the impact of multiple matches and visual bursts [10]. In all our experiments , denoted as signed square rooting (SSR).

First eigenvectors of matrix are learned using powerlaw normalized training vectors , corresponding to the largest eigenvalues .

Every powerlaw normalized image descriptor used for searching is PCAprojected and truncated, and at the same time whitened and renormalized to a new vector that is the final short vector representation with dimensionality :
(1) where the matrix is formed by the largest eigenvectors calculated in the previous step. Comparing two vectors after this dimensionality reduction with the Euclidian distance is now similar to using a Mahalanobis distance. It has been argued that the renormalization step is critical for a better comparison metric, see [8].
In order to compare results in a fair manner, we will use dimensions for all our experiments following the trend of previous research in short image representations.
2.3 The baseline method
This paper builds upon the work [8], which is briefly reviewed in this section. In [8], a joint dimensionality reduction of multiple vocabularies is proposed. Image representation vectors are separately SSR normalized for each vocabulary, concatenated and then jointly PCAreduced and whitened as explained in the Section 2.2. The idf term is ignored, and it is noted that the influence is limited when used with multiple vocabularies. Results of this method are shown in Figure 1 (right plots). Comparing to the straightforward concatenation (Figure 1, left plots) where the results do not noticeably improve after adding multiple vocabularies, it can be noticed that an improvement in performance is achieved even when keeping low memory requirements by using PCA dimensionality reduction. However, for some vocabularies (i.e. k), performance is dropping after only few vocabularies used.
3 Datasets and evaluation
Results of our methods are evaluated on the datasets [25, 26, 9] that are widely used in the image retrieval area. Also, we compare our results with other approaches evaluated on the same datasets.
Oxford5k [25] and Paris6k [26]:
Both datasets contain a set of images (5062 for Oxford and 6300 for Paris) having 11 different landmarks together with distractors, downloaded from Flickr by searching for tags of popular landmarks. For each of the 11 landmarks there are 5 different query regions defined by a bounding box, meaning that there are 55 different query regions per dataset. The performance is reported as mean average precision (mAP), see [25] for more details. In our experiments we use Paris6k as a training dataset in order to learn the visual vocabulary and projections of PCA dimensionality reduction. When evaluating our methods on Oxford5k, we always use the data learned on Paris6k.
Oxford105k [25]:
This dataset is the combination of Oxford5k dataset and 99782 negative images crawled from Flickr using 145 most popular tags. This dataset is used to evaluate the search performance (reported as mAP) on a large scale. Paris6k is used as a training dataset for Oxford105k.
Holidays [9]:
This dataset is a selection of personal holidays photos (1491 images) from INRIA, including a large variety of scene types (natural, manmade, water and fire effects, etc.). A sample of 500 images from the whole dataset is selected for query purposes [9]. The performance is reported as mAP, like for Oxford5k and Oxford105k, after excluding the query image from the results. As a training dataset for vocabulary construction and image representation level PCA learning we use Paris6k dataset in all experiments.
4 Sources of multiple codebooks
We propose combining multiple vocabularies that are differing not just in random initialization of clustering procedure, but also in the data used for clustering. The feature data are alternated in the process of local features description. This process is not trying to synthesize appearance deformations, but rather varying certain design choices in the pipeline of feature description, such as the relative size of the measurement region. Vocabularies created in this manner will contain less redundancy. This is combined with joint PCA dimensionality reduction (as described in Sections 2.2 and 2.3) in order to produce shortvector image representations that are used for searching the most similar images in the dataset.
Quantization complexity for all vocabularies used in experiments is given in Table 1. As stated in [8], time necessary to quantize 2000 local descriptors of a query image, for four k vocabularies, on 12 cores is 0.45s, using a multithreaded exhaustive search implementation. Timings are proportional to the vocabulary size, i.e., to the number in the right column of Table 1.
Vocabulary  Complexity

8k  8192
4k  4096
2k  2048
1k  1024
4k+2k+…+128  8064
2k+1k+…+128  3968
1k+512+256+128  1920
512+256+128  896
Multiple measurement regions.
An affine invariant descriptor of an affine covariant region can be extracted from any affine covariant constructed measurement region [17]. As an example of a measurement region that is, in general, of a different shape than the detected region, is an ellipse fitted to the regions, as proposed by [29] and also used for MSERs [17]. An important parameter is the relative scale of the measurement region with respect to the scale of the detected region. Since the output of the detector is designed to be repeatable, it is usually not discriminative. To increase the disriminability of the descriptor, it is commonly extracted from area larger than the detected region. In case of [23], the relative change in the radius is . The larger the region, the higher discriminability of the descriptor, as long as the measurement region covers a closetoplanar surface. On the other hand, larger image patches have higher chance of hitting depth discontinuities and thus being corrupted. An example of multiple measurement regions is shown in Figure 2. To take the best of this trade off, we propose to construct multiple vocabularies over descriptors extracted at multiple relative scales of the measurement regions. Including lower scales leverages the disadvantages of large measurement regions, while joint dimensionality reduction eliminates the dependencies between the representations.

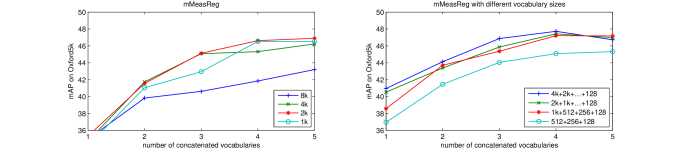

We consider using different sizes of measurement regions: ; creating slightly different SIFT descriptors used to learn every vocabulary. Implementation is very simple and during online stage the computation has to be done only for the features from query image region. Though simple, this method provides significant improvement even when concatenating vocabularies of small sizes (i.e. and ), see Figure 3 (left plot). We also explore the use of vocabularies with different sizes. All BOW vectors in this case are weighted proportionally to the logarithm of their vocabulary size [8]. In each step we concatenate a new bundle of vocabularies with multiple sizes, calculated with a different measurement region. We notice improvement when using multiple vocabulary sizes as well, see Figure 3 (right plot). For presentation of results on both plots in Figure 3, in every step we are adding a different vocabulary created on SIFT vectors with measurement regions in predefined order: . This approach is denoted as mMeasReg.
Multiple powerlaw normalized SIFT descriptors.
SIFT descriptors [16] were the popular choice in most of the image retrieval systems for a long time. Arandjelovic et al. [1] show that using a Hellinger kernel instead of standard Euclidian distance to measure the similarity between SIFT descriptors leads to a noticeable performance boost in retrieval system. The kernel is implemented by simply square rooting every component of SIFT descriptor. Using Euclidian distance on these new RootSIFT descriptors will give the same result as using Hellinger kernel on the original SIFT descriptors. In general, a powerlaw normalization [24] with any power can be applied to the descriptors ( resulting in RootSIFT [1]). Voronoi cells constructed in powerlaw normalized descriptor spaces can be seen as nonlinear hypersurfaces separating the features in the original (SIFT) descriptor space. Concatenation of such feature space partitionings reduces the redundant information.
There is no additional memory required and the change can be done onthefly with virtually no additional computational cost using simple power operation. We consider building four different vocabularies using: SIFT and SIFT with every component to the power of 0.4, 0.5, 0.6 (denoted as , , respectively). Concatenation is done on single vocabularies (Figure 4, left plot) and on a bundle of vocabularies with different sizes (Figure 4, right plot). Adding all SIFT modifications to the process of vocabulary creation achieves noticeable improvement of retrieval performance in the case of all vocabulary sizes. We denote this method as mRootSIFT.
Combining vocabularies of different SIFT exponents improves over combining different vocabularies of a single SIFT exponent. For example, for 4 2k vocabularies, the mAP on Oxford5k is for 4 , and (Figure 4 left) for exponent combination.
Multiple linear projections of SIFT descriptors.
In locality sensitive hashing (random) linear projections are commonly used to reduce the dimensionality of the space while preserving locality. The idea pursued in this part of the paper is to use linear projections on the feature descriptors (SIFTs) before the vocabulary construction via kmeans. However, random projections do not reflect the structure of the descriptors, resulting in noisy descriptor space partitionings. We propose to use PCA learned linear projections of SIFTs, learned on different training sets or subsets. The projections learned this way account for the statistics given by the training sets and hence produce meaningful distances, while inserting different biases into the vocabulary construction.
The improvement is twofold: (i) increased performance measured by mAP, and (ii) shorter quantization time during query due to shorter local descriptors after dimensionality reduction. On the other side there is a small amount of storage required to save learned projection matrices for every vocabulary, which we reuse at query. We consider and evaluate three different approaches for learning the eigenvectors used to project SIFT vectors from to dimensions:

[nolistsep]

We learn eigenvectors on Paris6k dataset and reduce the dimension of SIFT descriptors to in the respective order for every newly created vocabulary (mSIFT). Results of this experiment are shown in Figure 5, 1 row.

We learn eigenvectors on different datasets: Paris6k, Holidays, University of Kentucky benchmark (UKB), PASCAL VOC’07 training in the respective order for every newly created vocabulary (mSIFT). Dimension of SIFT descriptors is reduced to in all cases. For the mAP performance on Oxford5k, see Figure 5, 2 row.

We learn eigenvectors on different datasets: Paris5k, Holidays, UKB, PASCAL VOC’07 training and reduce the dimension of SIFT descriptors differently for each dataset ( respectively) creating different vocabularies (mSIFT). Performance is presented in Figure 5, 3 row.
Note that first vocabulary in all three different approaches is produced using standard SIFT descriptors without PCA reduction. A new vocabulary is added in every step of the experiment having joint dimensionality reduction of 5 concatenated BOW vectors in the end.
Multiple feature detectors.
In the Video Google approach [27] the authors combine vocabularies created from two different feature types. In this paper we attempt to combine HessianAffine [23] and MSER [17] detectors. Even though straightforward concatenation of BOW vectors created on k vocabularies ( mAP on Oxford5k) gives improvement over using single BOW representations with HessianAffine () and MSER () features, after joint PCA reduction there is a decrease of performance when combining features ( mAP on Oxford5k) compared to only doing PCA reduction on a single HessianAffine vocabulary (), and an increase in performance when compared to PCAreduced BOW vectors built on a single MSER vocabulary (). Similar conclusions are made when combining smaller vocabulary sizes, i.e., there is always a drop in performance when comparing PCA reduction on a single vocabulary with HessianAffine features and PCA on combined vocabularies with HessianAffine and MSER features; mAP drop: from to , from to , from to for k, k, k respectively. We also experimented with combining HarrisAffine [19] with HessianAffine features in the same manner as with MSER, but the improvement is not significant. PCA reduction of a single k vocabulary on HessianAffine yields mAP on Oxford5k while joint PCA after adding a vocabulary of the same size built on HarrisAffine improves mAP to , which is smaller improvement than using two vocabularies built on HessianAffine features with different randomization ( mAP).
Discussion.

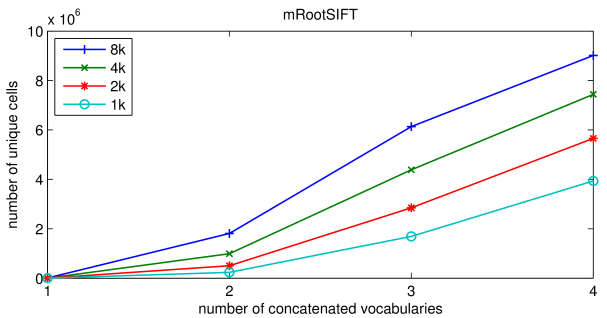

In order to better understand the impact of using multiple vocabularies we count the number of unique assignments in the product vocabulary. It corresponds to the number of nonempty cells of the descriptor space generated by all vocabularies simultaneously. The maximum possible number of unique assignments is equal to the product of number of clusters (cells) of all joint vocabularies. The number is related to the precision of reconstruction of each feature descriptor from its visual word assignments. For combination of vocabularies with different SIFT exponents (mRootSIFT) the number of unique assignments for Oxford5k dataset is shown in Figure 6. The plots are similar for all vocabulary combinations.
Method  Vocabulary  Oxford5k  Oxford105k  Holidays

GIST [22]  N/A
BOW [27]
Improved Fisher [24]
VLAD [13]
VLAD+SSR [14]
++RN [15]
mVocab/BOW [8]
mVocab/BOW [8]
mVocab/VLAD [8]
mVocab/VLAD+adapt+innorm [2]
mMeasReg/mVocab/BOW
mMeasReg/mVocab/BOW
mRootSIFT/mVocab/BOW
mRootSIFT/mVocab/BOW
mSIFT/mVocab/BOW
mSIFT/mVocab/BOW
4.1 Comparison with the stateoftheart
Comparison with the current methods dealing with short vector image representation is given in Table 2. Authors of the baseline approach on multiple vocabularies (mVocab) did not provide results for Oxford5k and Oxford105k datasets using all of their proposed methods, so we reimplemented and presented the corresponding results. Compared to their best method on Oxford5k that achieves mAP, our best method ( mAP) obtains significant relative improvement of . In fact, all our methods outperform mVocab baseline methods on Oxford5k by a noticeable margin, with an improvement of in the case of our worst performing method. When evaluating largescale retrieval on Oxford105k dataset our methods again outperform the baseline method, relative improvement is for our best performing method, and for the worst performing one. In order to make a fair comparison when evaluating on Holidays dataset we again reimplemented the baseline approach, using Paris6k for learning the vocabularies and PCA projections (as we did in all our methods). In this case, the relative improvement is with our best method (from mAP to mAP). We also compare our methods to two recent stateoftheart approaches on short representations [2, 15]. On Oxford5k and Oxford105k we improve as much as and , respectively, compared to VLAD based approach [2], and and , respectively, compared to Tembedding based approach [15]. On Holidays dataset relative improvement is compared to the former and compared to the latter. Note that the dataset used for learning of the metadata for Holidays is different: we use Paris6k, while both [2] and [15] are using an independent dataset comprising of 60k images downloaded from Flickr.
5 Conclusions
Methods for multiple vocabulary construction were studied and evaluated in this paper. Following [8], the concatenated BOW image representations from multiple vocabularies were subject to joint dimensionality reduction to 128D descriptors. We have experimentally shown that generating diverse multiple vocabularies has crucial impact on search performance. Each of the multiple vocabularies was learned on local feature descriptors obtained with varying parameter settings. That includes feature descriptors extracted from measurement regions of different scales, different powerlaw normalizations of the SIFT descriptors, and applying different linear projections to feature descriptors prior to kmeans quantization. The proposed vocabulary constructions improve performance over the baseline method [8], where only different initializations were used to produce multiple vocabularies. More importantly, the all proposed methods exceed the stateoftheart results [2, 15] by a large margin. The choice of the optimal combination of vocabularies to combine still remains an open problem.
Acknowledgements. The authors were supported by MSMT LL1303 ERCCZ and ERC VIAMASS no. 336054 grants.
