Multiple Anchor Learning for Visual Object Detection

12/04/2019 ∙ by Wei Ke, et al. ∙ Carnegie Mellon University 0

Classification and localization are two pillars of visual object detectors. However, in CNN-based detectors, these two modules are usually optimized under a fixed set of candidate (or anchor) bounding boxes. This configuration significantly limits the possibility to jointly optimize classification and localization. In this paper, we propose a Multiple Instance Learning (MIL) approach that selects anchors and jointly optimizes the two modules of a CNN-based object detector. Our approach, referred to as Multiple Anchor Learning (MAL), constructs anchor bags and selects the most representative anchors from each bag. Such an iterative selection process is potentially NP-hard to optimize. To address this issue, we solve MAL by repetitively depressing the confidence of selected anchors by perturbing their corresponding features. In an adversarial selection-depression manner, MAL not only pursues optimal solutions but also fully leverages multiple anchors/features to learn a detection model. Experiments show that MAL improves the baseline RetinaNet with significant margins on the commonly used MS-COCO object detection benchmark and achieves new state-of-the-art detection performance compared with recent methods.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 3

page 5

page 6

page 7

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

(a) Baseline
(b) MAL
Figure 1: Detection outputs of the baseline detector (RetinaNet) and the Multiple Anchor Learning (MAL), before and after NMS. The baseline detector may produce bounding boxes with high localization IoU with a low classification score (the yellow bbox), or low localization IoU with a high classification score (the red bbox), which lead to sub-optimal results after NMS. MAL produces bounding boxes with high co-occurrence of top classification and localization, leading to better detection results after NMS.

Convolutional Neural Network (CNN) based object detectors have achieved unprecedented advances in the past few years  [8, 9, 27, 25, 21, 17, 18]

. In both recent two-stage and single-stage object detectors, the bounding box classification and localization modules are highly integrated: they are conducted on the shared local features, and are optimized over the sum of the loss functions.

To provide rich candidates of shared local features, a prevalent approach is the introduce hand-crafted dense anchors [18]

on the convolutional feature maps. These anchors create a uniform distribution of bounding box scales and aspect ratios, enabling objects with various scales and aspect ratios to be equally represented in training a detector.

However, optimization under a fixed set of hand-crafted anchors significantly limits the possibility to jointly optimize classification and localization. During training, detectors leverage spatial alignment, , Intersection over Unit (IoU) between objects and anchors, as the sole criterion to assign anchors. Each assigned anchor independently supervises network learning for classification and localization. Without direct interactions of the two optimizations, the detections of accurate localization may have lower classification confidence, and be suppressed by the following Non-Maximum Suppression (NMS) procedure (see the baseline example in Fig. 1).

Recent remedy for the problem includes IoU-Net [13] and FreeAnchor [34]

. However, it remains using independent classification and localization confidence during the training procedure. FreeAnchor selects anchors according to a joint probability over classification and localization. Nevertheless, the matching procedure based on maximum likelihood estimation (MLE) is not optimal considering the non-convexity of the problem.

In this paper, we present Multiple Anchor Learning (MAL), an automatic anchor learning approach that jointly optimizes object classification and localization from the perspective of anchor-object matching. In training phase of MAL, an anchor bag for each object is constructed by choosing the top ranked anchor with IoUs between anchors and the object bounding box. MAL evaluates positive anchors in each bag by combining their classification and localization scores. In each training iteration, MAL uses all positive anchors to optimize the training loss but selects the high/top-scored anchors as the solutions. This leads to high co-occurrence of top classification and localization (see the MAL example in Fig. 2).

MAL is optimized over an anchor selection loss based on Multiple Instance Learning (MIL) [23]. However, the iterative selection process under conventional MIL is potentially NP-hard to optimize. Selecting the top-scored instance (anchor) in each learning iteration could produce sub-optimal solutions, falsely localized object parts. To address this issue, we solve MAL by repetitively depressing the confidence of top-scored anchors by perturbing their features, which guarantees that potential optimal solutions, , positive anchors of lower confidence, have an opportunity to participate in learning. By upgrading the supervision from independent anchors to multiple anchors, MAL fully leverages multiple anchors/features to learn a better detector. The contributions of this work include:

  • We propose an Multiple Anchor Learning (MAL) approach, jointly optimizing classification and localization modules for object detection by evaluating and selecting anchors.

  • We propose a selection-depression optimization strategy, providing an elegant-yet-effective way to prevent MAL from getting stuck into sub-optimal solutions during detector training.

  • We improve state-of-the-arts with significant margins on the commonly used MS COCO dataset.

Figure 2: The main idea of MAL. In the feature pyramid network, an anchor bag is constructed for each object . Together with the network parameter learning, back-propagation, MAL evaluates the joint classification and localization confidence of each anchor in . Such confidence is used for anchor selection and indicates the importance of anchors during network parameter evolution.

2 Related Work

Various taxonomies [20] have been used to categorize the large amount of CNN-based object detection methods, one-stage [27] vs. two-stage [18], single-scale features  [27] vs. multi-scale representation [17, 16, 24], and handcrafted architectures [21] vs. Network Architecture Search (NAS) [7]. In this paper, we review the related works from the perspective of object localization.

2.1 Anchor-Based Method

Training a detector requires to generate a set of bounding boxes along with their classification labels associated with the objects in an image. However, it is not trivial for CNNs to directly predict an order-less set of arbitrary cardinals [32]. One commonly used strategy is to introduce anchors, which employs a divide-and-conquer strategy to match objects with convolutional features, spatially.

Anchor Assignment. Anchor-based detection methods include the well-known Faster R-CNN [27], FPN [17], RetinaNet [18], SSD [21], DSSD [6], and YOLO [26]. In these detectors, a large amount of anchors are scattered over convolutional feature maps so that they can match objects of various aspect ratios and scales. During training, the anchors are assigned to objects (positive anchors) or backgrounds (negative anchors) by threshold their IoUs with the ground-truth bounding boxes [27]. During inference, anchors independently predict object bounding boxes, where the box with the highest classification score is retained after the NMS procedure.

Despite of the simplicity, these approaches rely on the assumption that anchors are optimal for both object classification and localization. For objects of partially occlusion and irregular shapes, however, such heuristics are implausible and they could miss the best anchors/features

[34].

Anchor Optimization. To pursue optimal feature-object matching, MetaAnchor [32] learns to predict anchors from the arbitrary customized prior boxes with a subnet. GuidedAnchoring [31] leverages semantic features to guide the prediction of anchors while replacing dense anchors with predicted anchors. FreeAnchor [34] upgrades handcrafted anchor assignment to “free” anchor matching. This approach formulates detector training as a maximum likelihood estimation (MLE) procedure. Its goal is to learn features that best explain a class of objects in terms of both classification and localization. IoU-Net [13] selects anchors while predicting the IoU between a detected bounding box and a ground-truth box. Combined with an IoU-guided NMS, IoU-Net reduces the suppression failure caused by the misleading classification confidences. Gaussian YOLO [3] introduces localization uncertainty that indicates the reliability of anchors/bounding boxes. By using the estimated localization uncertainty during inference, this approach improves classification and localization accuracy.

All above approaches have taken some steps towards anchor learning. Nevertheless, how to efficiently select optimal anchors remains to be further elaborated. Considering a non-convex objective function which could cause sub-optimal solutions, we propose an adversarial selection-depression strategy to alleviate this issue.

2.2 Anchor-Free Method

Instead of using anchors as bases to conduct detection, researchers have recently explored anchor-free approaches, which operates on individual cells of the convolutional feature maps. FCOS leverages cell-level supervision and center-ness bounding-box regression [29] for object detection. CornerNet [15] and CenterNet [5] replace bounding box supervision with key-point supervision. Extreme point [35] and RepPoint [33] use point sets to predict object bounding boxes.

As a new direction for object detection, anchor-free methods show great potential for extreme object scales and aspect ratios, without constraints set by hand-craft anchors. However, without the anchor box as the reference point, direct regression of bounding boxes from convoltuional features remains a very challenging problem. As an anchor-based approach, MAL outperforms the current top anchor-free detectors such as CenterNet and CornerNet.

3 The Proposed Approach

MAL is implemented based on RetinaNet  [18] network architecture. MAL upgrades RetinaNet by finding optimal selection of anchors/features for both classification and localization. In what follows, we briefly revisit RetinaNet on its original mechanism in object classification and localization. We then elaborate how MAL improve classification and localization by evaluating anchors. We finally propose an anchor selection-depression strategy to pursue optimal solutions of MAL.

Figure 3: MAL implementation. During training, it includes the additional anchor selection and anchor depression modules added to RetinaNet. During test, it uses exactly the same architecture as RetinaNet. “” and “” respectively denote convolutional feature maps before and after depression. “” and “” respectively denote an activation map before and after depression.

3.1 RetinaNet Revisit

RetinaNet is a representative architecture of single-stage detectors with state-of-the-art performance. A RetinaNet detector is made up of a backbone network and two subnets, one for object classification and other for object localization. Feature Pyramid Network (FPN) is used at the end of RetinaNet backbone network. From each feature map in the feature pyramid, a classification subnet predicts category probabilities while a box regression subnet predicts object locations using anchor boxes as the reference locations. The input features of the two subnets are shared across the feature pyramid levels for efficiency. Considering the extreme imbalance of foreground-background classes, presented as positive-negative anchors after anchor-object matching, Focal Loss is adopted to prevent the vast number of easy negatives from overwhelming the detector during training.

Let be an input image with label , where is the training image set and is the label set of the categories. Without loss of generality, denote as the ground-truth bounding boxes of the objects in a positive image. consists of the class label and the spatial position . The classification confidence and bounding-box output of the anchor are predicted by the classification and the box regression subnets, respectively. The anchors in an image are divided into positive ones if their IoUs with the ground-truth boxes are larger than a threshold, and negative ones otherwise. Anchors are used to supervise network learning, as

(1)

where denotes the classification procedure, and is a factor to balance the importance of negative/positive anchors. Simultaneously, positive anchors are used to optimize the object localization, as

(2)

where denotes the network parameters, and denotes the bounding-box regression procedure. Eq. 1 and Eq. 2 are actually implemented by minimizing the Focal Loss, , and the Smooth-L1 loss, ,

During network learning, each assigned anchor independently supervises the learning for object classification and object localization, without considering whether the detection and localization are compatible on assigned anchors. This could cause the anchors of accurate localization but with lower classification confidence to be suppressed by the following Non-Maximum Suppression (NMS) procedure.

3.2 Multiple Anchor Learning

To alleviate the drawbacks of independent anchor optimization, we propose the Multiple Anchor Learning (MAL) approach, Fig. 2. In each learning iteration, MAL selects high-scored instances in an anchor bag to update the model. After updating, the model evaluates each instance with new confidence. Model learning and anchor selection iteratively perform towards final optimization.

To fulfill this purpose, we first construct an anchor bag for the object. The anchor bag includes the top- anchors according to the IoUs between the anchors and the ground truth. Together with network parameter learning, back-propagation, MAL evaluates the joint classification and localization confidence of each anchor in . Such confidence is used for anchor selection and indicates the importance of anchors during network parameter evolution. For simplicity, consider solely the learning upon positive anchors, while that for negative anchors follows Eq. 1. MAL has the following objective function:

(3)

where and give the classification and localization scores, respectively, and is a regularization factor. It is towards selecting a best positive anchor for the object, as well as learning the network parameters .

The objective function defined in Eq. 3 is converted to a loss function as:

(4)

where and are the classification and detection losses, respectively, as defined in Section 3.1. The loss for negative anchors follows the Focal Loss defined in [18].

3.3 Selection-Depression Optimization

Optimizing Eq. 3 or Eq. 4

with Stochastic Gradient Descent (SGD) is a non-convex problem, which could cause a sub-optimal anchor selection. To alleviate the problem and select optimal anchors, we propose repetitively depressing the confidence of selected anchors by perturbing their corresponding features. Such a learning strategy, referred to as selection-depression optimization, solves the MAL problem in an adversarial manner.

Anchor Selection. According to , the conventional MIL algorithm tends to select the top-scored anchor. Nevertheless, in the context of object detection, selecting a top-scored anchor from each bag is difficult, as validated by the continuation MIL method [30]. Instead of selecting the highest-scored anchor in Eq. 3 in the training phase, we propose an “All-to-Top-1” anchor selection strategy from each anchor bag for back-propagation. When learning proceeds, we linearly decrease the number from (number of anchors in a bag) to 1. Formally, let , where and are the current and total numbers of iterations for training. Then let indicate the indices of high-ranked anchors and . Finally, Eq. 3 is re-written as:

(5)

Along this pipeline, MAL leverages multiple anchors/features within the object region to learn a detection model in early training epochs, and converges to use a single optimal anchor at the last epoch.

Anchor Depression. Inspired by the inverted attention network [12], we developed an anchor depression procedure to perturb the features of selected anchors in order to decrease their confidences (see more Fig. 3). The rational is to endow unselected anchors with extra chances to participate the training. Formally, we denote the feature map and the attention map as and , where is computed as , with being the global average pooling of and being the channel index of . We then generate a new depressed attention map by cutting down the high values to zero, where is the 0-1 indicator function. and is the high-value position. The feature map is perturbed as:

(6)

where 1

is the identity matrix and

denotes the element-wise multiplication. With the continuation strategy, the depression in Eq. 6 is reformulated as:

(7)

where indicates how many pixels to be perturbed.

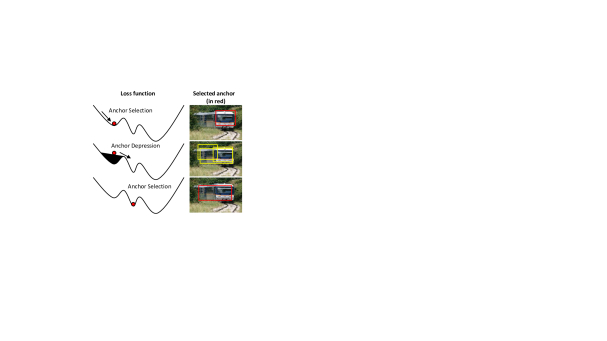

Figure 4: Optimization analysis. In the first curve, MAL selects a sub-optimal anchor and gets stuck into a local minimum. In the second curve, anchor depression increases the loss so that MAL continues the optimization. In this way, MAL has a greater chance to find optimal solutions.

3.4 Implementation

The implementation of an MAL detector is based on the RetinaNet detector where the features of the input image are extracted by a FPN backbone [17]. The anchor generation settings are the same as those of RetinaNet, , 9 anchors with three sizes and three aspect ratios for each pixel on the feature maps. Across the levels, the anchors cover the scale range from 32 to 813 pixels with respect to the input image.

During the feed-forward procedure of the network training, we calculate the detection confidence of each anchor, , to minimize the detection loss defined in Eq. 4. According to the confidence, top- anchors are selected. The network parameters are then updated under the supervision of the selected anchors. After anchor selection, anchor depression is carried out, as described in Section 3.3. In the next iteration, anchor selection is carried out again to select high-scored anchors.

The inference procedure of our approach is exactly the same as RetinaNet, , we use the learned network parameters to predict classification scores and object bounding boxes, which are fed to a NMS procedure for object detection. As MAL is only applied in the detector training procedure to learn more representative features, our learned detector achieves performance improvement with negligible additional computation cost.

3.5 Optimization Analysis

The anchor selection-depression strategy approximates an adversarial procedure. The selection operation finds top-scored anchors that minimize the detection loss . The depression operation perturbs the corresponding features of selected anchors so that their confidence decreases and the detection loss increases again. The selection-depression strategy helps the learner find better solutions for the non-convex objective function of MAL. As illustrated by the first curve of Fig. 4, MAL selects a sub-optimal anchor and gets stuck into a local minimum of the loss function. In the second curve, the anchor depression increases the loss, so that the local minimum is “filled”. Consequently, MAL continues to find the next local minimum. After learning converges, MAL has a better chance to find optimal solutions.

4 Experiments

In this section, we present experimental results of the proposed Multiple Anchor Learning approach on the bounding-box detection track of the challenging COCO benchmark [19]. We follow the common practice and use 118k images for training, 5k for validation and 20k for testing without provided annotations (test-dev). AP is computed over ten different IoU thresholds, i.e.

, 0.5: 0.05: 0.95, with all categories. It is the commonly used evaluation metric for object detection.

4.1 Experimental Setting

We utilize ResNet-50, ResNet-101, and ResNeXt-101 with FPN as backbones. The batch normalization layers are fixed to be frozen in the training phase. We use a mini-batch of 2 images per GPU, thus making a total mini-batch of 16 images on 8 GPUs. The initial learning rate is set to 0.01 and decreased by a factor of 10 after 90k and 120k for the 135k setting (ResNet-50), and 120k and 160k for the 180k setting (ResNet-101 and ResNeXt-101). The synchronized Stochastic Gradient Descent (SGD) is adopted for network optimization. The weight decay of 0.0001 and the momentum of 0.9 are used. A linear warmup strategy is adopted in the first 500 iterations. We set the regularization factor

experimentally. Following [34], we assign anchors to ground-truth using IoU threshold of 0.5, and to background if their IoUs are in [0, 0.4).

Method
MAL(=40) 38.27 56.67 40.81
MAL(=50) 38.39 56.81 41.14
MAL(=60) 38.08 56.11 40.18
(a) Detection performance upon different anchor numbers in each anchor bag.
Method
RetinaNet 35.46 51.61 39.37
MAL+S(all) 38.14 56.81 40.81
MAL+S(all-top1) 38.39 56.81 41.14
(b) Anchor selection strategy . “S” denotes “Selection”. We compare selecting all instances and all-top1 instance.
Method
MAL+D(constant) 35.25 51.72 38.92
MAL+D(step) 35.88 52.34 39.63
MAL+D(symmetric step) 36.18 52.66 39.88
(c) Depression strategy . “D” denotes “Depression”. The constant function, step function, and symmetric step function are compared.
Table 1: Ablation study on the COCO minval dataset with the backbone ResNet50. We show the AP, AP, and AP (%).

4.2 Ablation Study

For ablation study, we used ResNet-50 as the backbone. All detection performances were evaluated on the COCO-minval dataset ( images). Firstly, we visualize the effectiveness of MAL in Fig. 5 on feature activation maps. Comparing MAL with RetinaNet, MAL activates more parts on the object and suppresses the more parts in the background. It demonstrates that MAL improved features for better object detection.

Anchor Selection: Without the depression component of MAL, we evaluate the selection component individually first. We compare the results of different for anchor bag construction, as shown in Table 0(a). The AP is stable when , , or . We choose 50 anchors in the following experiments. The results of different anchor selection strategies are shown in Table 0(b). It improves AP from 35.46% to 38.14% when anchor bags are used instead of the scattered anchors in RetinaNet, as MAL+S(all) in Table 0(b). In the RetinaNet, if an anchor is with good localization but without the highest score, it does not affect the network parameters. While using the anchor bags, this kind of anchor has potential to be selected for detector learning. By the continuation optimization which selects all anchors at the beginning and gradually reduces the selected anchors to the top-1, the performance is further improved to 38.39%, as MAL+S(all-top1) in Table 0(b). It verifies that continuation optimization is also efficient in MAL.

Figure 5: The activation map comparison between RetinaNet (the first and third rows) and MAL (the second and fourth rows). The attention maps at the 10k, 50k and 90k iterations are overlaid on input images. As highlighted by red boxes at the 90k iteration, MAL gets better attention maps which activate more parts in the bicycle image and suppress irrelevant parts in the cat image.

Anchor Depression: We only add the depression component to RetinaNet to find the preferable indicator function . We employ three kinds of indicator function. The first one is the constant function, which means keeping the same depression ratio in the whole training phase. We depress the top 50% pixels in the attention map. The AP decreases a little from 35.46% to 35.25%, as MAL+D(constant) shown in Table 0(c). The reason is that at the beginning of the training phase, the parameters of the network are randomly initialized, and the depression is meaningless for the adversarial learning. If a step function is utilized for , which increases the depression part from 0.0% to 50.0% by step, the performance is increased to 35.88%, as MAL+D(step) shown in Table 0(c). It illustrates that the detector should be optimized in a way before depression. The third one is the symmetric step function, which increases the depression part from 0.0% to 50% and then decreases it from 50% to 0.0%. It achieves the best performance of 36.18%, as MAL+D(symmetric step) shown in Table 0(c).

Selection-Depression: The efficient combination of selection and depression is shown in Fig. 6. We compare the AP, AP, and AP. The AP is increased to 36.2% with the depression component and to 38.4% with the selection component. When the adversarial manner is taken between selection and the depression, the AP is further improved to 39.2%, which is 3.7% (35.5% vs. 39.2%) performance gain compared with the original RetinaNet. The AP and AP have the same trend of growth as the AP.

Figure 6: Ablation studies of the anchor selection and depression modules on the COCO-minval dataset. On the metrics AP, and , MAL outperforms the baseline detector (RetinaNet) with significant margins. “S” and “D” respectively denote “Selection” and “Detection”.

Localization Improvement: In Fig. 7, we show an error factor analysis [2] of the localization results. It can be seen that poor localization (Loc) hinders the improvement of detection performance for objects of irregular shapes, i.e., tilted and slender objects. Compared with the baseline method, MAL significantly reduces the localization error (blue part in Fig. 7) of these objects. For instance, the area under curve (AUC) decreases from 15.7% (45.5%29.8%) to 11.6% (58.7%47.1%) for the toothbrush category and from 13.6% (63.3%49.7%) to 10.6% (74.8%64.2%) for the kite category.

(a) Baseline (label=toothbrush)
(b) MAL (label=toothbrush)
(c) Baseline (label=kite)
(d) MAL (label=kite)
Figure 7: Quantitative evaluation of detection performance. Top row: performance comparison on toothbrush detection. Bottom row: performance summary for the kit category.

4.3 Comparison with State-of-the-Art Detectors

Method Backbone
RetinaNet [18] ResNet-50 35.5 51.6 39.4
MAL (ours) ResNet-50 39.2 58.0 42.3
RetinaNet [18] ResNet-101 39.1 59.1 42.3
MAL (ours) ResNet-101 43.6 62.8 47.1
RetinaNet [18] ResNeXt-101 40.8 61.1 44.1
MAL (ours) ResNeXt-101 45.9 65.4 49.7
Table 2: Performance comparison with the baseline method (single-scale results) on the MS-COCO test-dev dataset. MAL improves the baseline with significant margins.
Method Backbone
Two-stage methods
Faster R-CNN+++ [11] ResNet-101 34.9 55.7 37.4 15.6 38.7 50.9
Faster R-CNN w FPN [17] ResNet-101 36.2 59.1 39.0 18.2 39.0 48.2
Faster R-CNN w TDM [28] Inception-ResNet-v2-TDM 36.8 57.7 39.2 16.2 39.8 52.1
Deformable R-FCN [4] Inception-ResNet-v2 37.5 58.0 40.8 19.4 40.1 52.5
Mask R-CNN [10] ResNeXt-101 39.8 62.3 43.4 22.1 43.2 51.2
IoU-Net [13] ResNet-101 40.6 59.0 - - - -
Cascade RCNN [1] ResNet-101 42.8 62.1 46.3 23.7 45.5 55.2
Grid R-CNN w/ FPN [22] ResNeXt-101 43.2 63.0 46.6 25.1 46.5 55.2
One-stage methods
YOLOv2 [25] DarkNet-19 21.6 44.0 19.2 5.0 22.4 35.5
SSD513 [21] ResNet-101 31.2 50.4 33.3 10.2 34.5 49.8
YOLOv3 [26] Darknet-53 33.0 57.9 34.4 18.3 35.4 41.9
DSSD513 [21] ResNet-101 33.2 53.3 35.2 13.0 35.4 51.1
GA-RetinaNet [31] ResNet-50 37.1 56.9 40.0 20.1 40.1 48.0
MetaAnchor [32] ResNet-50 37.9 - - - - -
RetinaNet [18] ResNet101 39.1 59.1 42.3 21.8 42.7 50.2
CornerNet [15] Hourglass-104 40.6 56.4 43.2 19.1 42.8 54.3
RetinaNet [18] ResNeXt-101 40.8 61.1 44.1 24.1 44.2 51.2
FCOS [29] ResNet-101 41.5 60.7 45.0 24.4 44.8 51.6
FoveaBox [14] ResNeXt-101 42.1 61.9 45.2 24.9 46.8 55.6
AB+FSAF [36] ResNeXt-101 42.9 63.8 46.3 26.6 46.2 52.7
FreeAnchor [34] ResNeXt-101 44.8 64.3 48.4 27.0 47.9 56.0
CenterNet [5] Hourglass-104 44.9 62.4 48.1 25.6 47.4 57.4
ours
MAL ResNet-101 43.6 62.8 47.1 25.0 46.9 55.8
MAL ResNeXt-101 45.9 65.4 49.7 27.8 49.1 57.8
MAL (multi-scale) ResNet-101 45.0 63.7 48.9 28.0 48.0 57.0
MAL (multi-scale) ResNeXt-101 47.0 66.1 51.2 30.2 50.1 58.9
Table 3: Performance comparison with the state-of-the-art methods on the MS-COCO test-dev dataset (single-scale results unless explicitly stated). MAL achieves new state-of-the-art performance. As a one-stage detector, MAL also outperforms most two-stage detectors.

Keeping the best setting in the ablation study, we compare the propsoed MAL with the baseline, , RetinaNet, in Table 2. For ResNet-50, MAL improves the baseline from 35.5% to 39.2% with 3.7% improvement. For ResNet-101 and ResNeXt-101, the improvements are 4.5% and 4.1%, respectively. It illustrates that MAL achieves reliable gains with various of backbones.

In Table 3, MAL is compared with the state-of-the-art detectors of two-stage methods and one-stage methods on the MS COCO test dataset, which are arranged in the increasing order of AP. For fair comparison, we re-scale the images such that their shorter sides are 800 pixels and the longer sides not more than 1333 pixels.

For one-stage methods, we compare the state-of-the-art including YOLO [25, 26], SSD [21], FCOS [29], FreeAnchor [34] and CenterNet [5]. With the ResNet-101 backbone, MAL achieves 43.6% AP of single-scale, which outperforms the anchor-free approach FCOS [29] by 2.1% (43.6% vs. 41.5%). With the ResNeXt-101 backbone, MAL achieves 45.9% AP of single scale, which achieves 1.1% (45.9% vs. 44.8%) gain compared with the recent FreeAnchor [34]. It also outperforms state-of-the-art CenterNet [5] by 1.0% AP (45.9% vs. 44.9%). Note that CenterNet uses the Hourglass-104 backbone which has much more network parameters than ResNeXt-101. These are significant margins for the challenging object detection task. The multi-scale testing APs of MAL are further improved to 45.0% and 47.0% with ResNet-101 and ResNeXt101, respectively.

Table 3 also compares MAL with representative two-stage detectors including Faster-RCNN with FPN [17], Mask R-CNN [10], IoU-Net [13], and Grid R-CNN [22]. MAL outperforms most two-stage detectors. Particularly, it outperforms the recent Grid R-CNN detector by 2.7% (45.9 vs. 43.2%) with the same backbone. As a one-stage detector with simpler implementation, MAL shows great potential to surpass two-stage detectors.

5 Conclusion

We have proposed an elegant and effective training approach, referred to as Multiple Anchor Learning (MAL), for visual object detection. By selecting anchors to jointly optimize bounding box classification and localization, MAL upgrades the standard hand-crafted anchor assignment mechanism to a learnable object-anchor matching mechanism. We proposed a simple selection-depression strategy to alleviate the sub-optimization issue of MAL. MAL improved object detection with significant margins compared with the baseline detector RetinaNet, achieves the best result on MS-COCO among single-stage methods, and outperforms many recent two-stage approaches. Such improvements root in not only the optimal selection of anchors but also implicit feature assembling based on a bag of anchors. Our work presents a promising direction to relax anchor design in learning a visual object detection.

References

  • [1] Z. Cai and N. Vasconcelos (2018) Cascade r-cnn: delving into high quality object detection. In IEEE CVPR, pp. 6154–6162. Cited by: Table 3.
  • [2] K. Chen, J. Wang, J. Pang, Y. Cao, Y. Xiong, X. Li, S. Sun, W. Feng, Z. Liu, J. Xu, Z. Zhang, D. Cheng, C. Zhu, T. Cheng, Q. Zhao, B. Li, X. Lu, R. Zhu, Y. Wu, J. Dai, J. Wang, J. Shi, W. Ouyang, C. C. Loy, and D. Lin (2019) MMDetection: open mmlab detection toolbox and benchmark. arXiv:1906.07155. Cited by: §4.2.
  • [3] J. Choi, D. Chun, H. Kim, and H. Lee (2019) Gaussian yolov3: an accurate and fast object detector using localization uncertainty for autonomous driving. In IEEE ICCV, pp. 502–511. Cited by: §2.1.
  • [4] J. Dai, H. Qi, Y. Xiong, Y. Li, G. Zhang, H. Hu, and Y. Wei (2017) Deformable convolutional networks. In IEEE ICCV, pp. 764–773. Cited by: Table 3.
  • [5] K. Duan, S. Bai, L. Xie, H. Qi, Q. Huang, and Q. Tian (2019) CenterNet: object detection with keypoint triplets. In IEEE CVPR, Cited by: §2.2, §4.3, Table 3.
  • [6] C. Fu, W. Liu, A. Ranga, A. Tyagi, and A. C. Berg DSSD: deconvolutional single shot detector. In arXiv preprint arXiv:1701.06659, Cited by: §2.1.
  • [7] G. Ghiasi, T. Lin, and Q. V. Le (2019) NAS-FPN: learning scalable feature pyramid architecture for object detection. In IEEE CVPR, pp. 7036–7045. Cited by: §2.
  • [8] R. B. Girshick, J. Donahue, T. Darrell, and J. Malik (2014) Rich feature hierarchies for accurate object detection and semantic segmentation. In IEEE CVPR, pp. 580–587. Cited by: §1.
  • [9] R. B. Girshick (2015) Fast R-CNN. In IEEE ICCV, pp. 1440–1448. Cited by: §1.
  • [10] K. He, G. Gkioxari, P. Dollár, and R. B. Girshick (2017) Mask R-CNN. In IEEE ICCV, pp. 2980–2988. Cited by: §4.3, Table 3.
  • [11] K. He, X. Zhang, S. Ren, and J. Sun (2016) Deep residual learning for image recognition. In IEEE CVPR, pp. 770–778. Cited by: Table 3.
  • [12] Z. Huang, W. Ke, and D. Huang (2019) Improving object detection with inverted attention. arXiv:1903.12255. Cited by: §3.3.
  • [13] B. Jiang, R. Luo, J. Mao, T. Xiao, and Y. Jiang (2018) Acquisition of localization confidence for accurate object detection. In ECCV, pp. 784–799. Cited by: §1, §2.1, §4.3, Table 3.
  • [14] T. Kong, F. Sun, H. Liu, Y. Jiang, and J. Shi (2019) FoveaBox: beyond anchor-based object detector. arXiv:1904.03797. Cited by: Table 3.
  • [15] H. Law and J. Deng (2018) CornerNet: detecting objects as paired keypoints. In ECCV, pp. 765–781. Cited by: §2.2, Table 3.
  • [16] Y. Li, Y. Chen, N. Wang, and Z. Zhang (2019) Scale-aware trident networks for object detection. In IEEE ICCV, pp. 502–511. Cited by: §2.
  • [17] T. Lin, P. Dollár, R. B. Girshick, K. He, B. Hariharan, and S. J. Belongie (2017) Feature pyramid networks for object detection. In IEEE CVPR, pp. 936–944. Cited by: §1, §2.1, §2, §3.4, §4.3, Table 3.
  • [18] T. Lin, P. Goyal, R. B. Girshick, K. He, and P. Dollár (2017) Focal loss for dense object detection. In IEEE ICCV, pp. 2999–3007. Cited by: §1, §1, §2.1, §2, §3.2, §3, Table 2, Table 3.
  • [19] T. Lin, M. Maire, S. J. Belongie, J. Hays, P. Perona, D. Ramanan, P. Dollár, and C. L. Zitnick (2014) Microsoft COCO: common objects in context. In ECCV, Cited by: §4.
  • [20] L. Liu, W. Ouyang, XiaogangWang, P. Fieguth, J. Chen, X. Liu, and M. Pietikainen (2019) Deep learning for generic object detection: a survey. Int. J. Comp. Vis.. Cited by: §2.
  • [21] W. Liu, D. Anguelov, D. Erhan, C. Szegedy, S. E. Reed, C. Fu, and A. C. Berg (2016) SSD: single shot multibox detector. In ECCV, pp. 21–37. Cited by: §1, §2.1, §2, §4.3, Table 3.
  • [22] X. Lu, B. Li, Y. Yue, Q. Li, and J. Yan (2019) Grid R-CNN. In IEEE CVPR, Cited by: §4.3, Table 3.
  • [23] O. Maron and T. Lozano-Pérez (1997) A framework for multiple-instance learning. In NeurIPS, pp. 570–576. Cited by: §1.
  • [24] J. Peng, M. Sun, Z. Zhang, T. Tan, and J. Yan (2019) POD: practical object detection with scale-sensitive network. In IEEE ICCV, pp. 6054–6063. Cited by: §2.
  • [25] J. Redmon, S. K. Divvala, R. B. Girshick, and A. Farhadi (2016) You only look once: unified, real-time object detection. In IEEE CVPR, pp. 779–788. Cited by: §1, §4.3, Table 3.
  • [26] J. Redmon and A. Farhadi (2017) YOLO9000: better, faster, stronger. In IEEE CVPR, pp. 6517–6525. Cited by: §2.1, §4.3, Table 3.
  • [27] S. Ren, K. He, R. B. Girshick, and J. Sun (2015) Faster R-CNN: towards real-time object detection with region proposal networks. In NeurIPS, pp. 91–99. Cited by: §1, §2.1, §2.
  • [28] A. Shrivastava, R. Sukthankar, J. Malik, and A. Gupta (2016) Beyond skip connections: top-down modulation for object detection. arXiv:1612.06851. Cited by: Table 3.
  • [29] Z. Tian, C. Shen, H. Chen, and T. He (2019) FCOS: fully convolutional one-stage object detection. arXiv:1904.01355. Cited by: §2.2, §4.3, Table 3.
  • [30] F. Wan, C. Liu, W. Ke, X. Ji, J. Jiao, and Q. Ye (2019) C-MIL: continuation multiple instance learning for weakly supervised object detection. In IEEE CVPR, pp. 2199–2208. Cited by: §3.3.
  • [31] J. Wang, K. Chen, S. Yang, C. C. Loy, and D. Lin (2019) Region proposal by guided anchoring. In IEEE CVPR, pp. 2965–2974. Cited by: §2.1, Table 3.
  • [32] T. Yang, X. Zhang, Z. Li, W. Zhang, and J. Sun (2018) Metaanchor: learning to detect objects with customized anchors. In NeurIPS, pp. 320–330. Cited by: §2.1, §2.1, Table 3.
  • [33] Z. Yang, S. Liu, H. Hu, L. Wang, and S. Lin (2019) RepPoints: point set representation for object detection. In IEEE ICCV, pp. 502–511. Cited by: §2.2.
  • [34] X. Zhang, F. Wan, C. Liu, R. Ji, and Q. Ye (2019) FreeAnchor: learning to match anchors for visual object detection. In NeurIPS, Cited by: §1, §2.1, §2.1, §4.1, §4.3, Table 3.
  • [35] X. Zhou, J. Zhuo, and P. Krähenbühl (2019) Bottom-up object detection by grouping extreme and center points. In IEEE CVPR, pp. 850–859. Cited by: §2.2.
  • [36] C. Zhu, Y. He, and M. Savvides (2019) Feature selective anchor-free module for single-shot object detection. In IEEE CVPR, pp. 840–849. Cited by: Table 3.
