Related Works

In this section, we start with a literature review on multitask learning and multimodal learning. Based on the existing works, we introduce challenges in multitask learning and multimodal learning, and justify the selected strategies for overcoming these challenges in the proposed framework.

Multitask Learning

Multitask Learning (MTL), also known as joint learning or learning with auxiliary tasks, is a machine learning scenario that uses training signals from other related tasks to solve the harder tasks simultaneously [3, 26]

. MTL has been widely used in different domains such as natural language processing, speech, and computer vision

[26]. It has also been applied to biomedical problems. One of the earliest applications is the pneumonia risk stratification task using the lab value prediction as the auxiliary MTL tasks [2]. Despite the strong theoretical support for the utility of MTL, the performance gain of adopting MTL in the biomedical domain is not guaranteed [2, 24].

We argued that MTL can help leverage supervision signals from other tasks by training a model to predict correlated pathology metadata simultaneously from a shared representation. A natural question arises from this design is the ways to do parameter sharing. There are two main strategies for MTL to learn a shared representation, via hard parameter sharing or soft parameter sharing. Hard sharing strategy has a single pathway from input to a shared representation, and following the representation are task-specific heads with independent parameters. The approach enables lower layer parameters to be shared while parameters in each head to be task-specific. This enables learning a generalizable shared representation while also optimizing for the downstream tasks [3]. In soft sharing strategy, each task has its pathway from input to output. The parameters for different pathways are soft-shared by imposing a joint regularization. This allows a certain degree of similarity across representations for different task pathways without enforcing them to be identical [9].

Besides parameter sharing, another key aspect in MTL is the weighting of loss across different tasks. A prominent recent approach is a multi-objective optimization, which integrates the interactions between tasks into the loss fucntion [14]. In this study, we incorporate the hard parameter sharing strategy with gradient-based multi-objective optimization to learn a better representation that can be shared across tasks.

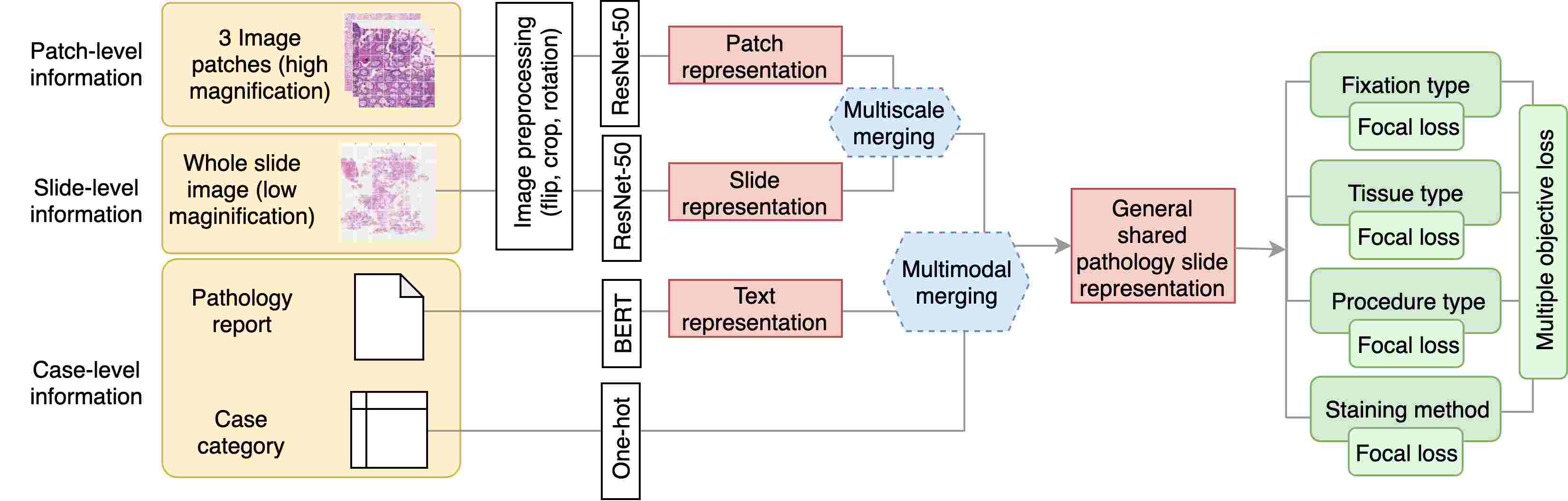

Figure 2: Study overview and the proposed multimodal multitask learning framework. Color scheme: input data (yellow), data encoder (white), multimodal merging operations (blue), representations (red), tasks (green), learning objectives (light green).

Multimodal Learning

The goal of multimodal learning is to learn a data representation capturing shared and independent information from data across different modalities. There have been a wide success of multimodal learning in different fields [23, 1]

. In the biomedical domain, there is a strong need for such an approach because patient data usually come with multiple modalities such as waveforms, claims data, free texts, images, and genome sequences. Researchers have utilized information from different modalities to approach various biomedical problems, such as tissue pattern recognition

[27], report generation [19], medical language translation [31], and clinical event prediction [30]. However, the key challenge of multimodal learning is the heterogeneity across different modalities due to vastly different statistical properties and varying levels of noise. In this study, we explore different strategies to effectively merge the heterogeneous modalities.

There are two major approaches for multimodal learning: shared representation learning and cross-modal coordinated representation learning [23]. Shared representation learning, i.e. learning a common embedding space, enforces the model to have a single latent representation from multimodal data. On the other hand, cross-modal coordinated representation learning, or embedding alignment, uses an additional step to align representations from different modalities with the assumption that the geometric structure of the representations is similar [5].

For shared representation learning, early fusion and late fusion are the two most prominent approaches [1]

. Early fusion helps capture low-level interactions between modalities, which is ideal when there are dependencies between features in different modalities. Late fusion instead builds a meta-classifier to preserve more single-modal information since this approach doesn’t model the interactions between modalities at low-level.

Since our goal is to learn a general representation from heterogeneous pathology images, texts, and structured data, we adopted the early fusion strategy to capture low-level interactions between modalities and keep the generalizability as much as possible. We also investigated the model performance of using different operations for merging modalities.

Methods

We propose a framework for joint prediction of pathology metadata while leveraging multimodal data, including images at different scales, texts from pathology reports, and the case-level structured data (Figure 2). We focus on four metadata commonly used for constructing research cohort from the pathology samples in biobanks. They are tissue type, fixation type, procedure type, and staining method of a slide. For example, to construct the research cohort for the lymph node metastasis detection, we need to identify samples of lymph node specimen (tissue type) using hemotoxylin and eosin staining (H&E) (staining method) obtained by biopsy (procedure type) and fixed by formalin-fixed paraffin-embedded fixation (FFPE) (fixation type) [20]. Figure 3 shows samples of pathology images with their corresponding metadata.

Figure 3: Examples of pathology slide- and patch-level images with their metadata.

The proposed framework consisted of two main parts, a multitask output and a multimodal input. For the output, the model predicted four metadata tasks considering multiple objective loss. For the input, we adopted ResNet [12] and Bidirectional Encoder Representations from Transformers (BERT) [8] to extract features from slide images and free texts, respectively. For the case-level structured data such as primary cancer sites, we encoded them in the one-hot scheme. The intention of using multi-level data is to incorporate prior knowledge to the model for narrowing the prediction search space. For example, using primary cancer sites as the input helps focusing the model on fewer tissue types that might occur in such case yet without the issue of data leakage from the pathology perspective (see Appendix A1).

Multitask Learning

We used MTL with hard parameter sharing strategy to learn the shared representation of pathology data from joint supervision across different tasks (Figure 3

). The proposed MTL loss function consists of two parts, a multi-objective loss, and a task-specific loss.

For the multi-objective loss, to utilize the interactions between supervision from different tasks, we extended a Gaussian likelihood-based multitask loss accounting for all tasks simultaneously to mitigate the task-specific noise. The approach models the estimated noise of task

as a trainable parameter . Different from treating all task equally without scaling the gradient of each task, the multi-objective loss has the potential to prevent overfitting to any specific task by considering the geometric average of all task-specific losses. This is different from the commonly seen arithmetic mean approach and addresses the issue of vastly different scales across task-specific losses.

In more details, for the metadata prediction task , we adopted a Gaussian likelihood to model the label

and the predicted output from the neural network

with training input and weights

. The output noise is modeled as a Gaussian distribution with zero mean and a standard deviation of

. To find the stationary points of the Gaussian log likelihood function

(1)

, we set the partial derivation of the likelihood function with respect to to zero, and obtain the update equation for (see Appendix A2 for details). By replacing in the likelihood function, we obtain the loss function:

(2)

The loss function is a geometric average of the task-specific mean square error, different from the commonly-seen arithmetic mean.

To mitigate the class imbalance issue, we applied the focal loss objective for the task-specific objectives [16]. In a binary classification task, we frequently use the cross entropy (CE) loss:

(3)

, where if the label is correctly predicted, else .

is the estimated probability for correct class prediction. The CE loss can be further extended to the

-balanced CE loss that considers the class imbalance by multiplying a weighting factor :

(4)

, where for correct prediction, else . However, both CE and -balanced CE loss can not differentiate easy and hard samples well. Thus focal loss is introduced to reshape the -balanced CE loss to down-weight easy samples and focus on hard samples by introducing a modulating factor with a focusing parameter . The objective can be expressed as

(5)

When , the loss contribution of easy samples will be discounted, else the loss function will turn into CE loss.

The final loss function in our MTL framework is the combination of the task-specific losses and the multi-objective loss:

(6)

where is the task index.

Multimodal Learning

To develop a joint representation across modalities, we explored two early fusion methods. We investigated a widely-used vector concatenation and the compact bilinear pooling (CBP) that captures interactions between modalities more expressively

[10].

Vector concatenation is well-known as a strong approach to merge modalities. For the vector concatenation method, the shared representation used for the downstream tasks is derived as the following: , where is the vector representation of the modality.

Bilinear models take the outer product of two representations to form the joint representation. It is an alternative approach to learning the interaction between two vector representations but with a huge computational cost.  [10]

proposed CBP to mitigate the issue of the computational heavy outer product by adopting Fourier transformation tricks to operate in the transformed space. Besides, CBP also utilizes a Count Sketch projection (CSP) function

to project the high-dimension outer product vector to a lower-dimensional space as a more compact representation.

In details, the inputs of CSP function are the outer product vector and two randomly uniformly initialized constant vectors and . The function outputs a latent representation vector , where . The -th element of , , is defined as

(7)

A CSP function of an outer product between two vectors is equivalent to the convolution between the CSP applied and . Precisely, , where is the outer product, is the convolution operation. This can again be rewritten in a format using Fourier transformation () and inverse Fourier transformation (), such that , where is the element-wise product. Thus, the original function for the dimensionality reduction of outer product can be operated using Fourier transformation as following:

(8)

, where are input vectors and are randomly assigned vectors mentioned above. These transformation tricks have the benefits of reduced computation and memory usage, enabling operations on high-dimensional vectors.

Multiscale Imaging

We also explored multimodal learning in the context of multiscale imaging. This is inspired by pathologists’ workflow in examining images at different image magnifications to get both the context and the details. We used the whole slide images in low magnification and three high magnification image patches randomly cropped from the tissue area in the slide image. We applied the vector concatenation and CBP for multiscale learning. Using the vector concatenation, the image representation will be:

(9)

If using CBP,

(10)

, where is the CBP operation described above. For CBP, we followed the parameter setting in [10] with 16000-D output representation.

Natural Language Representation

To extract representation from the free text pathology reports, we used an attention-based BERT model as the encoder [8]

. The implementation of the BERT encoder contains 12 Transformer blocks and 12 self-attention heads with 768-D representation. The encoder is pretrained on large English corpora consisting of Wikipedia and BookCorpus. The last two Transformer blocks were set to be trainable to be fine-tuned for our tasks. After integrating the pretrained BERT into the proposed multimodal merging and multitask framework, two Transformer blocks were fine-tuned with the backpropagated gradient from the overall loss (Figure

3).

Experiments

Datasets

We collected two datasets for this study, a dataset from a tertiary teaching hospital (TTH) and a publicly available TCGA dataset. The metadata of two datasets has been annotated by board-certified pathologists. The TTH dataset was split into three subsets of 80% (18,413 slides / 4,972 cases), 10% (2,570 slides / 1,324 cases), 10% (2,570 slides / 1,324 cases) for training, validation and testing, respectively. We adopted iterative stratified sampling to ensure that the proportions of classes are nearly equally distributed in three subsets. A random subset of the TCGA dataset (10,440 slides / 7,084 cases) was annotated and used as an independent hold-out test set to evaluate the generalization of our method to the unseen data source.

All samples were categorized into two fixation types, 14 tissue types (with one type as “others”), two procedure types, and two staining methods as shown in Table 1. Extremely rare tissue types are recategorized into “others” unless they are the top-8 tissue types in TCGA dataset.

Task Dataset TTH TCGA
Split Train Val Test Test
Count/% N % N % N % N %
#Case 4972 1324 1432 7084
#Slide 18413 2570 2835 10440
Fixation FFPE 17790 96.6 2409 93.7 2660 93.8 4734 45.3
Frozen 623 3.4 161 6.3 175 6.2 5706 54.7
Tissue LN 2561 13.9 324 12.6 394 13.9 0.0 0.0
Uterus/cervix 1697 9.2 269 10.5 263 9.3 701 6.7
Breast 2029 11.0 298 11.6 301 10.6 1010 9.7
Other 2131 11.6 242 9.4 264 9.3 3284 31.5
Skin 1966 10.7 235 9.1 290 10.2 178 1.7
Prostate 2048 11.1 279 10.9 305 10.8 465 4.5
Colorectal 1739 9.4 241 9.4 282 9.9 707 6.7
H&N 1610 8.7 221 8.6 243 8.6 403 3.9
Thyroid 1025 5.6 161 6.3 151 5.3 447 4.3
UGI 960 5.2 147 5.7 174 6.1 589 5.6
Ovary 581 3.1 89 3.5 104 3.7 495 4.7
Kidney 29 0.2 29 1.1 29 1.0 1130 10.8
Lung 37 0.2 35 1.4 35 1.2 1031 9.9
Procedure Surgical 10853 58.9 1435 55.8 1651 58.2 9551 91.5
Biopsy 7560 41.1 1135 44.2 1184 41.7 889 8.5
Staining H&E 15086 81.9 1787 69.5 1963 69.2 10425 99.9
IHC 3327 18.1 783 30.5 872 30.8 15 0.01
Table 1: Datasets statistics and label distributions. Please refer to Appendix Table A2 for abbreviations.

Data Preprocessing and Resampling

In multitask learning, class imbalance issue is aggravated concerning the number of tasks. In this study, there are 112 possible label combinations across four tasks (2 fixation types 14 tissue types 2 procedure types 2 staining methods), Table 1. The ratio of cases between the most frequent combination and the least frequent combination grows exponentially with respect to the number of tasks. For example, the number of cases in the most common combination (FFPE, LN, Surgical, H&E) is 16,415 times more than the least frequent combination (Frozen, Lung, Biopsy, IHC). To address this issue for model development, we upsampled rare combinations to 500 cases per combination and downsampled combinations with abundant data to 1000 cases per combination in the training set. There is no change to the class distribution for validation and test sets.

We used images with two different scales in this study, low magnification whole slide images and high magnification image patches from slides. For whole slide images, due to the difficulty of fitting gigapixel images into the memory [20], all the images were retrieved at and then rescaled to

pixels by bilinear interpolation regardless the aspect ratio. The slide-level features such as spatial relationship and colors of the tissues were still preserved through the rescaling. From the pathology perspective, such preprocessing does not affect the decision of metadata annotation because the spatial relationship is preserved. We used the high magnification image patches for incorporating fine-grained features. The images are retrieved from the pathology slide images at

magnification and randomly cropped out three patches within the tissue area at pixels.

For the free-text pathology reports, we set a fixed text sequence length of 64 for the BERT encoder input. The average sequence length of the pathology reports in our datasets is around 100, yet the report lengths are skewed since most biopsy reports are very short. Also, the most important information in the pathology reports is usually shown at the beginning, such as the diagnosis of the case. Thus, we set the maximal sequence length at around the 60% quantile of all report lengths for text encoding. We also selected the primary cancer site as structured data input to capture more related information at the case level (see Appendix A1 for more details). We used a one-hot representation to encode the case-level structured input.

Neural Network Details and Baseline

We used the standard ResNet-50 model for learning the slide- and the patch-level image representations [12]. Text representation is learned from the BERT encoder [8]. Case-level structured data are featurized with one layer fully connected network.

We applied the focal loss with , and used the Adam optimizer with and set a clipping normalization value of 0.5 for optimization. Exponential decay learning rate scheduling with an initial learning rate of , with a decay rate of for every

training steps, were used. We trained the model with five epochs with a batch size of 32.

The baseline configuration for comparison is the single modal single task framework with multiscale image (slide + patch) inputs. We used both slide and patch-level information as the baseline since it is the most comprehensive way to read the slide for pathologists.

Evaluation

We evaluated the models’ performance on metadata prediction with two standard metrics, the macro average of the area under ROC curve (AUC-ROC) and the macro average of the area under the precision-recall curve (AUC-PR). The AUC-ROC measures the probability of the model ranking a randomly chosen positive sample higher than a randomly chosen negative sample. AUC-PR measures the trade-off between precision (positive predictive value) and recall (sensitivity). Macro AUC-ROC and macro AUC-PR take an equally weighted average of AUC-ROCs and AUC-PRs across all classes, respectively. An equal-weighted average is desired because rare cases are treated equally as common cases. Other commonly used metrics such as accuracy, micro average AUC-ROC, and micro average AUC-PR are not suitable for this study due to the highly imbalanced test set. These metrics are computed per sample instead of per class, therefore, a model can achieve high accuracy simply by predicting well on the majority classes while ignoring minority classes.

Results and Discussions

Metadata Prediction with Multimodal Multitask Learning

We start with a comparison between the proposed multimodal multitask framework and the baseline single modal single task benchmark in Table 2. The proposed method (MM) achieved higher AUC-ROCs compared to the baseline (SS) on three out of four tasks and on-par on one task, on the hold-out independent TCGA test set (Table 2, (MM, SS) = 35% (tissue), 2.33% (fixation), 0% (procedure), 1.15% (staining)). On the TTH test set, MM achieves higher AUC-ROCs on two tasks, on-par on one task, and slightly lower on one task (Table 2, (MM, SS) = 23.94% (tissue), -1.01% (fixation), 4.41% (procedure), 0% (staining)). Predicting tissue type is the task with the great improvement by using multimodal multitask framework.

We found that the main contribution of the performance improvement comes from the multimodal component instead of the multitask component (Table 2, (MS, SS) = 23.58% (tissue), 1.40% (fixation), -0.76% (procedure), -2.92% (staining) versus (SM, SS) = 2.82% (tissue), -0.65% (fixation), -1.47% (procedure), 0.60% (staining)). However, combining multitask with multimodality often lead to further increases in performance (Table 2, (MM, MS) = 7.32% (tissue), -0.60% (fixation), 2.99% (procedure), 3.60% (staining)). It allows the multitask framework to utilize the inductive bias from one task to learn a more generalized representation that improves or keeps the performance of other tasks. Such effect is consistent with the argument that shared representation learned from multitask helps generalize across tasks, especially when the major information sources are slightly different but correlated between tasks. In our case, image mainly provides the evidence for fixation and staining prediction, whereas texts are informative for tissue type prediction, incorporating both multimodal and multitask framework helps learn a better representation that share more underlying patterns in pathology.

Among the four prediction tasks, tissue type is the most challenging task for pathologists. To classify tissue type from images, a pathologist will need to review the tissue morphology in both low and high magnification while incorporating prior knowledge about the case from the pathology report. On the other hand, the other three tasks are relatively simple and can be learned by a layman with appropriate training. Furthermore, tissue type prediction task has 14 classes while the other tasks are binary classification problems. Due to the intrinsic difficulty of the task, the baseline only reached an AUC-ROC of 0.60 on TCGA test set, while the multimodal multitask framework significantly improved the performance to an AUC-ROC of 0.81 (Table 2, TCGA MM), and up to 0.92 after further optimization (Table 5).

We observed that the majority of the performance gain came from the incorporation of multimodality instead of multitask. This is because that the key information includes in the reports are pathology findings, which are highly relevant to tissue type, and partially related to the procedure since different procedures may provide different findings mentioned in the reports. The reports and case-level information are less informative for fixation and staining prediction since these two metadata are directly related to slide images and less emphasized in the reports. However, comparable results are still observed since MTL can utilize the tissue type prediction as an auxiliary task to keep or improve the model prediction power for other tasks. Therefore, we argue that the additional modalities, free text, and structured data, provide useful information about the specific task of tissue type prediction. This is also intuitively reasonable because understanding the pathology reports provides strong prior for a model to predict tissue type among fewer options consistent with the report.

Dataset Cfg Tissue Fixation Procedure Staining
TCGA SS 0.60 0.86 0.67 0.87
(external) (0.51, 0.67) (0.84, 0.88) (0.60, 0.72) (0.16, 1.00)
SM 0.60 0.84 0.65 0.87
(0.57, 0.62) (0.81, 0.86) (0.58, 0.71) (0.18, 1.00)
MS 0.79 0.91 0.65 0.84
(0.72, 0.85) (0.90, 0.93) (0.58, 0.71) (0.22, 1.00)
MM 0.81 0.88 0.67 0.88
(0.79, 0.83) (0.85, 0.90) (0.61, 0.72) (0.24, 1.00)
TTH SS 0.71 0.99 0.68 0.84
(0.60, 0.81) (0.98, 1.00) (0.60, 0.75) (0.77, 0.91)
SM 0.75 1.00 0.67 0.85
(0.69, 0.80) (0.98, 1.00) (0.58, 0.75) (0.78, 0.91)
MS 0.82 0.96 0.69 0.82
(0.75, 0.89) (0.87, 1.00) (0.60, 0.77) (0.75, 0.89)
MM 0.88 0.98 0.71 0.84
(0.85, 0.91) (0.94, 1.00) (0.63, 0.79) (0.77, 0.90)
Table 2:

Quantitative evaluation across different setups on the TCGA and TTH test set. TCGA is an independent test set with different data distribution from the TTH dataset. We reported the values of macro AUC-ROC with 95% confidence intervals. For evaluations of macro AUC-PR on test and validation sets, please refer to the Appendix Section A3. Abbreviations: configurations (Cfg), single modal single task (SS), single modal multitask (SM), multimodal single task (MS), multimodal multitask (MM).

Utility of the Multitask Framework Alone

Although the multimodal multitask learning approach showed improved performance over the baseline, limited improvements are seen if we consider multitask learning alone without multimodal inputs (Table 2, (SM, SS) = 2.82% (tissue), -0.65% (fixation), -1.47% (procedure), 0.60% (staining), where the performance of the two approaches are on-par considering the confidence interval). This is likely due to insufficient information in the image modality alone for some tasks, such as predicting tissue type from the image alone, which is regarded as a nontrivial task by pathologists. Although multitask learning alone does not lead to a significant improvement over the baseline, it demonstrates on-par performance using only one model with four task heads instead of four independent models. This indicates that the multitask framework yields a more generalized representation for different tasks while greatly reduces the required computation resource for model development and speed up model iterations and inferences.

Comparison of Multimodality Strategies

For the multimodality module, we also investigated different merging strategies of integrating image and text information under multitask scenario. Table 3 shows the performance comparison of vector concatenation and CBP. We observe higher performance with vector concatenation in most tasks except for the tissue type prediction problem. In [10], CBP worked reasonably well for visual-text question answering problems which image and text modalities both have a good correlation on the targeted task. Similarly, in this study, for tissue type prediction which requires both image and text modalities, CBP shows an improved performance by leveraging both modalities. On the other hand, for tasks that a single modality is sufficient and other modalities are not expected to contain task-related information, CBP yield inferior performance. For example, text reports usually do not contain information about fixation and staining (AUC-ROC of 0.59 using only text modality on TCGA). Therefore, we observed worse performance with CBP relative to the concatenation method (Table 3).

Dataset MM-Strategy Tissue Fixation Procedure Staining
TCGA Concat 0.81 (0.79, 0.83) 0.88 (0.85, 0.90) 0.67 (0.61, 0.72) 0.88 (0.24, 1.00)
(external) CBP 0.86 (0.85, 0.87) 0.52 (0.48, 0.55) 0.59 (0.53, 0.64) 0.40 (0.06, 0.79)
TTH Concat 0.88 (0.85, 0.91) 0.98 (0.94, 1.00) 0.71 (0.63, 0.79) 0.84 (0.77, 0.90)
CBP 0.89 (0.85, 0.92) 0.52 (0.32, 0.71) 0.50 (0.41, 0.60) 0.46 (0.36, 0.55)
Table 3: Performance comparison between different representation merging methods on the testing set, TCGA and TTH. We reported the values of macro AUC-ROC with 95% confidence intervals.

Ablation Analysis to Understand the Importance of Different Modalities

To explore the effect of each modality, we conducted ablation analysis by removing text and structured data one at a time while keeping the whole slide image modality (Table 4). Whole slide image modality is not removed because it is the base component for the pathology metadata prediction.

Dataset Modality Tissue Fixation Procedure Staining
TCGA All 0.81 (0.79, 0.83) 0.88 (0.85, 0.90) 0.67 (0.61, 0.72) 0.88 (0.24, 1.00)
(external) All w/o text 0.66 (0.64, 0.68) 0.84 (0.82, 0.86) 0.66 (0.60, 0.72) 0.86 (0.17, 1.00)
All w/o structured 0.76 (0.74, 0.78) 0.85 (0.83, 0.88) 0.60 (0.54, 0.66) 0.87 (0.30, 1.00)
TTH All 0.88 (0.85, 0.91) 0.98 (0.94, 1.00) 0.71 (0.63, 0.79) 0.84 (0.77, 0.90)
All w/o text 0.78 (0.74, 0.83) 0.98 (0.94, 1.00) 0.69 (0.60, 0.77) 0.84 (0.77, 0.90)
All w/o structured 0.85 (0.82, 0.89) 0.98 (0.94, 1.00) 0.70 (0.61, 0.77) 0.83 (0.76, 0.90)
Table 4: Ablation analysis by removing input modality one at a time for model development. We reported the values of macro AUC-ROC with 95% confidence intervals on the testing sets, TCGA and TTH.

Among the two additional modalities, we found that removing texts decreased the performance the most, especially on tissue type and procedure type metadata prediction (Table 4, (All w/o text, All) = -14.94% (tissue), -2.28% (fixation), -2.16% (procedure), -1.14% (staining)). Case-level structured data is also predictive for some tasks but not as informative as texts (Table 4, (All w/o structured, All) = -4.79% (tissue), -2.84% (fixation), -5.93% (procedure), -1.17% (staining)). The observed trend is consistent with the understanding that the pathology reports contain information closely related to diagnosis and tissue type but not fixation, staining information.

Additional Informative Modality Might Not Be Helpful

For research on multimodal modeling, a common understanding is that adding informative modality is helpful for prediction. However, we observed inferior performance after adding an informative modality. Specifically, we explored incorporating high magnification image patches to improve the performance across all four tasks. With only image modality as the input, patch information helps the model perform better in three out of four tasks (Table 5, (Image, Image w/o patch) = 0.86% (tissue), 5.15% (fixation), -2.26% (procedure), 0.6% (staining)). However, adding patches yields inferior performance for the tissue and procedure type prediction when text and structured data are also used (Table 5, (All, All w/o patch) = -10.77% (tissue), 2.27% (fixation), -11.69% (procedure), 1.16% (staining)).

Dataset Modality Tissue Fixation Procedure Staining
TCGA Image 0.58 (0.56, 0.61) 0.86 (0.84, 0.88) 0.67 (0.62, 0.73) 0.86 (0.15, 1.00)
(external) Image w/o patch 0.57 (0.55, 0.59) 0.78 (0.75, 0.81) 0.72 (0.67, 0.77) 0.88 (0.40, 1.00)
All 0.81 (0.79, 0.83) 0.88 (0.85, 0.90) 0.67 (0.61, 0.72) 0.88 (0.24, 1.00)
All w/o patch 0.92 (0.91, 0.93) 0.84 (0.82, 0.86) 0.77 (0.72, 0.81) 0.87 (0.37, 1.00)
TTH Image 0.75 (0.69, 0.80) 0.99 (0.98, 1.00) 0.68 (0.60, 0.76) 0.85 (0.78, 0.91)
Image w/o patch 0.71 (0.66, 0.76) 0.98 (0.94, 1.00) 0.66 (0.57, 0.74) 0.82 (0.73, 0.89)
All 0.88 (0.85, 0.91) 0.98 (0.94, 1.00) 0.71 (0.63, 0.79) 0.84 (0.77, 0.90)
All w/o patch 0.95 (0.92, 0.96) 0.98 (0.95, 1.00) 0.77 (0.69, 0.84) 0.83 (0.76, 0.90)
Table 5: Ablation analysis on multiscale image information on the testing set, TCGA and TTH. We reported the values of macro AUC-ROC with 95% confidence intervals.

We argue that the inferior performance is due to the similarity in information between patch images and texts/structured data. Patch image is expected to be noisier than the other two modalities primarily due to image noise and patch sampling noise. The patch image only contains a narrow specific region. Therefore, the noise might come from capturing tissue images with similar visual features that are common across different tissue types. Since we only picked up three random patches, the patches may not be representative enough for a specific tissue type. This finding also leads to a potential future direction of developing a method to identify the label-specific region for patch generation without extensive annotation. Please refer to Appendix A5 for detailed discussions from a pathologist’s perspective.

Conclusions

Due to the need and challenges of acquiring well-curated metadata for large scale biobanking, in this study, we explored the potential for using a machine learning approach for slide-level metadata prediction. We proposed a multimodal multitask model to leverage information across different modalities for the prediction of several important metadata jointly. The results showed that the proposed framework outperformed single modality single task baseline. It also showed better performance when generalizing to the independent TCGA test set from a different source. This generalization is particularly important because its a better estimation of the true performance on other future unseen datasets. We expect this model to be useful for increasing the utilization of existing biobank archives, and the proposed framework to be a helpful reference for future multimodal multitask learning research in the biomedical space.

Acknowledgment

The authors thank Dr. Tiam Jaroensri for detailed comments and reviews, and all the members in Google Health for their kind suggestions. The results published are in whole or part based upon data generated by the TCGA Research Network: https://www.cancer.gov/tcga.

References

  • [1] Tadas Baltrušaitis, Chaitanya Ahuja, and Louis-Philippe Morency. Multimodal machine learning: A survey and taxonomy. IEEE TPAMI, 41(2):423–443, 2018.
  • [2] Rich Caruana, Shumeet Baluja, and Tom Mitchell. Using the future to” sort out” the present: Rankprop and multitask learning for medical risk evaluation. NIPS, 1996.
  • [3] Richard A Caruana. Multitask connectionist learning. Connectionist Models Summer School, 1993.
  • [4] PC Chen, K Gadepalli, R MacDonald, Y Liu, S Kadowaki, K Nagpal, T Kohlberger, J Dean, GS Corrado, JD Hipp, et al.

    An augmented reality microscope with real-time artificial intelligence integration for cancer diagnosis.

    Nature medicine, 2019.
  • [5] Yu-An Chung, Wei-Hung Weng, Schrasing Tong, and James Glass. Unsupervised cross-modal alignment of speech and text embedding spaces. NeurIPS, 2018.
  • [6] Luigi Coppola, Alessandra Cianflone, Anna Maria Grimaldi, Mariarosaria Incoronato, Paolo Bevilacqua, Francesco Messina, Simona Baselice, Andrea Soricelli, Peppino Mirabelli, and Marco Salvatore. Biobanking in health care: evolution and future directions. J Transl Med, 2019.
  • [7] Nicolas Coudray, Paolo Santiago Ocampo, Theodore Sakellaropoulos, Navneet Narula, Matija Snuderl, David Fenyö, Andre L Moreira, Narges Razavian, and Aristotelis Tsirigos.

    Classification and mutation prediction from non–small cell lung cancer histopathology images using deep learning.

    Nature Medicine, 24(10):1559, 2018.
  • [8] Jacob Devlin, Ming-Wei Chang, Kenton Lee, and Kristina Toutanova. BERT: Pre-training of deep bidirectional transformers for language understanding. NAACL-HLT, 2019.
  • [9] Long Duong, Trevor Cohn, Steven Bird, and Paul Cook. Low resource dependency parsing: Cross-lingual parameter sharing in a neural network parser. ACL-IJCNLP, 2015.
  • [10] Akira Fukui, Dong Huk Park, Daylen Yang, Anna Rohrbach, Trevor Darrell, and Marcus Rohrbach. Multimodal compact bilinear pooling for visual question answering and visual grounding. EMNLP, 2016.
  • [11] Huazhang Guo, Joe Birsa, Navid Farahani, Douglas J Hartman, Anthony Piccoli, Matthew O’Leary, Jeffrey McHugh, Mark Nyman, Curtis Stratman, Vanja Kvarnstrom, et al. Digital pathology and anatomic pathology laboratory information system integration to support digital pathology sign-out. J Pathol Inform, 7, 2016.
  • [12] Kaiming He, Xiangyu Zhang, Shaoqing Ren, and Jian Sun. Deep residual learning for image recognition. CVPR, 2016.
  • [13] Justin Johnson, Lamberto Ballan, and Li Fei-Fei. Love thy neighbors: Image annotation by exploiting image metadata. ICCV, 2015.
  • [14] Alex Kendall, Yarin Gal, and Roberto Cipolla. Multi-task learning using uncertainty to weigh losses for scene geometry and semantics. CVPR, 2018.
  • [15] Vinay Kumar, Abul K Abbas, Nelson Fausto, and Jon C Aster. Robbins and Cotran pathologic basis of disease. Elsevier/Saunders, 2014.
  • [16] Tsung-Yi Lin, Priya Goyal, Ross Girshick, Kaiming He, and Piotr Dollár. Focal loss for dense object detection. ICCV, 2017.
  • [17] Melissa Linkert, Curtis T Rueden, Chris Allan, Jean-Marie Burel, Will Moore, Andrew Patterson, Brian Loranger, Josh Moore, Carlos Neves, Donald MacDonald, et al. Metadata matters: access to image data in the real world. JCB, 189(5):777–782, 2010.
  • [18] Geert Litjens, Thijs Kooi, Babak Ehteshami Bejnordi, Arnaud Arindra Adiyoso Setio, Francesco Ciompi, Mohsen Ghafoorian, Jeroen Awm Van Der Laak, Bram Van Ginneken, and Clara I Sánchez. A survey on deep learning in medical image analysis. Med Image Anal, 42:60–88, 2017.
  • [19] Guanxiong Liu, Tzu-Ming Harry Hsu, Matthew McDermott, Willie Boag, Wei-Hung Weng, Peter Szolovits, and Marzyeh Ghassemi. Clinically accurate chest x-ray report generation. MLHC, 2019.
  • [20] Yun Liu, Krishna Gadepalli, Mohammad Norouzi, George E Dahl, Timo Kohlberger, Aleksey Boyko, Subhashini Venugopalan, Aleksei Timofeev, Philip Q Nelson, Greg S Corrado, et al. Detecting cancer metastases on gigapixel pathology images. arXiv, 2017.
  • [21] Gary Malet, Felix Munoz, Richard Appleyard, and William Hersh. A model for enhancing internet medical document retrieval with “medical core metadata”. JAMIA, 6(2):163–172, 1999.
  • [22] Kunal Nagpal, Davis Foote, Yun Liu, Po-Hsuan Cameron Chen, Ellery Wulczyn, Fraser Tan, Niels Olson, Jenny L Smith, Arash Mohtashamian, James H Wren, et al. Development and validation of a deep learning algorithm for improving gleason scoring of prostate cancer. Digital Medicine, 2(1):48, 2019.
  • [23] Jiquan Ngiam, Aditya Khosla, Mingyu Kim, Juhan Nam, Honglak Lee, and Andrew Y Ng. Multimodal deep learning. ICML, 2011.
  • [24] Nozomi Nori, Hisashi Kashima, Kazuto Yamashita, Hiroshi Ikai, and Yuichi Imanaka. Simultaneous modeling of multiple diseases for mortality prediction in acute hospital care. KDD, 2015.
  • [25] Lisa Posch, Maryam Panahiazar, Michel Dumontier, and Olivier Gevaert. Predicting structured metadata from unstructured metadata. Database, 2016.
  • [26] Sebastian Ruder. An overview of multi-task learning in deep neural networks. arXiv, 2017.
  • [27] Thomas Schlegl, Sebastian M Waldstein, Wolf-Dieter Vogl, Ursula Schmidt-Erfurth, and Georg Langs.

    Predicting semantic descriptions from medical images with convolutional neural networks.

    IPMI, 2015.
  • [28] R Todd Stephens. Utilizing metadata as a knowledge communication tool. IPCC, 2004.
  • [29] Cathie Sudlow, John Gallacher, Naomi Allen, Valerie Beral, Paul Burton, John Danesh, Paul Downey, Paul Elliott, Jane Green, Martin Landray, et al. UK biobank: an open access resource for identifying the causes of a wide range of complex diseases of middle and old age. PLoS medicine, 12(3):e1001779, 2015.
  • [30] Harini Suresh, Nathan Hunt, Alistair Johnson, Leo Anthony Celi, Peter Szolovits, and Marzyeh Ghassemi. Clinical intervention prediction and understanding with deep neural networks. MLHC, 2017.
  • [31] Wei-Hung Weng, Yu-An Chung, and Peter Szolovits. Unsupervised clinical language translation. KDD, 2019.
  • [32] Wei-Hung Weng, Kavishwar B Wagholikar, Alexa T McCray, Peter Szolovits, and Henry C Chueh. Medical subdomain classification of clinical notes using a machine learning-based natural language processing approach. BMC Med Inform Decis, 2017.
  • [33] Ka-Ping Yee, Kirsten Swearingen, Kevin Li, and Marti Hearst. Faceted metadata for image search and browsing. CHI, 2003.

Appendix

A1 Usage of Case-level Structured Data

We used the primary cancer site of the patient as the source of case-level structured data. Even though the primary cancer site seems to be similar to the tissue type, they are different from the pathology perspective. Primary cancer site is the case-level information yet tissue type is slide-level information (Figure 1, Appendix Table A1). The tissue type of a slide can be completely different from the case-level primary cancer site even though they are from the same patient. For example, a patient with the primary cancer site of the breast may have multiple pathology slides. Some of the slides can be lymph node or skin tissue due to metastasis and invasion.

Visit Generated data
Time Reason Case-level Slide-level
1
Breast mass,
arrange biopsy
Clinical note1
2 Biopsy
Pathology report1
(benign)
Slide images2
3 Followup Clinical note1
4
Another mass,
arrange biopsy
Clinical note1
5 Biopsy
Pathology report1
(high grade IDC)
Slide images3
6
Followup,
arrange surgery
Clinical note1
7 Surgery
Pathology report1
(IDC, stage 2a, T2N1M0)
surgery report1
Slide images10
(both breast and lymph node tissues,
with frozen and FFPE fixations,
H&E and IHC staining)
Table 1: An example of patient visits from complaining a breast mass to surgery. The pathology data in case-level and slide-level provide different information of the disease.

A2 Derivation of the Multi-objective Loss

Given the metadata prediction task , we make the assumption that the task predicted output for the training input returned by the neural network under the weight set

, the noise scalar (error) of the output is zero-mean and normally distributed with the standard deviation of

. Thus, we want to find the stationary points of the Gaussian log likelihood:

(11)

We set the partial derivation of the Gaussian log likelihood with respect to the variance

to zero and obtain the update equation for :

(12)
(13)
(14)
(15)
(16)

where is the size of training data. Then we replace the in the log likelihood function and get the following simplified version:

(17)
(18)

To maximize the likelihood, we convert the above to the format of loss function and minimize it:

(19)

The above loss function can be optionally exponentiate back as:

(20)

Where we can see the loss is a geometric average instead of the arithmetic mean.

Abbreviation Description
AUC-ROC Area under receiver operating characteristic curve
AUC-PR Area under precision-recall curve
BERT Bidirectional Encoder Representations from Transformers
CBP Compact bilinear pooling
CE Cross entropy
CSP Count sketch projection
FFPE Formalin-fixed paraffin-embedded fixation
FFT Fourier transformation
H&E Hematoxylin and eosin staining
H&N Head and neck tissue
IHC Immunohistochemical staining
LN Lymph node tissue
MTL Multitask learning
TCGA The Cancer Genome Atlas
TTH Tertiary teaching hospital dataset
UGI Upper gastrointestinal tissue
Table 2: Dictionary of abbreviations.

A3 Evaluation of Model Performance

Except for the model performance demonstrated in the main context (Table 2-5), we provide the additional model evaluation results in this supplemental section. For different experiments in the main context, we reported the values of AUC-PR, which consider the trade-off between precision and recall, on both TCGA and TTH test sets in Table A3, A5, A7, A9. We also demonstrate the model evaluation of both AUC-ROC and AUC-PR on the validation set in Table A4, A6, A8, A10.

Dataset Cfg Tissue Fixation Procedure Staining
TCGA SS 0.07 (0.05, 0.10) 0.85 (0.82, 0.87) 0.57 (0.54, 0.60) 0.74 (0.50, 1.00)
SM 0.15 (0.13, 0.17) 0.83 (0.80, 0.85) 0.56 (0.53, 0.60) 0.73 (0.50, 1.00)
MS 0.21 (0.15, 0.29) 0.91 (0.89, 0.93) 0.56 (0.53, 0.60) 0.66 (0.50, 1.00)
MM 0.37 (0.34, 0.40) 0.87 (0.84, 0.89) 0.57 (0.54, 0.60) 0.72 (0.50, 1.00)
TTH SS 0.36 (0.21, 0.52) 0.97 (0.87, 1.00) 0.67 (0.59, 0.74) 0.82 (0.74, 0.89)
SM 0.41 (0.32, 0.50) 0.97 (0.88, 1.00) 0.66 (0.57, 0.74) 0.83 (0.75, 0.90)
MS 0.63 (0.47, 0.77) 0.87 (0.73, 0.99) 0.67 (0.59, 0.76) 0.80 (0.73, 0.87)
MM 0.59 (0.51, 0.66) 0.94 (0.84, 1.00) 0.71 (0.63, 0.78) 0.81 (0.73, 0.88)
Table 3: Performance between different modality-task settings on the testing set, TCGA and TTH. TCGA is specifically for external validation, which has the different data distribution from the training set. We reported the values of macro AUC-PR with 95% confidence intervals. SS: single modal single task; SM: single modal multitask; MS: multimodal single task; MM: multimodal multitask.
Metric Cfg Tissue Fixation Procedure Staining
AUC-ROC SS 0.72 (0.61, 0.82) 0.99 (0.94, 1.00) 0.70 (0.61, 0.78) 0.83 (0.74, 0.90)
SM 0.78 (0.72, 0.82) 0.99 (0.95, 1.00) 0.69 (0.60, 0.78) 0.83 (0.75, 0.90)
MS 0.90 (0.85, 0.95) 0.95 (0.83, 1.00) 0.70 (0.62, 0.78) 0.81 (0.72, 0.89)
MM 0.90 (0.86, 0.92) 0.98 (0.91, 1.00) 0.73 (0.63, 0.81) 0.82 (0.74, 0.89)
AUC-PR SS 0.35 (0.20, 0.50) 0.96 (0.85, 1.00) 0.70 (0.61, 0.79) 0.79 (0.71, 0.87)
SM 0.45 (0.35, 0.53) 0.97 (0.89, 1.00) 0.69 (0.60, 0.77) 0.80 (0.72, 0.88)
MS 0.63 (0.46, 0.78) 0.87 (0.70, 0.98) 0.70 (0.62, 0.78) 0.78 (0.70, 0.86)
MM 0.62 (0.53, 0.70) 0.93 (0.81, 1.00) 0.72 (0.64, 0.81) 0.79 (0.70, 0.86)
Table 4: Performance between different modality-task settings on the validation set. We reported both the values of macro AUC-ROC and AUC-PR with 95% confidence intervals. SS: single modal single task; SM: single modal multitask; MS: multimodal single task; MM: multimodal multitask.
Dataset MM-Strategy Tissue Fixation Procedure Staining
TCGA Concat 0.37 (0.34, 0.40) 0.87 (0.84, 0.89) 0.57 (0.54, 0.60) 0.72 (0.50, 1.00)
CBP 0.74 (0.73, 0.76) 0.52 (0.49, 0.55) 0.52 (0.51, 0.54) 0.63 (0.50, 1.00)
TTH Concat 0.59 (0.51, 0.66) 0.94 (0.84, 1.00) 0.71 (0.63, 0.78) 0.81 (0.73, 0.88)
CBP 0.64 (0.57, 0.70) 0.52 (0.48, 0.57) 0.53 (0.47, 0.61) 0.49 (0.44, 0.55)
Table 5: Performance on the testing set, TCGA and TTH. TCGA is specifically for external validation, which has the different data distribution from the training set. We reported the values of macro AUC-PR with 95% confidence intervals.
Metric MT-Strategy Tissue Fixation Procedure Staining
AUC-ROC Concat 0.90 (0.86, 0.92) 0.98 (0.91, 1.00) 0.73 (0.63, 0.81) 0.82 (0.74, 0.89)
CBP 0.90 (0.87, 0.93) 0.51 (0.29, 0.74) 0.52 (0.43, 0.62) 0.47 (0.38, 0.58)
AUC-PR Concat 0.62 (0.53, 0.70) 0.93 (0.81, 1.00) 0.72 (0.64, 0.81) 0.79 (0.70, 0.86)
CBP 0.66 (0.57, 0.72) 0.52 (0.48, 0.58) 0.55 (0.48, 0.63) 0.50 (0.45, 0.57)
Table 6: Performance on the validation set. We reported both the values of macro AUC-ROC and AUC-PR with 95% confidence intervals.
Dataset Modality Tissue Fixation Procedure Staining
TCGA All 0.37 (0.34, 0.40) 0.87 (0.84, 0.89) 0.57 (0.54, 0.60) 0.72 (0.50, 1.00)
All w/o text 0.20 (0.17, 0.22) 0.83 (0.81, 0.86) 0.57 (0.54, 0.60) 0.71 (0.50, 1.00)
All w/o structured 0.29 (0.26, 0.31) 0.85 (0.82, 0.87) 0.54 (0.52, 0.58) 0.70 (0.50, 1.00)
TTH All 0.59 (0.51, 0.66) 0.94 (0.84, 1.00) 0.71 (0.63, 0.78) 0.81 (0.73, 0.88)
All w/o text 0.42 (0.34, 0.50) 0.93 (0.83, 1.00) 0.67 (0.59, 0.76) 0.81 (0.74, 0.88)
All w/o structured 0.54 (0.46, 0.62) 0.93 (0.81, 1.00) 0.69 (0.60, 0.76) 0.81 (0.72, 0.88)
Table 7: Performance on the testing set, TCGA and TTH. TCGA is specifically for external validation, which has the different data distribution from the training set. We reported the values of macro AUC-PR with 95% confidence intervals.
Metric Modality Tissue Fixation Procedure Staining
AUC-ROC All 0.90 (0.86, 0.92) 0.98 (0.91, 1.00) 0.73 (0.63, 0.81) 0.82 (0.74, 0.89)
All w/o text 0.81 (0.76, 0.85) 0.98 (0.92, 1.00) 0.69 (0.61, 0.77) 0.82 (0.74, 0.89)
All w/o structured 0.87 (0.83, 0.90) 0.98 (0.94, 1.00) 0.70 (0.63, 0.78) 0.81 (0.74, 0.88)
AUC-PR All 0.62 (0.53, 0.70) 0.93 (0.81, 1.00) 0.72 (0.64, 0.81) 0.79 (0.70, 0.86)
All w/o text 0.46 (0.36, 0.55) 0.92 (0.80, 1.00) 0.69 (0.61, 0.77) 0.78 (0.70, 0.86)
All w/o structured 0.56 (0.46, 0.64) 0.93 (0.82, 1.00) 0.70 (0.62, 0.78) 0.78 (0.69, 0.85)
Table 8: Performance on the validation set. We reported both the values of macro AUC-ROC and AUC-PR with 95% confidence intervals.
Dataset Modality Tissue Fixation Procedure Staining
TCGA Image 0.14 (0.13, 0.16) 0.85 (0.82, 0.87) 0.57 (0.54, 0.61) 0.74 (0.50, 1.00)
Image w/o patch 0.12 (0.11, 0.13) 0.77 (0.73, 0.80) 0.59 (0.56, 0.63) 0.67 (0.50, 1.00)
All 0.37 (0.34, 0.40) 0.87 (0.84, 0.89) 0.57 (0.54, 0.60) 0.72 (0.50, 1.00)
All w/o patch 0.64 (0.61, 0.66) 0.84 (0.81, 0.86) 0.61 (0.57, 0.65) 0.68 (0.50, 1.00)
TTH Image 0.40 (0.31, 0.48) 0.97 (0.89, 1.00) 0.67 (0.59, 0.75) 0.82 (0.75, 0.90)
Image w/o patch 0.29 (0.22, 0.37) 0.93 (0.81, 1.00) 0.65 (0.57, 0.73) 0.79 (0.70, 0.87)
All 0.59 (0.51, 0.66) 0.94 (0.84, 1.00) 0.71 (0.63, 0.78) 0.81 (0.73, 0.88)
All w/o patch 0.74 (0.67, 0.81) 0.91 (0.79, 0.99) 0.76 (0.69, 0.83) 0.81 (0.74, 0.89)
Table 9: Performance on the testing set, TCGA and TTH. TCGA is specifically for external validation, which has the different data distribution from the training set. We reported the values of macro AUC-PR with 95% confidence intervals.
Metric Modality Tissue Fixation Procedure Staining
AUC-ROC Image 0.78 (0.73, 0.83) 0.99 (0.94, 1.00) 0.70 (0.61, 0.78) 0.83 (0.75, 0.90)
Image w/o patch 0.74 (0.69, 0.79) 0.98 (0.91, 1.00) 0.69 (0.60, 0.77) 0.78 (0.70, 0.86)
All 0.90 (0.86, 0.92) 0.98 (0.91, 1.00) 0.73 (0.63, 0.81) 0.82 (0.74, 0.89)
All w/o patch 0.95 (0.93, 0.97) 0.98 (0.95, 1.00) 0.79 (0.71, 0.85) 0.81 (0.72, 0.88)
AUC-PR Image 0.44 (0.35, 0.53) 0.96 (0.86, 1.00) 0.69 (0.61, 0.78) 0.80 (0.70, 0.87)
Image w/o patch 0.31 (0.23, 0.40) 0.91 (0.76, 1.00) 0.68 (0.60, 0.77) 0.76 (0.66, 0.85)
All 0.62 (0.53, 0.70) 0.93 (0.81, 1.00) 0.72 (0.64, 0.81) 0.79 (0.70, 0.86)
All w/o patch 0.77 (0.70, 0.83) 0.90 (0.71, 0.99) 0.78 (0.70, 0.85) 0.79 (0.70, 0.87)
Table 10: Performance on the validation set. We reported both the values of macro AUC-ROC and AUC-PR with 95% confidence intervals.
Figure 4: Examples of the cases that the models with patch integration fail.

A4 Relations between Multiscale Imaging and Prediction Tasks

Both slide- and patch-level images are essential for the metadata prediction from the pathology perspective.

The tissue type prediction requires patch images to observe cellular and regional tissue information. This is hard at the whole slide level at low magnification. Since the same tissue type specimen can be processed in various ways, it can eventually result in different shapes at low magnification and therefore the whole slide image can’t be a good pattern for identifying the tissue type. High magnification images that demonstrate cell morphology and tissue structure are essential if there are no additional modalities used.

For the fixation type prediction, it is difficult to identify it at whole slide level but relatively easier in the patch since the intracellular matrix in frozen section is usually not preserved well and fragmented at high magnification due to the fast but less delicate tissue fixation process. Also, the frozen section staining process is not robust as the FFPE fixation and therefore the images usually have less contrast. However, the contrast issue can be found not only because of the fixation type but also other issues, such as stain normalization problem. Therefore, patch-level images are still required for better fixation type prediction.

Identifying the procedure type is challenging at both slide and patch level due to the definition ambiguity of the procedure. The biopsy can be needle core biopsy, incisional biopsy or excisional biopsy. The latter two biopsy types can be very similar to surgical resection, and therefore hard to be discriminated from each other. This is also challenging for an annotation since every pathologist and specialist has a different interpretation of the procedure. For example, we usually use incisional/excisional biopsy for skin surgery rather than calling it major resection. Instead of image modality, we may rely on other inputs such as free text reports to improve model performance.

Staining type prediction has fewer issues but it highly depends on color normalization across hospitals and labs. Even for the same hospitals, preservation and timing are also critical for the staining quality.

A5 Pathology Perspective of Usage of Multiscale Imaging

In Table 5, we identified that patch integration didn’t work well while other modalities (text and structured data) were used. We consulted the board-certified pathologists to ensure our findings and interpretation are reasonable. We demonstrate some examples in Figure 4 that were misclassified by the model using patch information, yet correctly classified by the model without the patch.

As we mentioned in the main context, the patch information may not be representative enough through the generation process, which is commonly used for most machine learning tasks in pathology. For example, we expect to identify the breast tissue by seeing the breast epithelial or tubular structures. However, the patch may focus solely on fat, muscular or connective tissues (e.g. collagen fibers), which are general across many tissue types and therefore tend to be misclassified to the head and neck tissue, which has all these features in the submucosal layer (Figure 4 Case 1, 3, 4).

The case with the patches that are cell-abundant may also tend to be misclassified. For instance, the dense regions of the thyroid tissue are similar to those in the lymph node tissue (Figure 4 Case 2). Even more, there are some regions in head and neck is gathered the lymphatic cells (Figure 4 Case 5). Including such correct but misleading patches may bias the result toward the incorrect prediction. i.e. from head and neck tissue to lymph node tissue.

Finally, the patch of cancer metastasis is also a source of misclassification between primary cancer organ and metastatic site. e.g. breast and lymph node (Figure 4 Case 6). Even though the patch information is helpful while other modalities such as reports are not used, further patch processing is required to obtain many representative patches for better integration.
