1 Introduction

Multimodal inference across image data and text has the potential to improve understanding information of different modalities and acquiring new knowledge. Recent studies of multimodal inference provide challenging tasks such as visual question answering Antol et al. (2015); Hudson and Manning (2019); Acharya et al. (2019) and visual reasoning Suhr et al. (2017); Vu et al. (2018); Xie et al. (2018).

Grounded representations from image-text pairs are useful to solve such inference tasks. With the development of large-scale corpora such as Visual Genome Krishna et al. (2017) and methods of automatic graph generation from an image Xu et al. (2017); Qi et al. (2019), we can obtain structured representations for images and sentences such as scene graph Johnson et al. (2015), a visually-grounded graph over object instances in an image.

While graph representations provide more interpretable representations for text and image than embedding them into high-dimensional vector spaces

Frome et al. (2013); Norouzi et al. (2014), there remain two challenges: (i) to capture complex logical meanings such as negation and quantification, and (ii) to perform logical inferences on them.

 No cat is next to a pumpkin. (1)  There are at least two cats. (2) All pumpkins are orange. (3)

Figure 1: An example of visual-textual entailment. An image paired with logically complex statements, namely, negation (1), numeral (2), and quantification (3), leads to a true () or false () judgement.

For example, consider the task of checking if each statement in Figure 1 is true or false under the situation described in the image. The statements (1) and (2) are false, while (3) is true. To perform this task, it is necessary to handle semantically complex phenomena such as negation, numeral, and quantification.

To enable such advanced visual-textual inferences, it is desirable to build a framework for representing richer semantic contents of texts and images and handling inference between them. We use logic-based representations as unified meaning representations for texts and images and present an unsupervised inference system that can prove entailment relations between them. Our visual-textual inference system combines semantic parsing via Combinatory Categorial Grammar (CCG; Steedman (2000)) and first-order theorem proving Blackburn and Bos (2005). To describe information in images as logical formulas, we propose a method of transforming graph representations into logical formulas, using the idea of predicate circumscription McCarthy (1986), which complements information implicit in images using the closed world assumption. Experiments show that our system can perform visual-textual inference with semantically complex sentences.

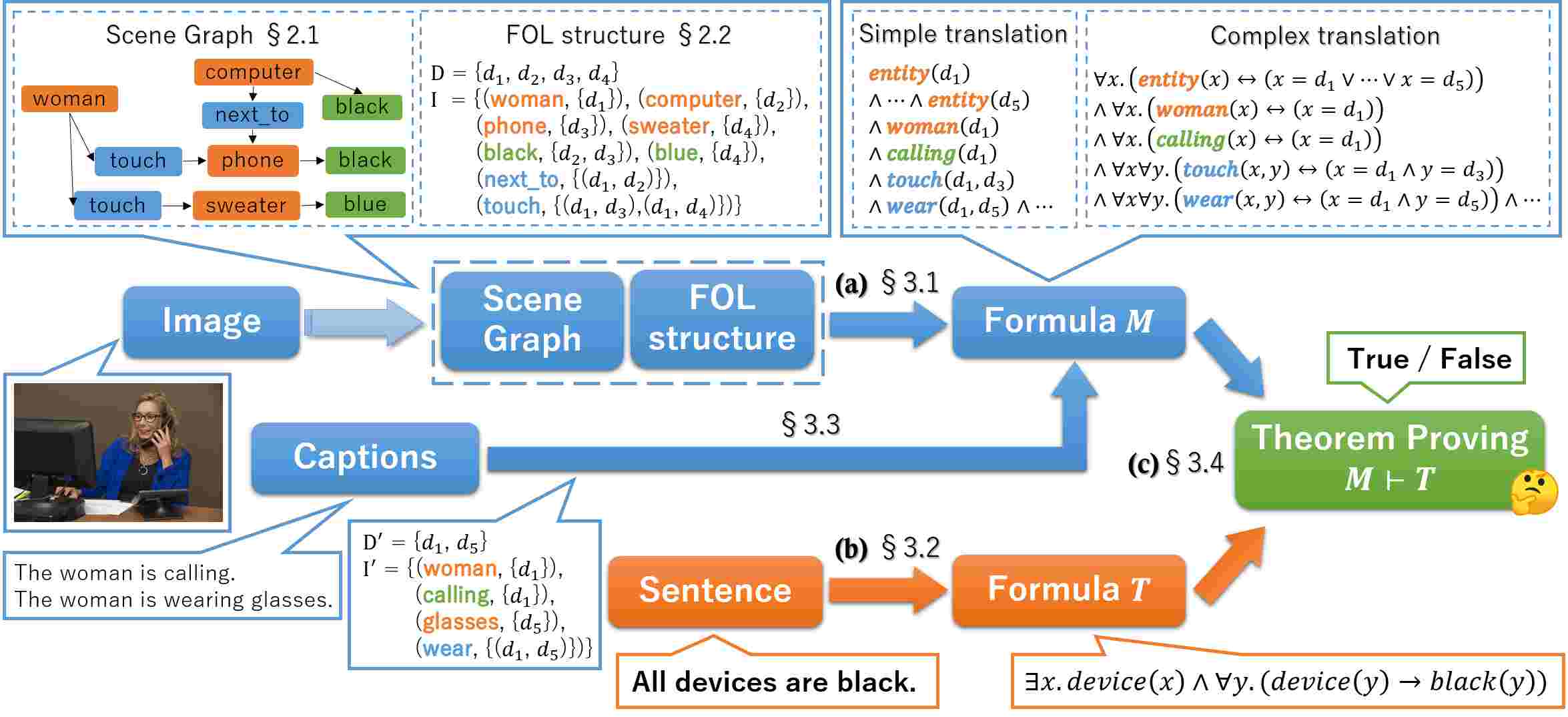

Figure 2: Overview of the proposed system. In this work, we assume the input image is processed into an FOL structure or scene graph a priori. The system consists of three parts: (a) Graph Translator converts an image annotated with a scene graph/FOL structure to formula ; (b) Semantic parser maps a sentence to formula via CCG parsing; (c) Inference Engine checks whether entails by FOL theorem proving.

2 Background

There are two types of grounded meaning representations for images: scene graphs and first-order logic (FOL) structures. Both characterize objects and their semantic relationships in images.

2.1 Scene Graph

A scene graph, as proposed in Johnson et al. (2015), is a graphical representation that depicts objects, their attributes, and relations among them occurring in an image. An example is given in Figure 2. Nodes in a scene graph correspond to objects with their categories (e.g. woman) and edges correspond to the relationships between objects (e.g. touch

). Such a graphical representation has been shown to be useful in high-level tasks such as image retrieval

Johnson et al. (2015); Schuster et al. (2015) and visual question answering Teney et al. (2017). Our proposed method builds on the idea that these graph representations can be translated into logical formulas and be used in complex logical reasoning.

2.2 FOL Structure

In logic-based approaches to semantic representations, FOL structures (also called FOL models) are used to represent semantic information in images (Hürlimann and Bos, 2016), An FOL structure is a pair where is a domain (also called universe) consisting of all the entities in an image and is an interpretation function that maps a 1-place predicate to a set of entities and a 2-place predicate to a set of pairs of entities, and so on; for instance, we write if the entity is a man, and if is next to . FOL structures have clear correspondence with the graph representations of images in that they both capture the categories, attributes and relations holding of the entities in an image. For instance, the FOL structure and scene graph in the upper left of Figure 2 have exactly the same information. Thus, the translation from graphs to formulas can also work for FOL structures (see §3.1).

3 Multimodal Logical Inference System

Figure 2 shows the overall picture of the proposed system. We use formulas of FOL with equality as unified semantic representations for text and image information. We use 1-place and 2-place predicates for representing attributes and relations, respectively. The language of FOL consists of (i) a set of atomic formulas, (ii) equations of the form , and (iii) complex formulas composed of negation (), conjunction (), disjunction (), implication (), and universal and existential quantification ( and ). The expressive power of the FOL language provides a structured representation that captures not only objects and their semantic relationships but also those complex expressions including negation, quantification and numerals.

The system takes as input an image and a sentence and determines whether entails , in other words, is true with respect to the situation described in . In this work, we assume the input image is processed into a scene graph/FOL structure using an off-the-shelf converter Xu et al. (2017); Qi et al. (2019).

To determine entailment relations between sentences and images, we proceed in three steps. First, graph translator maps a graph to a formula . We develop two ways of translating graphs to FOL formulas (§3.1). Second, semantic parser takes a sentence as input and return a formula via CCG parsing. We improve a semantic parser in CCG for handling numerals and quantification (§3.2). Additionally, we develop a method for utilizing image captions to extend with information obtainable from their logical formulas (§3.3). Third, inference engine checks whether entails , written , using FOL theorem prover (§3.4). Note that FOL theorem provers can accept multiple premises, , converted from images and/or sentences and check if holds or not. Here we focus on single-premise visual inference.

3.1 Graph Translator

We present two ways of translating graphs (or equivalently, FOL structures) to formulas: a simple translation (Tr) and a complex translation (Tr). These translations are defined in Table 1.

Tr =

Tr =

Tr =

Tr =

Tr =

Tr =

Table 1: Definition of two types of translation, TR and TR. Here we assume that , , and .

For example, consider a graph consisting of the domain , where we have as properties and as relations. The simple translation TR gives the formula (S) below, which simply conjoins all the atomic information. (S) However, this does not capture the negative information that is the only entity that has the property ; similarly for the other predicates. To capture it, we use the complex translation Tr, which gives the following formula:

(C)

This formula says that is the only man in the domain, is the only hat in the domain, and so on. This way of translation can be regarded as an instance of Predicate Circumscription McCarthy (1986), which complement negative information using the closed world assumption. The translation Tr is useful for handling formulas with negation and universal quantification.

One drawback here is that since (C) involves complex formulas, it increases the computational cost in theorem proving. To remedy this problem, we use two types of translation selectively, depending on the polarity of the formula to be proved. Table 2

shows the definition to classify each FOL formula

into positive and negative one. For instance, the formulas , which correspond to A cat touches a dog, is a positive formula, while , which corresponds to No cats are white, is a negative formula.

  1. , if is an atomic formula.

  2. , if is an equation of the form .

  3. , if and .

  4. , if or .

  5. , if and .

  6. , if or .

  7. , if .

  8. , if .

Table 2: Positive and negative formulas

3.2 Semantic Parser

We use ccg2lambda Mineshima et al. (2015), a semantic parsing system based on CCG to convert sentences to formulas, and extend it to handle numerals and quantificational sentences. In our system, a sentence with numerals, e.g., There are (at least) two cats, is compositionally mapped to the following FOL formula: (Num) Also, to capture the existential import of universal sentences, the system maps the sentence All cats are white to the following one: (Q)

3.3 Extending Graphs with Captions

Compared with images, captions can describe a variety of properties and relations other than spatial and visual ones. By integrating caption information into FOL structures, we can obtain semantic representations reflecting relations that can be described only in the caption.

We convert captions into FOL structures (= graphs) using our semantic parser. We only consider the cases where the formulas obtained are composed of existential quantifiers and conjunctions. For extending FOL structures with caption information, it is necessary to analyze co-reference between the entities occurring in sentences and images. We add a new predicate to an FOL structure if the co-reference is uniquely determined.

As an illustration, consider the captions and the FOL structure which represents the image shown in Figure 2.111 Note that there is a unique correspondence between FOL structures and scene graphs. For the sake of illustration, we use FOL structures in this subsection. The captions, (3.3a) and (3.3a), are mapped to the formulas (3.3a) and (3.3b), respectively, via semantic parsing.

The woman is calling. The woman is wearing glasses.

Then, the information in (3.3b) and (3.3b) can be added to , because there is only one woman in and thus the co-reference between the woman in the caption and the entity is uniquely determined. Also, a new entity for glasses is added because there are no such entities in the structure . Thus we obtain the following new structure () extended with the information in the captions.

3.4 Inference Engine

Theorem prover is a method for judging whether a formula entails a formula . We use Prover9222http://www.cs.unm.edu/ mccune/prover9/ as an FOL prover for inference. We set timeout (10 sec) to judge that does not entail .

4 Experiment

We evaluate the performance of the proposed visual-textual inference system. Concretely, we formulate our task as image retrieval using query sentences and evaluate the performance in terms of the number of correctly returned images. In particular, we focus on semantically complex sentences containing numerals, quantifiers, and negation, which are difficult for existing graph representations to handle.

Dataset:

We use two datasets: Visual Genome Krishna et al. (2017), which contains pairs of scene graphs and images, and GRIM dataset Hürlimann and Bos (2016), which annotates an FOL structure of an image and two types of captions (true and false sentences with respect to the image). Note that our system is fully unsupervised and does not require any training data; in the following, we describe only test set creation procedure.

Pattern Phenomena
There is a . Con
There are at least . Num
All are . Q
. Rel
No is . Neg
All or . Con, Q
Every is not . Num, Rel, Neg
Table 3: Examples of sentence templates. : objects, : attributes, : relations.
Sentences Phenomena Count
There is a long red bus. Con 3
There are at least three men. Num 32
All windows are closed. Q 53
Every green tree is tall. Q 18
A man is wearing a hat. Rel 12
No umbrella is colorful. Neg 197
There is a train which is not red. Neg 6
There are two cups or three cups. Con, Num 5
All hairs are black or brown. Con, Q 46
A gray or black pole has two signs. Con, Num, Rel 6
Three cars are not red. Num, Neg 28
All women wear a hat. Q, Rel 2
A man is not walking on a street. Rel, Neg 76
A clock on a tower is not black. Rel, Neg 7
Two women aren’t having black hair. Num, Rel, Neg 10
Every man isn’t eating anything. Q, Rel, Neg 67
Table 4: Examples of query sentences In §4.1; Count shows the number of images describing situations under which each sentence is true.

For the experiment using Visual Genome, we randomly extracted 200 images as test data, and a separate set of 4,000 scene graphs for creating query sentences; we made queries by the following steps. First, we prepared sentence templates focusing on five types of linguistic phenomena: logical connective (Con), numeral (Num), quantifier (Q), relation (Rel) and negation (Neg). See Table 3 for the templates. Then, we manually extracted object, attribute and relation types from the frequent ones (appearing more than 30 times) in the extracted 4,000 graphs, and created queries by replacing , and in the templates with them. As a result, we obtained 37 semantically complex queries as shown in Table 4. To assign correct images to each query, two annotators judged whether each of the test images entails the query sentence. If the two judgments disagreed, the first author decided the correct label.

In the experiment using GRIM, we adopted the same procedure to create a test dataset and obtained 19 query sentences and 194 images.

One of the issues in this dataset is that annotated FOL structures contain only spatial relations such as next_to and near; to handle queries containing general relations such as play and sing, our system needs to utilize annotated captions (§3.3). To evaluate if our system can effectively extract information from captions, we split Rel of above linguistic phenomena into spatial relation (Spa-Rel; relations about spatial information) and general relation (Gen-Rel; other relations), and report the scores separately in terms of these categories.

4.1 Experimental Results on Visual Genome

Firstly, we evaluate the performance in terms of our Graph translator’s conversion algorithm. As described in §3.1, there are two translation algorithms; simple one that conjunctively enumerates all relation in a graph (Simple in the following), and one that selectively employs translation based on Predicate Circumscription (Hybrid).

Phenomena (#) Simple Hybrid
Con (17) 36.40 41.66
Num (9) 43.07 45.45
Q (9) 8.59 28.18
Rel (11) 25.13 35.10
Neg (11) 66.38 73.39
Table 5: Experimental results on Visual Genome (F1). “#” stands for the number of query sentences categorized into that phenomenon.

Table 5 shows image retrieval scores per linguistic phenomenon, macro averages of F1 scores of queries labeled with the respective phenomena. Hybrid shows better performance for all phenomena than Simple one, improving by 19.59% on Q, 9.97% on Rel and 7.01% on Neg, over Simple, suggesting that the proposed complex translation is useful for inference using semantically complex sentences including quantifier and negation. Figure 3 shows retrieved results for a query (a) Every green tree is tall and (b) No umbrella is colorful, each containing universal quantifier and negation, respectively. Our system successfully performs inference on these queries, returning the correct images, while excluding wrong ones (note that the third picture in (a) contains short trees).

(a) Every green tree is tall.
(b) No umbrella is colorful.
Figure 3: Predicted images of our system; Images in green entail the queries, while those in red do not.

Error Analysis:

One of the reasons for the lower F1 of Q is the gap of annotation rule between Visual Genome and our test set. Quantifiers in natural language often involve vagueness Pezzelle et al. (2018). for example, the interpretation of everyone depends on what counts as an entity in the domain. Difficulties in fixing the interpretation of quantifiers caused the lower performance.

The low F1 in Rel is primarily due to lexical gaps between formulas of a query and an image. For example, sentences All women wear a hat and All women have a hat are the same in their meaning. However, if a scene graph contains only wear relation, our system can handle the former query, while not the other. In future work, we will extend our system with a knowledge insertion mechanism Martínez-Gómez et al. (2017).

4.2 Experimental Results on GRIM

We test our system on GRIM dataset. As noted above, the main issue on this dataset is the lack of relations other than spatial ones. We evaluate if our system can be enhanced using the information contained in captions. The F1 scores of the Hybrid system with captions are the same with the one without captions on the sets except for Gen-Rel;333 Con: 91.41%, Num: 95.24%, Q: 78.84%, Spa-Rel: 88.57%, Neg: 62.57%. on the subset, the F1 score of the former improves by 60% compared to the latter, which suggests that captions can be integrated into FOL structures for the improved performance.

5 Conclusion

We have proposed a logic-based system to achieve advanced visual-textual inference, demonstrating the importance of building a framework for representing the richer semantic content of texts and images. In the experiment, we have shown that our CCG-based pipeline system, consisting of graph translator, semantic parser and inference engine, can perform visual-textual inference with semantically complex sentences, without requiring any supervised data.
