Multimodal Compact Bilinear Pooling for Multimodal Neural Machine Translation

by   Jean-Benoit Delbrouck, et al.

In state-of-the-art Neural Machine Translation, an attention mechanism is used during decoding to enhance the translation. At every step, the decoder uses this mechanism to focus on different parts of the source sentence to gather the most useful information before outputting its target word. Recently, the effectiveness of the attention mechanism has also been explored for multimodal tasks, where it becomes possible to focus both on sentence parts and image regions. Approaches to pool two modalities usually include element-wise product, sum or concatenation. In this paper, we evaluate the more advanced Multimodal Compact Bilinear pooling method, which takes the outer product of two vectors to combine the attention features for the two modalities. This has been previously investigated for visual question answering. We try out this approach for multimodal image caption translation and show improvements compared to basic combination methods.



There are no comments yet.


page 1

page 2

page 3

page 4


An empirical study on the effectiveness of images in Multimodal Neural Machine Translation

In state-of-the-art Neural Machine Translation (NMT), an attention mecha...

Multimodal Compact Bilinear Pooling for Visual Question Answering and Visual Grounding

Modeling textual or visual information with vector representations train...

Hadamard Product for Low-rank Bilinear Pooling

Bilinear models provide rich representations compared with linear models...

Dynamic Context-guided Capsule Network for Multimodal Machine Translation

Multimodal machine translation (MMT), which mainly focuses on enhancing ...

Supervised Visual Attention for Simultaneous Multimodal Machine Translation

Recently, there has been a surge in research in multimodal machine trans...

Zero-resource Machine Translation by Multimodal Encoder-decoder Network with Multimedia Pivot

We propose an approach to build a neural machine translation system with...

Bilinear Attention Networks

Attention networks in multimodal learning provide an efficient way to ut...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

In machine translation, neural networks have attracted a lot of research attention. Recently, the attention-based encoder-decoder framework

(Sutskever et al., 2014; Bahdanau et al., 2014)

has been largely adopted. In this approach, Recurrent Neural Networks (RNNs) map source sequences of words to target sequences. The attention mechanism is learned to focus on different parts of the input sentence while decoding. Attention mechanisms have been shown to work with other modalities too, like images, where their are able to learn to attend to salient parts of an image, for instance when generating text captions

(Xu et al., 2015)

. For such applications, Convolutional neural networks (CNNs) have shown to work best to represent images

(He et al., 2016).

Multimodal models of texts and images enable applications such as visual question answering or multimodal caption translation. Also, the grounding of multiple modalities against each other may enable the model to have a better understanding of each modality individually, such as in natural language understanding applications.

The efficient integration of multimodal information still remains a challenging task though. Both Huang et al. (2016) and Caglayan et al. (2016) made a first attempt in multimodal neural machine translation. Recently, Calixto et al. (2017) showed an improved architecture that significantly surpassed the monomodal baseline. Multimodal tasks require combining diverse modality vector representations with each other. Bilinear pooling models Tenenbaum & Freeman (1997), which computes the outer product of two vectors (such as the visual and textual representations), may be more expressive than basic combination methods such as element-wise sum or product. Because of its high and intractable dimensionality (), Gao et al. (2016) proposed a method that relies on Multimodal Compact Bilinear pooling (MCB) to efficiently compute a joint and expressive representation combining both modalities, in a visual question answering tasks. This approach has not been investigated previously for multimodal caption translation, which is what we focus on in this paper.


Algorithm 1 Multimodal CBP
3:for do
4:  for do
5:    sample from
6:    sample from
10:  for do
12:  return

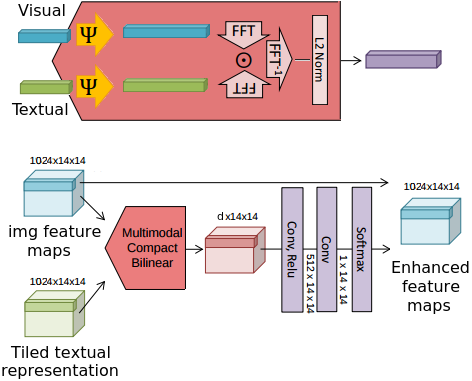

Figure 1:
