Each second, billions of images and texts that capture a wide range of events happening around us are uploaded to social media platforms from all over the world. At the same time, the fields of Computer Vision (CV) and Natural Language Processing (NLP) are rapidly advancing[24, 22, 14]
and are being deployed at scale. With large-scale visual recognition and textual understanding available as fundamental tools, it is now possible to identify and classify events across the world in real-time. This is possible, to some extent, in images and text separately, and in limited cases, using a combination. A major difficulty in crisis events,111An event that is going (or is expected) to lead to an unstable and dangerous situation affecting an individual, group, community, or whole society (from Wikipedia); typically requiring an emergency response. in particular, is that as events surface and evolve, users post fragmented, sometimes conflicting information in the form of image-text pairs. This makes the automatic identification of notable events significantly more challenging.
Unfortunately, in the middle of a crisis, the information that is valuable for first responders and the general public often comes in the form of image-text pairs. So while traditional CV and NLP methods that treat visual and textual information separately can help, a big gap exists in current approaches. Despite the general consensus on the importance of using AI for Social Good [21, 19, 4], the power of social media, and a long history of interdisciplinary research on humanitarian crisis efforts, there has been very little work on automatically detecting crisis events jointly using visual and textual information.
Prior approaches that tackle the detection of crisis events have focused on either image-only or text-only approaches. As shown in Figure 1, however, an image alone can be ambiguous in terms of its urgency whereas the text alone may lack details.
To address these issues, we propose a framework to detect crisis events using a combination of image and text information. In particular, we present an approach to automatically label images, text, and image-text pairs based on the following criteria/tasks: 1) Informativeness: whether the social media post is useful for providing humanitarian aid in an emergency event, 2) Event Classification: identifying the type of emergency (in Figure 2, we show some of the categories that different image-text pairs belong to in our event classification task), and 3) Severity: rating how severe the emergency is based on the damage indicated in the image and text. Our framework consists of several steps in which, given an image-text pair, we create a feature map for the image, generate word embeddings for the text, and propose a cross-attention mechanism to fuse information from the two modalities. It differs from previous multimodal classification in how it deals with fusing that information.
In short, we present a novel, multimodal framework for classification of multimodal data in the crisis domain. This approach, ”Cross Attention”, avoids transferring negative knowledge between modalities and makes use of stochastic shared embeddings to mitigate overfitting in small data as well as dealing with training data with inconsistent labels for different modalities. Our model outperforms strong unimodal and multimodal baselines by up to 3 F-score points across three crisis tasks.
2 Related Work
AI for Emergency Response:
Recent years have seen an explosion in the use of Artificial Intelligence for Social Good[21, 19, 4]. Social media has proven to be one of most relevant and diverse resources and testbeds, whether it be for identifying risky mental states of users [10, 15, 20], recognizing emergent health hazards , filtering for and detecting natural disasters [49, 40, 48], or surfacing violence and aggression in social media .
Most prior work on detecting crisis events in social media has focused on text signals. For instance, Kumar et al.  propose a real-time tweet-tracking system to help first responders gain situational awareness once a disaster happens. Shekhar et al.
introduce a crisis analysis system to estimate the damage level of properties and the distress level of victims. At a large scale, filtering (e.g., by anomaly or burst detection), identifying (e.g., by clustering), and categorizing (e.g., by classifying) disaster-related texts on social media have been the foci of multiple research groups[54, 58, 63], achieving accuracy levels topping at on small annotated datasets collected from Twitter.
Disaster detection in images has been an active front, whether it be user-generated content or satellite images (for a detailed survey, refer to Said et al. ). For instance, Ahmad et al.  introduce a pipeline method to effectively link remote sensor data with social media to better assess damage and obtain detailed information about a disaster. Li et al.
use convolutional neural networks and visualization methods to locate and quantify damage in a disaster images. Nalluruet al.  combine semantic textual and image features to classify the relevancy of social media posts in emergency situations.
Our framework focuses on combining images and text, yielding performance improvements on three disaster classification tasks.
Deep Multimodal Learning: In deep multimodal learning, neural networks are used to integrate the complementary information from multiple representations (modalities) of the same phenomena [60, 43, 3, 12, 2, 44]
. In many applications, including image captioning[8, 46], visual question answering [7, 18], and text-image matching [52, 17, 35], combining image and text signals is of interest. Thus many recent works study image-text fusion [39, 36, 56, 55].
propose a multimodal deep learning framework to identify damage related information on social media posts with texts, images, and video.
In the application of crisis tweets categorization, one modality may contain uninformative or even misleading information. The attention module in our model passes information based on the confidence in the usefulness of different modalities. The more confident modality blocks weak or misleading features from the other modality through their cross-attention link. The partially blocked results of both modalities are later judged by a self-attention layer to decide which information should be passed to the next layer. While our attention module is closely related to co-attention and self-attention mechanisms [59, 23, 38, 18, 26, 46], unlike them, it does not need the input features to be homogeneous. In contrast, self-attention and co-attention layers can be sensitive to heterogeneous inputs. The details of the model are described in the next section.

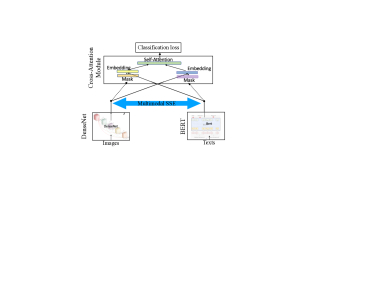

The architecture we propose is designed for classification problems that takes as input image-text pairs such as user generated tweets in social media, as illustrated in Figure 3, where the DenseNet and BERT graphs are from  and . Our methodology consists of 4 parts: the first two parts extract feature maps from the image and extract embeddings from the text, respectively; the third part comprises our cross-attention approach to fuse projected image and text embeddings; and the fourth part uses Stochastic Shared Embeddings (SSE)  as our regularization technique to prevent over-fitting and deal with training data with inconsistent labels for image and text pairs.
We describe each module in the sub-sections that follow.
3.1 Image Model for Feature Map Extraction:
We extract feature maps from images using Convolutional Neural Networks (CNNs). In our model we select DenseNet , which reduces module sizes and increases connections between layers to address parameter redundancy and improve accuracy (other approaches, such as EfficientNet  could also be used, but DenseNet is efficient and commonly used for this task).
For each image , we therefore have:
where is the input image,
is the vectorized form of a deep feature map in the DenseNet with dimension, where are the feature map’s height, width and number of channels respectively.
3.2 Text Model for Embedding Extraction:
Full-network pre-training [45, 14] has led to a series of breakthroughs in language representation learning. Specifically, deep-bidirectional Transformer models such as BERT  and its variants [62, 34] have achieved state-of-the-art results on various natural language processing tasks by leveraging close and next-sentence prediction tasks as weakly-supervised pre-training.
Therefore, we use BERT as our core model for extracting embeddings from text (variants such as XLNET  and ALBERT  could also be used). We use the BERT model pre-trained on Wiki and Books data on crisis-related tweets ’s. For each text input , we have
where is a sequence of word-piece tokens and is the sentence embedding. Similar to the BERT paper , we take the embedding associated with [CLS] to represent the whole sentence.
In the next subsection we detail how DenseNet and BERT are fused.
3.3 Cross-attention module for avoiding negative knowledge in fusion:
After we obtain the image feature map (DenseNet) and the sentence embedding (BERT), we use a new cross-attention mechanism to fuse the information they represent. In many text-vision tasks, the input pair can contain noise. In particular, in classification of tweets, one modality may contain non-informative or even misleading information. In such a case, negative information transfer can occur. Our model can mitigate the effects of one modality over another on a case by case basis.
To address this issue, in our cross-attention module, we use a combination of cross-attention layers and a self-attention layer. In this module, each modality can block the features of the other modality based on its confidence in the usefulness of its input. This happens with the cross-attention layer. The result of partially blocked features from both modalities is later fed to a self-attention layer to decide which information should be passed to the next layer.
The self-attention layer exploits a fully-connected layer to project the image feature map into a fixed dimensionality (we use ), and similarly project the sentence embedding so that:
whereand are of dimension .
In the case of misleading information in one modality, without an attention mechanism (such as co-attention ), the resulting and cannot be easily combined without hurting performance. Here, we propose a new attention mechanism called cross-attention (Figure 3), which differs from standard co-attention mechanisms: the attention mask for the image is completely dependent on the text embedding , while the attention mask for the text is completely dependent on the image embedding . Mathematically, this can be expressed as follows:
is the Sigmoid function. Co-attention, in contrast, can be expressed as follows:
where means concatenation.
After we have the attention masks for image and text, respectively, we can augment the projected image and text embeddings with and before performing concatenation or adding. In our experiments, we use concatenation but obtained similar performance using addition.
The last step of this module takes the concatenated embedding which jointly represents the image and text tuple in and feeds into the two-layer fully-connected networks. We add self-attention in the fully-connected networks and use the standard softmax cross-entropy loss for the classification.
In Section 4, we show that the combination of cross-attention layers and the self-attention layer on their concatenation works better than co-attention and self-attention mechanisms for the tasks we address in this paper.
3.4 SSE for Better Regularization
Due to unforeseeable and unpredictable nature of disasters, and also because they require fast processing and reaction, one often has to deal with limited annotations for user-generated content during crises. Using regularization techniques to mitigate this issue becomes especially important. In this section, we extend Stochastic Shared Embeddings (SSE) technique  to its multimodal version for taking the full advantage from the annotated data by 1) generating new artificial multimodal pairs. 2) also including the annotated data with inconsistent labels for text and image in the training process.
, a variation of SSE, is a data-driven approach for regularizing embedding layers which uses a knowledge graph to stochastically make transitions between embeddings of different samples during the stochastic gradient descent (SGD). That means, during the training, based on a knowledge graph, there is a chance that embeddings of different samples being swapped. We use the text and image labels to construct knowledge graphs that can be used to create stochastic multimodal training samples with consistent labels for both the image and text.
We treat feature maps of images as embeddings and use class labels to construct knowledge graphs. The feature maps of two images are connected by an edge in the graph, if and only if they belong to the same class (e.g. they are both labeled “affected individuals”). We follow the same procedure for text embeddings and construct a knowledge graph for text embeddings as well. Finally, we connect the nodes associated with the knowledge graph of image feature maps with an edge to nodes in text’s knowledge graph if and only if they belong to the same class.
be sets of parameters. We define the transition probabilityas probability of transition from to , where and are nodes in the image knowledge graph that correspond to image features and . Similarly, we define as probability of transition from to (nodes corresponding to text embeddings and , respectively).
Taking image feature maps as an example, if is connected to but not connected to in the knowledge graph, one simple and effective way to generate more multimodal pairs is to use a random walk (with random restart and self-loops) on the knowledge graph. Since we are more interested in transitions within embeddings of consistent labels, in each transition probability, we set the ratio of and to be a constant greater than . In more formal notation, we have
where is a tuning parameter and , and and denote connected and not connected nodes in the knowledge graph. We also have:
where is called the SSE probability for image features.
We similarly define and in for text embeddings. Note that is defined with respect to the image features’ label. That is
Both and parameters sets are treated as tuning hyper-parameters in experiments and can be tuned fairly easily. With Eq. (8), Eq. (7) and , we can derive transition probabilities between any two sets of feature maps in images and texts to fill out the transition probability table.
With the right parameter selection, each multimodal pair in the training can be transitioned to many more multimodal pairs that are highly likely to have consistent labels for the image and text pairs which can mitigate both the issues of limited number of training samples and inconsistency in the annotations of image-text pairs.
4 Experimental Setup
The image-text classification problem we consider can be formulated as follows: we have as input , where is the number of training tuples and the -th tuple consists of both image and text . The respective labels for and ’s are also given in training data. Our goal is to predict the correct label for any unseen pair. To simplify the evaluation, we assume there is only one correct label associated with the unseen pairs. As a result, this paper targets a multi-class classification problem instead of a multi-label problem.
There are very few crisis datasets, and to the best of our knowledge there is only one multimodal crisis dataset, CrisisMMD . It consists of annotated image-tweet pairs where images and tweets are independently labeled as described below. We use this dataset for our experiments.
The dataset was collected using event-specific keywords and hashtags during seven natural disasters in 2017: Hurricane Irma, Hurricane Harvey, Hurricane Maria, the Mexico earthquake, California wildfires, Iraq-Iran earthquakes, and Sri Lanka floods. The corpus is comprised of three types of manual annotations:
Task 1: Informative vs. Not Informative: whether a given tweet text or image is useful for humanitarian aid purposes, defined as providing assistance to people in need.

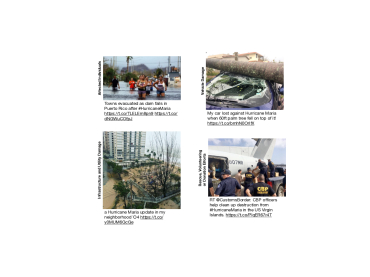

Task 2: Humanitarian Categories: given an image, or tweet, or both, categorize it into one of the five following categories:
Infrastructure and utility damage
Rescue, volunteering, or donation efforts
Affected individuals (injury, dead, missing, found, etc.)
Other relevant information
Note that we merge the data that are labeled as injured or dead people and missing or found people in the CrisisMMD with those that are labeled as affected individuals and view all of them as one class of data.
Task 3: Damage Severity: assess the severity of damage reported in a tweet image and classify it into Severe, Mild, and Little/None.
It is important to note that while the annotations for the last task are only on images. Our experiments reveal that using tweet texts along with the images can boost performance. In addition, our paper is the first one to perform all three tasks on this dataset (text-only, image-only, combined).
Images and text from tweets in this dataset were annotated independently. Thus, in many cases, images and text in the same pairs may not share the same labels for either Task 1 or Task 2 (labels for Task 3 were only created by annotating the images). Given the different evaluation conditions, we carry out three evaluation settings for the sake of being comprehensive in our model assessment but also to establish best practices for the community: Setting A: we exclude the image-text pairs with differing labels for image and text; Setting B: we include the image-text pairs with different labels in the training set but keep the test set the same as in A.

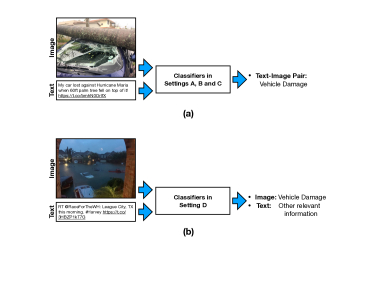

In addition, we introduce Setting C to mimic a realistic crisis tweet classification task where we only train on events that have transpired before the event(s) in the test set.
Table 1 shows the number of samples in each set for different setting and tasks.
|Setting||# of Training samples||# of Dev samples||# of Test samples|
Setting A: In this setting our train and test data is sampled from tweets in which the text and image pairs have the same label. That is:
where denotes the class of data point . This results in a small, yet potentially more reliable training set. We mix the data from all seven crisis events and split the data into training, dev and test sets.
|Informativeness Task||Humanitarian Categorization Task||Damage Severity Task|
|Model||Acc||Macro F1||Weighted F1||Acc||Macro F1||Weighted F1||Acc||Macro F1||Weighted F1|
|Compact Bilinear Pooling||88.12||86.18||87.61||89.30||67.18||90.33||66.48||61.03||70.58|
|Compact Bilinear Gated Pooling ||88.76||87.50||88.80||85.34||65.95||89.42||68.72||51.46||65.34|
|Attention Variant 1 (Ours)||89.29||85.68||87.04||88.41||64.60||90.71||71.51||55.41||69.71|
|Attention Variant 2 (Ours)||88.34||86.12||87.42||89.23||67.63||91.56||63.13||58.03||69.39|
|Attention Variant 3 (Ours)||88.20||86.22||87.47||87.18||64.67||90.24||68.99||57.42||69.16|
Setting B: We relax the assumption in Equation 14 and allow in training:
As the training set of this setting contains samples with inconsistent labels for image and text, multimodal fusion methods such as late feature fusion cannot deal with the training data. Our method, on the other hand, with the use of the proposed multimodal SSE, can transition the training instance with in consistent labels to a new training pair with consistent labels. We do this by manually setting for the training cases with inconsistent image-text labels (i.e. all the text samples are transitioned). Since unimodal models only receive one of the modalities, it is also possible to train them separately on images and texts and use an average of their prediction in the testing stage (also known as score level fusion).
However, we maintain the assumption of Eq. (14) for the test data. This helps to directly compare the two settings with the same test samples. In fact, in practice, the data is most valuable when the class labels match for both image and text. The rationale is that detecting an event is more valuable to crisis managers than the categorization of different parts of that event. Our dev and test sets for this setting are similar to the previous setting. However, the training set contains a larger number of samples where their image-text pairs are not necessarily labeled as the same class.
Setting C: This setting is closest to the real-world scenario where we analyze the new event of a crisis with a model trained on previous crisis events. First, we require the training and test sets to be from crisis events of a different nature (i.e., wildfire vs. flood). Second, we maintain the temporal component and only train on events that have happened before the tweets of the testing set. Since collecting annotated data on an urgent ongoing-event is not possible, and also because an event of crisis may do not have a similar annotated event in the past, these two restrictions often simulate a real-world scenario. For the experiments of this setting, there is no dev set. Instead, we use a random portion of the training data to tune the hyper-parameters.
We test on the tweets that are related to the California Wildfire (Oct 10 - 27, 2017), and train on the following three sets:
Sri Lanka Floods tweets (May 31- Jul. 3, 2017)
Sri Lanka Floods, and Hurricane Harvey and Hurricane Irma tweets (May 31- Sept. 21 , 2017)
Sri Lanka Floods, Hurricanes Harvey and Irma and Mexico Earthquakes (May 31 - Oct. 5, 2017).
Similar to setting B, for the test set (i.e. California Wildfire) we only consider the samples with consistent labels for image and text, but for the training sets, we use all the available samples.
|Informativeness Task||Humanitarian Categorization Task|
|Model||Accuracy||Macro F1||Weighted F1||Accuracy||Macro F1||Weighted F1|
|Best from Table 2||89.33||88.09||89.35||91.48||67.87||91.34|
|Sri Lanka Floods||Sri Lanka Floods + Hurricanes Harvey & Irma||Sri Lanka Floods + Hurricanes Harvey & Irma + Mexico earthquake|
|Model||Accuracy||Macro F1||Weighted F1||Accuracy||Macro F1||Weighted F1||Accuracy||Macro F1||Weighted F1|
|Model||Accuracy||Macro F1||Weighted F1|
|SSE Shuffling Within Class||88.68||62.91||88.33|
|SSE Mix-up ||89.16||54.63||87.37|
We compare our method against several state-of-the-art methods for text and/or image classification. There are a number of categories of baseline methods we compare against. In the first category, we compare to DenseNet and BERT, which are of the most comonnly used unimodal classification networks for images and texts respectively. We use Wikipedia pre-trained BERT and pre-trained DenseNet on ImageNet, and fine-tune them on the training sets.
The second category of baseline methods include several recently proposed multimodal fusion methods for classification:
Compact Bilinear Pooling : multimodal compact bilinear pooling is a fusion technique first used in visual question answering task but can be easily modified to perform standard classification task.
Compact Bilinear Gated Pooling : this fusion method is an adaptation of the compact bilinear pooling method where an extra attention gate is added on top the compact bilinear pooling module.
MMBT : recently proposed supervised multimodal bitransformers model for classifying images and text.
The third category is the score level Score Fusion and late feature fusion Feature Fusion of DenseNet and BERT networks. Score level fusion is one of the most common fusion techniques. It averages the predictions of separate networks trained on the different modalities. Feature Fusion is one of the most effective methods for integrating two modalities . It concatenates deep layers from modality networks to predict a shared output. We also provide three variations of our attention modules and report their performance: The first variant is to replace cross-attention of Eq. (3.3) with co-attention of Eq. (3.3); the second variant is to remove self-attention; the third variant is to change the cross-attention with self-attention modules.
We compare our model, SSE-Cross-BERT-DenseNet, to the baseline models above.
4.4 Evaluation Metrics
We evaluate the models in this paper using classification accuracy,222In the settings that our experiments are defined classification accuracy is equivalent to Micro F1-score.
Macro F1-score and weighted F1-score. Note that while in the event of a crisis, the number of samples from different categories often significantly varies, it is important to detect all of them. F1-score and weighted F1-score take both false positives and false negatives into account, and therefore, along with accuracy as an intuitive measure, are proper evaluation metrics for our datasets.
4.5 Training Details
We use pre-trained DenseNet and BERT as our image and text backbone networks, and fine-tune them separately on text-only and image-only training samples. The details of their implementations can be found in  and , respectively. We do not freeze the pre-trained weights and train all the layers for both the backbone networks.
We use the standard SGD optimizer. We start with the base learning rate of with a reduction when the dev loss is saturated. We use a batch size of1]. In all the applicable experiments, we select hyper-parameters with cross-validation on the accuracy of dev set. For the experiments in Setting 3 that we do not have an evaluation set, we tune hyper-parameters on of the training samples. We select and respectively in the range of and .
We employ the following data augmentations on the images during the training stage. Images are resized such that the smallest side is 228 pixels, and then randomly cropped with a patch. In addition, we produce more images by randomly flipping the resulting image horizontally.
For tweet normalization, we remove double spaces and lower case all characters. In addition, we replace any hyperlink in the tweet with the sentinel word “link”.
5 Experimental Results
5.1 Setting A: Excluding The Training Pairs with Inconsistent Labels
As shown in Table 2, our proposed framework, SSE-Cross-BERT-DenseNet, easily outperforms the standalone DenseNet and BERT models. Compared with baseline methods Compact Bilinear Pooling , Compact Bilinear Gated Pooling , and MMBT , our proposed cross-attention fusion method does enjoy an edge over previous known fusion methods, including the standard score fusion and feature fusion. This edge holds true across Settings A, B and C. In section 5.4, we conduct an ablation study to investigate which components (SSE, cross-attention, and self-attention) have the most impact on model performance.
One important observation we find across the three tasks is that despite the fact that accuracy percentages are reasonably good for simple feature fusion method, the macro F1 scores improve much more once we add attention mechanisms.
5.2 Setting B: Including The Training Pairs with Inconsistent Labels
In this setting, we investigate whether our models can perform better if we can make use of more labelled data for un-matched images and texts. Note that this involves training on noisier data than the prior setting. In Table 3, our proposed framework SSE-Cross-BERT-DenseNet beats the best results from Setting A for both the Informativeness Task (89.90 to 89.35 Weighted F1) and the Humanitarian Categorization Task (93.35 to 91.34). The gap between our method versus standalone BERT and DenseNet also widens.
Note that the test sets are the same for setting A and setting B while only the training data differs.
5.3 Setting C: Temporal
This setting is designed to resemble a realistic scenario where the available data is (1) only from the past (i.e. the train / test sets are split in the order they occurred in the real world). (2) train and test sets are not from the same crisis. We find that our proposed model consistently performs better than standalone image and text models (see Table 4). Additionally, performance increases for all models, including ours, with the inclusion of more crisis data to train on. This emphasizes the importance of collecting and labelling more crisis data even if there is no guarantee that the crises we collected data from will be similar to a future one. In the experiments, training crises contain floods, hurricanes and earthquakes but the test crisis is fixed at wildfires.
5.4 Ablation Study
In our ablation study, we examine each component of the model in Figure 3: namely self-attention on concatenated embedding, cross-attention on fusing image feature map & sentence embedding, dropout and SSE regularization. All the experiments in this section are conducted in Setting A. First, we find self-attention plays an important role on the final performance, accuracy drops to 89.23 from 91.14 if self-attention is removed. Second, the choice of cross-attention over co-attention and self-attention is well justified: we see the accuracy performance drops to around 88 by replacing the cross-attention. Third, dropout regularization  plays an important role in regularizing the hidden units: if we remove dropout completely, performance suffers a large drop from 91.14 to 83.37. Fourthly, we justify the usage of SSE  over the choice of Mixup  or within-class shuffling data augmentation. SSE performs better than mixup in terms of accuracy 91.14% versus 89.16%, and even much better in terms of F1 scores, 68.41 versus 54.63 for macro F1 score and 91.82 versus 87.37 for weighted F1 score.
6 Conclusions and Future Work
In this paper, we presented a novel multimodal framework for fusing image and textual inputs. We introduced a new cross attention module that can filter not-informative or misleading information from modalities and only fuse the useful information. We also presented a multimodal version of Stochastic Shared Embeddings (SSE) to regularize the training process and deal with limited training data. We evaluate this approach on three crisis tasks involving social media posts with images and text captions. We show that our approach not only outperforms image-only and text-only approaches which have been the mainstay in the field, but also other multimodal combination approaches.
For future work we plan to test how our approach generalizes to other multimodal problems such as sarcasm detection in social media posts [11, 50], as well as experiment with different image and text feature extractors. Given that the CrisisMMD corpus is the only dataset available for this task and it is limited in size, we also aim to construct a larger set, which is a major effort.
