Multi-task Feature Selection based Anomaly Detection

03/17/2014 ∙ by Longqi Yang, et al. ∙ 0

Network anomaly detection is still a vibrant research area. As the fast growth of network bandwidth and the tremendous traffic on the network, there arises an extremely challengeable question: How to efficiently and accurately detect the anomaly on multiple traffic? In multi-task learning, the traffic consisting of flows at different time periods is considered as a task. Multiple tasks at different time periods performed simultaneously to detect anomalies. In this paper, we apply the multi-task feature selection in network anomaly detection area which provides a powerful method to gather information from multiple traffic and detect anomalies on it simultaneously. In particular, the multi-task feature selection includes the well-known l1-norm based feature selection as a special case given only one task. Moreover, we show that the multi-task feature selection is more accurate by utilizing more information simultaneously than the l1-norm based method. At the evaluation stage, we preprocess the raw data trace from trans-Pacific backbone link between Japan and the United States, label with anomaly communities, and generate a 248-feature dataset. We show empirically that the multi-task feature selection outperforms independent l1-norm based feature selection on real traffic dataset.



There are no comments yet.


page 5

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction.

Network anomalies typically refer to unusual and significant deviation from normal behaviors, which influence both network administrators and end users [1]

. For the Internet Service Providers (ISPs) and network administrators, it becomes more and more important to fast and accurately classify the type of traffic and the abnormal behaviors on the backbone network. ISPs need to monitor the constitutions of different applications so as to prioritize traffic of the QoS-sensitive application to prevent, locate harmful activities and take additional steps for other reasons, say, politics


Until now, there have been four main effective fashions on traffic classification and anomaly detection:

  • Transport layer port number based method;

  • Deep packet inspection;

  • Host behavior based method;

  • Traffic flow features based method.

Among them, only the fourth method belongs to the region of machine learning.

So far many states of the art methodologies are applied in the field of traffic classification and anomaly detection. Erman, et al. [3]

used two unsupervised clustering algorithms - K-Means and DBSCAN to demonstrate how to use the cluster analysis to effectively identify groups of traffic only based on the transport layer statistics. Brauckhoff et al.

[4] applied PCA for traffic anomaly detection overcoming the sensitive to its parameter setting by a slight modification. Kim, et al. [2]

conducted an evaluation of three traffic classification approaches: port-based, host-behavior-based and flow-features-based. By comparing seven commonly used traffic-flow-features-based methods with the other two kinds of traffic classification methods, they found that Support Vector Machine (SVM) algorithm achieved the highest accuracy on every trace and application.

-norm minimization Extreme Learning Machine (ELM) [5] has reached a good performance on anomaly detection.

Most of the mentioned methods above were applied in the circumstance of single traffic, and difficultly to meet the demand of complex multiple traffic cases. Learning from multiple tasks simultaneously has been widely applied [6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16] and shown to significantly improve the performance relative to learning each task independently [17]. Multi-task learning has been successfully applied in various areas including: handwriting character recongnition [11], predicting disease progression [6], modeling disease progression [7, 8], patient risk prediction [9], biomarker identification [10], conjoint analysis [12, 13], medical diagnosis [14]

, computer vision


, natural language processing

[16] and text classification [13].

In multi-task learning, the traffic consisting of flows at each time periods is considered as a task. These multiple tasks at different time periods performed are learnt simultaneously by extracting and utilizing appropriate shared information across tasks. The useful features learnt from multiple tasks can significantly improve the performance on anomaly detection.

In this paper, our main contributions can be summarized below:

  • Applying multi-task feature selection on network anomaly detection area.

  • Employing an effective preprocessing and feature extraction step to deal with the raw network data trace.

  • Generating anomaly detection datasets with ground truth, which can be used comprehensively.

To the best of our knowledge, it is the first time that multi-task feature selection method is applied in network anomaly detection area. Although the application is still in its infancy, we believe that it has great potential to enhance the field.

The rest of paper is organized as follows: Section 2 presents the idea of -norm based feature selection, and discusses the multi-task feature selection extension. Section 3 describes how to convert from raw network data trace into features and process of labeling . Section 4 presents systematic evaluation of different methods for anomaly detection. Conclusions come to in Section 5.

2 Multi-task Feature Selection.

In this section, we review the work of regularization - Lasso [18] and the extending of the well-known regularization for single-task to multi-task setting.

Formally, we assume there are models to learn and the training set consists of , where denotes the training sample for the task, denotes the corresponding output, is the number of training sample for task, and is the total number of training samples. n denotes the number of features. Let denote the data matrix for the task, , , and .

2.1 Single task case.

For single-task case, the well-known -norm regularization implemented by Lasso method produces a few non-zero coefficients that gives a more accurate and more easily interpretable model. Learning a model independently through minimizing empirical risk with regularization:


Solving these problems individually is equivalent to the solving of the summing problem:


It yields to a sparse for each task with distinct sparsity pattern by solving this optimization problem. denotes the column of which is the weight vector of feature for all tasks, and denotes the row of , where stands for the weight matrix.

2.2 Extending from single-task case to multi-task case.

In network traffic anomaly detection area, the data collected range from a certain network at different time to different backbone network sources forms multi-task cases. Our goal is to learn from a group of tasks by considering the relations between them resulting in a shared pattern of sparsity. Obzinski et al. [11] proposed a joint regularization of the parameters which selects features across a group of tasks. The joint regularization blocks the weight vector of a certain feature across all tasks with the -norm. To penalize the -norm of these blocks which result in global feature selection. The optimization problem is to minimize the following -norm regularization:


where .

The nonsmooth 3 could be solved by accelerated gradient methods (AGM). The AGM is the optimal among first order methods, which has the convergence speed of .

3 Data Preprocessing.

Dataset is generated broadly including three main steps: preprocess the raw traffic trace, the feature extraction step and the labeling step. The process is briefly described in figure 1.

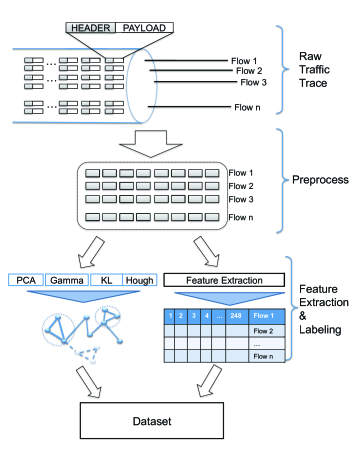

Figure 1: From raw data traces to labeled dataset.
Number of flows 731,362
Seconds of duration 899.20
Number of packets 28,944,127
Number of IPv4 addresses 420,421
Number of IPv6 addresses 2,893
Average Rate 194.17Mbps
Total Captured Size 1588.48MB
Total Flow Size 20809.67MB
Table 1: traffic trace statistics

3.1 Raw Traffic Traces.

In the traffic classification and anomaly detection research field, owing to the privacy and legal concern, it is lack of the benchmark datasets that could be used to verify the feature selection methods and classifiers. The WIDE project [19] maintains a data trace repository. Traffic traces were captured from a trans-Pacific backbone link between Japan and the United States. A 15-minute traffic trace is chosen as the base evaluation dataset that started from 14:00 and ended at 14:15 on January 9th, 2011. The statistics of traffic trace could be found in table1.

3.2 Feature Extraction.

Moore et al. [20]

proposed comprehensive discriminators to characterize the flow which provided 248 features. The more detailed the features could be, the more proper model would achieve better classification performance. The features are calculated through complete TCP flows which derived from packet header. A TCP flow is defined as one or more packets traveling between two computer addresses using TCP protocol. Every packet contains 5-tuple which is made up of source IP address, destination IP address, source port number, destination port number and the protocol in use. Netdude is used to create a set of complete TCP flows on account of packet loss. A variety of features are selected to characterize the TCP flow includes packet length, inter-packet timings and information about transport protocol(TCP): such as SYN and ACK counts. Tcptrace can deal with some packet statistics which need to estimate round-trip time, size of TCP segments. However, for the simpler statistics such as counting packets and packet header size, calculation is more efficient. The 248 features could be found in table2.

Sequence Content
1 Port number at server
2 Port number at client
3 Minimum packet inter-arrival time for all packets of the flow

First quartile inter-arrival time

5 Median inter-arrival time
6 Mean inter-arrival time
7 Third quartile packet inter-arrival time
25 First quartile of control bytes in packet
26 Median of control bytes in packet
27 Mean of control bytes in packet
239 FFT of packet IAT (Frequency 1)
248 FFT of packet IAT (Frequency 10)
Table 2: 248 features derived from complete tcp flows

3.3 Labeling.

Due to the lack of ground truth, labeling the traffic set is difficult. The method [21] to label the dataset which includes four main steps:

  1. Four anomaly detectors analyze the traffic and report alarms

  2. Uncover the similarities among the reported alarms by using similarity estimator, then group similar alarms into communities.

  3. Combiner classifies each community according to overall output of all detectors.

  4. Labeling the datasets.

3.3.1 Analyze the traffic and report alarms.

The four unsupervised anomaly detectors report traffic at different granularities.

  1. PCA: PCA-based detector reports the source IP address of identified anomalous traffic by using random projection techniques.

  2. Sketching and multi-resolution gamma modeling based method [22]

    : This method reports the anomalous traffic that is distant from reference. The traffic is split into sketches, then modeled using Gamma distribution.

  3. Hough transform based method [23]: an useful technique for identification of a specific shape in a picture.

  4. Kullback-Leibler divergence based method: detected the prominent changes in traffic. The alarms reported by this anomaly detector are association rules, namely 4-tuples (source and destination IP addresses, source and destination port numbers).

3.3.2 Extract the traffic with similar alarms and group into communities.

The traffic extractor selects the traffic described by each alarm. Using both packet and flow as granularities could avoid missing similar alarms.

Figure 2: AlarmC has no common packets shared with AlarmA and AlarmB under the packet granularity. Whereas the three alarms have similarities by using flow granularity.

The graph generator builds an undirected graph by using the retrieved traffic. In this similarity graph, nodes stand for alarms and an edge between two nodes if their associated traffic intersects. The identical alarms in the graph are a set of the strong connected nodes, which is called community. After identifying the community and combining the communities, each community is classified to either accepted or rejected by measuring the distance to the reference communities in the low-dimensional space.

3.3.3 Labeling the datasets.

To label the analyzed traffic, we define a simple traffic taxonomy with two labels: anomalous and normal. Where the anomalous label stands for the traffic accepted. And this traffic should be detected as anomalous by any efficient anomaly detectors. The label normal consists of two cases. One is the traffic rejected which has a relative distance to the reference points. The other one is none of the detectors identified the traffic.

4 Experiment

In the experiment we study the empirical performance of feature selection algorithms and classification methods in datasets which processed in Section 3. In this section, in order to show the effectiveness of the multi-task feature selection, we compare it with single-task feature selection method - Lasso.

4.1 Dataset

After preprocessing the raw traffic trace, we formed a dataset consisted of flow discriminators. Entire data flow is fully characterized in a row. The dataset consisting of 235000 flows which is splited into 10 tasks chronologically. We select 50% samples for training and 50% for testing. The statistics of the dataset and samples could be found in table3.

Task# #of flow Training Testing
+ - + -
01 23503 10845 907 10787 964
02 23504 10007 1745 9928 1824
03 23503 10082 1670 10061 1690
04 23503 10228 1524 10203 1548
05 23503 10268 1484 10174 1577
06 23503 10134 1618 10085 1666
07 23503 10092 1660 10175 1576
08 23503 9854 1898 9833 1918
09 23503 10010 1652 10121 1630
10 23503 10071 1681 10092 1659
Table 3: The sample size of the tasks.

4.2 Experiment Setup

In the experiments the implementation of multi-task feature selection and Lasso from the MALSAR package [24] and SLEP package [25], respectively. SVM is chosen to be the classifier and implemented by Matlab version of libsvm [26]. For multi-task case, the multi-task feature selection method is applied to ten tasks simultaneously by tuning the parameter of , which selected 5, 12 and 24 features respectively. For single-task case, we choose top features by turning the parameter , where varying t from 5, 12 to 24. After the feature selection, we build classification model using SVM and evaluate the model on the testing data. For SVM, 5-fold cross validation is used to estimate the best parameter and .

4.3 Result

To measure the performance of multi-task feature selection method, we use overall accuracy as metric. In figure 3 and figure 5, we compare the overall accuracy of SVM by selecting top-5 features and top-20 features. The multi-task feature selection achieve the highest overall accuracy in 8 of all 10 tasks. In figure 4, we use top-12 features to measure the performance. With the similar result, multi-task feature selection method runs ahead in 9 of all 10 tasks. We can observe that the performance improves slightly with increasing of the number of selected feature and the classifier works well using only 5 features. Since the class distribution of the data sets is not balanced, we also focus on the Area Under Curve (AUC) metric. From table 4, We observe that multi-task feature selection method achieve better performance than Lasso on both top-5 features case and top-12 features case.

Task# Features=5 Features=12
Lasso Multi-task Lasso Multi-task
01 0.8651 0.9190 0.9184 0.9141
02 0.9424 0.9365 0.9401 0.9389
03 0.9451 0.9549 0.9600 0.9596
04 0.9426 0.9481 0.9366 0.9396
05 0.9401 0.9454 0.9318 0.9333
06 0.9294 0.9294 0.9458 0.9641
07 0.9062 0.9221 0.9402 0.9437
08 0.9387 0.9387 0.9417 0.9709
09 0.9378 0.9414 0.9302 0.9606
10 0.9270 0.9244 0.9456 0.9618
Table 4: SVM performance in terms of AUC.

5 Conclusion

In this paper, we apply a multi-task feature selection method on network anomaly detection field. The method selects effective features from multiple tasks simultaneously which significantly improves the performance on detecting anomalies. We employ an effective preprocessing and feature extraction step to deal with the real data trace from backbone network. Then generate an anomaly detection dataset with ground truth. The datasets generated with those features helped to evaluate the multi-task feature selection method, which outperforms the Lasso in most cases. We plan to extend the scale of application by evaluating the multi-task feature selection method on different backbone network simultaneously, which could be a network-wide anomaly detection.

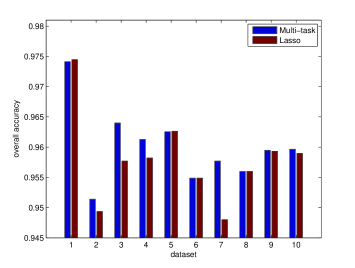

Figure 3: Overall accuracy on top 5 features

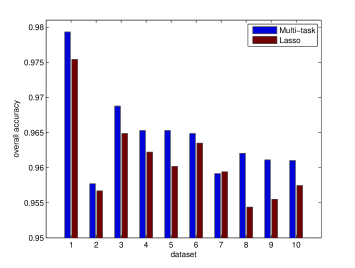

Figure 4: Overall accuracy on top 12 features

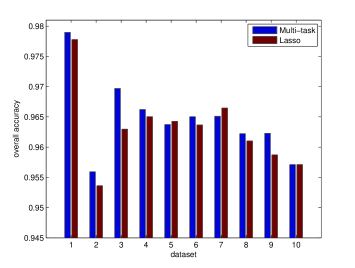

Figure 5: Overall accuracy on top 24 features
