I Introduction

Multi-target tracking is a challenging problem that can be solved in the framework of Joint Probabilistic Data Association (JPDA), Multiple Hypothesis Tracking (MHT), and Random Finite Set (RFS); see a recent survey paper [1] with a comprehensive list of references. In the latter two approaches, a data association hypothesis assigns measurements to tracks, and the hypothesis likelihood (of the joint target-measurement associations) is used to compare among all hypotheses for truncation under a finite compute budget. It is often assumed that an individual target-measurement association likelihood is independent of others, i.e., it remains the same in whichever hypothesis it belongs to. However, there are situations where the independence assumption does not hold, and any individual target-measurement association has to be evaluated jointly with all others in same hypothesis. Figure 1 illustrates this point, where the red and green rectangles represent two targets, and the three blue dots represent the newly arrived frame of measurements. Many child hypotheses can be generated, e.g., both are on the left (Hypo 1), or both are on the right (Hypo 2). However, assuming that the sensor data rate is high, it is almost impossible for the two targets to swap positions in such a short time (Hypo ). But if examined in isolation, there is no order of magnitude difference in likelihoods among the individual, same-colored, dotted-solid associations in all hypotheses. This points to the need for evaluating likelihoods jointly in the context of the containing hypothesis, taking into account dependence among track-measurement associations.

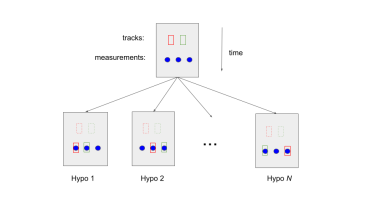

Fig. 1: An illustration of dependence. When considered in isolation, each red-red or green-green association is plausible. But when considered jointly, Hypo is almost impossible (for fast data rate).

In the case of TO-MHT [2]

, assuming independence makes it possible to define a vector of individual track-measurement association costs, so that a global hypothesis likelihood is defined by a selection of entries in this vector satisfying certain constraints (that no two tracks share a measurement and no two measurements share a track). This leads to a parsimonious representation of the hypothesis space, and the maximum likelihood global hypothesis is obtained by solving an Integer Linear Programming problem. In such a framework, it is non-trivial to consider dependence as illustrated in Figure

1.

In contrast, Labeled RFS filters [3, 4], as well as the historical Hypothesis Oriented Multiple Hypothesis Tracking (HO-MHT) [5], produce not only the best global hypothesis, but also a distribution over the global state in the form of a set of hypotheses with weights111

that are informative and usually normalized but not necessarily true probabilities.

. For each of these explicitly expressed hypotheses, it may seem that its true likelihood can be computed with dependence taken into account, making the previous point moot. However, the challenge is in truncation. Due to the astronomical number of child hypotheses that are possible after receiving new measurements, truncation has to be carried out to keep only the top ranked hypotheses in computer memory. How to efficiently obtain such a ranking without exhaustively computing each hypothesis becomes the crux of the matter. Once again, assuming independence makes it possible to cast the ranking problem into a conventional ranked assignment problem that can be efficiently solved by Murty’s algorithm [6] or its modern day incarnations [7].

In this paper, we consider a special class of likelihood structures that allows us to adopt a Propose and Verify approach to ranking: We first assume independence and generate a list of candidate hypotheses in the decreasing order of likelihood, which can be carried out efficiently. Then we evaluate the true likelihood of each hypothesis in the list with the guarantee that the true value either stays the same as the candidate value used in the ranking proposal, or becomes lower. Thus we can both correctly and efficiently obtain the top hypotheses with their true likelihoods that take into account dependence. In practical terms, this means that to obtain the top hypotheses, we may be able to stop at say the 500th proposed candidate, without evaluating the true likelihoods of the rest of the hypotheses which can number in the billions. Two examples of the special structure are the Collision Likelihood Structure, where the true likelihood is the same if there is no collision, and zero otherwise; and the Occlusion Likelihood Structure, where the true likelihood is the same as when the probability of detection of a missed detection is given by an oracle, or lower.

The paper is organized as follows. Section II presents the main contribution of the Propose and Verify approach. Section III describes how this approach is used in Generalized Labeled Multi Bernoulli (GLMB) filters. Section IV illustrates the approach using a simple one dimensional example. A case for ubiquitous checking for collision/compatibility in extended target tracking is made in Section VI, and conclusions are drawn in Section VII.

Ii Propose and Verify with special likelihood structures

In this section we present the main contribution of the paper.

Ii-a The convenience of independence

The context is filtering with RFS. Let (labeled) RFS be the global target state, and the global measurement. Then the filtering density is recursively obtained through set integrals [3]:

(1)
(2)

where is the motion transition, and is the measurement likelihood.

Given a set of measurements , a data association hypothesis for a labeled RFS assigns to each label either a measurement index in a one-to-one fashion, or the special index 0 to denote a missed detection. Conditional independence is often assumed that leads to the following factored form of the likelihood function [4]

(3)

where

(4)

in which denotes clutter density, and probability of detection.

It can be seen from the above two equations that, once the label is assigned the measurement , its likelihood of association is fixed; it “does not care” how other labels in the same hypothesis are assigned. The factored form has two advantages:

  1. The update of the kinematic distribution of each track is carried out only with “its own” measurement, and

  2. Taking the negative log, the “cost” of a hypothesis can be defined as a sum of selection from a cost matrix, whose entries are constructed independent of the hypotheses.

The second benefit leads to a ranking problem that can be efficiently solved using Murty’s algorithm. However, there are likelihood structures that can consider the interactions among the tracks but still keep a factored form, hence reaping the first benefit listed above. What we need then, is an efficient ranking algorithm for such structures.

Ii-B The factored form that accounts for dependence

We introduce for each track a factor such that the likelihood function takes the form

(5)

Then within a given hypothesis, each track can be made aware of “what’s going on” with respect to other tracks, and adjust its own likelihood term accordingly. This can account for not all but certain dependence among the tracks, while still maintaining a factored form so that the posterior distribution of each track can be computed separately.

The following are two examples of such likelihood structures.

Ii-B1 The Collision Likelihood Structure

The term is defined as in Equation (4). Let

denote a checking procedure that returns true if the hypothesis under consideration induces a collision among the tracks, as is illustrated by Hypo in Figure 1. Then the additional factor is defined as

(6)

In other words, when the hypothesis is actually evaluated, and a collision is found, then it is dropped from further consideration. Otherwise, the likelihood is the same as in the case when independence is assumed.

Ii-B2 The Occlusion Likelihood Structure

The term is modified as follows:

(7)

In other words, if a track has a missed detection, then it is optimistically assumed that the track is under some occlusion and therefore cannot be seen. Let

be a checking procedure that returns true if track is occluded in this hypothesis. Then the additional factor is defined as

(8)

This means that when a hypothesis is actually evaluated, the “benefit of the doubt” previously given to a missed detection can now be verified: If it is not warranted, then the likelihood has to be reduced to the true value. Otherwise, it is the same as in the case when independence is assumed and an oracle gives the correct probability of detection for missed detections.

Ii-C The Propose and Verify algorithm

One crucial point to note is that

(9)

This gives us an efficient way to obtain ranked hypotheses, through a Propose and Verify process:

  1. Set and construct, using Murty’s algorithm, an iterator over the hypotheses in descending order of optimistic likelihoods. This means listing the hypotheses through lazy evaluation, perhaps using method calls such as has_next() and get_next() [8].

  2. Evaluate each hypothesis and calculate the values of . Insert the hypothesis into a separate sorted list result in descending order of true likelihoods.

  3. Whenever

    (10)

    happens, the true likelihood is the same as the optimistic likelihood, and therefore the ranking of this hypothesis and those before it in result is verified (because new entries can never go before it).

  4. Stop when the desired number of top hypotheses are obtained, or when no more hypotheses are available.

The algorithm is pictorially demonstrated in Figure 2.

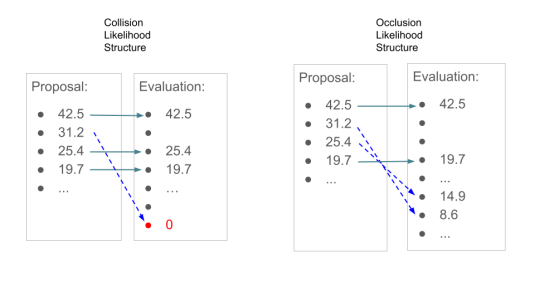

Fig. 2: Illustration of the Propose and Verify process for the Collision Likelihood Structure (left) and the Occlusion Likelihood Structure (right). The evaluated true likelihood is guaranteed to not increase; any “stays the same” hypo provides a certificate of ranking for itself and those above.

Iii Application in -GLMB filters

For completeness, we summarize how -GLMB filtering is carried out with the likelihood structures described above. In the proposal stage, the main steps are the same as given in [4], where measurement update is performed jointly with motion prediction. For each hypothesis, there is an associated Labeled Multi-Bernoulli (LMB) birth model; by treating birth probability as survival probability “from nothing,” we can treat both existing tracks and newborn track candidates in the same way, and refer to them simply as tracks.

To determine the most likely ways of associating tracks with measurements, we construct a likelihood matrix that has rows for tracks, and three column blocks for measurements, missed detections, and deaths respectively. This matrix layout is shown here in Table I for easy reference; it is a simplified version of Figure 1 in [4], before taking the logarithm of the likelihood ratios (over clutter density).

cccccccccc   &   & detected &   &   & missed &   &   & died &
  & & & & & & & & &
c[ccc—ccc—ccc] [t] & & & & & & & & &
& & & & & & & & &
& & & & & & & & & [b]

TABLE I: Likelihood ratio matrix layout (a simplified version of Figure 1 in [4])

An entry in the first column block is the likelihood of a track having survived and being observed by that measurement, divided by the density of the measurement as clutter. The second column block is diagonal, and an entry on it is the probability of a track having survived but being mis-detected. The third column block is also diagonal, and an entry on it is the probability of a track having died. We take the negative log of the likelihood ratio matrix to get a cost matrix. A valid data association is defined by an assignment of the matrix such that each row has exactly one entry selected, and each column has at most one entry selected. The sum of the selected entries defines the cost of the hypothesis, the smaller the cost, the higher the likelihood.

The best assignment can be found by using the Munkres algorithm [9], while the best assignments can be enumerated by using the Murty’s algorithm [6]. Both have modern, faster versions; see [7] and the references therein. Since all current hypotheses perform this operation, and the union of their children constitute the next generation of hypotheses, a suboptimal but parallelizable selection scheme is to allocate, a priori, fixed number of children for each hypothesis, e.g., in proportion to its prior weight. The scheme is suboptimal because it may turn out that some child of a high-weight parent has a smaller weight than some would-be child of a lower-weight parent if the latter were given a larger allocation.

If we implement the Murty’s algorithm in the style of an iterator, i.e., with methods such as has_next() and get_next(), then the optimal selection scheme222This idea was first proposed to the author by Peter Kingston. can be defined as follows in a round robin fashion:

  1. Let each hypothesis calculate and pop its best child; this is the top entry in the result list described in Section II-C. Put these popped children in a selection buffer.

  2. Copy the best out of the buffer, and replace the content in this spot with the next best child from the same parent.

  3. Repeat until all top hypotheses have been obtained, or until no more children are available.

It is worth noting that each parent hypothesis has the freedom to choose how to calculate its best child. When collision is of concern, it can adopt the Collision Likelihood Structure and use the Propose and Verify procedure. When occlusion is of concern, the Occlusion Likelihood Structure can be used. When independence can reasonably be assumed, then the plain vanilla algorithm can be used for its lower computational cost.

Iv Some illustrations

We use a simple, one-dimensional simulation to illustrate the difference our proposed approach can make. This is motivated by a statement made in the Conclusions section in [10]:

Most MHT algorithms assume targets have i.i.d. motion models. The independence assumption is violated when targets move as a group, or when vehicles are moving on a single-lane road. Exploiting this dependence should improve association performance.

Two targets, modeled as two points, travel on a one-lane road modeled as a line. However, we assume that the targets have an extent, and therefore one cannot get arbitrarily close to or pass the other. A position sensor produces the measurements including clutter, and a -GLMB filter does the tracking. The simulation and filtering set up is given in Appendix -A; it is along similar lines as in [11], which provides detailed description of the “merge and split” version of

-GLMB used in this simulation. At each iteration, the best state estimates are defined, for simplicity, as the state estimates from the highest weighted hypothesis. Assuming independence, and without specifically addressing the issue that one target cannot overtake the other in this one-lane scenario, the tracks in some Monte Carlo simulations can look like those shown in Figure

3.

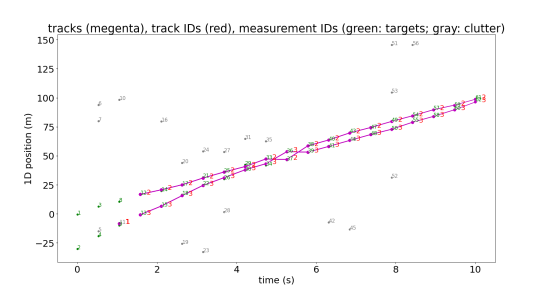

Fig. 3: A one-dimensional simulation of targets on a single lane road. Assuming independence of data assignment, some Monte Carlo runs produce track histories that indicate that one target has overtaken the other, which should not happen.

However, if we adopt the Collision Likelihood Structure and the Propose and Verify algorithm, then the track trajectories are feasible, as shown in Figure 4.

Fig. 4: A one-dimensional simulation of targets on a single lane road. Adopting the Collision Likelihood Structure and the Propose and Verify algorithm, targets follow each other without taking over each other.

In this one dimensional scenario that is used for illustration, we assume that the extent of a target is not negligible but can be quite small. This enables us to define collision only as a result of overtaking, which is determined by the following criteria:

  1. Target IDs that are in the parent hypothesis but not in the child hypothesis (target deaths) do not cause collision.

  2. Targets IDs that are in the child hypothesis but not in the parent hypothesis (target births) do not cause collision.

  3. Target IDs that are in both hypotheses (persistent targets), when sorted by road position, have to maintain the same order from parent hypo to child hypo; otherwise a collision has occurred.

There is some subtlety though. The track histories we have shown are not true track trajectories in the sense of [12]. We have simply connected the best state estimates across time using their IDs (labels), which may be different from the pedigrees of the current best hypo [13]. For the latter, a collision-free transition from a parent hypo to a child hypo guarantees that the trajectory defined by the pedigree is collision-free. But for the former, if there is a “hypo-hop[13],” then there is no such guarantee.

To see the above statement in some details, let us run the simulation where we assume independence in debug mode, in order to show the evolution of hypotheses. Even though we do not forbid taking over in data association, for the purpose of comparison we apply the criteria described earlier to identify situations where taking over does occur. Figure 5 includes a full “tree” plot of the evolution of hypotheses on the left. The full explanation of the notations, including the Merge/Split algorithm, is given in [11] and presented in Appendix -B for ease of reference. A zoomed-in panel is presented on the right in Figure 5 to show where hypo-hop and taking over occur.

Fig. 5: Evolution of hypotheses (left) and a zoomed-in detail (right) when running in debug mode and assuming independence. Each ellipse/diamond/double-octagon represents a hypo, with red track IDs and black measurement IDs within, and weights on the arc. Blue border indicates the best hypo (one for each factor [11]) at that time. A double-octagon hypo is one that would be declared a collision according to the criteria listed above, even though it is not forbidden. There are some hypo-hops in this example.

What is relevant for our current discussions is as follows: Each ellipse/diamond/double-octagon represents a hypo, within which are listings of red track IDs followed by black measurement IDs, and with weights on the incoming arc. Blue border indicates the best hypo (one for each factor [11]) at that frame time. For debugging purposes, we apply the above collision criteria to each parent-child hypo pair, and set a flag value for each child that would cause a collision, even though we are not doing anything about it in this “assuming independence” run. Such a child is shown as a double-octagon hypo in the diagram. Note that there are some hypo-hops in this example: The best, blue hypo on the upper right corner did not come from a blue parent. For ease of cross referencing, a zoomed-in portion of Figure 4 is shown in Figure 6. It would appear that the child hypo that assigns Measurements 36 and 37 is a “collision” one, but it is actually not due to hypo-hop.

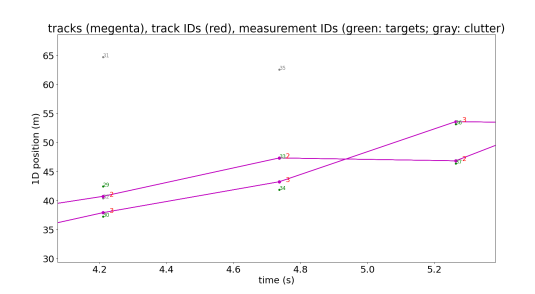

Fig. 6: A zoomed-in portion of Figure 3.

V Related work

Separable multi-object likelihood functions are introduced in [14], and are used in [15] to construct a tracktable, approximate distribution to handle generic multi-object likelihood functions. It is unclear how these proposed frameworks help solve the problem illustrated in Figure 1. Another paper [16] that handles generic observation models only gives examples that assume some form of conditional independence that would not hold for the situation in Figure 1.

Vi A call to arms

Going from point target tracking to extended target tracking is a giant step. Not only do we have to account for the estimation of target extent which is often coupled with target dynamics, but also we have to contend with the challenge that it is no longer the case that one target gives rise to at most one measurement in a given data frame. See [17] for a recent overview.

However, there is another, more fundamental challenge that has not, in our view, received adequate attention in the tracking community. The challenge is the lack of new mathematical tools to deal with representation and inference when spatial compatibility

is of essential concern. To illustrate this point, consider a target whose state consists only of a one-dimensional position (of its center), and a length. If we fix the length of all targets at a given constant, and consider the joint distribution of the positions of two targets, then the support of this probability density function (pdf) will look like that shown in Figure

7.

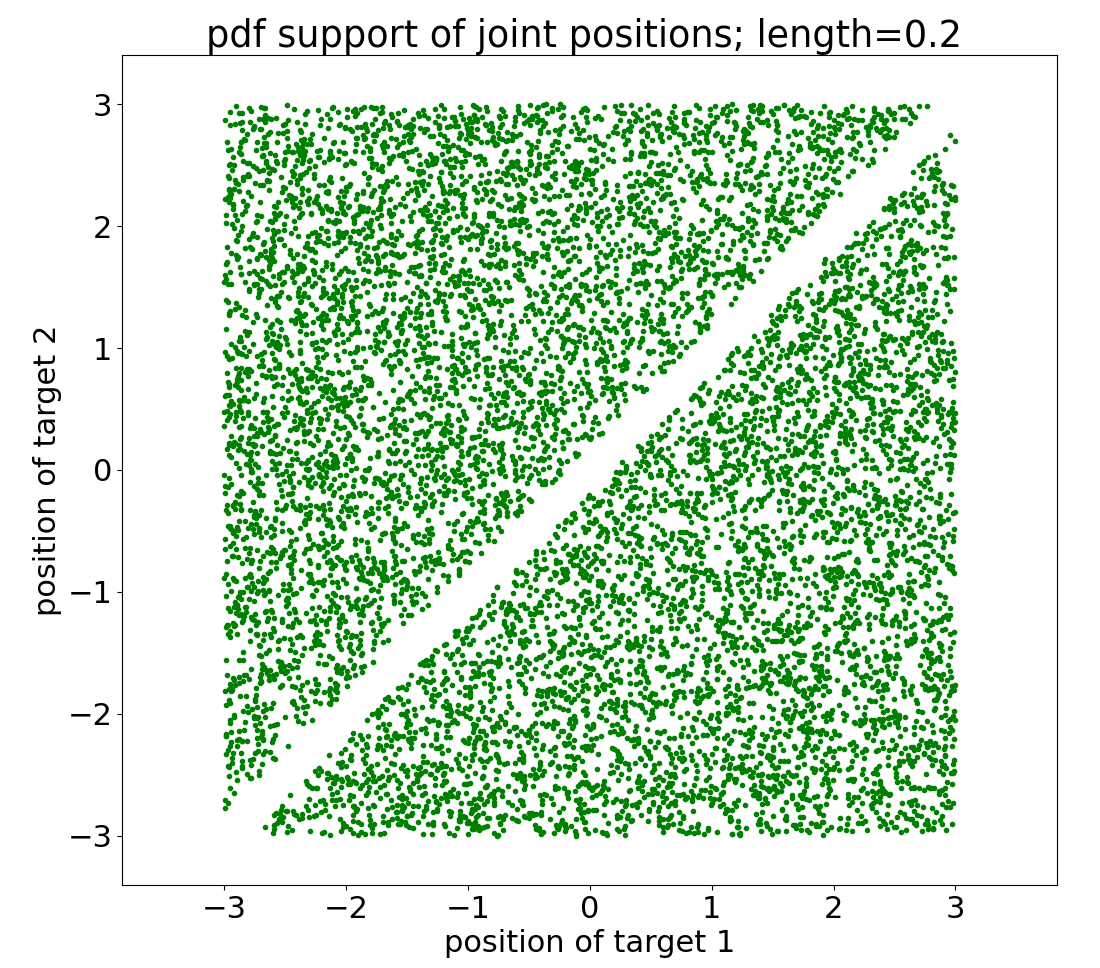

Fig. 7: The support of the pdf of the joint positions of two targets with a fixed length. Axes are limited between -3 and 3.

For point targets, the support is the plane excluding the diagonal line which has a measure zero. Thus, Bayesian inference, which involves Lebesgue integrals, is not affected. We can therefore simply ignore the exclusion and treat the whole space as the support of the relevant pdf. Not so for extended targets: The band of exclusion cannot be ignored. As another example, consider the support of the pdf of the position-length state of a target, conditioned on (i) one other target, and (ii) two other targets. These are shown in Figure

8, where the conditioning targets are shown by (i) a cross and (ii) a cross and a plus. Again, for point targets, the excluded set consists of only finite points, which has a measure zero. But for extended targets, inference using such conditional pdf’s is by no means straightforward.

Fig. 8: The support of the pdf of a target’s position-length state when conditioned on one other target (top) and on two other targets (bottom). Axes are limited between -3 and 3.

In the absence of a general mathematical tool to deal with such situations, a practical solution might be to constantly check for spatial compatibility. This may make the Collision Likelihood Structure applicable in many applications.

Vii Conclusions

In multi-target tracking, a data association hypothesis assigns measurements to tracks, and the hypothesis likelihood (of the joint target-measurement associations) is used to compare among all hypotheses for truncation under a finite compute budget. It is often assumed however that an individual target-measurement association likelihood is independent of others, i.e., it remains the same in whichever hypothesis it belongs to. In the case of Track Oriented Multiple Hypothesis Tracking, this leads to a parsimonious representation of the hypothesis space, with a maximum likelihood solution obtained through solving an Integer Linear Programming problem. In Labeled Random Finite Set filters, this leads to an efficient way of obtaining the top ranked hypotheses through solving a ranked assignment problem using Murty’s algorithm. In this paper we have presented a Propose and Verify approach for certain Dependent Likelihood Structures, such that the true hypothesis likelihood is evaluated jointly for the constituent track-measurement associations to account for dependence among them, but at the same time that ranking is still obtained efficiently. This is achieved by proposing a candidate ranking under an assumption of independence, and then evaluating the true likelihood one by one, which is guaranteed, for Collision Likelihood Structure and Occlusion Likelihood Structure among others, to not increase from its candidate value, until the desired number of top ranked hypotheses are obtained. We have illustrated the difference this new approach can make using a simple one dimensional example. We also call attention to the lack of fundamental mathematical tools in dealing with spatial compatibility encountered in target tracking problems.

Acknowledgment

The author would like to thank Dr. Giancarlo Baldan for insightful discussions.

References

  • [1] B.-N. Vo, M. Mallick, Y. Bar-shalom, S. Coraluppi, R. Osborne, R. Mahler, and B.-t. Vo, “Multitarget Tracking,” in Wiley Encyclopedia of Electrical and Electronics Engineering.   Hoboken, NJ, USA: John Wiley & Sons, Inc., dec 2015, pp. 1–15.
  • [2] C. Morefield, “Application of 0-1 integer programming to multitarget tracking problems,” IEEE Transactions on Automatic Control, vol. 22, no. 3, pp. 302–312, jun 1977.
  • [3] B.-N. Vo, B.-T. Vo, and D. Phung, “Labeled Random Finite Sets and the Bayes Multi-Target Tracking Filter,” Signal Processing, IEEE Transactions on, vol. 62, no. 24, pp. 6554–6567, dec 2014.
  • [4] B. N. Vo, B.-T. Vo, and H. Hoang, “An Efficient Implementation of the Generalized Labeled Multi-Bernoulli Filter,” IEEE Transactions on Signal Processing, vol. 65, no. 8, pp. 1975–1987, apr 2017.
  • [5] D. Reid, “An algorithm for tracking multiple targets,” IEEE Transactions on Automatic Control, vol. 24, no. 6, pp. 843–854, dec 1979.
  • [6] K. G. Murty, “Letter to the Editor—An Algorithm for Ranking all the Assignments in Order of Increasing Cost,” Operations Research, vol. 16, no. 3, pp. 682–687, 1968.
  • [7] Q. Lu, W. Dou, R. Visina, K. Pattipati, Y. Bar-Shalom, and P. Willett, “Evaluation of optimizations of Murty’s M-best assignment,” in Signal Processing, Sensor/Information Fusion, and Target Recognition XXVII, vol. 10646.   International Society for Optics and Photonics, 2018, p. 106460B.
  • [8] L. Chen, “An introduction to the generalized labeled multi-Bernoulli filter through Matlab code,” in Signal Processing, Sensor/Information Fusion, and Target Recognition XXVII, vol. 10646.   International Society for Optics and Photonics, 2018, p. 1064604.
  • [9] J. Munkres, “Algorithms for the Assignment and Transportation Problems,” Journal of the Society for Industrial and Applied Mathematics, vol. 5, no. 1, pp. 32–38, mar 1957.
  • [10] C. Chong, S. Mori, and D. B. Reid, “Forty Years of Multiple Hypothesis Tracking - A Review of Key Developments,” in 2018 21st International Conference on Information Fusion (FUSION), jul 2018, pp. 452–459.
  • [11] L. Chen, “A Merge/Split Algorithm for Multitarget Tracking Using Generalized Labeled Multi-Bernoulli Filters,” in FUSION 2021, submitted, 2021.
  • [12] A. F. Garcia-Fernandez, L. Svensson, and M. R. Morelande, “Multiple target tracking based on sets of trajectories,” IEEE Transactions on Aerospace and Electronic Systems, no. 3, pp. 1685–1707.
  • [13] L. Chen, “From labels to tracks: it’s complicated,” in Signal Processing, Sensor/Information Fusion, and Target Recognition XXVII, vol. 10646.   International Society for Optics and Photonics, 2018, p. 1064603.
  • [14] B. N. Vo, B. T. Vo, N. T. Pham, and D. Suter, “Joint detection and estimation of multiple objects from image observations,” IEEE Transactions on Signal Processing, vol. 58, no. 10, pp. 5129–5141, oct 2010.
  • [15] F. Papi, B. N. Vo, B. T. Vo, C. Fantacci, and M. Beard, “Generalized Labeled Multi-Bernoulli Approximation of Multi-Object Densities,” IEEE Transactions on Signal Processing, vol. 63, no. 20, pp. 5487–5497, oct 2015.
  • [16] S. Li, W. Yi, R. Hoseinnezhad, B. Wang, and L. Kong, “Multiobject tracking for generic observation model using labeled random finite sets,” IEEE Transactions on Signal Processing, vol. 66, no. 2, pp. 368–383, jan 2018.
  • [17] K. Granstrom, M. Baum, and S. Reuter, “Extended object tracking: Introduction, overview and applications,” Journal of Advances in Information Fusion, vol. 12, no. 2, pp. 139–174, dec 2017.
