Multi-Scale Adaptive Network for Single Image Denoising

03/08/2022
by   Yuanbiao Gou, et al.
Sichuan University
0

Multi-scale architectures have shown effectiveness in a variety of tasks including single image denoising, thanks to appealing cross-scale complementarity. However, existing methods treat different scale features equally without considering their scale-specific characteristics, i.e., the within-scale characteristics are ignored. In this paper, we reveal this missing piece for multi-scale architecture design and accordingly propose a novel Multi-Scale Adaptive Network (MSANet) for single image denoising. To be specific, MSANet simultaneously embraces the within-scale characteristics and the cross-scale complementarity thanks to three novel neural blocks, i.e., adaptive feature block (AFeB), adaptive multi-scale block (AMB), and adaptive fusion block (AFuB). In brief, AFeB is designed to adaptively select details and filter noises, which is highly expected for fine-grained features. AMB could enlarge the receptive field and aggregate the multi-scale information, which is designed to satisfy the demands of both fine- and coarse-grained features. AFuB devotes to adaptively sampling and transferring the features from one scale to another scale, which is used to fuse the features with varying characteristics from coarse to fine. Extensive experiments on both three real and six synthetic noisy image datasets show the superiority of MSANet compared with 12 methods.

READ FULL TEXT VIEW PDF

Authors

page 7

page 8

08/01/2019

Pyramid Real Image Denoising Network

While deep Convolutional Neural Networks (CNNs) have shown extraordinary...
06/09/2020

Single Image Deraining via Scale-space Invariant Attention Neural Network

Image enhancement from degradation of rainy artifacts plays a critical r...
01/28/2020

Spatial-Adaptive Network for Single Image Denoising

Previous works have shown that convolutional neural networks can achieve...
04/25/2021

Multi-Scale Hourglass Hierarchical Fusion Network for Single Image Deraining

Rain streaks bring serious blurring and visual quality degradation, whic...
09/20/2019

Gradual Network for Single Image De-raining

Most advances in single image de-raining meet a key challenge, which is ...
01/22/2020

A Multi-Scale Tensor Network Architecture for Classification and Regression

We present an algorithm for supervised learning using tensor networks, e...
08/11/2021

Rethinking Coarse-to-Fine Approach in Single Image Deblurring

Coarse-to-fine strategies have been extensively used for the architectur...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

In the real world, images are often contaminated by various signal-dependent or -independent noises during the image acquisition process. As a result, the imaging quality will decrease, thus hindering people and computers from receiving image information. To solve this problem, image denoising, as an essential step for image perception, has been extensively studied in the past decades sadnet ; bm3d ; dncnn ; ffdnet .

In the early, filtering-based methods remove the image noise by manually designing low-pass filters, e.g., median filtering median , bilateral filtering bilateral and wiener filtering wiener . Afterward, model-based methods remove the image noise by optimizing a problem of maximum a posteriori wnnm ; its ; trilateral . For instance, ITS its

proposed an intrinsic tensor sparsity regularization on the non-local similar image patches by assuming they could be sparsely represented. Looking from the other side, both the filtering- and the model-based methods are based on image priors from the statistics of natural images, and thus could be referred to as prior-based methods. Although remarkable performance has been achieved, an unpleasant denoising result will be obtained once the priors are inconsistent with the real data distribution. To avoid prior engineering, learning-based methods adopt a data-driven fashion to remove noise by learning the mapping from the noisy image to the corresponding clean image. With the popularity of deep neural networks, various network architectures have been designed and achieved state-of-the-art performance

sadnet ; deamnet ; dncnn ; ffdnet . For example, DnCNN dncnn

introduced residual learning and batch normalization to implement a denoising network. SADNet

sadnet proposed residual spatial-adaptive block and multi-scale context block to constitute a denoising network.

Among the network design paradigms, multi-scale architectures play a significant role in performance improvement thanks to multi-scale features. However, almost all existing studies design their network architectures by only considering the cross-scale complementarity while ignoring the within-scale characteristics (see Fig. 1). To be exact, the shallow and high-resolution features, which lack awareness of contextual information, are sensitive to inputs and contain a lot of noises. Nevertheless, they contain abundant image geometric information, such as points, edges, textures, and so on. In consequence, the shallow and high-resolution features are critical for the recovery of fine-grained image details. In contrast, although the deep and low-resolution features are short in geometric information, they are more competitive in noise-robustness and contextual information. Hence, the deep and low-resolution features are critical for the recovery of coarse-grained image context. To summarize, different scale features show varying characteristics and play different roles, it is deserved to deal with them via scale-specific structures instead of homologous architectures.

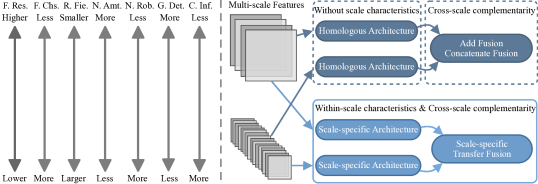

Figure 1: The motivations of MSANet. Left: the features at different resolutions show varying characteristics. In the figure, “F. Res.” and “F. Chs.” denote feature resolutions and channels, respectively; “R. Fie.” denotes receptive field; “N. Amt.” and “N. Rob.” denote noise amount and robustness, respectively; “G. Det.” and “C. Inf.” denote geometric details and contextual information, respectively. Right: the major difference of MSANet with existing multi-scale architectures, i.e., different scale features show varying characteristics and should be processed by scale-specific structures rather than homologous architectures.

Based on the above motivation, we propose a novel Multi-Scale Adaptive Network (MSANet) for single image denoising, which could simultaneously incorporate the within-scale characteristics and the cross-scale complementarity into architecture design by overcoming the following three difficulties, i.e., i) how to adaptively sample image details and filter noises; ii) how to expand the receptive field and adaptively aggregate multi-scale information without changing feature scales; iii) how to adaptively fuse the multi-scale features with varying characteristics. Accordingly, three neural blocks, i.e., adaptive feature block (AFeB), adaptive multi-scale block (AMB) and adaptive fusion block (AFuB) are proposed. In brief, AFeB handles the features with a lot of details and noises through adaptively sampling. As a result, the image details are preserved while filtering noises. AMB employs convolutions with varying receptive fields and adaptively fuses the features to endow with the large receptive field and multi-scale information. AFuB adaptively samples and transfers the features from one scale to another scale, and thus the multi-scale features with varying characteristics could be fused from coarse to fine.

To summarize, the contributions are as follows:

  • We propose a novel neural network for single image denoising, termed as MSANet. The major difference with existing methods is that MSANet simultaneously considers and incorporates the within-scale characteristics and the cross-scale complementarity into multi-scale architecture design, which is a missing piece before and the first revelation so far.

  • To exploit the within-scale characteristics and achieve cross-scale complementarity, we design three neural blocks, i.e., AFeB, AMB, and AFuB, which are used to build scale-specific subnetworks corresponding to different scale features.

  • Extensive experiments are conducted on three real and six synthetic noisy image datasets to show the effectiveness of MSANet compared with 12 image denoising methods.

2 Related Work

In this section, we briefly introduce some single image denoising methods and multi-scale architectures, and discuss the major differences of MSANet with them.

2.1 Single Image Denoising

In general, most existing single image denoising approaches could be categorized as prior- and learning-based methods. Prior-based methods are based on some priors from natural images, such as local smoothing iterative , self-similarity bilateral ; bm3d ; wnnm , sparsity trilateral ; its and so on. For instance, BM3D bm3d aggregates noisy pixels by transforming the 3D stack of non-local similar patches and employing a shrinkage function to obtain sparse coefficients. WNNM wnnm introduced a low-rank weight coefficient based on the nuclear norm minimization and exploited the non-local similar image patches to remove noise. Different from prior-based methods that heavily rely on handcrafted priors, learning-based methods learn the mapping from the noisy image to the clean image in an end-to-end manner. In recent, a large number of methods have been proposed and achieved state-of-the-art performance sadnet ; clearer ; deamnet ; dncnn ; ffdnet . For example, MemNet memnet proposed a persistent memory network to fuse both short- and long-term memories for capturing different levels of information. FFDNet ffdnet enhanced the denoising network for non-uniform noise by using the noise level map. Non-local attention nla was designed to exploit the image self-similarity, and NLRN nlrn

incorporated this attention mechanism into a recurrent neural network for image recovery. RNAN

rnan proposed a residual non-local attention network to overcome the challenge caused by the uneven information distribution in noisy images. CBDNet cbdnet trained a denoising network through a more realistic noise model and real-world noisy-clean image pairs. DeamNet deamnet introduced an adaptive consistency prior and designed an interpretable deep denoising network.

Different from the aforementioned methods, MSANet proposed three neural blocks, i.e., AFeB, AMB, and AFuB, to constitute the scale-specific subnetworks corresponding to different scale features for adapting their varying characteristics.

2.2 Multi-Scale Architectures

Multi-scale architectures have played a significant role in many fields of computer vision

pyramidA ; rfb ; yoly ; msd ; msp ; msfe ; dsa ; sht , thanks to the multi-scale features and their cross-scale complementarity. The straightforward way for multi-scale architecture is to separately feed multi-/single-resolution images/features into single/multiple subnetworks, and then fuse the outputs as a result edpn ; zid ; pgan ; dlp ; bim . For example, HRNet hrnet

proposed a multi-scale network by gradually adding high-to-low resolution subnetworks and repeating multi-scale fusions for human pose estimation. CLEARER

clearer proposed a multi-scale neural architecture search to automatically determine where to fuse multi-scale features for image restoration. GridDehazeNet griddehazenet exploited the multi-scale information using a grid-like network and employed an attention mechanism to improve the dehazing performance. DID-MDN did-mdn proposed a multi-stream densely connected network to efficiently leverage features of different scales for image deraining. MSCNN mscnn consists of a coarse-scale network and a fine-scale network to learn a transmission map for image dehazing. In addition, sadnet ; msbdn ; e-cae employed encoder-decoder architectures to combine the high-to-low with low-to-high resolution features through the skip-connections.

Although the aforementioned studies and our work share similarities in multi-scale architecture, they are remarkably different. The existing methods only consider the cross-scale complementarity and use homologous architectures for different scale features. In contrast, our work additionally considers the within-scale characteristics and uses scale-specific structures to embrace the both, which is the missing piece and the first revelation for multi-scale architecture design.

3 Proposed Method

In this section, we propose a novel single image denoising method (i.e., MSANet) which simultaneously embraces the within-scale characteristics and the cross-scale complementarity of multi-scale features through three neural blocks. In the following, we will first introduce the architecture principles of MSANet and then elaborate on the three neural blocks.

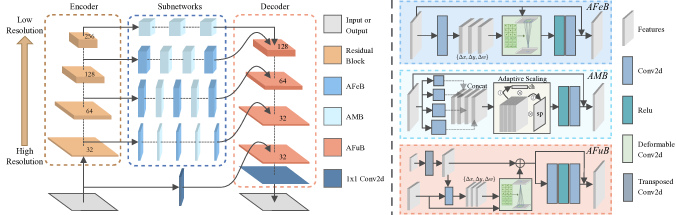

Figure 2: The framework of MSANet. It employs an asymmetric encoder-decoder architecture with multiple subnetworks to capture and fuse the scale-specific features. In addition, three neural blocks are designed to exploit the within-scale characteristics and achieve the cross-scale complementarity of multi-scale features. Note that we take four scales of features as a showcase and for experimental evaluations, more scales are allowed in practice.

3.1 Architecture Principles

As illustrated in Fig. 2, the backbone of MSANet is an asymmetric encoder-subnetworks-decoder architecture. More specifically, the encoder adopts four residual blocks residual to extract features of four scales. The first residual block aims to extract the initial features without changing the resolution. The other residual blocks respectively decrease the resolutions to half while increasing the channels to double.

With the features extracted by the encoder blocks, the subnetworks aim to explore and exploit their within-scale characteristics by using AFeB and/or AMB. Specifically, the bottom subnetwork needs to handle the high-resolution features which usually contain a mixture of geometric details and noises. Therefore, it is highly expected to remove the noises without losing the fine-grained image details, and thus AFeB is used as a component of the bottom subnetwork. Meanwhile, the bottom subnetwork expects a large receptive field and multi-scale information to perceive the noises and details in a wide range and comprehensive manner. Hence, we alternately stack AFeB and AMB to build the bottom subnetwork. In addition, as the higher-resolution features usually have fewer channels (

i.e., fewer parameters), a deeper subnetwork is allowed to further alleviate their disadvantages, such as massive noises, small receptive field and so on.

Different from the bottom subnetwork, the top subnetwork aims to exploit the within-scale characteristics of the low-resolution features, which are short in geometric information but strong in contextual information. As too low resolution will destroy the contextual information, the coarse-grained contextual consistency cannot be maintained during image recovery. Hence, we employ AMB to hierarchically increase the receptive field and adaptively capture multi-scale information without reducing the resolution. In addition, as the low-resolution features are more robust to noise and have more channels, the top subnetwork only consists of AMB and is with shallower depth for efficiency. For the two middle subnetworks, as the characteristics of multi-scale features are gradually changing from high- to low-resolution, we take an eclectic manner by making them be similar with their nearest bottom/top subnetworks in the blocks combinations, and simultaneously letting the start point and endpoint of them be AFeB for adaptively controlling the input and output.

To exploit the cross-scale complementarity, the decoder consists of four AFuBs, followed by a convolution layer to output the recovered images. More specifically, the first three AFuBs will increase the resolutions and decrease the channels, while adaptively transferring the fine-grained geometric features to the coarse-grained contextual features. The last AFuB will keep the resolution and channels unchanged, and directly transfer the geometric details from the noisy input, which is an effective alternative to the global skip-connection, for which could avoid introducing noise from the noisy input.

For a given noisy input , MSANet employs the encoder to extract the features of different scales and then feeds the features into different subnetworks to learn the scale-specific features. After that, the decoder fuses the multi-scale features from coarse to fine to obtain the recovered image , where denotes MSANet. To optimize MSANet, we employ the following objective function,

(1)

where is the ground truth of , and .

3.2 Adaptive Neural Blocks

In this section, we elaborate on the proposed three neural blocks which are designed to learn better multi-scale features for single image denoising.

Adaptive Feature Block (AFeB). To preserve the indispensable image details and filter unpleasant noises, the block is expected to adaptively sample and weight the input features based on themselves, i.e.,

(2)

where is used to compute the offset w.r.t. the positions , as well as the corresponding weight . Then, the output features could be aggregated by

(3)

where is the number of samples, and denotes the learnable weights. In this way, AFeB could learn the sampling locations to indicate where are important for restoration, while assigning different weights to show how important the locations are. As a result, AFeB could preserve the image details and filter unpleasant noises for better restoration. However, it is prohibitive to traverse all positions for sampling and weighting w.r.t. each position in the input features. Hence, for the convenience of implementation, AFeB employs the modulated deformable convolution dcnv2 to implement the aggregation operation in Eq.(3). In detail, AFeB sets the sample number to the kernel size and the learnable weights as the convolutional weights. Although this setting would decrease the number of samples and the flexibility of weights, it is efficient in the calculation of high resolution features, and the limitations could be alleviated by stacking AFeBs. In summary, AFeB consists of a convolutional layer

, a modulated deformable convolution, a leaky relu layer, a convolutional layer and a skip-connection,

i.e.,

(4)

Adaptive Multi-scale Block (AMB). A large receptive field and multi-scale information are highly expected for either of the high and the low resolution features. For high resolution, reducing the resolution will lead to the loss of image details. For low resolution, a too small resolution will destroy the contextual consistency. Therefore, to increase the receptive field and capture multi-scale information without changing the resolution, we propose AMB by using several convolutions with different dilation rates. Convolution with a large dilation rate could provide a large receptive field, and multiple convolutions with different dilation rates could smoothly capture multi-scale information. To reduce the costs caused by multiple convolutions, AMB compresses the channels of each convolution so that the concatenated channels of all convolutions are equal to the output channels, i.e.,

(5)

where and are input and output features, and is the -th convolution with the dilation rate . As the concatenation assigns different scale features into different channels, the distinctive importance of multi-scale features is not considered. To address this issue, AMB will adaptively scale different channels and features, i.e.,

(6)

where is an adaptive average pooling on space domain, denotes a mean operation along the channels, is a linear layer, is a convolutional layer, is a sigmoid layer, and is used to control the amplification () or suppression (). With , AMB passes it through a leaky relu layer, a convolutional layer and a skip-connection, i.e.,

(7)

Adaptive Fusion Block (AFuB). As the high-resolution features contain a lot of disorderly fine-grained image details and the low-resolution features contain abundant coarse-grained image contextual information, it is desirable to transfer the fine-grained image details into the coarse-grained image context. To this end, AFuB first upsamples the coarse-grained features to the resolution of the fine-grained features via

(8)

where is a transpose convolution. Then, to address the issue of the disordered details, AFuB adaptively samples and weights the fine-grained features by using coarse-grained features to provide contextual information and fine-grained features to provide details information, i.e.,

(9)

where is used to compute the offset w.r.t. the positions , as well as the corresponding weight . After that, AFuB will transfer the fine-grained details to the coarse-grained context via

(10)

where is the number of fine-grained detail features, is the learnable weights. Similar to AFeB, AFuB employs a convolutional layer as the function and a modulated deformable convolution to achieve the aggregation in Eq.(10). Finally, AFuB uses a convolutional layer, a leaky relu layer, a convolutional layer and a skip-connection for further refining features, i.e.,

(11)

4 Experiments

In this section, we first introduce the experimental settings, and then show the quantitative and qualitative results on nine datasets. Finally, we perform analysis experiments including ablation studies and model complexity. Due to space limitations, we present more experimental details and results in the supplementary material.

4.1 Experimental settings

We evaluate the MSANet on both real and synthetic noisy datasets. For the evaluations on real noise, we employ the SIDD sidd , RENOIR renoir , Poly poly datasets for training, and use SIDD Validation, Nam nam and DnD dnd datasets for testing. For synthetic noise, we train MSANet on DIV2K div2k dataset, which contains 800 images of 2K resolution, by adding Additive White Gaussian Noise (AWGN) with the noise levels of 30, 50, and 70. We use color McMaster mcmaster (CMcMaster), color Kodak24 (CKodak24), color BSD68 bsd68 (CBSD68) for testing color image denoising, and grayscale McMaster (GMcMaster), grayscale Kodak24 (GKodak24), grayscale BSD68 (GBSD68) for testing grayscale image denoising.

We implement MSANet in Pytorch

pytorch

and carry out all experiments on Ubuntu 20.04 with GeForce RTX 3090 GPUs. In our implementations, we use four scale features with channels of 32, 64, 128 and 256. Moreover, we train the MSANet 100 epochs via

loss for real noise and 300 epochs via loss for synthetic noise. Either real and synthetic noise training are with the batch size of 16 and the patch size of 128. To optimize MSANet, the Adam adam optimizer is used, and the learning rate is initially set to 1e-4 and decays to zero via the cosine annealing strategy sgdr . During the training, we randomly crop, flip and rotate the patches for data augmentation. In the testing, we employ PSNR and SSIM to evaluate the performance.

4.2 Comparisons on Real Noise Images

Method CDnCNN-B CBM3D CBDNet PD RIDNet SADNet DeamNet MSANet
PSNR 26.21 30.88 33.07 33.96 38.71 39.46 39.47 39.56
SSIM - - 0.8324 0.8195 0.9052 0.9103 0.9105 0.9118
Table 1: Quantitative results on SIDD sRGB validation dataset.
Method CDnCNN-B CBM3D CBDNet PD RIDNet SADNet DeamNet MSANet
PSNR 37.49 39.84 41.31 41.09 41.04 42.92 42.03 43.52
SSIM 0.9272 0.9657 0.9784 0.9780 0.9814 0.9839 0.9790 0.9863
Table 2: Quantitative results on Nam dataset with JPEG compression.
Method CDnCNN-B CBM3D FFDNet+ CBDNet N3Net PR RIDNet SADNet DeamNet MSANet
PSNR 32.43 34.51 37.61 38.06 38.32 39.00 39.26 39.59 39.63 39.65
SSIM 0.7900 0.8507 0.9415 0.9421 0.9384 0.9542 0.9528 0.9523 0.9531 0.9553
Table 3: Quantitative results on DnD sRGB dataset.

Real noise image denoising is challenging due to the real noise being usually signal-dependent and spatial-variant hinges on different in-camera pipelines. Therefore, we carry out denoising experiments on three real noise image datasets, i.e., SIDD Validation, Nam, and DnD. In brief, the validation dataset of SIDD contains 1,280 noisy-clean image pairs captured by the smartphone. Nam includes 15 large image pairs with JPEG compression, and we evaluate MSANet on the selected 25 patches by following CBDNet cbdnet . DnD contains 50 pairs of real noisy-clean images captured by cameras, and 1,000 patches are extracted for testing. Due to the ground truths of the patches are not publicly available, we obtain the PSNR and SSIM results via the online submission system dnd . Besides, since JPEG compression makes the noise more stubborn on the Nam, we first train our model on the combination of SIDD and RENOIR for the evaluations on SIDD Validation and DND, and then fine-tune the trained model on the Poly for the evaluations on Nam.

For comparisons, we compare MSANet with 10 denoising methods, i.e., CDnCNN-B, CBM3D cbm3d , FFDNet+, CBDNet, N3Net n3net , PD pd , PR pr , RIDNet ridnet , SADNet and DeamNet, and use the corresponding pretrained models provided by their authors and refer to their results reported in the online submission system and papers.

Table 1 shows the quantitative results on SIDD validation dataset. In brief, MSANet achieves the highest PSNR and SSIM values compared to other methods, e.g., 0.85dB, 0.1dB, 0.09dB gains in PSNR, and 0.0066, 0.0015, 0.0013 gains in SSIM over the RIDNet, SADNet, and DeamNet, respectively. For visual comparisons in Fig. 3, CBDNet and PD result in residual noises and pseudo artifacts, RIDNet, SADNet and DeamNet severely destroy the textures and obtain over-smoothed results. In contrast, our method MSANet recovers textures and structures more subtly and obtains clearer recovery. Some areas are highlighted by color rectangles and zooming-in is recommended for better visualization.

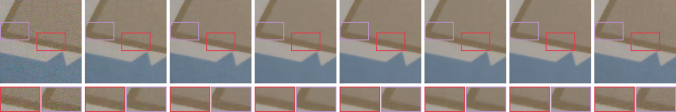

Figure 3: Qualitative results on real noise image from SIDD validation dataset. From left to right, we show the real noise image, the results of CBDNet, PD, RIDNet, SADNet, DeamNet, MSANet, and the ground truth.

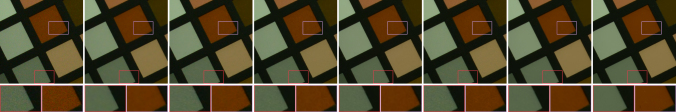

Figure 4: Qualitative results on real noise image from Nam dataset. From left to right, we show the real noise image, the results of CBDNet, PD, RIDNet, SADNet, DeamNet, MSANet, and the ground truth.

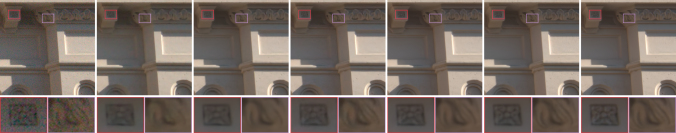

Figure 5: Qualitative results on real noise image from DnD dataset. From left to right, we show the real noise image, the results of CBDNet, RIDNet, PD, SADNet, DeamNet, and MSANet.

The quantitative results on Nam dataset are shown in Table 2, which demonstrates that our method achieves significant improvements over the other tested methods. Specifically, MSANet outperforms RIDNet with 2.48dB (0.0049), SADNet with 0.6dB (0.0024), DeamNet with 1.49dB (0.0073) in PSNR (SSIM) values. For the visual comparisons shown in Fig. 4, our method obtains the best result for details recovery and noises removal, which is closer to the ground truth than other results.

Table 3 reports the quantitative results on DnD dataset, which are obtained from the DnD benchmark website. From the table, one could observe that MSANet outperforms all methods both in PSNR and SSIM values. Moreover, we further perform a qualitative comparison on the DnD dataset. As shown in Fig. 5, the other methods achieve blurred results wherein many image details are corroded by noise, while our method can effectively remove the noises and obtain clearer details.

4.3 Comparisons on Synthetic Noise Images

Dataset CBM3D DnCNN FFDNet CLEARER SADNet RNAN DeamNet MSANet (Ours)
CMcMaster 30 29.58/0.8107 29.64/0.8098 30.05/0.8221 30.83/0.8522 31.96/0.8857 32.01/0.8848 32.00/0.8862 32.07/0.8876
50 25.92/0.7153 25.99/0.7147 26.23/0.7244 28.92/0.8143 29.72/0.8374 29.69/0.8333 29.78/0.8393 29.82/0.8403
70 23.12/0.6398 23.03/0.6297 23.19/0.6406 26.96/0.7504 28.25/0.7988 28.14/0.7918 28.27/0.8000 28.35/0.8028
CKodak24 30 30.33/0.8417 30.77/0.8548 30.62/0.8542 31.17/0.8590 31.72/0.8730 31.72/0.8716 31.76/0.8736 31.78/0.8744
50 27.28/0.7572 27.63/0.7718 27.54/0.7687 28.94/0.7977 29.49/0.8149 29.43/0.8102 29.53/0.8155 29.57/0.8169
70 24.84/0.6890 24.90/0.6912 24.88/0.6890 27.59/0.7503 28.10/0.7715 27.99/0.7635 28.14/0.7721 28.17/0.7731
CBSD68 30 29.22/0.8378 29.72/0.8556 29.51/0.8526 30.35/0.8665 30.63/0.8749 30.61/0.8733 30.65/0.8749 30.67/0.8758
50 26.06/0.7378 26.48/0.7600 26.38/0.7550 28.01/0.7996 28.31/0.8089 28.25/0.8050 28.34/0.8093 28.36/0.8107
70 23.70/0.6548 23.86/0.6626 23.80/0.6584 26.58/0.7433 26.91/0.7577 26.81/0.7511 26.92/0.7574 26.96/0.7591
Table 4: Quantitative results on synthetic color noise image datasets.
Dataset BM3D DnCNN FFDNet CLEARER SADNet RNAN DeamNet MSANet (Ours)
GMcMaster 30 29.45/0.8151 29.80/0.8119 29.89/0.8292 30.29/0.8491 30.92/0.8649 30.92/0.8629 30.94/0.8656 30.96/0.8661
50 26.23/0.7218 26.24/0.7281 26.46/0.7319 28.31/0.7945 28.61/0.8052 28.57/0.8014 28.65/0.8070 28.68/0.8072
70 23.78/0.6517 23.63/0.6682 23.64/0.6466 26.83/0.7427 27.18/0.7606 27.06/0.7526 27.20/0.7616 27.22/0.7620
GKodak24 30 28.71/0.7854 29.21/0.7946 29.15/0.8077 29.49/0.8132 29.87/0.8238 29.89/0.8208 29.90/0.8241 29.91/0.8248
50 26.22/0.6996 26.52/0.7190 26.52/0.7177 27.27/0.7412 27.77/0.7559 27.73/0.7494 27.79/0.7567 27.81/0.7564
70 24.37/0.6393 24.31/0.6647 24.28/0.6419 26.12/0.6931 26.51/0.7090 26.42/0.6989 26.53/0.7107 26.54/0.7091
GBSD68 30 27.43/0.7721 27.96/0.7762 27.89/0.7982 28.27/0.8112 28.58/0.8165 28.59/0.8140 28.59/0.8165 28.61/0.8174
50 24.90/0.6715 25.19/0.6826 25.19/0.6909 26.09/0.7295 26.50/0.7382 26.46/0.7333 26.50/0.7392 26.51/0.7393
70 23.07/0.5985 23.04/0.6107 22.98/0.5942 25.03/0.6734 25.23/0.6828 25.15/0.6736 25.23/0.6831 25.25/0.6826
Table 5: Quantitative results on synthetic grayscale noise image datasets.

We carry out experiments on three color and three grayscale noisy image datasets. Specifically, the datasets are obtained by adding AWGN with the levels of 30, 50, and 70 to the color and grayscale version of BSD68, Kodak24 and McMaster, respectively. In brief, BSD68 contains 68 images which are frequently used for measuring image denoising performance, Kodak24 contains 24 images captured by film cameras, and McMaster contains 18 images with statistics closer to natural images.

For comparisons, we choose seven representative denoising methods, i.e., BM3D bm3d , DnCNN dncnn , FFDNet ffdnet , CLEARER clearer , RNAN rnan , SADNet sadnet and DeamNet deamnet . We call the python library for the evaluation of BM3D, and the pretrained models, provided by authors or retrained by us, for the evaluations of the other methods.

Table 4 reports the quantitative results on color image denoising, which shows that MSANet achieves the highest PSNR and SSIM values. Taking the noise level of 70 as an example, our method can achieve PSNR gains about dB, and SSIM gains about over the state-of-the-art methods, i.e., SADNet, RNAN, and DeamNet. Table 5 shows the quantitative results on grayscale image denoising. From the table, one could observe that MSANet achieves the highest PSNR values, and outperforms the other methods about dB w.r.t. PSNR.

4.4 Analysis Experiments

To verify the effectiveness of MSANet, we conduct ablation studies. From Table 6, one could see that: i) subnetworks (ResB) are important to performance gain compared with skip connections (ED); ii) either AFeB or AMB alone slightly gains performance while using them together (AFeB+AMB) to exploit the within-scale characteristics could significantly improve the performance; iii) using AFuB to achieve the cross-scale complementarity could significantly improve the performance; iii) using the three neural blocks together (MSANet) to embrace the within-scale characteristics and the cross-scale complementarity of multi-scale features could further boost the performance.

Ablations ED ResB AFeB AMB AFuB AFeB+AMB AFeB+AFuB AMB+AFuB MSANet
PSNR 31.70 31.93 31.94 31.94 32.01 31.98 32.04 32.03 32.07
SSIM 0.8801 0.8851 0.8854 0.8851 0.8864 0.8860 0.8869 0.8866 0.8876
Table 6: Ablation studies on CMcMaster dataset with the noise level of 30. “ED” denotes the encoder-decoder with skip connections, i.e., no subnetworks for different scale features. “ResB” denotes to substitute the blocks in MSANet with the ResBlock. “AFeB”, “AMB”, “AFuB”, “AFeB+AMB”, “AFeB+AFuB” and “AMB+AFuB” denote to use the corresponding blocks on the basis of “ResB”.

To investigate the model complexity of MSANet, we evaluate the parameter numbers, running time, and floating-point operations (FLOPs). As shown in Table 7, although MSANet is not competitive in parameter numbers due to multiple subnetworks, the running time and FLOPs are competitive due to multi-resolution features.

Methods Params (M) Time (ms) FLOPs (G)
RIDNet 1.499 84.4 230.0
DeamNet 1.873 99.2 342.3
RNAN 8.960 1072.2 1163.5
MSANet 7.997 94.7 166.2
Table 7: Comparisons of parameters, time, and flops on color images.

5 Conclusions

In this paper, we proposed MSANet with three neural blocks, i.e., AFeB, AMB, and AFuB, for single image denoising. Different from existing multi-scale architectures, MSANet considers not only the cross-scale complementarity but also the within-scale characteristics, thus boosting the recovery performance as verified in experiments. As this work could be regarded as finding the missing piece of multi-scale architecture design, we will explore other solutions to exploit the within-scale characteristics and investigate their effectiveness in broader tasks such as deblur, segmentation, etc.

Broader Impact Statement. MSANet is a specifically designed architecture for supervised single image denoising, which requires intensive labor to collect a lot of noisy-clean image pairs and thus has the potential to make more opportunities for employment. However, MSANet is a general neural network and might be trained with uncertain data and used for uncertain purposes, such as watermark removal, which might prejudice the rights of others. Besides, MSANet involves a novel idea of multi-scale architecture design and might be used to design new networks for uncertain purposes. Moreover, the training and running of the model consume a lot of electricity causing carbon emission.

References

  • [1] Abdelrahman Abdelhamed, Stephen Lin, and Michael S Brown. A high-quality denoising dataset for smartphone cameras. In IEEE Conf. Comput. Vis. Pattern Recog., pages 1692–1700, 2018.
  • [2] Eirikur Agustsson and Radu Timofte.

    Ntire 2017 challenge on single image super-resolution: dataset and study.

    In IEEE Conf. Comput. Vis. Pattern Recog. Worksh., July 2017.
  • [3] Josue Anaya and Adrian Barbu. Renoir–a dataset for real low-light image noise reduction. Journal of Visual Communication and Image Representation, 51:144–154, 2018.
  • [4] Saeed Anwar and Nick Barnes. Real image denoising with feature attention. In Int. Conf. Comput. Vis., pages 3155–3164, 2019.
  • [5] Xiaochun Cao, Wenqi Ren, Wangmeng Zuo, Xiaojie Guo, and Hassan Foroosh. Scene text deblurring using text-specific multiscale dictionaries. IEEE Trans. Image Process., 24(4):1302–1314, 2015.
  • [6] Meng Chang, Qi Li, Huajun Feng, and Zhihai Xu. Spatial-adaptive network for single image denoising. In Eur. Conf. Comput. Vis., pages 171–187. Springer, 2020.
  • [7] Jingdong Chen, Jacob Benesty, Yiteng Huang, and Simon Doclo. New insights into the noise reduction wiener filter. IEEE Trans. on Audio, Speech, and Language Process., 14(4):1218–1234, 2006.
  • [8] Tao Chen, Kai-Kuang Ma, and Li-Hui Chen. Tri-state median filter for image denoising. IEEE Trans. Image Process., 8(12):1834–1838, 1999.
  • [9] Kostadin Dabov, Alessandro Foi, Vladimir Katkovnik, and Karen Egiazarian. Color image denoising via sparse 3d collaborative filtering with grouping constraint in luminance-chrominance space. In IEEE Int. Conf. Image Process., volume 1, pages I–313. IEEE, 2007.
  • [10] Kostadin Dabov, Alessandro Foi, Vladimir Katkovnik, and Karen Egiazarian. Image denoising by sparse 3-d transform-domain collaborative filtering. IEEE Trans. Image Process., 16(8):2080–2095, 2007.
  • [11] Hang Dong, Jinshan Pan, Lei Xiang, Zhe Hu, Xinyi Zhang, Fei Wang, and Ming-Hsuan Yang. Multi-scale boosted dehazing network with dense feature fusion. In IEEE Conf. Comput. Vis. Pattern Recog., June 2020.
  • [12] Yuanbiao Gou, Boyun Li, Zitao Liu, Songfan Yang, and Xi Peng. Clearer: Multi-scale neural architecture search for image restoration. Adv. Neural Inform. Process. Syst., 33, 2020.
  • [13] Shuhang Gu, Lei Zhang, Wangmeng Zuo, and Xiangchu Feng. Weighted nuclear norm minimization with application to image denoising. In IEEE Conf. Comput. Vis. Pattern Recog., pages 2862–2869, 2014.
  • [14] Shi Guo, Zifei Yan, Kai Zhang, Wangmeng Zuo, and Lei Zhang. Toward convolutional blind denoising of real photographs. In IEEE Conf. Comput. Vis. Pattern Recog., June 2019.
  • [15] Kaiming He, Xiangyu Zhang, Shaoqing Ren, and Jian Sun. Deep residual learning for image recognition. In IEEE Conf. Comput. Vis. Pattern Recog., pages 770–778, 2016.
  • [16] Diederik P Kingma and Jimmy Ba. Adam: A method for stochastic optimization. arXiv preprint arXiv:1412.6980, 2014.
  • [17] Jianjun Lei, Yuxin Song, Bo Peng, Zhanyu Ma, Ling Shao, and Yi-Zhe Song.

    Semi-heterogeneous three-way joint embedding network for sketch-based image retrieval.

    IEEE Trans. Circuit Syst. Video Technol., 30(9):3226–3237, 2020.
  • [18] Boyun Li, Yuanbiao Gou, Shuhang Gu, Jerry Zitao Liu, Joey Tianyi Zhou, and Xi Peng. You only look yourself: Unsupervised and untrained single image dehazing neural network. Int. J. Comput. Vis., 129(5):1754–1767, 2021.
  • [19] Boyun Li, Yuanbiao Gou, Jerry Zitao Liu, Hongyuan Zhu, Joey Tianyi Zhou, and Xi Peng. Zero-shot image dehazing. IEEE Trans. Image Process., 29:8457–8466, 2020.
  • [20] Yu Li, Robby T. Tan, Xiaojie Guo, Jiangbo Lu, and Michael S. Brown. Single image rain streak decomposition using layer priors. IEEE Trans. Image Process., 26(8):3874–3885, 2017.
  • [21] Ding Liu, Bihan Wen, Yuchen Fan, Chen Change Loy, and Thomas S Huang. Non-local recurrent network for image restoration. In Adv. Neural Inform. Process. Syst., pages 1680–1689, 2018.
  • [22] Jinyuan Liu, Xin Fan, Ji Jiang, Risheng Liu, and Zhongxuan Luo. Learning a deep multi-scale feature ensemble and an edge-attention guidance for image fusion. IEEE Trans. Circuit Syst. Video Technol., 2021.
  • [23] Risheng Liu, Jinyuan Liu, Zhiying Jiang, Xin Fan, and Zhongxuan Luo. A bilevel integrated model with data-driven layer ensemble for multi-modality image fusion. IEEE Trans. Image Process., 30:1261–1274, 2021.
  • [24] Songtao Liu, Di Huang, et al. Receptive field block net for accurate and fast object detection. In Eur. Conf. Comput. Vis., pages 385–400, 2018.
  • [25] Xiaohong Liu, Yongrui Ma, Zhihao Shi, and Jun Chen. Griddehazenet: Attention-based multi-scale network for image dehazing. In IEEE Conf. Comput. Vis. Pattern Recog., pages 7314–7323, 2019.
  • [26] Ilya Loshchilov and Frank Hutter. Sgdr: Stochastic gradient descent with warm restarts. arXiv preprint arXiv:1608.03983, 2016.
  • [27] David Martin, Charless Fowlkes, Doron Tal, and Jitendra Malik. A database of human segmented natural images and its application to evaluating segmentation algorithms and measuring ecological statistics. In Int. Conf. Comput. Vis., volume 2, pages 416–423. IEEE, 2001.
  • [28] Yiqun Mei, Yuchen Fan, Yulun Zhang, Jiahui Yu, Yuqian Zhou, Ding Liu, Yun Fu, Thomas S Huang, and Humphrey Shi. Pyramid attention networks for image restoration. arXiv preprint arXiv:2004.13824, 2020.
  • [29] Seonghyeon Nam, Youngbae Hwang, Yasuyuki Matsushita, and Seon Joo Kim. A holistic approach to cross-channel image noise modeling and its application to image denoising. In IEEE Conf. Comput. Vis. Pattern Recog., pages 1683–1691, 2016.
  • [30] Adam Paszke, Sam Gross, Francisco Massa, Adam Lerer, James Bradbury, Gregory Chanan, Trevor Killeen, Zeming Lin, Natalia Gimelshein, Luca Antiga, et al.

    Pytorch: An imperative style, high-performance deep learning library.

    Adv. Neural Inform. Process. Syst., 32:8026–8037, 2019.
  • [31] Tobias Plotz and Stefan Roth. Benchmarking denoising algorithms with real photographs. In IEEE Conf. Comput. Vis. Pattern Recog., pages 1586–1595, 2017.
  • [32] Tobias Plötz and Stefan Roth. Neural nearest neighbors networks. Adv. Neural Inform. Process. Syst., 31:1087–1098, 2018.
  • [33] Chao Ren, Xiaohai He, Chuncheng Wang, and Zhibo Zhao. Adaptive consistency prior based deep network for image denoising. In IEEE Conf. Comput. Vis. Pattern Recog., pages 8596–8606, 2021.
  • [34] Wenqi Ren, Jinshan Pan, Hua Zhang, Xiaochun Cao, and Ming-Hsuan Yang.

    Single image dehazing via multi-scale convolutional neural networks with holistic edges.

    Int. J. Comput. Vis., 128(1):240–259, 2020.
  • [35] Masanori Suganuma, Mete Ozay, and Takayuki Okatani.

    Exploiting the potential of standard convolutional autoencoders for image restoration by evolutionary search.

    In Int. Conf. Mach. Learn., pages 4771–4780, 2018.
  • [36] Ke Sun, Bin Xiao, Dong Liu, and Jingdong Wang.

    Deep high-resolution representation learning for human pose estimation.

    In IEEE Conf. Comput. Vis. Pattern Recog., June 2019.
  • [37] Ying Tai, Jian Yang, Xiaoming Liu, and Chunyan Xu. Memnet: A persistent memory network for image restoration. In Int. Conf. Comput. Vis., pages 4539–4547, 2017.
  • [38] Carlo Tomasi and Roberto Manduchi. Bilateral filtering for gray and color images. In Int. Conf. Comput. Vis., pages 839–846. IEEE, 1998.
  • [39] Xiaolong Wang, Ross Girshick, Abhinav Gupta, and Kaiming He. Non-local neural networks. In IEEE Conf. Comput. Vis. Pattern Recog., pages 7794–7803, 2018.
  • [40] Qi Xie, Qian Zhao, Deyu Meng, Zongben Xu, Shuhang Gu, Wangmeng Zuo, and Lei Zhang. Multispectral images denoising by intrinsic tensor sparsity regularization. In IEEE Conf. Comput. Vis. Pattern Recog., pages 1692–1700, 2016.
  • [41] Jinjun Xu and Stanley Osher. Iterative regularization and nonlinear inverse scale space applied to wavelet-based denoising. IEEE Trans. Image Process., 16(2):534–544, 2007.
  • [42] Jun Xu, Hui Li, Zhetong Liang, David Zhang, and Lei Zhang. Real-world noisy image denoising: A new benchmark. arXiv preprint arXiv:1804.02603, 2018.
  • [43] Jun Xu, Lei Zhang, and David Zhang. A trilateral weighted sparse coding scheme for real-world image denoising. In Eur. Conf. Comput. Vis., pages 20–36, 2018.
  • [44] Ruikang Xu, Zeyu Xiao, Jie Huang, Yueyi Zhang, and Zhiwei Xiong. Edpn: Enhanced deep pyramid network for blurry image restoration. In IEEE Conf. Comput. Vis. Pattern Recog., pages 414–423, 2021.
  • [45] Wei Xu, Dingkang Liang, Yixiao Zheng, Jiahao Xie, and Zhanyu Ma. Dilated-scale-aware category-attention convnet for multi-class object counting. IEEE Sign. Process. Letters, 28:1570–1574, 2021.
  • [46] Hongyu Yang, Di Huang, Yunhong Wang, and Anil K. Jain. Learning face age progression: A pyramid architecture of gans. In IEEE Conf. Comput. Vis. Pattern Recog., June 2018.
  • [47] Ke Yu, Xintao Wang, Chao Dong, Xiaoou Tang, and Chen Change Loy. Path-restore: Learning network path selection for image restoration. IEEE Trans. Pattern Anal. Mach. Intell., 2021.
  • [48] Syed Waqas Zamir, Aditya Arora, Salman Khan, Munawar Hayat, Fahad Shahbaz Khan, Ming-Hsuan Yang, and Ling Shao. Multi-stage progressive image restoration. In IEEE Conf. Comput. Vis. Pattern Recog., pages 14821–14831, 2021.
  • [49] He Zhang and Vishal M Patel. Density-aware single image de-raining using a multi-stream dense network. In IEEE Conf. Comput. Vis. Pattern Recog., pages 695–704, 2018.
  • [50] Kai Zhang, Wangmeng Zuo, Yunjin Chen, Deyu Meng, and Lei Zhang. Beyond a gaussian denoiser: Residual learning of deep cnn for image denoising. IEEE Trans. Image Process., 26(7):3142–3155, 2017.
  • [51] Kai Zhang, Wangmeng Zuo, and Lei Zhang. Ffdnet: Toward a fast and flexible solution for cnn-based image denoising. IEEE Trans. Image Process., 27(9):4608–4622, 2018.
  • [52] Lei Zhang, Xiaolin Wu, Antoni Buades, and Xin Li.

    Color demosaicking by local directional interpolation and nonlocal adaptive thresholding.

    Journal of Electronic Imaging, 20(2):023016, 2011.
  • [53] Yulun Zhang, Kunpeng Li, Kai Li, Bineng Zhong, and Yun Fu. Residual non-local attention networks for image restoration. In Int. Conf. Learn. Represent., 2019.
  • [54] Yuqian Zhou, Jianbo Jiao, Haibin Huang, Yang Wang, Jue Wang, Honghui Shi, and Thomas Huang. When awgn-based denoiser meets real noises. In AAAI, volume 34, pages 13074–13081, 2020.
  • [55] Xizhou Zhu, Han Hu, Stephen Lin, and Jifeng Dai. Deformable convnets v2: More deformable, better results. In IEEE Conf. Comput. Vis. Pattern Recog., pages 9308–9316, 2019.
