Multi-person Pose Estimation devotes to locate body parts for multiple persons in an image, such as keypoints on the arms, torsos, and the face[24, 35]. The related tasks contain pose estimation in videos and 3D pose estimation. It regards as a fundamental task to deal with other related high level tasks, such as human-computer interaction, human action recognition[64, 5], emotion analysis and motion capture, content retrieval, human performance analysis.
Recently, due to the rapid development of convolution neural networks (CNN), most existing methods[8, 12, 23, 46, 20, 60] have achieved remarkable advances in multi-person pose estimation.
They can be roughly classified into two frameworks, i.e., the bottom-up framework[6, 17, 33] and the top-down framework[8, 12, 23, 46]. The former first detects all body keypoints together and then assigns the detected joints to different human instances. In contrast, the latter one detects all human bounding boxes in one image at first and then estimates the pose according the detected human proposal. Besides, other methods do exist, e.g.,  can solve the pose estimation by combining the top-down and bottom-up method into a single framework. With the prior information of human detection, top-down methods can get more reliable and accurate estimations. Our model belongs to the top-down framework.

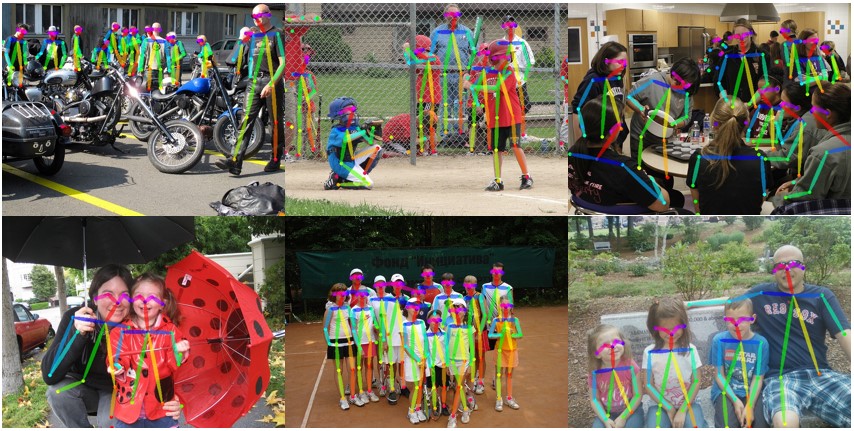

However, despite the current methods have achieved promising results on standard benchmarks such as MPII Human Pose  and COCO keypoint detection dataset, some challenges have not been well addressed. One of them is the missing detection of joints due to cluttered background like Fig.1 (a), humans in multiple scales, or due to occlusions like Fig.1 (e). Another is false assembling of joints into a pose due to overlapping in crowded scenes like Fig.1 (c).
The main reasons lie in several points: 1) multi-scale features are not fully exploited, so that some methods are less robust to pose variations and less adaptive to multi-scale persons. Most existing methods only represent the multi-scale features in a coarse-grained layer-level, but neglect the fine-grained multi-scale information within each layer. 2) Most CNN-based methods treat the contributions of different joint locations and multiple channels equally, which results in lacking of discriminative spatial information and semantic information across channels for pose estimations. 3) Context information is not well represented in many existing methods, which results in failing to infer the invisible or indistinguishable joints, such as the left knee and ankle of the man on the motorbike in (Fig.1 e), or wrong assembling of joints into a pose. 4) Missing detailed information in the downsampling process is not effectively recovered in most methods, which makes models tend to get the false or missing joints in the final output. Besides, computational efficiency is also a problem. Some existing methods cost a large number of computing resources and design complex networks to address these problems.
To handle the above problems effectively and efficiently, we propose an Enhanced Feature Aggregation and Fusion network (EFAFNet), as shown in Fig.2. Based on the ResNet backbone, the whole framework consists of two part: encoder and decoder network. In the encoder, a Feature Aggregation and Selection Module (FASM)
is added in the bottleneck to enhance the multi-scale feature extractions and adaptively select the most discriminative human part regions. Before start the process of decoder, we combine the low-level spatial information with the high-level semantic concepts in theFeature Fusion Module (FFM). Based on the fused features, we attach a Dense Upsampling Convolution (DUC) module in the decoder to explicitly recover the detailed keypoint information.
Our network has several benefits in comparison to existing widely-used methods for pose estimation. On the one hand, Feature Aggregation Module (FAM) extracts features in group-wise manner rather than in layer-wise manner. Therefore it can aggregate stronger features using a smaller number of parameters. On the other hand, Feature Selection Module (FSM) can obtain the enhanced discriminative feature representations, and accordingly the predicted heatmap is spatially more precise. Additionally, most existing fusion schemes aggregate low-level and high-level representations using the dense connection and cost a large number of the computer resources. Instead, we combine the low-level structural features and the high-level semantic information in an efficient way to capture rich context information adequately. Consequently, we can better infer the invisible or occluded joint with this context information and reduce the wrong assembling of joints. Inspired by work in semantic segmentation, we build a DUC module on head of network rather than the common bilinear upsampling, which can decode more detailed information which are missing in the downsampling process. It can naturally fit the overall framework by training in an end-to-end manner, and it increases the AP on the COCO dataset significantly, especially on relatively small persons.
In summary, our main contributions are four-fold as follows:
We propose a Feature Aggregation and Selection Module (FASM). The Feature Aggregation Module (FAM) captures the multi-scale fine-grained information for body joints in an efficient way, while the Feature Selection Module (FSM) adaptively exploits more discriminative information of body parts.
We adopt a simple Feature Fusion (FF) strategy, which lets spatial high-resolution information and semantic concepts interact and benefit each other, to effectively integrate and exploit global contextual information that benefits to infer occluded body parts.
We build a Dense Upsampling Convolution (DUC) module to reduce the false joint information and to recover missing joint details that are usually unavailable in common upsampling process.
Ii Related Work
Recently, human pose estimation has been became more and more popular. Recent works[18, 34, 55, 59, 4] mostly rely on the development of CNN, which progressively improves the performance of pose estimation. The topic is categorized into two parts. The former is the single-person pose estimation that predicts a single person keypoints based on the cropped image patches given the detected bounding box. The latter is the multi-person pose estimation that requires further localization of the human keypoints of all persons in one image.
Our proposed approach is concerned about previous works referring to multi-person pose estimation, as described as follows:
Ii-a Multi-Person Pose Estimation
Recently, multi-person pose estimation is gaining more and more popular due to the real-life demand. There are two categories in the multi-person pose estimation. The first one is bottom-up approach, which obtains all the body keypoints in the input image and assembles the detected keypoints into different person using their methods. The second one is top-down approach, which firstly uses human detector to get bounding boxes and feed the cropped image to the pose estimation network.
Bottom-up. Bottom-up approaches[6, 17, 33, 40] firstly detect the human body poses and then group them with the clustering algorithm to different human instances. Compared with the top-down approaches, they are faster in testing and lighter in building model. However, the bottom-up method loses the chance to amplify the details of each person, this results in its accuracy lower than the top-down approaches. DeepCut
regards the keypoints localization as an Integer Linear Program (ILP) problem and assigns keypoint into different person groups. After that we combine the person clusters with corresponding body parts to obtain the final results. DeeperCut improves DeepCut using ResNet to extract more strong body parts representations and adopts image-conditioned pairwise terms to achieve better performance. Associative Embeddingproduces confidence maps and pixel-wise embedding in the meantime and group the keypoint candidates into different instances to generate the final result. MultiPoseNet jointly localizes the human detection and multi-person pose estimation, which designs a pose residual network to receive keypoints and person detections and obtain accurate estimation result by assigning keypoints to different person using the PRN module.
Top-Down. Top-down approaches[12, 60, 35, 37, 8] regard the process of predicting keypoints as a two-step operation. Actually, top-down methods firstly detect all the persons in an image and crop the person region, then feed the cropped image into the single person pose estimation model. G-RMI predicts heatmaps and offsets of the points on the heatmaps to the labeled heatmaps, and then get the final location with the heatmaps and offsets. Moreover, the Cascaded Pyramid Network divides keypoints into the hard and easy level. It uses the feature pyramid architecture as backbone and divides the whole framework into the GlobalNet and RefineNet, to locate the easy and hard keypoints respectively. Our work follows the two-step framework which based on a simple encoder-decoder architecture and adopts a few transposed convolution layers for generating high-resolution representations. The top-down framework can achieve superior performance as the object detection and single person pose estimation develop.
Ii-B Single Person Pose Estimation
It is much simpler than multi-person pose estimation and only needs to obtain the body parts of a single person that is already cropped in an image. Conventional methods for single-person pose estimation are mostly based on pictorial structure models[39, 45, 49, 54]. Since the DeepPose
research, human pose estimation study has converted from traditional methods to deep learning stage because of their superior performance. Recent methods[52, 47, 20] have achieved promising performance on recent popular datasets[1, 26]. For single person pose estimation, their performance are more rely on the person detector.
Ii-C Multi-scale Feature Representations and Fusions.
From the traditional feature design to deep learning[15, 51], the multi-scale features have been widely used in many research. A large receptive field is necessary for obtaining multi-scale feature representations to locate joints at different scales precisely. In the previous works for the multi-person pose estimation, the large receptive field is achieved by the architecture in the Convolutional Pose Machines to implicitly capture the spatial relations among different parts, resulting in the progressively refined estimations. However, low-level information is not considered well. Stacked Hourglass Networks process the feature maps of all different scales to capture various spatial relationships of different resolutions, and adopt the skip connections to save information at each resolution. But this model works at a cost of a large amount of the computing resource and may not dig out the information exhaustively. By the above observation, we propose the FAM to aggregate the features at a granular and lightweight level in the bottleneck and amplify the receptive fields range for each network layer.
The multi-level feature fusion is crucial for the keypoint localization as well. For example, Stacked Hourglass Networks fuse the different resolution feature maps in a dense way and achieve a good performance. The Cascaded Pyramid Network preserve the high-level and low-level information from the feature maps across different scales to obtain more information. However, the above methods fuse the different level features with connections in complex forms and concepts. And it’s still hard to make a better result. Thus, we propose a simple FFM to combine the high-level semantic information with low-level features to enhance the global context information.
Ii-D Decoding of Feature Representation.
The downsampling operations in CNN architectures lead to the essential fine details (low-level information) missing, which cannot be well recovered by the common up-sampling operations. There are many methods propose to decode detailed information which are generally lost in the downsampling process. Bilinear upsampling operation is commonly used[7, 62], due to its fast speed and efficient memory. Another common used operation is deconvolution, in which the unpooling operation use the stored pooling shifted from the pooling to recover the essential information for visualization. As the FCN illustrates, in the decoding stage place the deconvolutional layer to generate result with the help of the cascaded intermediate feature maps. DeconNet adopt deconvolutional layers in unpooling operation by using the preserved pooled location. By the above observation, we find that there are few existing methods pay attention to the inevitable information missing during the encoding stage for the keypoint localization. Except that, simple baseline
method adopts a few transposed convolution layers for generating high-resolution representations, which are vital to recover more fine detailed information than the bilinear interpolation. However, we think it still can result in some detailed information missing, so we propose to use theDUC module to replace the deconvolutional layers to make up for the missing details and obtain the final prediction. Different from the recent HRNet, it connects high-to-low resolution sub-networks in parallel and maintains the same high-resolution horizontally so avoids the information loss resulting from the upsampling. Our DUC module is mainly designed for the most existing pose estimation methods that adopt the up-sampling operations.
In this section, we propose a novel EFAFNet to make the localization more precisely. It can not only make use of the context information fully but extract the rich discriminative multi-scale features. In addition, the model can recover more detailed information that is mostly missing in the downsampling process. An overview of our proposed framework is illustrated in Fig.2. Firstly, we briefly review the Simple Baseline Network(SBN) framework. After that, we introduce the FASM, FFM and DUC module in detail.
Iii-a Review Simple Baseline Network
Iii-B FASM: Feature Aggregation and Selection Module
In order to extract informational and discriminative feature of human parts, we design a Feature Aggregation and Selection Module in each bottleneck block as shown in Fig.3. FASM consists of FAM and FSM. The FAM extracts more multi-scale features to enhance the feature representation ability of the human body part information. FSM is followed by the FAM operation, which is mainly used for adaptively highlighting the discriminative joint features among different feature maps and different locations. The detailed explanations are discussed in followings.
Iii-B1 Feature Aggregation Module
Since human pose estimation is a typical structure prediction problem, it is essential to explore both local characteristics (such as some area around the torsos) and global context information, which is benefit to model the spatial relationship between joints. Accordingly, a larger receptive field of network is preferable. To realize the goals, FAM is proposed to extract robust features for multi-scale stimuli for the network. Superior to most existing methods that only consider coarse multi-scale information across different layers of CNN frameworks, we also capture fine-grained multi-scale information within each layer in a lightweight way.
In each resblock, bottleneck structure is applied, which is a populer building block in many modern backbone CNNs architectures, as shown in the Fig.3 (a). Our proposed multi-scale FAM implements based on it. As shown in the blue rectangle enclosed by dashed line at the top of the Fig.3 (b). After the convolution, we evenly split the feature maps into feature map subsets, denoted by , where , , , . Compared to the input feature map, each sub-map has the same spatial size but the / number of channels. Besides , each is plunged into a corresponding convolution G(), whose output is denoted as G(). To characterize the fine-grained multi-scale information within each layer, we connect the output of each sub-map in a residual-like manner. The feature subset is added with the output of G(), and then fed into G. If we want to reduce parameters, the subset numbers will increase. Thus, we don’t apply the convolution for . Thus, can be represented as:
Intuitively, benefit from the connections between sub-maps, each convolutional operator G() could potentially receive feature information from all feature splits , . Furthermore, the obtained feature will correspond to a larger receptive field than the feature extracted by standard bottleneck structure without FAM. In summary, FAM is effective to obtain multi-scale features of detected persons, which takes full advantages of local information of joints and global relationship of different parts among human. In order to fuse information across different scales fully, we concatenate all branches and feed them into a convolution. The split and concatenation operation can use convolutions to extract more robust features effectively. This module can reduce the parameters of the whole model on the basis of accurate localization.
Iii-B2 Feature Selection Module
For the multi-person pose estimation, the extracted human features about the locations and semantics are possibly redundant. It’s not effective for treating the contributions of different joint spatial locations and channel information across feature maps equally. The different keypoint locations corrsponding to different spatial information for the human part. The different channels among different feature maps related to the multi-level semantic information. In order to highlight the discriminative information both in the spatial location and channel context, we propose FSM, which aims to learn location-sensitive weights and channel-wise weights for each feature map respectively. The detailed design of FSM is shown as Fig.3, the bottom half of the figure enclosed by the red rectangle dashed line.
location-sensitive selection. Applying the whole feature maps may lead to sub-optimal results due to the irrelevant regions. Different from paying attention to the whole image region equally, Location-Sensitive Selection (LSS) mechanism attempts to adaptively highlight the part-related regions in the feature maps.
Assuming the input of the LSS block is (the output of FAM), and the output of the location-sensitive selection block is the location-sensitive weight , the final discriminative enhanced feature maps mapping to the human part location are . The location-sensitive weight is generated by one convolution operation and another convolution operationX, i.e.,
where W denotes the convolution weights, the
represents the relu activation function andSigmoid means the sigmoid activation function.
Finally, the learned location-sensitive weights is rescaled on the input X and then add back to the input to achieve the final enhanced output .
where means the element-wise multiplication between the i, j-th element of and X in the joint location context.
Since convolutional filters operate as the pattern detector. After the convolutional operation, each channel of a feature map equals to the feature responses of the corresponding filter. For the keypoint localization, different channels of features in CNNs generate different response to different parts among the whole body. This selection mechanism produce a channel-wise vector by exploiting the inter-channel relationship of features. It can be viewed as a process of adaptively selecting the significant information for the human among different feature maps. After that, we can guide the network to eliminate the false results with the help of the selected discriminative information.

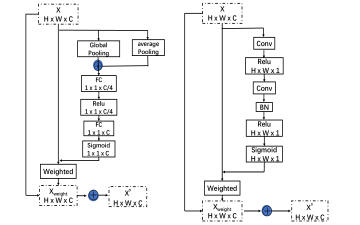

The Channel-wise Selection (CS) module will assign larger weight to channels which show high response to the human body part. As shown in Fig.4.
To aggregate the feature map for each channel, we take the X (the output of FAM) as the input of the channel-wise selection and the output of the channel-wise selection vector , this vector softly encodes the global and local information for different feature maps. Thus we acquire the informative features among the channel-wise context.
The CS weight matrix is computed in two steps analogous to the SE-Net
but is different from that. We observe that the max-pooling operation can extract the distinctive information to infer detailed channel-wise highlights. Thus, we apply both average-pooling and max-pooling features simultaneously. Firstly, global average pooling is performed on the inputX to generate the global statistics X and then the max pooling operation do the same operation we get the local statistics X. We combine them in the form of element-wise add and concatenate respectively, and by comparing the experimental results, we choose to use element-wise add finally.
It is just as described as follows:
where the is the element-wise add operation.
The channel-wise vector , where the c-th element of z is obtained by
where is the c-th element of the input X.
In the next step, a selecting mechanism with a sigmoid activation is acted on the channel-wise statistics z, i.e.,
where and represents two fully connected layers, means the ReLU activation function.
Finally, the learned CS weights is rescaled on the input X and then add back to the input to achieve the final output , i.e.,
where means the element-wise multiplication between the c-th element of and X in the channel-wise global context.

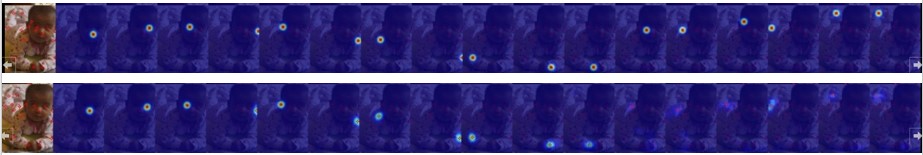

Some examples can reflect the FSM refinement process are shown in Fig.8. We can see false alarms for different body parts are reduced and heatmaps are corrected by selecting the significant human body part regions. The FSM can correct the initial estimation of the occluded or similar joints relying on the discriminative location and channel-wise context information.
Iii-B3 Arrangement of the CS and LSS module
As shown in Fig.3, assuming the input of residual bottleneck is , the FSM is performed on the non-identity branch of the residual module after FAM. The FSM act before add up to the identity branch. The FSM is placed at the end of each ResNet block. There are different combination strategy of the LSS and CS block in FSM. In particular, it can combine in serial or parallel. We empirically confirm that exploiting in parallel can greatly improve feature representation ability compared to use the block sequentially. Thus we choose to combine them in parallel.
The FAM applies on the input of the residual bottleneck firstly and the feature selection is acted on the aggregated features. All processes are summarized as follows:
where the function represents the FAM in the resnet bottleneck, and the F represents the output of FAM from the function . The means the element-wise add between the CS and LSS output. The is the output feature maps with the enhanced multi-scale discriminative feature information of the human.
Iii-C Feature Fusion Module
Actually, the spatial-resolution information and semantic concepts can benefit each other. The deeper layers tend to encode high-level semantic information, by contrast, the shallower layers are more likely to capture more spatial features and can better reconstruct spatial information just like the design of the U-Net. Feature fusion strategy is often employed in multi-person pose estimation in different forms and for different purposes. Many previous methods[25, 8, 34] combine the low-level and high-level features together. However, since the gap in semantic levels and spatial resolutions, making it’s less effective to fuse different level features directly. Our approach is related to the study ExFuse. For semantic segmentation, it narrows the gap between spatial resolution and semantic-level features in a different ways thereby progressively improve the segmentation performance. Motivated by this, we propose to take more spatial high-resolution structural feature into semantics and more semantic information into high-resolution spatial features in semantic embedding way to enhance the global context information. In particular, for the spatial structural features, we assign intermediate supervisions to the stages of encoder network to make the spatial features encode more semantic concepts. For the semantic-level features, we involve more spatial information to guide the feature fusion in a semantic embedding way. When we obtain the fused global context information, we can better infer the invisible joints or detangle the interacted joints.

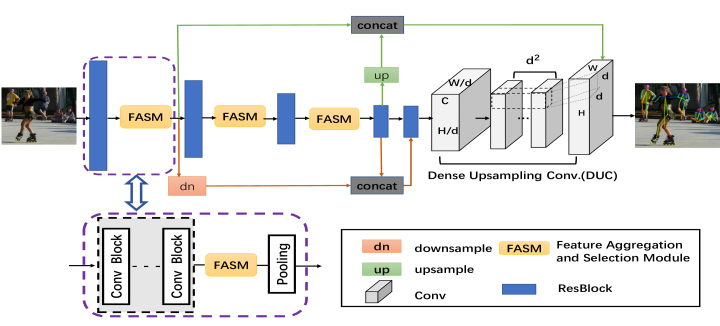

Our FFM is shown as Fig.2, the green dashed line represents taking the semantics into low-level spatial features and the pink dashed line represents taking spatial low-level information into high-level features respectively.
Iii-D Dense Upsampling Convolution
Multiple approaches can decode more accurate information which is generally lost in the downsampling process. For the pose estimation, different methods use the different upsampling forms to generate the final prediction heatmaps. However, they may not consider that most of the frequently used upsampling operations such as bilinear interpolation, deconvolution, transposed convolution, depth-to-space, bicubic upsampling etc cannot recover the detailed information leading to the final performance decrease.
Given an input image , the keypoint localization is to generate a heatmap with size where each pixel is the coordinate of the location. We feed the image into ResNet network and output the feature map before making predictions, where = , = , and
is the downsampling factor. The DUC directly adopts the convolution on the feature maps output by the encoder network and then to generate the pixel-wise prediction map rather than pad zeros in the unpooling step just as the common upsampling methods. Fig.2 depicts our model architecture with a DUC module. The DUC is related to convolution operation, which is performed on the feature map output by ResNet of . Then get further output feature map of dimension , where is the total number of joints in the keypoint localization task. Each layer of the convolution operation learns the prediction for each joint. The output feature map is then reshaped to and apply a softmax function. In the end, we apply an element-wise argmax operation to get the final heatmap. The core of DUC is to divide the whole heatmap into same sub-parts which have the same height and width as the incoming feature map. That is, we transform the whole heatmap into a smaller map with multiple channels. This operation lets us to apply the convolution operation directly between the input feature map and the output heatmaps without inserting extra values in deconvolutional operation. Consequently, it can avoid some detailed information missing in the process of the upsampling. We can improve the final prediction result by handling with the false alarms intrigued by inaccurate estimations to some samples with those information.
Our multi-person pose estimation framework follows the top-down pipeline. First, we apply a human detector to produce all human bounding boxes in the image. Then for each human bounding box, we apply our proposed network to predict the corresponding human pose. The proposed method is evaluated on two recent standard multi-person datasets and a big new crowded datasets with large interaction and crowd cases: MPII Human Pose benchmark, COCO 2017 Keypoints Challenge dataset and CrowdPose dataset.
Iv-a COCO Keypoint Detection
Datasets and Evaluation metric. To evaluate the proposed method, we validate our model on the challenging COCO keypoint benchmark. Our models are only trained on the COCO trainval dataset (includes images and person instances) without using any other extra data. Ablation studies are validated on the COCO minival dataset (includes images). The final results are reported on the COCO test-dev dataset (includes
images) compared with the public state-of-the-art results. We use the standard evaluation metric that reports the OKS-based AP (average precision) in the experiments, where the OKS (object keypoints similarity) defines the similarity between the predicted heatmap and the groundtruth heatmap.
Data Augmentation. We apply random flip, rotation, and scale in our training stage. The flip value is . The scale range is ([ ]), and the random rotation range is ().
Our model is implemented in Pytorch. For the training, NVIDIA GPUs on a server are used. Adam optimizer is adpoted. The base learning rate is set to , and is decreased by a factor of at and epochs, and finally we train for epochs. Actually, we train ResNet- based models take about hours. The input size of the image is resized to a fixed aspect ratio of height : width = , e.g., is used as the default resolution, the same as the SBN.
In this paper, our ResNet backbone is initialized with the weights of the public-released Imagenet pre-trained model. ResNet backbones with , and layers are experimented. For the different resolutions of the input image (e.g., and ) we also conduct experiments. The backbone ResNet- and the input size is used by default.
Human Detector and Testing. We use the same human detector as that in the SBN. It is based on Faster-RCNN with mAP of human category AP. During testing, Soft-NMS is used to suppress duplicated bounding boxes. As a common practice like[60, 8], for the flipped image we average the predicted heatmap to get the keypoints location. Each keypoint location is predicted by adjusting the highest heatvalue location with offset from the maximum response to the second largest response.
Results on COCO val2017. We compare our model with the stacked Hourglass, CPN and SBN on the COCO minival dataset as shown in Tab.I. The human detection AP of the stacked Hourglass and CPN (57.2%) is higher than ours (56.4%). Compared with the -stage Hourglass, our model improves AP, all approaches use an input size of . Our model outperforms the CPN and SBN by AP and AP respectively for the input size of and has an improvement of AP and AP for the input size of . The qualitative visualization of the improvements between our model and the baseline model is shown in Fig.5 on the COCO minival dataset.

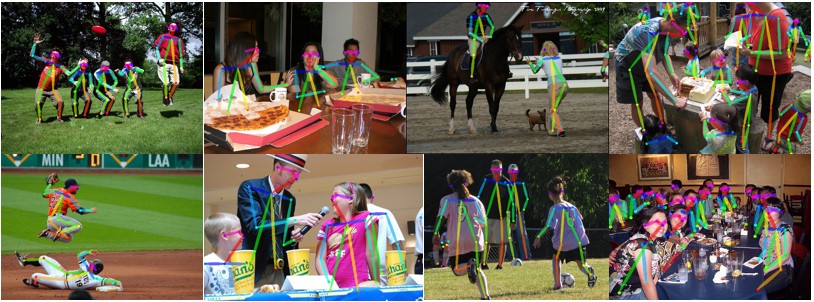

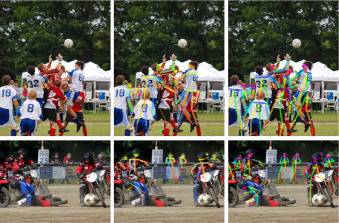

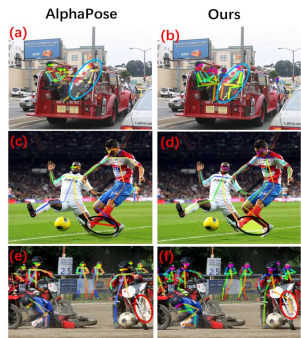

As shown in Fig.6, our approach can make better performance for pose estimation, although in challenging cases, (e.g., close-interactions in the first row, invisible joints generated by occlusions in the last row) where SBN cannot well deal with.
Results on COCO test-dev 2017. Tab.II demonstrates the results of our method in the test-dev dataset of the COCO dataset. Our approach is obviously better than the existing promising approaches. Additionally, our small network, EFAFNet, achieves an AP of . It outperforms almost all the other top-down approaches under the same backbone network, provides comparable results to the latest work HRNet. It designs a complex and robust deep high resolution network that can extract the multi-scale features of human better across multi-stage fusions and thus achieves the best performance in the top-down methods. Compared to the SBN with the same input size, our small and big models receive and improvements, respectively. Fig.9 illustrates some qualitative results generated using our method.
|Method||Backbone||Input Size||AP||AP .5||AP .75||AP (M)||AP (L)||AR|
|Integral Pose Regression||ResNet-101||256256||67.8||88.2||74.8||63.9||74.0||-|
|FAIR Mask R-CNN*||ResNet-101-FPN||-||90.4||77.0||64.9||76.3||75.2|
Iv-B MPII Human Pose Estimation
Datasets and Evaluation metric. The MPII Human Pose dataset consists of images taken from real-world activities with full-body pose annotations. There are about images with objects, where there are objects for testing and the remaining objects for the training set. The data augmentation and the training strategy are the same to COCO, except that the input size is cropped to for fair comparison with other methods. For evaluation metric, the standard metric PCKh
(head-normalized probability of correct keypoint) score is used. The PCKh@score is reported in our result, % of the head size for normalization.
Testing. The testing procedure is almost the same to that in COCO except that we adopt the standard testing strategy using the provided person boxes instead of detected person boxes.
Results on MPII Human Pose. Tab.III shows the PCKh@ results, we reimplement the SBN by using ResNet- as the backbone with the input size . Our EFAFNet achieves a PKCh@ score, and outperforms the stacked hourglass approach and other methods[11, 20, 47, 52, 61]. We also test our big network ResNet-152 and obtained the best result . It proves that out model can get superior performance in this dataset.
|Insafutdinov et al.||96.8||95.2||89.3||84.4||88.4||83.4||78.0||88.5|
|Wei et al.||97.8||95.0||88.7||84.0||88.4||82.8||79.4||88.5|
|Bulat et al.||97.9||95.1||89.9||85.3||89.4||85.7||81.7||89.7|
|Newell et al.||98.2||96.3||91.2||87.2||89.8||87.4||83.6||90.9|
|Sun et al.||98.1||96.2||91.2||87.2||89.8||87.4||84.1||91.0|
|Tang et al.||97.4||96.4||92.1||87.7||90.2||87.7||84.3||91.2|
|Ning et al.||98.1||96.3||92.2||87.8||90.6||87.6||82.7||91.2|
|Luvizon et al.||98.1||96.6||92.0||87.5||90.6||88.0||82.7||91.2|
|Chu et al.||98.5||96.3||91.9||88.1||90.6||88.0||85.0||91.5|
|Chou et al.||98.2||96.8||92.2||88.0||91.3||89.1||84.9||91.8|
|Chen et al.||98.1||96.5||92.5||88.5||90.2||89.6||86.0||91.9|
|Yang et al.||98.5||96.7||92.5||88.7||91.1||88.6||86.0||92.0|
|Ke et al.||98.5||96.8||92.7||88.4||90.6||89.3||86.3||92.1|
|Tang et al.||98.4||96.9||92.6||88.7||91.8||89.4||86.2||92.3|
|SBN et al.||98.5||96.6||91.9||87.6||91.1||88.1||84.1||91.5|
|HRNet et al.||98.6||96.9||92.8||89.0||91.5||89.0||85.7||92.3|
Datasets and Evaluation metric. CrowdPose dataset contains images in total and human instances. The CrowdPose dataset divides into three crowding levels by Crowd Index: easy ( ), medium ( ) and hard (
). Its Crowd Index satisfies uniform distribution in. CrowdPose dataset aims to promote performance in crowded cases and make models generalize to different scenarios. It uses the same evaluation metric as COCO.
Training and Testing. The data augmentation and the training strategy are the same as COCO, except that the input size is cropped to for fair comparison with other methods. The model is only trained on the CrowdPose training set without using any extra data. The testing procedure is almost the same as that in COCO except that the provided human detector of SBNis used for all methods to ensure a fair comparison. We extend % along the height and width directions of the detected human proposals for guaranteeing that the person body part can be extracted completely .
Results on CrowdPose. The Tab.IV show the quantitative results on CrowdPose test set. We can see that our method improves mAP compared with most of the advanced methods. It demonstrates the effectiveness of our proposed method in crowded scenes.
|Models||mAP @0.5:0.95||mAP @0.5||mAP @0.75||mAR @0.5:0.95||mAR @0.5||mAR @0.75|
We also report the results on three crowding levels as stated before in Tab.V, i.e., uncrowded, medium crowded and extremely crowded. It demonstrates that our method get more accurate results across all crowding levels, meanwhile as the scenes are more crowded the relative improvement increases .
Compared with the baseline SBN, our proposed approach has an significantly improvement and we also provide comparable results to CrowdPose across three crowding levels. CrowdPose surpasses our final model by AP. This can be attributed to their special design for handling crowded scenarios. They add an additional global association algorithm after performing the modified single person pose estimation. Compared with them, our model can be trained in an end-to-end manner without using any extra post-processing method. We achieve comparable results with them in a more efficient way, which can be attributed to our elaborate feature representation and effective decoding. Additionally, there are no other methods reporting experiment result on CrowdPose to our knowledge. The qualitative visualization on CrowdPose dataset is depicted in Fig.7.
Iv-D Ablation Study
In this section, we will decompose our proposed EFAFNet to analyse the effect of each sub module step by step. Moreover, we make all comparisons by experiment on COCO val dataset. We adopt the input size of all our models, and the ResNet- is adopted for our default backbone.
Iv-D1 FASM: Feature Aggregation and Selection Module
In this subsection, we will discuss the effect of the FASM. The whole module is made up of two parts: FAM and FSM. We will analyse their effectiveness respectively.
Feature Aggragation Module Pose estimation is a kind of sparse object detection. The multi-scale representation ability is vital for object detection. Therefore, it’s important for the the regression task to possess rich multi-scale representation. We use the SBN as the baseline method, and replace the bottleneck of the backbone network ResNet with our proposed FAM, while keeping other configurations unchanged. The performance of AP on COCO minival dataset is shown in Tab.VI. From the result, we can see that the model with the FAM achieves the AP of AP. It indicates that when only using the FAM, our model outperforms the baseline SBN by AP.
Feature Selection Module In this experiment, we explore the effects of different implementation orders of the LSS and the CS block in the residual bottleneck. As shown in Tab.VI, the FSM achieves the AP of . It indicates that when only using the FSM, our model outperforms the baseline SBN by AP. This demonstrates this module make a big difference for the task. And from Tab.VII we confirm that the best-combining strategy is in parallel, which can further improve the accuracy.
|SBN+CS&LSS in parallel||71.5|

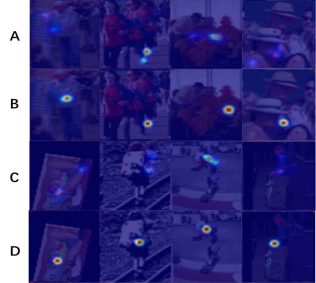

To interpret our FSM clearly, we visualize the estimated heatmaps with the FSM as shown in Fig.8. Besides, we observe that FSM can solve many false alarms that happen in previous heatmaps caused by intertwined people, occlusion, and inaccuracy to localize the discriminative body parts more precisely.
Iv-D2 Is Feature Fusion Enhanced ?
Here we discuss the feature fusion module used in our network. The effect of FFM is shown in Tab.VI. The fusion strategy is not always achieve the good performance only if the proper low-level encoder convolution layer concatenates with the high-level decoder layer. The feature maps with different scales extracted from the ResNet backbone denote as Conv- . In the decoder stage, we combine the low-level (Conv) feature maps with the high-level (Conv) feature maps together. The proposed EFAFNet makes a considerable result increase of AP, compared with the baseline model. The comparison implies our insights of feature fusion indeed.
Iv-D3 Dense Upsampling Convolution
Here, we analyse the effect of DUC based on baseline framework. In this module, we can change the dimension of the top ResNet output feature maps. We assume that the dimension of the output layer is in the baseline model ( is the joint number), and for the same layer with DUC dimension is ( ) where the is the downsampling rate of the model ( = in our paper). We reshape the predicted heatmap to . This module increase few parameters compared to the previous model. When we train this model of DUC, we adopt the similar set with the baseline model and train for epochs, and finally achieve a AP of on the COCO minival dataset as shown in TabVI, a AP increase compared to the baseline model.
Iv-D4 Bottleneck: The effective location to apply FASM
We empirically exploit the most effective location to apply our FASM is the bottleneck of the model. The previous work SE-Net mostly concentrate on making their contribution in the convolution blocks instead of the bottlenecks . By comparing different model performance in different locations on COCO minival dataset. We can conclude that applying the FASM at the bottleneck can achieve best result considering the speed and accuracy trade-offs just as shown in Tab.VIII. In most cases, we achieve better accuracy at a little overhead cost.
Iv-D5 Human Detection Performance
Tab.IX shows the relationships between the human detection result and the corresponding pose estimation performance on the COCO minival dataset. Our model and SBN are compared in this experiment. Both models are trained with the ResNet- backbone and the input size. The SBN adopts the Faster-RCNN as the human detector, which reports the human detection AP in their paper. We adopt the same human detector with them for fair comparison. Additionally, we also use the human detection results provided by the CPN (reports the human detection AP ) for comparison.
|Pose Method||Det Method||Human AP||Pose AP|
From the Tab.IX we can see that the pose estimation AP gains increasingly when the human detection AP increases. For example, when the human detection AP increases from to , the pose estimation AP of our model increases from to . However, although the human detection AP of the CPN (besides the human detection AP of the CPN depicted on the COCO test-dev dataset) is higher than ours AP, the pose estimation AP of the CPN is lower than ours AP. It shows our pose estimator is superior even when equipped with less accurate human detector.
Iv-D6 Online Hard Keypoints Mining
We examine the loss used in our network. In particular, the mean squared error (MSE) is adopted as out loss function of the model to compare the predicted heatmaps and the groundtruth heatmaps difference. We adopt
D Gaussian with standard deviation ofpixel centered on the groundtruth location of each keypoint to produce the groundtruth heatmaps. The OHKM strategy is only calculate the top ( ) keypoints losses of ( is the total number of labeled keypoints, say in this case). The effect of value is shown in Tab.X. We achieve the best performance when . Therefore, we set the value of is in this case.
Iv-D7 Effect of Data Pre-processing
Here, we discuss the effect of the input sizes of our EFAFNet. All methods use the same backbone of the ResNet-. As Tab.XI illustrates, we can find that our model outperforms the SBN by AP when the input size of . The AP increase when the input size is .
Iv-D8 Effect of Backbone Network
As we all know, the backbone model become deeper, the performance can be better. We use the ResNet-, ResNet-, and ResNet- backbones conduct experiments with the input image size of . Tab.XII shows that the backbone change from ResNet- to ResNet- and ResNet- the AP increase is and respectively.
In this paper, we handle the multi-person pose estimation with the top-down pipeline. The Feature Aggregation and Selection Module (FASM) embedded in residual bottleneck is designed to adaptively highlight the discrimination of the multi-scale features, for precise joint location and rich spatial context. The Feature Fusion (FF) strategy bridges the gap between semantic information and spatial structural features in semantic embedding to make them reinforce each other. The Dense Upsampling Convolution (DUC) module is proposed to produce elaborate prediction on feature maps to help recover detailed keypoint information. Overall, our model achieves outstanding performance consistently on popular multi-person pose estimation datasets, especially a dataset in crowded scenes.
This research is supported by National Nature Science Foundation of China under Grants (No.61473031), the Fundamental Research Funds for the Central Universities (2019JBM019)
