Multi-object Tracking via End-to-end Tracklet Searching and Ranking

03/04/2020 ∙ by Tao Hu, et al. ∙ Horizon Robotics 0

Recent works in multiple object tracking use sequence model to calculate the similarity score between the detections and the previous tracklets. However, the forced exposure to ground-truth in the training stage leads to the training-inference discrepancy problem, i.e., exposure bias, where association error could accumulate in the inference and make the trajectories drift. In this paper, we propose a novel method for optimizing tracklet consistency, which directly takes the prediction errors into account by introducing an online, end-to-end tracklet search training process. Notably, our methods directly optimize the whole tracklet score instead of pairwise affinity. With sequence model as appearance encoders of tracklet, our tracker achieves remarkable performance gain from conventional tracklet association baseline. Our methods have also achieved state-of-the-art in MOT15 17 challenge benchmarks using public detection and online settings.



There are no comments yet.


page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Multiple object tracking (MOT), which aims to estimate the trajectories of several targets within a video sequence, is an essential but challenging task in computer vision


. From the machine learning perspective, tracking is the problem of consecutive sequence prediction and generation under given prerequisites. A common concern in tracking is how to prevent error accumulation when wrong prediction or association occurs, especially when the appearances of the neighboring individual objects are remarkably similar. With the impressive advances in deep learning based object detection algorithms

[19, 35, 48], MOT community has strongly focused on the tracking-by-detection framework, which aims to link objects across frames correctly given detected bounding boxes [12], a.k.a data association. A popular choice for data association in multi-object tracking algorithm is pairwise-detection matching based on affinity model  [25, 45, 3, 4]. In these methods, detection results in adjacent frame are linked according to the affinity scores learned from appearance [25, 45] or motion [3, 4] features. However, such methods only exploit the information of the current frame, but ignore the temporal cues from the previous frames in tracklets. As a results, such methods have limited capability to associate long-term consistent trajectories and are pruned to be trapped in local optimum by local matching. To address this issue, a few recent approaches [22, 37, 29, 26]

build their affinity model on sequence model such as recurrent neural networks (RNNs


). As a common practice, these methods usually force models to learn the affinity between tracklets and the candidate detections, with an objective to enlarge the affinity of correct matching and decrease the counterpart. Their works have demonstrated the effectiveness and potential of tracklet based methods to model higher-order information. However, these approaches suffer from two drawbacks. First of all, such methods which use recurrent neural networks to produce a tracklet representative feature for matching can somewhat be ill-posed. It is hard to force a sequence of targets with intra-variance to reach a consensus on appearance. Meanwhile, the final feature is inexplicable, not to mention in multi-cues engaged circumstances. Secondly, the previous tracklets such models trained on are assumed to be a pure detection sequence with the same ID, i.e. the ground truth tracklet. Nevertheless, it is not the case of inference, where wrong associations might occur at any time. This ideal assumption brings up a potential vulnerability that the model is trained on a different distribution from the test scenario, which can both diminish the discriminability and result in error accumulation during inference. This problem has also been emphasized in natural language processing

[2, 15, 34, 44] with a name of exposure bias, which occurs when a model is only exposed to the training data distribution. These earlier papers have also illustrated the importance of exposing the model to prediction data distribution.

In this work, we offer a possible solution to each of the two aforementioned issues. We propose a global score to measure the inner appearance consistency of tracklet, as opposed to measuring the affinity between the tracklet and target object. Notably, we optimize the whole tracklet with a margin loss. Besides, a novel algorithm has been established to simulate the prediction data distribution on training by introducing realistic discombobulated candidates to model. It helps to eliminate exposure bias problem to a great extent.

In summary, our algorithm has the following contributions:

1. We propose a tracklet scoring model based on margin loss and rank loss to quantify tracklet quality, which improves the tracklet consistency in data association.

2. We suggest a recurrent search-based optimization framework that remarkably exposes wrong associations to training. The training process follows a “searching-learning-ranking-pruning” pipeline. It tackles the problem of exposure bias existing in sequence modeling that is neglected by previous MOT papers.

3. Our method is validated on three benchmark datasets of MOT and achieves the state-of-the-art-results. We conduct extensive ablation studies and demonstrate the significant enhancement achieved by each component. Our code will be made publicly available after review.

2 Related Work

In this section, we give an overview of tracklet level tracking and approaches to reduce exposure bias related to our method.

2.1 Tracklet Level Tracking Model

With the improvement of the deep detector in recent years, tracking-by-detection paradigm [8] has become the most popular approach in MOT for its impressive performance. There are two mainstream categories methods of tracking-by-detection: tracklet level based tracking and pair-wise detection association approaches. Tracklet-level based tracking constructs an affinity model on the tracklet level and then uses it to associate the tracklet with detection or connect short tracklets. Pair-wise association methods establish an affinity model on the isolated detections, and then generate tracking results from the bottom up. The common concern of these two types of methods is to guarantee the consistency of the entire associated trajectories. Many previous approaches  [10, 40, 45]

have trained a binary classifier to determine the association between pairs of detections. However, such approaches are limited to modeling the very short-term correlation, i.e., two frames. It is difficult to model long-term temporal dependency and handle challenge scenarios such as appearance change. Some recent approaches build the association model on tracklet level to exploit the higher-order information

[11, 22, 37, 47]. In these works, the tracklet representation comes from the fusion feature of individual detections through recurrent neural network [22, 37], temporal attention [11] or relation model [47]. The positive results demonstrate that the long-term appearance information could be a favor to predict whether detection results belong to a given tracklet or not. However, the fused feature is not semantically explainable, because they are trying to find a most similar representative to the tailing target. On the other hand, such models are trained on the clip of the ground trajectories, which makes them vulnerable to exposure bias.

2.2 Exposure bias in Tracking

Exposure bias problem defines the phenomena that model is only exposed to the training data distribution (model distribution), instead of its own predictions (data distribution). The problem exists universally in machine learning related tasks, such as text summarization

[33] and machine translation [46], when prediction is made on a sequence of historical samples, all historical samples are fed with ground truth in training paradigm. Researchers in NLP have proposed their solutions [2, 38, 42] to reduce the bias. Earlier, Bengio [2]

proposes a training schedule which make the model use itself’s output as input with a increasing probability throughout training. Some researches attempt to avoid exposure bias by using non-conditional probability model. Semeniuta

[38] proposes a “Reverse Language Model score” to evaluate the model’s generation performance. Tevet [42] uses Generative Adversarial Networks (GAN) [14] to approximate the distribution of sequence. Such works motivate us to avoid exposure bias by applying the prediction data to model training. Unfortunately, exposure bias have not received much attention from researchers in multiple object tracking community. The lastest work [27] tries to eliminate exposure bias by designing an approximated IDF score loss, but it fails to balance the metrics of multi object tracking accuracy (MOTA) and IDF. Its result exhibits a tendency to drop less discriminative candidates according to the large number of false negative.

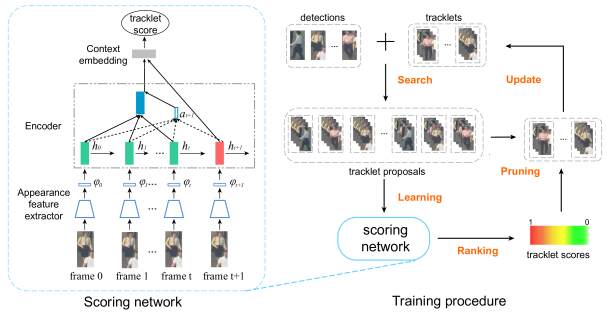

Figure 2: The overall of our proposed network architecture in training. The appearance feature of each detection are extracted with CNN (the blue hollow trapezoid), and the appearance embedding of tracklet are obtained through encoder (the gray dash rectangle) network which trained by online hypothesis tracklet searching with margin loss and rank loss. The tracklet score are used to represents the tracklet consistency, and then yield a set of hypothesis tracklets frame-by-frame with online search.

3 Methods

In tracking-by-detection paradigm, MOT is composed of two stages: detecting objects at each frame (detection) and assigning a track ID to each detection results across frames (association). A common practice to assign the IDs is usually according to the affinities between tracklets/detections. In this section, we give an overall architecture description of our proposed framework with tracking-by detection paradigm firstly and then expand the details in the sub-sections.

We propose a new framework to directly optimize the tracklet score with margin loss by tracklet online searching. The framework is composed of an iterative searching, learning, ranking and pruning process as shown in Figure 2. After obtaining a model, we adopt both the online Hungarian algorithm [32] and near online algorithm - multiple hypothesis tracking (MHT) [21] in inference for an comprehensive illustration of its effectiveness. Finally we run this assignment process frame-by-frame and yield a set of target trajectories over time.

3.1 Tracklet Level Optimization

As illustrated in Section 1, to address the issue of exposure bias and RNN based affinity model, we propose a novel framework to optimize the tracklet by “searching-learning-ranking-pruning” paradigm. The core parts include how we perform score learning, and how we conduct search-based tracklet optimization.

Learning to Score. Let denotes the trajectory of object in a video, and it consists of detection patches . Given an already obtained tracklets at time step as , and a series of new observation detection results . We present a tracklet search based method to optimize the consistency score of the extended tracklet (as described in Figure 1). Our goal is to find a scoring function which is to favor the consistency between the training and inference stage. Assuming that the scoring function implemented with deep network is given, we firstly explore how to learn it by end-to-end training, while leave the network design to Section 3.2.

For a tracked object, assume that we have a set of predicted candidate tracklets at time step , where . Tracking can be understood as to maximize the score of tracklet which is consistent with ground truth tracklet and minimize the score of wrong connected tracklets . Rather than placing a hard constraint on the value of tracklet score, we prefer to leave some space for intra-instance variance, but punish the wrong associations if their scores may lead to an ambiguity. We then define a margin loss that constraint the score of ground truth tracklet to exceed the score of incorrect tracklet by a margin :


The margin loss tries to distinguish the ground-truth tracklets from the predicted candidates, while can not quantify the differences between the candidates. The candidate with lower identity switch (IDS) should have higher retaining probability to propagation. However, IDS is a non-differentiable metrics and cannot be directly optimize. Inspired by the idea of learning to rank[6], we could adopt the pair-wise ranking loss and encode the non-differentiable metrics in continuous functions.


where the is the rank label of the pair-wise tracklets and the represent the IDS of a tracklet. Then, the total loss is,


Search-Based Tracklet Optimizing We now introduce an innovative algorithm for tracklet level training called Search-Based Tracklet Optimizing (SBTO). It avoids the aforementioned exposure bias problem as we iteratively involve the obfuscated candidate tracklets in training.

The overall architecture of our SBTO is illustrated in Figure 1 and Algorithm 1, which consists of five major steps:

1. For a specific tracked object , assuming we have retained tracklet proposals(after pruning) at frame , where is a constant we set to limit the number of retained tracklet proposals.

2. Applying candidate search to extend each tracklet proposals and build hypothesis propagation tree according to the detection results at frame . Here, let denotes the candidate number of each searched object. After this step, we get hypothesis tracklet proposals in , .

3. Calculating the score of each hypothesis tracklet proposals and ground truth tracklet with the scoring function . In this paper, we use an encoder model to parameterize . Specifically, we implement encoder with sequence model to extract appearance feature of tracklet. (see details in section 3.2). Afterwards, we rank the tracklet scores in a decreasing order.

4. We use the ranked tracklet score to prune easy hypothesis tracklet proposals to constrain the number of proposals. Define the tracklet to be the ’th ranked hypothesis tracklet proposal according the . We keep the top tracklet proposals:


5. We now define the loss in frame as the summation of top hypothesis tracklet proposals’ loss. Finally, to learn long-term dependency of tracklet in temporal, we accumulate losses in each step over time recurrently. Let denotes the total steps of tracklet, the total losses of each tracklet is:


Unlike others standard network in training, SBTO requires running search to collect all Top hypothesis tracklet proposals. In the forward process, we record and the hidden states of sequence model that contribute to losses at each time step during propagating hypothesis tracklet. In the backward pass, we back-propagate the errors by adapting back-propagation through time (BPTT) algorithms [31]. As shown in Figure 3

, the online search could also mine the hard negative tracklets which are high similar with the ground truth tracklet, and assign it a low score after training through margin loss after several epochs in the training stage.

Figure 3: The Top2 ranked hypothesis tracklet proposals in training, the number represents the tracklet score at each time step.

3.2 Online Appearance Encoder

Visual tracking relies on temporal context, which motivates us to incorporate appearance feature from historical contents to enrich the tracklet representation. From this perspective, a direct method that could model temporal appearance information and long-term dependency is sequence model such as RNN. In our framework, we build the scoring function by various sequence model to encode the appearance information of the tracklets, as shown in Fig. 2.

For a tracked object with tracklet , let bounding boxes denote the location of at each frame

. We use Convolutional Neural Network (CNN) to extract the appearance of each bounding boxes. Especially, the CNN accepts the raw patch as input, and output the flattened last layer feature map of CNN. Let

denote appearance feature for patches at each time step, where

is a vector with dimension

. Our online appearance encoder accepts the sequence of as input and output hidden state vector with dimension recurrently.


The appearance encoder of tracklet could be built by sequence model. We have explored various sequence model to implement the encoder including LSTM [18], LSTM with attention [1] and transformer [43]. In this section, We will use LSTM with attention as an example to illustrate the encoder. Define the context vector at time step as , then it could be computed as a weighted sum of historical information:


Let represents the transpose of , then could be formulated as:


The output of attention layer at time step is then passed to another fully connected layer which condenses the dimensional vector to a scalar.

In this section, we use sequence model to leverage all prior appearance information from a given tracklet. Note that compared with previous studies [21, 22, 37], we only use the appearance information in our tracklet scoring network.

0:    The number of retained tracklet proposal, ;The candidate detections at each time step, ;The tracker object, ;The value of margin, ;
0:    Total loss, ;
1:  ;
2:  ;
3:  for  do
5:     for  in  do
6:        for  in  do
7:           Append to
8:           Add to
9:        end for
10:     end for
13:  end for
14:  ;
15:  return  ;
Algorithm 1 Search Based Tracklet Optimization.

3.3 Application in Tracking

Our method follows the online tracking-by-detection paradigm, which generates the trajectories by associating detection results across frames. To further validate the effeteness of SBTO for different association algorithms, we conduct data-association with Hungarian algorithm (Online) and multiple hypothesis tracking algorithm (MHT, near Online). Considered that the Hungarian algorithm is a general method in MOT. In this section, we briefly summarize the key steps related to multiple hypothesis tracking of our implementation. The key steps of MHT consist of hypothesis tree construction, gating, association with MWIS and pruning. More details about MHT can be found in [21].

Hypothesis Tree Construction. For each target object, the hypothesis tree starts from the detection that it first appears, and will be extended by appending children detection in the next frame. Each tree node in the hypothesis tree corresponds to one detection. Each path from root to leaf represents a candidate tracklet proposal. In this children spawning step, only detection within a gated region are considered. This process is repeated recurrently until the final hypothesis tree is constructed completely. During the tree construction, tracklet score based our proposed scoring function of each hypothesis path are recorded and would be used for tree pruning later.

Gating and Association. To avoid combinatorial explosion in the spawn of tree generation, We need to gate out disturbing detections in next frames. We use IOU score between the th detection with the last detection of tracklet proposal as the criterion of gating. With detection chosen from gating, we can build up the hypothesis tree to run multiple hypothesis proposal propagation. Afterwards, we use MWIS to find the best set of tracks, with details refer to  [5].

Pruning We follow the standard -scan pruning approach to delete the conflicting hypothesis path. For each of selected path in frame , we trace back to the node in frame and prune the sub-trees that is conflict with the selected path at that node. Note that a larger makes a large window to delay decision, which will bring an improvement in precision but take more time consumption. After pruning, only the surviving hypothesis path are updated in the next frame.

4 Experiments

In this section, we introduce the details of datasets, evaluation metric and the implementation details firstly, and then we perform an in-depth analysis of our method on various benchmark datasets on the MOT challenge. Finally, we present more insights and ablation studies on our proposed methods.

4.1 Datasets and Metric

Datasets To test the power of our method, we report the quantitative results on the three datasets in MOT Challenge Benchmark [24, 28]. This benchmarks are widely used to evaluate the performance of multi-object trackers.

2DMOT2015 [24] It consists of 11 training sequences and 11 testing sequences. This dataset only contains 500 tracks in training sets, but is potentially more challenging because of the low resolution, quite noisy detections.

MOT16 [28] It consists of 7 training sequences and 7 testing sequences with moving and stationary cameras in various pedestrians’ scenes. MOT16 provides the detection responses of DPM [13] for training and testing.

MOT17 It contains the same videos as the MOT16 but with more precise annotation. Moreover, the sequences are provided with detection results from two more detection algorithms: Faster-RCNN [35] and SDP [48].

For a fair comparison, we use the public detection results provided with each datasets as the input of our approach.

Evaluation Metric For performance evaluation, we follow the standard CLEAR MOT metrics[30] used in MOT Benchmarks, which consist of Multiple Object Tracking Accuracy (MOTA), Multiple Object Tracking Precision (MOTP) Mostly Track targets (MT), Mostly Lost targets (ML), False Positives (FP), False Negatives (FN), ID Switches (IDS), ID F1 Score (IDF1), ID Precision (IDP), ID Recall (IDR), Fragment errors(Frag). Detailed descriptions about these metrics can be found in [30].

4.2 Implementation Details

Network Architecture We use pre-trained ResNet-50 [16]

with ImageNet Image Classification task

[36] as our backbone network and then finetune this model on the MOT training datasets. The output feature map of the last convolution layer of ResNet-50 is fed in an embedding network. The embedding network consists of a convolution layer with 256 output channels and a fully connected layer with output dimension 256, which are used to reduce the channel dimension and generate the final appearance feature, respectively.

Given the bounding boxes of detection, we crop and resize it to the size of , and feed it into the backbone and embedding network to generate appearance feature. The tracklet encoder is built by LSTM with attention. A single layer LSTM with hidden size 256 is used to model the temporal information and construct tracklet. The final step hidden state of LSTM used to calculate the context feature with the previous hidden state through attention mechanism. Then the context feature is fed to a single-layer fully connected network to generate the tracklet score.

Tracklet Proposals Due to the memory limit of GPUs, we construct artificial tracklet proposals with a maximum length of as the training data. First, we randomly pick one ground truth tracklet of length from the annotations, which is a clip of the whole trajectories. For every frame in this tracklet proposal, we randomly sample other bounding boxes as the candidates in the process of tracklet hypothesis generation. Finally, we construct patches as a batch of input for each training iteration.

Training During training, we apply the Adam optimizer [23] to end-to-end train the network and set the weight decay rate to . We used 5 epochs for model warming up and then train another 45 epochs at a learning rate of . The margin is set to 1. The batch size is set to 16. The maximum length and the candidate number of the best model is 8 and 8, respectively.

Inference During inference, following the common practice of online tracking approaches [39], we pre-processing the original detection results. The scores of generated candidate tracklets in each frame step are computed according to section 3.1. The association is then achieved by solving the bipartite graph (online) or MHT (near on-line). We set the hyper-parameters pruning as 3 in MHT.


All experiments are conducted on a 1.2GHZ Intel Xeon server with 8 NVIDIA TITAN X GPUs. The deep learning framework we used is Pytorch.

4.3 Comparison to the State of the Art

We use public detection results for comparison. To further validate the effectiveness of our methods for different association algorithms, we conduct experiments with the Hungarian algorithm (Online) and MHT (Near Online). We report the performance comparison with other SOTA methods on the MOT Challenge 15/16/17 Benchmark in Table 1,2,3 respectively. For a fair comparison, we select most recently published trackers such as STRN[47], FAMNet[10] among online trackers, and almost all MHT-based trackers. Besides, we add some offline trackers for comprehensiveness, such as SAS[27] which also tries to solve the problem of exposure bias. Note that our method only uses appearance feature in the scoring model. To the best of our knowledge, our tracker achieves the most promising result with similar setting. In online setting, our method achieve MOTA 40.0, 50.1, 52.6 on MOT15, MOT16 and MOT17, respectively, which beats almost all online methods in recently published results. And we have obtained better results in our near-online version tracker based on MHT, which outperforms all other MHT based methods in three benchmark datasets with the major metric MOTA and IDF. Compared to [27], which tends to drop many short expected trajectories and leads to higher FN, our neutral measurement of tracklet quality can balance various MOT metrics without sacrificing MOTA.

Offline JointMC[20] 35.6 71.9 10,580 28,508 45.1 54.4 38.5 457 969 23.2 39.3
Offline SAS(motion only)[27] 22.2 71.1 5,591 41,531 27.2 46.3 19.2 700 1,240 3.1 61.6
Online AMIR [37] 37.6 71.7 7,933 29,397 46.0 58.4 38.0 1,026 2,024 15.8 26.8
Online STRN [47] 38.1 72.1 5,451 31,571 46.6 63.9 36.7 1,033 2,655 33.4 11.5
Online Ours 40.0 73.4 9,349 26,328 44.3 52.7 38.1 1,207 1,624 17.1 28.8
Near online MHT_DAM [21] 32.4 71.8 9,064 32,060 45.3 58.9 36.8 435 826 16.0 43.8
Near online Ours 41.3 73.5 8,000 27,210 46.1 56.6 38.9 852 1,405 15.7 34.5
Table 1: Tracking Performance on 2DMOT2015 benchmark dataset.
Offline LMP[41] 48.8 79.0 6,654 86,245 51.3 71.1 40.1 481 595 18.2 40.1
Offline FWT[17] 47.8 75.5 8,886 85,487 44.3 60.3 35 852 1,534 19.1 38.2
Online MOTDT [9] 47.6 74.8 9,253 85,431 50.9 69.2 40.3 792 1,858 15.2 38.3
Online AMIR [37] 47.2 75.8 2,681 92,856 46.3 68.9 34.8 774 1,675 14.0 41.6
Online Ours 50.1 76.5 5,582 84,629 48.1 66.5 37.6 786 1,294 16.3 40.7
Near online MHT_bLSTM [22] 42.1 75.9 11,637 93,172 47.8 67.2 37.1 753 1,156 14.9 44.4
Near online EDMT [7] 45.3 75.9 11,122 87,890 47.9 65.3 37.8 639 946 17.0 39.9
Near online MHT_DAM [21] 45.8 76.3 6,412 91,758 46.1 66.3 35.3 590 781 16.2 43.2
Near online Ours 50.4 76.3 8,491 81,156 50.1 66.7 40.1 807 1,251 17.4 39.9
Table 2: Tracking Performance on MOT2016 benchmark dataset.
Offline FWT[17] 51.3 77 24,101 247,921 47.6 63.2 38.1 2,648 4,279 21.4 35.2
Offline SAS[27] 44.2 76.4 29,473 283,611 57.2 80.6 44.3 1,529 2,644 16.1 44.3
Online STRN [47] 50.9 75.6 27,532 246,924 56.5 74.5 45.5 2,593 9,622 20.1 37.0
Online FAMNet[10] 52.0 76.5 14,138 253,616 48.7 66.7 38.4 3,072 5,318 19.1 33.4
Online Ours 52.6 76.6 20,089 244,930 51.3 68.3 41.1 2,530 4,170 19.5 38.2
Near online EDMT [7] 50.0 77.3 32,279 247,297 51.3 67.0 41.5 2,264 3,260 21.6 36.3
Near online MHT_DAM [21] 50.7 77.5 22,875 252,889 47.2 63.4 37.6 2,314 2,865 20.8 36.9
Near online Ours 53.3 76.5 22,161 238,959 53.3 70.0 43.1 2,434 4,089 20.0 38.7
Table 3: Tracking Performance on MOT2017 benchmark dataset.

4.4 Ablation Study

We now present a transparent demonstration of the impact of each component we have introduced towards these two goals. We perform comparative experiments on MOT17 and report the tracking results of the minimal validation loss model. For all experiments in this section, we split three sequences from training sets ((MOT17-02, MOT17-05, MOT17-09 of DPM, FRCNN, and SDP three detectors) for validation and the rest for training. And we report the results of our online association method (by Hungarian algorithm) for better illustration.

Impact of the margin loss and online tracklet search. We first investigate the contribution of each components in our methods by measuring the performance on the validation set. We conduct baseline experiments on three variants of our model. In the EXP1, we replace the margin loss and rank loss (Equation 3) with cross-entropy loss as our baseline. And remove the online hypothesis tracklet search in the training phase, i.e., the positive/negative tracklets are randomly sampled in training sets. To avoid the LSTM overfitting to a fixed-length sequence, we construct variable-length artificial track proposals which are generated from ground truth track annotations as in [22]. In the EXP2, we keep the margin loss but remove rank loss and tracklet search as EXP1. In the EXP3, we only remove the tracklet search in our original model. For a fair comparison, we set the maximum sequence length to 8 in three experiments. As shown in Table 4, with margin loss and rank loss, the tracking accuracy improves by 6.8 and 2.1 in terms of MOTA compared to control respectively. It is worth to point out our proposed margin loss and rank loss reduce FP and IDS significantly, which indicates that this cost function could help tracker to identify incorrect association more accurately. Compared to EXP3, our methods achieve an additional 2.5 MOTA and -259 IDS improvement, which is in line with our expectations that the online tracklet search could reduce exposure bias.

Margin loss Rank loss Tracklet search MOTA FP FN IDF Frag IDS
EXP1 34.8 8,600 50,888 36.1 1,083 797
EXP2 41.6 1,817 51,413 43.2 936 756
EXP3 43.7 1632 50,033 44.8 758 633
Ours 46.2 1,141 48,196 47.3 512 374
Table 4:

The effect of each module in our design. The loss function design and tracklet search bring a large gain in tracking performance.

Impact of hyper-parameters in online tracklet search. Then, we perform a sensitivity analysis and examine the effects of the various configuration of hyper-parameters in cost calculation and online hypothesis tracklet search. As we explained earlier, The number of retained tracklet proposal is a central parameter in our methods. It is preferable to use large so that sufficient and diversified tracklet could be sampled. In contrast, a large will introduce easy tracklet for a given limited , which could lead to model convergence prematurely. Another pivotal parameter is the candidate number . We tend to use large to search indistinguishable detections and generate hypothesis tracklet which could not be pruned early. However, we cannot increase unrestrictedly with the limit of GPU memory. Figure 4 shows the results from this analysis over different parameters of and . In these experiments, we set the maximum sequence length to 8, and all other parameters are consistent in training and inference stages. The results show that is positively affecting the tracking accuracy. It is intuitive since large could introduce sufficient training sample as we analyzed above. On the other hand, the too small or too big have resulted in a decrease in tracking accuracy when is fixed, which is also accord with our hypothesis. To summarize, Figure 4 indicates that expanding the search space by increasing both and simultaneously will improve tracking performance.

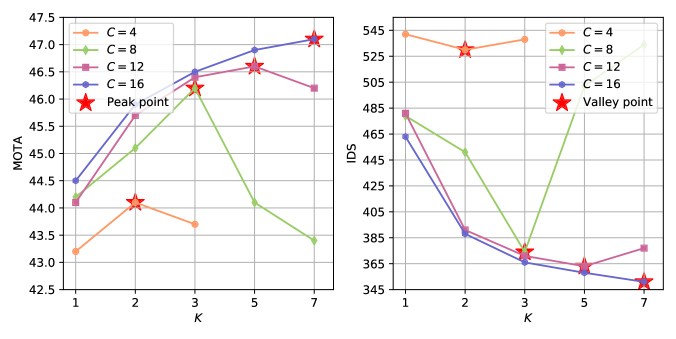

Figure 4: Increasing and simultaneously can improve MOTA and reduce IDS.

Effectiveness of sequence model. As described above, the LSTM with attention is just one implementation of the tracklet encoder. In this section, we have explored the impact of different types of sequence models on tracking performance. To eliminate the influence of the sequence length of training, we set the sequence length equal to 8 in training/inference for different model and compare the tracking performance on the validation sets. As shown in Table 5, all sequence model, including LSTM, transformer and LSTM with attention have achieved performance boosting compared to the baseline. This results suggest that our learning framework can reduce exposure bias effectively, and the tracklet encoder is pluggable and can be extended to more powerful models. Our results also take the leading in finding the advantages of using LSTM with attention, instead of LSTM, which is the common practice in MOT area [2, 22, 37].

Margin loss Rank loss Tracklet search LSTM Transformer LSTM + attention
EXP1 33.9 (828) 35.3 (788) 34.8 (797)
EXP2 40.2 (793) 41.3 (762) 41.6 (756)
EXP3 42.6 (667) 42.9 (656) 43.7 (633)
Ours 45.1 (415) 45.7 (392) 46.2 (374)
Table 5: The effect of different tracklet encoders on performance compared to baseline. The number in table represents MOTA (IDS)

5 Conclusion

As a fundamental problem in sequence generation and association, exposure bias has attached the attention of many researchers. However, exposure bias is still an open problem in the MOT community, unlike other tasks in natural language processing. In this paper, we propose a novel method for optimizing tracklet consistency that directly takes into account the prediction errors in the training stage, which could eliminate exposure bias effectively. Second, our methods directly optimize the whole tracklet score but not frame-level cost, which is a more suitable model than pairwise matching. Experiments demonstrate that our approach can improve overall performance and achieve SOTA results in MOT challenge benchmarks. Our methods bring MOT an extra step closer to solve the training-inference mismatch problem. In future work, we will extend this approach to much larger application scenarios, like vehicle tracking, traffic light tracking, multi-camera multi-object tracking, which could further unlock the potential of our method.


  • [1] D. Bahdanau, K. Cho, and Y. Bengio (2015) Neural machine translation by jointly learning to align and translate. See DBLP:conf/iclr/2015, External Links: Link Cited by: §3.2.
  • [2] S. Bengio, O. Vinyals, N. Jaitly, and N. Shazeer (2015) Scheduled sampling for sequence prediction with recurrent neural networks. See DBLP:conf/nips/2015, pp. 1171–1179. External Links: Link Cited by: §1, §2.2, §4.4.
  • [3] A. Bewley, Z. Ge, L. Ott, F. T. Ramos, and B. Upcroft (2016) Simple online and realtime tracking. See DBLP:conf/icip/2016, pp. 3464–3468. External Links: Link, Document Cited by: §1.
  • [4] E. Bochinski, V. Eiselein, and T. Sikora (2017) High-speed tracking-by-detection without using image information. See DBLP:conf/avss/2017, pp. 1–6. External Links: Link, Document Cited by: §1.
  • [5] W. Brendel, M. R. Amer, and S. Todorovic (2011) Multiobject tracking as maximum weight independent set. See DBLP:conf/cvpr/2011, pp. 1273–1280. External Links: Link, Document Cited by: §3.3.
  • [6] C. J. C. Burges, T. Shaked, E. Renshaw, A. Lazier, M. Deeds, N. Hamilton, and G. N. Hullender (2005) Learning to rank using gradient descent. See DBLP:conf/icml/2005, pp. 89–96. External Links: Link, Document Cited by: §3.1.
  • [7] J. Chen, H. Sheng, Y. Zhang, and Z. Xiong (2017) Enhancing detection model for multiple hypothesis tracking. See DBLP:conf/cvpr/2017w, pp. 2143–2152. External Links: Link, Document Cited by: Table 2, Table 3.
  • [8] L. Chen (2015) Multiple people tracking-by-detection in a multi-camera environment. Ph.D. Thesis, Technical University Munich. External Links: Link Cited by: §2.1.
  • [9] L. Chen, H. Ai, Z. Zhuang, and C. Shang (2018) Real-time multiple people tracking with deeply learned candidate selection and person re-identification. See DBLP:conf/icmcs/2018, pp. 1–6. External Links: Link, Document Cited by: Table 2.
  • [10] P. Chu and H. Ling (2019) FAMNet: joint learning of feature, affinity and multi-dimensional assignment for online multiple object tracking. CoRR abs/1904.04989. External Links: Link, 1904.04989 Cited by: §2.1, §4.3, Table 3.
  • [11] Q. Chu, W. Ouyang, H. Li, X. Wang, B. Liu, and N. Yu (2017) Online multi-object tracking using cnn-based single object tracker with spatial-temporal attention mechanism. See DBLP:conf/iccv/2017, pp. 4846–4855. External Links: Link, Document Cited by: §2.1.
  • [12] G. Ciaparrone, F. L. Sánchez, S. Tabik, L. Troiano, R. Tagliaferri, and F. Herrera (2019) Deep learning in video multi-object tracking: A survey. CoRR abs/1907.12740. External Links: Link, 1907.12740 Cited by: §1.
  • [13] D. A. Forsyth (2014) Object detection with discriminatively trained part-based models. IEEE Computer 47 (2), pp. 6–7. External Links: Link, Document Cited by: §4.1.
  • [14] I. J. Goodfellow (2017) NIPS 2016 tutorial: generative adversarial networks. CoRR abs/1701.00160. External Links: Link, 1701.00160 Cited by: §2.2.
  • [15] D. He, H. Lu, Y. Xia, T. Qin, L. Wang, and T. Liu (2017) Decoding with value networks for neural machine translation. See DBLP:conf/nips/2017, pp. 178–187. External Links: Link Cited by: §1.
  • [16] K. He, X. Zhang, S. Ren, and J. Sun (2016) Deep residual learning for image recognition. See DBLP:conf/cvpr/2016, pp. 770–778. External Links: Link, Document Cited by: §4.2.
  • [17] R. Henschel, L. Leal-Taixé, D. Cremers, and B. Rosenhahn (2017) Improvements to frank-wolfe optimization for multi-detector multi-object tracking. CoRR abs/1705.08314. External Links: Link, 1705.08314 Cited by: Table 2, Table 3.
  • [18] S. Hochreiter and J. Schmidhuber (1997) Long short-term memory. Neural Computation 9 (8), pp. 1735–1780. External Links: Link, Document Cited by: §1, §3.2.
  • [19] L. Huang, Y. Yang, Y. Deng, and Y. Yu (2015) DenseBox: unifying landmark localization with end to end object detection. CoRR abs/1509.04874. External Links: Link, 1509.04874 Cited by: §1.
  • [20] M. Keuper, S. Tang, B. Andres, T. Brox, and B. Schiele (2018) Motion segmentation & multiple object tracking by correlation co-clustering. IEEE transactions on pattern analysis and machine intelligence. Cited by: Table 1.
  • [21] C. Kim, F. Li, A. Ciptadi, and J. M. Rehg (2015) Multiple hypothesis tracking revisited. See DBLP:conf/iccv/2015, pp. 4696–4704. External Links: Link, Document Cited by: §3.2, §3.3, §3, Table 1, Table 2, Table 3.
  • [22] C. Kim, F. Li, and J. M. Rehg (2018) Multi-object tracking with neural gating using bilinear LSTM. See DBLP:conf/eccv/2018-8, pp. 208–224. External Links: Link, Document Cited by: §1, §2.1, §3.2, §4.4, §4.4, Table 2.
  • [23] D. P. Kingma and J. Ba (2015) Adam: A method for stochastic optimization. See DBLP:conf/iclr/2015, External Links: Link Cited by: §4.2.
  • [24] L. Leal-Taixé, A. Milan, I. D. Reid, S. Roth, and K. Schindler (2015) MOTChallenge 2015: towards a benchmark for multi-target tracking. CoRR abs/1504.01942. External Links: Link, 1504.01942 Cited by: §4.1, §4.1.
  • [25] M. Li, X. Zhu, and S. Gong (2018) Unsupervised person re-identification by deep learning tracklet association. See DBLP:conf/eccv/2018-4, pp. 772–788. External Links: Link, Document Cited by: §1.
  • [26] C. Ma, C. Yang, F. Yang, Y. Zhuang, Z. Zhang, H. Jia, and X. Xie (2018) Trajectory factory: tracklet cleaving and re-connection by deep siamese bi-gru for multiple object tracking. See DBLP:conf/icmcs/2018, pp. 1–6. External Links: Link, Document Cited by: §1.
  • [27] A. Maksai and P. Fua (2019) Eliminating exposure bias and metric mismatch in multiple object tracking. See DBLP:conf/cvpr/2019, pp. 4639–4648. External Links: Link Cited by: §2.2, §4.3, Table 1, Table 3.
  • [28] A. Milan, L. Leal-Taixé, I. D. Reid, S. Roth, and K. Schindler (2016) MOT16: A benchmark for multi-object tracking. CoRR abs/1603.00831. External Links: Link, 1603.00831 Cited by: §4.1, §4.1.
  • [29] A. Milan, S. H. Rezatofighi, A. R. Dick, I. D. Reid, and K. Schindler (2017) Online multi-target tracking using recurrent neural networks. See DBLP:conf/aaai/2017, pp. 4225–4232. External Links: Link Cited by: §1.
  • [30] A. Milan, K. Schindler, and S. Roth (2013) Challenges of ground truth evaluation of multi-target tracking. See DBLP:conf/cvpr/2013w, pp. 735–742. External Links: Link, Document Cited by: §4.1.
  • [31] M. C. Mozer (1989)

    A focused backpropagation algorithm for temporal pattern recognition

    Complex Systems 3 (4). External Links: Link Cited by: §3.1.
  • [32] J. Munkres (1957) Algorithms for the assignment and transportation problems. Journal of the society for industrial and applied mathematics 5 (1), pp. 32–38. Cited by: §3.
  • [33] R. Nallapati, B. Zhou, C. N. dos Santos, Ç. Gülçehre, and B. Xiang (2016) Abstractive text summarization using sequence-to-sequence rnns and beyond. See DBLP:conf/conll/2016, pp. 280–290. External Links: Link Cited by: §2.2.
  • [34] M. Ranzato, S. Chopra, M. Auli, and W. Zaremba (2016) Sequence level training with recurrent neural networks. See DBLP:conf/iclr/2016, External Links: Link Cited by: §1.
  • [35] S. Ren, K. He, R. B. Girshick, and J. Sun (2017) Faster R-CNN: towards real-time object detection with region proposal networks. IEEE Trans. Pattern Anal. Mach. Intell. 39 (6), pp. 1137–1149. External Links: Link, Document Cited by: §1, §4.1.
  • [36] O. Russakovsky, J. Deng, H. Su, J. Krause, S. Satheesh, S. Ma, Z. Huang, A. Karpathy, A. Khosla, M. S. Bernstein, A. C. Berg, and F. Li (2015) ImageNet large scale visual recognition challenge. International Journal of Computer Vision 115 (3), pp. 211–252. External Links: Link, Document Cited by: §4.2.
  • [37] A. Sadeghian, A. Alahi, and S. Savarese (2017) Tracking the untrackable: learning to track multiple cues with long-term dependencies. See DBLP:conf/iccv/2017, pp. 300–311. External Links: Link, Document Cited by: §1, §2.1, §3.2, §4.4, Table 1, Table 2.
  • [38] S. Semeniuta, A. Severyn, and S. Gelly (2018) On accurate evaluation of gans for language generation. CoRR abs/1806.04936. External Links: Link, 1806.04936 Cited by: §2.2.
  • [39] H. Shen, L. Huang, C. Huang, and W. Xu (2018) Tracklet association tracker: an end-to-end learning-based association approach for multi-object tracking. CoRR abs/1808.01562. External Links: Link, 1808.01562 Cited by: §4.2.
  • [40] J. Son, M. Baek, M. Cho, and B. Han (2017) Multi-object tracking with quadruplet convolutional neural networks. See DBLP:conf/cvpr/2017, pp. 3786–3795. External Links: Link, Document Cited by: §2.1.
  • [41] S. Tang, M. Andriluka, B. Andres, and B. Schiele (2017) Multiple people tracking by lifted multicut and person re-identification. See DBLP:conf/cvpr/2017, pp. 3701–3710. External Links: Link, Document Cited by: Table 2.
  • [42] G. Tevet, G. Habib, V. Shwartz, and J. Berant (2019) Evaluating text gans as language models. See DBLP:conf/naacl/2019-1, pp. 2241–2247. External Links: Link Cited by: §2.2.
  • [43] A. Vaswani, N. Shazeer, N. Parmar, J. Uszkoreit, L. Jones, A. N. Gomez, L. Kaiser, and I. Polosukhin (2017) Attention is all you need. See DBLP:conf/nips/2017, pp. 5998–6008. External Links: Link Cited by: §3.2.
  • [44] S. Wiseman and A. M. Rush (2016) Sequence-to-sequence learning as beam-search optimization. See DBLP:conf/emnlp/2016, pp. 1296–1306. External Links: Link Cited by: §1.
  • [45] N. Wojke, A. Bewley, and D. Paulus (2017) Simple online and realtime tracking with a deep association metric. See DBLP:conf/icip/2017, pp. 3645–3649. External Links: Link, Document Cited by: §1, §2.1.
  • [46] Y. Wu, M. Schuster, Z. Chen, Q. V. Le, M. Norouzi, W. Macherey, M. Krikun, Y. Cao, Q. Gao, K. Macherey, J. Klingner, A. Shah, M. Johnson, X. Liu, L. Kaiser, S. Gouws, Y. Kato, T. Kudo, H. Kazawa, K. Stevens, G. Kurian, N. Patil, W. Wang, C. Young, J. Smith, J. Riesa, A. Rudnick, O. Vinyals, G. Corrado, M. Hughes, and J. Dean (2016) Google’s neural machine translation system: bridging the gap between human and machine translation. CoRR abs/1609.08144. External Links: Link, 1609.08144 Cited by: §2.2.
  • [47] J. Xu, Y. Cao, Z. Zhang, and H. Hu (2019) Spatial-temporal relation networks for multi-object tracking. CoRR abs/1904.11489. External Links: Link, 1904.11489 Cited by: §2.1, §4.3, Table 1, Table 3.
  • [48] F. Yang, W. Choi, and Y. Lin (2016) Exploit all the layers: fast and accurate CNN object detector with scale dependent pooling and cascaded rejection classifiers. See DBLP:conf/cvpr/2016, pp. 2129–2137. External Links: Link, Document Cited by: §1, §4.1.
