Multi-Node EM Algorithm for Finite Mixture Models

05/14/2020 ∙ by Sharon X. Lee, et al. ∙ The University of Queensland 0

Finite mixture models are powerful tools for modelling and analyzing heterogeneous data. Parameter estimation is typically carried out using maximum likelihood estimation via the Expectation-Maximization (EM) algorithm. Recently, the adoption of flexible distributions as component densities has become increasingly popular. Often, the EM algorithm for these models involves complicated expressions that are time-consuming to evaluate numerically. In this paper, we describe a parallel implementation of the EM-algorithm suitable for both single-threaded and multi-threaded processors and for both single machine and multiple-node systems. Numerical experiments are performed to demonstrate the potential performance gain n different settings. Comparison is also made across two commonly used platforms - R and MATLAB. For illustration, a fairly general mixture model is used in the comparison.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

In recent years there has been an increasing use of finite mixtures of flexible distributions for the modelling and analysis of heterogeneous and non-normal data McLachlan et al. (2019)

. These models adopt component densities that offer a high degree of flexibility in distributional shapes. In particular, the skew-symmetric family of distributions, which includes the classical skew normal and skew

-distributions, has become increasingly popular Wang et al. (2009), Lin (2010), Frühwirth-Schnatter and Pyne (2010), Cabral et al. (2012), Lin et al. (2014), Lee and McLachlan (2016). It has enjoyed applications in a range of areas including astrophysics, bioinformatics, biology, climatology, medicine, finance, fisheries, and social sciences Riggi and Ingrassia (2013), Allard and Soubeyrand (2012), Tagle et al. (2019), Pyne et al. (2009), Lee et al. (2016b), Hejblum et al. (2019), Contreras-Reyes and Arellano-Valle (2013), Asparouhov and Muthén (2015), Hohmann et al. (2018).

Traditionally, finite mixture models are fitted by maximum likelihood estimation, carried out via the Expectation-Maximization (EM) algorithm Dempster et al. (1977). For simple component densities like the normal and -distributions, the E- and M-steps are usually quite straightforward. But for some flexible distributions such as the skew normal and skew-

mixture models, the E-step often involves complicated expressions; see the aforementioned references. For example, the conditional expectations in the E-step may require calculation of the moments of truncated (multivariate) distributions. Depending on the particular characterization of the component densities, this may involve numerical evaluations of multidimensional integrals that are computationally demanding.

To speed up the model fitting process, a number of recent works have presented modified versions of the EM algorithm for parallel computing. The vast majority of these contributions are aimed at large scale distributed and/or cloud platforms such as GraphLab, Piccolo, and Spark; see, for example Low et al. (2012), Gonzalez et al. (2012), Power and Li (2010), Li et al. (2011), Zaharia et al. (2010). Relatively few have focused on smaller scale environments with a single machine or a small local network of machines. The paper Lee et al. (2016a) presented a simple parallel version of the EM algorithm for single machine, taking advantage of multithreading. For a -component mixture model, the authors proposed to split the computations across threads. We shall refer to this as the multi-EM algorithm. The advantage of this approach is its simplicity and ease of implementation, as it requires minimal modification to the original (serial) code. More recently, Lee et al. (2019) presented a block EM algorithm where the data are horizontally split into blocks, allowing for an arbitrary number of threads to be used. Their algorithm was illustrated on multi-core machines. Note that both the multi-EM and block-EM algorithms were implemented in R and aimed at single (standalone) machines.

In this paper, we describe another parallel implementation of the EM algorithm that is suitable for both single and small networks of machines. The structure of the EM algorithm allows easy splitting of the E-step into a single thread for each single observation and component. The M-step can also be naturally split into separate threads. Depending on the physical system used, the user may choose an appropriate number of threads to use for the E- and M-steps. For illustration, we adopt the finite mixture of canonical fundamental skew (CFUST) distributions Arellano-Valle and Genton (2005) to assess the performance of the parallel algorithms. In addition, we implemented the algorithms in two commonly used mathematical platforms, namely R and MATLAB, and compared the performance gain across these platforms.

2 The EM algorithm for finite mixture models

Finite mixture models provide a convenient mathematical representation of heterogeneous clusters within the data. Formally, the density of a finite mixture model is a convex combination of component densities. Let denotes a

-dimensional random vector consisting of

feature variables of interest, and be a realization of . Then the density of a -component mixture model takes the form

(1)

where denotes the mixing proportion for component , denotes the density of the th component of the mixture model, and denotes the vector of unknown parameters of the th component, for . The vector contains all the unknown parameters of the mixture model, that is, . Note that the mixing proportions satisfy and .

Traditionally, the component density is taken to be the (multivariate) normal distribution, that is,

where is a -dimensional vector of location parameters and is a positive-definite scale matrix. For illustration purposes, we consider to be the CFUST density in this paper, which is given by

(2)

where denotes the -dimensional -density and

denote its corresponding cumulative distribution function. In the above, we let

, , and is the Mahalanobis distance between and . We shall refer to finite mixtures of (2) as FM-CFUST. The CFUST distribution is fairly flexible and contains, as special and/or limiting cases, many commonly used distributions including the normal, , Cauchy, and skew normal distributions. These are obtained by letting and ; ; and ; and , respectively. In addition, several characterizations of skew normal and skew -distributions are also special and/or limiting cases of (2) Lee and McLachlan (2013).

Estimation of for mixture models is typically undertaken by maximum likelihood via the EM algorithm. The EM algorithm begins with an initialization step, where an initial estimate of

are computed from an initial partition or via other strategies. We then alternate the E- and M-steps until some stopping criterion is satisfied. To facilitate parameter estimation via the EM algorithm, a set of latent binary variables

is introduced, representing the component membership of – the th observation in the data. More formally, if belongs to the

th component of the mixture model and zero otherwise. Depending on the choice of the component density, additional latent variables may be introduced to simplify calculations. In the case of FM-CFUST, these include latent gamma random variables and latent truncated normal random variables. The technical details of the EM algorithm for FM-CFUST are omitted here, but can be found in

Lee and McLachlan (2016). An outline of the procedure of the EM algorithm is given below.

  1. Initialization: Obtain from an initial partition or some other starting strategies. Calculate the initial log likelihood value using the following with :

    (3)
  2. E-step:

    Calculate the posterior probability of component membership:

    (4)

    for and . Calculate any other required conditional expectations , .

  3. M-step: Compute updated parameter estimates based on the output of the E-step.

  4. Stopping criterion: Update the log likelihood value using (3). Check whether the stopping criterion is satisfied. If so, return the output of the M-step. Otherwise, increment to and return to the E-step.

3 A multi-node EM algorithm

The computation of the conditional expectations in the E-step can be quite time consuming, especially for large values of (and in the case of FM-CFUST). We now describe a parallel implementation of the EM algorithm that is suitable for multi-core and/or multi-node operating systems. As can be observed from the structure of the EM algorithm outlined above, the computation of and other conditional expectations in the E-step can be carried out separately for each and . It is thus intuitive to split the data into blocks where . The value of can be user-specified or chosen to best match the physical systems. In R, needs to be specified explicitly, whereas for MATLAB will be set to the number of physical cores in the system by default. Note that the system may comprise of more than one machine and thus is the total number of physical cores across all machines.

3.1 Parallel initialization

The EM algorithm is sensitive to starting values and thus it is important to choose good initial estimates for the parameters of the model. With threads, we can trial different initializations concurrently. The algorithm begins with different initial partitions that can be obtained, for example, by -means or random partitions. Each of the threads computes based on the given initial partition. The initial log likelihood value is then computed. There is an option for each thread to compute a small number of (burn-in) EM iterations. However, for simplicity we have used in the numerical experiments, that is, without any burn-in iterations. A master thread then gathers the from the threads and selects the one with the smallest value of to provide the starting values for the multi-node EM algorithm.

In the process of computing , the quantities and hence (4), were evaluated for and . They correspond to the numerator and denominator of , respectively. Hence, the are also computed during the initialization step and are passed on to the E-step in the first iteration. A summary of the parallel initialization step is presented in Algorithm 1.

1:Compute different initial partitions of the data.
2:for thread  do concurrently
3:     Compute .
4:     Compute for and .
5:     Calculate .
6:     Calculate .
7:     Calculate .
8:     (Optional) Run iterations of the EM algorithm.
9:     Return , , and to the master thread.
10:end for
11:Select that corresponds to the smallest from the results of the threads.
12:Return the selected , , and .
Algorithm 1 Parallel initialization step of multi-node EM algorithm

3.2 Parallel E-step

Computation of the conditional expectations can be performed in parallel for each and . Depending on the total number of threads, if then a thread may be responsible for more than one value of and . For performance, preference would be given to so that can be computed in the same thread for each . Let be the index of the threads and be the set of index (of observations) assigned to thread . An outline of the E-step is presented in Algorithm 2. During the E-step, each thread calculates , , and for observations in . For the first iteration, have been passed on from the initialization step and hence can be skipped. Unlike the traditional implementation of the EM-algorithm, we also compute partial sums of conditional expectations that will be required in the M-step. These are denoted by , , etc. The expression for these partial sums depend on the component density. In the case of the FM-CFUST model, the eight partial sums are given by equations (27) to (34) in Lee et al. (2019).

1:for thread  do concurrently
2:     for  do
3:         if k¿1 then for
4:              Compute .
5:              Calculate .
6:              Calculate .
7:              Calculate .
8:         end if
9:         Compute conditional expectations .
10:         Compute partial sums
11:         Return conditional expectations and partial sums to the master thread.
12:     end for
13:end for
Algorithm 2 Parallel E-step of multi-node EM algorithm

3.3 Parallel M-step

The M-step can be inherently separated into threads. It is also possible to split into a larger number of threads by separately the calculations of each component of into a number of threads. However, given that the M-step expressions are often relatively inexpensive to evaluate, it may be preferable for all components of to be computed by the same thread. While the threads are computing simultaneously, the master thread computes by calculating the summation of returned by the threads after the parallel E-step. Once the calculation of is completed by the parallel threads, these can be combined into by the master thread. A summary of the parallel M-step of the multi-node EM algorithm is presented in Algorithm 3.

Split the E-step results from threads by component

1:for thread  do concurrently
2:     Compute using .
3:     Return to master thread.
4:end for
5:Compute .
6:Combine into .
Algorithm 3 Parallel M-step of multi-node EM algorithm

3.4 Stopping criterion

We adopt the Aitken acceleration-based stopping criterion to determine whether the EM algorithm can be stopped after the th iteration. The details are given in Algorithm 4. It can be observed from Algorithm 4 that the calculations are rather simple and hence can be performed by a single thread (that is, the master thread).

1:Calculate Aitken’s acceleration .
2:Calculate .
3:if  then
4:     Return and .
5:     Terminate the algorithm.
6:end if
7:Set to .
8:Return to Algorithm 2.
Algorithm 4 Stopping criterion for multi-node EM algorithm

4 Numerical experiments

We performed numerical experiments to assess the performance of the multi-node EM algorithm under three different physical settings. The algorithm was implemented using both R and MATLAB and executed on machine(s) running Windows. The machine(s) have four physical cores. For the R implementation, the parallel package that is available in base R was used. For the MATLAB implementation, the Parallel Computing Toolbox was used. For a fair comparison between MATLAB and R, efforts have been made so that the R and MATLAB codes are almost direct transcriptions of each other. For example, the same set of commands were implemented for the computation of (multivariate) truncated moments. For illustration, the algorithm was implemented for the FM-CFUST model and applied to the Australian Institute of Sport (AIS) data Cook and Weisberg (1994). The AIS data comprises body measurements on athletes. We apply the clustering algorithms to predict the gender of each athlete. For consistency, the same set of initial partitions was used and the number of components were fixed at . The three settings for parallel computing are listed below.

  1. single-threaded: using a single thread on a CPU core on a single machine

  2. multi-threaded: using 2 to threaded on a single machine. Note that the threads may be virtual threads.

  3. multi-node: using multiple threads from two or more machines connected through a local network.

For each of the above setting, the MATLAB and R implementations were ran separately on the same machine(s) for 100 replications each. We note that the multi-node version can be rather complicated to setup in R. As such, for the multi-node setting, we focus on the MATLAB implementation.

As our main interest is the performance gain of the multi-node EM algorithm, details of the accuracy of the estimates and the clustering performance will not be reported here. However, we noted that the parameter estimates are almost identical to that obtained from the traditional (non-parallel) implementation, and all trials yielded the same final clustering.

4.1 MATLAB versus R in single-threaded implementation

The single-threaded version of the multi-node EM algorithm corresponds to the traditional implementation of the EM algorithm. This is the default setting in R and MATLAB. The mean and standard deviation (sd) of the run time for R are 2310.83 seconds and 62.04 seconds, respectively; see the third row of Table

1. For MATLAB, the mean run time of the 100 trials are 2635.69 seconds, with sd being 142.63 seconds. On average, MATLAB appears to be slightly slower than R (approximately ) in this case. These results can be used as baseline measurements for comparison with multi-threaded and multi-node implementations.

4.2 MATLAB versus R in multi-threaded implementation

With the multi-core/muti-threaded implementation, we would expect the computation to reduce as the number of threads increases. But linear reduction in should not expected as there are overheads associated with the setting up of the parallel process. In this experiment, we considered ranging from to threads. As there are only four cores in this machine, the threads are virtual when . The total computation time (in seconds) in each trial and setting were recorded. For , the reduction in time (in %) against the baseline was computed using (total time in MATLAB - total time in R)/(total time in R) 100. These results are reported in table 1 an displayed in Figure 1. As can be observed the table and figure, significant reduction in time is achieved when the parallel implementation is used. With only two threads, the total time is reduced by and for R and MATLAB, respectively. At (the number of physical cores), a reduction of and were achieved for R and MATLAB, respectively. However, the trend of decrease in total time starts to level out at around threads. For R, we could observe the total time even begins to increase mildly at , possibly due to the overhead costs. On the other hand, the trend continued to decrease for large in the case of MATLAB. Although MATLAB implementation was slightly slower than the R implementation for small number of threads, it became faster than R for .

In Figure 1, the shaded region around each line is a representation of the standard deviation across the 100 trials in each setting. These trials indicate that the computation time for MATLAB seems to be more stable than R. This can also be gauged visually from the top panel of Figure 1, where the R (red) line has a slightly broader shaded region than the MATLAB (blue) line, especially for larger values of . The visual message from the bottom panel of Figure 1 suggests that both implementations have comparable percentage reduction in time, with MATLAB slightly more efficient when the number of threads is large.

Number of threads () R MATLAB
Total time (sec) Time reduction (%) Total time (sec) Time reduction (%)
1 2310.82 2635.69
2 1171.65 49.30 1735.80 34.14
3 902.00 60.97 1115.17 57.69
4 756.48 67.26 952.46 63.86
5 669.72 71.02 854.23 67.59
6 623.03 73.04 768.07 70.86
7 591.08 74.42 706.83 73.18
8 570.85 75.30 664.17 74.80
9 552.47 76.09 643.54 75.58
10 539.92 76.64 625.11 76.28
11 532.29 76.97 608.86 76.90
12 544.34 76.44 594.21 77.46
13 551.34 76.14 581.34 77.94
14 565.21 75.54 568.77 78.42
15 580.05 74.90 556.78 78.88
16 593.98 74.30 545.38 79.31
17 603.16 73.90 534.20 79.73
18 609.62 73.62 523.43 80.14
19 613.66 73.44 525.70 80.05
20 615.02 73.39 516.34 80.41
Table 1: Total computation time (sec) and time reduction (%) of the R and MATLAB implementation on a single multi-core machine. The reported values are the mean and standard deviation (sd) from 100 trials for each setting of . The experiment applied the FM-CFUST model on the AIS data set.

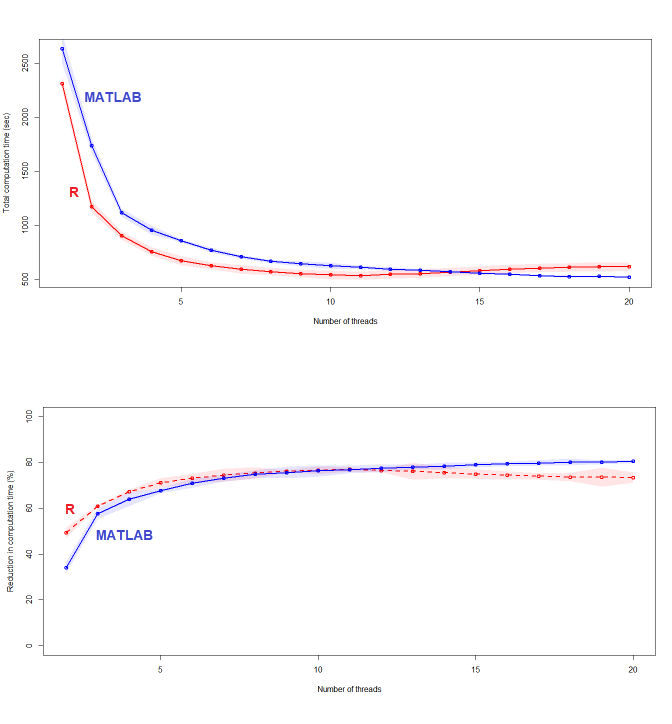

Figure 1: Performance gain of R and MATLAB implementations of the multi-node EM algorithm on the AIS data set, using threads. The results for R is shown in red, whereas the results for MATLAB is shown in blue. Top panel: The circles represents the mean total computation time (seconds) across 100 trials. Shaded region around the lines indicate the standard deviation at each value of . Bottom panel: The percentage reduction in time (PRT) against the baseline of were calculated for all cases of . The circles represents the mean PRT across 100 trials. Shaded regions around the lines indicate the standard deviation of PRT at each value of .

4.3 MATLAB multi-node implementation

For illustration, we tested the multi-node EM algorithm on a small local network of three machines with the same specifications. The number of threads is set to the total number of physical cores in the network. We recorded the total computation time of 100 trials in the case of one, two, and three machines. The results obtained by running on one machine is taken as the baseline for computing the percentage reduction in time for the case of two machines and three machines. With the multi-node setting, we would not expect a particularly good reduction in time for small data sets like in this experiment, as the high overhead associated with network communicating between the machines can overshadow the time gained by parallelizing the E- and M-steps. Indeed, we only observed a modest and mean reduction in time for the case of two and three machines, respectively. However, we expect these numbers to increase for larger data sets and its usefulness would be more apparent for models that are more computationally demanding.

5 Conclusions

We have described a parallel implementation of the EM algorithm for the fitting of mixture models. The multi-node EM algorithm takes advantage of parallel computing to speed up the model fitting process. Quantitative comparisons were made between the MATLAB and R implementations of the same algorithm. We find that R is a little more efficient than MATLAB, despite the latter had built-in multi-threading capabilities. For both implementations (and in the single machine setting), a significant reduction of time was observed even for small number of parallel threads. For example, the total computation time for R had reduced to almost half when only two threads were used. For big data and/or models that are more computationally demanding, the multi-node setting could provide further reduction in computation time.
