1 Introduction

Relation extraction is a fundamental task in information extraction (IE), which studies the issue of predicting semantic relations between pairs of entities in a sentence Zelenko et al. (2003); Bunescu and Mooney (2005); Zhou et al. (2005). One crucial problem in RE is the relative lack of large-scale, high-quality labeled data. In recent years, one commonly used and effective technique for dealing with this challenge is the distant supervision method via knowledge bases (KBs) Mintz et al. (2009); Riedel et al. (2010); Hoffmann et al. (2011), which assumes that if one entity pair appearing in some sentences can be observed in a KB with a certain relationship, then these sentences will be labeled as the context of this entity pair and this relationship. The distant supervision strategy is an effective and efficient method for automatically labeling large-scale training data. However, it also introduces a severe mislabelling problem due to the fact that a sentence that mentions two entities does not necessarily express their relation in a KB Surdeanu et al. (2012); Zeng et al. (2015).

Plenty of research work has been proposed to deal with distantly supervised data and has achieved significant progress, especially with the rapid development of deep neural networks (DNN) for relation extraction in recent years Zeng et al. (2014, 2015); Lin et al. (2016, 2017a); Wang et al. (2016); Zhou et al. (2016); Ji et al. (2017); Yang et al. (2017); Zeng et al. (2017). DNN models under an MIL framework for DS-RE have become state-of-the-art, replacing statistical methods, such as feature-based and graphical models  Riedel et al. (2010); Hoffmann et al. (2011); Surdeanu et al. (2012). In the MIL framework for distantly supervised RE, each entity pair often has multiple instances where some are noisy and some are valid. The attention mechanism in DNNs, such as convolutional (CNN) and recurrent neural networks (RNN), is an effective way to select valid instances by learning a weight distribution over multiple instances. However, there are two important representation learning problems in DNN-based distantly supervised RE: (1) Problem I: entity pair-targeted context representation learning from an instance; and (2) Problem II: valid instance selection representation learning over multiple instances. The former can use a word-level attention mechanism to learn a weight distribution on words and then a weighted sentence representation regarding two entities; the latter can employ a sentence-level attention mechanism to learn a weight distribution on multiple instances so that valid sentences with higher weights can be focused and selected, and noisy instances with lower weights are suppressed.

Both the word-level and sentence-level attention mechanisms in previous work on the RE task are simple 1- vectors which are learned using the hidden states of the RNN, or via pooling from either the RNNs’ hidden states or convolved -grams Zeng et al. (2014, 2015); Zhou et al. (2016); Wang et al. (2016); Ji et al. (2017); Yang et al. (2017). The deficiency of the 1- attention vector is that it only focuses on one or a small number of aspects of the sentence, or one or a small number of instances Lin et al. (2017b), with the result that different semantic aspects of the sentence, or different multiple valid sentences are ignored, and cannot be utilised.

Inspired by the structured self-attentive sentence embedding in Lin et al. (2017b), we propose a novel multi-level structured (2-) self-attention mechanism (MLSSA) in a bidirectional LSTM-based (BiLSTM) Hochreiter and Schmidhuber (1997) MIL framework to alleviate two problems in the distantly supervised RE. Regarding Problem I, we propose a 2- matrix-based word-level attention mechanism, which contains multiple vectors, each focusing on different aspects of the sentence for better context representation learning. In terms of Problem II, we propose a 2- sentence-level attention mechanism for multiple instance learning, where it contains multiple vectors, each focusing on different valid instances for a better sentence selection. “structured” indicates that the weight vectors in the learned 2- matrix try to construct a structural dependency relationship by learning different weight distributions for different contexts or instances given the entity pair. We can see that our structured attention mechanism is different from that in Kim et al. (2017) which incorporates richer structural distributions and are simple extensions of the basic attention procedure. We verify the proposed framework on two distantly supervised RE datasets, namely the New York Times (NYT) dataset Riedel et al. (2010) and the DBpedia Portuguese dataset Batista et al. (2013)

. Experimental results show that our MLSSA framework significantly outperforms state-of-the-art baseline systems in terms of different evaluation metrics.

The main contributions of this paper include: (1) we propose a novel multi-level structured (2-) self-attention mechanism for DS-RE which can make full use of input sequences to learn different contexts, without integrating extra resources; (2) we propose a 2- matrix-based word-level attention for better context representation learning targeting two entities; (3) we propose a 2- sentence-level attention mechanism over multiple instances to select different valid instances; and (4) we verify the proposed framework on two publicly available distantly supervised datasets.

2 Related Work

Most existing work on distant supervision data mainly focuses on denoising the data under the MIL strategy by learning a valid sentence representation or features, and then selecting one or more valid instances for relation classification Riedel et al. (2010); Hoffmann et al. (2011); Surdeanu et al. (2012); Zeng et al. (2015); Lin et al. (2016, 2017a); Zhou et al. (2016); Ji et al. (2017); Zeng et al. (2017); Yang et al. (2017).

Riedel et al. (2010) and Surdeanu et al. (2012)

use a graphical model and MIL to select the valid sentences and classify the relations. However, these models are based on statistical methods and feature engineering, i.e. extracting sentence features using other NLP tools.

Zeng et al. (2015) proposed a piece-wise CNN (PCNN) method to automatically learn sentence-level features and select one valid instance for the relation classification. The one-sentence-selection strategy does not make full use of the supervision information among multiple instances.

Lin et al. (2016) and Ji et al. (2017) introduce an attention mechanism to the PCNN-based MIL framework to select informative sentences, which outperforms all baseline systems on the NYT data set. However, their attention mechanism is only a sentence-level model without incorporating word-level attention. Zhou et al. (2016) introduce a word-level attention model to the BiLSTM-based MIL framework and obtain significant improvements on the SemEval2010 Hendrickx et al. (2010) data set. Wang et al. (2016) extend the single word-level attention model to multiple word levels in CNNs to discern patterns in heterogeneous contexts of the input sentence, and achieve best performance on the SemEval2010 data set. However, these two works were not targeting the distantly supervised RE problem.

Yang et al. (2017) experiment with word-level and sentence-level attention models in the bidirectional RNN on the NYT dataset on the basis of the open source DS-RE system,111 and verify that a two-level attention mechanism achieves best performance compared to PCNN/CNN models. Both the word-level and sentence-level attention models are 1- vectors.

From previous work, we can see that the attention mechanism in DNNs has made significant progress on the RE task. However, both word-level and sentence-level attention models are still based on 1- vectors which have the following insufficiencies: (1) although the 1- attention model can learn weights for different contexts, it only focuses on one or very few aspects of a single sentence Lin et al. (2017b), or one or very few instances; (2) in order to allow the attention mechanism to learn more aspects of the sentence, or different instances, extra knowledge needs to be integrated, such as the work in Ji et al. (2017) and Lin et al. (2017a). The former integrates entity descriptions generated from Freebase and Wikipedia as supplementary background knowledge to disambiguate the entity. The latter introduces a multilingual framework which employs a monolingual attention mechanism to utilize the information within monolingual texts, and further uses a cross-lingual attention mechanism to consider the information consistency and complementarity among cross-lingual texts. However, extra resources are difficult to obtain in many practical scenarios.

In order to alleviate the burden of integrating extra knowledge, and make full use of the input sentence (i.e. learning different aspects of context and focusing on different valid instances), we propose a multi-level structured self-attention mechanism in a BiLSTM-based MIL framework without integrating extra resources.

3 Approach

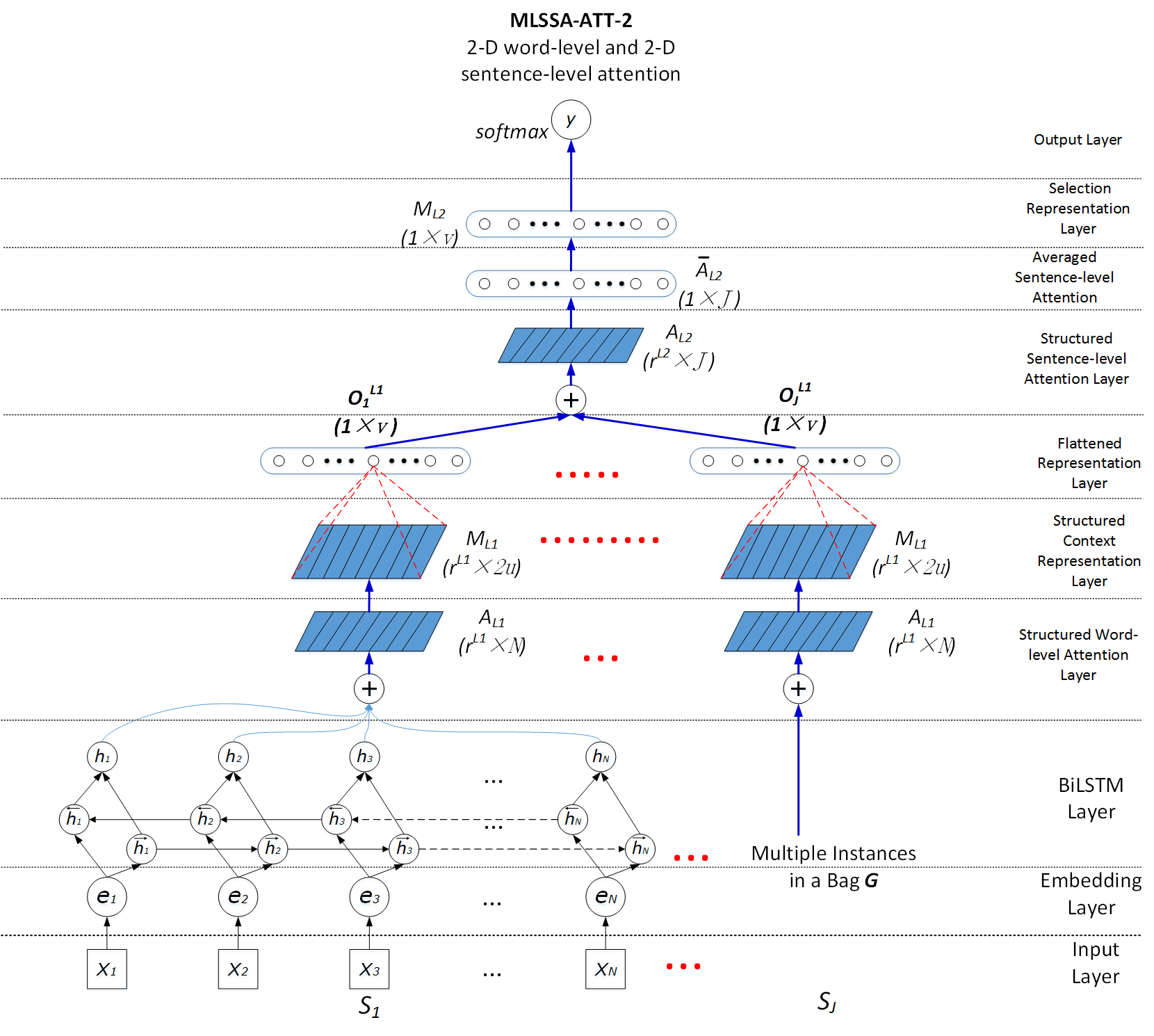

Figure 1: Multi-level structured self-attention framework for distantly supervised RE

The distantly supervised RE can be formalised as follows: given an entity pair , a bag containing instances, and the relation label for , the goal of the training process is to denoise these instances by selecting valid candidates based on , and the goal of the testing process is to denoise multiple instances by selecting valid candidates to predict the relation for .

To alleviate the aforementioned two problems, improving the following two representation learning issues is clearly important for a DNN-based RE classifier:

  • Entity pair-targeted context representation: The model should have the capability to learn a better context representation from the input sentence targeting the entity pair;

  • Instance selection representation: The model should have the capability to learn a better weight distribution over multiple instances to select valid instances regarding an entity pair.

Motivated by these two issues, we propose a multi-level structured self-attention framework.

3.1 Architecture

The proposed framework consists of three parts as shown in Figure 1. The first part includes the input layer, embedding layer and BiLSTM layer which transform the input sequence at different time steps to LSTM hidden states.

The second part implements the entity pair-targeted context representation learning, including:

  • a structured word-level self-attention layer: this generates a set of summation weight vectors (or a 2- matrix) taking the LSTM hidden states as input. Each vector in the 2- matrix represents the weights for different aspects of the input sentence.

  • a structured context representation layer: the weight vectors learned by the 2- word-level self-attention are dotted with the BiLSTM hidden states. Accordingly, a 2- matrix or a set of weighted LSTM hidden state vectors, denoted as “” in Figure 1, is obtained. Each weighted vector represents a sentence embedding reflecting a different aspect of the sentence targeting the entity pair. By this means, a dependency parsing-like structure of the input sentence can be constructed, obtaining different semantic representations of the sentence for the two entities in question.

  • a flattened representation layer: this concatenates each vector in the 2-

    matrix of the sentence embedding to one vector. Then, the flattened vector connects to a 1-layer multi-layer perceptron (MLP) with ReLU activation function, generating an aggregated sentence representation.

The first and second parts operate on the single instance level, i.e. given a bag and feeding each instance into the framework, the structured word-level self-attention mechanism will construct individual structured sentence representations corresponding to input instances.

The third part targets the instance selection representation learning issue, and operates on the bag level, i.e. considering weighted context representations of all instances in the bag

and learning probability distributions to distinguish informative from noisy sentences. This part includes:

  • a structured sentence-level attention model: this has a similar structure to the structured word-level attention mechanism, except that it generates a set of summation weight vectors for all input instances in the same bag . Each vector is a weight distribution over all instances. Accordingly, the 2- sentence-level matrix is expected to learn a set of different weight distributions focusing on different informative instances. As a result, informative sentences are expected to contribute more with higher weights, and noisy sentences are expected to contribute less with smaller weights, to the relation classification.

  • an averaged sentence-level attention layer: the 2- sentence-level attention matrix is averaged and converted to a 1- vector.

  • a selection representation layer: the 1- averaged attention vector is dotted with the output of the flattened representation layer. Accordingly, a 1- vector, denoted as “” in Figure 1, is obtained which represents an averaged weighted selection representation of multiple sentences.

  • an output layer: this connects to a softmax layer and produces a probability distribution corresponding to relation classes.

3.2 Structured Word-Level Self-Attention and its Penalisation Function

Given a bag containing instances, and a sentence in consisting of tokens, can be represented using a sequence of word embeddings, as in (1):


where is a -dimension vector for the -th word, and is the -th instance in .

We denote the hidden state of the BiLSTM as in (2):


where is a concatenation of the forward hidden state and the backward hidden state at time step . is the transpose operation. If the size of each unidirectional LSTM is , then has the size -by-.

Then, the structured word-level self-attention mechanism is defined as in (3):


where stands for the first-level attention mechanism, i.e. the word-level; is a weight matrix of size , where

is a hyper-parameter for the number of neurons in the attention network;

is a weight matrix with the shape , where () is the hyper-parameter representing the size of multiple vectors in the 2- attention matrix. The size of is defined based on how many different aspects of the sentence need to be focused on; is the annotation matrix of size . We can see that in , there are attention vectors for the -token input sentence.

Finally, we compute the weighted sums by multiplying the annotation matrix and BiLSTM hidden states . The resulting structured sentence representation is (4):


where has the shape . It can be seen that the traditional 1- sentence representation is extended to a 2- representation ().

Subsequently, the output of the flattened representation layer for the instance in is (5):


where is the weight matrix that has the shape -by-, where is the amount of neurons in the -based MLP layer; is the flattened structured sentence representation which is a concatenated vector of each row in and has the dimension ;

is the bias vector of size

; is the aggregated sentence representation of the -th instance in the bag with size .

Then, the output of all instances in from the flattened representation layer is denoted as in (6):


where has the shape of .

As in Lin et al. (2017b), the penalisation term for the structured word-level attention is as in (7):


where is the Frobenius norm of a matrix.

is an identity matrix. Minimising this penalisation term means that we learn an orthogonal matrix for

so that each row in only focuses on a single aspect of semantics.

3.3 Structured Sentence-Level Self-Attention and Averaged Selection Representation

Taking as the input to the structured 2- sentence-level attention model, the annotation matrix is calculated as in (8):


where is the weight matrix of size , and is the number of neurons in the attention network; is the weight matrix of shape , where () is the hyper-parameter representing the size of multiple vectors in the 2- sentence-level attention matrix. The multiple vectors are expected to focus on different informative instances for the relation classification; is the sentence-level annotation matrix of size . We can see that the traditional 1- sentence-level attention model is expanded to a multi-vector attention ().

Then, we average the 2- to a 1- vector which has the dimension of .

Accordingly, we calculate the averaged weighted sum by multiplying and the aggregated sentence representation , with the resulting instance selection representation being (9):


where has the size of .

The probability distribution of the predicted relation type, i.e. the final output for relation prediction, can be calculated as in (10):


3.4 Loss Function and Optimisation

The total loss of the network is the summation of the penalisation term , softmax loss in Eq. (10) and the regularisation loss.

We use the ADAM optimiser Kingma and Ba (2014)

to minimize the loss function on the mini-batch basis which is randomly selected from the training set.

4 Experiments

4.1 Datasets

We use two distantly supervised datasets, namely the NYT corpus (NYT) and the DBpedia Portuguese dataset (PT),222There are several reasons to use the Portuguese dataset: (i) the data sets reported in previous work, such as the KBP data, are not publicly available, or (ii) SemEval data sets which are not distantly supervised data. Google has also released a dataset (, but it is smaller and only has 4 relation types. For all these reasons, the Portuguese data is a better option to verify our method. to verify our method.

In the NYT dataset, there are 53 relationships including a special relation NA which indicates a None Relation between two entities. The training set contains 580,888 sentences, 292,484 entity pairs and 19,429 relational facts (Non-NA). The test set contains 172,448 sentences, 96,678 entity pairs and 1,950 relational facts (Non-NA). There are 19.24% and 22.57% entity pairs corresponding to multiple instances in the training set and test set, respectively.

The DBpedia Portuguese dataset is smaller, containing just 10 relationships including a special relation Other. After preprocessing the original dataset, we obtain 96,847 sentences, 85,528 entity pairs and 77,321 relational facts (Non-Other). There are 8.61% entity pairs corresponding to multiple instances in the whole dataset. As in Batista et al. (2013), we use two different settings for the training and test sets: (1) a manually reviewed subset that contains 602 sentences (PT-MANUAL) as the test set; and (2) 70%–30% out of the whole data as the training set and test set, respectively (PT-SPLIT).

4.2 Word Embeddings and Relative Position Features

For the NYT dataset, we use the 200-dimensional word vectors pre-trained using the NYT corpus;333 for the PT dataset, we use a pre-trained 300-dimensional word vector model.444 For the two-word entities in the data set, we use underscore

to connect them as one word. The word embeddings of unknown words are intialised using the normal distribution with the standard deviation 0.05. Similar to previous work, we also use position embeddings specified by entity pairs. It is defined as the combination of the relative distances from the current word to head or tail entities

Zeng et al. (2014, 2015); Lin et al. (2016).

4.3 Baselines and Our MLSSA Systems

Neural RE systems have become the state-of-the-art, such as CNN-based Zeng et al. (2014); Lin et al. (2017a), Piecewise CNN-based Zeng et al. (2015); Lin et al. (2016); Ji et al. (2017), and BiLSTM-based Zhou et al. (2016)

models with or without an attention mechanism. In order to carry out a fair comparison, we select CNN+ATT, PCNN+ATT, BiGRU+ATT (bidirectional gated recurrent unit) and BiGRU+2ATT models as baselines on the NYT data, PCNN+ATT and BiGRU+2ATT as baselines on the PT data, where ATT indicates that the model has a sentence-level attention mechanism, and 2ATT indicates that the model has a 1-

word-level and a 1- sentence-level attention.555All the baseline systems are obtained from and

To show the incremental effectiveness of structured 2- word-level and 2- sentence-level self-attention mechanisms, we use two different settings for our MLSSA system: (1) MLSSA-1: this has a 2- word-level self-attention and a 1- sentence-level attention, i.e. in Figure 1 is a 1- vector. This system is used to verify the context representation learning targeting Problem I; (2) MLSSA-2: both the word-level and sentence-level attentions are structured 2- matrices. This system verifies the instance selection representation learning targeting Problem II.

4.4 Experiment Setup and Evaluation Metrics

Following previous work, we use different evaluation metrics on these two datasets. For the NYT dataset:

  • Overall evaluation: all training data is used for the model training, and all test data is used for the evaluation in terms of Precision-Recall (PR) curves;

  • P@N evaluation: we select those entity pairs that have more than one instance to carry out the comparison in terms of the precision at (P@N) measure.666P@N considers only the topmost results returned by the model. As in Lin et al. (2016), there are three settings: (1) One: for each testing entity pair corresponding to multiple instances, we randomly select one sentence to predict the relation; (2) Two: for each testing entity pair with multiple instances, we randomly select two sentences for the relation extraction; and (3) All: for each entity pair having multiple instances, we use all of them to predict the relation. Note that these three selections are only applied to the test set, and we keep all sentences in the training data for model building.

For the PT dataset, we use Macro F1 to evaluate system performance.777Regarding the metric, we keep the evaluation consistent with the work in Batista et al. (2013) where they used F1 to measure their RE systems on the Portuguese dataset, in order to maintain a fair comparison with their work using the same metric.

4.5 Hyper-parameter Settings

We use cross-validation to determine the hyper-parameters of our system regarding two different settings and datasets. The in-common and different parameters for our two systems and two datasets are shown in Table 1.

Parameters for MLSSA-1/2 NYT PT
Word embedding dimension 200 300
Position embedding dimension 50 50
Batch size 64 50
Time steps 70 70
Learning rate 0.001 0.001
Hidden size in BiLSTM 300 300
at word-level attention 300 300
at word-level attention 9 5
MLP size 1000 1000
Coefficient of the penalisation term 1.0 1.0
Parameters for MLSSA-2 only NYT PT
at sentence-level attention 300 300
at sentence-level attention 9 3
Table 1: Hyper-parameter settings
Test Settings One Two All
P@N(%) 100 200 300 Mean 100 200 300 Mean 100 200 300 Mean
CNN+ATT 72.0 67.0 59.5 66.2 75.5 69.0 63.3 69.3 74.3 71.5 64.5 70.1
PCNN+ATT 73.3 69.2 60.8 67.8 77.2 71.6 66.1 71.6 76.2 73.1 67.4 72.2
BiGRU+ATT 75.0 69.5 64.7 69.7 80.0 72.5 69.3 73.9 82.0 76.5 71.3 76.6
BiGRU+2ATT 81.0 74.0 67.3 74.1 81.0 75.5 70.7 75.7 81.0 76.0 72.7 76.6
MLSSA-1 88.0 77.0 70.0 78.3 88.0 79.0 73.3 80.1 87.0 81.5 76.0 81.5
MLSSA-2 87.0 76.0 70.0 77.7 89.0 78.5 72.3 79.9 90.0 81.5 77.0 82.8
Table 2: Precision values for the top-100, top-200, and top-300 relation instances that are randomly selected in terms of one, two and all sentences.

4.6 PR Curves on NYT Dataset

The comparison results for the NYT test set are shown in Figure 2. We have the following observations: (1) BiGRU+ATT outperforms CNN+ATT and PCNN+ATT in terms of the PR curve, showing that it can learn a better semantic representation from the sequential input; (2) BiGRU+2ATT has better overall performance compared to BiGRU+ATT, showing that word-level attention is beneficial to sentence-level attention compared to single-attention models, i.e. the sentence-level attention model can select more informative sentences based on a more reasonable sentence embedding learned by the word-level attention model; (3) MLSSA-1 outperforms all baseline systems in terms of the PR curve, which demonstrates that the structured 2- word-level attention model can learn a better sentence representation by focusing on different aspects of the sentence, so that the sentence-level attention has a better chance of selecting the most informative sentences; and (4) the PR curve of MLSSA-2 is higher than that of MLSSA-1, demonstrating that the 2- sentence-level attention model can better select the most informative sentences compared to the 1- sentence-level attention model targeting those entity pairs with multiple instances.

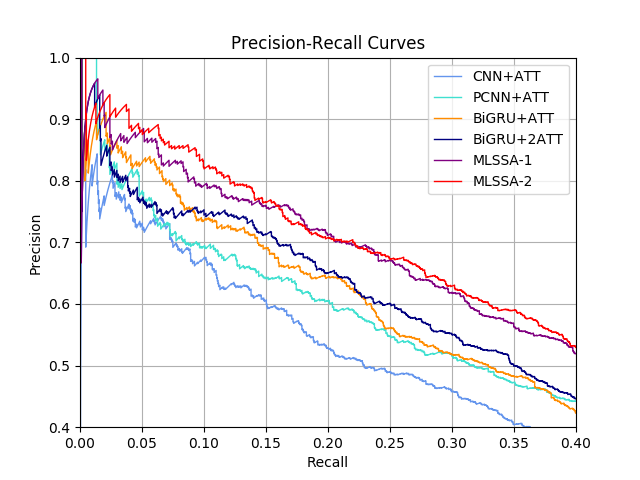

Figure 2: Comparison results of a variety of methods in terms of precision/recall curves.

4.7 P@N Evaluation on NYT Dataset

The results on the NYT dataset regarding P@100, P@200, P@300 and the mean of three settings for each model are shown in Table 2. From the table, we have similar observations to the PR Curves: (1) BiGRU+2ATT outperforms CNN+ATT, PCNN+ATT and BiGRU+ATT in most cases in terms of all P@N scores; and (2) MLSSA-1 and MLSSA-2 significantly outperform all baselines for all measures. We observe that MLSSA-1 performs better than MLSSA-2 on tasks One and Two, but worse on All. We infer that in our 2- sentence-level attention model, we set to 9, but there are only one and two instances for selection in tasks One and Two, so the 2- matrix cannot demonstrate its full potential. However, in All, many entity pairs contain multiple or more than 9 instances, so it can learn a better 2- matrix to focus on different instances.

4.8 Results on PT Dataset

Based on results from the NYT dataset, we choose PCNN+ATT and BiGRU+2ATT as representative baselines to compare against our MLSSA-1/2 systems on the PT test sets. The results in terms of Macro F1 are shown in Table 3.

It can be seen that on both test sets, our MLSSA-2 model achieved the best performance which shows that the structured 2- word-level and sentence-level self-attention models can be well applied to datasets of a smaller scale and with a smaller ratio of multiple instances.

PCNN+ATT 62.3 74.1
BiGRU+2ATT 63.5 75.3
MLSSA-1 66.0 77.2
MLSSA-2 69.6 78.1
Table 3: Results on the PT test sets

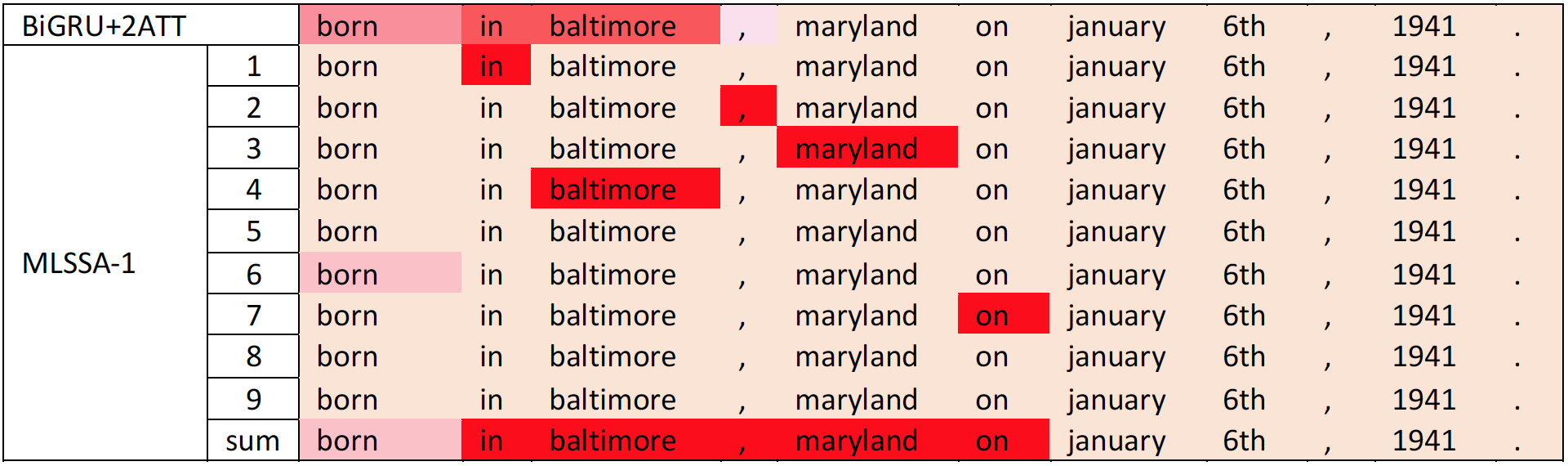

Figure 3: Comparison of word-level attentions.

4.9 Examples and Analysis

In order to show the effectiveness of structured self-attention mechanisms, we show some examples by visualising the attentions on different aspects of a sentence, and on different sentences comparing with BiLSTM+2ATT model.

Figure 3 shows the comparison of word-level attention mechanism between BiGRU+2ATT and MLSSA-1 reflecting their capability of context representation learning (Problem I). MLSSA-2 has a similar probability distribution to MLSSA-1 in terms of this example.

The pink fonts indicate lower probability and red indicates higher probability. We observe that: (1) BiGRU+2ATT mainly focuses on one word baltimore. We can see that it has little attention on the entity word maryland. In this example, the comma implies a semantic relationship location/location/contains for the entity pair (Maryland, Baltimore). However, BiGRU+2ATT allocates quite a small probability to it; and (2) we can see that our model focuses on different words via different attention vectors (9 in total). Words with a red background have a high probability of or so. For rows 5, 6, 8 and 9, the focus is on the BLANK

tokens. In both systems, the maximum time step is set to 70, which indicates that shorter sentences are padded with

BLANK tokens and longer sentences are cut off. The last row shows the summation of 9 annotation vectors, and it constructs a dependency-like context of the relation for the entity pair. Attentions on different words are attributed to the penalisation

which is optimised to learn orthogonal eigenvectors.

Figure 4: Comparison of sentence-level attentions.

Figure 4 shows the comparison of sentence-level attentions between BiGRU+2ATT, MLSSA-1 and MLSSA-2. The first, second and third columns are probability distributions over multiple instances. The entity pair is (vinod khosla, sun microsystems), and their relation is Business/Person/Company. From this figure, we observe that: (1) BiGRU+2ATT allocates high probabilities to Sentences 1 and 2 by learning the context of “a founder of”, but does not recognise that “co-founder” is semantically the same as “founder”; and (2) our two models almost evenly focus on all sentences because they express the same semantic concept of “a person is a founder of a company” in terms of the given entity pair. Therefore, the structured self-attention mechanism is helpful to learn a better representation and select informative sentences.

5 Conclusion and Future Work

This paper has proposed a multi-level structured self-attention mechanism for distantly supervised RE. In this framework, the traditional 1- word-level and sentence-level attentions are extended to 2- structured matrices which can learn different aspects of a sentence, and different informative instances. Experimental results on two distant supervision data sets show that (1) the structured 2- word-level attention can learn a better sentence representation; (2) the structured 2- sentence-level attention and averaged selection can perform better selection from multiple instances for relation classification; (3) the proposed framework significantly outperforms state-of-the-art baseline systems for a range of different measures, which verifies its effectiveness on two representation learning issues. A subsequent manual investigation via examples also show its effectiveness on two representation learning issues.

In future work, we will build a domain-specific distant supervision dataset with a higher ratio of multiple instances and compare our system with others. Furthermore, we will consider not using RNNs or CNNs, but a deeper neural networks with only attentions for distantly supervised RE, similar to the work in Vaswani et al. (2017).
