Sickle cell disease (SCD) is a type of inherited red blood cell (RBC) disorder which can cause life-threatening complications. Automatic classification and diseased cell detection based on cell texture and morphological features have become a viable and important approach for SCD diagnosis, as manual inspection of RBC images is time and labor-consuming. More generally, automatic cell detection and cell type classification is a crucial step of high-throughput imaging as well as many other clinical applications. Towards the purpose of cell detection and classification, various solutions have been developed, such as CellProfiler , CellTrack  or Fiji
. Recent advancement of deep learning-based approaches[4, 5, 6, 7, 8, 9, 10] has shown superior performance in extracting more discriminative image features with higher generalizability for various biomedical image analysis tasks including cell classification, detection, semantic segmentation and counting.
While deep learning-based approaches have achieved good performance in classifying single cell patches [11, 12, 13], in practice a common challenge is the presence of multiple cells congregating together in one sample image patch. We formulate this challenge as the “multi-label classification” problem, where it can be difficult (e.g. touching cells) or even impossible (e.g. overlapping cells) to fully separate individual instances out in those samples. As normal classifiers are trained for only dealing with a single instance, those multi-label samples have to be discarded  during training, and can cause incorrect classification results if such samples are presented in testing data. However, touching cells and overlapping cells are very common in microscopic images, so it is significant to solve this multi-label classification problem. Among various multi-instance methods that have been previously developed, CapsNet  can analyze highly overlapping objects and has inspired many applications based on it. However, most of the current models developed using CapsNet are focusing on single-label classification problem [15, 16, 17], due to the limitation in the original CapsNet that it does not allow more than one instance of the same class to be presented in the image. Since there are many patches including multiple cells from the same class congregating together, CapsNet can’t deal with multi-label RBCs classification problem.
To address the challenge of multi-label classification in biomedical image analysis, while at the same time aiming at improving the diagnostic accuracy and efficiency for SCD, we propose a cell detection and classification framework that can automatically extract image patches consisting of single or multiple cells, and perform multi-label classification as well as abnormal cell detection on the extracted image patches. The proposed framework including three steps. Firstly, we applied a Faster-RCNN to automatically extract single-cell and multi-cell patches from a complete microscopic image. Secondly, we implemented a pre-trained ResNet for feature extraction and developed multiple networks to obtain the predicted cell types in the patches. Finally, we exploited a Gradient Boosting Classifier to determine the presence of “abnormal” cell types in a given cell patch.
Our approach makes the following main contributions. Firstly, we implement a deep learning framework Faster-RCNN on RBC microscopic images for cell detection. What’s more, we propose a simple but effective multi-label classification method that is able to classify single cell patches and multiple cells patches together. The proposed approach is trained and tested on whole microscopic images. The high accuracy for both detection and multi-label classification demonstrates the effectiveness of the proposed framework for the automatic detection and multi-label classification of RBCs. To the best of our knowledge, this is the first work attempting to solve multi-label classification problem of RBCs.
2 Material and methods
2.1 Data acquisition and approach overview

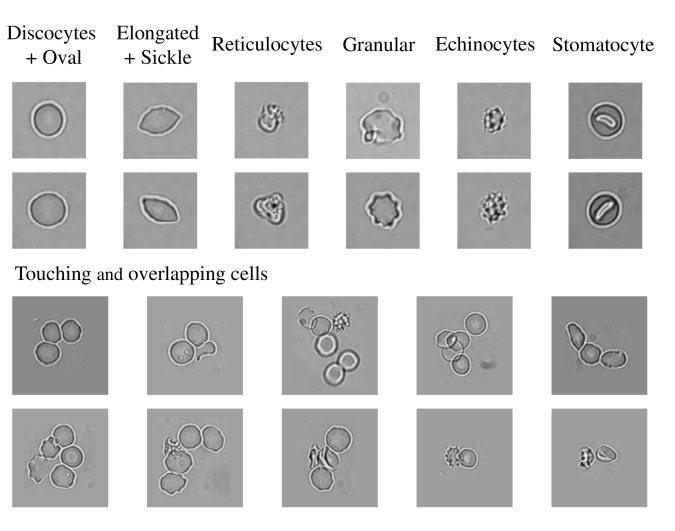

RBC microscopic images used in this work are collected from UPMC (University of Pittsburgh Medical Center) and Massachusetts General Hospital. Raw data contains 313 images with the size of 19201080. Details of data acquisition and description can be found in . Data used in this work includes 1080 single-cell patches processed in , as well as 1389 multi-cell patches with touching/overlapping cells that are manually identified from raw images. According to the protocol in , we define six cell types for RBC, visualizations of the six cell types as well as samples of touching/overlapping cells can be found in Figure 1.

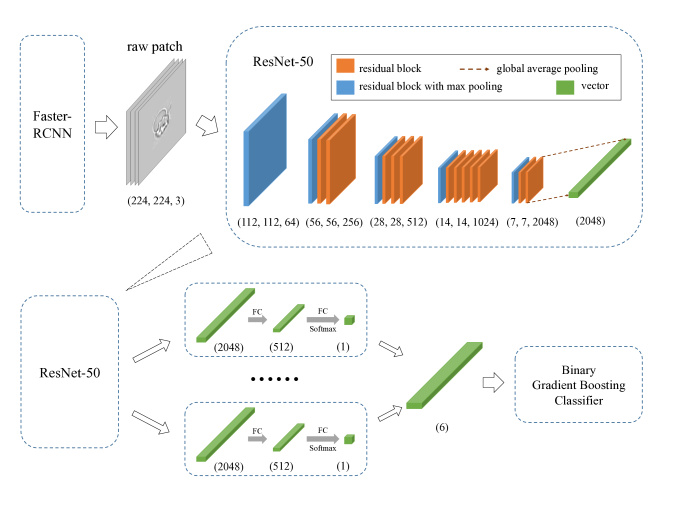

Figure 2 illustrates the workflow of our approach, which involves cell detection and multi-label classification. The framework firstly performs region proposal of the full-scale microscopic input image through a Region-based Convolutional Network (RCNN) implemented by Faster-RCNN
and extract image patches automatically. In the next step, the proposed framework uses Convolutional Neural Network (CNN) with network structure of ResNet-50 and pre-trained on ImageNet dataset to extract high-level image features (i.e. outputs from the last convolution layer) from the image patches. Afterwards, six classification networks using the extracted image features as input are trained to classify whether the input image patch contains cell(s) belonging to a specific cell type or not. A similar scheme for multi-label classification has also been applied in previous works [20, 21, 22]. For the purpose of SCD testing, we further apply Gradient Boosting Classifier to determine whether the given image patch contains “abnormal” cell types or not, based on the outputs from six classification networks. The proposed framework is tested on microscopic RBC images from SCD patients, showing its capability of performing fully automatic cell detection, cell type classification and SCD testing.
2.2 Cell detection with Faster-RCNN
In order to automatically extract image patches from the full-scale 19201080 microscopic images, we utilize Faster-RCNN  model which has achieved state-of-the-art performances and high process speed for object detection and region proposal tasks. We modified Faster-RCNN with a ResNet-101 network for better feature extraction performance.

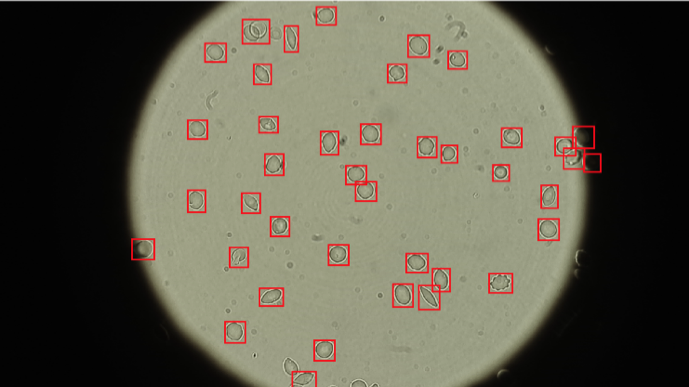

To generate the input of Faster-RCNN, we obtain bounding boxes from ground truth cell position labels (Figure 3) through BFS (Breadth First Search) algorithm. In the labels, background pixels are black, where cell pixels are white. BFS finds out every connected region of white cell pixels in each ground truth label, be it a single-cell region or a multi-cell region, and uses a bounding box to limit each region of pixels.
In the proposed framework, the ResNet-101 network is pre-trained on ImageNet, and is trained on whole microscopic images (with bounding boxes) in order to extract patches containing single or multiple cells. Optimization of the detection process is performed by Momentum Optimizer with learning rate , decay
, momentum 0.9, batch size (10) and epoch (1000). The training process converges in 1 hour on a Linux PC with 8G RAM and a GTX 1070 GPU, and the detection for each test image takes less than 0.5 seconds on the same device. The Faster-RCNN stage of our network can accurately detect multi-instance image patches. Selected detection results are shown in Figure4. After the detection, extracted image patches are resized to 224224 pixels in order to be used as input for later networks.
2.3 Multi-label classification with transfer learning
In order to perform effective multi-label cell classification in a supervised approach, one major challenge to overcome is the lack of training samples, which is a common problem when applying deep learning methods for medical image analysis [23, 24, 25, 26]
. To solve this, we develop a transfer learning scheme which utilizes ResNet-50 network pre-trained on ImageNet  to extract high-level image features. Specifically, the pre-trained ResNet-50 is applied to all the available sample image patches (i.e. using them as testing input). The ResNet part in Figure 2
shows the architecture of ResNet-50. Outputs from the last convolution layer of ResNet-50, which can be considered as a high-level representation of the input image patches, are then stored and used for training the later cell type classification network. In this way, we transfer the massive information in the ImageNet database to this application through convolution operations, resulting in the extracted image features. These image features, formed as a 2048-d vector for each input image patch, where 2048 is the number of convolution kernels in the last convolution layer of ResNet-50. The framework then trains six customized fully connected networks with a 512-d fully-connected layer, a 1-d fully-connected layer and a softmax output layer. Each network performs binary classification for one cell type, where its input is the 2048-d feature vector, and output is a decimal range from 0 to 1 which indicates the probability of whether a certain cell type is presented in the input image patch. If the output is greater than 0.5, we consider that the input image patch contains that certain type of cells. Optimization of the classification networks is performed by Adam optimizer with a learning rate of . The loss is measured by cross-entropy with L2 regularization. Finally, outputs of the six networks are aggregated together into a 6-d vector, showing the probability for each of the six cell types. The predicted cell types can be generated by a threshold of 0.5. It should be noted that this output vector is not normalized (i.e. the sum of probability is not 1), as we allow more than one cell types presented in the given image patch. Figure 5 illustrates a sample output of the proposed multi-label classification method.
2.4 Binary classification Gradient Boosting Classifier
As the ultimate goal of RBC image analysis for SCD testing is the detection of whether abnormal cells are presented in the given microscopic image, where “abnormal” is defined by five cell types: “Elongated and Sickle”, “Reticulocytes”, “Granular”, “Echinocytes” and “Stomatocyte”, we further construct a binary classifier using Gradient Boosting Classifier  to discriminate “normal” cells versus “abnormal” cells. The input of the Gradient Boosting Classifier is the 6-d vector from the six classification networks, and the output is ground-truth knowledge of whether any abnormal cells are presented in the given image patch.
3.1 Classification performance of cell patches
To evaluate the performance of the proposed framework, we firstly test its cell type classification module (i.e. feature extraction and classification networks) on manually-identified cell patches through 5-fold cross-validation. Binary classification performance for the six cell types, as measured by Area Under the Curve (AUC), is listed in the first row in Table 1, marked by Model A. It can be seen that classification AUC for all individual cell types is all above 0.9. Further, for a given image patch with an arbitrary number of cells belonging to same or different cell types, the proposed model can identify all the cell types and generate an exactly correct label at the accuracy of 0.722. In comparison, if the proposed model is used to classify image patches containing only a single cell (second row in Table 1, marked by Model A*), it can achieve an overall classification accuracy of 0.932, which outperforms the accuracy reported in our previous work (0.893) . The evaluation results indicate that the proposed classification method possess superior effectiveness than our previous work.
|Oval + Disc||Elon + Sick||Reti||Gran||Echi||Stom|
In order to investigate whether the current classification module benefits from the extra multi-instance training samples, we further train a same set of six classification networks with only single-cell image patches. Its classification performance on the mixed dataset with both single and multi-cell patches is listed in the third row in Table 1, marked by Model B. Overall classification accuracy of Model B decreases dramatically comparing with Model A (0.649 versus 0.722). While it achieves higher accuracy for classifying “Oval+Disc” cell type (which contains the largest number of samples), for all the other five cell types its performance is lower. This comparison shows the great significance of adding multiple cell patches into training samples.

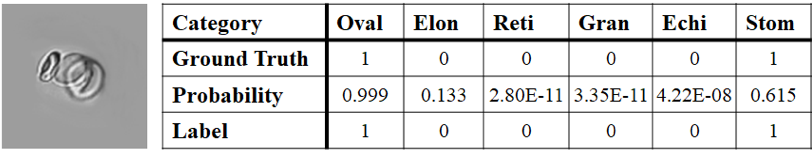

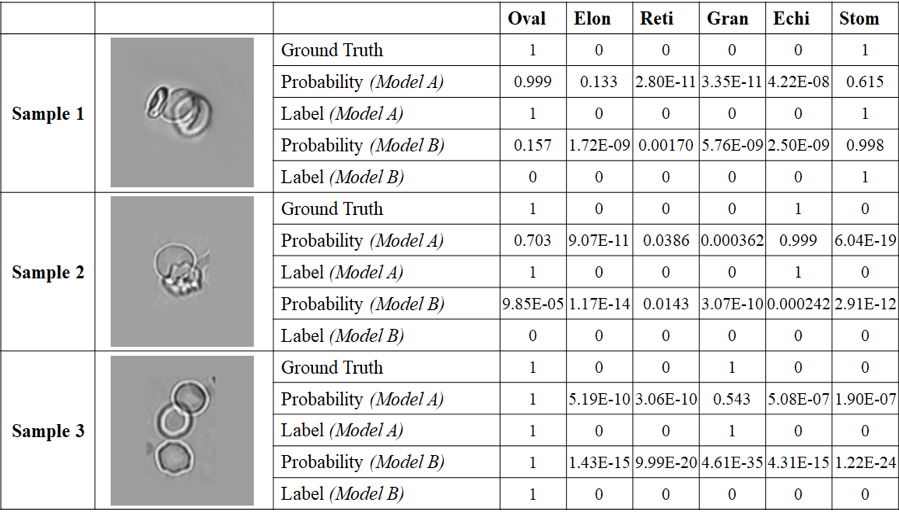

Several sample cases where Model A (i.e. network used in the proposed framework) makes correct classification while Model B (single-cell network) fails are visualized in Table.6. For image patch “Sample 1” which contains cell types of “Oval” and “Stomatocyte”, Model A correctly identify both cell types (with predicting probability of 0.999 and 0.615), while Model B classify the patch as only “Stomatocyte” (with predicting probability of 0.998). For image patch “Sample 2” which contains cell types of “Oval” and “Echinocytes”, Model A correctly identify both cell types (with predicting probability of 0.703 and 1), while Model B predicts no label for the patch (i.e. outputs from all six networks are lowered than the threshold). For image patch “Sample 3” which contains cell types of “Oval” and “Granular”, Model A correctly identify both cell types (with predicting probability of 1 and 0.542), while Model B classify the patch as only “Oval” (with predicting probability of 1). It can be found that for image patches containing multiple cell types, Model B will either predict only one label or no label at all, while Model A can identify all the correct cell types. The result shows that only by adding multi-cell data into the training samples, the classification network can learn how to handle them accurately.
Finally, we train the Gradient Boosting Classifier from outputs of the six classification networks for patch-wise SCD testing. The proposed Gradient Boosting Classifier achieves an average accuracy of 85.1% through 5-fold cross-validation, indicating that for a given image patch with arbitrary number of cells belonging to same or different cell types, the classifier can determine whether there is at least one abnormal cell at high accuracy.
In order to investigate whether the current classification module benefits from the extra multi-label training samples, we further train a same set of six classification networks with only single-cell image patches. Its classification performance on the mixed dataset with both single and multi-cell patches is listed in the third row in Table 1, marked by Model B. Overall classification accuracy of Model B decreases dramatically comparing with Model A (0.649 versus 0.722). While it achieves higher accuracy for classifying "Oval+Disc" cell type (which contains the largest number of samples), for all the other five cell types its performance is lower.
3.2 Automatic analysis of full-scale microscopic images

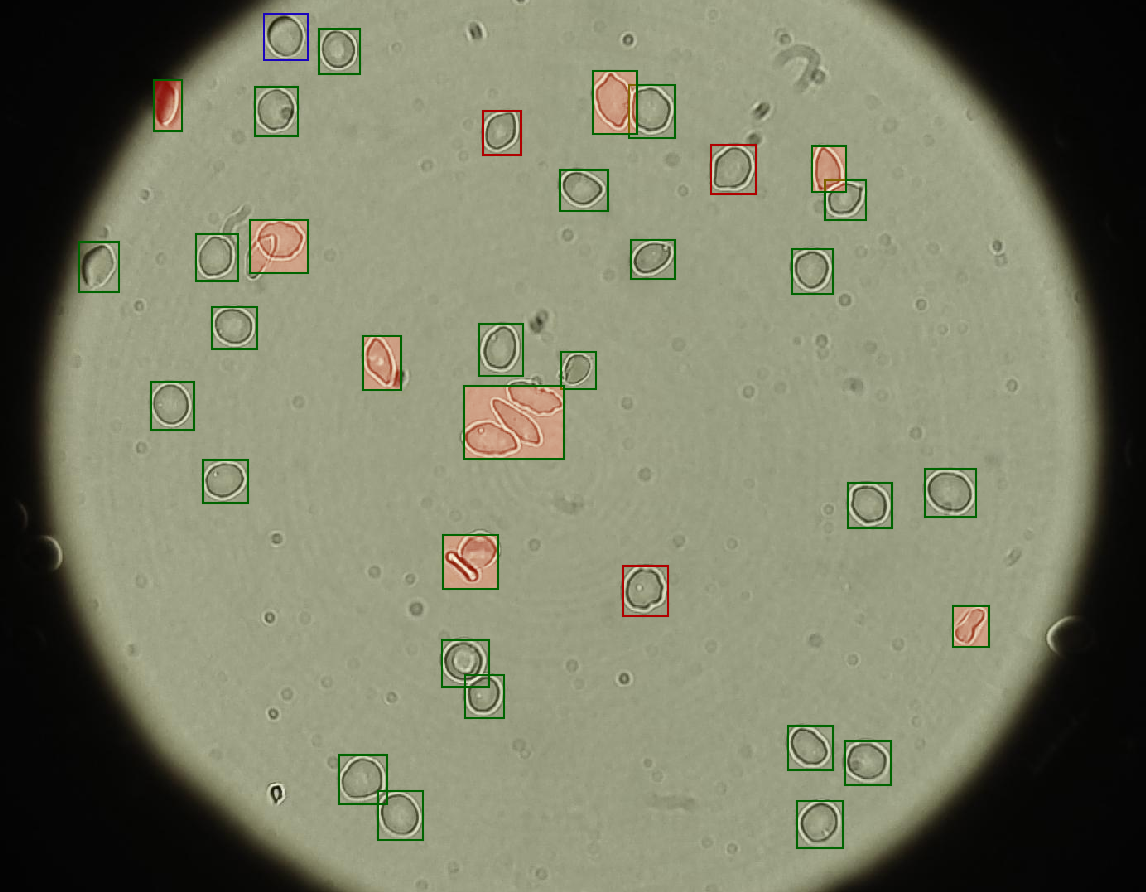

By applying the Faster-RCNN module of the proposed framework on the full-scale input image, we can automatically obtain bounding-box of potential cells and the corresponding image patches for later classification analysis.
For Faster-RCNN, our evaluation metric, average precision (AP), is the area under precision-recall curve. For every detected cell region, there is a model score generated between 0 and l, showing the level of confidence in this region. If we set a threshold, making regions with scores bigger than this threshold positive samples and vice versa, then there will be a precision-recall coordinate for all test cell regions. By varying this threshold from 0 to 1, we get a precision-recall curve and the area under this curve is called average precision (AP). In our experiment, AP on the test data is 0.899. A sample cell detection and classification result are shown in Figure7. The sample result illustrates that our proposed framework is capable of performing fully automatic cell detection and classification from raw image input, achieving end-to-end image-based SCD testing, and readily usable in real practice.
4 Conclusions and Discussion
There have been several successful methods for cell segmentation; however, our framework doesn’t adopt these segmentation-based methods because they don’t satisfy our classification requirements. In order to compare the performance between these methods and our model, we design a comparison experiment.

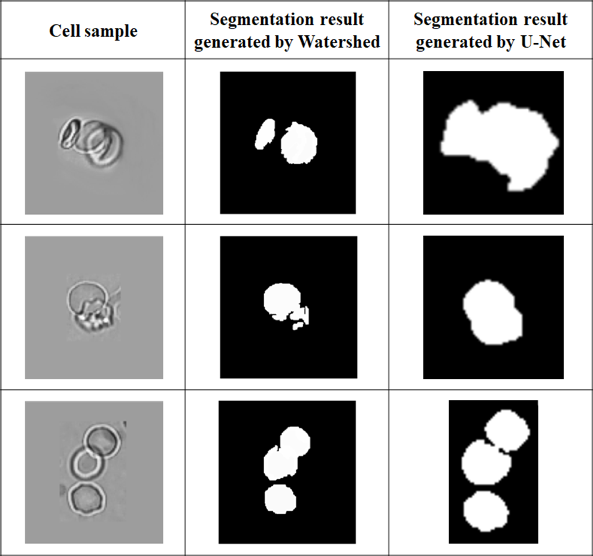

We use watershed algorithm to perform cell segmentation on the image samples showed in section 3.1. The local result is shown in Figure 8. Clearly, this unsupervised algorithm tends to merge overlapping cells and touching cells into one connected component, which contradicts with our segmentation aim. And even though it seems that Watershed can separate overlapping cells in the first sample, the segmentation result shows that one of overlapping cells is missed.
On the other hand, we also use deep learning-based method for segmentation. The U-Net architecture has been shown to offer a precise localization for image semantic segmentation. It has been implemented on microscopic red blood cell images for red blood cell detection . We use it to perform cell segmentation on the whole microscopic images which contain samples shown in Figure 6 and cut the segmentation of the cells in cell samples from the output images which is shown in Figure 8. The result shows that U-Net architecture also can’t separate overlapping and touching cells.
The segmentation result shows that it is extremely hard to separate overlapping cells and touching cells. To solve this problem, we propose a multi-cell detection and multi-label classification method which can classify multi-cell patches directly and avoid the difficult task of separating overlapping cells and touching cells.
In this work, we propose a deep learning-based framework to perform automatic cell detection and classification from RBC microscopic images. The framework is specifically designed to solve complex imaging scenario involving multi-label classification problem, where cells in the input image can be touching or overlapping with each other and cannot be separated. Experimental results show that the classification networks utilizing transfer learning scheme can achieve better performance than baseline models and previous works, deal with more complex cell imaging conditions and partially address the highly challenging multi-label classification problem. Testing results on full-scale raw microscopic image input show high robustness of the proposed framework and its potential usefulness in clinical practice.
