Multi-borders classification

04/15/2014 ∙ by Peter Mills, et al. ∙ 0

The number of possible methods of generalizing binary classification to multi-class classification increases exponentially with the number of class labels. Often, the best method of doing so will be highly problem dependent. Here we present classification software in which the partitioning of multi-class classification problems into binary classification problems is specified using a recursive control language.



There are no comments yet.


page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Many statistical classification methods distinguish between only two classes by drawing a hyper-surface in the feature space. In a Support Vector Machine (SVM), the hyper-surface is drawn by minimizing the classification error. By implicitly transforming the feature space through operations on the dot product, the shape of this hyper-surface can be made quite complex

(Müller et al., 2001). In Mills (2011)

the hyper-surface is discretely sampled by finding the root of the difference in conditional probabilities along a series of lines drawn between the two classes. The conditional probabilities are found using a kernel density estimation technique

(Terrell and Scott, 1992) called Adaptive Gaussian Filtering (AGF).

There are many methods of generalizing binary classification schemes to more than than two classes. The LIBSVM library(Chang and Lin, 2011), for instance, uses a “one-against-one” approach wherein each class is compared against every other class. For large numbers of classes this approach is quite inefficient since there will be binary classifications, where is the number of classes. Many other methods exist and the possible number will increase exponentially with the number of classes.

In many problems a different method of dividing or partitioning the classes would be appropriate. Consider four land surface types: coniferous forest, deciduous forest, corn field and wheat field. Here a hierarchical scheme (also called a decision tree) seems most appropriate since the related surface types will cluster together: first discriminate between forest and field. If forest is returned, then discriminate between evergreens and hardwoods. If field, then between corn and wheat. As another example, in a classification problem involving discretized continuum values, it makes sense to place the partitions between classes that define adjacent ranges in the continuum data.

New extensions to the libAGF library (Mills, 2011) generalize the binary classification problem so that the most appropriate method can be used to partition a multi-class problem without having to write a new program in each case. The AGF borders-training method has been paired with this algorithm, the combination of which we refer to as “multi-borders”. In what follows, we describe the rational behind the software, how it works and test it on an example problem comprised of discretized continuous data.

2 Theory

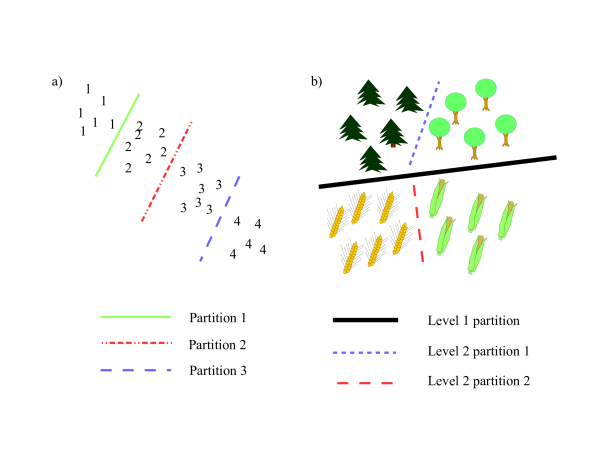

Figure 1: Comparison between non-hierarchical (a) and hierarchical classification (b).
