Multi-Attention Generative Adversarial Network for Remote Sensing Image Super-Resolution

07/14/2021 ∙ by Meng Xu, et al. ∙ 4

Image super-resolution (SR) methods can generate remote sensing images with high spatial resolution without increasing the cost, thereby providing a feasible way to acquire high-resolution remote sensing images, which are difficult to obtain due to the high cost of acquisition equipment and complex weather. Clearly, image super-resolution is a severe ill-posed problem. Fortunately, with the development of deep learning, the powerful fitting ability of deep neural networks has solved this problem to some extent. In this paper, we propose a network based on the generative adversarial network (GAN) to generate high resolution remote sensing images, named the multi-attention generative adversarial network (MA-GAN). We first designed a GAN-based framework for the image SR task. The core to accomplishing the SR task is the image generator with post-upsampling that we designed. The main body of the generator contains two blocks; one is the pyramidal convolution in the residual-dense block (PCRDB), and the other is the attention-based upsample (AUP) block. The attentioned pyramidal convolution (AttPConv) in the PCRDB block is a module that combines multi-scale convolution and channel attention to automatically learn and adjust the scaling of the residuals for better results. The AUP block is a module that combines pixel attention (PA) to perform arbitrary multiples of upsampling. These two blocks work together to help generate better quality images. For the loss function, we design a loss function based on pixel loss and introduce both adversarial loss and feature loss to guide the generator learning. We have compared our method with several state-of-the-art methods on a remote sensing scene image dataset, and the experimental results consistently demonstrate the effectiveness of the proposed MA-GAN.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 3

page 4

page 5

page 6

page 7

page 8

page 9

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

I Introduction

Fig. 1: Architecture of the MA-GAN generator.
Fig. 2: Architecture of the MA-GAN discriminator.

Image super-resolution (SR) is a rapidly growing issue in computer vision and has received considerable critical attention in recent years. Image SR aims to recover high-resolution (HR) images from given low-resolution (LR) images. It is essential for a wide range of real-world applications such as medical image processing

[19, 14, 18], compressed image/video enhancement [25, 2], surveillance and security [29, 44], etc. Image super-resolution is not only about improving the visual quality of images: more importantly, almost all vision tasks can benefit from it. HR images generated by SR methods offer more options for vision tasks because they contain richer information.

As for the field of remote sensing, image super-resolution is even more significant. SR methods can facilitate other remote sensing missions, such as target detection [1, 45, 35], environmental monitoring [4, 11, 27], scene analysis [31] and so on. It is common knowledge that remote sensing images are generally acquired by satellites from high altitude. This results in the low spatial resolution of remote sensing images. The quality of remote sensing images is also affected by many factors, such as motion blur, atmospheric interference (e.g., cloud cover), ultra-long-range imaging, transmission noise, etc. [38, 40]. Some of these problems can be solved by utilizing more advanced equipment, but this equipment is more expensive with respect to both launch deployment and routine maintenance. It is therefore easy to conclude that the most appropriate way to obtain high-resolution images is through SR algorithms.

Unfortunately, image super-resolution is a severely ill-posed problem, as the process of image degradation is not unique and there is therefore no certain solution. Traditional image super-resolution algorithms are basically interpolation-based or reconstruction-based. Interpolation-based methods obtain a pixel value by using its neighborhood information, and interpolation algorithms such as linear and bicubic

[20] interpolation and lanczos [9] upsampling are essentially different with respect to neighborhood selection and calculation methods. Although interpolation-based methods are less computationally demanding, they often fail to recover the high-frequency information and therefore result in an excessively smooth image with blurred details, especially edges and texture information. For reconstruction-based SR algorithms, they achieve better results by using different prior knowledge or constraints in the form of distribution or energy function between HR and LR images. Local [32, 34], nonlocal [37] and sparse priors [8, 28] are the most widely used constraints for image super-resolution tasks. Reconstruction-based methods mostly use singular prior knowledge or a combination of several instances of prior knowledge. However, in comparison to methods based on interpolation, they are more computationally demanding. Meanwhile, these manually designed priors may not perform well when the scene changes.

Recently, with the development of machine learning (ML), learning-based SR algorithms have emerged. These algorithms attempt to establish an implicit mapping from LR images to the corresponding HR images through ML models. Among these algorithms, there has been a huge explosion in the number of deep learning (DL)-based SR algorithms. In this paper, we only focus on DL-based SR algorithms. Since Dong et al. proposed SRCNN

[5]

in 2014, an increasing number of studies have been performed by using convolutional neural networks (CNNs) for SR tasks, due to the powerful non-linear fitting and learning capabilities of CNNs. At the same time, with the development of several excellent CNNs (ResNet

[16], DenseNet [17], etc.), more CNN-based SR networks have emerged, such as VDSR [21], EDSR [26], DBPN [15] and others. These end-to-end models need to be trained with a large number of paired LR and HR images to learn the mapping from LR to HR images. Thanks to the advancement of DL, these models can use deeper and more complex networks to learn higher-level features and thus produce higher-quality HR images. Although CNN-based SR algorithms outperform the others, remote sensing images are somehow different from natural images. Compared with natural images, the target in a remote sensing image covers fewer pixels and the background is more complex. For example, a desert image may contain less textures, but a dense residential area will contain an extremely rich amount of textural information, making super-resolution of remote sensing images more difficult. The current work [38, 41] already addresses some of these issues to some extent.

In this work, we proposed a GAN [13]-based SR network that increases the resolution for remote sensing images in a satisfactory way, which is called the multi-attention super-resolution network (MA-GAN), as shown in Figure 1 and Figure 2. The main body of the generator, which is the core of the super-resolution task, consists of two modules; one is the PCRDB block (Figure 3), and the other is the AUP block (Figure 4(b)). The structure of the PCRBD block is similar to that of ESRGAN [36], which includes skip [16] and dense [17] connections to better extract features. However, we replace the last convolution operation with an AttPConv of our own design. The AttPConv block first performs multi-scale convolution without requiring more computations, and subsequently computes channel attention [42] on the feature maps obtained after convolution at different scales in order to dynamically adjust each feature map to achieve better SR performance. Compared with ESRGAN, which uses a fixed parameter (which needs to be designed manually) to scale the residuals, our PCRBD undoubtedly makes more full use of the powerful learning ability of CNNs and is more generalizable. The AUP block is a module that can upsample the input feature map by an arbitrary multiple. It first upsamples the input by nearest neighbor interpolation and then fine-tunes the result of the upsampling by means of a small neural network and PA [43]. Since simple upsampling can lead to excessively smooth output, the design of the AUP block can compensate for the drawbacks caused by interpolation and thus enable better SR results.

In summary, the contributions of this work are as follows:

  1. First, we proposed a GAN-based SR network that offers the ability of increasing the resolution for remote sensing images with any scale factor. Our experiments on the NWPU-RESISC45 dataset demonstrate that the performance of the proposed MA-GAN approach outperforms the state-of-the-art SR methods.

  2. We design the PCRBD block that contains AttPConv. PCRDB extracts features better by skip and dense connections, and features at different scales can be obtained by multi-scale convolution in the final AttPConv block, and then the residuals can be adjusted for each feature map by the final channel attention.

  3. We design the AUP block. With its nearest neighbor interpolation at the beginning, the AUP can achieve upsampling at any scale. The small CNN and PA immediately after interpolation can be adjusted based on the interpolated feature maps to achieve better upsampling results.

The remainder of this paper is organized as follows. Section II briefly reviews the related works. Section III presents the proposed MA-GAN in detail. Experimental results are shown in Section IV. Finally, the conclusion is presented in Section V.

Fig. 3: The PCRBD Block.
(a) The AttPConv Block.
(b) The AUP Block.
Fig. 4: Modules containing attention mechanisms

Ii Related Work

Ii-a Upsampling Method

The aim of image SR is to improve the resolution of the image, so the upsampling method is indispensable for any SR algorithm, and the way in which it is performed will also affect the final result. There are three commonly used upsampling methods. The first one is interpolation. The second is the subpixel convolution layer [30] proposed by Shi et al., which transforms the feature map into a new feature map by a scale factor of ( and are the height, width and channels of feature maps). The last upsampling method is transposed convolution, also called deconvolution in some papers. The most common approach to using transposed convolution is the up- and down-projection unit module proposed in the DBPN [15]. In recent studies, researchers have favored the direct use of interpolation for upsampling. This is because operations such as transposed convolution can introduce checkerboard-like artifacts that affect the experimental results, and subpixel and transposed convolution can only upsample integer multiples, which is more restrictive. In this paper, interpolated upsampling is used to achieve super-resolution at any scale factor.

Ii-B Super-Resolution Framework

SR networks can be divided into four types, depending on where the upsampling operation is located in the network: pre-upsampling, post-upsampling, progressive upsampling, and iterative up and down sampling SR frameworks [15]. The pre-upsampling framework [5, 6] achieves the difficult upsampling task by interpolation at the beginning and later refines the interpolated image. The pre-upsampling framework is easier to train because only the coarsest images need to be refined, but it costs more time and space because of its higher-dimensional feature maps. The post-upsampling framework [24, 26] can be trained much more rapidly because it includes the upsampling step at the end. By dividing the upsampling into smaller tasks, the progressive upsampling framework [23] not only speeds up training but also yields better results. The iterative up and down sampling framework [15, 38] allows for better mining of the relationships between paired LR and HR images, but because of its complex framework and large number of up- and down-sampling operations, it often requires heavy manual network design.

Ii-C Loss Function

The loss function is one of the most essential aspects in image SR tasks since one LR image could correspond to several HR images. A suitable loss function brings the generative model closer to the true HR image area in its latent space.

We denote for an LR image, for an HR image and for the generated HR image. Almost all SR algorithms introduce a pixelwise loss that brings closer to in pixel value. loss and

loss are the most frequently used pixelwise losses. The pixel-level loss improves the peak signal-to-noise ratio (PSNR) of

, but results in loss of high-frequency information. Therefore, Lefig et al. [24] presented perceptual loss with respect to perceptually relevant characteristics. GAN-based models have adversarial loss, which helps the generator to produce higher quality images with the help of a discriminator. In addition to these losses, there are also texture losses [12], cycle consistency loss [39], etc.

Iii Proposed Multi-attention Generative Adversarial Nets

In this section, we will introduce the proposed MA-GAN in detail. First, we will present the overall framework of the GAN used in this paper. Second, we will introduce the multi-attention mechanism and describe each block in detail. Finally, we will present a description of the loss function used in this paper.

Iii-a Network Framework

To be able to generate higher quality HR images, we design a multi-attention generative adversarial network. It contains a generator and discriminator as shown in Figure 1 and Figure 2, respectively.

To speed up the training, we design a generator which belongs to a post-upsampling framework. The generator network can be divided into four parts. The head of the generator is a Convolution-BatchNormalize-LeakyReLU block, while the body part consists of PCRDB modules, followed by upsampling blocks. Finally, the tail of the generator consists of the convolution-Tanh block. In this paper, we consider the SR task as an optimization task, so we perform pixel-level summation of the output of the tail with interpolated , which has the same spatial resolution of . Since all GANs are difficult to train, this operation reduces the difficulty of training and shortens the time consumption to obtain the desired model. The detailed architecture of the PCRBD and AUP blocks will be introduced in Section III-B and Section III-C.

The discriminator we use is the same as SRGAN [24], which mainly consists of a Convolution-BatchNormalize-LeakyReLU block. The generated image is fed into the discriminator together with to calculate adversarial loss to guide the generator training.

Iii-B Pyramidal Convolution in Residual-Dense Block

To introduce PCRBD, we first present the AttPConv block. AttPConv is a special convolution combining multi-scale convolution and multi-channel attention. As shown in Figure 4(a), our proposed multi-scale convolution is not simply composed of multiple parallel conventional convolutions, and we prefer to call it pyramidal convolution. The pyramidal convolution is implemented internally by grouping convolution without increasing the computational cost or the model complexity [10]. The pyramid convolution in this paper has three different kernels, , and , corresponding to the feature maps groups of 1, 4 and 8, respectively. Each group convolution is followed by a channel attention module [42], and all the feature maps are concatenated together as the final output. Based on this structure, the AttPConv block has the same input and output forms as the conventional convolution.

Since the AttPConv module contains an attention module, it is used as the last convolutional module of the PCRDB module. AttPConv follows 3 more Convolution-LeakyReLU modules, as shown in Figure 3. They are connected by dense connection [17]. The final output feature maps are obtained by element-level addition of the output of AttPConv and the input for the PCRDB module. It is worth mentioning that the residual-in-residual dense block (RRDB) proposed in ESRGAN has a structure similar to PCRDB. However, the RRDB block uses residual scaling [26, 33] to reduce the residuals by multiplying a constant between 0 and 1 before adding them to the main path to prevent instability. This constant can only be determined experimentally, which entails some additional work. We not only use convolution kernels of different size to extract feature information at different scales by the last AttPConv block in PCRDB. They also fulfill the role of scaling constant by channel attention, which is equivalent to multiplying a dynamic scaling constant, and this value is different for each feature map, thus scaling the residuals more accurately.

Iii-C Attention-Based Upsample Block

We mentioned several upsampling methods in Section II-A, and since the subpixel convolution layer [30] and transposed convolution present some drawbacks, we use an interpolation-based upsampling method in this paper. However, simple interpolation can cause excessive smoothing of the image; thus, we design an upsampling module based on the pixel attention, as shown in Figure 4(b).

First, we perform nearest neighbor interpolation on the input of the upsampling module to improve the spatial resolution of the feature map. It is then fed into two Convolution-LeakyReLU blocks, and the feature map of the final Convolution-LeakyReLU block is denoted as . The working process of the PA module can be described by the following Equation (1).

(1)

Here, refers to the output of the PA module and represents the convolution operation with a kernel size of . The channel number of the feature maps is reduced to after , and then the is obtained after sigmoid operation. The values of are between 0 and 1 so that the feature map can be adjusted at the element level to produce better SR results.

Iii-D Loss Function

In general, loss speeds up the training process, but it can introduce gradient explosion, and therefore the results are less robust. loss has a stable gradient and is more robust, but in contrast, the training is slower and the solution is less stable. Since and losses both exhibit their own advantages and disadvantages, we choose smooth- loss, which combines the advantages of and losses, as the pixelwise loss. The smooth- loss is calculated as:

(2)

where . , , and are the height, width and channels of , respectively.

makes the as close to the corresponding as possible at each pixel value to obtain high PSNR. However, this tends to ignore the high frequency information of the image and yield perceptually unsatisfying images. To solve this, inspired by the perceptual loss in SRGAN [24], we design the feature loss . The is based on the input for the last average pooling layer of the pretrained ResNet-18 [16] model. We denote the process of obtaining the desired feature map by . The feature loss is then defined as:

(3)

We also introduced from the discriminator to assist in the training of the generator. The adversarial loss for is:

(4)

where denotes the output of generator and denotes the output of discriminator.

The total loss for the generator is:

(5)

where and are the weighting parameters for and , respectively.

For the discriminator, we use a loss function consistent with other GANs, shown as follows:

(6)

Iv Experimental Results

Iv-a Dataset

No. Scene No. Scene
S1 parking lot S24 baseball diamond
S2 runway S25 intersection
S3 island S26 meadow
S4 sparse residential S27 circular farmland
S5 commercial area S28 basketball court
S6 terrace S29 beach
S7 tennis court S30 sea ice
S8 industrial area S31 roundabout
S9 wetland S32 dense residential
S10 desert S33 chaparral
S11 stadium S34 railway station
S12 overpass S35 thermal power station
S13 snow berg S36 harbor
S14 medium residential S37 storage tank
S15 freeway S38 forest
S16 ground track field S39 railway
S17 church S40 airport
S18 mobile home park S41 palace
S19 lake S42 ship
S20 rectangular farmland S43 golf course
S21 mountain S44 airplane
S22 bridge S45 cloud
S23 river
TABLE I: The descriptors of different scenes.

We perform experiments on the widely used remote sensing image dataset NWPU-RESISC45 [3]. This dataset contains a total of 31,500 images with pixels covering 45 scenes. NWPU-RESISC45 contains large-scale remote sensing images that vary greatly in translation, spatial resolution, viewpoint, object pose, illumination, background, and occlusion. It also has high within-class diversity and between-class similarity. Therefore, it is a very challenging dataset for image SR. In this paper, we randomly divide the images of each of the scenes in the dataset into a training set, a validation set and a test set at a ratio of . All are resized to in the experiments.

Iv-B Implementation Details

We trained our network on a platform equipped with the Intel(R) Xeon(R) CPU (2.50 GHz) with 250-GB memory, an NVIDIA Tesla P100 with 16-GB memory and an AVAGO MR9361 with 2-TB capacity.

Our experiments used three scale factors: the simpler upsampling by a factor of 2, the more challenging upsampling by a factor of 4 and the more difficult upsampling by a factor of 8, which correspond with 4x, 16x, and 64x increases in image pixels, respectively. HR images are obtained from the divided dataset, then these images are downsampled by bicubic interpolation to obtain LR images , which represent the input for the generator, and all images are normalized to . The weighting parameter for adversarial loss in Equation (5) is set to and the weighting parameter for feature loss is set to .

The training process can be divided into two parts. We alternate between training the discriminator and the generator, first training the discriminator and then the generator. We first train the discriminator with . The initial learning rate of discriminator is 0.0001. The is decreased by when the training process is 25%, 50%, and 75% completed. We use Adam [22] with , to optimize the discriminator. Whenever a training iteration of the discriminator is completed, a generator is trained with immediately afterwards. The initial learning rate of generator is also set to 0.0001 and decreased by when the training process is completed at 25%, 50%, and 75%. For the generator optimizer, we also use Adam [22] with , .

For the whole training process, we have carried out more than update iterations both for the generator and the discriminator.

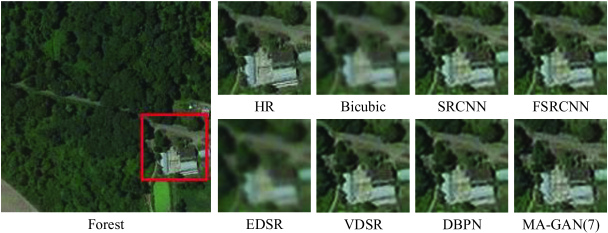

Fig. 5: Visual comparisons between MA-GAN and other methods (scale factor =2).

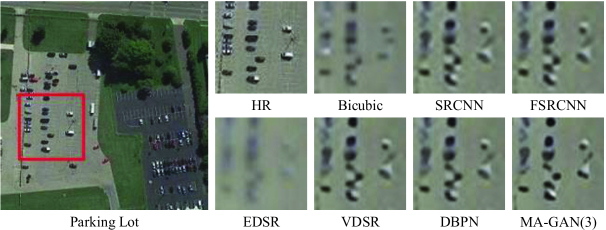

Fig. 6: Visual comparisons between MA-GAN and other methods (scale factor =4).

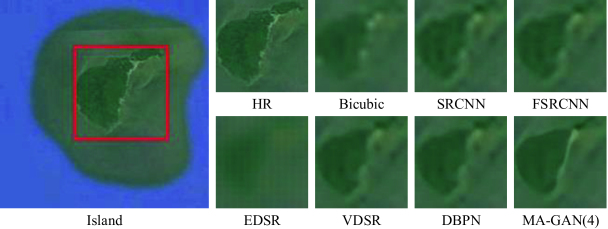

Fig. 7: Visual comparisons between MA-GAN and other methods (scale factor =8).

Iv-C Evaluation using different numbers of PCRBD blocks

Model PSNR SSIM
MA-GAN(3) 2 31.53 0.9007
4 27.62 0.7640
8 24.50 0.5429
MA-GAN(4) 2 31.97 0.9101
4 27.76 0.7621
8 24.54 0.5450
MA-GAN(5) 2 31.37 0.8959
4 27.49 0.7442
8 24.58 0.5409
MA-GAN(6) 2 30.99 0.8846
4 27.96 0.7535
8 23.85 0.5144
MA-GAN(7) 2 31.98 0.9102
4 28.05 0.7520
8 24.11 0.5245
TABLE II: Quantitative comparison of models using different numbers of PCRBD blocks
(a) The PSNR.
(b) The SSIM.
Fig. 8: The comparison results when MA-GAN contains different numbers of PCRDB blocks.

As for the image super-resolution task, the generator that produces the HR images is undoubtedly the most important part. The PCRBD block and AUP block, as the main body of the generator, serve very important roles in it. The number of AUP blocks is determined by the scale factor in the experiment. We set each AUP block to upsample by a scale factor of 2 so that is 1, 2, and 3, corresponding to scale factors of 2, 4, and 8, respectively. Therefore, in this subsection, we conducted experiments on generators using different numbers of PCRDB blocks. We designed experiments with for scale factors r of 2, 4, and 8, respectively. We denote the model containing PCRDB blocks by MA-GAN(). To be fair, the PSNR and structural similarity index measure (SSIM) are used as indicators for evaluating quantitative comparison. The quantitative experimental results are shown in Table II. We also produced a graph to compare the experimental results, shown in Figure 8.

When , MA-GAN(7) reaches the highest PSNR value of 31.98 dB. The lowest value of 30.99 dB corresponds with MA-GAN(4), a difference of 0.99 dB. Additionally, the SSIM values obtained for these two models are 0.9102 and 0.8846, respectively, with a difference of 0.0256. In regard to , MA-GAN(7) reaches the highest PSNR value of 28.05 dB. The lowest is MA-GAN(5) at 27.49 dB, a difference of 0.56 dB. The highest SSIM at this point is that of MA-GAN(3) at 0.7640, while the lowest is that of MA-GAN(5) at 0.7442, a difference of 0.0198. Finally, for , MA-GAN(5) obtained the highest PSNR value of 24.58 dB, while the lowest was that of MA-GAN(6) at 23.85 dB, a difference of 0.73 dB. For SSIM, MA-GAN(4) obtained the highest value of 0.5450, and the lowest was that of MA-GAN(6) at 0.5144, a difference of 0.0306. It can also be more intuitively determined from Figure 8 that the performances of the different models do not differ much when varies. This is due to our multi-attention mechanism, which allows the model to automatically adjust the input of the corresponding feature maps to achieve better SR performance.

Iv-D Comparison with different methods

Scene Bicubic SRCNN FSRCNN VDSR EDSR DBPN MA-GAN(7)
PSNR SSIM PSNR SSIM PSNR SSIM PSNR SSIM PSNR SSIM PSNR SSIM PSNR SSIM
S1 25.27 0.8338 25.07 0.8400 24.69 0.8354 25.20 0.8657 21.57 0.6381 25.38 0.8635 27.61 0.8613
S2 33.36 0.9207 33.06 0.9194 32.17 0.9182 33.65 0.9385 27.06 0.8300 33.60 0.9377 34.11 0.9253
S3 38.57 0.9585 36.33 0.9578 35.44 0.9570 36.26 0.9610 31.09 0.9037 36.34 0.9642 37.13 0.9462
S4 30.18 0.8477 29.69 0.8667 29.45 0.8657 29.82 0.8755 26.25 0.7064 29.92 0.8779 32.26 0.8865
S5 27.25 0.8714 27.98 0.8897 27.74 0.8879 28.22 0.9062 24.34 0.7371 28.31 0.9073 29.29 0.8971
S6 32.82 0.9071 31.37 0.9019 30.91 0.9011 31.54 0.9125 26.70 0.7537 31.61 0.9140 34.00 0.9243
S7 28.69 0.8598 28.47 0.8745 28.29 0.8735 28.84 0.8929 25.05 0.7278 28.87 0.8924 30.95 0.8926
S8 29.57 0.9006 29.21 0.9060 28.74 0.9042 29.39 0.9186 24.25 0.7461 29.48 0.9191 30.93 0.9158
S9 33.61 0.9043 31.97 0.9002 31.74 0.9000 31.86 0.9018 28.45 0.7576 32.00 0.9063 34.78 0.9227
S10 35.41 0.9184 34.11 0.9260 32.55 0.9246 33.95 0.9314 25.12 0.7893 34.07 0.9332 34.05 0.9214
S11 29.72 0.9001 29.01 0.9086 28.62 0.9068 29.21 0.9219 24.45 0.7605 29.32 0.9229 31.26 0.9174
S12 29.21 0.8618 28.88 0.8733 28.62 0.8719 29.33 0.8936 25.36 0.7181 29.33 0.8922 31.31 0.8928
S13 26.63 0.8928 26.70 0.9068 26.23 0.9026 26.64 0.9154 21.76 0.7378 26.77 0.9164 28.46 0.9110
S14 28.18 0.8634 28.16 0.8761 27.98 0.8749 28.42 0.8910 24.67 0.7155 28.52 0.8918 30.34 0.8953
S15 30.62 0.8680 29.64 0.8671 29.42 0.8664 29.89 0.8812 26.25 0.7121 29.98 0.8817 32.48 0.8995
S16 29.45 0.8997 29.29 0.9069 29.03 0.9062 29.61 0.9189 25.17 0.7615 29.66 0.9202 31.30 0.9180
S17 28.24 0.8780 27.24 0.8660 26.96 0.8640 27.46 0.8863 23.70 0.7026 27.57 0.8860 29.92 0.8969
S18 26.15 0.8717 26.25 0.8826 25.95 0.8800 26.62 0.9014 22.19 0.7097 26.72 0.9013 28.20 0.8931
S19 33.66 0.9176 32.53 0.9177 32.12 0.9168 32.50 0.9213 27.98 0.7974 32.65 0.9253 34.49 0.9287
S20 33.03 0.8977 32.33 0.9011 31.81 0.9006 32.65 0.9153 27.50 0.7923 32.74 0.9175 34.34 0.9151
S21 31.79 0.8997 31.11 0.9077 30.70 0.9072 31.04 0.9100 26.43 0.7461 31.18 0.9137 33.18 0.9216
S22 32.30 0.9214 31.31 0.9192 30.99 0.9187 31.49 0.9303 27.35 0.8276 31.56 0.9322 33.86 0.9295
S23 33.47 0.9156 31.92 0.9117 31.49 0.9113 31.94 0.9172 27.40 0.7774 32.08 0.9208 34.42 0.9273
S24 31.09 0.9058 30.60 0.9073 30.30 0.9065 30.92 0.9205 26.75 0.7924 30.99 0.9226 32.75 0.9213
S25 27.27 0.8632 27.27 0.8745 26.95 0.8721 27.44 0.8968 23.33 0.7019 27.66 0.8966 29.25 0.8857
S26 34.62 0.8763 33.52 0.8831 33.05 0.8832 33.36 0.8817 29.85 0.7406 33.55 0.8885 35.74 0.9063
S27 33.65 0.9274 33.04 0.9217 32.36 0.9207 33.55 0.9380 27.27 0.8287 33.58 0.9393 34.73 0.9325
S28 29.99 0.8711 29.20 0.8689 28.94 0.8679 29.52 0.8893 25.70 0.7139 29.60 0.8891 31.73 0.8939
S29 32.02 0.9000 30.79 0.9022 30.23 0.9010 30.87 0.9101 26.02 0.7801 30.94 0.9122 33.38 0.9177
S30 33.61 0.9430 31.72 0.9270 31.22 0.9231 31.71 0.9362 26.88 0.8162 31.91 0.9403 33.97 0.9354
S31 27.66 0.8581 27.35 0.8700 27.14 0.8686 27.65 0.8889 23.93 0.7047 27.70 0.8879 29.87 0.8901
S32 26.09 0.8608 25.98 0.8731 25.81 0.8712 26.26 0.8930 22.53 0.6897 26.34 0.8923 28.33 0.8913
S33 27.71 0.8564 27.80 0.8690 27.61 0.8668 27.66 0.8773 23.78 0.6890 27.85 0.8791 29.70 0.8853
S34 29.22 0.8809 28.11 0.8873 27.82 0.8862 28.26 0.8979 24.06 0.6997 28.34 0.8984 31.00 0.9074
S35 30.26 0.9132 30.20 0.9145 29.71 0.9131 30.34 0.9236 25.15 0.7632 30.43 0.9252 31.53 0.9260
S36 25.32 0.8822 26.16 0.8902 25.77 0.8855 26.24 0.9117 22.35 0.7578 26.45 0.9123 27.63 0.8897
S37 29.62 0.9064 28.13 0.8924 27.79 0.8902 28.45 0.9102 23.84 0.7391 28.50 0.9098 30.99 0.9193
S38 30.03 0.8474 29.88 0.8645 29.86 0.8646 29.55 0.8593 27.31 0.6602 29.75 0.8650 32.00 0.8866
S39 29.06 0.8546 28.66 0.8622 28.42 0.8615 28.88 0.8764 25.10 0.6852 28.94 0.8761 31.09 0.8935
S40 30.61 0.9041 29.84 0.9019 29.43 0.9007 29.98 0.9122 25.33 0.7470 30.08 0.9139 32.15 0.9199
S41 27.69 0.8793 27.81 0.8867 27.54 0.8849 28.06 0.9028 23.92 0.7272 28.14 0.9032 29.61 0.9007
S42 31.06 0.9148 31.56 0.9189 30.97 0.9176 31.67 0.9283 26.67 0.8126 31.75 0.9301 32.56 0.9213
S43 32.92 0.9205 32.17 0.9187 31.80 0.9179 32.38 0.9275 28.08 0.8181 32.51 0.9309 34.29 0.9303
S44 31.09 0.9108 30.99 0.9095 30.23 0.9075 31.32 0.9281 24.93 0.7947 31.41 0.9272 32.03 0.9137
S45 37.08 0.9535 36.21 0.9537 34.69 0.9527 35.97 0.9557 28.30 0.8773 36.09 0.9588 36.13 0.9517
Avg 30.55 0.8920 29.97 0.8961 29.54 0.8946 30.12 0.9083 25.58 0.7531 30.23 0.9097 31.98 0.9102
TABLE III: Quantitative comparison of the different SR methods on the dataset (scale factor =2).
Scene Bicubic SRCNN FSRCNN VDSR EDSR DBPN MA-GAN(3)
PSNR SSIM PSNR SSIM PSNR SSIM PSNR SSIM PSNR SSIM PSNR SSIM PSNR SSIM
S1 19.72 0.5335 21.33 0.6073 21.24 0.6056 21.39 0.6222 19.13 0.4013 21.28 0.6379 23.11 0.6506
S2 27.21 0.7520 29.90 0.8178 29.64 0.8172 30.08 0.8314 24.30 0.6778 30.34 0.8493 30.64 0.8553
S3 32.03 0.8663 33.47 0.9003 33.10 0.9008 33.23 0.9025 28.30 0.8019 32.95 0.9079 35.40 0.9079
S4 24.88 0.5967 26.63 0.6832 26.53 0.6814 26.69 0.6883 23.66 0.5094 26.71 0.6993 26.54 0.7246
S5 21.36 0.6011 24.24 0.7236 24.10 0.7204 24.23 0.7308 21.10 0.4874 24.21 0.7449 26.81 0.7446
S6 26.33 0.6688 27.85 0.7405 27.69 0.7381 27.81 0.7462 23.92 0.5293 27.95 0.7639 29.16 0.7956
S7 23.37 0.6115 25.18 0.7119 25.06 0.7088 25.24 0.7208 22.12 0.5044 25.27 0.7361 26.32 0.7422
S8 22.96 0.6397 25.08 0.7372 24.92 0.7337 25.06 0.7428 20.93 0.4810 25.11 0.7584 25.42 0.7093
S9 27.61 0.6779 28.58 0.7372 28.51 0.7373 28.56 0.7403 25.79 0.5548 28.51 0.7467 29.83 0.7520
S10 29.02 0.7170 30.70 0.7891 30.33 0.7903 30.46 0.7905 22.40 0.5884 30.25 0.7959 31.69 0.8448
S11 23.31 0.6544 25.05 0.7521 24.87 0.7482 24.98 0.7577 20.99 0.5032 24.93 0.7709 25.83 0.7225
S12 23.59 0.6076 25.71 0.7057 25.57 0.7019 25.78 0.7143 22.50 0.4913 26.07 0.7383 26.56 0.7457
S13 20.45 0.6206 22.56 0.7350 22.40 0.7303 22.47 0.7369 18.31 0.4580 22.06 0.7376 23.13 0.6996
S14 22.57 0.6005 24.63 0.6977 24.53 0.6952 24.67 0.7053 21.69 0.4723 24.67 0.7191 25.45 0.6943
S15 24.99 0.6154 26.68 0.6984 26.58 0.6961 26.72 0.7050 23.59 0.5035 26.90 0.7238 27.77 0.7336
S16 23.36 0.6541 25.54 0.7512 25.41 0.7490 25.54 0.7566 22.02 0.5156 25.56 0.7692 27.94 0.7776
S17 21.92 0.6152 23.78 0.6873 23.65 0.6837 23.84 0.6985 20.74 0.4642 23.80 0.7150 26.53 0.7754
S18 19.93 0.5891 22.27 0.6984 22.10 0.6941 22.30 0.7082 18.83 0.4374 22.21 0.7218 23.68 0.7460
S19 27.45 0.7115 29.13 0.7854 28.99 0.7847 29.04 0.7867 25.19 0.6058 28.90 0.7906 30.88 0.8149
S20 27.09 0.7197 29.42 0.7850 29.22 0.7826 29.45 0.7945 24.93 0.6237 29.60 0.8130 29.33 0.7694
S21 25.59 0.6384 27.45 0.7378 27.33 0.7371 27.31 0.7355 23.65 0.4988 27.29 0.7411 28.54 0.7476
S22 26.65 0.7682 28.11 0.8196 27.92 0.8170 28.06 0.8259 24.47 0.6725 28.06 0.8366 30.75 0.8459
S23 27.15 0.7002 28.44 0.7653 28.32 0.7646 28.34 0.7664 24.58 0.5658 28.34 0.7759 29.12 0.7904
S24 25.19 0.7013 27.21 0.7790 27.08 0.7767 27.27 0.7866 23.75 0.6000 27.35 0.8008 29.35 0.8035
S25 21.12 0.5777 23.39 0.6800 23.26 0.6757 23.44 0.6918 20.49 0.4590 23.47 0.7124 25.98 0.7243
S26 29.14 0.6360 30.98 0.7089 30.84 0.7087 30.84 0.7076 28.12 0.5960 30.78 0.7130 31.38 0.7352
S27 27.56 0.7520 30.08 0.8223 29.85 0.8208 30.16 0.8325 24.58 0.6605 30.21 0.8469 29.61 0.7876
S28 24.13 0.6170 26.06 0.6871 25.95 0.6845 26.16 0.6974 23.19 0.5191 26.24 0.7158 27.58 0.7342
S29 26.29 0.7179 27.74 0.7696 27.56 0.7690 27.67 0.7741 23.13 0.6071 27.55 0.7806 29.02 0.8066
S30 25.99 0.7586 27.32 0.8002 27.06 0.7941 27.16 0.8052 22.83 0.5885 27.05 0.8139 29.02 0.8304
S31 22.15 0.6004 24.01 0.6939 23.91 0.6913 24.04 0.7029 21.07 0.4572 24.13 0.7211 25.23 0.7602
S32 20.30 0.5723 22.28 0.6812 22.14 0.6770 22.27 0.6887 19.40 0.4036 22.17 0.7023 23.22 0.7146
S33 21.77 0.5602 24.15 0.6680 24.10 0.6685 24.26 0.6806 20.73 0.4311 24.25 0.6953 23.72 0.7145
S34 23.13 0.6006 24.39 0.6922 24.24 0.6872 24.31 0.6940 21.00 0.4201 24.37 0.7111 27.96 0.7541
S35 23.45 0.6689 26.12 0.7523 25.95 0.7496 26.03 0.7554 21.85 0.5086 26.03 0.7673 25.85 0.7336
S36 19.50 0.6524 22.27 0.7446 22.09 0.7411 22.24 0.7601 19.41 0.5517 22.09 0.7772 22.54 0.6968
S37 22.87 0.6695 24.49 0.7321 24.34 0.7270 24.53 0.7401 20.44 0.4843 24.47 0.7565 26.90 0.7561
S38 24.57 0.5283 26.73 0.6347 26.71 0.6330 26.68 0.6345 24.99 0.4232 26.63 0.6403 27.54 0.6499
S39 23.39 0.5813 25.54 0.6748 25.40 0.6703 25.52 0.6806 22.54 0.4518 25.68 0.7049 26.20 0.7405
S40 24.36 0.6606 26.23 0.7377 26.11 0.7360 26.25 0.7447 22.32 0.5097 26.29 0.7587 27.99 0.7965
S41 21.59 0.6107 24.08 0.7162 23.94 0.7125 24.07 0.7235 20.65 0.4670 24.02 0.7371 27.33 0.7443
S42 25.13 0.7546 28.15 0.8047 27.93 0.8033 28.06 0.8097 23.80 0.6489 27.94 0.8192 26.29 0.8265
S43 26.83 0.7304 28.85 0.8043 28.73 0.8036 28.94 0.8121 24.93 0.6441 28.92 0.8216 29.07 0.7798
S44 24.39 0.7083 27.28 0.7876 27.01 0.7859 27.34 0.7993 21.92 0.6074 27.34 0.8155 29.10 0.8211
S45 30.07 0.8142 32.36 0.8695 31.98 0.8714 32.01 0.8692 24.76 0.7233 31.84 0.8753 31.67 0.8806
Avg 24.48 0.6585 26.48 0.7402 26.31 0.7379 26.46 0.7466 22.65 0.5358 26.44 0.7596 27.62 0.7640
TABLE IV: Quantitative comparison of the different SR methods on the dataset (scale factor =4).
Scene Bicubic SRCNN FSRCNN VDSR EDSR DBPN MA-GAN(4)
PSNR SSIM PSNR SSIM PSNR SSIM PSNR SSIM PSNR SSIM PSNR SSIM PSNR SSIM
S1 17.52 0.3522 19.27 0.3731 19.06 0.3795 19.34 0.3873 17.71 0.2986 19.19 0.4029 20.69 0.4250
S2 24.37 0.6217 26.69 0.6639 25.49 0.6692 26.87 0.6834 21.99 0.5903 27.03 0.7013 29.62 0.7586
S3 28.33 0.7773 30.04 0.7926 28.48 0.7895 30.11 0.8035 26.22 0.7316 30.13 0.8137 29.88 0.7787
S4 22.60 0.4542 24.24 0.4965 23.73 0.4951 24.25 0.5023 21.79 0.4059 24.15 0.5095 25.50 0.5325
S5 18.43 0.3721 21.28 0.4649 20.85 0.4734 21.31 0.4808 18.85 0.3303 20.96 0.4870 21.30 0.4412
S6 23.24 0.4714 24.96 0.5132 24.48 0.5154 25.01 0.5204 22.00 0.4031 24.80 0.5256 25.86 0.5335
S7 20.71 0.4255 22.36 0.4827 22.01 0.4853 22.41 0.4927 20.01 0.3671 22.18 0.4993 23.57 0.4966
S8 19.58 0.3966 21.63 0.4597 21.14 0.4638 21.65 0.4654 18.60 0.3103 21.26 0.4688 22.17 0.4547
S9 24.74 0.4978 26.19 0.5392 25.24 0.5334 26.15 0.5422 24.22 0.4411 25.94 0.5433 27.21 0.5573
S10 26.06 0.5682 27.94 0.6119 23.60 0.6014 27.94 0.6162 20.12 0.5014 27.79 0.6139 28.39 0.6271
S11 19.89 0.4222 21.54 0.4794 21.29 0.4895 21.62 0.4944 18.46 0.3363 21.30 0.5022 24.39 0.5220
S12 20.84 0.4154 22.91 0.4666 22.63 0.4743 23.04 0.4826 20.38 0.3574 23.05 0.5034 23.71 0.4869
S13 17.25 0.3719 19.43 0.4616 18.49 0.4613 19.32 0.4625 15.71 0.2736 18.78 0.4618 20.22 0.5358
S14 19.79 0.3907 21.88 0.4554 21.57 0.4557 21.85 0.4598 19.51 0.3199 21.49 0.4573 22.54 0.4619
S15 22.38 0.4420 24.18 0.4887 23.74 0.4915 24.25 0.4984 21.74 0.3885 24.18 0.5100 25.17 0.5169
S16 20.21 0.4267 22.35 0.4908 22.05 0.4961 22.40 0.4989 19.87 0.3625 22.10 0.5075 22.89 0.4818
S17 18.87 0.4017 21.07 0.4444 20.71 0.4561 21.14 0.4645 18.65 0.3292 20.85 0.4715 23.07 0.5120
S18 16.84 0.3613 18.95 0.4157 18.79 0.4230 18.99 0.4249 16.64 0.2714 18.71 0.4334 20.53 0.4894
S19 24.44 0.5449 26.18 0.5895 25.05 0.5913 26.24 0.6007 22.91 0.4870 26.02 0.6036 27.78 0.6290
S20 24.08 0.5774 26.41 0.6018 25.86 0.6118 26.56 0.6205 22.91 0.5286 26.72 0.6481 28.53 0.6608
S21 22.58 0.4159 24.67 0.4947 24.09 0.4917 24.63 0.4927 21.68 0.3555 24.23 0.4829 25.21 0.4877
S22 23.78 0.6420 25.09 0.6484 24.35 0.6553 25.28 0.6713 22.24 0.5742 25.21 0.6919 27.63 0.7302
S23 24.10 0.5203 25.51 0.5472 24.78 0.5499 25.54 0.5538 22.53 0.4377 25.27 0.5546 26.57 0.5764
S24 22.20 0.5272 24.20 0.5738 23.69 0.5818 24.31 0.5899 21.69 0.4833 24.20 0.6047 26.46 0.6281
S25 18.57 0.3737 20.71 0.4291 20.51 0.4382 20.80 0.4465 18.56 0.3293 20.62 0.4589 22.22 0.4739
S26 27.24 0.5353 29.50 0.5842 28.51 0.5783 29.47 0.5849 27.83 0.5443 29.48 0.5882 30.09 0.6186
S27 24.28 0.5935 26.61 0.6397 25.96 0.6556 26.88 0.6681 22.02 0.5639 26.97 0.6918 26.84 0.6371
S28 21.56 0.4588 23.74 0.4979 23.31 0.5017 23.83 0.5107 21.43 0.4221 23.75 0.5220 24.41 0.5243
S29 23.28 0.5826 25.00 0.6017 23.78 0.6009 25.06 0.6124 20.92 0.5152 24.84 0.6185 25.90 0.6304
S30 21.75 0.5534 23.38 0.5476 22.43 0.5588 23.56 0.5786 20.03 0.4332 23.18 0.5967 24.30 0.5926
S31 19.40 0.3890 21.33 0.4370 21.04 0.4417 21.36 0.4470 19.12 0.3099 21.08 0.4510 22.24 0.4584
S32 17.43 0.3227 19.41 0.3899 19.14 0.3936 19.40 0.3937 17.36 0.2288 18.94 0.3910 20.30 0.3936
S33 18.81 0.3378 21.36 0.4184 20.80 0.4208 21.27 0.4233 18.55 0.2783 21.07 0.4440 21.66 0.4141
S34 20.17 0.3673 21.57 0.4071 21.22 0.4078 21.63 0.4101 19.19 0.2743 21.33 0.4164 22.99 0.4377
S35 19.95 0.4260 22.82 0.4959 22.24 0.4960 22.78 0.4986 19.37 0.3468 22.36 0.4948 23.08 0.5070
S36 16.77 0.4675 19.43 0.5058 19.16 0.5261 19.54 0.5410 17.49 0.4392 19.29 0.5716 19.85 0.5051
S37 19.23 0.4341 21.03 0.4648 20.83 0.4747 21.17 0.4808 17.85 0.3264 20.94 0.4945 21.81 0.4846
S38 22.42 0.3352 25.09 0.4150 24.04 0.4062 25.02 0.4113 23.84 0.3111 24.84 0.4104 25.38 0.4291
S39 20.75 0.3768 22.99 0.4370 22.61 0.4380 23.05 0.4422 20.78 0.3211 22.89 0.4564 23.58 0.4508
S40 21.13 0.4392 23.25 0.4895 22.74 0.4899 23.29 0.4953 20.34 0.3720 23.00 0.5026 23.85 0.5032
S41 18.64 0.3863 21.01 0.4515 20.66 0.4576 21.04 0.4635 18.41 0.3082 20.65 0.4680 21.82 0.4986
S42 22.28 0.6301 25.11 0.6387 24.35 0.6414 25.22 0.6542 21.66 0.5609 24.94 0.6658 25.99 0.7007
S43 23.66 0.5652 25.45 0.6157 24.91 0.6214 25.59 0.6321 22.69 0.5330 25.50 0.6471 26.14 0.6021
S44 20.86 0.5394 23.89 0.6033 22.77 0.6068 24.00 0.6222 19.77 0.5142 23.88 0.6334 25.28 0.6502
S45 25.94 0.6612 28.46 0.7274 25.64 0.7199 28.04 0.7285 21.46 0.6002 27.62 0.7218 27.84 0.6904
Avg 21.49 0.4705 23.56 0.5190 22.84 0.5225 23.60 0.5301 20.56 0.4093 23.39 0.5387 24.54 0.5450
TABLE V: Quantitative comparison of the different SR methods on the dataset (scale factor =8).

We further compare the performance of our MA-GAN with bicubic interpolation, and some advanced SR methods including SRCNN [5], FSRCNN [7], VDSR [21], EDSR [26] and DBPN [15], on the NWPU-RESISC45 [3] dataset. SRCNN, FSRCNN and VDSR are the three CNN-based networks that minimize the loss while EDSR and DBPN minimize loss. All of these methods are optimized on the same dataset and environment for a fair comparison.

In Section IV-C, we reach the conclusion that there is little difference in the performance of the models when varies. Therefore, in this section, for each scale factor, we choose a better-performing MA-GAN. Specifically, for , we choose MA-GAN(7); for , we choose MA-GAN(3); and for , we choose MA-GAN(4).

Figures 5, 6, 7 show the visual comparisons between different SR methods when the scale factor , respectively. In these figures, we have selected only part of the for magnified display. The selected image area marked with red boxes is rich in texture information and is difficult to recover. In this way, we can observe the performances of different methods. In our experiments, EDSR did not successfully learn the mapping of LR images to HR images, and the results were less than satisfactory. From the figure, we can also determine that although our method can achieve the relative best results, there is still a gap between the and generated by our model, mainly the difficulty of recovering those tiny textural features.

Tables III, IV, and V show the quantitative comparisons when the scale factor , respectively. We have compared the super-resolution performances of the different models for each of the image scenes in the NWPU-RESISC45 dataset to obtain a more detailed comparison. The highest PSNR values for each scene are marked in red, and the highest SSIM is marked in blue.

For (Table III), MA-GAN(7) obtains an average PSNR of 31.98 dB and an average SSIM of 0.9102, both of which rank first among all the methods. The PSNR of MA-GAN(7) is 1.43 dB higher than the second-best value, while the SSIM is 0.0005 higher. In terms of PSNR, MA-GAN(7) outperforms almost all of the scenes and is ranked first in SSIM for nearly half of the scenes. With (Table IV), MA-GAN(3) performs best with an average PSNR of 27.62 dB and an average SSIM of 0.7640. The PSNR of MA-GAN(3) is 1.18 dB higher than the second-best value, while the SSIM is 0.0044 higher. The PSNR value of MA-GAN(3) is lower than those of the other comparison methods in 7 scenes. It obtains the highest SSIM value for 34 scenes and is lower than only DBPN in all other 11 scenes. The last one is the case of (Table V), where MA-GAN(4) achieves the highest average PSNR of 24.54 dB and the average SSIM of 0.5450. The PSNR of MA-GAN(4) is 0.98 dB higher than the second-best result, while the SSIM is 0.0063 higher. MA-GAN(4) performs better in PSNR than almost all other methods and is not ranked first in only 4 scenes. With respect to SSIM, MA-GAM(7) performs better on 29 scenes.

In summary, our MA-GAN outperforms all the other methods for , respectively. In particular, MA-GAN is basically more than 1 dB higher than the second-best results among all methods in terms of PSNR values, with a maximum difference of 1.43 dB. However, the lead is not as large in SSIM. The result is only 0.0005 higher than DBPN at

. This is probably because the SR task of upsampling by a scale factor of 2 is simpler and the gap is not significant in this aspect. When

increases, the advantage of MA-GAN in SSIM becomes more obvious, with a maximum improvement of 0.0063 over the second-place condition (). Overall, although there are still some unsatisfactory aspects, our MA-GAN still performs the best.

V Conclusion

In this paper, we present a GAN-based SR network named the multi-attention-GAN that correctly learns the mapping from LR to HR images to generate perceptually pleasing HR images. Specifically, we first designed a GAN-based framework for the image SR task. The key to accomplishing the SR task is the image generator with post-upsampling that we designed. The main body of the generator contains two blocks; one is the PCRDB block, and the other is the AUP block. The AttPConv in the PCRDB block is a module that combines multi-scale convolution and channel attention to automatically learn and adjust the scaling of the residuals for better results. The AUP block is a module that combines pixel attention to perform arbitrary multiples of upsampling. These two blocks work together to help generate better quality images. For the loss function, we design a loss function based on pixel loss and introduce both adversarial loss and feature loss to guide the generator learning. Finally, it is demonstrated by our experiments that our proposed MA-GAN can perform better than some state-of-the-art SR methods.

Our MA-GAN still encounters difficulty in generating tiny textures, which is a problem for all super-resolution algorithms, and we will continue to work on this issue in the future. Additionally, inspired by the satisfactory performance of our model, we will attempt to integrate our SR models into other vision tasks to help improve the results.

References

  • [1] Y. Bai, Y. Zhang, M. Ding, and B. Ghanem (2018) Sod-mtgan: small object detection via multi-task generative adversarial network. In Proceedings of the European Conference on Computer Vision (ECCV), pp. 206–221. Cited by: §I.
  • [2] J. Caballero, C. Ledig, A. Aitken, A. Acosta, J. Totz, Z. Wang, and W. Shi (2017) Real-time video super-resolution with spatio-temporal networks and motion compensation. In

    Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition

    ,
    pp. 4778–4787. Cited by: §I.
  • [3] G. Cheng, J. Han, and X. Lu (2017)

    Remote sensing image scene classification: benchmark and state of the art

    .
    Proceedings of the IEEE 105 (10), pp. 1865–1883. Cited by: §IV-A, §IV-D.
  • [4] J. Cheng, Q. Kuang, C. Shen, J. Liu, X. Tan, and W. Liu (2020) ResLap: generating high-resolution climate prediction through image super-resolution. IEEE Access 8, pp. 39623–39634. Cited by: §I.
  • [5] C. Dong, C. C. Loy, K. He, and X. Tang (2014) Learning a deep convolutional network for image super-resolution. In European conference on computer vision, pp. 184–199. Cited by: §I, §II-B, §IV-D.
  • [6] C. Dong, C. C. Loy, K. He, and X. Tang (2015) Image super-resolution using deep convolutional networks. IEEE transactions on pattern analysis and machine intelligence 38 (2), pp. 295–307. Cited by: §II-B.
  • [7] C. Dong, C. C. Loy, and X. Tang (2016) Accelerating the super-resolution convolutional neural network. In European conference on computer vision, pp. 391–407. Cited by: §IV-D.
  • [8] W. Dong, F. Fu, G. Shi, X. Cao, J. Wu, G. Li, and X. Li (2016) Hyperspectral image super-resolution via non-negative structured sparse representation. IEEE Transactions on Image Processing 25 (5), pp. 2337–2352. Cited by: §I.
  • [9] C. E. Duchon (1979) Lanczos filtering in one and two dimensions. Journal of applied meteorology 18 (8), pp. 1016–1022. Cited by: §I.
  • [10] I. C. Duta, L. Liu, F. Zhu, and L. Shao (2020) Pyramidal convolution: rethinking convolutional neural networks for visual recognition. arXiv preprint arXiv:2006.11538. Cited by: §III-B.
  • [11] A. Elfadaly, W. Attia, and R. Lasaponara (2018) Monitoring the environmental risks around medinet habu and ramesseum temple at west luxor, egypt, using remote sensing and gis techniques. Journal of Archaeological Method and Theory 25 (2), pp. 587–610. Cited by: §I.
  • [12] L. Gatys, A. S. Ecker, and M. Bethge (2015) Texture synthesis using convolutional neural networks. In Advances in neural information processing systems, pp. 262–270. Cited by: §II-C.
  • [13] I. Goodfellow, J. Pouget-Abadie, M. Mirza, B. Xu, D. Warde-Farley, S. Ozair, A. Courville, and Y. Bengio (2014) Generative adversarial nets. In Advances in neural information processing systems, pp. 2672–2680. Cited by: §I.
  • [14] H. Greenspan (2009) Super-resolution in medical imaging. The computer journal 52 (1), pp. 43–63. Cited by: §I.
  • [15] M. Haris, G. Shakhnarovich, and N. Ukita (2018) Deep back-projection networks for super-resolution. In Proceedings of the IEEE conference on computer vision and pattern recognition, pp. 1664–1673. Cited by: §I, §II-A, §II-B, §IV-D.
  • [16] K. He, X. Zhang, S. Ren, and J. Sun (2016) Deep residual learning for image recognition. In Proceedings of the IEEE conference on computer vision and pattern recognition, pp. 770–778. Cited by: §I, §I, §III-D.
  • [17] G. Huang, Z. Liu, L. Van Der Maaten, and K. Q. Weinberger (2017) Densely connected convolutional networks. In Proceedings of the IEEE conference on computer vision and pattern recognition, pp. 4700–4708. Cited by: §I, §I, §III-B.
  • [18] Y. Huang, L. Shao, and A. F. Frangi (2017) Simultaneous super-resolution and cross-modality synthesis of 3d medical images using weakly-supervised joint convolutional sparse coding. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pp. 6070–6079. Cited by: §I.
  • [19] J. S. Isaac and R. Kulkarni (2015) Super resolution techniques for medical image processing. In 2015 International Conference on Technologies for Sustainable Development (ICTSD), pp. 1–6. Cited by: §I.
  • [20] R. Keys (1981) Cubic convolution interpolation for digital image processing. IEEE transactions on acoustics, speech, and signal processing 29 (6), pp. 1153–1160. Cited by: §I.
  • [21] J. Kim, J. Kwon Lee, and K. Mu Lee (2016) Accurate image super-resolution using very deep convolutional networks. In Proceedings of the IEEE conference on computer vision and pattern recognition, pp. 1646–1654. Cited by: §I, §IV-D.
  • [22] D. P. Kingma and J. Ba (2014) Adam: a method for stochastic optimization. arXiv preprint arXiv:1412.6980. Cited by: §IV-B.
  • [23] W. Lai, J. Huang, N. Ahuja, and M. Yang (2017) Deep laplacian pyramid networks for fast and accurate super-resolution. In Proceedings of the IEEE conference on computer vision and pattern recognition, pp. 624–632. Cited by: §II-B.
  • [24] C. Ledig, L. Theis, F. Huszár, J. Caballero, A. Cunningham, A. Acosta, A. Aitken, A. Tejani, J. Totz, Z. Wang, et al. (2017) Photo-realistic single image super-resolution using a generative adversarial network. In Proceedings of the IEEE conference on computer vision and pattern recognition, pp. 4681–4690. Cited by: §II-B, §II-C, §III-A, §III-D.
  • [25] K. Li, Y. Zhu, J. Yang, and J. Jiang (2016) Video super-resolution using an adaptive superpixel-guided auto-regressive model. Pattern Recognition 51, pp. 59–71. Cited by: §I.
  • [26] B. Lim, S. Son, H. Kim, S. Nah, and K. Mu Lee (2017) Enhanced deep residual networks for single image super-resolution. In Proceedings of the IEEE conference on computer vision and pattern recognition workshops, pp. 136–144. Cited by: §I, §II-B, §III-B, §IV-D.
  • [27] Z. Liu, G. Li, G. Mercier, Y. He, and Q. Pan (2017) Change detection in heterogenous remote sensing images via homogeneous pixel transformation. IEEE Transactions on Image Processing 27 (4), pp. 1822–1834. Cited by: §I.
  • [28] X. Lu, Y. Yuan, and P. Yan (2013) Image super-resolution via double sparsity regularized manifold learning. IEEE transactions on circuits and systems for video technology 23 (12), pp. 2022–2033. Cited by: §I.
  • [29] P. Rasti, T. Uiboupin, S. Escalera, and G. Anbarjafari (2016)

    Convolutional neural network super resolution for face recognition in surveillance monitoring

    .
    In International conference on articulated motion and deformable objects, pp. 175–184. Cited by: §I.
  • [30] W. Shi, J. Caballero, F. Huszár, J. Totz, A. P. Aitken, R. Bishop, D. Rueckert, and Z. Wang (2016) Real-time single image and video super-resolution using an efficient sub-pixel convolutional neural network. In Proceedings of the IEEE conference on computer vision and pattern recognition, pp. 1874–1883. Cited by: §II-A, §III-C.
  • [31] Z. Shi and Z. Zou (2017) Can a machine generate humanlike language descriptions for a remote sensing image?. IEEE Transactions on Geoscience and Remote Sensing 55 (6), pp. 3623–3634. Cited by: §I.
  • [32] J. Sun, Z. Xu, and H. Shum (2008) Image super-resolution using gradient profile prior. In 2008 IEEE Conference on Computer Vision and Pattern Recognition, pp. 1–8. Cited by: §I.
  • [33] C. Szegedy, S. Ioffe, V. Vanhoucke, and A. Alemi (2017)

    Inception-v4, inception-resnet and the impact of residual connections on learning

    .
    In

    Proceedings of the AAAI Conference on Artificial Intelligence

    ,
    Vol. 31. Cited by: §III-B.
  • [34] Y. Tai, S. Liu, M. S. Brown, and S. Lin (2010) Super resolution using edge prior and single image detail synthesis. In 2010 IEEE computer society conference on computer vision and pattern recognition, pp. 2400–2407. Cited by: §I.
  • [35] A. J. Tatem, H. G. Lewis, P. M. Atkinson, and M. S. Nixon (2001) Super-resolution target identification from remotely sensed images using a hopfield neural network. IEEE Transactions on Geoscience and Remote Sensing 39 (4), pp. 781–796. Cited by: §I.
  • [36] X. Wang, K. Yu, S. Wu, J. Gu, Y. Liu, C. Dong, Y. Qiao, and C. Change Loy (2018) Esrgan: enhanced super-resolution generative adversarial networks. In Proceedings of the European Conference on Computer Vision (ECCV) Workshops, pp. 0–0. Cited by: §I.
  • [37] C. Yang, J. Huang, and M. Yang (2010) Exploiting self-similarities for single frame super-resolution. In Asian conference on computer vision, pp. 497–510. Cited by: §I.
  • [38] Y. Yu, X. Li, and F. Liu (2020) E-dbpn: enhanced deep back-projection networks for remote sensing scene image superresolution. IEEE Transactions on Geoscience and Remote Sensing. Cited by: §I, §I, §II-B.
  • [39] Y. Yuan, S. Liu, J. Zhang, Y. Zhang, C. Dong, and L. Lin (2018) Unsupervised image super-resolution using cycle-in-cycle generative adversarial networks. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition Workshops, pp. 701–710. Cited by: §II-C.
  • [40] D. Zhang, J. Shao, X. Li, and H. T. Shen (2020) Remote sensing image super-resolution via mixed high-order attention network. IEEE Transactions on Geoscience and Remote Sensing. Cited by: §I.
  • [41] S. Zhang, Q. Yuan, J. Li, J. Sun, and X. Zhang (2020) Scene-adaptive remote sensing image super-resolution using a multiscale attention network. IEEE Transactions on Geoscience and Remote Sensing. Cited by: §I.
  • [42] Y. Zhang, K. Li, K. Li, L. Wang, B. Zhong, and Y. Fu (2018) Image super-resolution using very deep residual channel attention networks. In Proceedings of the European Conference on Computer Vision (ECCV), pp. 286–301. Cited by: §I, §III-B.
  • [43] H. Zhao, X. Kong, J. He, Y. Qiao, and C. Dong (2020) Efficient image super-resolution using pixel attention. arXiv preprint arXiv:2010.01073. Cited by: §I.
  • [44] W. W. Zou and P. C. Yuen (2011) Very low resolution face recognition problem. IEEE Transactions on image processing 21 (1), pp. 327–340. Cited by: §I.
  • [45] Z. Zou and Z. Shi (2016) Ship detection in spaceborne optical image with svd networks. IEEE Transactions on Geoscience and Remote Sensing 54 (10), pp. 5832–5845. Cited by: §I.
