Breast cancer is the second leading cause of cancer-related death among women Rebecca et al. (2016). Effective treatment of breast cancer depends heavily on the accurate diagnosis at an early stage. In clinical practice, histopathological image analysis is the gold standard for detecting breast cancer, which is usually conducted manually by pathologists. However, this analysis is difficult even for skilled pathologists. According to the previous studies Elmore et al. (2015), the average diagnostic concordance among different pathologists is only 75%. Moreover, this diagnostic process is time-consuming due to the complexity of pathological images. Therefore, in order to improve accuracy and efficiency, it is necessary to develop computer-aided diagnosis systems (CADs) for cancer recognition.

In the past decades, many automatic algorithms based on digital pathology have been proposed for tumor classification. By exploiting handcrafted features, a variety of machine learning methods have been used, such as support vector machines (SVM)

Filipczuk et al. (2013)

, multi-layer perceptron (MLP)

George et al. (2013)

and random forest (RF)

Nguyen, Wang, and Nguyen (2013). Currently, convolutional neural networks (CNNs) have achieved remarkable success in this field Roy et al. (2019); Yao et al. (2019); Alzubaidi et al. (2020)

, benefiting from its advantage of extracting hierarchical features automatically. Typically, the whole pathological image is divided into small patches which are classified by a CNN, then these patch-wise predictions are integrated to obtain the final image-wise classification result. However, such patch-wise feature learning lacks the ability to capture global contextual information.

To overcome this limitation, some researchers have attempted to use graph convolutional networks (GCNs) for pathological image classification Zhou et al. (2019); Anand, Gadiya, and Sethi (2020); Wang et al. (2020); Adnan, Kalra, and Tizhoosh (2020). Most of these works follow the workflow below: Firstly, the pathological image is transformed into a graph representation, where the detected cancer cells serve as nodes and edges are formed in terms of spatial distance. Secondly, they extract cell-level features as the initial node embeddings. Thirdly, the cell-graph is fed into a GCN followed by a MLP to perform image-wise classification. In such setting, global features including spatial relations among cells are embeded in GCN.

However, the current pipeline still faces two challenges. Firstly, only cellular interactions is insufficient to completely represent the pathological structure. In fact, the tissue distribution is hierarchical with many substructures, such as stromal, gland, tumor etc. To learn the intrinsic characteristic of cancerous tissue, it is necessary to aggregate multi-level structural information. For this reason, pathologists always need to analyze many images at different magnification levels to give an accurate cancer diagnosis. Secondly, this multi-stage workflow is tedious with too much workload. The performance of GCN relies heavily on the previous steps such as cell detection and feature extraction. Moreover, such staged framework lacks robustness to different datasets, as parameters need to be tuned at every step.

To tackle the aforementioned problems, we propose a novel framework named multi-scale graph wavelet neural network (MS-GWNN) for histopathological image classification. Graph wavelet neural network (GWNN) Xu et al. (2019)

replaces the graph Fourier transform in spectral GCN as graph wavelet transform. Further, GWNN has good localization property in node domain, making it more flexible to adjust the receptive fields of nodes (via the scaling parameter

). Based on GWNN, we present multi-scale graph wavelet neural network (MS-GWNN), which takes advantage of spectral graph wavelets to make multi-scale analysis. More specifically, after converting pathological images into graph representations, we use multiple GWNNs with different scaling parameters in parallel to obtain the multi-scale contextual information in graph topology. Then, all these features are aggregated to produce the final image-level (i.e. graph-level) classification prediction.

The main contributions are summarized as follows:

  • We propose a novel framework (MS-GWNN) for breast cancer diagnosis in the way of mapping pathological images into graph domain. By exploiting multi-scale graph wavelets, the proposed MS-GWNN can obtain multi-level tissue structural information, which is exactly what the pathology analysis needs. Although we apply MS-GWNN on a disease detection problem in this manuscript, the MS-GWNN is a general framework of image analysis that can be applied to many classifications tasks.

  • MS-GWNN can be trained in an end-to-end manner. Compared to the previous multi-stage workflow based on GCN, MS-GWNN simplifies the diagnostic process and enhances the robustness. To the best of our knowledge, MS-GWNN is the first end-to-end framework to apply GCN to pathological image classification.

  • MS-GWNN is evaluated on two public breast cancer datasets (BACH and BreakHis), and it achieves an accuracy of 93.75% and 99.67% respectively. The results outperform the existing state-of-the-art methods, demonstrating the superiority of our proposed model. Through ablation studies, we verify that multi-scale structural features are crucial for characterizing cancers.

Related Work

Multi-Scale Feature Learning in Pathology Image

For cancer recognition, both local information about lesion appearance and global tissue organization are required. Based on this motivation, many attempts have been made to encode multi-scale information in pathology image, mainly including multi-scale features fusion Bardou, Zhang, and Ahmad (2018); Shen et al. (2017); Tokunaga et al. (2019)

and the combination of CNN and recurrent neural networks (RNNs)

Zhou et al. (2018); Guo et al. (2018); Yan et al. (2020). For instance, Shen et al. Shen et al. (2017)

presented a multi-crop pooling operation to enable a multi-level feature extraction, then these rich features are concatenated to form the final feature vector. In the work of

Tokunaga et al. (2019), three parallel CNNs were used to process images at different magnifications, where the multi-branch features are incorporated in a weighted manner. In order to extract the contextual information in cancer tissue, Yan et al. Yan et al. (2020) utilized an RNN to capture the spatial correlations between patch-wise features learned from a CNN.

In summary, the above methods aim at learning hierarchical features in Euclidean space, where the notion of scale is typically related with Euclidean distance (spatial location). However, in this paper, we map pathological images into graph domain. The graph edges are formed according to the feature similarities between nodes, thus making it possible to explore the function of scale in non-Euclidean space.

Spectral Graph Wavelet Transform

Spectral graph wavelet transform was originally proposed by Hammond et al. Hammond, Vandergheynst, and Gribonval (2011), which constructed wavelet transforms in the node domain of a finite weighted graph. They also proved that graph wavelets exhibit good localization property in the fine scale limit. In the work of Tremblay and Borgnat (2014), Tremblay et al. applied graph wavelets to detect multi-scale communities in networks. They used the correlation between wavelets to access the similarity between nodes and proposed a clustering algorithm according to this similarity. Based on graph diffusion wavelets, Donnat et al. Donnat et al. (2018) developed the GraphWave method to represent each node’s neighborhood via a low-dimensional embedding. This kind of node embedding pays more attention to the local topology of node. More recently, Xu et al. Xu et al. (2019) proposed graph wavelet neural network (GWNN) to introduce the graph wavelet transform to spectral GCN, offering high spareness and good localization for graph convolution. However, their experiments were performed only at one scale, which didn’t leverage the localization property of graph wavelets to perform multi-scale analysis.


In this section, we first introduce the basic concepts of spectral graph convolution, and further describe the spectral convolution based on graph wavelets. Then we discuss the architecture of graph wavelet neural network (GWNN). Finally, we present multi-scale graph wavelet neural network (MS-GWNN) for pathological image classification.

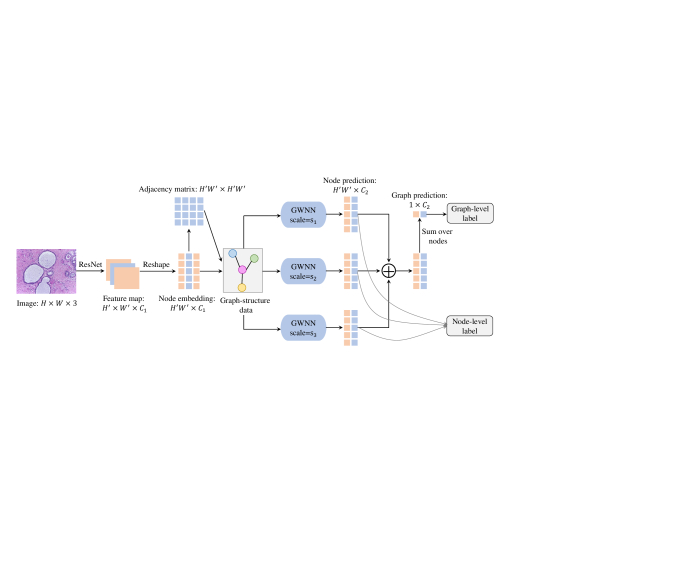

Figure 1: The architecture of MS-GWNN. Firstly, pathological images are transformed into graph-structure data. Then, node classification is performed via GWNN at different scales. Finally, the multi-level node embeddings are incorporated to yield the graph-level (image-level) classification result. is the number of nodes. is the dimension of the initial node embeddings and is the number of cancer type. Both graph-level and node-level labels are used to train the model in an end-to-end way.

Graph Representation

Let be an undirected graph, where is the set of nodes with and is the set of edges. is the node embedding matrix. is a symmetric adjacency matrix defining the graph topology. We denote the graph’s normalized Laplacian matrix as , where

is the identity matrix and

is a diagonal matrix with . Further, we denote

as the eigenvector decomposition of the normalized Laplacian matrix

, where

is the diagonal matrix formed by the eigenvalues of


Spectral Graph Convolution

Spectral convolution was proposed by Bruna et al. (2013), which defines the graph convolution operation in the Fourier domain. It can be represented as:

is the signal to be processed and is the convolutional filter parameterized by . This definition of spectral graph convolution is not spatially localized in node domain. In other words, the feature aggregation of one node depends on all the nodes, not only its neighbourhood nodes. Moreover, it is computationally expensive to compute the eigendecomposition of Laplacian matrix. To improve computational efficiency, some researchers have attempted to use a truncated expansion based on Chebyshev polynomials to approximate the convolutional kernel Hammond, Vandergheynst, and Gribonval (2011); Defferrard, Bresson, and Vandergheynst (2016); Kipf and Welling (2016).

Spectral Convolution Based on Graph Wavelets

Spectral graph wavelet was presented in Hammond, Vandergheynst, and Gribonval (2011), which introduces a band-pass filter in the traditional graph Fourier domain mentioned above. We denote as the wavelet centered at node at the scale of , thereby the graph wavelet basis is defined as:

is a scaling matrix with . Given a set of graph wavelets, the graph wavelet transform is defined as and the inverse transform is . can be obtained by replacing in with . Further, in such setting, the graph convolution based on spectral wavelet bases reads as

Similarly, is the convolutional filter to be learned. As stated in the work of Xu et al. (2019), the graph convolution using wavelet transform has excellent localization property, making it outperforming the traditional spectral convolution in graph-related tasks like node classification. In addition, the scaling parameter controls the receptive fields of nodes in a continuous manner, different from the previous approach Defferrard, Bresson, and Vandergheynst (2016) using the discrete shortest path distance.

Graph Wavelet Neural Network (GWNN)

Based on spectral graph wavelet convolution, in this paper, we consider a three-layer graph wavelet neural network (GWNN) for node classification. The structure of the m-layer can be divided into two steps:

feature transformation: ,

graph convolution: .

are the input and output tensor respectively.

is the matrix of filter parameters, is the diagonal convolutional kernel, and

is the activation function. More specifically, our forward model can be described as:

first layer: ,

second layer: ,

third layer: .

Multi-Scale Graph Wavelet Neural Network (MS-GWNN)

In this section, we present a new framework called multi-scale graph wavelet neural network (MS-GWNN), for the task of pathological image classification. The architecture of MS-GWNN is shown in Figure 1, which consists of three parts: graph construction, node classification based on GWNN and graph classification using feature aggregation.

Graph Construction. In this work, we transform pathological images into graph representations. Nodes are nonoverlapping image patches and edges are generated in terms of the intrinsic relationships between these patches. Firstly, we use the modified ResNet-50 (we remove block3,4 and use average-pooling for downsampling) to learn discriminative features. In this way, we can obtain a series of feature maps (), where each pixel corresponds to a ( is the downsampling rate) square patch in the raw image. Therefore, the feature vector of one pixel can be regarded as the node embedding of the corresponding patch (node).

Secondly, we make use of the similarity between node embeddings to form edges, which is defined by dot product:

are the node embeddings of node and , while are two transformation functions implemented via convolutions. The formula to form graph edges is as follow:

is the -th percentile () of . is the number of nodes equivalent to here.

Node Classification via GWNN. Given the constructed graph-structure data, we utilize multiple GWNNs with different scaling parameters

in parallel to conduct node classification. Each branch is supervised by the node-level label via the cross entropy loss function. Different parameters

mean different receptive fields, enabling the model to extract multi-scale contextual information.

Feature Aggregation.

After the process of node classification, each branch can obtain a node prediction probability map with the size of


is the number of cancer type). In this work, we sum these probability maps to aggregate multi-scale structure representations. To perform graph-level (i.e. image-level) classification, we sum the node class probabilities to yield the graph-level prediction probability. Then, this graph-level prediction is passed to a softmax layer, which is supervised by the graph-level label.

In this framework, the final loss is formed by the node-level loss and graph-level loss together as follow:


where is a balancing parameter. Note that both and are implemented via the classic cross entropy loss function, and is the sum of the node-level losses from three branches. By minimizing the final loss, the error can be easily back-propagated through the whole MS-GWNN system in an end-to-end way.

Experiments and Results


We validate the proposed MS-GWNN on two public datasets: ICIAR 2018 breast cancer histology (BACH) grand challenge dataset Aresta et al. (2019) and BreakHis dataset Spanhol et al. (2015). The BACH dataset consists of 400 histopathological images with size of , which aims to predict breast cancer type as 1) normal, 2) benign, 3) in situ carcinoma, and 4) invasive carcinoma. We randomly select 320 samples for training and the rest 80 images for testing. In BreakHis dataset, there are 7909 samples classified as either benign or malignant. The images are collected at different magnification factors (, , , ). Experiments are conducted on the samples obtained at magnification (1995 images in total). In line with the previous works Bardou, Zhang, and Ahmad (2018); Gandomkar, Brennan, and Mello-Thoms (2018); Alom et al. (2019), the entire dataset is randomly divided into a training set with 70% samples and a testing set with 30% data. In this work, all images on BACH (BreakHis) dataset are resized to () to reduce the memory workload of GPU. For image preprocessing, we use the classic H&E color normalization approach described in Vahadane et al. (2015). To avoid overfitting, extensive data augmentation is performed including flip, rotation, translation, shear and linear contrast normalization. Moreover, the performance of model is evaluated according to the average accuracy at the image level.


To implement the proposed model, we use the Tensorflow platform on an NVIDIA GeForce GTX 1080 Ti GPU. Each GWNN model consists of three graph convolutional layers with the feature dimension of 256, 128 and 4 (2) respectively. The overall downsampling rate of the modified ResNet-50 is

. Moreover, we use the Adam optimizer to train the model, where the initial learning rate is and

. All models are trained for 30000 epochs with a batch size of 16. The hyperparameters

are set as 99 and 1 respectively.

Computational Complexity

As the eigendecomposition of Laplacian matrix requires much computational cost, we utilize a fast algorithm to approximate the graph wavelets. Hammond et al. Hammond, Vandergheynst, and Gribonval (2011) suggested that and can be efficiently approximated by a truncated expansion according to the Chebyshev polynomials with low orders. In this way, the computational complexity is where is the number of graph edges and is the degree of Chebyshev polynomials. In this work, we set .

Results and Comparisons

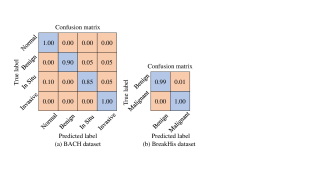

Figure 2:

Normalized confusion matrix results of MS-GWNN on two datasets.

Model Accuracy
Golatkar, Anand, and Sethi (2018) 85.00%
Mahbod et al. (2018) 88.50%
Roy et al. (2019) 90.00%
Meng, Zhao, and Su (2019) 91.00%
Yao et al. (2019) 92.00%
Wang et al. (2018) 92.00%
Kassani et al. (2019) 92.50%
Proposed MS-GWNN 93.75%

Table 1: Comparisons with state-of-the-art methods on BACH dataset.
Model Accuracy
Song et al. (2017) 87.00%
Nahid and Kong (2019) 95.00%
Han et al. (2017) 95.80%
Veeling et al. (2018) 96.10%
Kausar et al. (2019) 97.02%
Alom et al. (2019) 97.95%
Bardou, Zhang, and Ahmad (2018) 98.33%
Gandomkar, Brennan, and Mello-Thoms (2018) 98.60%
Proposed MS-GWNN 99.67%

Table 2: Comparisons with state-of-the-art methods on BreakHis dataset.

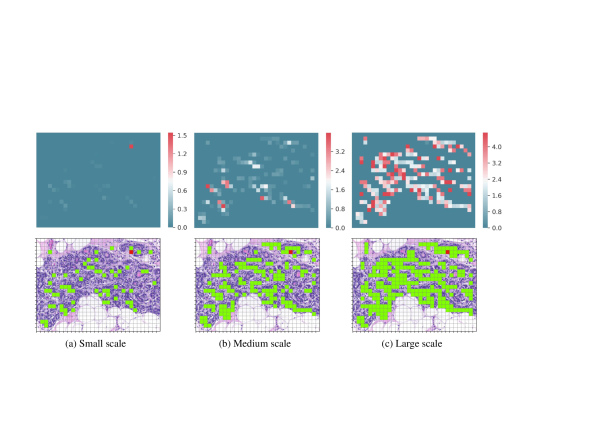

Figure 3: Visualization of the wavelet bases at different scales. The small, medium and large scale correspond to respectively. Top row: multi-scale graph wavelets centered at node . Bottom row: the receptive fields corresponding to the above wavelets. Each square denotes a node (patch) in the graph (image). The red point is the center node and the other green points are the neighborhood of node . As the scaling parameter gets larger, the receptive field of node becomes wider accordingly.

As for breast cancer classification, the new MS-GWNN obtains an accuracy of 93.75% and 99.67% on BACH and BreakHis dataset respectively. The normalized confusion matrices are shown in Figure 2. On BACH dataset, both normal and invasive categories yield a high accuracy of 100%, while the accuracy of predicting in situ type is relatively low. This could be due to the similar structures appeared in inter-class images. In addition, we compare the results with existing state-of-the-art models as listed in Table 1,2. Obviously, MS-GWNN outperforms the other methods on both datasets, especially on BreakHis dataset where the error rate is only 0.33%. The results demonstrate the strong capacity of the proposed MS-GWNN model to tackle pathological image classification.

Ablation Studies

Model Accuracy
GCN 88.75%
MS-GWNN-1 (s=0.5) 88.75%
MS-GWNN-1 (s=1.0) 88.75%
MS-GWNN-1 (s=1.5) 87.50%
MS-GWNN-2 (s=0.5,1.0) 91.25%
MS-GWNN-2 (s=0.5,1.5) 92.50%
MS-GWNN-2 (s=1.0,1.5) 91.25%
MS-GWNN-3 (s=0.5,1.0,1.5) 93.75%

Table 3: Ablation study of the multi-scale feature learning on BACH dataset. We set as 1 in all the experiments. MS-GWNN-1 () denotes the MS-GWNN model with one branch ().

To verify the effectiveness of MS-GWNN, we perform two kinds of ablation tests on BACH dataset. One is to investigate the effect of multi-scale feature extraction, and the other is about the selection of the balancing parameter in loss.

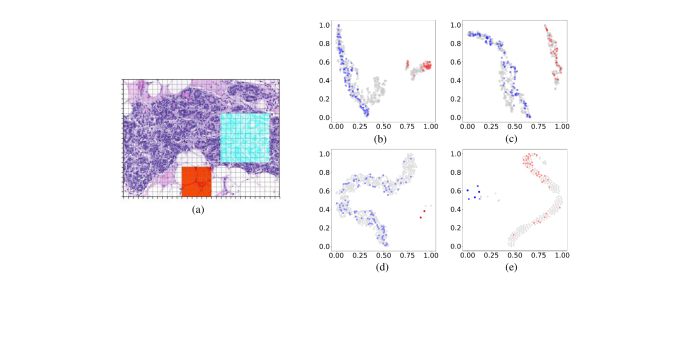

Figure 4: Representations of different node embeddings using t-SNE. (a) Raw image. Each square denotes a node in the graph. (b) t-SNE representations of the initial node embeddings (learned from ResNet). (c)(d)(e) t-SNE representations of the node embeddings produced by GWNN at the small (medium,large) scale. The red (blue) points in (b)(c)(d)(e) correspond to the red (blue) squares in the raw image (a). The node embeddings produced by GWNN at different scales exploit multi-level tissue structural features, providing richer information for cancer diagnosis.

The Function of Multi-Scale Feature Learning

In this section, we aim at analyzing the effect of the multi-scale features fusion. As shown in Table 3, as aggregating features at more scales, the model performance becomes better accordingly. The specific scaling parameter is given in brackets. When using only one-level features (), MS-GWNN obtains an accuracy of 88.75%. After introducing the features at another scale (), the accuracy increases to 91.25%. Further, MS-GWNN with three branches () can achieve a 93.75% accuracy. This comparison confirms that extracting multi-scale context information is very important for pathological image analysis, which is consist with the experience of pathologists.

In addition, we also perform an experiment which replaces the multi-branch GWNNs in MS-GWNN as the traditional graph convolutional network (GCN) Kipf and Welling (2016). As shown in Table 3, GCN achieves a similar result to MS-GWNN with one branch. However, due to the high spareness of graph wavelets, GWNN is much more computationally efficient than GCN, which has also been discussed in the previous work Xu et al. (2019).

Visualization of the wavelet bases at different scales. To further investigate the working mechanism of MS-GWNN, we show the graph wavelet bases at different scales in the top row of Figure 3. Each small square represents a node in the constructed graph, and the node-to-patch correspondence relation is drawn in the raw image as shown in the second row of Figure 3. Specifically, the red square denotes the node which the wavelet centered at, and the green squares denote the neighbourhood of node whose values are greater than 0 in the wavelet . As the scale gets larger, the scope of neighborhood becomes wider accordingly, meaning that the receptive field of node is gradually expanding. At the small scale (), only a minority of nodes contribute to the embedding updating of node . However, at the large scale (), the neighborhood nodes increase a lot which nearly spread on the entire tissue. In such setting, information can be propagated among the tissue structures at different levels, enabling MS-GWNN to acquire multi-scale contextual features.

Visualization of the learned node embeddings. In order to find the intrinsic characteristics of the node embeddings, we plot the 2D t-SNE projections of node embeddings in Figure 4

. T-distributed stochastic neighbor embedding (t-SNE) can convert high-dimensional data to a low-dimensional (2-dimensional here) representation while maintaining the distance between objects. Then, the extracted 2D vectors are normalized to

and are plotted in a scatter diagram. In Figure 4, (a) is the raw image where the squares correspond to the patches (nodes) in the image (graph). (b) shows the t-SNE representation of the initial node embeddings which are learned from the modified ResNet. (c)(d)(e) are the t-SNE representations of the node embeddings yielded by GWNN with different scales. It should be noted that the red and blue points in the scatter diagrams correspond to the squares (nodes) with the same color in (a). Obviously, in the pathological image (a), the red and blue squares belong to different tissues. Similarly, in (b)(c)(d)(e), the red and blue points are located in the different clusters. This phenomenon demonstrate that the intrinsic characteristics of nodes have been encoded in the embeddings.

On the other hand, the distribution of points reflects the inherent relationship between nodes. At the medium scale (), the red points are very close to each other. However, at the large scale (s=5), the red points have a much wider distribution. This contrast prove that the node embeddings produced by GWNN at different scales encode different structural information. Compared to using the CNN features only, MS-GWNN can provide richer node embeddings representing multi-level tissue structures. In clinical diagnosis, the tissue structural information is a critical factor considered by pathologists.

The Selection of the Scaling Parameter .

Model Accuracy
MS-GWNN-3 () 90.00%
MS-GWNN-3 () 92.50%
MS-GWNN-3 () 93.75%
MS-GWNN-3 () 91.25%
MS-GWNN-3 () 88.75%

Table 4: Ablation study of the parameter on BACH dataset.

As mentioned before, we can adjust the receptive field by varying the parameter . Hence how to select the appropriate scale is a key factor for GWNN. According to our experience of parameter tuning, a rule of thumb is to select the scaling parameter in . if the scale is much greater than 2, the model performance will decrease. There are methods to guide the selection of in graph wavelet analysis. Donnat et al. Donnat et al. (2018) designed a technique for selecting a set of applicable scales. In their strategy, the maximum and minimum scale are set to and respectively. Then the appropriate scale can be selected in . is the maximum eigenvalue of Laplacian matrix , and is the minimum nonzero eigenvalue. They suggest setting 0.85 and . However, our experiments show this strategy doesn’t work for graph wavelet neural network. We will further investigate how to design an elegant, theoretically guided rule to select the scaling parameter .

The Selection of Parameter

Table 4 shows the numerical results of MS-GWNNs with different parameter . The number “3” in “MS-GWNN-3” means that the MS-GWNN model utilizes three branches to learn multi-scale structural information. In more details, the three scaling factors in this experiment are set as . It can be observed that the parameter is an important factor influencing the performance of MS-GWNN. Further, the best option is , suggesting that both graph-level and node-level supervisions are equally crucial to identify cancer types.


In this work, we propose multi-scale graph wavelet neural network (MS-GWNN) for histopathological image classification. The MS-GWNN leverages the localization property of graph wavelets to perform multi-scale analysis with different scaling parameter . For the task of breast cancer diagnosis, MS-GWNN outperforms the state-of-the-art approaches, mainly resulting from its powerful ability to integrate multi-scale contextual interactions. Through ablation studies, we prove the importance of exploiting multi-scale features. More broadly, the MS-GWNN model provides a novel solution to extract multi-scale structural information using graph wavelets, which can also be applied to other tasks.

Ethics Statement

Across the world, breast cancer has frequent morbidity and high mortality among women. Early detection is the key to increase the survival rate. Our proposed MS-GWNN has great performance on breast cancer diagnosis with high efficiency, which is valuable for the clinical applications. Further, it opens up a new direction towards better multi-scale representations of pathological images in graph domain.
