1 Introduction

Over the last decade we have been witnessing a clear trend towards the fusion of the compute-intensive and the data-intensive paradigms on architectural, system, and application levels. On the one hand, large computational tasks (e.g. simulations) tend to feed growing amounts of data into their complex computational models, on the other hand database applications execute computationally-intensive ML and analytics-style workloads on increasingly large datasets. Such modern workloads and systems are memory intensive. And even though the DRAM-capacity per server is constantly growing, the main memory is becoming a performance bottleneck.

Due to DRAM’s and storage’s inability to perform computation, modern workloads result in massive data transfers: from the physical storage location of the data, across the memory hierarchy to the CPU. These transfers are resource intensive, block the CPU, causing unnecessary CPU waits and thus impair performance and scalability. The root cause for this phenomenon lies in the generally low data locality as well as in the traditional system architectures and data processing algorithms, which operate on the data-to-code principle. It requires data and program code to be transferred to the processing elements for execution. Although data-to-code simplifies software development and system architectures, it is inherently bounded by the von Neumann bottleneck Kaplan:JSFI:PIM:2017 ; Swanson:WONDP:Micro:2014 , i.e. it is limited by the available bandwidth. Furthermore, modern workloads are not only bandwidth-intensive but also latency-bound and tend to exhibit irregular access patterns with low data locality, limiting data reuse through caching Zhang:NPP:MSPC:2013 .

These trends relate to the following recent developments: (a)Moore’s Law is said to be slowing down for different types of semiconductor elements and Dennard scaling Dennard1999 has come to an end. The latter postulates that performance per Watt grows at approximately the same rate as the transistor count set by Moore’s Law. Besides the scalability of cache-coherence protocols, the end of Dennard scaling is, among the frequently quoted reasons, as to why modern many-core CPUs do not have 128 cores that would otherwise be technically possible by now (see also Nikos:CS:TowardDarkSiliconInServers:2011 ; Muramatsu:JCDL:IfYouBuildItWillTheyCome:2004 ). As a result, improvements in computational performance cannot be based on the expectation of increasing clock frequencies, and therefore mandate changes in the hardware and software architectures. (b) Modern systems can offer much higher levels of parallelism, yet scalability and the effective use of parallelism are limited by the programming models as well as by the amount and the types of data transfers. (c) Memory wall WulfWmAandMcKee1994 and Storage Wall. Storage (DRAM, Flash, HDD) is getting larger, cheaper but also colder, as access latencies decrease at much lower rates. Over the last 20 years DRAM capacities have grown 128x, DRAM bandwidth has increased 20x, yet DRAM latencies have only improved 1.3x Chang:PhD:2017 . This trend also contributes to slow data transfers. (d) Modern data sets are large in volume (machine data, scientific data, text) and are growing fast Gray:SienceExponentialWorld:Nature:2006 . Hence, they do not necessarily fit in main memory (despite increasing memory capacities) and are spread across all levels of the virtual memory/storage hierarchy. (e) Modern workloads (hybrid/HTAP or analytics-based such as OLAP or ML) tend to have low data locality and incur large scans (sometimes iterative) that result in massive data transfers. The low data locality of such workloads leads to low CPU cache-efficiency, making the cost of data movement even higher.

In essence, due to system architectures and processing principles, current workloads require transferring increasing volumes of large data through the virtual memory hierarchy, from the physical storage location to the processing elements, which limits performance and scalability and hurts resource- and energy-efficiency.

Nowadays, two important technological developments open an opportunity to counter these factors.

  • Trend 1: Hardware manufacturers are able to fabricate combinations of storage and compute elements at reasonable costs and package them within the same device. Consider, for instance, 3D-stacked DRAM HBM , or modern mass storage devices Kang2013 ; Gu2016 with embedded CPUs or FPGAs. Cost-efficient fabrication has been a major obstacle to past efforts. Interestingly, this trend covers virtually all levels of the memory hierarchy: CPU and caches; memory and compute; storage and compute; accelerators – specialized CPUs and storage; and eventually, network and compute.

  • Trend 2: As magnetic/mechanical storage is being replaced with semiconductor storage technologies (3D Flash, Non-Volatile Memories, 3D DRAM), another key trend emerges: the chip- and device-internal bandwidth are steadily increasing. (a) Due to 3D-Stacking, the chip-organization and chip-internal interconnect, the on-chip bandwidth with 3D-Stacked DRAM is steadily increasing and a function of the density. (b) With 3D-stacking NAND Flash chips are not only getting denser, but also exhibit higher bandwidth. For instance, Samsung1GB presents 3D V-NAND with a capacity of 512 Gb and 1.0 GB/s bandwidth. Storage devices package several of those chips and connecting them over independent channels to the on-device processing element. Hence, aggregate the device-internal bandwidth, parallelism, and access latencies are significantly better than the external ones (device-to-host).

    Consider the following numbers to gain a perspective on the above claims. The on-chip bandwidth of commercially available High-Bandwidth Memory (HBM2) is 256 GB/s per package, whereas a fast 32-bit DDR5 chip can reach 32 GB/s. Upcoming HBM3 is expected to raise that to 512 GB/s per package. Furthermore, a hypothetical 1 TB device built on top of Samsung1GB will include at least 16 chips, yielding an aggregated on-device bandwidth of 16 GB/s, which is four times more than state-of-the-art four-lane PCIe 3.0 x4 (approx. 4 GB/s).

Consequently, processing data close to its physical storage location has become economically viable and technologically feasible over a range of technologies.

1.1 Definitions

Near-Data Processing (NDP) targets the execution of data-processing operations (fully or partially) in-situ based on the above trends, i.e within the compute elements on the respective level of the storage hierarchy, (close to) where data is physically stored and transfer the results back, without moving the raw data. The underlying assumptions are: (a) the result size is much smaller than the raw data, hence, allowing less frequent and smaller-sized data transfers; or (b) the in-situ computation is faster and more efficient than on the host, thus, yielding higher performance and scalability, or better efficiency. NDP has extensive impact on:

  1. [nosep,nolistsep]

  2. hardware architectures and interfaces, instruction sets, hardware

  3. hardware techniques that are essential for present programming models, such as: cache-coherence, addressing and address translation, shared memory.

  4. software (OS, DBMS) architectures, abstractions and programming models.

  5. development toolchains, compilers, hardware/software co-design.

Nowadays, we are facing disruptive changes in the virtual memory hierarchy (Fig. 1), with the introduction of new levels such as Non-Volatile Memories (NVM) or Flash. Yet, co-location of storage and computing units becomes possible on all levels of the memory hierarchy. NDP emerges as an approach to tackle the “memory and storage walls” by placing the suitable processing operations on the appropriate level so that execution takes place close to the physical storage location of the data. The placement of data and compute as well as DBMS optimizations for such co-placements appear as major issues. Depending on the physical data location and compute-placement several different terms are used Siegl:MEMSYS:PIMsurvey:2016 ; Swanson:WONDP:Micro:2014 :

  • [noitemsep,nolistsep]

  • Near-Data Processing or In-Situ Processing – are general terms referring to the concept of performing data processing operations close to the physical data location, independent of the memory hierarchy level.

  • Processing-in-Memory (PIM), Near-Memory Processing – mainly represent a paradigm where operations are executed on processing elements packaged within the memory module or directly within the DRAM chip.

  • In-Storage Processing, In-Storage Computing, Processing-In-Storage – mostly refer to a paradigm where operations are executed on processing elements within secondary storage.

  • Intelligent Networks, SmartNICs, Smart Switches Binnig:DS:SmartNEtworks:2018 – as the above paradigms, yet these target operation execution on processing elements within NICs or Switches.

Challenges: A number of challenges need to be resolved to make PIM and NDP standard techniques. Among the most frequently cited Mutlu2018 ; Scrbak2017 ; Siegl:MEMSYS:PIMsurvey:2016 are: the host processor and the PIM processing elements (as well as their instruction sets and architectures); the memory hierarchy, the memory model, established techniques such as TLB and address translation, cache-coherence, synchronization mechanisms and shared state/memory techniques; interconnect, communication channels, interfaces and transfer techniques; programming models and abstractions; OS/DBMS integration and support.

1.2 Historical Background

The concept of Near-Data Processing or in-situ processing is not new. Historically it is deeply rooted in the concept of database machines DeWitt:CACM:DatabaseMachines:1992 ; Boral:DatabaseMachines:1989 developed in the 1970 and 1980s. Boral:DatabaseMachines:1989 discuss approaches such as processor-per-track or processor-per-head as an early attempt to combine magneto-mechanical storage and simple computing elements to process data directly on mass storage and reduce data transfers. Besides reliance on proprietary and costly hardware, the I/O bandwidth and parallelism are claimed to be the limiting factor to justify parallel DBMS Boral:DatabaseMachines:1989 . While this conclusion is not surprising, given the characteristics of magnetic/mechanical storage combined with Amdahl’s balanced systems law Gray:RulesOfThumb:ICDE:2000 , it is revised with modern technologies. Modern semi-conductor storage technologies (NVM, Flash) are offering high raw bandwidth and high levels of parallelism. Boral:DatabaseMachines:1989 also raises the issue of temporal locality in database applications, which has already been questioned earlier and is considered to be low in modern workloads, causing unnecessary data transfers. Near-Data Processing presents an opportunity to address it.

The concept of Active Disk emerged towards the end of the 1990s. It is most prominently represented by systems such as: Active Disk Acharya:ASPLOS:ActiveDisc:1998 , IDISK Keeton:SigmodRec:IDISK:1998 , and Active storage/disk Riedel:VLDB:ActiveStorage:1998 . While database machines attempted to execute fixed primitive access operations, Active Disk targets executing application-specific code on the drive. Active storage Riedel:VLDB:ActiveStorage:1998 relies on processor-per-disk architecture. It yields significant performance benefits for I/O bound scans in terms of bandwidth, parallelism and reduction of data transfers. IDISK Keeton:SigmodRec:IDISK:1998 , assumed a higher complexity of data processing operations compared to Riedel:VLDB:ActiveStorage:1998 and targeted mainly analytical workloads and business intelligence and DSS systems. Active Disc Acharya:ASPLOS:ActiveDisc:1998 targets an architecture based on on-device processors and pushdown of custom data-processing operations. Acharya:ASPLOS:ActiveDisc:1998 focuses on programming models and explores a streaming-based programming model, expressing data intensive operations, as so called disklets, which are pushed down and executed on the disk processor.

As a result of recent developments and Trend 1, the memory hierarchy nowadays is getting richer and incorporates new levels. Also, processing elements of different types are being co-located on each level (Fig. 1). Hence, NDP has diversified depending on the level. Agerwala:DataIntensive:ICPP:2014 acknowledges that computing should be done on the appropriate level of the memory hierarchy (Fig. 1) and that, in the general case, it will be distributed along all levels and is heterogeneous because of the different types of processing elements involved.

Figure 1: Complex Memory Hierarchy. Co-location of storage and compute.

Research combining memory technologies with the above ideas, often referred to as Processing In-Memory (PIM), is very versatile, and likewise not a new idea. In the late 1990, Patterson:IRAM:Micro:1997 proposed IRAM as a first attempt to address the memory wall, by unifying processing logic and DRAM. Kaxiras:MLD:VectorIRAM:1997 proposed moving computation to data rather than vice versa to reduce data movement. This idea gave rise to the concept of memory-centric computing Minutoli:RadixSortEmu1:WONDP:2015 or data-centric computing Agerwala:DataIntensive:ICPP:2014 and found also application in various computer science technologies besides data management systems Boroumand2018 . Balasubramonian:MSSC:MakingTheCaseForFeatureRichMemorySystems:2016 provides an excellent overview of modern PIM techniques. With the advent of 3D-Memories, PIM is said to become commercially viable Torrellas:FlexRAMretro:ICCD:2012 (see Section 2 for more details). The possible PIM performance improvement is illustrated in Zhang:NPP:MSPC:2013 , where 50% latency (and 77% execution time) improvements are reported under a latency sensitive workload; and 4x bandwidth improvement under a bandwidth-sensitive workload in PIM settings.

Nowadays, the NDP builds upon ActiveDisk/Storage ideas in terms of processing-in-storage gain significant attention in terms of intelligent storage concepts such as: SmartSSDs, In-Storage Processing/Computing. With growing datasets that do not fit in memory, many data- and compute-intensive (e.g. selections, aggregations, joins or linear algebra) operations can be performed directly within mass storage as a result of Trend 2. In terms of NDP performance, Moon:InfSci:ISC:2016 reports 7x and 5x improvement for scans and joins and energy savings of up to 45x.

Accelerator-based computing. Based on the observation that the difficulties of constructing general hardware can be avoided by constructing dedicated cards with new designs and connecting them to the cost over standard interfaces gave rise to the so-called accelerator based computing. A good overview of the emerging DBMS research, which examines using a GPU as co-processor, is provided in Bress:GPUcoproc:IS:2013 . Teubner:IBEX:VLDB:2014 is an excellent example of NDP on FPGA-based accelerators demonstrating performance improvement of 7x to 11x under TPC-H workloads.

1.3 PIM Problem Space

NDP and PIM impact the foundation of established computing and architectural principles. Naturally, the problem space of such paradigms involves a wide range of aspects. Those covered in the present survey are depicted in Figure 2. We consider present limitations as well as technological and fabrication trends that lead us to believe that current PIM-efforts represent a breakthrough given the current state-of-the-art. Modern workloads, systems as well as developments, and data processing, and analytics are major factors in favor of PIM. Last but not least, aspects such as interconnects, processing elements, instruction sets, memory, computing, and synchronization techniques as well as the programming models play a central role in the current survey.

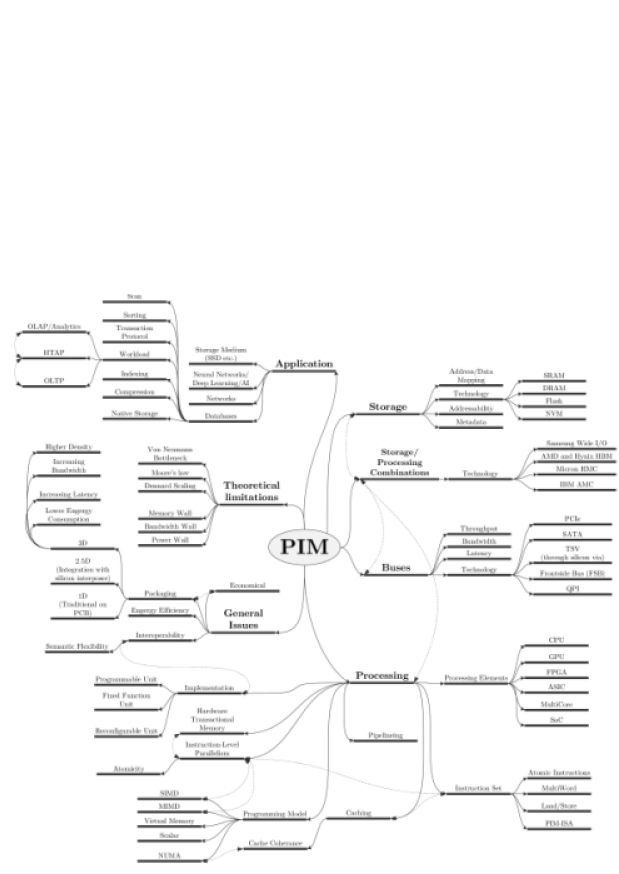

Figure 2: Problem space of Processing In-Memory.

2 Technological Advances

2.1 Storage

The research about storage technologies has been dramatically involved in the semiconductor industry during the last decades. Mainly two types are of interest – Flash and lately Non-Volatile Memories.

2.1.1 Flash

With the advent of the Electrically Erasable Programmable Read-Only Memory (EEPROM) the first NOR flash cell by Toshiba Masuoka1985 was presented in the mid 1980s. This gave rise to a new type of purely electrical storage technology (without any mechanical moving parts) with read/write latencies an order of magnitude lower than traditional magnetic drives (see Table 1). Almost two years later, Toshiba’s engineer Masuoka introduced the Flash EEPROM as a NAND structure cell Masuoka1987 , enabling to produce smaller cell sizes without scaling the device dimensions.

In the subsequent years, the trend towards structure size reduction111Smaller structures refer to shrinking dies, mainly due to shrinking transistors sizes. The process is repeatedly defined by ITRS ITRS2011 , e.g. 2018: 7nm, 2017: 10nm, 2014: 14nm, 2012: 22nm, 2010: 32nm, 2008: 45 nm, … and advanced fabrication processes drove the competition among the flash chip vendors. As a result, the current floating gate transistors, as one essential component for flash cells, can differentiate between multiple states of electrical charge to increase the data density. While Single-Layer Cells (SLC) are only able to store one single bit per cell, Multi-Layer Cells (MLC) Park2015 or Triple-Layer Cells (TLC) Kang2017 can persist two or three bits per cell. Recently, even Quad-Layer Cells (QLC) Liu2018 are introduced. Since the miniaturization of structures represents a major obstacle, as physical limits are reached, stacking approaches were recently applied. As a result, stacked planar flash chip topologies (2D-NAND) were recently replaced by the so-called 3D-NAND Silvagni2017 . This could be done either horizontally Sakuma2013 or vertically Parat2015 ; Park2015 ; Kang2017 to lower the production costs, increase capacities, and reduce the aggregated SSD power consumption.

DRAM PCM STT-RAM Memristor NAND Flash HDD
Write Energy [pJ/bit] 0.004 6 2.5 4 0.00002
Endurance
Page size 64B 64B 64B 64B 4-16KB 512B
Page read latency 10ns 50ns 35ns 10ns 25us 5ms
Page write latency 10ns 500ns 100ns 20-30ns 200us 5ms
Erase latency N/A N/A N/A N/A 2ms N/A
Cell area [F] 6 4-16 20 4 1-4 N/A
Table 1: Comparison of storage technologies ITRS2011

2.1.2 Non-Volatile Memory

In parallel, the research on novel non-volatile memory technologies like Spin-Transfer Torque Random Access Memory (STT RAM) Huai2008 , Phase-Change Memory (PCM) Lee2009 , Magnetoresistive Random Access Memory (MRAM) Wong2012 or Resistive Random Access Memory (RRAM) began. Concrete technologies and devices were recently announced by semiconductor vendors: Intel and Micron’s PCM Villa2010 and 3D XPoint 3DXPoint , Samsung’s PCM Choi2012 , HPE’s Memristor Strukov2008 or Toshiba and Sandisk’s RRAM Scheuerlein2013 . They are subsumed under the term Non-Volatile Memories (NVM) or Storage Class Memory (SCM). NVM characteristics differ from conventional storage technologies like Flash or DRAM: like DRAM they are byte-addressable, yet the read/write latencies are 10x/100x higher than DRAM (see Table 1). Unlike DRAM, NVM operations are asymmetric, i.e. reads are much faster than writes. Like flash, cells wear out with the number of program cycles, making it necessary to employ wear-leveling approaches (like a Flash-Translation Layer (FTL)) to distribute writes evenly across all cells and ensure even wear over time.

2.2 Processing Elements

The invention of mass-produced processing units dates back into the late 1960s with the foundation of vendors like Intel or AMD. In 1971, the first microprocessor 4004 was announced by Intel Faggin1996 , comprising 16 Read-Only Memory (ROM) and 16 Random-Access Memory (RAM) chips. Since then, the processing units evolved dramatically.

Nowadays Intel Skylake-SP Central Processing Units (CPU) comprise of up to 28 cores, clocked with 3.6 GHz, and can address 1.5 terabytes of memory. AMD’s counterpart, the Zen-based Epyc processor has even up to 32 cores per CPU. Besides the classical ALUs, current CPUs include also multiple caches, buffers, and vector units. A conventional server can be equipped with multiple of such CPUs (typically 4 to 8), resulting in an extremely high parallelism.

Having even more cores per processing unit, Graphical Processing Units (GPU) became a common accelerator for various algorithms of many applications besides graphical processing calculations. Especially tasks like matrix computation, used in artificial intelligence or robotics, are perfectly fitted to the vectorized SIMT fashion of a GPU. Lately, Application-Specific Integrated Circuits (ASIC) like the Google’s TensorFlow Processing Units (TPU) have become more and more prominent as their performance for specific workloads is immense.

However, ASICs can perform only algorithms defined during the development and cannot be changed afterwards or during runtime. For this reason, more flexible Field-Programmable Gate Arrays (FPGA) or Coarse Grained Reconfigurable Architectures (CGRA) are applied in such diverse workloads, but still have an extreme parallelism because of their ability to maintain multiple dynamic and elastic pipelines.

2.3 Packaging and 3D Integration

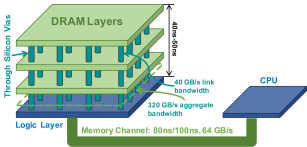

Figure 3: Architecture of a 3D-stacked DRAM (based on Mutlu2018 ; Scrbak2017 ).

With the advent of fabrication processes in the semiconductor industry the ability to manufacture highly integrated circuits allowed for shorter wire paths by placing heterogeneous elements on the same silicon die. Such systems, partially referred as Very Large Scale Integration (VLSI), revolutionized the computer science, are basis for all modern technology, and was awarded with the Nobel prize to its inventor Jack S. Kilby in 2000 ICNobelprize . The packaging arrangements varied over the years from Multi-chip Modules (MCM) over System-on-Chip (SoC) to System-in-Package (SiP) or even Package-in-Package (PiP). All those have in common that the die or dies are mounted in the package in a single plane and therefore are known as 2D devices.

However, with the growing number of transistors per chip (see Moore’s law Schaller1997 ) and the end of faster and more efficient transistors (see end of Dennard scaling Dennard1999 ) led to micro-architectures with a larger number of separate processing elements (e.g. cores or even processing elements of different types like GPU or FPGA), instead of a substantial increase of single-core performance. Along the lines of Moore’s law Schaller1997 , transistors would need to shrink to a scale of a handful of atoms by 2024 Shalf2015 , under the traditional 2D silicon lithographic fabrication process. Separate processing elements though, have much higher I/O requirements (e.g. memory bandwidth) than single cores. These I/O requirements have proven to be difficult to fulfill even in chip packages with thousands of pins. However, they can be achieved by stacking chips either directly on top of each other (3D) or on top of a passive interposer die (2.5D) and perform connections not through pins/balls but using much smaller, but far more numerous Through-Silicon Vias – TSVs (Figure 3). Using 10 000 of TSVs, I/O bandwidths in the order of terabytes per second can be achieved. Furthermore, through shorter wires, like TSVs, the system-wide power consumption can be reduced, decreasing the impact of heat development or parasitic capacitance. However, with growing complexity of 3D integrated circuits same effects re-emerge as challenges Kim2009 .

3D integrated circuits enable fabrication of heterogeneous systems, including logical processing and persistence, on the same chip Borkar2010 . Well known examples for such heterogeneous systems are the High Bandwidth Memory (HBM) from AMD and Hynix Lee2014 , Samsung’s Wide I/O Kim2012 , the Bandwidth Engine (BE2) Miller2011 , the Hybrid Memory Cube (HMC) developed by the Micron and Intel Pawlowski2011 or IBM’s Active Memory Cube (AMC) Nair2015 .

2.4 Interconnect and Buses

Modern computer architectures include a large number of different bus systems. Firstly, there are peripheral bus systems to connect the host bus adapter to mass storage devices (e.g. HDDs or SSDs). Standards like SCSI, FibreChannel and SATA are omnipresent but suffer from the poor bandwidth performance improvements. For instance, the first version of SATA in 2003 is able to transfer only 1.5 Gbit/s, yet the latest version from 2008 has only improved by a factor of four. Secondly, there are expansion buses, which connect various devices to the host system (e.g. graphic cards, accelerators, or storage devices). Standards like PCIe significantly increased their bandwidth from 4 GB/s in its first version to about 32 GB/s using 16 lanes in the recent PCIe v4.x.

The interconnects between the CPUs and the memory, should also be considered besides these above bus types. During the 1990s and 2000s the front-side bus (FSB) of Intel and AMD connected the CPU with the northbridge in the computer architectures. With the low throughput of around 4-12 GB/s they got replaced by the Quick Path Interconnect (QPI) or the HyperTransport (HT) interfaces in modern systems. QPI operates on 3.2 GHz and has a theoretical aggregated throughput of 25.6 GB/s. HT doubles this, because it directly uses 32 instead of 16 data bits per link. AMD’s newest on-chip interconnect architecture, Infinity Fabric (IF), is even specified to transfer about 30 to 512 GB/s.

As a consequence, there is a significant bandwidth gap between the on-chip bandwidth and the off-chip bandwidth (i.e DRAM-to-CPU) as depicted in Figure 3. Furthermore, due to the RAS/CAS interface and the internal DIMM module organization DRAM offers limited parallelism, while increasing the number of DIMMs per channel typically decreases performance Swanson:WONDP:Micro:2014 .

2.5 Summary

The advance in computer technologies over the last decades is remarkable. Especially the storage and memory chips have increased their volumes per area dramatically. CPUs as processing elements have reached their limits in clock frequencies but just started to scale horizontally over multiple cores, resulting in an immense parallelism. Additionally, new processing technologies become more and more mainstream to implement in nowadays data centers and are perfectly fitted for modern problems like AI.

With the exception of 3D integration, buses between storage/memory and processing elements have slightly evolved in comparison to the remainder. Newer bus systems have promising throughputs but cannot withstand the foreseeable workloads. As a consequence, PIM is a promising alternative to scaling the bus bandwidth and achieving low latencies needed by modern workloads and applications.

3 Impact on Computer Architecture, OS, and Applications

Despite all research and technological advancements, especially those regarding physical boundaries of fabrication processes (e.g. more transistors per area) or run time properties (e.g. heat dissipation or power consumption), the switch from the data-to-code to the code-to-data impacts the computer and systems architecture (operating system or DBMS) as well as the applications running on top of them. Concepts like virtual memory and address translation have to be adapted to novel computational and programming models. To this end, instruction sets of processing and storage elements need reconsideration, coherency protocols need to be revisited, and the workload is distributed across the entire system. Ideally, cross layer optimizations would touch multiple layers of the system hierarchy and thus, mitigate performance bottlenecks of traditional abstractions or concepts while focusing likewise on latency and interoperability Swanson .

The following section classifies PIM research from the last three decades, with respect to: workload distribution/partitioning, instruction sets, computational/ programming model, addressing, buffer/cache management, and coherency. An overview of the evaluated approaches and their classification is given in Table

2. Yet, there are several more approaches present in research Zhang2018 ; Seshadri2017 ; Nai2017 ; Tsai2018 ; Tang2017 ; Gao2015 ; Xie2017 .

3.1 Computational and Programming Model

PIM architectures place PIM processing logic on the logic layer within the DRAM chip itself (Figure 3) or on a processing element within the memory module (Figure 4). The offloaded PIM processing logic is typically referred to as PIM cores or PIM engines Mutlu2018 ; Scrbak2017 . Currently, PIM cores have limited use, yet many research proposals, making efficient use of it, have appeared recently Mutlu2018 . Depending on the architecture, these “range from fixed-function accelerators to simple in-order cores, and to reconfigurable logic” Mutlu2018 . A broad taxonomy of the different PIM Cores functionality is presented in Loh2013 .

The PIM cores execute only when application/code is spawned by the CPU on the PIM processing logic. The offloaded parts of the system/application on the PIM core are typically referred to as PIM kernels (Figure 3). PIM kernels vary significantly in their scope and functionality. Many recent research of PIM architectures follow similar models for CPU-PIM (core and kernel) interactions in terms of interfaces, techniques, and programming models.

3.1.1 PIM Computational Models

Processing data closer to storage or even memory allows for concurrent processing of higher data volumes. Therefore computational or programming models like vector processing and data parallelism based on Single Instruction Multiple Data (SIMD) or even Multiple Instruction Multiple Data (MIMD) play an important role. Already in 1994, P. Kogge presented the EXECUBE Kogge1994 for massively parallel programming. EXECUBE is fabricated with processing logic and memory side-by-side on a single circuit. It comprises 4 MB DRAM, which is equally partitioned in a logic array implementing 8 complete 16-bit CPUs. These 8 processing elements can obtain their instructions from their memory subsystems and run in a MIMD mode or can be addressed from the outside, utilizing a SIMD Broadcast Bus, by sending instructions directly into the CPU’s instruction register.

Another approach is presented by Gokhale1995 , who divided the MIMD and SIMD processing on different parts of their Terasys system. Given their new programming language, data-parallel bit C, conventional instructions are executed by the SPARC processor while data parallel operands are promoted to the ALU within the memory. This allows executing applications, which are well suited for SIMD processing without penalizing conventional application logic. Computational RAM (CRAM), Elliott et al. Elliott1999 ; Elliott2008 follow an approach similar to Gokhale1995 , which can function either as a conventional memory chip or as a SIMD processing unit. Benchmarks, comparing the CRAM with a setup based on the SPARC processor, show an impressive speed-up of up to 41 times.

A more flexible approach, called Active Pages Oskin1998 , has been presented by a research team of the UC Davis. Active Pages Oskin1998 introduce a novel computational model, where each page consists of data and a set of associated functions. Those functions can be bound during runtime to a group of pages and be applied on data located within these pages. The implementation is based on Reconfigurable RAM, combining DRAM with reconfigurable logic.

As such combinations of general purpose processors or vector accelerators with memory chips are non-trivial to fabricate, ProRAM Wang2015 was proposed to leverage existing resources of NVM devices to implement a lightweight in-memory SIMD-like processing unit. ProRAM is based on the Samsung’s PCM architecture Lee2009 to reuse and instrument the Data Comparison Write unit in combination with further surrounding peripheral units for processing, e.g. additions, subtractions or scans.

The near-DRAM accelerator (NDA) Farmahini-Farahani2015 introduces a completely new programming model, utilizing modern 3D stacking. Similar to Riedel1999 , the application code is profiled and analyzed for data-intensive kernels with long execution times, which is then converted into hardware data-flows. These can be executed by CGRA units (Coarse-Grained Reconfigurable Architecture) located near-DRAM in a highly parallel fashion.

The architecture of the Active Memory Cube (AMC) Nair2015 takes this concept one step further as it implements a balanced mix of multiple forms of parallelism such as multithreading, instruction-level parallelism, vector and SIMD operations. To facilitate the programming model a special AMC compiler is necessary to generate AMC bitcode out of the user-identified code sections and data regions. Several compiler optimization techniques (e.g. loop blocking, loop versioning, or loop unrolling) are utilized to exploit all forms of parallelism. Same concept can also be found in other approaches like TESSERACT Ahn2015 or the Mondrian Data Engine Drumond2017 .

3.1.2 PIM Programming Models

One of the challenges towards a wide-spread use of PIM lies in the appropriate programming models. Many system designs treat the PIM processing logic (PIM core) as a co-processor. Hence, many PIM programming models are rooted in accelerator-based computing approaches. Scrbak2017 ; Siegl:MEMSYS:PIMsurvey:2016 consider MapReduce as a suitable model in compute-intensive environments such as HPC. Furthermore, frameworks/models such as OpenMP and OpenACC are considered good candidates. They, however, need specific PIM extensions to cover broader classes of PIM operations. Moreover, OpenCL is considered a viable programming model alternative Zhang:NPP:MSPC:2013 . It is based on the heterogeneous computing characteristics of PIM and the typically data-parallel operations. Interestingly, programming models for data processing and database functionality for PIM (similar to the ones designed for GPGPU accelerators Bress:GPUcoproc:IS:2013 ) are still an open topic.

Mutlu2018 ; Boroumand:CAL:LazyPIM:2017 argues that existing programming models should be preserved for PIM to simplify application development and allow for easy spread of PIM architectures. Mutlu2018 ; Boroumand:CAL:LazyPIM:2017 ; Zhang:NPP:MSPC:2013 ; Scrbak2017 claim that elementary techniques such as a single virtual memory space (and address translation) as well as cache coherence should be preserved for PIM. Furthermore, many authors Mutlu2018 ; Zhang:NPP:MSPC:2013 ; Scrbak2017 seem to agree that PIM inherently should rely on non-uniform memory access techniques and system architectures.

PIM infrastructures and development toolchains are major aspects towards broader PIM proliferation. PIM infrastructures are intrinsically of heterogeneous compute nature: Scrbak2017 for instance assumes ARM-like PIM cores, whereas Zhang2014 focuses on GPU-based PIM-Cores, while HMC-based alternatives rely on FPGAs. Domain-Specific Languages (DSL) and highly optimized libraries as well as compiler infrastructures have proven to allow efficient development over the set of the above technologies and hardware/software co-design. Furthermore, suitable debugging, monitoring, and profiling tools are essential for PIM-enabled architectures, yet they are still referred to as future work.

Figure 4: PIM Architecture with 3D-stacked DRAM.

For In-Storage Processing, where the processing unit is near the storage chips on a PCB, the computational model is usually hidden behind a well-defined host-to-device interface. De2013 ; Cho2013 ; Minutoli2015 ; Gu2016 are only a few examples of such systems. Their interface is designed either for general-purpose applications or specific workloads but offers the opportunity to address the main advantage of both, PIM and NDP, the reduction of memory transfers.

3.2 Processing Primitives and Instruction Sets

Conventional systems are mainly based on a load and store semantic, where cachelines are transferred from the memory into the caches or registers of the processing unit and vice versa. The low-level instructions are executed on the cacheline data and the result is evicted to the memory subsystem (store), when advised. Thereby, the available instruction set is determined by the processing unit’s architecture, often referred as Instruction Set Architecture (ISA). Today one can divide ISAs in Reduced Instruction Set Computer (RISC) and Complex Instruction Set Computer (CISC). These are either standardized by foundations like the RISC-V RISCV and/or extended by vendors, e.g. Intel introduced the Intel Instruction Set Architecture Extensions (Intel AVX) IntelAVX for vector-based programming models like SIMD.

With PIM in place, the interface to the memory needs to be extended. Depending on the depth of PIM integration the architecture and the type of interconnect (host-to-device/host-to-memory) the interface may take different forms. Either single primitives, implemented directly in the PIM processing logic and controlled by traditional higher-order instructions are evaluated, or the existing instruction sets are extended to have novel ways of managing the processing capabilities in the memory.

Terasys Gokhale1995 – a pioneering PIM system – reused patterns from the existing CM2 Paris instruction set ThinkingMachines . Seshadri et al. Seshadri2015 recommend modifing applications for their bulk bitwise AND and OR DRAM by making use of specific instructions. Modifications are limited to a preprocessor and to specific libraries, which exploit the available hardware acceleration and are shared by many applications.

Often a compiler is necessary to cover the complexity of those low-level instructions for software developers. For this purpose, Hall1999 ; Draper2002 focus on the Stanford SUIF compiler system to hide the complexity of DIVA, which has high similarities to a distributed-shared-memory multiprocessor. It supports their special At-the-Sense-Amps Processor instructions that are seamlessly integrated into the PIM backend. Likewise, Hadidi2017 analyze within their proposed CAIRO the advantages of compiler-assisted instruction-level PIM offloading and thereby examine an double in performance for a set of PIM-beneficial workloads.

Higher level of parallelism can also be achieved by, e.g. long-instruction words (LIW) as proposed by AMC Nair2015 . The ISA intends to have a vector length, which is applied on all vector instructions with the LIW. It can be applied either directly within the instruction or by obtaining it from a special register. By this, AMC can express three different levels of parallelism: parallelism across functional pipelines, parallelism due to spatial SIMD in sub-word instructions, and parallelism due to temporal SIMD over vectors Nair2015 .

Often, PIM instructions are also hidden behind an interface. For instance, JAFAR defines its select instruction as an API call with start address of the virtual memory address and further parameters such as range_low and range_high as inclusive bounds for range filters Xi2015 ; Babarinsa2015 . Similar considerations apply to many proposed in-storage or accelerator-based approaches, which focus on the instructions from an application point of view but not the seamless integration into the computer architecture itself Kang2013 ; Koo2017 ; Ist2017 ; Seshadri2014 . For example, Wu2014 introduces a flexible and extensive database specific instruction set for an accelerator, but reaches the out-of-chip bandwidth limits, which is a clear evidence for the necessity of PIM.

One of the most advanced processing interface is the Expressive Memory (XMem) introduced in Vijaykumar2018 . Besides many other optimizations like cache management and compression, placement, and prefetching, the authors propose a new hardware-software abstraction called Atom. An Atom consists of three key components, Attributes for higher-level data semantics, Mapping to describe the virtual address range, and State indicating whether the Atom is currently active or inactive. These can be manipulated by issuing specific calls. Atoms are planned to be interpretable by all layers of the computer architecture and therefore constitute a cross-layer interface. Thereby, it is possible to interact with Atoms on every level and execute PIM operations in hardware or in software.

3.3 Memory Management and Address Translation

The question of addressing and address management is directly related to the ISA and the computational model. This includes the distribution of the usable storage or memory into address spaces and the way of addressing it, i.e. directly executing on physical address or by exploiting virtual addresses to the host system and managing any kind of page table. In-storage solutions Fitch2009 or large-scale platforms Gu2016 , which evaluate PIM-like problems, often rely on traditional storage APIs that use immutable logical address and an address granularity of whole blocks, which is not sufficient for memory.

To this end, a few PIM approaches set their focus differently, but take advantage of the existing address management of modern CPUs. For instance, JAFAR’s API Xi2015 ; Babarinsa2015 must be called for every page since the address translation service is managed by the host. A similar approach is pursued by Ahn2015ISCA , which supports virtual memory as their PIM-enabled instructions are part of a conventional ISA. Hence, they avoid the overhead of adding address translation capabilities into the memory and leverage existing mechanisms for handling page faults. A slightly different approach is to utilize memory mappings of address ranges within the executing program. Commands, notifications, and results can be processed by writing and reading predefined addresses Gokhale2015 . The AMC Nair2015 solves the same problem by dividing the classical load/store subsystem, which is responsible to perform read and write access to the memory, and the computational subsystem that performs transformations of data.

Another approach is to implement a page table within the PIM modules instead of reusing the host’s one. FlexRAM YiKang1999 is likewise based on virtual memory, which shares a range with the host system, but nevertheless, the programmer can explicitly specify how the data structure is distributed on the different physical locations. The memory module takes care of the virtual to physical address translation, which in the case of FlexRAM organized with base and limit page number for each data structure. These contiguous memory allocations minimize the wasted memory space and reduce the time necessary for sequential mapping traversal. Furthermore, to reduce TLB invalidations by page replacements, shared pages must be pinned in the beginning of each program to ensure that only private pages can be replaced. DIVA Hall1999 ; Draper2002 extends the approach of a fixed relationship between virtual and physical address since it was determined to be too restrictive. In YiKang1999 , each PIM core contains a translation hardware, but the tables are managed by the host to facilitate that any virtual page can reside on any PIM. Because the PIM core needs to rapidly determine if an address is local to its own memory bank, PIM cores additionally maintain translations for those virtual pages currently residing on it. Non-local pages can be addressed by querying the global table residing on the host system. There are also completely new concepts for page tables, such as the region-based page table of IMPICA Hsieh2016 to leverage the continuous ranges of access. It splits the addresses into a first-level region table, a second-level flat page table with a larger page size (2 MB) and a third-level small page table with a conventional page size of 4 KB.

To support the immense parallelism of PIM systems the Emu 1 architecture introduces a special Partitioned Address Space Minutoli2015 . With naming schemes it allows to map consecutive page addresses to interleaved PIM modules. As a result, the application is able to define the striping of data structures across all modules in the system.

3.4 Data Coherence and Memory Consistency

Whenever multiple processors in disjoint coherence domains access the same shared data inconsistent states may occur due to missing cache coherence. Hence, cache coherence is crucial for preserving existing programming models and to PIM proliferation. Unfortunately, with increasing parallelism and number of coherence domains the burden of preserving memory consistency and cache coherence aggravated, to the point the where increased coherence traffic may cancel the improvements through PIM. Therefore, traditional fine-grained cache-coherence protocols implemented in modern multi-core CPUs (MESI, MESIF) are ill-suited for PIM settings.

One possible solution to this issue is to avoid on-chip caches in general or prevent caches to store data for a longer period of time than necessary. For instance, NDA’s architecture does not provide the ability to access caches of the processor by the CGRAs Farmahini-Farahani2015 , just as data produced or modified by the processor should not be stored in its cache, but rather in a specific memory region, which is declared as un-cacheable. While CGRAs can consume data directly from this region, processors have to use non-temporal instructions (e.g., MOVNTQ, MOVNTPS, and MASKMOVQ in x86) that bypass the cache hierarchy. Due to this, whether processors nor CGRAs operate simultaneously on the same data and therefore avoid inconsistencies in the memory.

A clearly more flexible approach introduce specific cache operations. For instance, Gokhale2015 maintain memory consistency by executing cache flush and invalidate operations at well-defined synchronization points. These operations can either comprise the entire cache or specific address ranges in the granularity of cachelines. For example, during the communication of CPU and PIM module through shared memory, the sender must flush any modified data from its cache and the receiver must invalidate any associated address range. Further papers Hall1999 ; Draper2002 ; Nair2015 refer to the same simple coherence protocol to ensure consistency between the host cache and the PIM memories but have little differences in their implementation or their granularity (e.g. cacheline size, hardware/software implementations). Ahn2015ISCA manages improve on the above by knowing the exact cache blocks of a PIM instruction. Therefore it only has to issue invalidations or writebacks for these target cache blocks before processing the PIM operation. This should happen infrequently in practice since these operations are offloaded to the PIM memories with the expected data present on it.

LazyPIM Boroumand:CAL:LazyPIM:2017 is an approach for efficient cache coherence in PIM settings, which overcomes the downsides of traditional cache-coherence protocols (MESI, MESIF) implemented in current multi-core CPUs. The basic idea behind LazyPIM is to allow speculative/optimistic PIM kernel execution, as if no cache-conflicts would occur and all permissions were granted. Upon successful execution all changed cache lines are transmitted to the host CPUs in a compressed form, where conflict detection in the CPUs cache coherence directory is performed. If no PIM cachelines conflict the CPU cache the PIM kernel successfully terminates. Otherwise its execution is rolled back, the CPU state is propagated to DRAM, and the PIM kernel is re-executed.

3.5 Distributing and Partitioning Workload

Besides the previously described aspects, the distribution and partitioning of data and/or workload looms an important issue in PIM settings. Yet it is an NP-hard problem. The PIM performance improvements (parallelism and scalability, bandwidth utilization and low latencies) are only available when PIM kernels are executed on data directly located next to the processing unit. This is reminiscent of distributed systems, but involves only a single scale-up PIM system.

A popular platform, making use of data distribution in a very large scale, is IBM’s Netezza Francisco2011 . Its architecture is able to be extended by multiple intelligent processing nodes, called S-Blades. Equipped with multi-engine FPGAs, multi-core CPUs and gigabytes of memory they provide an excellent engine for massively parallel programs (MPP). Over a network fabric those S-Blades are connected to the host, which manages the data partitioning and query distribution. For instance, it compiles SQL queries into executable code segments and distributes these to the MPP nodes for execution. Important, yet, simple data structures for skipping partitions during processing are the so called Neteeza ZoneMaps. BlueDBM Ming2015 follows a similar approach. Their nodes consist of Flash memory and a FPGA is responsible for in-storage processing and acts as interface controller for the various interfaces, e.g. flash or network. Thereby each node is a functional unit on itself and they can be connected in various network topologies (distributed star, mesh or fat tree).

One of the first PIM systems investigating different distribution strategies is JAFAR Xi2015 ; Babarinsa2015 . JAFAR allows the user to decide how the address space is to be organized. Thereby, the system can be configured as a contiguous space where each DIMM is filled up after another or in an interleaved manner across multiple DIMMs. The latter expects symmetric DIMMs with the same capacity and latency.

3.6 Summary

Succinctly summarized, current work on computer architectural aspects of PIM are available across all levels of the memory and storage hierarchy as well as on todays concepts for modern multi-core systems such as address translation and cache coherence. However, these are only touched on their surface and require further investigation. Fairly new computational and programming models are suggested but there is still much room for improvement with regard to the full utilization of nowadays and tomorrows hardware capacities. Moreover, a number of novel ISAs are proposed for specific use cases while research about generic instruction sets for multiple purposes are still rare. In total, the current state of research is promising to exploit PIM against the challenges of Moore’s Law and the end of Dennard scaling.

4 Implications to Data Management and Processing

The fundamental changes in nowadays hardware (Section 2), and the accompanying effects on the concepts of modern computer architectures (Section 3

), have direct implications on data management and processing. These include data management operations such as scan, sort, group, join and index. The influence is also noticeable in the query evaluation in general, since the evaluation model needs to support the properties of the underlying hardware. Furthermore, atomicity of operations can be ensured within the hardware. As a result, new transactional protocols are proposed for PIM. The largest area of application for PIM research is currently the specific workloads. These reach from complex mathematical problems like discrete cosine transformations or nearest neighbor search to complex analytical algorithms such as clustering, graph processing or neural networks. The following sections present research in all of those categories (see Table

2).

# Name Ref. Year Storage Integration Data Management Computer Architecture
1 EXECUBE Kogge1994 1994 DRAM Circuit

8

1
2 Terasys Gokhale1995 1995 SRAM Circuit

10

1

2

3
3 IRAM Kozyrakis1997 1997 DRAM Circuit

10
4 Active Pages Oskin1998 1998 DRAM Circuit

1

10

1
5 FlexRAM YiKang1999 1999 DRAM Circuit

3
6 Active Disks Riedel2001 ; Riedel1999 1999 HDD PCB

10

5
7 DIVA Hall1999 ; Draper2002 1999 DRAM Circuit

5

3
8 Computational RAM Elliott1999 ; Elliott2008 1999 DRAM Circuit

8

1
9 ASF Fitch2009 2009 Flash PCB

1

3
10 IBM Netezza Francisco2011 2011 Storage Platform

6

5
11 Minerva De2013 2013 DRAM PCB

6

1
12 Active Flash Tiwari:ActiveDiskInSitu:FAST:2013 2013 Flash PCB

9
13 iSSD Cho2013 2013 Flash PCB

1

1
14 3D Sparse matrix mul. Zhu2013HPEC ; Zhu2013 2013 DRAM Package

10
15 SmartSSD Kang2013 2013 Flash PCB

7

2
16 IBEX Teubner:IBEX:SIGMOD:2013 ; Teubner:IBEX:VLDB:2014 2014 Flash Platform

4
17 Willow Seshadri2014 2014 Flash PCB

6

2
18 NDC Pugsley2014 2014 DRAM Package

7
19 TOP-PIM Zhang2014 2014 DRAM Package

9

1
20 Q100 Wu2014 2014 DRAM PCB

6

2
21 JAFAR Xi2015 ; Babarinsa2015 2015 DRAM PCB

1

2

3
22 TESSERACT Ahn2015 2015 DRAM Package

9

1
23 DRE Gokhale2015 2015 DRAM PCB

9

3

4
24 Bitwise AND and OR Seshadri2015 2015 DRAM Circuit

3

2
25 Radix Sort on Emu 1 Minutoli2015 2015 DRAM PCB

2

1

3

5
26 ProPRAM Wang2015 2015 PCM Packaging

9

1

3
27 BlueDBM Ming2015 2015 Flash PCB

10

5
28 NDA Farmahini-Farahani2015 2015 DRAM Package

9

1

4
29 PIM-enabled Ahn2015ISCA 2015 DRAM Package

5

10

11

2

3

4
30 AMC Nair2015 2015 DRAM PCB

1

2

3

4
31 Sort vs. Hash Mirzadeh2015 2015 DRAM Package

5
32 HRL Gao2016 2016 DRAM Package

6

10

11
33 SSDLists Wang2016 2016 Flash PCB

1

2
34 IMPICA Hsieh2016 2016 DRAM Package

10

3
35 TOM Hsieh2016ISCA 2016 DRAM Package

9

2

5
36 BISCUIT Gu2016 2016 Flash PCB

1

1

3
37 Tetris Gao2017 2017 DRAM Package

11
38 CARIBOU Ist2017 2017 DRAM PCB

1

3
39 Sorting big data Vermij2017 2017 DRAM Package

2
40 SUMMARIZER Koo2017 2017 Flash PCB

1

2
41 MONDRIAN Drumond2017 2017 DRAM Package

1

2

4

5

1
42 LazyPIM Boroumand:CAL:LazyPIM:2017 2017 DRAM Package

10

4
43 CAIRO Hadidi2017 2017 DRAM Package

2
44 XMem Vijaykumar2018 2018 DRAM Simulator

1

2

3

4
45 PIM for NN Liu2018 2018 DRAM Package

11

1
Table 2: Chronologically ordered state of research including their storage and integration technology. For each approach the classification in Data Management and Computer Architecture of Table 3 is given.
Symbol Section Data Management Symbol Section Computer Architecture

1
4.0.1 Scanning/Filtering

1
3.1 Computational/Programming Model

2
4.0.2 Sorting

2
3.2 Instruction Set

3
4.0.3 Indexing

3
3.3 Addressing

4
4.0.4 Grouping

4
3.4 Coherence

5
4.0.5 Joining

5
3.5 Distributing/Partitioning

6
4.1 Query Evaluation

7
4.2.1 Distributed Processing

8
4.2.2 Discrete Cosine Transform

9
4.2.3 Clustering

10
4.2.4 Graph/Matrix Processing

11
4.2.5

Neural Networks and Deep Learning

Table 3: Classification of PIM approaches in Data Management and Computer Architecture Categories

4.0.1 Scanning and Filtering

One of the prominent and basic operations in data management systems are scans. They are highly data intensive, since each value have to be accessed, whenever the dataset is not pre-sorted, and compared to the filtering conditions. Therefore, scans require fast storage-/memory-processing interaction, which is one of the declared goals of PIM and is addressed in various research. Well-known scan optimizations form the field of main-memory DBMS like SIMD-scan Willhalm:SIMDScan:VLDB:2009 or BitWeaving Li:BitWeaving:SIGMOD:2013 can benefit significantly from PIM.

Already in 1998, Active Pages Oskin1998 investigated that operations on a page-level basis are required to address various workloads for PIM. With their flexible interface, they are able to bind and execute different operations on the PIM modules. These are build up on RADram, an integration of FPGAs and DRAM technology, which can exploit an extremely high parallelism. Applied on database queries the authors claim to speed up searches of un-indexed datasets over 10 times.

A research group of IBM propose the Active Storage Fabrics (ASF) Fitch2009 to tackle petascale data intensive challenges. ASF lays between the host workloads (e.g. TPC-H) and the Blue Gene Compute Nodes. The central component is a Parallel in-Memory Database (PIMD), which stores KV-Pairs within Partitioned Data Sets distributed across those nodes. Parallel Data Intensive Primitives, such as scans, are executed on the ASF layer and are distributed over the entire nodes to leverage the full parallelism.

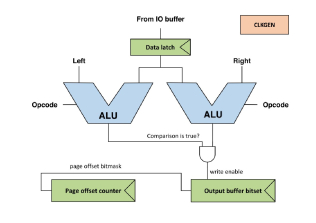

Figure 5: JAFAR’s Architecture Diagram (from Xi2015 ).

JAFAR Xi2015 ; Babarinsa2015 is a column-store accelerator, designed by the university of Harvard, to offload selects to the memory as PIM kernels, gaining a performance improvement of about 9x. It supports classical comparison predicates (=, , , , ) applied on values of the data type integer. Its architecture, shown in Figure 5, comprises two ALUs that can work in parallel to enable range filters. Whenever JAFAR’s API is called with a pointer to a virtual memory start address, the JAFAR hardware starts issuing the respective read requests against the DRAM modules. Each received 64 bit word is processed by the ALUs. The result is a bitmask, indicating, which rows passed the filter operands, written back to the DRAM and memory mapped by the host system. By polling a shared-memory location the host is informed about the completion.

A similar approach is proposed with the iSSD Cho2013 . Here, the flash memory controller is extended by a stream processor comprising an array of ALUs. These could either be pipelined to compute higher-order functions or be connected to the resident SRAM to store temporary results. A configuration memory enables to change the data flow during runtime. In the evaluation, the authors show a 2.3x improvement when scanning a 1 GB TPC-H Lineitem dataset with a selectivity of 1% in contrast to the standard device-to-host communication.

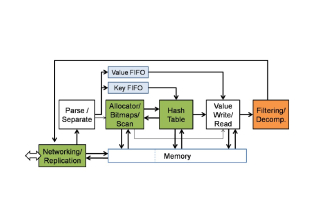

Figure 6: Caribou’s Architecture Diagram (from Ist2017 ).

Caribou Ist2017 implements a slightly different approach with a distributed key-value store, which persists the primary key as a key and the remaining fields as a value. This shared-data model is replicated from the master to the respective replica nodes using Zookeeper’s atomic broadcast. The nodes are connected to a conventional 10 Gb/s switch and equipped with Xilinx Virtex 7 FPGAs and 8 GB of memory. The block diagram of Figure 6 shows the most important components of one module, whereby the Allocator/Bitmap/Scan area is responsible for the scans. By constantly managing two bitmaps, one for the allocated memory and one for the invalidated addresses, the scan module is able to issue a read command to memory for each bit set to 1. Whenever data is fetched, a pipelined comparator can be used to filter the keys or values on a specific selection predicate. The performance is limited by either the selection itself (low selectivity) or the network (high selectivity).

Another system implemented the scan operation is the Summarizer Koo2017 . Like Cho2013 , it uses the processing unit near the flash modules to implement a task controller. It is attached to the traditional SSD controller for FTL and I/O command management as well as to the flash and DRAM controller. By extending the NVMe command set with new commands the Summarizer is able to execute user defined functions such as filtering upon a traditional READ command.

4.0.2 Sorting

Another data-intensive operation is Sort. Minutoli2015 use the Emu 1 system to implement basic sorting in a PIM fashion. The Emu1 system consists of multiple nodes, which are divided into Stationary Cores, Nodelets, NVRAM, and a Migration Engine, which handles the interconnection of the nodes. While, the Stationary Cores implement a conventional ISA and thus run classical operating systems, the Nodelets are the basic building block for near-memory communication. These comprise a Queue Manager, a local Thread Store, a special Gossamer Core and Narrow Channel DRAM. Its idiosyncrasy is to migrate lightweight threads from one Nodelet to another and thereby avoid remotely loading data from one core to another. In their evaluation, they apply this advantage to a radix sort, which usually partitions the initial dataset of N keys into M blocks and to sort in parallel. In the Emu 1 system, each block is assigned to a thread computing a local histogram. Later, these histograms are merged to a global histogram and, upon this, the offsets for groups of the same key can be calculated. However, the performance decreases with around 32 threads because of the high effort of migrations in contrast to the actual calculations, known from other research as well Cho2013 .

Another system for PIM-sorting is the Mondarian Data Engine Drumond2017 . Like Minutoli2015 , its a distributed system of multiple PIM devices connected within a network and managed by the host using a conventional CPU. The devices build up on Intel and Micron’s HMC technology Pawlowski2011 . However, based on their first-order analysis, the authors conclude that it is difficult to saturate the internal bandwidth solely with conventional MIMD cores and introduced streaming buffers to avoid any memory access stalls. Along the lines of their analytical operators analysis, the authors identified sorting as a major research topic for such data streams. To leverage to full potential, they use the data permutability property to convert random access patters into sequential ones. Thereby, they conclude that algorithms for CPUs do not fit properly for modern PIM execution and have to be radically adapted.

Same holds for Vermij2017 , which analyses a merge sort execution on multiple PIM devices. As they implement their algorithm on a reconfigurable fabric, they developed a workload-optimized merge core in VHDL to do a single partial merge. This is necessary because the latest iterations of the merge sort algorithm involve larger data sets. In contrast to the first iterations, where data sets are small, these merge executions cannot be parallelized in a straightforward way and require a special implementation to leverage the full potential of the PIM devices.

4.0.3 Indexing

Indexing is a classical technique to improve query performance, yet index operations cause data transfers (lookup) and transfer overhead (pointer chasing, maintenance, e.g. sorting, just to name a few sources). Index operations are mainly based on search key comparisons. As those operations seem to be predestined for PIM a few research works focus on either the comparison or the management of index structures.

For instance, a research group of the Carnegie Mellon University in cooperation with Intel recognized that fast bulk bitwise AND and OR operations are important components of modern day programming Seshadri2015 and especially in bitmap indexes, which are very widespread in analytical (business intelligence) DBMS. The primitives can be implemented directly within the fabric logic of DRAM. When simultaneously connecting three cells to a bitline, their resulting bitline voltage after charge sharing is equivalent to the majority value of these three cells. Consider the example shown in Figure 7. Firstly, two of the three cells are positively charged. Secondly, after connecting, there is a positive deviation on the bitline voltage, letting, thirdly, all cells become fully charged. Expressed in logic, this phenomenon complies to , which offers to switch between AND and OR using the state of R. Their evaluation show an improvement of 9.7x higher throughput and 50.5x lower energy consumption compared to standard vector processing IntelAVX , which have to read all the data from DRAM to the CPU.

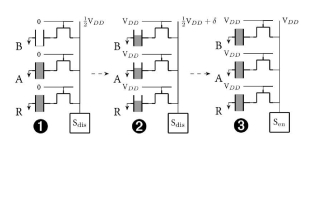

Figure 7: Example for bulk bitwise AND and OR (from Seshadri2015 ).

Other widespread index structures, like B/B+-trees, are limited in its performance due to pointer chasing. Hsieh2016 tries to minimize the effects by performing pointer chasing operations directly inside the memory utilizing PIM. Thereby, they claim to reduce the latency of such operations, since addresses do not have to be transferred to the CPU, and ease the caches, which are inefficient for pointer chasing. This is achieved by several new techniques within the computer architecture, like the region-based page table, described in section 3.3. Similarly, Hong:ALT:PACT:2016 describes and NDP approach to linked-list traversal on secondary storage, whereas Wang:SSDLists:DAMON:2016 tackles the problem of NDP list intersection.

4.0.4 Grouping

There is also some promising research implementing grouping operations of databases on FPGAs as accelerators. Since reconfigurable fabrics are often part of PIM devices, these investigations could be seen as ground work from the database instead of the computer architecture perspective.

A prototype for an intelligent storage engine called IBEX is proposed in Teubner:IBEX:SIGMOD:2013 ; Teubner:IBEX:VLDB:2014 . Besides various other database operations, grouping is implemented on a Vertex 4 FPGA. Utilizing a hash table, keys are compared to the selection criteria and, in case of a match, the respective values are directly aggregated in a pipelined fashion. Thereby, the input is 256 bit wide and can be flexibly divided into multiple keys and value to support combined group keys. Within their evaluation, they show dramatic throughput improvements of Ibex over two standard storage engines, MyISAM and INNODB.

4.0.5 Joining

Joins represent a performance critical task in todays transactional and analytical queries on large datasets. Independent on the join type, these operations have to compare all values of the involved relations with respect to the join attributes. Therefore, it is heavily data intensive, offer potential for efficient parallelization. In contrast to other operations, which are size-reducing (the result size is smaller than the input dataset size), this property cannot be guaranteed for joins. Hence, under certain conditions (e.g. data distribution and join condition), joins may amplify data transfers, which is a major pitfall.

DIVE Hall1999 ; Draper2002 , the Data Intensive Architecture, is proposed by Mary Hall et al. Within their evaluation they demonstrate the potential of the PIM-based architecture on several application and algorithms, inter alia, a natural-join. Therefore, they build up hash tables for both relations with an index on the given attribute. The algorithm joins every tuple of the two relations that share a common value. This happens for every PIM node by firstly distributing a set of consecutive entries of the hash table; secondly, computing a local natural join; and thirdly, merging the partial hash tables to gain the result.

A similar approach is proposed by Ahn2015ISCA . For their case study of the PIM-enabled instructions they support a hash join of an in-memory database. Because this join builds a hash table with one relation and probes it with keys of the other, it requires an efficient PIM operation for hash table probing. While the PIM device compares the keys in a given bucket, the host processor issues the PIM operations and merges the results. Since their implementation allow multiple hash table lookups for different rows to be interleaved, multiple PIM operations can be triggered as an out-of-order execution.

Mirzadeh2015 evaluate the differences between the common sort and hash join algorithms with focus on near-memory execution on HMC. Thereby, they improved the performance and energy-efficiency by carefully considering the data locality, access granularity and microarchitecture of the stacked memory.

Teich:FPGAsql:TRTS:2016 proposes a further approach for an FPGA implementation of different join algorithms suitable for NDP.

4.1 Query Evaluation

The adoption to PIM is not only limited to low storage functions as described in the previous sections, but rather can improve performance on query evaluation level. Research is currently spread across NDP scenarios, but can easily adapted to PIM.

One popular system makes use of PIM’s prevention of unnecessary data transfers, by pushing down processing to the data, is IBM’s Netezza Francisco2011 . The system includes FPGAs in the disk controller, which are able to execute parts of queries. The partial results of such local processing are sent back and merged by the management unit.

Other research works, like Q100 Wu2014 , present accelerators specifically designed for database processing. A collection of heterogeneous ASICs is able to process relational tables and columns efficiently in terms of throughput and energy. Data streamed through these ASICs are manipulated using a coarse grained instruction set comprising all standard relational operators. Figure 8 shows an exemplary query plan transformed into the Q100 spatial instructions. Depending on the available resources, this graph is broken into temporal instructions, which are executed sequentially. This exploits the full potential of pipelining.

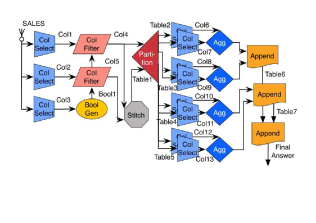

Figure 8: Example query transformed into Q100 spatial instructions (from Wu2014 ).

Often research focuses on less complicated database management applications like KV-Stores. As their API includes only simple Put and Get instructions there is no complex query evaluation, but their throughput and latency are of high importance. Therefore, Minerva De2013 tries to use their FPGA based system to accelerate KV-Stores by reducing data traffic between the host and storage. It allows to offload data intensive tasks, like searching of specific key patterns, to the NVM storage controller. Thereby, it performs up to 5.2M get and 4.0M put operations/s, which is about 7-10 times more than a conventional PCM-based SSD.

Besides reducing data transfers, further opportunities are possible by PIM. For instance, it is possible to change the limits of properties like atomicity. Seshadri2014 purposes Willow, a user-programmable SSD, able to execute application logic on the storage device similar to a remote procedure call. Thereby, one of the demonstrated case studies is the execution of atomic writes. Atomic writes are very well known in database management system to enforce consistency, e.g. through write-ahead logging (WAL). They occur in simple journaling mechanisms but also in complex transaction protocols like ARIES. However, with the new characteristics of PIM even new protocols are possible. To this end, MARS Coburn2013 is a novel WAL scheme with the same functionality like ARIES, but without the disk-centric implementation decisions and thereby, revise the transactional semantics of PIM-enabled databases. In their evaluation, the authors show an improvement of up to 1.5x of MARS over traditional ARIES with Direct IO Seshadri2014 .

4.2 Domain-specific Operations

Instead of flexible instruction sets like database operators, often application specific algorithms are part from PIM research in the data management area. These range from mathematical problems (e.g BLAS), which have a high execution complexity, to distributed processing.

4.2.1 Distributed Processing

Modern workloads (e.g. HTAP) and analytical operations (e.g. processing large graphs) are often too large to process by a single server. As a result, problems are broken up, distributed on multiple instances, and combined to a final result afterwards. The probably most famous algorithm for such compute scenarios is nowadays MapReduce. Various research have taken PIM approaches to improve both the map and the reduce phases of the model.

For instance, the SmartSSD Kang2013 allows to create on-device map functions, which are called after splitting up the input files. The parameters involve a range of logical addresses (object IDs) to identify the respective data. It then performs a logical combine and reduce phase. Only the results are communicated to the host system to minimize disk traffic.

A similar approach is presented with NDC Pugsley2014 . Instead of flash and in-storage processing they focus on real in-memory processing by utilizing HMC as base technology. The user provides map and reduce functions, which are transparently executed by the NDC cores located on the reconfigurable fabrics of the HMC. Each of these cores is associated with a vertical memory slice of 256 MB that is likewise the data layout for NDC applications. By overcoming the bandwidth wall Burger1996 with this setup they can reduce the execution time by considerable 12.3% to 93.2%.

Heterogeneous Reconfigurable Logic (HRL) Gao2016 represents a more flexible approach. Utilizing FPGAs or CGRA arrays, HRL provides coarse-grained and fine-grained logic blocks, separates routing networks for data and control signals, and includes specialized units for branch operations and irregular data layouts. Its execution flow is fairly simple and generic. Each processing element start in parallel to process its assigned data while holding the results in its own local buffers as shown in Figure 9. When all data is processed, the host is notified and the next iteration is started.

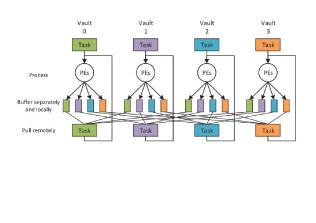

Figure 9: Example execution distribution of HRL (from Gao2016 ).

4.2.2 Discrete Cosine Transformation

In the mid and late 1990s the semiconductor industry was able to fabricate first versions of PIM modules on a 2D integrated circuit. The processing elements based mainly on consecutive linked logical elements rather than a processor with large instruction sets. Therefore, the problem space was limited to problems solvable by these logical gathers. However, since these elements were located directly within the circuit they could exploit the full bandwidth of the memory modules. As a consequence, Discrete Cosine Transformation (DCT) became a wide spread issue to solve with PIM modules to improve image processing, e.g. JPEG compression. A few representatives are the Computational RAM Elliott1999 ; Elliott2008 and the EXECUBE Kogge1994 .

4.2.3 Clustering

Clustering is necessary to detect certain groups with similar properties. Current clustering algorithms like k-means involve a lot of data, which have to be processed multiple times. With conventional hardware this leads to an immense amount of traffic on the buses, which is the reason why PIM is a favorable method to tackle this workload. As a consequence various research Hsieh2016ISCA ; Farmahini-Farahani2015 ; Wang2015 ; Zhang2014 ; Tiwari:ActiveDiskInSitu:FAST:2013 evaluate their implemented hardware and software against data mining workloads. However, usually the design of the proposed approaches is clearly more flexible than just a simple clustering algorithm and focus mainly on computer architectural improvements as described in Section 3.

4.2.4 Graph Processing

Graph analytics is a major research topic as the demand in the industry rises with increasing data volume. Since some of the algorithms traverse the graph multiple times it is a desirable application for PIM. Furthermore, graph processing matches PIM since it is also latency-bound.

Zhu2013HPEC ; Zhu2013 introduce a 3D stacked logic in memory (LiM) system to process sparse matrix data. Building a content addressable memory hardware structure, it is able to exploit the sparse data patterns for executing generalized sparse matrix-matrix multiplication without any software approach based techniques like heaps. Their simulation demonstrates more than two orders of magnitude of performance and energy efficiency improvements compared with the traditional multi-threaded software implementation on modern processors.

Another PIM accelerator for large-scale graph processing is TESSERACT Ahn2015 . Besides graph processing, TESSERACT focuses on fully utilizing the entire memory bandwidth and the communication of memory partitions. The proposed programming interface tries on the one side to exploit the hardware, and on the other side to improve graph processing by allowing the user to give hints about memory access characteristics like possible prefetches.

Additional research on nearest neighbor search Riedel2001 ; Riedel1999 ; Ming2015 ; Gokhale1995 exist, which is an operation frequently used in combination with graph processing. All those systems have in common that data transfers are reduced by partially offloading the execution of application code to the processing capabilities of the PIM modules.

A completely different approach is shown by the Data Rearrangement Engine (DRE) Gokhale2015 , which focuses on rearranging the hardware memory structures to dynamically restructure in-memory data to a cache-friendly layout and to minimize wasted memory bandwidth. The DRE consists of three instructions; setup, fill, and drain. The setup loads parameter such as base addresses and payload sizes, the fill copies the data from DRAM to the according buffers in the given pattern of setup, and the drain copies the data from the buffers back into DRAM. This technique can be applied to graph processing applications like PageRank by repeatedly executing the setup and fill commands for each vertex with a minimum number of edges. Thereby, the fill operation copies the list of the vertex’s edges into the DRAM where the CPU can calculate the page rank accordingly.

4.2.5 Neural Network and Deep Learning

Modern deep neural networks emerged new accelerators to improve performance. However, these are not fit for the increasingly larger networks as they exceed on-chip SRAM buffers and off-chip DRAM channels. Tackling this issue, the presented scalable neural network (NN) accelerator Tetris Gao2017 leverages the high throughput and low energy consumption of 3D memory to increase the area of processing elements and reduce the area of SRAM buffers. Furthermore, Tetris moves NN computations partially to the DRAM and eases the contention on the buses. This leads to an improved data flow for NN accelerators.

Similar issues are evaluated in Liu2018 . Due to the high data movement from memory to CPU during the training of NNs, PIM especially fits these requirements. The authors propose a heterogeneous co-design of hard- and software on basis of ARM cores and 3D stacked memory to schedule various NN training operations. To support program maintenance across the heterogeneous system, the OpenCL programming model is extended.

4.3 Summary

One can clearly tell that numerous parts of PIM concepts are already investigated in a large variety of data management applications. Most of them focus on specific workload-based problems like distributed processing, clustering, graph processing or neural networks as shown in Section 4.2. However, often these approaches can perfectly handle the given problem space but do not cover most of PIM’s application variety in data management systems. For example, only a few papers currently investigate the implementation of classical database operators as PIM instructions or primitives. Yet, their research include many considerations about pipelining, executions semantics and atomicity. In sum, like in the general computer architecture of Section 3, there is some promising work in many aspects of data management but cannot make any claim to be exhaustive.

Acknowledgements.
This work has been supported by the project grant HAW Promotion of the Ministry of culture youth and sports, state of Baden-Würrtemberg, Germany.

References

  • (1) Intel 3d xpoint. http://www.micron.com
  • (2) Intel isa extensions avx
  • (3) Risv-v. https://riscv.org/
  • (4) https://www.nobelprize.org/prizes/physics/2000/ (2000)
  • (5) International Technology Roadmap Semiconductors (2011)
  • (6) Acharya, A., Uysal, M., Saltz, J.: Active disks: Programming model, algorithms and evaluation. In: Proc. ASPLOS (1998)
  • (7) Agerwala, T., Perrone, M.: Data centric systems: The next paradigm in computing. In: Proc. ICPP (2014)
  • (8) Ahn, J., et al.: A scalable processing-in-memory accelerator for parallel graph processing (2015)
  • (9) Ahn, J., et al.: PIM-enabled instructions: A Low-Overhead, Locality-Aware Processing-in-Memory Architecture. Proc. ISCA (2015)
  • (10) Babarinsa, O.: JAFAR : Near-Data Processing for Databases. Sigmod (2015)
  • (11) Balasubramonian, R.: Making the Case for Feature-Rich Memory Systems: The March Toward Specialized Systems. IEEE Solid-State Circuits Mag. (2016)
  • (12) Balasubramonian, R., et al.: Near-data processing: Insights from a micro-46 workshop. IEEE Micro (2014)
  • (13) Binnig, C.: Scalable data management on modern networks. Datenbank Spektrum (2018)
  • (14) Boral, H., DeWitt, D.J.: Parallel architectures for database systems. chap. Database Machines: An Idea Whose Time Has Passed? A Critique of the Future of Database Machines (1989)
  • (15) Borkar, S.: 3D integration technology for energy efficient system design. In: Proc. DAC (2010)
  • (16) Boroumand, A., Ranganathan, P., Mutlu, O., Ghose, S., Kim, Y., Ausavarungnirun, R., Shiu, E., Thakur, R., Kim, D., Kuusela, A., Knies, A.: Google Workloads for Consumer Devices. ACM SIGPLAN (2018)
  • (17) Boroumand, A., et al.: LazyPIM: An Efficient Cache Coherence Mechanism for Processing-in-Memory. IEEE Comput. Archit. Lett. (2017)
  • (18) Bress, S., et al.: Efficient co-processor utilization in database query processing. Inf. Syst. (2013)
  • (19) Burger, D., et al.: Memory bandwidth limitations of future microprocessors. In: Proc. ISCA (1996)
  • (20) Chang, K.: Architectural techniques for improving nand flash memory reliability. doctoral dissertation. cmu (2017)
  • (21) Cho, S., et al.: Active disk meets flash. In: Proc. ICS (2013)
  • (22) Choi, Y., et al.: A 20nm 1.8V 8Gb PRAM with 40MB/s program bandwidth. In: 2012 IEEE Int. Solid-State Circuits Conf. (2012)
  • (23) Coburn, J., Bunker, T., Schwarz, M., Gupta, R., Swanson, S.: From ARIES to MARS. In: Proc. SOSP (2013)
  • (24) Corporation, T.M.: Paris reference manual (1991)
  • (25) De, A., et al.: Minerva: Accelerating Data Analysis in Next-Generation SSDs. In: 2013 IEEE 21st Annu. Int. Symp. Field-Programmable Cust. Comput. Mach. (2013)
  • (26) Dennard, R.H., et al.: Design of Ion-Implanted MOSFETs with Very Small Physical Dimensions (1999)
  • (27) DeWitt, D., Gray, J.: Parallel database systems: The future of high performance database systems (1992)
  • (28) Draper, J., et al.: The architecture of the DIVA processing-in-memory chip. In: Proc. ICS ’02 (2002)
  • (29) Drumond, M., et al.: The Mondrian Data Engine. ACM SIGARCH Comput. Archit. News (2017)
  • (30) Elliott, D., et al.: Computational RAM: implementing processors in memory. IEEE Des. Test Comput. (1999)
  • (31) Elliott, D., et al.: Computational Ram: A Memory-simd Hybrid And Its Application To Dsp. In: Proc. IEEE Cust. Integr. Circuits Conf. (2008)
  • (32) Faggin, F., et al.: The history of the 4004 (1996)
  • (33) Farmahini-Farahani, A., et al.: NDA: Near-DRAM acceleration architecture leveraging commodity DRAM devices and standard memory modules. HPCA (2015)
  • (34) Fitch, B.G., et al.: Using the Active Storage Fabrics model to address petascale storage challenges. In: Proc. PDSW ’09. New York, New York, USA (2009)
  • (35) Francisco, P.: The Netezza data appliance architecture: A platform for high performance data warehousing and analytics. IBM Redbooks (2011)
  • (36) Gao, M., Ayers, G., Kozyrakis, C.: Practical Near-Data Processing for In-Memory Analytics Frameworks. Proc. PACT (2015)
  • (37) Gao, M., Kozyrakis, C.: HRL: Efficient and flexible reconfigurable logic for near-data processing. Proc. - Int. Symp. High-Performance Comput. Archit. (2016)
  • (38) Gao, M., et al.: TETRIS: Scalable and Efficient Neural Network Acceleration with 3D Memory. Asplos (2017)
  • (39) Ghose, S., et al.: Enabling the Adoption of Processing-in-Memory: Challenges, Mechanisms, Future Research Directions. J. Phys. Chem. B (2018)
  • (40) Gokhale, M., Lloyd, S., Hajas, C.: Near memory data structure rearrangement. In: Proc. MEMSYS (2015)
  • (41) Gokhale, M., et al.: Processing in memory: the Terasys massively parallel PIM array (1995)
  • (42) Gray, J., Shenoy, P.J.: Rules of thumb in data engineering. In: Proc. ICDE (2000)
  • (43) Gu, B., et al.: Biscuit: A Framework for Near-Data Processing of Big Data Workloads. In: Proc. ISCA (2016)
  • (44) Hadidi, R., Nai, L., Kim, H., Kim, H.: CAIRO. ACM Trans. Archit. Code Optim. 14(4), 1–25 (2017)
  • (45) Hall, M., et al.: Mapping irregular applications to DIVA, a PIM-based data-intensive architecture. In: ACM/IEEE SC 1999 Conf. SC 1999 (1999)
  • (46) Hardavellas, N., et al.: Toward dark silicon in servers. IEEE Micro (2011)
  • (47) Hong, B., et al.: Accelerating linked-list traversal through near-data processing. In: Proc. PACT (2016)
  • (48) Hsieh, K., et al.: Accelerating pointer chasing in 3D-stacked memory: Challenges, mechanisms, evaluation. Proc. ICCD (2016)
  • (49) Hsieh, K., et al.: Transparent Offloading and Mapping (TOM): Enabling Programmer-Transparent Near-Data Processing in GPU Systems. Proc. ISCA (2016)
  • (50) István, Z., et al.: Caribou. Proc. VLDB Endow. (2017)
  • (51) JEDEC: High bandwidth memory (HBM) DRAM. Standard No. JESD235B (2018)
  • (52) Kang, D., et al.: 256 Gb 3 b/Cell V-nand Flash Memory With 48 Stacked WL Layers. IEEE J. Solid-State Circuits (2017)
  • (53) Kang, Y., et al.: FlexRAM: toward an advanced intelligent memory system. In: Proc. VLSI (1999)
  • (54) Kang, Y., et al.: Enabling cost-effective data processing with smart SSD. In: 2013 IEEE 29th Symp. Mass Storage Syst. Technol., pp. 1–12. IEEE (2013)
  • (55) Kaplan, R., et al.: From processing-in-memory to processing-in-storage. Supercomputing Frontiers and Innovations (2017)
  • (56) Kaxiras, S., et al.: Distributed vector architecture: Beyond a single vector-iram. In: In First Workshop on Mixing Logic and DRAM: Chips that Compute and Remember (1997)
  • (57) Keeton, K., et al.: A case for intelligent disks (idisks). SIGMOD Rec. (1998)
  • (58) Kim, C., Cho, J., et al.: 11.4 a 512gb 3b/cell 64-stacked wl 3d v-nand flash memory. In: Proc. ISSCC (2017)
  • (59) Kim, D.H., et al.: TSV-aware interconnect length and power prediction for 3D stacked ICs. In: Proc. IIC (2009)
  • (60) Kim, J.S., et al.: A 1.2 V 12.8 GB/s 2 Gb Mobile Wide-I/O DRAM With 4 x 128 I/Os Using TSV Based Stacking. IEEE J. Solid-State Circuits (2012)
  • (61) Kim, S., et al.: In-storage processing of database scans and joins. Inf. Sci. (2016)
  • (62) Kogge, P.: EXECUBE-A New Architecture for Scaleable MPPs. In: 1994 Int. Conf. Parallel Process. (1994)
  • (63) Koo, G., et al.: Summarizer. In: Proc. MICRO-50 ’17 (2017)
  • (64) Kozyrakis, C., et al.: Scalable processors in the billion-transistor era: IRAM. Computer (Long. Beach. Calif). (1997)
  • (65) Lee, B.C., et al.: Architecting phase change memory as a scalable dram alternative. In: Proc. ISCA (2009)
  • (66) Lee, D.U., et al.: 25.2 A 1.2V 8Gb 8-channel 128GB/s high-bandwidth memory (HBM) stacked DRAM with effective microbump I/O test methods using 29nm process and TSV. In: Proc. ISSCC (2014)
  • (67) Li, Y., Patel, J.M.: Bitweaving: Fast scans for main memory data processing. In: Proc. SIGMOD (2013)
  • (68) Liu, J., Zhao, H., Ogleari, M.A., Li, D., Zhao, J.: Processing-in-memory for energy-efficient neural network training: A heterogeneous approach. Proc. MICRO (2018)
  • (69) Loh, G., et al.: A Processing-in-Memory Taxonomy and a Case for Studying Fixed-function PIM. Wondp (2013)
  • (70) Masuoka, F., et al.: A 256K flash EEPROM using triple polysilicon technology. In: Proc. ISSCC (1985)
  • (71) Masuoka, F., et al.: New ultra high density EPROM and flash EEPROM with NAND structure cell. In: 1987 Int. Electron Devices Meet. (1987)
  • (72) Miller, M.J.: Bandwidth engine® serial memory chip breaks 2 billion accesses/sec. In: Hot Chips (2011)
  • (73) Ming, S.w.J., et al.: BlueDBM: An Appliance for Big Data Analytics. Proc. ISCA (2015)
  • (74) Minutoli, M., et al.: Implementing radix sort on emu 1. In: Proc. WoNDP (2015)
  • (75) Minutoli, M., et al.: Implementing Radix Sort on Emu 1. Work. Near-Data Process. (2015)
  • (76) Mirzadeh, N.S., Kocberber, O., Falsafi, B., Ecocloud, B.G., Grot, B.: Sort vs. Hash Join Revisited for Near-Memory Execution. 5th Work. Archit. Syst. Big Data (EPFL-CONF-209121) (2015)
  • (77) Muramatsu, B., et al.: If you build it, will they come? Proc. JCDL (2004)
  • (78) Nai, L., Hadidi, R., Sim, J., Kim, H., Kumar, P., Kim, H.: GraphPIM: Enabling Instruction-Level PIM Offloading in Graph Computing Frameworks. Proc. HPCA (2017)
  • (79) Nair, R., et al.: Active Memory Cube: A processing-in-memory architecture for exascale systems (2015)
  • (80) Oskin, M., et al.: Active Pages: A Computation Model for Intelligent Memory. ACM SIGARCH (1998)
  • (81) Parat, K., Dennison, C.: A floating gate based 3D NAND technology with CMOS under array. In: Proc. IEDM (2015)
  • (82) Park, K.T., et al.: Three-Dimensional 128 Gb MLC Vertical nand Flash Memory With 24-WL Stacked Layers and 50 MB/s High-Speed Programming. IEEE J. Solid-State Circuits (2015)
  • (83) Patterson, D., et al.: A case for intelligent ram. Micro (1997)
  • (84) Pawlowski, J.T.: Hybrid memory cube (HMC). In: 2011 IEEE Hot Chips 23 Symp. (2011)
  • (85) Pugsley, S.H., et al.: NDC: Analyzing the impact of 3D-stacked memory+logic devices on MapReduce workloads. In: Proc. ISPASS (2014)
  • (86) Riedel, E., Nagle, D.: Active Disks - Remote Execution for Network-Attached Storage Thesis Committee :. Science (1999)
  • (87) Riedel, E., et al.: Active storage for large-scale data mining and multimedia. In: Proc. VLDB (1998)
  • (88) Riedel, E., et al.: Active disks for large-scale data processing. Computer (Long. Beach. Calif). (2001)
  • (89) Sakuma, K., et al.: Highly Scalable Horizontal Channel 3-D NAND Memory Excellent in Compatibility With Conventional Fabrication Technology. IEEE Electron Device Lett. (2013)
  • (90) Schaller, R.: Moore’s law: past, present and future. IEEE Spectr. (1997)
  • (91) Scheuerlein, R., et al.: A 130.7mm2 2-Layer 32Gb ReRAM Memory Device in 24nm Technology. Proc. IEEE Int. Solid-State Circuits Conf. Dig. Tech. Pap. (2013)
  • (92) Scrbak, M., et al.: Exploring the Processing-in-Memory design space. J. Syst. Archit. (2017)
  • (93) Seshadri, S., et al.: Willow: A User-Programmable SSD. Usenix, Osdi (2014)
  • (94) Seshadri, V., Mowry, T.C., Lee, D., Mullins, T., Hassan, H., Boroumand, A., Kim, J., Kozuch, M.A., Mutlu, O., Gibbons, P.B.: Ambit (2017)
  • (95) Seshadri, V., et al.: Fast Bulk Bitwise AND and OR in DRAM. IEEE Comput. Archit. Lett. (2015)
  • (96) Shalf, J.M., Leland, R.: Computing beyond Moore’s Law. Computer (Long. Beach. Calif). (2015)
  • (97) Siegl, P., et al.: Data-centric computing frontiers: A survey on processing-in-memory. In: Proceedings MEMSYS (2016)
  • (98) Silvagni, A.: 3D NAND Flash Based on Planar Cells. Computers (2017)
  • (99) Strukov, D.B., et al.: The missing memristor found. Nature (2008)
  • (100) Swanson, S.: Near Data Computation : It ’ s Not ( Just ) About Performance (2015)
  • (101) Szalay, A., Gray, J.: 2020 computing: Science in an exponential world (2006)
  • (102) Tang, X., Kislal, O., Kandemir, M., Karakoy, M.: Data movement aware computation partitioning (2017)
  • (103) Tiwari, D., et al.: Active flash: Towards energy-efficient, in-situ data analytics on extreme-scale machines. In: Proc. FAST (2013)
  • (104) Torrellas, J.: Flexram: Toward an advanced intelligent memory system: A retrospective paper. In: Proc. ICCD (2012)
  • (105) Tsai, P.A., Chen, C., Sanchez, D.: Adaptive scheduling for systems with asymmetric memory hierarchies. Proc. MICRO (2018)
  • (106) Vermij, E., et al.: Sorting big data on heterogeneous near-data processing systems. In: Proc. CF (2017)
  • (107) Vijaykumar, N., et al.: A Case for Richer Cross-Layer Abstractions: Bridging the Semantic Gap with Expressive Memory. In: Proc. ISCA (2018)
  • (108) Villa, C., et al.: A 45nm 1Gb 1.8V phase-change memory. In: Proc. ISSCC (2010)
  • (109) Wang, J., Park, D., Kee, Y.S., Papakonstantinou, Y., Swanson, S.: Ssd in-storage computing for list intersection. In: Proc. DaMoN (2016)
  • (110) Wang, J., et al.: SSD in-storage computing for list intersection. In: Proc. DaMoN (2016)
  • (111) Wang, Y., et al.: ProPRAM: Exploiting the transparent logic resources in Non-Volatile Memory for Near Data Computing. Proc. DAC (2015)
  • (112) Willhalm, T., et al.: Simd-scan: Ultra fast in-memory table scan using on-chip vector processing units. Proc. VLDB Endow. (2009)
  • (113) Wong, H.S.P., et al.: Metal–Oxide RRAM. Proc. IEEE (2012)
  • (114) Woods, L., et al.: Less watts, more performance: An intelligent storage engine for data appliances. In: Proc. SIGMOD (2013)
  • (115) Woods, L., et al.: Ibex: An intelligent storage engine with support for advanced sql offloading. Proc. VLDB (2014)
  • (116) Wu, L., et al.: Q100. In: Proc. ASPLOS (2014)
  • (117) Wulf, W.A., McKee, S.A.: Hitting the Memory Wall : Implications of the Obvious. SIGARCH (1994)
  • (118) Xi, S.L., et al.: Beyond the Wall: Near-Data Processing for Databases. Proc. DaMoN (2015)
  • (119) Xie, C., Song, S.L., Wang, J., Zhang, W., Fu, X.: Processing-in-Memory Enabled Graphics Processors for 3D Rendering. Proc. HPCA (2017)
  • (120) Zhang, D., et al.: Top-Pim. Proc. HPDC ’14 (2014)
  • (121) Zhang, D.P., et al.: A new perspective on processing-in-memory architecture design. In: Proc. MSPS (2013)
  • (122) Zhang, M., Zhuo, Y., Wang, C., Gao, M., Wu, Y., Chen, K., Kozyrakis, C., Qian, X.: GraphP: Reducing Communication for PIM-Based Graph Processing with Efficient Data Partition. Proc. HPCA 2018-Febru (2018)
  • (123) Zhao, W., et al.: Spin transfer torque (STT)-MRAM–based runtime reconfiguration FPGA circuit. Proc. TECS (2009)
  • (124) Zhu, Q., et al.: A 3D-stacked logic-in-memory accelerator for application-specific data intensive computing. In: 2013 IEEE Int. 3D Syst. Integr. Conf. (2013)
  • (125) Zhu, Q., et al.: Accelerating sparse matrix-matrix multiplication with 3D-stacked logic-in-memory hardware. In: Proc. HPECC (2013)
  • (126) Ziener, D., et al.: Fpga-based dynamically reconfigurable sql query processing. ACM TRTS (2016)
