More unlabelled data or label more data? A study on semi-supervised laparoscopic image segmentation

08/20/2019 ∙ by Yunguan Fu, et al. ∙ 21

Improving a semi-supervised image segmentation task has the option of adding more unlabelled images, labelling the unlabelled images or combining both, as neither image acquisition nor expert labelling can be considered trivial in most clinical applications. With a laparoscopic liver image segmentation application, we investigate the performance impact by altering the quantities of labelled and unlabelled training data, using a semi-supervised segmentation algorithm based on the mean teacher learning paradigm. We first report a significantly higher segmentation accuracy, compared with supervised learning. Interestingly, this comparison reveals that the training strategy adopted in the semi-supervised algorithm is also responsible for this observed improvement, in addition to the added unlabelled data. We then compare different combinations of labelled and unlabelled data set sizes for training semi-supervised segmentation networks, to provide a quantitative example of the practically useful trade-off between the two data planning strategies in this surgical guidance application.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 6

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Deep convolutional neural networks have been proposed to segment livers from surgical video images

[gibson2017deep], a significant step towards fully-automated computer-assisted guidance for liver resection procedures. The automatically segmented liver surfaces can be used to reconstruct anatomical structures for assisting real-time navigation and for registering with preoperative 3D medical images, such as diagnostic CT or MR, to locate the target of operative interest. Precise image-guidance has the potential to increase the number of patients that can be offered laparoscopic liver resection over open surgery, thereby significantly reducing the surgery-related stress and risk.

Further improving the segmentation accuracy may resort to more labelled data or unlabelled data with semi-supervised learning. Like many other medical image segmentation tasks, deep-learning-based approaches often require a substantial amount of labelled data for training, which rely on human experts with specialised clinical knowledge and multidisciplinary experience. On the other hand, acquiring more unlabelled image data from more patients or prolonging procedures may have a significant impact on workflow and patient safety. The data planning decision in relation to performance improvement needs to be weighted by the unit costs associated with these choices, labelling more data and collecting more unlabelled data.

Semi-supervised approaches have been successfully applied in medical image segmentation [bai2017semi, perone2018deep, cheplygina2019not]. However, comparing semi-supervised methods directly with the supervised counterparts has to consider multiple factors, such as added unlabelled data and a different network with its training strategy that is often more complex and specific to application. We postulate that this could lead to inconclusive correlation between confounding factors and the observed performance improvement. Based on the ‘mean teacher’ method [mean-teacher], which has been adapted into several medical imaging applications [perone2018deep, adapted-mean-teacher], we decomposed the effects into those caused by the change of network (training and architectures) and those by adding unlabelled data. The mean teacher approach averages model weights to produce perturbed predictions as pseudo labels for regularising the training [pseudo-label], a strategy that can be applied with or without ground-truth labels. In this work, we use the aforementioned surgical application as a real-world example to provide a quantitative analysis of the performance impact on the quantities of labelled and unlabelled training data.

Using real patient data from liver surgery cases, we summaries the contributions in this study as follows: a) A statistically significant higher segmentation accuracy is reported in terms of Dice score and Hausdorff distance, compared with a previously proposed supervised method [gibson2017deep]; b) We demonstrate the possibility that the change of training strategy specific to semi-supervised learning could result in significantly better segmentation results without adding any labelled or unlabelled data; c) We show that adding more unlabelled data potentially can reach the improvement made with more labels, providing a practically important quantitative basis for data planning decisions.

2 Method

2.1 Supervised Segmentation Network Architecture

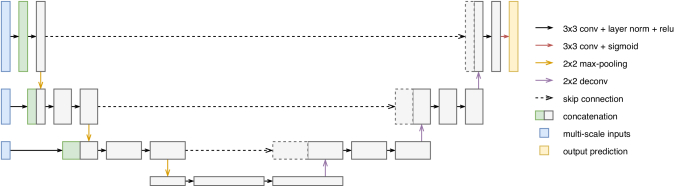

Figure 1: U-Net architecture with multi-scale inputs (depth = 3).

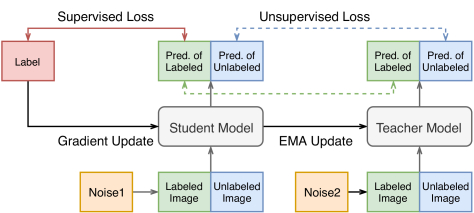

Figure 2: Mean Teacher Structure
