1 Introduction

Dependency parsers typically predict a single tree for a sentence to be used in downstream applications, and most work on dependency parsers seeks to improve accuracy of such single-tree predictions. Despite tremendous gains in the last few decades of parsing research, accuracy is far from perfect—but perfect accuracy may be impossible since syntax models by themselves do not incorporate the discourse, pragmatic, or world knowledge necessary to resolve many ambiguities.

In fact, although relatively unexamined, substantial ambiguity already exists within commonly used discriminative probabilistic parsing models, which define a parse forest—a probability distribution

over possible dependency trees for an input sentence .

Figure 1: Example of a sentence with inherent ambiguity. Top: output from a greedy parser. Bottom: edge marginal probabilities from 100 samples in parentheses.

For example, the top of Figure 1 shows the predicted parse from such a parser (Chen and Manning, 2014), which resolves a prepositional (PP) attachment ambiguity in one manner; this prediction was selected by a standard greedy transition-based algorithm (§2.1). However, the bottom of Figure 1 shows marginal

probabilities of individual (relation, governor, child) edges under this same model. These denote our estimated probabilities, across all possible parse structures, that a pair of words are connected with a particular relation (§

2.4). For example, the two different PP attachment readings both exist within this parse forest with marginal probabilities


where (1) implies she used a telescope to see the man, and (2) implies she saw a man who had a telescope.

These types of irreducible syntactic ambiguities exist and should be taken into consideration when analyzing syntactic information; for instance, one could transmit multiple samples Finkel et al. (2006) or confidence scores Bunescu (2008) over ambiguous readings to downstream analysis components.

In this work, we introduce a simple transition sampling algorithm for transition-based dependency parsing (§2.2), which, by yielding exact samples from the full joint distribution over trees, makes it possible to infer probabilities of long-distance or other arbitrary structures over the parse distribution (§2.4). We implement transition sampling—a very simple change to pre-existing parsing software—and use it to demonstrate several applications of probabilistic dependency analysis:

  • Motivated by how dependency parses are typically used in feature-based machine learning, we introduce a new parsing-related task—

    dependency path prediction. This task involves inference over variable length dependency paths, syntactic substructures over only parts of a sentence.

  • To accomplish this task, we define a Monte Carlo syntax marginal

    inference method which exploits information across samples of the entire parse forest. It achieves higher accuracy predictions than a traditional greedy parsing algorithm, and allows tradeoffs between precision and recall


  • We provide a quantitative measure of the model’s inherent uncertainty in the parse, whole-tree entropy, and show how it can be used for error analysis (§3).

  • We demonstrate the method’s (surprisingly) reasonable calibration (§5).

  • Finally, we demonstrate the utility of our method to propagate uncertainty to downstream applications. Our method improves performance for giving probabilistic semantics to a rule-based event extractor to identify civilians killed by police (§6), as well as semantic role assignment (§7).

2 Monte Carlo dependency analysis

2.1 Overview of transition-based dependency parsing

We examine the basic form of the Universal Dependencies formalism Nivre et al. (2016), where, for a sentence of length , a possible dependency parse is a set of (relation, governorToken, childToken) edges, with a tree constraint that every token in the parse has exactly one governor—that is, for every token , there is exactly one triple where it participates as a child. The governor is either one of the observed tokens, or a special ROOT vertex.

There exist a wide variety of approaches to machine learned, discriminative dependency parsing, which often define a probability distribution over a domain of formally legal dependency parse trees . We focus on transition-based dependency parsers Nivre (2003); Kübler et al. (2009), which (typically) use a stack-based automaton to process a sentence, incrementally building a set of edges. Transition-based parsers are very fast, have runtimes linear in sentence length, feature high performance (either state-of-the-art, or nearly so), and are easier to implement than other modeling paradigms (§2.5).

A probabilistic transition-based parser assumes the following stochastic process to generate a parse tree:

Initialize state For : Break if InEndState()

Most state transition systems (Bohnet et al., 2016) use shift and reduce actions to sweep through tokens from left to right, pushing and popping them from a stack to create the edges that populate a new parse tree . The action decision probability, , is a softmax distribution over possible next actions. It can be parameterized by any probabilistic model, such as log-linear features of the sentence and current state Zhang and Nivre (2011)

, multilayer perceptrons

Chen and Manning (2014)

, or recurrent neural networks

Dyer et al. (2015); Kiperwasser and Goldberg (2016).

To predict a single parse tree on new data, a common inference method is greedy decoding, which runs a close variant of the above transition model as a deterministic automaton, replacing stochastic step (A) with a best-action decision, .222Since greedy parsing does not require probabilistic semantics for the action model—the softmax normalizer does not need to be evaluated—non-probabilistic training, such as with hinge loss (SVMs), is a common alternative, including in some of the cited work. An inferred action sequence determines the resulting parse tree (edge set) ; the relationship can be denoted as .

2.2 Transition sampling

In this work, we propose to analyze the full joint posterior , and use transition sampling, a very simple forward/ancestral sampling algorithm,333“Ancestral” refers to a directed Bayes net (e.g. Barber (2012)) of action decisions, each conditioned on the full history of previous actions—not ancestors in a parse tree. to draw parse tree samples from that distribution. To parse a sentence, we run the automaton stochastically, sampling the action probability in step (A). This yields one action sequence from the full joint distribution of action sequences, and therefore a parse from the distribution of parses. We can obtain as many parse samples as desired by running the transition sampler times, yielding a collection (multiset) of parse structures , where each is a full dependency parse tree.444Dyer et al. (2016) use the same algorithm to draw samples from a transition-based constituency parsing model, as an importance sampling proposal to support parameter learning and single-tree inference. Runtime to draw one parse sample is very similar to the greedy algorithm’s runtime. We denote the set of unique parses in the sample .

We implement a transition sampler by modifying an implementation of Chen and Manning’s multilayer perceptron transition-based parser555CoreNLP 3.8.0 with its ‘english_UD’ pretrained model. and use it for all subsequent experiments.

2.3 MC-MAP single parse prediction

One minor use of transition sampling is a method for predicting a single parse, by selecting the most probable (common) parse tree in the sample,


where denotes the Monte Carlo estimate of a parse’s probability, which is proportional to how many times it appears in the sample: . Note that correctly accounts for the case of an ambiguous transition system where multiple different action sequences can yield the same tree—i.e., is not one-to-one—since the transition sampler can sample the multiple different paths.

This “MC-MAP” method is asymptotically guaranteed to find the model’s most probable parse () given enough samples.666

This holds since the Monte Carlo estimated probability of any tree converges to its true probability, according to, e.g., Hoeffding’s inequality or the central limit theorem. Thus, with enough samples, the tree with the highest true probability will have estimated probability higher than any other tree’s.

By contrast, greedy decoding and beam search have no theoretical guarantees. MC-MAP’s disadvantage is that it may require a large number of samples, depending on the difference between the top parse’s probability compared to other parses in the domain.

2.4 Monte Carlo Syntax Marginal (MCSM) inference for structure queries

Beyond entire tree structures, parse posteriors also define marginal probabilities of particular events in them. Let be a boolean-valued structure query function of a parse tree—for example, whether the tree contains a particular edge:

or more complicated structures, such as a length-2 dependency path:

More precisely, these queries are typically formulated to check for edges between specific tokens, and may check tokens’ string forms.

Although is a deterministic function, since the parsing model is uncertain of the correct parse, we find the marginal probability, or expectation, of a structure query by integrating out the posterior parse distribution—that is, the predicted probability that the parse has the property in question:


Eq. 5 is the expectation with regard to the model’s true probability distribution () over parses from the domain of all possible parse trees for a sentence, while Eq. 6 is a Monte Carlo estimate of the query’s marginal probability—the fraction of parse tree samples where the structure query is true. We use this simple method for all inference in this work, though importance sampling Dyer et al. (2016), particle filters Buys and Blunsom (2015), or diverse k-best lists Zhang and McDonald (2014) could support more efficient inference in future work.

2.5 Probabilistic inference for dependencies: related work

Our transition sampling method aims to be an easy-to-implement algorithm for a highly performant class of dependency models, that conducts exact probabilistic inference for arbitrary structure queries in a reasonable amount of time. A wide range of alternative methods have been proposed for dependency inference that cover some, but perhaps not all, of these goals.

For transition-based parsing, beam search is a commonly used inference method that tries to look beyond a single structure. Beam search can be used to yield an approximate -best list by taking resulting structures on the beam, though there are no theoretical guarantees about the result, and runtime is no better than the transition sampler.777Loosely, if it takes transitions to complete a parse, and possible actions at each transition must be evaluated, our method evaluates actions to obtain trees. Beam search evaluates a similar number of actions when using a -sized beam, but also requires non-parallelizable management of the beam’s priority queue. Finkel et al. (2006)

further discuss tradeoffs between beam search and sampling, and find they give similar performance when propagating named entity recognition and PCFG parse information to downstream tasks.

Graph-based parsers are the major alternative modeling paradigm for dependency parsing; instead of a sequence of locally normalized decisions, they directly parameterize an entire tree’s globally normalized probability. Parse samples could be drawn from a graph-based model via Markov chain Monte Carlo

Zhang et al. (2014), which is asymptotically correct, but may require a large amount of time to obtain non-autocorrelated parses. A range of methods address inference for specific queries in graph-based models—for example, edge marginals for edge-factored models via the matrix-tree theorem Koo et al. (2007), or approximate marginals with loopy belief propagation Smith and Eisner (2008).888These papers infer marginals to support parameter learning, but we are not aware of previous work that directly analyzes or uses dependency parse marginals. By contrast, our method is guaranteed to give correct marginal inferences for arbitrary, potentially long-distance, queries.

Given the strong performance of graph-based parsers in the single-structure prediction setting (e.g. Zeman et al. (2017); Dozat et al. (2017)), it may be worthwhile to further explore probabilistic inference for these models. For example, Niculae et al. (2018) present an inference algorithm for a graph-based parsing model that infers a weighted, sparse set of highly-probable parse trees, and they illustrate that it can infer syntactic ambiguities similar to Figure 1.

Dynamic programming for dependency parsing, as far as we are aware, has only been pursued for single-structure prediction (e.g. Huang and Sagae (2010)), but in principle could be generalized to calculate local structure query marginals via an inside-outside algorithm, or to sample entire structures through an inside-outside sampler (Eisner, 2016), which Finkel et al. (2006) use to propagate parse uncertainty for downstream analysis.

3 Exploratory error analysis via whole-tree entropy calculations

Sentence Domain Size Top 3 Freq. Entropy
In Ramadi , there was a big demonstration . 3 [ 98, 1, 1 ] 0.112
US troops there clashed with guerrillas in a fight that left one Iraqi dead . 40 [ 33, 11, 6 ] 2.865
The sheikh in wheel - chair has been attacked with a F - 16 - launched bomb . 98 [ 2, 2, 1 ] 4.577
Table 1: Example sentences from the UD development set and summaries of their Monte Carlo parse distributions. Domain Size gives , the number of unique parse structures in 100 samples. Top 3 Freq. gives the frequencies of the 3 most probable structures in . Entropy is calculated according to Eq. 7; its upper bound is .

In this section we directly explore the model’s intrinsic uncertainty, while §5 conducts a quantitative analysis of model uncertainty compared to gold standard structures. Parse samples are able to both pass on parse uncertainty and yield useful insights that typical error analysis approaches cannot. For a sentence , we can calculate the whole-tree entropy, the model’s uncertainty of whole-tree parse frequencies in the samples:


Since this entropy estimate is only based on an -sample approximation of , it is upper bounded at in the case of a uniform MC distribution. Another intuitive measure of uncertainty is simply the number of unique parses, that is, the cardinality of the MC distribution’s domain ; this quantity is not informative for the true distribution , but in the MC distribution it is intuitively upper bounded by .999Shannon entropy, domain support cardinality, and top probability (), which we show in Table 1, are all instances of the more general Renyi entropy Smith and Eisner (2007).

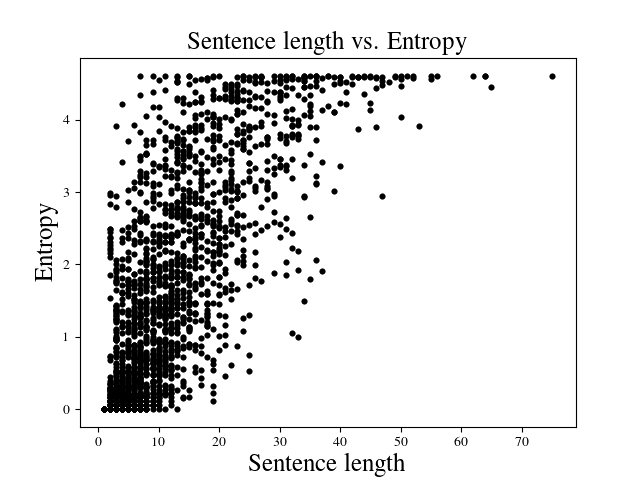

Figure 2: Length of sentences (in number of tokens in UD development set) against entropy (100 samples per sentence).

We run our dependency sampler on the 2002 sentences in the Universal Dependencies 1.3 English Treebank development set, generating 100 samples per sentence; Table 1 shows example sentences along with and entropy statistics for each sentence. We find that in general, as sentence length increases, so does the entropy of the parse distribution (Fig. 2). Moreover, we find that entropy is a useful diagnostic tool. For example, 7% of sentences in the UD development corpus with fewer than 15 tokens and exhibit uncertainty around the role of ‘-’ (compare Sciences - principally biology and thought-provoking), and another 7% of such sentences exhibit uncertainty around ‘s’ (potentially representing a plural or a possessive).

Path Greedy Marginal MC-MAP Len. F1 Max F1 Thresh. F1 1 0.808 0.824 0.45 0.807 2 0.663 0.694 0.44 0.660 3 0.506 0.550 0.34 0.501 4 0.370 0.420 0.28 0.363 5 0.268 0.314 0.25 0.262 6 0.192 0.241 0.25 0.188 7 0.134 0.182 0.17 0.131 Conf0.9     Conf0.1

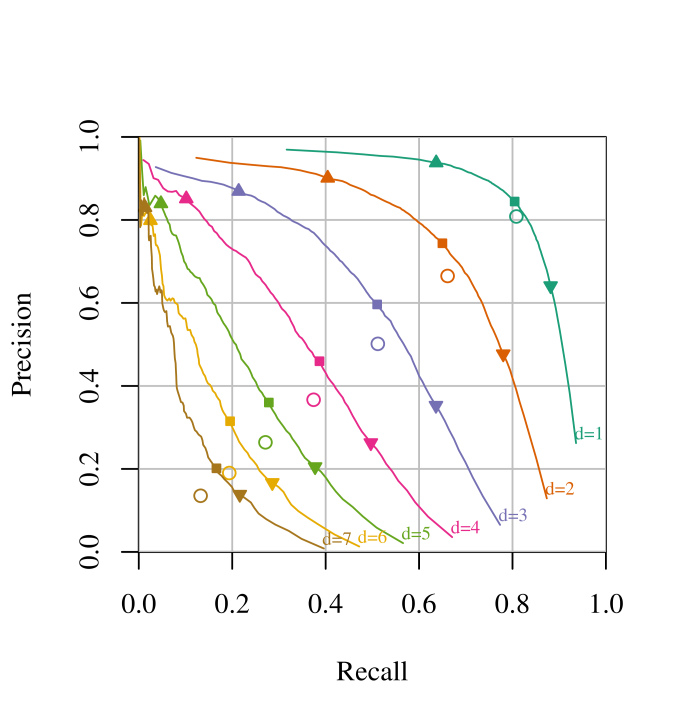

Figure 3: Precision-recall analysis against gold UD 1.3 English dev (§4.1) set for all dependency paths of lengths 1 to 7. Left: Each path length is a different color (1 in top-right, 7 in bottom-left), with greedy performance () as well as the marginal path predictions’ PR curve, with points at confidence thresholds 0.9 (), 0.1 (), and where F1 is highest (). Right: F1 for each method, as well as the confidence threshold for the marginal PR curve’s max-F1 point. For path length 1, Greedy and MC-MAP F1 are the same as labeled attachment score (LAS).

4 Monte Carlo Syntax Marginals for partial dependency parsing

Here we examine the utility of marginal inference for predicting parts of dependency parses, using the UD 1.3 Treebank’s English development set to evaluate.101010UD 1.3 is the UD version that this parsing model is most similar to:

4.1 Greedy decoding

Using its off-the-shelf pretrained model with greedy decoding, the CoreNLP parser achieves 80.8% labeled attachment score (LAS). LAS is equivalent to both the precision and recall of predicting (rel,gov,child) triples in the parse tree.111111LAS is typically defined as proportion of tokens whose governor (and relation on that governor-child edge) are correctly predicted; this is equivalent to precision and recall of edges if all observed tokens are evaluated. If, say, punctuation is excluded from evaluation, this equivalence does not hold; in this work we always use all tokens for simplicity.

4.2 Minimum Bayes risk (MBR) decoding

A simple way to use marginal probabilities for parse prediction is to select, for each token, the governor and relation that has the highest marginal probability. This method gives a minimum Bayes risk (MBR) prediction of the parse, minimizing the model’s expected LAS with regards to local uncertainty; similar MBR methods have been shown to improve accuracy in tagging and constituent parsing (e.g. Goodman (1996); Petrov and Klein (2007)). This method yields 81.4% LAS, outperforming greedy parsing, though it may yield a graph that is not a tree.

4.3 Syntax marginal inference for dependency paths

An alternative view on dependency parsing is to consider what structures are needed for downstream applications. One commonly used parse substructure is the dependency path between two words, which is widely used in unsupervised lexical semantics (Lin and Pantel, 2001), distantly supervised lexical semantics (Snow et al., 2005), relation learning (Riedel et al., 2013), and supervised semantic role labeling (Hacioglu, 2004; Das et al., 2014), as well as applications in economics (Ghose et al., 2007), political science (O’Connor et al., 2013), biology (Fundel et al., 2006), and the humanities (Bamman et al., 2013, 2014).

In this work, we consider a dependency path to be a set of edges from the dependency parse; for example, a length-2 path connects tokens 1 and 4. Let be the set of all length- paths from a parse tree .121212Path construction may traverse both up and down directed edges; we represent a path as an edge set to evaluate its existence in a parse. A path may not include the same vertex twice. The set of all paths for a parse includes all paths from all pairs of vertexes (observed tokens and ROOT). Figure 3

’s “Greedy” table column displays the F-scores for the precision and recall of retrieving

from the prediction for a series of different path lengths. gives individual edges, and thus is the same as LAS (80.8%). Longer length paths see a rapid decrease in performance; even length-2 paths are retrieved with only precision and recall.131313For length 1 paths, precision and recall are identical; this does not hold for longer paths, though precision and recall from a single parse prediction are similar. We are not aware of prior work that evaluates dependency parsing beyond single edge or whole sentence accuracy.

We define dependency path prediction as the task of predicting a set of dependency paths for a sentence; the paths do not necessarily have to come from the same tree, nor even be consistent with a single syntactic analysis. We approach this task with our Monte Carlo syntax marginal method, by predicting paths from the transition sampling parser. Here we treat each possible path as a structure query () and return all paths whose marginal probabilities are at least threshold . Varying trades off precision and recall.

We apply this method to 100 samples per sentence in the UD treebank. When we take all length-1 paths that appear in every single sample (i.e., estimated marginal probability ), precision greatly increases to , while recall drops to (the top-left point on Figure 3’s teal length-1 curve.) We can also accommodate applications which may prefer to have a higher recall: predicting all paths with at least probability results in recall (the bottom-right point on the curve in Figure 3).141414 The 6.4% of gold-standard edges with predicted 0 probability often correspond to inconsistencies in the formalism standards between the model and UD; for example, 0.7% of the gold edges are ‘name’ relations among words in a name, which the model instead analyzes as ‘compound’. Inspecting gold edges’ marginal probabilities helps error analysis, since when one views a single predicted parse, it is not always clear whether observed errors are systematic, or a fluke for that one instance.

This marginal path prediction method dominates the greedy parser: for length-1 paths, there are points on the marginal decoder’s PR curve that achieve both higher precision and recall than the greedy decoder, giving F1 of 82.4% when accepting all edges with marginal probability at least . Furthermore, these advantages are more prominent for longer dependency paths. For example, for length-3 paths, the greedy parser only achieves 50.6% F1, while the marginal parser improves a bit to 55.0% F1; strikingly, it is possible to select high-confidence paths to get much higher 90.1% precision (at recall 11.6%, with confidence threshold ). Figure 3 also shows the precision/recall points on each curve for thresholds and .

We also evaluated the MC-MAP single-parse prediction method (§2.3), which slightly, but consistently, underperforms the greedy decoder at all dependency lengths. More work is required to understand whether this is is an inference or modeling problem: for example, we may not have enough samples to reliably predict a high-probability parse; or, as some previous work finds in the context of beam search, the label bias phenomenon in this type of locally-normalized transition-based parser may cause it to assign higher probability to non-greedy analyses that in fact have lower linguistic quality Zhang and Nivre (2012); Andor et al. (2016).

5 Calibration

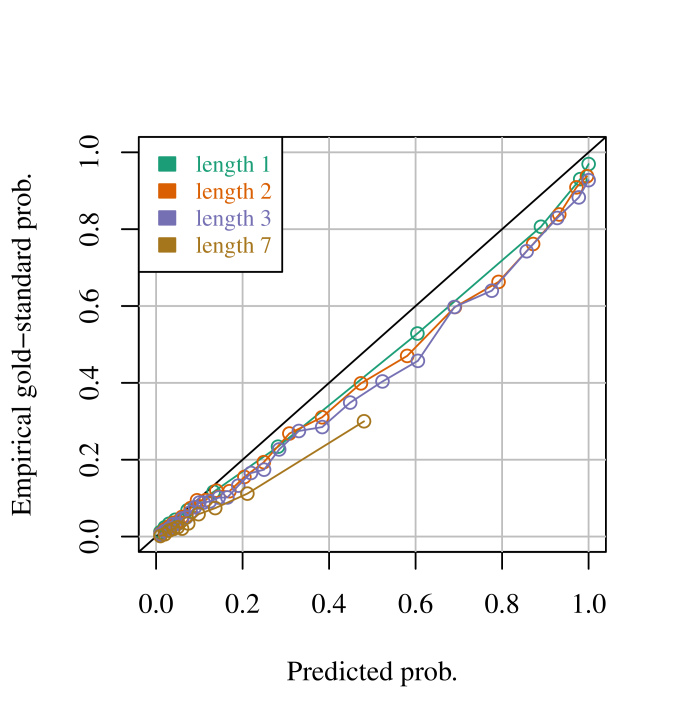

Figure 4: Calibration curves for marginal predictions for several path lengths. Predictions below the line indicate overconfidence. Points denote the average predicted probability versus empirical (gold) probability among predicted paths within each dynamically allocated bin.

The precision-recall analysis shows that the predicted marginal probabilities are meaningful in a ranking sense, but we can also ask whether they are meaningful in a sense of calibration: predictions are calibrated if, among all structures with predicted probability , they exist in the gold parses with probability . That is, predictions with confidence have precision .151515This is a local precision, as opposed to the more usual tail probability of measuring precision of all predictions higher than some —the integral of local precision. For example, Figure 3’s length-1 precision of () is the average value of several rightmost bins in Figure 4. This contrast corresponds to Efron (2010)’s dichotomy of local versus global false discovery rates. If probabilities are calibrated, that implies expectations with regard to their distribution are unbiased, and may also justify intuitive interpretations of probabilities in exploratory analysis (§3

). Calibration may also have implications for joint inference, EM, and active learning methods that use confidence scores and confidence-based expectations.

We apply Nguyen and O’Connor (2015)’s adaptive binning method to analyze the calibration of structure queries from an NLP system, by taking the domain of all seen length- paths from the 100 samples’ parse distribution for the treebank, grouping by ranges of predicted probabilities to have at least 5000 paths per bin, to ensure stability of the local precision estimate.161616This does not include gold-standard paths with zero predicted probability. As Nguyen and O’Connor

found for sequence tagging and coreference, we find the prediction distribution is heavily skewed to near 0 and 1, necessitating adaptive bins, instead of fixed-width bins, for calibration analysis

(Niculescu-Mizil and Caruana, 2005; Bennett, 2000).

We find that probabilities are reasonably well calibrated, if slightly overconfident—Figure 4 shows the average predicted probability per bin, compared to how often these paths appear in the gold standard (local precision). For example, for edges (length-1 paths), predictions near 60% confidence (the average among predictions in range ) correspond to edges that are actually in the gold standard tree only 52.8% of the time. The middle confidence range has worse calibration error, and longer paths perform worse. Still, this level of calibration seems remarkably good, considering there was no attempt to re-calibrate predictions (Kuleshov and Liang, 2015) or to use a model that specifically parameterizes the energy of dependency paths (Smith and Eisner, 2008; Martins et al., 2010)—these predictions are simply a side effect of the overall joint model for incremental dependency parsing.

6 Probabilistic rule-based IE: classifying police fatalities

Supervised learning typically gives the most accurate information extraction or semantic parsing systems, but for many applications where training data is scarce, Chiticariu et al. (2013)

argue that rule-based systems are useful and widespread in practice, despite their neglect in contemporary NLP research. Syntactic dependencies are a useful abstraction with which to write rule-based extractors, but they can be brittle due to errors in the parser. We propose to integrate over parse samples to infer a

marginal probability of a rule match, increasing robustness and allowing for precision-recall tradeoffs.

6.1 Police killings victim extraction

We examine the task of extracting the list of names of persons killed by police from a test set of web news articles in Sept–Dec 2016. We use the dataset released by Keith et al. (2017), consisting of 24,550 named entities and sentences from noisy web news text extractions (that can be difficult to parse), each of which contains at least one

(on average, 2.8 sentences/name) as well as keywords for both police and killing/shooting. The task is to classify whether a given name is a person who was killed by police, given 258 gold-standard names that have been verified by journalists.

6.2 Dependency rule exractor

Keith et al. present a baseline rule-based method that uses Li and Ji (2014)’s off-the-shelf RPI-JIE ACE event parser to extract (event type, agent, patient) tuples from sentences, and assigns iff the event type was a killing, the agent’s span included a police keyword, and the patient was the candidate entity . An entity is classified as a victim if at least one sentence is classified as true, resulting in a 0.17 F1 score (as reported in previous work).171717This measures recall of the entire gold-standard victim database, though the corpus only includes 57% of the victims.

We define a similar syntactic dependency rule system using a dependency parse as input: our extractor returns 1 iff the sentence has a killing keyword ,181818Police and killing/shooting keywords are from Keith et al.’s publicly released software. which both

  1. has an agent token (defined as, governed by nsubj or nmod) which is a police keyword, or has a (amod or compound) modifier that is a police keyword; and,

  2. has a patient token (defined as, governed by nsubjpass or dobj) contained in the candidate name ’s span.

Applying this classifier to greedy parser output, it performs better than the RPI-JIE-based rules (Figure 5, right), perhaps because it is better customized for the particular task.

Method F1 RPI-JIE 0.170 Greedy 0.215 1 samp. 0.212 10 samp. 0.219 100 samp. 0.222

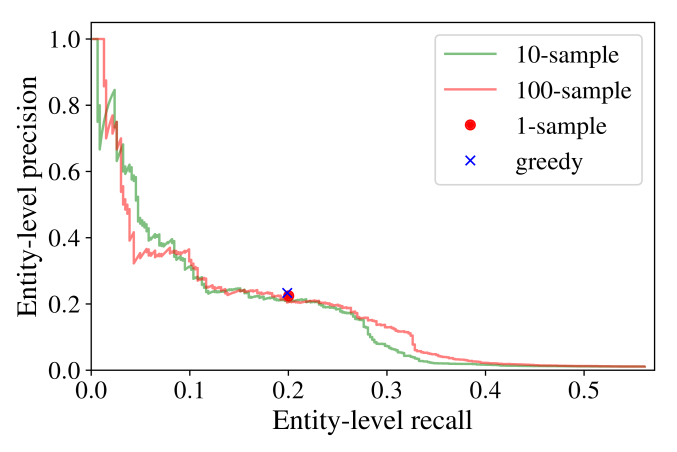

Figure 5: Left: Rule-based entity precision and recall for police fatality victims, with greedy parsing and Monte Carlo inference. Right: F1 scores for RPI-JIE, Greedy, and 1-sample methods, and maximum F1 on PR curve for probabilistic (multiple sample) inference.

Treating as a structure query, we then use our Monte Carlo marginal inference (§2) method to calculate the probability of a rule match for each sentence—that is, the fraction of parse samples where is true—and infer the entity’s probability with the noisy-or formula (Craven and Kumlien, 1999; Keith et al., 2017). This gives soft classifications for entities.

6.3 Results

The Monte Carlo method achieves slightly higher F1 scores once there are at least 10 samples (Fig. 5, right). More interestingly, the soft entity-level classifications also allow for precision-recall tradeoffs (Fig. 5, left), which could be used to prioritize the time of human reviewers updating the victim database (filter to higher precision), or help ensure victims are not missed (with higher recall). We found the sampling method retrieved several true-positive entities where only a single sentence had a non-zero rule prediction at probability 0.01—that is, the rule was only matched in one of 100 sampled parses. Since current practitioners are already manually reviewing millions of news articles to create police fatality victim databases, the ability to filter to high recall—even with low precision—may be useful to help ensure victims are not missed.

6.4 Supervised learning

Sampling also slightly improves supervised learning for this problem. We modify Keith et al.

’s logistic regression model based on a dependency path feature vector

, instead creating feature vectors that average over multiple parse samples () at both train and test time. With the greedy parser, the model results in 0.229 F1; using 100 samples slightly improves performance to 0.234 F1.

7 Semantic role assignment

Semantic role labeling (SRL), the task to predict argument structures Gildea and Jurafsky (2002), is tightly tied to syntax, and previous work has found it beneficial to conduct it with joint inference with constituency parsing, such as with top- parse trees Toutanova et al. (2008) or parse tree samples Finkel et al. (2006). Since §4 shows that Monte Carlo marginalization improves dependency edge prediction, we hypothesize dependency sampling could improve SRL as well.

SRL includes both identifying argument spans, and assigning spans to specific semantic role labels (argument types). We focus on just the second task of semantic role assignment: assuming argument spans are given, to predict the labels. We experiment with English OntoNotes v5.0 annotations Weischedel et al. (2013) according to the CoNLL 2012 test split Pradhan et al. (2013). We focus only on predicting among the five core arguments (Arg0 through Arg4) and ignore spans with gold-standard adjunct or reference labels. We fit a separate model for each predicate191919That is, for each unique (lemma, framesetID) pair, such as (view, view-02). among the 2,160 predicates that occur at least once in both the training and test sets (115,811 and 12,216 sentences respectively).

Our semantic model of label for argument head token and predicate token , , is simply the conditional probability of the label, conditioned on ’s edge between and if one exists.202020The dataset’s argument spans must be reconciled with predicted parse structures to define the argument head ; 90% of spans are consistent with the greedy parser in that all the span’s tokens have the same highest ancestor contained with the span, which we define as the argument head. For inconsistent cases, we select the largest subtree (that is, highest within-span ancestor common to the largest number of the span’s tokens). It would be interesting to modify the sampler to restrict to parses that are consistent with the span, as a form of rejection sampling. (If they are not directly connected, the model instead conditions on a ‘no edge’ feature.) Probabilities are maximum likelihood estimates from the training data’s (predicate, argument label, path) counts, from either greedy parses, or averaged among parse samples. To predict at test time, the greedy parsing model simply uses . The Monte Carlo model, by contrast, treats it as a directed joint model and marginalizes over syntactic analyses:

The baseline accuracy of predicting the predicate’s most common training-time argument label yields 0.393 accuracy, and the greedy parser performs at 0.496. The Monte Carlo method (with 100 samples) improves accuracy to 0.529 (Table 2). Dependency samples’ usefulness in this limited case suggests they may help systems that use dependency parses more broadly for SRL Hacioglu (2004); Das et al. (2014).

Method Accuracy
Baseline (most common) 0.393
Greedy 0.496
MCSM method, 100-samples 0.529
Table 2: Semantic role assignment accuracy on English OntoNotes v5.0. The baseline is for each unique predicate, predict the argument that was seen the most at training time.

8 Conclusion

In this work, we introduce a straightforward algorithm for sampling from the full joint distribution of a transition-based dependency parser. We explore using these parse samples to discover both parsing error and structural ambiguities. Moreover, we find that our Monte Carlo syntax marginal method not only dominates the greedy method for dependency path prediction (especially for longer paths), but also allows for control of precision-recall tradeoffs. Propagating dependency uncertainty can potentially help a wide variety of semantic analysis and information extraction tasks.


The authors would like to thank Rajarshi Das, Daniel Cohen, Abe Handler, Graham Neubig, Emma Strubell, and the anonymous reviewers for their helpful comments.
