MoEL: Mixture of Empathetic Listeners

08/21/2019 ∙ by Zhaojiang Lin, et al. ∙ The Hong Kong University of Science and Technology 0

Previous research on empathetic dialogue systems has mostly focused on generating responses given certain emotions. However, being empathetic not only requires the ability of generating emotional responses, but more importantly, requires the understanding of user emotions and replying appropriately. In this paper, we propose a novel end-to-end approach for modeling empathy in dialogue systems: Mixture of Empathetic Listeners (MoEL). Our model first captures the user emotions and outputs an emotion distribution. Based on this, MoEL will softly combine the output states of the appropriate Listener(s), which are each optimized to react to certain emotions, and generate an empathetic response. Human evaluations on empathetic-dialogues (Rashkin et al., 2018) dataset confirm that MoEL outperforms multitask training baseline in terms of empathy, relevance, and fluency. Furthermore, the case study on generated responses of different Listeners shows high interpretability of our model.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 5

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Neural network approaches for conversation models have shown to be successful in scalable training and generating fluent and relevant responses Vinyals and Le (2015). However, it has been pointed out by Li et al. (2016a, b, c); Wu et al. (2018b)

that only using Maximum Likelihood Estimation as the objective function tends to lead to

generic and repetitive responses like “I am sorry”. Furthermore, many others have shown that the incorporation of additional inductive bias leads to a more engaging chatbot, such as understanding commonsense Dinan et al. (2018), or modeling consistent persona Li et al. (2016b); Zhang et al. (2018b); Mazare et al. (2018a).

Emotion: Angry
Situation
I was furious when I got in
my first car wreck.
Speaker
I was driving on the interstate and
another car ran into the back of me.
Listener
Wow. Did you get hurt?
Sounds scary.
Speaker
No just the airbags went off and
I hit my head and got a few bruises.
Listener
I am always scared about those
airbags! I am so glad you are ok!
Table 1: One conversation from empathetic dialogue, a speaker tells the situation he(she) is facing, and a listener try to understand speaker’s feeling and respond accordingly

Meanwhile, another important aspect of an engaging human conversation that received relatively less focus is emotional understanding and empathy Rashkin et al. (2018); Dinan et al. (2019); Wolf et al. (2019). Intuitively, ordinary social conversations between two humans are often about their daily lives that revolve around happy or sad experiences. In such scenarios, people generally tend to respond in a way that acknowledges the feelings of their conversational partners.

Table 1 shows an conversation from the empathetic-dialogues dataset Rashkin et al. (2018) about how an empathetic person would respond to the stressful situation the Speaker has been through. However, despite the importance of empathy and emotional understanding in human conversations, it is still very challenging to train a dialogue agent able to recognize and respond with the correct emotion.

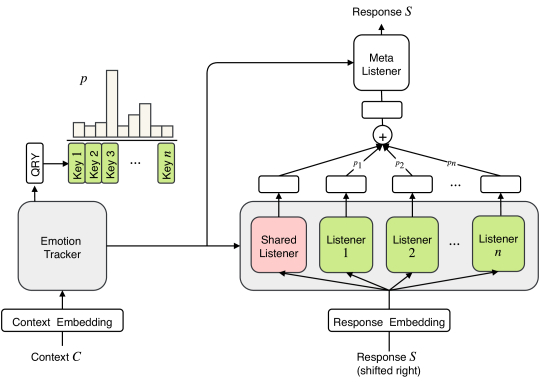

Figure 1: The proposed model Mixture of Empathetic Listeners, which has an emotion tracker, empathetic listeners along with a shared listener, and a meta listener to fuse the information from listeners and produce the empathetic response.

So far, to solve the problem of empathetic dialogue response generation, which is to understand the user emotion and respond appropriately Bertero et al. (2016), there have been mainly two lines of work. The first is a multi-task approach that jointly trains a model to predict the current emotional state of the user and generate an appropriate response based on the state Lubis et al. (2018); Rashkin et al. (2018). Instead, the second line of work focuses on conditioning the response generation to a certain fixed emotion Hu et al. (2017); Wang and Wan (2018); Zhou and Wang (2018); Zhou et al. (2018).

Both cases have succeeded in generating empathetic and emotional responses, but have neglected some crucial points in empathetic dialogue response generation. 1) The first assumes that by understanding the emotion, the model implicitly learns how to respond appropriately. However, without any additional inductive bias, a single decoder learning to respond for all emotions will not only lose interpretability in the generation process, but will also promote more generic responses. 2) The second assumes that the emotion to condition the generation on is given as input, but we often do not know which emotion is appropriate in order to generate an empathetic response.

Therefore, in this paper, to address the above issues, we propose a novel end-to-end empathetic dialogue agent, called Mixture of Empathetic Listeners 111The code will be released at https://github.com/HLTCHKUST/MoEL (MoEL) inspired by Shazeer et al. (2017). Similar to Rashkin et al. (2018), we first encode the dialogue context and use it to recognize the emotional state ( possible emotions). However, the main difference is that our model consists of decoders, further denoted as listeners, which are optimized to react to each context emotion accordingly. The listeners are trained along with a Meta-listener that softly combines the output decoder states of each listener according to the emotion classification distribution. Such design allows our model to explicitly learn how to choose an appropriate reaction based on its understanding of the context emotion. A detailed illustration of MoEL is shown in Figure 1.

The proposed model is tested against several competitive baseline settings Vaswani et al. (2017); Rashkin et al. (2018), and evaluated with human judges. The experimental results show that our approach outperforms the baselines in both empathy and relevance. Finally, our analysis demonstrates that not only MoEL effectively attends to the right listener, but also each listener learns how to properly react to its corresponding emotion, hence allowing a more interpretable generative process.

2 Related Work

Conversational Models:

Open domain conversational models has been widely studied Serban et al. (2016); Vinyals and Le (2015); Wolf et al. (2019). A recent trend is to produce personalized responses by conditioning the generation on a persona profile to make the response more consistent through the dialogue Li et al. (2016b). In particular, PersonaChat Zhang et al. (2018a); Kulikov et al. (2018) dataset was created, and then extended in ConvAI 2 challenge Dinan et al. (2019), to show that by adding persona information as input to the model, the produced responses elicit more consistent personas. Based on such, several follow-up work has been presented Mazare et al. (2018b); Hancock et al. (2019); Joshi et al. (2017); Kulikov et al. (2018); Yavuz et al. (2018); Zemlyanskiy and Sha (2018); Madotto et al. (2019). However, such personalized dialogue agents focus only on modeling a consistent persona and often neglect the feelings of their conversation partners.

Another line of work combines retrieval and generation to promote the response diversity Cai et al. (2018); Weston et al. (2018); Wu et al. (2018b). However, only fewer works focus on emotion Winata et al. (2017, 2019); Xu et al. (2018); Fan et al. (2018a, c, b); Lee et al. (2019) and empathy in the context of dialogues systems Bertero et al. (2016); Chatterjee et al. (2019a, b); Shin et al. (2019). For generating emotional dialogues, Hu et al. (2017); Wang and Wan (2018); Zhou and Wang (2018) successfully introduce a framework of controlling the sentiment and emotion of the generated response, while Zhou and Wang (2018) also introduces a new Twitter conversation dataset and propose to distantly supervised the generative model with emojis. Meanwhile, Lubis et al. (2018); Rashkin et al. (2018) also introduce new datasets for empathetic dialogues and train multi-task models on it.

Mixture of Experts:

The idea of having specialized parameters, or so-called experts, has been widely studied topics in the last two decades Jacobs et al. (1991); Jordan and Jacobs (1994). For instance, different architectures and methodologies have been used such as SVM Collobert et al. (2002), Gaussian Processes Tresp (2001); Theis and Bethge (2015); Deisenroth and Ng (2015), Dirichlet Processes Shahbaba and Neal (2009), Hierarchical Experts Yao et al. (2009), Infinite Number of Experts Rasmussen and Ghahramani (2002) and sequential expert addition Aljundi et al. (2017). More recently, the Mixture Of Expert Shazeer et al. (2017); Kaiser et al. (2017) model was proposed which added a large number of experts in between of two LSTM Schmidhuber (1987) layers to enhance the capacity of the model. This idea of having independent specialized experts inspires our approach to model the reaction to each emotion with a separate expert.

3 Mixture of Empathetic Listeners

The dialogue context is an alternating set of utterances from speaker and listener. We denote the dialogue context as and the speaker emotion state at each utterance as where . Then, our model aims to track the speaker emotional state from the dialogue context , and generates an empathetic response .

Overall, MoEL is composed of three components: an emotion tracker, emotion-aware listeners, and a meta listener as shown in Figure 1. The emotion tracker (which is also the context encoder) encodes and computes a distribution over the possible user emotions. Then all the listeners independently attend to this distribution to compute their own representation. Finally, the meta listener takes the weighted sum of representations from the listeners and generates the final response.

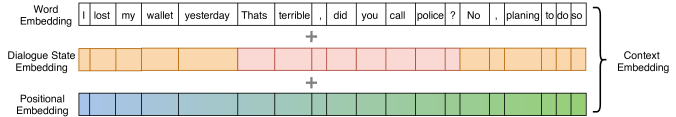

Figure 2: Context embedding is computed by summing up the word embedding, dialogue state embedding and positional embedding for each token.

3.1 Embedding

We define the context embedding , and the response embedding which are used to convert tokens into embeddings. In multi-turn dialogues, ensuring that the model is able to distinguish among turns is essential, especially when multiple emotion are present in different turns. Hence, we incorporate a dialogue state embedding in the input. This is used to enable the encoder to distinguish speaker utterances and listener utterances Wolf et al. (2019). As shown in Figure 2, our context embedding is the positional sum of the word embedding , the positional embedding  Vaswani et al. (2017) and the dialogue state embedding .

(1)

3.2 Emotion Tracker

MoEL uses a standard transformer encoder Vaswani et al. (2017) for the emotion tracker. We first flatten all dialogue turns in , and map each token into its vectorial representation using the context embedding . Then the encoder encodes the context sequence into a context representation. We add a query token at the beginning of each input sequence as in BERT Devlin et al. (2018)

, to compute the weighted sum of the output tensor. Denoting a transformer encoder as

, then corresponding context representation become:

(2)

where denotes concatenation, where is the sequence length. Then, we define the final representation of the token as

(3)

where , which is then used as the query for generating the emotion distribution.

3.3 Emotion Aware Listeners

The emotion aware listeners mainly consist of 1) a shared listener that learns shared information for all emotions and 2) independently parameterized Transformer decoders Vaswani et al. (2017) that learn how to appropriately react given a particular emotional state. All the listeners are modeled by a standard transformer decoder layer block, denoted as , which is made of three sub-components: a multi-head self-attention over the response input embedding, a multi-head attention over the output of the emotion tracker, and a position-wise fully connected feed-forward network.

Thus, we define the set of listeners as . Given the target sequence shifted by one , each listener compute its own emotional response representation :

(4)

where refers to the -th listener, including the shared one. Conceptually, we expect that the output from the shared listener, , to be a general representation which can help the model to capture the dialogue context. On the other hand, we expect that each empathetic listener learns how to respond to a particular emotion. To model this behavior, we assign different weights to each empathetic listener according to the user emotion distribution, while assigning a fixed weight of 1 to the shared listener.

To elaborate, we construct a Key-Value Memory Network Miller et al. (2016)

and represent each memory slot as a vector pair

, where denotes the key vector and is from Equation 4. Then, the encoder informed query is used to address the key vectors by performing a dot product followed by a Softmax function. Thus, we have:

(5)

each is the score assigned to , thus used as the weight of each listener. During training, given the speaker emotion state , we supervise each weight

by maximizing the probability of the emotion state

with a cross entropy loss function:

(6)

Finally, the combined output representation is compute by the weighted sum of the memory values and the shared listener output .

(7)
Figure 3: Top-1 and Top-5 emotion detection accuracy over 32 emotions at each turn

3.4 Meta Listener

Finally, the Meta Listener is implemented using another transformer decoder layer, which further transform the representation of the listeners and generates the final response. The intuition is that each listener specializes to a certain emotion and the Meta Listener gathers the opinions generated by multiple listeners to produce the final response. Hence, we define another , and an affine transformation to compute:

(8)
(9)

where is the output of meta listener and is a distribution over the vocabulary for the next tokens. We then use a standard maximum likelihood estimator (MLE) to optimize the response prediction:

(10)

Lastly, all the parameters are jointly trained end-to-end to optimize the listener selection and response generation by minimizing the weighted-sum of two losses:

(11)

Where and

are hyperparameters to balance two loss.

Params. BLEU Empathy Relevance Fluency
Gold - - 3.93 3.93 3.35
TRS 16.94M 3.02 3.32 3.47 3.52
MultiTRS 16.95M 2.92 3.36 3.57 3.31
MoEL 23.1M 2.90 3.44 3.70 3.47
Table 2: Comparison between our proposed methods and baselines. All of models receive close BLEU score. MoEL achieve highest Empathy and Relevance score, while TRS achieve better Fluency score. The number of parameters for each model is reported.
Model Win Loss Tie
MoEL vs TRS 37.3% 18.7% 44%
MoEL vs Multi-TRS 36.7% 32.6% 30.7%
Table 3: Result of human A/B test. Tests are conducted pairwise between MoEL and baseline models

4 Experiment

4.1 Dataset

We conduct our experiment on the empathetic-dialogues Rashkin et al. (2018) dataset which consist of 25k one-to-one open-domain conversation grounded in emotional situations. The dataset provides 32, evenly distributed, emotion labels. Table 1 shows an example from the training set. The speakers are talking about their situation and the listeners is trying to understand their feeling and reply accordingly. At training time the emotional labels of the speakers are given, while we hide the label in test time to evaluate the empathy of our model.

4.2 Training

We train our model using Adam optimizer Kingma and Ba (2014) and varied the learning rate during training following Vaswani et al. (2017). The weight of both losses and are set to 1 for simplicity. We use pre-trained Glove vectors Pennington et al. (2014) to initialize the word embedding and we share it across the encoder and the decoder. The rest of the parameters are randomly initialized.

In the early training stage, emotion tracker randomly assign weights to the listeners, and may send noisy gradient flow back to the wrong listeners, which can make the model convergence harder. To stabilize the learning process, we replace the distribution of the listeners with the oracle emotion information using a certain probability , and we gradually anneal it during the training. We set an annealing rate , and a threshold equal to , thus at each iteration iteration we compute:

(12)
Emotion Disgusted
Context
Speaker: i had to dog-sit for my dad about a week ago . i had to clean up dog
poop at least 10 times , it was awful .
TRS that is horrible . i hope you did not have to clean it up .
Multi-TRS oh my goodness , that must have been so scary !
MoEL oh wow , that is pretty gross .
Goal ohh , cleaning dog poop is always been annoying , yet petting the dog is always amusing
Emotion Disappointed
Context
Speaker: i was turned down for a job i really thought i would be a good fit at .
Listener: did they give you any reason for not giving you the job ?
Speaker: someone else interviewed who had much more experience than i did .
TRS that is good . i hope you have a good time .
Multi-TRS that is a good idea . i hope it was a good idea .
MoEL i am sorry to hear that . i am sure you will do great again
Goal well , at least a candidate that deserved the job got it .

Speaker: so my friend ’s baby fell down and scraped his knee yesterday and i was trying so hard
to cheer him up.
: that was really nice of you. I am glad you were able to help him.
oh wow ! that must have been so scary .
oh no , i am so sorry to hear that .
that sounds like a good idea .
that was awesome ! did he get any good at you ?
Speaker: my husband lost a job but I am hoping he can find a full-time job soon.
: what kind of job is it?
oh that sucks . you should have been together .
i am so sorry . i am sure he will be fine .
that sounds awesome . what kind of job did he get you for ?
oh wow ! congratulations to him . you must be proud of him .
Table 4: Generated responses from TRS, Multi-TRS and MoEL in 2 different user emotion states (top) and comparing generation from different listeners (bottom). We use hard attention on Terrified, Sad, Excited and Proud listeners.

4.3 Baseline

We compare our model with two baselines:

Transformer (TRS)

The standard Transformer model Vaswani et al. (2017) that is trained to minimize MLE loss as in Equation 10.

Multitask Transformer (Multi-TRS)

A Multitask Transformer trained as Rashkin et al. (2018) to incorporate additional supervised information about the emotion. The encoder of multitask transformer is the same as our emotion tracker, and the context representation , from Equation 3

, is used as input to an emotion classifier. The whole model is jointy trained by optimizing both the classification and generation loss.

Figure 4: The visualization of attention on the listeners: The left side is the context followed by the responses generated by MoEL. The heat map illustrate the attention weights on 32 listeners

4.4 Hyperparameter

In all of our experiments we used 300 dimensional word embedding and 300 hidden size everywhere. We use 2 self-attention layers made up of 2 attention heads each with embedding dimension 40. We replace Positionwise Feedforward sub-layer with 1D convolution with 50 filters of width 3. We train all of models with batch size 16 and we use batch size 1 in the test time.

4.5 Evaluation Metrics

Bleu

We compute BLEU scores Papineni et al. (2002) to compare the generated response against human responses. However, in open-domain dialogue response generation, BLEU is not a good measurement of generation quality Liu et al. (2016), so we use BLEU only as a reference.

Human Ratings

In order to measure the quality of the generated responses, we conduct human evaluations with Amazon Mechanical Turk. Following Rashkin et al. (2018), we first randomly sample 100 dialogues and their corresponding generations from MoEL and the baselines. For each response, we assign three human annotators to score the following aspect of models: Empathy, Relevance, and Fluency. Note that we evaluate each metric independently and the scores range between 1 and 5, in which 1 is ”not at all” and 5 is ”very much”.

We ask the human judges to evaluate each of the following categories from a 1 to 5 scale, where 5 is the best score.

  • Empathy / Sympathy: Did the responses from the LISTENER show understanding of the feelings of the SPEAKER talking about their experience?

  • Relevance: Did the responses of the LISTENER seem appropriate to the conversation? Were they on-topic?

  • Fluency: Could you understand the responses from the LISTENER? Did the language seem accurate?

Human A/B Test

In this human evaluation task, we aim to directly compare the generated responses with each other. We randomly sample 100 dialogues each for MoEL vs {TRS, Multi-TRS}. Three workers are given randomly ordered responses from either MoEL or {TRS, Multi-TRS}, and are prompted to choose the better response. They can either choose one of the responses or select tie when the provided options are either both good or both bad.

5 Results

Emotion detection

To verify whether our model can attend to the appropriate listeners, we compute the emotion detection accuracy for each turn. Our model achieve , , in terms of top-1, top-3, top-5 detection accuracy over 32 emotions. We notice that some emotions frequently appear in similar context (e.g., Annoyed, Angry, Furious) which might degrade the detection accuracy. Figure 3 shows the per class accuracy in the test set. We can see that by using top-5 the majority of the emotion achieve around 80% accuracy.

Response evaluation

Both automatic and human evaluation results are shown in Table  2. TRS achieves the highest BLEU score and Fluency score but the lowest Empathy and Relevance score. This shows us that the responses generated by TRS are more generic but cannot accurately capture the user emotions. With the additional supervision on user emotions, multi-task training improves both Empathy and Relevance score, but it still degrades Fluency. In contrast, MoEL achieves the highest Empathy and Relevance score. This suggests that the multi-expert strategy helps to capture the user emotional states and context simultaneously, and elicits a more appropriate response. The human A/B tests also confirm that the responses from our model are more preferred by human judges.

6 Analysis

In order to understand whether or how MoEL can effectively improve other baselines, learn each emotion, and properly react to them, we conduct three different analysis: model response comparison, listener analysis, and visualization of the emotion distribution .

Model response comparison

The top part of Table 4 compares the generated responses from MoEL and the two baselines on two different speaker emotional states. In the first example, MoEL captures the exact emotion of the speaker, by replying with ”cleaning up dog poop is pretty gross”, instead of ”horrible” and ”scary”. In the second example, both TRS and Multi-TRS fail to understand that the speaker is disappointed about the failure of his interview, and they generate inappropriate responses. On the other hand, MoEL shows an empathetic response by comforting the speaker with ”I am sure you will do great again”. More examples can be find in the Appendix.

Listener analysis

To have a better understanding of how each listener learned to react to different context, we conduct a study of comparing responses produced by different listeners. To do so, we fix the input dialogue context and we manually modify the attention vector distribution used to produce the response. We experiment with the correct listener and four other listeners: , , , . Given the same context, we expect that different listeners will react differently, as this is our inductive bias. For example, is optimized to comfort sad people, and share the positive emotions from the user. From the generation results in the bottom parts of Table 4 we can see that the corresponding listeners can produce empathetic and relevant responses when they reasonably match the speaker emotions. However, when the expected emotion label is opposite to the selected listener, such as caring and sad, the response becomes emotionally inappropriate.

Interestingly, in the last example, the sad listener actually produces a more meaningful response by encouraging the speaker. This is due to the first part of the context which conveys a sad emotion. On the other hand, for the same example, the excited listener responds with very relevant yet unsympathetic response. In addition, as many dialogue contexts contain multiple emotions, being able to capture them would lead to a better understanding of the speaker emotional state.

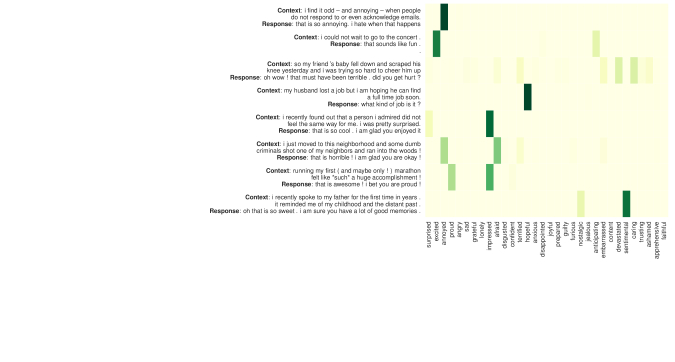

Visualization of Emotion Distribution

Finally, to understand how MoEL chooses the listener according to the context, we visualize the emotion distribution in Figure 4. In most of the cases, the model attends to the proper listeners (emotions), and generate a proper responses. This is confirmed also by the accuracy results shown in Figure 3. However, our model is sometimes focuses on parts of the dialogue context. For example, in the fifth example in Figure 4, the model fails to detect the real emotion of speaker as the context contains “I was pretty surprised” in its last turn.

On the other hand, the last three rows of the heatmap indicate that the model learns to leverage multiple listeners to produce an empathetic response. For example, when the speaker talks about some criminals that shot one of his neighbors, MoEL successfully detects both annoyed and afraid emotions from the context, and replies with an appropriate response ”that is horrible! i am glad you are okay!” that addresses both emotions. However, in the third row, the model produces ”you” instead of ”he” by mistake. Although the model is able to capture relevant emotions for this case, other emotions also have non-negligible weights which results in a smooth emotion distribution that confuses the meta listener from accurately generating a response.

7 Conclusion & Future Work

In this paper, we propose a novel way to generate empathetic dialogue responses by using Mixture of Empathetic Listeners (MoEL). Differently from previous works, our model understand the user feelings and responds accordingly by learning specific listeners for each emotion. We benchmark our model in empathetic-dialogues dataset Rashkin et al. (2018), which is a multi-turn open-domain conversation corpus grounded on emotional situations. Our experimental results show that MoEL is able to achieve competitive performance in the task with the advantage of being more interpretable than other conventional models. Finally, we show that our model is able to automatically select the correct emotional decoder and effectively generate an empathetic response.

One of the possible extensions of this work would be incorporating it with Persona Zhang et al. (2018b) and task-oriented dialogue systems Gao et al. (2018); Madotto et al. (2018); Wu et al. (2019, 2017, 2018a); Reddy et al. (2018); Raghu et al. (2019). Having a persona would allow the system to have more consistent and personalized responses, and combining open-domain conversations with task-oriented dialogue systems would equip the system with more engaging conversational capabilities, hence resulting in a more versatile dialogue system.
