Modelling Airway Geometry as Stock Market Data using Bayesian Changepoint Detection

by   Kin Quan, et al.

Numerous lung diseases, such as idiopathic pulmonary fibrosis (IPF), exhibit dilation of the airways. Accurate measurement of dilatation enables assessment of the progression of disease. Unfortunately the combination of image noise and airway bifurcations causes high variability in the profiles of cross-sectional areas, rendering the identification of affected regions very difficult. Here we introduce a noise-robust method for automatically detecting the location of progressive airway dilatation given two profiles of the same airway acquired at different time points. We propose a probabilistic model of abrupt relative variations between profiles and perform inference via Reversible Jump Markov Chain Monte Carlo sampling. We demonstrate the efficacy of the proposed method on two datasets; (i) images of healthy airways with simulated dilatation; (ii) pairs of real images of IPF-affected airways acquired at 1 year intervals. Our model is able to detect the starting location of airway dilatation with an accuracy of 2.5mm on simulated data. The experiments on the IPF dataset display reasonable agreement with radiologists. We can compute a relative change in airway volume that may be useful for quantifying IPF disease progression.


page 10

page 11

page 12

page 13


A Note on Using Discretized Simulated Data to Estimate Implicit Likelihoods in Bayesian Analyses

This article presents a Bayesian inferential method where the likelihood...

Real time analysis of epidemic data

Infectious diseases have severe health and economic consequences for soc...

Semi-parametric Bayesian change-point model based on the Dirichlet process

In this work we introduce a semi-parametric Bayesian change-point model,...

Individual-Level Modelling of Infectious Disease Data: EpiILM

In this article, we introduce the R package EpiILM, which provides tools...

A Non-Parametric Bayesian Method for Inferring Hidden Causes

We present a non-parametric Bayesian approach to structure learning with...

A spatially varying change points model for monitoring glaucoma progression using visual field data

Glaucoma disease progression, as measured by visual field (VF) data, is ...

A Recursive Bayesian Approach To Describe Retinal Vasculature Geometry

Demographic studies suggest that changes in the retinal vasculature geom...

1 Introduction

In fibrosing lung disease, contraction of the lung interstitium pulls on airway walls, and causes a dilatation. Airway dilatation is calculated using crude visual scores have been shown to be powerful predictors of outcome in idiopathic pulmonary fibrosis (IPF) [8]. Computed Tomography (CT) coupled with image analysis algorithms to measure the airway lumen can provide an excellent tool to quantitatively assess these dilatation. CT gives a very high image contrast between air within the airway lumen and the surrounding airway wall. However, airway lumen measuring algorithms are subjected to sources of noise. Variations in voxel sizes [1] and CT reconstruction algorithms [6] have been shown to affect the precision of the cross-sectional area measurements of the airways. In addition, there can be variations in airway cross-sectional area due to normal biological processes such as points of airway bifurcation where the airway transiently dilates [12, 3]. These sources of noise makes post-processing of measurements difficult to locate dilatation on an airway track. Identifying the point of dilatation and subsequently calculating the volume of abnormal airways in the lung potentially provides a sensitive means for quantifying subtle worsening of disease in IPF across longitudinal scans.

In this work, we introduce a variant of Bayesian Changepoint Detection (BCPD) models to automatically identify the location of airway dilatation in the presence of strong measurement noise, given two measurements of the same airway acquired at different time points. BCPD model, typically used in DNA sequencing [13] and stock market data analysis [10], aims to capture abrupt variations in the underlying distributions of a given signal or a time series. The method processes a series of airway cross-sectional area changes between baseline (first) and follow-up (second) CT scans, and generates the posterior distribution over multiple possible points of abnormal variations, whose the mode is taken as the final prediction. We test the efficacy of the method on (1) CT images of healthy airways with simulated dilatation, and (2) pairs of real images of IPF-affected airways acquired approximately 1 year intervals. For the simulated dataset, we measured the detection accuracy with respect to the commonly used naive thresholding and maximum likelihood based methods [9]. For the longitudinal IPF dataset, we compare the predictions of our model to measurements from radiologists based on two different protocols.

2 Method

In this section, we introduce our method for quantifying progression of IPF on a patients serial CT scans. The method proceeds as follows. Firstly, we fit a tubular shape model to the airways in both baseline and follow-up CT scans, and acquire estimates of the cross-sectional areas along them (Sec.

2.1). We then treat the difference in the cross-sectional areas as a 1D signal, and employ the proposed Bayesian changepoint model to estimate the posterior distribution over locations of abrupt airway dilatation (Sec. 2.2 and 2.3). Lastly, we post-process this posterior distribution to determine the region of dilatation (Sec. 2.4).

2.1 Airway Pre-processing

In this work, for each airway track, we acquire a series of cross-sectional area measurements using the method proposed by Quan et al [12] (Fig. 1). Following a semi-manual segmentation of the airway, the method computes the airway centreline and the corresponding normal planes at contiguous intervals, each of which is then used to estimate the cross-sectional area. The final output is a 1D function of cross-sectional area along the airways for baseline and the follow-up scans.

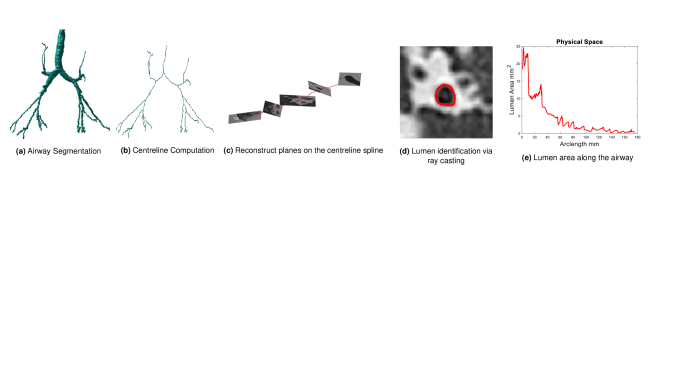

Figure 1: Summary of the pipeline developed by Quan et al [12]. We have implemented the method as part of the pre-processing stage to model the geometry as a 1D signal.
