1 Introduction

Historically travel demand modeling has been carried out for an analysis period of one day using macroscopic models that produce aggregate data for a day (McNally, 2000). With the emergence of activity-based models (Bhat and Koppelman, 1999) and agent-based models (Raney and Nagel, 2003) much more fine-grained results were possible. While much progress has been made in this direction, the typical analysis period used in travel demand models like the Day-Activity-Schedule approach (Bowman and Ben-Akiva, 2001), TRANSIMS (Rilett and Zietsman, 2001), MATSim (Horni et al., 2016), ALBATROSS (Arentze and Timmermans, 2004), Aurora/FEATHERS (Arentze et al., 2006), or Sacsim (Bradley et al., 2010) is still one day.

In travel behavior research it has become common to use multi-day surveys to study phenomena like repetition, variability of travel (Huff and Hanson, 1986; Hanson and Huff, 1988; Pas and Sundar, 1995), or the rhythms of daily life (Axhausen et al., 2002). Jones and Clarke (1988) point out the importance of multi-day travel surveys for the assessment of transport policy measures, since one-day surveys do not allow assessing how severe individual persons are affected by a policy measure.

Taking these results of travel behavior research into account, travel demand models should aim to model periods longer than a day. Of the established travel demand models, however, only MATSim has at least envisioned an extension of the simulation period from a day to a week (Ordóñez et al., 2012), followed by a prototypical implementation, which has been applied to a 1% scenario (Horni et al., 2012). Some hints indicate that Aurora might be able to simulate a multi-day period (Arentze et al., 2010), but the focus of this work is on the rescheduling of daily activity plans. A specific multi-day travel demand model has been presented by Kuhnimhof and Gringmuth (2009) and Kuhnimhof (2009), but the implementation has only prototypical character and the model is only applied to a sample of 10 000 agents. A model for generating multi-week activity agendas, which considers household activities, personal activities, and joint activities, is presented by Arentze and Timmermans (2009), based on the theory of need-based activity generation described by Arentze and Timmermans (2006). The model has been extended by Nijland et al. (2014) to take long-term planned activities and future events into account. A destination choice model that could be used in combination with the activity generation model is outlined by Arentze et al. (2013).

When mobiTopp was initially designed, a simulation period of one week was already envisaged (Schnittger and Zumkeller, 2004). However, the first implementation supported only the simulation of one day. After some early applications of mobiTopp (Gringmuth et al., 2005; Bender et al., 2005), which stimulated further extensions, the development almost ceased and work at mobiTopp was limited to maintenance. Nevertheless, mobiTopp was still in use for transport planning, for example in the Rhine-Neckar Metropolitan Region (Kagerbauer, 2010). In 2011 the mobiTopp development was resumed (Mallig et al., 2013) and a simulation period of one week was finally implemented. Using this new feature mobiTopp was successfully applied to the Stuttgart Region, a metropolitan area in Germany, as study area. This work was the foundation for further extensions in recent years, like ridesharing (Mallig and Vortisch, 2015), electric vehicles (Weiss et al., 2017; Mallig et al., 2016), and carsharing (Heilig et al., 2017b).

This paper describes the current state of mobiTopp. The body of the paper is divided into three parts. The first part (Section 2) describes the overall structure of the mobiTopp framework. The second part (Section 3) describes the extensions made to mobiTopp during the last years, which are not part of mobiTopp’s core. The third part (Section 4) describes an application of mobiTopp. It contains the specifications of the actual mode choice and destination choice models used for this scenario and the simulation results. The simulation results show that simply extending a single-day model to a multi-day horizon already leads to useful results. However, there are some issues that need special attention, namely ensuring realistic start times of activities, joint activities, and seldom-occurring long-distance trips.

2 The mobiTopp model

mobiTopp is an activity-based travel demand simulation model in the tradition of simulating activity chains (Axhausen and Herz, 1989). It is based on the principle of agent based simulation (Bonabeau, 2002), meaning that each person of the study area is modeled as an agent. An agent in this context is an entity that makes decisions autonomously, individually, and situation-dependent and interacts with other agents. In mobiTopp, each agent has an individual activity schedule (activity chain) that is executed over the simulation period, making decisions for destination choice and mode choice. These decisions are based on discrete choice models. Since mobiTopp does not yet contain an internal traffic assignment procedure and relies on external tools for this purpose, interactions between agents occur in the basic version of mobiTopp only indirectly by availability or non-availability of cars in the household context. When a household’s last available car is used by an agent, the mode car as driver is not longer available for other household members until a car is returned to the household’s car pool. The mode choice options of the other household members are therefore restricted by the action of the agent. Direct interaction between the agents occurs in the case of ridesharing; this functionality is provided by one of mobiTopp’s extensions (see Section 3.2). When this extension is activated, agents travelling by car offer ridesharing opportunities; agents that choose the mode car as passenger actively seek for ridesharing opportunities. Agents travel together in the same car if a ridesharing request matches a corresponding offer.

The agents’ activities and trips are simulated chronologically over a simulation period up to one week. The temporal resolution is one minute; the spatial resolution is based on traffic analysis zones. mobiTopp has been successfully applied to a study area with more than two million inhabitants distributed over more than thousand traffic analysis zones (Mallig et al., 2013; Kagerbauer et al., 2016).

mobiTopp consists of two major parts, the long-term model and the short-term model, each of them making use of several modules (see Figure 1). The long-term model represents the long-term aspects of the system like population synthesis, assignment of home zone and zone of workplace, car ownership, and ownership of transit pass. These long-term aspects define the framework conditions for the subsequent travel demand simulation. The short-term model models the travel behavior of the agents, consisting of destination choice and mode choice, over the course of the simulation period of one week.

mobiTopp is implemented in JAVA using the object-oriented design paradigm. Every module is described by an interface. Typically, several implementations for each module exist, which are easily exchangeable. Exchanging existing implementations of a module is basically a matter of configuration. New implementations can be plugged-in easily. There is typically a default implementation, which provides only the basic functionality. More complex behavior is realized by specialized implementations, typically as a result of a specific research project.

Figure 1: Structure of mobiTopp: long-term and short-term model.

2.1 Long-term model

The first part of the long-term model is the population synthesis module. Households and persons are generated for each zone based on total numbers of households and persons given on the level of traffic analysis zones and distributions of the households’ and persons’ attributes. The corresponding zone is assigned as home zone. An activity schedule is assigned to each person. In addition, long-term decisions like workplace or school place, car ownership and transit pass ownership are modeled. These assignments remain fixed for the following short-term model.

2.1.1 Population synthesis

Central input of the population synthesis is the data of a household travel survey. Preferably, a survey for the planning area is used; however nationwide surveys like the German Mobility Panel (Wirtz et al., 2013)

can be used as replacement. The population of each zone is generated by repeated random draws of households and the corresponding persons from the survey data. The distributions of households’ and persons’ attributes are taken into account by an appropriate weighting of a household’s probability to be drawn.

The population synthesis uses a two-stage process similar to the method described by Mueller and Axhausen (2011), which is based on the idea of iterative proportional fitting introduced by Beckman et al. (1996) to population synthesis. In the first stage, an initially equally distributed weight is assigned to each household. These weights are subsequently adjusted in an iterative process until the weighted distribution of the households matches the given distribution of the household types and the distribution of the persons weighted by the corresponding household weight matches the given marginal distributions of the persons’ attributes. In the second stage, the corresponding number of household for each household type is drawn randomly with replacement from the weighted distribution of households. The survey household acts as prototype for the household in the model, meaning that the household created in the model has the same attributes as the prototype household. Likewise, an agent is created for each person of the survey household, which has the same attributes and the same activity schedule as the survey person.

2.1.2 Activity Schedule Generation

Once the agent is created, he is assigned an activity schedule for a complete week. The activity schedule consists of a sequence of activities with the attributes purpose, planned start time, and duration.

The default implementation of the activity schedule creator is quite simplistic: it basically copies the activity schedules for all persons from the persons of a matching survey household.

A more sophisticated implementation of an activity schedule creator, which synthetically calculates the whole weekly activity schedules, is under development (Hilgert et al., 2017). This activity schedule creator, called actiTopp

, consists of a hierarchy of submodels with the levels week, day, tour, and activity. Multinomial Logit models (MLM) are used for decisions with a finite number of alternatives, for example the number of activities per tour. Continuous variables like start time are determined using a hybrid approach. A MLM is used to determine the broad period during the day; a random draw from an empirical distribution is used to determine the exact time during the broad period.

The upper level of the hierarchy models for each activity type the decisions relevant for the whole week: the number of days an activity of this type will take place, the available time for each activity type, and the usual start time of the main tours. The levels below (day, tour, activity) use an approach similar to the Day Activity Schedule approach (Bowman and Ben-Akiva, 2001)

, but take also into account the decisions made at the week level. The day level determines the main tour and the number of secondary tours. The tour level determines the main activity of the secondary tours and the number of secondary activities for each tour. The activity level determines the activity types for the secondary activities and the activity durations.

2.1.3 Assignment of workplace

Workplace and school place typically remain stable over a longer period and are therefore modeled in the long-term model and kept constant during the short-term model. In the short-term model, no destination choice is made for activities of type work or education; instead the location assigned in the long-term model is used. The assignment of workplace and school place is based on external matrices, called commuting matrices in mobiTopp, representing the distribution of workplaces and school places for the inhabitants of each zone. For Germany, matrices of this type can be acquired from the Federal Employment Agency for the workplace on the level of municipalities; however, disaggregation to the level of traffic analysis zones is necessary. Disaggregation can be done proportional to the size of an appropriate variable, known for each zone, the number of inhabitants for the residential side, and for example the number of workplaces or total size of office space for the work-related side of each relation. For school places, this type of data is typically not available in Germany, so one has to resort to modeled data. Ideally, matrices can be adopted from an existing macroscopic model.

The agents are assigned workplaces and school places based on these matrices. Agents whose prototypes in the survey have reported long commuting distances are assigned workplaces with long distances from their home zones, while agents whose prototypes reported short commuting distances are assigned workplaces close to their home zones. That way it is ensured that the commuting distance is consistent with the activity schedule, which is taken from the survey data. The assignment of workplace and school place is done for each home zone in the following way: The number of workplaces for the current zone giving by the commuting matrix is normalized to match the total number of working persons living in the zone. The workplaces are ordered by increasing distance. The working persons are ordered by increasing commuting distance reported by their prototype in the survey. Then each th working person is assigned the th workplace. The procedure for the assignment of school places is the same.

2.1.4 Car ownership

The number of cars, each household owns, is an attribute used by the population synthesis module and is therefore already defined. The car ownership model determines the type of car in terms of segment and engine type. It consists of two submodels: a car segment model and a car engine model. The default implementations of these model are mere placeholders for more complex models that can be plugged-in as needed. The default car segment model always assigns a car of the midsize class. The car engine model assigns randomly either a combustion engine or an electric engine, while the probability to assign an electric engine is configurable. More elaborate implementations of the models were developed as part of mobiTopp’s electric vehicle extension (Weiss et al., 2017).

2.1.5 Transit pass

The transit pass model decides for each agent whether he owns a transit pass or not. The model is a binary logit model using the attributes sex, employment status, car availability, and the households’ number of cars divided by household size.

2.2 Short-term model

The main components of the short-term model (see Fig. 1) are the destination choice model, the mode choice model and the mode availability model. The destination choice model and the mode choice model are used directly to model the decisions of the agents. The mode availability model is an auxiliary model used to determine the agent’s available modes. It is used by the mode choice model and by the destination choice model.

During the short-term model, the travel behavior of all agents is simulated simultaneously and chronologically. The simulation starts at Monday 00:00 and typically ends at Sunday 23:59 for a simulation period of one week. During the simulation period, the agents execute their activity schedules. Each agent typically starts the simulation performing an activity at home. When an agent has finished his current activity, he inspects his activity schedule and identifies the next activity. For this activity, he makes a destination choice followed by a mode choice, taking into account the available modes. Then he makes the trip to the chosen destination using the selected mode. When he reaches the destination, he starts performing the next activity.

mobiTopp uses a fixed order of destination choice first and mode choice second. This fixed order can be seen as a certain limitation of the model, since in reality these decisions are not necessarily made in this order. In case of intermediate stops of a tour made by car, for example, the mode choice decision is made at the beginning of the tour, while the locations of the intermediate stops may be still unknown. Destination choice for these stops may be made at later point of time during the tour. We made the decision to use a fixed order because it simplifies the implementation. Besides, in many cases the destination choice is made before the mode choice decision, for example for work and school trips. The issue of mode choice before destination choice for intermediate stops is addressed by the mode availability model (see Section 2.2.3). This model allows a mode choice for intermediate stops only when the mode used for the tour is one of the modes walking, car as passenger, or public transport. In case of the modes car as driver or cycling, the agent is constrained to the currently used mode. So the order of destination choice and mode choice is virtually reversed in this case: after the mode choice for the first trip of the tour only destination choices are made for the trips afterwards. For home-based trips that do not involve an activity with fixed location destination choice and mode choice can be considered as simultaneous. The joint probability for each combination of destination and mode can be partitioned into a marginal probability and a conditional probability (Ben-Akiva, 1974), which leads to a Nested Logit structure (Ben-Akiva and Lerman, 1987, Ch. 10). The applicability of this approach in mobiTopp has been shown by Heilig et al. (2017a).

Figure 2: State diagram describing the behavior of an agent during mobiTopp’s short-term model.

The behavior of an agent can be described as a state diagram (Fig. 2). The circles denote states and the arrows denote transitions between states. The clocks at the arrows indicate that the agent remains in these states until some specific time has elapsed, i. e. until the trip is finished or the activity is finished.

The agent starts in the state not yet initialized; after initialization, the state changes to execute activity. The agent remains in this state for the duration of the activity. When the activity is finished, the state changes to make trip. The agent remains in this state until the trip is finished and the state changes again to execute activity. As long as there are more activities left in the activity program, the cycle execute activitymake tripexecute activity repeats. When the last activity is finished the state changes to finished.

The agents act at the transitions between the states. At the transition from state execute activity to state make trip, marked as end activity, the agents makes first a destination choice and then a mode choice. If the agent is currently at home and the mode chosen is car as driver, the agent takes one of the household’s available cars. This car is then not longer available for other agents until the agent that has taken the car returns home again. At the transition from state make trip to state execute activity, marked as end trip, information about the trip made is written to the trip file. If the trip was a trip back home made by mode car as driver, the car is returned to the household’s car pool and is again available to other members of the household. During initialization, at the transition from state not yet initialized to state execute activity, the first activity is initialized. If the activity is not of type at home, a destination choice and a mode choice are made for the trip preceding the activity. If the mode is car as driver the agent is assigned a car and the car is removed from the pool of available cars of his household.

2.2.1 Destination choice

The destination choice model distinguishes between two types of activities: activities with fixed locations (work, school, at home) and activities with flexible locations, for example shopping or leisure. For activities with fixed locations, no destination choice is made, since these destinations have already been determined by the long-term model. For activities with flexible locations, a destination choice is made on the level of traffic analysis zones using a discrete choice model. Different implementations of destination choice models exist for mobiTopp.

The different implementations of the destination choice model have in common that they do not only consider travel time and cost for the trip to the potential destination, but also travel time and cost for the trip to the next fixed location the agent knows he will visit.

The actual specification of the destination model used for the results shown in this paper is given in Section 4.2.

2.2.2 Mode choice

In mobiTopp a trip is a journey from the location of one activity to the location of the next activity. mobiTopp models only the main transportation mode for each trip; trips with several legs travelled by different modes are not supported. So every trip has exactly one mode. In its basic version, mobiTopp distinguishes between five modes: walking, cycling, public transport, car as driver, and car as passenger. Two additional modes, station-based carsharing and free-floating carsharing, are provided by an extension (Heilig et al., 2017b) (see Section 3.1).

The actual available choice set is situation-dependent, consisting of a non-empty subset of the full choice set. mobiTopp aims at modeling the available choice set realistically. This means for example that an agent, who is not at home and has arrived to his current location by public transport should not have available the modes cycling and car as driver for his next trip. Or if an agent is at home and all cars of his household are currently in use by other agents, then the agent should not be able to choose the mode car as driver. The complexity of these dependencies is captured in the mode availability model, which is described in the next section.

The choice between the available modes is made by a discrete choice model, which uses typically service variables of the transport system like travel time and cost and sociodemographic variables of the agents. The mode is selected by a random draw from the resulting discrete probability distribution, The actual discrete choice model used for mode choice in mobiTopp is configurable.

The actual specification of the mode choice model used for the results of this paper is given in Section 4.3.

2.2.3 Mode availability model

The actual choice set, an agent has available, depends on the current situation of the agent, i. e. the current location, the previous mode choice and the mode choices of the other agents of the same household. The most important factor is the agent’s current location.

If the agent is at home, in principle all modes are available independently of the mode used before. However, the mode car as driver is not available if the agent does not hold a driving license or the household’s cars are currently all in use. It is assumed that every agent owns a bicycle, so if the agent is at home the mode cycling is always available.

If the agent is not at home, the available choice set depends essentially on the mode used before. If the previous mode has been car as driver or cycling, only the mode used before is available for the next trip. This approach is based on the idea that a car or a bicycle that has been used at the start of a tour has eventually to return home. This approach is a small oversimplification, since it does not allow for tours that start with the mode cycling or car as driver, are followed by a sub-tour using another mode that ends at the location where the vehicle has been left, and are finished by a trip using the initial mode. However, tours of this type are rarely found in reported behavior (Kuhnimhof, 2009).

If the agent is not at home and the previous mode is one of the flexible modes walking, public transport, or car as passenger, the choice set for the next trip consists of these three modes. The modes car as driver and cycling are not available, since these modes require a vehicle that is typically not available if the trip before is made by another mode.

(a) No rescheduling.
(b) Remaining activities truncated when end of day reached.
(c) Activities between current activity and next activity at home skipped.
Figure 3: Times series of persons en route for different rescheduling strategies.

2.2.4 Rescheduling

For each agent, the simulation flow is highly influenced by his activity schedule. This activity schedule consists of a sequence of activities for each day, with a given planned start time and a duration for each activity, both together implying a planned end time. However, the travel times during the simulation may not match exactly the gaps between the planned end of an activity and the start of the next activity. In this case, the start time of the following activity deviates from the planned start time, since an agent starts his activity immediately after arriving at the location for the activity and performs the activity for the planned duration. If an agent arrives early at the destination, this means that the next activity starts earlier and ends earlier than planned. If an agent arrives late at the destination, this means that next activity starts later and ends later than planned. During the course of the simulation, it is possible that the start times of activities differ more and more form the planned start times. This may finally lead to the situation that some of the remaining activities of the day can not be executed during the day for which they have been originally scheduled. By this point at the latest, some rescheduling is needed.

Several rescheduling approaches can be employed. The simplest approach is just performing the activities in the planned order, ignoring the deviating schedule. This approach has the obvious drawback that the deviations may add up in the course of the week, resulting in unrealistic start times for activities at later days, for example activities scheduled for the evening, but performed in the early morning. The second simplest approach is performing the activities until the day ends and skipping the rest. This approach has the advantage that the result of a simulation run with a simulation period of one day is the same as the result for the first day of a multi-day simulation run. It has the drawback that the last activity is skipped, which is typically an at home activity. For a simulation period of one day, this is typically not a problem, since the following at home activity could take place just at the beginning of the next day. So the sequence of activities is still reasonable. In the case of a multi-day simulation however, this would mean that the agent does not return home at the end of the day, making the simulation unrealistic. The third approach is keeping the last activity of the day and skipping activities in between the current activity and the last activity. If necessary the duration of the last activity can be adjusted, so that its ending time matches its planned ending time. A more sophisticated rescheduling approach would at first not skip any activity, but try to rearrange the activity schedule by moving activities to other days or reducing the duration of some activities (Arentze et al., 2006).

mobiTopp implements the first three approaches mentioned above. The third approach is enabled as default: activities are performed until the day ends, all remaining activities of the day but the last are removed from the schedule. For the last activity of a day, the duration is adjusted such that the first activity of the next day can start at the planned time.

The resulting time series of the persons en route for the different rescheduling approaches are shown in Figure 3. For Monday, all time series show a typical workday profile: a distinct morning peak is found around 7 a. m., when workers and students leave for work or school. Around one 1 p. m. is a much smaller peak, when students return home. The evening peak around 6 p. m., when people return home, is smaller but wider than the morning peak. In Fig. 3(a), without explicit rescheduling, this pattern gets more and more distorted with each day. In Fig. 3 LABEL: and LABEL:, with rescheduling strategies, the typical workday profile is preserved for from Monday to Friday. Saturday and Sunday show another profile, but as these days are not typical workdays a different profile is reasonable. The shape of the Friday profile differs slightly from the other workday profiles, but as the Friday is at the transition to the weekend this small divergence seems reasonable as well. The heights of the workday profiles are slightly less for Tuesday to Friday than on Monday. In Fig. 3(c), representing the rescheduling strategy where only not feasible activities before the home activity are skipped, the decrease in height is not so pronounced. The Friday profile is still lower than the Monday profile, though the total number of trips is larger on Friday. However, the Friday trips are distributed more evenly in time. In consequence, the evening peak on Friday is smaller, but broader than on Monday. This is the rescheduling strategy, which is enabled by defaults as it preserves the workday profile best.

2.2.5 Route Choice / Traffic Assignment

As route choice model there exists currently only a dummy implementation, returning the result of a simple Dijkstra search, which is not coupled with a traffic flow model. So there is currently no direct feedback loop, where destination choice and mode choice influence travel time and the adjusted travel time influences destination choice and mode choice, within mobiTopp. The feedback loop has to be realized using an external tool instead. PTV Visum was used for this purpose since a Visum model was already available. This has the obvious disadvantages of leaving the agent-based world. We have not yet found the best option to overcome this limitation. One option is to use MATSim; the other option is implementing our own traffic flow simulation.

First experiments with MATSim have shown that an integration is not straightforward since mobiTopp work on the level of zones while MATSim works on the level of links. In mobiTopp agents performing activities are located at the zone center, which is connected to the road network via artificial links, so-called connectors. These connectors should only be used when leaving or entering a zone, but not for travel between other zones. When the network is converted to MATSim, the distinction between regular links and connectors is lost. This makes it difficult to ensure that the connectors are only used for entering or leaving a zone. If the capacity of the connectors is set too high and travel time too low, agents start traveling via the connectors and zone centers instead of the road network. When the capacity of the connectors is set too low, there is a lot of congestion on the connectors. We have recently experimented with randomly distributing mobiTopp’s agent within the zone, but have not yet tried out how this affects the interaction with MATSim. However, according to Nagel (2017), this approach should solve the issue.

3 Extensions to the base model

Some extensions have been made to mobiTopp during the last years, namely the implementation of carsharing, ridesharing, and electric vehicles.

3.1 Carsharing

The carsharing extension (Heilig et al., 2017b) extends mobiTopp by two additional modes: station-based carsharing and free-floating carsharing. The long-term model has been extended by a carsharing customer model. It is used to model the customer for each of the modeled car sharing companies.

For the mode choice model this extension means only minor changes: an enriched choice set and different cost and increased travel time compared to the mode car as result of increased access and egress times. The main work for the carsharing extension regarding travel behavior is performed by the mode availability model. Station-based carsharing cars have to be picked-up at a carsharing station, typically located in the vicinity of the home place, and returned to the same station. Thus the mode station-based carsharing is handled like the mode car as driver: It is only available when the agent is at home or when it has already been used for the previous trip. Changing the mode is not allowed while not at home.

The mode free-floating carsharing is handled differently. Free-floating cars can be picked-up and dropped-off anywhere within a defined free-floating operating area. Thus free-floating carsharing is handled like the flexible modes with some restrictions. Free-floating carsharing is available if the zone of the current location belongs to a zone of the free-floating operating area and if a car is available. If an agent uses free-floating carsharing outside the free-floating operating area, switching the mode is not permitted until he returns to the free-floating operating area.

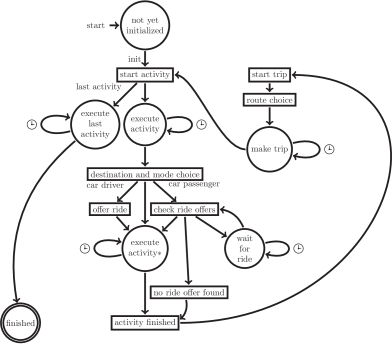

Figure 4: State diagram describing the behavior of an agent during mobiTopp’s short-term model using the ridesharing extension.

3.2 Ridesharing

The implementation of the mode car as passenger in mobiTopp’s base model is quite simplistic. It is assumed that this mode is always available, if not restricted to another mode. In reality, however, travelling as car passenger is only possible if someone else offers a ride. Thus the ridesharing extension of mobiTopp (Mallig and Vortisch, 2015) aims at modeling this mode more realistically. In this implementation, agents using a car as driver offer ridesharing opportunities. Agents that have chosen the mode car as passenger seek actively for ridesharing opportunities.

However, when the departure time is fixed, it is practically impossible to find a ridesharing opportunity to the desired destination. Therefore more flexibility is needed. Therefore in the ridesharing extension agents make their mode choices not at the end of the activity, but up to 30 minutes earlier and end their activities earlier or later to match the departure time of the ridesharing offer. The extended state diagram for the ridesharing extension is shown in Figure 4. The state execute activity is split into two. Between these two states the destination choice and the mode choice is made. When the agent chooses the mode car as passenger he checks the availability of ride offers. If no matching ride offer is found, the agent changes in the state wait for ride where he periodically checks the availability of ride offers until he finds one or his maximum waiting time is elapsed. If the agent finds a matching ride offer or chooses one of the other modes, the next stage is the second part of the state execute activity. The remainder of the diagram is in principle the same as the original state diagram.

3.3 Electric vehicles

Within the scope of the electric vehicle extension (Weiss et al., 2017; Mallig et al., 2016) different car classes have been created, differentiated by propulsion, namely combustion engine cars, battery electric vehicles, and plug-in hybrid vehicles. The cars have been extended to provide current fuel levels, battery levels, and odometer values.

The long-term model has been extended by a sophisticated car ownership model (Weiss et al., 2017)

. The car ownership model consists of a car segment model and a car engine model. The car segment model is a multinomial logit model estimated on the data of the German Mobility Panel

(Wirtz et al., 2013). The car engine model combines the ideas of propensity to own an electric car and suitability of an electric car. The propensity model models the propensity to own an electric car based on the similarity of the agent with early adaptors of electric cars based on sociodemographic attributes. The suitability model is a binary logit model based on the sociodemographic attributes of the agents and estimated on the data generated by the CUMILE approach (Chlond et al., 2014). Both models calculate a probability, which are multiplied to generate a probability to own an electric car.

In the short-term model, the destination choice model, and the mode choice model have been changed to take the limited range into account. In the destination choice model, possible destinations out of range of the electric vehicle are excluded from the choice set if the electric car is the only mode available. A safety margin, to account for detours and range anxiety, is considered. In the mode choice model, the limited range is handled by the mode availability model. If the chosen destination is out of range of the electric vehicle, again taking the safety margin into account, the mode car as driver is not available.

4 Application of the model

mobiTopp has been applied to the Stuttgart Region, a metropolitan area in Germany, with a population of approximately 2.7 million. The Stuttgart Region consists of the city of Stuttgart and the five surrounding administrative districts: Böblingen, Esslingen, Ludwigsburg, Göppingen, and Rems-Murr. The study area is divided into 1 012 traffic analysis zones. Additional 152 zones are used to represent the surrounding land. The division into zones, the travel time, cost and commuting matrices, and the structural data have been borrowed from an existing macroscopic model (Schlaich et al., 2011).

For population synthesis, activity schedule generation, and parameter estimation of the different modules, a recent household travel survey (Verband Region Stuttgart, 2011) has been used. This survey was conducted between September 2009 and April 2010 in the Stuttgart Region. Each person, aged 6 and above, of the surveyed households was asked to fill out an activity-travel diary over a period of seven days. The starting days of the survey period were equally distributed over all seven days of the week. In addition, socioeconomic data of the household and its members was gathered using a questionary. The sample has been generated by random draws from the municipal population registers. The dataset contains trip data for 275913 trips of 13731 persons in 5567 households.

4.1 Long-term model

For population synthesis and the generation of the activity schedules, the survey is used as input. The default implementation of the activity schedule generator has been used. The commuting matrices of the VISUM model mentioned above have been used as input for the assignment of workplaces and school places. The default car ownership model has been used.

4.1.1 Transit pass model

Statistics on transit pass ownership was only available as totals for the whole planning area. The analysis of the household travel survey has shown substantially different shares of transit pass ownership for the different administrative districts. These differences could not be explained by the socio-econometric attributes alone. So the variable administrative district has been added as explanatory variable. The model has been estimated using the method glm contained in the stats package of the statistical software package GNU R (R Core Team, 2013) based on the data of the socioeconomic questionary. The resulting parameter estimates are given in Table 1. As only the total number of transit passes sold was known, the sole parameter adjusted during calibration was the intercept, set to .

coefficient estimate std. error
intercept .93383 .11802
female .21752 .07000
number of cars divided by household size 1.17629 .12277
car availability
       personal car 1.32630 .11780
       after consultation 0.13437 .11191
employment
       part time 0.63909 .09894
       unemployed 0.56445 .28009
       vocational education .44164 .20866
       homemaker 1.89145 .18279
       retired 0.91735 .08390
       unknown 0.65950 .27122
       secondary education .45025 .13669
       tertiary education .87161 .15488
administrative district
       BB 1.15480 .11197
       ES 1.30675 .10157
       GP 1.91134 .16567
       LB 1.04585 .09297
       WN 0.94395 .09760
Table 1: Parameter estimation results for the transit pass model.

4.2 Destination choice model

The destination choice model used, for the results presented here, is a multinomial logit model based on the following variables: purpose (type of activity), attractivity of the potential destination zone, travel time and travel cost. Travel time and travel cost are not only based on the current zone and the potential destination zone, but also on the next zone where an activity with fixed location takes place.

The following utility function is used:

where is the utility for a trip from the current zone to the zone . is the attractivity of zone for an activity of type . and are travel time and travel cost from the current zone to zone . and are travel time and travel cost from zone to the next zone of an activity with fixed location. and

are dummy variables, denoting the purpose of the trip and the employment status of the person respectively. The

s are the corresponding model parameters. and are the parameters for travel time, which vary with purpose and employment, respectively. is the model parameter for cost, which varies with the purpose of the trip. is the model parameter for the available opportunities, which also varies with purpose.

The model parameters of the destination choice model have been estimated based on the trip data of the whole Stuttgart household travel survey using the package mlogit (Croissant, 2012) of the statistical software GNU R (R Core Team, 2013). For parameter estimation, a random sample of 100 alternatives has been used, as described by Ben-Akiva and Lerman (1987, Chapter 9.3). The resulting parameter estimates are showon in Table 2.

coefficient estimate std. error time purpose        business 0.01054540 .00111986        service 0.09110973 .00209485        private business 0.07776060 .00152797        private visit 0.05457433 .00125026        shopping daily 0.11127299 .00199560        shopping other 0.05947906 .00171003        leisure indoor 0.03639682 .00141101        leisure outdoor 0.06822290 .00179649        leisure other 0.05259948 .00145475        strolling 0.17635836 .00357956 time employment status        part-time 0.01155729 .00074396        unemployed 0.00224253 .00202341        homemaker 0.01375566 .00103072        retired 0.00343436 .00062823        student 0.01159740 .00074088        vocational education .00010795 .00187697        other 0.00699810 .00196023 cost purpose        business 0.41934536 .01549222 coefficient estimate std. error cost purpose (cont.)        service 0.33389025 .02598859        private business 0.26954419 .01817515        private visit 0.12415494 .01360810        shopping daily 0.47753511 .02667347        shopping other 0.33848300 .02121217        leisure indoor 0.49940005 .01844977        leisure outdoor 0.22842223 .02129771        leisure other 0.31403821 .01735821        strolling 0.70369097 .04702899 opportunities purpose        business .26737545 .01313610        service .33691243 .00701132        private business .46352602 .00684424        private visit .37621891 .00622737        shopping daily .27836507 .00464230        shopping other .35537183 .00467768        leisure indoor .38143512 .00663500        leisure outdoor .29088396 .00551271        leisure other .47347275 .00847906        strolling .09158896 .01121878
Table 2: Parameter estimates for the destination choice model.

For calibration an additional scaling parameter has been introduced, so the resulting selection probability for each zone is given by

coefficient estimate std. error calibration alternative specific constants             cycling 1.1356e+00 .5440e-02             car driver 1.5672e-01 .5945e-02             car passenger 4.2941e+00 .0241e-02             public transport 2.8372e+00 .0784e-02 travel cost per kilometer 3.5730e-01 .8557e-02 travel time per kilometer 2.8840e-02 .6580e-03 distance in kilometer             cycling .6343e-01 .5842e-02             car driver .8261e-01 .4669e-02             car passenger .9470e-01 .4680e-02             public transport .9439e-01 .4771e-02 intrazonal trip             cycling 9.5082e-02 .7767e-02             car driver 9.2063e-01 .7774e-02             car passenger 1.1832e+00 .4493e-02             public transport 2.0302e+00 .1787e-01 transit pass             cycling 4.2752e-01 .1864e-02             car driver 8.2268e-01 .3557e-02             car passenger 1.9584e-01 .6310e-02             public transport .3695e+00 .8847e-02 no driving licence             cycling 5.9253e-01 .1967e-02             car driver 4.1309e+00 .2221e-01             car passenger .1978e-03 .1948e-02             public transport 5.5511e-02 .8374e-02 female             cycling 5.6703e-01 .8076e-02             car driver 6.3911e-01 .9206e-02             car passenger .7420e-01 .2735e-02             public transport .4118e-02 .6384e-02 day of week             saturday                         cycling 1.9626e-01 .6173e-02                         car driver 4.2888e-03 .6395e-02                         car passenger .2985e-01 .1188e-02                         public transport 1.3885e-01 .3039e-02             sunday                         walking                         cycling 4.5429e-01 .0118e-02                         car driver 5.5067e-01 .6085e-02                         car passenger .6730e-01 .9243e-02                         public transport 1.0634e+00 .7111e-02 employment status             vocational education                         cycling .1499e-01 .0892e-01                         car driver .0964e-01 .5566e-01                         car passenger .3904e-01 .6909e-01                         public transport .7232e-02 .7418e-01             infant                         cycling 3.6321e-01 .5163e-01                         car driver 3.7374e-02 .5694e+04                         car passenger .1319e-01 .9921e-01                         public transport .9077e-01 .8562e-01             unemployed                         cycling 3.1530e-01 .7854e-01                         car driver 5.8424e-01 .1414e-01                         car passenger 2.1840e-01 .3849e-01                         public transport .8309e-02 .6185e-01             other                         cycling 6.8318e-01 .8341e-01                         car driver 4.7136e-01 .9071e-02                         car passenger 1.8951e-01 .2550e-01                         public transport 3.4615e-02 .4701e-01             homemaker                         cycling 1.9816e-01 .4113e-02                         car driver 2.1550e-01 .1162e-02                         car passenger 2.8003e-02 .5064e-02                         public transport 1.5727e-01 .4391e-02             partime                         cycling .2448e-01 .7914e-02                         car driver .3589e-01 .1725e-02                         car passenger .8310e-01 .3525e-02                         public transport .0515e-02 .8937e-02             retired                         cycling 6.4015e-01 .0530e-01                         car driver 6.2650e-01 .6882e-02                         car passenger 4.1904e-01 .1543e-02                         public transport 7.7916e-02 .6886e-02             student                         cycling .9692e-01 .5259e-01                         car driver 7.5693e-02 .1227e-01                         car passenger .6439e-02 .2607e-01                         public transport 2.0048e-01 .3115e-01 trip purpose             business                         cycling 3.1571e-01 .6633e-01                         car driver .6801e-01 .2078e-01                         car passenger .4322e-01 .6613e-01                         public transport 3.1422e-02 .5198e-01             education                         cycling 7.2092e-01 .6064e-02                         car driver 1.0215e+00 .8507e-02 coefficient estimate std. error calibration trip purpose (cont.)             education (cont.)                         car passenger 1.3862e-01 .0878e-02                         public transport 1.1122e-01 .9957e-02             home                         cycling 8.2356e-01 .6348e-01                         car driver 6.2113e-02 .0463e-01                         car passenger .5310e+00 .1728e-01                         public transport 1.5520e-01 .2665e-01             leisure indoor                         cycling 1.6181e+00 .1181e-01                         car driver 8.4596e-01 .9106e-02                         car passenger .1639e+00 .2267e-02                         public transport 4.5739e-01 .3763e-02             leisure outdoor                         cycling 3.1209e-01 .6533e-02                         car driver .0902e-01 .0189e-02                         car passenger .8137e+00 .5388e-02                         public transport 8.2445e-01 .3885e-02             leisure other                         cycling 8.4608e-01 .7222e-02                         car driver 1.7938e-01 .8599e-02                         car passenger .2538e+00 .4144e-02                         public transport 4.2970e-01 .5348e-02             strolling                         cycling 2.3744e+00 .6047e-01                         car driver 2.9623e+00 .2915e-01                         car passenger 1.2092e+00 .5164e-01                         public transport 3.6069e+00 .1196e-01             other                         cycling 3.5610e-01 .6294e-01                         car driver .6026e-01 .5894e-01                         car passenger .3180e+00 .1746e-01                         public transport .7591e-01 .7530e-01             private business                         cycling 7.0594e-01 .1261e-02                         car driver .5110e-01 .2300e-02                         car passenger .3480e+00 .1297e-02                         public transport 4.8652e-01 .1584e-02             private visit                         cycling 8.7128e-01 .2963e-02                         car driver .6199e-02 .0521e-02                         car passenger .2351e+00 .6256e-02                         public transport 1.1572e+00 .4478e-02             service                         cycling 9.4805e-01 .1146e-02                         car driver .0449e+00 .3128e-02                         car passenger .8400e-01 .2154e-02                         public transport 1.3799e+00 .0213e-01             shopping daily                         cycling 5.6289e-01 .6363e-02                         car driver .5313e-01 .0078e-02                         car passenger .2224e+00 .1302e-02                         public transport 1.1002e+00 .9112e-02             shopping other                         cycling 5.9659e-01 .7271e-02                         car driver .0277e-01 .8813e-02                         car passenger .5966e+00 .5150e-02                         public transport 2.9474e-01 .7803e-02 age             from 0 to 9                         cycling 1.2200e+00 .9258e-01                         car driver 1.9409e+01 .5083e+03                         car passenger .4448e+00 .5028e-01                         public transport 3.6995e-01 .8504e-01             from 10 to 17                         cycling .0540e-01 .7174e-01                         car driver 2.8867e-02 .7507e-01                         car passenger .6410e+00 .4140e-01                         public transport .5017e-01 .4839e-01             from 18 to 25                         cycling .6218e-02 .4544e-01                         car driver .1154e-01 .0340e-01                         car passenger .1004e+00 .1831e-01                         public transport .1406e-01 .2382e-01             from 26 to 35                         cycling 4.8777e-01 .4708e-02                         car driver 4.6501e-01 .8725e-02                         car passenger 1.9761e-01 .5731e-02                         public transport 8.4504e-02 .7550e-02             from 51 to 60                         cycling 2.7928e-01 .6226e-02                         car driver .3524e-01 .8045e-02                         car passenger .6019e-01 .0391e-02                         public transport .8826e-01 .5333e-02             from 61 to 70                         cycling 1.2830e-01 .5410e-02                         car driver .3149e-02 .3070e-02                         car passenger .8302e-01 .6379e-02                         public transport .3423e-01 .0021e-02             71 and above                         cycling 2.2630e-01 .1599e-01                         car driver .6608e-02 .2146e-02                         car passenger .1939e-01 .7350e-02                         public transport .8159e-01 .0401e-01
Table 3: Parameter estimates for the mode choice model. The column calibration contains the adjustment made as result of the calibration process.

4.3 Mode choice model

The mode choice model used is a multinomial logit model with the following utility function:

where is the road-based distance between zone centroids, and are travel time per kilometer and travel cost per kilometer for the mode based on the distance

. The binary variable

denotes, whether the trip is an intrazonal trip, whereas in addition to genuine intrazonal trips, trips between zones with a distance are also counted as intrazonal. The variables , , , und are person specific variables for sex, employment status, age group, transit pass ownership, and holding of a driving license. The variables and denote the purpose of the trip (activity type) and the day of the week. The variable day of the week has the possible values workday, Saturday, and Sunday.

The coefficients and are generic, i. e. not mode-dependant. The constants and the other coefficients are alternative-specific, which means they are different for each mode .

The model parameters have been estimated using mlogit/GNU R based on the trip data of the whole Stuttgart household travel survey. The resulting parameter estimates are shown in Table 3.

4.4 Traffic assignment

As mobiTopp does not contain a traffic flow simulation, the feedback look is realized with the help of external tools. The resulting trip file of the short-term model is aggregated to OD-matrices, differentiated by mode and time period. A traffic assignment is made for each period using an external tool and the resulting travel time matrices are fed back into the next run of the short-term model.

For traffic assignment, PTV Visum has been used. For this purpose, all trips starting within the same hour have been aggregated into hourly OD matrices. Hourly matrices have been generated for each day. Traffic assignment has been done for 24 hourly matrices for workday, Saturday, and Sunday each. The hourly matrices of Tuesday have been considered as representative for a workday. PTV Visum’s Equilibrium Lohse procedure with 50 iterations has been used for traffic assignment. With this procedure, traffic assignment took about 25 minutes for each of the 72 hourly matrices.

value business service private business private visit shopping daily shopping other leisure indoor leisure outdoor leisure other strolling value fulltime part-time unemployed homemaker retired student primary student secondary student tertiary vocational education other
Table 4: Scaling parameters of the destination choice model obtained by calibration.
Figure 5: Trip length distribution by purpose
Figure 6: Modal split by purpose
Figure 7: Modal split by day of the week
Figure 8: Modal split by day of the week using the ridesharing extension.

4.5 Calibration

The destination choice model and the mode choice model have been calibrated using the data of the household travel survey. As starting point for the calibration, the estimated logit parameters have been used. Since the parameters of the destination choice model and the mode choices have been estimated independently, but actually destination choice and mode choice mutually influence each other, the initial match between simulated results and survey results was only moderately good, so subsequent calibration was necessary.

The calibration has been based on plots of trips length distributions and modal split differentiated by several criteria that contrast the simulation results with the survey results, see for example Figures 5 and Figure 6. An iterative process consisting of visually judging the plots, adjusting the model parameter, and rerunning the simulation has been employed. When a good fit of the model had been reached, a new traffic assignment run was made. The resulting travel time matrices were used for the next calibration round. Each calibration round consisted of several simulation runs with samples of the population until a good fit of the distributions was reached. These were followed by a simulation run with the whole population. These results were used for the next round of traffic assignment. In total, three complete iterations involving traffic assignment were made.

The resulting scaling parameters for the destination choice model are shown in Table 4. The adjustments to the mode choice parameters are shown in the last column of Table 3.

4.6 Simulation results

The simulation results in in Figures 5 to 7 show that the model is mostly calibrated well regarding trip length distribution and modal split. The plot of the trip length distributions in Figure 5 shows a good match between simulated data and survey data; however the number of trips with a distance over 50 km is somewhat underestimated. Plots of trip length distributions by employment type (not shown here) show similar results. It seems that this discrepancy can be at least partially attributed to infrequently occurring long-distance trips like business trips, holiday trips or trips to visit friends or relatives. So as future improvement, a separate model for such seldom-occurring events might be useful.

The modal split by purpose in Figure 6 shows a good match between simulated and empirical data. The same holds for the modal split by employment status (not shown here). And finally the modal split by day of the week shows a good match as well (see Fig. 7).

Enabling the ridesharing extension, similar results for the modal split by day could be produced for all days except Sunday (Fig. 8). Even an excessive adjustment of the mode choice parameters was not able to produce a higher share of the mode car as passenger on Sunday. We suppose that joint activities are the reason for this. Joint activities occur particularly at weekends and are combined with joined trips. Many of these trips are made as a combination of the modes car as driver and car as passenger. As mobiTopp does not yet support joint activities, agents choose their destinations independently of each other and therefore choose in many cases different destinations. Hence a joint trip is not possible and this opportunity for trips as car passenger is missing. As we were not able to correctly reproduce the modal split for Sunday, the ridesharing extension is not enabled as default option and and the simplistic implementation is used instead.

4.7 Transferability

All recent developments of mobiTopp are based on the model for the Stuttgart area. However, single-day versions of mobiTopp have been previously applied to the Rhine-Neckar Metropolitan Region (Kagerbauer, 2010) and the Frankfurt Rhine-Main area.

An application of the current multi-day version of mobiTopp to the Karlsruhe Region is planned. It is intended to use the division into zones and the commuting matrices from an existing VISUM model. A synthetic population will be generated based on statistics at the zonal level. Recalibration of the destination choice and mode choice models in order to match trip length distributions and modal split of the latest household travel survey conducted in the Karlsruhe area (Heilig et al., 2017b) will be necessary.

5 Conclusions and outlook

We have presented the travel demand simulation model mobiTopp, which is able to simulate travel demand over a period of one week for a large-scale study area common in practice. The model is derived as an extension of a single-day model; the activity schedule is extended from one day to a week; some measures had to be taken to prevent that actual start times of activities differ too much from planned start times. The model has been successfully calibrated: trip length distributions and modal split by several aggregation levels match the results of a household travel survey well; even the modal split by day of the week shows a good match.

Using the model in different projects we have gained the following insights: First, with an increasing simulation period, it is more and more important to assure that the start times of activities are correct. An analysis of persons en route showed that the simplistic model of simulating the sequence of trips and activities without further checking the start times of activities results in unrealistic time series. While for a simulation period of one day, this is not a real problem, the time series is already severely blurred for the second day. However a very simple rescheduling strategy can already fix this issue. Second, as weekend travel is different from weekday travel, models or extension of models that work for weekdays quite well may have problems at weekends. In our case, the ridesharing extension was not able to reproduce the modal split at Sundays correctly and revealed that the activity model is not sophisticated enough for a realistic modeling of car passenger trips. So an explicit joint activity and joint trip modeling is necessary Third, there are infrequent extraordinary activities, which should be treated differently than the everyday activities of the same type. Comparing the simulation results with the survey data using trip length distributions revealed a non-negligible number of long-distance trips in the survey data for which the distance was not correctly reproduced by the model. These trips are mainly of the types business, visit, or leisure other. As the relative number of these trips is small, we assume that these are infrequent extraordinary activities that have few in common with the everyday activities of the same type. Due to the small relative number of these activities, the destination choice model is mainly calibrated for the everyday activities. It seems that a long-distance trip model of infrequent events is needed.

The issue of the diverging start times of the activities has already resolved by the rescheduling strategy described in this work. However, this strategy is still rough. A superior solution would include the adjustment of the durations of the activities and take time-space-constraints (Hägerstraand, 1970) into account during destination choice. Taking time-space-constraints into account and restricting the choice set to those locations that can be reached within the timespan available between two activities would prevent activities from starting later than planned. An early start of activities could be prevented by extending the duration of the previous activity.

Joint activities need a flag indicating whether an activity is a joint activity or not and the information about the participating persons. The destination choice model has to consider that only one choice is made for a joint activity and this choice applies for all involved persons. The subsequent mode choice has to be aware of the joint activity, with a high probability of a joint trip as result. As a first step, joint activities in the household context should be sufficient, already providing a considerable improvement. Modeling joint activities completely would require a representation of the social network, whereby joint activities could take place within every clique of the social network. The necessary information for joint activities will be eventually provided by the actiTopp implementation of the activity schedule creator module. The issue with the infrequent long-distance events can be resolved by subdividing the affected activity types each into distant and local and estimating new parameters of the destination choice model for the new activity types.

References

  • Arentze et al. (2010) Arentze, T., Pelizaro, C., and Timmermans, H. (2010). An agent-based micro-simulation framework for modelling of dynamic activity–travel rescheduling decisions. International Journal of Geographical Information Science, 24(8):1149–1170.
  • Arentze et al. (2006) Arentze, T., Timmermans, H., Janssens, D., and Wets, G. (2006). Modeling short-term dynamics in activity-travel patterns: from Aurora to FEATHERS. In Innovations in Travel Demand Modeling, pages 71–77, Austin, Texas. Transportation Research Board.
  • Arentze et al. (2013) Arentze, T. A., Ettema, D., and Timmermans, H. J. (2013). Location choice in the context of multi-day activity-travel patterns: model development and empirical results. Transportmetrica A: Transport Science, 9(2):107–123.
  • Arentze and Timmermans (2004) Arentze, T. A. and Timmermans, H. (2004). A learning-based transportation oriented simulation system. Transportation Research Part B: Methodological, 38(7):613–633.
  • Arentze and Timmermans (2006) Arentze, T. A. and Timmermans, H. J. (2006). A new theory of dynamic activity generation. In 85th annual meeting of the Transportation Research Board, Washington, DC.
  • Arentze and Timmermans (2009) Arentze, T. A. and Timmermans, H. J. (2009). A need-based model of multi-day, multi-person activity generation. Transportation Research Part B: Methodological, 43(2):251–265.
  • Axhausen and Herz (1989) Axhausen, K. W. and Herz, R. (1989). Simulating activity chains: German approach. Journal of Transportation Engineering, 115(3):316–325.
  • Axhausen et al. (2002) Axhausen, K. W., Zimmermann, A., Schönfelder, S., Rindsfüser, G., and Haupt, T. (2002). Observing the rhythms of daily life: A six-week travel diary. Transportation, 29(2):95–124.
  • Beckman et al. (1996) Beckman, R. J., Baggerly, K. A., and McKay, M. D. (1996). Creating synthetic baseline populations. Transportation Research Part A: Policy and Practice, 30(6):415–429.
  • Ben-Akiva and Lerman (1987) Ben-Akiva, M. and Lerman, S. (1987). Discrete Choice Analysis: Theory and Application to Travel Demand. MIT Press.
  • Ben-Akiva (1974) Ben-Akiva, M. E. (1974). Structure of passenger travel demand models. Transportation Research Record, 526:26–42.
  • Bender et al. (2005) Bender, P., Mülle, J., and Schepperle, H. (2005). Enhancing user acceptance of traffic services using imperfect information. In ITS 16th European Regional Conference, Porto, Portugal.
  • Bhat and Koppelman (1999) Bhat, C. R. and Koppelman, F. S. (1999). Activity-based modeling of travel demand. In Handbook of Transportation Science, pages 35–61. Springer.
  • Bonabeau (2002) Bonabeau, E. (2002). Agent-based modeling: Methods and techniques for simulating human systems. Proceedings of the National Academy of Sciences of the United States of America, 99(10, suppl.3):7280–7287.
  • Bowman and Ben-Akiva (2001) Bowman, J. L. and Ben-Akiva, M. E. (2001). Activity-based disaggregate travel demand model system with activity schedules. Transportation Research Part A: Policy and Practice, 35(1):1–28.
  • Bradley et al. (2010) Bradley, M., Bowman, J. L., and Griesenbeck, B. (2010). Sacsim: An applied activity-based model system with fine-level spatial and temporal resolution. Journal of Choice Modelling, 3(1):5–31.
  • Chlond et al. (2014) Chlond, B., Weiss, C., Heilig, M., and Vortisch, P. (2014). Hybrid modeling approach of car uses in Germany on basis of empirical data with different granularities. Transportation Research Record: Journal of the Transportation Research Board, 2412:67–74.
  • Croissant (2012) Croissant, Y. (2012). Estimation of multinomial logit models in R: The mlogit packages. Technical report. R package version 0.2-2.
  • Gringmuth et al. (2005) Gringmuth, C., Liedtke, G., Geweke, S., and Rothengatter, W. (2005). Impacts of intelligent information sysems on transport and the economy-the micro-based modelling system OVID. In ITS 16th European Regional Conference.
  • Hägerstraand (1970) Hägerstraand, T. (1970). What about people in regional science? Papers in regional science, 24(1):7–24.
  • Hanson and Huff (1988) Hanson, S. and Huff, O. J. (1988). Systematic variability in repetitious travel. Transportation, 15(1-2):111–135.
  • Heilig et al. (2017a) Heilig, M., Mallig, N., Hilgert, T., Kagerbauer, M., and Vortisch, P. (2017a). Large-scale application of a combined destination and mode choice model estimated with mixed stated and revealed preference data. In TRB 96th Annual Meeting Compendium of Papers, Washington, DC. Transportation Research Board of the National Academies. No. 17-04732; accepted for publication in Transportation Research Record.
  • Heilig et al. (2017b) Heilig, M., Mallig, N., Schröder, O., Kagerbauer, M., and Vortisch, P. (2017b). Implementation of free-floating and station-based carsharing in an agent-based travel demand model. Travel Behaviour and Society.
  • Hilgert et al. (2017) Hilgert, T., Heilig, M., Kagerbauer, M., and Vortisch, P. (2017). Modeling week activity schedules for travel demand models. In 96th Annual Meeting of the Transportation Research Board, Washington, DC. No. 17-00682; accepted for publication in Transportation Research Record.
  • Horni et al. (2016) Horni, A., Axhausen, K., and Nagel, K., editors (2016). The Multi-Agent Transport Simulation MATSim. Ubiquity Press, London. License: CC-BY 4.0.
  • Horni et al. (2012) Horni, A., Axhausen, K. W., and Axhausen (2012). MATSim agent heterogeneity and a one-week scenario. Working paper, ETH, Eidgenössische Technische Hochschule Zürich, IVT, Institut für Verkehrsplanung und Transportsysteme.
  • Huff and Hanson (1986) Huff, J. O. and Hanson, S. (1986). Repetition and variability in urban travel. Geographical Analysis, 18(2):97–114.
  • Jones and Clarke (1988) Jones, P. and Clarke, M. (1988). The significance and measurement of variability in travel behaviour. Transportation, 15(1-2):65–87.
  • Kagerbauer (2010) Kagerbauer, M. (2010). Mikroskopische Modellierung des Außenverkehrs eines Planungsraums. PhD thesis, Karlsruhe Institute of Technology.
  • Kagerbauer et al. (2016) Kagerbauer, M., Mallig, N., Vortisch, P., and Pfeiffer, M. (2016). Modeling variability and stability of travel behavior in a longitudinal view using the agent based model mobiTopp. In Transportation Research Board 95th Annual Meeting, number 16-1380.
  • Kuhnimhof (2009) Kuhnimhof, T. (2009). Measuring and modeling multimodal mode use in the longitudinal section. In Transportation Research Board 88th Annual Meeting. Transportation Research Board.
  • Kuhnimhof and Gringmuth (2009) Kuhnimhof, T. and Gringmuth, C. (2009). Multiday multiagent model of travel behavior with activity scheduling. In Transportation Research Board 88th Annual Meeting. Transportation Research Board.
  • Mallig et al. (2016) Mallig, N., Heilig, M., Weiss, C., Chlond, B., and Vortisch, P. (2016). Modelling the weekly electricity demand caused by electric cars. Future Generation Computer Systems, 64:140–150.
  • Mallig et al. (2013) Mallig, N., Kagerbauer, M., and Vortisch, P. (2013). mobiTopp – A Modular Agent-based Travel Demand Modelling Framework. Procedia Computer Science, 19:854–859.
  • Mallig and Vortisch (2015) Mallig, N. and Vortisch, P. (2015). Modeling car passenger trips in mobitopp. Procedia Computer Science, 52:938–943.
  • McNally (2000) McNally, M. G. (2000). The Four-step Model. In Hensher, D. and Button, K., editors, Handbook of Transport Modelling, chapter 3. Pergamon.
  • Mueller and Axhausen (2011) Mueller, K. and Axhausen, K. (2011). Hierarchical IPF: Generating a synthetic population for Switzerland. In ERSA conference papers. European Regional Science Association.
  • Nagel (2017) Nagel, K. (2017). What does MATSim do when other assignment models use zone connectors?
  • Nijland et al. (2014) Nijland, L., Arentze, T., and Timmermans, H. (2014). Multi-day activity scheduling reactions to planned activities and future events in a dynamic model of activity-travel behavior. Journal of Geographical Systems, 16(1):71–87.
  • Ordóñez et al. (2012) Ordóñez, S. A., Erath, A., and Axhausen, K. W. (2012). Simulating urban transport for a week time horizon. Working paper, ETH Zürich – Future Cities Laboratory.
  • Pas and Sundar (1995) Pas, E. I. and Sundar, S. (1995). Intrapersonal variability in daily urban travel behavior: some additional evidence. Transportation, 22(2):135–150.
  • R Core Team (2013) R Core Team (2013). R: A Language and Environment for Statistical Computing. R Foundation for Statistical Computing, Vienna, Austria.
  • Raney and Nagel (2003) Raney, B. and Nagel, K. (2003). Truly agent-based strategy selection for transportation simulations. In 82nd Annual Meeting of the Transportation Research Board, Washington, DC.
  • Rilett and Zietsman (2001) Rilett, L. R. and Zietsman, J. (2001). An overview of the TRANSIMS micro-simulation model: application possiblities for South Africa. In 20th Annual South African Transport Conference. SATC.
  • Schlaich et al. (2011) Schlaich, J., Heidl, U., and Pohlner, R. (2011). Verkehrsmodellierung für die Region Stuttgart – Schlussbericht. Technical report, PTV AG, Karlsruhe.
  • Schnittger and Zumkeller (2004) Schnittger, S. and Zumkeller, D. (2004). Longitudinal microsimulation as a tool to merge transport planning and traffic engineering models-the mobiTopp model. In European Transport Conference, Strasbourg.
  • Verband Region Stuttgart (2011) Verband Region Stuttgart (2011). Mobilität und Verkehr in der Region Stuttgart 2009/2010 – Regionale Haushaltsbefragung zum Verkehrsverhalten. Number 29 in Schriftenreihe Verband Region Stuttgart. Verband Region Stuttgart.
  • Weiss et al. (2017) Weiss, C., Mallig, N., Heilig, M., Chlond, B., Franke, T., Schneidereit, T., and Vortisch, P. (2017). Assessing the effects of a growing electric vehicle fleet using a microscopic travel demand model. European Journal of Transport and Infrastructure Research, 17(3):330–345.
  • Wirtz et al. (2013) Wirtz, M., Streit, T., Chlond, B., and Vortisch, P. (2013). On new measures for detection of data quality risks in mobility panel surveys. In 92nd Annual Meeting of the Transportation Research Board (TRB), Washington, DC.
