1 Introduction

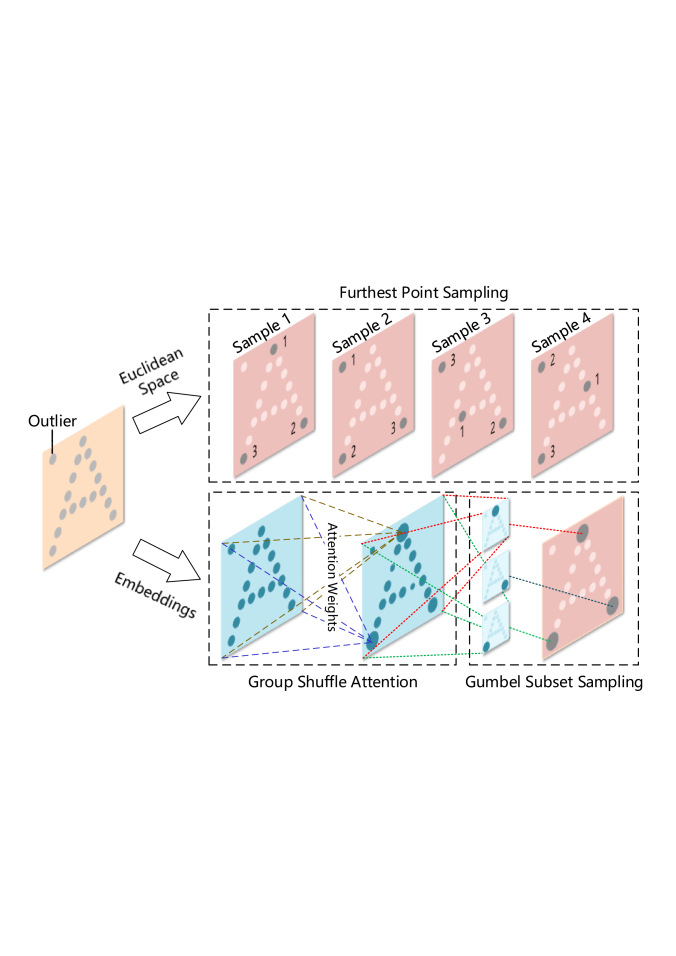

Figure 1: Illustration of Point Attention Transformers (PATs). The core operations of PATs are Group Shuffle Attention (GSA) and Gumbel Subset Sampling (GSS). GSA is a parameter-efficient self-attention operation on learning relations between points. GSS serves as a differentiable alternative to Furthest Point Sampling (FPS) in point cloud reasoning. Several flaws hinder the performance of FPS: it is dependent on the initial sampling point (i.e

., permutation-variant), and it samples from low-dimension Euclidean space, making it sensitive to outliers. Instead,

GSS is permutation-invariant, task-agnostic and differentiable, which enables end-to-end learning on high-dimension representations. It is trained smoothly with Gumbel reparameterization trick, and produces hard and discrete sampling in test phase by annealing.

We live in a 3D world. Geometric data have raised increasing research concerns thanks to the popularity of 3D sensors, e.g

., LiDAR and RGB-D cameras. In particular, we are interested in analyzing 3D point clouds with end-to-end deep learning, which theoretically requires the neural networks to consume 1) size-varying and 2) permutation-invariant sets. PointNets

[30] and DeepSets [51] pioneer directly processing the point sets. Several studies push this research direction by proposing either structural [19, 32, 42] or componential [23, 34] improvements.

We argue the relations between points are critical to represent a point cloud: a single point is non-informative without other points in the same set; in other words, it is simply represented by relations between other points. Inspired by the recent advances in NLP domain [39, 10], we introduce Point Attention Transformers (PATs), based on self-attention to model the relations with powerful multi-head design [39]. Combining with ideas of the light-weight but high-performance model, we propose a parameter-efficient Group Shuffle Attention (GSA) to replace the costly Multi-Head Attention [39] with superior performance.

Besides, prior studies [32, 23] demonstrate the effectiveness of hierarchical structures in point cloud reasoning. By sampling central subsets of input points and grouping them with graph-based operations at multiple levels, the hierarchical structures mimic receptive fields in CNNs with bottom-up representation learning. Despite great success, we however figure out that the sampling operation is a bottleneck of the hierarchical structures.

Few prior works study sampling from high-dimension embeddings. The most popular sampling operation on 3D point clouds is the Furthest Point Sampling (FPS). However, it is task-dependent, i.e., designed for low-dimension Euclidean space exclusively, without sufficiently utilizing the semantically high-level representations. Moreover, as illustrated in Figure 1, FPS is permutation-variant, and sensitive to outliers in point clouds.

To this end, we propose a task-agnostic and permutation-invariant sampling operation, named Gumbel Subset Sampling (GSS), to address the set sampling problem. Importantly, it is end-to-end trainable. To our knowledge, we are the first study to propose a differentiable subset sampling method. Equipped with Gumbel-Softmax [16, 26], our GSS samples soft virtual points in training phase, and produces hard selection in test phase via annealing. With GSS, our PAT classification models are better-performed with lower computation cost.

2 Preliminaries

2.1 Deep Learning on Point Clouds

CNNs (especially 3D CNNs [31, 54]) dominate early-stage researches of deep learning on 3D vision, where the point clouds are rendered into 2D multi-view images [37] or 3D voxels [31]. These methods require compute-intensively pre-rendering the sparse points into voluminous representations with quantization artifacts [30]. To improve memory efficiency and running speed, several researchers [41, 36] introduce sparse CNNs on specific data structures.

On the other hand, deep learning directly on the Euclidean-space point clouds raises research attention. By design, these networks should be able to process 1) size-varying and 2) permutation-invariant (or permutation-equivariant) point sets (called Theoretical Conditions for simplicity). PointNet [30] and DeepSet [51] pioneer this direction, where a symmetric function (e.g

., shared FC before max-pooling) is used for learning each point’s high-level representation before aggregation; However, relations between the points are not sufficiently captured in this way. To this end, PointNet++

[32] introduces a hierarchical structure based on Euclidean-space nearest-neighbor graph, Kd-Net [19] designs spatial KD-trees for efficient information aggregation, and DGCNN [42] develops a graph neural network (GNN) approach with dynamic graph construction. Not all studies satisfy both Theoretical Conditions at the same time; For instance, Kd-Net [19] resamples the input points to evade the ”size-varying” condition, and PointCNN [23] groups and processes the points via specific operators without ”permutation-invariant” condition.

In a word, the follow-up researches on point clouds are mainly 1) voxel-based CNNs [41, 9], 2) variants of geometric deep learning [6], i.e., graph neural networks on point sets [46, 34, 23, 22], or 3) hybrid [55, 21, 36]. There is also research on the adversarial security on point clouds [50]

2.2 Self-Attention

An attention mechanism [4, 47, 11, 49, 48] uses input-dependent weights to linearly combine the inputs. Mathematically, given an input , a query to attend to the input , the output of the attention layer is


where is a matrix function for producing the attention weights . The common choices of function are additive, dot-product and general attention [25]. A self-attention is simply to let the inputs attend to every input element themselves, i.e., . As the attention layer is a single linear combination once the attention weights are produced, we call this form the vanilla self-attention.

An attention transformer [39]

is a (fully) attentional model with


performance on neural machine translation and other NLP tasks. Importantly, it introduces a

Multi-Head Attention (MHA)

to aggregate the inputs multiple times with different linear transformations. For a self-attention version

111Note the projection weights for of Multi-Head Attention are shared in our derivation.,


where is the number of heads, and is the projection weights of head . Position-wise MLPs with non-linearity are connected to the attention layers. Equipped with different attention weights, MHA introduces stronger capacity in a single layer than the vanilla self-attention.

2.3 Discrete Reparameterization

Variational Auto-Encoders (VAEs) [18]

introduce an elegant reparameterization trick to enable continuous stochastic variables to back-propagate in neural network computation graphs. However, discrete stochastic variables are non-trivial to be reparameterized. To this regard, several stochastic gradient estimation methods are proposed,

e.g., REINFORCE-based methods [38, 33] and Straight-Through Estimators [5].

For a categorical distribution , where denotes the number of categories, (

) means the probability score of category

, a Gumbel-Softmax [16, 26]

is designed as a discrete reparameterization trick, to estimate smooth gradient with a continuous relaxation for the categorical variable. Given i.i.d Gumbel noise

drawn from distribution, a soft categorical sample can be drawn (or computed) by


The Eq. 3 is referred as gumbel_softmax operation on .

Parameter is the annealing temperature, as , degenerates into the Gumbel-Max form,


which is an unbiased sample from .

In this way, we are able to draw differentiable samples (Eq. 3) from the distribution in training phase. In practice, starts at a high value (e.g., 1.0), and anneals to a small value (e.g

., 0.1). Optimization on the Gumbel Softmax distribution could be interpreted as solving a certain entropy-regularized linear program on the probability simplex

[27]. In test phase, discrete samples can be drawn with Gumbel-Max trick (Eq. 4).

3 Point Attention Transformers

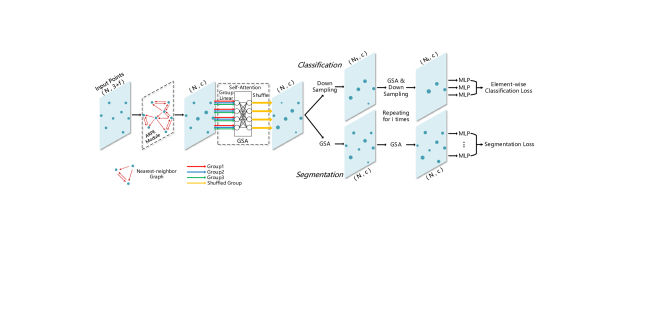

Figure 2: Point Attention Transformer architecture for classification (top branch) and segmentation (bottom branch). The input points are first embedded into high-level representations through an Absolute and Relative Position Embedding (ARPE) module, resulting in some points representative (bigger in the figure). In classification, the features alternately pass through Group Shuffle Attention (GSA) blocks and down-sampling blocks, either Furthest Point Sampling (FPS), or our Gumbel Subset Sampling (GSS). In segmentation, only GSA layers are used. Finally, a shared MLP is connected to every point, followed by an element-wise classification loss or segmentation loss for training.

3.1 Overview

We describe our model in a top-down approach. As illustrated in Figure 2, we define as the number of points, and as feature dimension except for the -dimension, e.g., for RGB point clouds. An input 3D point cloud , is first embedded into higher-level representations by an Absolute and Relative Position Embedding (ARPE) module (Section 3.2), in which each point is represented by its nearest neighbors’ relative positions, together with its own absolute position. We then use Group Shuffle Attention (GSA) (Section 3.3) blocks for mining relations between elements in the feature set , and the representation of each element becomes semantically stronger via the layer-by-layer attentional transformation.

For classification, we define as the number of target classes, the final output assigns a single label to the input by . Inspired by several prior studies with hierarchical structures [32, 23], we also adopt this down-sampling structure (Section 3.5). After every GSA operation, we sample a subset (i.e., down-sampling) for subsequent processing. The sampling operation could be either Furthest Point Sampling (FPS) or the proposed Gumbel Subset Sampling (GSS) in Section 3.4. The remaining points after the last down-sampling are separately connected to shared MLPs before global average pooling for classification output. For training, a cross-entropy loss is computed over every MLP before averaging, referred as Element-wise Loss trick (Section 3.5).

For segmentation, the output is , which assigns a label to every point. As GSA operation adaptively aggregates global information to every local point, the down-sampling structure is not necessary, which introduces information loss for segmentation. In this way, a segmentation PAT is simply a stack of GSA layers connected to the ARPE module, followed by a shared MLP on each point for pointwise segmentation.

We describe the sub-modules in the following sections.

3.2 Absolute and Relative Position Embedding

We first consider how to represent a point cloud. For a single point , we argue that its absolute position is informative, while not rich enough; it is also represented by all the remaining points’ relative positions (to ) in the same point cloud. Combine both, and we call it an Absolute and Relative Position Embedding (ARPE) module.

Given an input point cloud , for a point , its position set is defined as,


A shared PointNet [30] is applied on the position set for each point, i.e.,


where and are both MLPs with group normalization [43] and ELU activation [8]. Note on all points is easy to parallelize.

With complexity, it is too costly to use the position set with all points in Eq. 6. Instead, only top nearest neighbors are considered (”Nearest-neighbor Graph” in Figure 2). However, sparsity and number of input points are coupled; in other words, top 32 neighbors in 256 points and those in 1,024 points are very different on the scale. To make the ARPE module more robust with various point numbers, we introduce a dilated sampling technique [23], i.e., the position set is constructed by sampling points from the top neighbors, where dilated rate , and is a base dilated rate on points. If not specified, and for points.

3.3 Group Shuffle Attention

We propose to use attention layers to capture the relations between the points. MHA is successful in modeling relations by introducing a critical multi-head design [10, 40, 28], however we argue that it is voluminous for modeling point clouds. To this regard, we propose a parameter-efficient Group Shuffle Attention (GSA) to replace MHA. There are two improvements over MHA:

Firstly, to get rid of position-wise MLPs, we integrate the non-linearity into attention modules, named non-linear self-attention,


where we use a Scaled Dot-Product attention [39] for , i.e., , and ELU activation [8] for . In other words, we use the ”pre-activation” to attend to the ”post-activation”.

Secondly, we introduce compact group linear transformations [45, 7] with channel shuffle [53, 52], keeping the multi-head design. Let be the number of groups, , , we split by channels into groups: , and define as a learnable transformation weight for group , thus a Group Attention (GroupAttn) is defined,


However, a pure stack of GroupAttn blocks the information flow between groups. To enable efficient layer-by-layer transformations, we introduce a parameter-free channel shuffle [53] operator , see Figure 3 (a) for illustration.

For an element , we rewrite as,


where is the group of channels. In this way, we define the channel shuffle as,


For any modern deep learning framework, channel shuffle can be elegantly implemented by ”reshape - transpose - flatten” end-to-end.

A Group Shuffle Attention (GSA

) is simply a Group Attention followed by the channel shuffle, together with residual connection

[12] and the group normalization [43],


The following proposition theoretically guarantees the permutation-equivariance of GSA.

Proposition 1.

The Group Shuffle Attention operation is permutation-equivariant, i.e., given input , permutation matrix of size ,

Proof is provided in Appendix A.

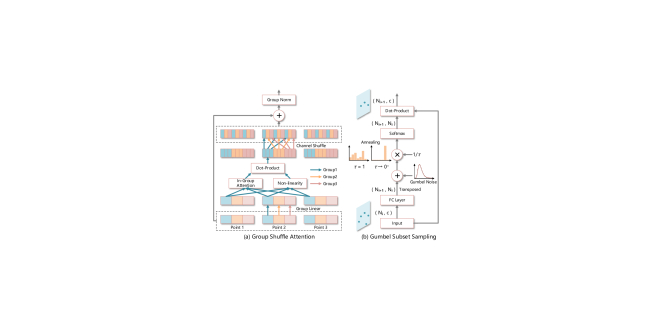

Figure 3: (a) Group Shuffle Attention. The core representation learning block in PATs. An input of 3 points is demonstrated. The feature of each point is divided into several groups (different colors in the figure). Within each group, the input points are transformed by a shared linear layer and a non-linear self-attention (Eq. 7). We then apply channel shuffle on each point feature. Residual connection and group normalization are used for better optimization property. (b) Gumbel Subset Sampling is used for end-to-end learning a representative subset of the input set. For rounds, one point is selected from the input points competitively. During each round, every input point produces one selection score (Eq. 13), with a max score to be selected. A Gumbel-Softmax (Eq. 3) with high temperature is used for soft selection in training phase. At inference, a Gumbel-Max (Eq. 4) is applied with annealing. Best viewed in color.

3.4 Gumbel Subset Sampling

Although Furthest Point Sampling (FPS) is widely used in point cloud reasoning, it has several defects: 1) its sampling result is dependent on the initial point, i.e., it is not permutation-invariant; 2) it is task-dependent (designed for low-dimension Euclidean space); 3) it is sensitive to outliers. To overcome these issues, we argue that an ideal sampling operation should be:

  • Permutation-invariant: the selected subset is always consistent regardless of any permutation of inputs;

  • Sampling from a high-dimension embedding space: the sampling operation should be designed task-agnostic and less sensitive to outliers by learning representative and robust embeddings;

  • Differentiable: it enables the sampling operation to integrate into neural networks painlessly.

For these purposes, we develop a permutation-invariant, task-agnostic and differentiable Gumbel Subset Sampling (GSS). Given an input set , which could be output of a neural network layer, the goal is to select a representative subset with differentiable operations. Inspired by Attention-based MIL pooling [15], where the pooling output is an average value weighted by normalized scores produced element-wisely, i.e.,


Note is a learnable weight and could be replaced with an MLP.

We reinterpret Attention-based MIL pooling (Eq. 12) as competitively selecting one soft virtual point. Though differentiable, the virtual point is however untraceable and less interpretable, especially when selecting multiple points. Instead, we use a hard and discrete selection with an end-to-end trainable gumbel_softmax (Eq. 3):


in training phase, it provides smooth gradients using discrete reparameterization trick. With annealing, it degenerates to a hard selection in test phase.

A Gumbel Subset Sampling (GSS) is simply a multiple-point version of Eq. 13, which means a distribution of subsets,


The following proposition theoretically guarantees the permutation-invariance of GSS.

Proposition 2.

The Gumbel Subset Sampling operation is permutation-invariant, i.e., given input , permutation matrix of size ,

Proof is provided in Appendix B.

3.5 Other Architecture Design

Down-sampling Structure

In our classification models, we down-sample input points at 3 levels (from 1,024 points to 384 - 128 - 64 points). Although GSS is theoretically superior to FPS, the Gumbel noises also serve as a (too) strong regularization. Instead of using GSS in all down-sampling, we find that replacing the first down-sampling with FPS performs slightly better in our experiments.

Element-wise Loss

We compute the classification loss as segmentation [23]: a shared MLP is connected to each remaining point to output the same target class, where the MLP is a stack of ”FC - - ELU - dropout [35]”. The final loss is averaged by element-wise cross entropy. The element-wise loss trick does not bring any performance boost, while the training is significantly faster to converge. At inference, the final classification score is averaged by the element-wise outputs.

4 Applications

In this section, we first demonstrate the effectiveness and efficiency of PATs on a benchmark of point cloud classification, ModelNet40 dataset [44] of CAD models. We then explore the model performance on real-world datasets. We report the segmentation results on S3DIS dataset [2]. Furthermore, we propose a novel application on recognizing gestures with event camera on DVS128 Gesture Dataset [1]. To our knowledge, this is the first study to process event-camera stream as spatio-temporal point clouds, with state-of-the-art performance.

4.1 ModelNet40 Shape Classification


We evaluate our classification model on ModelNet40 [44] dataset of 40-category CAD models. Official split with 9,840 samples for training, and 2,468 samples for test is used in our experiments. We use the same preprocessed dataset as PointNet++ [32].

Method Points Accuracy (%)
DeepSets [51] 5,000 90.0
PointNet [30] 1,024 89.2
Kd-Net [19] 1,024 90.6
PointNet++ [32] 1,024 90.7
KCNet [34] 1,024 91.0
DGCNN [42] 1,024 92.2
PointCNN [23] 1,024 92.2
PAT (GSA only) 1,024 91.3
PAT (GSA only) 256 90.9
PAT (FPS) 1,024 91.4
PAT (FPS + GSS) 1,024 91.7
Table 1: Classification performance on ModelNet40 dataset.

Experiment Setting

Classification PATs use ARPE to produce 1,024-dimension embeddings, subsequently fed into 3 GSAs with hidden size 1,024, followed by a shared MLP with 1,024 - 512 - 256 hidden sizes for 40-category element-wise cross entropy loss (Section 3.5). Several variants of PATs are considered in our experiments: ”PAT (GSA only)” uses no down-sampling; ”PAT (FPS)” uses FPS down-sampling after each GSA, with a FPS(384) - FPS(128) - FPS(64) down-sampling structure; and ”PAT (FPS + GSS)” uses a down-sampling structure GSS except for the first one, i.e. FPS(384) - GSS(128) - GSS(64).

We train the neural networks using Adam optimizer [17]

, with a batch size of 64 and initial learning rate of 0.001. We halve the learning rate every 15 epochs, and 150 epochs are enough for convergence.

Performance and Model Complexity

Classification performance on the test set is summarized in Table 1 with recent state-of-the-art. Our PATs (including all variants) achieve comparable result on ModelNet40. Interestingly, the PAT using only 256 points (to train and test) outperforms the models before PointNet++ [32] using 1,024 points.

We also evaluate the model complexity in terms of model size and forward time in Table 2

. The forward time is recorded with a batch size of 8 on a single GTX 1080 GPU, which is the same hardware environment of the comparison models. As illustrated, our models achieve competitive performance with great parameter-efficiency and acceptable speed. Due to the insufficient support of group linear layers in PyTorch (0.4.1)

[29], there still exists improvements in speed with low-level implemental optimization. Note the PATs with down-sampling achieve better performance with even lower computation cost, and GSS improves FPS further with a neglectable burden.

Method Size Time Accuracy (%)
PointNet [30] 40 25.3 89.2
PointNet++ [32] 12 163.2 90.7
DGCNN [42] 21 94.6 92.2
PAT (GSA only) 5 132.9 91.3
PAT (FPS) 5 87.6 91.4
PAT (FPS + GSS) 5.8 88.6 91.7
Table 2: Model size (”Size”, MB), forward time (”Time”, ms) and Accuracy on ModelNet40 dataset.

4.2 S3DIS Indoor Scene Segmentation


We evaluate our PAT segmentation models on real-word point cloud semantic segmentation dataset, Stanford Large-Scale 3D Indoor Spaces Dataset (S3DIS) [2]. This dataset contains 3D RGB point clouds of 6 indoor areas totally including 272 rooms. Each point belongs to one of 13 semantic categories (e.g., ceiling, floor, clutter).

Experiment Setting

We follow the same setting as prior study [23], where each room is split into blocks of area 1.5m 1.5m

, and each point is represented as a 6D vector (XYZ, RGB). 2,048 points are sampled for each block during training process, and all points are used for testing block-wisely. We use a 6-fold cross validation over the 6 areas, with 5 areas for training and 1 area left for validation each time. As there are overlaps between areas except for Area 5

[20], we report the metrics on Area 5 separately.

Segmentation PATs use ARPE modules to produce 1,024-dimension embeddings, followed by 5 1,024-dimension GSAs. No down-sampling is used. A shared MLP with the same structure as that in our classification PATs (Section 4.1) is used for 13-category segmentation. Adam optimizer [17] is used for training cross-entropy loss with a batch size of 16. The learning rate is initialized at 0.0001, then halved every 5 epochs. The training is converged within 20 epochs.


Evaluation performance on all-area cross validation (AREAS) and Area 5 is reported in Table 3. Our segmentation PAT achieves a best trade-off between segmentation performance and parameter-efficiency. On Area 5, it outperforms all the comparison models; on AREAS, our method achieves a superior performance over all comparison models except for PointCNN [23] in terms of mIoU, with a significantly smaller model size.

To further analyze the performance between PointCNN and our method, we compare per-class IoU and mean per-class accuracy (mAcc) on AREAS and Area 5. As depicted in Table 4, on AREAS, our method outperforms PointCNN in terms of mAcc; on Area 5, our method outperforms PointCNN in terms of both mIoU and mAcc, plus superior per-class IoUs on majority of classes.

Method mIoU mIoU on Area 5 Size (MB)
RSNet [13] 56.47 - -
SPGraph [20] 62.1 58.04 -
PointNet [30] 47.71 47.6 4.7
DGCNN [42] 56.1 - 6.9
PointCNN [23] 65.39 57.26 46.2
PAT 64.28 60.07 6.1
Table 3:

3D semantic segmentation results on S3DIS. Mean per-class IoU (mIoU, %) is used as evaluation metric. Model sizes are obtained using the official codes.

Class ceiling floor wall beam colum window door table chair sofa bookcase board clutter mIoU mAcc
AREAS PointCNN 94.78 97.30 75.82 63.25 51.71 58.38 57.18 71.63 69.12 39.08 61.15 52.19 58.59 65.39 75.61
PAT 93.01 98.36 73.54 58.51 38.87 77.41 67.74 62.70 67.30 30.63 59.60 66.61 41.39 64.28 76.45
Area 5 PointCNN 92.31 98.24 79.41 0.00 17.6 22.77 62.09 74.39 80.59 31.67 66.67 62.05 56.74 57.26 63.86
PAT 93.04 98.51 72.28 1.00 41.52 85.05 38.22 57.66 83.64 48.12 67.00 61.28 33.64 60.07 70.83
Table 4: Comparison between PointCNN [23] and our PAT on all-area cross validation (AREAS) and Area 5 on S3DIS dataset, in terms of per-class IoU (%), mean per-class IoU (mIoU, %), and mean per-class accuracy (mAcc, %)

4.3 Event Camera Stream as Point Clouds: DVS128 Gesture Recognization

Motivation and Dataset

Point cloud approaches are primarily designed for 3D spatial sensors, e.g., LiDAR and Matterport 3D Cameras. However, there are numbers of potential applications with point-based records. In this section, we explore a novel application on event camera with point cloud approaches.

Dynamic Vision Sensor (DVS) [24] is a biologically inspired event camera, which ”transmits data only when a pixel detects a change” [1]. On the 128128 sensor matrix, it records whether there is a change (by a user-defined threshold) on the corresponding position in microseconds. In particular, we explore gesture recognition on DVS128 Gesture Dataset [1], with 11 classes of gestures (10 named gestures, e.g., ”Arm Roll”, and 1 ”others”) collected from 122 users. Training data is collected from 94 users with 939 event streams, and test data is collected from 24 users with 249 event streams. The gesture action records is a sequence of points, each of which is point change represented as a 4-dimension vector: abscissa , ordinate , timestamp , and polarity (1 for appear and 0 for disappear). In this way, we regard the event stream as spatio-temporal point clouds. See Figure 4 for illustration.

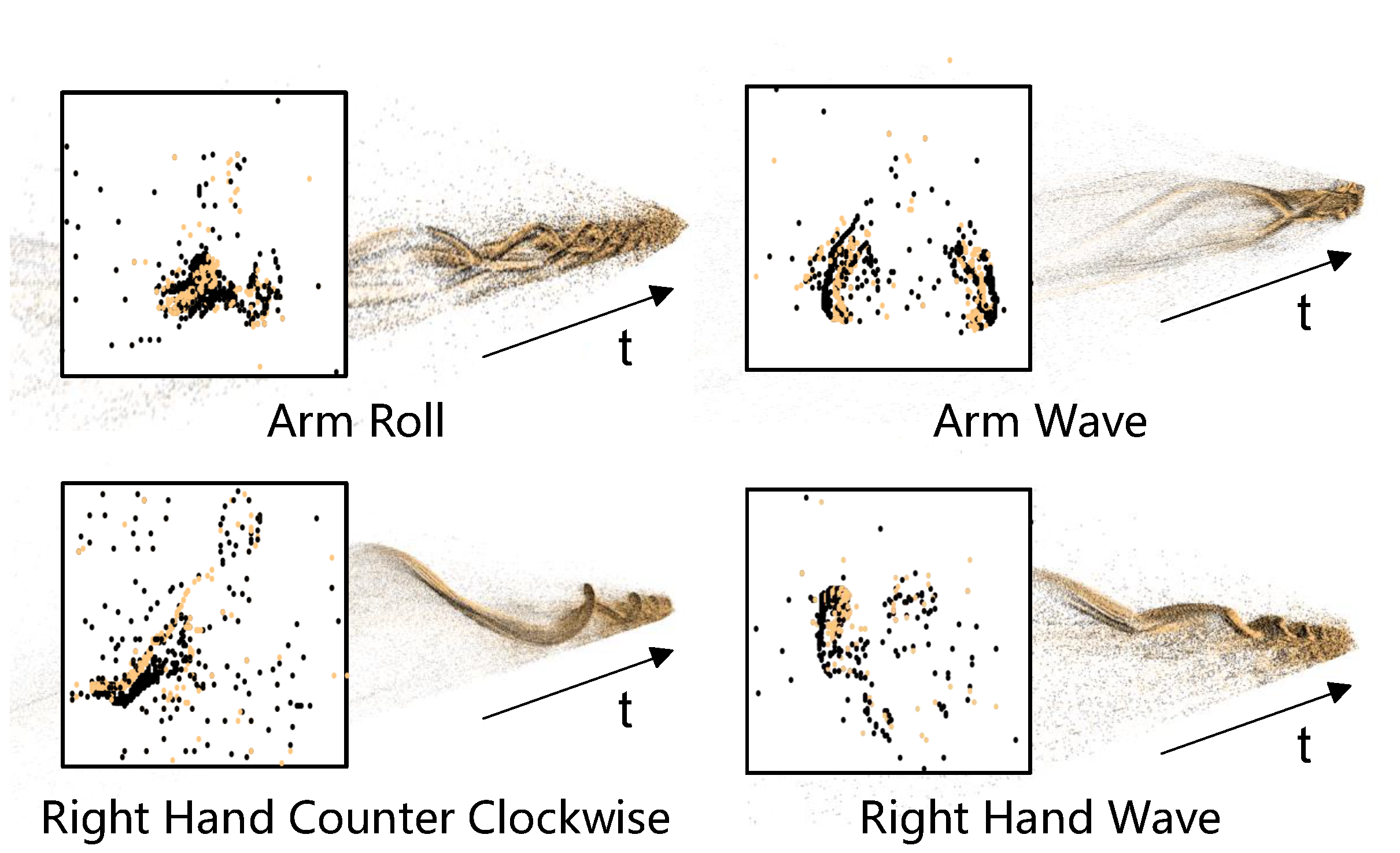

Figure 4: Visualization of DVS128 Gesture Dataset. 4 event streams are displayed as spatio-temporal point clouds. The patch on the left of each stream is a snapshot of one timestep. Points are colored in black for polarity 1 or yellow for polarity 0.

Experiment Setting

We use a sliding window approach to get training and test samples. Each sample is within a window length of 750ms, sliding with step size of 100ms, see Figure 5 for demonstration. After this preprocessing, there are 61,544 clips for training and 10,256 clips for test. The step size could also be regarded as the maximum decision latency for a realtime application. For a stream containing clips, its system-level prediction is the mode of all predictions labels. The System Accuracy based on the system-level prediction is used for evaluation [1].

The same-structured classification PATs as ModelNet40 (Section 4.1) are used in this experiment. An SGD optimizer with a constant learning rate of 0.001 is used to train the PATs within 60 epochs for convergence.

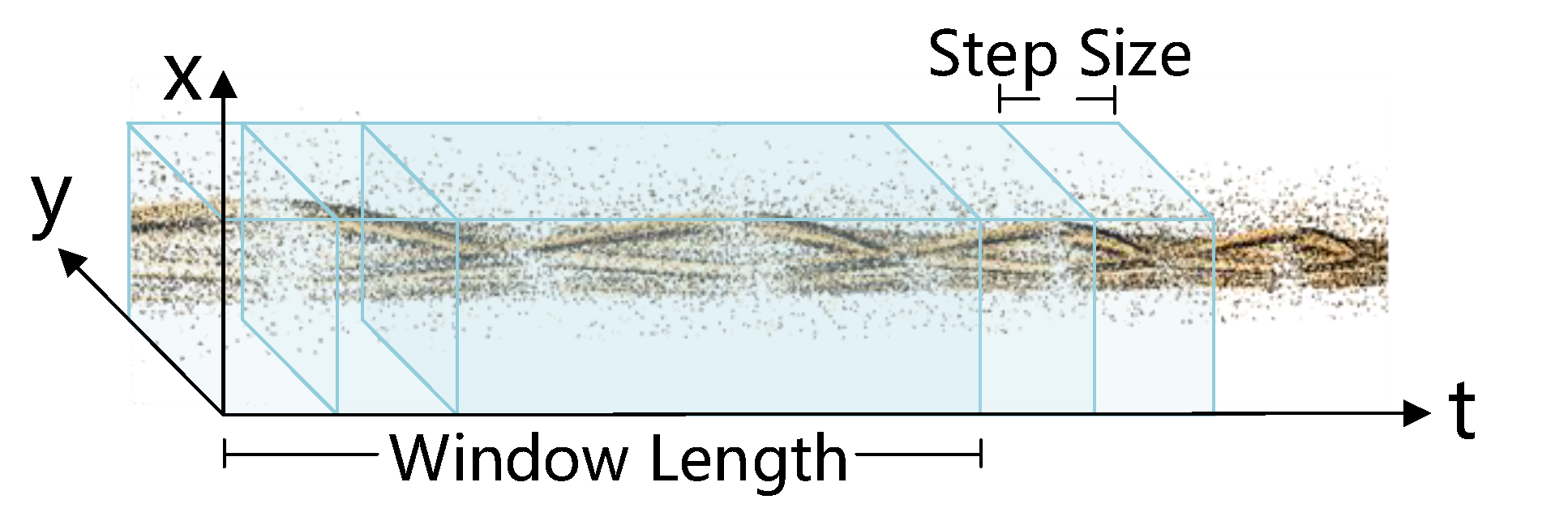

Figure 5: Window length and step size in event camera stream.


There are few studies using point cloud approaches on event camera stream. For fair comparison, we implement a vanilla PointNet [30] and a PointNet++ [32] on this experiment. If not specified, 1,024 points sampled from the clips are used for training and evaluation.

As depicted in Table 5, all point cloud approaches are running within the maximum decision latency (100ms). We achieve a state-of-the-art on this dataset, with strong parameter-efficiency. Interestingly, PAT (GSA only) with 256 points performs similarly to that with 1,024 points. We argue that it is because of outliers and sparsity of the events. Note the baseline CNN [1] is running on a low-power processor with a maximum decision latency of 105ms. Our results indicate the potential of replacing CNNs with PATs, with general network quantization techniques [14].

Model 10-class 11-class Time Size
CNN [1] 96.5 94.4 - -
PointNet [30] 89.5 88.8 2.8 6.5
PointNet++ [32] 95.6 95.2 18.2 12
PAT (GSA only) 96.9 95.6 16.9 5
PAT (GSA only, N256) 96.9 95.6 7.5 5
PAT (FPS) 96.5 95.2 12.7 5
PAT (FPS + GSS) 97.4 96.0 13.1 5.8
Table 5: DVS128 Gesture Dataset System Accuracy in 10 classes (”10-class”) and 11 classes (”11-class”). ”N256” means using 256 points to train and test. Forward time (”Time”) with a batch size of 1 on a single GTX 1080 GPU is measured in ms, and model size (”Size”) is measured in MB.

5 Ablation Study

In this section, we analyze the effectiveness of the components / tricks on ModelNet40 dataset. As GSS has been proven effective in Section 4.1, we analyze the components on PATs without down-sampling. All experiments in the ablation study are conducted using 256 points.

Figure 6: (a) ModelNet40 training loss with (w/) or without (w/o) element-wise loss. (b) ModelNet40 accuracy (with 256 points) and model size by varying numbers of groups.

Element-wise Loss. As depicted in Figure 6 (a), training tends to be faster with element-wise loss. However, there is no performance boost for evaluation on test set.

Number of Groups. As shown in Figure 6 (b), grouping is critical to the performance since it is coupled with the multi-head design in attention. Without grouping (), the model accuracy drops significantly, with even larger model size. With 8 groups, it achieves a best trade-off between accuracy and model size.

Channel Shuffle vs. no Shuffle. To enable information to flow across groups, channel shuffle is critical to GSA (CS ”On” or ”Off” in Table 6), which is parameter-free and introduces neglectable computation cost.

Embedding Layer. ARPE module is shown to be very effective to boost performance (”MLP” or ”ARPE” in Table 6). It provides an improvement of approximately 0.8% consistently on 256 or 1,024 points.

GSA vs. MHA. We design 2 MHA counterparts to compare with: 1) MHA LG, with the same hidden size as GSA, and 2) MHA SM, by tuning the hidden size to keep a comparable model size as GSA. As depicted in Table 6, our PATs with GSA show superior performance in terms of both parameter efficiency and accuracy.

Group Norm vs. Layer Norm. We also discuss layer normalization [3] in the original Multi-head Attention [39]. As is proposed to be an extension to , in our experiments ( or in Table 6), the former () outperforms the latter consistently.

Embedding Attention CS Norm Accuracy
ARPE GSA On 90.9
ARPE GSA Off 88.8
MLP GSA On 90.1
ARPE GSA On 89.9
MLP GSA On 90.0
Table 6: Effectiveness of components in PATs. CS denotes channel shuffle. Accuracy is obtained using 256 points on ModelNet40.

6 Conclusion

We develop Point Attention Transformers (PATs) on point cloud reasoning. A parameter-efficient Group Shuffle Attention (GSA) is proposed to learn the relations between points. Besides, we design an end-to-end learnable and task-agnostic sampling operation, named Gumbel Subset Sampling (GSS). Results on several benchmarks demonstrate the effectiveness and efficiency of our methods. In the future, it is interesting to apply GSS on general sets, e.g., to explore both effectiveness and interpretability on hierarchical multiple instance learning.

Acknowledgment This work was supported by National Science Foundation of China (U1611461, 61521062). This work was partly supported by STCSM (18DZ1112300, 18DZ2270700). This work was also partially supported by joint research grant of SJTU-BIGO LIVE, joint research grant of SJTU-Minivision, and China’s Thousand Talent Program.


  • [1] Arnon Amir, Brian Taba, David J Berg, Timothy Melano, Jeffrey L McKinstry, Carmelo Di Nolfo, Tapan K Nayak, Alexander Andreopoulos, Guillaume Garreau, Marcela Mendoza, et al. A low power, fully event-based gesture recognition system. In CVPR, pages 7388–7397, 2017.
  • [2] Iro Armeni, Ozan Sener, Amir R Zamir, Helen Jiang, Ioannis Brilakis, Martin Fischer, and Silvio Savarese. 3d semantic parsing of large-scale indoor spaces. In CVPR, pages 1534–1543, 2016.
  • [3] Jimmy Lei Ba, Jamie Ryan Kiros, and Geoffrey E Hinton. Layer normalization. arXiv preprint arXiv:1607.06450, 2016.
  • [4] Dzmitry Bahdanau, Kyunghyun Cho, and Yoshua Bengio. Neural machine translation by jointly learning to align and translate. In ICLR, 2015.
  • [5] Yoshua Bengio, Nicholas Léonard, and Aaron Courville. Estimating or propagating gradients through stochastic neurons for conditional computation. arXiv preprint arXiv:1308.3432, 2013.
  • [6] Michael M Bronstein, Joan Bruna, Yann LeCun, Arthur Szlam, and Pierre Vandergheynst. Geometric deep learning: going beyond euclidean data. IEEE Signal Processing Magazine, 34(4):18–42, 2017.
  • [7] François Chollet. Xception: Deep learning with depthwise separable convolutions. In CVPR, pages 1251–1258, 2017.
  • [8] Djork-Arné Clevert, Thomas Unterthiner, and Sepp Hochreiter. Fast and accurate deep network learning by exponential linear units (elus). In ICLR, 2016.
  • [9] Taco S Cohen, Mario Geiger, Jonas Köhler, and Max Welling. Spherical cnns. In ICLR, 2018.
  • [10] Jacob Devlin, Ming-Wei Chang, Kenton Lee, and Kristina Toutanova. Bert: Pre-training of deep bidirectional transformers for language understanding. arXiv preprint arXiv:1810.04805, 2018.
  • [11] Jonas Gehring, Michael Auli, David Grangier, Denis Yarats, and Yann Dauphin. Convolutional sequence to sequence learning. In ICML, 2017.
  • [12] Kaiming He, Xiangyu Zhang, Shaoqing Ren, and Jian Sun. Deep residual learning for image recognition. In CVPR, pages 770–778, 2016.
  • [13] Qiangui Huang, Weiyue Wang, and Ulrich Neumann. Recurrent slice networks for 3d segmentation of point clouds. In CVPR, pages 2626–2635, 2018.
  • [14] Itay Hubara, Matthieu Courbariaux, Daniel Soudry, Ran El-Yaniv, and Yoshua Bengio. Binarized neural networks. In NIPS, pages 4107–4115, 2016.
  • [15] Maximilian Ilse, Jakub M Tomczak, and Max Welling. Attention-based deep multiple instance learning. In ICML, 2018.
  • [16] Eric Jang, Shixiang Gu, and Ben Poole. Categorical reparameterization with gumbel-softmax. In ICLR, 2017.
  • [17] Diederik P Kingma and Jimmy Ba. Adam: A method for stochastic optimization. In ICLR, 2015.
  • [18] Diederik P Kingma and Max Welling. Auto-encoding variational bayes. In ICLR, 2014.
  • [19] Roman Klokov and Victor Lempitsky. Escape from cells: Deep kd-networks for the recognition of 3d point cloud models. In ICCV, pages 863–872, 2017.
  • [20] Loïc Landrieu and Martin Simonovsky. Large-scale point cloud semantic segmentation with superpoint graphs. In CVPR, pages 4558–4567, 2018.
  • [21] Truc Le and Ye Duan. Pointgrid: A deep network for 3d shape understanding. In CVPR, pages 9204–9214, 2018.
  • [22] Jiaxin Li, Ben M Chen, and Gim Hee Lee. So-net: Self-organizing network for point cloud analysis. In CVPR, pages 9397–9406, 2018.
  • [23] Yangyan Li, Rui Bu, Mingchao Sun, Wei Wu, Xinhan Di, and Baoquan Chen. Pointcnn: Convolution on x-transformed points. In NeurIPS, 2018.
  • [24] Patrick Lichtsteiner, Christoph Posch, and Tobi Delbruck. A 128x128 120 db 15 mu s latency asynchronous temporal contrast vision sensor. IEEE journal of solid-state circuits, 43(2):566–576, 2008.
  • [25] Minh-Thang Luong, Hieu Pham, and Christopher D Manning. Effective approaches to attention-based neural machine translation. In EMNLP, 2015.
  • [26] Chris J Maddison, Andriy Mnih, and Yee Whye Teh.

    The concrete distribution: A continuous relaxation of discrete random variables.

    In ICLR, 2017.
  • [27] Gonzalo Mena, David Belanger, Scott Linderman, and Jasper Snoek. Learning latent permutations with gumbel-sinkhorn networks. In ICLR, 2018.
  • [28] Niki Parmar, Ashish Vaswani, Jakob Uszkoreit, Łukasz Kaiser, Noam Shazeer, and Alexander Ku. Image transformer. In ICML, 2018.
  • [29] Adam Paszke, Sam Gross, Soumith Chintala, Gregory Chanan, Edward Yang, Zachary DeVito, Zeming Lin, Alban Desmaison, Luca Antiga, and Adam Lerer. Automatic differentiation in pytorch. In NIPS-W, 2017.
  • [30] Charles Ruizhongtai Qi, Hao Su, Kaichun Mo, and Leonidas J. Guibas. Pointnet: Deep learning on point sets for 3d classification and segmentation. In CVPR, pages 77–85, 2017.
  • [31] Charles R Qi, Hao Su, Matthias Nießner, Angela Dai, Mengyuan Yan, and Leonidas J Guibas. Volumetric and multi-view cnns for object classification on 3d data. In CVPR, pages 5648–5656, 2016.
  • [32] Charles Ruizhongtai Qi, Li Yi, Hao Su, and Leonidas J. Guibas. Pointnet++: Deep hierarchical feature learning on point sets in a metric space. In NIPS, pages 5105–5114, 2017.
  • [33] John Schulman, Nicolas Heess, Theophane Weber, and Pieter Abbeel. Gradient estimation using stochastic computation graphs. In NIPS, pages 3528–3536, 2015.
  • [34] Yiru Shen, Chen Feng, Yaoqing Yang, and Dong Tian. Mining point cloud local structures by kernel correlation and graph pooling. In CVPR, volume 4, 2018.
  • [35] Nitish Srivastava, Geoffrey Hinton, Alex Krizhevsky, Ilya Sutskever, and Ruslan Salakhutdinov. Dropout: a simple way to prevent neural networks from overfitting.

    The Journal of Machine Learning Research

    , 15(1):1929–1958, 2014.
  • [36] Hang Su, Varun Jampani, Deqing Sun, Subhransu Maji, Evangelos Kalogerakis, Ming-Hsuan Yang, and Jan Kautz. Splatnet: Sparse lattice networks for point cloud processing. In CVPR, pages 2530–2539, 2018.
  • [37] Hang Su, Subhransu Maji, Evangelos Kalogerakis, and Erik Learned-Miller.

    Multi-view convolutional neural networks for 3d shape recognition.

    In CVPR, pages 945–953, 2015.
  • [38] Richard S Sutton, David A McAllester, Satinder P Singh, and Yishay Mansour.

    Policy gradient methods for reinforcement learning with function approximation.

    In NIPS, pages 1057–1063, 2000.
  • [39] Ashish Vaswani, Noam Shazeer, Niki Parmar, Jakob Uszkoreit, Llion Jones, Aidan N Gomez, Łukasz Kaiser, and Illia Polosukhin. Attention is all you need. In NIPS, pages 6000–6010, 2017.
  • [40] Petar Velickovic, Guillem Cucurull, Arantxa Casanova, Adriana Romero, Pietro Lio, and Yoshua Bengio. Graph attention networks. In ICLR, 2018.
  • [41] Peng-Shuai Wang, Yang Liu, Yu-Xiao Guo, Chun-Yu Sun, and Xin Tong. O-cnn: Octree-based convolutional neural networks for 3d shape analysis. ACM Transactions on Graphics, 36(4):72, 2017.
  • [42] Yue Wang, Yongbin Sun, Ziwei Liu, Sanjay E Sarma, Michael M Bronstein, and Justin M Solomon. Dynamic graph cnn for learning on point clouds. arXiv preprint arXiv:1801.07829, 2018.
  • [43] Yuxin Wu and Kaiming He. Group normalization. In ECCV, 2018.
  • [44] Zhirong Wu, Shuran Song, Aditya Khosla, Fisher Yu, Linguang Zhang, Xiaoou Tang, and Jianxiong Xiao. 3d shapenets: A deep representation for volumetric shapes. In CVPR, pages 1912–1920, 2015.
  • [45] Saining Xie, Ross Girshick, Piotr Dollár, Zhuowen Tu, and Kaiming He. Aggregated residual transformations for deep neural networks. In CVPR, pages 5987–5995, 2017.
  • [46] Saining Xie, Sainan Liu, Zeyu Chen, and Zhuowen Tu. Attentional shapecontextnet for point cloud recognition. In CVPR, pages 4606–4615, 2018.
  • [47] Kelvin Xu, Jimmy Ba, Ryan Kiros, Kyunghyun Cho, Aaron Courville, Ruslan Salakhudinov, Rich Zemel, and Yoshua Bengio. Show, attend and tell: Neural image caption generation with visual attention. In ICML, pages 2048–2057, 2015.
  • [48] Yichao Yan, Bingbing Ni, and Xiaokang Yang. Fine-grained recognition via attribute-guided attentive feature aggregation. In ACM MM, pages 1032–1040, 2017.
  • [49] Yichao Yan, Bingbing Ni, and Xiaokang Yang. Predicting human interaction via relative attention model. In IJCAI, pages 3245–3251, 2017.
  • [50] Jiancheng Yang, Qiang Zhang, Rongyao Fang, Bingbing Ni, Jinxian Liu, and Qi Tian. Adversarial attack and defense on point sets. arXiv preprint arXiv:1902.10899, 2019.
  • [51] Manzil Zaheer, Satwik Kottur, Siamak Ravanbakhsh, Barnabas Poczos, Ruslan R Salakhutdinov, and Alexander J Smola. Deep sets. In NIPS, pages 3391–3401, 2017.
  • [52] Ting Zhang, Guo-Jun Qi, Bin Xiao, and Jingdong Wang. Interleaved group convolutions. In CVPR, 2017.
  • [53] Xiangyu Zhang, Xinyu Zhou, Mengxiao Lin, and Jian Sun. Shufflenet: An extremely efficient convolutional neural network for mobile devices. In CVPR, pages 6848–6856, 2018.
  • [54] Wei Zhao, Jiancheng Yang, Yingli Sun, Cheng Li, Weilan Wu, Liang Jin, Zhiming Yang, Bingbing Ni, Pan Gao, Peijun Wang, et al. 3d deep learning from ct scans predicts tumor invasiveness of subcentimeter pulmonary adenocarcinomas. Cancer research, 78(24):6881–6889, 2018.
  • [55] Yin Zhou and Oncel Tuzel. Voxelnet: End-to-end learning for point cloud based 3d object detection. In CVPR, 2017.


Appendix A Proof of Permutation Equivariance of Group Shuffle Attention

Lemma 1 (Permutation matrix and permutation function).

, permutation matrix of size , is a permutation function:

Lemma 2.

Given , permutation matrix of size ,



Consider a permutation function for , using Eq. 15, we get:

which implies . ∎

Lemma 3.

Non-linear self-attention , with is permutation-equivariant.


For a self-attention, .

is an element-wise function, thus .

which implies non-linear self-attention is permutation-equivariant. ∎

Proposition 1.

The Group Shuffle Attention operation is permutation-equivariant, i.e., given input , permutation matrix of size ,




GSA only introduces element-wise operations, which does not change the permutation-equivariance of . ∎

Appendix B Proof of Permutation Invariance of Gumbel Subset Sampling

Proposition 1.

The Gumbel Subset Sampling operation is permutation-invariant, i.e., given input , permutation matrix of size ,


According to Eq. 14,

Similar to Lemma 2,


Since gumbel_softmax add element-wise operations on softmax, it does not change the permutation property. In this way,
