1 Introduction
Modeling human motion is useful for many applications, including human action recognition (Du et al., 2015), action detection (Gu et al., 2018), or action anticipation (Kitani et al., 2012a). Forecasting human motion trajectories is essential for applications in robotics (Koppula and Saxena, 2016) or computer graphics (Holden et al., 2016)
. Deep learningbased approaches have been successful in other pattern recognition tasks
(Krizhevsky et al., 2012; Hinton et al., 2012; Bahdanau et al., 2015), and they have also been studied for the prediction of sequences of 3Dskeleton joint positions (i.e. 3D human pose), both for shortterm (Fragkiadaki et al., 2015; Martinez et al., 2017) and longterm modeling (Holden et al., 2016, 2017).Human motion is a stochastic sequential process with a high level of intrinsic uncertainty. Given an observed sequence of poses, a rich set of future pose sequences are likely, depending on factors such as physics or the conscious intentions of a person. Therefore, predictions far in the future are unlikely to match a reference recording, even with an excellent model. Consequently, the literature often distinguishes between shortterm and longterm prediction tasks. Shortterm tasks are often referred to as prediction tasks and can be assessed quantitatively by comparing the model prediction to a reference recording through a distance metric. Longterm tasks are often referred to as generation tasks and are harder to assess quantitatively. For these cases, the prediction quality can be evaluated by human evaluation studies.
This work addresses both shortterm and longterm tasks through a unified approach, with the goal of competing with stateoftheart methods in the computer vision literature for shortterm prediction, as well as to compete with the stateoftheart in the computer graphics literature for longterm generation. With that objective in mind, we identify the limitations of current approaches and address them. Our contributions are threefold. First, we propose a methodology for employing a quaternionbased pose representation in recurrent and convolutional neural networks. Other parameterizations, such as Euler angles, suffer from discontinuities and singularities, which can lead to exploding gradients and difficulty in training the model. Previous work
(Taylor et al., 2006; Martinez et al., 2017) tried to mitigate these issues by switching to exponential maps (also referred to as axisangle representation), which makes them less likely to exhibit these issues but does not solve them entirely (Grassia, 1998). Second, we propose a differentiable loss function which conducts forward kinematics on a parameterized skeleton, and combines the advantages of joint orientation prediction with those of a positionbased loss. Finally, we point out a flaw in the standard evaluation protocol of the Human3.6M dataset which causes the results to have high variance and we propose a simple adjustment to mitigate this issue.We conduct experiments on shortterm prediction and longterm generation, evaluating the former on the Human3.6M benchmark (Ionescu et al., 2014) and the latter on the locomotion dataset from Holden et al. (2016). Shortterm performance is slightly outperformed by very recent work on adversarial training (Gui et al., 2018). Adversarial training and quaternionbased parameterization are however orthogonal aspects in motion modeling. Their combination is beyond the scope of this study and is surely an interesting path to future improvement. Longterm generation quality matches the quality of recent work from the computer graphics literature, while allowing online generation, and better control over the timings and trajectory constraints imposed by the artist.
This article extends Pavllo et al. (2018b) as follows:

We introduce a version of QuaterNet
based on a convolutional neural network and compare to the original recurrent neural network approach.

We empirically compare alternatives to quaternions and contrast them to Euler angles as well as exponential maps.

We ablate the amount of temporal context that is required to make reliable future predictions and find that a relatively short context results in as good performance as longer context.

We address a flaw in the standard evaluation methodology and propose a variant that yields more stable results.
The remainder of the paper examines related work (Section 2),
describes our QuaterNet method (Section 3) and presents our experiments (Section 4). Finally, we draw some conclusions and delineate potential future work (Section 5).
We also release our code and pretrained models publicly at
https://github.com/facebookresearch/QuaterNet
2 Related work
The modeling of human motion relies on data from motion capture. This technology acquires sequences of 3dimensional joint positions at high frame rate (120 Hz – 1 kHz) and enables a wide range of applications, such as performance animation in movies and video games, and motion generation. In that context, the task of generating human motion sequences has been addressed with different strategies ranging from purely concatenationbased approaches (Arikan et al., 2003), concatenateandblend (Treuille et al., 2007)
, to hidden Markov models
(Tanco and Hilton, 2000), switching linear dynamic systems (Pavlovic et al., 2000), restricted Boltzmann machines
(Taylor et al., 2006), Gaussian processes (Wang et al., 2008), and random forests
(Lehrmann et al., 2014).Recently, Recurrent Neural Networks (RNN) have been applied to short (Fragkiadaki et al., 2015; Martinez et al., 2017) and longterm prediction (Zhou et al., 2018). Convolutional networks (Holden et al., 2016; Li et al., 2018a) and feedforward networks (Holden et al., 2017) have been successfully applied to longterm generation of locomotion. Early work took great care in choosing a model expressing the interdependence between joints (Jain et al., 2016), while recent work favors universal approximators (Martinez et al., 2017; Bütepage et al., 2017; Holden et al., 2016, 2017). Beside choosing the neural architecture, framing the pose prediction task is equally important. Specifically, defining input and output variables, their representation as well as the loss function used for training are particularly impactful, as we show in our experiments. Equally important are the control variables conditioning motion generation. Longterm generation is an highly underspecified task with high uncertainty. In practice, animators for movies and games are interested in motion generators that can be conditioned from high level controls like trajectories and velocities (Holden et al., 2017), style (Li et al., 2018b) or action classes (Kiasari et al., 2018). Game development tools typically rely on classical move trees (Menache, 1999), which allows for a wide range of controls and excellent runtime efficiency. These advantages comes with a high development effort to deal with all possible action transitions. The development cost of move trees makes learningbased approach an attractive area of research.
As for quaternions in neural networks, Gaudet and Maida (2018) propose a hypercomplex extension of complexvalued convolutional neural networks, and Kumar and Tripathi (2017)
present a variation of resilient backpropagation in quaternionic domain. The motivation of these works is different than ours. Their work shows that quaternionic domain latent variables can encode long termdependencies with fewer learned parameters than realvalued models. In our case, we rely on quaternions for the representation of rotations along a kinematic chain, a classical formulation in computer graphics
(McCarthy, 1990), see Section 3.4.2.1 Joint rotations versus positions
Human motion is represented as a sequence of human poses. Each pose can be described through body joint positions, or through 3Djoint rotations which are then integrated via forward kinematics. For motion prediction, one can consider predicting either rotations or positions with alternative benefits and tradeoffs. Depending on the application, a particular representation may be required: for instance, in video games and movies it is typical to animate a skinned mesh using joint rotations.
The prediction of rotations allows using a parameterized skeleton (Pavlovic et al., 2000; Taylor et al., 2006; Fragkiadaki et al., 2015). Skeleton constraints avoid prediction errors such as nonconstant bone lengths or motions outside an articulation range. However, rotation prediction is often paired with a loss that averages errors over joints which gives each joint the same weight. This ignores that the prediction errors of different joints have varying impact on the body, e.g. joints between the trunk and the limbs typically impact the pose more than joints at the end of limbs, with the root joint being the extreme case. This type of loss can therefore yield a model with spurious large errors on important joints, which severely impact generation from a qualitative perspective.
The prediction of joint positions minimizes the averaged position errors over 3D points, and as such does not suffer from this problem. However, this strategy does not benefit from the parameterized skeleton constraints and needs its prediction to be reprojected onto a valid configuration to avoid issues like bone stretching (Holden et al., 2016, 2017). This step can be resource intensive and is less efficient in terms of model fitting. When minimizing the loss, model fitting ignores that the prediction will be reprojected onto the skeleton, which often increases the loss. Also, the projection step can yield discontinuities in time, as we show in Section 4.4.
Alternatively one can choose to learn a network which does not predict positions, while still minimizing position errors. This is performed by mapping the outputs of the network to positions with a differential transformation. For hand pose estimation,
(Oberweger et al., 2015)introduces a network which outputs a latent representation of the hand that can be linearly projected to positions. This representation is obtained through Principal Component Analysis learned from the position vectors prior to training
(Oberweger et al., 2015; Cootes, 2000). In that line of work, joint rotations can be mapped to positions through forward kinematics over a parameterized skeleton. This operation is differentiable and has been used to train networks for hand tracking (Zhou et al., 2016b) and pose estimation from still images (Zhou et al., 2016a). Our work builds upon this strategy.For both positions and rotations, one can consider predicting velocities (i.e. deltas w.r.t. time) instead of absolute values (Martinez et al., 2017; Toyer et al., 2017). The density of velocities is concentrated in a smaller range of values, which helps statistical learning. However, in practice velocities tend to be unstable in longterm tasks, and generalize worse due to accumulation of errors. Noise in the training data is also problematic with velocities: invalid poses introduce large variations which can yield unstable models.
Alternatively to the direct modeling of joint rotations/positions, physicsinspired models of the human body have also been explored (Liu et al., 2005) but such models have been less popular for generation with the availability of larger motion capture datasets (CMU, 2003; Müller et al., 2007; Ionescu et al., 2014).
2.2 Learning a stochastic process
Human motion is a stochastic process with a high level of uncertainty. For a given past, there will be multiple likely sequences of future frames and uncertainty grows with duration. This makes training for longterm generation challenging since recorded frames far in the future will capture only a small fraction of the probability mass, even according to a perfect model.
Like other stochastic processes (Bengio et al., 2003; van den Oord et al., 2016a, b), motion modeling is often addressed by training transition operators, also called autoregressive models. At each time step, such a model predicts the next pose given the previous poses. Typically, training such a model involves supplying recorded frames to predict the next recorded target. This strategy – called teacher forcing – does not expose the model to its own errors and prevents it from recovering from them, a problem known as exposure bias (Ranzato et al., 2015; Wiseman and Rush, 2016). To mitigate this problem, previous work suggested to add noise to the network inputs during training (Fragkiadaki et al., 2015; Ghosh et al., 2017). Alternatively, Martinez et al. (2017) forgo teacher forcing and always inputs model predictions. This strategy however can yield slow training since the loss can be very high on long sequences.
Due to the difficulty of longterm prediction, previous work has considered decomposing this task hierarchically. For locomotion, Holden et al. (2016) propose to subdivide the task into three steps: define the character trajectory, annotate the trajectory with footsteps, generate pose sequences. The neural network for the last step takes trajectory and speed data as input. This strategy makes the task simpler since the network is relieved from modeling the uncertainty due to the trajectory and walk cycle drift. Holden et al. (2017) consider a network which computes different sets of weights according to the phase in the walk cycle. Other work consider alternative metrics and human evaluation to deal with the uncertainty of the task (Gopalakrishnan et al., 2018).
Most research casts the problem of motion prediction of the next frame as a regression problem, without explicitly modeling uncertainty. Such models can only predicts the expectation of the next pose, which can be a problem for multimodal data. Neural generative modeling addresses this problem, including Generative Adversarial Networks (Mathieu et al., 2016; Luc et al., 2017) and Variational AutoEncoders (Walker et al., 2016). Both GANs (Villegas et al., 2017; Kiasari et al., 2018; Gui et al., 2018; Lin and Amer, 2018; Wang et al., 2018) and VAEs (Walker et al., 2017; Bütepage et al., 2018) have been applied to the task of human motion prediction. A recent work, (Gui et al., 2018), is of particular interest, as it shows strong performance by proposing two distinct discriminators learned jointly with the sequence generator. A classical discriminator tries to distinguish the model generation from real data, while a second discriminator focuses on distinguishes whether generation conditioned on a true prefix sequences produces realistic continuations.
2.3 Pose and video forecasting
Forecasting is an active topic of research beyond the prediction of human pose sequences. Pixellevel prediction using human pose as an intermediate variable has been explored (Villegas et al., 2017; Walker et al., 2017). Related work also includes the forecasting of locomotion trajectories (Kitani et al., 2012b), human instance segmentation (Luc et al., 2018), or future actions (Lan et al., 2014). Other types of conditioning have also been explored for predicting poses: for instance, Shlizerman et al. (2017) explore generating skeleton pose sequences of music players from audio, Chao et al. (2017) aim at predicting future pose sequences from static images. Also relevant is the prediction of 3D poses from images or 2D joint positions (Parameswaran and Chellappa, 2004; Radwan et al., 2013; Akhter and Black, 2015). The prediction of rigid object motion for robotic applications is also relevant, e.g. Byravan and Fox (2017) model object dynamics using a neural network that performs spatial transformations on point clouds.
3 QuaterNet
This section introduces our quaternionbased neural architectures for modeling human motion. It first describes a recurrent architecture and then a convolutional version. Next, we detail our training procedure and then discuss forward kinematics as well as rotation parameterizations. Finally, we describe specifics of our short and longterm motion models.
3.1 Recurrent architecture
In the original formulation of QuaterNet (Pavllo et al., 2018b), we use an RNN to model sequences of threedimensional poses as in Fragkiadaki et al. (2015) and Martinez et al. (2017). We have a twolayer gated recurrent unit (GRU) network (Cho et al., 2014)
that is an autoregressive model, i.e. at each time step, the model takes as input the previous recurrent state as well as features describing the previous pose in order to predict the next pose. Similar to
Martinez et al. (2017), we selected GRU for their simplicity and efficiency. In line with the findings of Chung et al. (2014), we found no benefit in using long shortterm memory (LSTM), which require learning extra gates. Contrary to Martinez et al. (2017), however, we found an empirical advantage of adding a second recurrent layer, but not a third one. The two GRU layers comprise hidden units each, and their initial states are learned from the data.Figure 1 shows the highlevel architecture of our pose network, which we use for both shortterm prediction and longterm generation. If employed for the latter purpose, the model includes additional inputs (referred to as “Translations” and “Controls” in the figure), which are used to provide artistic control. The network takes as input the rotations of all joints (encoded as unit quaternions, a choice that we motivate in Section 3.4), plus optional inputs, and is trained to predict the future states of the skeleton across time steps, given frames of initialization; and depend on the task.
3.2 Convolutional architecture
A recent trend in sequence modeling consists in replacing RNNs with convolutional neural networks (CNN) for tasks that were typically tackled with the former. These include neural machine translation
(Gehring et al., 2017), language modeling (Dauphin et al., 2017), speech processing (Collobert et al., 2016), and 3D human pose estimation in video (Pavllo et al., 2018a), where convolutional architectures have achieved compelling results.Compared to RNNs, convolutional networks have a number of advantages. First, they are more efficient on modern hardware since they can be parallelized both across the batch and time/space dimensions. Recurrent models can only be parallelized across the batch dimension due to their dependence on previous timesteps. Second, training is simpler since convolutional architectures have a constant path length between the input and the output, which makes them less likely to suffer under exploding or vanishing gradients such as RNNs. On the other hand, RNNs are in theory able to model arbitrary length sequences with a fixed number of parameters. However, in practice they tend to focus on local dependencies rather than longterm relationships. In convolutional models, the receptive field can be drastically increased through dilated convolutions, which result in the number of parameters to grow only logarithmically with respect to the receptive field.
To better understand whether convolutional architectures can be beneficial for human motion modeling, we introduce a variation of QuaterNet based on temporal convolutions and analyze it. Our convolutional architecture is an adaptation of its RNNbased counterpart, in which we replace the backbone (GRU and linear layers, yellow block in Figure 1) with a sequence of convolutional layers.

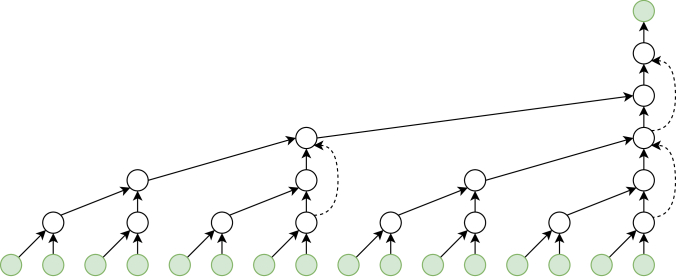

We adopt convolutions with filter width and an exponentially increasing dilation factor , where is the current layer (from 1 to 5, i.e. 5 layers in total). This strategy ensures that the path from the input to the output forms a tree in which each input frame is read exactly once by the first layer and each output of the first layer is processed only once by the second layer and so on. Our convolutions are causal, i.e. they only look at past frames. The receptive field can be controlled precisely by varying , e.g. if for all layers we obtain a receptive field of 32 frames; if we set in the last layer, then we get 48 frames, and so on. We also add skipconnections between every other layer, as these make it easier to propagate gradients through multiple layers (He et al., 2016). Similar to the recurrent velocity model, we multiply the output quaternions with the input in order to force the model to represent rotation deltas internally. All convolutions use channels, except the first and last layer, which map from and to the number of rotation parameters. The information flow in our convolutional architecture is depicted in Figure 2.
As an ablation, we tried to replace dilated convolutions with standard dense convolutions, but this did not result in any improvements. Dilated convolutions perform consistently better, suggesting that they generalize more easily due to their sparsity.
3.3 Training details
For optimization, we use Adam (Kingma and Ba, 2014) and we clip the gradient norm to . The learning learning rate is decayed exponentially with a factor of
per epoch. For efficient batching, we sample fixed length episodes from the training set, sampling uniformly across valid starting points. We define an epoch to be a random sample of size equal to the number of sequences.
To address the challenging task of generating longterm motion, the network is progressively exposed to its own predictions through a curriculum schedule known as scheduled sampling (Bengio et al., 2015). We found the latter to be beneficial for improving the error and model stability, as we demonstrate in Figure 6(b)
. At every time step, we randomly sample from a Bernoulli distribution with probability
to determine whether the model should observe the ground truth or its own prediction. Initially, we set (i.e. teacher forcing), and we decay it exponentially with a factor per epoch.When the recurrent architecture is exposed to its own predictions, then the derivative of the loss with respect to its output sums two terms: the first term makes the current prediction closer to the current target and the second term adjusts the current prediction to improve future predictions. In the convolutional architecture the gradient flows only across the first term, as in Bengio et al. (2015). Also, we train both CNNs and RNNs without layer normalization (Ba et al., 2016)
(Ioffe and Szegedy, 2015) as neither led to improvements in our setting.3.4 Parameterization of forward kinematics
Euler angles are often used to represent joint rotations (Han et al., 2017)
. They offer the advantage to specify an angle for each degree of freedom, so they can be easily constrained to match the degrees of freedom of real human joints. However, Euler angles also suffer from nonuniqueness (
and represent the same angle), discontinuity in the representation space, and singularities (gimbal lock). It can be shown that all representations in suffer from these problems, including the popular exponential maps (Grassia, 1998). In contrast, quaternions – which lie in – are free of discontinuities and singularities, are more numerically stable, and are more computationally efficient than other representations (Pervin and Webb, 1983). We provide a more thorough overview of rotation parameterizations in Section 3.5.The advantages of quaternions come at a cost: in order to represent valid rotations, they must be normalized to have unit length. To enforce this property, we add an explicit normalization layer to our network (cf. Figure 1). We also include a penalty term in the loss function, , for all quaternions prior to normalization. The latter acts as a regularizer and leads to better training stability. The choice of is not crucial; we found that any value between and serves the purpose (we use ). During training, the distribution of the quaternion norms converges nicely to a Gaussian with mean 1, i.e. the model learns to represent valid rotations. It is important to observe that if represents a particular orientation, then (antipodal representation) represents the same orientation.
As shown in Figure 3, we found these two representations to be mixed in our dataset, leading to discontinuities in the time series. Our solution is to choose the representation with the lowest Euclidean distance (or equivalently, the highest cosine distance) from the one in the previous frame (Figure 3). This representation still allows for two representations with inverted sign for each time series, which does not represent an issue for autoregressive models.
Owing to the advantages presented above, this work represents joint rotations with quaternions. Previous work in motion modeling has used quaternions for pose clustering (Zhou et al., 2013), for joint limit estimation (Herda et al., 2005), and for motion retargeting (Villegas et al., 2018). To the best of our knowledge, human motion prediction with a quaternion parameterization is a novel contribution of our work.
Discontinuities are not the only drawback of previous approaches (cf. Section 2). Regression of rotations fails to properly encode that a small error on a crucial joint might drastically impact the positional error. Therefore we propose to compute a positional loss. Our loss function takes as input joint rotations and runs forward kinematics to compute the position of each joint. We can then compute the Euclidean distance between each predicted joint position and the reference pose. Since forward kinematics are differentiable with respect to joint rotations, this is a valid loss for training the network. This approach is inspired by Zhou et al. (2016b) for hand tracking and Zhou et al. (2016a) for human pose estimation in static images. Unlike Euler angles (used in Zhou et al. (2016b, a)), which employ trigonometric functions to compute transformations, quaternion transformations are based on linear operators (Pervin and Webb, 1983) and are therefore more suited to neural network architectures. Villegas et al. (2018) also employ a form of forward kinematics with quaternions, in which quaternions are converted to rotation matrices to compose transformations. In our case, all transformations are carried out in quaternion space and the network is conditioned on joint rotations, unlike (Villegas et al., 2018) which is conditioned on joint positions. Compared to other work with positional loss (Holden et al., 2016, 2017), our strategy penalizes position errors properly and avoids reprojection onto skeleton constraints. Additionally, our differentiable forward kinematics implementation allows for efficient GPU batching and therefore only increases the computational cost over the rotationbased loss by 20%.
3.5 Parameterization of rotations
In this section, we compare different parameterizations for rotations in the 3D Euclidean space and we highlight their strengths and weaknesses in different contexts. All the presented representations model the 3D rotation group SO(3), which can be fully expressed with a minimum of 3 parameters.
3.5.1 Euler angles
They represent orientations as successive rotations around the axes of a coordinate system, typically referred to as yaw, pitch, and roll. There are multiple ways to compose rotations and applications that use Euler angles must agree on the particular order convention: TaitBryan ordering (xyz, xzy, yxz, yzx, zxy, zyx), or proper ordering (xyx, xzx, yxy, yzy, zxz, zyz).
A typical Euler rotation vector is a triplet that indicates the rotation around each axis in radians. There are two drawbacks: first, if represents a particular rotation, then () represents the same rotation. This means that there is an infinite number of representations for the same rotation. Moreover, the wraparound issue at
causes the representation space to be discontinuous, which is undesirable in optimization or in applications that require smooth interpolation.
A trick to avoid the discontinuity issue with angles (whether 3D Euler angles or 1D angles) is to represent each angle as a 2D feature vector , which is guaranteed to lie on the unit circle as . This can be equivalently viewed as a unit complex number . The corresponding approach to regress such angles would be to output two values and , impose either via a smooth constraint or via explicit normalization (or both, as we show in Section 3.4 in the context of quaternions), and compute . This approach solves the discontinuity problem, but doubles the number of parameters, introduces an optimization constraint, and still presents no 3D interpolation properties.
As with other parameterizations, Euler angles suffer from singularities. In the context of rotations, a singularity is a subspace in which all elements express the same rotation, which means that no rotation is possible within the subspace (Grassia, 1998). With Euler angles, this is referred to as gimbal lock, and results in the loss of one degree of freedom due to the gimbals becoming “interlocked” – an analogy with physical inertial measurement units (IMUs) based on Euler angles.
3.5.2 Axisangle representation
Also referred to as the exponential map, this representation again uses 3 parameters and is proposed as a more practical alternative to Euler angles. It mitigates some of the issues of the latter by making them unlikely (Grassia, 1998), but does not solve them at the fundamental level.
Intuitively, an axisangle rotation is described by an axis (a 3D vector with unit length which represents a direction), and a rotation angle around this axis. The latter is encoded as the length of the vector, i.e. . This is shown in Figure 4. Singularities are present on every sphere of radius , since they are equivalent to a rotation with . As with Euler angles, there are an infinite number of representations of the same rotation (one for each sphere). Even when restricting the parameter space to the sphere of radius , there are two possible representations: and . Likewise, the parameter space is discontinuous when wraps around from to .
Another disadvantage of exponential maps is that there is no way to compose rotations, even though it is possible to rotate vectors using Rodrigues’ formula (Dai, 2015), which involves trigonometric functions. Composition is a fundamental operator for forward kinematics, and is trivial to achieve in rotation matrices (matrix multiplication) and quaternions (quaternion multiplication). Grassia (1998) suggests to transform them to quaternions (the closest alternative), compose rotations, and convert them back to exponential maps, incurring several computations of trigonometric functions. Grassia (1998) also observes that exponential maps are particularly suited to ballandsocket joints, but they cannot be used for animating tumbling bodies. In human motion, one such an example is the root joint of a character spinning in circles, which has a range of motion greater than .
3.5.3 Unit quaternions
Quaternions are a 4D extension of complex numbers that form the group, and can be described as realvalued 4tuples such that , where is the scalar term and are the complex terms. For rotations, we are interested in unit quaternions, i.e. quaternions with unit length. A rotation of radians around an axis is encoded as and .
This representation is closely related to the exponential map – describing a rotation around an axis – but presents fundamental differences. It uses 4 parameters instead of 3, and requires the vector to be normalized (i.e. on the unit sphere). This small disadvantage compares to several advantages:

No singularities, since they are embedded in and not .

No discontinuities in the parameter space, which means that they can be regressed or interpolated smoothly.

They can be composed and used to compute transformations without switching to other representations, and without requiring periodic functions.

They present a simple and elegant way to perform interpolation between rotations (quaternion slerp), which results in a continuous path and good qualitative properties such as constant velocity and minimal torque (Shoemake, 1985). This respectively means that the artist has precise control over the transition speed, and that the transition is as smooth as possible.
A disadvantage of quaternions is that they encode halfangle rotations, giving rise to the socalled antipodal representations: two possible representations for the same 3D orientation, and . Nevertheless, this dual representation is still advantageous compared to other parameterizations with infinite representations.
One approach to tackle this problem is to force to cover only half of . For instance, a straightforward way of implementing this would be to require to be positive (i.e. inverting if is negative). A more thorough approach would also consider the case of , and repeat the same process on , and then on if necessary (LaValle, 2006). However, this trick causes the representation space to be discontinuous (see Figure 3 for an example), which defeats one of the main purposes of using quaternions.
In Section 3.4, we showed how we solved the antipodal representation problem in our data. Furthermore, the use of an autoregressive architecture allows the model to keep track of the current “hemisphere” in and regress continuous rotations.
3.6 Shortterm prediction
For shortterm predictions with our quaternion network, we consider predicting either relative rotation deltas (analogous to angular velocities) or absolute rotations. We take inspiration from residual connections applied to Euler angles
(Martinez et al., 2017), where the model does not predict absolute angles but angle deltas and integrates them over time. For quaternions, the predicted deltas are applied to the input quaternions through quaternion product (Shoemake, 1985) (QMul block in Figure 1). Similar to Martinez et al. (2017), we found this approach to be beneficial for shortterm prediction, but we also discovered that it leads to instability for longterm generation.Previous work evaluates prediction errors by measuring Euclidean distances between Euler angles and we precisely replicate that protocol to provide comparable results by replacing the positional loss with a loss on Euler angles. This loss first maps quaternions onto Euler angles, and then computes the L1 distance with respect to the reference angles, taking the best match modulo . A proper treatment of angle periodicity was not found in previous implementations, e.g. Martinez et al. (2017), leading to slightly biased results. In particular, there is a nonneglible number of angles located around in the dataset used for our experiments, see Figure 5(a).
3.7 Longterm generation
For longterm generation, we restrict ourselves to locomotion actions. We define our task as the generation of a pose sequence given an average speed and a ground trajectory to follow. Such a task is common in computer graphics (Badler et al., 1993; Multon et al., 1999; Forsyth et al., 2006).
We decompose the task into two steps: we start by defining some parameters along the trajectory (facing direction of the character, local speed, frequency of footsteps), then we predict the sequence of poses. The trajectory parameters can be manually defined by the artist, or they can be fitted automatically via a simple pace network, which is provided as a useful feature for generating an animation with minimal effort. The second step is addressed with our autoregressive quaternion network (pose network).
The pace network is a simple recurrent network with one GRU layer with 30 hidden units. It represents the trajectory as a piecewise linear spline with equallength segments (Stoer and Bulirsch, 1993) and performs its recursion over segments. At each time step, it receives the spline curvature and the previous hidden state. It predicts the character facing direction relative to the spline tangent (which can be used for making the character walk sideways, for instance), the frequency of its footsteps, and its local speed, which is a lowpass filtered version of the instantaneous speed on the training set. We found the two dimensions (frequency and speed) necessary to describe the character’s gait (e.g. walk, jog, run), as illustrated in Figure 5(b).
This network is trained to minimize the mean absolute error (MAE) of its features. Depending on the scenario – offline or online – we propose two versions of this network: one based on a bidirectional architecture, and one based on a regular 1directional RNN whose outputs are delayed by a small distance. The latter is particularly suitable for realtime applications, since it does not observe the trajectory far in the future.
The pose network is similar to the network we used for shortterm predictions but presents additional inputs and outputs, i.e. the Translations and Controls blocks in Figure 1. The Controls block consists of the tangent of the current spline segment as a 2D versor, the facing direction as a 2D versor, the local longitudinal speed along the spline, and the walk cycle. The last two features are merged into a signal of the form , where is the longitudinal speed, and is a cyclic signal where corresponds to a left foot contact and corresponds to a right foot contact. For training, we extract these features from training recordings by detecting when the speed of a foot falls to zero. At inference, we integrate the frequency to recover
. Since this block is not in the recurrent path, we pass its values through two fully connected layers with 30 units each and Leaky ReLU activations (with leakage factor
). We use leaky activations to prevent the units from dying, which may represent a problem with such a small layer size. The pose network also takes the additional outputs from the previous timestep (Translations block). These outputs are the height of the character root joint and the positional offset on the spline compared to the position obtained by integrating the average speed. The purpose of the latter is to model the highfrequency details of movement, which helps with realism and foot sliding. For training, we extract this feature from the training data by lowpass filtering the speed along the trajectory (which yields the average local speed), subtracting the latter from the overall speed (which yields a highpassfiltered series), and integrating it. The pose network is trained to minimize the Euclidean distance to the reference pose with the forward kinematic positional loss introduced in Section 3.4. As before, we regularize nonnormalized quaternion outputs to stay on the unit sphere.4 Experiments
We perform two types of evaluation. We evaluate shortterm prediction of human motion over different types of actions using the benchmark setting evaluating angle prediction errors on Human3.6M data (Fragkiadaki et al., 2015; Liu et al., 2016; Martinez et al., 2017). We also conduct a human study to qualitatively evaluate the longterm generation of human locomotion (Holden et al., 2016, 2017) since quantitative generation of longterm prediction is difficult. For the latter, we use the same dataset as Holden et al. (2015, 2016), instead of Human3.6M. Finally, we perform various ablations in Section 4.4, where we compare different rotation parameterizations and strategies.
4.1 Shortterm prediction
We follow the experimental setup of Fragkiadaki et al. (2015) on the Human3.6M task (Ionescu et al., 2011, 2014)
. This dataset consists of motion capture data from seven actors performing 15 actions. The skeleton is represented with 32 joints recorded at 50 Hz, which we downsample to 25 Hz keeping both even/odd versions of the data for training as in
Martinez et al. (2017). Our evaluation measures the Euclidean distance between predicted and measured Euler angles, similar to Fragkiadaki et al. (2015); Liu et al. (2016); Martinez et al. (2017). We use the same train and test split, i.e. subjects 1, 6, 7, 8, 9, 11 for training, and subject 5 for testing. We compare to previous neural approaches (Fragkiadaki et al., 2015; Liu et al., 2016; Martinez et al., 2017) and simple baselines (Martinez et al., 2017): running average over 2 and 4 frames (Run. avg. 2/4) and zerovelocity which is the last known frame.We train a single model for all actions, without supplying any action category as input. For the RNN architecture, we condition the generator on frames (2 seconds) and predict the next frames (400 ms). For the CNN architecture, we condition on frames (1.28 s) and predict frames (400 ms). We report results both for modeling velocities or relative rotations (QuaterNet vel.) and absolute rotations (QuaterNet abs.). Table 1 shows the results and highlights that velocities generally perform better than absolute rotations for shortterm predictions. It also shows that our RNN architecture performs better than the CNN architecture on this task and we therefore focus subsequent analysis on the RNN model.
To better understand the effect of scheduled sampling, we also train a model without scheduled sampling and without feedback, i.e., teacher forcing (QuaterNet vel. TF). In this setting we compute the loss directly on quaternions instead of Euler angles, to enforce their continuity. We define the similarity of two quaternions and as their dot product, resulting in the loss function:
This error also corresponds to half the Euclidean distance, i.e. root mean square error, since quaternions have unit norm. On the recurrent model, this experiment shows that teacher forcing achieves a slightly lower error on shorter time spans (80 ms) but does worse than scheduled sampling for longer time spans. Exposing the model to the actual predictions at training time makes it less susceptible to diverging over longer time horizons. Interestingly, scheduled sampling seems much less effective for the convolutional model.
We report results with a longerterm horizon on all 15 actions. Figure 6(a) shows that integrating velocities is prone to error accumulation and absolute rotations are therefore advantageous for longerterm predictions. The graph also highlights that motion becomes mostly stochastic after the 1second mark, and that the absolute rotation model presents small discontinuities when the first frame is predicted, which corroborates the findings of Martinez et al. (2017). Figure 6(b) reveals that if the recurrent velocity model is trained with scheduled sampling, it tends to learn a more stable behavior for longterm predictions. By contrast, the velocity model trained with regular feedback is prone to catastrophic drifts over time.
Walking  Eating  Smoking  Discussion

milliseconds  80  160  320  400  80  160  320  400  80  160  320  400  80  160  320  400
Run. avg. 4 (Martinez et al., CVPR 2017)  0.64  0.87  1.07  1.20  0.40  0.59  0.77  0.88  0.37  0.58  1.03  1.02  0.60  0.90  1.11  1.15
Run. avg. 2 (Martinez et al., CVPR 2017)  0.48  0.74  1.02  1.17  0.32  0.52  0.74  0.87  0.30  0.52  0.99  0.97  0.41  0.74  0.99  1.09
Zerovelocity (Martinez et al., CVPR 2017)  0.39  0.68  0.99  1.15  0.27  0.48  0.73  0.86  0.26  0.48  0.97  0.95  0.31  0.67  0.94  1.04
ERD (Fragkiadaki et al., CVPR 2015)  0.93  1.18  1.59  1.78  1.27  1.45  1.66  1.80  1.66  1.95  2.35  2.42  2.27  2.47  2.68  2.76
LSTM3LR (Fragkiadaki et al., CVPR 2015)  0.77  1.00  1.29  1.47  0.89  1.09  1.35  1.46  1.34  1.65  2.04  2.16  1.88  2.12  2.25  2.23
SRNN (Jain et al., CVPR 2016)  0.81  0.94  1.16  1.30  0.97  1.14  1.35  1.46  1.45  1.68  1.94  2.08  1.22  1.49  1.83  1.93
GRU unsup. (Martinez et al., CVPR 2017)  0.27  0.47  0.70  0.78  0.25  0.43  0.71  0.87  0.33  0.61  1.04  1.19  0.31  0.69  1.03  1.12
GRU sup. (Martinez et al., CVPR 2017)  0.28  0.49  0.72  0.81  0.23  0.39  0.62  0.76  0.33  0.61  1.05  1.15  0.31  0.68  1.01  1.09
Adversarial (Gui et al., ECCV 2018)  0.22  0.36  0.55  0.67  0.17  0.28  0.51  0.64  0.27  0.43  0.82  0.84  0.27  0.56  0.76  0.83
QuaterNet abs. (Pavllo et al., BMVC 2018b)  0.26  0.42  0.67  0.70  0.23  0.38  0.61  0.73  0.32  0.52  0.92  0.90  0.36  0.71  0.96  1.03
QuaterNet vel. (Pavllo et al., BMVC 2018b)  0.21  0.34  0.56  0.62  0.20  0.35  0.58  0.70  0.25  0.47  0.93  0.90  0.26  0.60  0.85  0.93
QuaterNet vel. TF  0.20  0.37  0.64  0.76  0.19  0.34  0.61  0.78  0.24  0.48  0.90  0.99  0.25  0.64  0.97  1.07
QuaterNet CNN abs.  0.31  0.61  0.89  0.96  0.27  0.54  0.86  1.02  0.37  0.76  1.26  1.33  0.38  0.84  1.16  1.22
QuaterNet CNN vel.  0.25  0.40  0.62  0.70  0.22  0.36  0.58  0.71  0.26  0.49  0.94  0.90  0.30  0.66  0.93  1.00
QuaterNet CNN vel. TF  0.21  0.39  0.65  0.75  0.20  0.36  0.65  0.83  0.26  0.49  0.96  1.07  0.30  0.67  0.99  1.09
Walking  Eating  Smoking  Discussion  Directions  Greeting  Phoning  Posing

milliseconds  80  160  320  400  80  160  320  400  80  160  320  400  80  160  320  400  80  160  320  400  80  160  320  400  80  160  320  400  80  160  320  400
Run. avg. 4  0.64  0.92  1.30  1.39  0.46  0.69  0.98  1.09  0.48  0.67  1.02  1.14  0.74  1.00  1.35  1.46  0.46  0.67  0.99  1.14  0.94  1.20  1.56  1.69  0.60  0.84  1.23  1.37  0.64  0.93  1.35  1.54
Run. avg. 2  0.51  0.83  1.26  1.36  0.35  0.63  0.95  1.07  0.37  0.59  0.96  1.08  0.60  0.90  1.31  1.45  0.36  0.59  0.95  1.10  0.78  1.10  1.51  1.66  0.48  0.75  1.18  1.33  0.50  0.82  1.29  1.48
Zerovelocity  0.43  0.78  1.23  1.34  0.30  0.59  0.94  1.07  0.34  0.56  0.94  1.08  0.55  0.83  1.27  1.46  0.30  0.54  0.92  1.08  0.67  1.03  1.47  1.66  0.42  0.71  1.17  1.31  0.42  0.75  1.25  1.45
GRU unsup.  0.34  0.61  0.92  1.02  0.32  0.60  0.92  1.05  0.43  0.79  1.15  1.31  0.57  0.88  1.34  1.48  0.32  0.58  0.98  1.15  0.66  0.98  1.41  1.55  0.43  0.71  1.14  1.31  0.47  0.84  1.39  1.58
GRU sup.  0.34  0.60  0.91  0.98  0.30  0.57  0.87  0.98  0.35  0.69  1.14  1.29  0.54  0.85  1.30  1.44  0.32  0.58  0.97  1.14  0.64  0.99  1.40  1.54  0.42  0.70  1.11  1.27  0.46  0.83  1.33  1.52
QuaterNet abs.  0.35  0.56  0.84  0.92  0.29  0.52  0.79  0.89  0.52  0.68  0.95  1.06  0.54  0.86  1.24  1.44  0.27  0.47  0.84  1.00  0.54  0.85  1.27  1.47  0.40  0.62  0.99  1.14  0.48  0.75  1.17  1.36
QuaterNet vel.  0.28  0.49  0.76  0.83  0.22  0.47  0.76  0.88  0.28  0.47  0.79  0.91  0.48  0.74  1.20  1.37  0.24  0.46  0.84  1.01  0.61  0.93  1.34  1.51  0.36  0.61  0.98  1.14  0.38  0.71  1.20  1.39
QuaterNet vel. TF  0.27  0.51  0.83  0.93  0.22  0.50  0.86  0.99  0.28  0.53  0.97  1.15  0.49  0.79  1.25  1.41  0.23  0.48  0.92  1.10  0.55  0.87  1.32  1.51  0.36  0.62  1.04  1.21  0.34  0.69  1.21  1.44
QuaterNet CNN abs.  0.39  0.77  1.12  1.21  0.34  0.73  1.11  1.22  0.63  0.97  1.28  1.43  0.64  1.06  1.54  1.70  0.36  0.72  1.16  1.34  0.72  1.11  1.54  1.68  0.48  0.85  1.32  1.49  0.60  1.06  1.59  1.79
QuaterNet CNN vel.  0.31  0.54  0.83  0.91  0.27  0.53  0.81  0.92  0.31  0.51  0.92  1.04  0.52  0.83  1.24  1.42  0.29  0.53  0.90  1.06  0.66  1.00  1.41  1.58  0.39  0.63  1.03  1.19  0.41  0.74  1.24  1.44
QuaterNet CNN vel. TF  0.29  0.53  0.87  0.97  0.23  0.51  0.87  1.01  0.29  0.51  0.90  1.07  0.49  0.82  1.35  1.65  0.24  0.50  0.93  1.12  0.57  0.90  1.36  1.56  0.37  0.64  1.10  1.30  0.37  0.72  1.25  1.48
Purchases  Sitting  Sitting Down  Taking Photo  Waiting  Walk Dog  Walk Together  Average
milliseconds  80  160  320  400  80  160  320  400  80  160  320  400  80  160  320  400  80  160  320  400  80  160  320  400  80  160  320  400  80  160  320  400
Run. avg. 4  0.80  1.09  1.41  1.50  0.57  0.81  1.15  1.28  0.72  1.01  1.45  1.62  0.39  0.54  0.80  0.90  0.57  0.82  1.24  1.39  0.74  0.97  1.27  1.34  0.57  0.79  1.08  1.18  0.62  0.86  1.21  1.34
Run. avg. 2  0.66  1.01  1.38  1.47  0.45  0.71  1.09  1.22  0.59  0.90  1.37  1.54  0.31  0.48  0.75  0.87  0.45  0.71  1.17  1.32  0.61  0.90  1.23  1.32  0.46  0.72  1.05  1.17  0.50  0.78  1.16  1.30
Zerovelocity  0.57  0.96  1.36  1.45  0.38  0.65  1.04  1.18  0.51  0.85  1.33  1.51  0.26  0.44  0.73  0.84  0.39  0.64  1.13  1.28  0.53  0.85  1.20  1.31  0.40  0.67  1.03  1.15  0.43  0.72  1.13  1.28
GRU unsup.  0.57  0.97  1.38  1.48  0.42  0.77  1.24  1.43  0.60  1.03  1.68  1.92  0.31  0.53  0.90  1.06  0.42  0.70  1.25  1.44  0.52  0.85  1.22  1.33  0.37  0.60  0.89  1.00  0.45  0.76  1.19  1.34
GRU sup.  0.57  0.95  1.33  1.43  0.41  0.75  1.22  1.41  0.59  1.00  1.62  1.87  0.30  0.52  0.88  1.02  0.41  0.68  1.20  1.37  0.52  0.84  1.21  1.32  0.35  0.57  0.83  0.94  0.43  0.74  1.15  1.30
QuaterNet abs.  0.51  0.86  1.31  1.42  0.47  0.66  1.07  1.20  0.76  0.98  1.38  1.57  0.34  0.47  0.74  0.86  0.43  0.65  1.04  1.19  0.50  0.77  1.12  1.23  0.31  0.49  0.75  0.85  0.45  0.68  1.03  1.17
QuaterNet vel.  0.54  0.92  1.36  1.47  0.34  0.59  1.00  1.15  0.47  0.81  1.31  1.50  0.23  0.39  0.69  0.81  0.32  0.54  1.00  1.15  0.48  0.78  1.12  1.21  0.28  0.45  0.69  0.79  0.37  0.62  1.00  1.14
QuaterNet vel. TF  0.47  0.87  1.33  1.44  0.32  0.60  1.03  1.19  0.48  0.85  1.45  1.70  0.23  0.42  0.78  0.93  0.32  0.58  1.11  1.30  0.45  0.77  1.13  1.23  0.27  0.48  0.78  0.91  0.35  0.64  1.07  1.23
QuaterNet CNN abs.  0.62  1.09  1.54  1.66  0.58  1.05  1.64  1.84  0.92  1.52  2.08  2.29  0.38  0.73  1.13  1.29  0.53  0.96  1.50  1.67  0.57  0.97  1.38  1.51  0.38  0.67  1.01  1.15  0.54  0.95  1.40  1.55
QuaterNet CNN vel.  0.56  0.94  1.34  1.43  0.35  0.63  1.04  1.18  0.51  0.85  1.33  1.51  0.26  0.44  0.74  0.86  0.37  0.61  1.07  1.22  0.50  0.80  1.14  1.24  0.31  0.51  0.76  0.88  0.40  0.67  1.05  1.19
QuaterNet CNN vel. TF  0.49  0.90  1.38  1.50  0.34  0.63  1.12  1.33  0.51  0.91  1.56  1.88  0.25  0.45  0.82  0.99  0.33  0.59  1.12  1.32  0.48  0.80  1.17  1.29  0.29  0.51  0.83  0.96  0.37  0.66  1.11  1.30
4.2 More consistent shortterm evaluation
The standard evaluation protocol of Fragkiadaki et al. (2015) constructs the test set by sampling random chunks from the test animations. This has the advantage of requiring much less computation than evaluating the loss over all possible subsequences. The reference implementation samples only four chunks from each test sequence at random positions, using a fixed seed to initialize the random generator^{1}^{1}1Reference implementation at https://github.com/asheshjain399/RNNexp/blob/srnn/structural_rnn/forecastTrajectories.py#L29. This exact methodology is adopted by Liu et al. (2016); Martinez et al. (2017); Pavllo et al. (2018b); Gui et al. (2018) and makes the quantitative results across these papers comparable.
However, using only four samples results in a very high variance of the test results as we show next. This is especially evident when comparing results from different initialization seeds. It is also a concern for comparisons with the same seed, since the samples are not large enough to be representative of the whole test set. It causes slightly biased results, and most importantly, it makes it hard to reliably compare different architectures.
To quantify the issue, we compute the zerovelocity baseline (Martinez et al., 2017) for an increasing number of samples per sequence. Figure 7
shows that four samples per sequence are not enough, since the error can vary by 10% (0.395 – 0.435) between the 25th and 75th quantile for the average over all actions (Figure
7(b)). This range can be reduced to 1.7% (0.413 – 0.420) with 128 samples, a number we believe to be a good compromise between variance and computational effort.Finally, we compare different approaches under the new protocol. We also reevaluated the approach of Martinez et al. (2017) (GRU unsup./sup.) on all 15 actions by changing only the number of samples in their public implementation, we kept the same seed. The results for the new protocol (Table 2) show that the standard protocol tends to underestimate the true error (cf. Table 1). Moreover, it becomes easier to compare different strategies as any differences are less effected by noise.
Effect of increasing the number of samples per test sequence from the standard protocol of 4 to 512. We compute confidence intervals over the test error by bootstrap resampling of a large number of runs with different seeds. Results are based on the zerovelocity baseline for “Walking” and averaging over all 15 actions. Small crosses denote the error corresponding to the default seed by
Fragkiadaki et al. (2015).4.3 Longterm generation
Our longterm evaluation relies on the generation of locomotion sequences from a given trajectory. We follow the setting of Holden et al. (2016). The training set comprises motion capture data from multiple sources (CMU, 2003; Müller et al., 2007; Ofli et al., 2013; Xia et al., 2015) at 120 Hz, and is retargeted to a common skeleton. In our case, we trained at a frame rate of 30Hz, keeping all 4 downsampled versions of the data, and mirroring the skeleton to double the amount of data. We also applied random rotations to the whole trajectory to better cover the space of the root joint orientations. This dataset relies on the CMU skeleton (CMU, 2003) with 31 joints. We removed joints with constant angle, yielding a dataset with 26 joints.
Our first experiment compares loss functions. We condition the generator on frames and predict the next frames. Figure 8 shows that optimizing the angle loss can lead to larger position errors since it fails to properly assign credit to correct predictions on crucial joints. The angle loss is also prone to exploding gradients. This suggests that optimizing the position loss may reduce the complexity of the problem, which seems counterintuitive considering the overhead of computing forward kinematics. One possible explanation is that some postures may be difficult to optimize with angles, but if we consider motion as a whole, the model trained on position loss would make occasional mistakes on rotations without visibly affecting the result. Therefore, our forward kinematics positional loss is more attractive for minimizing position errors. Since this metric better reflects the quality of generation for longterm generation (Holden et al., 2016), we perform subsequent experiments with the position loss.
The second experiment assesses generation quality in a human study. We perform a sidebyside comparison with phasefunctioned neural network (Holden et al., 2017). For both methods, we generate 8 short clips ( seconds) for walking along the same trajectory and for each clip, we collect judgments from 20 assessors hired through Amazon Mechanical Turk. We selected only workers with “master” status. Each task compared pairs of clips where methods are randomly ordered. Each task contains a control pair with an obvious flaw to exclude unreliable workers. Figure 10 shows that our method performs similarly to Holden et al. (2017), but without employing any postprocessing.
Figure 9 shows an example of our generation where the character is instructed to walk or run along a trajectory. Figure 10 shows how our pace network computes the trajectory parameters given its curvature and a target speed. Our generation, while being online, follows exactly the given trajectory and allows for fine control of the time of passage at given way points. Holden et al. (2016) presents the same advantages, although these constraints are imposed as an offline postprocessing step, whereas Holden et al. (2017) is online but does not support time or space constraints.
4.4 Ablations
In this section we compare different human pose representations and then ablate various hyperparameters to better understand the behavior of our model.
4.4.1 Conditioning length
First, we measure the effect of differently sized conditioning sequences (cf. Section 3). For the RNN model, we try and for the CNN model . For the CNN, corresponds to the size of the receptive field.
Figure 11 shows that the error saturates after 10–20 frames (400–800 msec) for both models which is likely because the models are not exploiting longterm information. This is certainly in part due to the high level of uncertainty in predicting human motion: very old frames provide little information about the future since there are many possible predictions. For the CNN with absolute rotations, large receptive fields are not necessarily best and smaller sizes often perform better.
4.4.2 Parameterizations
Next, we compare quaternions, Euler angles, and axisangle vectors to parameterize rotations in the longterm generation setting (Section 3.7 and Section 4.3). In addition to the position error, we also measure the velocity error, defined as the Euclidean error of the first derivative of the position. The velocity loss is a good indicator of the smoothness of the generated poses. High velocity error is most likely due to jitter or discontinuities. In order to compose rotations, we convert the output rotations to quaternions before feeding them to the forward kinematics layer.
The results (Figure 12) show that quaternions have the lowest error as well as the fastest convergence rate. In terms of the position error, the difference between the quaternion and axisangle representations is narrow, however, the velocity loss shows that quaternions produce smoother predictions.
Interestingly, the performance of Euler angles depends on the chosen order convention: the order results in many discontinuities and poor performance, whereas the order is close to the axisangle performance on this dataset, arguably because it reflects the degrees of freedom of the skeleton. Nonetheless, the velocity error and at the error distribution (Figure 15(b)) indicate that Euler angles give rise to spurious discontinuities in the generated poses, which are undesirable from a qualitative perspective.
Figure 13 shows inference time errors for predicting up to 60 frames into the future after models are fully trained. The error quickly plateaus for quaternions but not so for axisangle rotations and Euler angles. As before, Euler angles perform similarly to quaternions with respect to the position error but they perform less well in terms of the velocity error.
4.4.3 Rotation vs position regression
Generating joint rotations is required for some applications, e.g. for the animation of skinned meshes, and we can directly train a model to perform this task (Section 2.1). An alternative is to predict 3D joint positions and to recover the joint rotations via inverse kinematics, implemented as a nondifferentiable postprocessing step (Holden et al., 2017). We compare the two approaches by comparing quaternion to a model that predicts joint positions (Position). For the latter, we also consider projecting poses onto a valid skeleton by performing inverse kinematics followed by forward kinematics (Pos. reproj.). Specifically, we solve with projected gradient descent using the Adam optimizer (Kingma and Ba, 2014)
, until convergence of the Euclidean error loss. In practice, many solvers use heuristics or converge to a suboptimal solution for performance reasons, but the goal of our experiment is to illustrate what lower bound can be achieved.
Figure 14 shows that all approaches achieve similar position loss. The quaternion model is slightly worse after 40 frames, most likely because of the higher complexity of the loss function. On the other hand, the velocity error after reprojection is higher than the quaternion model. This is likely because position reprojection introduces discontinuities as illustrated in Figure 15(a). In principle, it is possible to introduce a smoothness constraint in the solver, but this would further limit online processing. Considering the computational cost of inverse kinematics and the lack of practical advantages, we argue that a model trained to predict joint rotations is more versatile.
5 Conclusion and future work
We propose QuaterNet, a neural network architecture based on quaternions for rotation parameterization – an overlooked aspect in previous work. Our experiments show the advantage of our model for both shortterm prediction and longterm generation, while previous work typically addresses each task separately. We also suggest training with a position loss that performs forward kinematics on a parameterized skeleton. This benefits both from a constrained skeleton (like previous work relying on angle loss) and from proper weighting across different joint prediction errors (like previous work relying on position loss). Our results improve shortterm prediction over the popular Human3.6M dataset, while our longterm generation of locomotion qualitatively compares with recent work in computer graphics. Furthermore, our generation is realtime and allows better control of time and space constraints. Finally, we showed that the standard evaluation protocol for the Human3.6M dataset produces highvariance results and we propose a simple solution.
As for future work, QuaterNet can be extended to tackle other motionrelated tasks, such as action recognition or pose estimation from video. In this regard, a promising research direction is represented by selfsupervised pose estimation, which can benefit from a parameterized skeleton in the supervision signal. Another trend is weakly supervised training, where one model generates training data for another model on a different task. For instance, it would be interesting to train QuaterNet on lowquality poses inferred from video. For motion generation, this would provide further artistic control with additional inputs and would enable conditioning based on a richer set of actions.
Another promising research direction is neural networks that perform computations directly in quaternionic domain. Currently, QuaterNet uses standard RNN and CNN architectures as its backbone which operate in Euclidean space. Recently, quaternionvalued RNNs (Parcollet et al., 2018a) and CNNs (Zhu et al., 2018; Gaudet and Maida, 2018; Parcollet et al., 2018b) have been proposed, resulting in promising results on tasks with longrange dependencies such as speech recognition. These architectures would be interesting for human motion modeling.
Orthogonal to our work is also the question of generative model training: we use stepwise regression and scheduled sampling (Bengio et al., 2015). Very recent work has shown stateoftheart results with adversarial training that contrasts model samples with real data (Gui et al., 2018). Pairing adversarial training with quaternionparameterized kinematics is an interesting future avenue.
References
 Akhter and Black (2015) Akhter I, Black MJ (2015) Poseconditioned joint angle limits for 3d human pose reconstruction. In: 2015 IEEE Conference on Computer Vision and Pattern Recognition (CVPR)
 Arikan et al. (2003) Arikan O, Forsyth DA, O’Brien JF (2003) Motion synthesis from annotations. In: ACM Transactions on Graphics (SIGGRAPH)
 Ba et al. (2016) Ba JL, Kiros JR, Hinton GE (2016) Layer normalization. arXiv preprint arXiv:160706450
 Badler et al. (1993) Badler NI, Phillips CB, Webber BL (1993) Simulating humans: computer graphics animation and control. Oxford University Press
 Bahdanau et al. (2015) Bahdanau D, Cho K, Bengio Y (2015) Neural machine translation by jointly learning to align and translate. In: International Conference on Learning Representations (ICLR)
 Bengio et al. (2015) Bengio S, Vinyals O, Jaitly N, Shazeer N (2015) Scheduled sampling for sequence prediction with recurrent neural networks. In: Advances in Neural Information Processing Systems (NIPS)

Bengio et al. (2003)
Bengio Y, Ducharme R, Vincent P, Jauvin C (2003) A neural probabilistic language model. Journal of machine learning research
 Bütepage et al. (2017) Bütepage J, Black MJ, Kragic D, Kjellström H (2017) Deep representation learning for human motion prediction and classification. In: Conference on Computer Vision and Pattern Recognition (CVPR)
 Bütepage et al. (2018) Bütepage J, Kjellström H, Kragic D (2018) Anticipating many futures: Online human motion prediction and generation for humanrobot interaction. In: 2018 IEEE International Conference on Robotics and Automation (ICRA), pp 1–9
 Byravan and Fox (2017) Byravan A, Fox D (2017) SE3nets: Learning rigid body motion using deep neural networks. In: IEEE International Conference on Robotics and Automation (ICRA)
 Chao et al. (2017) Chao YW, Yang J, Price BL, Cohen S, Deng J (2017) Forecasting human dynamics from static images. Conference on Computer Vision and Pattern Recognition (CVPR)

Cho et al. (2014)
Cho K, Van Merriënboer B, Gulcehre C, Bahdanau D, Bougares F, Schwenk H, Bengio Y (2014) Learning phrase representations using RNN encoderdecoder for statistical machine translation. In: Conference on Empirical Methods in Natural Language Processing (EMNLP)
 Chung et al. (2014) Chung J, Gulcehre C, Cho K, Bengio Y (2014) Empirical evaluation of gated recurrent neural networks on sequence modeling. NIPS Deep Learning and Representation Learning Workshop
 CMU (2003) CMU (2003) CMU graphics lab motion capture database. http://mocap.cs.cmu.edu. The database was created with funding from NSF EIA0196217.
 Collobert et al. (2016) Collobert R, Puhrsch C, Synnaeve G (2016) Wav2letter: an endtoend convnetbased speech recognition system. arXiv abs/1609.03193
 Cootes (2000) Cootes TF (2000) An introduction to active shape models. In: RBaldock, JGraham (eds) Image Processing and Analysis, Oxford University Press, chap 7
 Dai (2015) Dai JS (2015) Euler–rodrigues formula variations, quaternion conjugation and intrinsic connections. Mechanism and Machine Theory 92:144 – 152
 Dauphin et al. (2017) Dauphin YN, Fan A, Auli M, Grangier D (2017) Language modeling with gated convolutional networks. In: Proc. of ICLR
 Du et al. (2015) Du Y, Wang W, Wang L (2015) Hierarchical recurrent neural network for skeleton based action recognition. In: Conference on Computer Vision and Pattern Recognition (CVPR), pp 1110–1118
 Forsyth et al. (2006) Forsyth DA, Arikan O, Ikemoto L, O’Brien J, Ramanan D, et al. (2006) Computational studies of human motion: part 1, tracking and motion synthesis. Foundations and Trends in Computer Graphics and Vision 1(2–3):77–254
 Fragkiadaki et al. (2015) Fragkiadaki K, Levine S, Felsen P, Malik J (2015) Recurrent network models for human dynamics. In: Conference on Vision and Pattern Recognition (CVPR)
 Gaudet and Maida (2018) Gaudet CJ, Maida AS (2018) Deep quaternion networks. In: International Joint Conference on Neural Networks (IJCNN), IEEE, pp 1–8
 Gehring et al. (2017) Gehring J, Auli M, Grangier D, Yarats D, Dauphin YN (2017) Convolutional sequence to sequence learning. In: International Conference on Machine Learning (ICML)
 Ghosh et al. (2017) Ghosh P, Song J, Aksan E, Hilliges O (2017) Learning human motion models for longterm predictions. In: International Conference on 3D Vision
 Gopalakrishnan et al. (2018) Gopalakrishnan A, Mali A, Kifer D, Giles CL, II AGO (2018) A neural temporal model for human motion prediction. Arxiv 1809.03036
 Grassia (1998) Grassia FS (1998) Practical parameterization of rotations using the exponential map. Journal of graphics tools
 Gu et al. (2018) Gu C, Sun C, Ross DA, Vondrick C, Pantofaru C, Li Y, Vijayanarasimhan S, Toderici G, Ricco S, Sukthankar R, Schmid C, Malik J (2018) AVA: A video dataset of spatiotemporally localized atomic visual actions. In: Computer Vision and Pattern Recognition (CVPR)
 Gui et al. (2018) Gui LY, Wang YX, Liang X, Moura JM (2018) Adversarial geometryaware human motion prediction. In: European Conference on Computer Vision (ECCV)
 Han et al. (2017) Han F, Reily B, Hoff W, Zhang H (2017) Spacetime representation of people based on 3D skeletal data: A review. Computer Vision and Image Understanding
 He et al. (2016) He K, Zhang X, Ren S, Sun J (2016) Deep residual learning for image recognition. In: Conference on Computer Vision and Pattern Recognition (CVPR), pp 770–778
 Herda et al. (2005) Herda L, Urtasun R, Fua P (2005) Hierarchical implicit surface joint limits for human body tracking. Computer Vision and Image Understanding
 Hinton et al. (2012) Hinton G, Deng L, Yu D, Dahl G, rahman Mohamed A, Jaitly N, Senior A, Vanhoucke V, Nguyen P, Sainath T, Kingsbury B (2012) Deep neural networks for acoustic modeling in speech recognition. IEEE Signal Processing Magazine

Holden et al. (2015)
Holden D, Saito J, Komura T, Joyce T (2015) Learning motion manifolds with convolutional autoencoders. In: SIGGRAPH Asia 2015 Technical Briefs
 Holden et al. (2016) Holden D, Saito J, Komura T (2016) A deep learning framework for character motion synthesis and editing. ACM Transaction on Graphics (SIGGRAPH)
 Holden et al. (2017) Holden D, Komura T, Saito J (2017) Phasefunctioned neural networks for character control. ACM Transaction on Graphics (SIGGRAPH)
 Ioffe and Szegedy (2015) Ioffe S, Szegedy C (2015) Batch normalization: Accelerating deep network training by reducing internal covariate shift. In: International Conference on Machine Learning (ICML), pp 448–456
 Ionescu et al. (2011) Ionescu C, Li F, Sminchisescu C (2011) Latent structured models for human pose estimation. In: International Conference on Computer Vision (ICCV)
 Ionescu et al. (2014) Ionescu C, Papava D, Olaru V, Sminchisescu C (2014) Human3.6m: Large scale datasets and predictive methods for 3D human sensing in natural environments. IEEE Transactions on Pattern Analysis and Machine Intelligence (TPAMI)
 Jain et al. (2016) Jain A, Zamir AR, Savarese S, Saxena A (2016) StructuralRNN: Deep learning on spatiotemporal graphs. In: Conference on Computer Vision and Pattern Recognition (CVPR)
 Kiasari et al. (2018) Kiasari MA, Moirangthem DS, Lee M (2018) Human action generation with generative adversarial networks. arxiv 1805.10416
 Kingma and Ba (2014) Kingma DP, Ba J (2014) Adam: A method for stochastic optimization. In: International Conference on Learning Represention (ICLR)
 Kitani et al. (2012a) Kitani KM, Ziebart BD, Bagnell JA, Hebert M (2012a) Activity forecasting. In: European Conference on Computer Vision (ECCV)
 Kitani et al. (2012b) Kitani KM, Ziebart BD, Bagnell JA, Hebert M (2012b) Activity forecasting. In: European Conference on Computer Vision (ECCV)
 Koppula and Saxena (2016) Koppula HS, Saxena A (2016) Anticipating human activities using object affordances for reactive robotic response. Transaction on Pattern Analysis and Machine Intelligence (TPAMI)

Krizhevsky et al. (2012)
Krizhevsky A, Sutskever I, Hinton GE (2012) Imagenet classification with deep convolutional neural networks. In: Advances in Neural Information Processing Systems (NIPS)
 Kumar and Tripathi (2017) Kumar S, Tripathi BK (2017) Machine learning with resilient propagation in quaternionic domain. International Journal of Intelligent Engineering & Systems 10(4):205–216
 Lan et al. (2014) Lan T, Chen TC, Savarese S (2014) A hierarchical representation for future action prediction. In: European Conference on Computer Vision (ECCV)
 LaValle (2006) LaValle SM (2006) Planning algorithms, Cambridge university press, chap 4.2.2, pp 150–152
 Lehrmann et al. (2014) Lehrmann AM, Gehler PV, Nowozin S (2014) Efficient nonlinear Markov models for human motion. In: Conference on Computer Vision and Pattern Recognition (CVPR)
 Li et al. (2018a) Li C, Zhang Z, Sun Lee W, Hee Lee G (2018a) Convolutional sequence to sequence model for human dynamics. In: The IEEE Conference on Computer Vision and Pattern Recognition (CVPR)
 Li et al. (2018b) Li Z, Zhou Y, Xiao S, He C, Li H (2018b) Autoconditioned LSTM network for extended complex human motion synthesis. In: International Conference on Learning Representations (ICLR)
 Lin and Amer (2018) Lin X, Amer MR (2018) Human motion modeling using dvgans. CoRR abs/1804.10652, URL http://arxiv.org/abs/1804.10652, 1804.10652
 Liu et al. (2005) Liu CK, Hertzmann A, Popović Z (2005) Learning physicsbased motion style with nonlinear inverse optimization. ACM Transaction on Graphics (SIGGRAPH)
 Liu et al. (2016) Liu J, Shahroudy A, Xu D, Wang G (2016) Spatiotemporal LSTM with trust gates for 3D human action recognition. In: European Conference on Computer Vision (ECCV)
 Luc et al. (2017) Luc P, Neverova N, Couprie C, Verbeek J, LeCun Y (2017) Predicting deeper into the future of semantic segmentation. In: International Conference in Computer Vision (ICCV)
 Luc et al. (2018) Luc P, Couprie C, Lecun Y, Verbeek J (2018) Predicting future instance segmentations by forecasting convolutional features. arXiv preprint arXiv:180311496
 Martinez et al. (2017) Martinez J, Black MJ, Romero J (2017) On human motion prediction using recurrent neural networks. In: Conference on Vision and Pattern Recognition (CVPR)
 Mathieu et al. (2016) Mathieu M, Couprie C, LeCun Y (2016) Deep multiscale video prediction beyond mean square error. In: International Conference on Learning Representations (ICLR)
 McCarthy (1990) McCarthy J (1990) An Introduction to Theoretical Kinematics. MIT Press, URL https://books.google.ca/books?id=glOqQgAACAAJ
 Menache (1999) Menache A (1999) Understanding Motion Capture for Computer Animation and Video Games. Morgan Kaufmann Publishers Inc., San Francisco, CA, USA
 Müller et al. (2007) Müller M, Röder T, Clausen M, Eberhardt B, Krüger B, Weber A (2007) Documentation Mocap Database HDM05. Tech. Rep. No. CG20072, ISSN 16108892, Universität Bonn, the data used in this project was obtained from HDM05.
 Multon et al. (1999) Multon F, France L, CaniGascuel MP, Debunne G (1999) Computer animation of human walking: a survey. The journal of visualization and computer animation 10(1):39–54
 Oberweger et al. (2015) Oberweger M, Wohlhart P, Lepetit V (2015) Hands deep in deep learning for hand pose estimation. In: Computer Vision Winter Workshop (CVWW)
 Ofli et al. (2013) Ofli F, Chaudhry R, Kurillo G, Vidal R, Bajcsy R (2013) Berkeley MHAD: A Comprehensive Multimodal Human Action Database. In: Proceedings of the IEEE Workshop on Applications on Computer Vision (WACV)
 van den Oord et al. (2016a) van den Oord A, Dieleman S, Zen H, Simonyan K, Vinyals O, Graves A, Kalchbrenner N, Senior A, Kavukcuoglu K (2016a) Wavenet: A generative model for raw audio. arXiv preprint arXiv:160903499
 van den Oord et al. (2016b) van den Oord A, Kalchbrenner N, Kavukcuoglu K (2016b) Pixel recurrent neural networks. In: Internation Conference on Machine Learning (ICML)
 Parameswaran and Chellappa (2004) Parameswaran V, Chellappa R (2004) View independent human body pose estimation from a single perspective image. In: Conference on Computer Vision and Pattern Recognition (CVPR)
 Parcollet et al. (2018a) Parcollet T, Ravanelli M, Morchid M, Linarès G, Trabelsi C, De Mori R, Bengio Y (2018a) Quaternion recurrent neural networks. arXiv preprint arXiv:180604418
 Parcollet et al. (2018b) Parcollet T, Zhang Y, Morchid M, Trabelsi C, Linarès G, Mori RD, Bengio Y (2018b) Quaternion convolutional neural networks for endtoend automatic speech recognition. In: Interspeech
 Pavllo et al. (2018a) Pavllo D, Feichtenhofer C, Grangier D, Auli M (2018a) 3d human pose estimation in video with temporal convolutions and semisupervised training. arXiv abs/1811.11742
 Pavllo et al. (2018b) Pavllo D, Grangier D, Auli M (2018b) Quaternet: A quaternionbased recurrent model for human motion. In: British Machine Vision Conference (BMVC)
 Pavlovic et al. (2000) Pavlovic V, Rehg JM, MacCormick J (2000) Learning switching linear models of human motion. In: Advances in Neural Information Processing Systems (NIPS)
 Pervin and Webb (1983) Pervin E, Webb J (1983) Quaternions for computer vision and robotics. In: Conference on Computer Vision and Pattern Recognition (CVPR)
 Radwan et al. (2013) Radwan I, Dhall A, Göcke R (2013) Monocular image 3D human pose estimation under selfocclusion. International Conference on Computer Vision (ICCV) pp 1888–1895
 Ranzato et al. (2015) Ranzato M, Chopra S, Auli M, Zaremba W (2015) Sequencelevel training with recurrent neural networks. In: International Conference on Learning Represention (ICLR)
 Shlizerman et al. (2017) Shlizerman E, Dery LM, Schoen H, KemelmacherShlizerman I (2017) Audio to body dynamics. Transactions on Computer Graphics (SIGGRAPH)
 Shoemake (1985) Shoemake K (1985) Animating rotation with quaternion curves. Transactions on Computer Graphics (SIGGRAPH)
 Stoer and Bulirsch (1993) Stoer J, Bulirsch R (1993) Introduction to Numerical Analysis. SpringerVerlag
 Tanco and Hilton (2000) Tanco LM, Hilton A (2000) Realistic synthesis of novel human movements from a database of motion. In: Workshop on Human Motion (HUMO)
 Taylor et al. (2006) Taylor GW, Hinton GE, Roweis ST (2006) Modeling human motion using binary latent variables. In: Advances in Neural Information Processing Systems (NIPS)
 Toyer et al. (2017) Toyer S, Cherian A, Han T, Gould S (2017) Human pose forecasting via deep markov models. In: International Conference on Digital Image Computing: Techniques and Applications (DICTA)
 Treuille et al. (2007) Treuille A, Lee Y, Popović Z (2007) Nearoptimal character animation with continuous control. ACM Transactions on Graphics (tog) 26(3):7
 Villegas et al. (2017) Villegas R, Yang J, Zou Y, Sohn S, Lin X, Lee H (2017) Learning to generate longterm future via hierarchical prediction. In: International Conference on Machine Learning (ICML)
 Villegas et al. (2018) Villegas R, Yang J, Ceylan D, Lee H (2018) Neural kinematic networks for unsupervised motion retargetting. In: Conference on Computer Vision and Pattern Recognition (CVPR), pp 8639–8648
 Walker et al. (2016) Walker J, Doersch C, Gupta A, Hebert M (2016) An uncertain future: Forecasting from static images using variational autoencoders. In: European Conference on Computer Vision (ECCV)
 Walker et al. (2017) Walker J, Marino K, Gupta A, Hebert M (2017) The pose knows: Video forecasting by generating pose futures. International Conference on Computer Vision (ICCV)
 Wang et al. (2008) Wang JM, Fleet DJ, Hertzmann A (2008) Gaussian process dynamical models for human motion. Transaction on Pattern Analysis and Machine Intelligence (TPAMI)
 Wang et al. (2018) Wang Z, Chai J, Xia S (2018) Combining recurrent neural networks and adversarial training for human motion synthesis and control. arXiv 1806.08666
 Wiseman and Rush (2016) Wiseman S, Rush AM (2016) Sequencetosequence learning as beamsearch optimization. In: Conference on Empirical Methods in Natural Language Processing (EMNLP)
 Xia et al. (2015) Xia S, Wang C, Chai J, Hodgins J (2015) Realtime style transfer for unlabeled heterogeneous human motion. In: ACM Transactions on Graphics (SIGGRAPH)

Zhou et al. (2013)
Zhou F, De la Torre F, Hodgins JK (2013) Hierarchical aligned cluster analysis for temporal clustering of human motion. Transactions on Pattern Analysis and Machine Intelligence (TPAMI)
 Zhou et al. (2016a) Zhou X, Sun X, Zhang W, Liang S, Wei Y (2016a) Deep kinematic pose regression. In: European Conference on Computer Vision (ECCV) Workshops
 Zhou et al. (2016b) Zhou X, Wan Q, Zhang W, Xue X, Wei Y (2016b) Modelbased deep hand pose estimation. In: IJCAI
 Zhou et al. (2018) Zhou Y, Li Z, Xiao S, He C, Li H (2018) Autoconditioned LSTM network for extended complex human motion synthesis. In: International Conference on Learning Representations (ICLR)
 Zhu et al. (2018) Zhu X, Xu Y, Xu H, Chen C (2018) Quaternion convolutional neural networks. In: European Conference on Computer Vision (ECCV)
Comments
There are no comments yet.
