Modeling and understanding the behavior of software components is a key issue in software engineering (Cambronero et al., 2019). It has been used to discover similarity between libraries (Teyton et al., 2013), rejuvenate code (Mendis et al., 2015) and match accelerators to software (Collie et al., 2019). While a formal model of a component may be available, it is often supplied as low-level binary or not at all (Mendis et al., 2015). Our goal is to model such ”black-box” software components, in a form suitable for interoperation with real world code using program synthesis.
For the sake of wide applicability, we make minimal assumptions about the component being modeled: we require only that it exists in an executable form and has a known type signature. This paper therefore addresses the problem of program synthesis based on the observed behavior of an oracle performing an existing, but unknown computation (Jha and Seshia, 2017). We have no knowledge of the oracle’s internal structure, but capturing its behavior in the form of input-output (IO) examples is inexpensive.
This problem falls under the domain of programming by example which has received considerable interest from industry (Gulwani, 2016). Here, the aim is to synthesize a program from user provided examples (Gulwani, 2011; An et al., 2019). Our approach differs from the standard formulation in that IO examples are effectively free, as we do not rely on the user.
Our approach is distinct to much prior work, where their aim is to generate provably correct programs with respect to a formal specification (typically making use of counter-examples and SMT solvers) (Abate et al., 2018; Butler et al., 2017; Chu et al., 2017). Instead, it is closer in spirit to neural synthesis approaches (Parisotto et al., 2016a; Balog et al., 2016; Nye et al., 2019), where IO examples are the specification of a task. These schemes, however, are currently limited in the problem domains that can be addressed. (Polgreen et al., 2020).
Like previous work which attempts to synthesize without a formal specification, we cannot guarantee correctness of the generated program (An et al., 2019). However, testing over a large set of examples can provide observational equality, which is widely accepted as a sufficiently strong guarantee (Claessen and Hughes, 2000) in the absence of formal proof.
Our approach uses ideas from sketching program synthesis (Solar-Lezama, 2009): a high level partial structure, or sketch, of the target program allows for efficient search through a space of potential solutions. While many techniques use externally provided sketches (So and Oh, 2017), our scheme uses a two-phase synthesis process (Wang et al., 2017) where sketches are constructed by the synthesizer based on the problem specification (in our case, a type signature and IO examples).
However, IO examples alone are not sufficient to synthesize programs that use complex components. We use prior observations of synthesized program structure to build a probability distribution over fragments of sketches given a type signature and a set of IO examples. Specifically, we develop two models: IID and Markov.
The first, IID, assumes independence among sketch fragments (Independent and Identically Distributed), while the second assumes the next fragment is dependent on the current one (i.e. a Markov model). Using this approach, we synthesize a wide range of complex components from black-box specifications.
There is a large body of related work in this diverse area. and providing a fair comparison is a challenge (Helmuth and Spector, 2015; Pantridge et al., 2017). In this paper we attempt a fair, systematic and reproducible evaluation of representative state-of the art existing schemes.
As our approach is driven by a probabilistic model of sketches, we analyze the learned distributions and the resulting insights into program structure. We then evaluate the use of black-box synthesis in two application areas: rejuvenating legacy scientific code and detecting reimplementations of library code.
We implement a novel program synthesizer (Presyn) that uses lightweight probabilistic models to efficiently search for solutions in varied problem domains. We evaluate Presyn against five other program synthesizers from different traditions: neural SketchAdapt (Nye et al., 2019), functional (Feser et al., 2015), imperative Simpl (So and Oh, 2017), type-directed TypeDirect (Collie et al., 2019) and genetic Makespeare (Rosin, 2018),
This paper makes the following main contributions:
Probabilistic synthesis based on corpus priors with broader synthesis results than existing work
An extensive and systematic evaluation of example-based synthesis from different research domains
An analysis of sketch distributions across synthesized programs
Two case studies showing uses of black box synthesis for software engineering
Figure 1 gives an overview of our program synthesizer, Presyn. It consists of four primary components: specification and example construction; fragment population; probabilistic fragment models and program synthesis.
Given a function signature, we can generate inputs by sampling random values from the domain of each input parameter. As we have an executable implementation of the component, we evaluate it on these inputs and record its output behavior (i.e. the function return value and any writes to memory). The function signature and IO examples form the component’s specification (specification in Figure 1).
The next step is to predict which fragments from a population (fragment population) are most likely to appear in a correct synthesized program, and the structure in which they are most likely to do so in. We use two probabilistic models, IID and Markov to do this (prediction). The result of this step is a distribution over program sketches.
The program synthesis phase (synthesis) samples from this distribution to obtain potential program sketches. These are then filled in with instructions to form a candidate program. Candidates are then evaluated on the inputs to see if they match the output. If one does, a correct solution is reported.
In order to illustrate the workflow illustrated in Figure 1, it is worth considering each step in the context of an example function. We begin with the specification:
C float f(float *a, float *b, int c) // implementation details are unknown
The first step is to sample random input values for this type signature, then pass them to the function to observe the output value. For a single example: C float a = 0.0, 1.2, -3.4, -5.6 ; float b = -1.0, 1.2, 2.4, 3.2 ; int c = 3; float ret = f(a, b, c); // ret == -6.72
Next, the most likely candidates from the population of sketch fragments are identified. For this problem, a subset of the initial population resembles:
A full description of the semantics of each of these fragment types is given in Section 4. From this population, our IID model identifies the fragments likely to appear in a solution. For this example type signature, these are:
Next, our Markov model identifies the probability that a particular sequence of these fragments will form the structure of a correct solution:
Sketches are sampled using these probabilities. For each sketch, code is generated. For the most likely composition above, as C: C float f(float *a, float *b, int c) for(int i = 0; i ¡ c; ++i) float ea = a[i], eb = b[i];
Finally, additional instructions are enumerated and added to the generated code to produce solutions. In the case of this example, a correct program is: C float f(float *a, float *b, int c) float g = 0.0f; for(int i = 0; i ¡ c; ++i) float d = a[i], e = b[i]; float h = d * e; g = g + h; return g;
The primary input given to any program synthesizer is a specification describing the problem for which to synthesize a solution. While some synthesizers provide specifications in the form of manually constructed examples, Presyn does not: it specifies synthesis problems in terms of an existing implementation; the goal is to capture the behavior with a synthesized solution.
Presyn uses only two inputs to specify a synthesis problem: the type signature of the target function, and a shared library containing an implementation with that signature. There are no restrictions on the internal details of this implementation.
Presyn aims for interoperability with C; the programs it synthesizes should be ABI-compatible with the reference implementation. Presyn supports the primitive C types Cchar, Cint and Cfloat, pointers to these types and Cvoid *.
This type system allows for greater flexibility in specification than many other synthesizers do. For example, a common restriction is for synthesizers to only consider programs from lists to lists, or lists to single values (Feng et al., 2018; Balog et al., 2016). In this model, programs are functional and cannot modify state, a restriction not shared by Presyn. By using an existing, real-world type system, Presyn expresses problems more naturally than other synthesizers are able to.
3.2. IO Examples
Presyn generates scalar input parameters by sampling uniformly from fixed-size intervals. Pointer input data is generated by allocating a block of memory and generating each element using the scalar generation strategy. Input data is then passed to the target component; the return value and any pointer parameters make up the recorded output.
We operate under the assumption that observational equivalence (i.e. equivalence over a large set of IO examples) is sufficient. This assumption is shared by other work (An et al., 2019; Claessen and Hughes, 2000). While in theory functions may exhibit different behavior on a sparse subset of the input space, we did not find any examples of this in practice.
Presyn uses component-based, sketching program synthesis to construct programs; the structure of a solutions is determined by the composition of smaller parts, or fragments.
We define a set of fragments, and a set containing concrete programs in a target language, with supported operations:
These operations are total; there are no invalid or intermediate states in this representation. For fragments we write:
Additionally, we consider functions onto (templates). For example, the function
represents a fragment template for loops to a fixed upper bound ; we use templates to parameterize fragments over argument names in a specification.
The semantics of and are defined by the implementation of each fragment in . Consider the fragments and . The definition of for these fragments (to C) is:
The fragment compiles to an empty loop, while the compiles to an empty statement. Composition as defined by each fragment produces more interesting structure. For all :
4.1. Fragment Population
Presyn uses a library of 11 different types of fragment; an overview of these is given in Table 1.
|Computation||5||Control flow-free regions of code that represent “holes” into which concrete instructions can be instantiated. Includes specialized structures (e.g. affine array index expressions).|
|Iteration||3||Loop variants with different conditions for termination (e.g. a fixed upper bound, or a predicate test).|
|Control Flow||3||Conditional control flow, as well as sequential execution of sets of fragments.|
The aim for these components was to remain as general as possible so that Presyn can express many different programs, while not biasing towards one problem domain at the expense of others. We selected some fragments based on intuition for common programming practices, and the remainder from high-level idiomatic patterns used in compiler analyses (Ginsbach et al., 2018).
5. Probabilistic Models

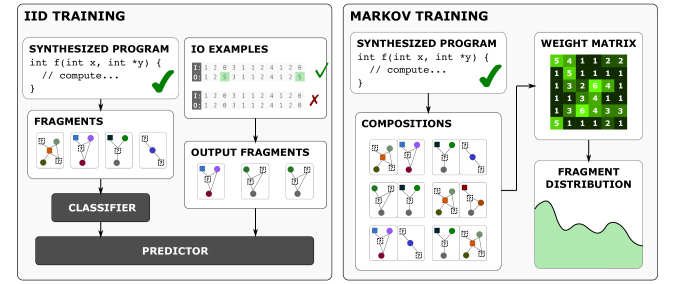

Presyn uses two probabilistic models to guide synthesis. The first, IID, predicts whether each fragment in the population is likely to appear in a solution or not. The second, Markov, creates a probability distribution over sequences of fragments that form compositions.
After generating input-output examples (specification in Figure 1), Presyn collects an initial set of fragments from which solutions may be composed (prediction in Figure 1). The library of fragment templates used by Presyn is too large to perform an exhaustive search, and so accurately predicting likely fragments is important.
Suppose is an ordered sequence of fragments that when composed, produces a correct solution for a synthesis problem. We aim to predict an initial set of fragments that matches as accurately as possible (without considering ordering). To do so, we combine two ideas:
It is possible to make observations about the behavior of the reference implementation based on the input-output examples generated for testing. For example, if a memory region is written to in any of the observed examples, then that region represents an output reference parameter. If such parameters are present, then the set of fragments capable of performing output is collected as .
As well as semantic knowledge, we employ a simple classification model to determine inclusion in for non-output fragments. To do this, we require a small corpus of training data: type signatures and
for successfully synthesized programs. We train a random forest model, using the type signatures as the input and a binary inclusion indicator for each fragment as the target. This trained model provides a decision functionthat determines fragment inclusion in .
Writing for the set of fragments satisfying the trained decision function , we define:
It is clear that it is safe for the prediction of to over-approximate the true initial set: if additional irrelevant fragments are present, synthesis will simply be slower. However, may in fact be an under-approximation. This is addressed by the next model in the synthesis process, Markov.
The set of initial fragments represents the starting point for synthesis. However, in order to produce a solution structure, fragments must be composed in the correct order. Additionally, the process of generating these compositions should be robust if is an under-approximation.
Our model for generating these compositions uses the same training data as IID, but treats fragment occurrences as a Markov model rather than a collection of IID random variables. This model is defined as follows:
We define auxiliary fragments that both act as the identity under composition, along with a function such that represents the number of occurrences of the composition in the training set.
As with IID, training data for Markov comprises correctly synthesized programs together with the composition of fragments used to generate that program. To train the model, each observed composition of fragments has prepended and appended. The composition sequences are then split into pairs, and the number of occurrences of each unique pair is recorded and used to define .
Generating a Composition
Sequences of fragments (representing compositions) can be sampled from Markov as follows. First, we define:
Then, starting from we sample fragments with conditional probability:
To include the predicted initial set of fragments , we then define an augmented model :
The sum is defined identically to , but with respect to rather than . Similarly, is defined with respect to and rather than and . With a weighting parameter chosen, fragments are sampled with probability:
A sequence of fragments is generated by sampling from this distribution until is sampled, or to a fixed maximum length. The sequence is then composed (from left to right) to produce a program sketch.
The next stage in the synthesis process is to generate concrete programs from candidate sketches generated by our Markov model. They are then executed and tested against the input-output examples collected at the specification step.
Fragments can be compiled to a concrete program in LLVM (Lattner, 2002) intermediate representation, but the resulting programs cannot yet be executed:
They do not perform any meaningful computation; the programs do not yet contain any instructions beyond those used for control flow and program structure.
The programs contain placeholders: typed SSA variables in the program that do not yet have a defined value. For example, a fragment that implements a while-loop may use a boolean placeholder as the loop condition. It cannot be executed until a concrete value is chosen to fill the placeholder.
To resolve these issues, we traverse the dominance tree of the compiled function in-order. For each basic block, we maintain a set of instructions that could be added to it based on the live SSA values at the block’s entry. We use an enumerative search to instantiate different concrete programs from the compiled fragment. Once a set of instructions has been selected by this search, a value for each node and placeholder is chosen by a secondary search.
Because synthesized programs are able to perform potentially arbitrary memory accesses, Presyn implements a conservative, compile-time bounds checking system. During synthesis, all allocated memory passed to the synthesized programs has the same size. If programs make out-of-bounds accesses, the size is increased for future attempts up to a configured maximum. Bounds-checking code is removed when reporting solutions to accurately reflect algorithmic intent.
Presyn specifies problems by collecting a large number of input-output examples from the black-box component. The correctness of a candidate program is specified as observational equivalence: if the candidate program behaves identically to the reference component on every input generated, then it is correct.
While it is possible that observational equality (even over a large set of examples) is unsound, it is not possible to implement a better decision procedure for an arbitrary black box. This is an observation shared by other work (An et al., 2019).
7. Experimental Setup
Benchmarking program synthesizers against each other fairly while allowing for differences in specification and expression is a challenging problem (Pantridge et al., 2017; Helmuth and Spector, 2015). This section describes our experimental methodology for evaluating Presyn and comparing its performance to other program synthesizers.
7.1. Overview of Methodology
We identify a collection of benchmark synthesis problems collated from existing work on program synthesis, as well as from real-world software components. For each of these problems, we prepare a specification for Presyn as described in Section 3, then attempt to synthesize a solution.
We evaluated Presyn against five other state-of-the art program synthesizers. Doing so requires benchmarks to be fairly translated; a non-trivial task when accounting for the differences between them.
We had four primary criteria for selecting implementations to compare against. First, they should target a ‘general-purpose’ language. This ruled out synthesizers such as (Chu et al., 2017) or (Butler et al., 2017) that target specific problem domains using SMT-aided formal techniques. Typically, the problem space for programs with arbitrary control flow is too large for these solver-aided techniques (So and Oh, 2017) and other methods are required. Second, the implementations selected should be representative of the current baseline synthesis performance for target languages similar to their own. Third, the set of implementations should cover a range of different program synthesis methods. Finally, the implementations should be available for evaluation and testing; we aim to make our own implementation and evaluation available in turn. With these goals in mind, the implementations selected are:
(Nye et al., 2019) is a neural synthesis approach. It samples programs from a DSL to generate training data for a generative model that predicts programs from IO examples. Its chief innovation is to adapt to IO complexity, falling back to synthesis when generation is predicted to be too expensive. It represents the state-of-the-art in neural synthesis.
(Collie et al., 2019) uses program synthesis to enable refactoring of legacy scientific software to use new libraries. It uses a black-box specification to generate IO examples similarly to Presyn, but requires extensive annotation of function signatures to do so.
(Rosin, 2018) represents the state-of-the-art for genetic program synthesis (Banzhaf et al., 1998) of programs with complex control flow, and contributes a novel hill-climbing algorithm. Synthesized programs are in a subset of x86 assembly, and problems are specified by providing ‘before and after’ memory and register state for an abstract machine.
(So and Oh, 2017) targets imperative programs written in a small C-like language. Its key innovation is the use of static analysis techniques to prune the search space of candidate programs to ensure that ‘dead ends’ are not explored unnecessarily. The programs it is evaluated on are designed to model introductory programming exercises with control flow and mutable variables; problems are specified using handwritten input-output examples and a partial program sketch.
(Feser et al., 2015) targets a functional language that permits algebraic data types. It uses a type-aware recursive search process over a space of expressions. Programs synthesized are compositions of a standard library of functions and higher-order functional primitives. Like Simpl, problems are specified by handwritten input-output examples, and in some cases a recursive base case must be supplied.
7.3. Benchmark Collation
We collated a set of 112 synthesis problems from two sources: the benchmarks used by existing synthesizers, and real-world software libraries. The sets of problems selected are summarized in Table 2.
Each synthesizer evaluated uses its own set of synthesis benchmarks, with some partially overlapping. We began with the full set of benchmarks from each of (Rosin, 2018; So and Oh, 2017; Feser et al., 2015) then removed duplicate entries. We then added a representative sample of problems from (Nye et al., 2019). To create a more level playing field, we then removed problems for which only one synthesizer was specialized towards. For example, TypeDirect includes extensive type annotations that allow it to synthesize sparse-matrix vector multiplication, and includes tree-processing primitive functions.
In (Collie et al., 2019), TypeDirect is used to synthesize implementations of 11 functions shared between a set of optimized mathematical libraries such as Intel MKL (mkl, [n. d.]) or Nvidia cuBLAS (cub, [n. d.]). We extended this set to include additional mathematical operations found in other real-world libraries: Mathfu (Mat, [n. d.]) and the TI signal processing libraries (TID, [n. d.]). Additionally, we identified string processing functions as a common target domain for program synthesis (Gulwani, 2011; Perelman et al., 2014; Parisotto et al., 2016a). We identified the C standard library string functions (str, [n. d.]) as a realistic target.
7.4. Problem Preparation
The synthesis benchmarks we selected are all specified using different formats. For each problem, we therefore produced a reference implementation in C based on the specifications in the original papers for existing benchmarks, and based on the concrete implementation for real-world code. We then generated an appropriate number of IO examples in the correct format for each one.
In some cases, this required some adaptation. For example, most synthesizers do not support floating point computation; we restated these using integers where appropriate, with the aim of preserving the intent of each problem.
7.5. Synthesizer Help
Although we are interested in black-box IO example synthesis, many of the synthesizers rely on varying degrees of help. We evaluate them with and without the following assistance:
did not receive any extra help to solve each problem. It does has some difficulties surrounding the integer type, so we convert integers to singleton lists where invalid input types are detected.
TypeDirect requires semantic annotations to be applied to the type signature of a target function (for example, “the pointer x points to N
elements”). These annotations are used as heuristics to guide the search for potential candidate structures.
uses a small number of registers values which provide some aid to guiding program generation, however in practice this had little impact on behavior. Unlike other schemes it required a large number of examples, typically in the thousands. We observe that Makespeare is dependent on the large, and varied, set of input examples in many cases.
relies on a partial program and a list of useful integer constants as input. We provide the correct number of top-level loops and the correct number of variable initializations, which is consistent with many (but not all) of their benchmarks.
can exploit an extensible library of base cases. We provide accesses to its standard library of base cases
does not require additional help.
This section presents our experimental results based on the framework presented in the previous section. For cross-evaluation and when comparing IID to Markov, Presyn was trained on a randomly selected subset (15%) of the synthesis problems for which we identified correct fragment structure.

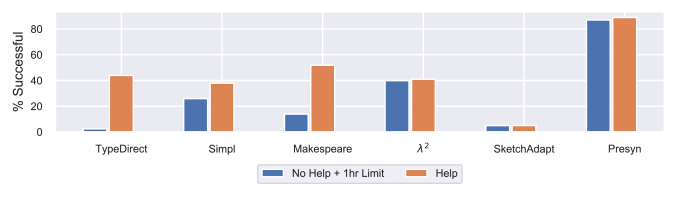

The primary evaluation criteria for Presyn against other synthesizers is the number of programs it is able to synthesize. We evaluated each synthesizer in three contexts for each synthesis problem: with no additional help beyond IO examples for the problem (i.e. no annotated types or program structure), with the appropriate help as described in Section 7.5 and a conservative timeout, and finally unrestricted (with help). These results are shown in Figure 3.
Presyn is able to successfully synthesize more functions across the set of synthesis benchmarks than each of the other implementations, even when they are given appropriate assistance and unlimited execution time: 89% of the functions evaluated, while the next-best performing (Makespeare) synthesizes only 65%. On real-world code, Presyn synthesizes 93% vs. 63% for TypeDirect. The full results for each synthesizer and library are given in Table 3. Interestingly, it is not the case that each synthesizer performs best on its own benchmarks or that each set of benchmarks is best synthesized with the corresponding implementation; this is likely due to the differences in setup between our experiments and the original work. Nonetheless, it indicates that synthesis is by nature a fragile problem to evaluate experimentally.
Makespeare required a large number of examples, typically in the thousands but for some programs, e.g. factorial, thousands of examples would not fit within normal-width integers. Makespeare did not seem particularly influenced by help but requires an extremely long time to synthesize
For Simpl we found that ignoring the partial program input entirely produced very poor results. It struggled significantly on many benchmarks without the desired program structure as input.
For , there were a small number of examples where providing a recursive base case for a problem as help made a difference.
SketchAdapt suffered from poor performance on general-purpose problems. We found that SketchAdapt was only successful on trivial examples outside its own evaluation domain and in fact found that it was unable to reproduce its own results once the input values were changed. As it has the least mature implementation, this is perhaps not unexpected. Further, we have taken SketchAdapt further out of its comfort zone than any of the other synthesizers evaluated here—it is intended to perform well on restricted problem domains where the generalizations required are much smaller where the dataset covers a more significant fraction of the program space. Examples of this can be seen within the original paper, where Nye et al. (2019) find high accuracy on a number of different subdomains.
When synthesis time is limited or less help is provided for a synthesis problem, Presyn exhibits an even greater advantage over other implementations. Both and Simpl exhibit degraded synthesis when assistance is not given (not shown in Figure 3 is that successful syntheses took up to longer to discover in these cases). Makespeare
’s use of a genetic algorithm means that it relies on being able to spend a long time searching a space of programs, and struggles when a timeout is imposed.
8.2. Synthesis time and validity
The amount of time spent in synthesis by each scheme varied considerably. Presyn, and Simpl all showed mean synthesis times (for successful cases) of less than . SketchAdapt required longer, with a mean synthesis time of . Because of its reliance on genetic search, Makespeare used a mean of per synthesized program, with some taking up to 3 this long before being timed out.
The size of programs generated by Presyn varied from 40 to 110 lines of LLVM IR. As we do not have a formal specification, we can only test synthesized programs, not verify them. For every Presyn synthesized program, we automatically generated random and boundary value inputs and checked if outputs matched those from the target black-box function. In all cases we find them behaviorally equivalent.
Given that we have access to the component code generating the IO examples, we manually inspected the synthesized results. In all cases, using our knowledge, we judged them to be correct. Future work will examine the use of bounded model checking as a means of providing greater assurance.
8.3. Impact of Probabilistic Models

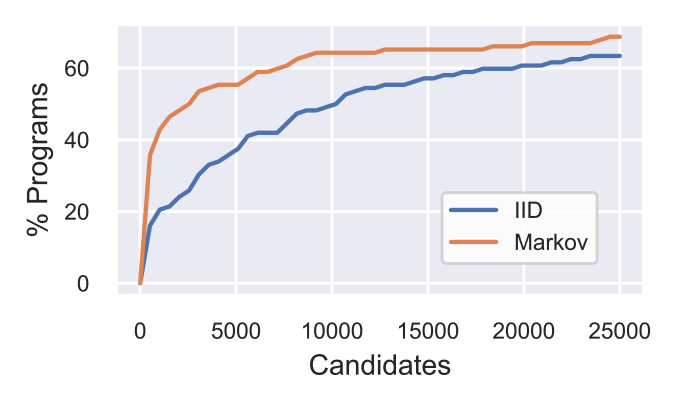

Presyn uses two probabilistic models to drive its synthesis. The first, IID, predicts fragments that are likely to form part of a correct solution using a random forest model and a limited model of fragment semantics.
The accuracy of these predictions (measured using the Jaccard coefficient of predicted and true ) is given in Table 4. On average, there is an 81% overlap between the predicted value and the true value. IID is not significantly over- or under-approximating in its predictions; this overlap corresponds to prediction errors per problem.
The second model aims to predict the correct order in which to compose fragments to produce a program sketch. To evaluate Markov, we compare the number of programs synthesized by Presyn against only the IID model. These results are shown in Figure 4. We see that Markov significantly accelerates the synthesis process; it is able to synthesize 60 programs using fewer than half as many candidate programs. In the ‘long tail’ of programs, the difference is smaller as the complexity of synthesis is dominated by the search for long sequences of instructions.
8.4. Insights into Program Structure
As well as outperforming competing implementations on a wide range of synthesis problems, Presyn provides interesting statistical insights into the structure of the programs it synthesizes through its use of probabilistic models. The results in this section summarize the distributions learned by Presyn over its full set of synthesized programs: the models learned on the 15% subset are updated with all subsequent observations, but these are not used during synthesis.
In Figure 5 we show three different insights into the structure of programs synthesized by Presyn. First, in Figure 4(a) we see the relative frequency of each type of fragment across benchmark groups. Linear blocks of code are common across all the benchmarks; every program performs some kind of computation. In terms of control flow, the easiest synthesis benchmark suites (simpl-int, simpl-array, mathfu, ) are those with largely homogeneous control flow across their benchmarks, while the more challenging ones (makespeare, string, SketchAdapt) have far more variation. These results suggest that at least an approximate notion of difficulty for a set of synthesis benchmarks is the heterogeneity in code structure required to solve the problems in that set. Other intuitive structure that can be observed is the ubiquity of nested loops in the blas matrix-vector problems.
Figure 4(b) shows the number of fragments of each type that appear in synthesized solutions, grouped by unique type signatures (for the 12 most common signatures). Two patterns become apparent from this visualization: the most common type signatures dominate the set of benchmarks, and the fragments used by solutions are generally consistent for each type signature.
Finally, Figure 4(c) shows the transition probabilities from our Markov model. From this visualization, we can see that the model favors generating smaller programs: most fragments are most likely to be followed by a linear fragment, which is itself likely to end the synthesis.
8.5. Case Studies
Synthesizing programs that match the behavior of a black box has useful applications in a software engineering context not enabled by other types of synthesis; in this section we detail two of these use cases.
8.5.1. Rejuvenating Legacy Code
In (Collie et al., 2019), a system to improve the performance of legacy scientific applications is proposed. It uses TypeDirect to synthesize programs matching the behavior of library functions, such that compatible user code can be remapped to use improved or optimized versions of the functions.
This approach led to considerable performance improvements of up to
on deep learning models, and close toon real-world chemical simulation benchmarks. However, the synthesis techniques used are limited: only a small number of functions are considered, and annotations provided by the user provide significant bias to the synthesis process.
As demonstrated by our results in Section 8, Presyn outperforms TypeDirect across all the synthesis benchmarks we considered, while requiring no annotations or assistance to be provided by the user for synthesis problems. Of the 11 functions synthesized in (Collie et al., 2019), Presyn is able to synthesize 10 (the exception being sparse matrix-vector multiplication, which TypeDirect requires extensive assistance for). Additionally, we were able to synthesize a further 12 functions from the libraries used in (Collie et al., 2019) using Presyn; all 22 syntheses were performed without manual type annotation. By using Presyn, more opportunities for performance improvement and an improved API migration can be generated.
8.5.2. Detecting Library Reimplementations
A well-known problem in software engineering is code duplication, particularly when the duplicated functionality has already been implemented by a third-party library (Roy et al., 2014). We performed an initial case study to show the application of Presyn to this problem, discovering 163 instances in real-world applications where library functionality is re-implemented.
Table 5 lists the applications we evaluated in this case study; all were written in C or C++. Our methodology was as follows: first, function implementations from the libraries in Table 2 were synthesized using Presyn. Then, an existing tool (Collie et al., 2019) was used to convert each of the synthesized functions into a set of SMT constraints, which were then passed to an off-the-shelf solver (Ginsbach et al., 2018) to discover satisfying instances in each of the applications. The number discovered in each application is given in Table 5. Recent work (Collie et al., 2020) aims to use probabilistic synthesis for a similar software engineering task but does not evaluate the performance of other synthesizers.
9. Related Work
One of the most important developments in program synthesis is the idea of sketching (Solar-Lezama, 2009, 2013); it has been used for a wide variety of purposes including auto-parallelization (Fedyukovich et al., 2017) and SQL query generation (Wang et al., 2017). Recent technical developments include recursive tree transformations (Inala et al., 2017) and improved modularity of sketches (Singh et al., 2014). Generally, such schemes require external sketch suggestions: Presyn automates this by constructing priors over program corpora.
Annotated types signatures or hints are often used to direct program synthesis, most commonly for functional programs (Osera and Zdancewic, 2015a; Osera, 2019). Myth (Osera and Zdancewic, 2015b) uses type signatures alongside examples to synthesize recursive functional programs, while (Polikarpova et al., 2016) uses refinement types to guide the search process (Polikarpova et al., 2016). In (Collie and O’Boyle, 2019) extended type information is suggested as a means of improving program synthesis, and in (Collie et al., 2019) a similar approach is used as a means of accessing heterogeneous accelerators for scientific applications. Our work considers a wider, more diverse class of libraries and applications and does not require human annotations or hints.
Neural Program Synthesis
The machine learning community has long studied programming by example and input-output based program synthesis. Recent work has examined both induction (with a learned latent version of the program) and generation, which uses a language model to generate programs(Parisotto et al., 2016b; Allamanis et al., 2018; Cummins et al., 2017)
A recent trend in program synthesis is the use of neural networks and machine learning. Generative approaches are focused on developing neural architectures that interpret programs intrinsically(Reed and de Freitas, 2015). These approaches so far struggle to generalize to large problem sizes and to complex semantic models such as the compiler IR used by Presyn.
Others have used neural components to improve the performance of an existing synthesizer. For example, both (Balog et al., 2016) and (Zohar and Wolf, 2018) aim to learn from input-output examples; both require fixed-size inputs and outputs and use a small DSL to generate training examples. Learned programs are limited to list processing tasks; the DSLs targeted by these (and similar implementations such as SketchAdapt (Nye et al., 2019)) also rely on high level primitive including (for example) primitives to tokenize strings or perform list manipulations.
Our approach to synthesis (from black box oracles) is less widely studied than the corresponding white box problem, where the internal structure or implementation of a reference oracle is known. Existing programs in specific problem domains are often used to synthesize optimized implementations in a domain-specific language: the Halide image-processing language (Ragan-Kelley et al., 2013) is targeted by several oracle-based approaches, based on x86 assembly (Mendis et al., 2015), Fortran (Kamil et al., 2016) and C++ (Ahmad et al., 2019) respectively. In (Cambronero et al., 2019), abstract descriptions of software functionality are learned based on dynamic traces and source code in order to facilitate refactoring and other analyses.
Operating under the assumption of a black-box oracle means that many existing approaches in program synthesis do not apply or fail to generalize to our context (Chen et al., 2019a, b). By using a black-box oracle we are able to avoid issues of generalization across datasets (Parisotto et al., 2016a; Kalyan et al., 2018).
In this paper we have addressed the novel problem of black box program synthesis, where problem specifications are based on the observed behavior of an existing component (rather than a human description). Our synthesizer, Presyn, achieves better performance across a wide range of synthesis benchmarks (composed of both new and existing problems) than five other competing synthesizers.
As well as strong synthesis performance, the simple probabilistic models used to implement Presyn provide interesting insights into the structure and difficulty of synthesis problems. Our results on two case studies are promising and we aim to pursue this further.
- TID ([n. d.]) [n. d.]. C674x DSPLIB - Texas Instruments Wiki. http://processors.wiki.ti.com/index.php/C674x_DSPLIB.
- mkl ([n. d.]) [n. d.]. Intel® Math Kernel Library (MKL). https://software.intel.com/mkl.
- Mat ([n. d.]) [n. d.]. Mathfu. https://github.com/google/mathfu.
- str ([n. d.]) [n. d.]. Null-terminated byte strings. https://en.cppreference.com/w/c/string/byte.
- cub ([n. d.]) [n. d.]. NVIDIA cuBLAS. https://developer.nvidia.com/cublas.
- Abate et al. (2018) Alessandro Abate, Cristina David, Pascal Kesseli, Daniel Kroening, and Elizabeth Polgreen. 2018. Counterexample guided inductive synthesis modulo theories. In International Conference on Computer Aided Verification. Springer, 270–288.
- Ahmad et al. (2019) Maaz Bin Safeer Ahmad, Jonathan Ragan-Kelley, Alvin Cheung, and Shoaib Kamil. 2019. Automatically Translating Image Processing Libraries to Halide. ACM Trans. Graph. 38, 6 (Nov. 2019), 204:1–204:13. https://doi.org/10.1145/3355089.3356549
- Allamanis et al. (2018) Miltiadis Allamanis, Earl T Barr, Premkumar Devanbu, and Charles Sutton. 2018. A survey of machine learning for big code and naturalness. ACM Computing Surveys (CSUR) 51, 4 (2018), 81.
- An et al. (2019) Shengwei An, Sasa Misailovic, Roopsha Samanta, and Rishabh Singh. 2019. Augmented Example-Based Synthesis.
- Balog et al. (2016) Matej Balog, Alexander L. Gaunt, Marc Brockschmidt, Sebastian Nowozin, and Daniel Tarlow. 2016. DeepCoder: Learning to Write Programs. (Nov. 2016). https://arxiv.org/abs/1611.01989v2
- Banzhaf et al. (1998) Wolfgang Banzhaf, Frank D. Francone, Robert E. Keller, and Peter Nordin. 1998. Genetic Programming: An Introduction: On the Automatic Evolution of Computer Programs and Its Applications. Morgan Kaufmann Publishers Inc., San Francisco, CA, USA.
- Blackford et al. (2001) L. S. Blackford, J. Demmel, J. Dongarra, I. Duff, S. Hammarling, G. Henry, M. Heroux, L. Kaufman, A. Lumsdaine, A. Petitet, R. Pozo, K. Remington, and R. C. Whaley. 2001. An Updated Set of Basic Linear Algebra Subprograms (BLAS). ACM Trans. Math. Software 28 (2001), 135–151.
- Butler et al. (2017) Eric Butler, Emina Torlak, and Zoran Popović. 2017. Synthesizing Interpretable Strategies for Solving Puzzle Games. In Proceedings of the 12th International Conference on the Foundations of Digital Games (FDG ’17). ACM, New York, NY, USA, 10:1–10:10. https://doi.org/10.1145/3102071.3102084
- Cambronero et al. (2019) José P. Cambronero, Thurston H. Y. Dang, Nikos Vasilakis, Jiasi Shen, Jerry Wu, and Martin C. Rinard. 2019. Active Learning for Software Engineering. In Proceedings of the 2019 ACM SIGPLAN International Symposium on New Ideas, New Paradigms, and Reflections on Programming and Software (Onward! 2019). ACM, New York, NY, USA, 62–78. https://doi.org/10.1145/3359591.3359732
- Chen et al. (2019b) Qiaochu Chen, Xinyu Wang, Xi Ye, Greg Durrett, and Isil Dillig. 2019b. Multi-Modal Synthesis of Regular Expressions. (Aug. 2019).
- Chen et al. (2019a) Yanju Chen, Ruben Martins, and Yu Feng. 2019a. Maximal Multi-Layer Specification Synthesis. In Proceedings of the 2019 27th ACM Joint Meeting on European Software Engineering Conference and Symposium on the Foundations of Software Engineering (ESEC/FSE 2019). ACM, New York, NY, USA, 602–612. https://doi.org/10.1145/3338906.3338951
- Chu et al. (2017) Shumo Chu, Chenglong Wang, Konstantin Weitz, and Alvin Cheung. 2017. Cosette: An Automated Prover for SQL. In CIDR 2017, 8th Biennial Conference on Innovative Data Systems Research, Chaminade, CA, USA, January 8-11, 2017, Online Proceedings.
- Claessen and Hughes (2000) Koen Claessen and John Hughes. 2000. QuickCheck: A Lightweight Tool for Random Testing of Haskell Progr ams. In Proceedings of the Fifth ACM SIGPLAN International Conference on Funct ional Programming (ICFP ’00). ACM, New York, NY, USA, 268–279. https://doi.org/10.1145/351240.351266
- Collie et al. (2019) B. Collie, P. Ginsbach, and M. F. P. O’Boyle. 2019. Type-Directed Program Synthesis and Constraint Generation for Library Portability. In 2019 28th International Conference on Parallel Architectures and Compilation Techniques (PACT). 55–67. https://doi.org/10.1109/PACT.2019.00013
- Collie et al. (2020) Bruce Collie, Philip Ginsbach, Jackson Woodruff, Ajitha Rajan, and Michael F. P. O’Boyle. 2020. M3: Semantic API Migrations. In Proceedings of the Thirty-Fifth International Conference on Automated Software Engineering (ASE ’20). ACM, Virtual Event, Australia. https://doi.org/10.1145/3324884.3416618
- Collie and O’Boyle (2019) Bruce Collie and Michael O’Boyle. 2019. Augmenting Type Signatures for Program Synthesis. arXiv:1907.05649 [cs] (July 2019). arXiv:cs/1907.05649 http://arxiv.org/abs/1907.05649
- Cummins et al. (2017) Chris Cummins, Pavlos Petoumenos, Zheng Wang, and Hugh Leather. 2017. Synthesizing benchmarks for predictive modeling. In 2017 IEEE/ACM International Symposium on Code Generation and Optimization (CGO). IEEE, 86–99.
- Fedyukovich et al. (2017) Grigory Fedyukovich, Maaz Bin Safeer Ahmad, and Rastislav Bodik. 2017. Gradual Synthesis for Static Parallelization of Single-pass Array-processing Programs. In Proceedings of the 38th ACM SIGPLAN Conference on Programming Language Design and Implementation (PLDI 2017). ACM, New York, NY, USA, 572–585. https://doi.org/10.1145/3062341.3062382
- Feng et al. (2018) Yu Feng, Ruben Martins, Osbert Bastani, and Isil Dillig. 2018. Program Synthesis Using Conflict-Driven Learning. In Proceedings of the 39th ACM SIGPLAN Conference on Programming Language Design and Implementation (PLDI 2018). ACM, New York, NY, USA, 420–435. https://doi.org/10.1145/3192366.3192382
- Feser et al. (2015) John K. Feser, Swarat Chaudhuri, and Isil Dillig. 2015. Synthesizing Data Structure Transformations from Input-Output Examples. In Proceedings of the 36th ACM SIGPLAN Conference on Programming Language Design and Implementation (PLDI ’15). ACM, New York, NY, USA, 229–239. https://doi.org/10.1145/2737924.2737977
- Ginsbach et al. (2018) Philip Ginsbach, Toomas Remmelg, Michel Steuwer, Bruno Bodin, Christophe Dubach, and Michael F. P. O’Boyle. 2018. Automatic Matching of Legacy Code to Heterogeneous APIs: An Idiomatic Approach. In Proceedings of the Twenty-Third International Conference on Architectural Support for Programming Languages and Operating Systems (ASPLOS ’18). ACM, New York, NY, USA, 139–153. https://doi.org/10.1145/3173162.3173182
- Gulwani (2011) Sumit Gulwani. 2011. Automating String Processing in Spreadsheets Using Input-Output Examples. In Proceedings of the 38th Annual ACM SIGPLAN-SIGACT Symposium on Principles of Programming Languages (POPL ’11). ACM, New York, NY, USA, 317–330. https://doi.org/10.1145/1926385.1926423
- Gulwani (2016) Sumit Gulwani. 2016. Programming by Examples (and its Applications in Data Wrangling). In Verification and Synthesis of Correct and Secure Systems. IOS Press. https://www.microsoft.com/en-us/research/publication/programming-examples-applications-data-wrangling/
Thomas Helmuth and Lee
General Program Synthesis Benchmark Suite. In
Proceedings of the 2015 Annual Conference on Genetic and Evolutionary Computation(GECCO ’15). ACM, New York, NY, USA, 1039–1046. https://doi.org/10.1145/2739480.2754769
- Inala et al. (2017) Jeevana Priya Inala, Nadia Polikarpova, Xiaokang Qiu, Benjamin S. Lerner, and Armando Solar-Lezama. 2017. Synthesis of Recursive ADT Transformations from Reusable Templates. In Tools and Algorithms for the Construction and Analysis of Systems (Lecture Notes in Computer Science), Axel Legay and Tiziana Margaria (Eds.). Springer Berlin Heidelberg, 247–263.
- Jha and Seshia (2017) Susmit Jha and Sanjit A Seshia. 2017. A theory of formal synthesis via inductive learning. Acta Informatica 54, 7 (2017), 693–726.
- Kalyan et al. (2018) Ashwin Kalyan, Abhishek Mohta, Oleksandr Polozov, Dhruv Batra, Prateek Jain, and Sumit Gulwani. 2018. Neural-Guided Deductive Search for Real-Time Program Synthesis from Examples. arXiv:1804.01186 [cs] (Sept. 2018). arXiv:cs/1804.01186
- Kamil et al. (2016) Shoaib Kamil, Alvin Cheung, Shachar Itzhaky, and Armando Solar-Lezama. 2016. Verified Lifting of Stencil Computations. In Proceedings of the 37th ACM SIGPLAN Conference on Programming Language Design and Implementation (PLDI ’16). ACM, New York, NY, USA, 711–726. https://doi.org/10.1145/2908080.2908117
- Lattner (2002) Chris Lattner. 2002. LLVM: An Infrastructure for Multi-Stage Optimization. Ph.D. Dissertation. Computer Science Dept., University of Illinois at Urbana-Champaign.
- Mendis et al. (2015) Charith Mendis, Jeffrey Bosboom, Kevin Wu, Shoaib Kamil, Jonathan Ragan-Kelley, Sylvain Paris, Qin Zhao, and Saman Amarasinghe. 2015. Helium: Lifting High-Performance Stencil Kernels from Stripped X86 Binaries to Halide DSL Code. In Proceedings of the 36th ACM SIGPLAN Conference on Programming Language Design and Implementation (PLDI ’15). ACM, New York, NY, USA, 391–402. https://doi.org/10.1145/2737924.2737974
- Nye et al. (2019) Maxwell Nye, Luke Hewitt, Joshua Tenenbaum, and Armando Solar-Lezama. 2019. Learning to Infer Program Sketches. In International Conference on Machine Learning. 4861–4870.
- Osera (2019) Peter-Michael Osera. 2019. Constraint-Based Type-Directed Program Synthesis. In Proceedings of the 4th ACM SIGPLAN International Workshop on Type-Driven Development (TyDe 2019). ACM, New York, NY, USA, 64–76. https://doi.org/10.1145/3331554.3342608
- Osera and Zdancewic (2015a) Peter-Michael Osera and Steve Zdancewic. 2015a. Type-and-Example-Directed Program Synthesis. In Proceedings of the 36th ACM SIGPLAN Conference on Programming Language Design and Implementation (PLDI ’15). ACM, New York, NY, USA, 619–630. https://doi.org/10.1145/2737924.2738007
- Osera and Zdancewic (2015b) Peter-Michael Osera and Steve Zdancewic. 2015b. Type-and-Example-Directed Program Synthesis. In Proceedings of the 36th ACM SIGPLAN Conference on Programming Language Design and Implementation (PLDI ’15). ACM, New York, NY, USA, 619–630. https://doi.org/10.1145/2737924.2738007
- Pantridge et al. (2017) Edward Pantridge, Thomas Helmuth, Nicholas Freitag McPhee, and Lee Spector. 2017. On the Difficulty of Benchmarking Inductive Program Synthesis Methods. In Proceedings of the Genetic and Evolutionary Computation Conference Companion (GECCO ’17). ACM, New York, NY, USA, 1589–1596. https://doi.org/10.1145/3067695.3082533
- Parisotto et al. (2016a) Emilio Parisotto, Abdel-rahman Mohamed, Rishabh Singh, Lihong Li, Dengyong Zhou, and Pushmeet Kohli. 2016a. Neuro-Symbolic Program Synthesis. arXiv:1611.01855 [cs] (Nov. 2016). arXiv:cs/1611.01855
- Parisotto et al. (2016b) Emilio Parisotto, Abdel-rahman Mohamed, Rishabh Singh, Lihong Li, Dengyong Zhou, and Pushmeet Kohli. 2016b. Neuro-Symbolic Program Synthesis. (Nov. 2016). https://arxiv.org/abs/1611.01855v1
- Perelman et al. (2014) Daniel Perelman, Sumit Gulwani, Dan Grossman, and Peter Provost. 2014. Test-Driven Synthesis. In Proceedings of the 35th ACM SIGPLAN Conference on Programming Language Design and Implementation (PLDI ’14). ACM, New York, NY, USA, 408–418. https://doi.org/10.1145/2594291.2594297
- Polgreen et al. (2020) Elizabeth Polgreen, Ralph Abboud, and Daniel Kroening. 2020. CounterExample Guided Neural Synthesis. arXiv preprint arXiv:2001.09245 (2020).
- Polikarpova et al. (2016) Nadia Polikarpova, Ivan Kuraj, and Armando Solar-Lezama. 2016. Program Synthesis from Polymorphic Refinement Types. In Proceedings of the 37th ACM SIGPLAN Conference on Programming Language Design and Implementation (PLDI ’16). ACM, New York, NY, USA, 522–538. https://doi.org/10.1145/2908080.2908093
- Ragan-Kelley et al. (2013) Jonathan Ragan-Kelley, Connelly Barnes, Andrew Adams, Sylvain Paris, Frédo Durand, and Saman Amarasinghe. 2013. Halide: A Language and Compiler for Optimizing Parallelism, Locality, and Recomputation in Image Processing Pipelines. In Proceedings of the 34th ACM SIGPLAN Conference on Programming Language Design and Implementation (PLDI ’13). ACM, New York, NY, USA, 519–530. https://doi.org/10.1145/2491956.2462176
- Reed and de Freitas (2015) Scott Reed and Nando de Freitas. 2015. Neural Programmer-Interpreters. (Nov. 2015). https://arxiv.org/abs/1511.06279v4
- Rosin (2018) Christopher D. Rosin. 2018. Stepping Stones to Inductive Synthesis of Low-Level Looping Programs. arXiv:1811.10665 [cs] (Nov. 2018). arXiv:cs/1811.10665
- Roy et al. (2014) C. K. Roy, M. F. Zibran, and R. Koschke. 2014. The Vision of Software Clone Management: Past, Present, and Future (Keynote Paper). In 2014 Software Evolution Week - IEEE Conference on Software Maintenance, Reengineering, and Reverse Engineering (CSMR-WCRE). 18–33. https://doi.org/10.1109/CSMR-WCRE.2014.6747168
- Singh et al. (2014) Rohit Singh, Rishabh Singh, Zhilei Xu, Rebecca Krosnick, and Armando Solar-Lezama. 2014. Modular Synthesis of Sketches Using Models. In Verification, Model Checking, and Abstract Interpretation (Lecture Notes in Computer Science), Kenneth L. McMillan and Xavier Rival (Eds.). Springer Berlin Heidelberg, 395–414.
- So and Oh (2017) Sunbeom So and Hakjoo Oh. 2017. Synthesizing Imperative Programs from Examples Guided by Static Analysis. In Static Analysis (Lecture Notes in Computer Science), Francesco Ranzato (Ed.). Springer International Publishing, Freiburg, Germany, 364–381.
- Solar-Lezama (2009) Armando Solar-Lezama. 2009. The Sketching Approach to Program Synthesis. In Programming Languages and Systems (Lecture Notes in Computer Science). Springer, Berlin, Heidelberg, 4–13. https://doi.org/10.1007/978-3-642-10672-9_3
- Solar-Lezama (2013) Armando Solar-Lezama. 2013. Program sketching. International Journal on Software Tools for Technology Transfer 15, 5-6 (2013), 475–495.
- Teyton et al. (2013) C. Teyton, J. Falleri, and X. Blanc. 2013. Automatic Discovery of Function Mappings between Similar Libraries. In 2013 20th Working Conference on Reverse Engineering (WCRE). 192–201. https://doi.org/10.1109/WCRE.2013.6671294
- Wang et al. (2017) Chenglong Wang, Alvin Cheung, and Rastislav Bodik. 2017. Synthesizing Highly Expressive SQL Queries from Input-Output Examples. In Proceedings of the 38th ACM SIGPLAN Conference on Programming Language Design and Implementation (PLDI 2017). ACM, New York, NY, USA, 452–466. https://doi.org/10.1145/3062341.3062365
- Zohar and Wolf (2018) Amit Zohar and Lior Wolf. 2018. Automatic Program Synthesis of Long Programs with a Learned Garbage Collector. In Proceedings of the 32Nd International Conference on Neural Information Processing Systems (NIPS’18). Curran Associates Inc., USA, 2098–2107.
