I Introduction

Handwritten characters inherently have two modalities: image and temporal trajectory. This is because a handwritten character image is comprised of a single or multiple strokes and each stroke is originally generated as a temporal trajectory along with the pen movement. This dual-modality is essential and unique to handwritten characters. Therefore, we can expect unique and more accurate recognition methods and applications by utilizing the dual-modality of handwritten characters. This expectation emphasizes the necessity of the methodologies to convert one modality to the other.

Modality conversion from a temporal trajectory to an image is so-called inking. For multi-stroke character recognition, inking is a reasonable strategy to remove stroke-order variations. In the past, many hybrid character recognition methods (e.g., [1]) have been proposed, where two recognition engines are used for the original trajectory pattern and its “inked” image, respectively. In other methods (e.g., [2]), the local direction of the temporal trajectory is embedded into the inked image as an extra feature channel.

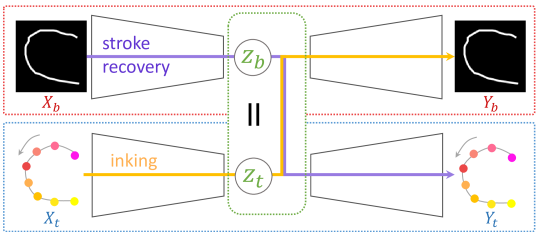

Fig. 1: Outline of the proposed Cross-VAE for modality conversion of handwritten characters. Two VAEs are prepared for two modalities, i.e., bitmap image and temporal trajectory, and co-trained so that their latent variables become the same for the same handwritten characters in different modalities. The trained Cross-VAE realizes inking and stroke recovery, as indicated by orange and purple paths, respectively.

Modality conversion from a handwritten character image to a temporal trajectory representing the stroke writing order is so-called stroke recovery [3]. Comparing to the inking method, stroke recovery is far more difficult because it is the inverse problem of inferring the lost temporal information from a handwritten image.

In this paper, we propose a Cross-Variational Autoencoder (Cross-VAE), a neural network-based modality conversion method for handwritten characters. Cross-VAE has the ability to convert a handwritten character image into its original temporal trajectory and vice versa. In other words, the Cross-VAE can realize stroke recovery as well as inking by itself. This means that the Cross-VAE can manage the dual-modality of handwritten characters.

As shown in Fig. 1, the Cross-VAE is compounded from two VAEs. Each VAE [4] is a generation model which is decomposed into two neural networks: an encoder that obtains latent variable from data and a decoder that obtains output close to from , i.e., . In general, the dimensionality of is lower than and and thus the latent variable represents fundamental information of in a compressed manner. One VAE of Cross-VAE is trained for a handwritten character image (i.e., image image ) and the other VAE is trained for a temporal writing trajectory (i.e., temporal trajectory temporal trajectory ). Note that the suffixes and indicate bitmap image and temporal trajectory, respectively.

The technical highlight of Cross-VAE is that those two VAEs are trained by considering the dual-modality of handwritten characters. Assume that the input image is generated from a temporal trajectory by inking, then we expect that their corresponding latent variables can be the same, that is, . This is because and are the same handwritten character in different modalities and thus their fundamental information should be the same. Consequently, if we can co-train two VAEs under the condition , we realize, for example, stroke recovery by the following steps: .

The main contributions of this paper are summarized as follows:

  • A cross-modal VAE is proposed for online and offline handwriting conversion. The Cross-VAE is the combination of two VAEs with different modalities with a shared latent space and a dual-modality training process.

  • A novel loss function called the space sharing loss is introduced. The space sharing loss encourages the latent variables of the VAEs to use the same latent space. The shared latent space is what allows for an input modality to be represented by both output modalities simultaneously.

  • Quantitative and qualitative analyses are performed on the proposed method. We show that the Cross-VAE was able to successfully model both online and offline handwriting as well as be used for cross-modal conversion.

Ii Related Work

Recently, there are two common approaches that have become popular which use neural networks to learn latent representations, Encoder-Decoders and Generative Adversarial Networks (GAN) [5]. Encoder-Decoders, such as an Autoencoder [6]

, compress data by encoding the inputs into a latent vector which is then uncompressed by the decoder. The Autoencoder is trained by minimizes the difference between the input and the output of the decoder. GANs take the opposite approach and use a generator, similar to an encoder, then uses a discriminator to maximize the authenticity of the generated data. Where Encoder-Decoders learn the latent representations directly, GANs learn to construct data from random latent representations.

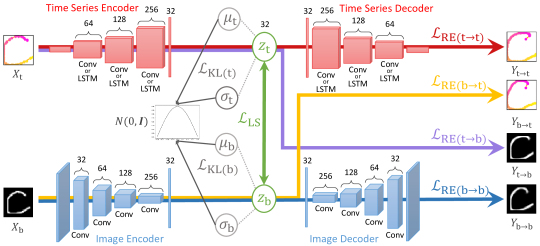

Fig. 2: Details of the proposed Cross-VAE. is a time series input, is an image input. The illustrations of the time series, , , and , are colored from pink to yellow according to their sequence order. is the distribution loss, is the reconstruction loss, and is the space sharing loss. and are the intra-modal outputs and and are the cross-modal outputs.

As for cross-modal generation applications, X-Shaped Generative Adversarial Cross-Modal Networks (X-GACMN) [7] creates a shared space for text and images by crossing GANs. Peng et al. [8] also use GANs for text and image entanglement, however, they use weight sharing constraints. Furthermore, a Cross-modal VAE was used by Spurr et al. [9]

for hand pose estimation. However, their model only permits multiple pairs of encoders and decoders to share the latent space. Our method trains the VAEs to intertwine with each other and encourages them to share the same latent space. Multi-modal and cross-modal VAEs were also used in

[10, 11]

. Also, image-to-image translation networks can be seen as a modal conversion. Some examples include CycleGAN

[12], StarGAN [13], and UNsupervised Image-to-image Translation (UNIT) [14] networks.

For offline and online handwriting conversion, it has traditionally been done using classical feature-based methods [15] but there has been some recent work using neural networks. Bhunia et al. [16] used a CNN and RNN-based Encoder-Decoder network for handwriting trajectory recovery. Attempts were also made using neural networks to identify graph features [17] and for sequential stroke prediction using regression CNNs [18].

Iii Cross-modal Variational Autoencoder (Cross-VAE)

VAEs [4] are Autoencoders which use a variational Bayesian approach to learn the latent representation. VAEs have been used to generate time series data [19], including speech synthesis [20] and language generation [21]. They have also been used for image data [22] and data augmentation [23, 24].

Iii-a Variational Autoencoder (VAE)

A VAE [4] consists of an encoder and a decoder. Given an input , the encoder estimates the posterior distribution of a latent variable .111For simplicity, we omit the notation with regard to the number of training data. In the actual calculation, all losses described below are summed over the batch size. The decoder, in turn, generates an output based on a latent variable sampled from the estimated posterior distribution. The VAE is trained end-to-end using a combination of the reconstruction loss and the distribution loss , or:

(1)

The reconstruction loss is the cross-entropy between the input and the output of the decoder. It is determined by:

(2)

assuming that

follows the multivariate Bernoulli distribution. In Eq. (

2), and are the -th element of and , respectively.

The difference between a traditional Autoencoder or Encoder-Decoder network is that the VAE models the latent space using a Gaussian model and uses a variational lower bound to infer the posterior distribution of a latent variable. This is done by including a loss between the latent variables and the unit Gaussian distribution. Specifically, the distribution loss

is based on the Kullback-Leibler (KL) divergence, or:

(3)

assuming that the prior distribution of the latent variable follows the multivariate Gaussian distribution of . In Eq. (3), and and

are the mean and variance of the posterior distribution of

.

Iii-B Cross-VAE

We propose the use of a Cross-modal VAE (Cross-VAE) to be used to perform online and offline handwritten character conversion, as illustrated in Fig. 2. The network in red is a VAE for online handwritten characters and the network in blue is for offline handwritten characters. The Cross-VAE is constructed from the joining of two different single modality VAEs into one multi-modal VAE with a shared cross-modal latent space. Furthermore, we use a cross-modal loss function to ensure that the latent space is shared between the modalities.

During training, the two modalities are trained simultaneously. A time series input and an image input are entered into the encoders and four outputs are extracted from the decoders. For each input and , there are respective time series outputs, and , and respective image outputs and . The outputs and are intra-modal and the outputs and are cross-modal.

The loss function of the Cross-VAE is:

(4)

where is the distribution loss and is the reconstruction loss as described in Section III-A. The third loss, , is the proposed space sharing loss. Due to training with the two inputs, and , two latent representations are created and , respectively. Therefore, the traditional VAE losses, and , need to be modified for Cross-VAE.

Due to the two latent representations, the total distribution loss is calculated by combining the individual distribution losses, and , or:

(5)

where and are weights. The distribution loss of the individual input modalities is calculated using Eq. 3.

(a) Online Handwriting
(b) Offline Handwriting
Fig. 3: Examples of images created from time series in the experiments. In (a), pink indicates the beginning of the sequence.
(a) Result using LSTM layers for the online encoder and decoder
(b) Result using convolutional layers for the online encoder and decoder
Fig. 4: Result of the Cross-VAE. is the original image and is the original time series. and are outputs of the Cross-VAE which correspond to the same modalities and and are between different modalities. The illustrations of the time series, , , and are colored from pink to yellow according to their sequence order.

Next, the reconstruction loss takes into account the reconstruction of and , as well as the conversion of and . Thus:

(6)

where and are the losses calculated by Eq. (2) to input and and are to input . Also, , , , are weight of each respective loss.

Iii-C Space Sharing Loss

While the Cross-VAE is trained using the combination of the reconstruction and distribution losses for the different modalities, we propose the use of a space sharing loss function to encourage the latent variable to share the same latent space. The space sharing loss gives the square error of the latent variable obtained from the online character VAE and the latent variable of the offline character VAE. Specifically:

(7)

where is a weight and is the Euclidean norm.

Iv Online and Offline Conversion of Handwritten Characters using Cross-VAE

Iv-a Dataset

For the experiment, we used handwritten uppercase characters from the Unipen online handwritten character dataset [25]. The online handwritten characters consist of time series made of coordinates. The online characters were normalized to fit within a square bound by and . In order to use a second modality, the online characters were rendered into images. The images were pixels with 0 as the background and 1 as the foreground. Examples of the image renderings can be found in Fig. 3.

Iv-B Architecture Details

The image-based encoder and decoder were constructed from a Convolutional Neural Network (CNN) with a similar structure as a ConvDeconv network

[26]. The image encoder consists of four

convolutional layers with Rectified Linear Unit (ReLU) activations and corresponding

maxpooling layers. The number of nodes are detailed in Fig. 2. The decoder is a reflection of the encoder which uses unpooling and deconvolutions. Between the convolutional layers, there exist three fully-connected layers. One belonging to each, the encoder and decoder, and one for the latent variable.

For the time series-based encoder and decoder, there were two architectures chosen. The first is a CNN-based approach with 1D convolutions and no pooling. The second is a Recurrent Neural Network (RNN) approach using Long Short Term Memory (LSTM)

[27] layers. Both the CNN-based approach and the LSTM-based approach have three fully-connected layers, one for the encoder, one for the latent variable, and one for the decoder. The two layer types were chosen to compare the difference between the LSTM layers which were designed specifically for time series and convolutional layers which are traditionally used for images.

The Cross-VAE was optimized with RMSProp

[28]

for 200 epochs. The weighting factors of each loss function were determined through experiments. Specifically, they are

, , , , , , . The number of dimensions of the latent variable was 32 in all experiments.

Iv-C Conversion Result

The results of the Cross-VAE are shown in Fig. 4. Fig. 4 (a) is from using LSTM layers for the online encoder and decoder and Fig. 4 (b) is from using convolutional layers in the online encoder and decoder. The results and are the images generated by the inputs and , respectively. The results and are renderings of the time series colored from pink to yellow in chronological order. Notably, the output is the trajectory prediction based on the image input .

By examining Fig. 4, it can be seen that the mutual conversion of the modalities was accurately performed. This shows that the shared latent space learned by the simultaneous encoding of and is able to accurately represent both image data and time series data. In addition, not only was the stroke trajectory inferred, the results show that the shared latent space was able to encode temporal information about what is expected from the characters. For example, the “B” in Fig. 4 (a) is missing information, yet the time series results and were able to restore the character. The results from Fig. 4 qualitatively confirm that the Cross-VAE is able to do mutual modality conversion between the online and offline handwritten characters.

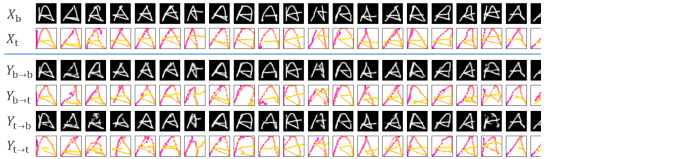

Fig. 5: Multiple example results for the letter “A” using convolutional layers for the online encoder and decoder

The letter “A” is another character that would normally be difficult to recover lost time series information due to having multiple variations. In some cases, the left-most stroke is drawn downwards and in some, it is drawn upwards depending on the author. Fig. 5 are examples of many different “A”s generated by the Cross-VAE. The figure shows that the Cross-VAE was able to correctly estimate most of the strokes of the “A”s. In particular, the results from was able to not only correctly predict the stroke order but also was able to replicate the stroke velocity. Note the stroke that crosses the center of the “A.” This further enforces the success of the proposed Cross-VAE.

Iv-D Quantitative Evaluation of Conversion

In order to evaluate the method quantitatively, we constructed the following three measures to determine the quality of the generated characters:

Psnr

Peak signal-to-noise ratio (PSNR) calculates the similarity between the input images and the generated output images. PSNR is the ratio between the maximum luminance MAX and the amount of noise, or:

(8)

where MSE is the mean squared error between and . PSNR is measured in decibels (dB) with a larger value being better.

Ssim

Structural Similarity (SSIM) predicts the perceived difference between images. Similar to PSNR, this acts as a similarity measure between and . The equation for SSIM is:

(9)

where and are stabilizing constants set to and . is the average luminance, is the variance, and is the covariance. SSIM is a value from 0 to 1 with a larger value meaning more similar.

Dtw

Dynamic time warping (DTW) was used as an evaluation for the time series generation as a method of measuring the stroke trajectory estimation. DTW is a robust distance measure between time series which uses dynamic programming to optimally match sequence elements. In this case, we use the average DTW-distance between the input time series and the cross-modality output . Smaller the DTW-distances between and means that the patterns are more similar and the Cross-VAE was able to replicate the original input time series. Thus, a smaller value is better.

PSNR SSIM DTW
Cross-VAE (LSTM) 15.26 0.617 0.0411
Cross-VAE (Conv) 15.99 0.707 0.0361
Class Average 9.197 0.159 0.206
TABLE I: Cross-Conversion Evaluations

The results of quantitative evaluations are shown in Table I. In the table, we evaluate the difference between using LSTM layers and convolutional layers in the time series encoder and decoder. The results are compared to the images and time series of the average pattern in each respective class. PSNR and SSIM are used for the cross-modal conversion from to and DTW is used for the evaluation of the cross-modal conversion from to .

For online to offline handwritten character conversion, or inking, the Cross-VAE did much better than the class average. In addition, the time series encoder and decoder with convolutional layers performed better than the LSTM. This shows that, despite being time series data, the convolutional layers were able to encode the information into the latent space better than the LSTM layers.

Similarly, for the offline to online handwritten character conversion, the Cross-VAE performed better than the average and the convolutional layer based time series encoder and decoder did better in reconstructing the time series. The DTW results specifically demonstrate that the Cross-VAE is able to predict the trajectories of the strokes. This information is normally lost during the rendering, however, the Cross-VAE is able to infer the stroke trajectory from the shared latent space.

Both evaluations found that using convolutional layers was better than using LSTM layers. This is justified for this data target because handwritten characters are spatial coordinates where the relevance of every element depends on its neighbors. Structured data such as this is well suited to convolutional layers, whereas the advantages of maintaining long-term dependencies in LSTMs is lost. We believe that due to this, the convolutional layer based encoder and decoder for the time series modality produces better results.

V Conclusion

In this paper, we proposed a VAE for mutual modality conversion called a Cross-VAE. The Cross-VAE is made from the merging of two VAEs of different modalities by enforcing a shared latent space. To train the Cross-VAE, we propose using the combination of reconstruction loss and distribution loss from the original VAE and an additional space sharing loss. The space sharing loss encourages the different modalities of the Cross-VAE to use the same latent space embedding. In the experiments, we used online and offline handwritten characters to verify the ability of the Cross-VAE. The results show that the mutual conversion was possible and that the proposed Cross-VAE could accurately reconstruct the images and time series.

In the future, we will continue to improve the model and apply it to other applications. The Cross-VAE can be used for other types of data and tackle other tasks. Furthermore, this work opens the way for embedding different modalities into one shared latent space which can be used as a tool for representing those modalities in one space.

Acknowledgement

This work was supported by JSPS KAKENHI Grant Number JP17H06100.
